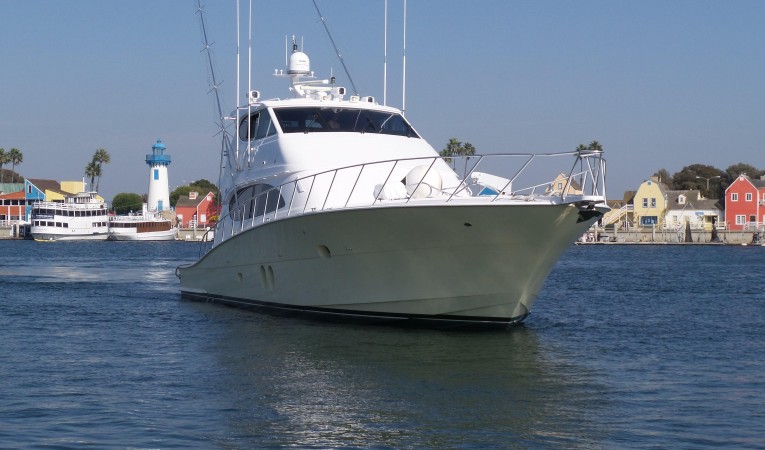

77' Hatteras 2010 SAFE PASSAGE

Palm Beach, FL, US

Previously Asking $3,325,000

Off Market

Description

REDUCED $125,000 - For Allowance to Convert Fwd Twin S/R to VIP Queen

Just received a Quote to Install a FWD QUEEN VIP S/RM in place of Twins

(See the VIP Alternative Layout in Last Page of Pictures)

(LOWEST  (1,060 Total) & BEST MAINTAINED 2010 77' CONV.

2 - MTU 16V2000's: 4,800 Total HP (1,000 Hr Service in 6/2016)

"SAFE PASSAGE" is in BRISTOL CONDITION & All the Options

Custom "Palm Beach Yellow" Hull color really sets her apart.

Twin 27 kW Onan Gens + Key power Stabilization, Plus...

RTI A/V Sys + State-of-the-art Navigation w/infrared Camera Views

Yacht Overview


  • Yacht Details 77' Hatteras 2010
  • Location Palm Beach, FL, US
  • Engines
  • Beam 22'
  • Draft 5' 3''
  • Staterooms 5



Loading Broker Contact...


Specifications

  • Cruising Speed: 23 kn
  • Beam: 22'
  • Hull Material: Fiberglass
  • Max Draft: 5' 3''
  • Fuel Tank: 1 x 3,000 gal
  • Fresh Water: 1 x 380 gal
  • Double Berths: 2
  • Cabins: 5
  • Heads: 4
  • Dry Weight: 175,000 lb

Hull And Deck

Hull and Deck

The hull and deck of the Hatteras 77 Convertible are striking from any point of view.  Her construction is second to none and built to handle the rigors from even the most demanding of angler and seas.

Hull Construction:

  • Solid fiberglass hull bottom from waterline down, resin infused, exterior gelcoat with blister resistant vinylester resin
  • Hull sides cored of PVC foam, resin infused
  • Polyester/polyurethane exterior paint with custom yellow hull sides, white topsides, and Jade green boot stripe. Copper based anti-fouling paint on hull bottom.
  • Fiberglass stringers with steel laminated at engine mounting points.
  • Engine room bulkheads of resin infused composite construction, PVC cored, fiberglass laminate

Deck and Superstructure Construction:

  • Deck and superstructure of resin infused fiberglass, PVC foam core
  • Non-skid surface on deck
  • White polyurethane paint finish
  • Integral fiberglass bow pulpit, integrated stainless steel anchor roller

Deck Equipment and Hardware:

  • Brower Systems WC1600 hydraulic davit mounted on fore deck (new 2012), stainless steel cradle for dinghy.
  • Maxwell 2500lb. windlass, deck mounted foot switches, remote at helm.
  • 132lb. (60kg) stainless steel Ultra plow style anchor with chain.
  • Polished anodized aluminum rails on bow, side decks, and flybridge mounted with aluminum backing plates.
  • Bow rail customized with gates port and starboard, to allow riggers to lower fully
  • Radar mast on bridge roof with handrails
  • Rupp Tournament 48-50 quad spreaders, deluxe Hydrorigger multi-action power riggers with hydro locks.
  • Switlik MD-3 6 person life raft in canister, deck mounted on stainless steel cradle
  • Stainless steel mooring cleats (8)

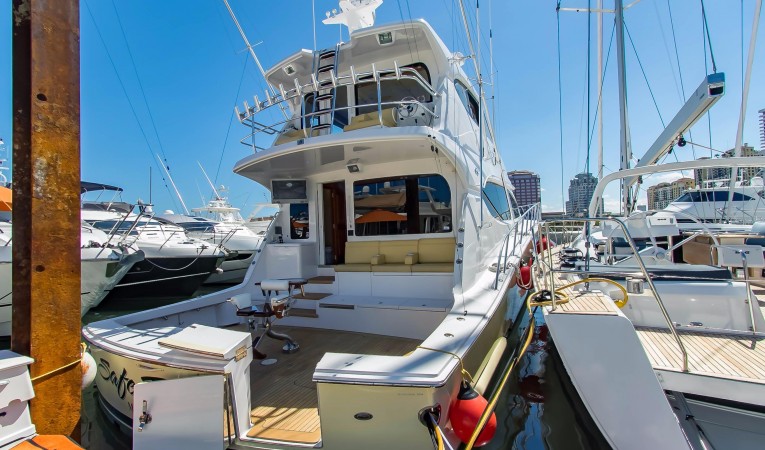

Cockpit

Cockpit

The cockpit of the Hatteras 77 is an angler's dream. She offers 192 sg/ft of working space with built in fish boxes, live wells, and ample storage. There is mezzanine style seating for those wishing to view the days activities.

  • 192 square foot working space with an additional 25 square feet of mezzanine seating space
  • Custom teak cockpit sole installed in 2012
  • (2) 65" fish boxes with macerators, hatches flush in deck, with gas hinges
  • Storage in steps to deckhouse with chillbox in top step
  • Port mezzanine bait freezer, 10 cubic feet
  • (3) 20 gallon storage tubs, lower level mezzanine
  • Cockpit transom fishbox with recirculating live well
  • Sea water and fresh water washdown outlets with quick connects
  • Aluminum mounting plate for fighting chair (not included)
  • Shore water connection with pressure reducing valves and quick connects, port and starboard.
  • Seating with cushions across upper mezzanine, hinged for access to mechanical compartment
  • Port side vertical storage with MTU controls, start/stop buttons, thruster control.
  • Pompanette wing board rod holders (6), stainless steel flush mount rod holders (4)
  • Transom door with lifting combing gate
  • Fiberglass cockpit boarding step box with storage
  • Pneumatic sliding door to salon
  • DC overhead light integrated into flybridge overhang
  • Cockpit combing lights
  • Powder coated grab rails on cabin sides

Enclosed Bridge

Enclosed Bridge

The enclosed bridge is well thought out and is an ideal combination of helm area and sky lounge. Forward, there is a centerline helm seat with a complete set of engine controls and the latest in navigational electronics. To both port and starboard are forward facing double guest riding seats.

The starboard aft section of the lounge area features an raised L-shaped settee for additional guest seating and navigational desk forward. Across to port is a dry bar with cabinet storage and stairwell access to the lower level. The pneumatic door aft leads to a mezzanine style deck with aft facing guest seating and wing helm stations both port and starboard.

Helm features:

  • Centerline Pompanette helm seat, pedestal style, adjustable
  • Forward facing port and starboard riding seats, leather upholstery, drawer storage underneath
  • Cherry cabinetry with raised panel doors and high gloss finish
  • Frameless windows with three piece windshield all of safety glass
  • Washer/wipers, intermittent with controls, windshield defogger
  • Electronic engine controls, single lever throttles, engine synchronizer, electric trolling valve controls, emergency backup, hydraulic steering (Power assisted)
  • Custom navigational instrumentation package, Marine Communications (VHF, SSB, weather)
  • American Bow Thruster thruster controls (Bow & Stern), Windlass Controls
  • RTI electronic and entertainment system controller

Skylounge Features:

  • Fully enclosed bridge with electric window aft, port and starboard electric windows, pneumatic sliding door, overhead hatches, and stainless overhead handrails.
  • L-shaped settee to starboard with built in storage
  • Built in navigator's desk forward
  • Dry bar to port with stone countertop and built in U-line drawer style refrigeration.
  • Cherry cabinetry with high gloss finish
  • Sony flatscreen HDTV
  • Carpeting (new), padded headliner, wood valances
  • Smoke detector, CO2 detectors
  • Air conditioned
  • AC and DC lighting

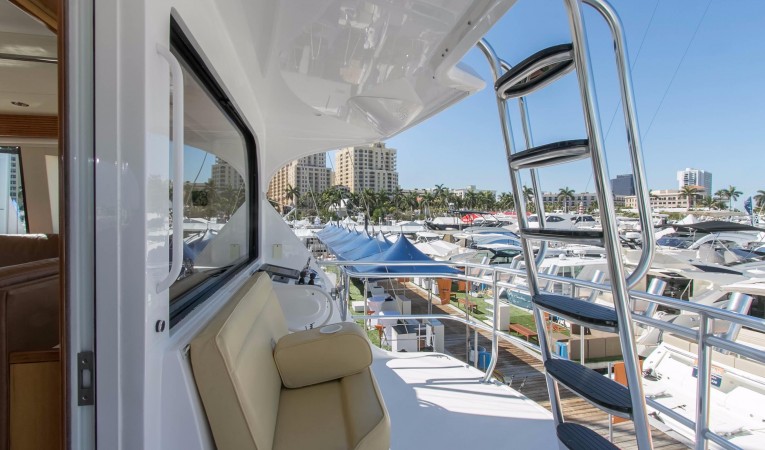

Bridge Deck Features:

  • Port and starboard wing stations, pod style controls with start/stop switches, electronic throttle controls, thruster controls, hydraulic steering, and tachometers, covers
  • Aft facing seating with cushions
  • Polished anodized aluminum rails and stanchions with integrated rod holders
  • Polished anodized aluminum ladder with synthetic non-slip treads

Navigation And Electronics

Navigation and Electronics
  • KEP Marine Pilot Series LCD 19" display (7), additional outside master stateroom (1), additional at starboard bridge deck wing helm
  • Raymarine GPM400 processor module (4)
  • Raymarine G-Series Command Center keyboard with wireless upgrade
  • Northstar 6.4" overhead display
  • Garmin 3205 GPS map
  • Simrad WR-20 remote command system
  • Raymarine 12kW Super HD digital radar 6" open array
  • Raymarine 4kW Super HD digital radar 4" open array
  • Raymarine DSM400 3kW digital sounder module
  • Raymarine DSM300 digital transducer
  • Raymarine R299 hull transducer
  • Furuno RD30 depth (4)
  • Furuno LH 3010 intercom speakers (4)
  • Simrad AP28 autopilot
  • Maple Systems/Weintek HMI programmer
  • Raystar 125 GPS sensor
  • Raymarine SeaTalk Backbone kit with wireless base station
  • Carlisle & Finch searchlight and night vision (3)
  • Sirius SR100 weather
  • Ultrasonic weather station
  • Raymarine AIS250 receiver module
  • ICom M604 VHF transceiver (3)
  • Raymarine Command Mic III (3)
  • ICom M802 single sideband radio
  • Dyna Plate for SSB
  • CB radio
  • Newmar hailer, 30w (2)
  • Comrod AV/2 VHF 23' antenna (3)
  • Digital 4' cell antenna (2)
  • CB antenna
  • Cell repeater
  • Panasonic phone system with phones (8)
  • KVH M7 TracVision
  • KVH 252 TracPhone system
  • Newmar horns (2)
  • Newmar power converter
  • Waterproof cameras (2)
  • Raymarine cameras (9)
  • Quad Switcher for docking cameras
  • Paradox Marine Magellan wireless security system
  • BarnaClean electronic anti-fouling system
  • Murphy electronic engine display monitor
  • RTI entertainment control system throughout boat with controls for electric blinds

Entertainment System

Entertainment System

The entertainment control system on this boat has been updated to latest in marine A/V automation from RTI systems.  The centralized system is accessible from anywhere in the boat via remote and includes remote control access to the window blinds.

  • RTI Entertainment controller system throughout entire boat including controls for window shades.
  • RTI Remote controls in salon, flybridge, and each of the staterooms.
  • Nuvo NV-72 SiR AM/FM tuner, Sirius ready
  • Zektor Audio Matrix switch
  • Furman linear power controller
  • Niles multi room power amplifier
  • Marantz network home theater A/V receiver
  • Marantz universal disc player with networking
  • KVF M7 TracVision satellite dome (No receivers)
  • Samsung 65" LCD HDTV -main salon
  • Sony 42" LCD TV - dining area
  • Sony 42" LCD TV - flybridge
  • Samsung 65" LCD HTV - Master Stateroom
  • Sony 42" LCD TV - VIP Stateroom
  • 20" LCD TV in each of the single cabins
  • 32" LCD TV in cockpit

Main Salon

Main Salon

The main salon of the Hatteras 77 is open and inviting. There is space for all aboard to enjoy the ride while running out to your favorite spot or just to relax in the air conditioned salon after making a big catch.

  • Pneumatic sliding door from cockpit
  • Leather sofa and loveseat with rod storage underneath
  • Cherry woodwork and cabinetry with high gloss finish
  • Day head to port of cockpit door with electric, freshwater flush toilet, vanity with sink
  • Amtico vinyl-strip flooring
  • Samsung 65" LCD HTV with RTI controls and surround sound system
  • Fluted wood valances with silhouette blinds (RTI controlled)
  • Fixed frameless windows with safety glass
  • Custom coffee table
  • Custom padded headliner
  • Air conditioned with SMX controller
  • AC and DC lighting
  • AC dimmable lighting
  • DC lighting

Galley & Dinette

Galley & Dinette

The Galley and dinette located in the forward most section of the main salon. The Galley is to port and features a large wrap around countertop with plenty of surface area for food preparation and serving. There is plenty of cabinet and storage throughout both below and above the countertops. The appliances are all top of the line with stainless steel finishes.

Across to starboard is the galley dinette area with seating enough for 6 adults comfortably. The dinette table is of granite to compliment the galley countertops. There is drawer storage underneath each of the seats. Forward of the dinette is a walk in pantry with plenty of storage for dry and paper goods.

Galley Features:

  • KitchenAid 4-burner ceramic cooktop
  • Whirlpool stainless steel oven with outside venting
  • Sub-Zero under counter refrigerator/freezers (3)
  • Granite countertops with matching backsplashes
  • Center island with bar top counter and two bar stools
  • Large stainless steel single basin sink - under-counter mounted
  • Cherry cabinetry with raised panels and high gloss finish
  • Amtico vinyl strip flooring with teak and holly style finish

Dinette Features:

  • Seating for 6 adults, with leather upholstery
  • Granite table top
  • Drawer storage under seating
  • Cherry woodwork with high gloss finish
  • Amtico Vinyl strip flooring with teak and holly style finish

Master Stateroom

Master Stateroom

The master stateroom is located mid-ship and is carried across the full beam of the vessel. For maximum comfort, there is a centerline king sized berth with full walk around access. The cabinetry is made of cherry with a high gloss finish and with ample storage throughout. Other features include a walk in closet, sectional sofa, en-suite head, and entertainment system.

Stateroom Features:

  • King-sized centerline berth with upholstered headboard and drawer storage underneath
  • Hanging lockers, cedar lined
  • Built in dresser with drawer storage
  • Nightstands with built in with drawer storage (2)
  • Loveseat sofa seating
  • LCD HDTV and entertainment system
  • Air conditioning controls
  • AC and DC lighting, dimmer switches, low voltage courtesy lighting
  • New carpeting
  • Venting port windows both port and starboard

En-suite Head:

  • Stone countertop and backsplash
  • Porcelain single basin sink, under counter mounted
  • Headhunter freshwater flush electric toilet
  • Amtico vinyl strip flooring
  • Cherry cabinetry under counters, overhead cabinetry with mirrored doors
  • Separate stall shower with single glass door, molded in seat, tile flooring, and automatic sump pump
  • Venting port window
  • Towel holders
  • AC and DC lighting
  • Holding tank indicator light at 3/4 full

Laundry Room:

There is a laundry room located at the entrance to the master stateroom. Inside you will find a Whirlpool Duet series stackable washer and dryer. There is built in drawer storage and hanging bar.

Vip Stateroom

VIP Stateroom

The VIP Stateroom is located forward of the master on the port side of the vessel.  This is a nicely appointed guestroom. It features a walk around queen sized berth, hanging locker, built in dresser, and en-suite head.

Stateroom Features:

  • Queen-sized walkaround berth with upholstered headboard and drawer storage underneath
  • Hanging locker, cedar lined
  • Built in dresser with drawer storage
  • Nightstands with built in with drawer storage
  • LCD HDTV and entertainment system
  • Air conditioning controls
  • AC and DC lighting, dimmer switches, low voltage courtesy lighting
  • Venting port window
  • New carpeting

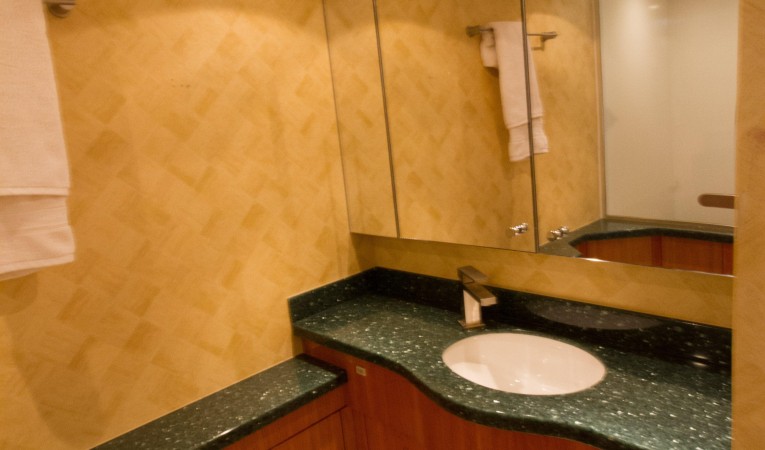

En-suite Head:

  • Stone countertop and backsplash
  • Porcelain single basin sink, under counter mounted
  • Headhunter freshwater flush electric toilet
  • Amtico vinyl strip flooring
  • Cherry cabinetry under counters, overhead cabinetry with mirrored doors
  • Separate stall shower with single glass door, molded in seat, tile flooring, and automatic sump pump
  • Towel holders
  • AC and DC lighting
  • Holding tank indicator light at 3/4 full

Single Guest Staterooms

Single Guest Staterooms

There are three additional guest staterooms on board. In the most forward section there are two identical single cabins both port and starboard. There is a third single cabin located just aft to starboard. The single guest cabins share a separate head.

Starboard Stateroom Features:

  • Single berths with drawer storage underneath
  • Overhead storage cabinets
  • Hanging locker, cedar lined
  • Nightstand with drawer storage
  • AC and DC lighting, dimming switches
  • Entertainment system with TV
  • Air conditioning
  • New carpeting

Bow Stateroom Features:

  • Single berths with drawer storage underneath
  • Overhead storage cabinets
  • AC and DC lighting, dimming switches
  • Air conditioning
  • New carpeting

Guest Head:

  • Stone countertop and backsplash with single basin sink
  • Headhunter freshwater flush electric toilet
  • Amtico vinyl strip flooring
  • Cherry cabinetry under counters, overhead cabinetry with mirrored doors
  • Separate stall shower with automatic sump pump
  • Holding tank indicator light at 3/4 full

Mechanical

Mechanical

The Mechanical room is located under the salon and can be accessed through the hatch in the cockpit or through the workroom via the master stateroom. The space is painted with white polyurethane throughout and is heavily insulated for sound and vibration. All areas of the space are easily accessible. Forward of the mechanical room is an additional workroom with breaker panels, battery switches, air conditioning chillers, and tool box. The door between the work room and master stateroom is heavily insulated to insure the owner is undisturbed.

  • Twin MTU 16V2000 diesel, freshwater cooled main engines with 2400hp each.  Electronically controlled marine gears, neutral interlocks, exhaust silencers, hour meters, duplex fuel filters with water separators and bypass manifolds, and sea strainers.
  • Electric fuel priming pumps for main engines.
  • Monitoring consoles for main engines with gauges and start/stop switches.
  • High strength alloy 22, 4-inch propeller shafts
  • Dripless shaft seals with spares
  • Manganese Bronze struts
  • NiBrAl 6-blade high performance propellers
  • Heavy duty engine couplings
  • Stainless steel rudders
  • Dripless rudder seals
  • Stainless steel steering tie bar (1 inch) with pivoting, self aligning ball joints at all cylinder and tie bar connections.
  • Stainless steel trim tabs
  • (2) Onan 27.5kW generators with shock mounts, sound enclosures, fuel filters, water separators, and sea strainers.
  • Pressure and temperature forced air induction system for engine combustion air, fans ducted from cockpit (single fan reversible for flow through ventilation)
  • 110volt AC reversible oil changing system for engines, gearboxes, and generators with Hatteras quick connections.
  • Keypower hydraulic stabilizers with 9ft/sq fins - Installed 2012
  • Bow thruster back up pump for redundancy
  • DC exhaust blower
  • FM200 fixed fire extinguisher system for engine room, automatic and manual controls, audible and visual discharge signals
  • Portable DryChem fire extinguishers, UL approved
  • Electric fuel transfer system with (3) pumps for backup capability, filtration, and dry tank protection
  • Pressurized water manifold with centralized shutoff valves for sinks and showers
  • 230volt AC fresh water pump
  • 50 gallon electric water heater, 230volt with winterizing by pass valves.
  • FCI Watermaker
  • Dometic Ice King Icemaker
  • Freshwater fill hoses for Mains and generators
  • Sea water pressure system with AC pump
  • Pickup Sea Chests with isolated discharges
  • 24volt DC bilge and sump pumps. (7) 3700gph, (2) 2000gph
  • Auxiliary emergency bilge pumps. 300gpm
  • AC compresses air system with air line and regulator
  • Air conditioning compressors and pumps
  • Bronze ball valves, chrome plated.  through bolted in solid fiberglass on all underwater through hull fittings, electrically bonded
  • Rubber deck mat between engines
  • Insulation in deck
  • Welded and polishes stainless steel hand rails
  • Polyurethane paint in engine room and bilges
  • UL Listed fiberglass fuel tanks. Constructed of fire resistant fiberglass resin, bronze fittings, coated with fire retardant paint.
  • USCG type A1 UL marine listed fuel lines
  • Fiberglass water tanks, bronze fittings and polyethylene water lines
  • Fiberglass holding tanks with bronze fittings, 24volt DC sewage pump, plumbed for dockside pumpout. 3/4 full display and alarm as part of systems monitor.
  • AC fluorescent lighting
  • DC lighting

Electrical

Electrical
  • (2) 27.5kW Onan generators, shock mounts, sound enclosures, and fuel and water separators
  • (2) banks, 24volt, heavy duty 12volt marine batteries mounted in fire retardant fiberglass boxes
  • Gel/lead acid compatible 240volt automatic/programmable battery charger 50/60hz
  • (2) 240volt, 100amp transformer connected retractable shore power cords with overcurrent protection and wireless remote for cockpit.
  • Automatic battery paralleling system with switch at control console
  • AC switching panel with voltage source selector switches, volt meter, ammeter, frequency meters, twin generator start/stop controls, interlock selector breakers and voltage boost switches.
  • DC electronics panel with magnetic circuit breakers (flybridge) and AC and DC distribution panels with magnetic circuit breakers.
  • Ground fault protected AC receptacles and lighting circuits
  • AC and DC light fixtures
  • AC dimmable lighting
  • AC duplex outlets with ground fault protection
  • Battery control panels with fuses and isolation switches.
  • Chilled water air conditioning with revers cycle heat, A/C compressors and individual SMX controls
  • Paradox Marine Magellan ships security system with ajar sensors on all exterior opening ports, doors and hatches
  • Docking lights, forward and aft
  • Navigation lights
  • Tricolor LED on the enclosed bridge overhang and in cockpit.
  • (2) solar panels mounted on flybridge roof
  • Ventilation fans in attic spaces

Additional Information

Additional Information

"Safe Passage" just had its annual bottom job in December and is turn-key ready. She is in Riviera Beach, Florida, with an experienced Hatteras captain on board. Make sure to view her walkthrough video.

Disclaimer

Denison Yacht Sales offers the details of this yacht in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of this boat for sale. A yacht buyer should instruct his yacht broker, or his boat surveyors, to investigate such details as the buyer desires validated. This yacht for sale is offered subject to prior sale, price change, or withdrawal without notice.
