CONSTRUCTION

Hull: Infused polyester/glassfibre.
Decoration: Decorative stripes on the hull.
Gelcoat: NPG Gelcoat with first of cloth impregnated with vynilester resin forming an optimum barrier against osmosis.
Structure: Inner moulded hull bottom, structural framing lamina-ted to the hull.
Deck: Sandwich with injected core
Rudder: Semi-elliptical shape, filled with closed-cell epoxy foam.
Rudder stock: Solid stainless steel.
Non-slip deck surface: Diamond point non skid profile on deck.

DECK

DECK FITTINGS

Shroud chainplates: Outboard deck side shroud chainplates
Mooring cleats: 6 aluminum
Mooring line protection: 6 stainless steel plates, on hull sheerline
Fuel deck fillers: 1
Water deck fillers: 1
Mainsheet: Mainsheet on cockpit bottom
Self tacking genoa track recessed on coachroof
Vang: With quadruple-purchase tackle and cascade
Deck organizers: 4-sheave deck organizer for halyard, sheet, and reef line returns : 1 portside and 1 at starbord

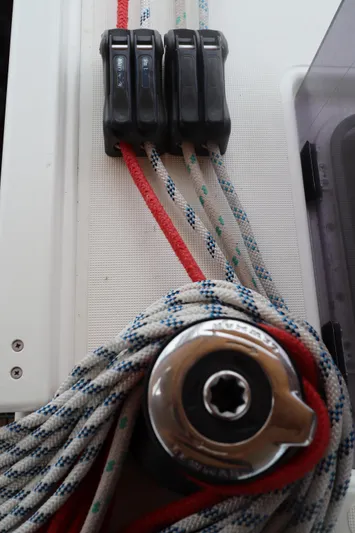

2 winches on the roof to trim self tacking jib, mainsail sheet and halyard
Cleats: 2x4 jamcleats port side of the companionway
Furler line jamcleats: 1 at aft end of sidedeck
Hatch covers: Polyester hide halyard forward of companionway

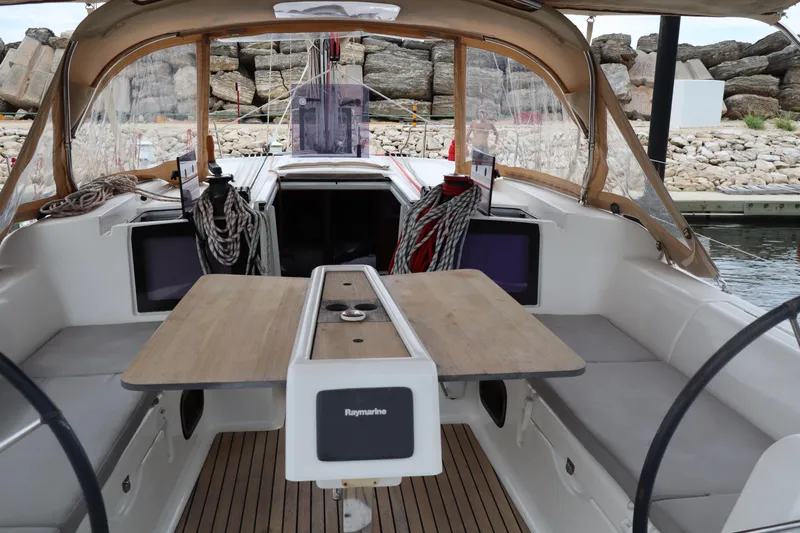

COCKPIT

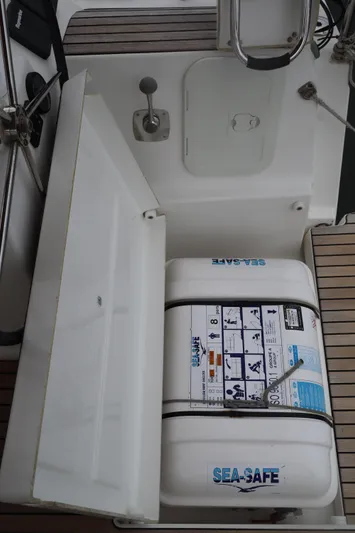

Lockers: 1 large side locker to stbd with lid with flock

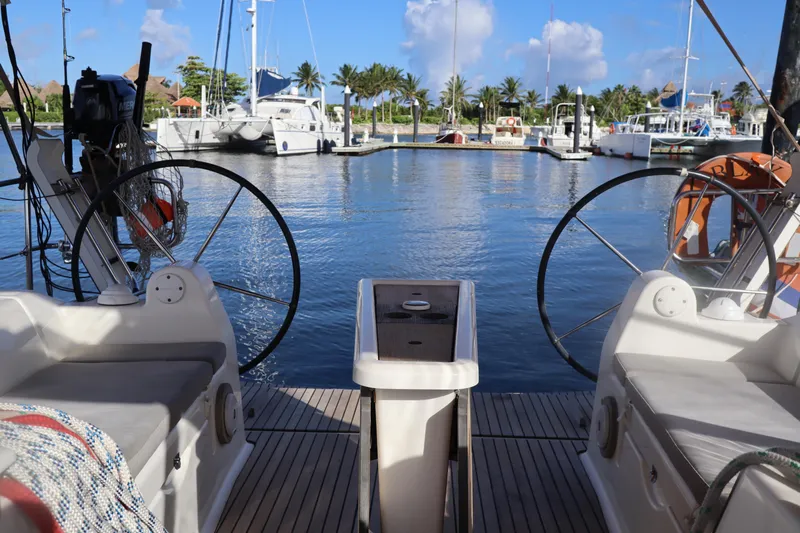

Helm: Twin helm position with wheels
Helm console: Polyester POD and aluminium columns.

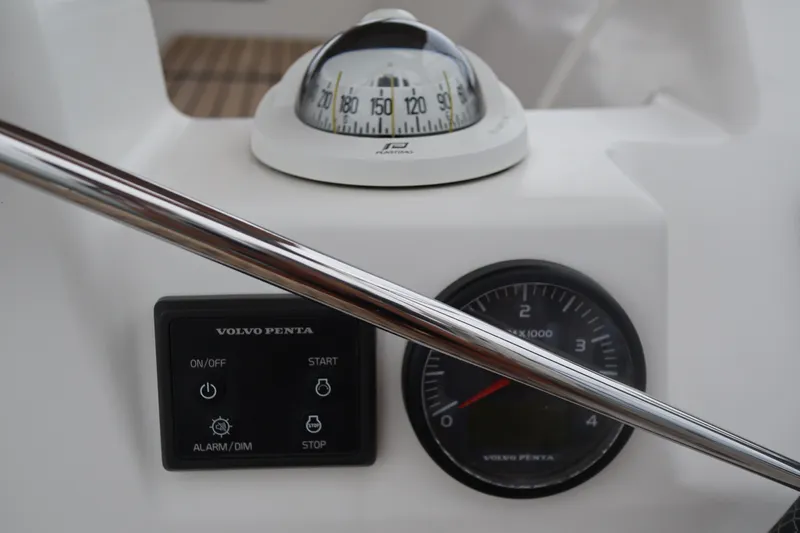

Engine control: “Engine controls and control panel on side of cockpit”
Compasses: 1 compass on port helm position
Instrumentation: On starboard helm

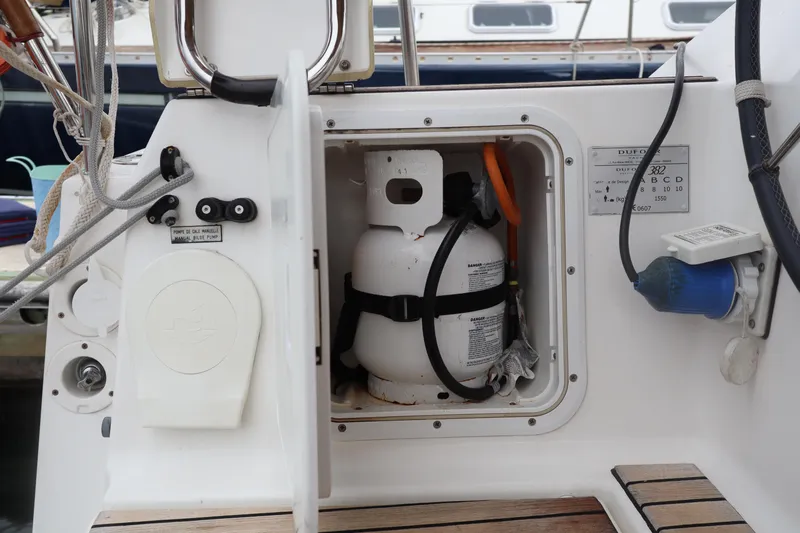

Gas locker: Sealed locker aft, to port
BIB locker: Locker in transom.
Shore supply: Portside
Bathing ladder: Foldaway stainless steel bathing ladder.
Cockpit floor: Non-slip polyester cockpit floor.
Emergency tiller: Head of rudder stock beneath helmsman’s floor for fitting the emergency tiller.

RIGGING & SAILS

Mast: Anodized aluminium with 2 levels of swept spreaders
Mast stepping: On deck
Lights: 3-colour masthead light + anchor light + 2-colour steaming light
Topping lift: Boom topping lift cleat
Boom: Anodized aluminium fitted with 2 continuous reefers.
Furler: Genoa roller furler.
Standing rigging: Continuous in stainless single-strand cable, chrome-plated bronze rigging screws, comprising: forestay, inter. and lower shrouds.
Backstay
Running rigging: Running rigging in pre-stretched textile including: main and genoa halyards, boom topping lift, main and genoa sheets, 2 continuous reef lines, leech tensioner, furling line, downhaul tackle.
Mainsail: 2 wide reef strips, with battens and bag.
Genoa: Furling genoa with UV-protection.

INTERIOR

GLAZING & LIGHTING

COMPANIONWAY

Steps: Wide steps
Companionway hatch: Sliding companionway hatch and door in Plexiglas with stops and lock.
Engine cover: Hinged wooden engine cover with 2 gas struts.
Hand rails: 2
Wine cellar: Wine cellar beneath floor in companionway (Pack)

FWD CABIN

AFT HEAD

WC: Manual sea toilet
Wash-basin: Basin unit with top.
Water: “Hot and cold water, chrome-plated brass single-lever mixer tap and shower head.”
Drain: Direct, via an electric pump.
Mirror: Large mirror
Ventilation: Via deck panel or opening port.

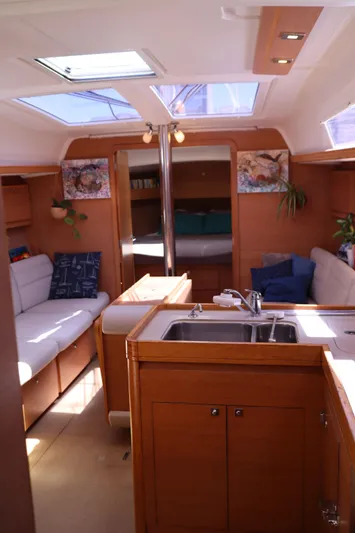

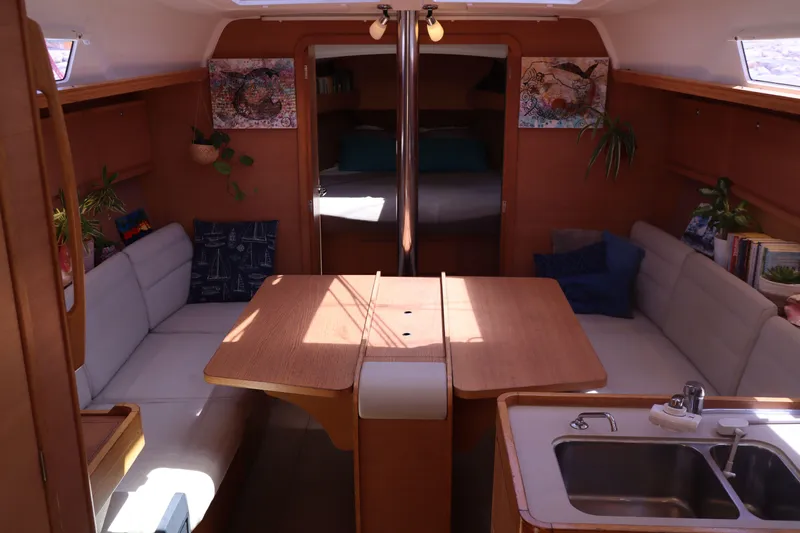

SALOON

Living room bench: Large seats.
Table: Saloon table with 2 leaves

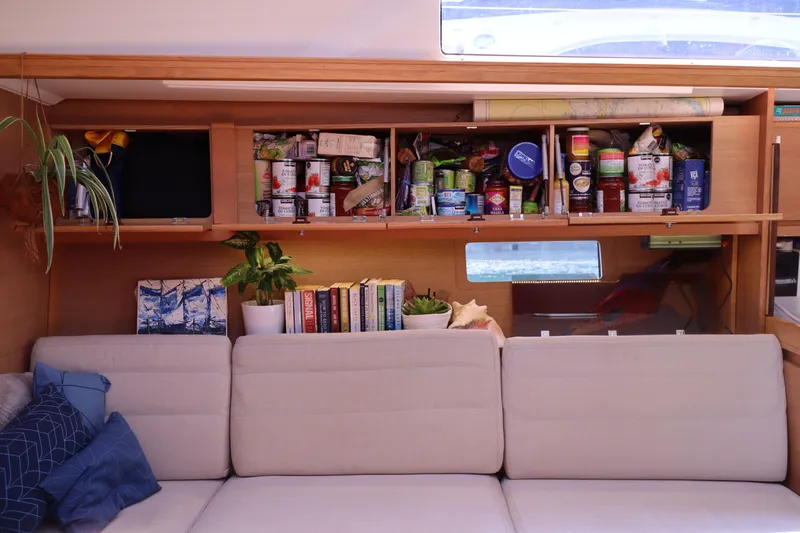

Storage: -Under seats and behind backrests. -Built in to saloon table. -Under each banquette. -2 cubby-holes with doors. -Cutlery drawer in saloon table.
Mast foot

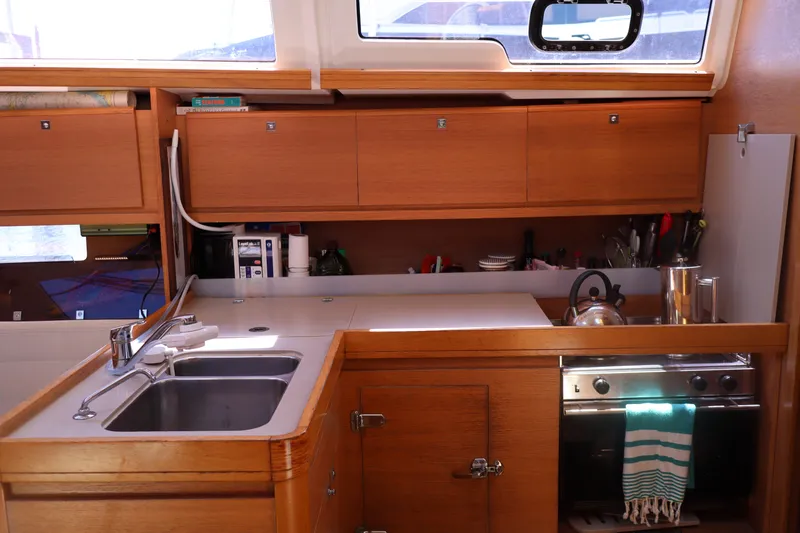

GALLEY

Configurations: L-shaped, to portside of the companionway
Worktop: Wooden fiddle.
Sink: Stainless twin-bowl sink with covers in synthetic resin
Water: Hot and cold pumped water with chrome-plated brass single-lever mixer tap.
Gas cooker: 2-burner gas cooker with oven on gimbals, with stainless rail
Crockery storage: Dowels to retain crockery when heeling.
Cooler compressor 12V.
Refrigerator access: Via the worktop
Stowage:
2 closed cubby-holes
Below sink
Under floor.
Waste bin: Sort compartments
Other: Light and ventilation ensured by opening port-lights and led banners over galley.

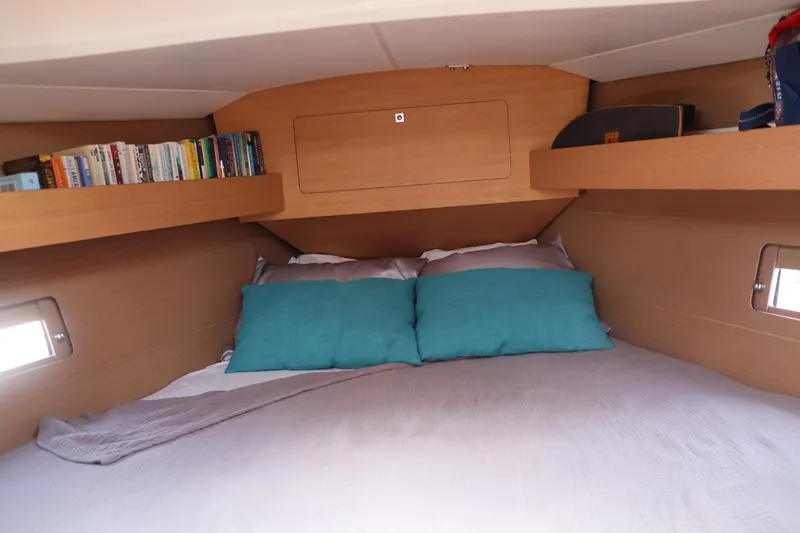

AFT CABIN(S)

Port aft berth: max width 155 cm(3C) - 200(2C) / max length 200 cm (2 and 3C)
Starboard aft berth: max width 155 cm / max length 200 cm
Mattress: 8 cm thick foam mattress with washable cover.
Fuel tank: In starboard sail locker / Starboard aft cabin (Option)
Water tank: Beneath port berth.
Stowage:
Hanging locker
Storage pockets
Soundproofing: Double bulkhead provides acoustic and thermal insulation from adjoining engine compartment.
Technical area: Battery isolators on side of berth
Rudder chain access

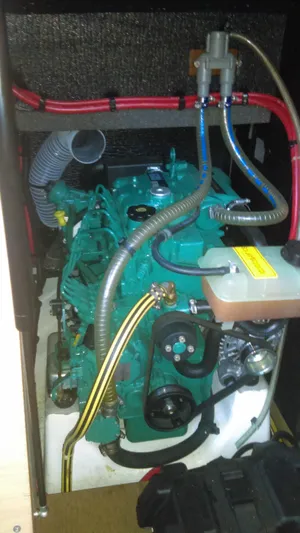

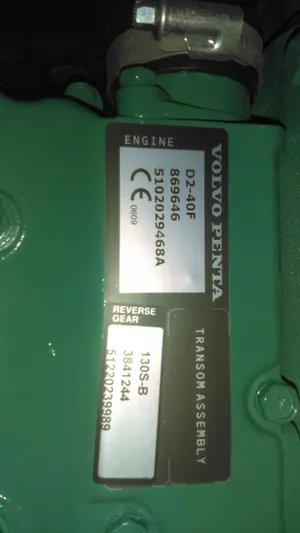

STD ENGINE

PLUMBING

Water tanks: 1 polyethylene water tank with inspection holes and gauges
Electric bilge pump: With strainer, controlled from electrical distribution panel.

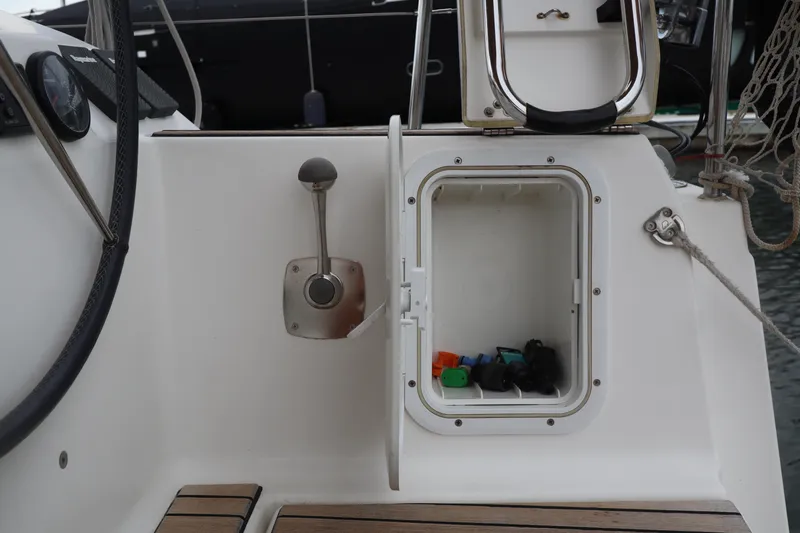

Manual bilge pump: Operated from cockpit.
Bilge sump:: Sump built into keel.
Hot water tank: Pressurized water pump unit.
Shower waste: “Shower waste pumped directly to the sea.”
Other: Access to strainer via floor trap
