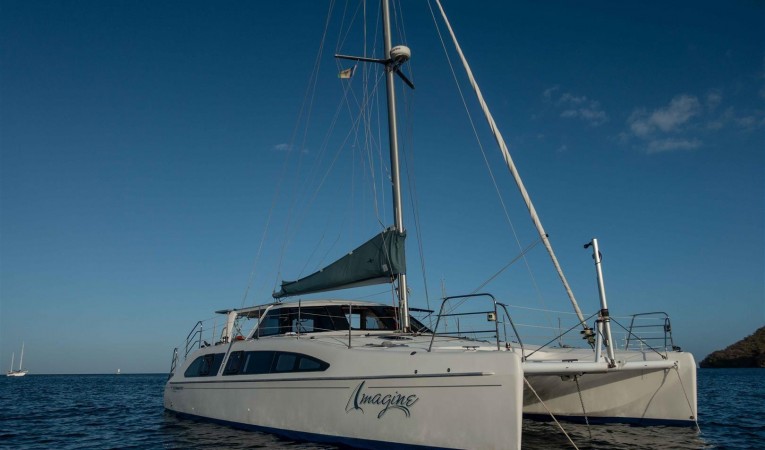

38' Seawind 2007 Imagine

IMAGINE is a beautiful one-owned, never chartered, turnkey cruising catamaran. Fully loaded and currently situated in the Caribbean, she is ready to move onboard and start cruising.  She features a self-tacking jib, twin diesel 30 hp Yanmars, Spectra watermaker, Raymarine electronics, tender with a 15hp Yamaha 4 Stroke and a davit system for easily lifting and securing the tender.

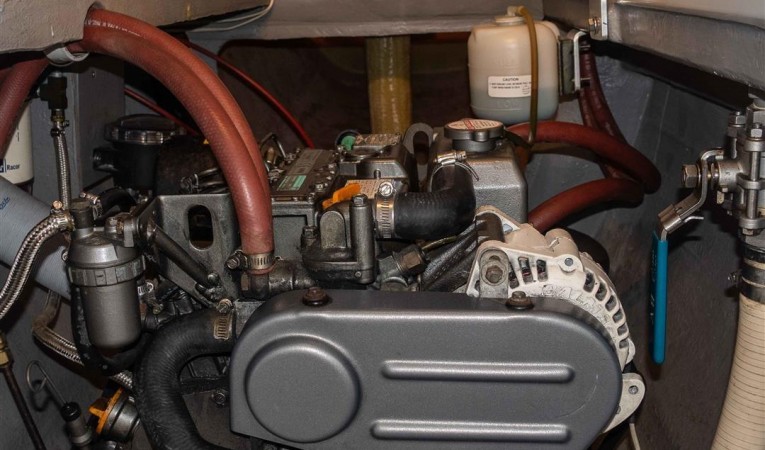

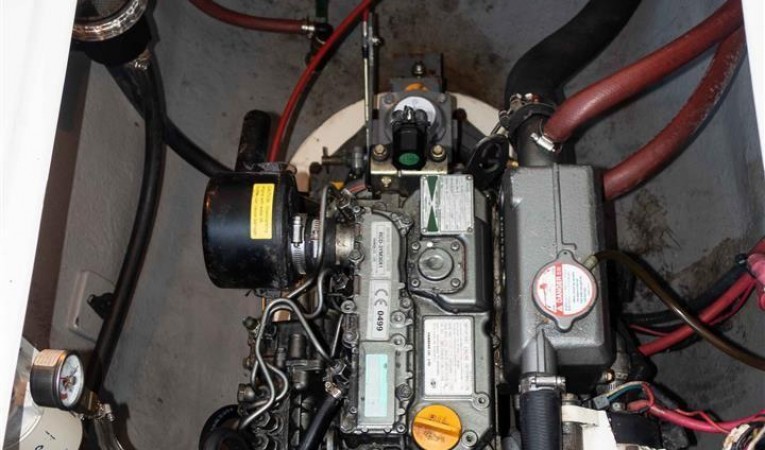

• Twin Yanmar 30hp diesel and saildrives with upgraded 3 blade Gori folding props. Fresh water cooling, rubber isolation mounts on reinforced fiberglass bed with integral oil drip pan
• Upgrade (2008) both engines with high output Balmar alternators and Balmar MC612 regulators for 3 phase charging.
• Dual engine controls at port helm station. Remote electric key start at engine controls.
• Fuel tanks: Total 360 liters (90 gallons) in two survey approved pressure tested aluminum tanks. Fuel gauges fitted.
• Water intakes for engines protected by external strainer. (1 per engine)
• Primary Racor water separator/ fuel filter on each engine, plus secondary integrated engine fuel filter/ engine.
• Console mounted engine instruments with electric tachometers, engine monitoring & warning systems, engine hour meters.

• Clear anodized Aluminum mast and boom. Single Spreader, 7/8 rigging
• Standing Rigging
  Forestay 3/8 (10mm) 1 x 19 Dieform wire
  Sidestays 3/8 (10mm) 1 x 19 Dieform wire
  Diamonds 5/16 (8mm) 1 x 19 Dieform wire
• Halyards
  Main halyard:  12 mm Spectra rope
  Jib halyard:  8 mm Spectra rope
  Topping lift:  10 mm rope
  Spinnaker Halyard:  10mm rope with snap-shackle spliced to end

• 2 x mainsail single line reefing fitted to reef to 1st/3rd or 2nd

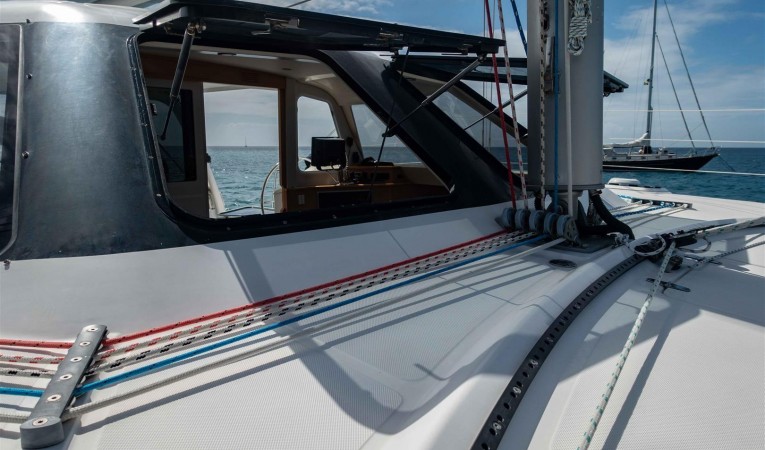

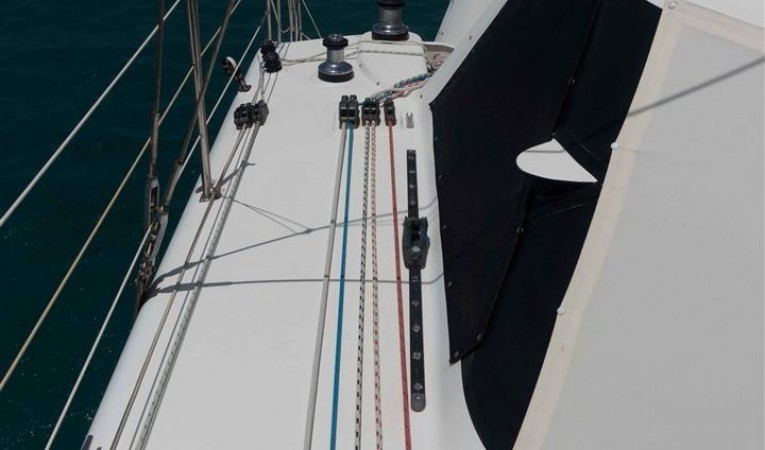

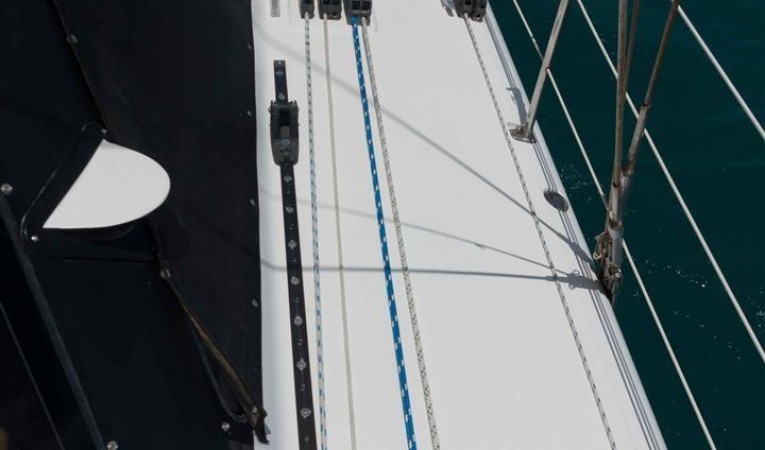

• All halyards, reefing lines are led back to cockpit through turning blocks, rope clutches.
• Fully battened mainsail. Triple stitched reinforced construction.
• Leach adjustable batten end caps.  Fiberglass sail battens + batten cars.

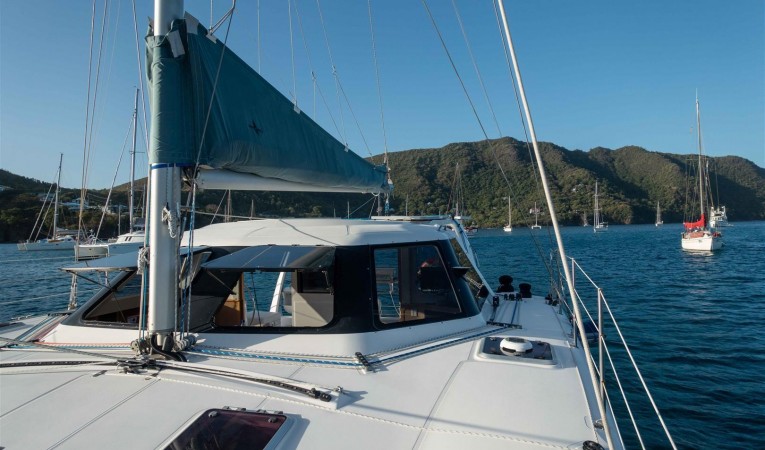

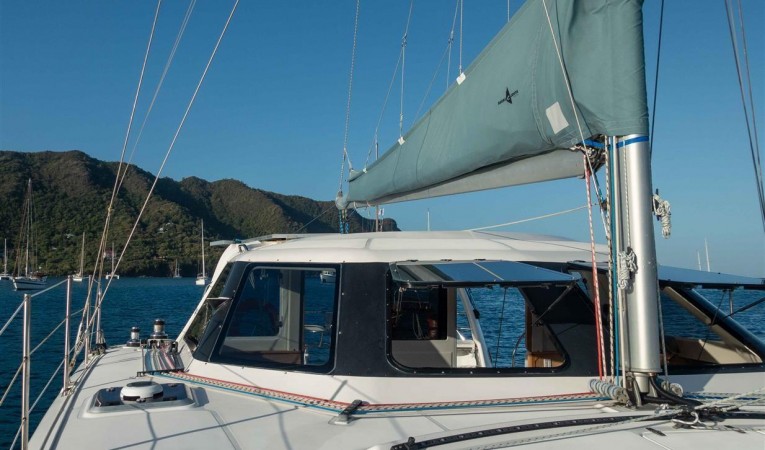

• Mainsail lazy jack system with integrated full zipper cover
• Self-tacking headsail with furler. Curved headsail traveller track with end stops. Control sheet to cockpit.
• Bowsprit (new from Seawind 11/2014), fully articulating and rigged, screecher, furler and deck gear
• Hardware mounted for spinnaker

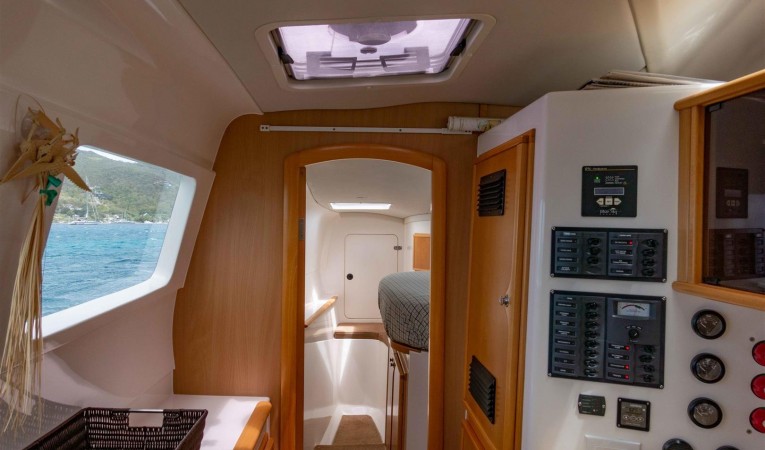

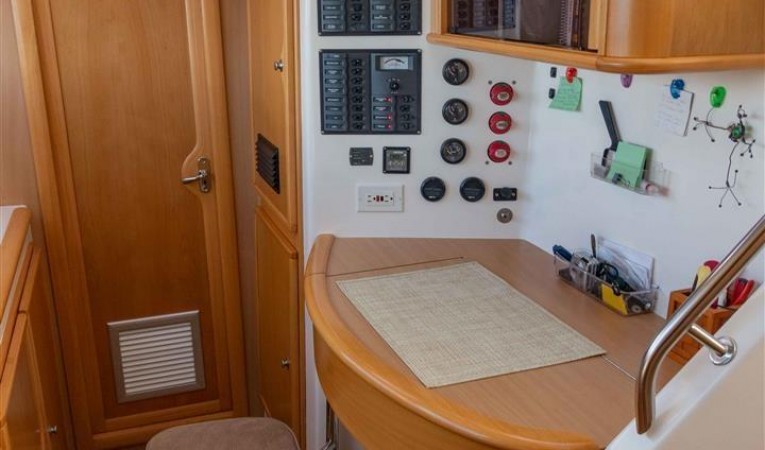

• High quality DC electrical switch panel with circuit breakers, LED indicator lights and voltage display.
• Marine grade tinned electrical wiring with extensive use of heat sealed connectors.
• House batteries (new 1/2015) 2 x 200 AGM batteries for 400 amp hours; starter battery AGM 100 amp hours (new 1/2015), 230amp heavy duty isolation switch.
• Xantrex MS2000 Inverter/charger, true sine wave, 2kw, with panel mounted monitor
• 12 V lighting : Numerous 12V interior lamps and courtesy lights throughout including recessed lights in cockpit, most LED. Dome lights in cockpit. Night vision red lights x 4, at steps, each hull and cockpit.
• 6 x 12V outlets, 3 x USB outlets, 4 x 110V outlets.
• Port & Starboard navigation lights on bow rails, LED; stern nav light.
• Deck floodlight mounted on spreaders.
• Mast head anchor light, LED.
• Steaming light
• Solar panels (x 6, 690W total)
  125W (x 2), 85 W (x 2), 135 W (x 2)
  Total Pmax ~ 40amp
  Blue Sky MPPT controllers (2512i and 3024iL) monitored at nav panel by Blue Sky IPN-ProRemote

• ProSafe Galvanic isolator AC ground monitor, panel at nav station
• WiFi Client Bridge (Ubiquiti Bullet 2HP) mounted on top of mast with PoE
• E-plate with effective surface area of 1100cmx3, for short wave radio grounding
• Shore AC Power cords, 30A, 2 x 25 ft: one 50A to 30A adaptor
• AM/FM stereo, w/ salon and cockpit speakers

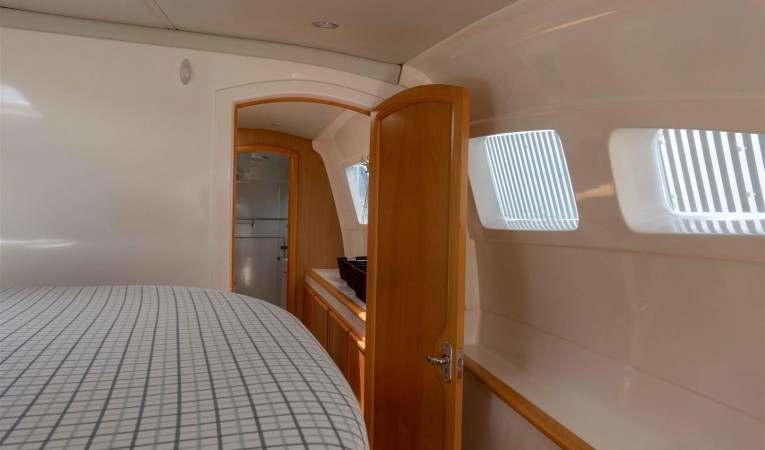

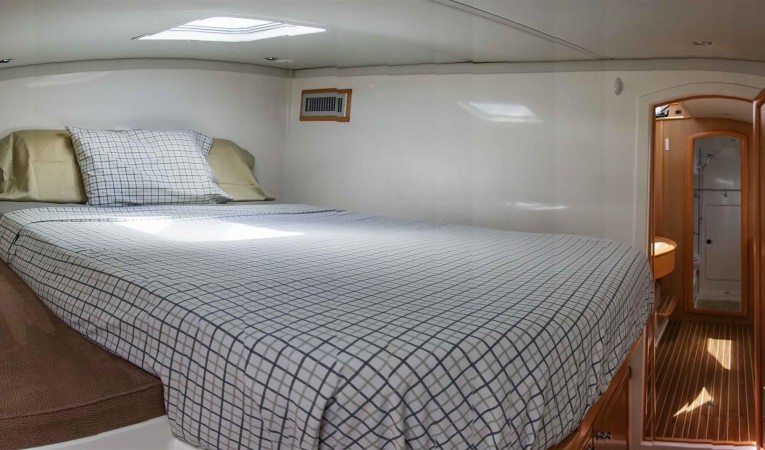

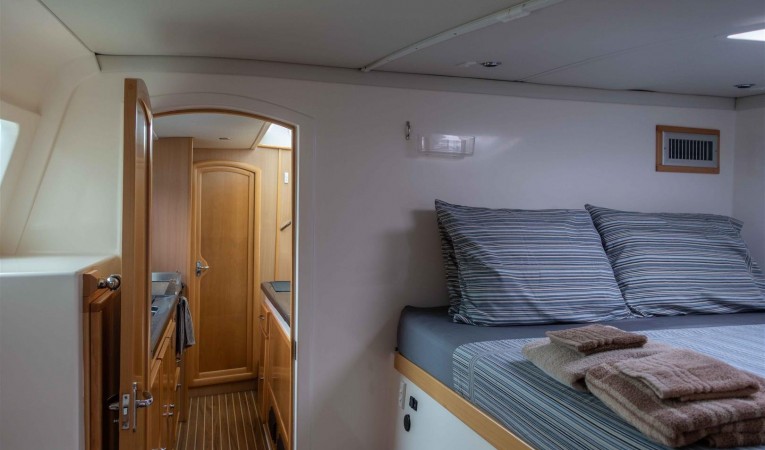

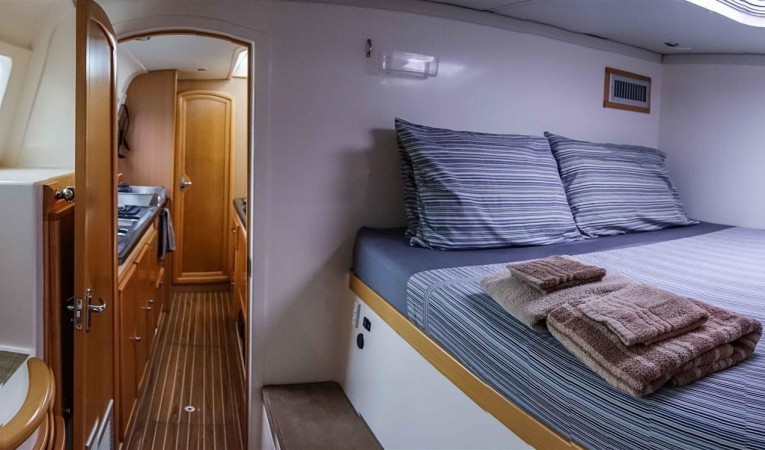

• Port & Starboard fwd cabins : Each queen sized bed (2050mm x 1540mm)
• Outlets: 1 USB (2 and 1 amp), 1 12 V

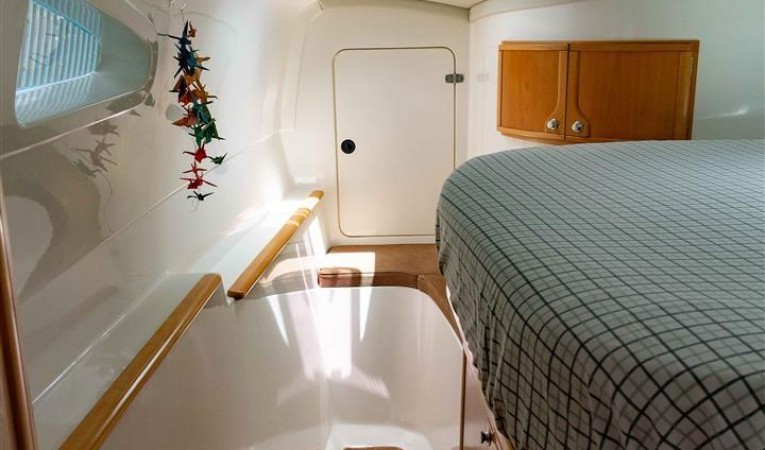

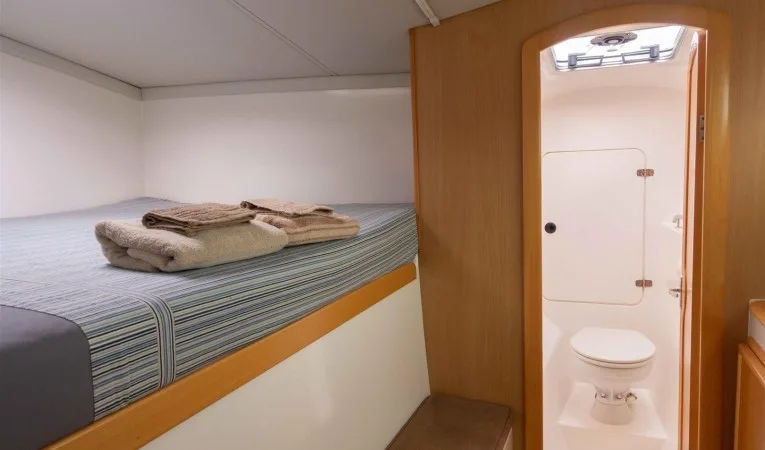

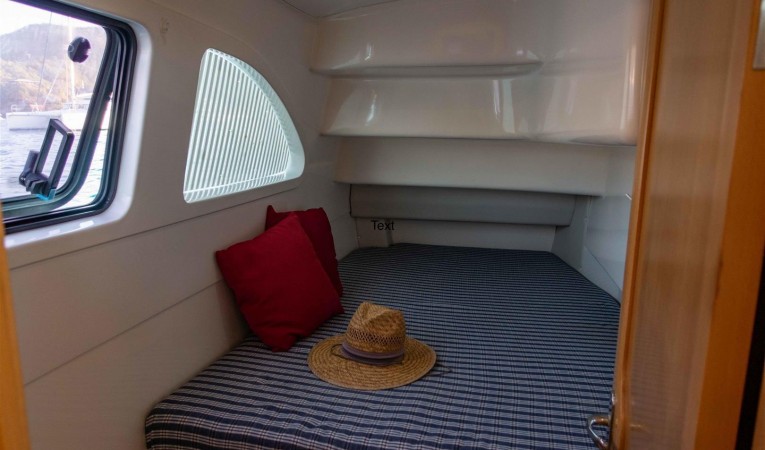

• Aft Starboard cabin : Double bed (1990mm x 1230mm)
• Upholstered 6” foam mattresses
• Recessed 12volt lighting

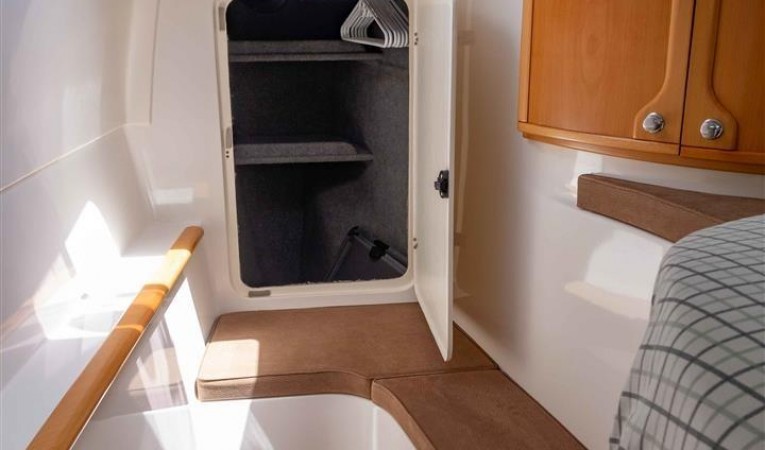

• Hanging lockers, large storage lockers all with polished wood doors and trim
• Upholstered settees with under-settee storage
• Polished timber solid doors on all private cabins, privacy locks, with wood accent walls
• All sky hatches have mosquito screens
• Air Conditioning in salon and main cabins - Cruisair 12000BTU and SMX II controller
• Caframo fans x4 for salon and cabins

• Raymarine Ray54 VHF radio
• Compass (2), binnacle mounted, at each helm
• Raymarine chart plotter, E120 with Navionics charts for Caribbean, South East US and Bahamas and East Coast US
• Raymarine ST6002 Smart Pilot Controller, Port Helm
• Raymarine ST60+ Wind and Close Hauled, Port Helm
• Raymarine ST60+ Wind and Close Hauled, Starboard Helm
• Raymarine ST60+ Tridata, Starboard Helm
• Raymarine ST6000, Auto Pilot Controller, Linear Type I, works with ST6002
• Raymarine Life Tags (2), wearable MOB wireless interfaces with chartplotter
• Digital Yacht iAIS, NEMA and WiFi
• Digital Yacht SPL 2000, AIS/VHF Antenna Splitter
• Raymarine Raydome 2KW Radar

• Aluminum Hatches & portholes (9 in total)
  4 x Forward Hatches 470mm x 470mm
  2 x Mid cabin hatches 470mm x 470mm
  1 x Port Bathroom window hatch 507mm x 377mm
  1 x Galley window hatch 507mm x 377mm
  1 x Aft Cabin window hatch 507mm x 377mm
  Ventilation 2 forward hatches have passive vents
  Ventilation 2 midship hatches have Nicor solar active vents (added 2010)
• Forward anchor & storage lockers x 5
• Docking cleats x 6. Each side: bow, stern & amidships

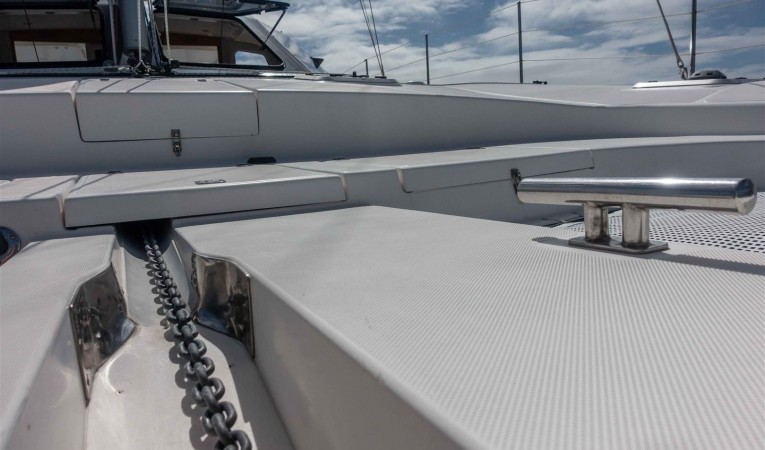

• Heavy duty mooring cleat x 1, on forward walkway.
• Mast base turning blocks. All halyards & sail controls to cockpit.
• 15 x rope clutches.

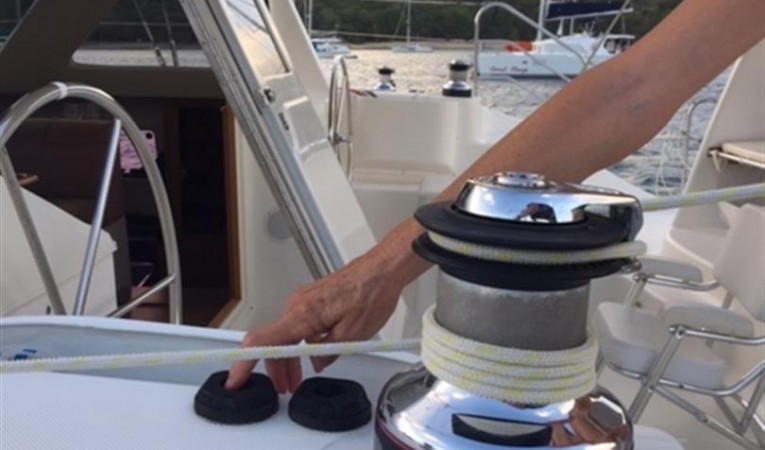

• Sheet Winches, Harken (4 total)
  2 x 46ST – 2 speed self tailing, one electric & one manual
  2 x 40ST – 2 speed self tailing
• Stanchions/Rails:  High quality stanchions, bow rails and stern rails, perimeter completely enclosed with 3 life-lines
  2 x transom access gates with pelican hook releases
  2 x side access gates with pelican hook releases
• Aft swim ladder: folding stainless aft swim ladder
• Stainless steel grab bars both sides of steps to stern
• Stainless steel grab bars in cockpit and on cabin top, used as jackline anchor

• Forward beam section 125 x 3 mm. Powder coated white
• Pelican striker and adjustable cable
• Anchor roller with permanent stowage position for primary
• Second anchor roller/mooring roller leads to large center cleat
• Plastic coated open weave trampolines x 2; replaced 11/2017, same as on new 1160s now without rigid tube and stays

• Moulded Fiberglass Targa with mainsheet traveller track
• Stainless steel framed/teak bench seats
• Stainless steel BBQ mounted on aft rail

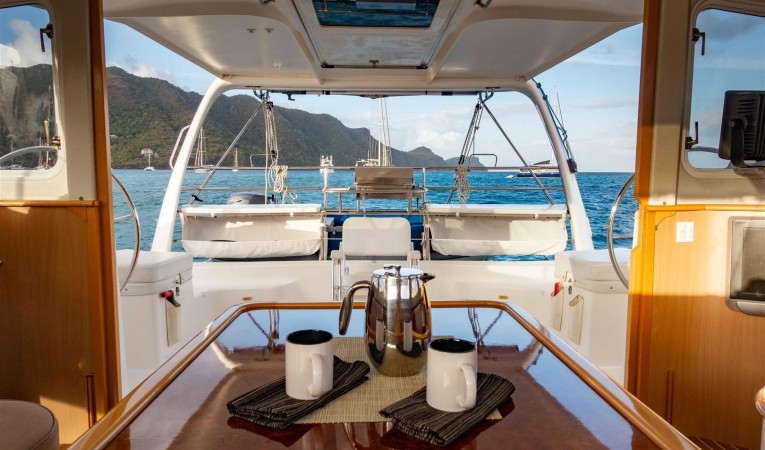

• Custom full-width hard top over cockpit
• Dinghy davits mounted from stainless steel aft targa supports

Finish: Full female moulded hulls and deck, exterior gelcoat finish with moulded-in non-skid surface on deck areas

Hull Laminate: Vinyl Ester (Modified epoxy) resin laminate of the hulls between the gelcoat and the form core. Polyester resin elsewhere. Laminate specifications are to Australian and International Survey Standards

• Twin helm stations (dual): 2 X 33” stainless steel steering wheels.
• Both wheels independently linked to steering system. – system offers back-up redundancy.
• Helm seats with ice box fridge under port side and storage under starboard side.

• polished beech laminate and trim interior.
• Sides and cabin top lined with vinyl or moulded gelcoat.
• Floors: Common area soles simulated teak with holly inlay: Cabin sole carpeted.

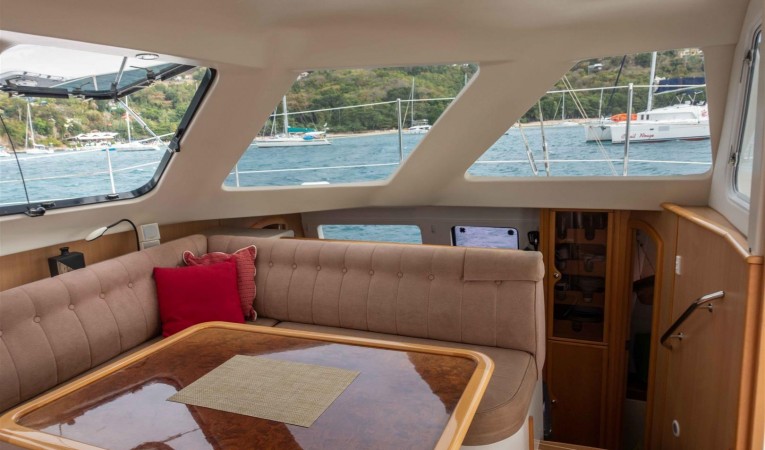

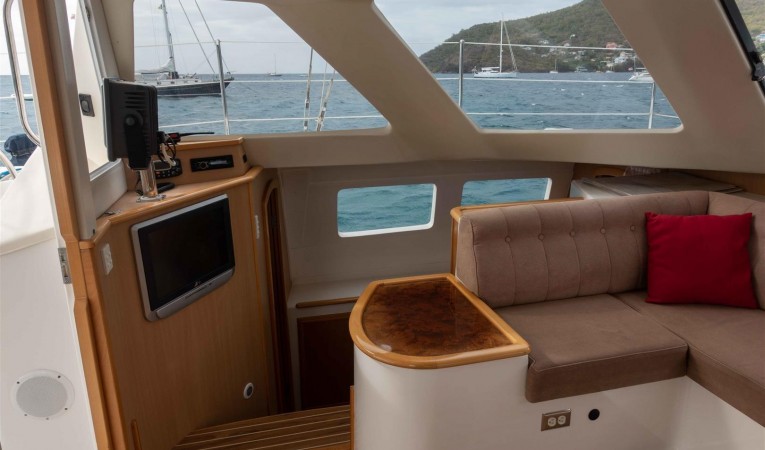

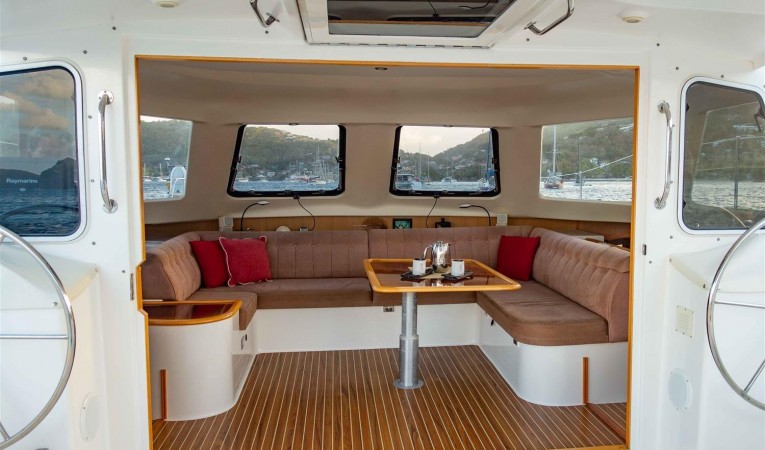

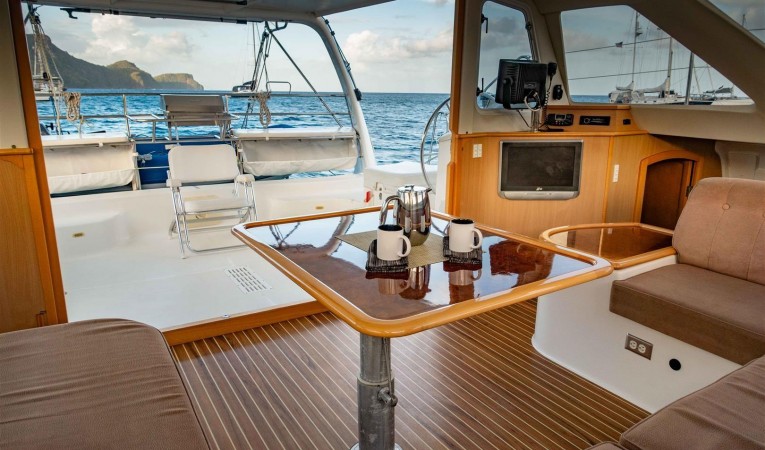

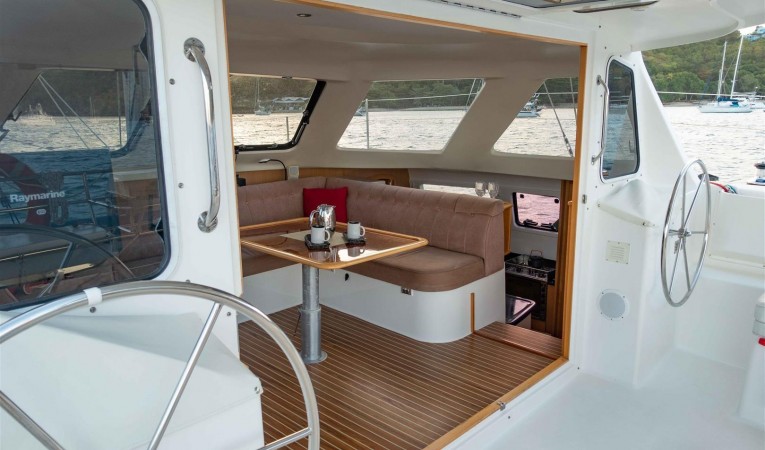

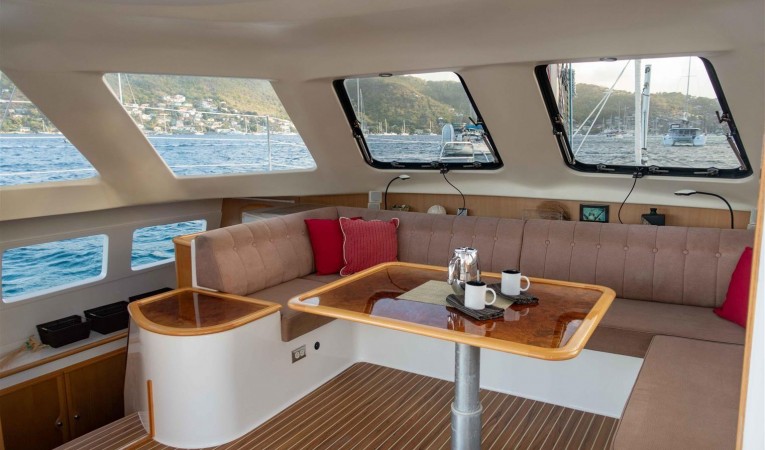

• Dining table of polished Australian Jarrah wood and Beech: Lowers to create coffee table or double bed. Rotates for flexible seating: easy access to settee, seat more diners, or set buffet
• Upholstered settee
• 2 LED gooseneck reading lights
• Cocktail cabinet with swivel hinged lid of polished Jarrah and Beech

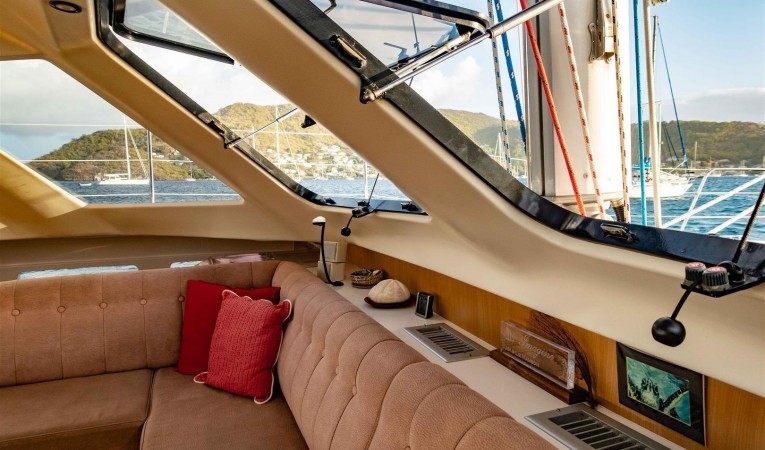

• Forward opening windows (10 mm) marine grade in ocean hatch frame, excellent visibility and ventilation
• Side windows in 6mm toughened glass
• Saloon / cockpit doors: Moulded gelcoat tri-fold doors. Complete with folding mechanism for folding up into Targa walkway
• Removable aluminum framed, helm windows
• Helm rain shield clears (Eisenglass style) front facing (2) and side (1) to protect helmsman
• Outlets: USB (2 and 1 amp), 12V, 110V

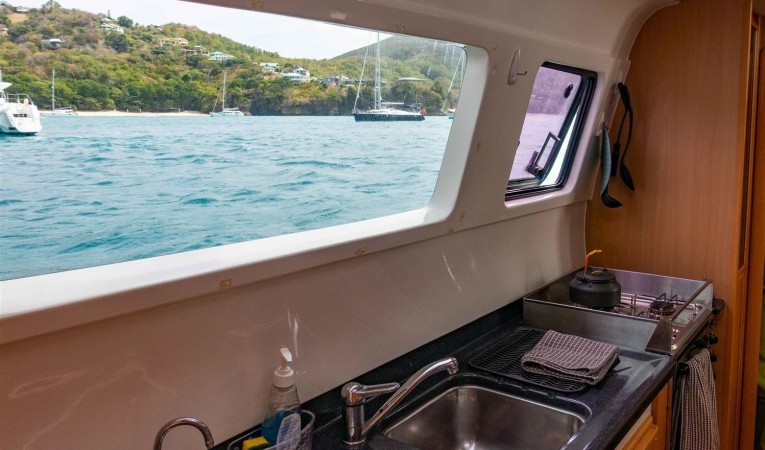

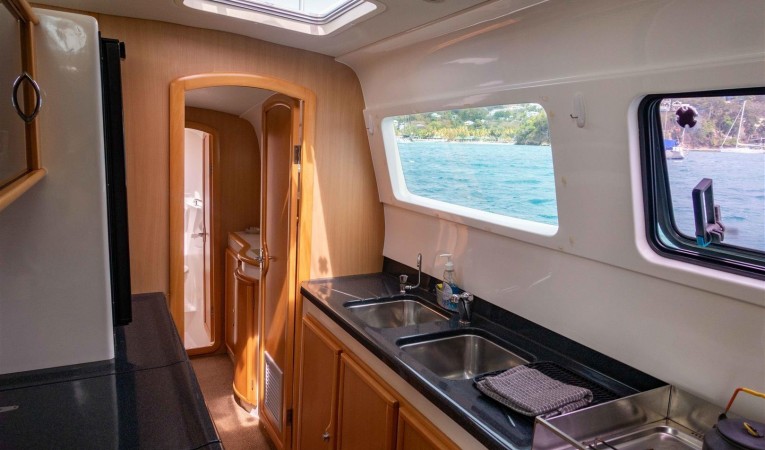

• Spacious galley with co-ordinated Granicote counter surfaces, timber accents
• Three (3 ) burner LPG stove & oven. Stainless steel pot holders. Flame failure device to shut off LPG immediately in event of flame going out
• Double bowl stainless steel sink
• Pressure hot & cold fresh water system.  Single lever mixing tap.

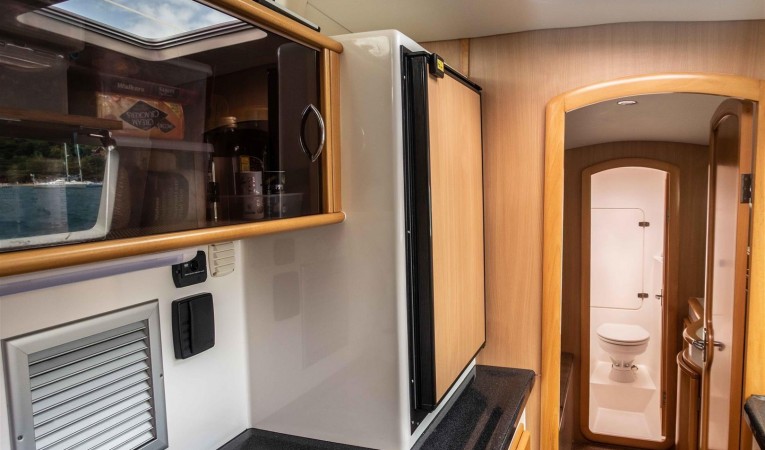

• Refrigerator: Front-opening, upright, above-counter “Vitrofrigo” 130 L
• Spacious freezer – 2 compartments, large 60 L top-loading, heavily insulated. 12volt Eutectic system by ICEER

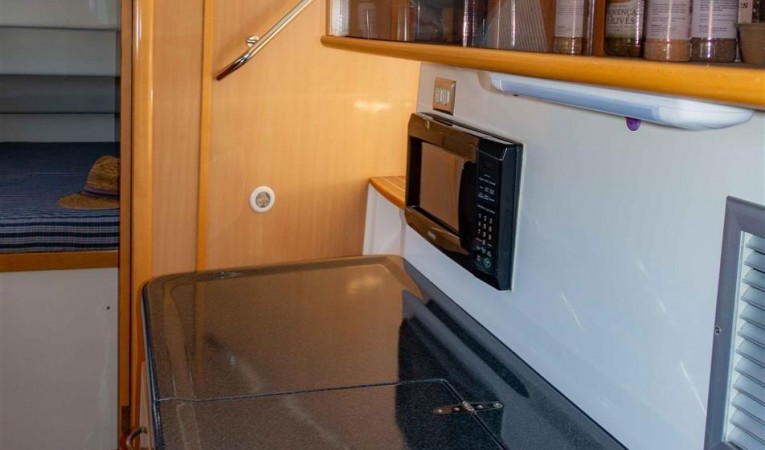

• Microwave, built-in, 110v

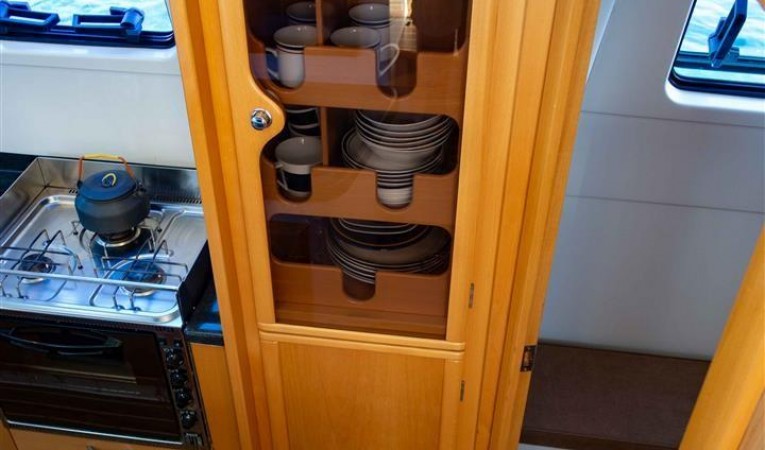

• China cupboard with clear door front above pantry cupboard with polished wood front door
• Under-counter storage cabinets (5) with polished timber door fronts & cutlery drawers (2).
• Inboard side of galley: Over-counter cupboard with clear-sliding door fronts.
• LPG solenoid control in galley

• Pressure hot and cold water system. Hot water storage 40 liters / 8.8 gallons. Dual heating - engine or shore power.
• Galley, head sinks, shower each with fresh water mixing tap.

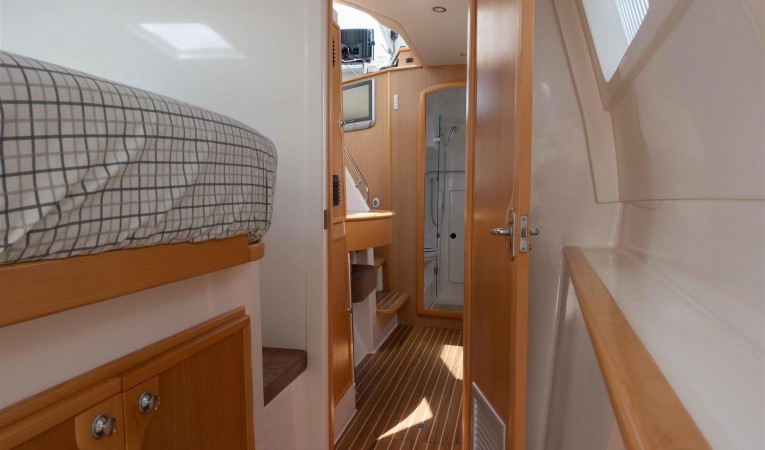

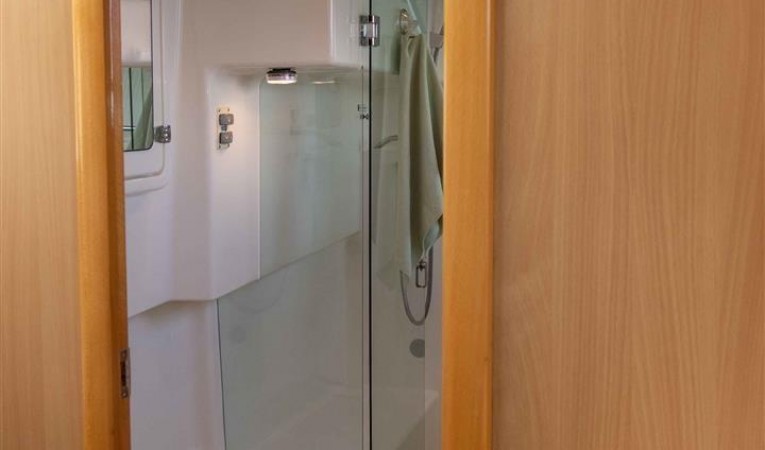

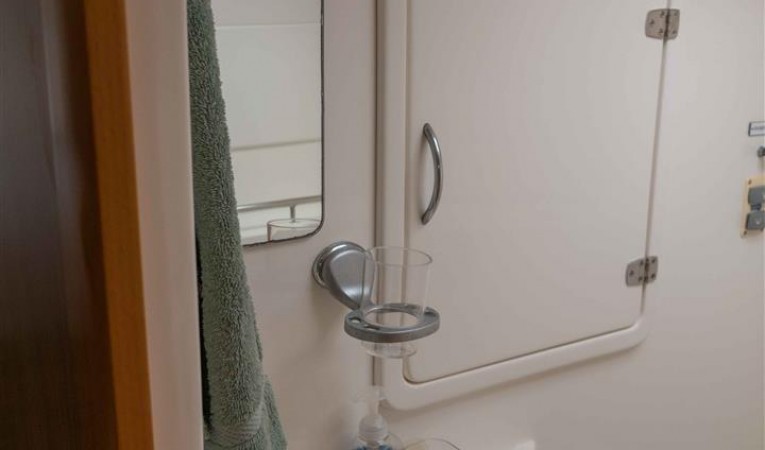

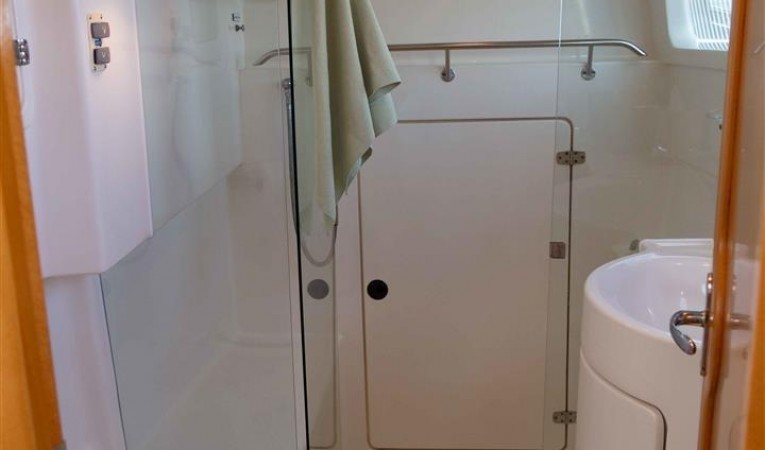

• Port head with separate shower stall, clear glass door, wall-mounted shower head; separate vanity, storage.
• Separate fresh cold water tap at galley sink with Everpure filtration system for drinking water.
• fresh water tank 750 liters / 165 gallons.
• Electric bilge pump in each hull with controls integral with master battery switch panel (2). Magnetic reed float switches.
• Johnson Pump accumulator to maintain freshwater pressure, with switch at electrical panel.
• Manual bilge pump in each hull (2).
• Electric sump shower pump in each head (2).
• Jabsco Quiet-Flush electric toilets in each head.

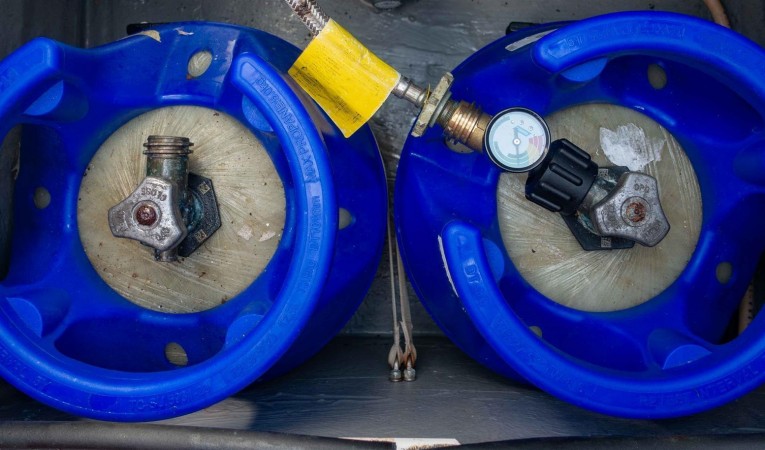

• 2 x composite 11# LPG bottles (translucent) stored in forward sail locker
• Salt and fresh water deck wash on bow.
• Transom shower - hot & cold
• Spectra Watermaker, Newport 400 MK II, 15 gal/hr, 12vDC 24A

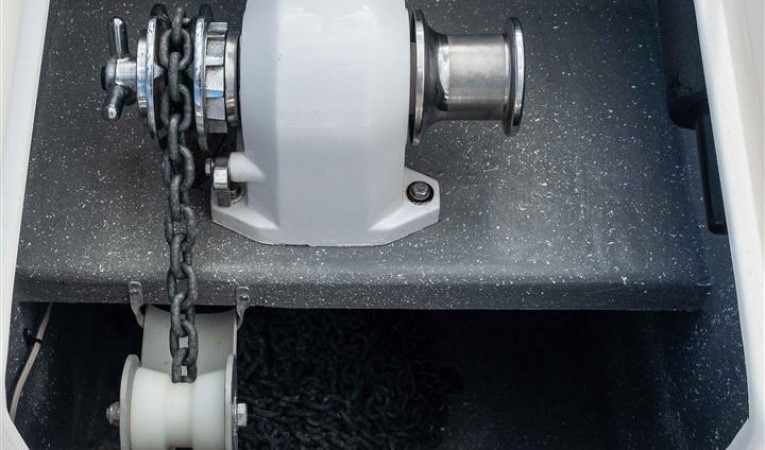

• Muir Cougar H-1200 electric anchor windlass.
• Primary anchor is 45 lb Delta with 220 ft 5/16 in G43HT, new chain and gypsy 10/2017
• Anchor winch has foot switch at winch plus up/down control at helm
• 6 inflatable fenders
• 8 mooring lines, various lengths
• anchor chain bridal (2 sets)
• secondary anchor, 35 lb Delta, chain and rode
• storm anchor, Fortress FX 37

• davit system for easily lifting and securing tender.

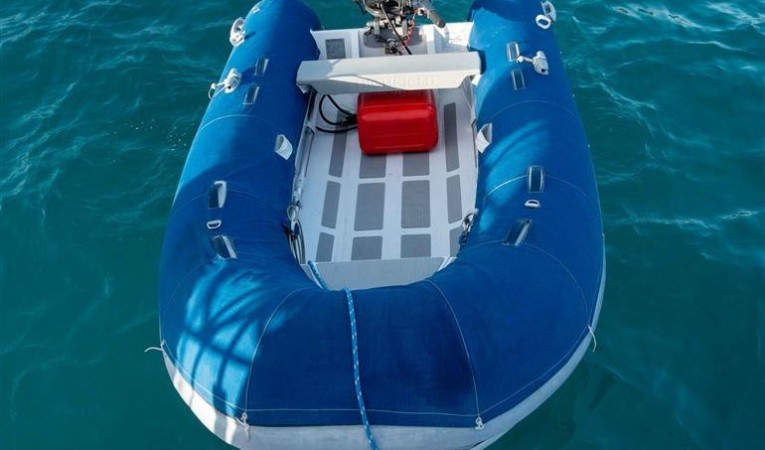

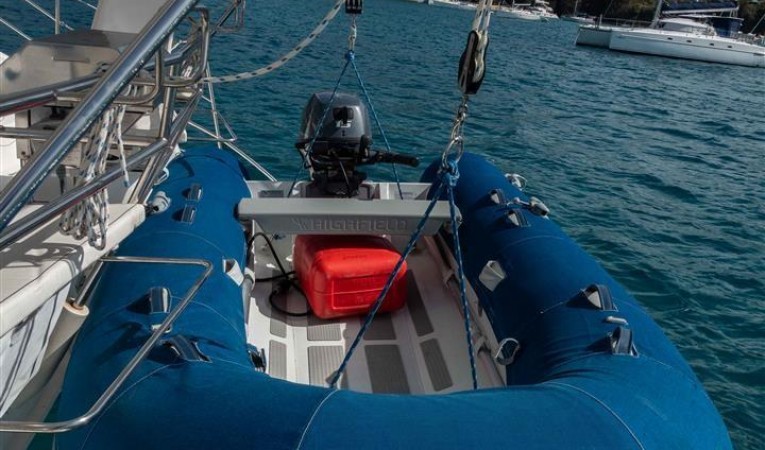

• 3 meter (10’ 3”) Highfield inflatable tender w/ aluminum double bottom for dry interior, storage locker; model 310, new 11/16
• custom dinghy chaps
• 15 hp Yamaha 4 stroke, new 12/2014, with 6 gallon tank
• throttle extender
• claw anchor with chain and rope rode

• many spare parts
• ACR ditch bag including ACR EPIRB Global Fix 406 MHz
• 4 fire extinguishers and one fire blanket
• Ocean Signal EPF1, electronic distress “flare”, 7 nm
• Satellite phone, Motorola 9505A
• Wilson Mobile 4G cellular signal booster kit
• seat cushions for bench seats
• custom under seat storage bins for bench seats
• 3 sets of exterior salon window covers; 1 set white opaque, 2 sets black sun screens, all snap-on
• custom snap-on door cover/shade for storage
• custom made mid-deck, over-deck sun shades
• Outland hatch covers for storage
• instrument/helm covers
• covers for all 4 winches
• plumbed and wired for genset
• wired for fans, each cabin and salon
• Complete set of paper charts for Eastern Caribbean and Turks & Caicos
• Complete set of curtesy flags for Eastern Caribbean
• 2 boat hooks
• West Marine handheld VHF
• 3 marine grade folding chairs and small folding table
• fully equipped galley including: 14 piece Rapid Chief SS cookware set, Fagor pressure cooker, Soda Stream, blender, mixer, Bodum french press (34 oz), china plates, bowls, mugs, cups & saucers, set of SS flatware for 8, various cooking utensils, food storage containers, etc.
