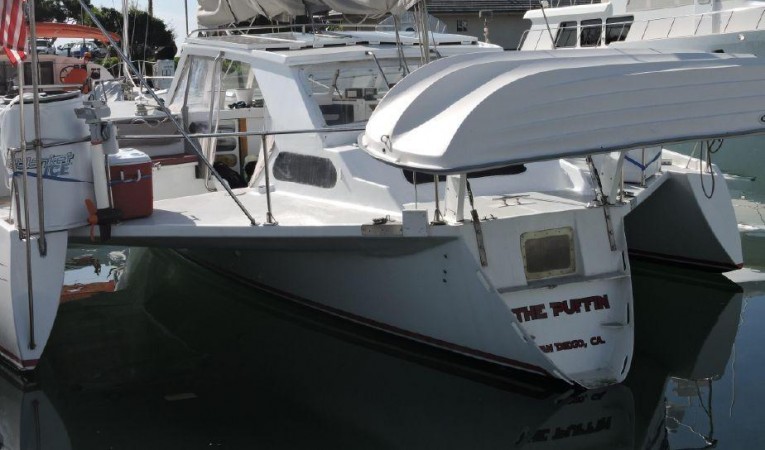

39' Custom 1972 The Puffin

This 1972 Horstman Trimaran Sloop Rig is in excellent condition. Loved by 2 long term owners it was recently sailed from Long Beach to Harbor Island next to the San Diego Airport. Within the past year, it has also undergone thorough maintenance that has left it with some top of the line electronics, new windows, and paint. It is the ideal cruising and liveaboard boat with room for SEVEN on three full size memory foam mattresses and one couch. Starboard Hull includes a lot of closet space while the Port Hull is built as a workshop

• Lewmar Hatches 24"x24" x 3
• High Capacity AGM Batteries x 5
• Magnum Inverter Charger
• B and G Navigation Electronics including chart plotter, depth transducer, and radar
• Pioneer Sound System
• Wood shelving (starboard side for coat closet & inverter/charger)

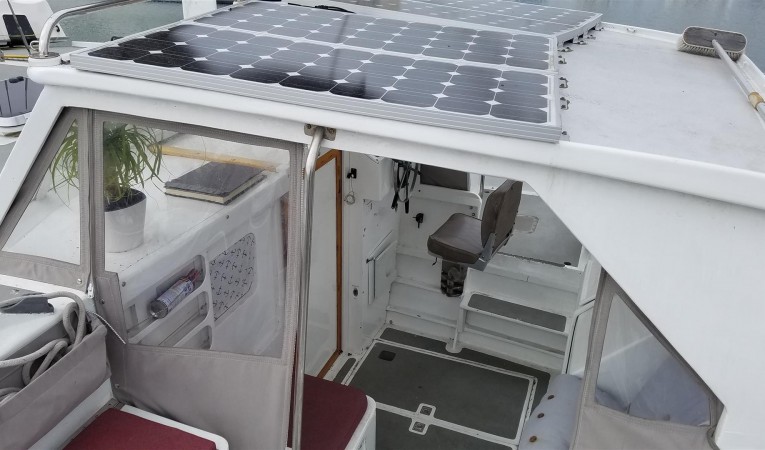

• 100 Watt solar panels x 4

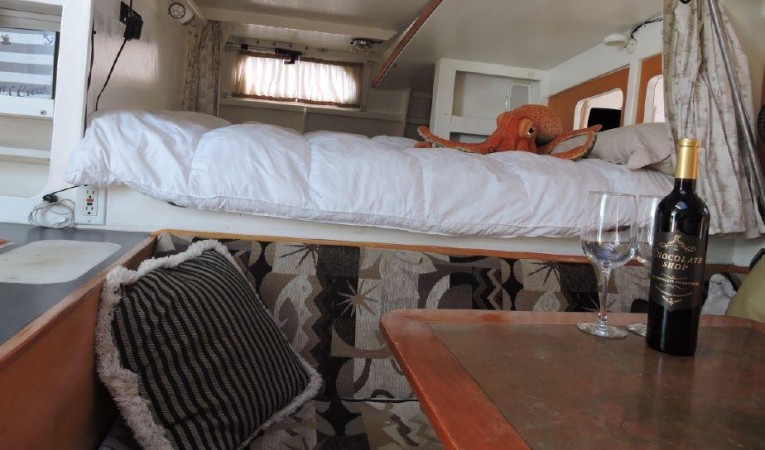

• Memory Foam Mattresses
• 3G / 4G Signal Booster
• Navigation tricolor and anchor light at mast
• Torqeedo 3HP Electric Motor and Dinghy
• Bottom Paint Job
• Hull Paint Job-2 part plus striping
• Deck Paint Job
• Graphics & Transom lettering
• Complete Buff and Wax
• Regular Hull Cleanings once a month

• One (1) Tachometer
• One (1) Oil Pressure Gauge
• One (1) Water Temperature Gauge
• One (1) Voltmeter
• One (1) Vacuum Gauge
• DRIVE LINE 1" Stainless Steel Propeller Shaft
• PROPELLER Surveyed in Water RUDDER SIZE and MATERIAL Surveyed in Water
• OTHER Drip-Free Shaft Seal, Engine Space Sound Insulation, Electric Lights in Engine Space, Rudder Angle Indicator, One (1) Rudder Post.

•  MANUFACTURER Isuzu MODEL 240 TYPE Marine Diesel Fresh Water Cooled
• TOTAL HORSE POWER (APPROX.) Forty (40)
• SERIAL NUMBER Unseen
• AGE OF UNIT OR DATE OF LAST OVERHAUL Unknown
• EXHAUST LINES Reinforced Hose (Wet)
• ENGINE SPACE VENTILATION Blowers & Vents
• ENGINE CONTROLS Morse Red-Jaket Type STEERING TYPE Hydraulic

•  LOA 39' BEAM 21' DRAFT 3' 4" (Reported Dimensions)

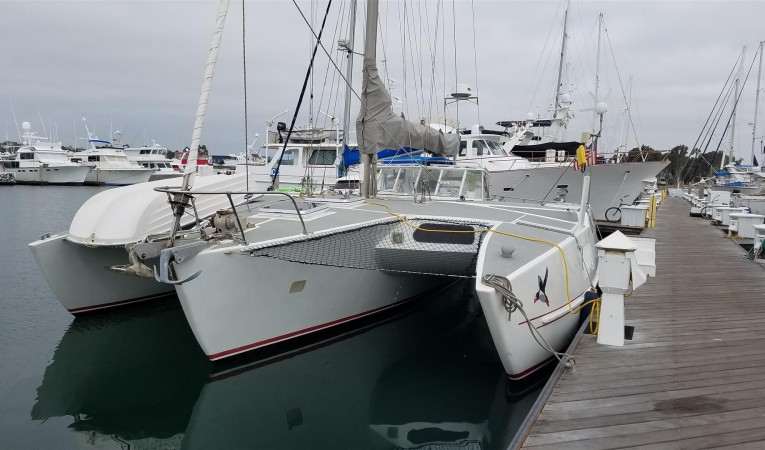

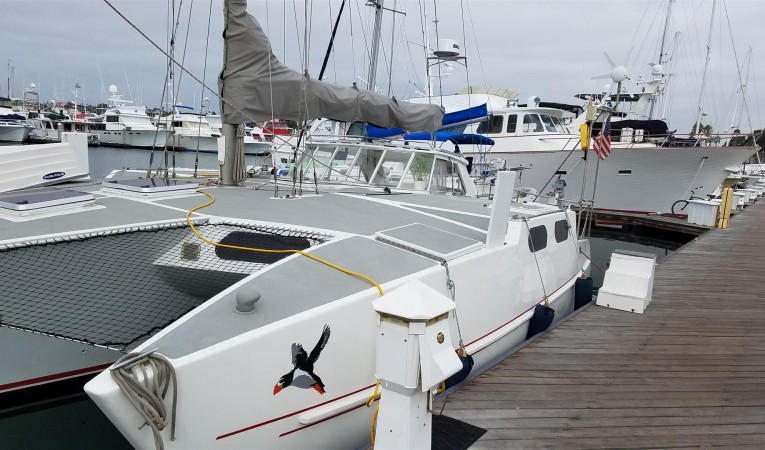

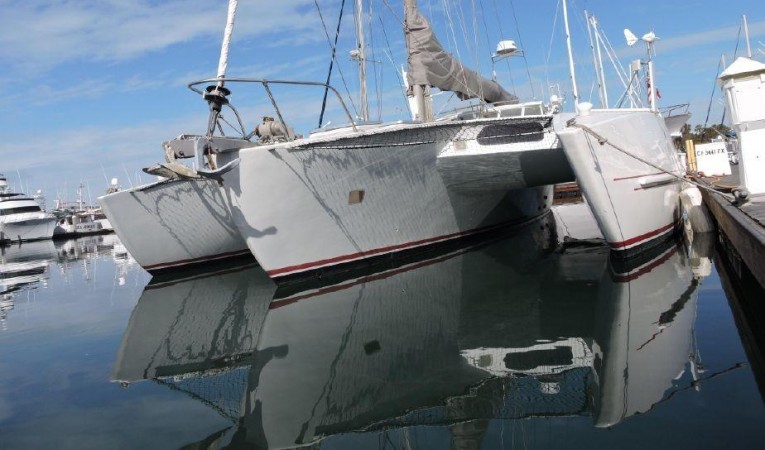

• HULL TYPE Trimaran w/ Spoon-Shaped Bow

• HULL MATERIAL FRP over Wood FASTENERS Stainless Steel & Bronze
•  FRAMES 3/4" x 3-1/2" SPACING Approx. 16" On Center

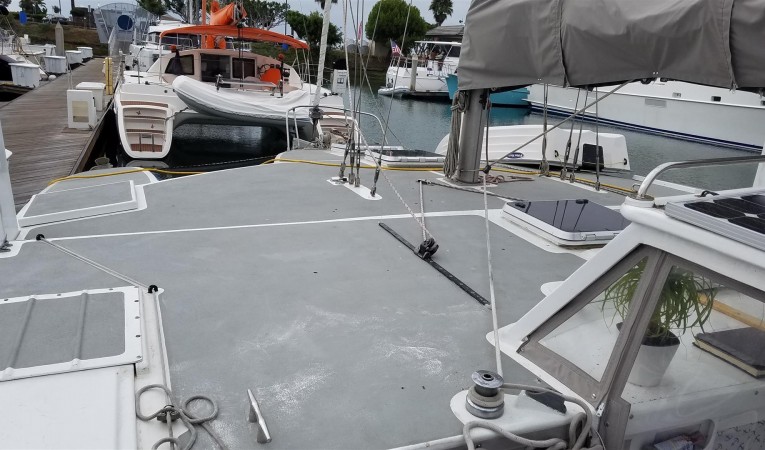

•  DECKING Nonskid Paint WINDOWS Twenty-Two (22)

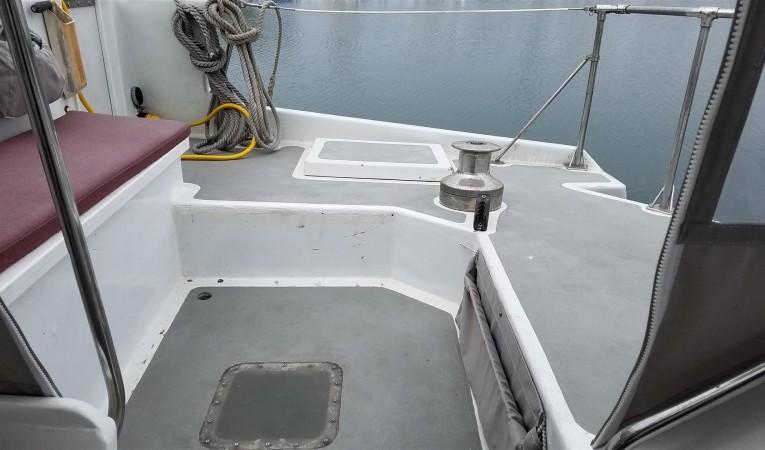

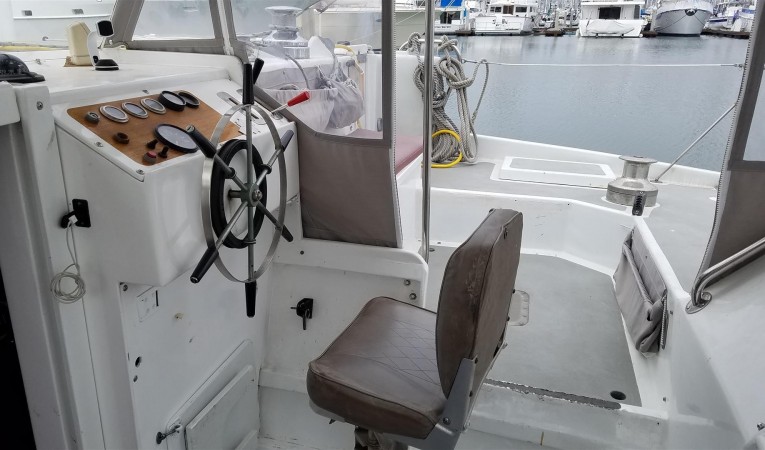

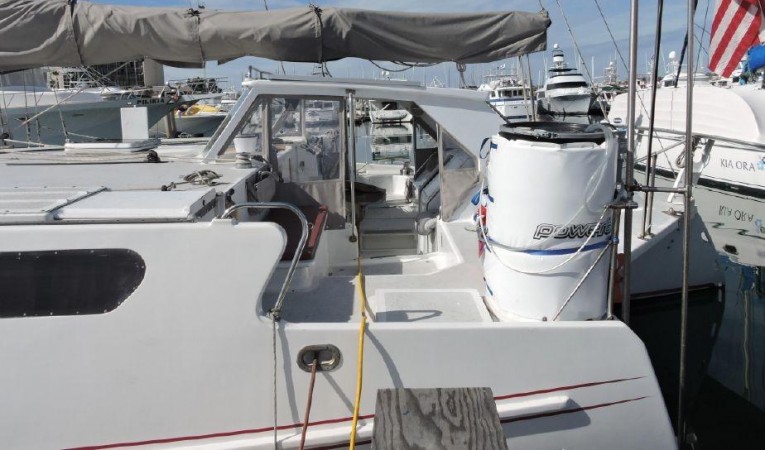

• Stainless Steel Bow Pulpit, Anchor Windlass w/ Foot Switch, Two (2) Anchor Rollers, Haws Pipe, Split Stainless Steel Stern Pulpit, Seven (7) Cabin Top Hatches, Miscellaneous Mooring Equipment, Manual Aluminum Davit System. Scuppers, Cockpit Shower, Courtesy Lights, Hard Dodger (Glass over Wood), Isinglass Enclosure, Vinyl Cockpit Cushions, Stainless Steel and Wood Helm. 

• Deck-Stepped Aluminum Mast w/ Wood Compression Post & Two (2) Sets of Spreaders
• 1 x 19 Stainless Steel Wire Standing Rigging
• Yacht Braid Running Rigging
• Windex
• Internal Halyards
• Deck Lite
• Pennant Halyard
• Yacht Braid Boom Vang
• Aluminum Mainsheet Traveler
• Roller Furling Headsail
• One (1) Harken #9 Winch
• One (1) Hans Christian #28 Winch
• One (1) Barient #10 Winch
• One (1) Lewmar #16 Winch
• One (1) Lewmar #8 Winch
• Lazy Jacks
• Mainsail
• Mainsail Cover
• Jib

• BATTERIES One (1) Medium Amp & Four (4) 6-Volt LOCATION Cockpit Locker on Port Side
• GENERATOR(S) Alternator on Auxiliary Engine
• VOLTAGE 12V-DC w/ 110V-AC MAIN DISCONNECT SWITCH Vapor Resistant
• WIRING Low and High Voltage Plastic-Sheathed Nonmetallic
• SWITCHBOARD LOCATION Starboard Side Galley Area
• DC PANEL Circuit Breakers w/ Indicator Lights, Switches
• AC PANEL Main Breaker
• Magnum Remote Inverter Controller, Xantrex Link Lite Battery Monitor, Xantrex Battery Charger, AC Outlets (GFCI Type), DC Outlets, One (1) 30-Amp Shore Power Receptacle.

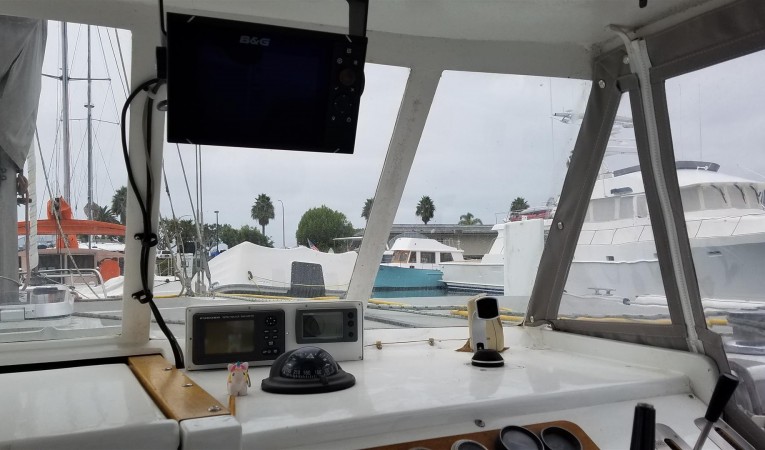

• NAVIGATION B&G Zeus 3 Chartplotter
• VHF-FM RADIO/S Standard Horizon Intrepid CALL LETTERS None Posted
• RADAR NOTE: B&G 3G 4G
• OTHER Raymarine ST40 Wind Indicator

• Painted Wood Overhead

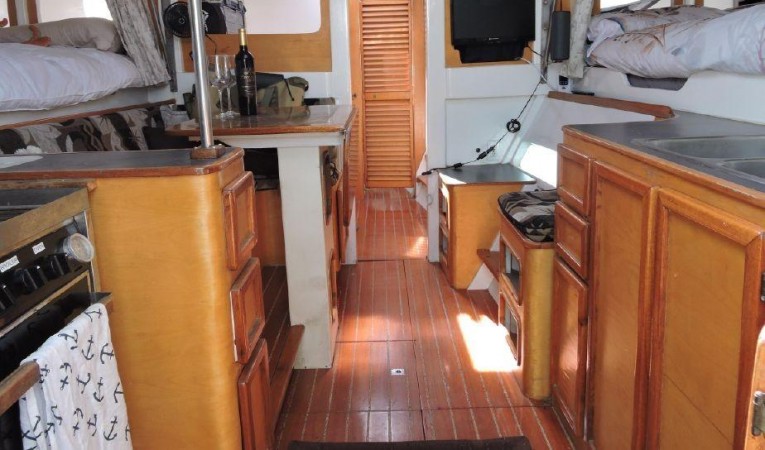

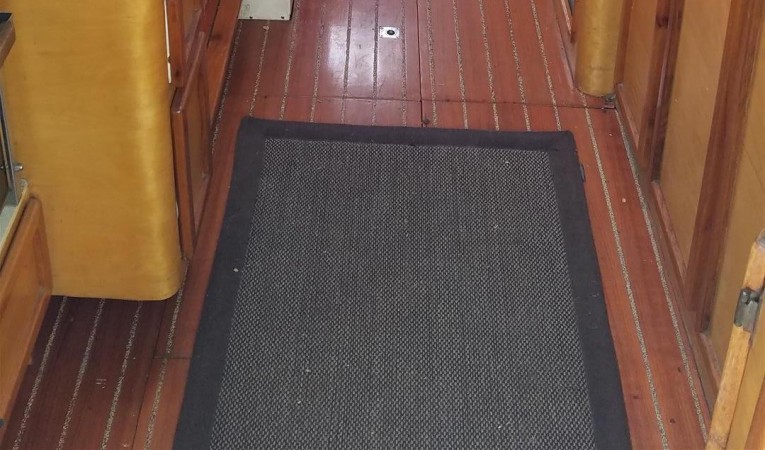

• Teak & Holly-Like Cabin Sole
• Painted Wood Hull Liner
• Fabric Curtains
• DC Lighting (LEDs)
• AC Outlets (GFCI Type)
• DC Outlets
• Foam & Fabric Cushions
• Electric Cabin Fans

• CABINS/SECTIONS One (1) Main
• One (1) Enclosed Marine Toilet

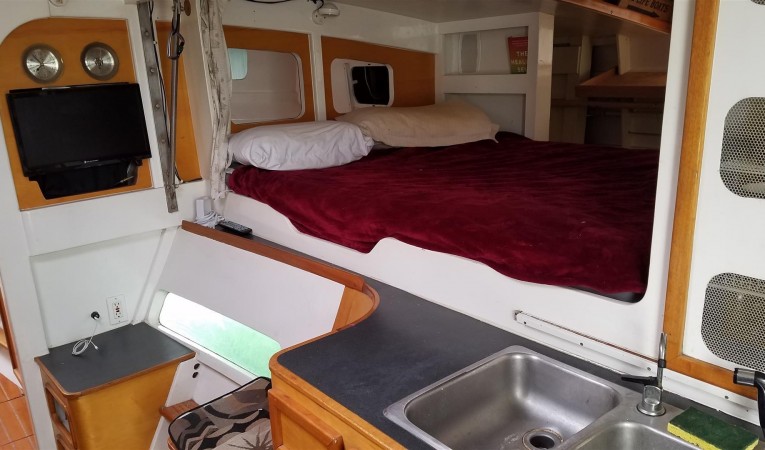

• SLEEPING ACCOMMODATIONS FOR Seven (7)

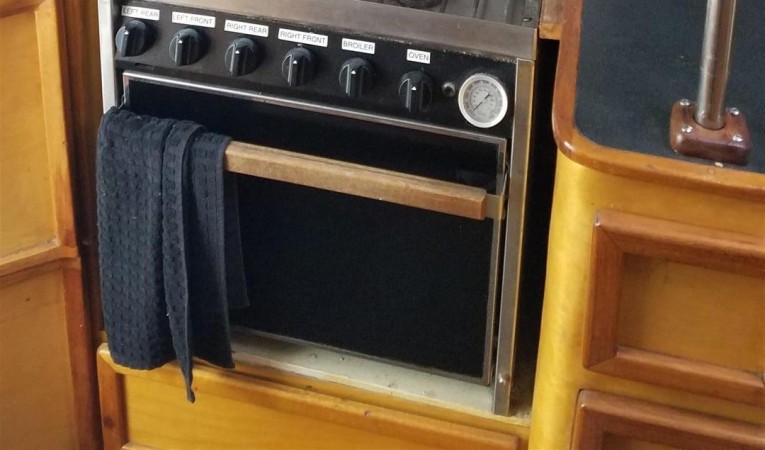

• STOVE Four (4)-Burner w/ Oven STOVE FUEL LPG (Propane)
• MICROWAVE OVEN

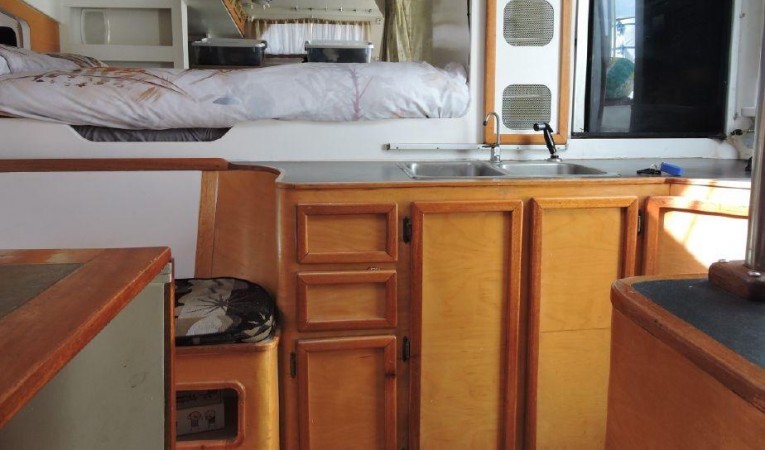

• SINK Double Stainless Steel SINKBOARD AREA Approx. 12 Sq. Ft. MATERIAL Formica
• REFRIGERATOR/ICE BOX Approx. 3 Cubic Ft.
• MARINE TOILET/S One (1) Manual w/ Holding Tank
• SHOWER One (1) w/ FRP Base, Sump, Hand-Held Shower & Teak Grate
• VANITY One (1) w/ Formica Top & Stainless Steel Wash Basin

• FUEL SYSTEM Tanks built in
• NUMBER Two (2) FILL LOCATION Side Decks TOTAL CAPACITY 70 Gallons (Rept.)
• MATERIAL Painted Iron SHUT OFF In Line FILTERS Racor
• FUEL LINE SIZE & MATERIAL 1/4" Copper & Rubber & Vinyl
• WATER SYSTEM
• NUMBER Three (3) (one is integral to the hull) TOTAL CAPACITY 55 Gallons (Rept.)
• MATERIAL Two (2) Polyethylene & One FRP
• WATER LINE SIZE & MATERIAL 1/2" Plastic Hose VENTED Overboard

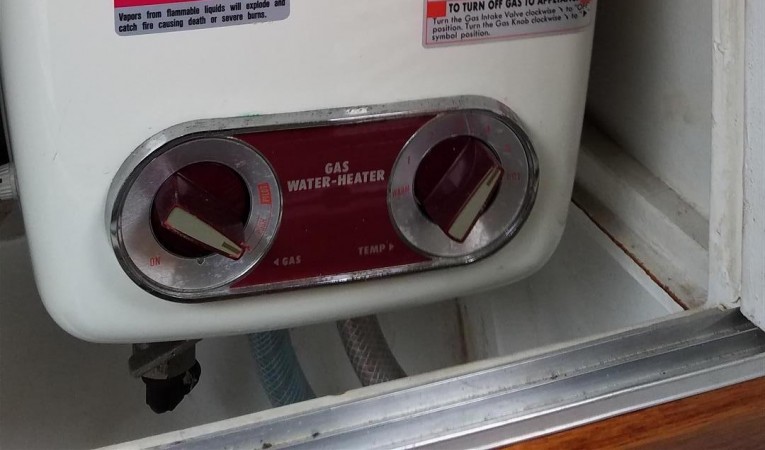

• LPG Water Heater, PUR Watermaker (approx. 3 gallons per hour, rept. by seller), Pressure Water Pump
• HOLDING TANK (1) CAPACITY 5 Gallons (Rept.) MATERIAL Polyethylene Macerator Pump

The LPG system is located in a dedicated locker in the cockpit area, with a solenoid, a pressure gauge, and two (2) vertical, steel tanks.

• FIRE EXTINGUISHERS Three (3) 3 lb. Type "ABC" Size I Dry Chemical
• PFDs (LIFE JACKETS) Three (3) Type II THROWABLE DEVICE/S Two (2) Type IV Buoyant Cushions
• RUNNING LIGHTS TriColor
• HORN Canned Air
• FLARES REG. #'S No MSD
• OIL PLACARD
• DUMPING PLACARD
• BLOWER

• TV Element Approx. 18"
• AM/FM/CD Stereo Pioneer

• Raw Water Inlet Stb Side Forward, Main Hull Ball Serviceable
• Auxiliary Engine Cooling Stb Side Engine Space, Main Hull Ball Serviceable

• COMPASS Ritchie 4" Spherical Magnetic
• SAFETY RAIL Stainless Steel Stanchions w/ Double Wire
• CO MONITOR Yes FIRST AID SUPPLIES Miscellaneous
• GROUND TACKLE CQR Anchor & Bruce Anchor w/ Galvanized Chain
• ANCHOR WINDLASS One (1) Electric w/ Foot Switch
• BILGE PUMPS Two (1) Electric in Engine Space
• Canvas Covers, Tools, Spare Parts, Ship's Manuals, Four (4) Solar Panels, Navigational Equipment.

• Micro fuel gauge line repair with flange fitting in engine compartment
• Refrigerator door handle repair with small metal piece and epoxy
• Metal davits (removed fiberglass, design & fabricate custom metal davits – fiberglass was too weak and not angled correctly)
• Depth transducer hookup to B&G chart-plotter
• Navigation lights at starboard and port bow purchased, to be installed *wire run is from main hull closet behind tv (this is where the mast tricolor is wired)
