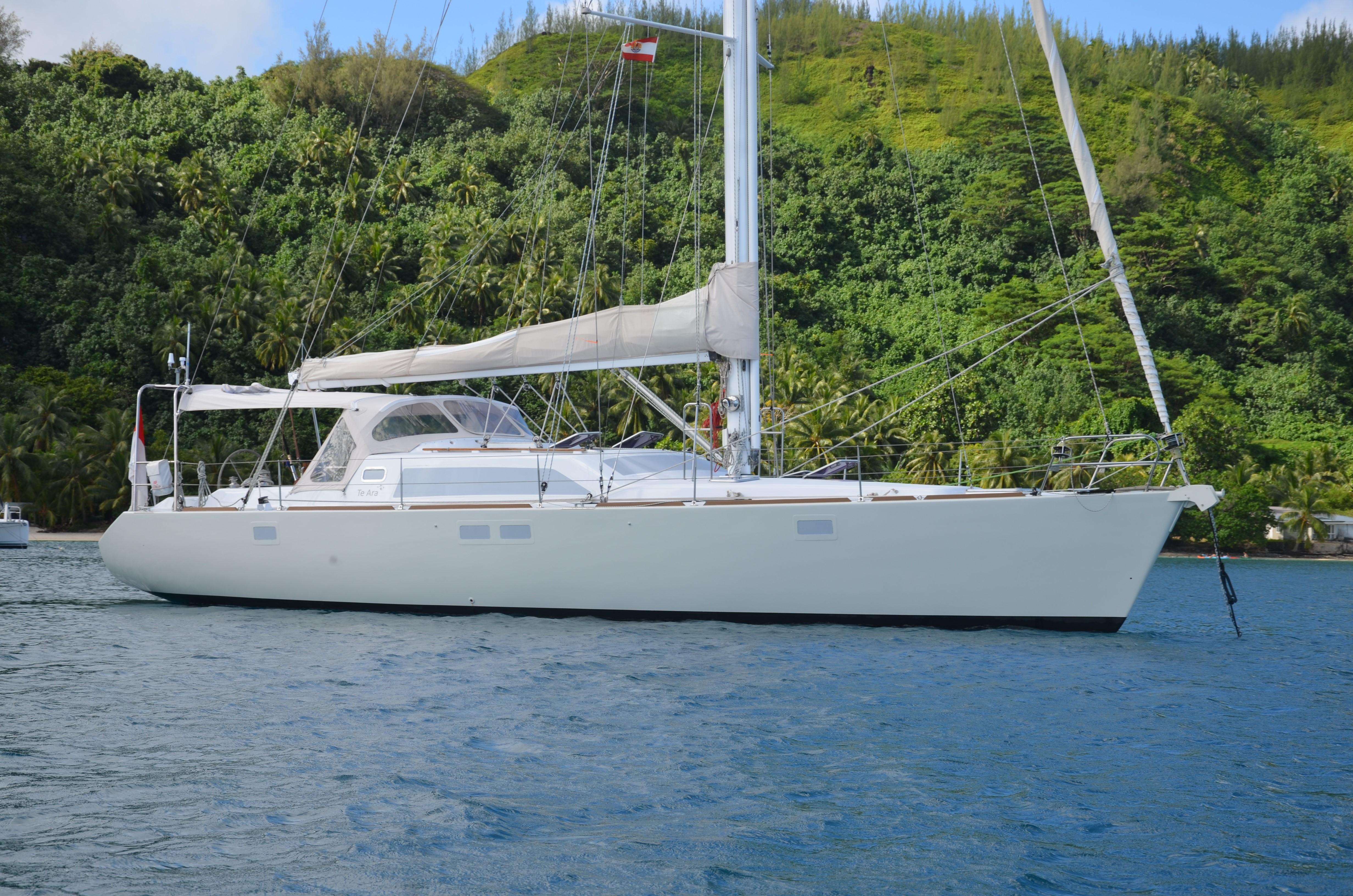

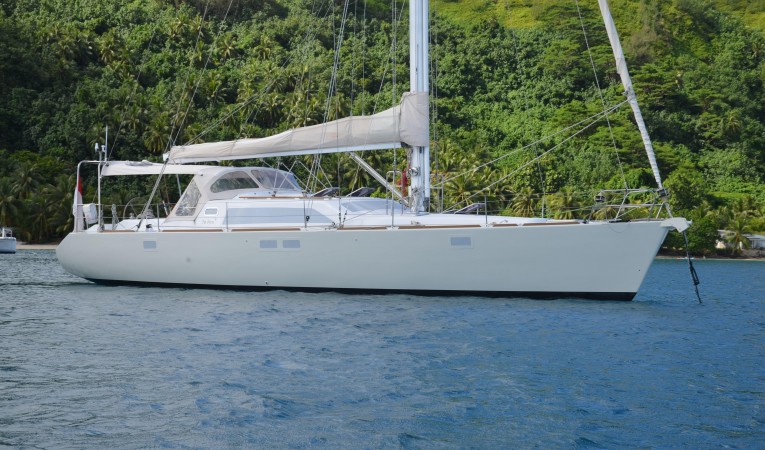

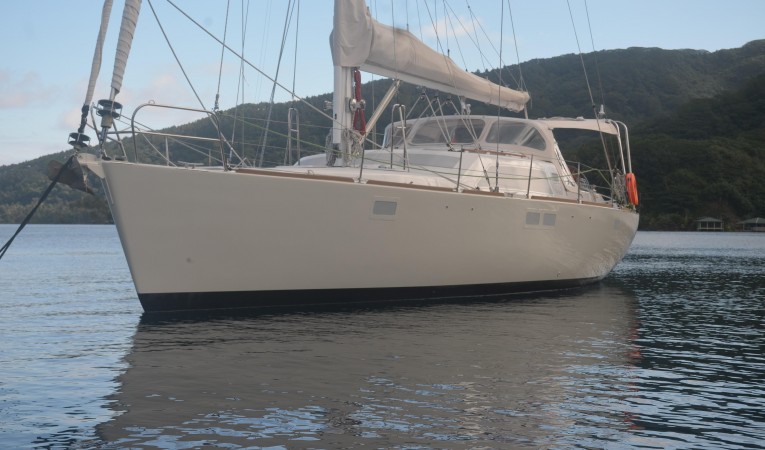

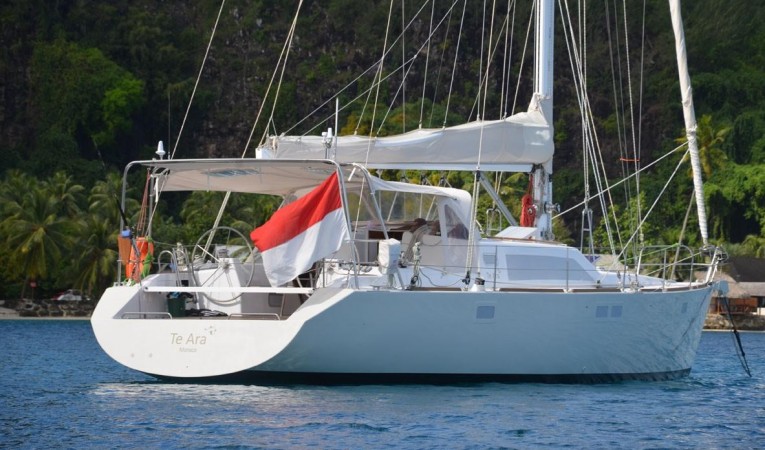

47' Atlas Boat Works 2000

Designed by Jacques Fauroux as a high-performance cruising yacht, she has all the necessary equipment and open cockpit associated with a racing yacht, while maintaining the luxury interior, and cockpit of a cruising yacht.  Her moderate draft allows access to many areas that would normally not be available to sailing yachts of this type.

2 Double Cabins – 2 Heads

Full Electronics package

Full complement of sails – Fully battened main – Furling Genoa – Gennaker – Spinnaker – Storm Jib

Luxury cruising interior – Well laid out open cockpit – with Bimini and dodger.

Large Galley with extensive countertop work area

Solar panels

Strong composite hull construction for offshore use

This yacht has been used as a cruising live aboard by her current owners.  She was designed as an “owner’s version” performance cruiser and can cover a good deal of mileage each day under sail.  A BLUE WATER CRUISER - Solidly Built of strip plank mahogany composite, she can withstand the rigors of ocean sailing.  Her beam is carried well aft for stability, and her twin rudders offer excellent steering on all angles to the wind.

Actively for sale - offers encouraged.

THIS BOAT IS AVAILALBE FOR PURCHASE WITH BITCOIN OR OTHER CRYPTO CURRENCY

Please call listing broker to discuss further or to set up an appointment to see this exceptional sailing yacht.

Length ………. 47 ft ………..14.68 m

Beam …………  15 ft 2 in .    4.76 m

Draft………….    6 ft 6 in ….. 2.05 m

Displacement .   29,700 lbs.  ….. 13.500 kg

Tankage:  Fresh water -    105     gal ……    400 ltr ( in 2 tanks)

               Fuel …………….       105 gal ………   400 ltr ( in 2 tanks)

There is easy access to the wide cockpit from the stern or She can be boarded from her wide side decks.  Cockpit is quite open with separate steering and working section aft, and comfortable seating forward with a centerline table.  A full Bimini and forward dodger protect the cockpit.

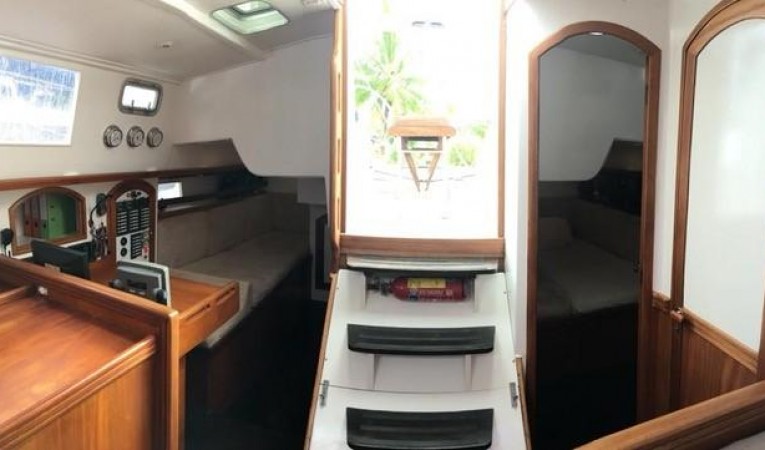

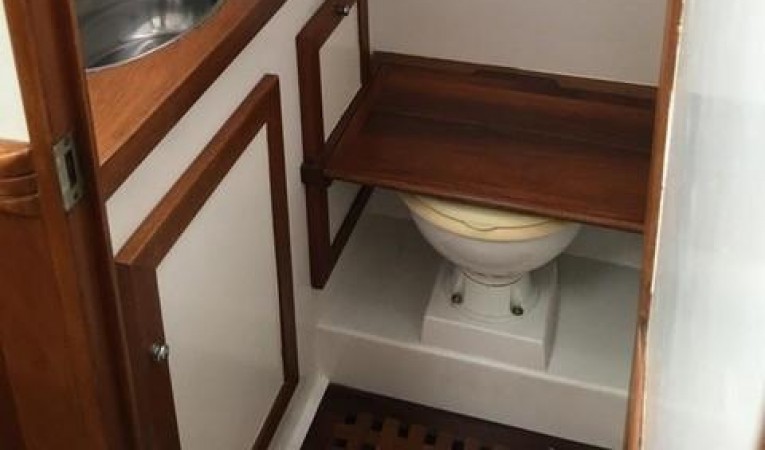

Down below there is a comfortable full length pilot berth aft of the Nav station on Starboard side, and a private guest cabin on Port side.  An aft head to Port of the companionway stairs is either a day head or can be used as the guest head.

Moving forward in the Salon is a U-shaped dinette to Port and a full Galley to Starboard.  AQ private Owner’s cabin occupies the forward space with a double berth to Starboard and settee to Port.  The master also has a full head w/shower.

The interior is finished in fine woods, contrasted by white painted surfaces.  This,  including the large window areas accomplish a bright and airy interior.

Salon:

Large central U-shaped Salon to Port

Adjustable height table lowers to form double berth.

Chart table with bench seat

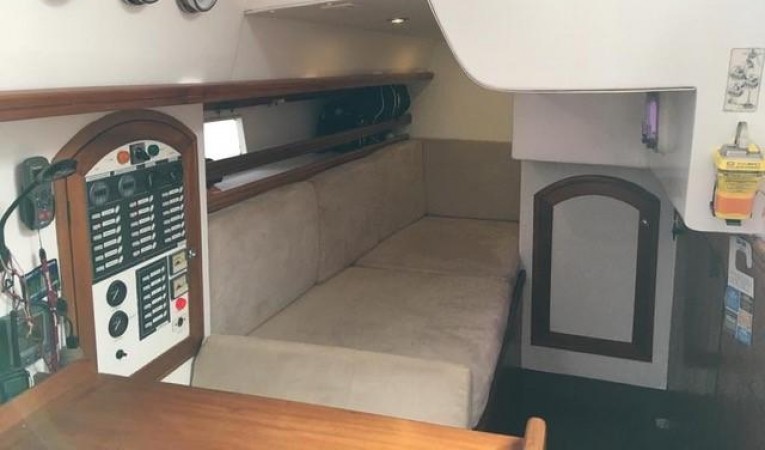

Pilot berth to Starboard - aft of Galley

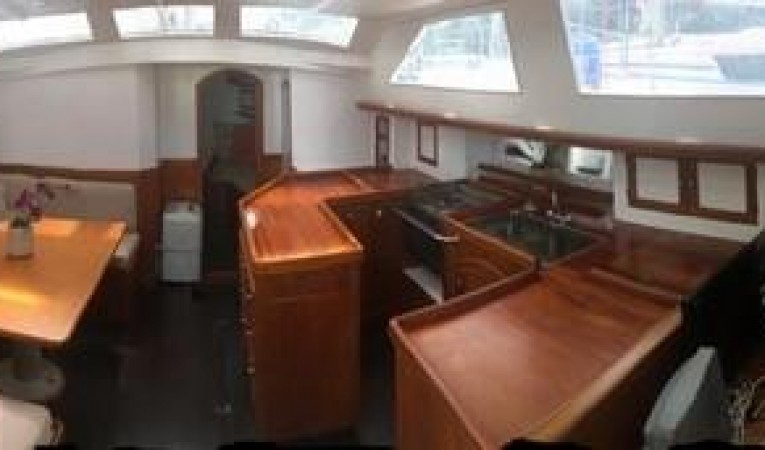

Galley:

Galley is to Starboard with U-shaped countertop

2 independent cold storage compartments – (refrigerator and freezer) powered by 24 v DC, or 220v AC

2 large Stainless-Steel sinks

Pressurized water system-24 v

ENO stainless steel gas stove 2 burners + oven

2 Cold compartments with vertical access, two independent circuits, cooled by sea water, can operate on 12V or 220V

Water maker SPECTRA 24V, production 60lt/h

Hot water heater

Sleeps 4-7 people in 2 double cabins plus Salon – 2 heads w/showers.

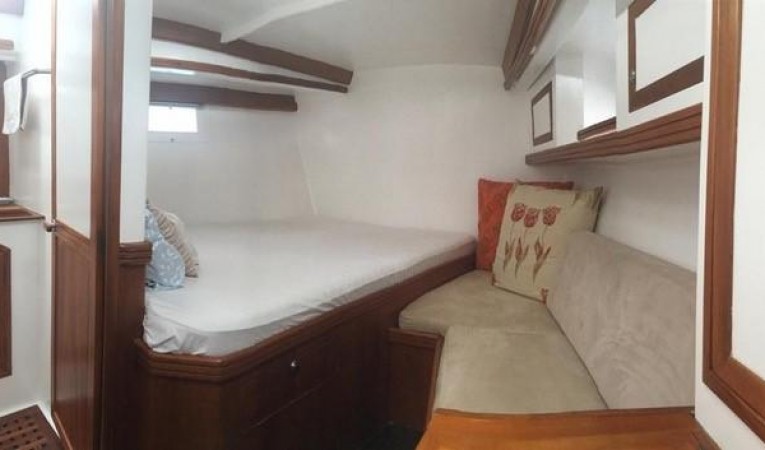

Double Owner’s cabin forward, w/Bench seat, desk, private en-suite head and shower

AFT CABIN:

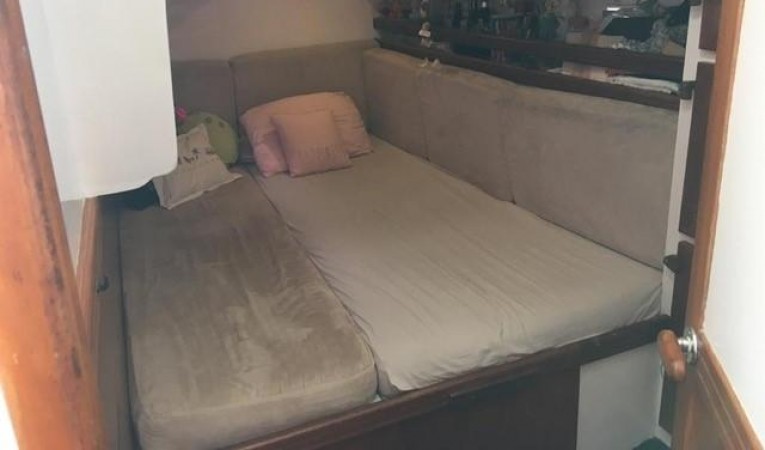

Double cabin to Port side aft with head and shower

Aft cabin fan

2 Interior showers and an exterior shower

Electronics:

VHF ASN IC-M 505

2VHF handheld ICOM

AIS transponder ICOM MA-500TR

GPS RAYMARINE RN 300

Combined speedometer/ depth sounder with repeaters at the chart table - 2 helm stations

RAYMARINE windvane indicator on the 2 helm stations (wind speed and direction)

RAYMARINE ST 700 autopilot with remote control

Fixed autopilot ST 7005

 Radar RAYTHEON RL 70 – 24 nm ( screen clouded)

NAVTEX On board computer with navigation software

Satellite phone IRIDIUM

Steering compass Bearing compass

Electrical:

8 VICTRON AGM house batteries 110Ah, total 880 Ah (2016)

1 engine battery 80 Ah (2016)- Engine start battery

2 Solar panels X 105W (2016)

2 VICTRON charge controllers (2016)

Charger VICTRON CENTAUR 24V 60 Ah (2016)

2 Alternators attached to the engine-   one from Nanni attached to the engine producing 12V dedicated to engine and Windlass -  the second one in 24V/140A dedicated to the confort

Inverter (2016)-220v

Electrical panel with distribution 220V - 12V - 24V

LED interior lighting  -24v

Nanni Diesel – 62 HP (2700 hours estimated)

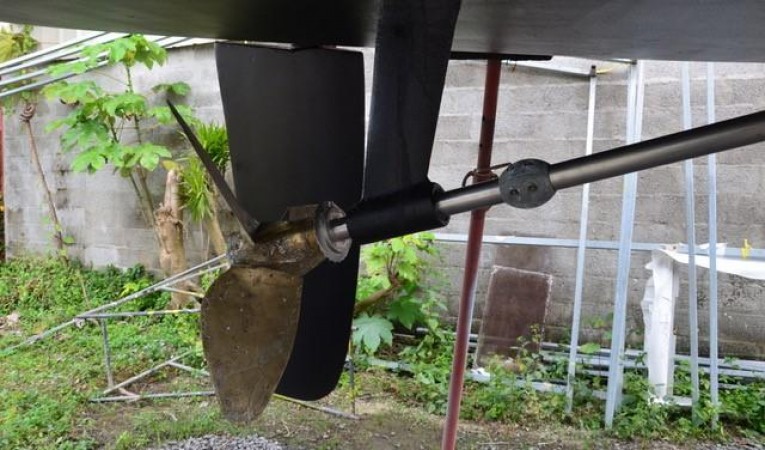

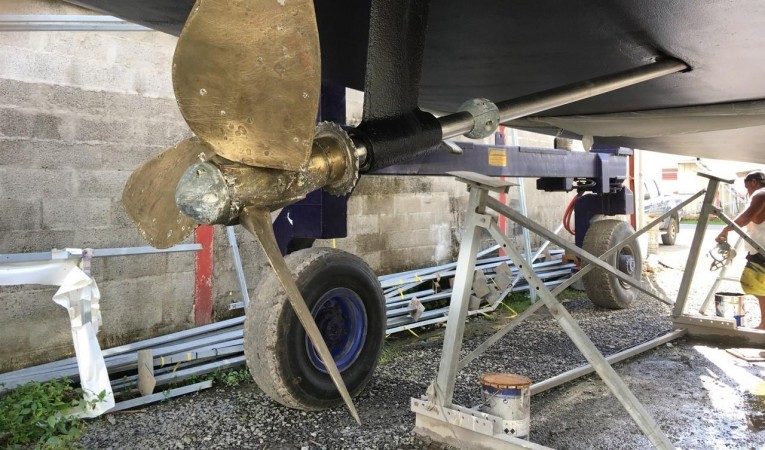

Straight shaft with 3 Blade MAXPROP w/ automatic feathering

PSS SEAVIEW dripless shaft seal

Manual bilge pump operated from cockpit

Main bilge pump with auto float switch

Engine bilge pump with auto float switch

- Materials: Strip planking construction, in mahogany, glass fabric / epoxy resin laminate  inside and outside. Collision bulkheads are placed behind the hold sail and ahead of the rudder tubes. Watertight compartments filled with expanded foam, are placed under the sail compartment and at the level of the aft locker.

- Structure: The hull is structured with mahogany veranda and plywood partitions, laminated to the shell. Bonding by epoxy gluing.

- Coating: Epoxy primer paint and two-component polyurethane lacquer finish.

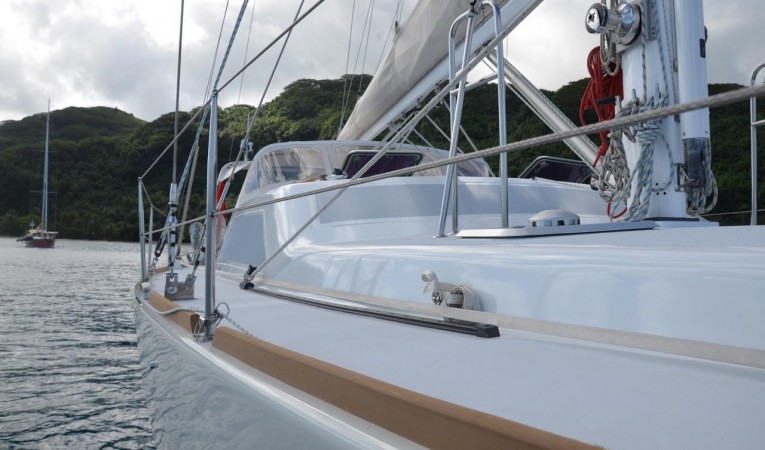

Hull and deck connection: The deck is glued to the hull.

- Coating: Painted with anti-slip additive.

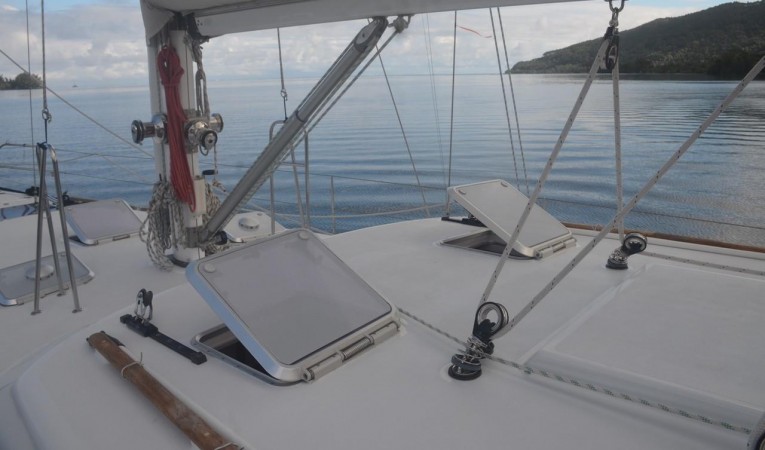

- Deck hatch: Seven deck hatches.

- Deck security: A front pulpit, two aft pulpits  and ten stanchions, welded stainless steel tubular, equipped with two floors of dies.

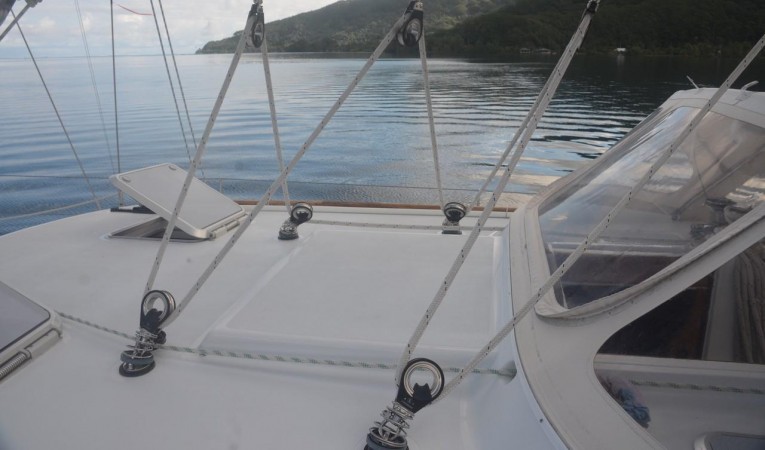

The deck was renovated during the last refit, the original teak was removed and replaced by a lamination of triaxial fiberglass impregnated with epoxy resin, then a polyurethane paint was applied as a finish.

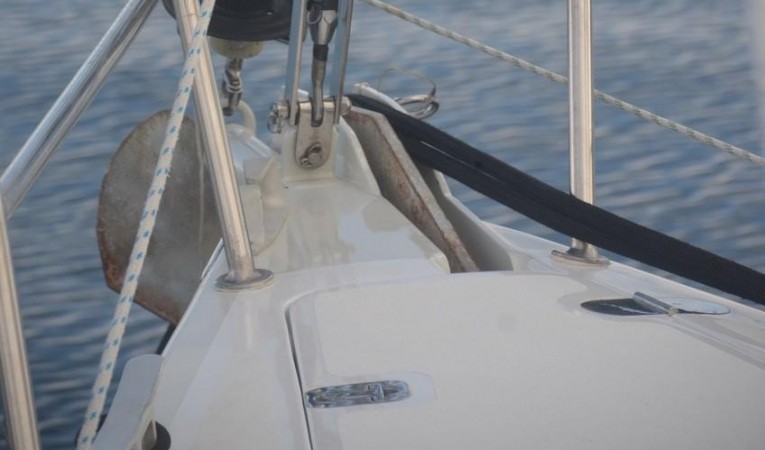

Ground tackle- Electric windlass GOIOT 1600W, good condition Main anchor: plow anchor + 80 m chain 10mm (good condition) Secondary anchor: 2 other Danforth type anchors, one of which is a Fortress,  aluminum anchor

COCKPIT:

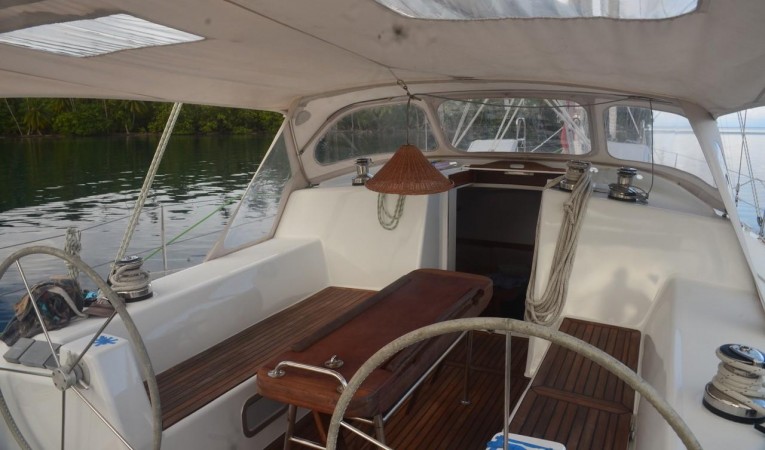

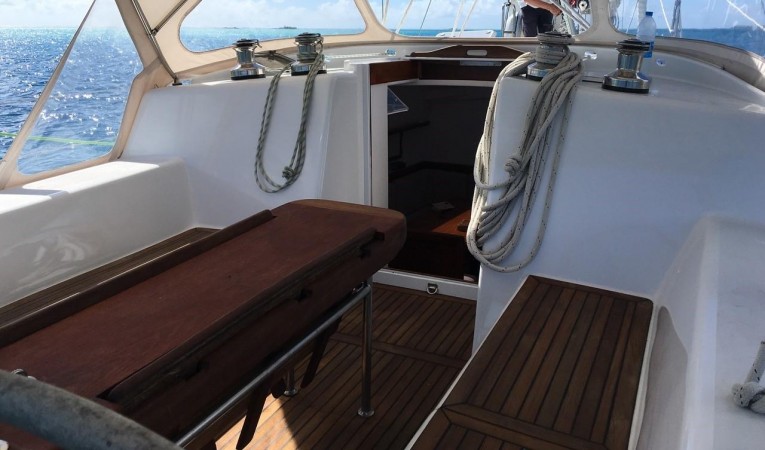

Large cockpit with steering section area aft and seating with full length table in forward section

Her twin steering wheels allow for excellent visibility forward and room to easily move about the cockpit.

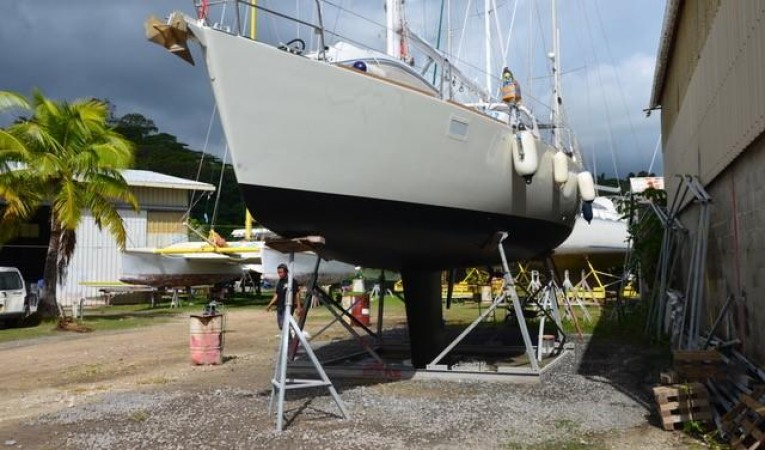

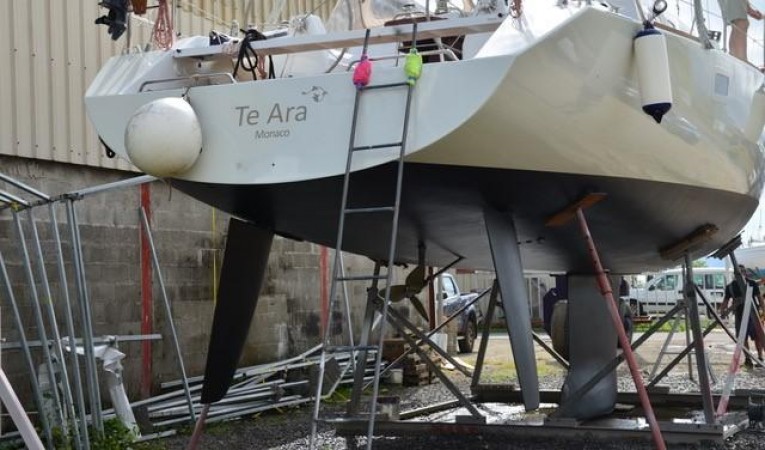

She is steered through the water with twin rudders.

Specific care has been given to the design of the helm system, which is particularly accessible.

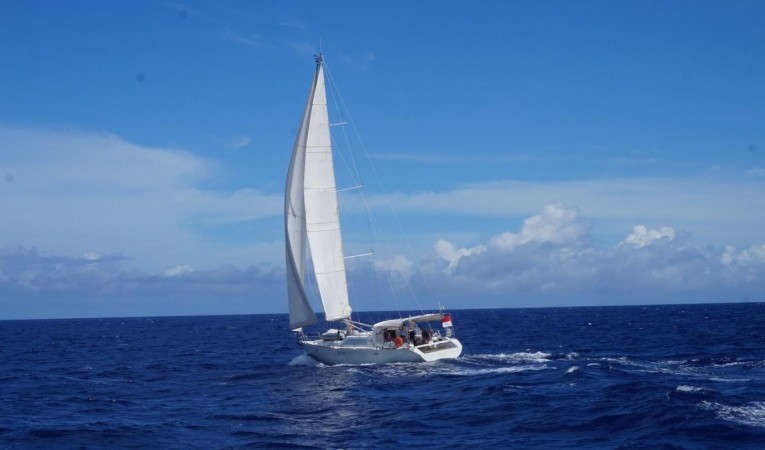

Full battened mainsail, tri radial, in Dacron Dacron tri radial genoa on furler Cross-cut staysail, Dacron Asymmetric spinnaker, tri radial Gennaker on furler

Mainsail cover + lazy bags

Cutter rigged

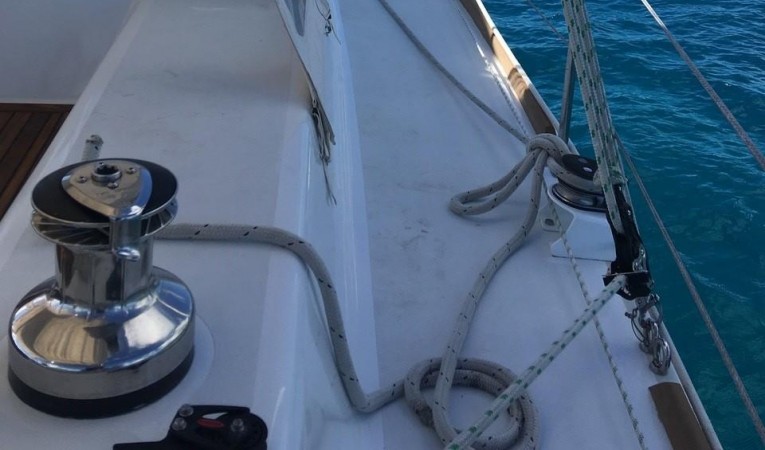

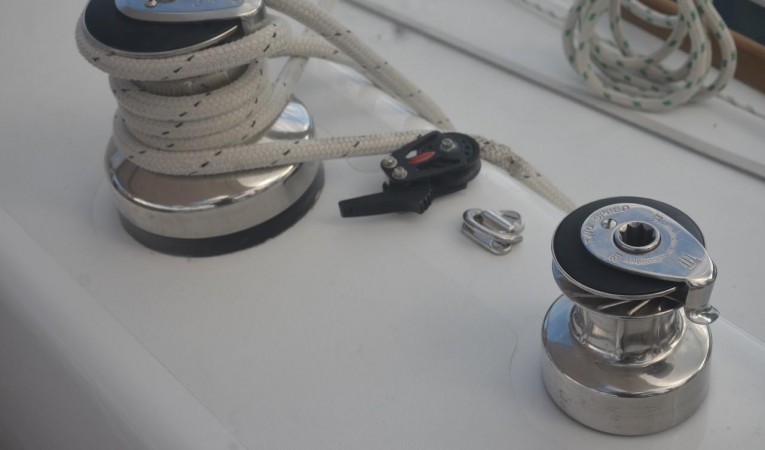

Aluminum mast with spinnaker pole track and mainsail luff track with ball bearings Aluminum boom Three-spreader mast - cutter rig, i Standing rigging with multi-strand stainless steel cable mounted on Norsman and crimped fittings, Mast stepped on the deck w/compression post below Rigid vang, PROFURL genoa furler, Gennaker Code Zero furler, (PROFURL) On the mast : 2 ANDERSEN INOX 46 winches 1 ANDERSEN INOX 40 winch In the cockpit : 4 ANDERSEN INOX 46 winches on the coach-roof for maneuvering back to the cockpit 2 ANDERSEN INOX 52 winches 2 ANDERSEN INOX 28 winches

- Fittings: Two genoa sheet rails, two staysail sheet rails and eight winches.

Liferaft - TRANSOCEAN 6 person (2015)

 Self-inflating life jackets

 Classic adult life jackets

 Classic child life jackets

Hand and parachute flares

EPIRB GME distress beacon (battery to be replaced)

2 Fire extinguishers ABC 2 Kg

Horseshoe buoy with reversing light.

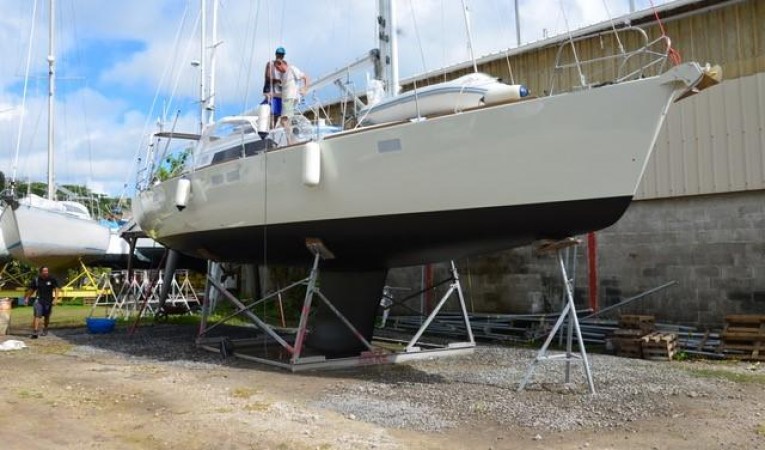

Built in 2000 by the Tropic Multihulls shipyard, in Senegal, on the design of the architect Jacques Fauroux, using the Strip Planking technique with quality mahogany wood. The hull and deck are fiberglass-epoxy resin laminated inside and out. This boat was designed for offshore sailing in all latitudes and has been a delight for the current owners, who bought her in 2008 in the Mediterranean. They lived on board and sailed with their family in the Atlantic, Caribbean Sea, Central America and South Pacific until their recent move to Polynesia. The boat has recently undergone a major refit, including the deck, where the teak covering has been replaced with additional epoxy lamination and a non-slip finish.

Highfield Aluminum bottom Dinghy 2.90 m

Outboard engine - Tohatsu 2T  9.8 hp

swim ladder

Barometer

Binoculars

covers to protect entire deck and cockpit

Stainless Steel solar panel support frame

Hard cockpit dodger

Large fixed cockpit table w/2 folding leaves

Tools

Well maintained by knowledgable owner

Huge cockpit - easy for handling the vessel and comfortable cruising

large interior - well lit with excellent ventilation

Owner's personal effects are excluded from the sale
