Description

PRELIMINARY LISTING and PHOTOS
Twin Caterpillar 3508D Mains
(2) Kohler 80 Kw; (1) Northern Lights (emergency)
(2) Sea Recovery SRC 1500 GPD w/ UV Sterilizers
(1) Panga 24' w/ Yamaha 150 hp; (1) Ribtec 24 RIB
Portuguese Bridge
Naiad Stabilizers

Yacht Overview

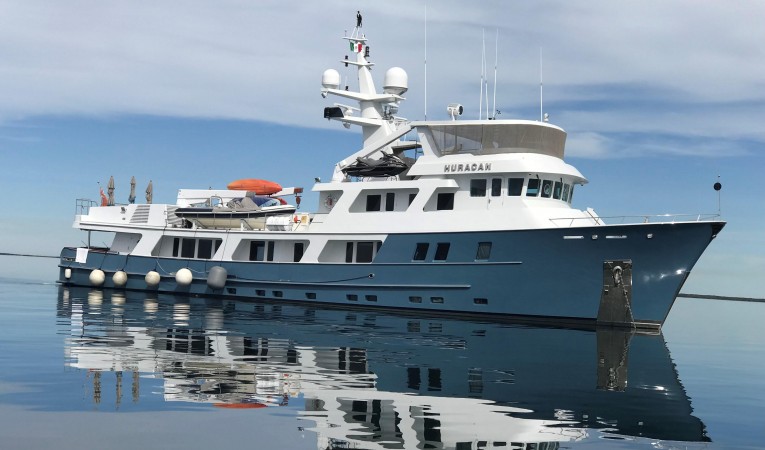

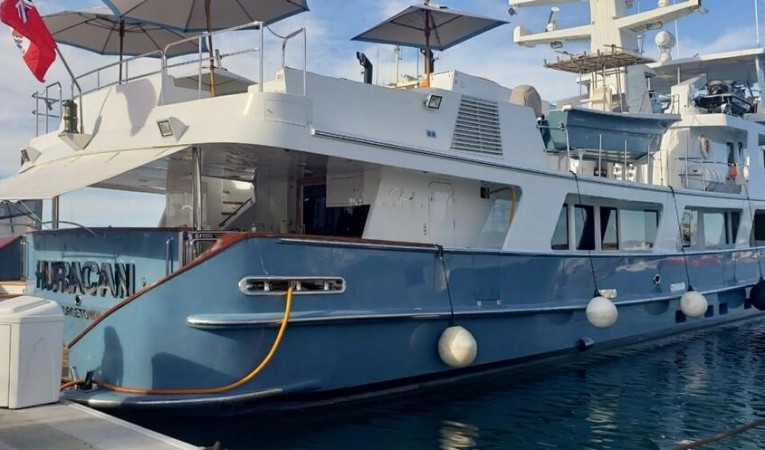

Yacht Details 125' Delta Marine 1991
Location La Paz, Mexico
Engines
Beam 29'
Draft 11'
Staterooms 8

Loading Broker Contact...

Request information

Specifications

Beam: 29'
Hull Material: Fiberglass
Max Draft: 11'
Fuel Tank: 1 x 26494|gallon
Fresh Water: 1 x 5700|gallon
Holding: 1 x 982|gallon
Cabins: 8
Heads: 9

Engines

Twin Caterpillar 3508D 705 HP
Fuel Capcity 26,494 gallons (10 tanks - FRP Integral)
Transmissions: Twin Disc MG 530M 4.9:1
Racor 1000 Series Fuel Filters
Water Tanks (5) 5700 gallons
Engine Room Ventilation: (4) Intake and Exhaust Fans High Capacity w/ Frequency Drive Controllers
Gensets: (2) Kohler 80 Kw (1) Northern Lights (emergency)
(2) Sea Recovery Watermakers SRC 1500-2 GPD AWC w/ UV Sterilizers
Oil Change System: AC Pump Roper w/ Manifold w/ 5 tanks plus sludge tank

Electrical Systems

(4) 8D Starting (AGM); (10) 8D Inverter (gel); (1) Group 24; (4) 8D Electronics (AGM)
120/208 VAC 3 Phase
DC Wiring: 2 wire Copper Stranded Sheathed AC Wiring: 3 wire Copper Stranded Sheathed
Electrical Panel Locations: Engine Room (main); Crew Companionway; Galley; Saloon; Pilothouse; Stateroom Companionway; Crew Mess
Main AC Beaker Capacity: 50 & 100 Amp

Deck Equipment

Anchors: (2) Navy Stockless #1250 lbs. each; (1) Sea Anchor
Chain size: 3/4 Stud Link Galvanized (2) links (appoximately 800' each)

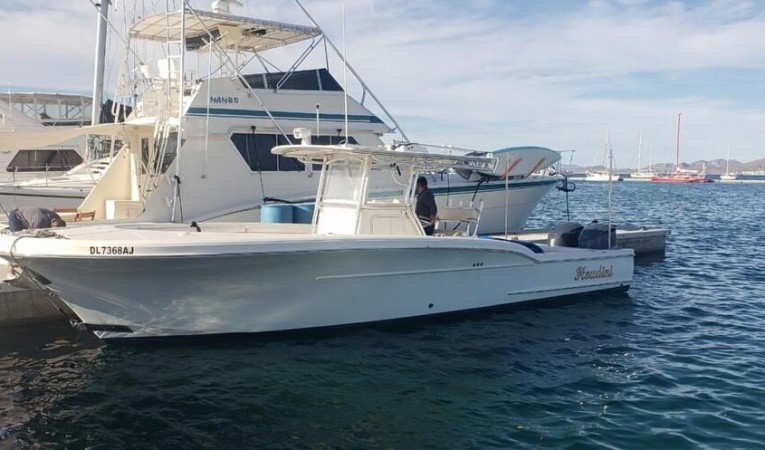

Dinghy/ Tenders: (1) Panga 24' w/ Yamaha 150 hp and; (1) Ribtec 24 RIB w/ yanmar 6LH-STZE inboard/outboard
Windlass; (2) Steen Vertical Hydraulic (bow); (2) vertical Hydraulic Aft Maxwell Warping Capstans
Search Light: Carlisle & Finch Remote Control
Bell: 12" Chrome
Horn: Kahlenberg 3-Trumpet air w/ fog control
Swimstep: FRP Teak over integral w/ 2 stair Cases

Safety

Fire Extinguishers: 30: Type ABC Size l, ll Dry Chem; Carbon Dioxide
Fixed System: Ansul Halon 1301 (2) 300 lb. cylinders
Distress Signals: Pains Wessex, Orion
Smoke Alarm & Carbon Monoxide Detectors: Maretron
Life Raft: (2) Viking 25 Person A Pack (non SOLAS) w/ Hydraulic Releases
EPIRB: (1) ACR Satellite 406 RLB-32
Fire System: AC Pump w/ 5 Hose Stations

Navigation Equipment

Helm Locations: Pilothouse; (2) Wing Stations; Flybridge
Satellite Phone: KVH Tracphone
Sonar: Interphase Forward Looking
Fathometer: (2) Koden CVB 20A w/ 1 Kw Transducer
Autopilot: Roberton AP 50; AP 51 Remote
Radar: (2) Furuno FR-2021 (120 & 96 nm)
GPS: (2) Furuno GP 32; Maretron Black Box
VHF: (2) Icom M604; Icom Command Mic; (6) Standard HX870 (hand)
SSB/ HAM: Icom M802; Icom IC 718
Navtex: Furuno NX-700
Intercom System: Panasonic TES 824
Loud Hailer: Raytheon 430
Cellular Phone: Remote Antenna & Amplifier
Compass: Magnetic (PH); (1) Satellite; Ritchie Magnetic
Plotter: Nobeltec Navigation Software Time Zero
Weather Fax: Maretron Weather Station; Internet Via Time Zero Software
AIS: Simrad AI 50
Additional: Flir Night Vision Camera M324 XP; Wave WiFi System; Omini Directional TV Antenna

Interior Accomodations

Total Berthing: (16)
Shower Stall: (8)
Head Type: (9) Dometic Vacuum w/ holding
Stove: Bosch 5 Burner Induction Cook Top
Oven: Bosch Stainless Steel
Refrigerator: Cospolich SS Commercial Grade
Dishwasher: Samsung
Microwave: Panasonic Inverter
Flooring: Jatoba Wood Soles; Linoleum; Marble Heads
Trash Compactor: GE Profile
Hot Water Heater: Rheem 303 Liter Electric
Climate Control: (2) Ocean Breeze 120,000 BTU; (1) Ocean Breeze 60,000 BYU Chillers; (23) Air Handlers

Sleeping Accommodations

Port Crew Stateroom: (2) Upper/ Lower Berths & (1) Upper Berth w/ Climate control, VHF, 32" Samsung LCD TV, Head w/ Stall Shower
Starboard Crew Stateroom: (2) Upper/ Lower Single Berths w/ Climate Control, Samsung 22" LCD TV, Head w/ Stall Shower

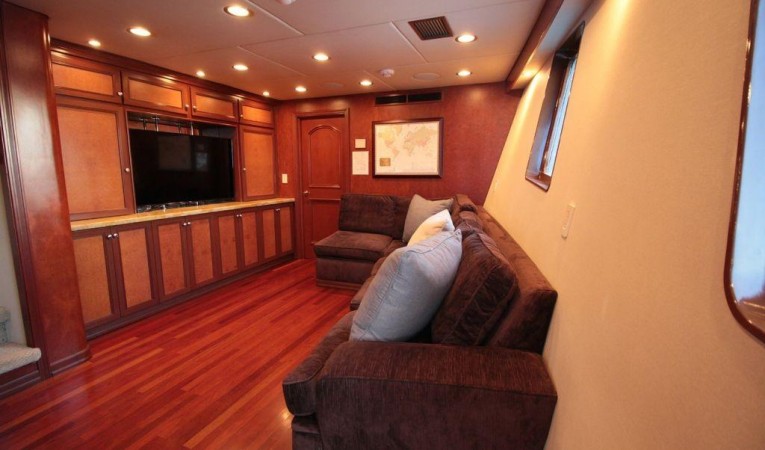

Library: Marble Counter Tops, Jatoba Hardwood Sole, Burl Wood Walls, Climate Control, Washer/ Dryer in Library (2) Maytag (2) Bosch, Washer/ Dryer in Guest Hall (Bosch), Samsung 55" LCD TV,

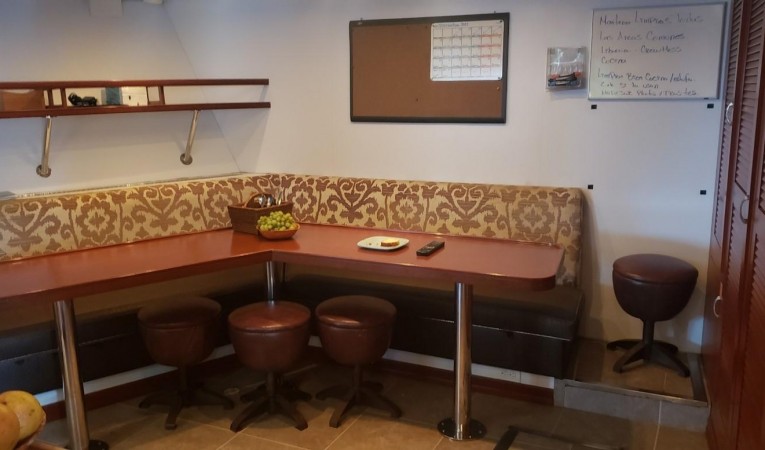

Crew Mess: Dining Table, Sony Bravia 32' LCD TV, Climate Control, HP Color Laser Jet Pro Printer, Manitowoc Ice Machine, SS Commercial Freezer,

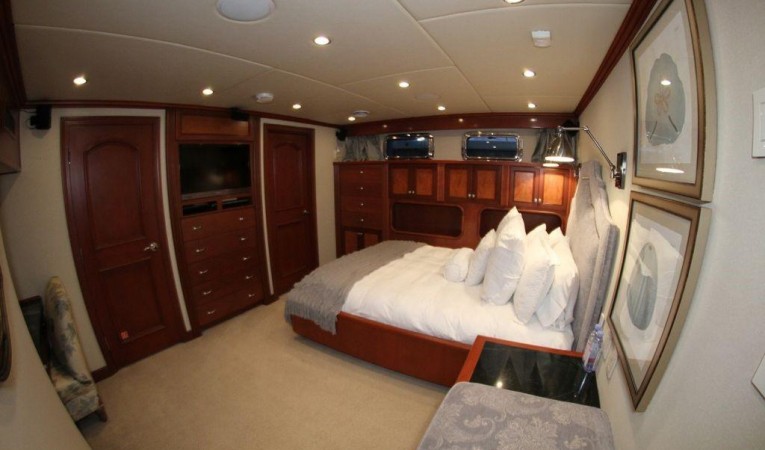

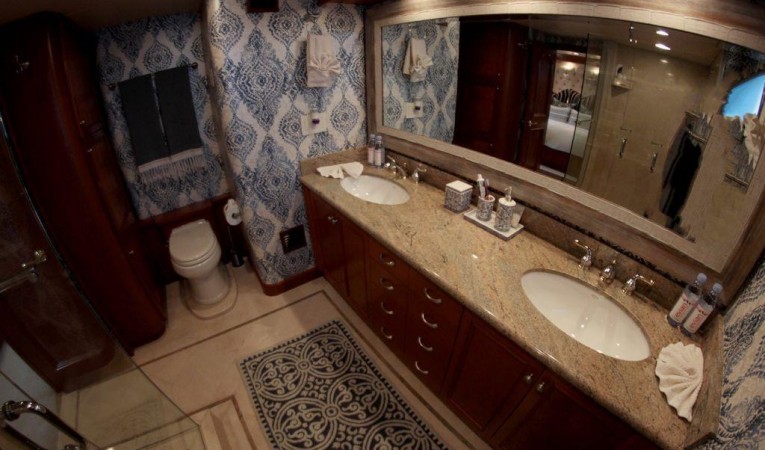

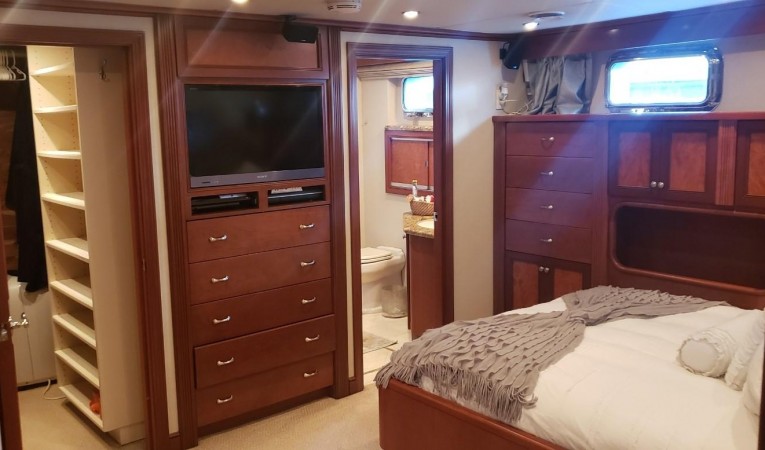

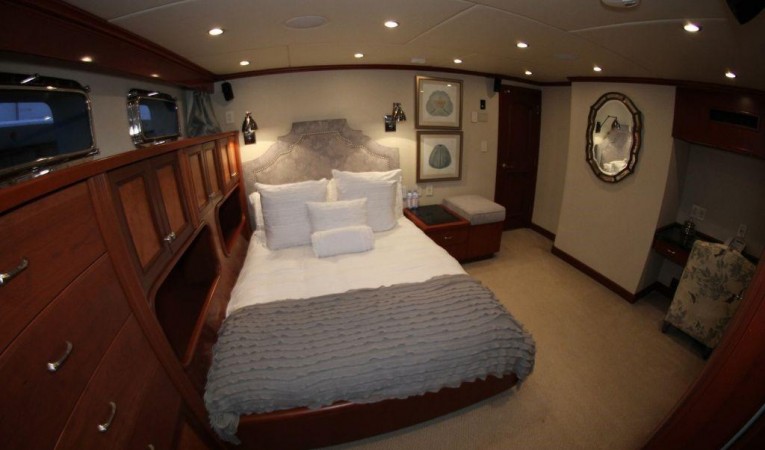

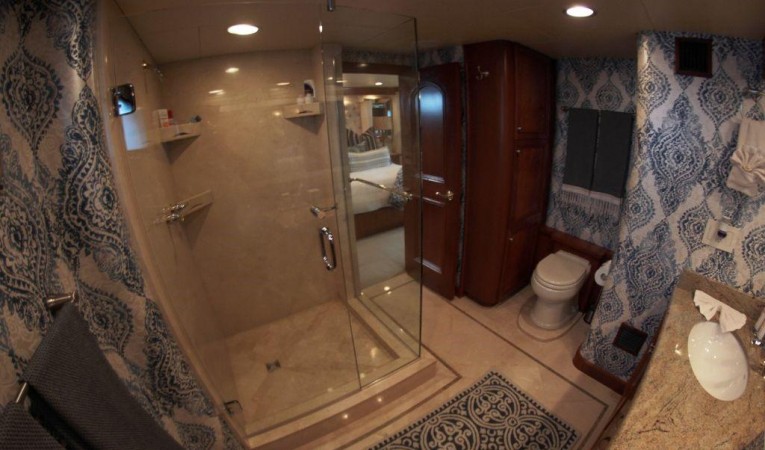

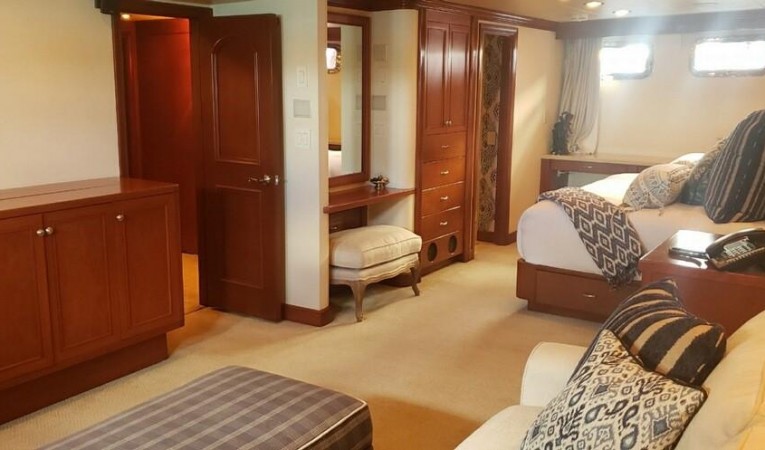

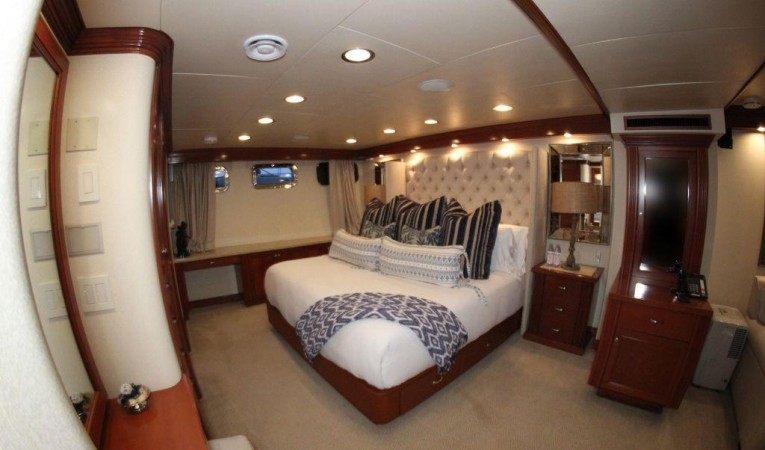

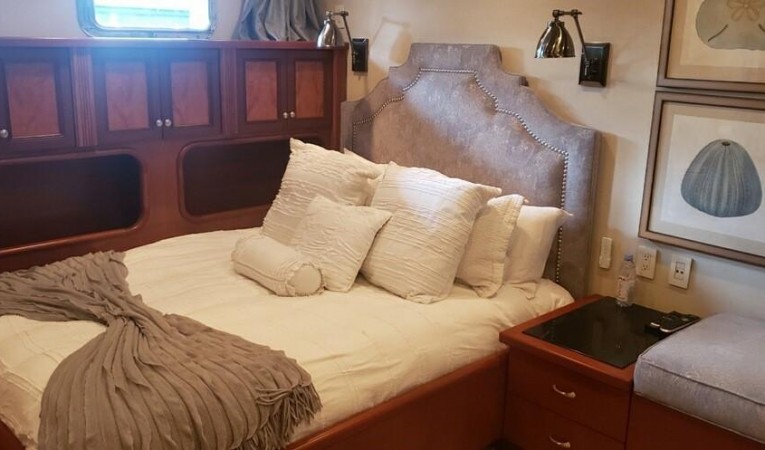

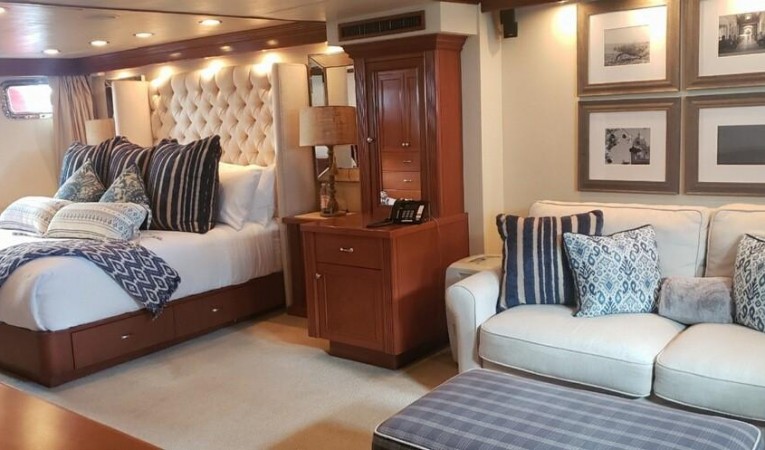

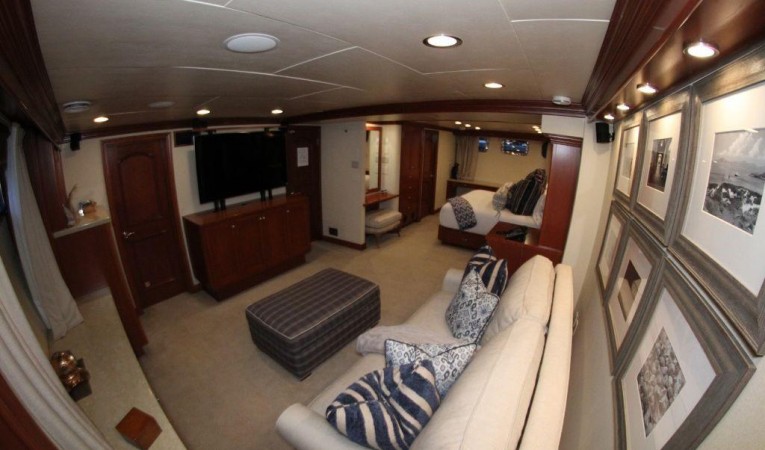

Master Stateroom: Queen Island Berth, Cedar Walk in Hanging Locker, Marble Counter Tops, Actuated TV Lift, Sentry Safe, Bose Lifestyle Music System Actuated Deadlight Curtains. Master Head w/ Marble Stall Shower and Granite Counter Tops, w/ Dual Vanity Sinks.

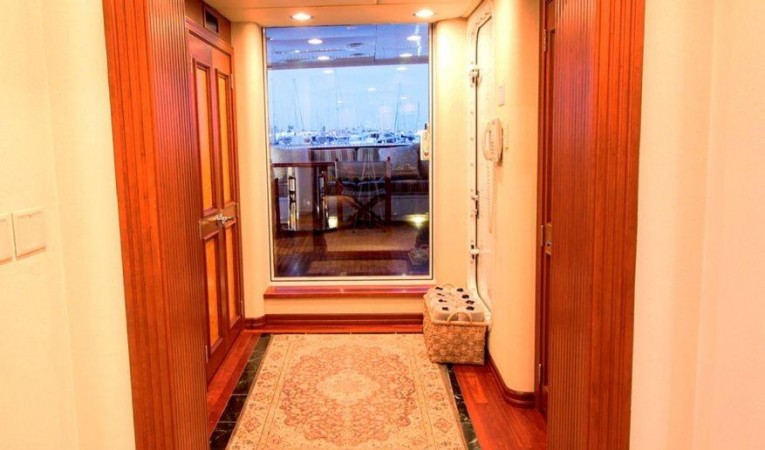

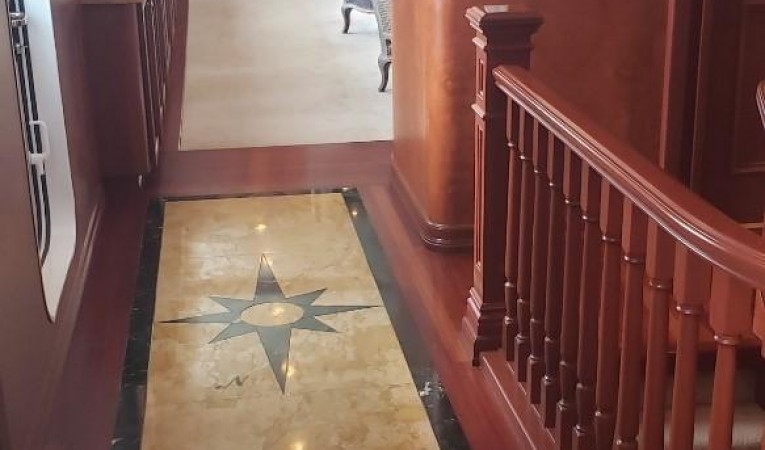

Lower Stateroom Foyer: Maytag Washer & Dryer, CCTV Camera
Port Guest Stateroom: Double Wide Bunk, Walk In Cedar Lined Locker, Sentry Safe, Bose Music System, Granite Counter Top & Desk, Dometic Vacuum Toilet, Climate Control.

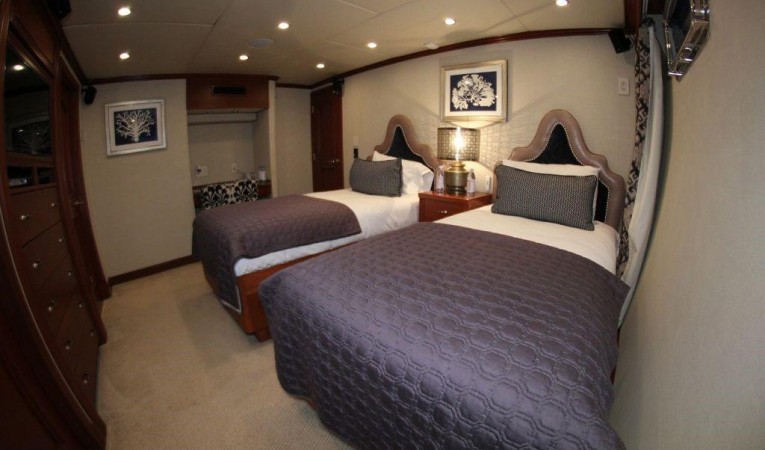

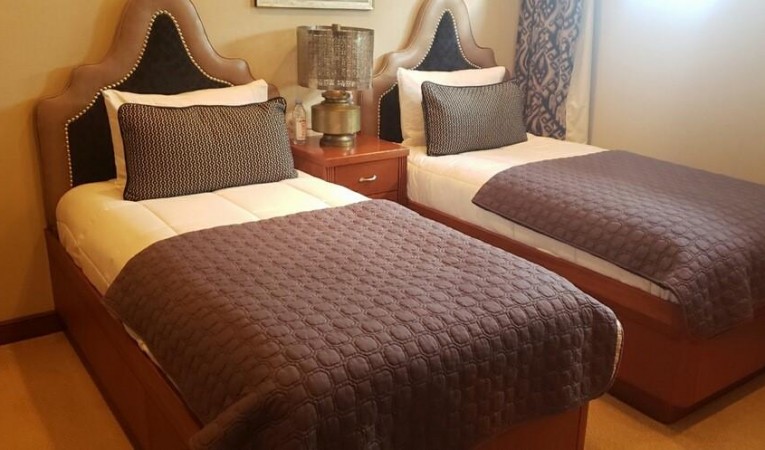

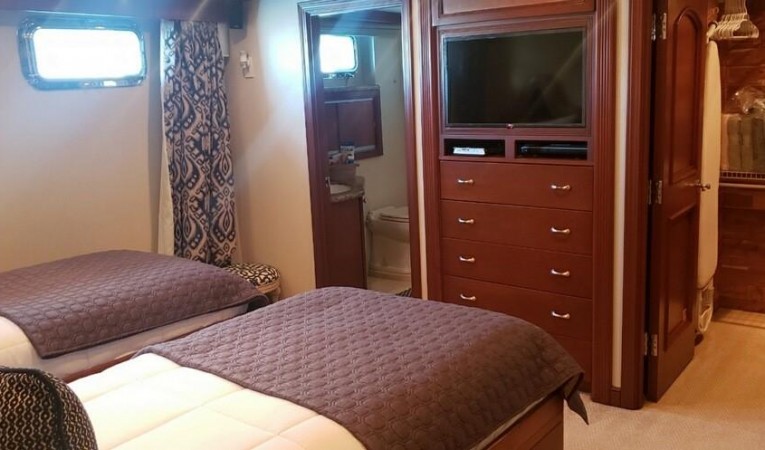

Starboard Guest Stateroom: Two Single Bunks, 31" Sony Bravia LCD TV, Climate Control, Desk, Dometic Vacuum Toilet, Walk in Cedar Closet.
First Mate Stateroom: Single Berth, Sentry Safe, Climate Control, Philips 22" LCD TV, Dometic Vacuum Toilet, FRP Stall Shower.
Captains Stateroom: Queen Size Berth, Carpeted Sole, Climate Control, Desk, Granite Top Night Stand, Maretron TMS 800C Display/ Control, Samsung 26" LCD TV, HP Computer Monitor and Printer, Mac Mini Computer, Dometic Vacuum Toilet, Stall Shower.

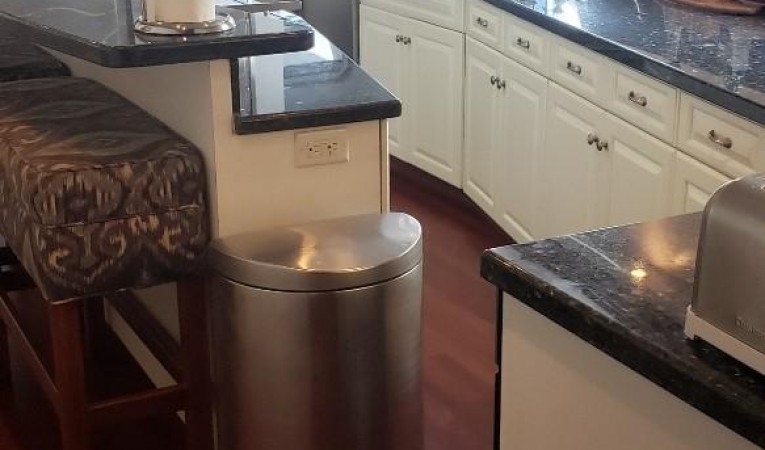

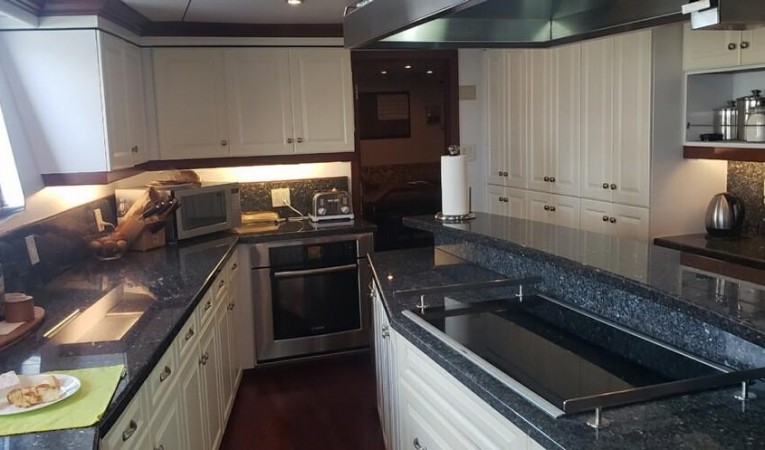

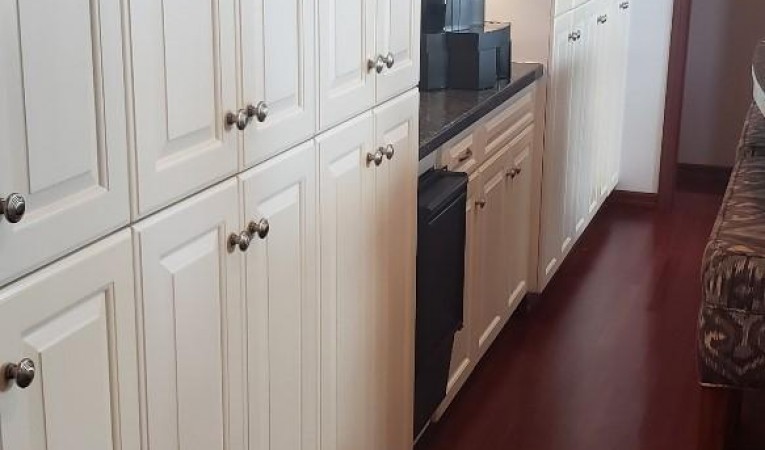

Galley

Granite Counter Tops
Samsung SS Dishwasher
U-Line Icemaker
Cospolich SS Commercial refer/ Freezer
Garbage Disposer
Trash Compactor
Climate Control
Aquaphor Drinking Water System
Jura Cappuccino Machine

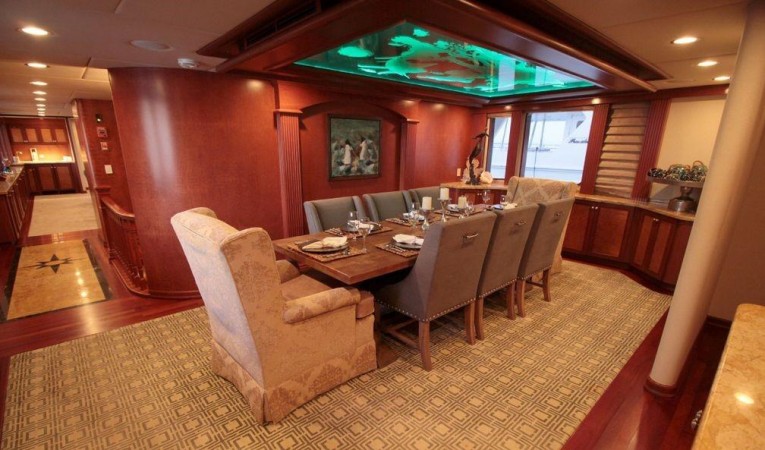

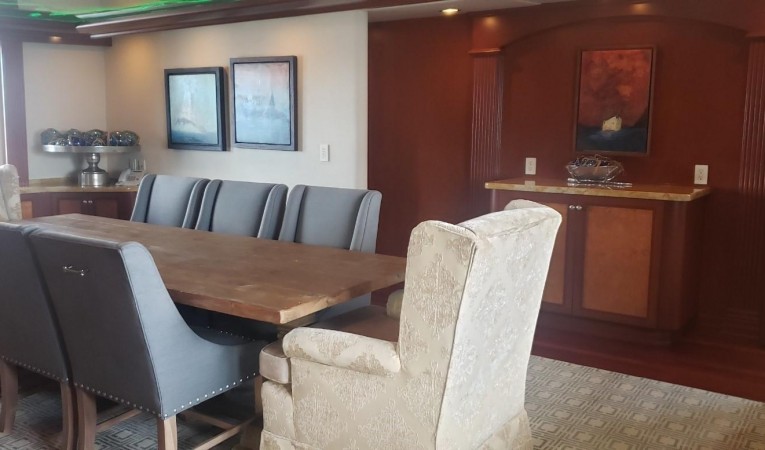

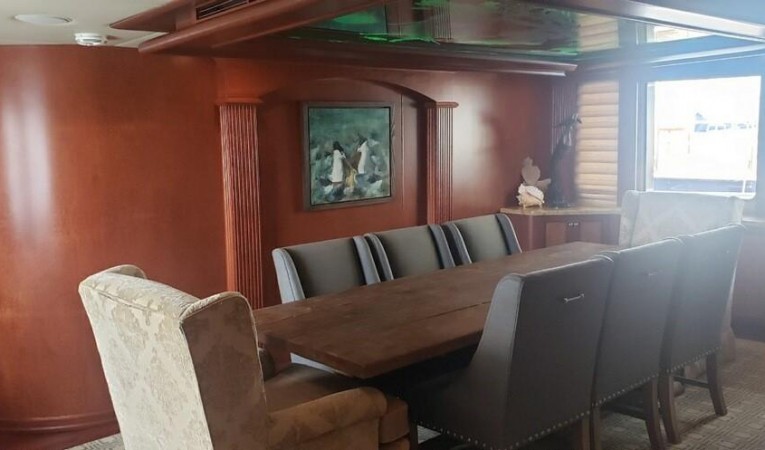

Dining Room

Marble Counter Tops
Climate Control
Burl Wood
Jatoba Wood Sole Frame
Custom Lighted Mirrored Overhead
Carpeted Sole
Wood Dining Table

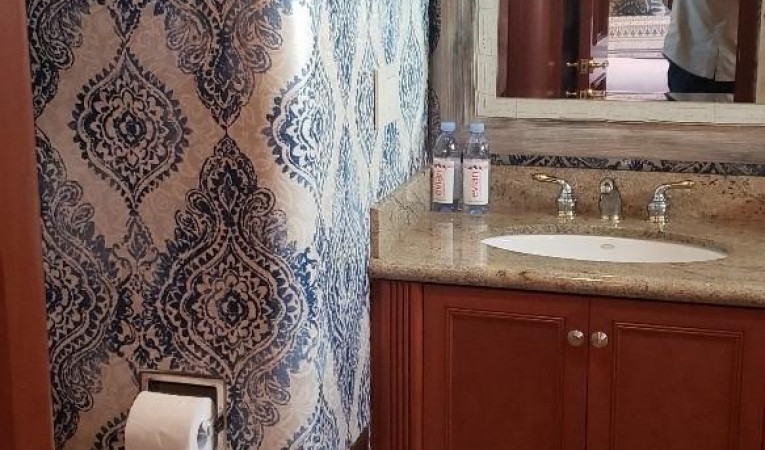

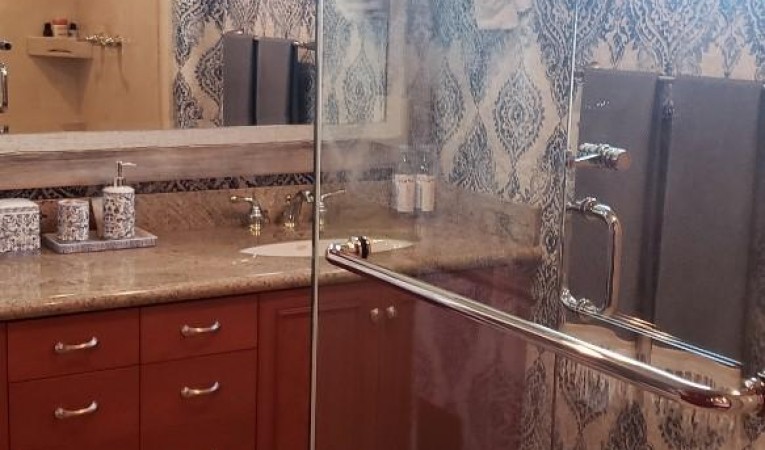

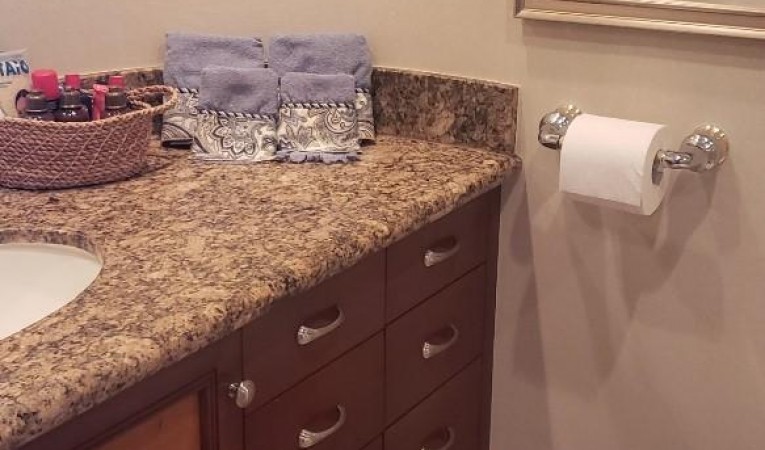

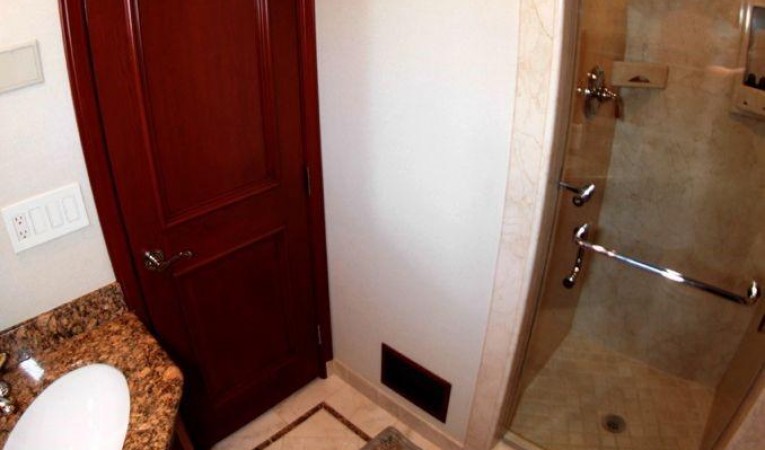

Day Head

Marble Sole
Dometic Vacuum Toilet

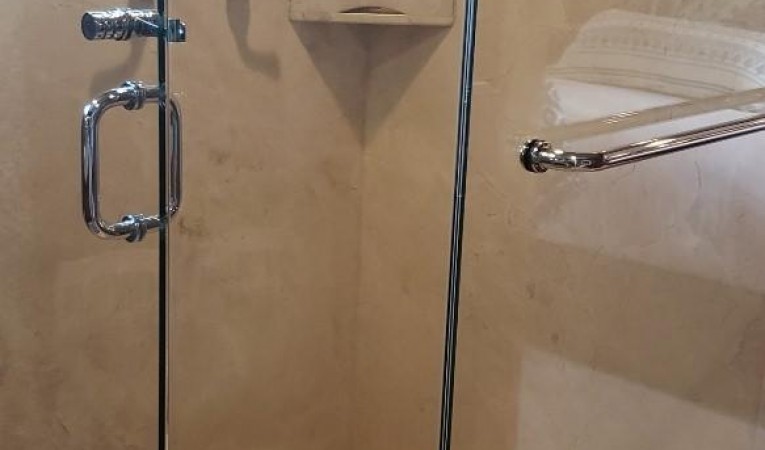

Glass Shower Enclosure
Marble Stall Shower
Granite Counter Tops

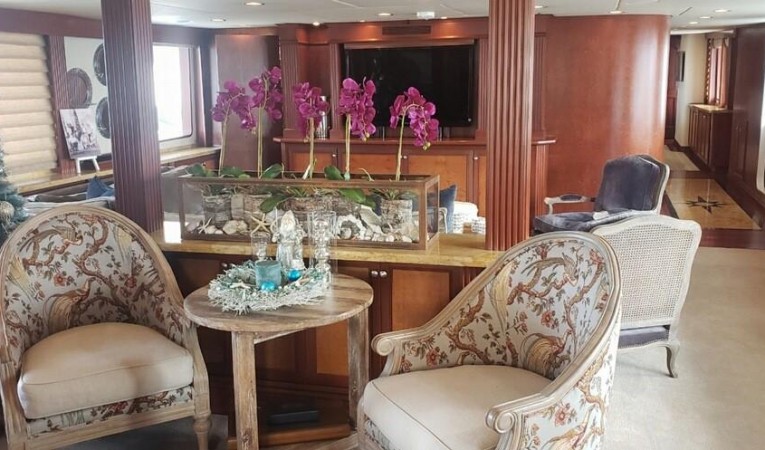

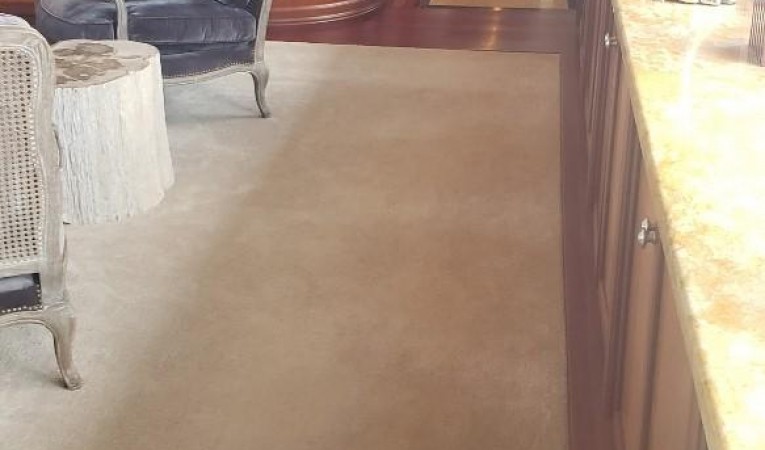

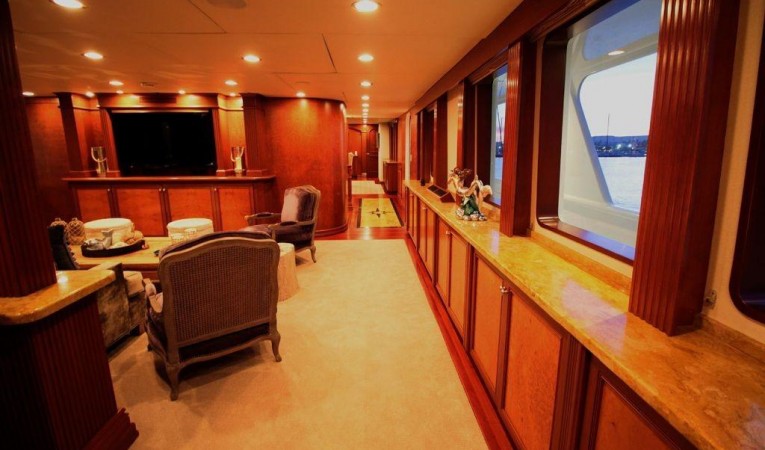

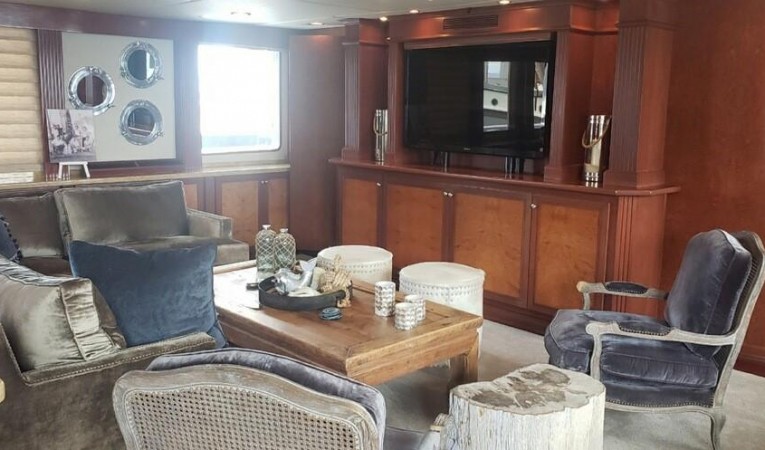

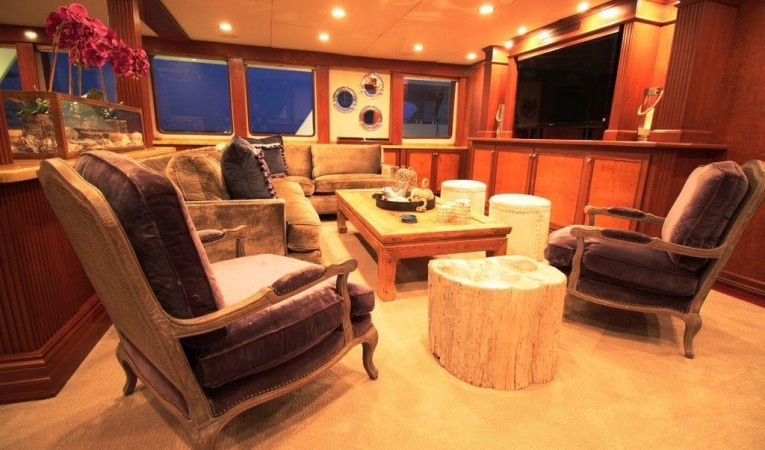

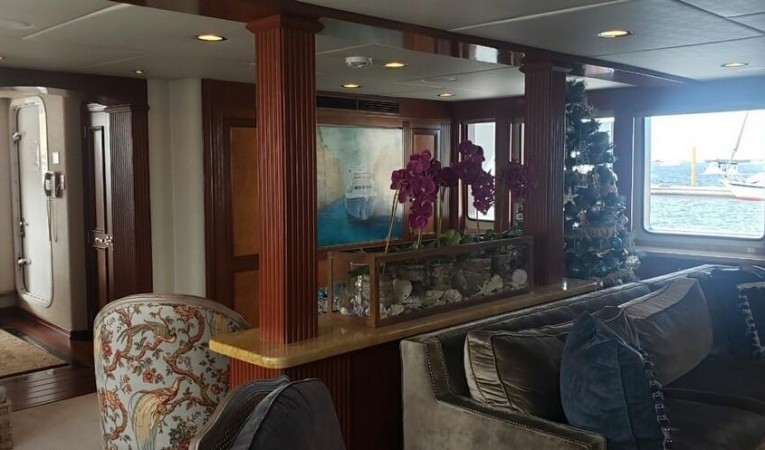

Saloon

55" Sony Bravia LCD TV
Burl Wall Coverings
Lutron Light Control System
U-Line Ice Maker
Carpeted Sole
Granite Foyer w/ Jatoba Wood
U Line Refer 2 Cu Ft.
Climate Control
Marble Counter Tops
Saloon Wet Bar
Actuated TV Lift

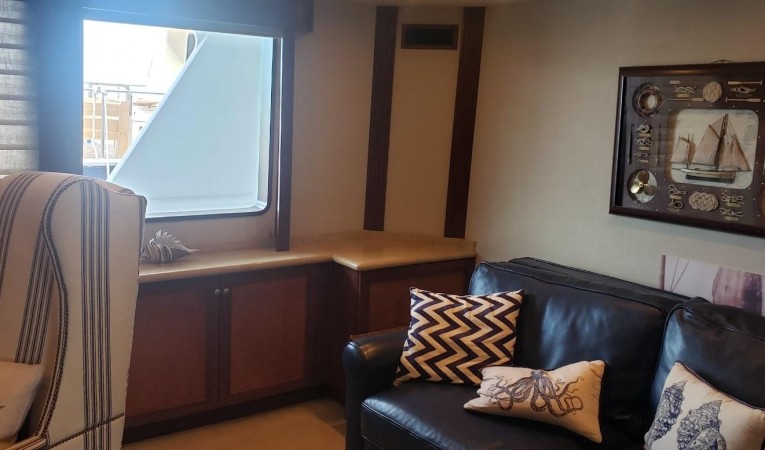

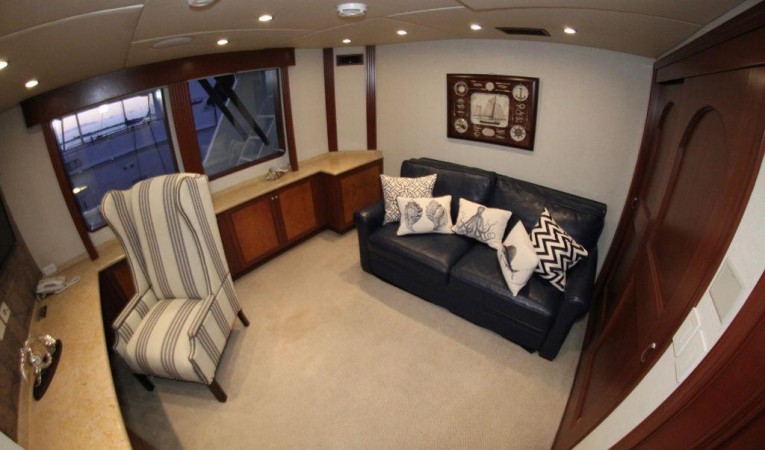

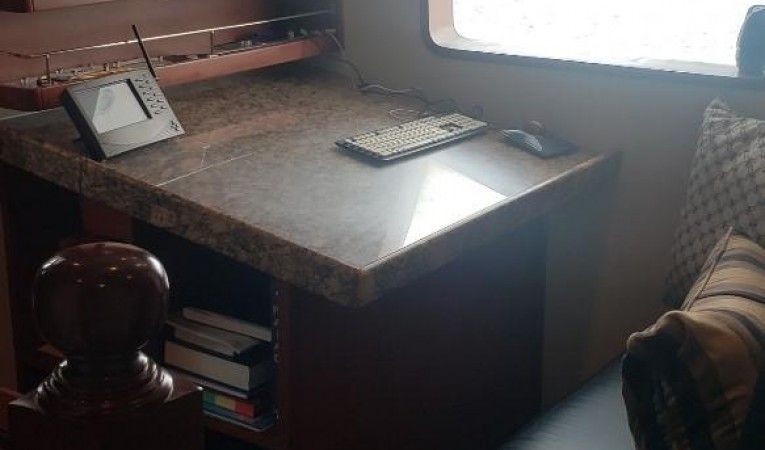

Office

Desk w/ Marble Top
Sony Bravia LCD 40" TV
Sonos Music System
Climate Control
Carpet Sole
Hunter Douglass Window Shades
Wood desk Cabinet
Marble Counter Tops
Settee Convertible Leather

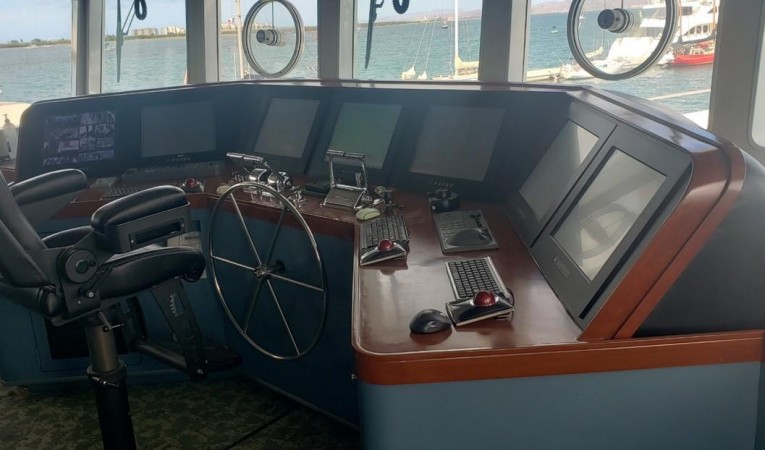

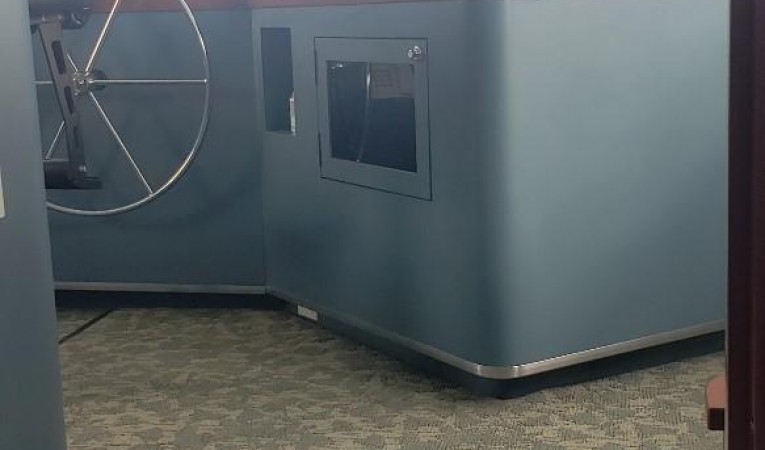

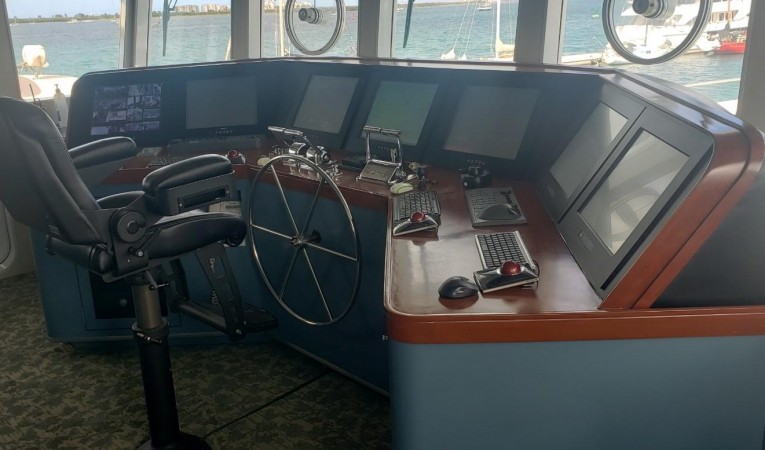

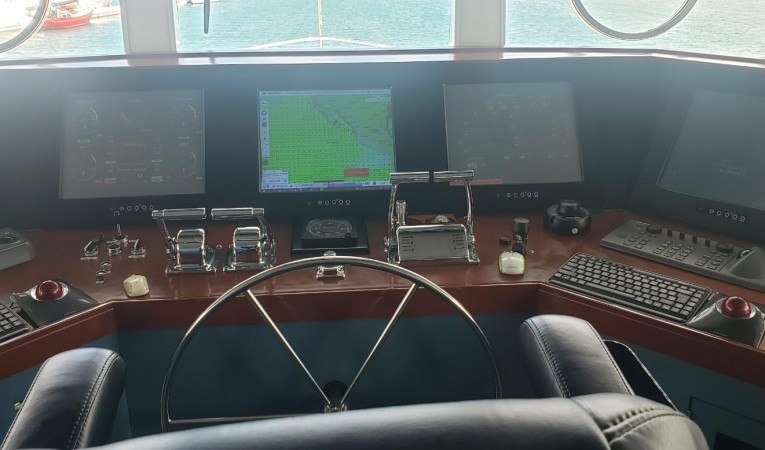

Pilothouse

(7) 19" i Tech Monitors
Bow Thruster Control
Simrad Fu 50 Jog Stick
Furuno RCU-014 Radar
Pneumatic Main Engine Controls
Vicon CCTV Camera
Simrad AP 50 Autopilot
Naid Stabilizer Control
Furuno GPS
Sirius Satellite Radio Receivers
Davis Vantage Pro Weather Station
Chart Lockers
Dell 27" Monitor
Simrad IA 50 AIS Display

Foredeck

(2) LED Floodlights
(4) Stainless Steel Mooring Cleats
Water Tight Chain Locker Hatch
(2) Steen Vertical Hydraulic Windlass w/ Cathead & Drum
Raw and Potable Water Washdowns
Stainless Steel Burgee Mast
Stainless Steel Bollard
(5) Stainless Steel Mooring Line Haws Pipes
(2) Anchor Chain Rollers
Stainless Steel Bell Tower

Portuguese Deck

(2) Wing Stations
Jog Stick
Main Engine Start/ Stops
Bow Thruster Control
Transmission Controls
Refrigeration Compressors
(2) Watertight Pilothouse Doors
Storage Lockers
Fiberglass Bulwarks
iTech LCD Monitors
Horn & Whistle Controls

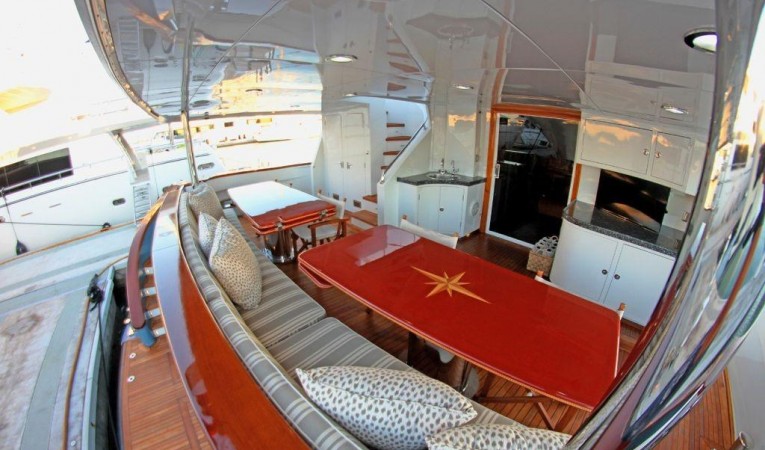

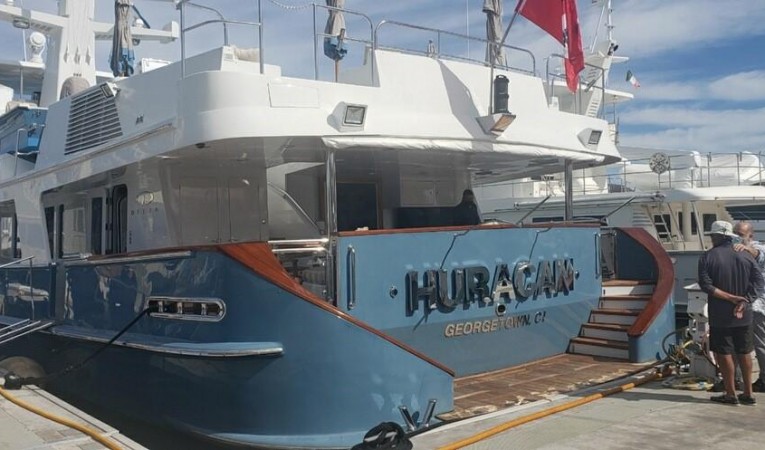

Aft Deck

Teak Decks
(2) CCTV Cameras
Misc. Storage Lockers
(2) Maxwell 2200 vertical Warping Winches
Granite Counter Tops
(2) Transom Step Lockers
(2) Mahogany Tables
Sun Shade
(2) Transom Showers
Sink
(2) Stainless Steel Transom Doors
(2) LED Flood Lights

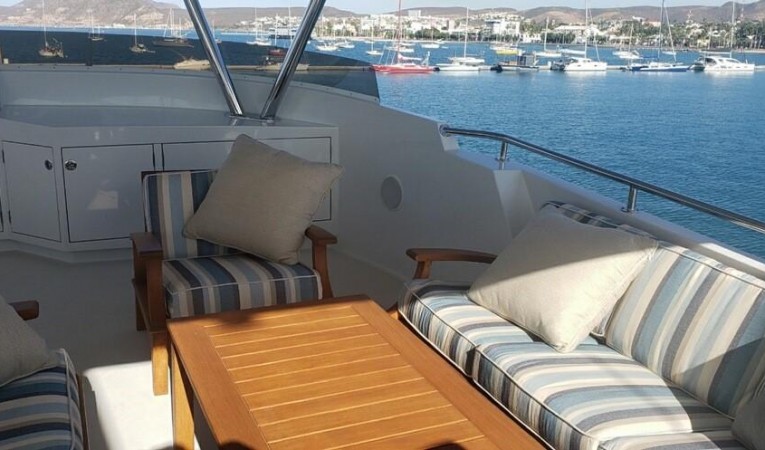

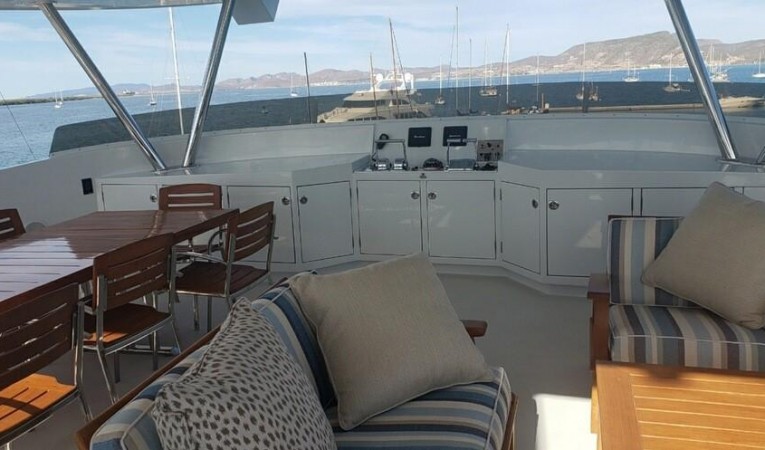

Flybridge

Helm with Full Controls
Plexiglass Venturi
CCTV Camera
Search Light Remote Control
Bow Thruster Control
(2) Ryobi 2200 Portable Generators
Icom Command Mic
Main Engine Start/ Stops
Teak Coffee Table

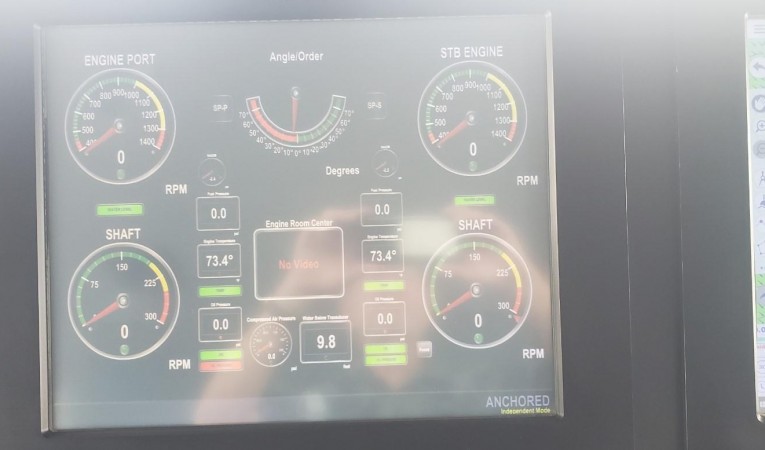

(2) Maretron DSM 250

Additional Information

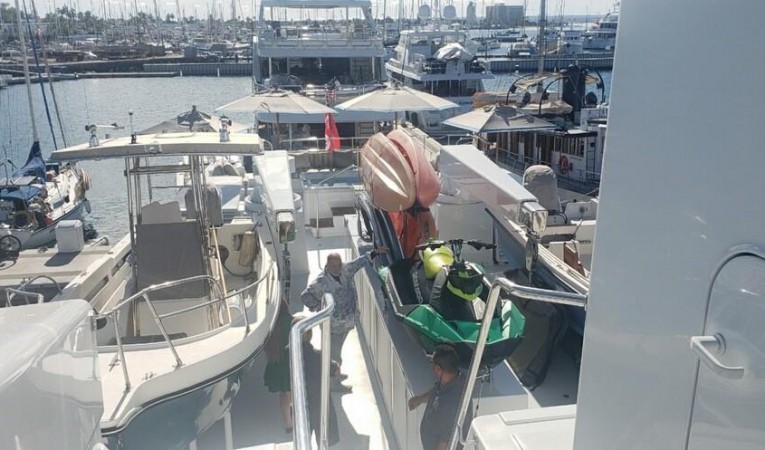

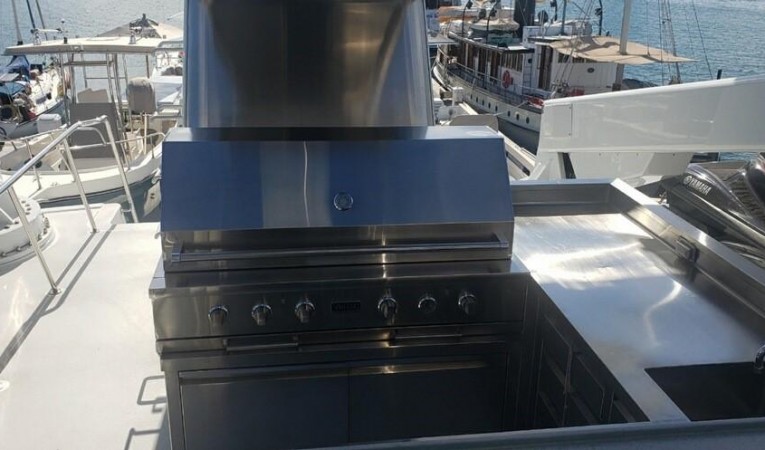

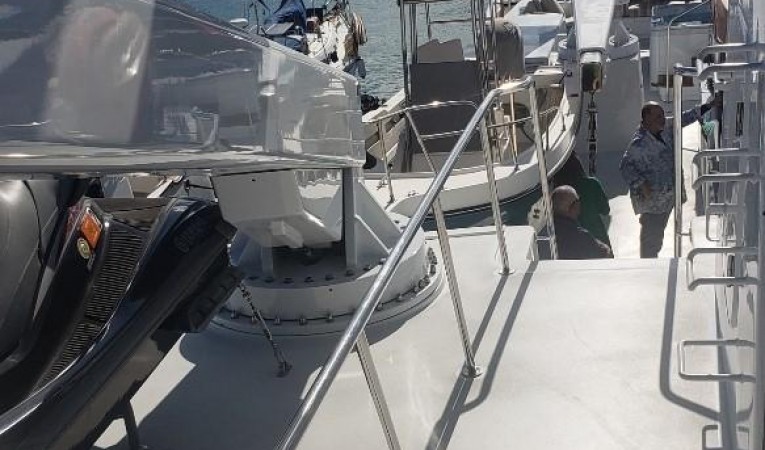

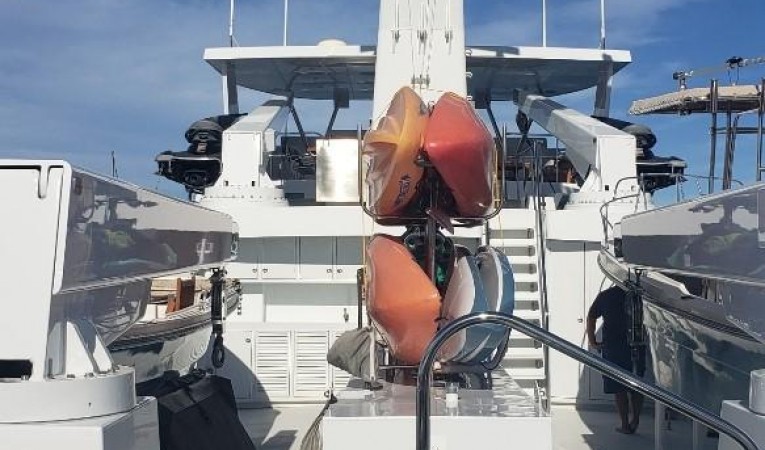

Upper Boat Deck: Viking LPG BBQ, Aluminum Hinged Radar Mast, Crows Nest, (2) Hydraulic King Cranes, Custom Stainless Steel Grill Area, (2) Stainless Steel Refer Units, Air Accumulator Tank, (2) Yamaha Wave Runners.

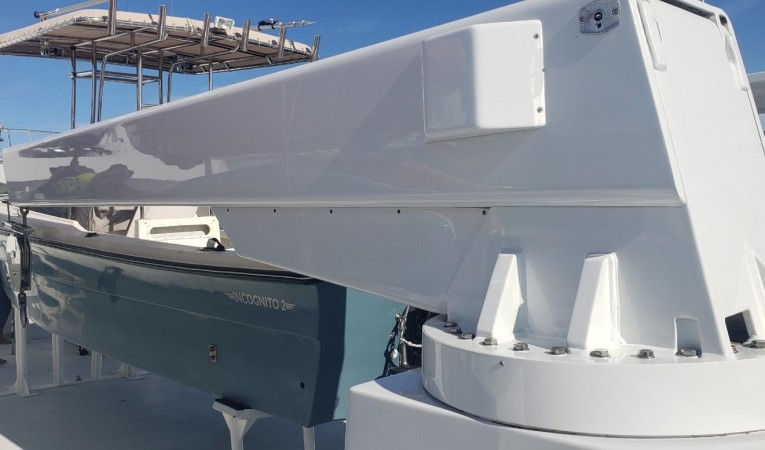

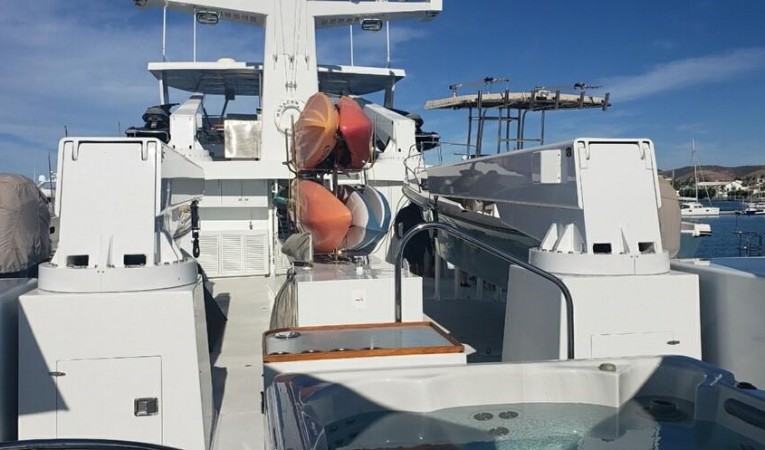

Boat Deck: Snorkel and Dive Gear Lockers, Northern Lights 12 Kw Genset, Jacuzzi, Diesel Fuel Hose Reel & Nozzle, (2) King Cranes 8022-14 Hydraulic, SS Ensign Staff, U- Line Refrig, (2) Gasoline Storage Tank w/ Pump & Pump, (3) Plastic Kayaks, (2) SUP Paddle Boards.
Boatswains Locker: Hydraulic Power Pack Controls, Crane Remote Controls, Davit Remotes, Misc. Parts, Tool Chest, High Pressure Washdown Pump, Bench Vise, Evans Air Compressor, Portable Power Tools.

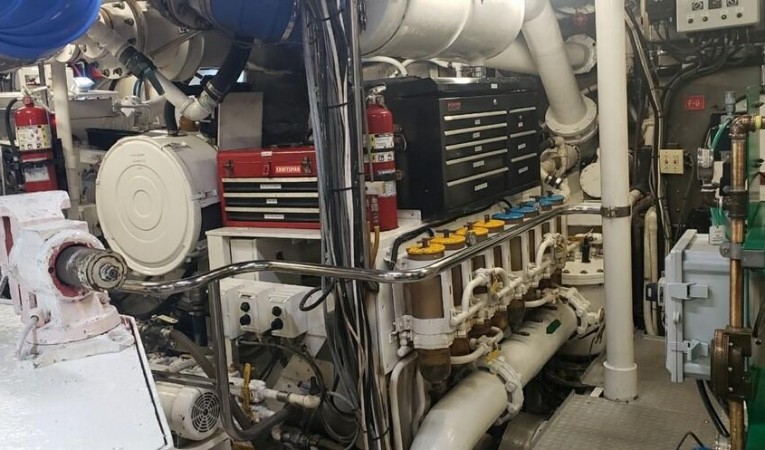

Engine Room

(2) Sea Recovery 1500 GPD Water Makers
Viking Fuel Transfer Pumps
(2) Low Sea Chests
Hydraulic Bow Thruster Accumulator Tank
High Sea Chest
Heart 2000 Watt Inverter and Remote
(4) Tool Chests
(2) Ingersol Rand 2475 Air Compressors
(2) A Seas AC power Convertor
Zeks Compressed Air Chiller
(2) Ocean Breeze 120,000 BTU Chillers
120 Gallon Sludge tank
Alfa Laval Fuel Centrifuge
Husky Tool Chest
(1) Ocean Breeze 60,000 BTU Chiller
AC Oil Transfer Pump
Xantrex 24 VDC 25 Amp Charger
Sewage Treatment Plant Tecnicomar and Oil Water Separator Boss

Misc:

Naiad #503 Hydraulic Stabilizers

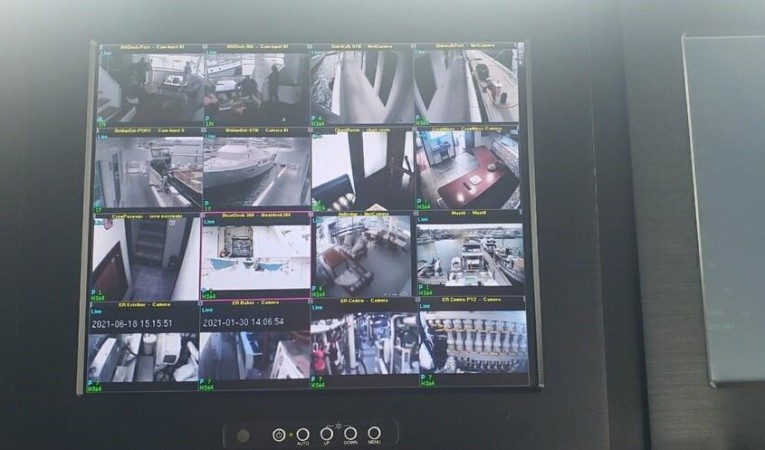

(18) CCTV Cameras
(10) Wireless Access Points
Linear Polyurethane Topside & Hull Paint
Custom Stainless Steel Lighted Name Boards
Schottel S-15-L 500 HP Bow Thruster
(4) Below Waterline Cameras
Stack Crows Nest
Stainless Steel Rub Rails
Stainless Steel Anchor Strike Plates

Disclaimer

Denison Yacht Sales offers the details of this yacht in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of this boat for sale. A yacht buyer should instruct his yacht broker, or his boat surveyors, to investigate such details as the buyer desires validated. This yacht for sale is offered subject to prior sale, price change, or withdrawal without notice.
