54 Fountaine Pajot 2017 Boat for Sale

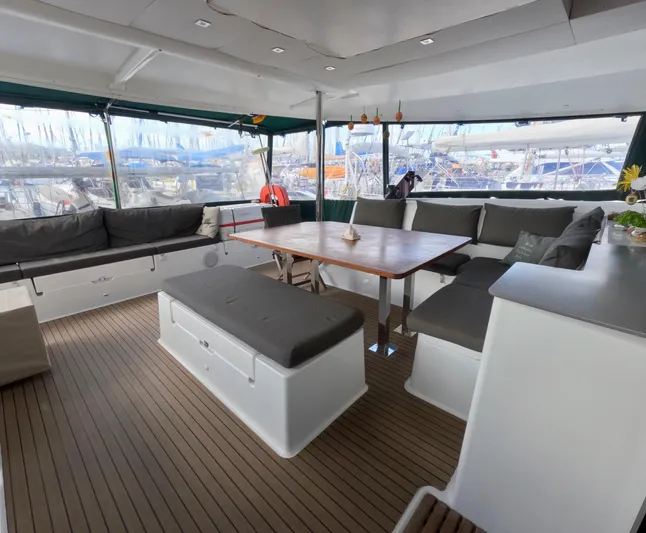

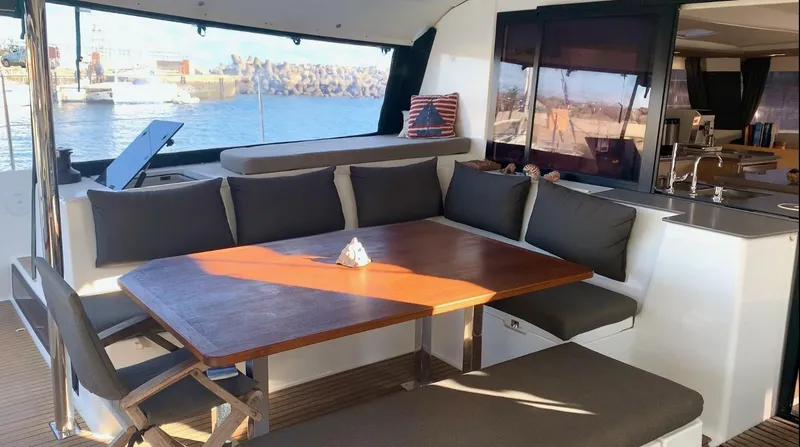

• Large cockpit: 19m², Circulation without threshold towards the saloon.
• Access via the transom platforms
• Transom platform with swimming ladder (at port) & handrail
• 1 hot&cold shower in the port platform
• GRP Bimini protecting all the cockpit

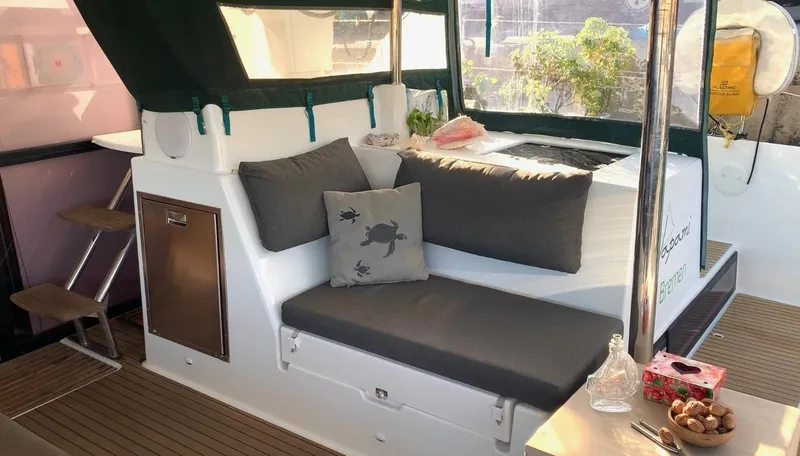

• 8 seats sofa around the table
• 1 Teack cockpit table with a capacity of 10 places
• Serving hatch to the galley via sliding bay
• 1 Large storage area under the sofa
• 1 Transom sofa with large storage locker
• 2 Sunbeds
• Space for the liferaft in aft of cockpit
• Large 75L Fridge on starboard side of cockpit
• Additionnal ventilation and lighting via 1 deck hatch
• LED lighting in cockpit area

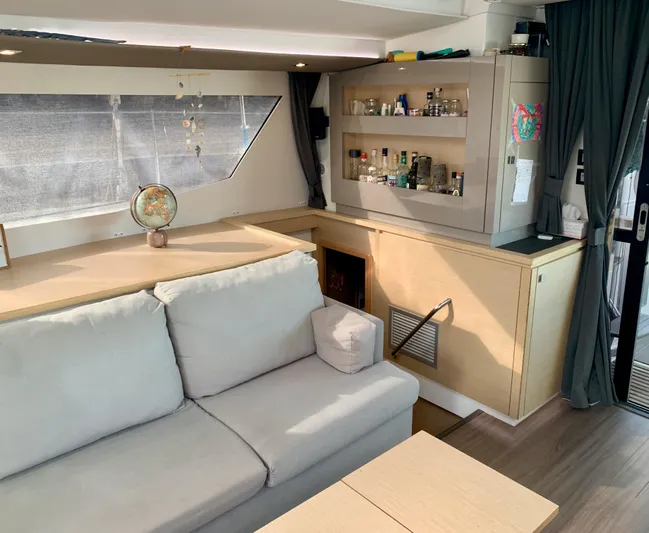

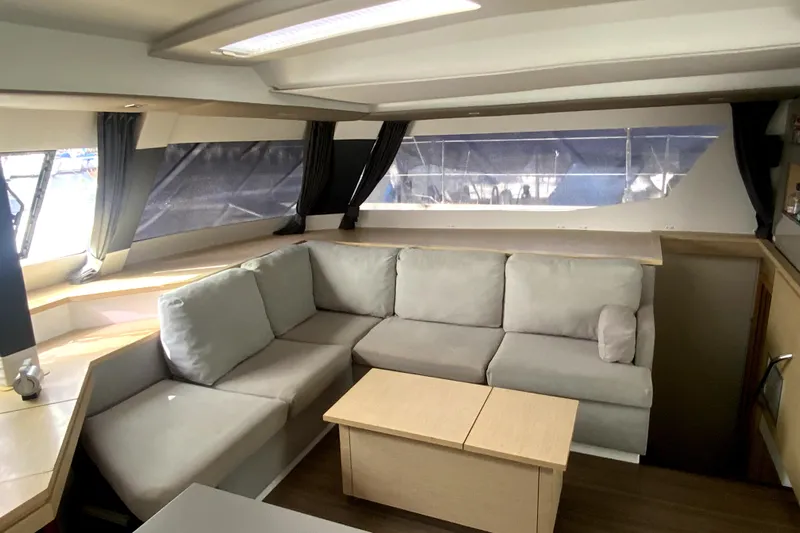

Saloon

• Accessible via a single-leaf sliding door
• 1 veneered table
• 6 places bench seat
• Large storage boxes under the bench
• Ventilation via to 2 large front opening hatches
• Main lighting system by 5 spotlights

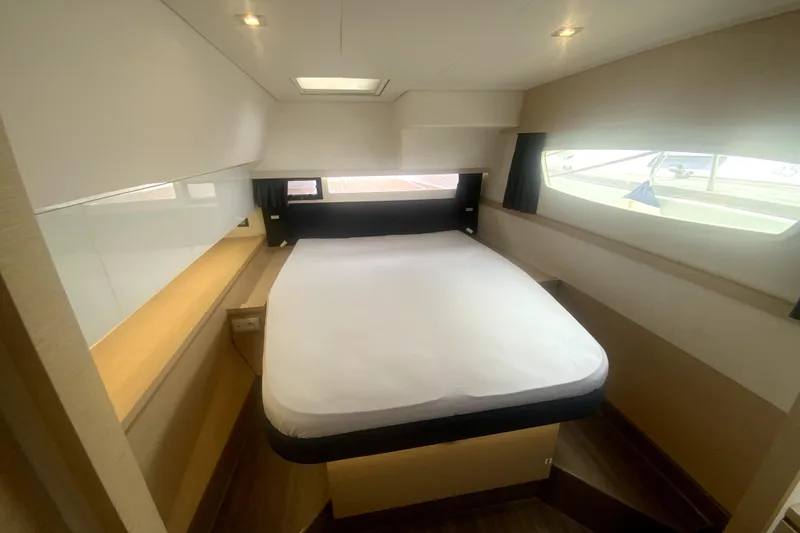

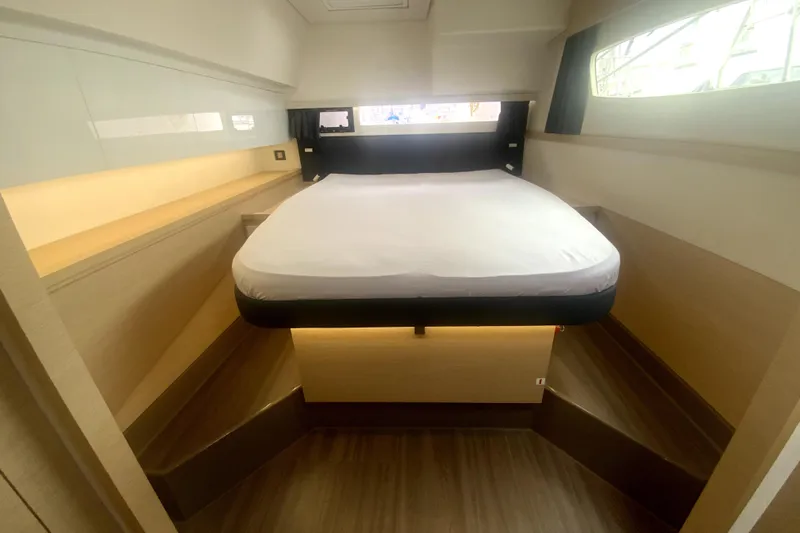

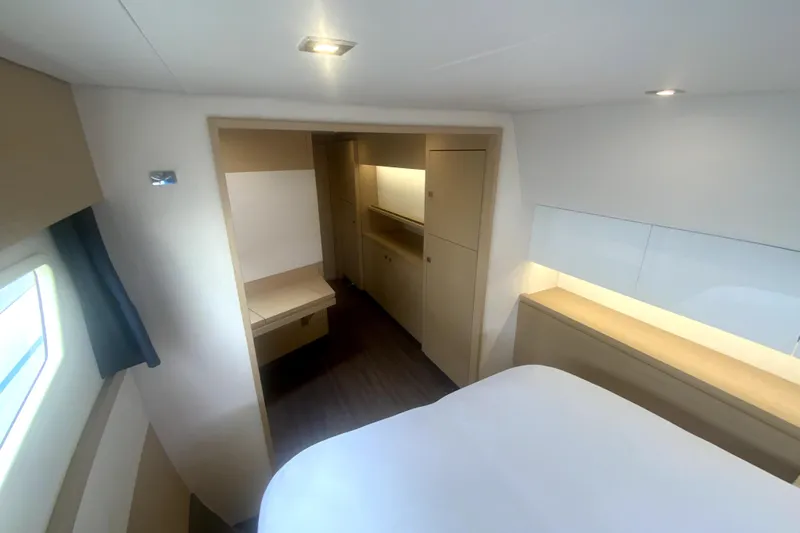

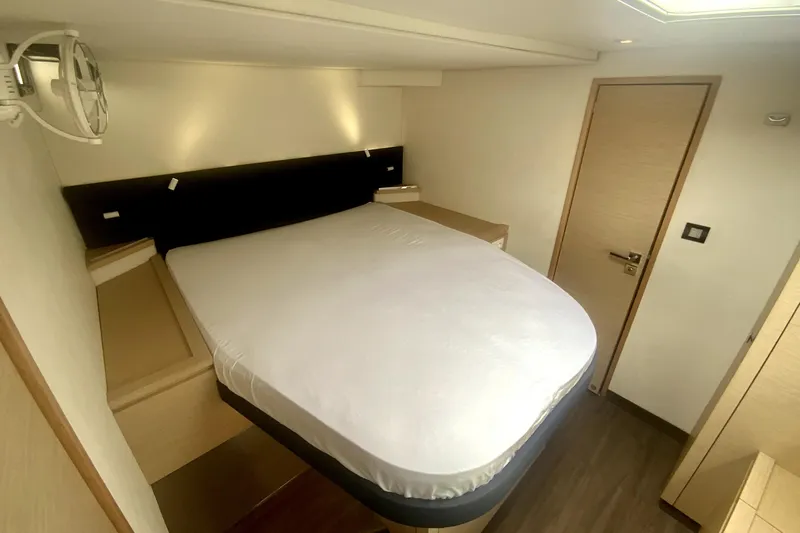

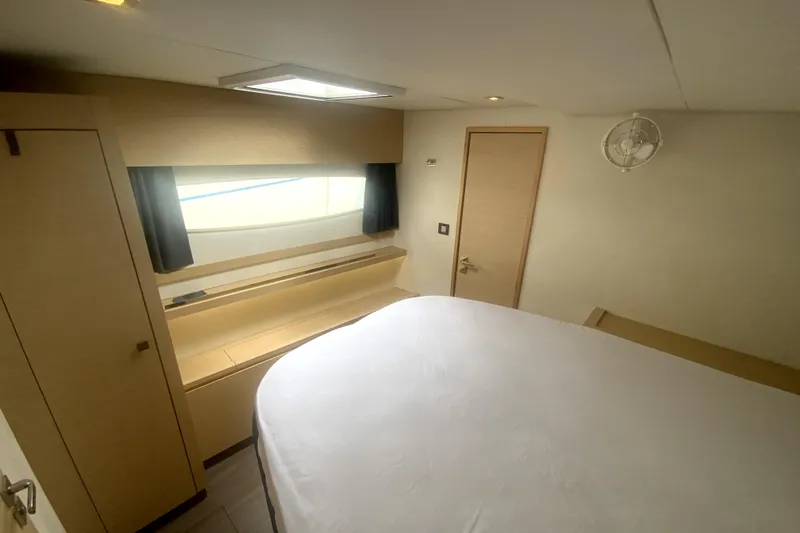

Aft Cabin

• Queen-size Island Bed with fully slatted frame (1,60 x 2,00 m approx)
• Drawer below the bed with frontal access
• Bedside shelves
• Wardrobe
• Cupboard with shelves in it
• Ventilation via a deck hatch + 1 porthole overlooking the rear deck
• Rear panoramic window
• Large picture-window on hull side
• Curtains to all windows
• Main lighting via 2 spotlights & 2 berth lights
• 1 Bedside two-way switch
• Clothes hooks
• Lining covered ceilings

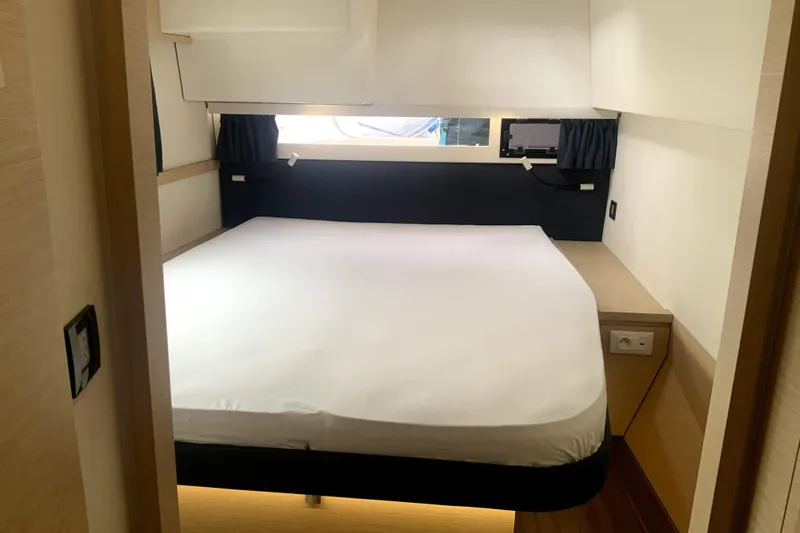

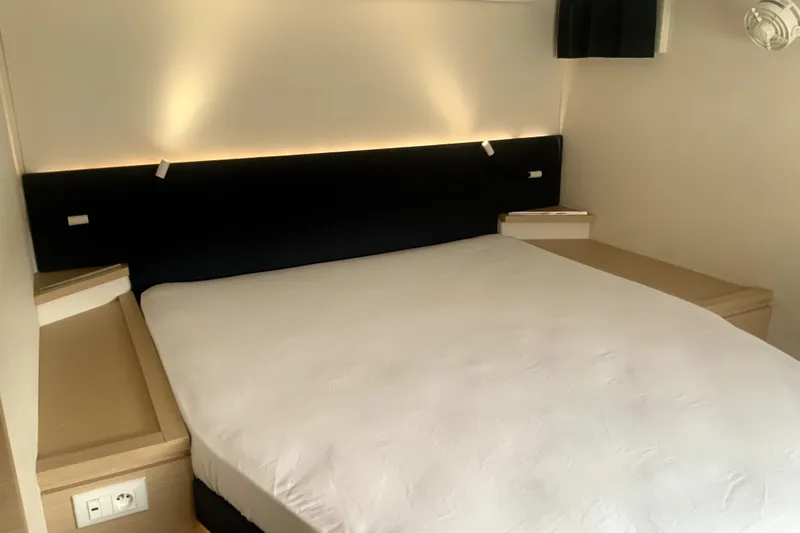

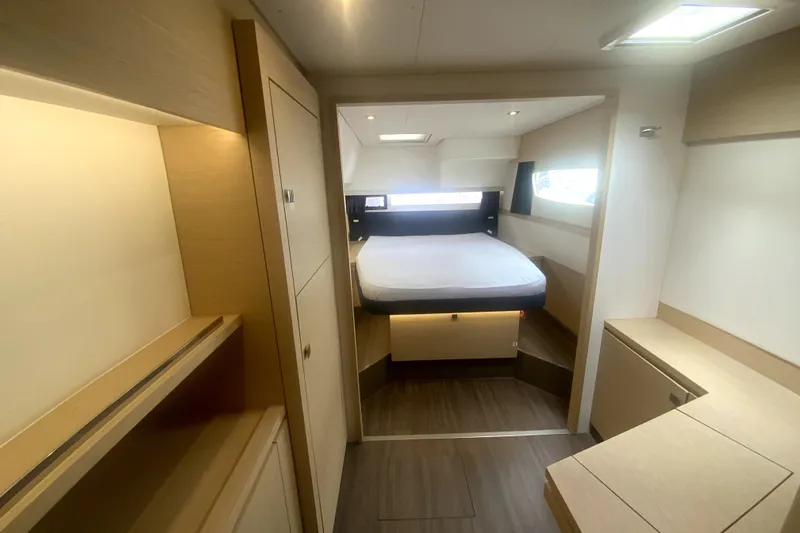

Fore Cabin

• Queen-size Island Bed with fully slatted frame (1,60x2,00 m approx)
• Drawer below the bed with frontal access
• Wardrobe
• Ventilation thanks to a deck hatch & 1 porthole
• Large window on hull side
• Curtains to all windows and doors
• Main lighting via 2 spotlights & 2 berth lights
• 1 Bedside two-way switch
• Clothes hook
• Lining covered ceilings

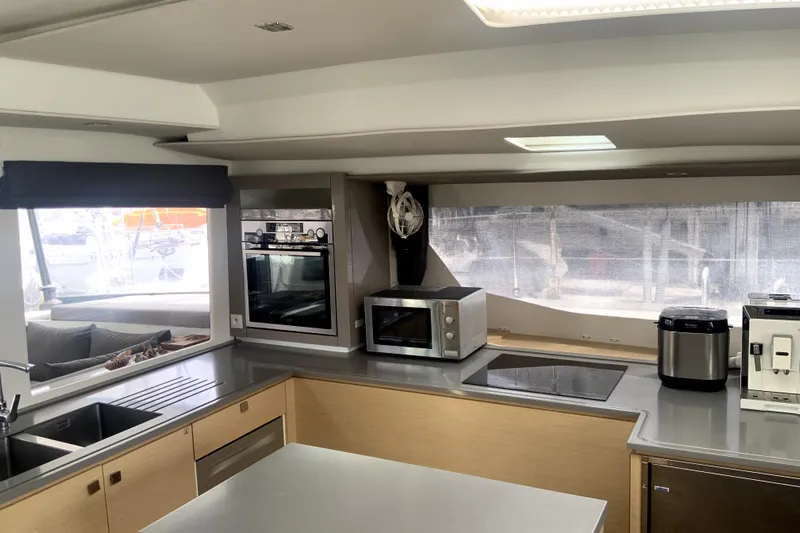

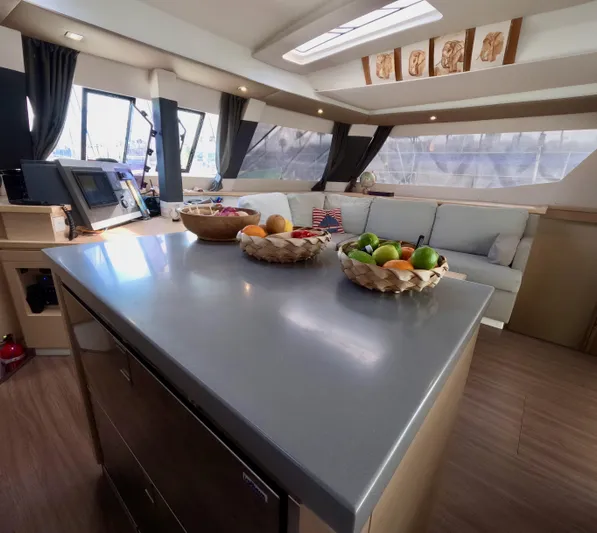

• Galley opened to the outside via a sliding bay
• Bosch Dishwasher
• 3 burner Induction stove
• Large fridge
• Large freezer
• Lage Worktop
• Twin stainless-steel sinks
• 1 top accessed trash can, bags removed through separate door
• Pressurized hot and cold freshwater system from mixer faucet
• 2 large cupboards under the sinks accommodating a dishwasher
• Front closet that can accommodate a maximum volume of 130L/34gals in
  refrigeration mode or 90L/24gals in conservation mode
• 1 cutlery drawer, 2 drawer for pots & pans
• 190L cold storage volume (12V) in central “island” cabinet
• 1 large storage cupboard on the starboard side of the entrance
• 3 storage spaces underneath the floor
• 4 spotlights

• Oceanvolt SD 15
• Motor Year of Build 2022 and 2017
• Electric propulsion is powered by a 25kWh LiFePO4 SuperB battery bank (48V nominal) which
  is charged by 3000 Watts peak, by regeneration when sailing 6+ knots via motors and a 21kW
  (currently set to 18kW) 48V DC generator. The generator charges the bank directly and can
  provide direct power to the motors.

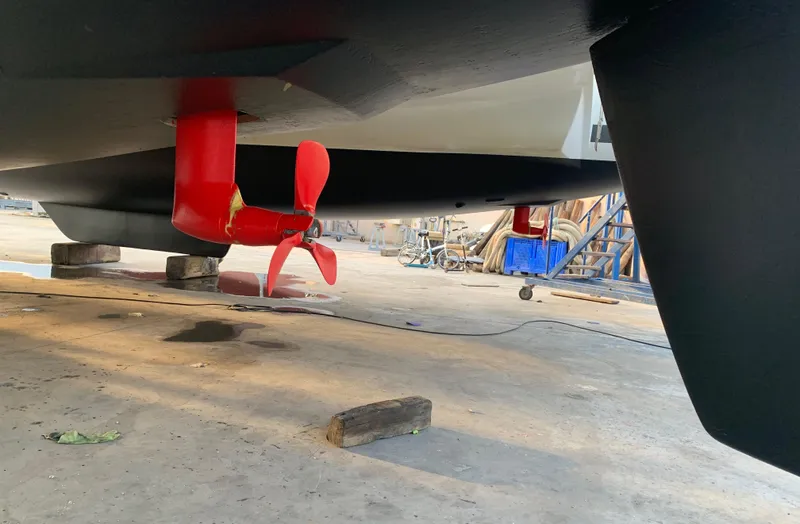

• Gori three blade folding, two 16.5 in, one 18 in as reserve (for power regeneration in different sailing conditions)

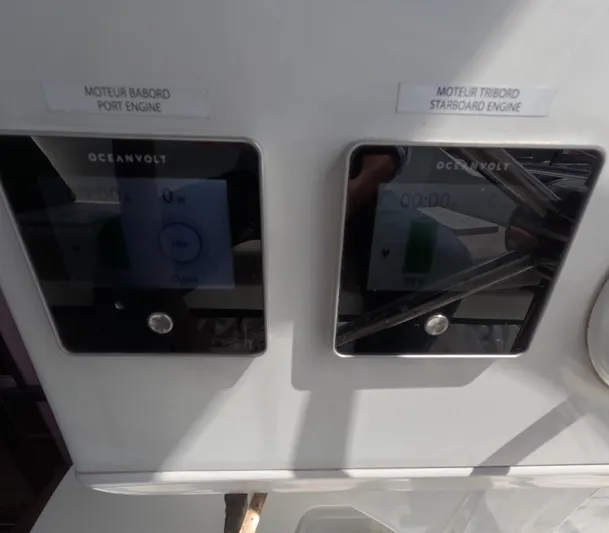

• Complete engine panel and dual controls at helm station
• 7 knots maximum speed under motors, up to 15 knots sailing
• 5 knots crusing speed under motors, 7-8 knots average under sails

ELECTRICAL INSTALLATION

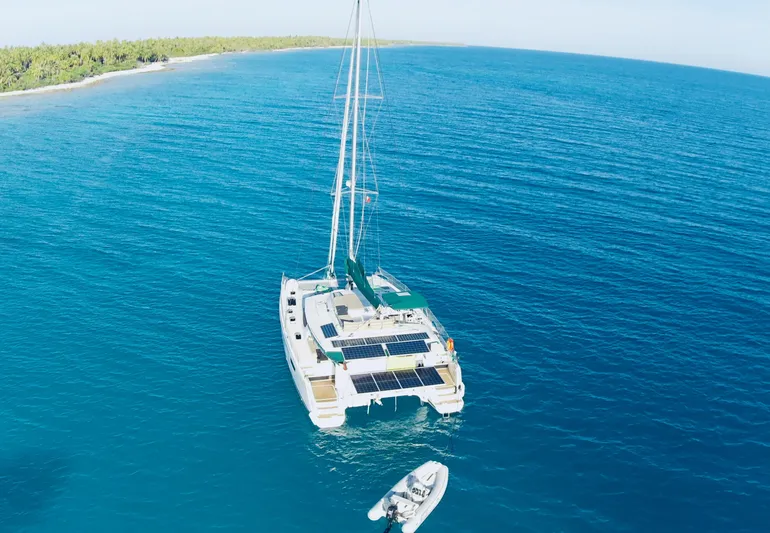

Solar:

• 3000 Watt peak in three sections (800 Wp original installation, 700 W on top of bimini extesion
  installed 2018, and 1500 Wp on top of dinghy davits installed August 2019)
  2x Victron BlueSolar MPPT 150/35 solar charge controllers
• 1x Victron Orion DC/DC converter 400 W for 12 V consumers
• 1x Powernet LiFePO4 DC/DC charger 400 W
• 1x 8kW (16kW!) Victron Quattro charger inverter, function as shorepower charger and on board inverter for 230 V consumers

Electronics

Depth Sounder: Garmin DST-810 with Bluetooth connectiviy, new Juli 2022

Log: Garmin DST-810 with Bluetooth connectiviy, new Juli 2022, Garmin GMI20 display at helm

Autopilot: Garmin GHP Reactor with Lecomble&Schmitt hydraulic pump with Garmin display at helm

Wind Instruments: Garmin GND10, new March 2019, GMI20 display at helm

Radar: Garmin GMR18 HD+ 4 kW radar

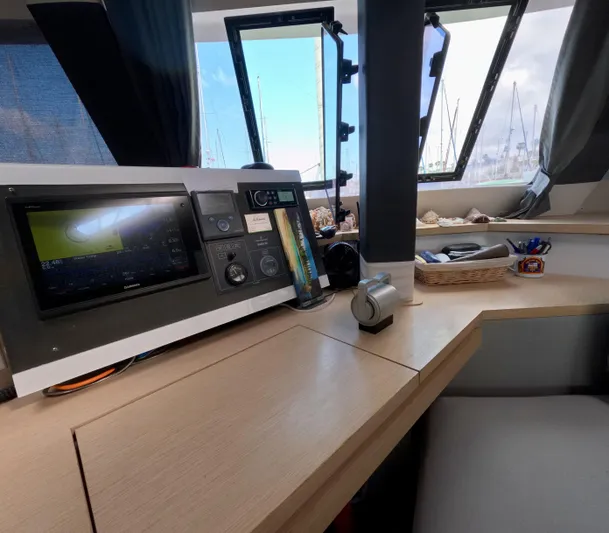

Chartplotter: Garmin GPSMAP 8412xsv at helm station, new 2022, Garmin GPSMAP 7412 at chart table
Charts Garmin Charts for Mediterranean, Australia, NZ, New Caledonia, Indian Ocean and south China Sea, Fiji and French Polynesia

AIS Auto ID System: Garmin AIS600 active class B AIS transponder

GPS: Garmin GPS/GLONASS/Galileo

VHF: Garmin VHF300 with 2 GHS10i handsets at helm and charttable, additional wireless but not
connected, firmware update needed

TV: No screen, digital TV/radio antenna installed on mast top and wired to chart table

12 V sockets: One at chart table, one at helm with USB (spray water protected)

Stereo: New in 2024 Garmin MS-RA70,  Bluetooth with Bose Acoustimas sound system, 2 speakers plus subwoofer
in saloon, 2 speakers outside cockpit

Sat Phone: optional Explorer 510 BGAN terminal up to 1 Mbps activated with GroundControl contract,
USD 65 per month incl. 20 MB and Starlink Marine.

Watermaker: Aquabase SLCE 180 liter/hour with semiautomatic backflush

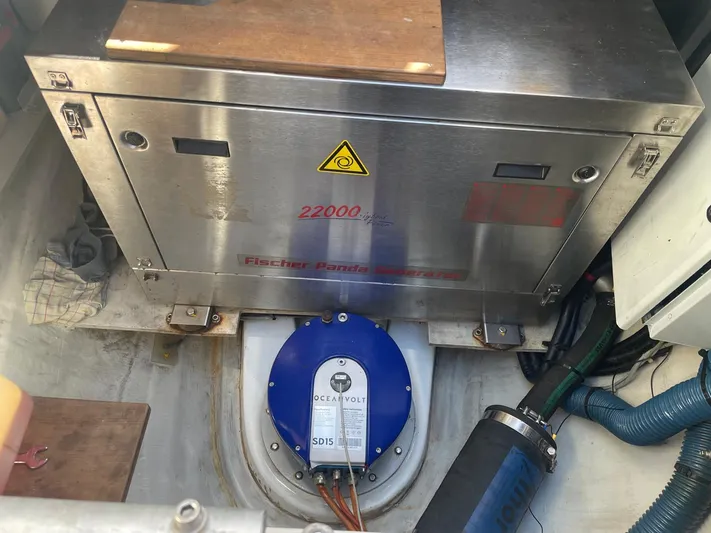

Generator:    Fischer Panda AGT-22000 48 Volt DC generator charging directly LiFePO4 main bank, 1400 hours

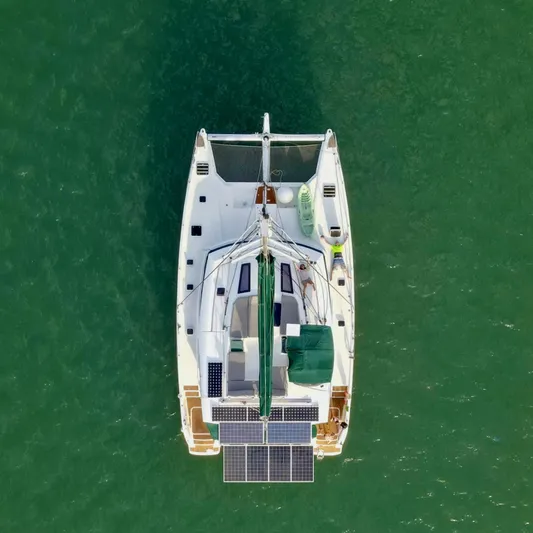

Solar Panels: 3000 Watt peak in three sections (800 Wp original installation, 700 W on top of bimini extesion
installed 2018, and 1500 Wp on top of dinghy davits also providing sun protection installed August 2019)

Washing Machine: Miele WT-1 fully electronic dryer washer with 8kg capacity

Heater: 2x DeLonghi electric fan heaters

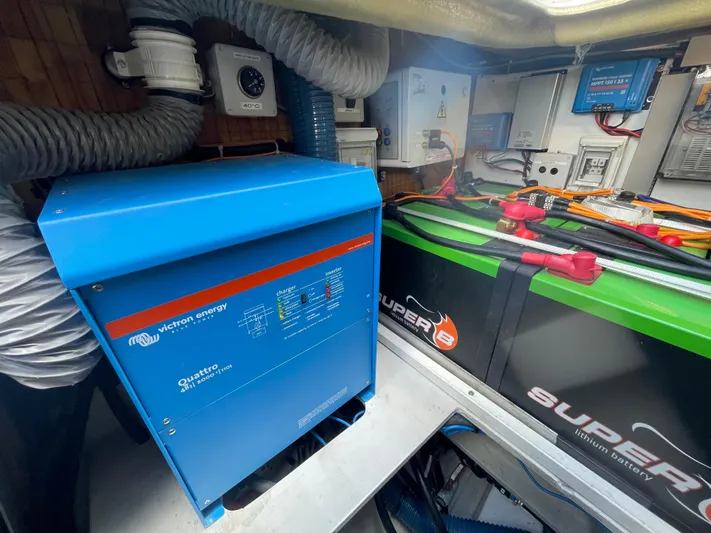

Inverter: 1x 8kW (16kW!) Victron Quattro charger inverter, function as shorepower charger and on
board inverter for 230 V consumers

Electrical Controls: Victron Color Control GX (CCGX), Victron multicontrol for adjusting Quattro charger inverter
settings and shore power current, connected to Victron VRM by Wifi router to monitor system and service access for Oceanvolt support via secure internet connection.

Fresh Water Pumps:  Two fresh water pumps (one newly replaced) installed with switch over
Shore Power: Victron Quattro 8 kW 230 V charger
All lighting is dimmable LED, including blue outside courtesy lights, and indirect lights inside.
Blue underwater lights at transoms.

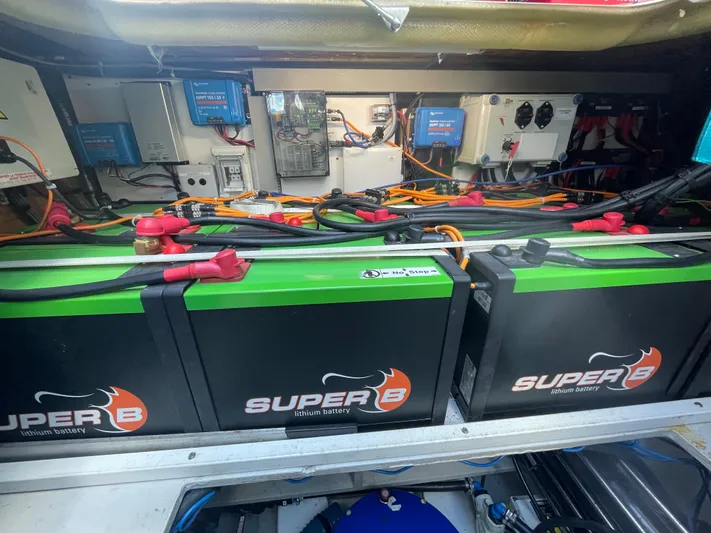

Main Battery Bank: 12x SuperB SB12V160E-ZC LiFePO4 V batteries, three strings with 4 batteris in a row, nominal
48 V, 25kWh capacity. Around 500 cycles on average, expected life is around 8000 cycles.
Capacity near original. Controlled by Oceanvolt battery management system (BMS).

House Batteries: 2x SuperB SB12V160E-ZC LiFePO4 12 V batteries connected to main 48 V bank by Victron
DC/DC converter (400 W) and Powernet 48/12V LiFePO4 charger (400 W) 750 h

Starter battery for generator, new October 2021

• 220V outlets and USB ports in all cabins and galley
• General 12V distribution panel at chart table protected via circuit breakers
• Voltmeter for onboard batteries
• Spare sockets for extra equipment
• All accomodation lightings LED
• All LED lighting functions monitored by multiplexing system
• 1 V.H.F. mast head antenna
• All LED lighting is dimmable, including blue outside courtesy lights and indirect lights inside.

Mast Material:  Aluminium
Standing Rig Material: Stainless steel
Standing Rig Age:  2017
Age of Sails: 2017
Main Sails: Incidence Sails squaretop main sail83.5 m2 on car system, Sunbrella Dark Green lazy bag
Headsails: Incidence Sails Genoa 57.5 m2 with new (July 2022) UV protection
Furlers: Profurl on Genoa and Gennaker
Winches: Lewmar 1x 50 manual, 1x 55 manual, 1x 50 electric at helm,
plus 1x 50 manual spinnaker port cockpit
Notes: Double clutch for reef 2 and 3,
WINGAKER P15-179m², Performance Line

• Ball bearing mainsail luff cars
• 1 tackle on mainsail halyard
• 1 topping lift
• 3 reef pennants
• 1 genoa halyard
• 1 spinnaker halyard
• Lazy-jack
• Clutches on all halyards for genoa, spinnaker and topping lift
• Clutches on reef pennants at boom exit
• 2 flag halyards
• Navigation, running and mooring lights
• Deck lighting

Bilge Manual: 1

Bilge Electric: 4x in each hull, 2x in each engine room, all with automatic start and alarm

Life Raft: 12 person Plastimo Transocean 24plus ISO ISAF, just serviced July 2022

Life Jackets: Inflatable life vests (need service), 12x rigid vests, Plastimo rescue sling

Life Ring: 2x with dan buoy MOB recovery device, several AIS rescue transmitters

EPIRB: Kannard Marine SportPro+, new battery available

Flares: Outdated flares (2021), distress flare LED red 3 nm

Fire Extinguisher: 9 Liter F-500 Lithium Fire extinguisher, 2 kg ABC powder in each
room, 2x 4 kg ABC powder extinguishers in aft cabin for motor rooms, 1x CO2 extinguisher in
cockpit, fire blanket.

• 1 mainsheet tackle led aft to coach roof
• 1 clutch for mainsail sheet
• 2 size 60 self tailing winches for mainsail and genoa sheets
• 1 Ball bearing mainsheet traveler
• 2 x tackle on mainsheet traveler clutches with back on roof
• 2 x genoa tracks with load block
• 2 genoa sheets
• 1 size 50 self tailing winchs for main halyard and reef lines
• 1 halyard storage bag

• Dark Green Sunbrella (SUNB P016152) cockpit all around, new high quality clears March 2022.
  Custom made black outside attached sun protection Sunbrella mesh, highly effective in the
  tropics and does not change design.
• ENO stainless steel bbq on starboard rear end of cockpit
• 4x black mooring lines 18 mm 18 m,
• Gleistein DockTwin 16 mm (2x 20 m, 2x 15 m)
• Gleistein GeoTwist 18 mm floating lines (4x 20 m)
• 10 cylindrical fenders, 1 big balloon fender, 4 cassette fenders
• Hydraulic winches on aluminium davits, max. 250 kg
• New 2025 Outdoor cushions in grey for upper deck lounge area (6 in total)
• Deck Flooring Flexiteek in cockpit and on transoms
• Salt water pump outlet at anchor locker
• Hot and cold fresh water shower at starboard transom
• Hard top over cockpit plus aft canvas extension and helm bimini
• 1 steering compass
• 3 winch handles with their 3 pockets
• Pulpit and pushpit, stanchions with upper and lower guardrails
• Pulpits with bow pulpit seats
• 7 mooring cleats ( 2 foredeck + 2 middle + 2 astern + 1 in anchor well)
• 1 x 1500W electric windlass with circuit breaker protection
• Anchor fairlead under bridge deck with built-in bridle
• 1 roller on forward beam
• Net on forward beam
