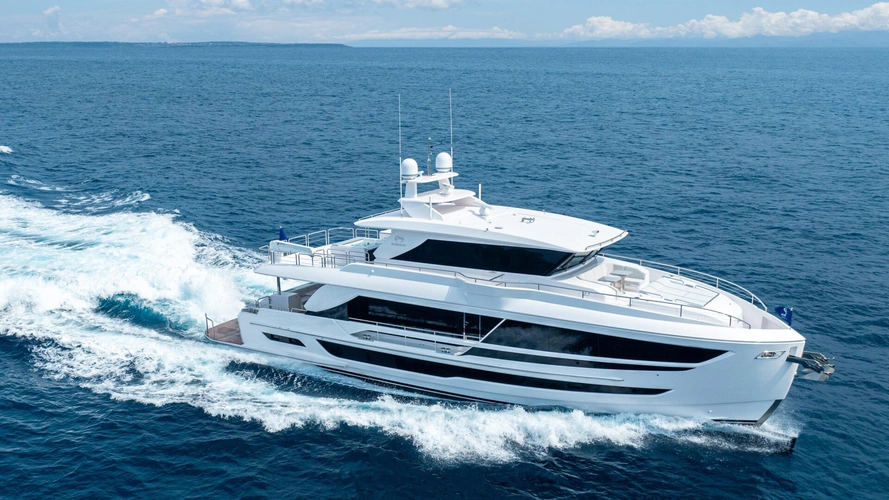

HAPPY HEART Yacht for Sale

The Owners of Happy Heart made the following modifications at the direction of Horizon Yachts prior to taking delivery in Ft. Lauderdale, FL. These were made to increase the functinality and liveability of the vessel based upon their extensive yachting experience. The work was done flawlessly and is indiscernable from any work done at the Horizon factory.

• Add 2 more Hi-Lo dining chairs in the salon to make a total of 8
• Increase storage in crew galley area by increasing cabinet height 10"
• Increase storage in crew bunk room, add overhead cabinets outboard
• Starlink installed and connected to onboard A/V system
• Modify starboard side aft flybridge storage cabinet to accomodate large freezer box
• Replace salon free standing chair with Pultrona Frau chair
• Replace the standard main deck dining table with same style foldable tabletop that is large enough to accomodate 8 guests 42" wide when open by 92" long
• Add new bolt receiver locations for the new dining table for proper usability and replace any floor boards that had old receiver locations
• Replace salon free standing cabinet forward of the sofa with same style one that is the full length of the couch to maximize storage
• Replace the most inboard section of the salon sofa forward that has no backrest with one that has a backrest
• Replace cabinet on the starboard side of the master stateroom with a similar cabinet containing 4 drawers, also replace sofa seat on the port side of the master with an identical cabinet to maximize storage
• Add tool rack above starboard engine
• Replace 4 burner cooktop in galley with 5 burner cooktop
• Exchange standard wine chiller in salon with Sub-Zero wine chiller
• Add thick foam folding cover for hot tub on aft flybridge deck
• Add TV's in both crew cabins
• Add additional shelving in galley storage cabinets to increase capacity

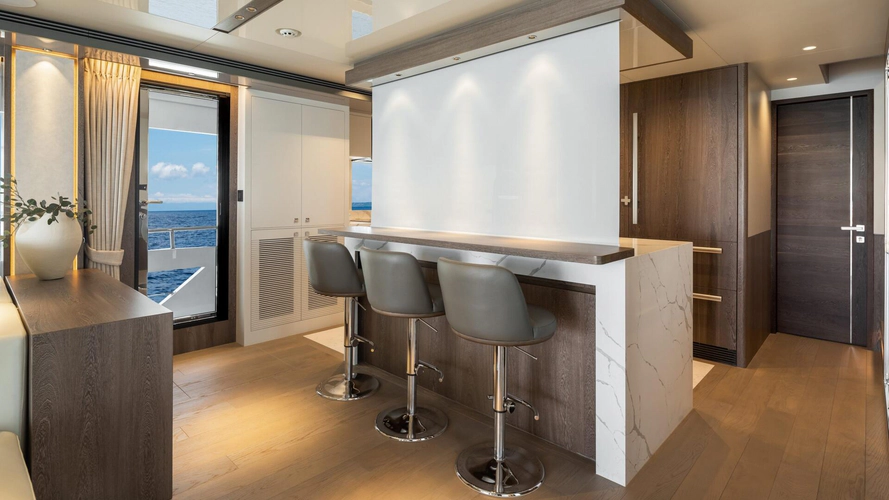

• Add cabinet in skylounge bar on aft wall for glass storage
• Starboard VIP stateroom closet increase size of hanging rod
• Add shelf above dyson storage area in lower deck utility room
• Install owner supplied chandelier in salon
• Upgrade Skylounge air handlerto 24K BTU from 18K BTU
• Upgrade Master Stateroom air handler to DC powered one for super quiet operation

• Upgrade Hi/Lo platform (from 1750lbs/790kg to 2200lbs/990kgs)
• MarQuipt 7-step side boarding sea stair
• Maxwell electrical rope capstan (VC2500) on aft deck (x2)
• Chain counter (one per windlass)(x2)
• Add a 32" electrical flip down TV to aft deck
• Fixed platform extended by approx. 2 ft. Special reinforcment to platform and hi/lo mechanism to be
  applied, plus additional teak
• Upgrade to deck mounted anchor system with 90kg SS CQR anchors (x2) from standard pocket anchors
• Add three openable portholes w/ screens to master strm (one stbd, one port, and one in shower room)
• Add one openable porthole in galley
• Add two glass windows on the aft deck stern bar top for bringing natual light to beach club
• Add recessed sockets on floor to enable movement of table
• Add recessed sockets on floor to enable movment of table
• Upgrade STD Steelhead davit to 2200lbs
• Extra Stidd (N500) manual helm chair
• Upgrade STD CAT 1136HP Engine to CAT 1600HP
• Upgrade stern thruster SH420 to SH550 (550kg) to be same as bow thruster
• Extra ONE remote handheld control (with throttles, gears, and thrusters) and TWO locations for "plugin"
  receptacle (one at aft deck and one at pilothouse)
• Upgrade to proposed NAV package includes
  (1) Upgrade STD radar from 4' to 6' GMR 1236 xHD3 and add 2nd radar (Model# Fantom 54 Solidstate
  Open Array and Pedestal (4-foot/50w/72nm))
  (2) Upgrade standard 16" Multifunction displays in P/H to GARMIN GPSMAP 9222
  MFD 22" Multifunction Display x3
  (3) Upgrade STD Maretron monitor to GARMIN GPSMAP 9222 MFD 22" Multifunction Display x1
  (4) Add MBB300C for inputting the Maretron info to GARMIN display to control and monitor Maretron
  system.
• Add Garmin Surround View Camera system
• Additional outlets for the following areas:
  1) In the base of the aft deck sofa.
  2) On the port side table pedestal of the bow deck.
• Upgrade STD watermaker to Spot Zero SeaXchange XTCII 1800 & ZTCII 2000*
• Headhunter sanitary treatment system (TW-HMX 6001LP)*
• Air handler in Engine room (18K BTU, incl. controller)
• Install Honeywell dehumidification system (x4 units, incl. T10 ProSmart thermostat control panel per unit
• Dometic air con system to have VFDs instead of smart starts
• Electric blinds (one layer) in salon (except entrance door)
• Electric blinds in master stateroom (except head)
• Add one unit U-LINE wine cooler
• Upgrade std full height fridge to 2 (total 2 units): 30" full height fridge + 30" full height freezer
• Full set of Horizon logo galley tableware for 10. Incl. dishholder, pot/ pan, dishes, plates, knives, forks,
  glasses*
• Extra set of bed sheets for all cabins, incl. crew
• One set of towels for all heads, incl. crew and day heads
• Upgrade AV package as per AV list including:

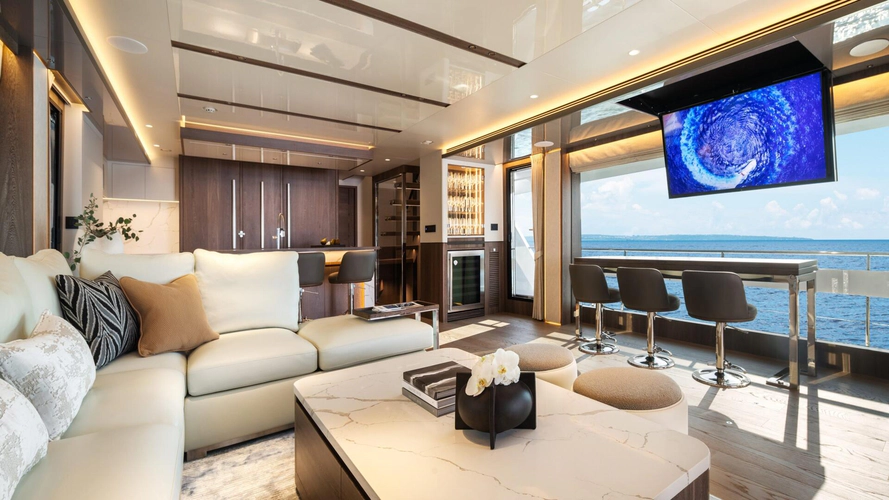

  1. Upgrade the salon, skylounge, master stateroom, and beach club TVs to bigger size.
  2. Upgrade the electric hi-lo lifts in both skylounge and salon to electric flip-down brackets per the size
     of TVs.
  3. Add extra SONOS amp and rear channel speakers for the Salon and Master Staterooms.
  4. Add an extra SONOS amp, extra pair of speakers and a Subwoofer for Skylounge.
  5. Add extra SONOS amp and Fusion speakers (1 pair) in Fwd Deck and Aft deck.
  6. Add SONOS amp and Fusion speakers (x1) for each crew cabins (total 2 set)
  7. Add LUTRON Pico Remote Control for SONOS system per number of rooms, including repeaters.
     (total 12 remots).
  8. Add Control4 system (only control AV system for the following areas: Fwd deck, skylounge, boat deck,
     aft deck main deck incl. Saloon, galley and master stateroom).
• Upgrade to fridge + freezer drawers (Vitrifrigo DW180IXD1-ESI-1) in crew/ beach club
• Zodiac 8 - person life raft with custom made bracket

NOTE- Below standard features may be superceded by upgrades listed above- for any questions ask central agent for more details

A. Hull and Main Structure

1. ABS/DNV type approved fiber/resin & sandwich core material applied.
2. White gelcoat finish for hull above water line, exterior decks and furniture.
3. One piece hull and superstructure utilizing SCRIMPTM technology with Horizon patented 6D infusion, incl. longitudinal and transverse stingers.
4. Hull, deck & superstructure are built with licensed process SCRIMPTM for improved strength and less weight.
5. High-density foam cored hull bottom.
6. High-density Divinycell or equivalent foam cored hull sides, decks and superstructure.
7. Stringers with high density foam coring.
8. Interior structural components all properly bonded to hull.
9. Strong collision bulkhead structure for extra safety.
10. International anti-fouling bottom paint w/ anti-osmosis treatment.
11. PropSpeed/PropGold metal paint for underwater appendages.
12. Tunnels for reduced draft.
13. High Performance Piercing Bow (HPPB) with S/S protection plates.
14. Upper deck with bump out design at PORT and STBD side.

B. Exterior Deck and Equipment

1. Teak aft deck, teak swim platform and teak steps to boat deck and swim platform. Non-skid for the rest.
2. FRP cap rail.
3. Maxwell VWC3500 vertical hydraulic anchor winch(x2) w/ local foot switch and remote.
4. 300ft high tensile 1/2” anchor chain (x2).
5. 90kg S/S anchor (x2).
6. S/S rollers and chain stopper.
7. Heavy-duty 316 S/S cleats and fairlead w/rollers.
8. Aft deck corner hawser (x2).
9. Bulwark w/ flush mounted courtesy lights.
10. Bulwark side doors (x2) aft deck for boarding.
11. Freshwater and seawater anchor chain washdown system by manual operation.
12. 1-3/4” handrail with 1- 1/2 S/S stanchions and steel cables around entire boat.
13. S/S flagpole at bow.
14. Standard lines and Polyform F-7 fenders (x6).
15. Portuguese bridge with seats.

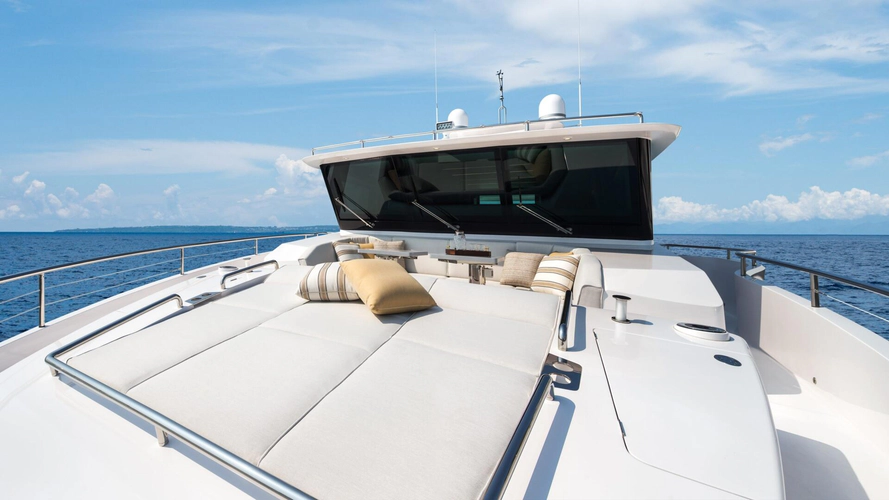

16. Foredeck sunpad w/ drink holders and pop-up light (x2).
17. Frameless windows with slightly tinted tempered laminated Low-E glass for windshield.
18. Frameless windows tinted tempered laminated glass for side windows.
19. Stairs from aft deck to swim platform with S/S gate doors and handrails.
20. Saloon manual entrance 3-pane folding sliding door (one hinged, two foldable & slidable) with self-locking.
21. Deckhouse side entrance doors (x2 hinged doors).
22. Add a wind door on each side of aft deck accessing to each side walkway.

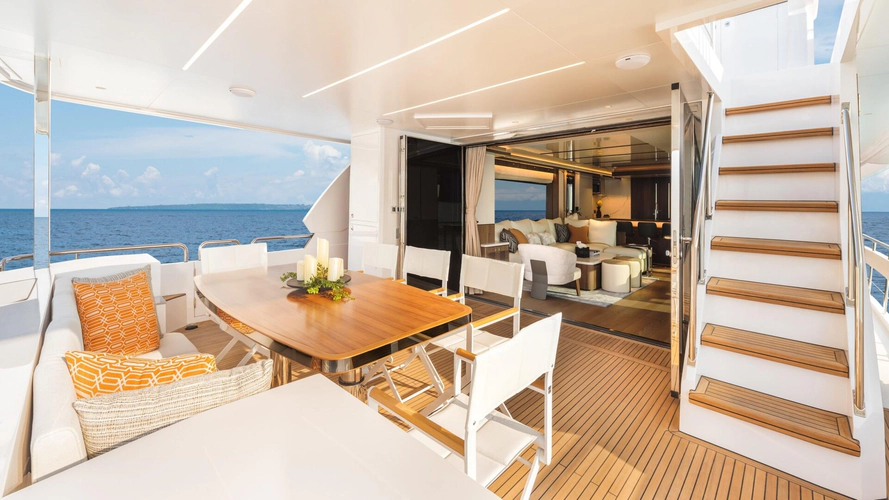

23. Aft deck Hi/Lo dining table with FRP seating as per layout.
24. One integrated stair from aft deck to upper deck.
25. Hydraulic Hi/Lo swim platform with function as tender lift up to max. 1750lbs.
26. Two pop-up cleats on Hi/Lo swim platform.
27. Boat hooks (x2) (shipped loose).
28. Built-in shower with hot/cold water above swim platform.
29. One extractable or foldable swim ladder.
30. Sun awning to Foredeck & boat deck (total 2 set).
31. Rub rail around hull sides.
32. S/S portholes.
33. Exterior LED step lights.
34. 2” Removable corner rails on swim platform.
35. Prewire LED boat name on port, stbd, and stern (3 sets, max.8 letters/set).
36. Door to exterior area with screen, except curved door, L-shaped hatch door, and pantograph door.

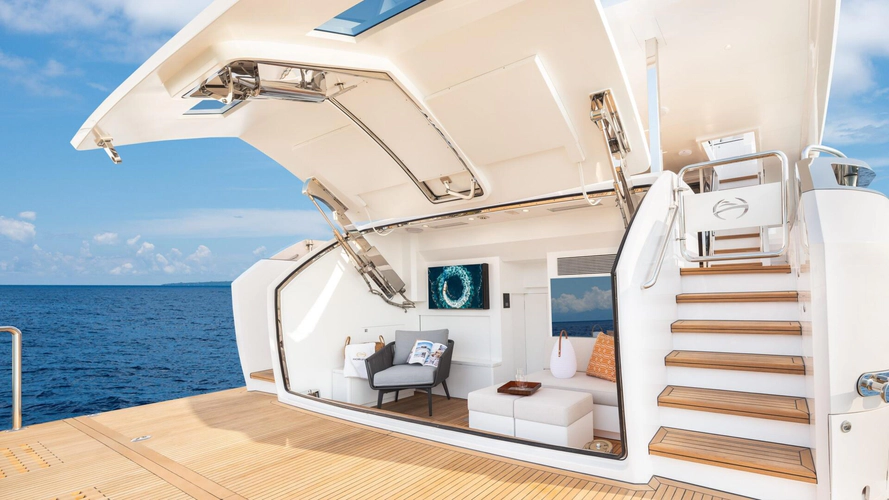

Beach Club

37. Hydraulic door with pantograph door in the middle.
38. Sofa seat w/ table as per layout.

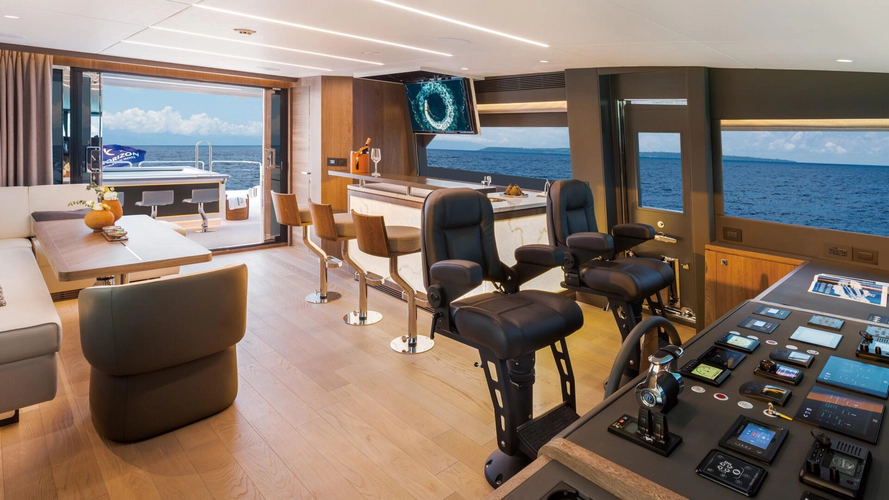

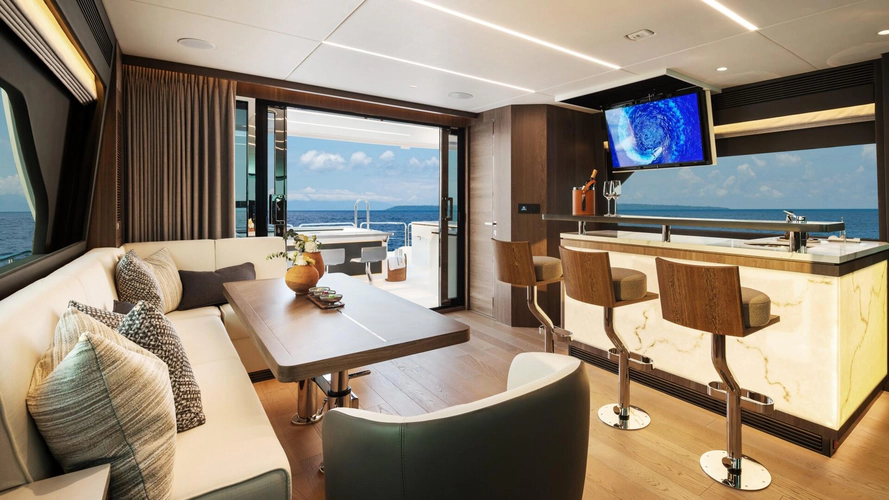

C. Skylounge and Boat Deck Skylounge

1. Helm station.
2. Sliding door to boat deck with self-locking.
3. Air Conditioner.
4. Hatch on F/B roof (aft starboard corner) with a ship loose retractable ladder.
5. L-shaped seats w/ table as per layout.
6. A day head (in skylounge or pilothouse).

Boat Deck/Upper Deck

7. Non-skid deck.

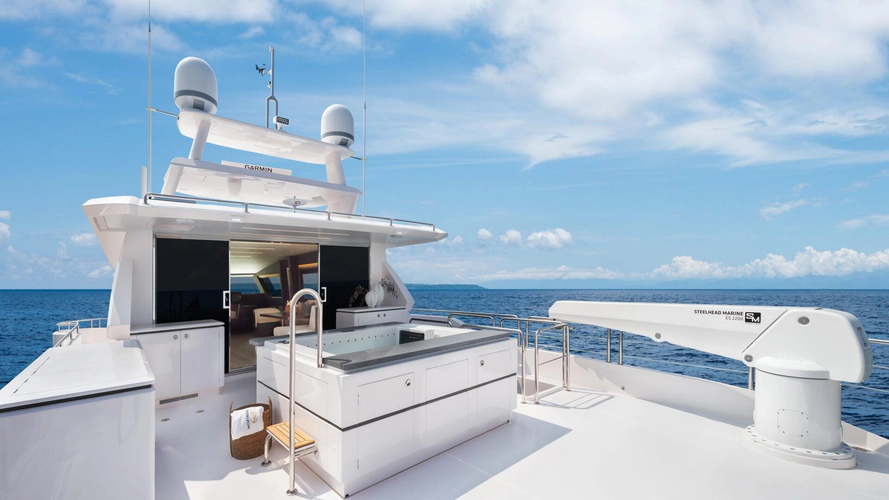

8. Boat deck furnishing: 1) a Jacuzzi with heating, OR 2) sun loungers (x3).
9. Standard choices of Sunbrella fabrics for exterior cushions.
10. Standard choices of Sunbrella canvas covers for boat deck, helm seats, aft deck seats, sunpad and foredeck cushions and seat.
11. Standard choices of Corian/ Granite/Quartz for counter/tabletop I/O FRP (excl. extended design).
12. Custom bar with sink and refrigerator as
    per layout.
13. One Hidden Propane 24" BBQ w/ manual
    Hi/Lo or 15" Teppanyaki (with cover).
14. Oversize drains w/ strainers on each
    corner of boat deck and internal
    overboard drains.
15. Radar arch w/ antenna bracket.
16. Tokai Sanshin LED search light (x2).
17. Lumitec flooding light (x4; 2 for mast & 2
    for boat deck).
18. Chrome-plated Buell air horns on top of
    radar arch.
19. S/S flagpole at stern.
20. Hydraulic davit 1750lbs (Steelhead
    ES1750).
21. LED warm white lights for Horizon logo on
    port and starboard side.

D. Pilothouse and Instrument

1. Stidd pilot chair (x1, manual).
2. Heavy-duty Speich S/S wipers w/ wiper wash system.
3. Variable speed control on each windshield wiper.
4. Standard black mesh for windshield.
5. Ritchie, or Danforth, or equivalent magnetic compass at helm.
6. International LED navigation lights (incl. anchor, masthead, stern, port side and starboard side light, total 5 units).
7. Full set of engine gauges at helm.
8. Electric fuel and water level gauges.
9. Monitoring system for important equipment (bilge pumps, blowers, navigation lights).
10. Surveillance camera system (TWO PTZ cameras; one at aft deck & one in engine room).

E. Engine Propulsion and Steering System

1. Twin CAT C18A 1136HP diesel engines
   w/reduction gears. (UPGRADED to C32 1600hp*)
2. Live SAE-C PTO on gearboxes for thrusters/windlass & stabilizer power.
3. SAE-A PTO on engines for hydraulic steering gear.
4. Seatorque shaft system (incl. Seatorque Bolt on Shaft System, "BOSS", model no. M4B: AQ22HS s/s shaft, Cardan shaft, QuicKutter line cutters).
5. High performance S class 5 blade propellers in NiAlBr.
6. Bronze strut w/ backing plate.
7. Rudder packing glands with Tides Marine dripless seals or equivalent.
8. ZF command engine control with chrome control head at helm station.
9. Yacht Controller (Dual Band).
10. Hypro or equivalent power steering system.
11. FRP foil balanced blade rudder with S/S rudder stock (x2)
12. S/S emergency tiller in rudder cabin.
13. 24” S/S steering wheel(s).
14. Underwater exhaust system for engines w/ bypass mufflers.
15. Side-Power hydraulic stabilizer system SPS93B VF1650 (1.65 square meters) with “At Anchor” function.
16. Side-Power hydraulic bow thruster SH550 (550kg) and stern thruster SH420 (420kg).
17. Zipwake or equivalent interceptor system.

F. Engine Room and Equipment

1. Engine room clean designed with a lightweight honeycomb floor.
2. Watertight bulkheads forward and aft.
3. Heavy-duty insulated engine room door.
4. S/S overhead grab rail on each side of engine.
5. Engine room LED ceiling lights.
6. Blue LED rope lights under engines.
7. Anti-noise treatment with sound & heat insulation material for Engine Room.
8. Delta-T reversible AC intake blower(s) w/automatic speed control.
9. Delta-T or equivalent engine room de-misters.
10. Engine load distributed through flexible mountings on S/S engine bed bonded to FRP hull girder.
11. Engine alarm system as per engine standard.
12. Air compressor.
13. Trident hose or equivalent for engine exhaust.
14. Workbench (if doable).

G. Electrical Systems

1. Color-coded wiring for easy identification.
2. AC & DC main electric panel with circuit breakers.
3. Sub-panel design with circuit breakers in each zone for electrical distribution.
4. AC volt receptacles located throughout including engine room.
5. GFI protection for all AC outlets in exterior, heads, galley, and engine room.
6. Fiberglass water/exhaust separator for generators.
7. Electrolysis bonding system.
8. Cathodic protection with zinc anodes for shafts, struts, etc.
9. Indirect lighting under valance in salon, staterooms, skylounge, and galley.
10. Dimmer system for LED ceiling lights in aft deck, skylounge.
11. Dimmer system for LED ceiling lights in saloon, pilothouse, and master and VIP stateroom,
12. Italian Vimar switches for lighting system.
13. Motion detection light at guest foyer close to staircase
14. Underwater lights (x6).
15. System to comply with Australian electrical system for Australia.

AC/DC Main Power System

16. Onan generators 29kW (60Hz) with sound shield.
17. 255 Ah 12V AGM start batteries (x4) for engines/generators with battery chargers (x2).
18. 255 Ah 12V AGM batteries (x4) for ship‘s DC 24V service power with combined inverter/chargers (x2).
19. All batteries are enclosed with proper fixtures.
20. Ignition protected battery switch.
21. Electrical distribution system with Octoplex.
    (* ABB circuit breakers or equivalent for Australia).
22. Maretron monitoring and control system.

Shore Power System

23. Glendinning shore power Cablemasters (x2) 100Amp w/ 75’ power cable each.
24. Shore power connection w/ 100Amp ISO boost transformers which will be wired as polarization transformers (x2).
25. Shore power plugs (x2), 100Amp * 100Amp bow receptacles (x2) for USA Only

Navigation System

26. Garmin GPS.
27. Garmin 48” 12kW 72nm open array radar system.
28. Garmin 16"(x3) multifunction displays.
29. Garmin Autopilot system.
30. Garmin Wind/ Speed/ Temp transducers.
31. Garmin VHF (x2) with built-in loudhailer.
32. Garmin AIS.

H. Mechanical Systems

1. Marine grade pipes applied through boat.
2. Color coded piping system for easy identification.
3. ER strainer plumbing with cross over line, freshwater flush and an extra custom cap.

Fuel Oil System

4. Fuel tanks w/ sight & electric gauges and capacity as specified in Principal Dimension above.
5. ISO grade fuel hose through entire system.
6. Dual Racor 75/1000 MA fuel filters/ water separator, each engine.
7. Racor 500 MA fuel filter (x2, one on each generator).
8. Electric fuel transfer pumps (x2). (Oberdorfer for USA & Australia)
9. Oil change pump system for engines, gears, and generators.
10. Fuel polishing system (x1, 210GPH).

Fresh Water System

11. FRP water tank with capacity specified in Principal Dimension above.
12. 20 gal water heaters (x2).
13. High-volume Headhunter or equivalent AC freshwater pressure pump and one DC pump for back up.
14. Spot Zero or equivalent water maker (600GPD).
15. Fresh water outlet & hose for filling engine and generator expansion tank.
16. Fresh water hose bibbs on foredeck, aft deck, and boat deck.
17. Charcoal filters are plumbed into the freshwater line: shore water inlet and galley.
18. Hot water circulation pump.

Sanitary System

19. 100 gal holding tank with Y-valve and deck fitting for dockside pump out.
20. Sump pump system for grey water.
21. Tecma toilet system.
22. Electric level indicator for holding tank.

Bilge Water System

23. Electric Rule bilge pumps.
24. Manual bilge pumps (x2) in engine room and forward stateroom.
25. High water level bilge alarm.
26. Bilge exhaust ventilation fans.
27. Deck wash-down pump with outlets at chain lockers, transom.

Air Conditioning System

28. Marine Air chilled water air conditioning system.
29. Air handlers for interior area.
30. A backup air conditioning sea water cooling pump (for USA ONLY).
31. Ship loose a backup air conditioning circulation pump (for USA ONLY).

Fire Safety System

32. Fire insulation in engine room.
33. Fire resistant treatment for pipe penetrations.
34. Fixed fire extinguisher FM200 or equivalent for engine room with remote pull station. (NOVEC for Australia)
35. Automatic/manual shutdown system.
36. Automatic fire damper system.
37. Portable fire extinguishers (x4).
38. Integrated fire alarm system in pilothouse, with heat or smoke detector in each cabin.

I. Interior Design and Equipment

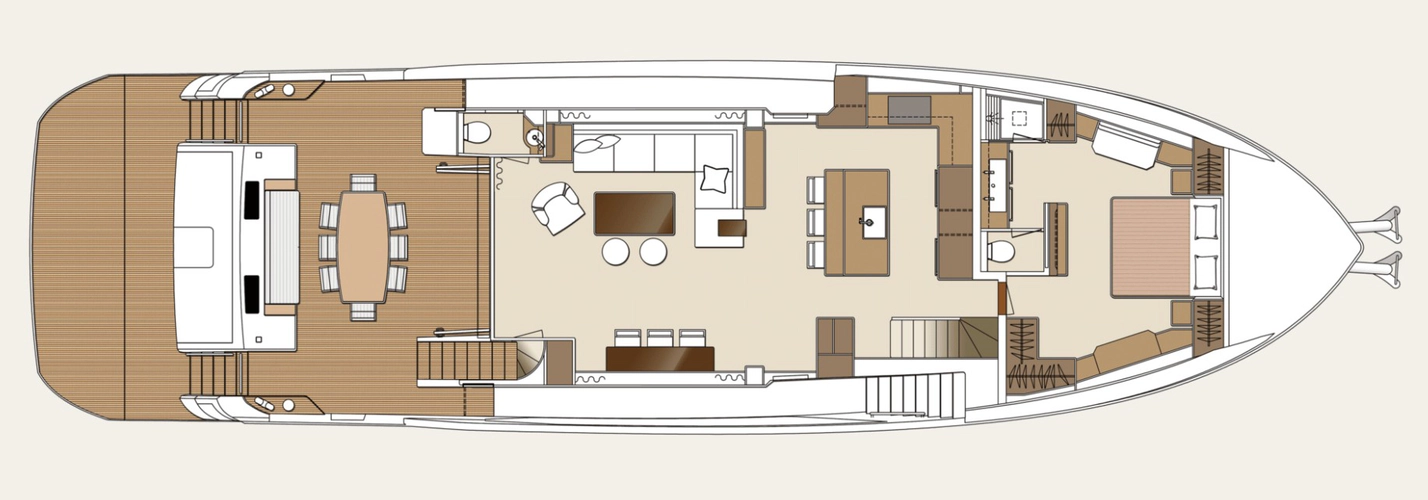

(As per layout plan) (See Interior Spec)
Interior Decoration

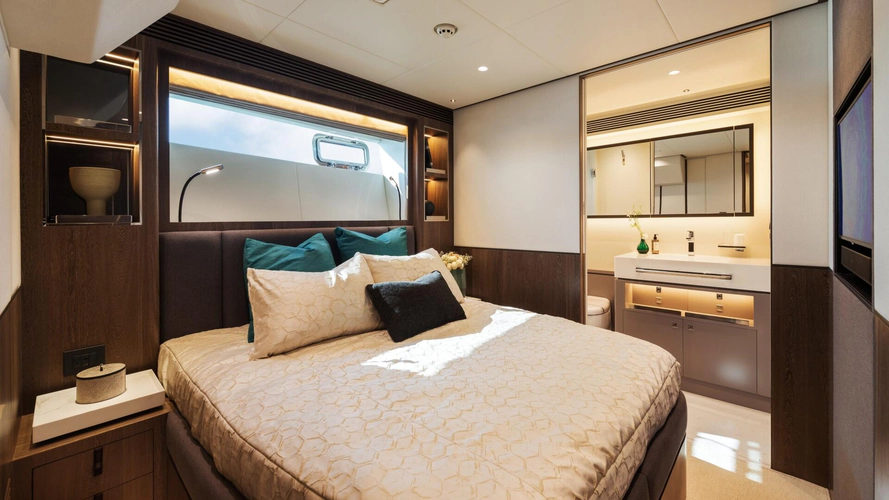

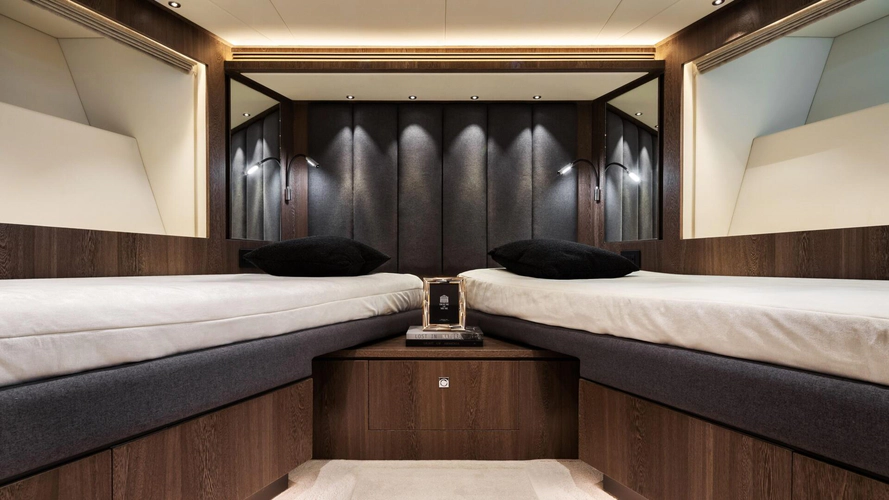

1. Standard layout: ensuite staterooms (x3) and ensuite crew cabin (x1).
2. Standard collection of flooring material: hardwood flooring for public area, carpet for staterooms, and stone or tile for galley and heads. (Details please refer to Interior spec)
3. Wood/upholstered countertop except stone for heads and galley. (Details please refer to Interior spec)
4. Standard collection of wood for interior.
5. Interior stairway from main deck to skylounge and forward staterooms.
6. Standard collection of interlocking vinyl ceiling panels throughout.
7. High-quality Frascio entrance door handle or equivalent and cabinet door handles per shipyard standard.
8. High density hotel grade pocket spring mattresses for entire boat except crew cabins and upper bunks.
9. Standard collection of fabrics for manual window/porthole blind (one layer per each) with valance.
10. Standard collection of fabrics for bedspreads, decorative pillows and sheet set (flat sheet, fitted sheet, pillowcases), one set per berth.

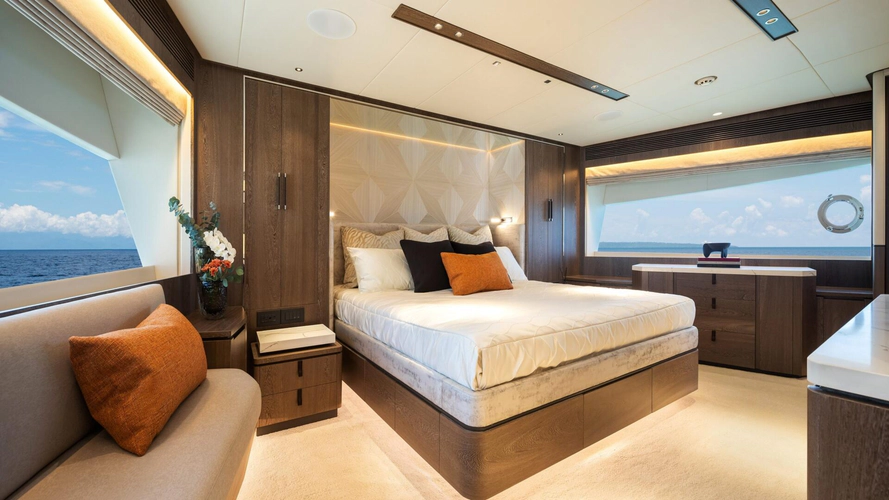

11. King size bed in master stateroom.
12. Safe (x1) in master stateroom.
13. Upholstered headboard for master staterooms, VIP stateroom, and guest stateroom.
14. Wood or upholstered bed frames in all cabins.
15. Closets in all staterooms.
16. Escape hatch with ladder for master stateroom.
17. Quick/ BCM or equivalent LED ceiling lighting.
18. Indirect lighting system under fixed sofas, beds, valances & all stairways.
19. Glass/Dishes/Plates holders if sample provided.
20. Seamless polyurethane finish with standard color selection in all shower stalls.
21. A feature wall for the master shower in stone or tile.
22. Hansgrohe or equivalent faucets, towel bars, towel rings, cup/brush/soap holders, toilet brush for all heads.
23. Exhaust blower for each head.
24. Duravit/ Kohler or equivalent basins in forward heads.
25. Bathtub in master bathroom (only if space allowed.
26. Rain shower (x1) in master shower room.
27. A day head per layout.
28. Two USB chargers for each stateroom.
    Noise and Vibration Control
29. Float floors isolate vibration & noise.
30. Floating walls isolate vibration & noise: 1) Engine Room forward bulkhead, and 2) master stateroom aft bulkhead.

Crew Quarters

31. Rear accommodation arrangement in accordance w/ layout plan – to include aft quarters, efficiency galley (if equipped, convection microwave, sink, undercounter refrigerator), head and shower, closets, bunks, storage lockers, A/C.
32. Satin finish wood on walls, vinyl ceiling, vinyl floor, Corian or equivalent countertop and floor in head, head hardware in Justime collection or equivalent. All materials for interior fit-out are from shipyard standard choices.

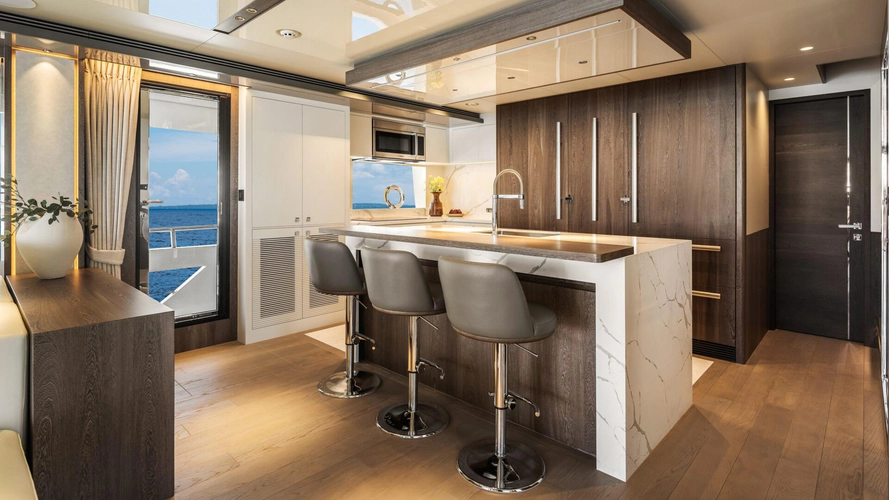

Appliances

33. Under counter ice maker (x1) or refrigerator (x1) per layout.
34. S/S sink per layout.
35. Garbage disposal.
36. Miele or equivalent refrigerator (x1)(Sub-Zero for USA ONLY).
37. Miele or equivalent electric induction cook top with exhaust blower above.
38. Miele or equivalent dishwasher.
39. Miele or equivalent microwave and oven or one microwave-oven.
40. Trash compactor.
41. Miele or equivalent washer/dryer (x2, combo unit at forward cabin, stacked unit at crew).
42. Dyson or equivalent portable vacuum cleaners (x2).

Telephone and Stereo System

43. SAT TV antenna with a symmetric dummy dome & prewire for SAT phone (KVH TracVision UHD7 with KVH TracNet H60 dummy dome for USA; Intellian i9W with Intellian i9P/i9W dummy dome for Australia and New Zealand; KVH TracVision TV8 with KVH TracVision TV8 dummy dome for Europe) (excl. TV decoder).
44. TV antenna on top of radar arch.
45. 4G/5G Cellular router system with Wi-Fi on board.
46. Skylounge 32” LED TV with SONOS Stereo (x1) and FUSION speakers (x2); OR, Open flybridge SONOS Stereo (x1) and FUSION speakers (x4).
47. Boat deck SONOS Stereo (x1) and FUSION speakers (x2).

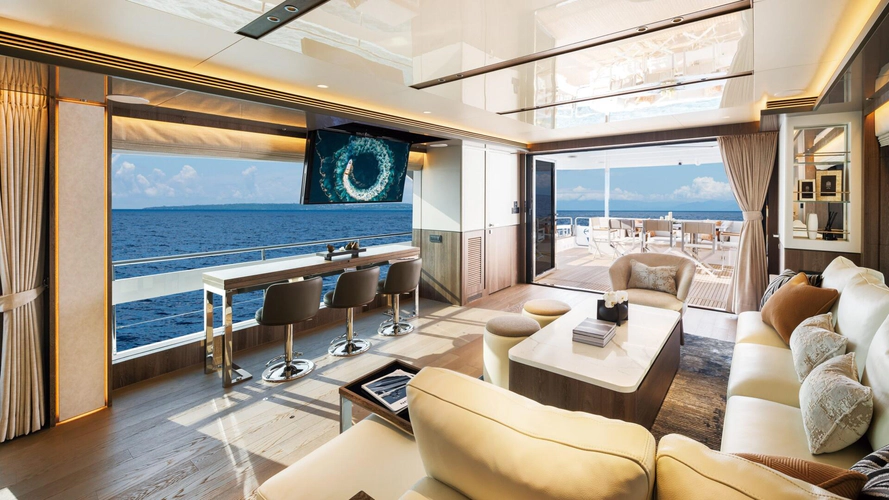

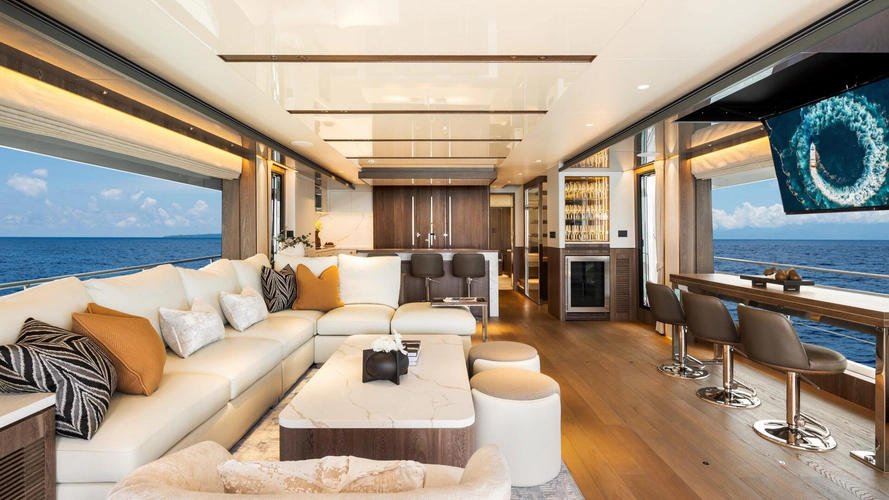

48. Saloon 46" LED TV with SONOS Entertainment Set.
49. Aft deck SONOS Stereo (x1) and FUSION speakers (x2).

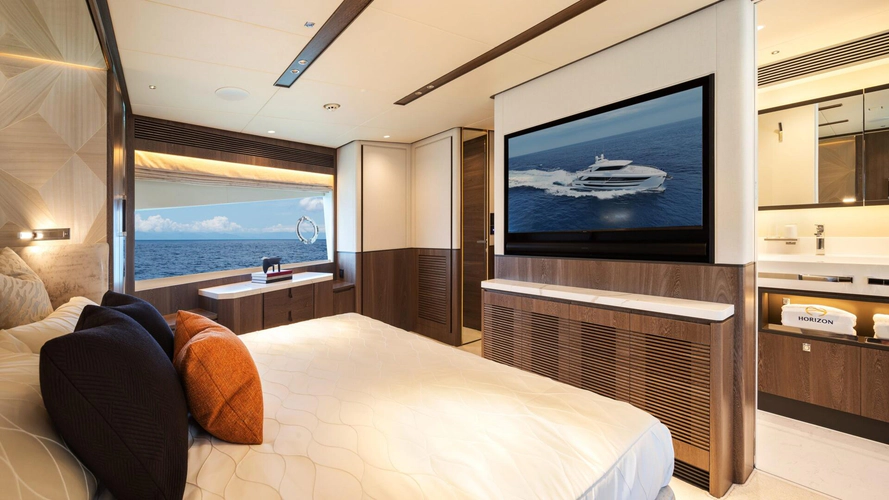

50. Master stateroom 32" LED TV with SONOS Entertainment Set.
51. VIP stateroom 32” LED TV with SONOS Stereo (x1) and FUSION speakers (x2).
52. Guest stateroom 32” LED TV with SONOS Stereo (x1) and FUSION speakers (x2).
53. Crew mess 32” LED TV (for one cabin only) with SONOS Stereo (x1) and FUSION speakers (x2).
54. Panasonic PBX Telephones (x4) with intercom features in the salon, pilothouse, master stateroom, and VIP stateroom; the remaining cabins with a telephone outlet.
55. Exterior connector for shore phone and cable TV.
