NOGAL Boat for Sale

Arguably the perfect catamaran for a family sabbatical cruise, NOGAL has performed flawlessly on a family circumnavigation and again on a recent Pacific cruise. This design is fast yet easy to handle with all sailing controls lead to a practical center cockpit. Large enough to be comfortable at anchor as well as in rough going at sea, she is a short handed sailing dream.

Nogal has been well maintained and upgraded for world cruising and is ready to go anywhere immediately. Here's a way to safely travel in style! Why wait years for a catamaran of substantially lesser quality at 3x the cost? There is not a better world cruising cat available anywhere at any cost than NOGAL.

Construction:Hulls, decks and pilothouse are constructed from vacuum bagged SP Systems Ampreg epoxy resin and high performance glass laminate cored with "Core-Cell" SAN foam and PVC foam. All exterior surfaces are spray painted with linear polyurethane coating. Crossbeams are built of uni-directional carbon fiber/epoxy with foam cored epoxy/glass bulkheads.

Extensive use is made of uni-directional carbon fiber reinforcement in high load areas of hulls, decks and bulkheads. Interior joinerwork and floorboards are all cored panels to provide stiffness at low weight.

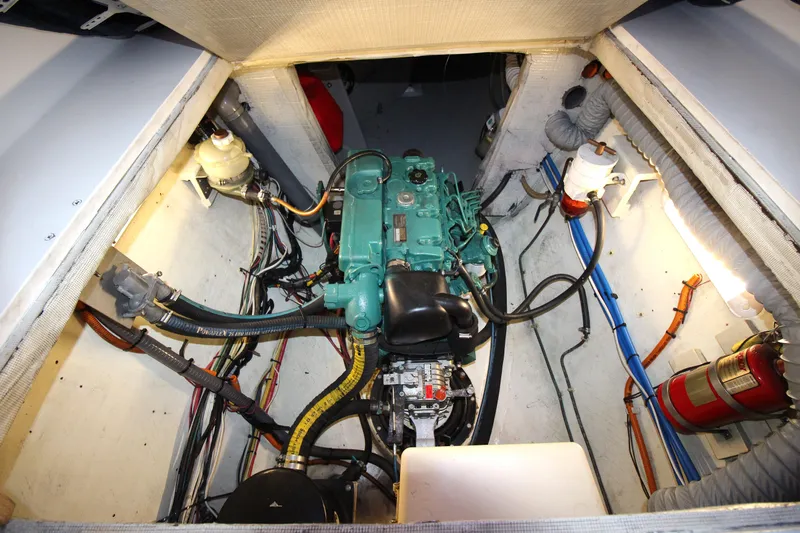

Propulsion and SteeringStarboard: Volvo D2-50 new 2018, diesel saildrive engine (April 2024 engine hours 2100)Port: D2-55, new 2016, diesel saildrive engine (April 2024 hours 2850)Recent engine service included replacement of mixing elbow and oil pans.Dual instrument panels with tachometer and engine monitoring gauges and alarms.Primary and secondary fuel filters.Dual "ZF Micro Commander" electronic single lever engine controls mounted at pilothouse inside helm.Three blade bronze folding type propellers by FlexOFoldRudder blades are fiberglass composite, high performance hydrofoil section with solid Titanium rudder stocks turning in low friction bushings.

Carbon Mast and BoomsCarbon Fiber Spars (Mast, main boom, jib boom, forward crossbeam and compression beam) from King Composites.Standing rigging replaced in 2022 and 2024.Painted mast, deck stepped with two sets of rod diamonds over single spreader.Masthead light, masthead VHF, wind instrumentsAll halyards and reefing lines are led to cockpit.Boom has internal reefing lines, topping liftSelf tacking jib with harken Unit 3 MKIV reefing/furling unit (2016)Genoa Unit 4 MKIV reefing/furling unit (2016)

SailsMain, North Sails 3DI with 3 reff points, 2019Genoa, North Sails, 3DI, 2019Self tacking Jib, North Sails, 3DI, 2019A3 Spinnaker, North Sails, 2019A5 Spinnaker, Quantum Sails, 20222

Standing RiggingAll type 316 1x19 SS Dyform wire rope stays and shrouds (new 2021)Navtec rod for mast diamond stays (new 2024)

Running RiggingDyneema halyards and control lines. Low stretch sheets (2022, 2024)

Deck HardwareWinches:4x Harken #60 Performa 3 speed electric winches (2016)1x Andersen 46 ST 2 speed electric2x Andersen 46 ST 2 speed manual

Harken Mini-Maxi main sheet traveler 11'6" longHarken self tacking jib traveler, 12' longHarken ball bearing blocks are standard equipment.Spinlock rope clutches

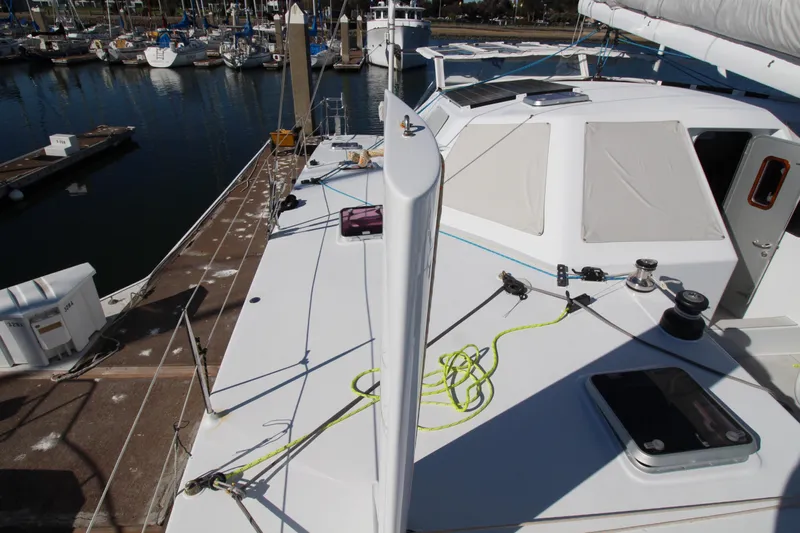

DaggerboardsTwo cored glass fiber asymmetric "hi lift" daggerboards in epoxy/glass laminate trunks with low friction bushingsUp and down haul control lead to cockpit

Collision BulkheadsEach hull has two collision bulkheads forward.

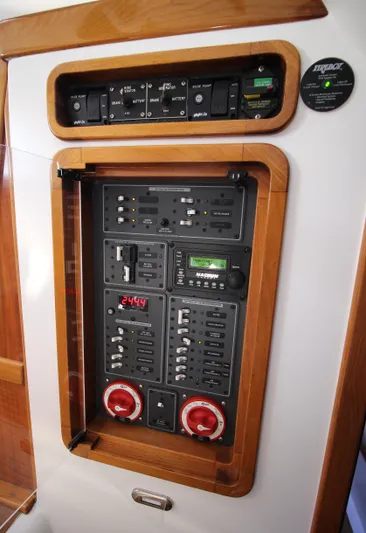

Electrical:2022 American Power 42i 100amp 24V alternators, 20222 Balmar MC-624 Balmer regulatorsLithionics 630 amp hours batteries with BMS, 2022Phillippi PSM-2 system monitor, 2022(10) 100watt Solbian Solar Panels, 2019Western Co WRM 15 Solar charge controllers, 2016Victron Charge Controller(2) Air Silent X wind turbines, 20224x Kyocera Solar Panels, 130 watt output each10x Solbian SP100L Solar Panels, 100 watts eachSolar Regulator: WRM15 charge controller24-volt circuit breaker panel with voltage and amp meters.2x engine start batteriesBattery monitorFrensch LED lightsResolux full spectrum fluorescent lights in galley and work areasLED red night lighting within the pilothouse Chart light

AC SystemMagnum 4000W Inverter/charger, 24V DC 105A charger, 120/240VAC Output 60Hz (2020)Shore Power: 120v or 220v 50 amp and 30 ampAC outlets are installed in the following places. (1) each head, (1) galley, (1) workbench, (2) nav. Station, (1) port side of pilothouse settee.Isolation Transformer (2016)

Tanks(2) 100 gallon diesel fuel tanks each with deck fill, shut off and gauge(2) 80 gallon water tanks each with deck fill, vent and gauge

Watermaker2x 14gph Spectra 24v 340Z Catalina watermaker.This includes remote operation and monitoring in pilot house (gph production, ppm of product water, water pressure at filter and water pressure at feed pump).

Navigation & ElectronicsGarmin AIS - AIS650 Class B (2018)Garmin 7616xsv Chartplotter (2021) 16 inch Nav station unitGarmin 7607xsv Chartplotter (2019) 7 inch Cockpit stationDepth - 2 sounding units (one on each hull)GPS - GarminGarmin RadarVHF - 2x ICOM with Digital Selective Calling (DSC) (helm station and nav station)Wind - NKE masthead unitNKE AutopilotNKE multi-display gyropilot outside and insideNKE remote autopilotICOM IC-M605 VHF radio with cockpit remote, 2020ICOM IC-M802 SSB radioBackup GPS Furuno GP-32 dgpsStarlink and Iridium GO Satellite CommunicationsStereo:Fusion 3 zone Sound SystemFusion 1600 watt amplifier (2018)Pilothouse speakers, cockpit speakers and aft platform speakersWiFiHailer PA Horn, 2020

Hull and Deck Ventilation:(16) Deck hatches, all Lewmar Ocean Series. Accommodation area hatches are equipped with Ocean Air roller shade/screens.(6) opening portlights with clear plexi windows, three in each outboard hull sideAn opening port is located adjacent to each double berthCowl vents in engine rooms and in each head(15) Hella fans, two in each aft double berth, four in each forward double berth, one in the galley, one each in the pilothouse helmstation and nav area.

Air Conditioning and Heating:1 Marine Air 1600btu Aircon for pilot house and aft cabins(2) Climma 4200 BTU reverse cycle AirCon 115v - one in each midship cabin(2) D4 Espar Diesel Heaters

Rails and Lifelines:Custom fabricated SS stanchions with dyneema lifelines.Custom fabricated polished SS pushpitsIntegral swim step on rudderSwim ladder on starboard step

Anchor Handling:Dual bow anchor rollers enable two anchors to be easily used at the same time.Lewmar V4 windlass with rope/chain gypsy and dual direction switch.Self-bailing lockers for self stowing chain and rode.

Anchors:Ultra Stainless anchor 100 lbs. (2017), with 140' 3/8" chain and 250' nylon rodeFortress FX-37 (2016), 150' nylonSalt water washdown

Cleats and DocklinesSix 10" docking cleats, 2 bow, 2 stern, 2 springlineTwo 12" mooring cleatsFour (4) 5/8" 3 strand nylon docking lines each 50' in length are supplied.

Navigation LightsLED masthead Tri-color and anchor lightMast mounted steaming light with deck flood lightLED deck level running lights

Exterior LightingAft deck amber LED lightsAft deck floodlights

InteriorVarnished walnut, cabinet door frames, fiddles and trim.Teak and holly laminate soles in accommodation spacesSemi-gloss polyurethane finish in accommodation areas2020: New upholstery for pilothouse settee seats and other cushions.

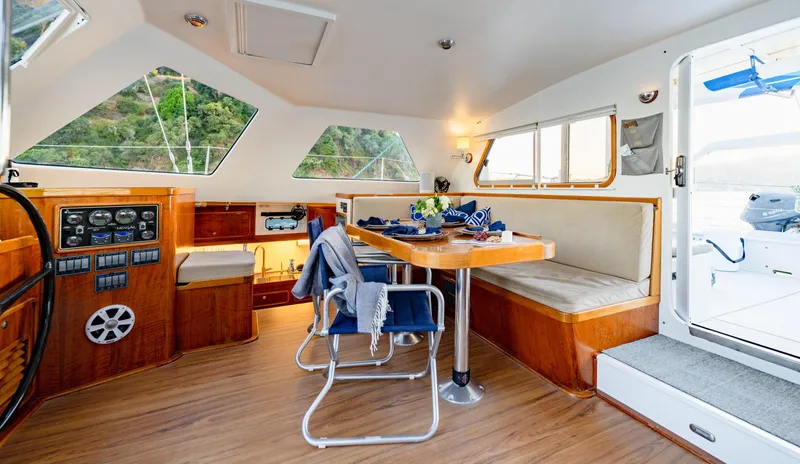

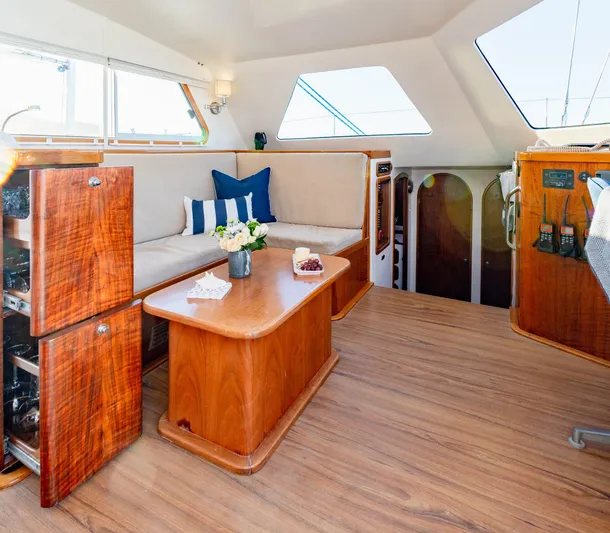

PilothousePort and starboard settee seats both have a varnished wood table. Port side table is a movable "coffee table". Starboard side table is a dining table configured so that it can be moved on the aft deck for open air dining. Settee seats have partitioned stowage beneath via lift out covers in the seat top.

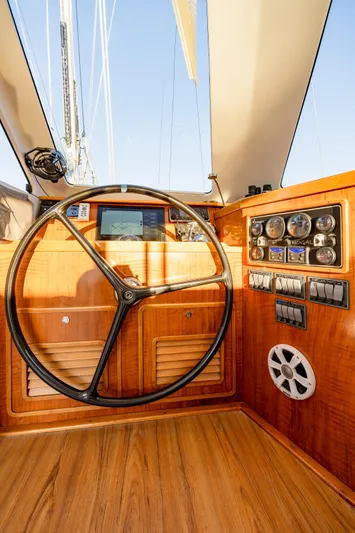

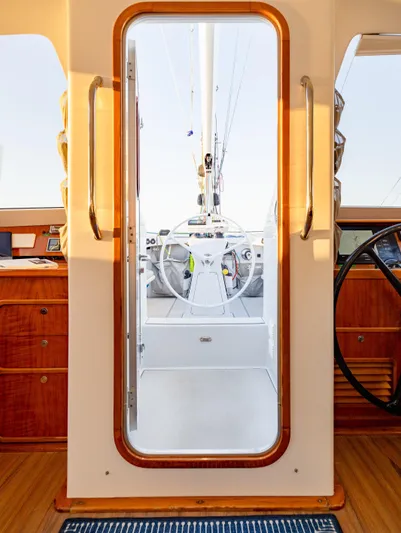

Inside Helm StationA 30" destroyer type wheel is mounted to starboard with a 4" flush mount Ritchie SS-2000 compass, engine instrument panels, electronic gear shift/throttle control and sailing instruments (depth,wind,speed) located within easy reach of the wheel.

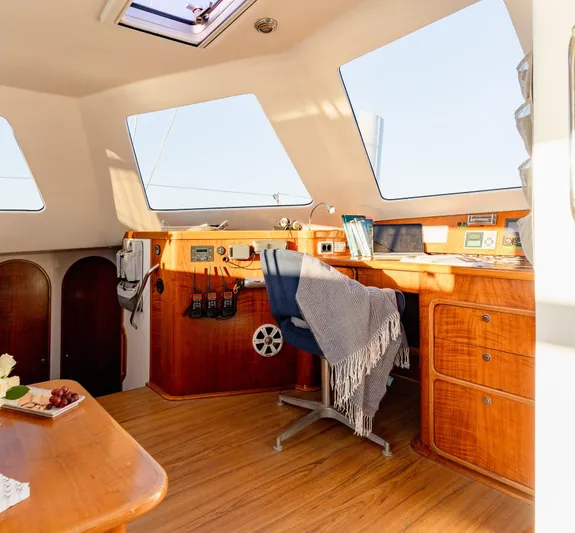

Pilot House Nav. StationExtra large chart table measuring 55" x 34" with full size chart drawer beneathTwo file drawersExtra outlets for laptop computers, printer, etc..Tank Tender, 4 tank monitor

Bow NetsHigh strength, race boat style, Dyneema knotless net.

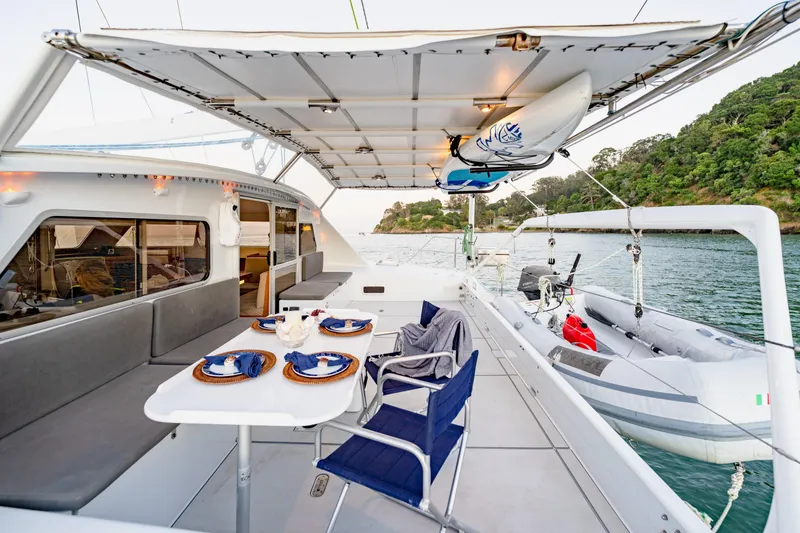

Aft DeckAft deck Bimini in Stamoid fabric , 2020Dinghy hoist and dinghy tie downs built into the aft deckFour large flush deck lockers along the forward side of aft deck for stowage.Outside dining tableSeamac Sliding door for entrance to pilothouseStainless steel bimini frame with 8 led lights

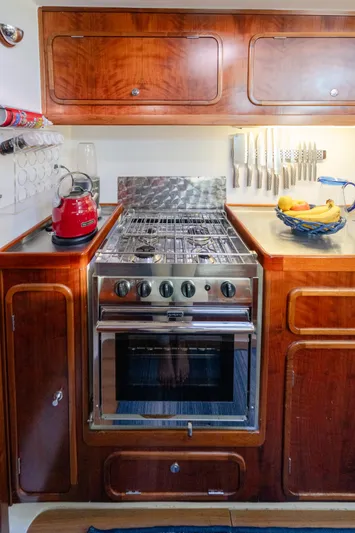

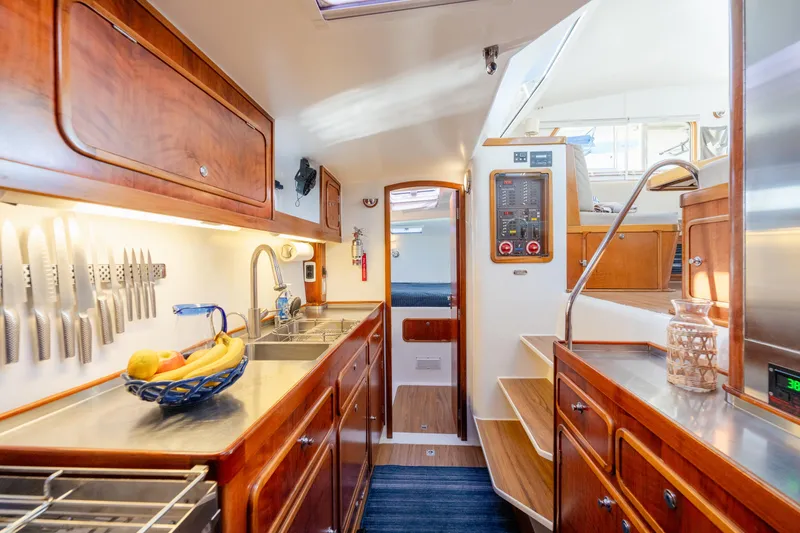

GalleyForce 10 (2023), four burner propane stove with automatic temperature control oven and broiler. A remote solenoid propane shut-off switch is provided.Two 20lb. composite propane bottles are located in a self venting lockerPanasonic microwave ovenGalley sink is a deep double bowl polished stainless steel with strainers set flush into a Granicoat counter top.Hot and cold pressurized water delivered by single lever mixer.Ample drawers, lockers and shelves for storage. Built in trash container

RefrigerationA custom fabricated side by side refrigerator/ freezer (6 and 6 cu/ft capacity) is located in the galley, inboard side. Adjustable shelves included in each compartment. Each unit uses a separate highly efficient SeaFrost compressor with electronic control thermostat providing redundancy.

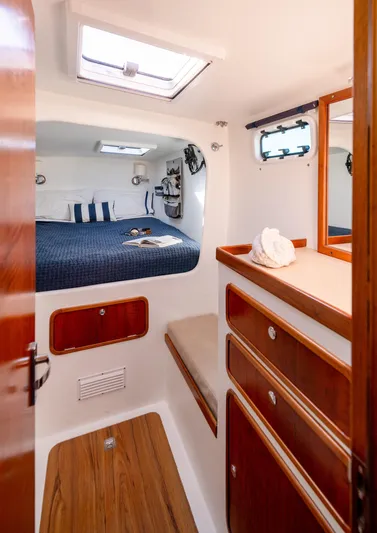

Aft CabinsEach hull has a separate aft cabin which contains a queen size double berth (60" wide, 80" long, matress new 2022) large hanging locker, built in dresser, two bench seats with additional stowage beneath seats and berth. A deck hatch and opening ports provide excellent cross ventilation.

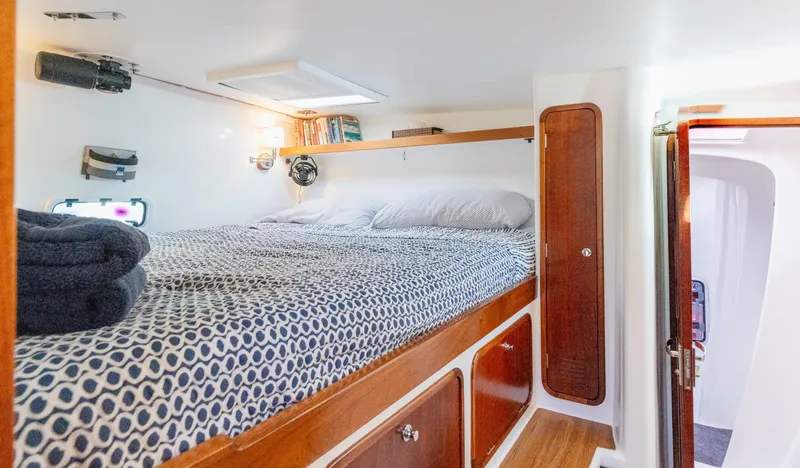

Midship CabinsEach hull has a sleeping cabin amidships that contains a large king sized berth, matress new 2022. A hanging locker, built in dresser, storage cabinet and bookshelf is included. A large deck hatch and two opening ports provide ventilation.

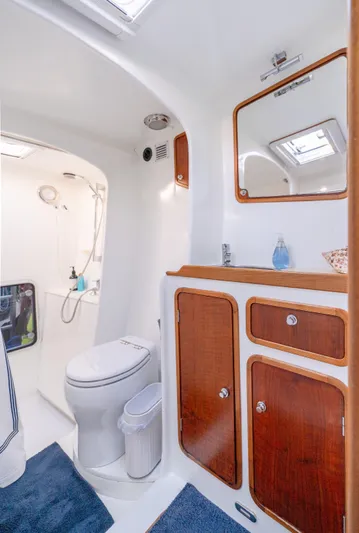

HeadsEach head is equipped with a vanity with polished stainless steel sink with hot/cold pressure water via a mixer. Granicoat laminate countertop and stowage locker beneath. Two large stowage lockers with shelves for towels, etc. are within easy reach.

Tecma silence electric toilet plumbed to holding tank with valves for overboard discharge as well as pump out.

ShowersSemi-gloss polyurethane finish for easy cleanupHot/cold pressure water with single lever mixerWaterproof lightElectric sump pump

Hot Water HeaterIsotemp 40 Litre

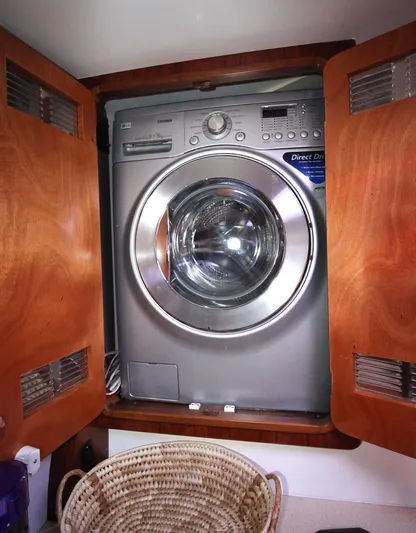

Washing Machine:LG 5kg washer dryer

Outside ShowerA hot and cold water pressurized rinse station is installed on the starboard hull transom boarding platform.

Salt Water WashdownPump for deck washdown is located in the hull forward locker

Workbench (port hull)Drawers and lockers below for tool and parts storage Lockers above for stowage

Exterior FinishThe entire above water line exterior of the boat is spray painted with linear polyurethane, Awlcraft polyurethane coating, 2020. Walking areas on deck non-skid finished. In cockpit the floors are SeaDek.

Hull Rub RailAn external rub rail with solid metal cap.

DinghyAB 11' hard bottom inflatable, 2022Yamaha 20HP 4-stroke (2017)
