60 Multiplast 2015 Boat for Sale

Technical Specifications

LOA: 60 ft (18.28 m)

Beam: 5.80 m

Draught: 4.50 m

Mast height: 29 m (air draught)

Construction: Carbon — T800H (two-thirds) and HR common fibre, Multiplast

Architect: VPLP / Guillaume Verdier (Gitana / SMV design group)

Year built: 2015, launched September 2015

Hull name: Absolute Dreamer 5

Hull & Structure

• M130 carbon aft of mast bulkhead
• Monolithic forward section with longitudinal reinforcements and transverse ribs
• 5 watertight bulkheads with front crash box
• 4 ballast tanks
• Bow modification over 6 m — VPLP design / Gepeto Composite (April 2022)
• Hull bottom reharmonisation: Nomex replaced with M130; internal omega reinforcements — Verdier/VPLP / Gepeto Composite (2022–23)
• Foil case reinforcement bulkhead — Verdier structural study / Gepeto Composite (April 2023)
• Foil wedge and rake system — MerConcept study / Noesis installation (April 2023)
• Rear panel reharmonisation — Verdier / Gepeto Composite (2024)
• Bowsprit with double tack, 90 mm diameter tubes — VPLP / Gepeto Composite / Noesis (2022)
• Jockey pole 3.70 m — Heol Composite (2023)

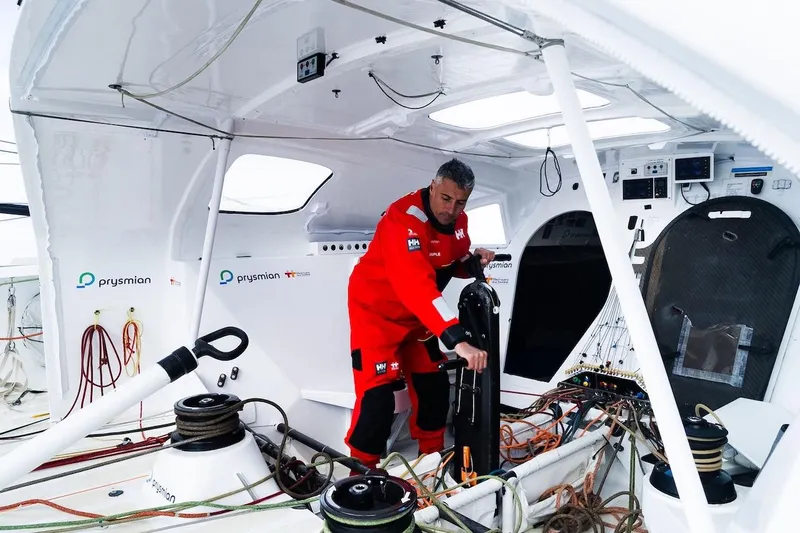

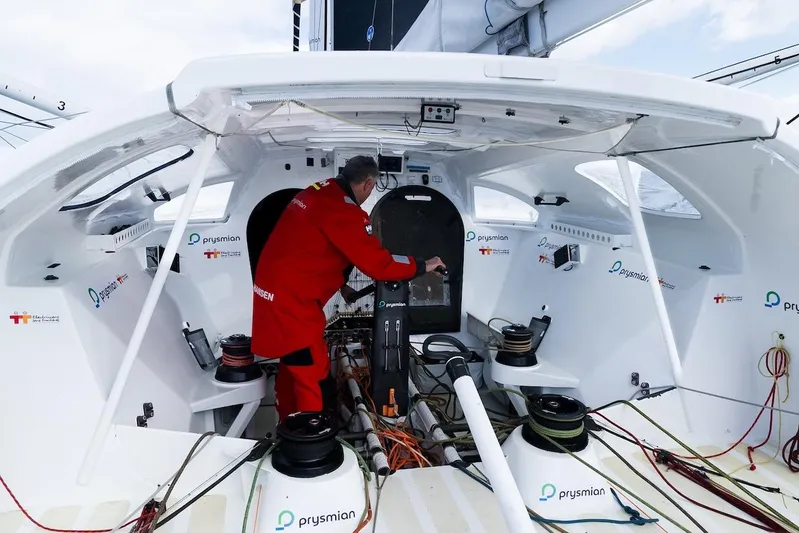

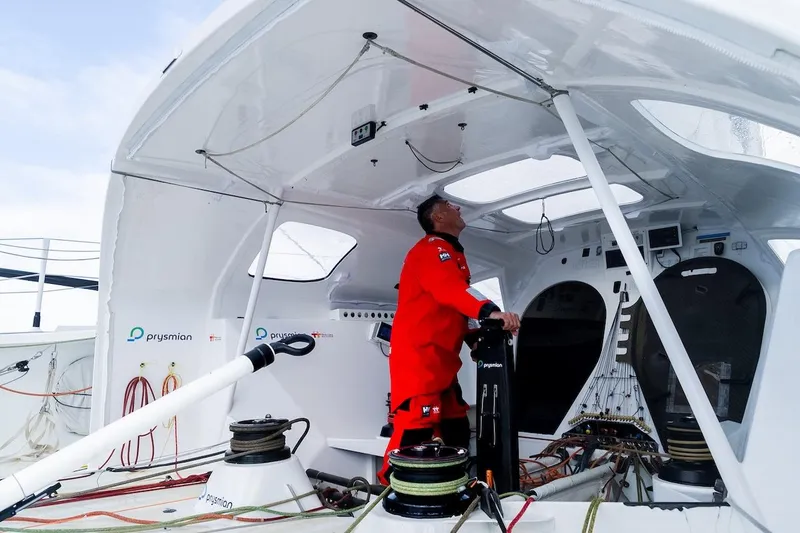

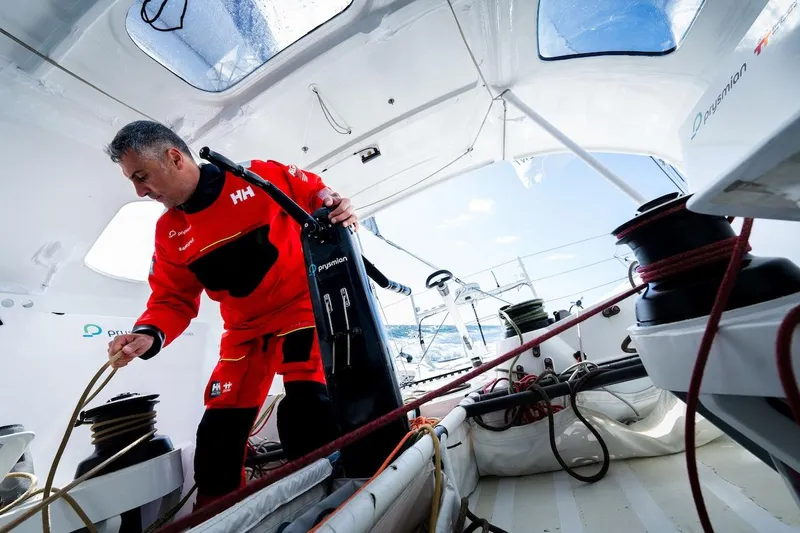

Deck & Cockpit

• Carbon Nomex sandwich construction
• Two indoor pilot’s seats with shock-absorbing system
• Running rigging centralised via low central tunnel
• Piano with titanium deflector and constrictors system
• Transparent rear curtain for full closure in heavy weather

Keel, Rudders & Foils

• Standard one-design IMOCA AMPM keel
• One-design hydraulic keel cylinder; Hydroem emergency cylinder
• Keel bearings: Guelt
• 3 keel controls (2 external, 1 internal)
• 2 rudders with lifting system
• 1 tiller system; 1 emergency bar system

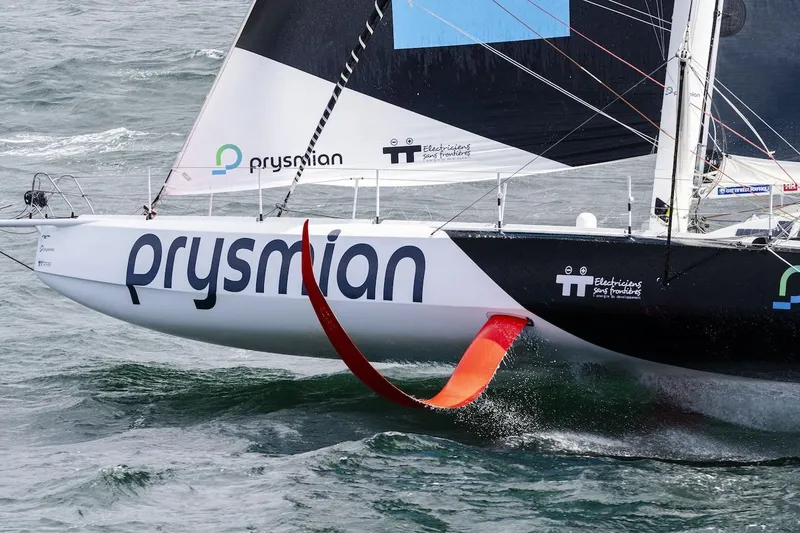

• Foils: 2023 Verdier design (same specification as V&B, Guyot Environnement, Biotherm V1) — CDK construction with batten technology (April 2023)
• Rudders: 2024 Verdier design (same as L’Occitane-Apivia 1) with titanium bearings — Heol Composite (2024)

Mast, Boom & Standing Rigging

• Wing mast — Lorima
• One-design outrigger — Lorima
• Side rigging (shrouds) — Future Fiber
• Runners and J2 forestay: PBO — Gottifredi Maffioli
• Prototype boom, 36 kg — Design: Group Gitana / StMichel Virbac; Construction: Lorima

Running Rigging

• Full Gottifredi Maffioli running rigging — entirely renewed before 2024 Vendée Globe
• Maintenance by Iroise Rigging
• 5 halyards + crossbow halyard
• 2 shortsheets
• 2 J2 sheets
• 4 gennaker sheets
• 1 set of up/down (J1, J2)
• 1 set of in/out
• 3 reef bumps
• 2 tack lines with custom reduction
• Lazy jack
• Eric Cochet / Lorima standard IMOCA lower shroud loop

Deck Fittings & Winches

• 2 x Harken Racing 65 front winches
• 2 x Harken Air 300 rear winches
• 7 x Karver KJ 25 clutches (2 runners, 2 tack, 2 foil down, 1 J3)
• Facnor drum furling system on J2
• Facnor FX system — J3 tackline
• Facnor FX system — 2 bowsprit tacklines
• Profurl/Wichard reinforced hook system
• 5 opening blocks: 3 Antal (furling line returns); 2 Harken 5T (J3 sheets)

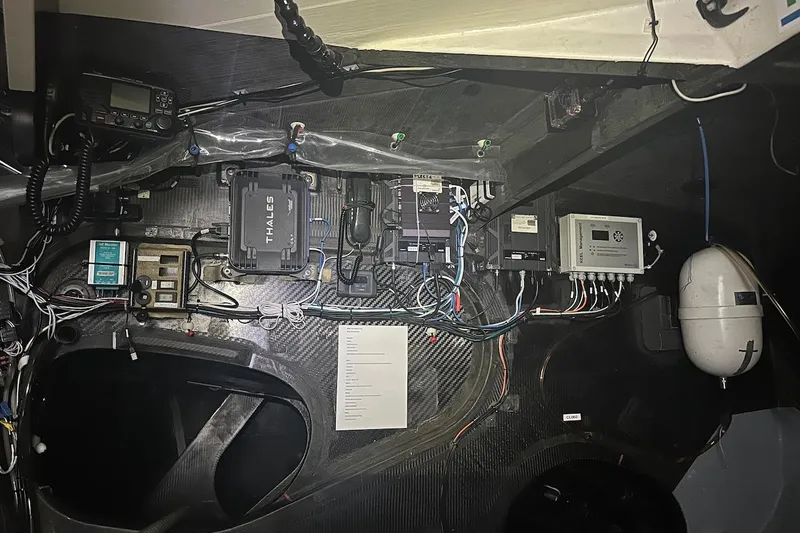

Autopilot & Electronics

• Pilot 1 (Main): Madintec independent line — BRAVO central + Mad Brain + Mad Controller
• Pilot 2 (Secondary): Madintec independent line — Mad Brain (wind option) + Mad Controller

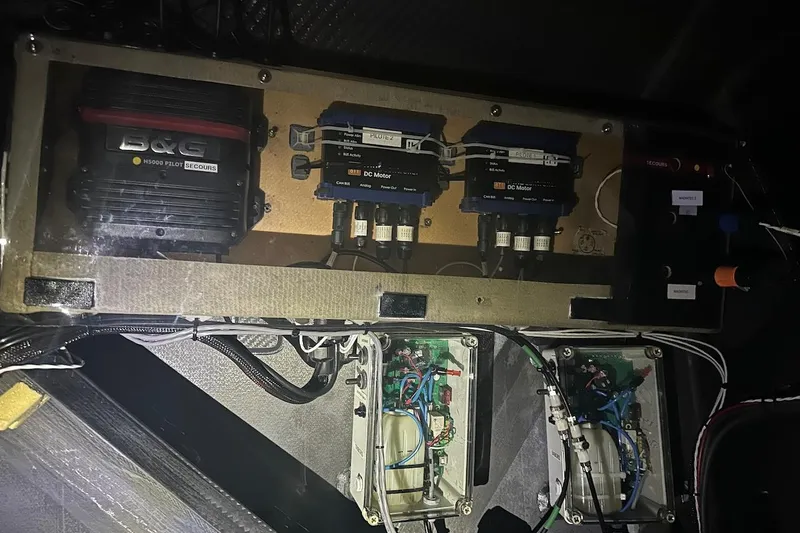

• Pilot 3 (Emergency): B&G H5000
• 2 Madintec remote control pilots
• 1 wired Madintec TAC indoor control (transferable to deck)
• 2 Raymarine typeT2S linear drivers
• 5 B&G information repeaters (4 deck, 1 chart table)
• Raymarine Quantum 2 radar with Axiom 9+ interior display (2024)
• SEA.AI anti-collision system with masthead camera (Oscar) (2024)
• 1 electrical leak detector
• 3 rudder reference sensors: 2 x B&G, 1 x Madintec (2024)
• 2 mast reference sensors: NKE (2024)
• 5 load pin sensors with amplifiers (Bob-stay, J2, J3, outriggers)
• Water ingress sensor system — 2 forward, 2 aft tunnels, LED + audible alarm
• 2 whale strike pingers
• 2 high-definition LED projectors — Ocean Data System
• 1 electronic barograph

Navigation & Compass

• Quadrans Xblue inertial unit — overhauled and calibrated at factory 2024
• Madintec Mad Motion Box
• 9-axis precision compass
• LT 1000
• 2 x ZG100
• 2 x Garmin 24xd HVS GPS antennas
• 3 x indoor GPS units
• 1 AIS Graphen carbon + GPS ZG100 on AIS

Wind Sensors

• 1 vertical wind sensor at masthead
• 1 horizontal wind sensor at masthead
• 1 FT Ultrasonic high-speed wind sensor with masthead support

Hardware

• 2 fanless onboard computers — Intel Haswell ULT i5-7200U processor
• Various multiplexers
• 2 fixed screens at chart table
• Rom Arrangé installations

Communications

• 2 x Sailor Fleet 250 satellite terminals
• Starlink (installed June 2024)
• Iridium GO with external antenna
• Iridium unit in survival bag
• 1 fixed VHF — Icom M506 with secondary speaker/microphone
• 1 portable VHF — Icom
• 2 x Raymarine AIS 700 receivers
• 3 VHF antennas (masthead, radar underside, stern)

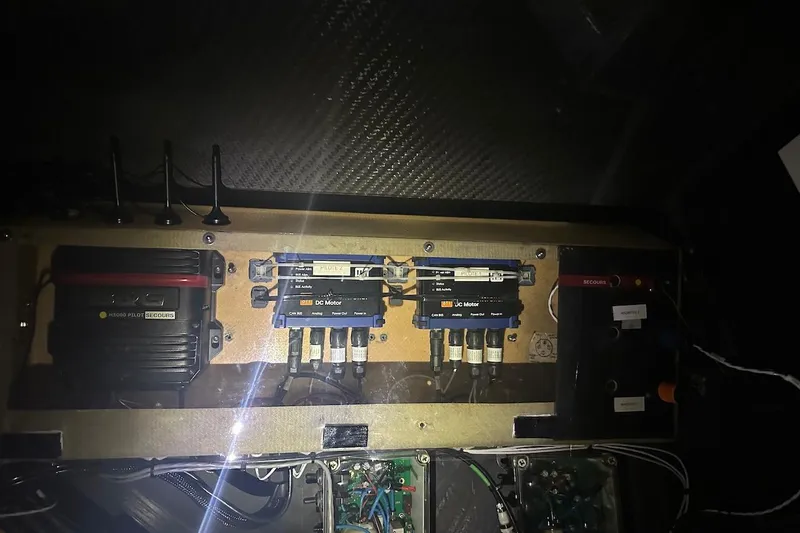

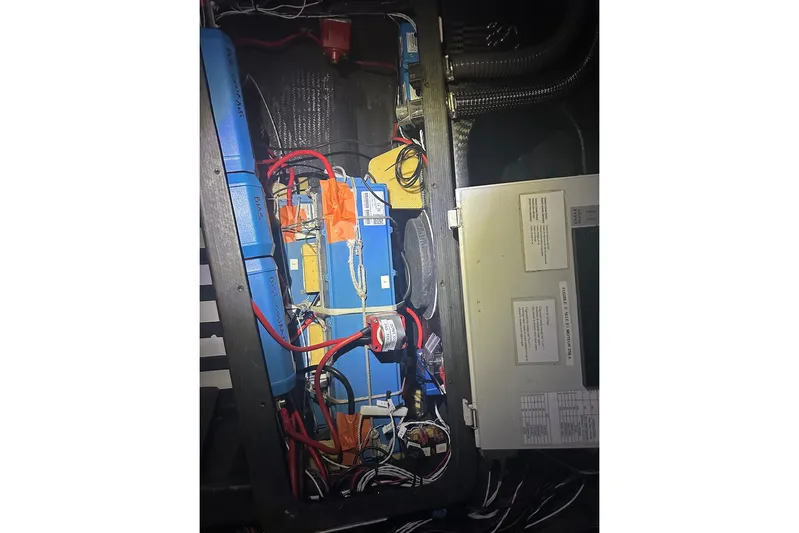

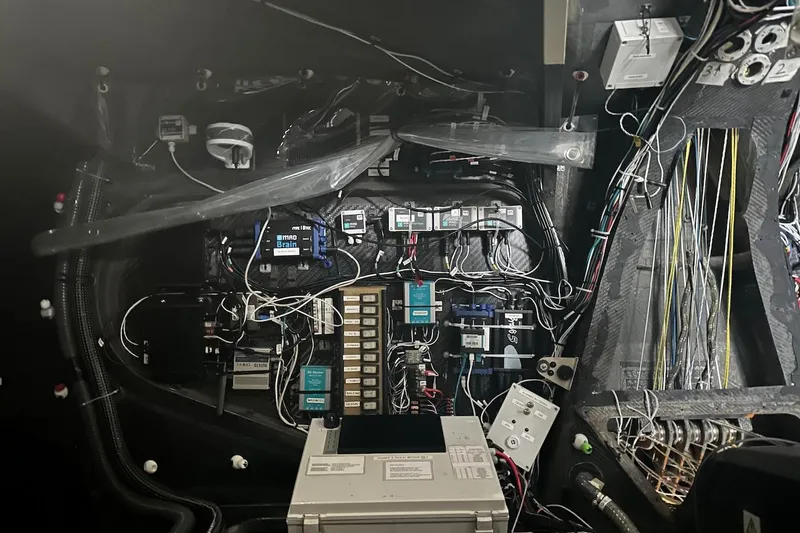

Propulsion & Energy

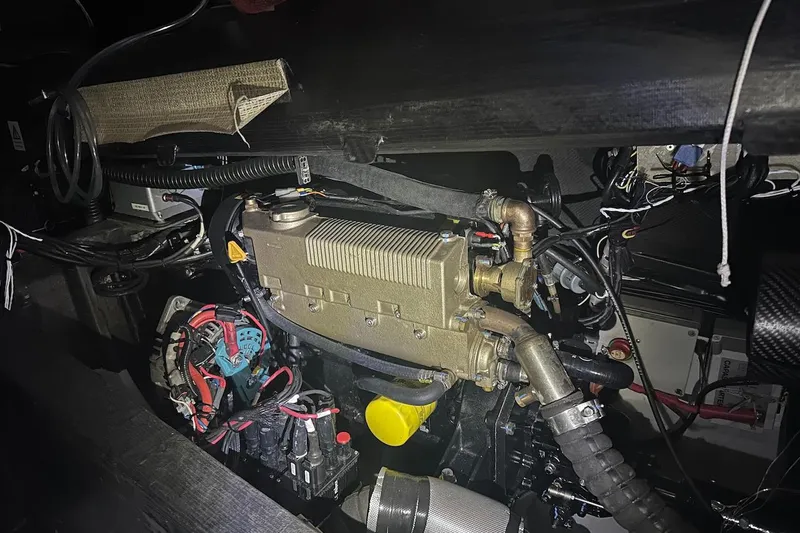

• Engine: Lombardini LDW1404/M (2024) with Racing Gory 2 propeller shaft (2024)
• 2 x Mastervolt alternators with 2 x independent Alphapro regulators
• 2 x AMPM alternator mounting systems
• 2 x Watt & Sea hydro generators — racing version
• Solbian roof solar panels — 960 W divided into 4 independent sections
• 2 x Victron Smart Solar 75/15 charge controllers
• 1 x Victron Smart Battery Sense
• 2 x GenaSun GVB8/28 LiFePO4 regulators
• 3 x Lithium LiFePO4 100 Ah batteries
• 2 x Lynx Smart BMS 500
• 3 x Lynx Distributors
• Cerbo GX energy management
• Ekrano GX 7″ display
• JPS super-capacitor box (last revision 2024)
• JPS auxiliary box (last revision 2024)
• Watermaker: Power Survivor P40E — 5 L daily capacity
• Webasto heating system

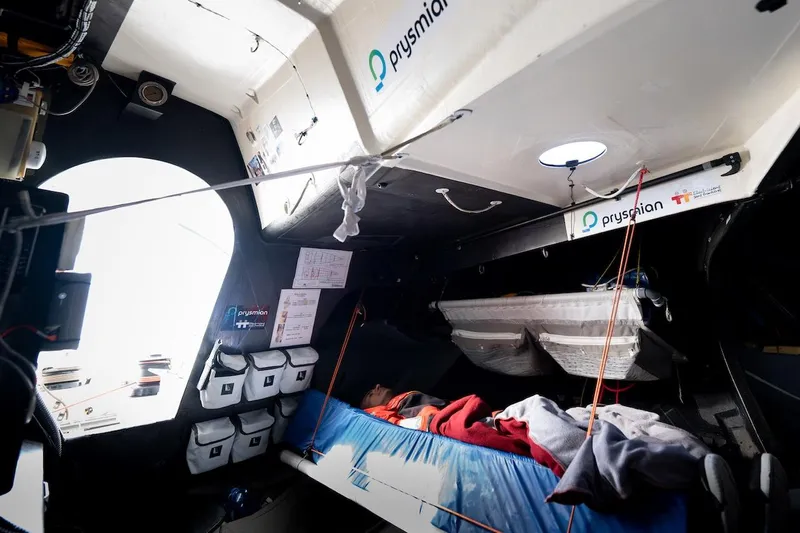

Interior

• Rotating chart table
• 2 pilot seats
• 4 berths
• 1 special Bultex mattress
• Tilting galley

Safety Equipment

• Full IMOCA class-compliant safety equipment
• 1 x Plastimo 4-man interior self-inflating liferaft (bagged)
• 1 x Plastimo 4-man exterior self-inflating liferaft with grab bag
• 2 anchors
• 2 EPIRBs
• 2 fire extinguishers
• 2 horseshoe lifebuoys
• 1 Jon buoy
• Jabsco bilge pump (class compliant)

Sail Inventory — North Sails France

• 2 x Mainsails: September 2024 / September 2020
• 1 x complete set C-Tech battens (2024)
• 3 x J2: 2024 / 2020 / 2018
• 2 x J3: 2024 / 2020
• 2 x J0: 2024 / 2020
• 2 x Fr0: 2024 / 2020
• 2 x Mh0: 2024 / 2020
• 1 x A7 gennaker 210 m² (2015)
• 1 x A7.5 gennaker 180 m² (2016)
• 1 x A2 big spinnaker 395 m² (2018)
• 1 x TMT (2015)
• 1 x J2 sock

Ancillary Equipment & Covers

• Boom cover
• Full set of deck covers
• Full set of cockpit covers
• 2 low hull cradles (keel-off, upright and lowered positions)
• Storage bags — Outils Océan
• 4 mooring lines (2 head, 2 spring)
• Large rectangular foil fender — Outils Océan
• Custom stern corner fender — Outils Océan
• Foil fender
