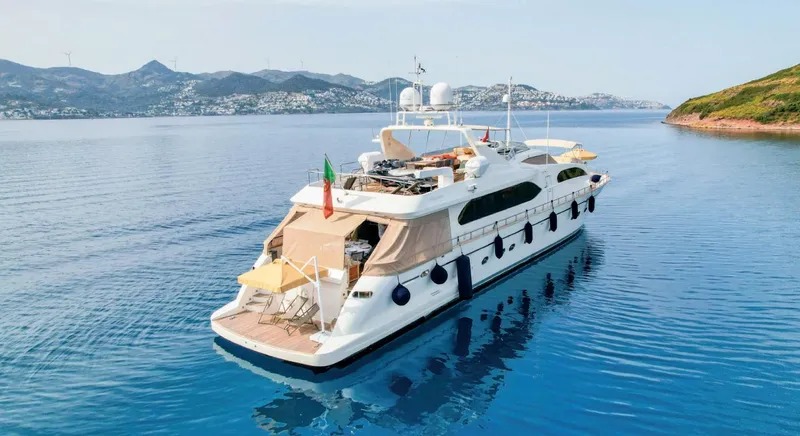

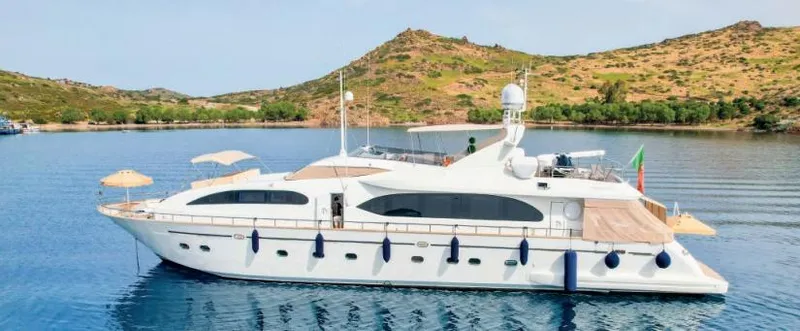

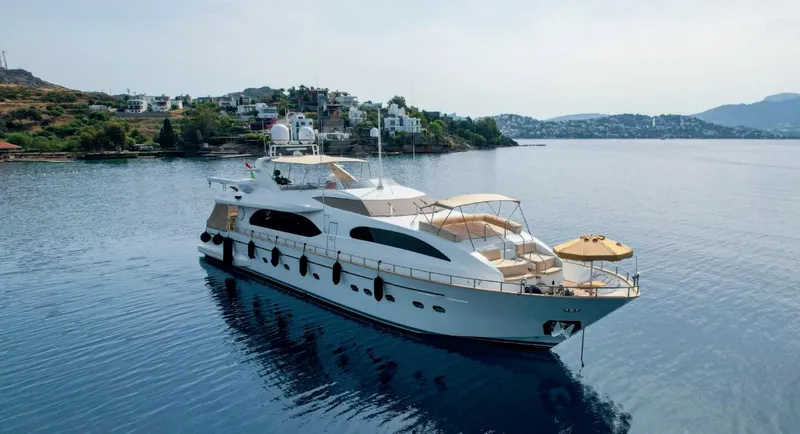

103 Falcon 2024 Yacht for Sale

MAIN CHARACTERISTICS

Original Project: Falcon Yachts (Italy)

Model: Falcon 102

Completion Builder: Cantieri Navali Giangrasso Srl (Italy)

Type: Motor Yacht / Flybridge Yacht / Raised Pilothouse

Model Year: 2022

Completion Year: 2024

Hull Shape: Planing

Hull Material: Fiberglass (GRP)

Superstructure Material: Fiberglass (GRP)

Decks: Teak

Overall Length: 31.50 m (103’ 4”)

Beam: 6.50 m (21’ 4”)

Draft: 2.20 m (7’ 3”)

Displacement: 100,000 kgs (220,462 lbs)

Class: RINA Charter Class C ✠ HULL • MACH Ych (MCA) Short Range

Location: Tuscany, Italy

PROPULSION

Type / Fuel: Twin Diesel

Main Engines: 2 x 2000 Hp (1,471 kW) MAN V12-2000 @ 2300 RPM

Transmissions: V-Drives 2 x ZF 3060V

Maximum Speed: 27 knots

Cruising Speed: 24 knots

TANKAGE

Fuel Capacity: 10,500 l (2,774 US Gallons)

Fresh Water Capacity: 2,500 l (660.4 US Gallons)

ACCOMMODATION

10 Guests in 5 en-suite staterooms

Guest Cabin Configuration:

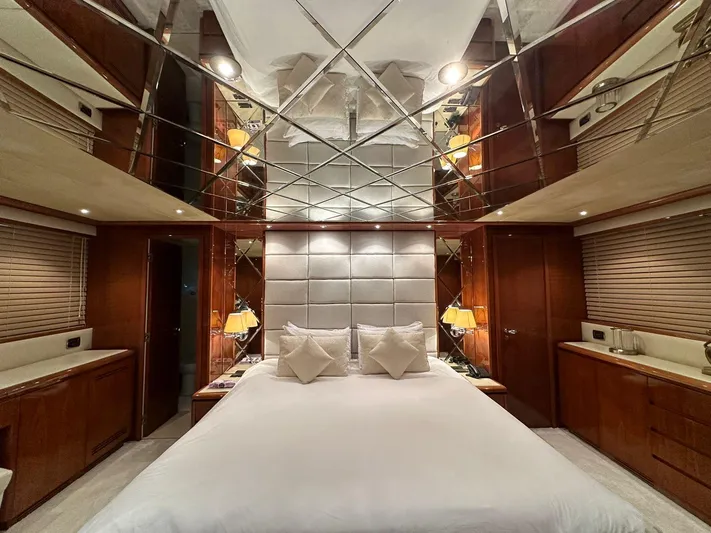

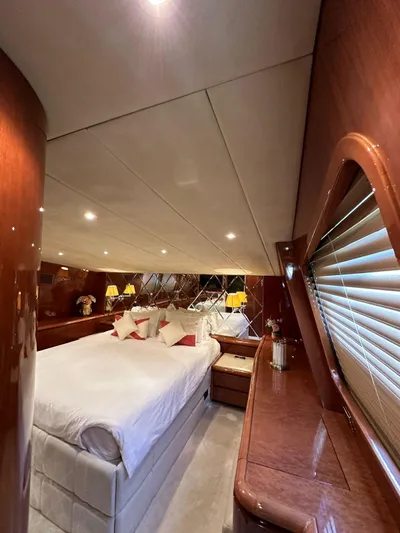

• 1 x Master Cabin on main deck (Double)
• 2 x VIP Cabins on lower deck (Doubles)

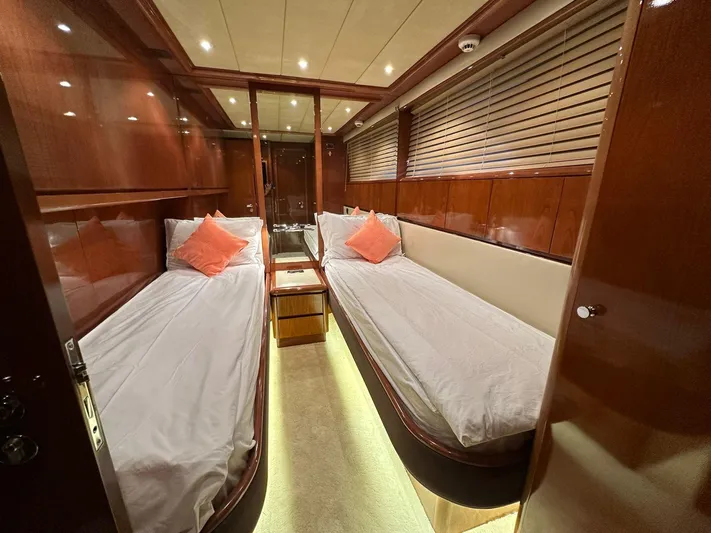

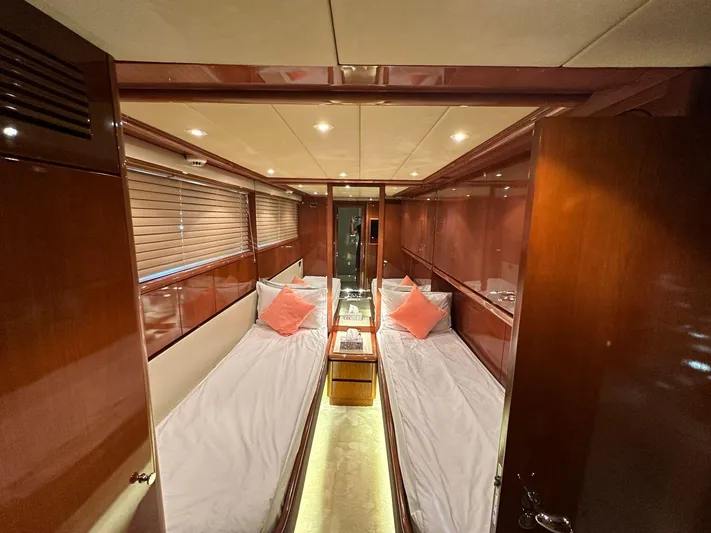

• 2 x Twin guest cabins port & starboard
• (Addition of Pullmans possible)
• Guest Bathrooms: 5

Day Toilet: 1 on main deck

Galley: Fully equipped galley on main deck

Crew Accommodation:

• Crew Cabins: 3
• Crew Beds: 5
• Crew Bathrooms: 3

Crew mess & Laundry area

OTHER MAIN EQUIPMENT

Generators: 2 x KOHLER 27 kW

Stabilizers: Zero speed and underway electric fin stabilizers

Bow Thruster: Electric propeller-driven bow thruster

OUTSIDE AREA

• The outside areas allow a varied life in the open space

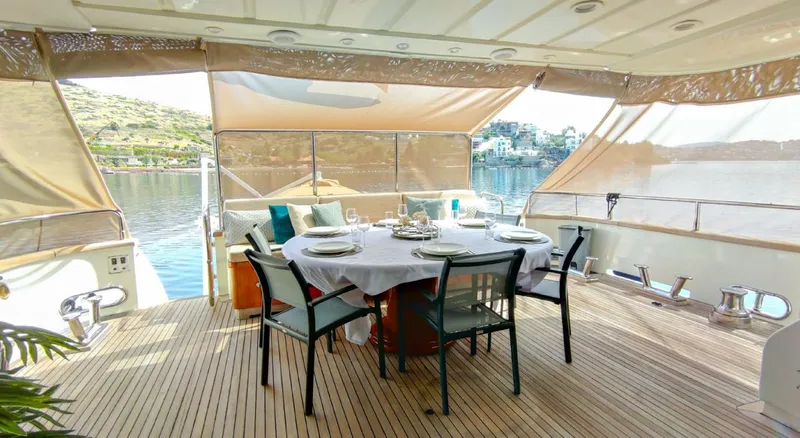

• The aft deck cockpit can be easily changed from an entertainment area into a proper dining room outdoors

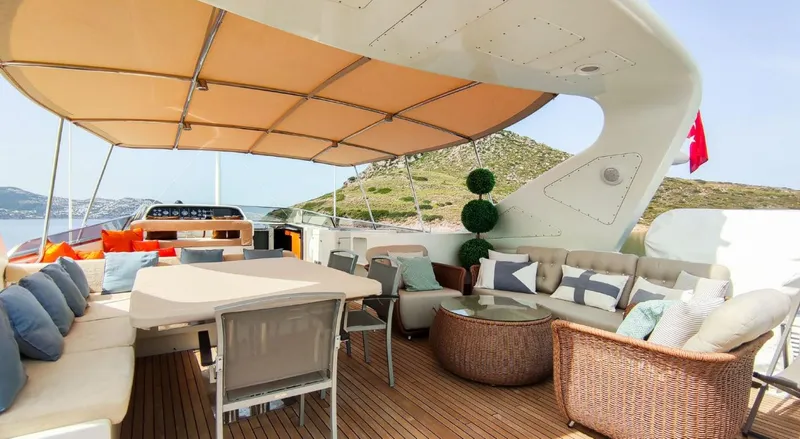

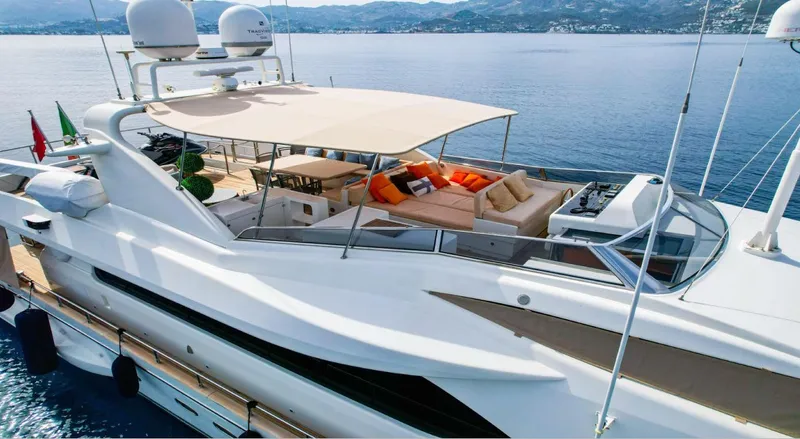

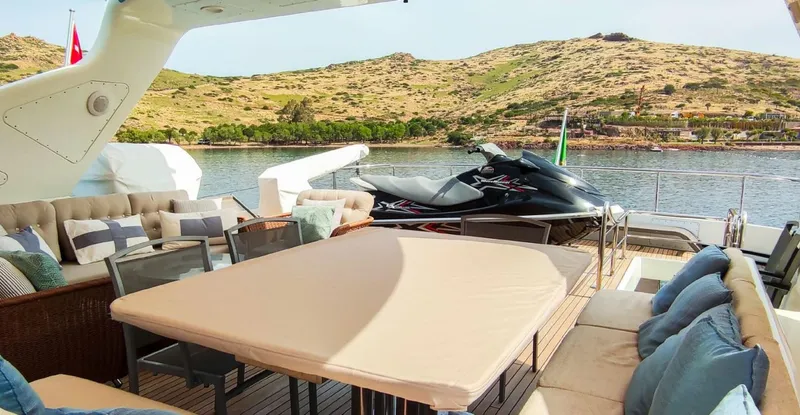

• The same is for the sitting area on the flying bridge, equipped with built-in fridge and ice-maker, sink and barbecue, offering a perfect space for informal dinners

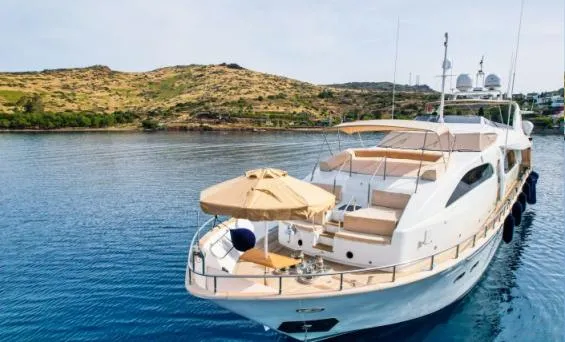

• There are two sunbathing areas as well: The sunbed on the flying bridge and the built-in area on the forward deckhouse with access from the main deck via a few steps

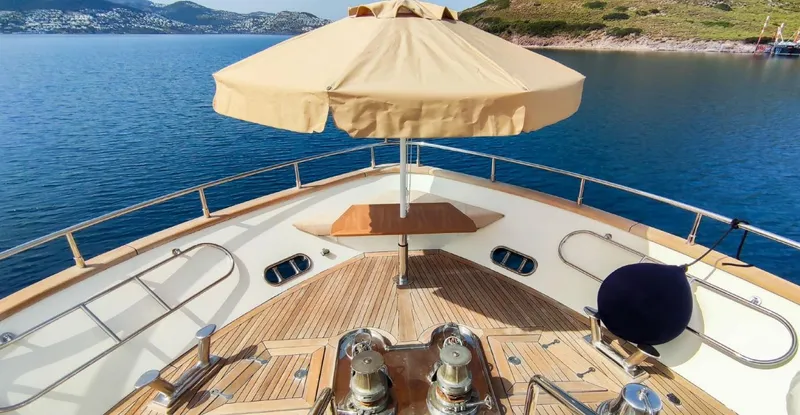

• The deck equipment comes complete with swim platform, swim ladder, hydraulic telescopic passerelle, dual foot-controlled mooring winches, dual anchor windlasses with chains and anchors, radar arch, bimini top, tender crane and flybridge bar

INSIDE AREA

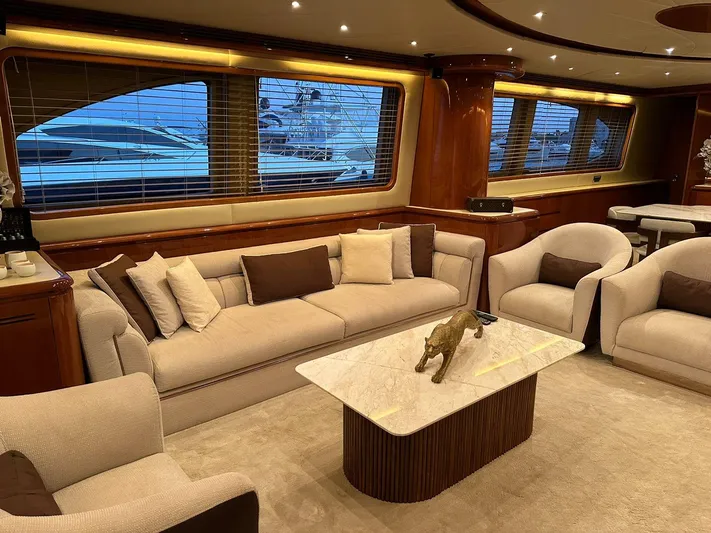

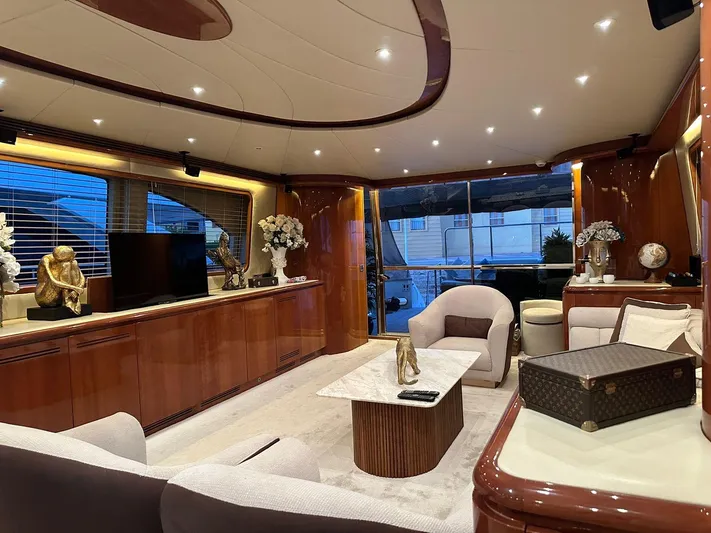

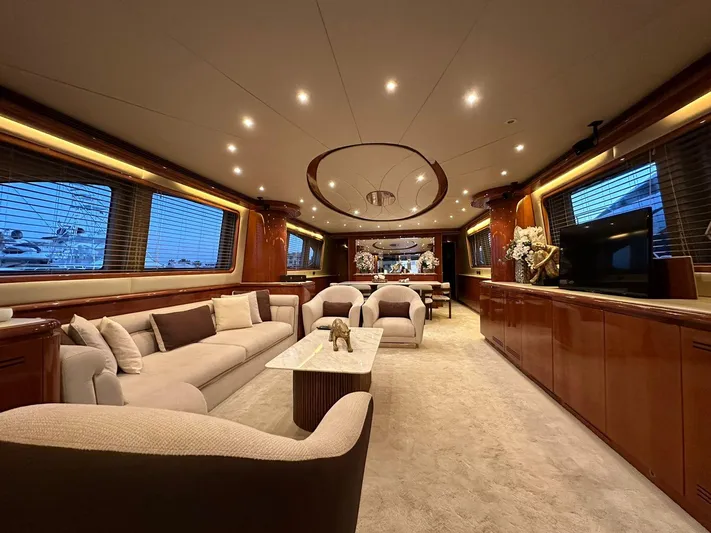

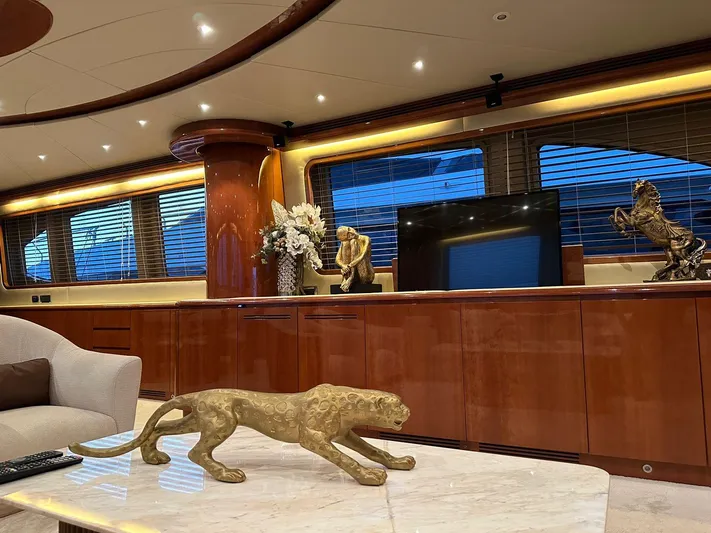

Saloon:

• The saloon is structured as a large “open space” to be fitted out according to the owner’s needs and tastes
• The division into entertainment/conversation and dining area, the choice of woods, decoration elements, furniture design and finishings are studied and defined together with clients to offer a unique and customized ambiance down to the last detail

Dining Area:

• The dining area gives the guests opportunity to gather round the large table

Galley & Crew Area:

• The wide and well-equipped galley on the main deck communicates with crew area situated on the fore lower deck with a separate crew mess and three en-suite cabins which can accommodate five crew members

Guest Sleeping Area:

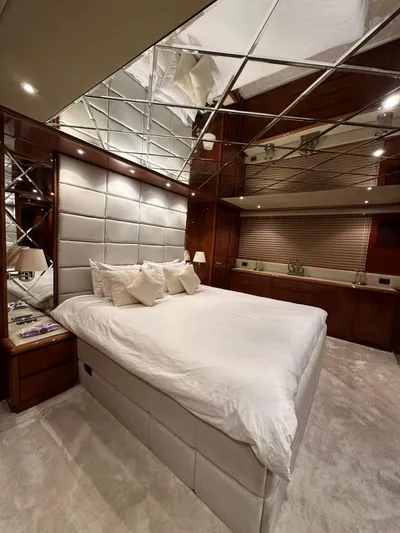

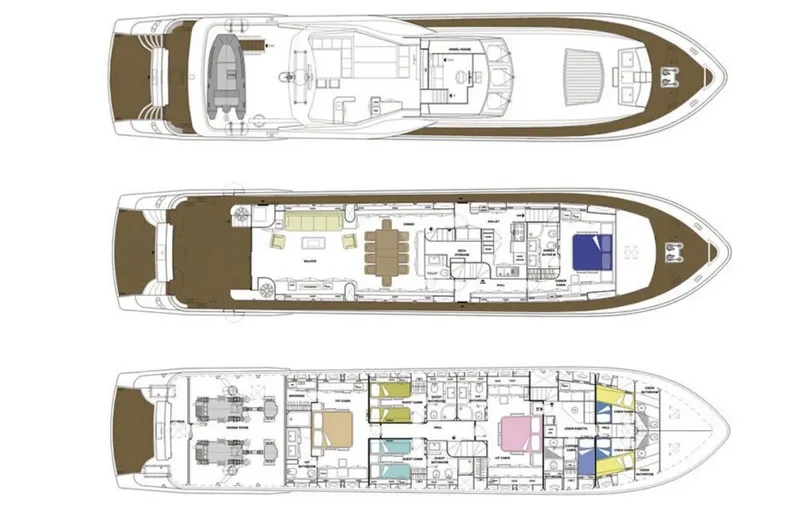

• The sleeping area is made up of an Owner’s cabin on the main deck and four cabins on the lower deck

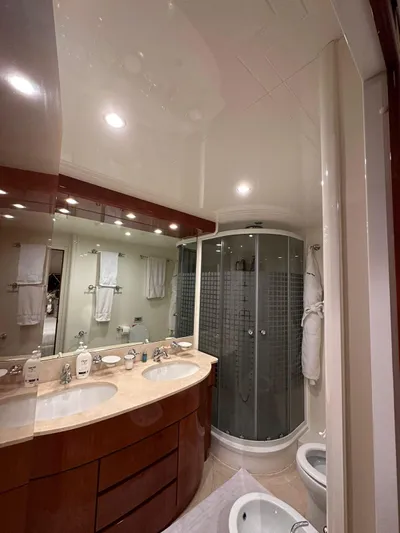

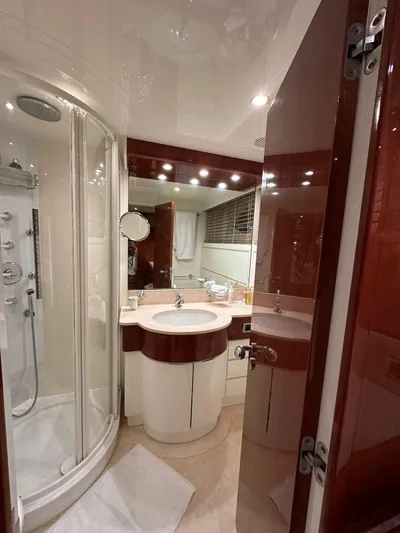

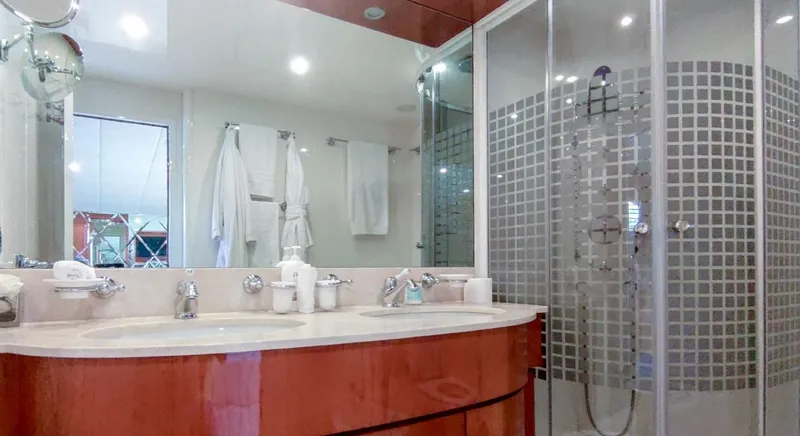

• All cabins are furnished with luxury, LCD TVs connected a satellite antenna, Hi-Fi systems and elegant private bathrooms finished in precious marble
• Guest relaxation and sleeping is guarded by efficient soundproofing and insulation

HELMS

There are two steering positions

The main one is situated in the large raised pilothouse, offering excellent work space combined with the finest instrumentation to make navigation safe and secure

The second steering position is on the flying bridge, also equipped with comprehensive electronics allowing to navigate the vessel independently

A third optional steering position can be located aft on the cockpit for easier docking manoeuvres

WHEELHOUSE DASHBOARD INSTRUMENTATION

MAN electric engine controls

MAN MMDS electronic engine displays

Monitor 22’’ GARMIN

Connection accessories

USB card reader

NMEA 2000

10 HUB Ethernet

Ethernet cable 1.8 m

Mediterranean Sea, Black Sea and Iberian Peninsula charts

Cable Audio / NMEA 0183

Grid 20 Vertical

Fly: GPS MAP 8416 monitor 16”

Wind Instrument: GMI 20

Autopilot: REACTOR 40 with GHC 20 on wheelhouse and GHC 20 on fly, ECU e CCU REACTOR

Rudder angle transducer GRF 10, 2m cable

Radar: Base radar 4 kW x HD2, Open Array 4’ antenna GMR x HD2

VHF: VHF 315i with Active speaker VHF 315i, antenna GPS GA 38, GHS 11i portable, SSB SAILOR class A

AIS 800 - AIS Transceiver, GA 38 GPS antenna

Depth Sounder: B117 Depth, cable 12 m 50/200 kHz 600 W, GSD

Satellite Antenna: GTV6 TV Dome KVH, GTV6 D Satellite TV Dummy Dome, KVH

ADDITIONAL OPTIONS

A variety of optional equipment can be proposed, please consult us

TENDER

Owner’s supply

On request.

Prior appointment, please. Short notice possible.

The yacht is currently 80% into its building process, she can be delivered in 6 months from firm order.

This brand-new yacht will be sold with full manufacturer’s warranty.

Berth place management possible on French or Italian Riviera as well as Spain (Mainland and Balearic Islands), Greece and Turkey.
