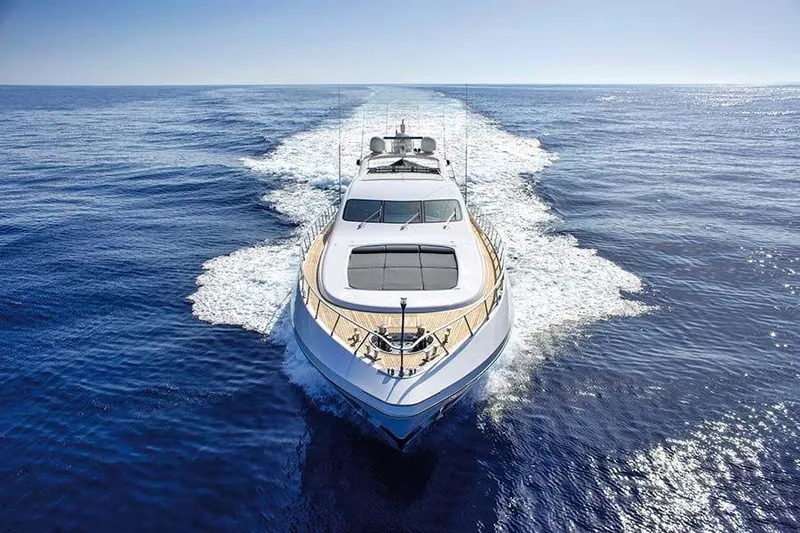

109 Mangusta 2007 Yacht for Sale

PROPULSION

• Reduction Gears:
  Two flange-mounted reduction gears ZF Model 4650 with reduction ratio selected for Kamewa waterjets.

• Waterjets:
  Two Kamewa (RRAB) Model 63 S3 waterjets connected via Kamewa-supplied couplings.

• Steering System:
  Kamewa WJ steering system.

• Transmission:
  2 X KAMEWA63 S 3

GENERATORS & THRUSTERS

• Diesel Generators:
  Two Kohler EFOZ marine generators – 33 kW each. Hours: PORT 3,940 - STBD 3,940

• Bow Thruster System:
  Hydraulic BCS – 47 kW.

ONBOARD SYSTEMS

• Fuel System:

  • Direct suction from structural GRP tank.

  • Two RACOR fuel pre-filters (MTU).

  • WESTFALIA OTC2 fuel purifier.

• Bilge / Fire Fighting System:
  Gianneschi bilge pumps and firefighting pumps.

• Air Conditioning System:
  Frigomar system with 2 new inverter units.

DECK HARDWARE

• Anchor Windlasses:
  Two Lofrans Ercole Verticale – 3 kW / 3-phase / 380V anchor windlasses (with warping drums, chain rollers, and stoppers).

• Anchors & Chains:

  • 2 × 125 kg galvanized anchors

  • 2 × 120 m of 16 mm galvanized chain

• Capstans:
  2 × Lofrans T2000 – 2 kW / 380V / 50 Hz

GANGWAY & DECK ACCESS

• Gangway System:

  • Sanguineti hydraulic gangway and swim ladder

  • Teak grating walking surface

  • Tilting feature

  • Infrared remote controls

TENDER & JET SKI

• Tender:
  1 × Castoldi 14 (4.2-meter) with 125 hp inboard diesel engine and waterjet propulsion

ADDITIONAL EQUIPMENT

• 1 × Sanshin search light

• 1 × Kahlenberg air horn

• Aft deck sun awning

• 1 × Forward sun bed

• Swim platform

• Bow deck shower

• Electric sun roof

LIST OF RECENT WORKS (2020–2022)

Equipment Replaced or Overhauled:

• Most engine room electrical circuit breakers replaced

• Overhaul of all engine cylinder heads

• Overhaul of all engine injectors

• Engine freshwater circuit and seals serviced

• Portside engine freshwater pump replaced

• Engine intercooler circuit and seals overhauled

• Engine thermostats replaced

• Engine keys replaced

• Major revision of Hamann wastewater system, including installation of a remote control system

• New air conditioning compressors installed

• Air conditioning circulation pump replaced

• New automatic bilge pump in engine room

• Watermaker overhauled

• One new fire damper installed (starboard side)

• ZF inverters revised

• Seakeeper stabilizer overhauled

• Major overhaul of Westfalia diesel centrifuge

• New engine batteries installed

• New generator batteries installed

• New backup batteries installed

• Black and grey water transfer pump overhauled

• Shore power converter cleaned and overhauled

• Humphree trim tabs revised

• Underwater lights inspected and revised

5-YEAR BUREAU VERITAS SURVEY (COMPLETED)

Major Works Carried Out:

• Overhaul of Diesel Fire Valve

• Major generator service:

  • Injectors

  • Endoscopy

  • Rocker arm adjustments

  • Diesel pumps

  • Sea water pumps

• Engine endoscopy

• Mega insulation test (electrical systems)

• Complete overhaul of Kamewa waterjets

• Cleaning & inspection of:

  • Fresh water tanks

  • Diesel tanks

  • Grey water and black water tanks

• Installation of new valves at and below the waterline

• New 24V fire and bilge pumps (installed in 2022)

• Overhaul of 400V fire and bilge pump system

• Dismantling and full revision of both anchor windlasses

ADDITIONAL WORKS & UPGRADES

• New screens and full yacht management system installed

• 90% of air conditioning transformers and fan coils replaced

• Major upgrade of the audio system:

  • New amplifiers

  • New remote controls

  • New speakers

  • Enhanced Wi-Fi integration

• New TV & Hi-Fi inverters installed

• New screen and navigation system + 1 new GPS

• Swim ladder dismantled and overhauled, including cylinder service

• New water heater installed in master cabin

• Foredeck teak recaulked

• Tender overhauled (silent blocks, alternator, turbo replaced)

• All hydraulic hoses of gangway replaced and cylinders overhauled

• Hydraulic hoses of jet ski cranes replaced

HOUSEHOLD APPLIANCESGalley

• 1 × Miele Oven

• 1 × Miele Microwave M8161

• 1 × Miele Exhaust Hood

• 1 × Miele Dishwasher PW 6065

• 4 × Frigit Fridges

• 1 × Liebherr Wine Cellar

• 1 × Gaggenau Cooking Top

Dinette

• 2 × Frigit Fridges

• 1 × Brema Icemaker

Laundry Room

• 1 × Miele Clothes Washing Machine PW 6065

• 1 × Miele Condense Dryer PT 7136

SAFETY EQUIPMENT

• Life Rafts:

  • 1 × XTREM SOLAS XDC 5E422J607 (10-person)

  • 1 × XTREM SOLAS XDC 5E412J607 (10-person)

  • 1 × XTREM SOLAS XDC OEF69F606 (8-person)

• Fire Extinguishers:

  • 9 × 2 kg Dry Powder

  • 2 × 6 kg Dry Powder

  • 2 × 9 kg Dry Powder

  • 3 × 5 kg CO₂

  • Engine Room CO₂ Firefighting System

• Additional:

  • ACR EPIRB

NAVIGATION SYSTEMS & CCTV

• Chartplotter: Time Zero Pro

• Radar: Furuno FAR PPU013

• Sounder: Furuno ETR610N

• Weather Station: Airmar

• Gyrocompass: Simrad GC85

AUDIO VIDEO SYSTEMSMain Deck Saloon

• TV: Samsung HD 55”

• Amplifier: Marantz

• Media: Kaleidescape Client Media Player, Apple TV, Satellite Decoder

• Speakers: 5 × Heartquake Image 8

• Subwoofer: JL Lab Focal

• Remote Control: Neo Control 4

Owner Cabin

• TV: Samsung HD 40”

• Amplifier: Marantz

• Media: Kaleidescape Client Media Player, Apple TV, Satellite Decoder

• Speakers: 5 × Heartquake Image 8

• Subwoofer: JL Lab Focal

• Remote Control: Philips Pronto TSU 9600

Owner Bathroom

• 2 × Heartquake Image 6 Speakers

• Crestron Keypad Control

VIP Cabins (Port & Starboard)

• TV: Samsung HD 49”

• Amplifier: Marantz

• Media: Apple TV, Satellite Decoder

• Speakers: 4 × Heartquake Image 6

• Subwoofer: Denon

• Remote Control: Neo Control 4

Guest Cabin (Port)

• TV: Sony 22”

• Amplifier: Marantz

• Media: Apple TV, Satellite Decoder

• Speakers: 4 × Heartquake Image 6

• Subwoofer: Denon

• Remote Control: Neo Control 4

Fore Deck

• 2 × 4” Speakers

• Amplifier: Marantz

• Crestron Keypad Control

Aft Deck

• 6 × Focal IC108 Speakers

• Amplifier: Marantz

Captain’s Cabin

• TV: LG 20”

• Amplifier: Marantz

• Media: Satellite Decoder

• Subwoofer: Denon

• Speakers: 2 × Heartquake Image 6

• Display: 8” CCTV

• Furuno RD30 Instrument

Dinette

• TV: Samsung 32”

• Amplifier: Marantz

• Media: Satellite Decoder

• Speakers: 2 × Heartquake Image 6

• Display: 10” CCTV

• Furuno RD30 Instrument

Crew Cabin

• 2 × TV LG 14”

• Amplifier: Marantz

• Media: Satellite Decoder

• Subwoofer: Denon

• 2 × Heartquake Image 6 Speakers

• Display: 8” CCTV

• Furuno RD30 Instrument

Tech Room & Rack

• Router: Peplink MAX BR1 MK2 (4G)

• Crestron PRO2

• Crestron AV Distribution:

  • PVID8X3 Matrix

  • BIPAD 8 Audio Matrix

  • FM Tuner

• Quad Panasonic CCTV

• Wi-Fi: Ubiquiti Mesh Kit

  • 4 × Ubiquiti Access Points

• Satellite Communications:

  • Wired Ocean Satellite BB Server

  • KVH TV8 Satellite Antenna
