Hull Features

Hand laminated hull with vinyl ester resin and
engineered fabrics
Infused fiberglass structural grid system with molded finish and integrated bilge water management system
5 ply resin infused composite transom system with patented transom reinforcement grid
Integrally molded thru-stem anchor system with fresh and raw water washdown
Horizontal anchor windlass with switch at helm and remote
316L stainless steel delta plow style anchor, twist shackle, chain and 200’ of 1/2” rode
316L stainless steel through stem anchor roller with 8” mooring cleat, chain binder and aluminum backing plates
3.0 HP bow thruster with group 31 AGM battery
Trim tabs with indicator lights and auto-retract
Bronze thru hull fittings below water line
Chrome over bronze thru hull fittings below 7º heel line
Stainless clad composite thru hull fittings above the 7º heel line
Bronze garboard drain
Integrated transom platforms extensions outboard of engines
4 step telescopic boarding ladder mounted in hull platform
Forward hull compartmentation with one (1) 1100 GPH bilge pump with automatic float switch
Dedicated transducer location
High density PVC rubrail with solid 316L stainless steel insert
½“ 316L stainless steel bow eye

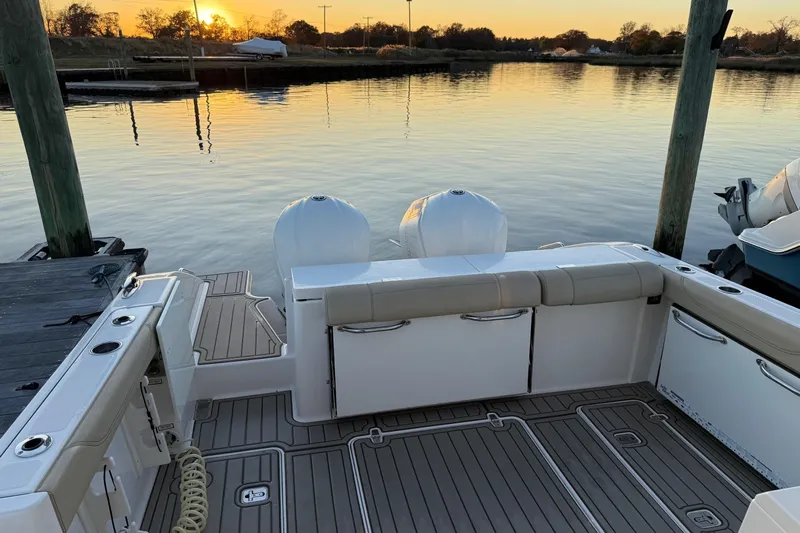

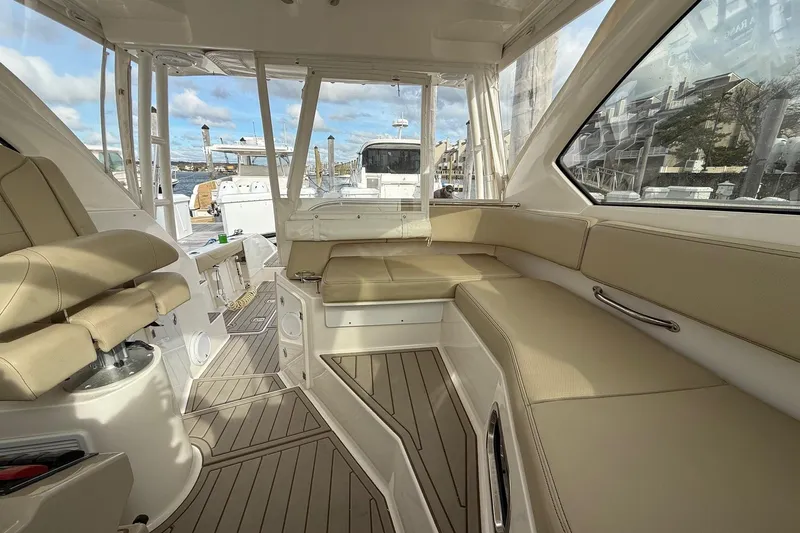

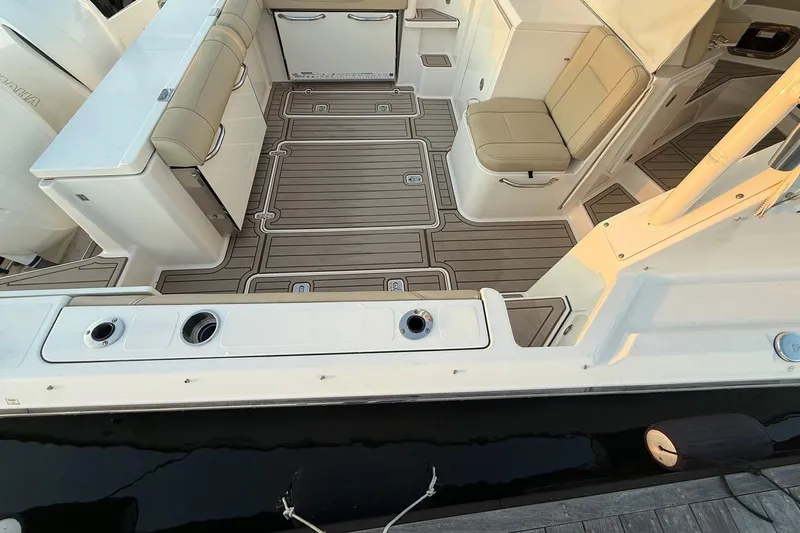

Deck and Cockpit Features

Molded one piece deck and cockpit liner with non-skid pattern area and overboard drains
Hull and deck joint mechanically fastened
10” Pop up cleats (2) on stern and 10” hershoff cleats spring and bow (4)
Molded recessed hatches with gaskets and 316L stainless steel latches and overboard drain tracks
Flush mounted integral anchor locker with fiberglass lid
1 1/4” welded 316L stainless steel foredeck grab rail with 1’ stanchions
316L stainless steel deck plates for water and waste
Four (4) 316L stainless steel rod holders in gunwale with (2 two drink holders
Under gunwale rod storage, port and starboard
Molded transom walkthrough and hinged HDPE transom door with 316L stainless steel latch and positive catch
Molded non-skid steps in splashwell for athwartship access
Port and starboard 316L stainless steel transom grab rails
Custom cockpit upholstery with dri-fast foam and mesh backing

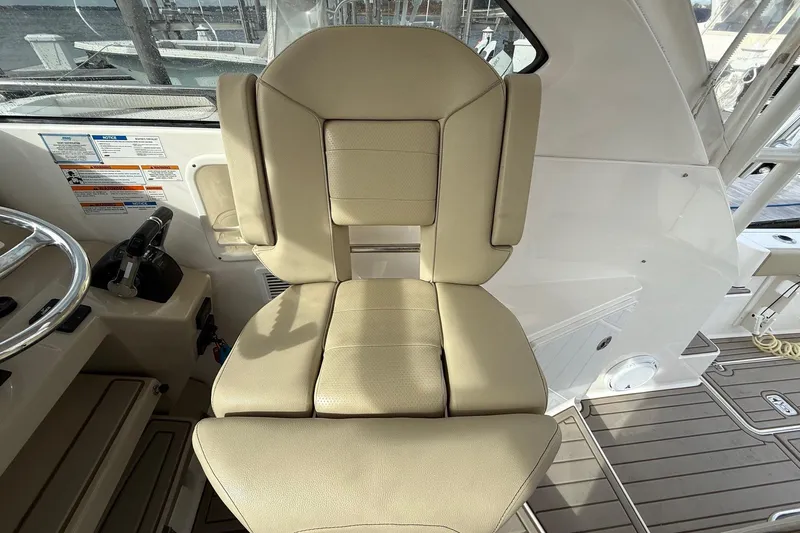

Captain’s chair with swivel base, foldable armrests, fore and aft adjustment

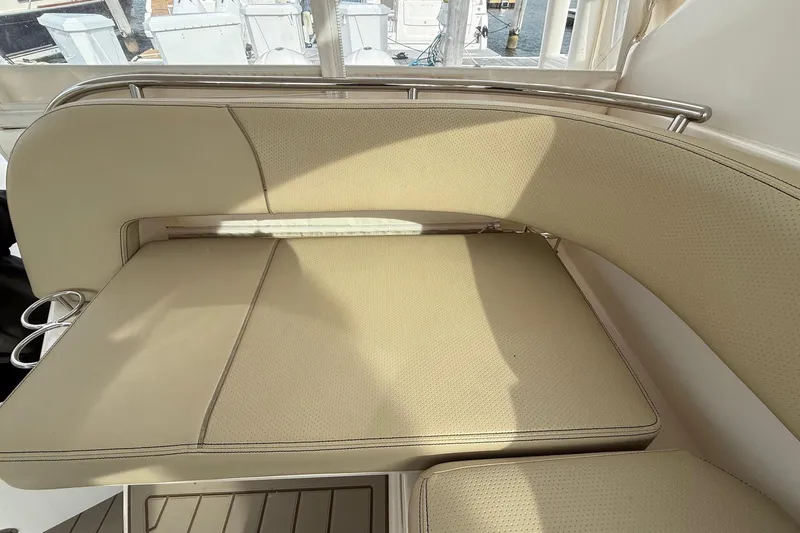

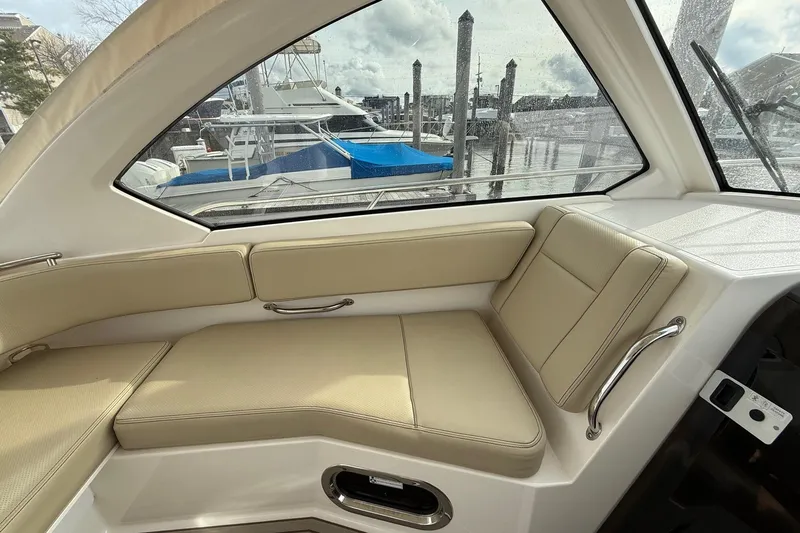

Molded port bridge lounge seating with molded footrest and equipment storage area
Pursuit cockpit entertainment system: 12V bluetooth® compatible stereo system, premium speakers (7 total, 4 in hardtop, 2 interior & subwoofer), amplifier and remote at helm

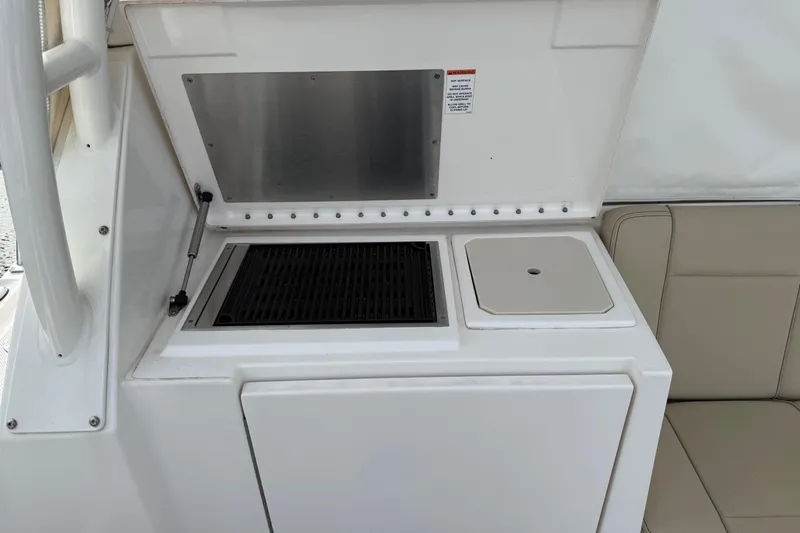

Molded entertainment center with molded sink, hot/cold mixing faucet, cutting board, dedicated storage, 120v outlet with GFI protection and hinged fiberglass lids/doors
Lighted oceana blue 24 gallon recirculating livewell with dedicated bronze strainer and overboard discharge
Cockpit tackle center with lure tube, tackle tray and bucket storage
Molded aft facing seat with insulated storage below
Folding transom seat with patented adjusting backrest
316L stainless steel bridge, cockpit and helm drink holders
Port and starboard insulated fishboxes
Cockpit machinery access hatch
Fresh water wash with hot/cold mixing valve and pull-out sprayer located at transom door
Raw water outlet in cockpit with quick connect fittings and 25’ hose
Led cockpit accent lights (6) with water proof switch in cockpit
Port and starboard 2 mile LED navigation lights

Aft Berth

Aft full size berth with 3” foam mattress and quilted cover
316L stainless steel opening port light with screen
Overhead rod storage for 4 rods
Hanging locker with LED light
Two switch panel with overhead LED lights (4) LED floor accent light (1)
Hinged closeout panel for machinery access, starboard

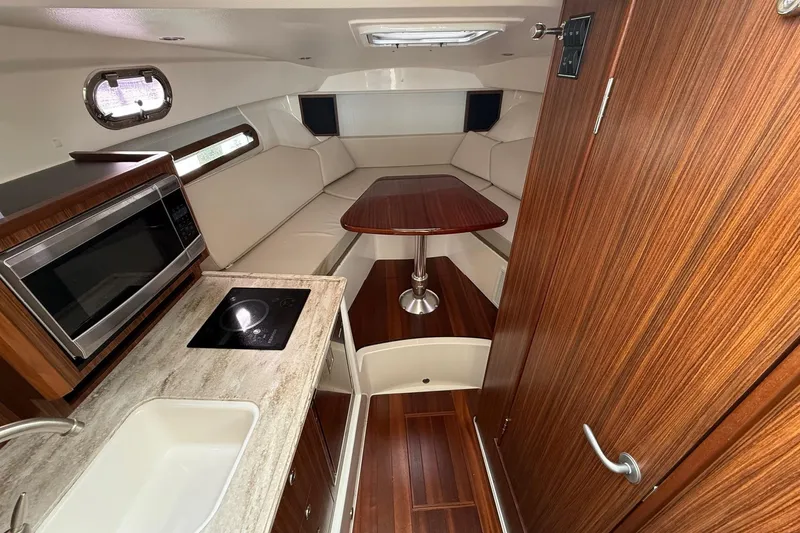

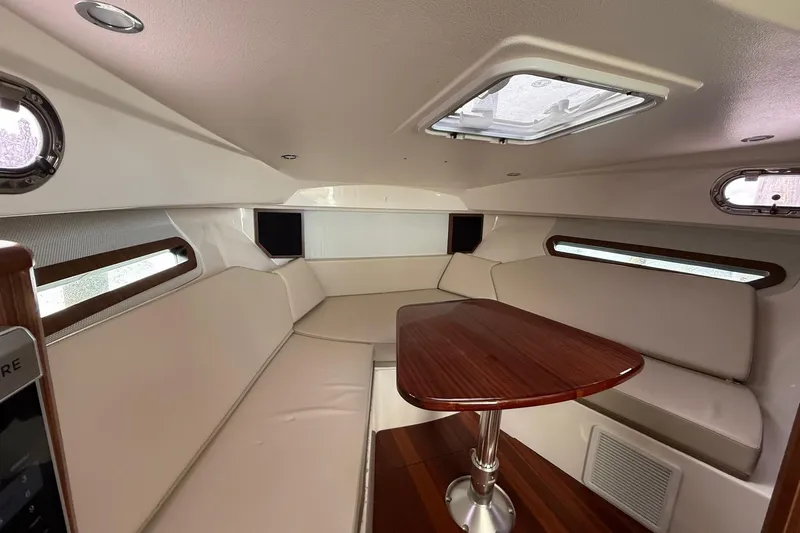

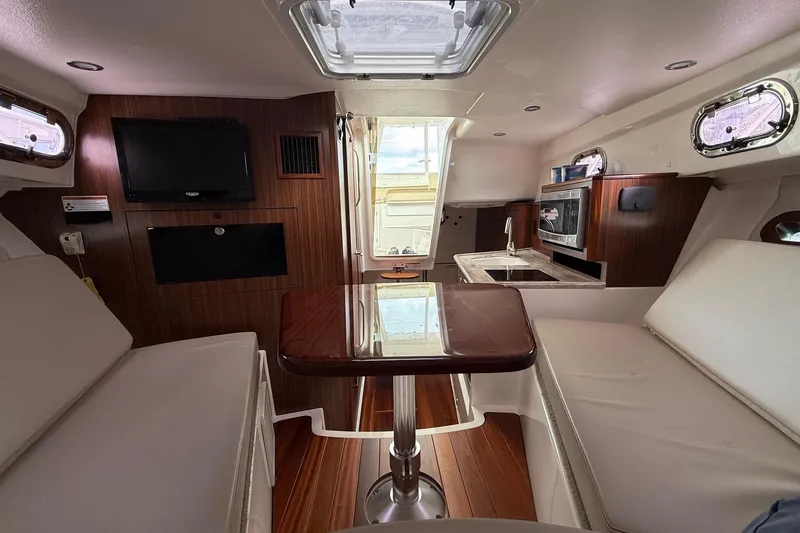

Interior Cabin

Molded acrylic access door with gasket, 316L stainless steel locking latch
Cabin entry steps with handrail and wood treads
Molded cabin hull liner with custom wood floor accents, mechanical access, drainage and sound damping insulation
Molded cabin deck liner with sound damping insulation
Custom v-berth seating that converts into berth with storage space below. Solid wood table with adjustable, gas-assisted table base.
Pursuit Digital Media Ready Entertainment Center with 19” LED TV
Flush mounted opening foredeck hatch with screen
316L stainless steel opening port lights (2) with screen
Premium stereo speaker (2)
Four switch panel with overhead LED lights (2), reading lights (2) and LED floor accent light (2)
CO monitor

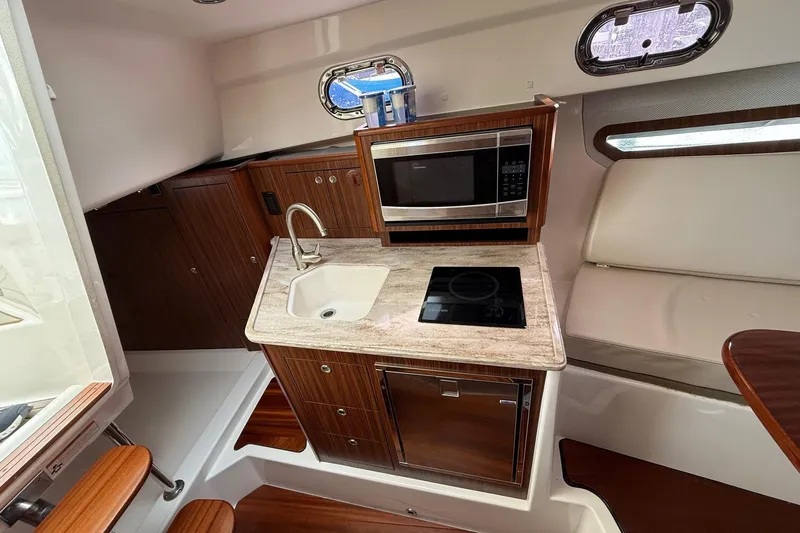

Galley (Port)

Corian® galley counter top
Molded sink with cutting board cover, overboard drain and stainless clad composite thru hull fitting
Pressurized hot/cold mixing valve and faucet
Galley under-counter storage with drawers, dedicated storage, positive latches, and trash can
Galley pantry cabinet with storage shelves and wood keepers
Galley upper cabinets storage with doors
316L stainless steel towel holder
12V, 1.9Ft3 stainless steel refrigerator
12V LED overhead light (2)
12V Outlets (2) and dual USB charger (1)
120V single burner glass cook top with touch controls and pop-up pot holders
120V 1.1 Ft3 stainless steel faced microwave oven
120V outlet with GFI protection (1)
Fire extinguisher
316L stainless steel opening port light with screen

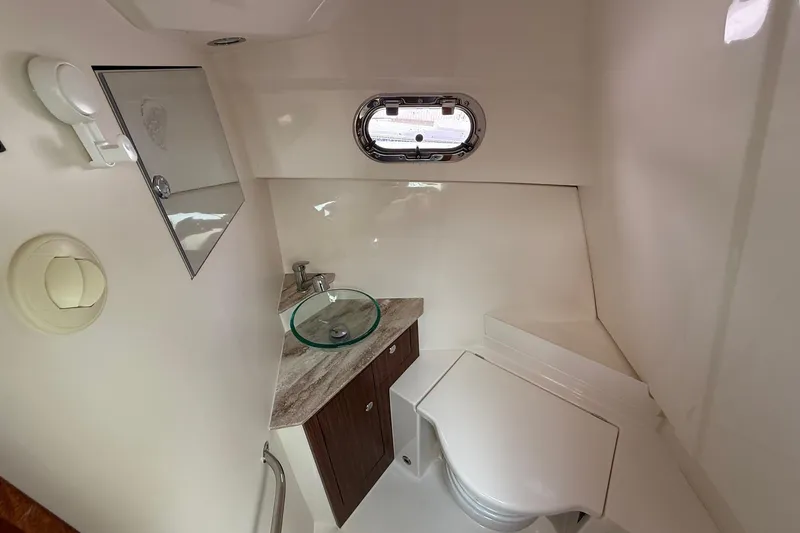

Head (Starboard)

Fiberglass enclosed head compartment with non-skid pattern area
Custom 1 1/4” wood framed entrance door with custom latch
Designer sink with Corian® countertop, vanity mirror and pull-out shower wand
Vanity storage cabinet with shelves
Overhead storage cabinet with shelf and dual mirrors
Vacuum flush marine head with 18 gallon holding tank, macerator discharge pump, deck pump-out fitting and bronze through hull fitting
Fiberglass toilet seat cover
Shower curtain
316L stainless steel opening port light with screen
Vanity storage cabinet with shelves
Toilet tissue holder
Grab rail/towel rack
Shower sump box drain with automatic discharge stainless clad composite thru hull fitting
Two switch panel with overhead LED lights (2) LED floor accent light (1)
120V outlet with GFI protection (1)

Hardtop

Molded fiberglass hardtop integrated visor
Aft structural hardtop supports with (4) rod holders
Custom windshield system with laminated windshield glass, tempered side glass with fiberglass frame and electrically actuated center vent window
Optically clear, laminated, one-piece forward windshield glass, tempered side glass with fiberglass frame and electrically actuated center vent window
Exalto series heavy duty pantographic windshield wiper system
Combination anchor/stern LED all-around navigation light
Four (4) tri color LED lights
Aft facing LED spreader light
316L stainless steel fore/aft underside grab rails
Powder coated aluminum fore/aft topside grab rails
60 Mil stratoglass side curtains
Integrated stereo speakers (4)
Electric oval horn with stainless steel cover
Integrated overhead glovebox
Integrated life jacket (4) storage with stamoid cover
Port and starboard bomar hatches with screens

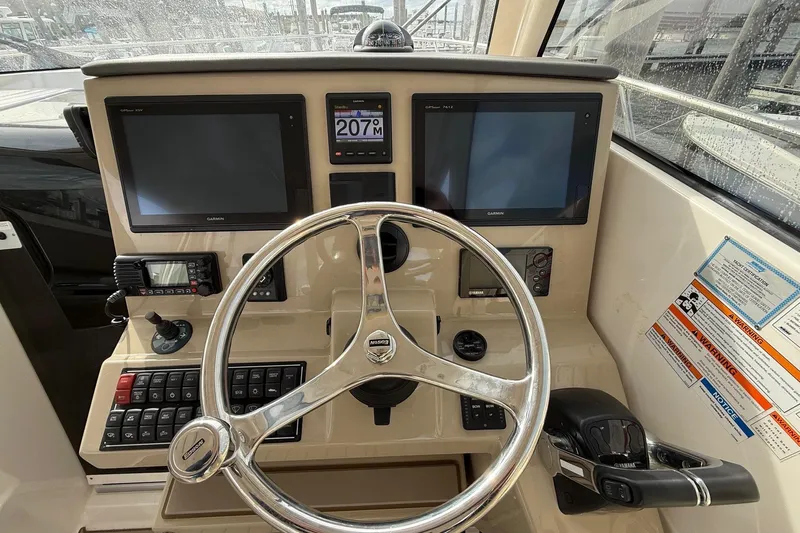

Helm

Molded fiberglass aft tilting helm with instrumentation visor, electronics mounting surface, fold out fiberglass foot rest/standing platform and safety lanyard
Teleflex tilt sport helm
316L stainless steel steering wheel with textured grip and control knob
12V switch panel
Single windshield wiper with washer control
Port and starboard windshield wiper with washer control
Compass
Trim tab control panel and indicator
Waterproof stereo remote
316L stainless steel grab rail
One 12V outlet (1) and dual USB charger (1)
Helm fire extinguisher

Electrical Systems

UL® rated fully tinned, color coded copper wire
custom built, heat sealed, mechanically crimped, color coded battery cables
Custom built, one piece electrical harness with water proof connectors and chafe protection

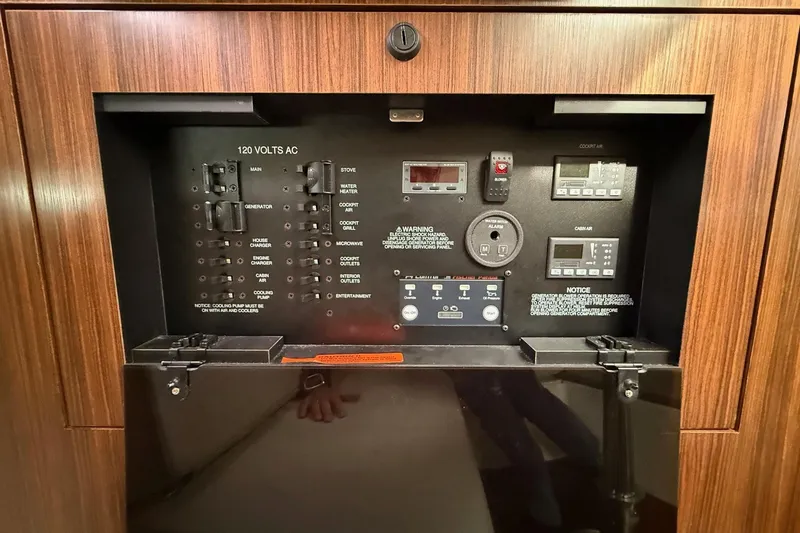

Powder coated, aluminum, screen printed (front and back) main breaker panels
Bonding system: thru hull fittings below water line, trim tabs, zinc anode and garboard drain
120V 30 amp 60 cycle dockside power connection
120V 30 amp 50’ dockside power cord
Three 120V outlets with GFI protection (3)
Three 12V outlets (3) and two dual USB chargers (2)
One 40 AMP battery charger for house, electronics and bow thruster
One 20 AMP battery charger for engine cranking batteries
Five battery system: port engine (1) starboard engine (1), AGM house (1), AGM bow thruster (1), and AGM electronics (1)
One grounding bus bar
Electronics fuse block
Isolation transformer

Mechanical Space

Molded interior white gel coat
Molded hatch with gasket and stainless steel gas spring
Molded bilge sump area
Two 1500 GPH bilge pumps with one automatic float switch, one high water float switch and alarm with stainless steel clad composite thru hull fittings
Fresh water pump with filter
Raw water pump with bronze sea strainer, sea cock and thru hull fitting
Livewell cyclone pump with bronze sea strainer
Fishbox evacuation pump with dedicated valves

Fuel System

316L stainless steel extension arms for remote hullside ball valve operation
EPA Compliant lined 300 gallon rotomolded fuel tanks with engine pickups, shutoff valves and digital level indicator.
Custom built fuel lines with mechanically crimped fittings
Two Yamaha® water separating fuel filters with primer bulbs

Water System
