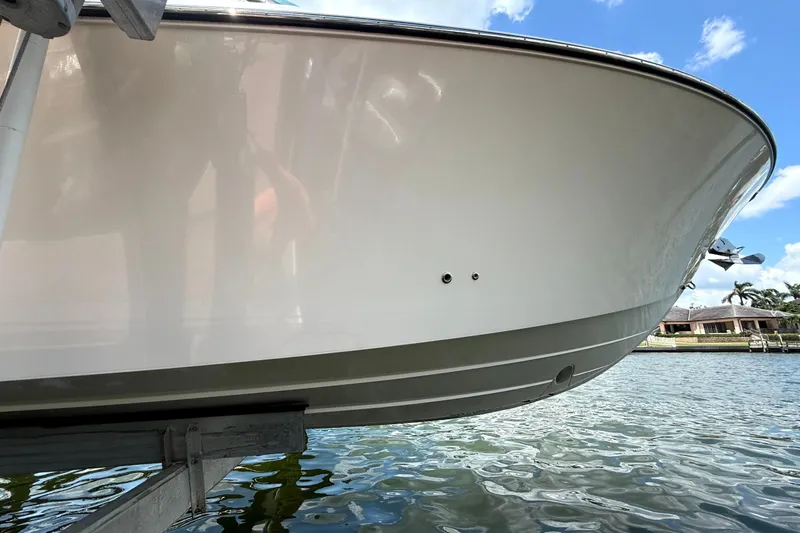

Hull Features

Hand laminated hull with vinyl ester resin and engineered fabrics
Infused fiberglass structural grid system with molded finish and integrated bilge water management system
5 Ply resin infused composite transom system with patented transom reinforcement grid
Integrally molded thru-stem anchor system with fresh and raw water washdown

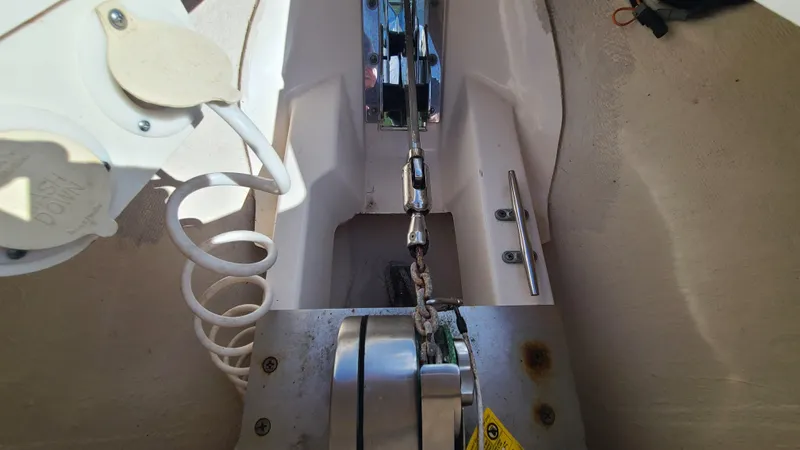

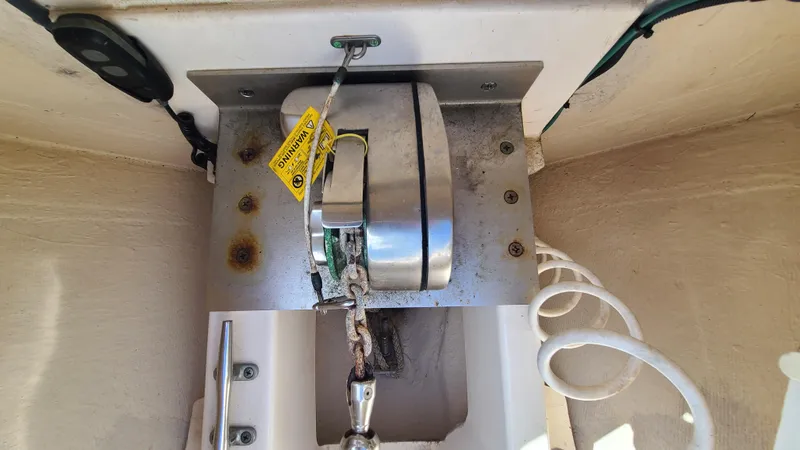

Horizontal anchor windlass with switch at helm and remote
316L stainless steel delta plow style anchor, twist shackle, chain and 200’ of 1/2” rode
316L stainless steel through stem anchor roller with 8” mooring cleat, chain binder and aluminum backing plates
3.0 hp bow thruster with group 31 AGM battery
Trim tabs with indicator lights and auto-retract
Bronze thru hull fittings below water line
Chrome over bronze thru hull fittings below 7º heel line
Stainless clad composite thru hull fittings above the 7º heel line
Bronze garboard drain
Integrated transom platforms extensions outboard of engines
Forward hull compartmentation with one 1100 GPH bilge pump with automatic float switch
Dedicated transducer location
High density pvc rub rail with solid 316L stainless steel insert
½“ 316L stainless steel bow eye

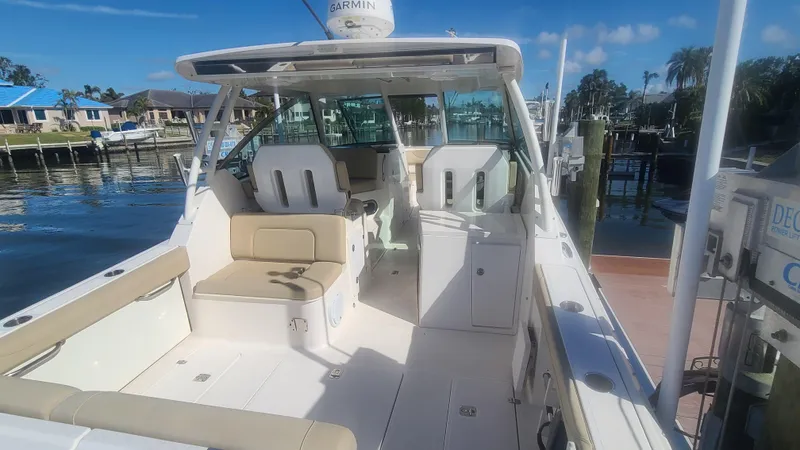

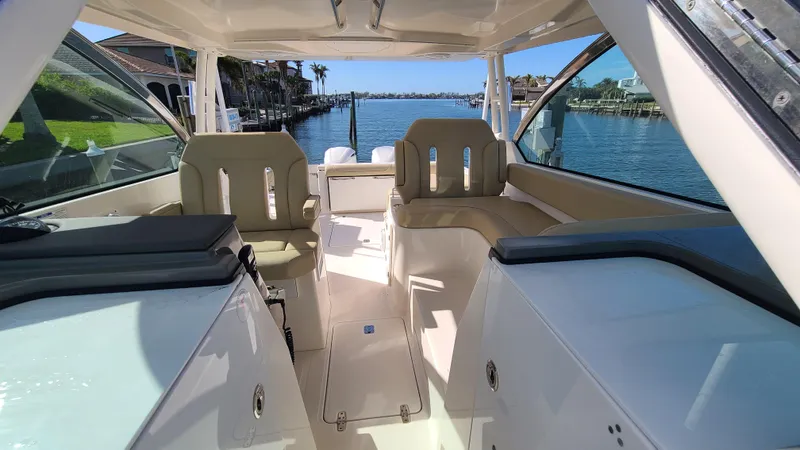

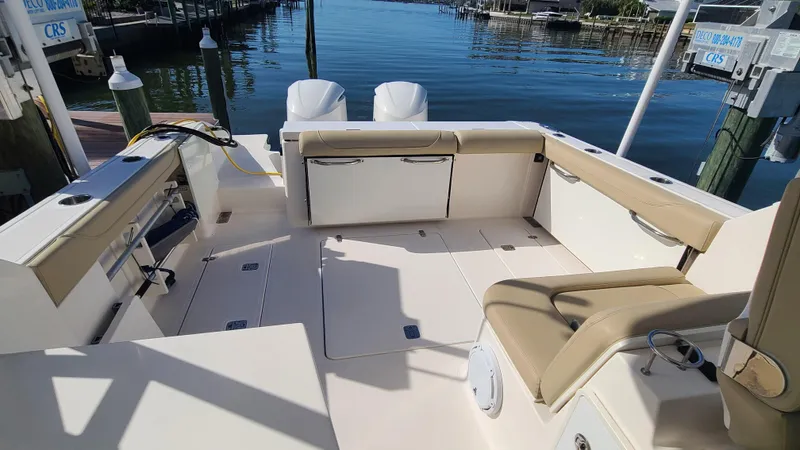

Deck and Cockpit Features

Molded one piece deck and cockpit liner with non-skid pattern area and overboard drains
Hull and deck joint mechanically fastened
10” Pop up cleats (2) on stern and 10” pop up cleats spring (2) and bow (2)
Molded recessed hatches with gaskets and 316L stainless steel latches and overboard drain tracks

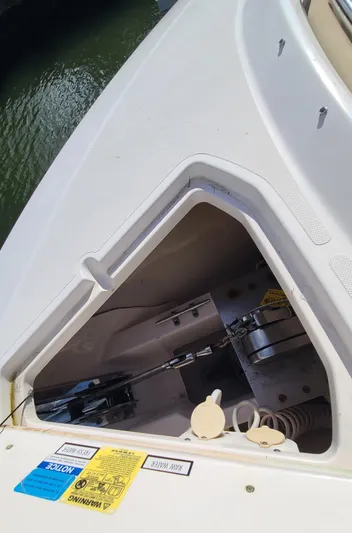

Flush mounted integral anchor locker with fiberglass lid
One piece 1” welded 316L stainless steel recessed bow grab rail

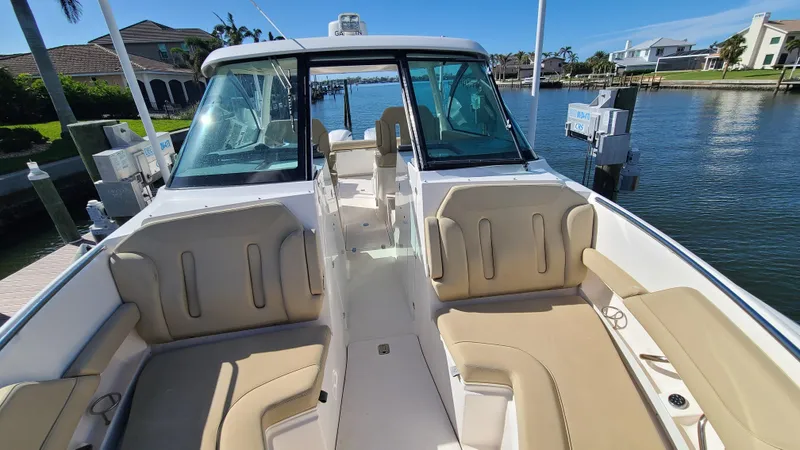

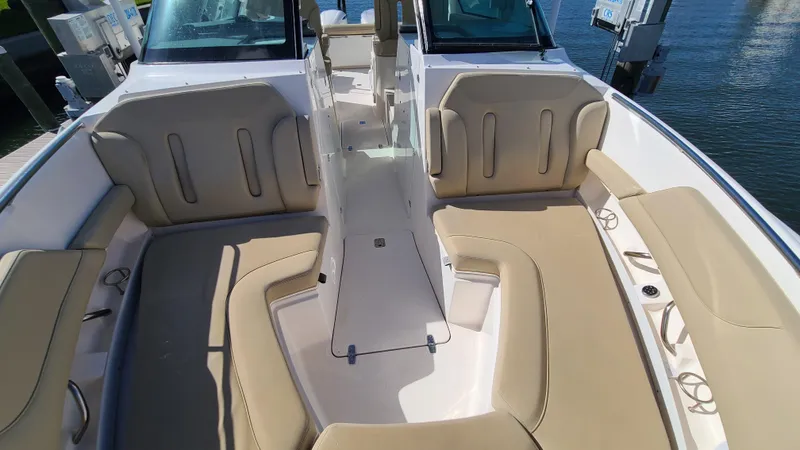

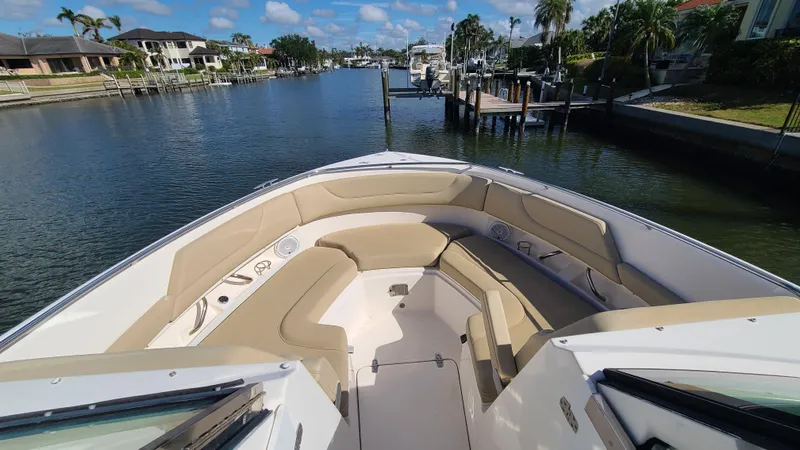

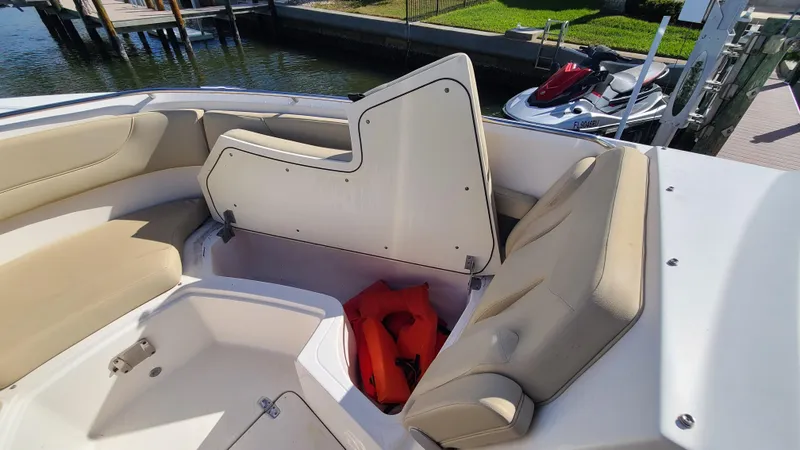

Molded forward bow seating with flip down arm rests and insulated storage below
Port and starboard forward coaming boxes with four (4) drink holders, grab rails, courtesy lights, storage keeper, port stereo remote and speakers
316L stainless steel deck plates for water and waste
Two (2) 316L stainless steel rod holders in gunwale with four (4) drink holders
Under gunwale rod storage, starboard

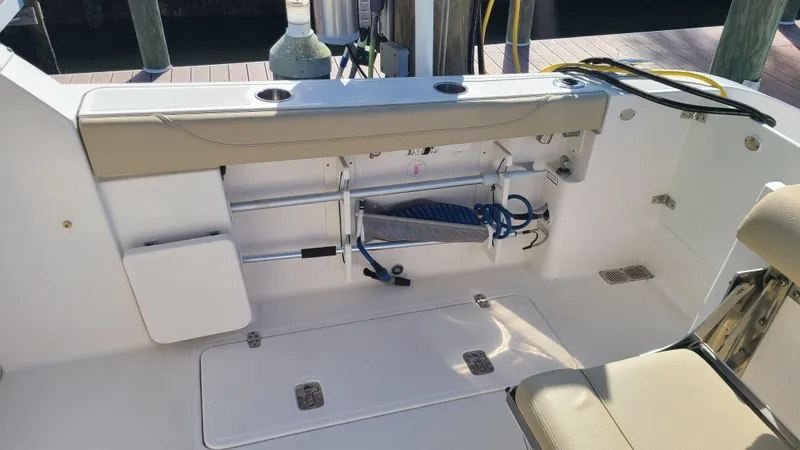

Molded transom walkthrough and hinged HDPE transom door with 316L stainless steel latch and magnetic catch
Port and starboard 316L stainless steel transom grab rails
Molded non-skid steps in splashwell for athwartship access

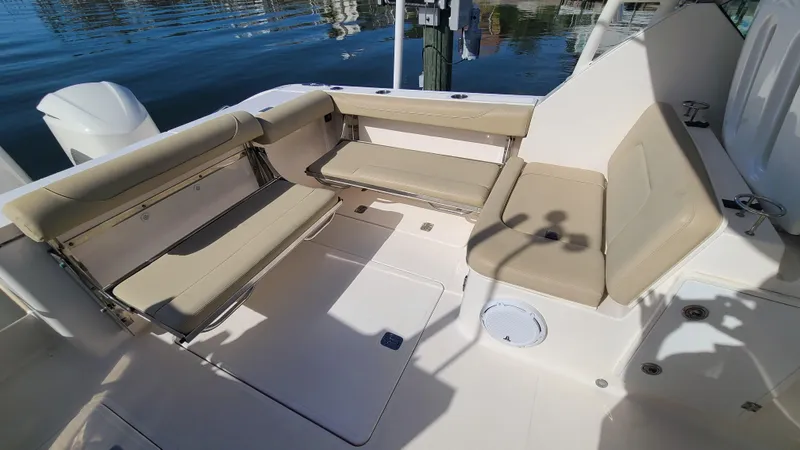

Custom cockpit upholstery with dri-fast foam and mesh backing

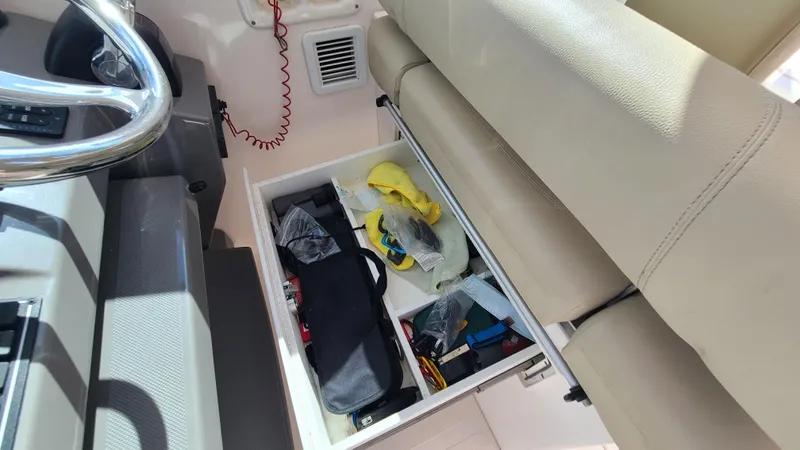

Captain’s chair with foldable armrests, fore and aft adjustment with storage below

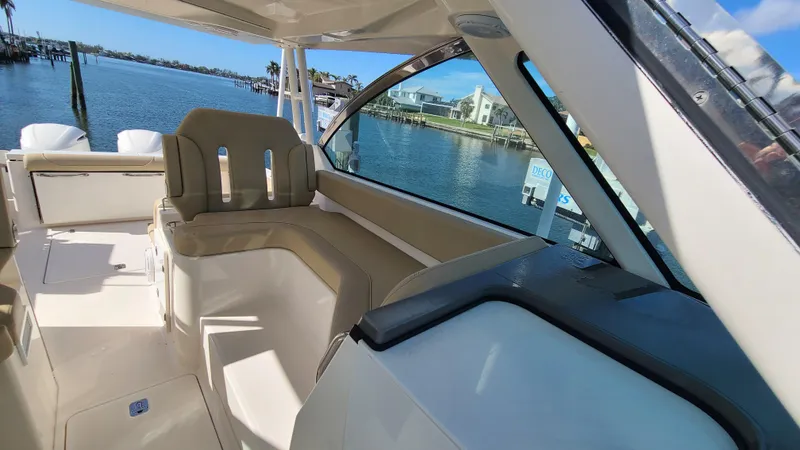

Molded port bridge lounge seating with footrest
Pursuit cockpit entertainment system: 12v bluetooth® compatible stereo system, premium speakers (7 total, 4 In hardtop, 2 in bow, & subwoofer), amplifier and zonal remotes (3)

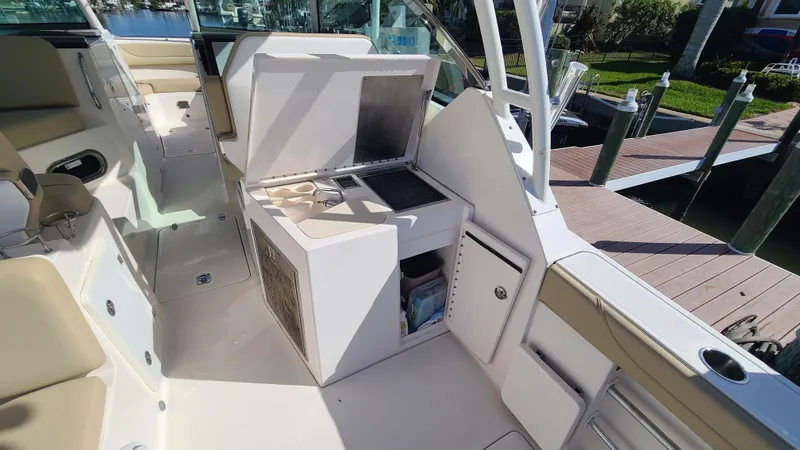

Molded entertainment center with sink, hot/cold mixing faucet, trash can, drink holders, cutting board and hinged fiberglass lid and door

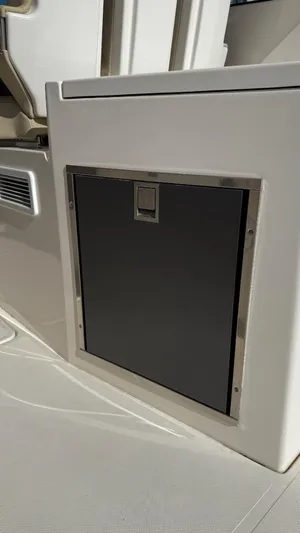

12v, 2.3ft3 stainless steel drawer refrigerator with 3m protective film

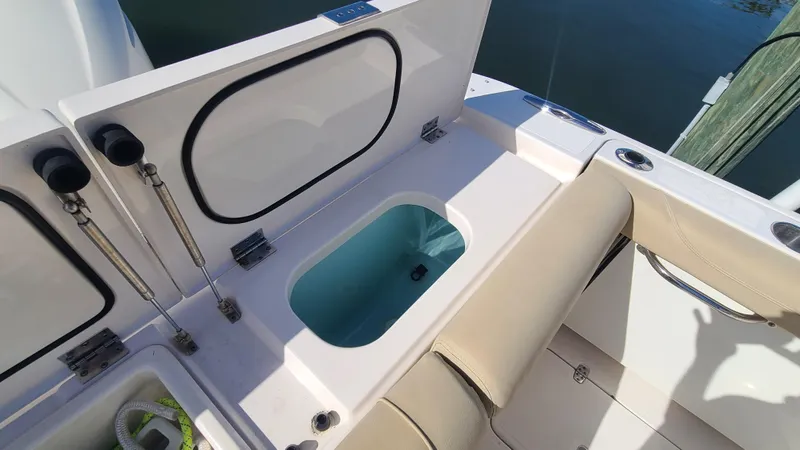

Lighted oceana blue 24 gallon recirculating livewell
Cockpit tackle center

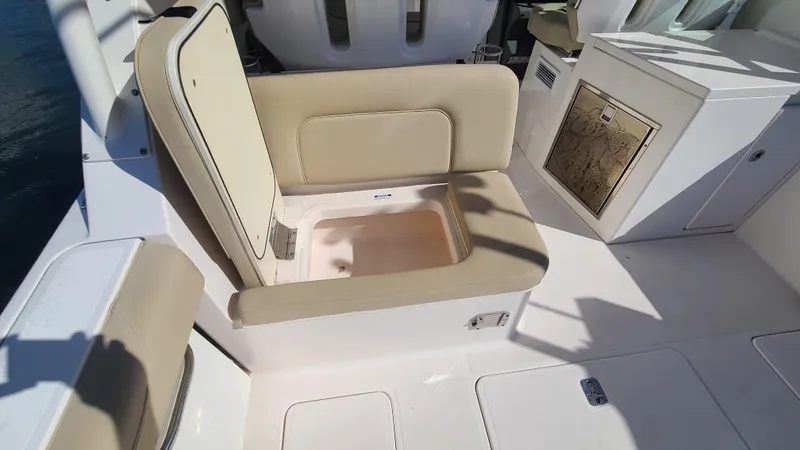

Molded aft facing cockpit seat with insulated storage below
Folding starboard fiberglass boarding step
Folding port gunwale seat

Folding transom seat with patented adjusting backrest
Custom molded cockpit table with dual mounting locations and dedicated storage
Four (4) 316L stainless steel drink holders on bridges lounge, two (2) acrylic drink holders at helm
Forward cockpit table/bow sunpad filler

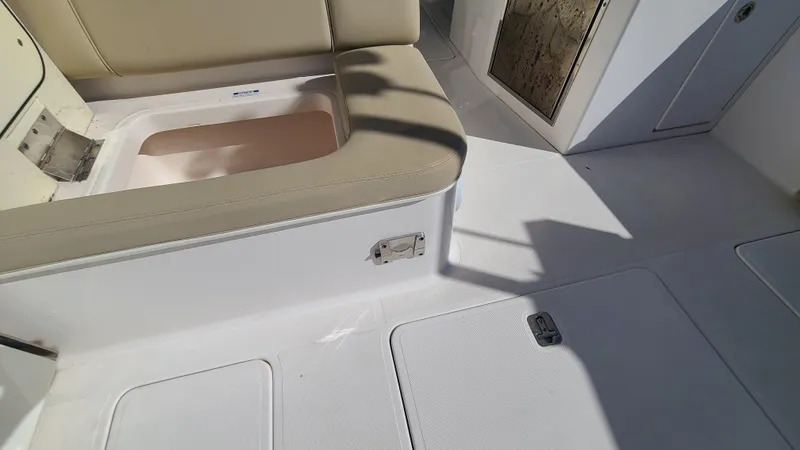

Port and starboard insulated fishboxes

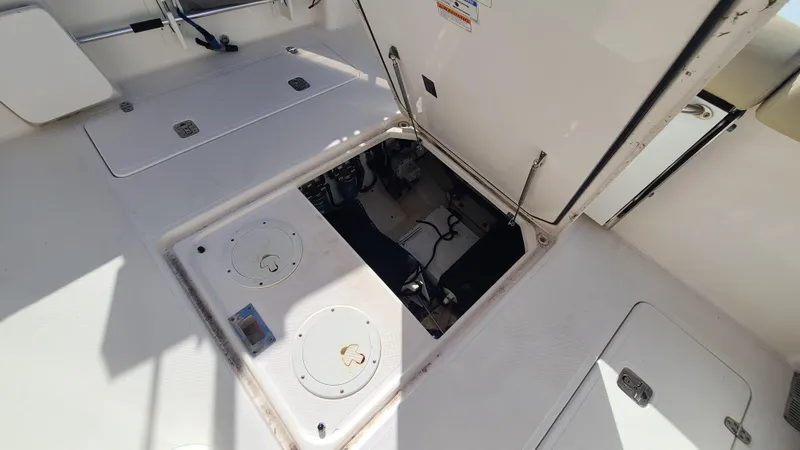

Cockpit machinery access hatch
Bow machinery access hatch
Mid-ship machinery access hatch
Fresh water wash with chrome over brass pull out sprayer

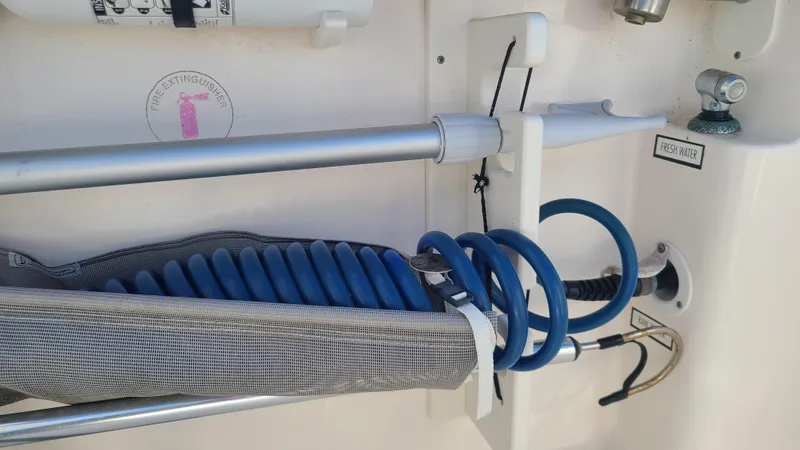

Raw water outlet in cockpit with quick connect fittings and 25’ hose
LED cockpit accent lights (7) with water proof switch in cockpit
Port and starboard 2 mile LED navigation lights

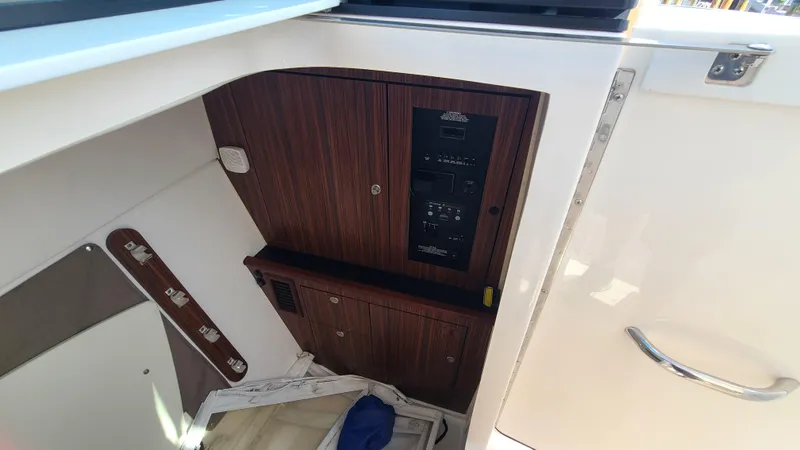

Console Interior Port Side

Single motion dual action console access door with gasket and 316L stainless steel locking latch
Cabin entry step
Molded console hull liner with pattern area and drainage
Molded console deck liner

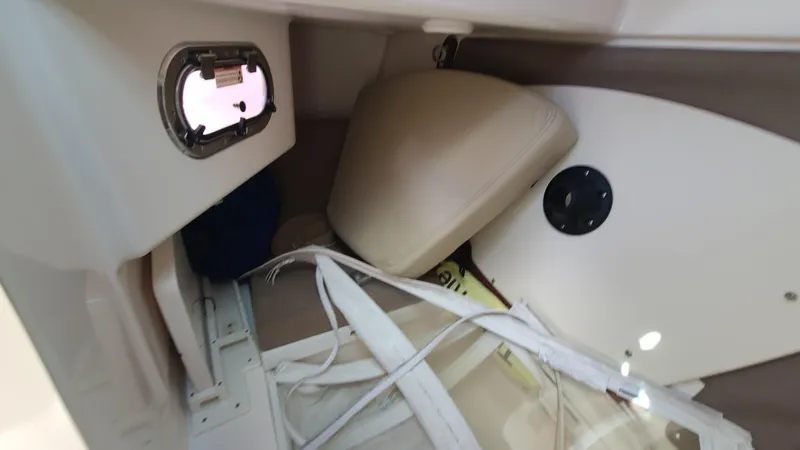

Dedicated storage for rods (4), bow and cockpit tables, safety gear, and hanging locker
Padded fishing reel protector for rod storage
Convertible berthing accommodations/seating with cushions
Opening port light and screen
Two switch panel with overhead LED lights (3) LED floor accent light (1)
Main distribution panel cabinet
One 12v outlet (1) and dual USB charger
One 120v outlet (1) with GFI protection
Fire extinguisher
CO monitor

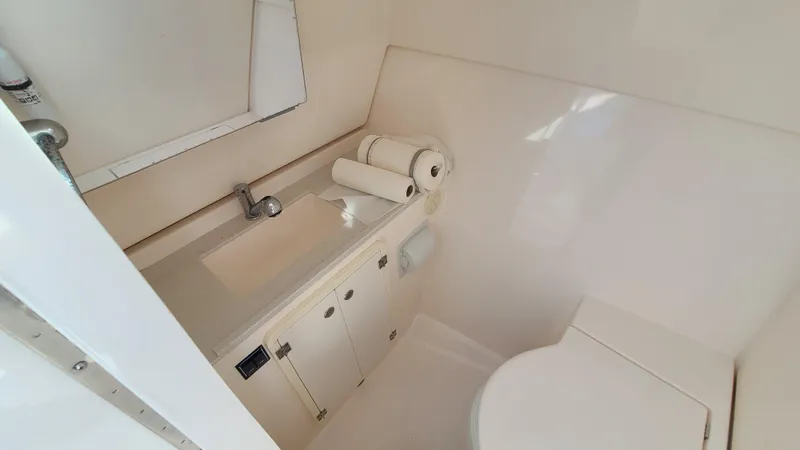

HEAD STARBOARD SIDE

Single motion dual action console access door with gasket and 316L stainless steel locking latch
Enclosed head compartment
Vacuum flush marine head with 10 gallon holding tank, macerator discharge pump, deck pump-out fitting and bronze through hull fitting
Fiberglass toilet seat cover
Two switch panel with overhead LED light (1) LED floor accent light (1)
Wet gear hanging feature
Molded sink with corian® countertop, vanity mirror and pull-out hot/cold shower wand
Under sink storage locker
Shower sump box drain with automatic discharge and thru hull fitting
Toilet tissue holder
Towel ring
One 120v outlet with GFI protection (1)

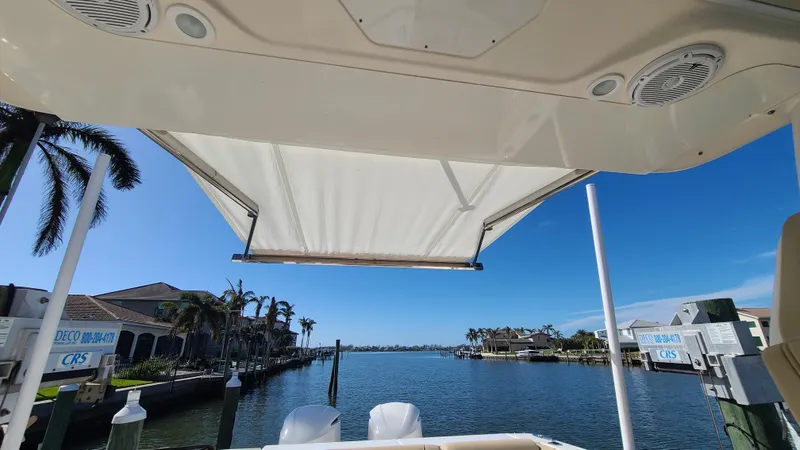

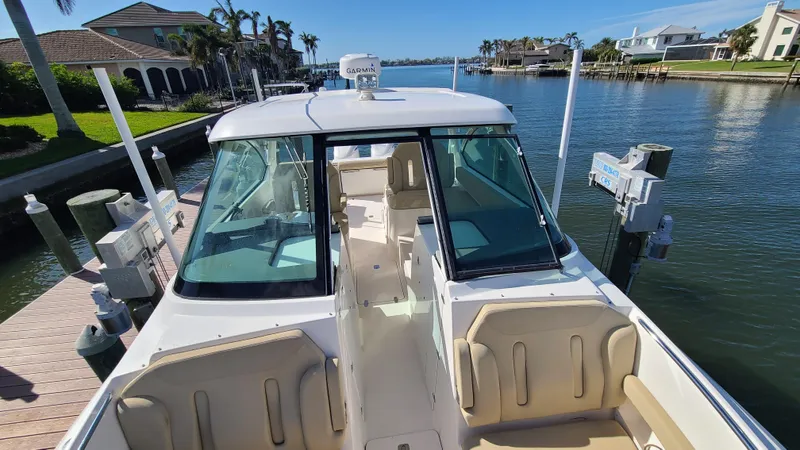

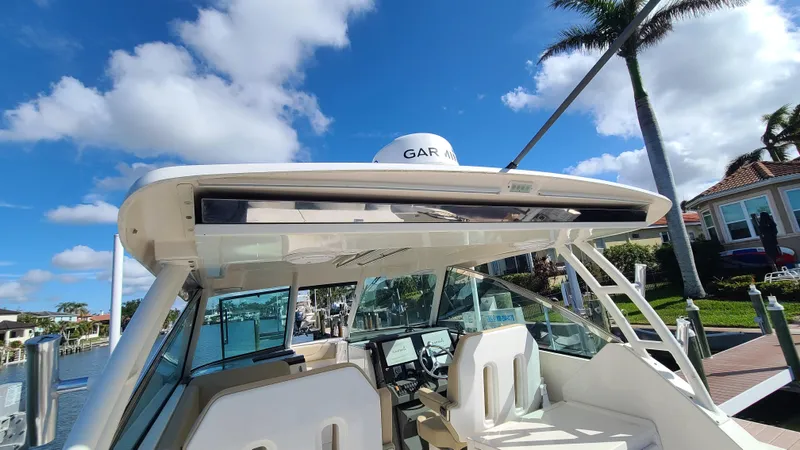

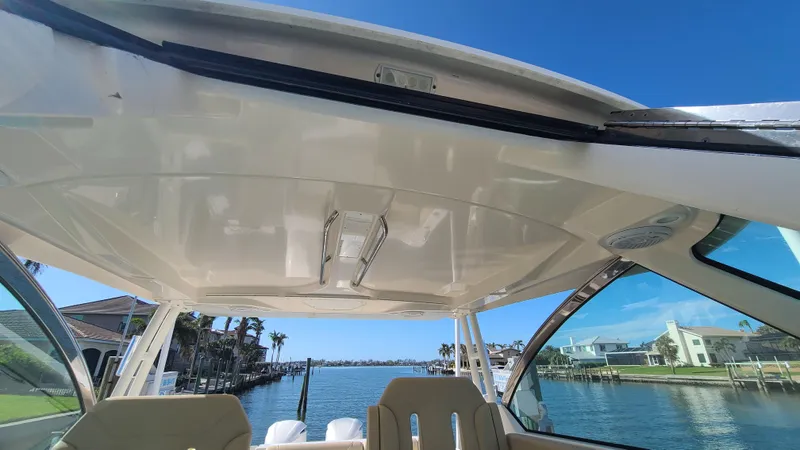

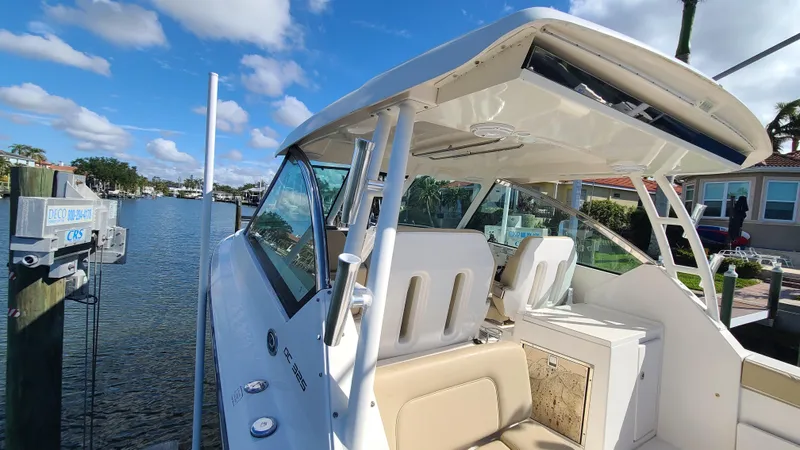

Hardtop

Molded fiberglass hardtop integrated visor
Aft structural hardtop supports

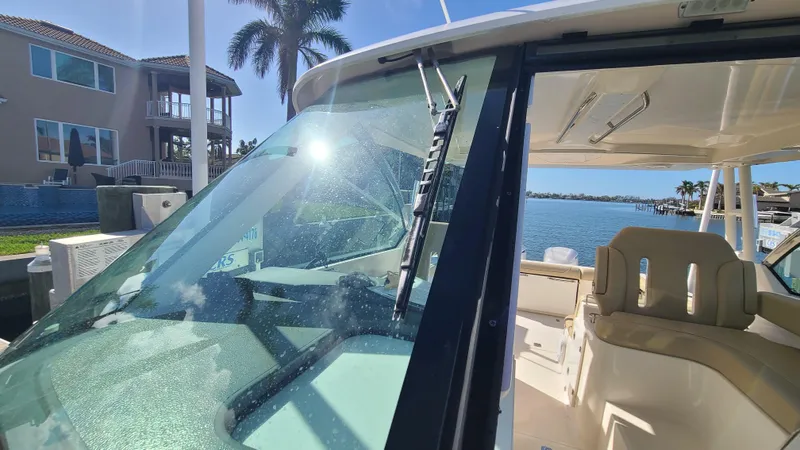

Custom windshield system with tempered glass
Combination anchor/stern LED all-around navigation light
Four (4) tri color LED lights
Fore and aft facing spreader lights
316L stainless steel fore/aft underside grab rails
60 Mil strataglassTM side curtains
Integrated stereo speakers (4)
Electric oval horn with stainless steel cover

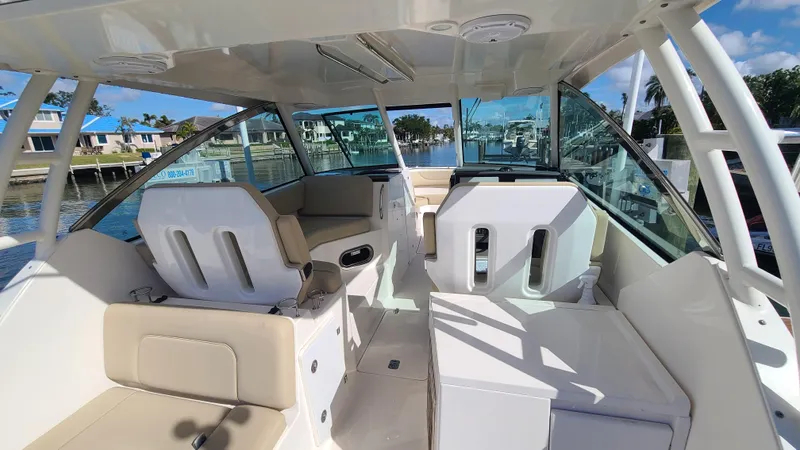

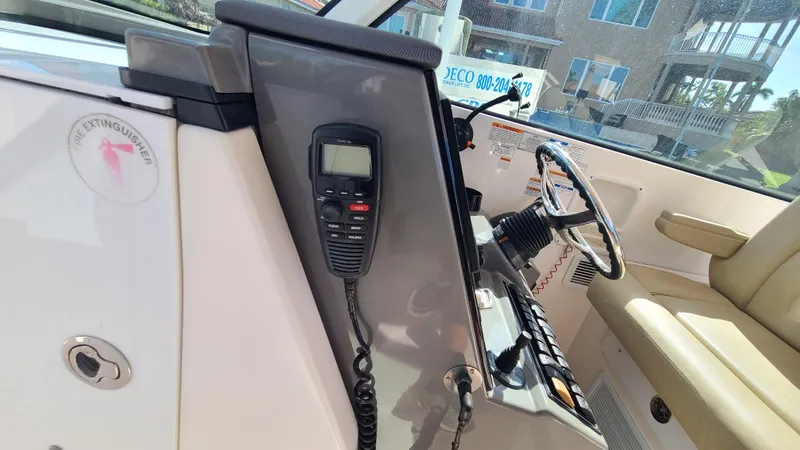

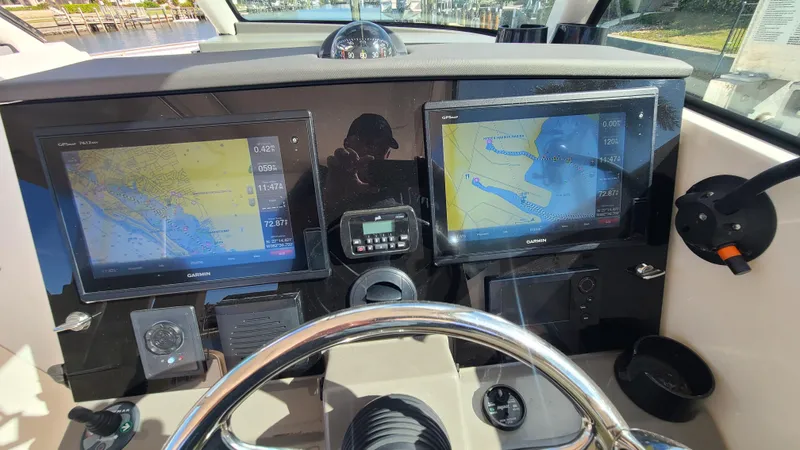

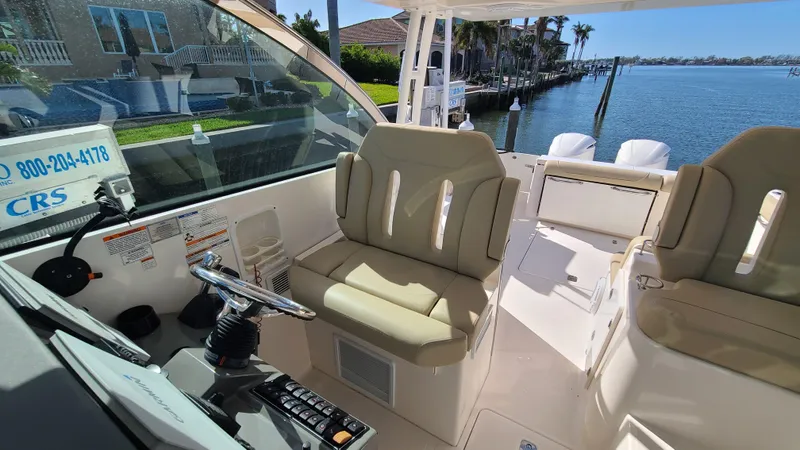

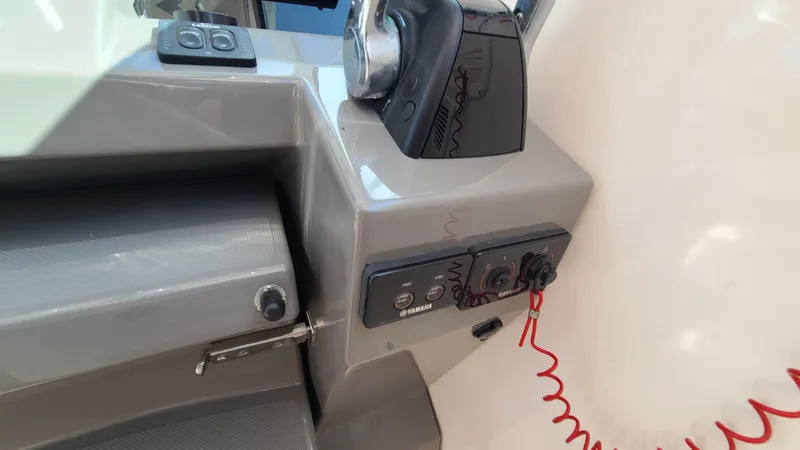

Helm

Molded fiberglass aft tilting helm with instrumentation visor electronics mounting surface, fold out fiberglass foot rest/platform, and safety lanyard
Teleflex tilt sport helm
316L stainless steel steering wheel with control knob and non-slip grip

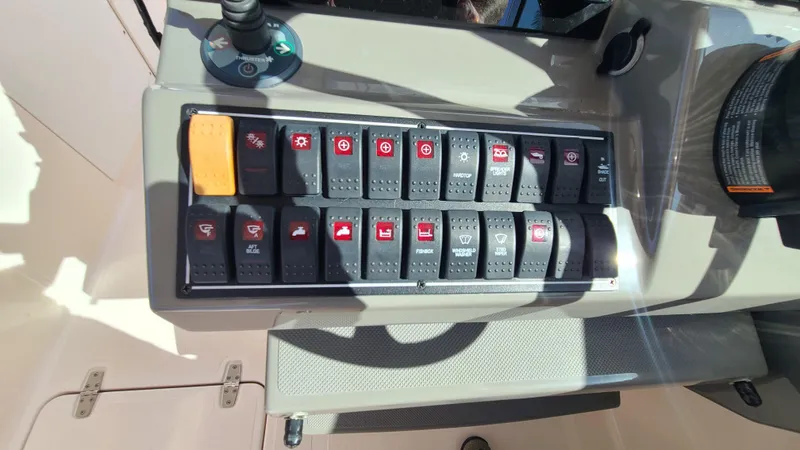

12v switch panel
Single windshield wiper with washer control
Compass
Trim tab control panel and indicator
Waterproof stereo remote with full function display
Glove box drawer with dedicated electronics cover storage
One 12v outlet (1) and dual USB charger
Helm fire extinguisher

Electrical Systems

Ul® rated fully tinned, color coded copper wire
Custom built, heat sealed, mechanically crimped, color coded battery cables
Custom built, one piece electrical harness with water proof connectors and chafe protection

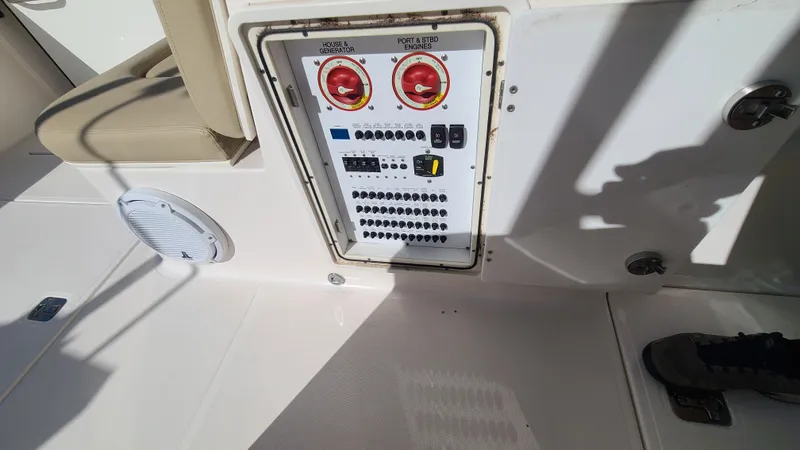

Powder coated, aluminum, screen printed (front & back) main breaker panels
Bonding system: thru hull fittings below water line, trim tabs, zinc anode and garboard drain
Single 120v 30 AMP 60 cycle dockside power
One 120v 30 AMP 50’ dockside power cord
Two 120v GFI outlets (2)
Two 12v outlets (2) and two USB outlets (2)
One 40 AMP battery charger

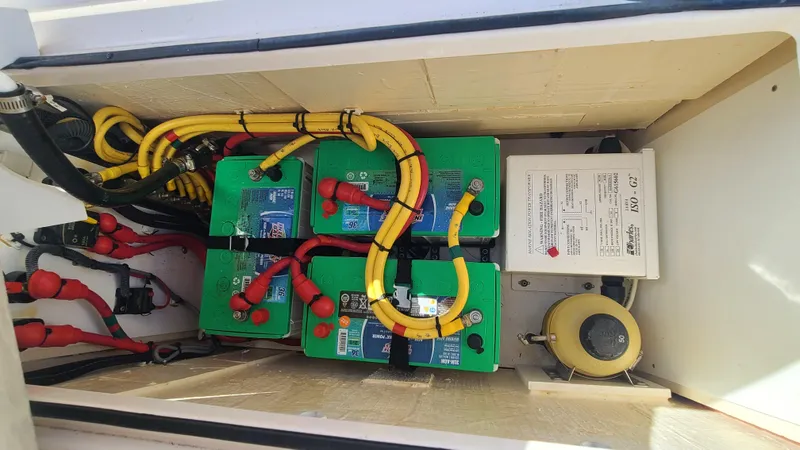

Four battery system: port engine (1) starboard engine (1), house (1) , bow thruster (1)
One grounding bus bar
Electronics fuse block
Isolation transformer

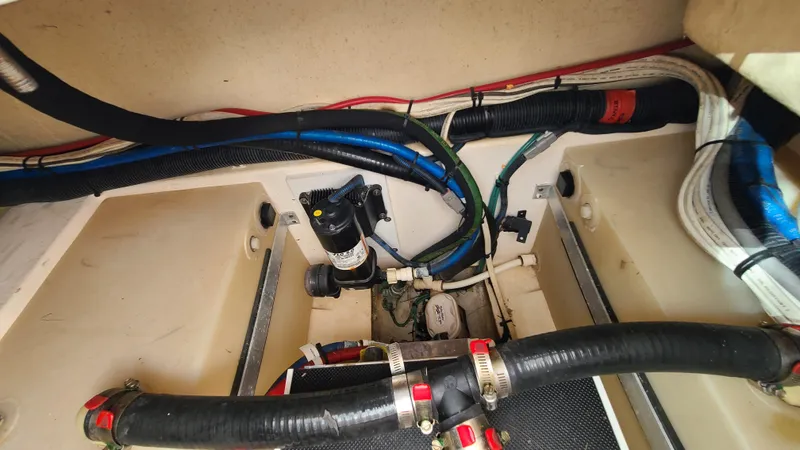

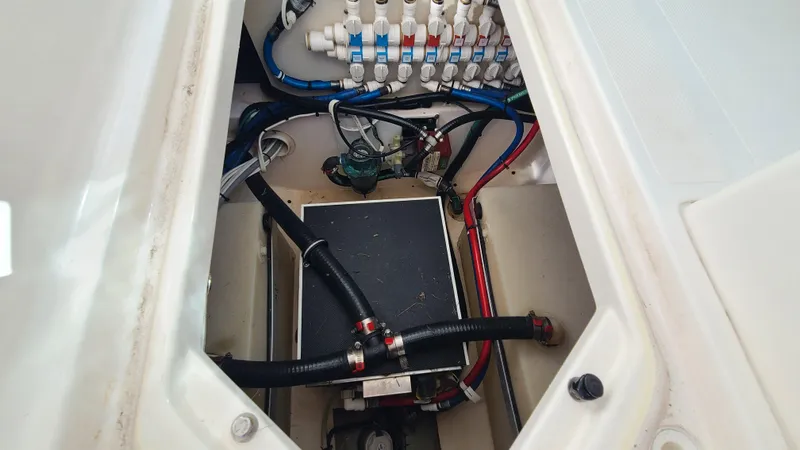

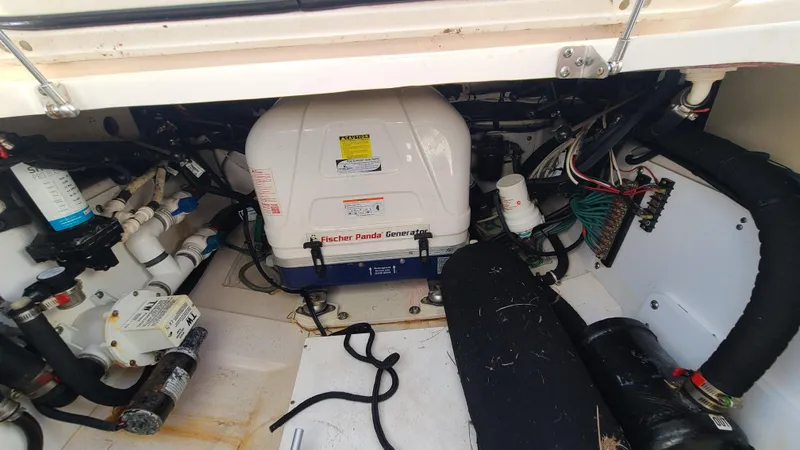

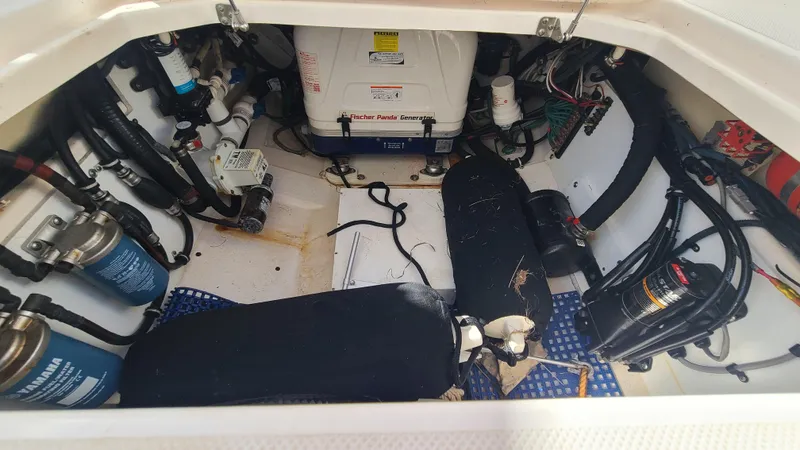

Mechanical Space

Molded interior white gel coat
Molded hatch with gasket and stainless steel gas spring
Molded bilge sump area
Two 1500 GPH bilge pumps with one automatic float switch, one high water float switch and alarm with stainless steel clad composite thru hull fittings
Fresh water pump with filter
Raw water pump with sea strainer, sea cock and thru hull fitting fishbox evacuation pump with dedicated control valves

Fuel System

EPA compliant lined twin rotomolded fuel tanks
300 gallon combined with engine pickups, shutoff valves and digital level indicator.
Custom built fuel lines with mechanically crimped fittings

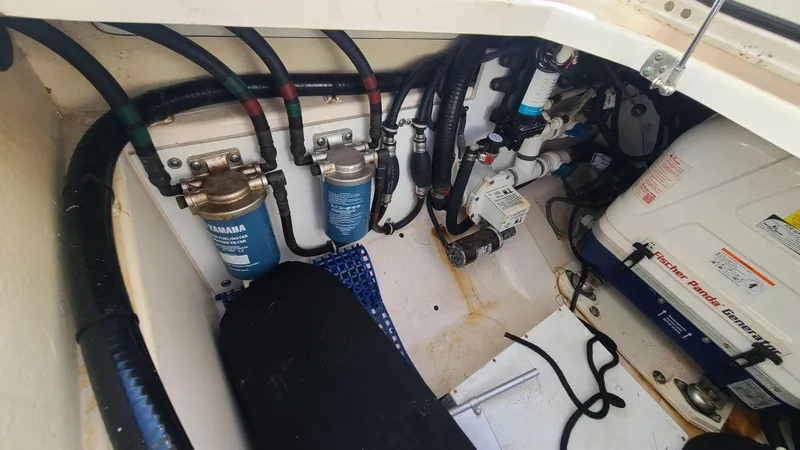

Two Yamaha® water separating fuel filters with primer bulbs

Water System
