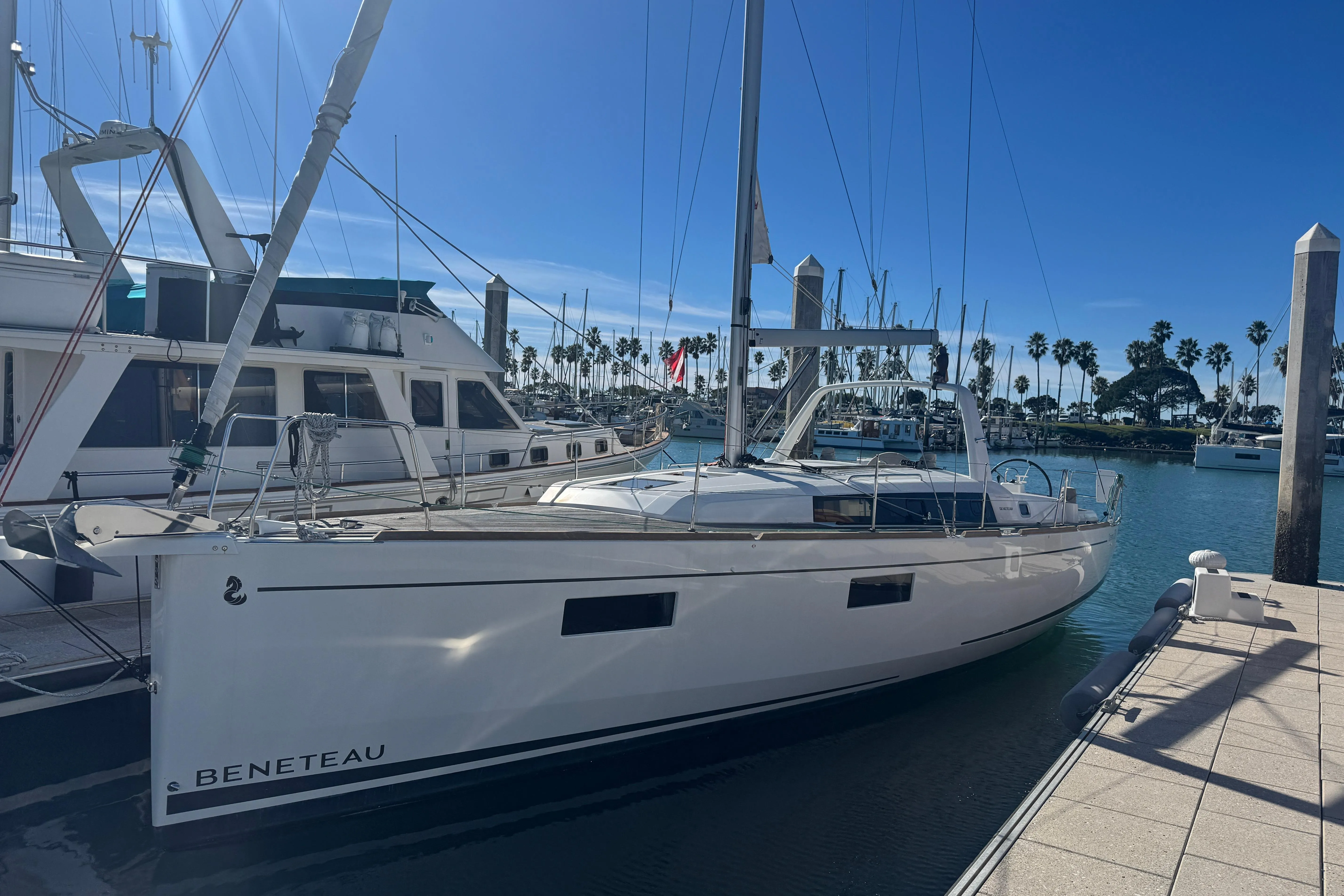

38 Beneteau 2023 Boat for Sale

• Overall Length (L.O.A): - with bowsprit 11,80 m 38’9’’

• Hull length 11,13 m 36’6’’

• L.W.L. 10,72 m 35’2’’

• Hull Beam 3,99 m 13’1’’

• Light displacement 6 850 kg 15,102 lbs

• Deep draft 2,09 m 6’10’’

DIMENSIONS

• Deep ballast weight 1 790 kg 3,946 lbs

• Air draft 16,88 m 55’5’’

• Fresh water capacity: - 330 L 87 US Gal

• Fuel tank capacity 130 L 34 US Gal

• Engine power 40 HP

STANDARD SAILS DIMENSIONS

• Furling mainsail 30,00 m² 323 sq ft

• Genoa (103 %) 33,00 m² 355 sq ft

• Code 0 65 m² 700 sq ft

• I 14,01 m 46’

• J 4,79 m 15’9’’

• P 13,25 m 43’6’’

• E 4,21 m 13’10’’

ARCHITECTS / DESIGNERS

• Naval Architect: Finot - Conq

• Outside & interior design: Nauta Design

CE CERTIFICATION

• Category A - 8 people

• Category B - 9 people

• Category C - 10 people

CONSTRUCTION

• Design made following European Directive requirements and according to CE certification

• Monolithic hull in polyester

• Monolithic structural hull liner bonded to the hull

• Injected deck construction in fiberglass and Saerform foam sandwich, covered with non-slip diamond pattern

• Hull-deck joint screwed, bonded and trimmed with 1 toerail

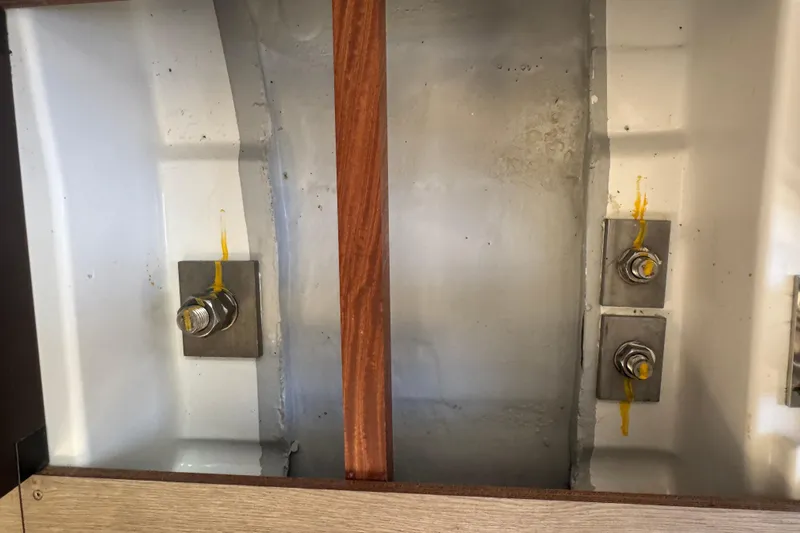

• Cast iron keel fixed with bolts and stainless steel backing plates

• 2 Underhung rudders with stainless steel stock

• White hull - Grey metal hull decoration

RIGGING

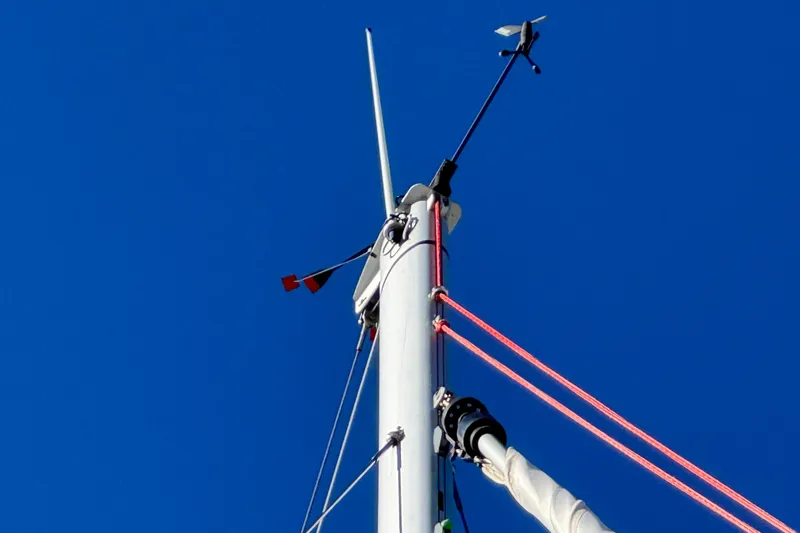

• Standard mast 9/10 anodized aluminum deck stepped, 2 aft-swept spreaders

• Anodized aluminum boom

• Discontinuous stainless steel standing rigging

• 1 Backstay: Bridle

• Rigid boom vang

• Genoa furling system with drum on the deck

• 2 Genoa tracks with piston adjusted traveller cars

• 2 Genoa sheet returns stainless steel fairleads

• Rigging run back to cockpit (except boom topping lift)

• Complete running rigging: Main halyard, Genoa halyard with clutch on mast and cleat, Boom topping lift with cleat on mast, Mainsheet, 2 Genoa sheets, 2 Sheets for Code Zero

• 6 Clutches, 4 Jamming cleats

• Mainsail sheet on Fixed composite arch, with incorporated LED lighting (+ 2 Stand-up blocks for mainsail sheet)

• 2 Flag halyards

WINCHES

• 2 Self-tailing genoa sheet winches (H40.2 STA)

• 2 Self tailing halyard winches (H35.2 STA)

• 2 Aluminum "Speed Grip" winch handles, 2 Winch handle holder

SAILS

• Semi Dacron furling main sail

• Dacron Genoa on furler and UV protection strip

MOORING - ANCHORING GEAR

• Self-draining chain locker - Clench bolt - Hatch cover

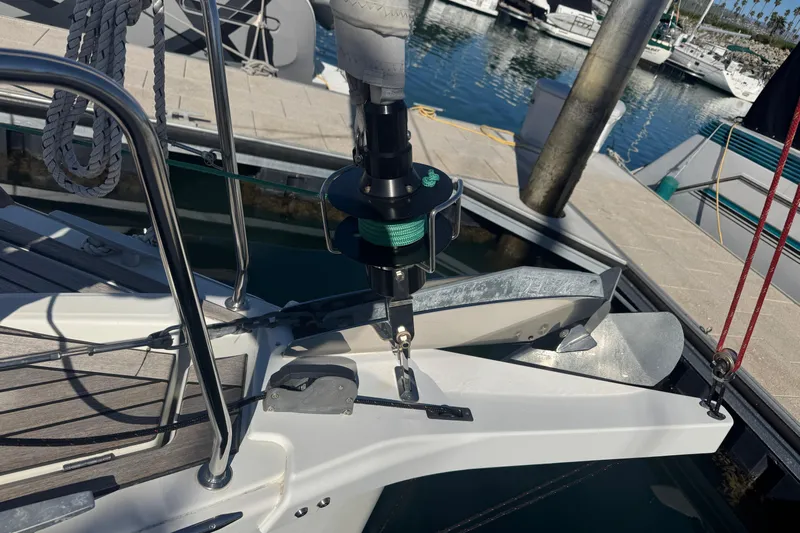

• Single bow roller

• 6 Aluminum mooring cleats - Stainless steel chafing plate

SAFETY ON DECK

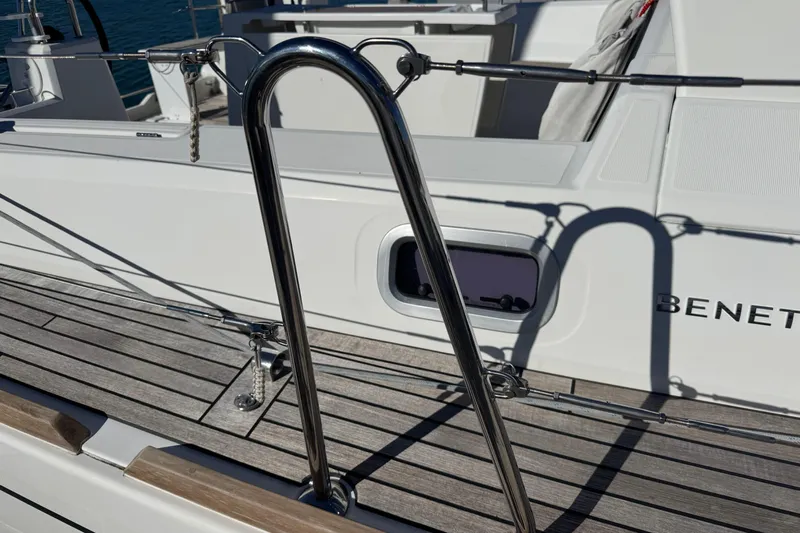

• 1 Open stainless steel pulpit, 2 Stainless steel aft pushpits

• 1 Ring lifebuoy bracket

• Double life lines and stainless steel stanchions

• Welded ring on pushpit for flag

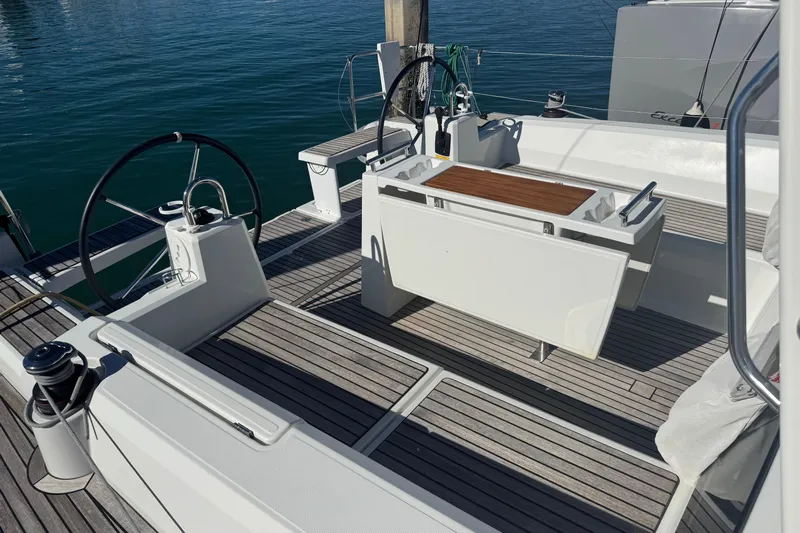

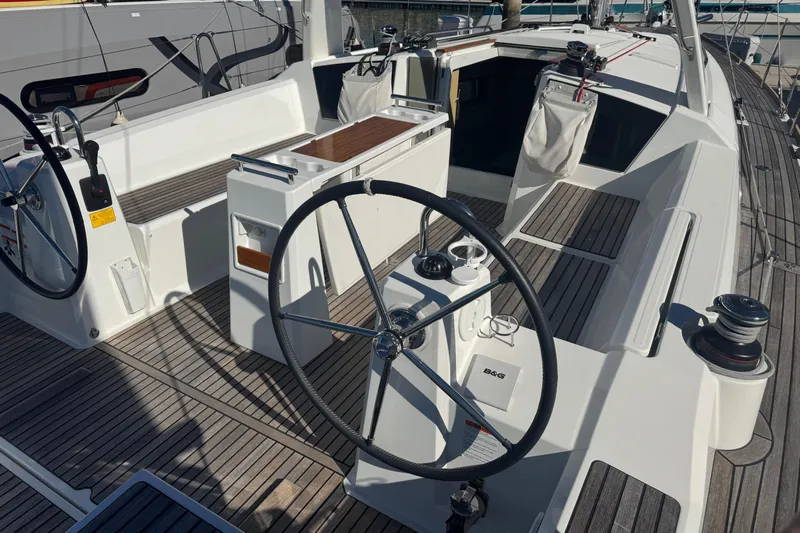

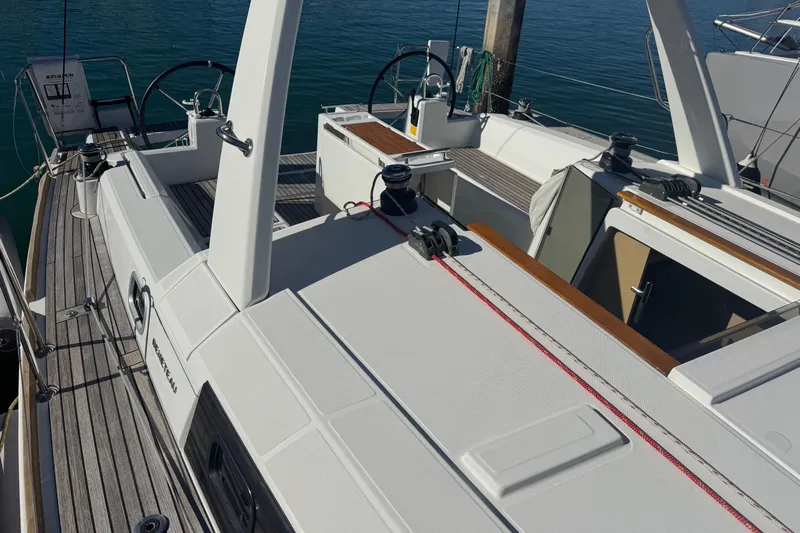

COCKPIT

• Self-bailing cockpit

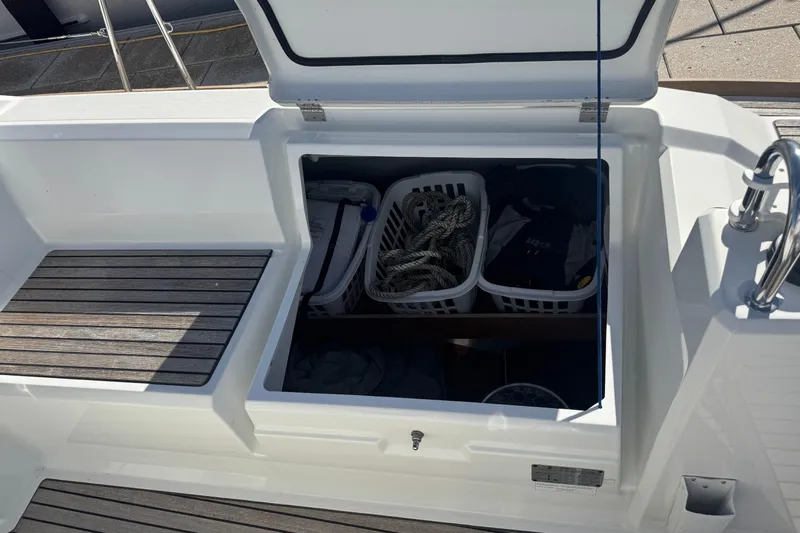

• 1 Cockpit locker

• 2 Lockers in cockpit bottom - Side helm seats

• 1 Liferaft locker - aft cockipt (0,95 m x 0,59 m x 0,36 m / 3’1’’ x 1’11’’ x 1’2’’)

• Teak slats on cockpit benches (1,69 m x 0,50 m / 5’7’’ x 1’8’’)

• Table with compac top, Stainless steel handrail

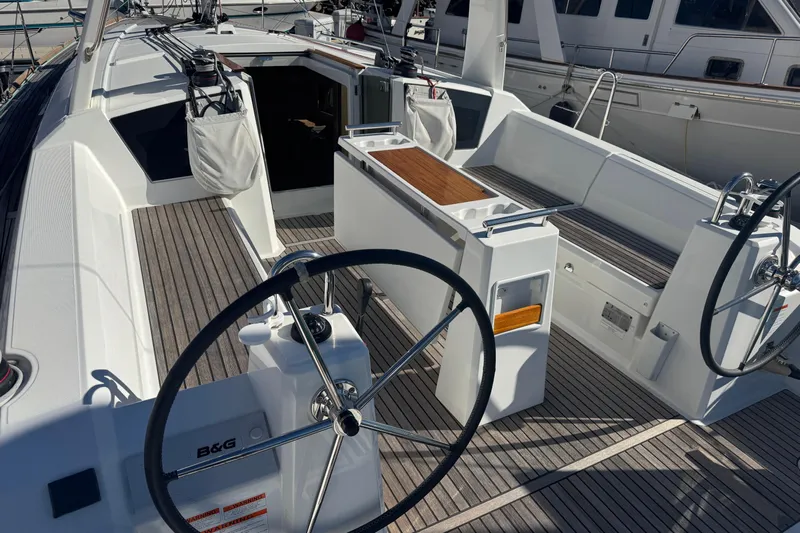

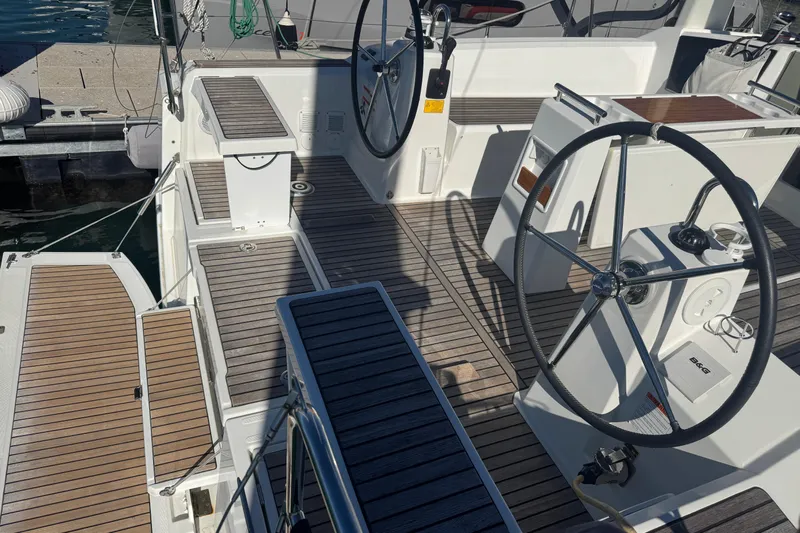

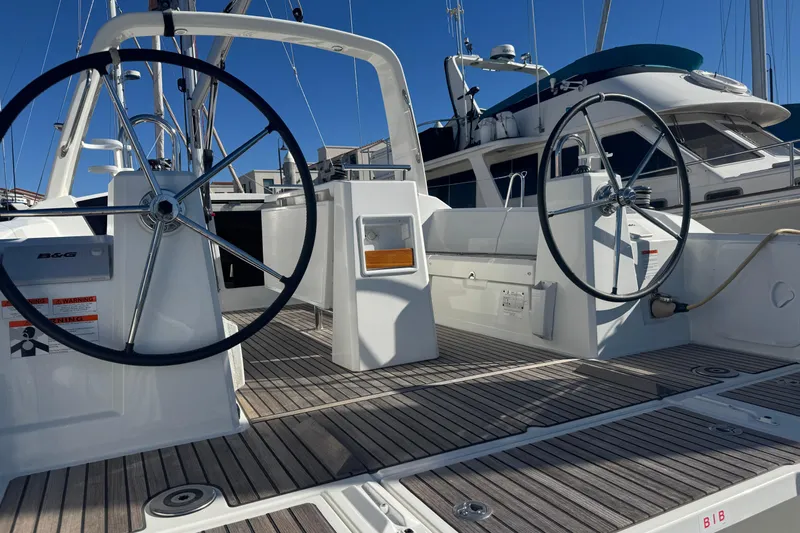

• 2 Steering wheel consoles: Stainless steel steering wheels - 800 mm diameter / 2’7’’ - Leather covered - Steering gear at the helm station - Metal cable transmission system - Stainless steel handrail - Navigation instrument pod (optional instruments) - Cup holders

• 2 Steering compass

• 2 Deck access points to tiller system

• 1 Emergency tiller

• Portside engine control and control panel

• 2 Hinged PMMA companionway doors - Sliding hatch made of PMMA

• 1 Swim ladder

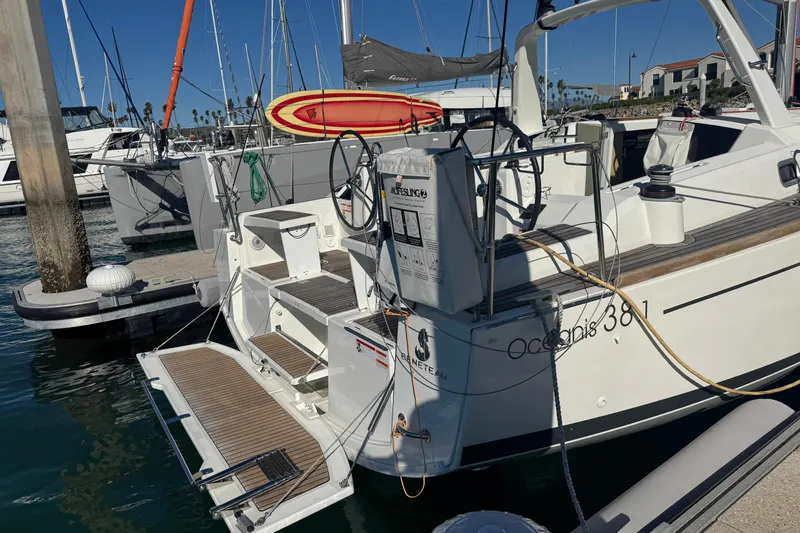

SWIM PLATFORM / AFT TRANSOM (Comfort Trim package)

• Fully opening transom, convertible into swim platform (2,60 m x 0,70 m / 8’6’’ x 2’4’’)

• Gas locker strut opening (manual), 1 Stainless steel integrated telescopic swimming ladder

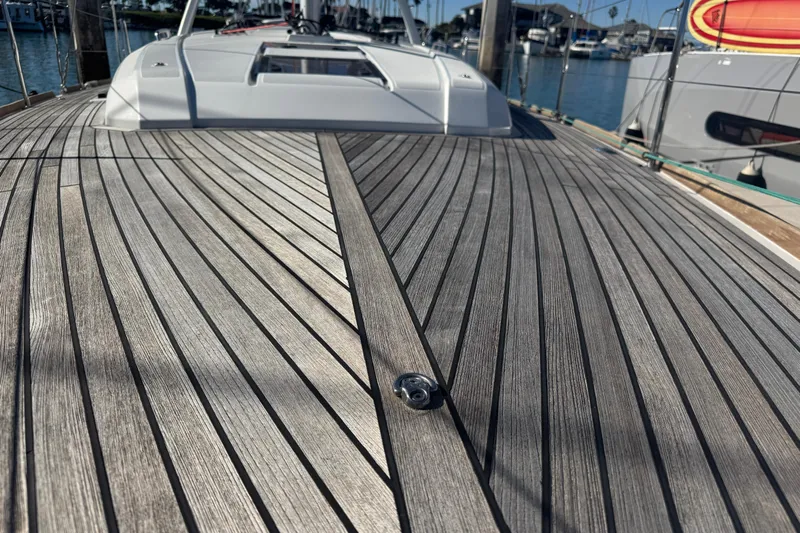

• Teak decking

• Woodwork Light Oak

• Rovere Aleve Parquet type laminated floorboards

• Beige hull liner, in salon and forward cabin

• Fabric upholstery

• Mattresses in the cabins, HR35kg/m³ foam

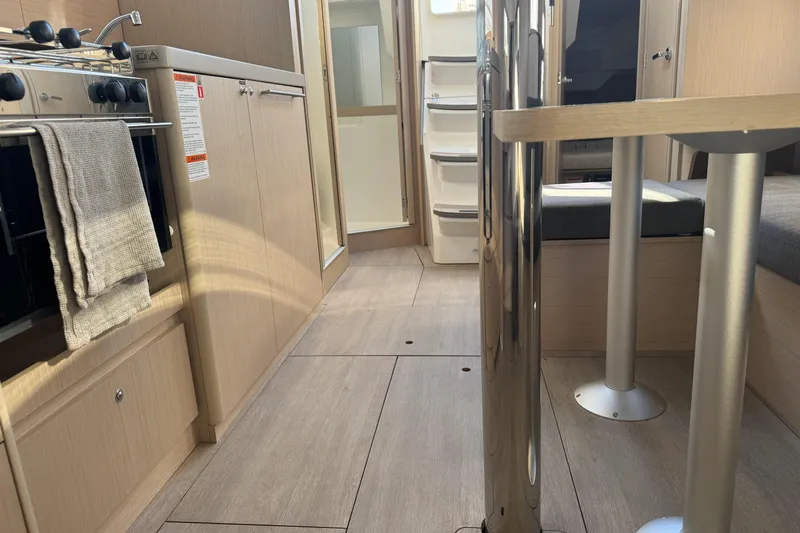

COMPANIONWAY Headroom: 1,96 m / 6’5’

• GRP salon companionway steps are coated with non-slip surface

• 1 Leather covered stainless steel handrail Long galley on starboard version

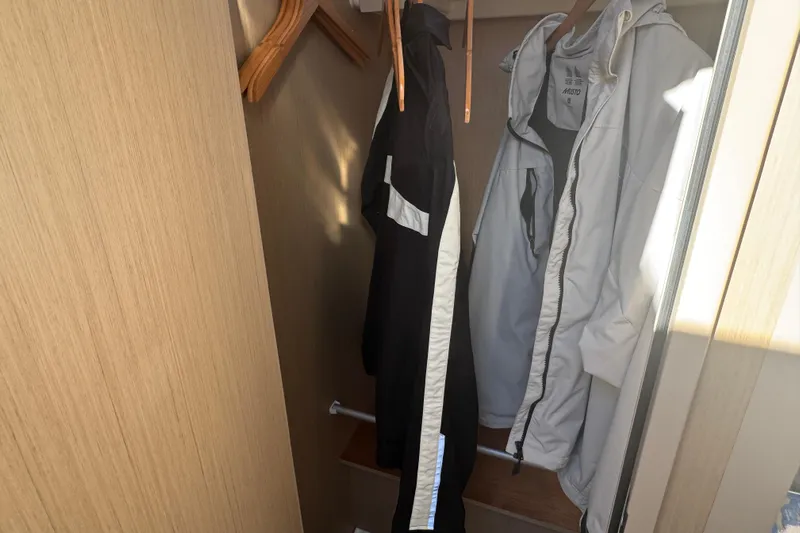

LARGE HANGING LOCKER - PORTSIDE Headroom: 1,85 m / 6’1’ • Beam: 70 cm / 2’4’’

• 1 Overhead light

• 1 Opening porthole in coaming

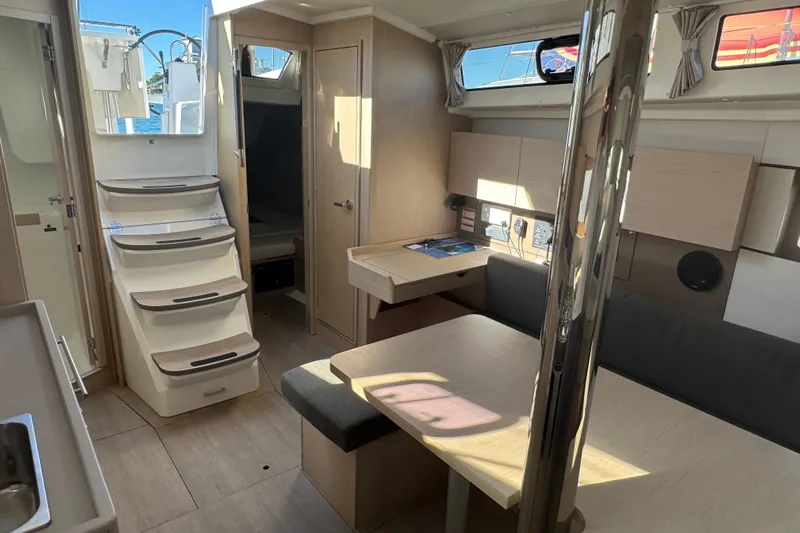

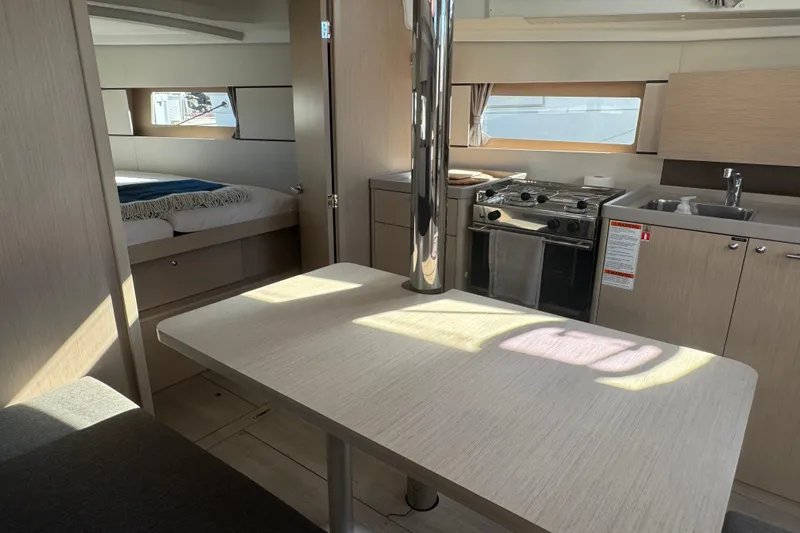

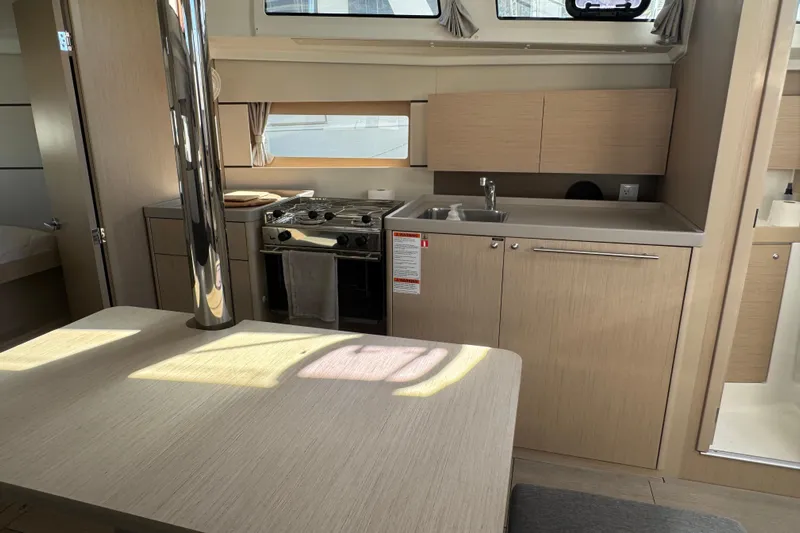

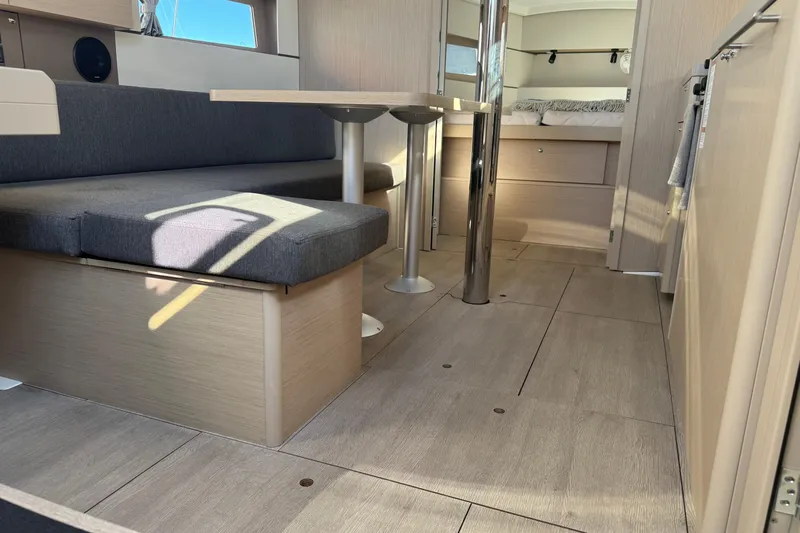

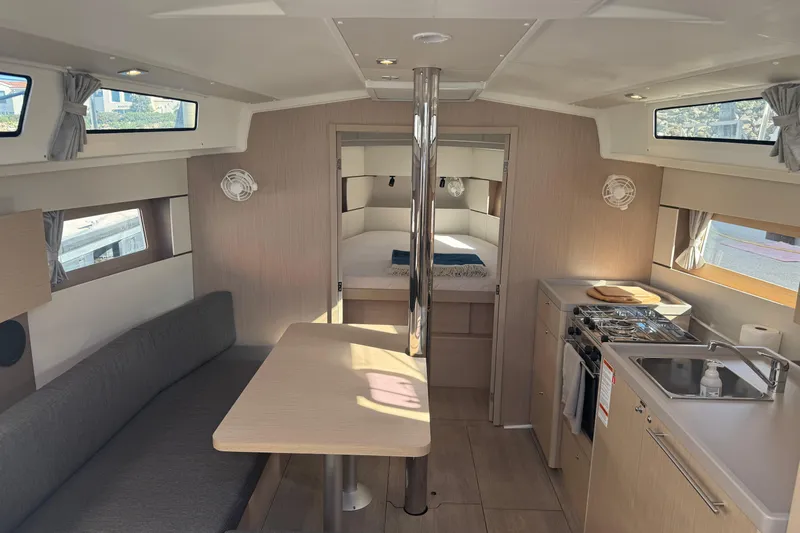

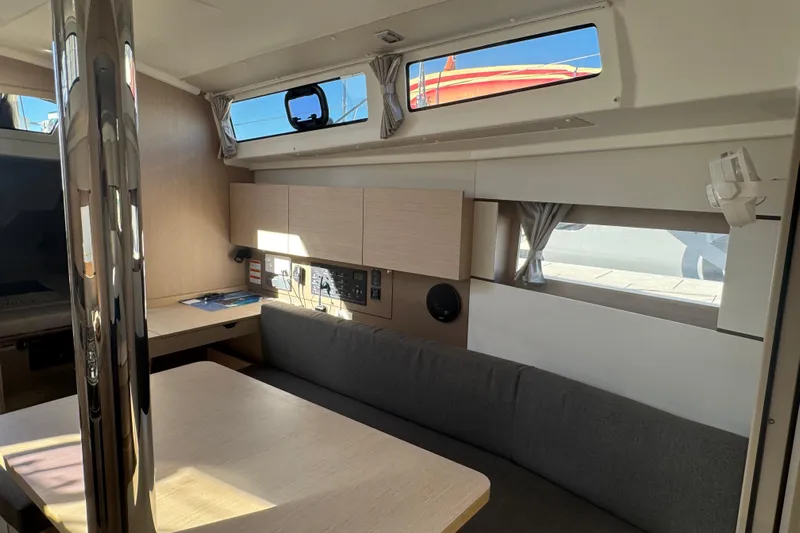

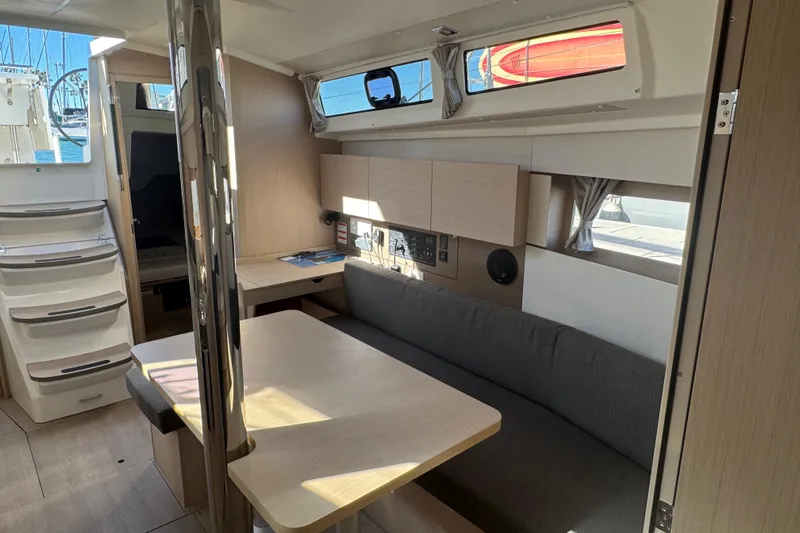

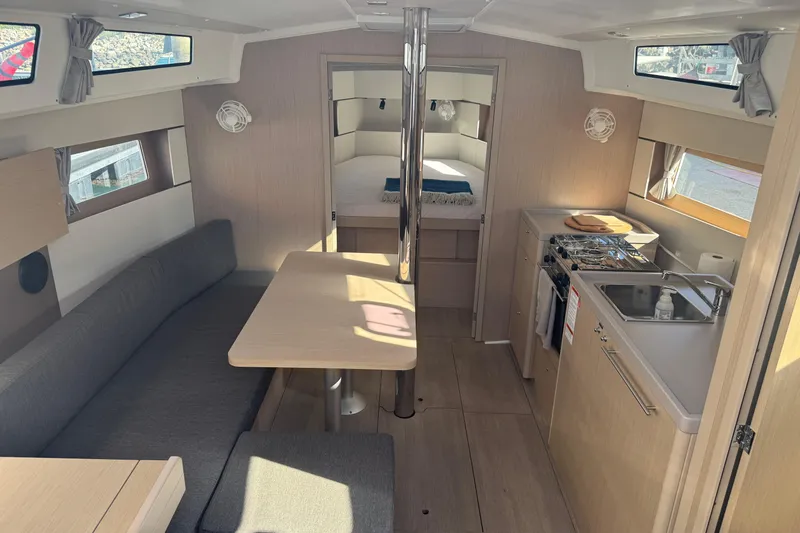

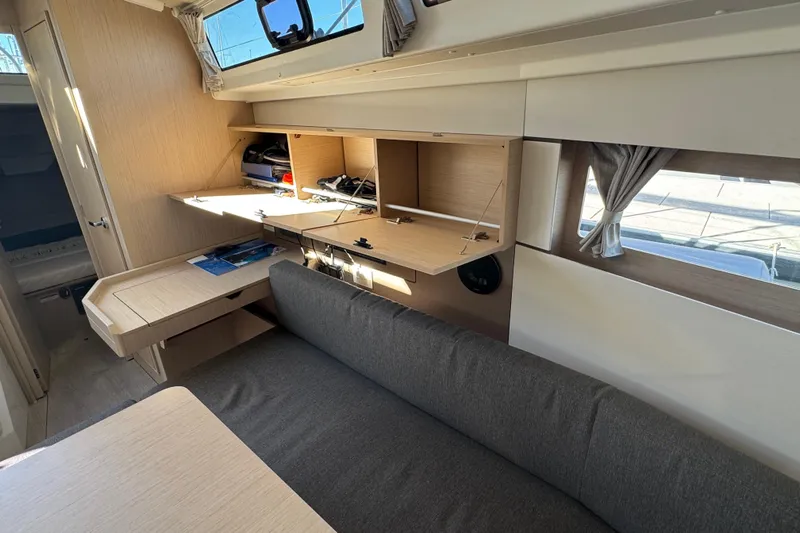

SALOON - PORTSIDE Headroom: 1,95 m / 6’5’’

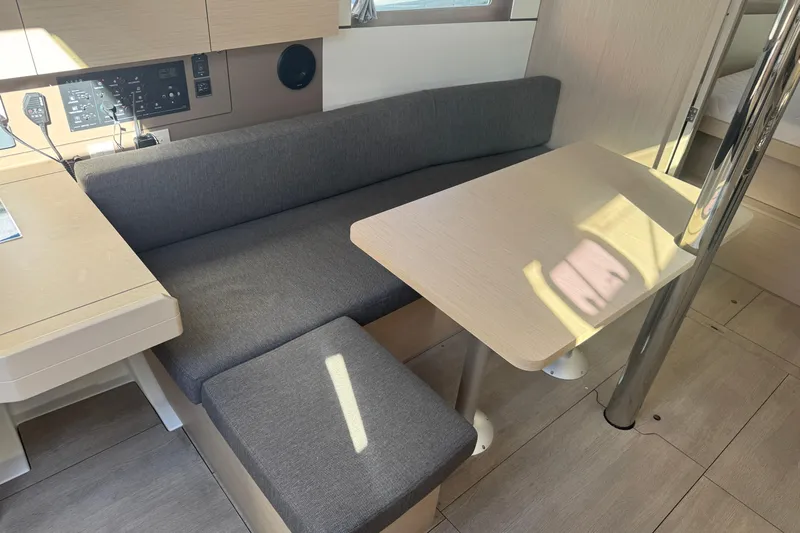

• L-shaped salon bench seat

• Storage under bench seats

• Saloon table with one-piece wood top - 2 feet

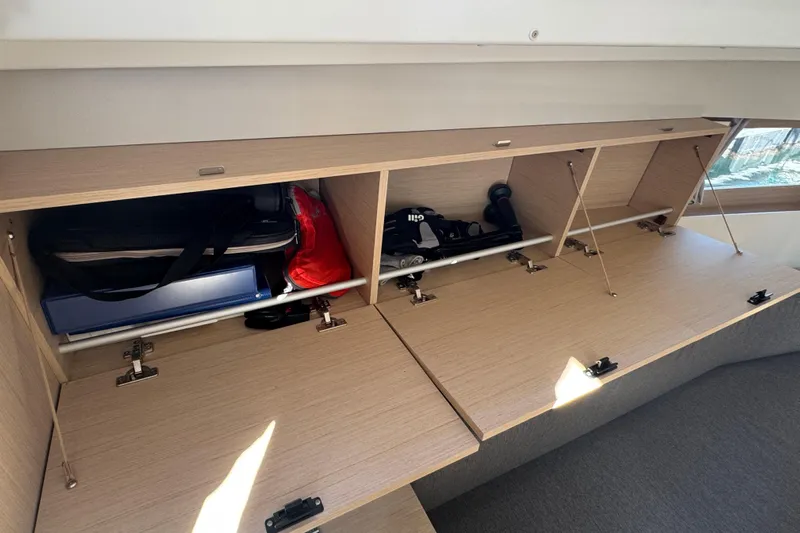

• High closed storage units (port and starboard)

• Chart table (with opening top) - Reading light

• Shelves with fiddles

• 1 Coachroof panoramic window with curtain

• 2 Hull portholes with curtain

• 1 Opening deck hatch with mosquito screen/blind

• 1 Opening porthole in coaming

• LED ceiling lights

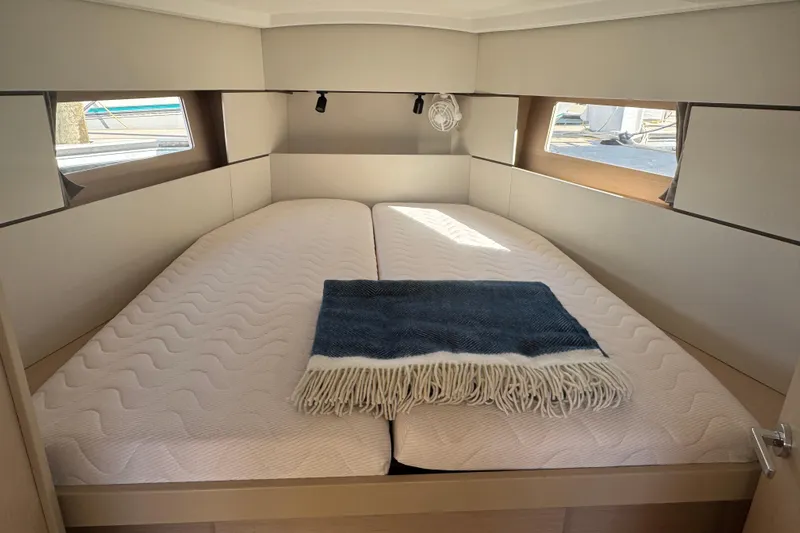

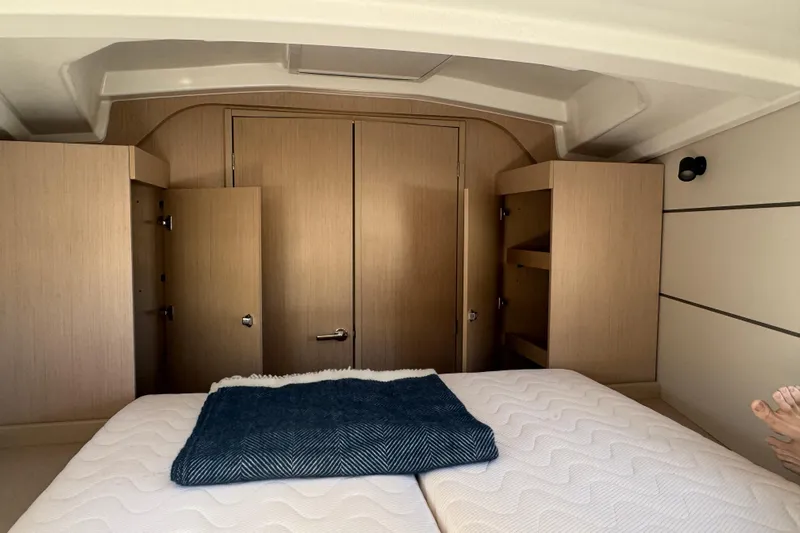

FORWARD CABIN Headroom: 1,95 m / 6’5’’

• Double access door

• Central double bed (1,50 m x 2,08 m x 1,08 m / 4’11’’ x 6’10’’ x 3’7’’)

• 1 Hanging locker (to starboard)

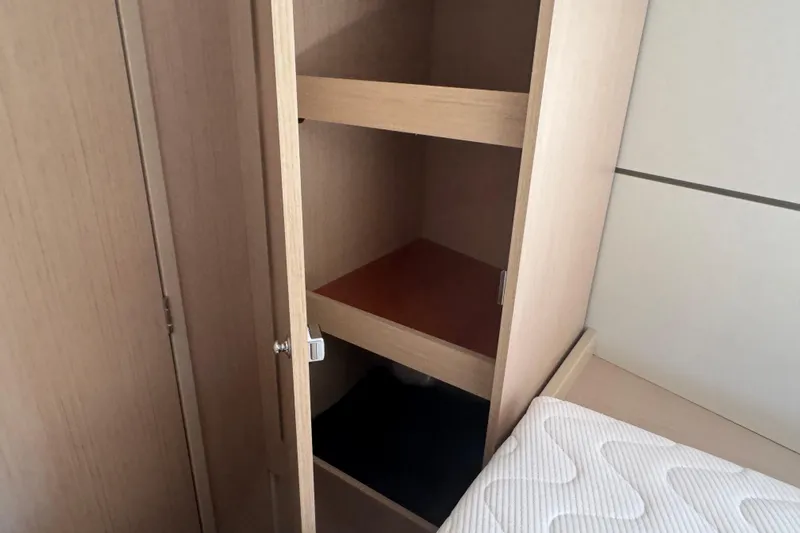

• 1 Cupboard with shelves (to port)

• Glove box - Open shelving - Drawer under the bed

• 1 Opening deck hatch with mosquito screen/blind

• 2 Hull portholes with curtain

• 2 Reading lights

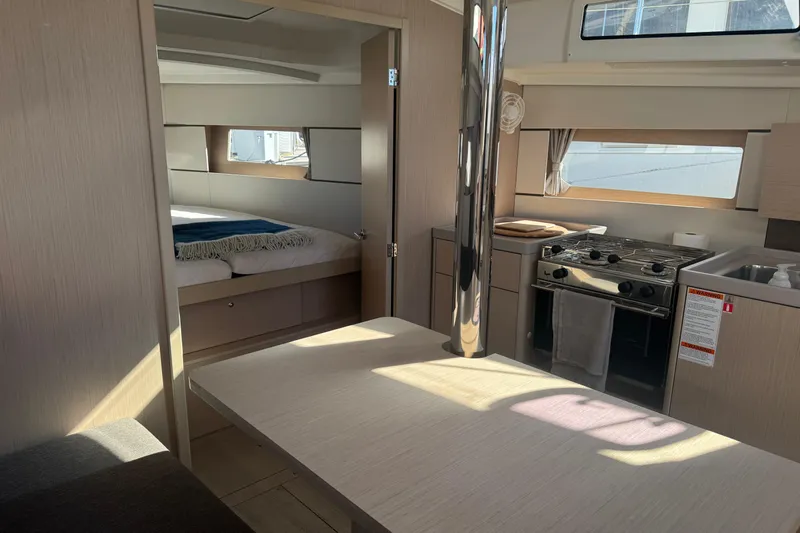

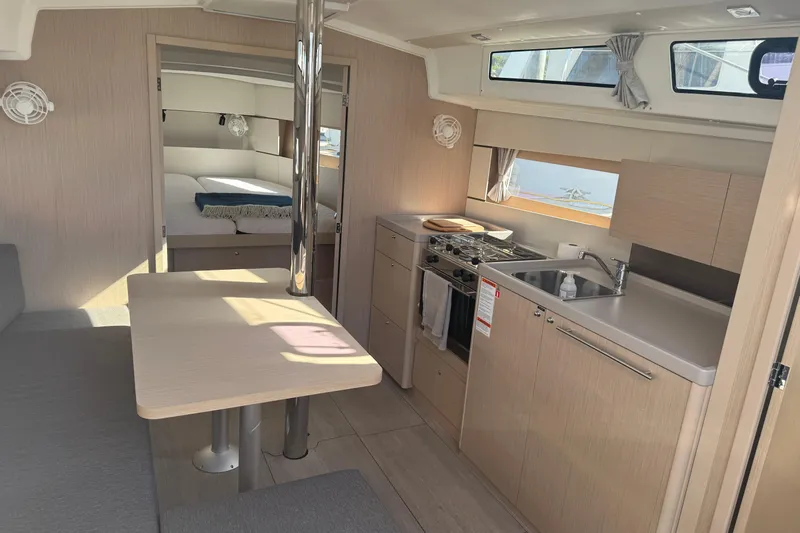

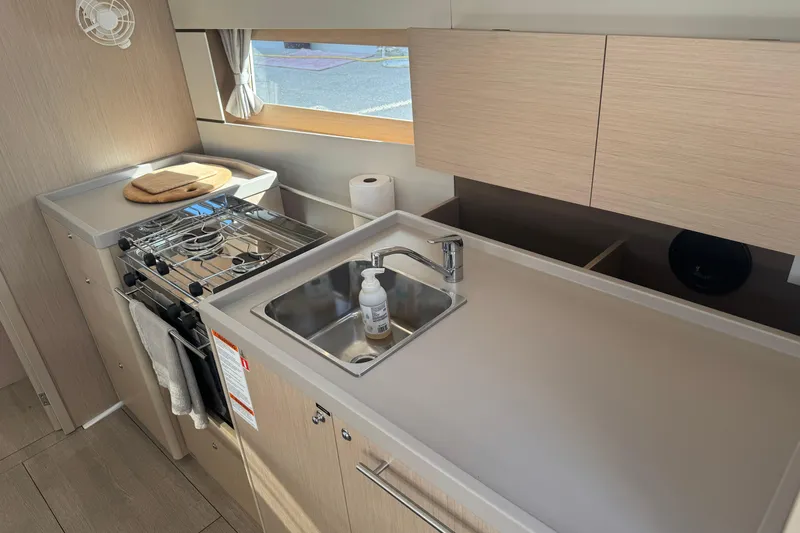

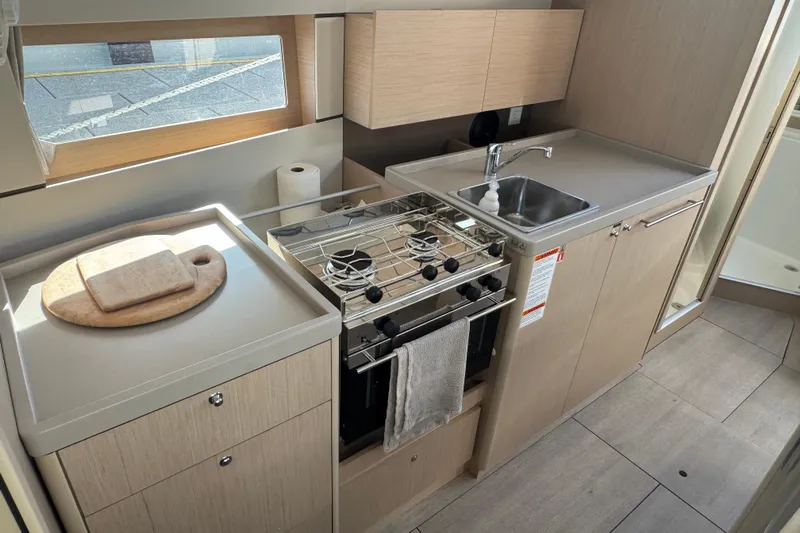

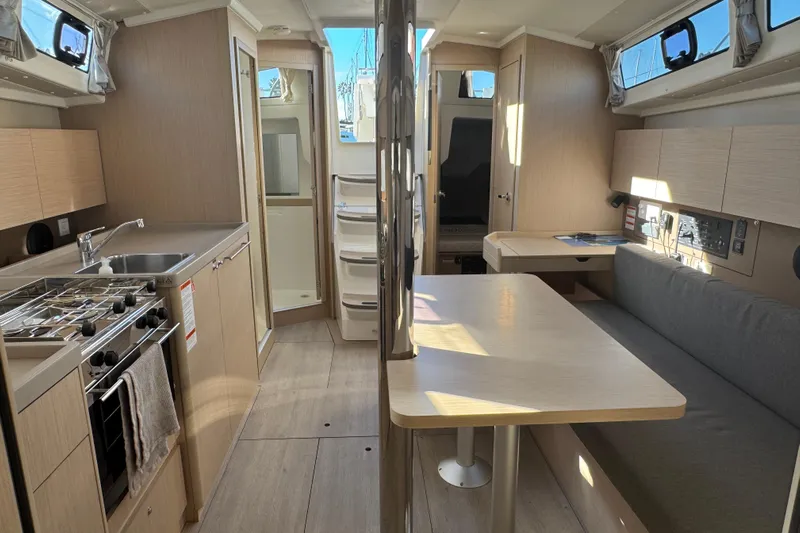

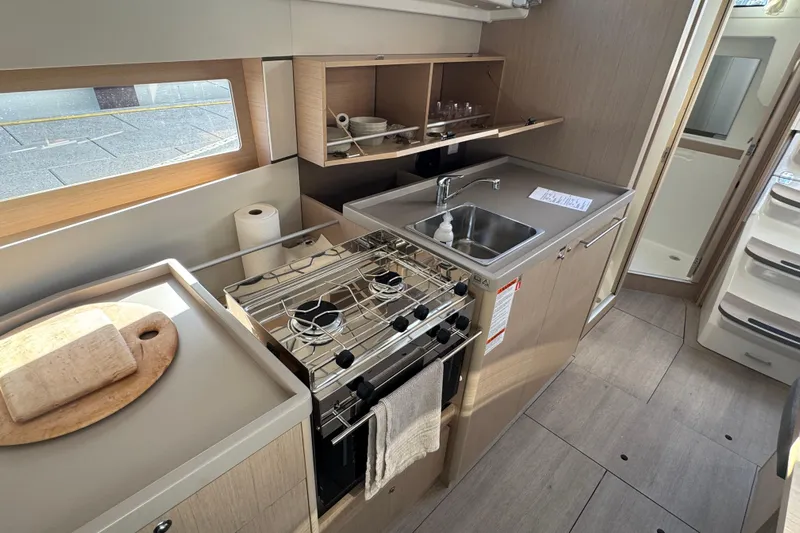

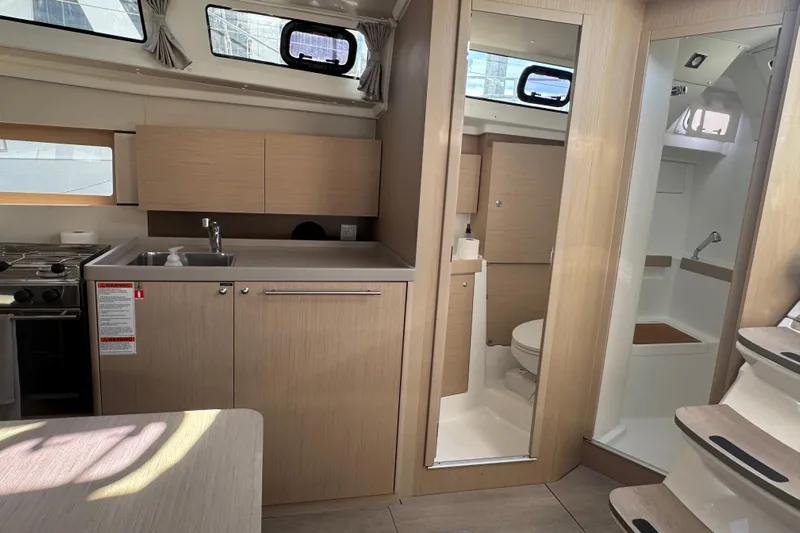

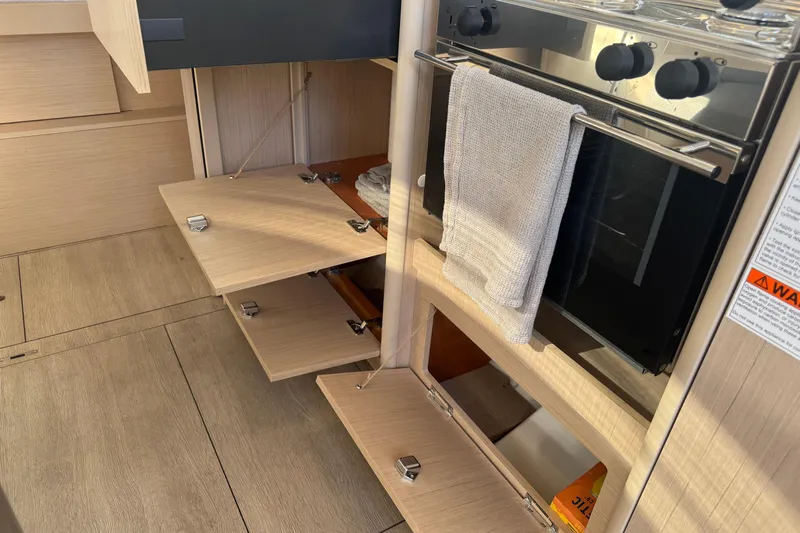

LENGTHWAYS GALLEY COUNTER - STARBOARD Headroom: 1,97 m / 6’6’

• Compact Clay laminated worktop

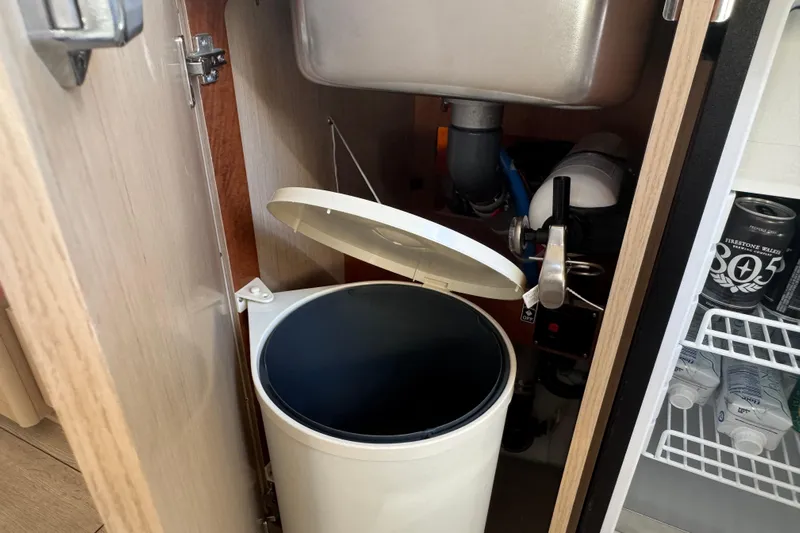

• 1 Stainless steel sink - 1 Rectangular stainless steel basin - 1 mixing tap hot/cold water

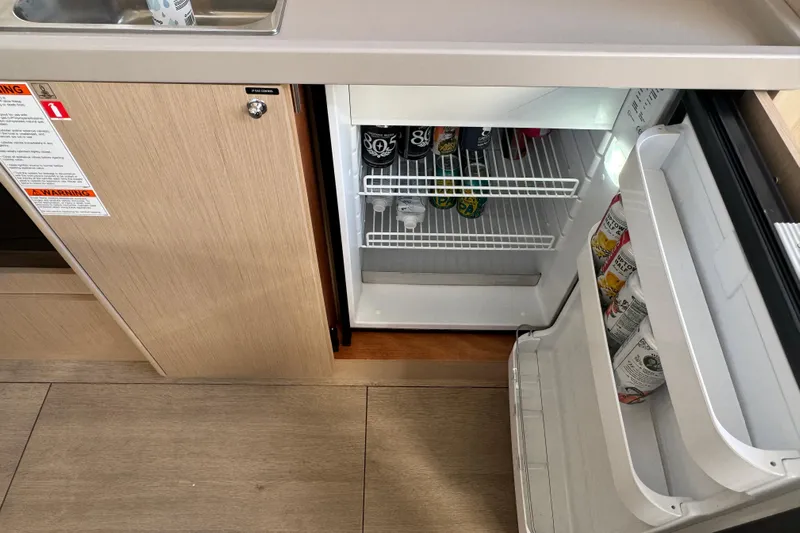

• Front opening refrigerator (12 V - 130 L / 34 US Gal)

• Cubby hole locker, Garbage bin

• Coachroof panoramic window with curtain

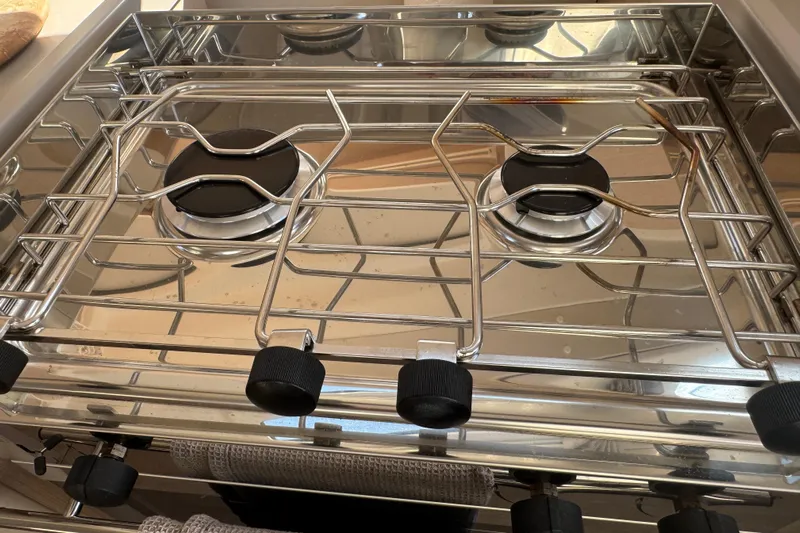

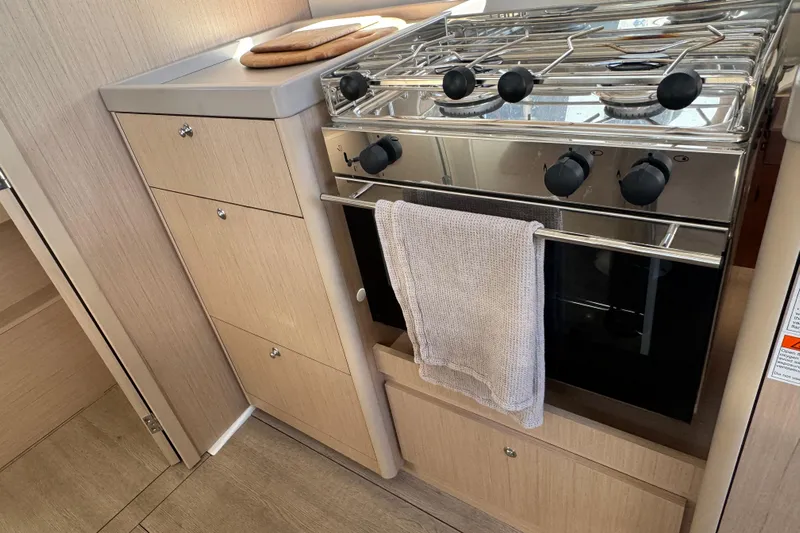

• Stainless steel 2 burner gas hob / oven on gimbal mounting

• Unit (Drawer & Cupboard units)

STARBOARD AFT: Separate shower Headroom: 1,85 m / 6’1’’

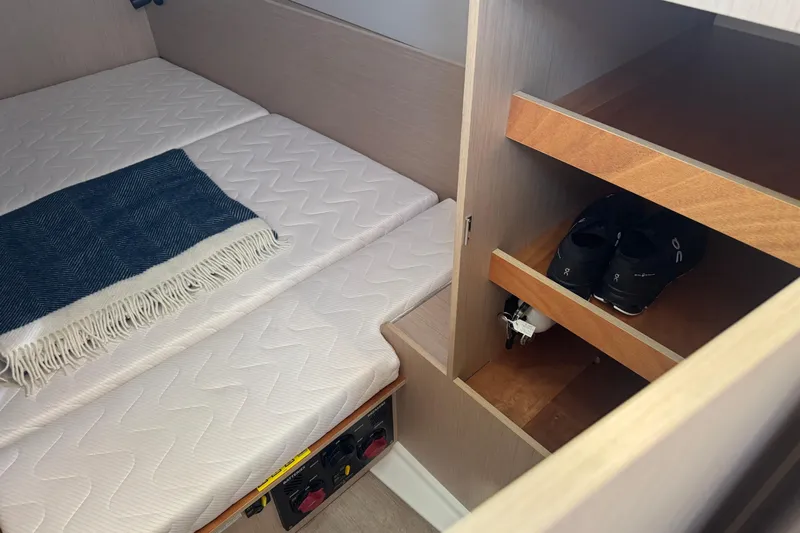

PORT AFT: 1 cabin Headroom: 1,85 m / 6’1’’

• Dimensions - Berth : 1,65 m x 2,18 m x 2,05 m / 5’5’’ x 7’2’’ x 6’9’’

• 1 Hanging locker

• 1 Reading light

• 1 Overhead light

• Open shelving

• Padded upholstery along the hull

• Deck house opening porthole

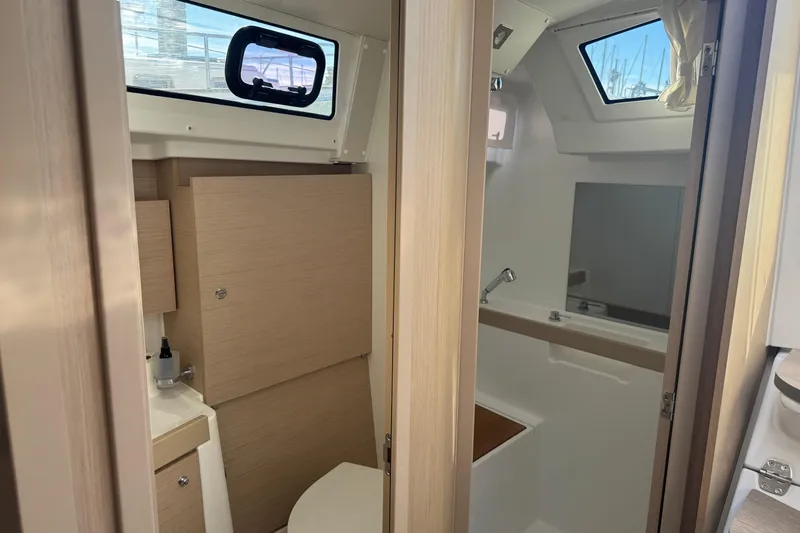

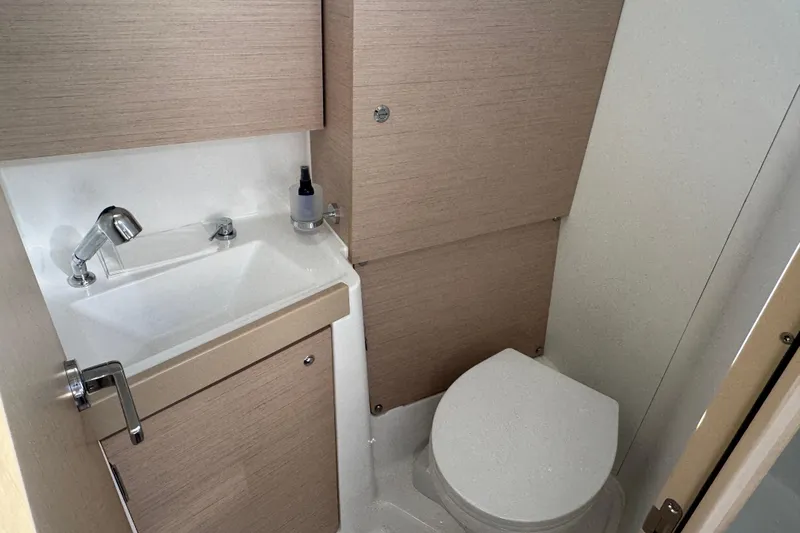

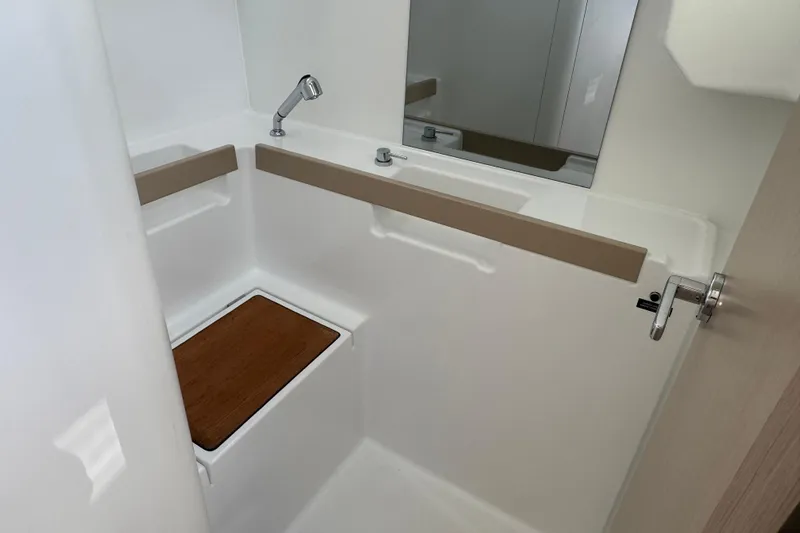

AFT STARBOARD HEAD COMPARTMENT Headroom: 1,89 m / 6’2’’

• Access through salon

• 1 Washbasin, 1 Mixing tap hot/cold water, Shower

• 1 Quiet Flush electric marine toilet with 80 L / 21 US Gal rigid reserve

• Cabinet, 1 Mirror, Toilet accessories, Hook

• 1 Overhead light

• 1 Opening portlight with curtains in the coachroof side window

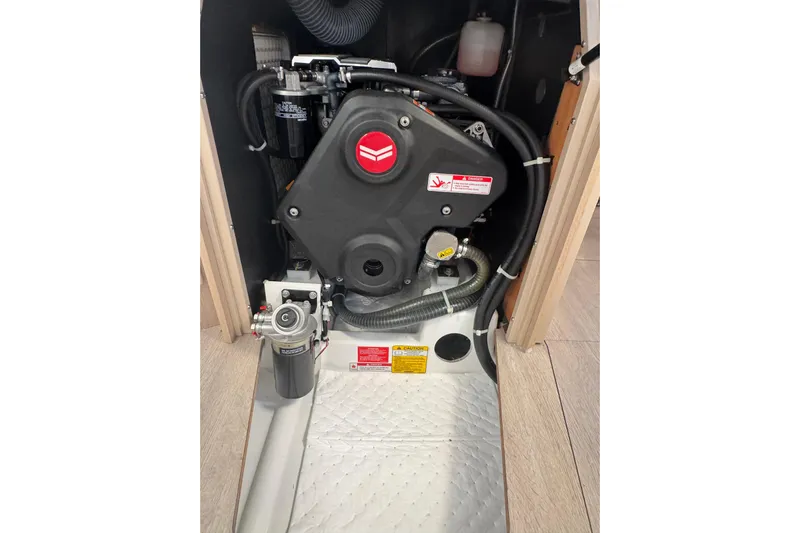

ENGINE

• Engine Yanmar Diesel 40 hp / 40 HP Sail Drive

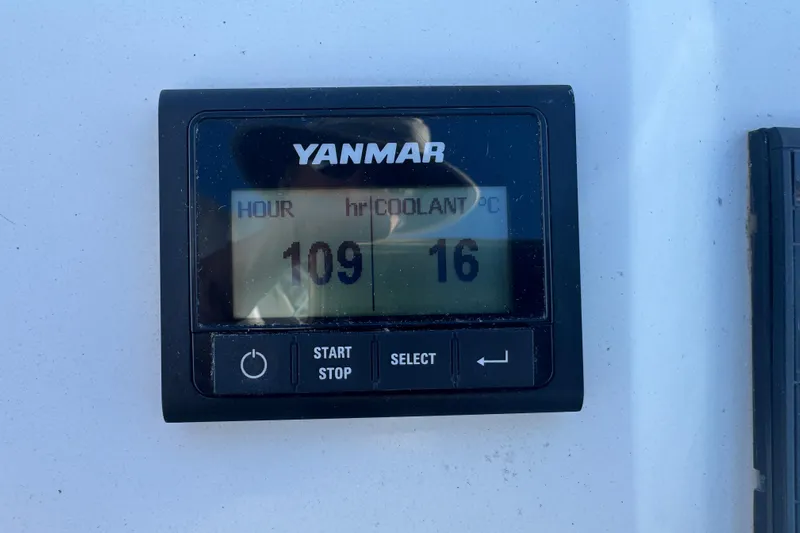

• Engine control - Control panel in cockpit

• Engine compartment: Soundproofing foam - Ventilation: 2 air intakes and 1 powered air expulsion

• 1 Alternator - 12 V / 125 Amp

• 1 Rotomolded diesel tank 130 L / 34 US Gal - Gauge at the chart table - 1 Tank filling access

• Filters: Sea water - Diesel - Water separator

• Three blade propeller

• 1 Engine access through companionway - 3 access to engine by the sides of the companionway

ELECTRICITY

• 12 V Circuit

• 1 Service battery (80 Amp) - 1 Engine battery (50 Amp)

• 1 Load balancer

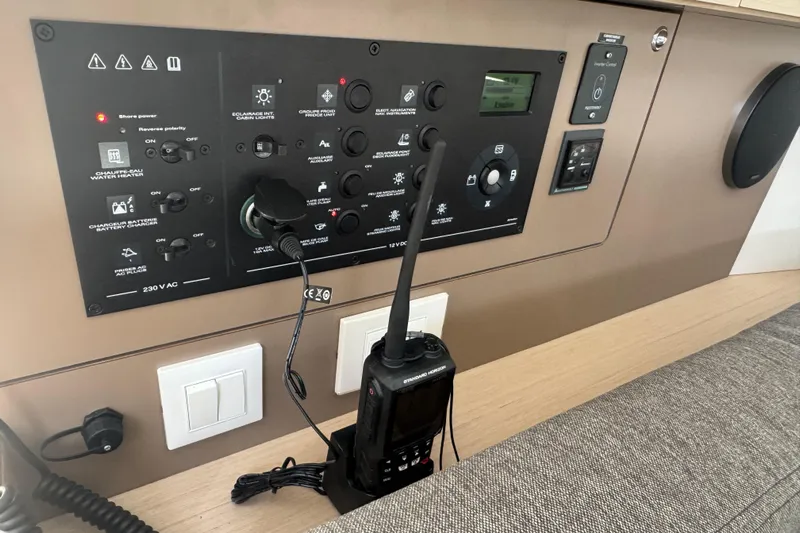

• 12 V electrical panel

• 1 12 V Power outlet

• LED navigation lights: 1 Masthead light - 1 Steaming light for motoring - 1 Mooring light on masthead

• Wire runs for optional cables

PLUMBING

• 1 Rotomolded freshwater tank (130 L / 34 US Gal)

• 1 Optional Rotomolded freshwater tank (200 L / 53 US Gal)

• 2 Tank filling access

• Water unit

• 1 Rigid 80 L / 21 US Gal black water holding tank for each WC

• Electric pump & Shower draining

• 1 Electric bilge pump & 1 Manual bilge pump

• Water heater (25 L / 7 US Gal) - engine use (110 V)

GAS

• Gas cylinder locker - starboard aft cockpit (25 cm x 27 cm x 40 cm / 10’’ x 1’’ x 15’’) - Regulator and solonoid

• Gas leak detector

• Smoke/CO2 detector

• Teak slatted aft platform

• Helm seats, slatted teak

• Access openings to port and starboard

• 2 Aluminum mooring cleats on the beam

• Mosquito screens on portholes

• 1 Halyard bag

• Cockpit shower hot/cold water

• Hifi: Fusion + Interior speakers & Waterproof exterior speakers

• Full 12/115 V system (Inside sockets, 40 Amp battery charger, Shore power socket)

• 2 Additional 80 ampères service batteries

• "Luxe" polyester cockpit table, Stainless steel handrail, 1 Waterproof USB socket for charging smartphone or using LED lighting (lighting not supplied), Central storage (15 L / 4 US Gal), Cup holders

• 1 000 W Electric windlass (Remote control)

• Aft transom protection

• Outboard engine bracket

• Ventilators in salon and cabins

• "Luxe" polyester cockpit table, Stainless steel handrail, 1 Waterproof USB socket for charging smartphone or using LED lighting (lighting not supplied), Central storage (15 L / 4 US Gal), Cup holders • 1 000 W Electric windlass (Remote control) • Aft transom protection • Outboard engine bracket • Additional freshwater supply tank (200 L / 53 US Gal) • Ventilators in salon and cabins COASTAL OFFSHORE • 1 Triton 2 Graphic display (Port steering console) • Sensor (Log, Speedometer, Temperature) • Wind Sensor B&G (Windvane, Anem

• 1 Triton 2 Graphic display (Port steering console)

• Sensor (Log, Speedometer, Temperature)

• Wind Sensor B&G (Windvane, Anemometer)

• Windex Windvane

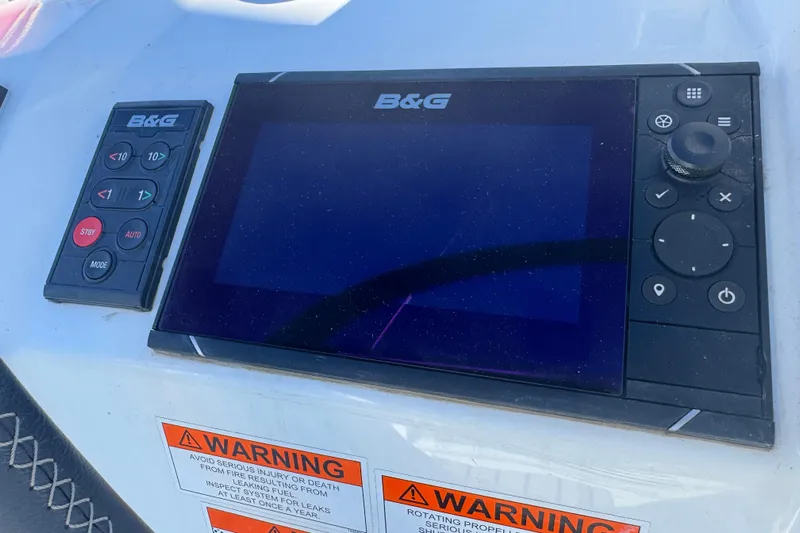

• 1 7’’ wide wireless screen - Port steering console (Triton 2 pass to starboard)

• NAC3 Autopilot + Control at steering station

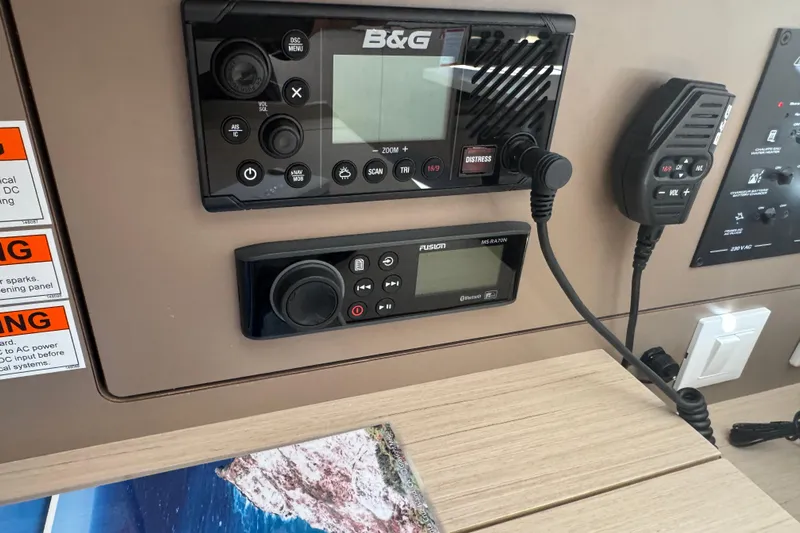

• Chart table: B&G V60 VHF, AIS receiver function
