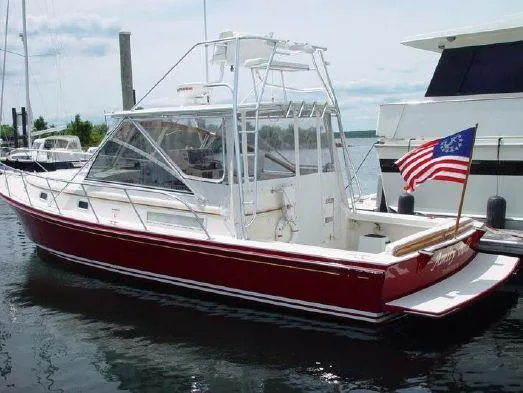

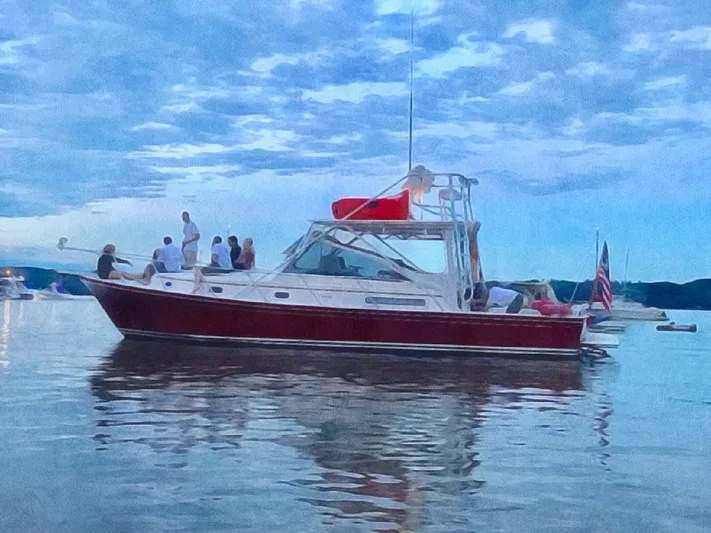

38 Little Harbor 1999 Boat For Sale

The Little Harbor WhisperJet 38 is one of a series that features a modern deep-V hull form designed specifically for jet drives. Each boat has an innovative twin chine configuration that minimizes waterline beam for performance and fuel economy and maximizes interior volume for accommodations. In addition, the twin chine eliminates annoying "wave slap" common to many boats while at rest. Dead rise angle is 17 degrees at the transom. Each model has a classic hull profile with an aggressive bow overhang and low-profile deck configuration. All models are available as an express cruiser with an open mid-deck area protected by a removable soft top. A focal point of all models is the large and comfortable cockpit salon featuring an L-shaped settee with casual seating for four and optional deck chairs that can be arranged to accommodate six for dining. The helm area has been designed to position all instruments and controls at their optimal location in relation to the helmsman. Electronics enclosures have been sized to handle the larger and more sophisticated computer based charting systems that are fast becoming the backbone of modern power boat navigation. A work area is located across from the helm so traditional charts can be used and space has been provided for electronics repeaters of key navigational data. The interior accommodations are both straightforward and commodious. The owner's stateroom forward includes a large U-berth (as opposed to the typical narrow V-berth) with two 36-inch wide berths that can be converted into a double with a filler piece. There is a large hanging locker and numerous drawers and storage lockers. A private owner's head and shower is located on one side. Further aft, the layouts feature a large galley to port with cold-plate refrigerator and freezer, propane stove and abundant storage lockers. Depending on the overall length, several alternate plans are available with additional staterooms, heads and a U-shaped dinette. Owners may also specify a "galley-up" interior layout to retain more interior accommodations as shown on some of the layout plans. The elegant yet functional interior features solid American Cherry trim. The overhead panels are covered with padded fabric and are completely removable. Main bulkhead surfaces are Formica, drawers are solid cherry, and locker doors are Formica with cherry trim. Doors and drawers feature Kroon flush positive-lock latches and roller bearing drawer slides. Cabin soles are varnished teak and holly. As an option, owners may specify cherry throughout the interior. The main engines are surrounded by a carefully engineered, soundproofed compartment, making the raised salon a comfortable, quiet place while underway, even at high speeds. The water jet system is located well aft for easy access via hatches through the aft deck. The water jet configuration eliminates the need for external shafts, props, and rudders, thereby removing a substantial amount of running vibration and allowing one to virtually run right over floating hazards - such as trap buoys - without fouling. The resulting shallow draft also allows one to safely gunkhole shallow waters off-limits to most boats of this size. As a final benefit, the water jet provides superior maneuverability in tight quarters utilizing twin jet configurations. The hull and deck are built of molded fiberglass using Vinylester resin and foam core. The hull lamination is further reinforced with a Kevlar hybrid to increase collision strength and add stiffness. All fuel tanks are welded aluminum. Structural bulkheads are cored fiberglass bonded to hull and deck. All deck hardware is polished stainless steel. The deck and hull joint features a low maintenance molded rail with optional teak cap that can be varnished or oiled. Decks and cabin tops can be finished with contrasting non-skid. A molded rubrail with stainless striker is provided.

Awlgrip hull & topsides paint

Black bottom paint

Full stainless steel bow rail

Hull molded rub rail with stainless steel rub strake

Custom Hardtop with enclosure

Fiberglass composite Swim Platform with telescoping Stainless Steel ladder, and grab handle

Opening center windshield lower section

Stainless exterior hand rails

Bow line chocks

Cleat chafe strips

Construction:

Modified Deep V-hull Design with Running Chines:

Corecell Foam-cored and knitted bi-directional E-glass with Kevlar hybrid hull

Vinylester low profile resin osmosis barrier

Deck is segmented resin infused Corecell

Lightweight composite grid system stringers and marine grade plywood laminated FRP main bulkheads

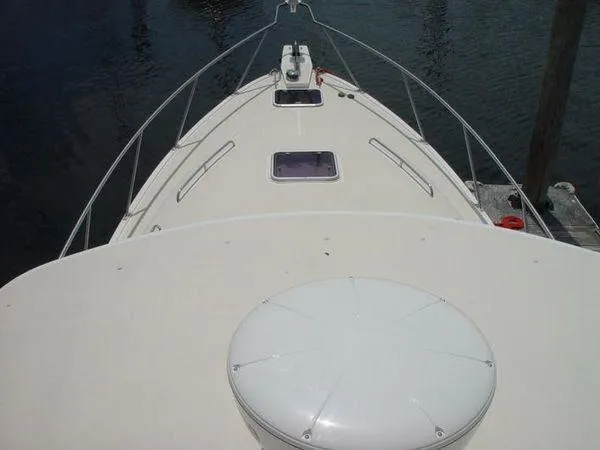

Deck Features:

Awlgrip deck and superstructure

Fiberglass bow sprit pulpit with anchor roller

Stainless steel bow rail with pennant flag socket and running lights

Teak decking at helm

Finished teak exterior trim including toe rails, cabin ½ round trim, and cockpit combing

Foredeck anchor locker built-in with large hatch access, and saltwater wash down

(2) Cabin top deck hatches by Lewmar anodized aluminum

(2) Hardtop hatches by Lewmar anodized aluminum

(4) Opening ports by Lewmar anodized aluminum.

(2) Handrails on cabin top and side windshield

Stainless steel cleats (2-forward, 2-spring, 4-stern)

250' Anchor Rhode w/ 15' of 3/8 Chain

35lb Plow Anchor w/chain rode

Bridge deck accommodations include:

Inward-facing, L-shaped cushioned settee for entertaining to port with light grey Ultra Leather upholstery with blue piping.

Varnished teak dining table on two pedestals drops down to form bunk.

Custom port settee back rest for Navigation table

Varnished lift top Navigation table to port forward

Day hatch access to engine compartment

Teak Decking - (refinishing suggested by seller)

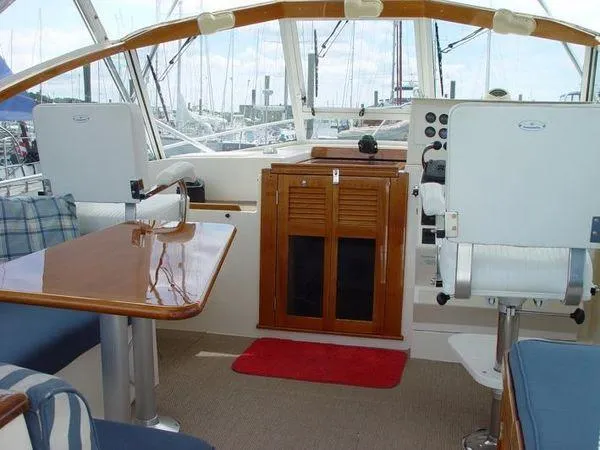

The Bridge Deck includes:

Overhead Hardtop lights

Hinged-deck with electric deck-lift accesses engine area below

Teak dash, steering console and instrument box

Varnished teak rimmed stainless steel helm wheel

Molded  L-Settee has access hatches to storage under seats

Companionway forward to interior accommodations is teak-trimmed and has a teak sliding top with smoke grey Plexiglas and teak companionway doors

Bose speakers - mounted in settee bases

Stamoid enclosure for bridge deck area

(6) Overhead halogen lights.

Awlgripped exterior/Varnished interior Teak low-profile windshield has (3) windows forward and (2) side windows

Custom Varnished teak interior windshield frame

(3) Forward windshield wipers.

Clear side and back curtains can provide a fully enclosed bridge deck

To Port:

Forward dash has a custom varnished teak lift-up chart table

Navigation station has removable back rest

Helm and Navigation Electronics

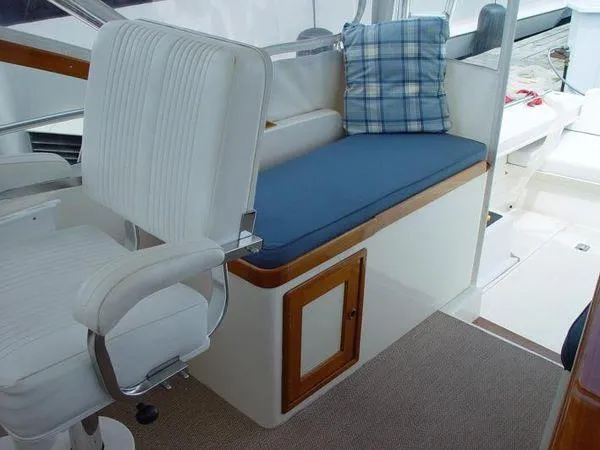

Helm Station area:

Motorized Stidd helm seat on pedestal and base

12-volt outlet at helm

110-volt outlet mounted under seat side

12-Volt Courtesy light

Binocular and cup holder

Accessory switch panel

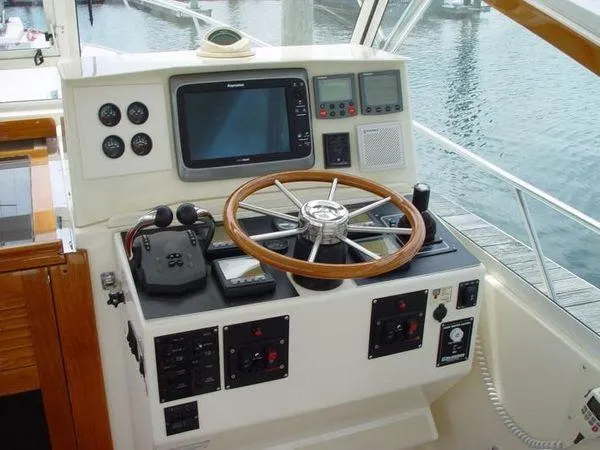

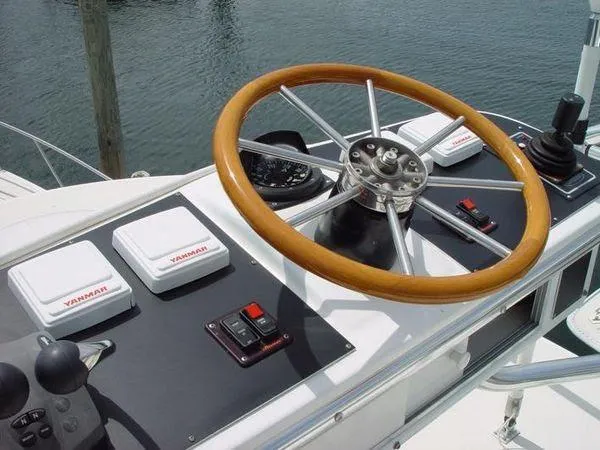

Helm includes:

Stainless steering wheel with teak rim.

Joystick Control System JSC3200TJ

      o Installed the complete system

      o The JSC3200TJ System comes with a 3-year warranty.

      o This is a direct swap-out CPU and it is plug-and-play

Teleflex hydraulic steering

Yanmar dual engine gauges and start panels

Flush mounted electronics

Bennett trim tab control switches

Bennett trim tab position deflection gauges

Updated Mathers electronic engine controls

Fuel tank gauges

Electronics and Navigation:

Garmin 7212 touch screen plotter

Furuno Nav Net plotter with radar, sounder

Furuno Radar with 4Kw antenna

ICOM M-402 VHF Radio.

Nautamatic Auto Pilot

Fire Boy override switch

Cathode protection system

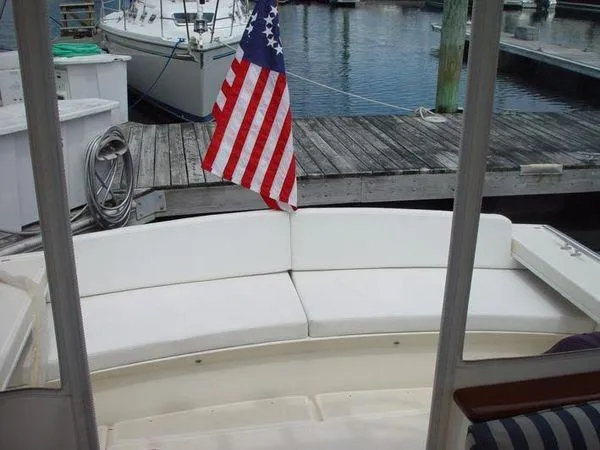

Cockpit

Access to the Cockpit is via fixed teak boarding steps on either side of the cockpit. The Cockpit is painted with Pearl Grey contrasting non-skid.Finished teak cockpit coaming and covering boards and stern trim.

Full beam Cockpit stern seats

Large cockpit deck hatch for easy access to jet lazarette area

Cockpit hot/cold shower - aft starboard

Cockpit cushions covered in Sunbrella Fabric

Courtesy lights under gunwales

Shore Power connection

Custom Hardtop:

VHF antenna

GPS receiver antenna on hardtop

Furuno Radar array on hardtop

Painted exterior Teak Custom Windshield Frame

Center lower section of Windshield opens

(3) Windshield Wipers

Valance lighting

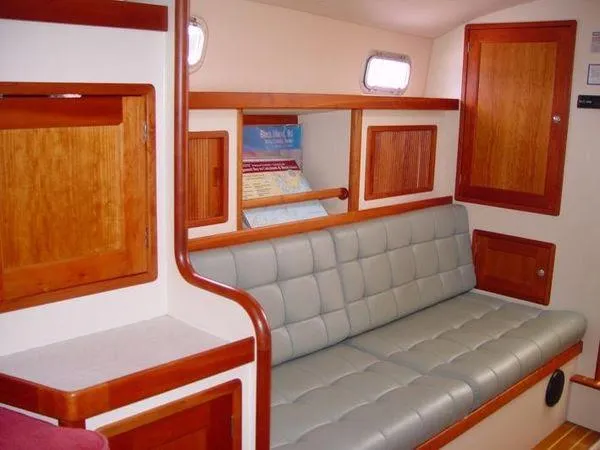

Accomodations below

From the Bridge Deck and down (2) varnished teak removable companionway steps is the open Salon/Cabin, the forward V-berth area has custom fabric, Starboard mid ship Settee has Sunbrella upholstery, the Galley is to port, Head to port aft. Antique white surfaces with varnished cherry trim and cabinetry. A satin varnished teak and holly floor. Superior finish work.

Varnish interior trim

Sky screens on hatches

Teak and holly sole

Flush panel storage doors

Tambour storage doors in Galley.

Roller-bearing drawer slides with Kroon flush positive latches

Chelsea clock and barometer ???

(5) Interior dome lights

(5) Frigast stainless/chrome-plated lights

(4) Opening port lights

Lewmar opening hatches with Ocean Air screens/blinds

ABC fire extinguisher mounted behind companionway steps

Electrical panel at companionway to port

16,000 BTU marine air conditioning system

Microwave oven

Forward are the V-berth sleeping accommodations finished in cherry trim and cabinetry with flush panel doors.  There are cherry battens on the hull sides.  Upper hanging lockers with lower storage lockers port and starboard, outboard shelves forward at hull sides.

Complete with:

V-berth with filler cushion to form a double berth

Step/seat between V-berth with storage compartment below

Drawer storage port under the V-berth

Port and starboard built-in hanging lockers

Outboard V-berth shelves

Stereo speakers

Hella 12-Volt fans

12-Volt overhead dome lights

Port and starboard Frigast 12-Volt reading lamps at V-Berth

Overhead hatch with sky-screen shade

Opening portlights

Stereo system mounted to starboard - Alpine

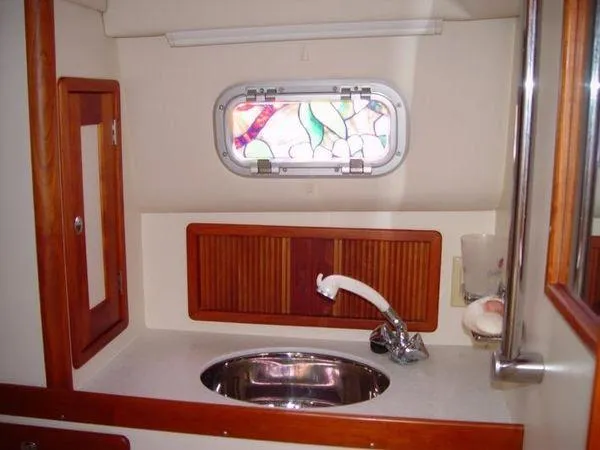

Head (Port-Aft):

A cherry-louvered aft door provides access to the enclosed easy to clean Cream fiberglass, Formica and Corian head with cherry trim and padded vinyl overhead. Fiberglass molded-in floor with shower sump for easy cleaning.

Corian vanity countertop

Stainless steel oval under mounted sink with hot and cold pressure water

Grohe hot/cold faucet with pull-out shower and wall mounted holder

King Starboard cream-color shower grate

Vacuflush head system

Door storage below sink

Cherry-framed Mirror - wall-mounted

Dual 110-Volt GFI outlet

Overhead 12-Volt dome light

Opening window port

Tank Watch mounted under vanity

Stainless steel towel bars

Fluorescent light

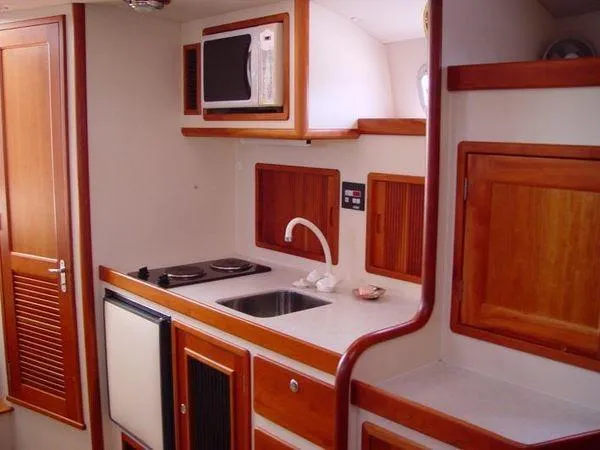

Galley (Port-Midship):

Norcold DE-451 refrigerator mounted under counter

Grohe faucet

Corian countertop and cherry-trimmed lockers and drawers

Under mounted stainless steel sink with hot and cold pressure water

Tambour doors storage lockers outboard the sink with shelves

Door to under sink storage

3-Drawer storage below countertop aft

Kenyon electric two-burner "Euro-style" cook top

Microwave inset Cabinet mounted with shelf over stove

Marine Air digital control panel

Dual 110-Volt outlet

Opening port with screen

Separate DC/AC systems:

Breaker system panel to port at gangway cabin steps, generator remote control panel, invertercontrol panel and battery switch, all systems are flush mounted.

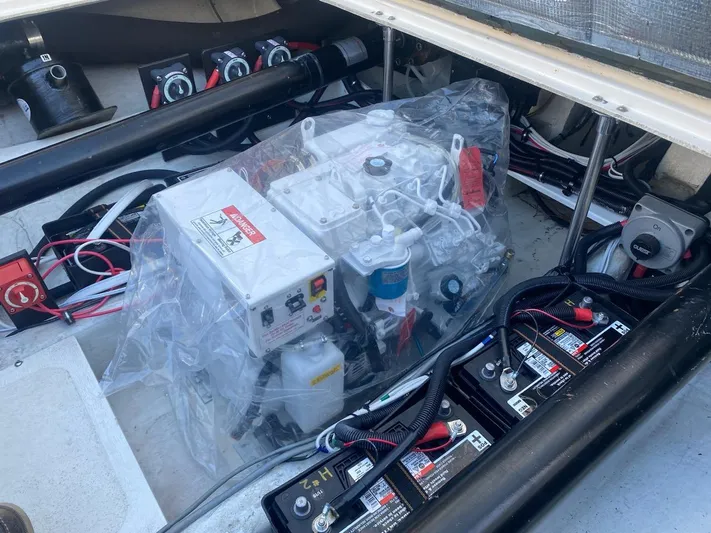

12-Volt system:

(2) deep-cycle house system batteries

(2) starting batteries

Remote control battery combiner/insulator

(2) Engine alternator - battery charging

On/Off battery switches for inverter, bow thruster, house circuits, parallel system and engine start.

110-Volt AC System:

125-volt 30-amp shore power with shore power cord

Trace 2512 inverter/charger

More:

ABYC standards electrical system

Distribution breaker panel - 12-volt/110-volt with voltmeter and amp meter

Tinned wire

Twin Yanmar 6-Cylinder 420-hp diesel engines with Twin Hamilton 274 water jet propulsion system.Wet exhaust system with transom through hull discharge.

Velvet Drive transmission
Teleflex hydraulic steering
Vetus 7" bow thruster
Racor fuel filters/separators
Bennett trim tab system with indicator gauges and helm controls

Alarm systems: Low oil, high temp, low voltage, and water in fuel. High water alarm.
FireBoy fire suppression system
Cathode protection system

Electric bridge deck lift with manual override allows easy access to engine area

Isolated engine mounts

WhisperJet custom sound insulation.

(3) Rule 2000 gal/hr automatic bilge pumps

Groco Bronze raw water strainers

Flojet water pressure system

Shower sump pump

Bronze ball-valves and thru-hulls below water line

Fire Boy automatic fire control system

(2) 150-gallon fuel tanks

Seaward 11-gallon water heater - with heat exchanger heating

30-gallon holding tank with Tank Watch III gauge and Y-valve

Ground Tackle:

35lb plow anchor w/chain rode

Equipment:

Horn

(6) Lifejackets.

Stainless Burgee staff.

Teak Flag 5' staff.

Dock lines and fenders

(2) Fire extinguishers.

Cockpit courtesy lights.
