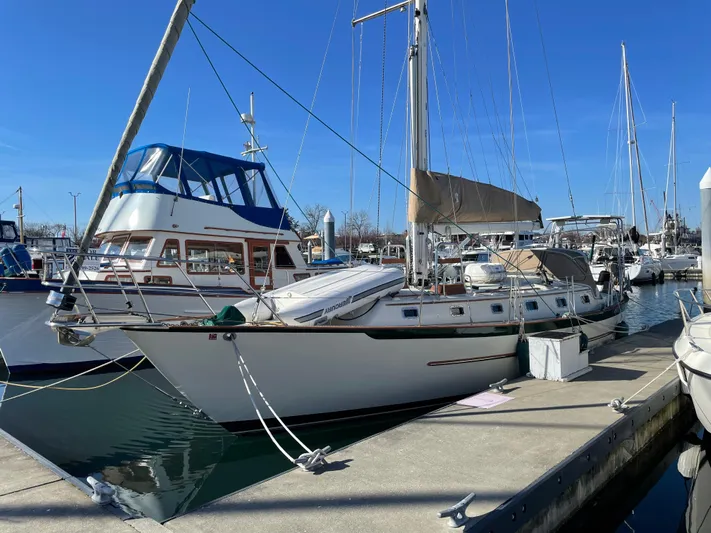

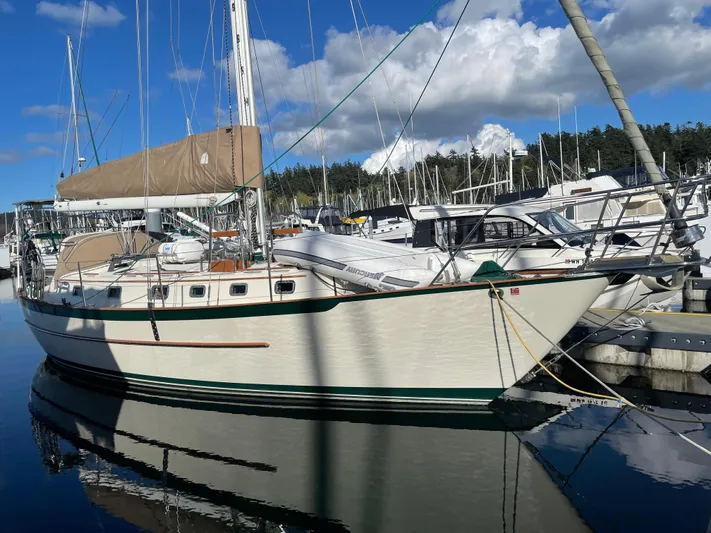

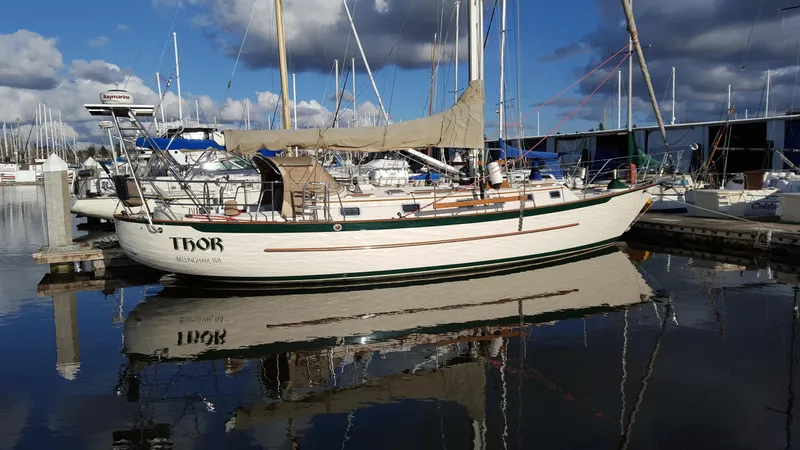

40 Pacific Seacraft 1996 Boat For Sale

SPECIFICATIONS:

• LOA - 42'2"
• LOD - 40'
• LWL - 31'3"
• Beam - 12'5"
• Draft - 5'2"
• Displacement - 24,000lbs.
• Ballast - 8,800lbs
• Bridge Clearance - 55'
• Designer - William Crealock

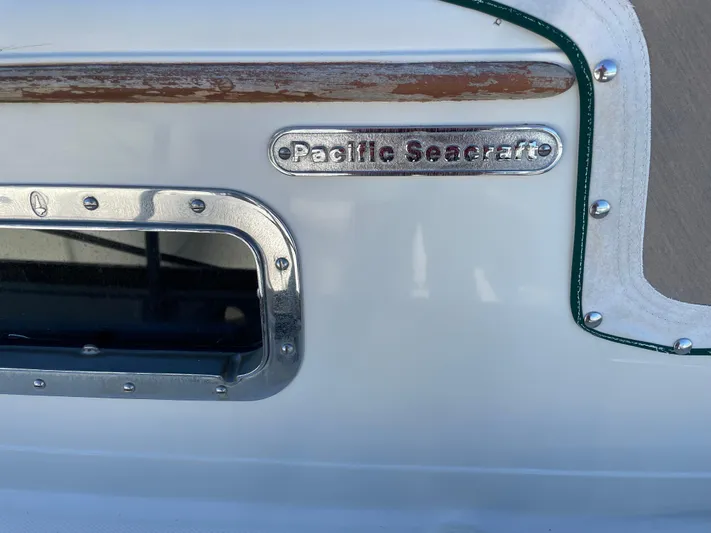

• Built By Pacific Seacraft in Fullerton, California

TANKAGE:

• FUEL - 63 Gallons in (1) Aluminum Tank
• WATER - 122 Gallons in (3) FRP & Stainless Steel Tanks
•               57 Gallon Bow Tank
•               22 Gallon Bilge Tank
•               43 Stern Tank
• Hot Water Heater - 6 Gallons
• Waste - 19 Gallons in (1) Plastic Tank with Macerator Pump-Out & Deck Pump-Out

INTERIOR:

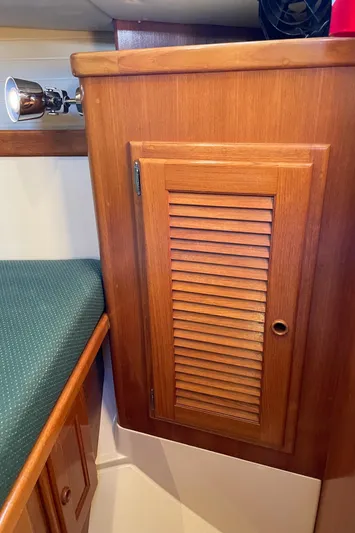

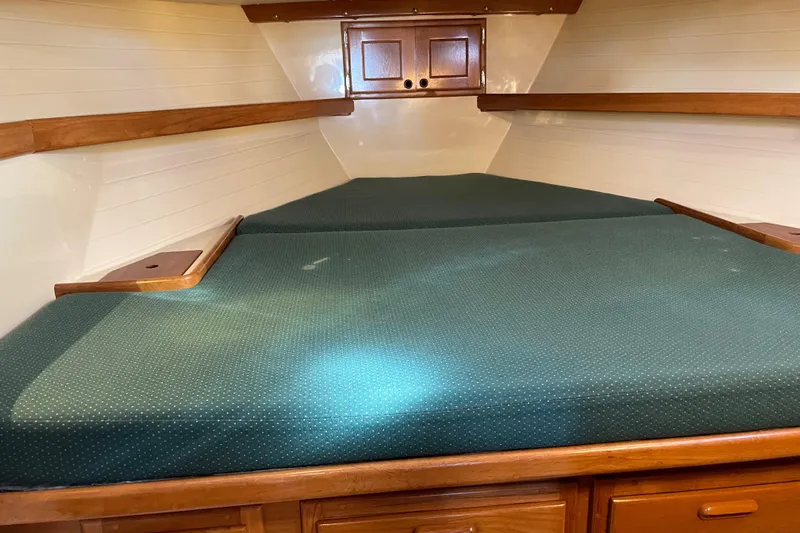

• Sleeps 7 - (2) in Forward Berth

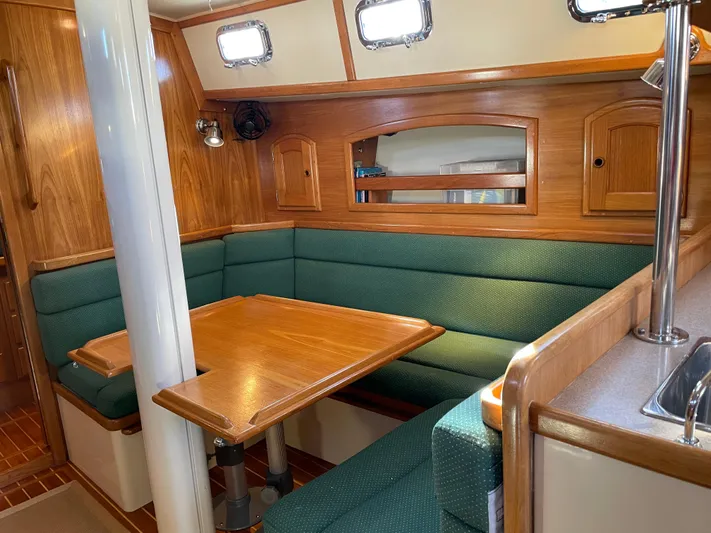

•                  (2) on Convertible Dinette

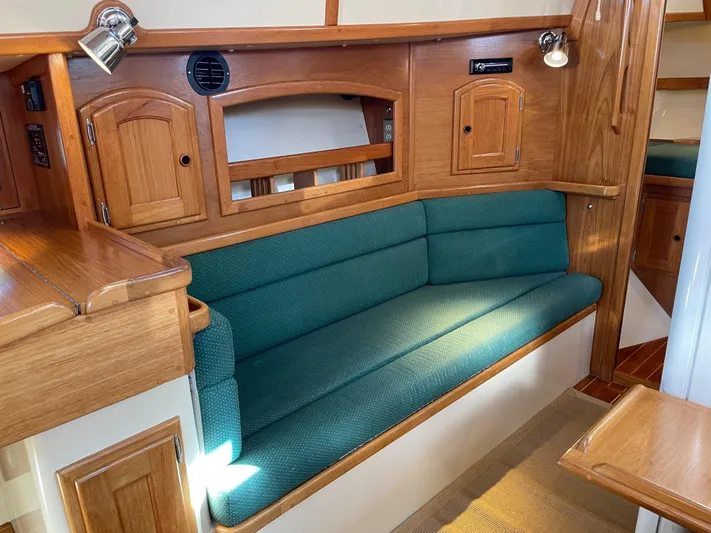

•                  (1) on Salon Settee

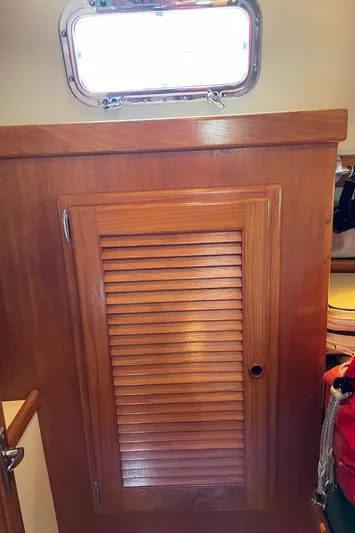

•                  (2) in Aft Berth

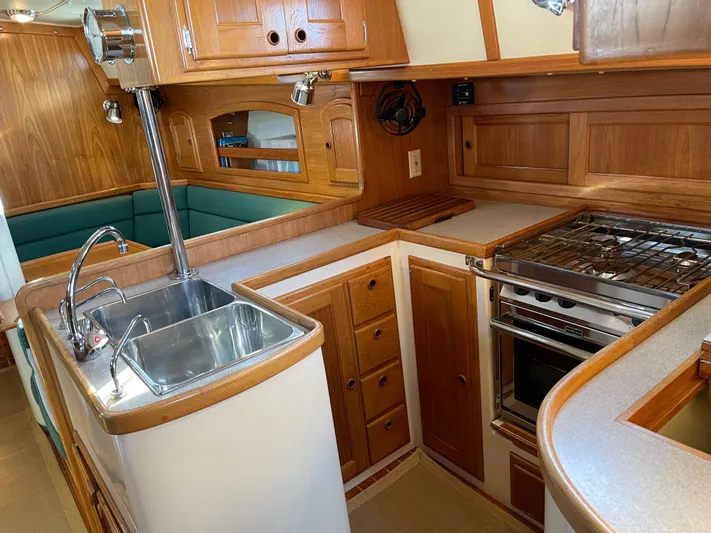

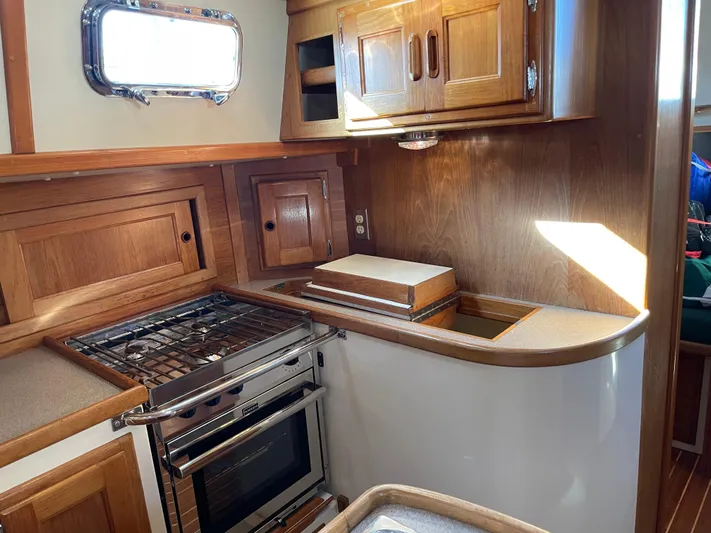

• Galley Hot & Cold Pressure Water System

• Galley Water Foot Pumps - Fresh & Salt

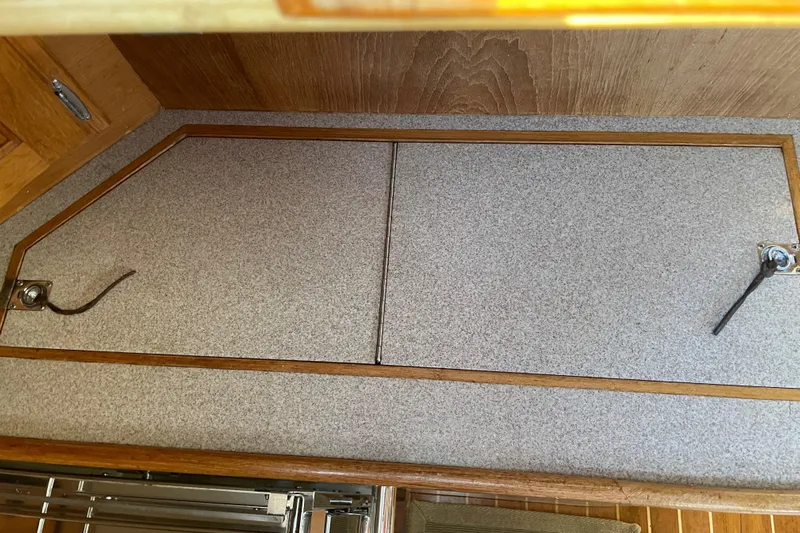

• Galley Countertops - Corian

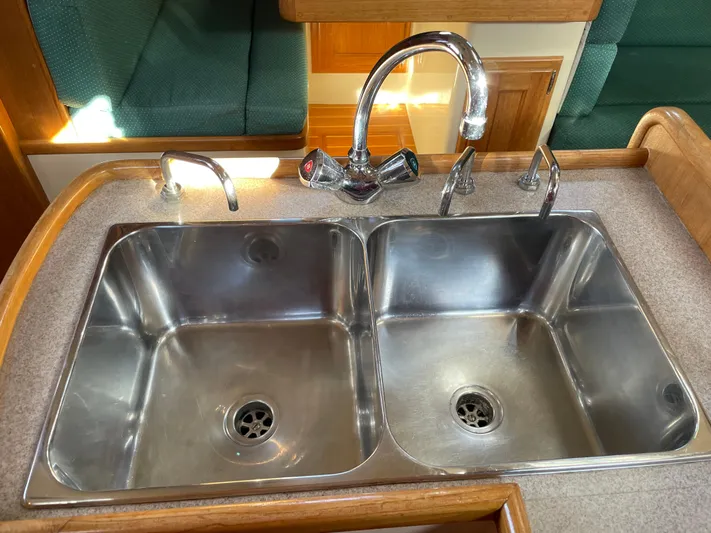

• Sinks - Double Stainless Steel

• Hot Water Heater - Atwood 6 Gallons

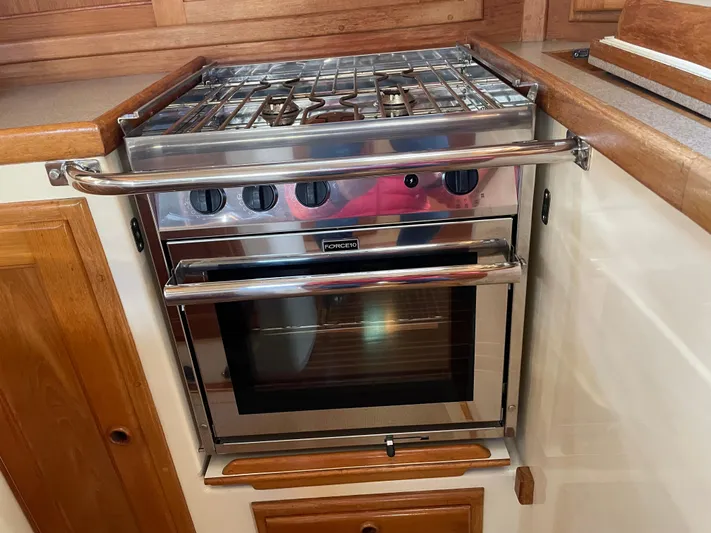

• Stove/Oven - Force 10, 3-Burner Stove/Oven/Broiler NEW 2018

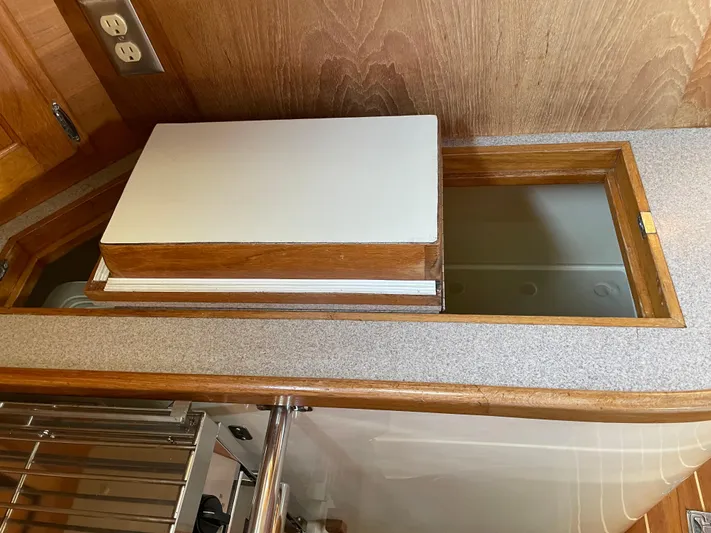

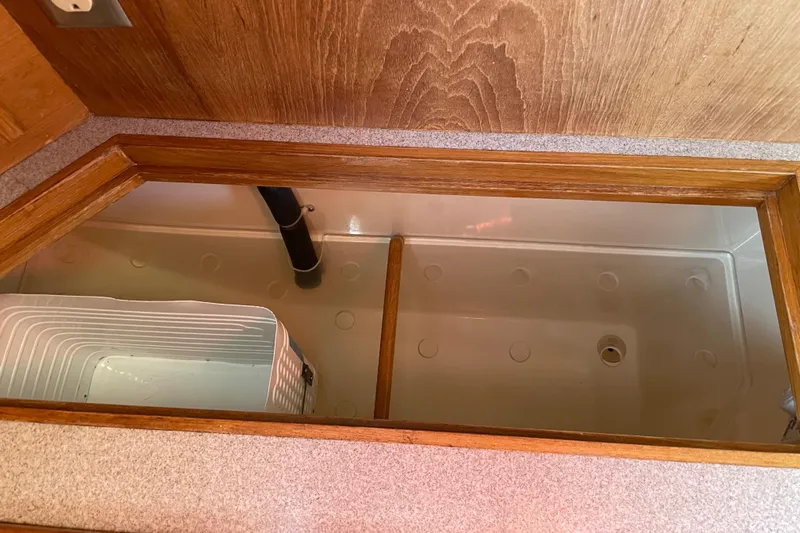

• Refrigeration - Adler Barbour 12Volt

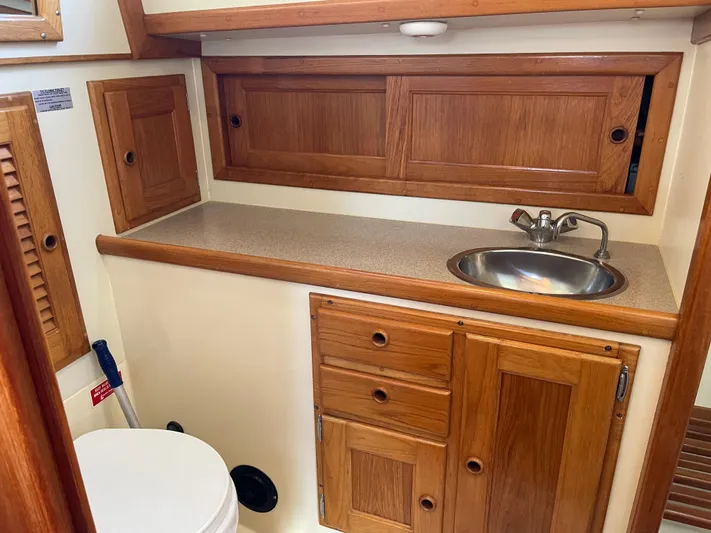

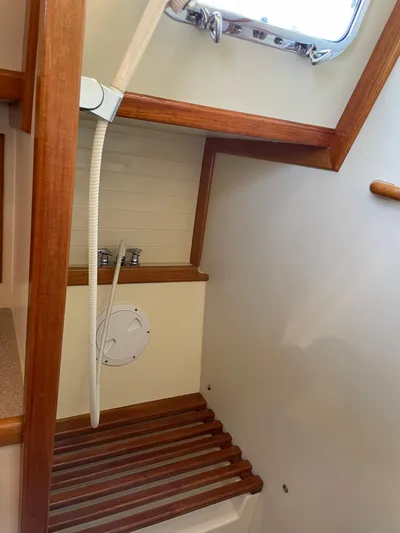

• Private Enclosed Head (1) - with Separate Shower Stall
• Head Hot & Cold Pressure Water System
• Head Water Foot Pump - Freshwater Water
• Cabin Heating System - Espar Diesel Forced Air Heater
• Watermaker - Pur Power Survivor 35
• Clock & Barometer - Weems and Plath
• Stereo - AM/FM/CD

MECHANIC & ELECTRICAL:

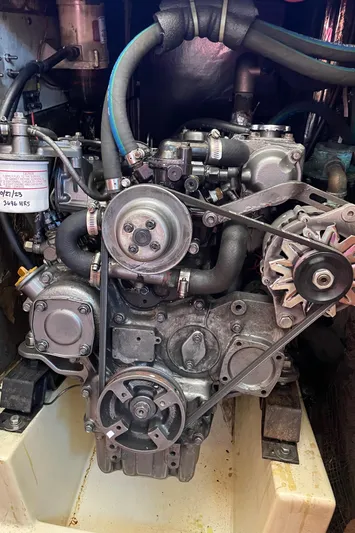

• Single Yanmar 4JH2E, 50hp, Freshwater-Cooled, Direct-Drive Diesel Engine
• Hours - 3709
• Engine Valves - Adjusted Oct 2023
• Engine Heat Exchanger-Serviced & Cleaned Oct 2023
• Engine -  Serviced Oct 2023
• Engine Raw Water Pump - NEW Oct 2023
• Engine Transmission Cooler - NEW Oct 2023
• Engine - 5 NEW Engine Hoses - Oct 2023
• Transmission - Osaka Kansaki Carl Hurth Model KBW20
•                       Reduction Ratio 2.62, 3.06 Revs
• Propeller Shaft - Stainless Steel 1.25"
• Propeller - Max Prop Classic 3-Blade - NEW May 2018
•                 Max Prop - Greased July 2023
•                 Max Prop Greased Every 2 Years
•                 Max Prop - NEW Zinc Nov 2023
•                 Max Prop Zinc Changed Every 6 Months
• RPM vs Knots - 2000rpm = 4 Knots
•                        2250 rpm = 5.85 Knots
•                        2500 rpm = 6.4 Knots
•                        2750 rpm = 6.85 Knots
•                        3000 rpm = 7.2 Knots
•                        3250 rpm = 7.5 Knots
•                        3700 rpm = 7.9 Knots = WOT

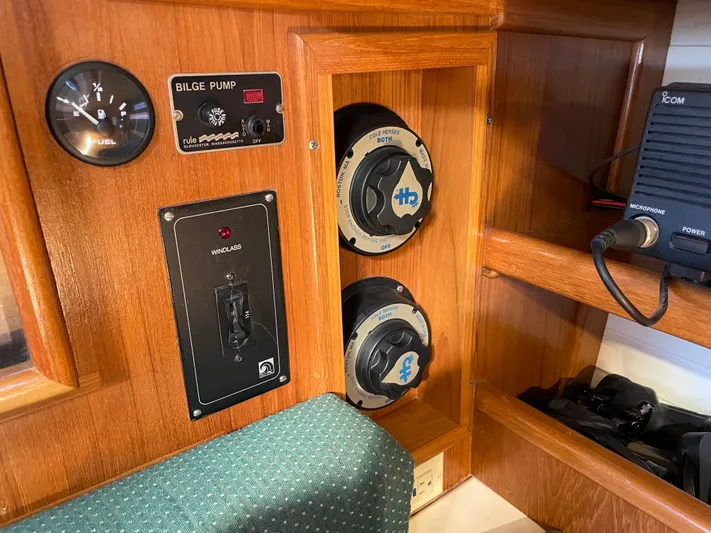

• Bilge Pumps - (1) 12Volt DC Auto/Manual
•                      (1) Manual in Cockpit
• Batteries - House (6) 6Volt Interstate Golf Cart, 600Amp Hour Batteries - NEW 2023

•                 Start (1) Interstate 12Volt Group 27- NEW 2023
• Battery Charger - Hearth Interface
• Inverter - Hearth Interface 2500 Watt
• Solar Panels - (2) Kyocera w/Solar Boost 2000e Controller - NEW 2009

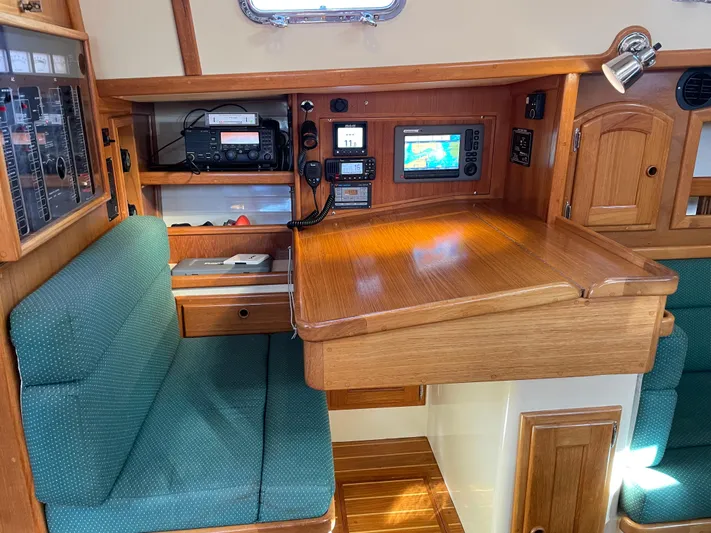

NAVIGATION & COMMUNICATION:

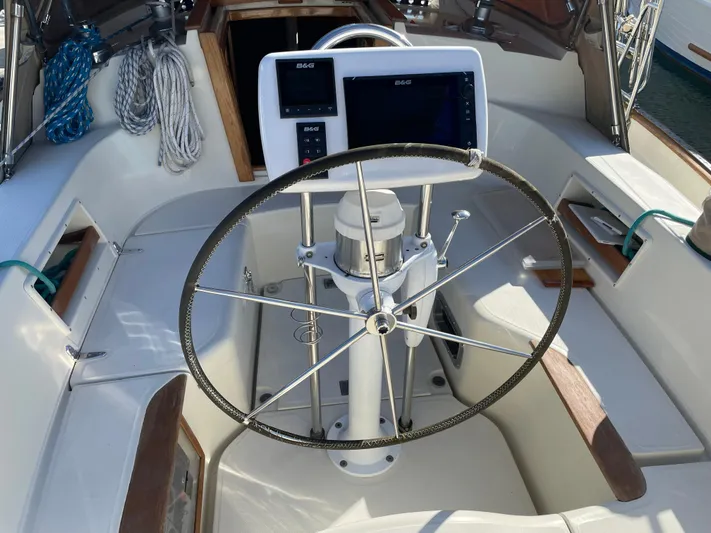

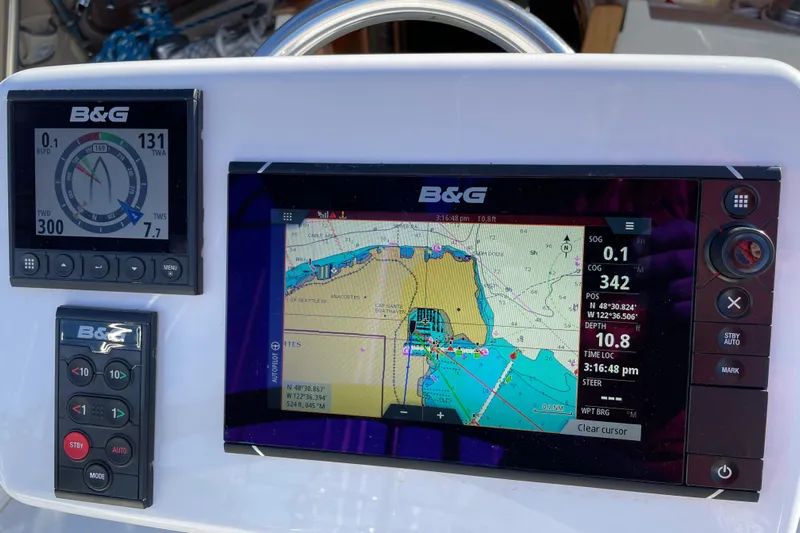

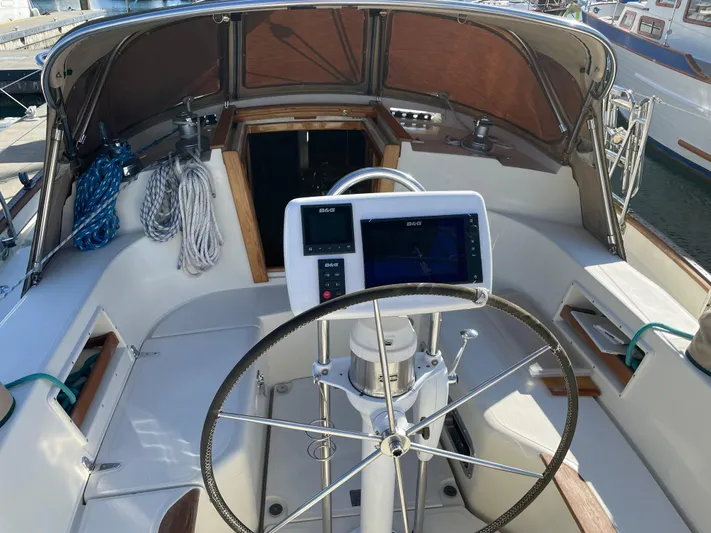

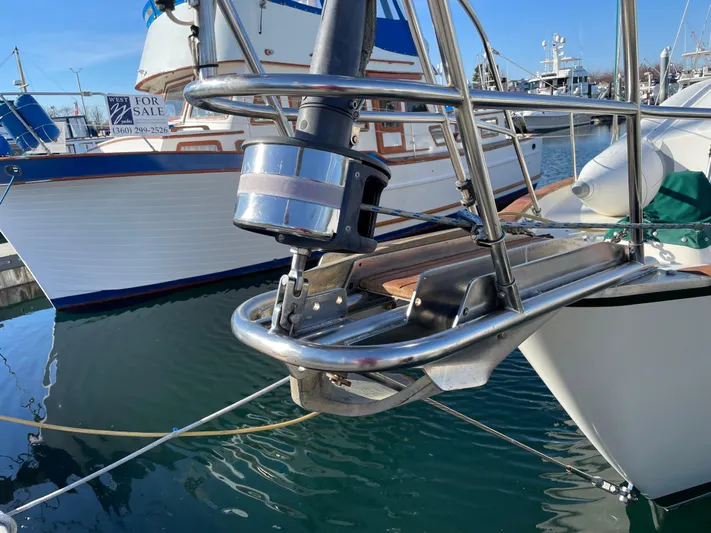

• Auto Pilot - B&G - Pedestal Mounted - NEW 2018
• Chartplotter - B&G - Pedestal Mounted - NEW 2018
• GPS - B&G - Pedestal  Mounted - NEW 2018
• Knotmeter - B&G - Pedestal Mounted - NEW 2018
• Wind Indicator - B&G - Pedestal Mounted - NEW 2018
• Network NAV Data Repeats to Nav Station Instruments

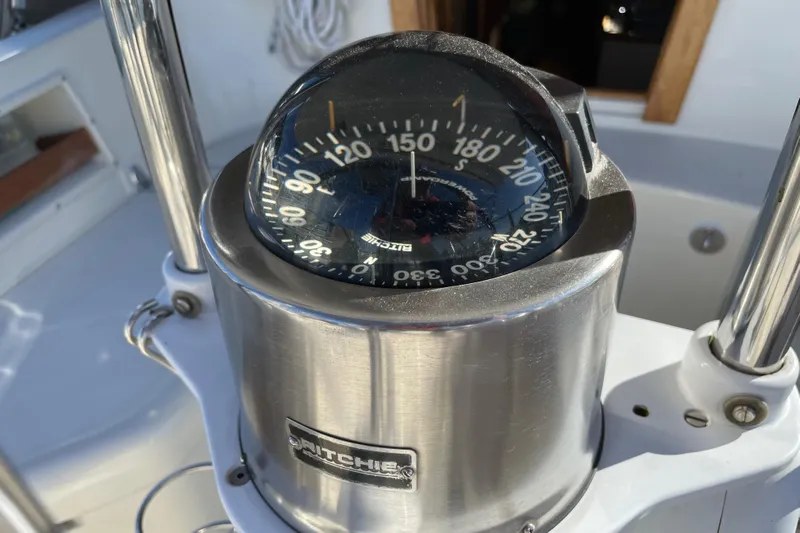

• Compass - Ritchie SP 5" Pedestal Mounted

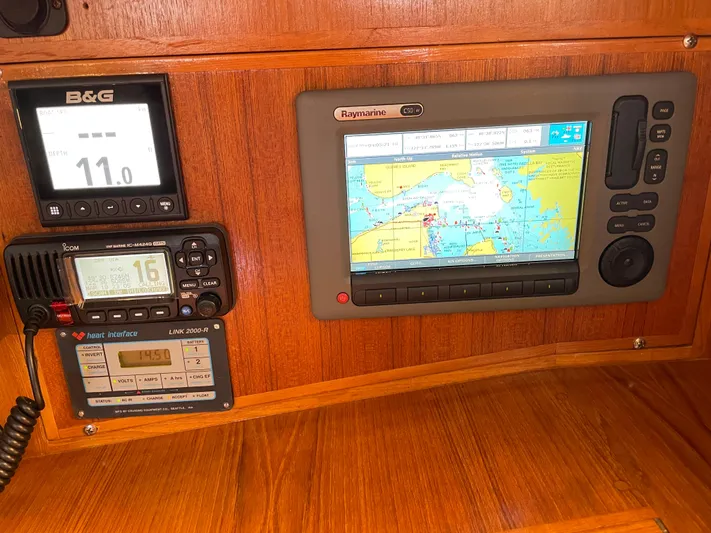

• Chart Plotter/Radar - Raymarine C90W & 18" 2kw Radar NEW 2010
• VHF - ICOM - NEW 2018

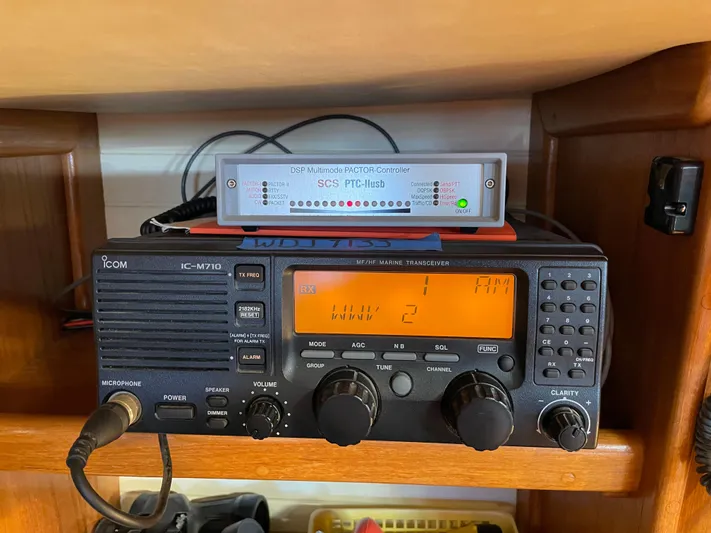

• SSB - ICOM 710

MAST / RIGGING / WINCHES / SAILS:

• Deck to Lower Spreaders - 15' 6"
• Deck to Upper Spreaders - 30'
• Deck to Masthead - 50'
• Forestay Luff - I=49.5
• Fore Triangle Foot - J=18.4
• Main Luff - P=44.25
• Main Foot - E=18.0
• Mast & Boom - Painted Aluminum
• Standing Rigging ALL NEW 2010 - Including Turnbuckles:

•         Shrouds - 1x19 Stainless Steel Wire
•         9/32" for all shrouds except Backstay & Forestay
•         Backstay & Forestay are 5/16"
• Running Rigging:
•         Main Halyard - 7/16"New England Ropes - NEW May 2009
•         Spare Halyard - 7/16" New England Ropes - NEW May 2009
•         Main Sheet - 1/2" Samson LS Yacht Braid - NEW June 2017
•         Traveler Lines - 7/16" Samson LS Yacht Braid - NEW June 2017
•         Jib Sheets - 1/2" Samson LS Yacht Braid - NEW June 2017

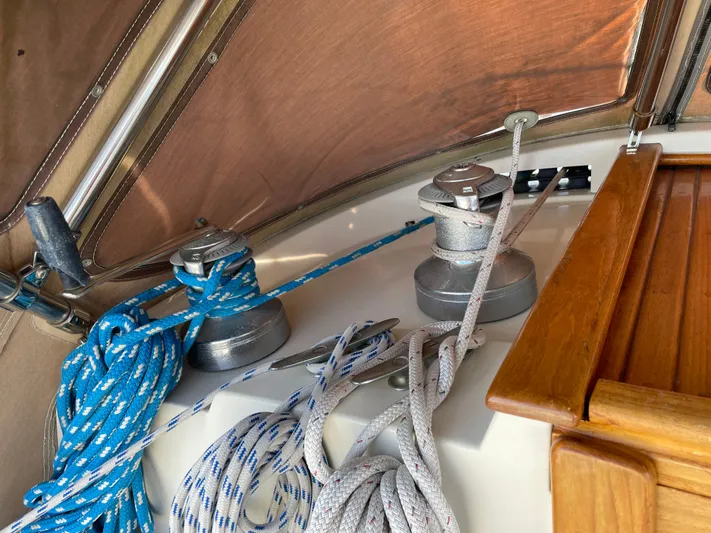

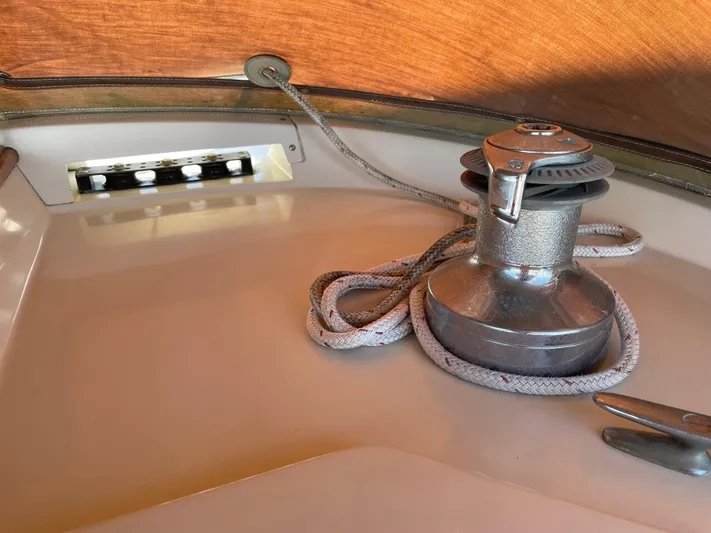

• Winches - All Lewmar Self-Tailing - 2-Speed Winches:
•                  (2) #54 Primary Sheet Winched in Cockpit
•                  (1) #44 Main Sheet Winch Under Dodger
•                  (2) #40 Stay Sail Sheet Winches Under Dodger
•                  (1) #40 Halyard Winch Starboard on Mast
•                  (1) #30 Halyard Winch Starboard on Mast
•                  (1) #30 Halyard Winch Port on Mast
•                  (1) #40 Reefing Winch Under Boom Aft on Mast

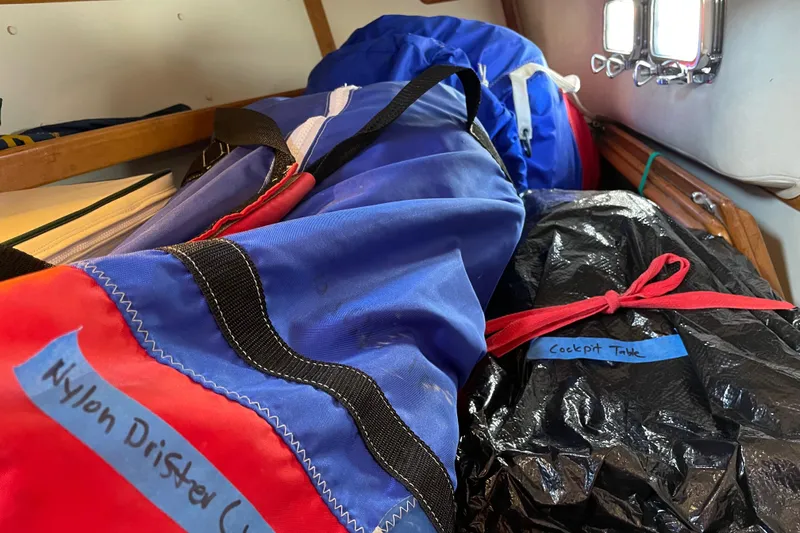

• Sails:
•         Mainsail - Quantum Fully Battened, 2-Reef Points NEW 2008
•         Foresail - Quantum 120% Roller-Furling GenoaJib NEW 2008

•         Staysail - Ullman

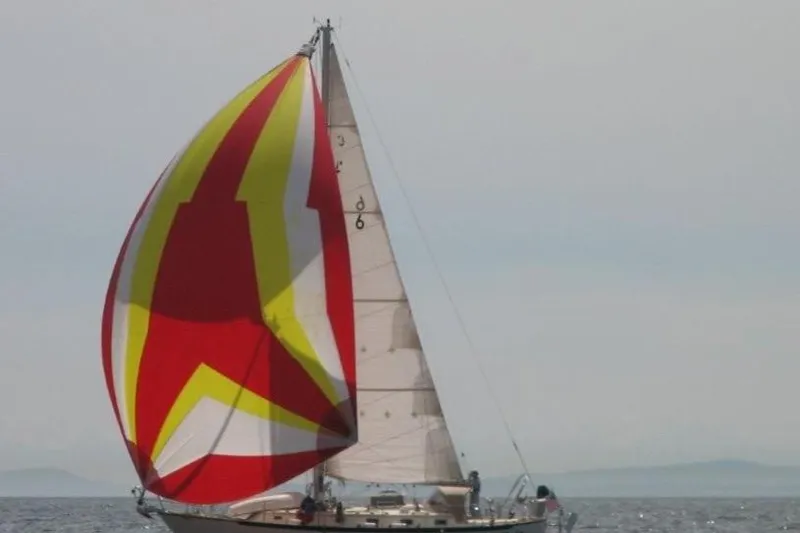

•         Spinnaker with Snuffer - Rarely Used - NEW 1996
•         Drifter - Nylon on Facnor Furler - NEW 2013
• Lazyjack System - Adjustable & Stowable
• Boomvang - Solid & Adjustable
• Running Backstays

GROUND TACKLE:

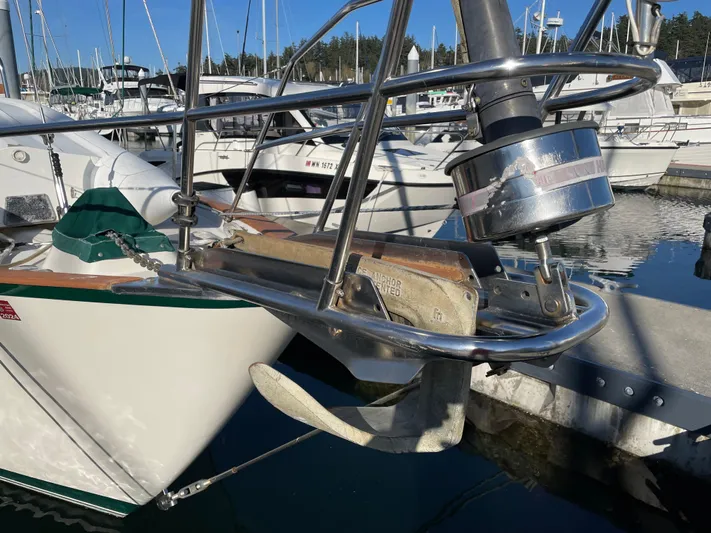

• Windlass - Muir 1200 VCR - NEW 2016
• Anchor - Bruce 44lb
• Chain - 300' 5/16" G7 High Test Chain - NEW 2016

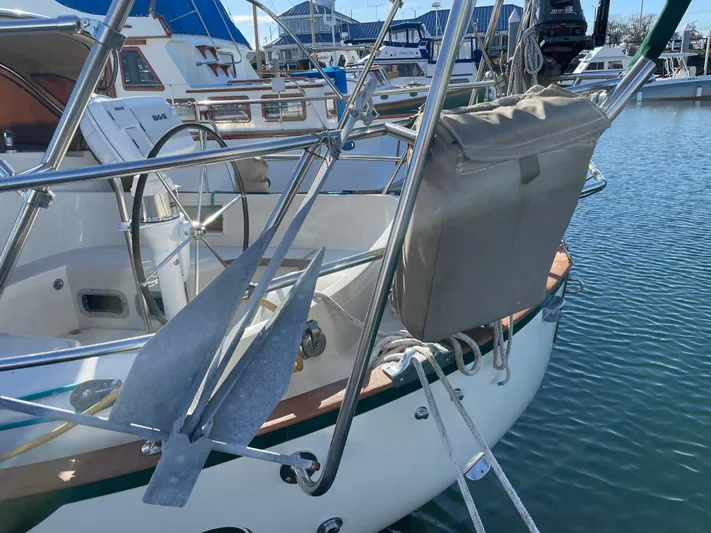

• 2nd Anchor - Danforth 20lb
• Chain - 30'
• Rode - 200' Nylon

SAFETY:

• Lifesling - Man Overboard
• Navigation Lights
• Boarding Ladder
• Lifesling - Pushpit Mounted
• Radar Reflector
• Switlick 6-Man Life Raft - Inspected & Repacked 2010

MISCELLANEOUS:

• Bottom Paint - 2 Coats West Marine CCP Ablative NEW July 2023
• Zincs - NEW July 2023
•            Zincs Changed Annually
• Tender - Mercury RIB - NEW 2010

• Tender Outboard - Yamaha 8hp - 1996
• Canvas - Mainsail & Boom Doyle Stack Cradle - NEW 2017

•               Cockpit Dodger
• Staging & Personal Items Removed at Time of Sale
