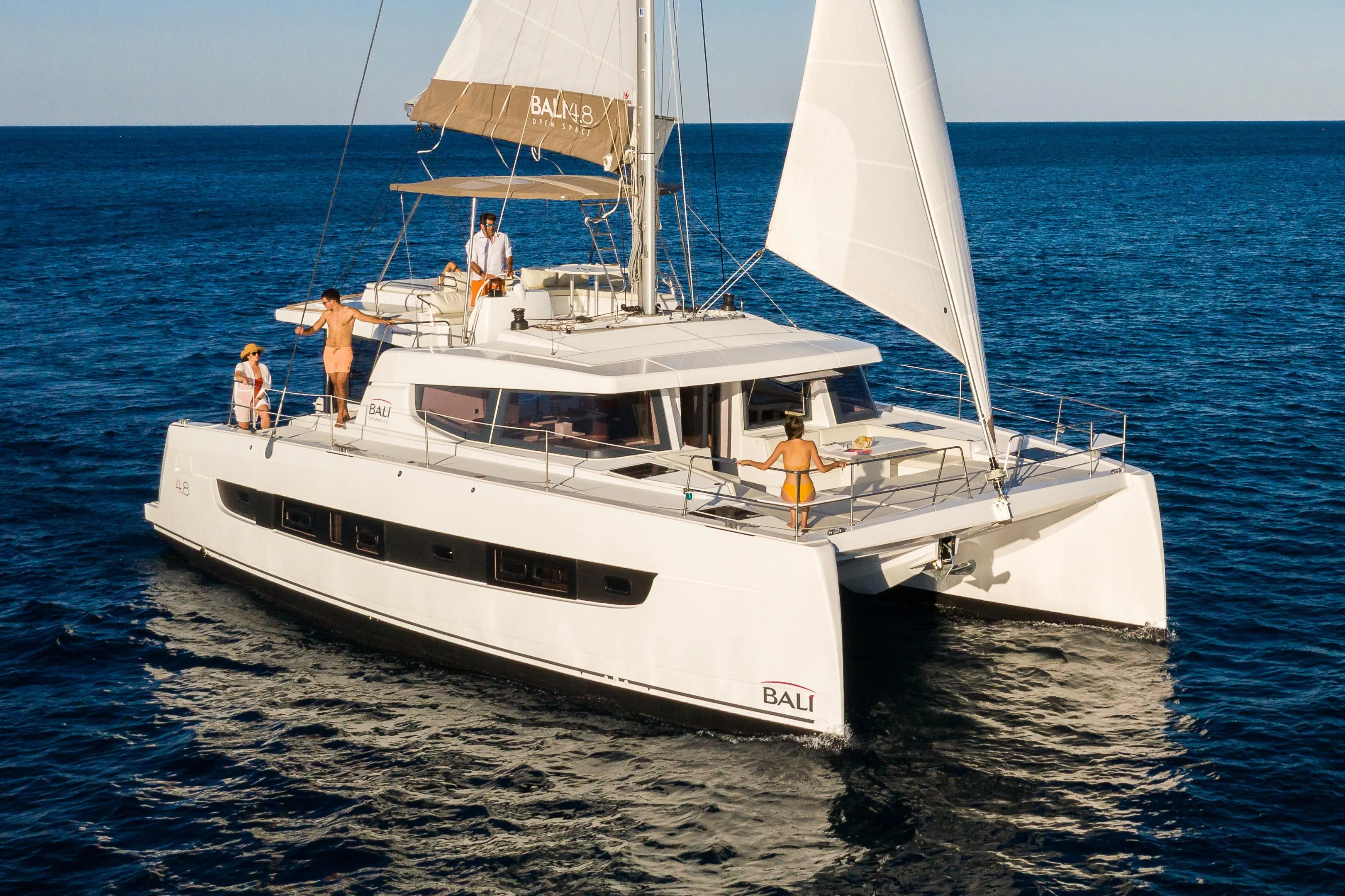

49 Bali 2022 Boat For Sale

SPECIFICATIONS Concept: Olivier Poncin Manufacturer: Chantier Catana Canet en Roussillon 66 France Architect: Xavier Faÿ Designer: Lasta Design Studio Length overall: 14.86 m (optional bowsprit) Hull length: 14.28 m Maximum beam: 7.88 m Draft: 1.35 m Light displacement: 15.3T Maximum displacement: 22 T Maximum sail area upwind: 173m² max Engines: 2 x 45 hp up to 57 hp Fuel: 600 + 400 L* Fresh water: 600 + 400 L* Refrigerator + Freezer: 615 L EC approval in progress: Cat. A 14 people

CONSTRUCTION Mold-built in three main sections with joint located at the keel junction. Anti-leeway plan provided by 2 profiled keels limiting drag. Platform and inner half-hulls built in one piece for maximum rigidity. Hull built in GRP-infused PVC Foam Sandwich, polyester resin. Anti-osmotic vinylester protection for underwater hull. Deck in GRP infused Foam Sandwich with monolithic / plywood reinforcements. Structural bulkheads made out of fiberglass and PVC foam. EXTERIOR Sails ▪ 81m² Fully battened Mainsail in Dacron with 3 reefs ▪ 47m² Self-tacking ”cross cut” Solent Jib in Dacron, on furler

Mast / Rigging ▪ Anodized aluminum mast, air-draught: 23.11 m ▪ LED anchor light ▪ LED steaming and deck light ▪ Outlets for main halyard, self-tacking solent halyard and topping lift ▪ Ball bearing mainsail luff cars ▪ Anodized aluminum boom ▪ Solent forestay ▪ Furler on forestay ▪ 2 Capshrouds in stranded stainless steel ▪ 2 lower shrouds in stranded stainless steel ▪ Articulated bowsprit

Running Rigging ▪ Mainsail halyard ▪ Mainsail sheeting system ▪ Self-tacking solent halyard ▪ Self-tacking solent sheet ▪ Solent furling line ▪ Boom topping lift Deck Fittings ▪ 1 electric winch for main halyard and solent furler control, mainsheet and reefing lines. ▪ 1 winch for reefing lines and solent sheets, & mainsheet ▪ 2 winches for gennaker, code zero or asymmetrical spinnaker sheets as option Mainsail: ▪ Double purchase for mainsheet ▪ 2 Stand up blocks ▪ 4 blocks on boom ▪ Triple-purchase sheeting system Self-tacking solent: ▪ 1 sheet track on coachroof top ▪ Sheet car on track ▪ Sheet block on solent ▪ Solent sheet ▪ 1 sheet jammer ▪ Furler control line - 10mm diameter ▪ Furler control line fairlead and jammer on deck-edge Anchoring ▪ 1700 W windlass vertical axis with cabled remote ▪ Optional extra windlass control at helmstation ▪ Stainless steel bow roller under platform for main anchor ▪ 2 padeyes for anchor bridle

Deck Equipment Deck Hatches: ▪ 2 plexiglas flush hatches for forepeaks ▪ 2 T60 flush hatches in forward cabins ▪ 2 GRP engine room hatches with gas struts ▪ 1 GRP hatch for lockers under forward cockpit seat with gas struts ▪ 1 polyester hood for anchor access ▪ 1 polyester hood for locker under sunbeds ▪ 2 escape hatches under the stairs down to cabins ▪ 2 escape hatches in aft cabins* (depending on version) Safety: ▪ Bulwarks and handrails ▪ Stainless steel handrails on front beam with 2 built-in seats ▪ Stainless steel handrail on aft beam ▪ 6 stainless steel stanchions ▪ Double guard wires in stainless steel ▪ 6 large-sized aluminum cleats with SS hull protections Forward Cockpit ▪ Large forward cockpit with wide lounge seats (with cushions*) and integrated storage ▪ Forward cockpit foldable table for 8 persons ▪ Direct access door to the cockpit ▪ LED courtesy lighting*

Flybridge & Helmstation ▪ Helmstation on starboard side ▪ Helmstation polyester seat (with cushions*) ▪ U shape bench with dining area(with cushions seats *) ▪ Optional bimini sunbathing area ▪ Composite 900 mm steering wheel ▪ Magnetic compass with correction, light and protection cover ▪ 2 balanced spade rudders with stainless steel shaft ▪ 1 emergency tiller ▪ Hydraulic steering transmission system ▪ Engine controls at helmstation with engines and alarms instruments ▪ Optional Raymarine multifunction display*, color chartplotter*, autopilot control display* ▪ LED lighting* Sugarscoops ▪ 1 stainless steel swim ladder on starboard transom ▪ 2 transom life lines ▪ Shower with pressurized fresh water hot/cold on the starboard transom ▪ 1 stainless deckplate for access to the emergency tiller in each sugarscoop ▪ 1 large mooring cleat on each sugarscoop ▪ Optional inboard cleat for stern spring lines ▪ Courtesy lighting*

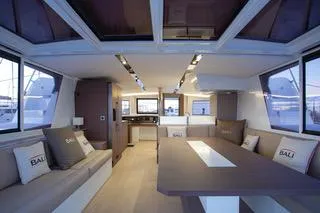

ACCOMMODATIONS – OPEN NACELLE Aft cockpit full open space ▪ Vinyl headlining in saloon ▪ Lounger/daybed to starboard with cushions ▪ Large storage space beneath port-side seats ▪ 12 people saloon dining table on stainless-steel legs ▪ Tilting forward windows for aeration with locking system in ventilation mode ▪ Tilting aft bay window with complete opening and access from the sliding door ▪ Lateral sliding windows Galley Galley to port, with large countertop: ▪ Numerous storage lockers, above and below ▪ Stainless steel 1.5 sinks ▪ Garbage cans 2 x 35L ▪ 615L combined refrigerator (402 L chilled + 213L freezer) with icemaker and chilled water dispenser ▪ Mixer Tap with ceramic seals for fresh and hot water ▪ 3-burner gas cooktop ▪ Gas oven* ▪ Space for dishwasher* Chart Table ▪ Storage and bookcase ▪ Stool with foam seat ▪ 12V electric panel ▪ Chart table flexible light ▪ Optional Raymarine electronic equipment: VHF and optional multifunctional display

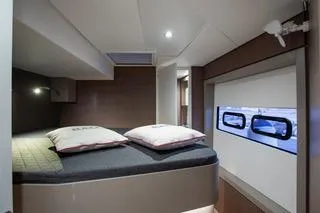

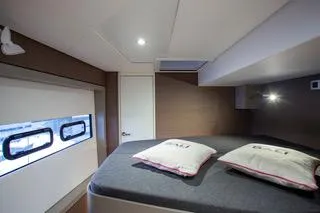

3-Cabin version Portside hull: Owner’s suite Aft cabin: ▪ Access via aft cockpit and saloon ▪ Vinyl and laminated headlinings ▪ Central island bed with 2 bedside tables ▪ High resiliency foam mattress (beige suede) ▪ Multiple storage 2 hanging lockers and 1 cupboard ▪ Dressing table / desk with seat ▪ Bathroom, comprising spacious shower, ceramic mixer tap (plexiglas separation), ▪ Unit with basin, mirror and fittings ▪ Ceramic mixer taps ▪ Hatch for light and ventilation ▪ Separate WC (optional electric fresh water) with hand basin Bathroom ▪ Heads compartment comprising shower, basin and sea toilet, mirror and cupboard ▪ Ceramic mixer taps ▪ Hatch for light and ventilation Starboard hull Aft cabin ▪ Access via aft cockpit and saloon ▪ Vinyl and laminated headlinings ▪ Central island bed with 2 bedside tables ▪ High resiliency foam mattress (beige suede) ▪ Multiple storage ▪ 1 hanging locker and 1 cupboard ▪ Bathroom, comprising spacious shower, ceramic mixer tap (plexiglas separation) ▪ Unit with basin, mirror and fittings ▪ Ceramic mixer taps ▪ Hatch for light and ventilation ▪ WC (optional electric fresh water) with hand basin

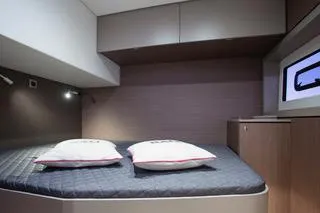

Forecabin: ▪ Access via aft cockpit and saloon ▪ Vinyl and laminated headlinings ▪ Central island bed with 2 bedside tables ▪ High resiliency foam mattress (beige suede) ▪ 1 drawer beneath the bunk* ▪ Multiple storage ▪ 1 hanging locker + dressing table/desk with seat ▪ Bathroom, comprising spacious shower, ceramic mixer tap (plexiglas separation), ▪ Unit with basin, mirror and fittings ▪ Ceramic mixer taps ▪ Hatch for light and ventilation ▪ Separate WC (optional electric fresh water) with hand basin

TECHNICAL EQUIPMENT Engine compartments ▪ Enginerooms totally separate from the accommodation ▪  Control panels at helmstation ▪ Engine controls at helmstation ▪ 2 Saildrive transmission systems ▪ 3 fixed blade propellers ▪ Optional 3-blade folding propellers ▪ 2 fuel filters / water separators ▪ Ceiling lights ▪ 2 Fuel tanks 400L and 600L with gauge displays at chart table, total capacity 1000L* Plumbing ▪ 2 fresh water tanks 600L + 400L with display gauges at chart table, total capacity 1000L* ▪ 2 Pressurized fresh water pumps with accumulator tank, drinking water circuit ▪ 2 x 60 L electrical water heaters connected to the engine cooling circuit ▪ 2 optional grey water tanks (2 x 120 L) with discharge pump and suction outlet on deck ▪ 55L Holding tanks, drain at sea or by deck outlet for all toilets ▪ Gas installation (EU appliance) under the cockpit seat for 13 kg tanks and location for spare gas cylinder ▪ 4 electrical bilge pumps ▪ 2 manual bilge pumps

Electricity Service Voltage: 12 VDC and 220 VAC / 50Hz ▪ 1 x 130Ah gel starter battery, with breaker and manual emergency cutoff* ▪ 4 x 130Ah gel batteries for service and starboard engine starting ▪ 2 extra house 130 Ah batteries* ▪ Low charge alarm buzzer for the service battery bank at chart table ▪ Electrical panel with magneto-thermal breaker ▪ 220 VAC wiring with waterproof shore power and 25m extension cord, AC outlet in each cabin, saloon and cockpit ▪ Indirect LED lighting saloon and cabins* ▪ LED navigation lights ▪ USB outlet at the chart table and in each cabin ▪ Charger / Inverter 12 V / 200 V 2000 VA / 80A

Electronic Raymarine : Pilote auto P70S, GPS plotter AXIOM 7" , MULTI I70S, VHF RAY 63 + VHF RAY MIC at steering station, AIS receiver transmitter, 12 '' full touch screen at steering station
