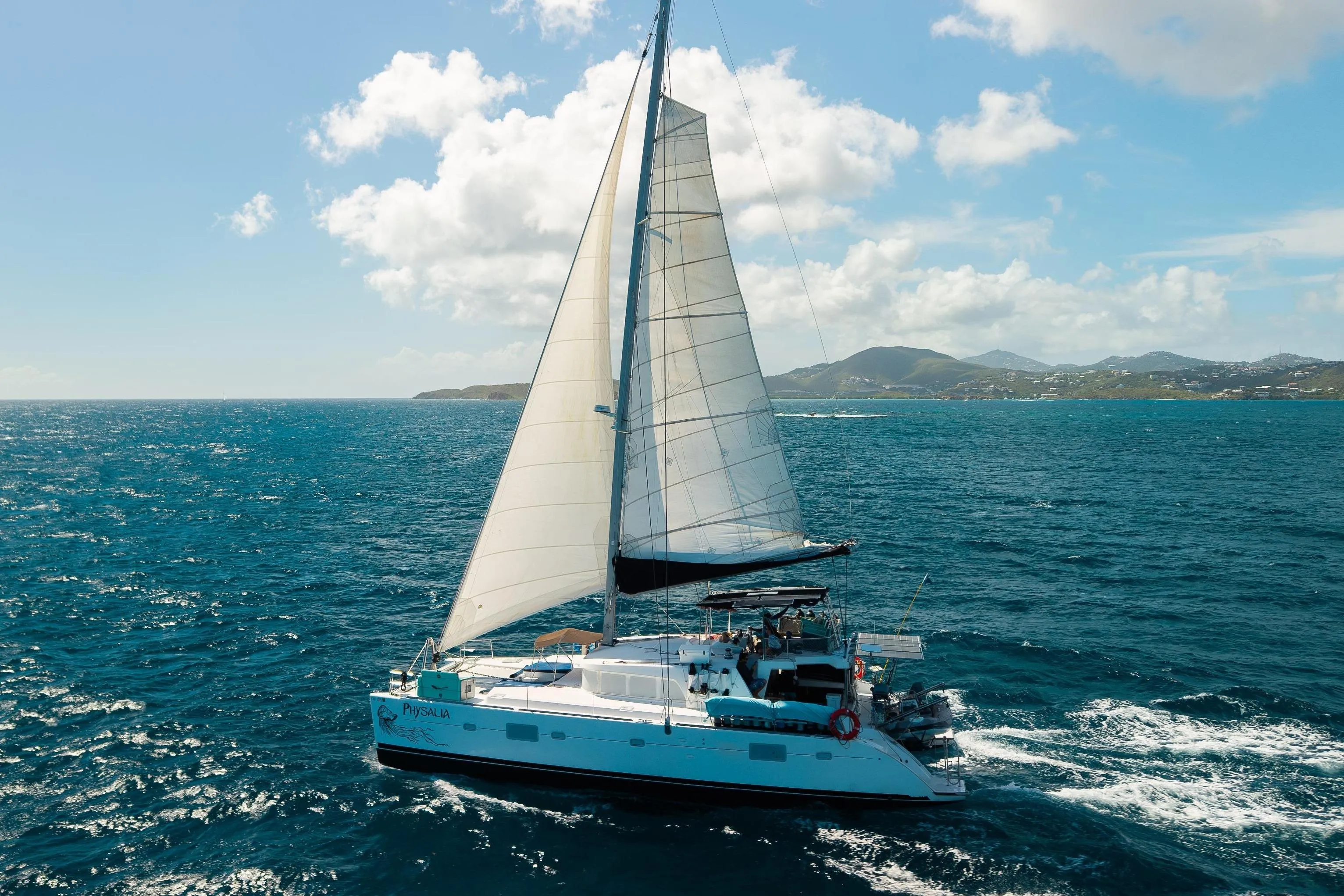

Yacht for Sale | 52 Lagoon Yachts Charlotte Amalie, US Virgin Islands

Cruising Speed: 7.5 kn
Maximum Speed: 8.5 kn
Beam: 28' 0''
Hull Material: Fiberglass
Max Draft: 4' 8''
Fuel Tank: 2 x 127|gallon
Fresh Water: 2 x 127|gallon
Holding: 1 x 178|gallon
Max Passengers: 12

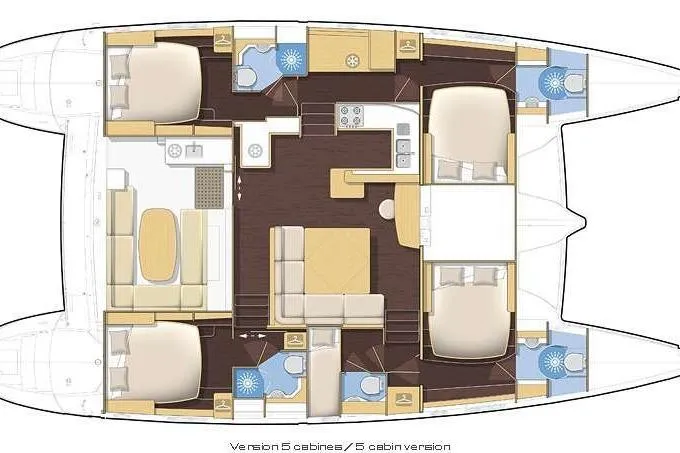

Cabins: 5
Heads: 4

Sugar Scoop Extensions

(2024) Professionally extended sugar scoops / transom extensions
Vessel LOA extended from factory 51’ to 52’+
Constructed with two longitudinal bulkheads subdividing the additional enclosed volume. Bulkheads and deck surfaces are constructed from fiberglass sandwiched ¾” Divinycell PVC foam

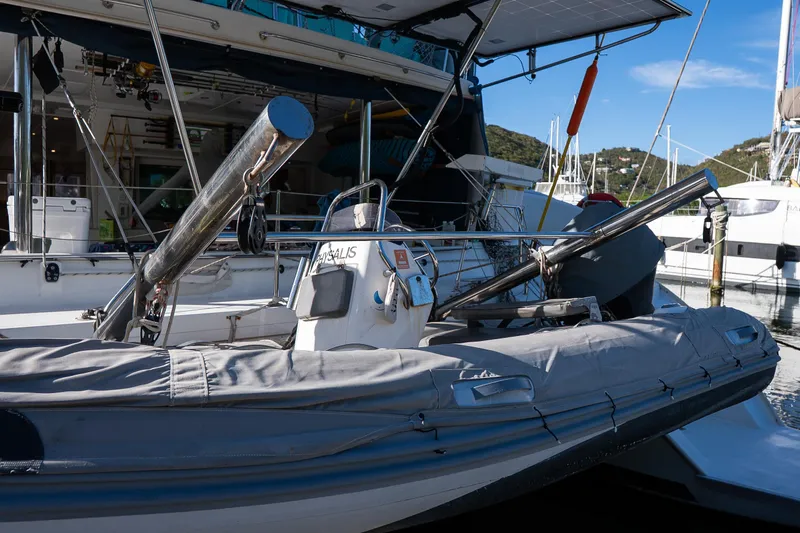

Platform massively improves dinghy access, scuba diving entry and exit, and mobility limited guest safety, safety underway, reduces pitching, improves vessel speed
Significantly improves ability to land large pelagic fish while trolling
Custom extra-wide stainless folding dive ladder with 40” tall hand rails so high that an adult with mobility issues or in full scuba dive gear can climb out of the water while staying fully-upright
Extension is trimmed in ¾ Grenadian teak

Custom Bimini

(2023) custom 16’ x 13’ stainless frame flying bridge bimini
Comfortably accommodates shaded seating for 10+ adults vs the factory bimini that shaded seating for 2-3 adults
Lightweight tubing frame design of around 120 lbs
A new stainless railing fully integrated with the bimini frame encloses the enormous aft space behind the original bridge deck seating area massively increasing the usable space for seating and storage as well as safety for children
Two ladders and horizontal load-bearing walking strips strong enough for two adults to safely access the boom and main-sail while standing on the bimini
black sunbrella bimini cloth with shock cord hook and webbing for easy 1-person removal or re-mount to mitigate wind storms
Centered perspex window for mainsail viewing and adjustment with a curtain
4 hammocks are hung and easily stowed for travel using the bimini frame and cover webbing

Anti-foul

(9/2025) Three coats of SeaHawk Biocop TF on hull
(9/2025) Three coast of Trilux over InterProtect 2000E on Saldrive legs and props
(9/2025) Three coast of Trilux over InterProtect 2000E on dinghy hull

Other

(2022) PVC coated trampoline netting

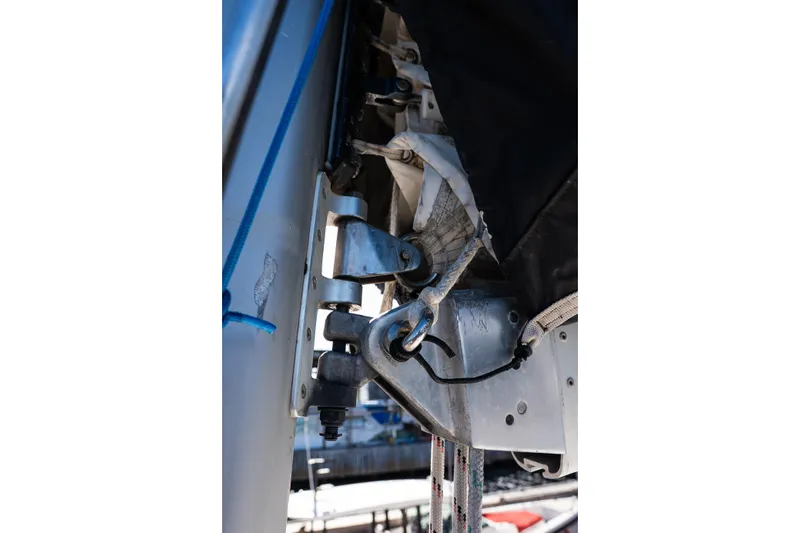

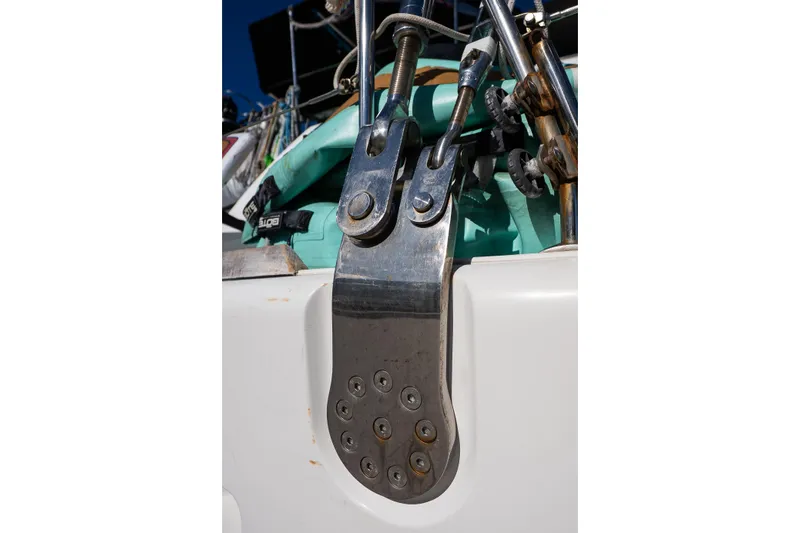

(Dec 2025) Upper and lower shrouds replaced
Forestay and diamonds

Solar

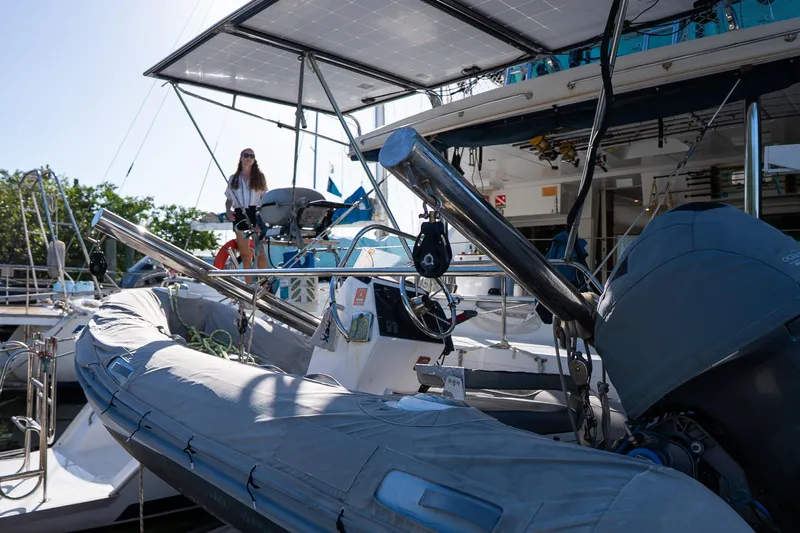

4x 330 watt panels on custom stainless solar arch aft
- Port side 2 panels in serial on Victron MPPT 100/50
- Starboard side 2 panels in serial on a second Victron MPPT 100/50
(2025) 6x 200 watt Renogy Flexible solar panels on removable harness over flying bridge bimini in a 2P3S configuration on Victron MPPT 150/100

House battery bank 2100ah @12v:

(New 2024) 7x 300AH 12v EPOCH UL-Listed LiFePO4 batteries in parallel for a total of 2100Ah.
All batteries individually fused and wired in parallel on 1000A BlueSea stainless bus bars
This is enough enough capacity to air condition any 2-3 cabins for an entire night without running the generator
Remaining physical space for an additional 600-900AH upgrade in the battery bay with matching cells and capacity on busbar
Battery wiring meets or exceeds ABYC specs using tinned marine grade wire

Inverters and Chargers

(2024) 3x Victron Multiplus 12/3000/120 inverter/chargers in parallel, (total 9000w inverter)
- This is enough inverter capacity to air condition the entire boat at once or run the water maker or scuba compressor alongside typical daytime loads including 1-2 AC units, etc
- Inverter/Chargers are individually wired on oversized 4/0 tinned cables with remaining head room for later upgrades
- Inverter/Chargers have individual 300A T-Class fuses and 300A BlueSea Disconnect switches
- Parts included to upgrade system with a Cerbo integrated generator auto start/stop function
- The power distribution splits into 2 sub-panels allowing “comfort” loads to be selectively switched from inverter OR auto-disconnect in case of shower power loss
(2025) 4x 50A DC-DC Victron Orion XS smart chargers, 2x (100A) per engine to take advantage of the 120A alternators for safely charging the house LiFePO4 bank
- This is enough generating capacity to run multiple AC units off of engines alone, great for passage making in shifts
(2023) 30A Victron DC-DC smart charger on 40A generator alternator for additional house charging

Air Conditioning:

(2025) 3x new Webasto 5k BTU ACs in Aft Stbd, Aft Port, and Bunk Bed Cabins
(2024) 2x new 10k BTU CitiMarine ACs in Fwd Stbd and Fwd Port Cabins
(2023) 1x 16k BTU CitiMarine AC in Salon

Comfort systems:

Victron Cerbo GX with touch screen for system monitoring and remote control
Victron Smart Shunt 1000A DC (new 2024) (oversized shunt allows for future increased solar and battery capacity)
Starlink Gen-2 wired for 12v converted draws only 50 watts w/ continuous with type-N router
YoLink smart wifi integrated monitoring system tracking temp in each fridge and freezer, 3 smart smoke detectors, and smart leak detectors in all bilge and engine spaces
Vivosun variable speed wifi programmable temp and humidity controlled 210 CFM continuous duty ducted ventilation fans in generator and electrical bays
(2022) All recessed lights (about 70) upgraded to LED throughout the vessel

Stereo: (2024) Garmin Fusion MS-RA770 with 4 independent zones (3 used) including 8 Fusion marine speakers and 3 mounted volume/track/pause zone remote controls
- (2024) Pioneer 1000 watt amplifier for fwd Fusion Zone 3 speakers
- (2024) 26-inch ViewSonic smart TV in master cabin

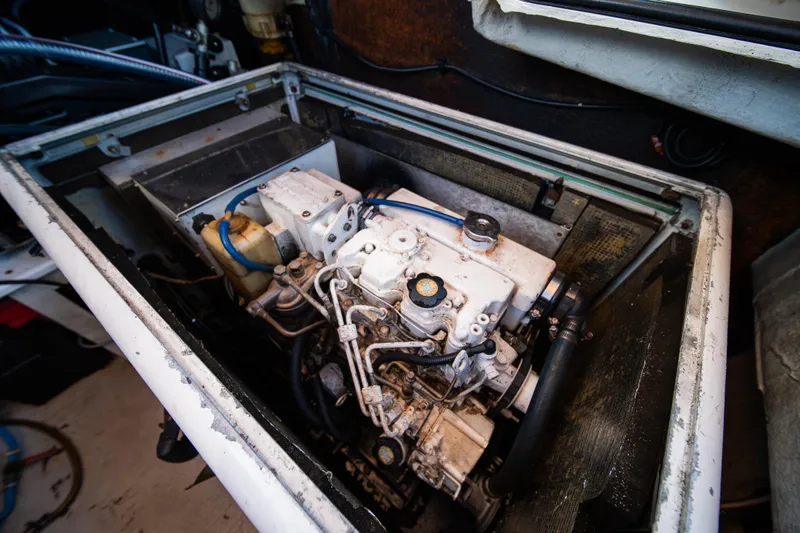

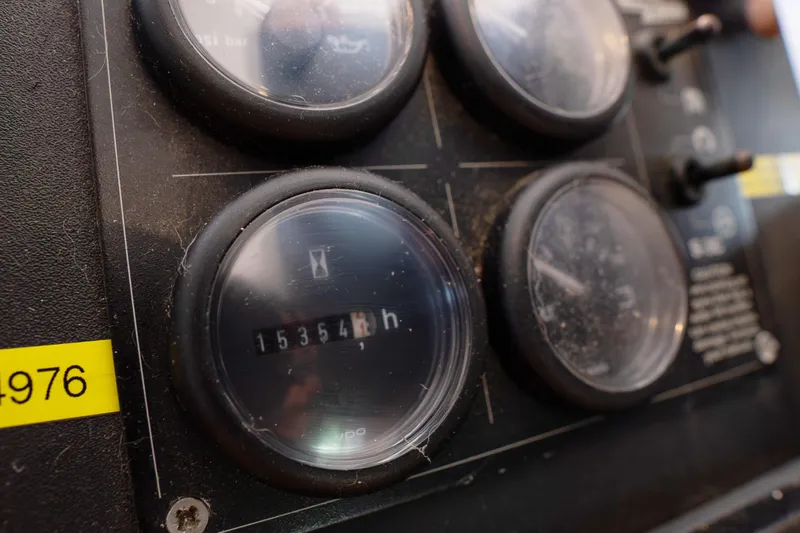

8KW Northern Lights M753W2 60hz single phase 110V AC generator with 15,000 hours
(2022) the generator was taken-out major service
- Clean and paint
- Custom stainless frame / tray
- Stainless exhaust elbow
- New OEM voltage regulator
- All mechanical injection and relay logic for easy of maintenance and reliability
Pairs perfectly with the 3x parallel multiplus chargers for rapid charging of the huge battery bank (2100ah LiFePo4 @12v) at 300+ amps with Victron Power Assist allowing for episodic large house loads all while keeping the generator at peak thermal efficiency of 6KW
Electric generator raw water lift pump, virtually maintenance free: Little Giant raw water lift pump replaces need for impeller
- Same Little Giant pump is used for water maker raw water supply
- Same Little Giant pump is also used for the Port and Starboard Air Con

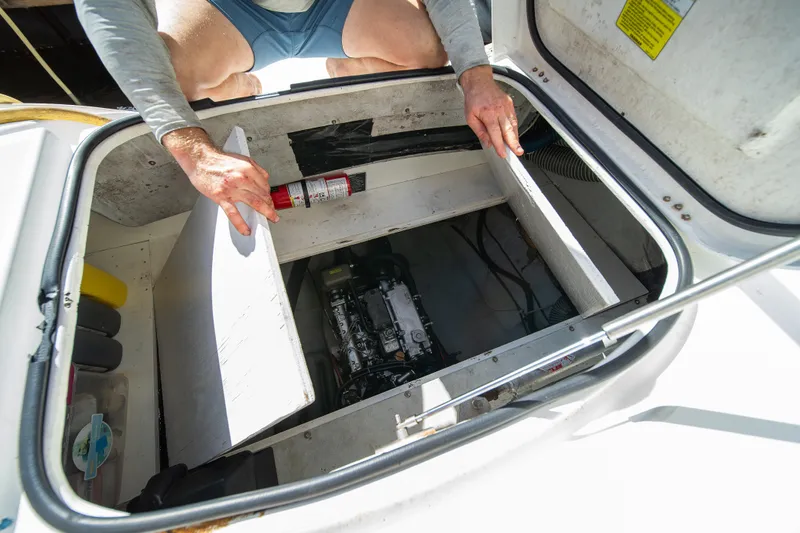

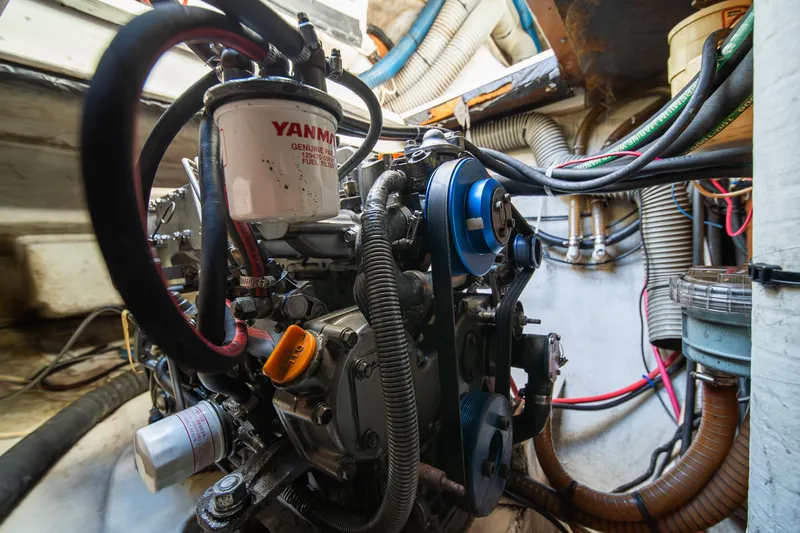

New 2026 50 Hours Yanmar 4JH57 57hp common-rail injection diesel engine on port side with 125A alternator with B25 control panel to match Starboard
Original Yanmar 4JH4E 53hp mechanical injection diesel on Starboard side with 125A alternator around 7500 hours (original Yanmar panel upgraded to B20. In 2025 meticulous preventative service/ partial rebuild. Head and valves fully rebuilt, cylinders deglazed, injectors rebuilt, injection pump rebuilt, coolant lines flushed
New 2025 throttle and transmission control cables replaced on both propulsion engines
Yanmar SD-60 sail drives for both port and starboard side:
- (8/2025) replaced output propeller shafts for port and starboard
- (8/2025) replaced output shaft lip seals port and starboard
- (2023) replaced port side clutches
2x 3 fixed blade Aluminum props.
Custom flush fiberglass boot covers for cleaner water flow along hull

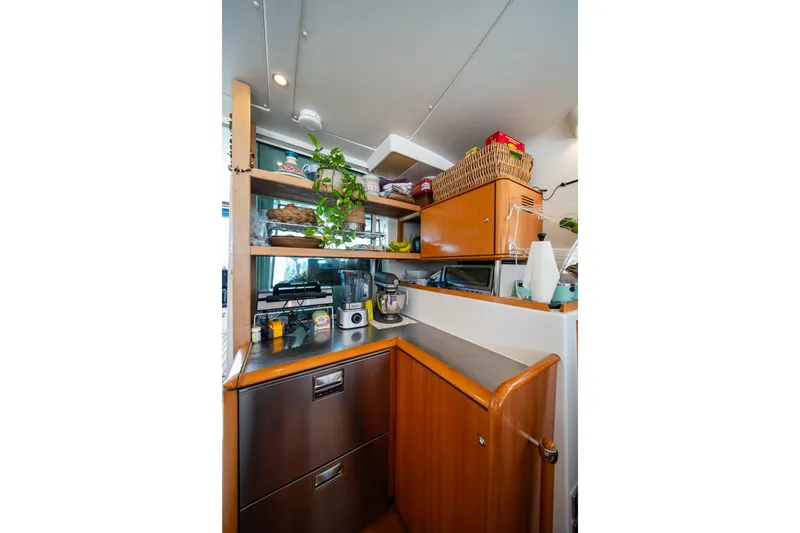

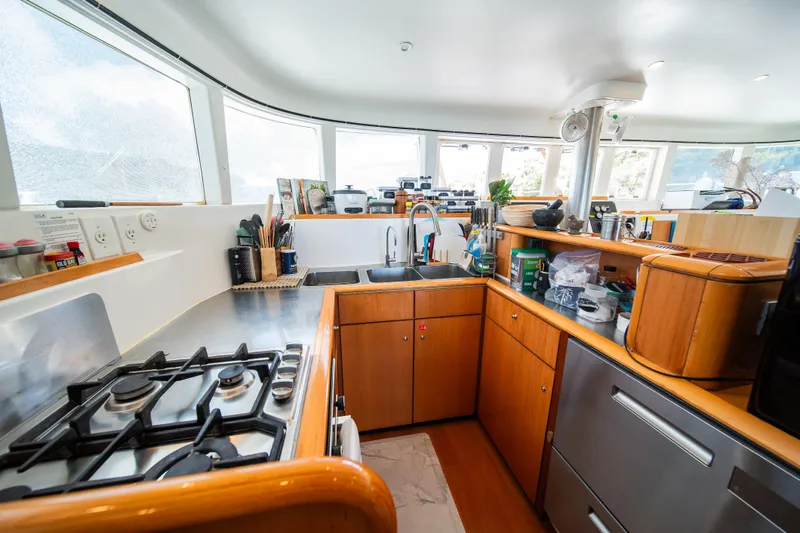

Galley

(2025) GE Profile Double Dish Drawer PDD415PYYFS split dishwasher allows running two independent loads simultaneously, perfect for variable sized groups aboard
(2024) Microwave
(2023) Modular wine rack for secure storage of 36+ bottles
Stainless galley countertops
Additional custom galley shelving for prep, pantry, and master cabin spaces
(2025) Weber Q3200 grill
4 Burner gas range
Gasland Chef convention oven

Refrigeration

Multiple units allow for efficient and scalable fresh food and drink storage for small or large groups, this is approximately double the typical lagoon factory spec for this size vessel
~10ft^3 dedicated freezer, ~12ft^3 dedicated fridge, 5.3ft^3 convertible fridge/freeze
Two built in dual voltage 4.6 cu. ft. Dometic Freezers in port-side companionway
Dometic DC refrigerator 5 cu ft in port-side companionway
Dometic DC refrigerator 4 cu ft in cockpit
(2024) One 2-drawer fridge/freezer VIT DRW180AIXD4-DF (2 yrs old)
One Additional non-marine under-counter fridge
100 lb/day Commercial Ice maker in Cockpit

Cabin notes

Bunk bed cabin head converted to storage / laundry / dive locker
- Head removed / replaced with top-loading washing machine
- Closet rods added for hanging BCDs and laundry
- BCDs and regulators can be fresh water water rinsed and hung inside the head significantly improving the longevity and function of the dive gear vs the typical practice of stashing them in the bow lockers
- Power dying effectively and efficiently accomplished using dehumidifier with damp clothing and dive gear hung up
- Easy re-configured into adult size single bunk beds
- Separate 5k BTU air conditioner can be ducted to either bunk bed space or salon or split between both

Heads and Plumbing

(2025) 4x New Jabsco Quiet-Flush electric heads with external Jabsco raw water pumps
(2024) 4x Commoderizer inline raw water continuous chlorinating / descaling systems keep the heads smelling perfect and the lines clean
(2024) 4x New Jabsco diaphragm shower pumps

Propane

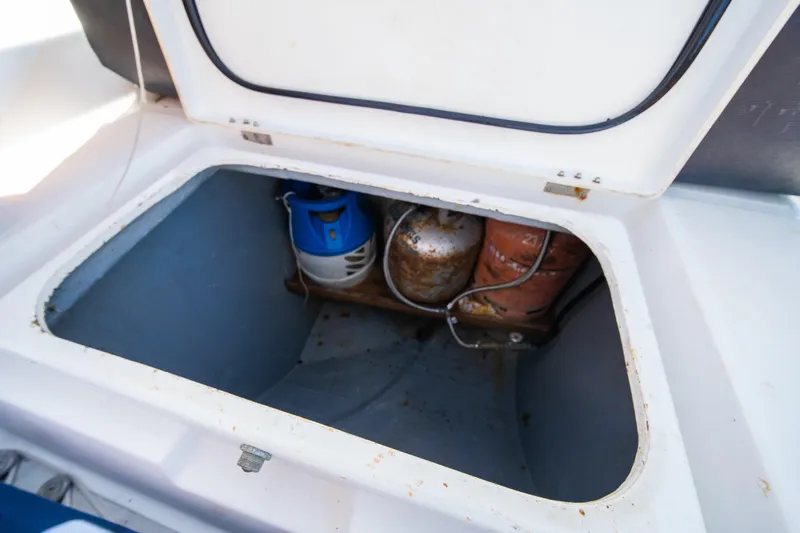

Tank locker relocated from factory location inside generator space to the fwd-stbd lazarette, new shelf installed in lazarette holds 3x 20lb tanks, space ventilated per ABYC
Propane galley controled solenoid and auto-shutoff
7kg composite tank for grill

Scuba

YachtPro 65 110v continuous Duty scuba compressor with ~50 hours
8-Tank rack on aft port stanchions and 8x custom fin and mask pockets allows for fast and organized gear stowage
30’ extended remote fill hose with 4 tank fill manifold and gauge allows in-situ tank fills at the tank rack
4 Aluminum 80ft^3 Dive Tanks
4 BCDs (2lg/2sm) and dive belts
Assorted snorkel gear

- (2024) 4 Bote Aero XL lounge chairs on the flying bridge
