54 Azimut 2016 Boat For Sale

• Raymarine Platinum Package:
  • Bridge Helm:
    • Chartplotter/MFD: GS165
    • VHF: Ray 260 handset and speaker
    • Autopilot control: P700R
    • Data display: I70
    • SD card reader: RCR-2
    • MFD Remote control RMK-9
  • Salon Helm:
    • Chartplotter/MFD: GS165 (2x)
    • VHF: Ray 260 handset and speaker
    • Autopilot control: P700R
    • Data display: I70
    • SD card reader: RCR-2 (2x)
    • MFD Remote control RMK-9
  • Network:
    • Radar: SHD 4kW 48” Color open array
    • Downvision transducer: CPT-120
    • Transducer: DST 800
    • VHF: Ray 260 module
    • Autopilot module: ACU-300
• Additional Seakeeper control on fly
• Barbecue on fly bridge
• Americanization Package Includes:
  • Shore water connection
  • Side boarding gates
  • Upgraded 20kW generator
  • Electric searchlight
  • Dimmer lights through interior
  • 50A fail safe galvanic isolator
• AV Package
  • Network
    • KVH HD7 Dome and Dummy Dome
    • Fusion to Raymarine integration
    • Unbroken Power Supply (UPS) units for seamless AC power switching
  • Salon
    • Samsung LED TV – 46”
    • High-low mount
    • DirecTV receiver
    • BluRay player
    • Bose V35
  • Master
    • Samsung LED TV – 40” with locking, custom swivel mount
    • DirecTV Receiver
    • Bose Cinemate w/Sound Bar
  • VIP
    • Samsung LED TV – 32”
    • DirecTV Receiver
  • Guest
    • Samsung LED TV – 22”
    • DirecTV Receiver
  • Flybridge
    • Fusion Stereo with universal docking station
    • 4x speakers
    • Bluetooth module
  • Cockpit
    • 2x speakers
    • Fusion remote
• Cockpit chairs – 2x
• Cockpit table
• Crew cabin with air conditioning
• De luxe Salon door curtain sliding on rails
• C-shape Sofa/Bed in salon
• High low TV system in salon
• Icemaker in salon
• Mosquito nets for portholes
• Glendenning cable master
• Refrigerator in cockpit
• Refrigerator on flybridge
• Safe in master cabin
• Salon pouf with table
• Seakeeper Stabilizer
• Upgraded generator
• Set of linens
• Set of linens – crew cabin
• Set of linens – sofa bed in salon
• Sofa/bed in salon
• Sunbathing cushions on aft flybridge
• Sunbathing cushions on bow
• Teak on flybridge deck
• Teak on side decks
• Two floodlights installed on aft flybridge
• Washer-dryer combo unit
• Wooden floor in salon, dinette, and helm station
• Advanced Pack
  • Double Racor filters to main engines
  • Joystick control foe engines and thrusters
  • Spare conduits connecting engine room/wheelhouse/radar arch
  • Water maker predisposition
  • Electric mooring winches in cockpit
  • Openable scenic windows in VIP cabin
  • Additional searchlight control at lower helm
  • Décor exclusive
  • Miele appliances (microwave combo and cooktop)
  • Chain counter at main helm
• Décor upgrading
• Bow storage increased
• Full set of covers

The structural design of the keel has been RINA approved. This implies a further guarantee of the structure’s quality; This is also guaranteed by the use of state-of-the-art techniques and the materials used. Construction materials and techniques have been the subject of research aimed at optimizing the balance between quality, weight and stiffness. Hull, deck, trays and structures are made of sandwich panel with PVC high performance core in order to achieve maximum rigidity and impact resistance. An infusion lamination system has been adopted for these parts, a technique that reduces weight while improving the control and quality of the construction. VINYLESTER RESIN is used for the lamination of the entire hull. This type of resin is extremely effective in preventing osmosis because of its chemical and mechanical properties. Therefore, Azimut is able to provide a 5-year warranty against osmosis. Isophthalic resin of recognized quality is used throughout the remainder of the lamination process. The structural bulkheads are made of sandwich with PVC core. The design concepts are at the cutting edge making the most of the performance offered by new materials and techniques: for example, transforming the interior flooring (trays) into a structural element, part of the traditional structure comprised of floor plates and longitudinal members has been eliminated, thereby among others increasing the volume available for the furniture, without sacrificing strength and rigidity and reducing weight. One of the key elements of this transformation was the use of next generation structural adhesives. The gluing technique and structural concepts that derived have been verified with a finished element analysis model. This calculation system, usually used in the aeronautical and automotive industries, simulates the behavior of the boat when it is subjected to the most severe conditions and verifies the structure in every detail. The uprights of the superstructure have been reinforced with carbon fiber to increase stiffness and reduce weight. The planning of the keel has a deadrise angle of 12° astern and 21° midships.

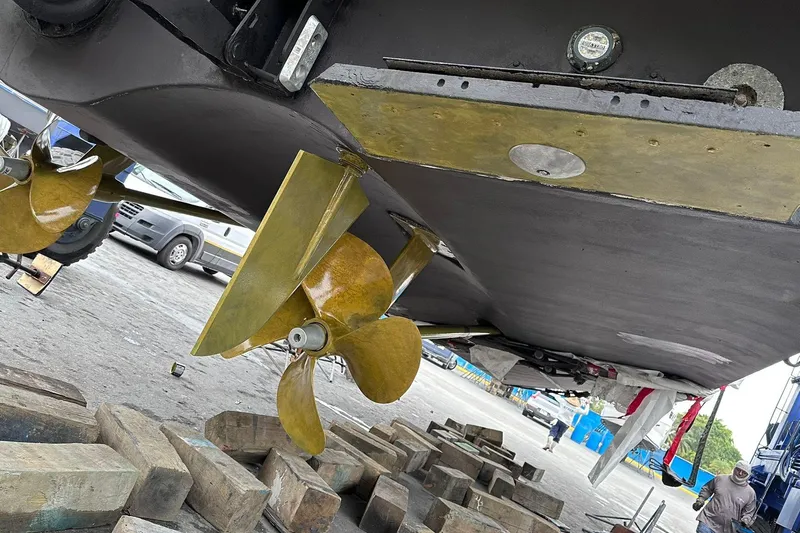

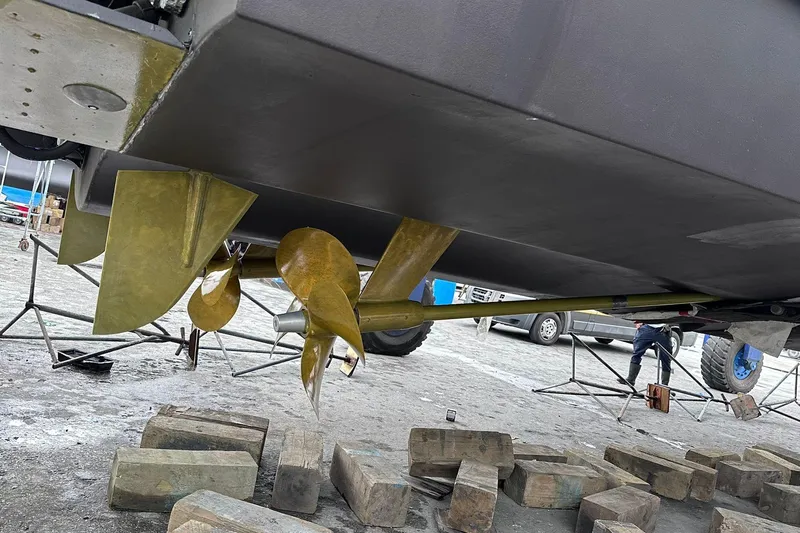

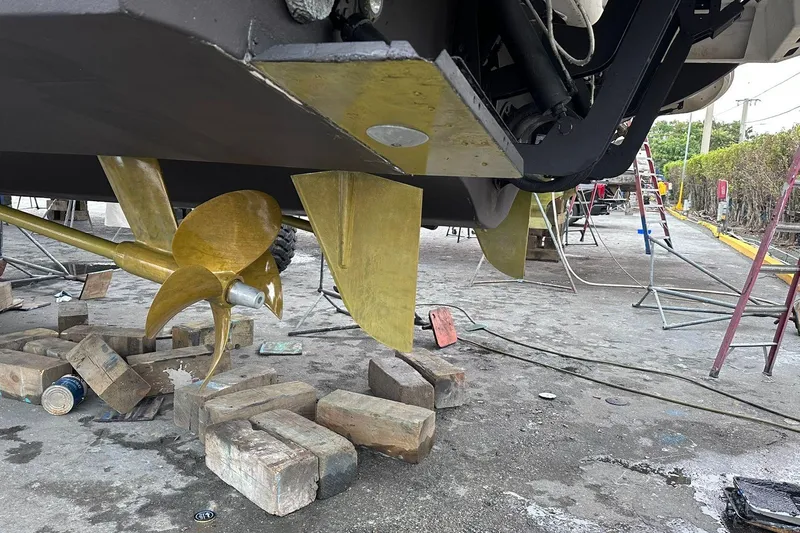

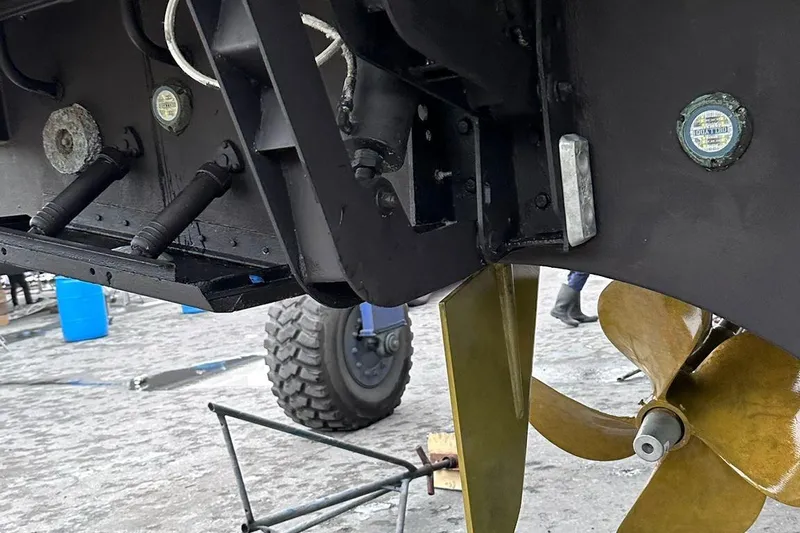

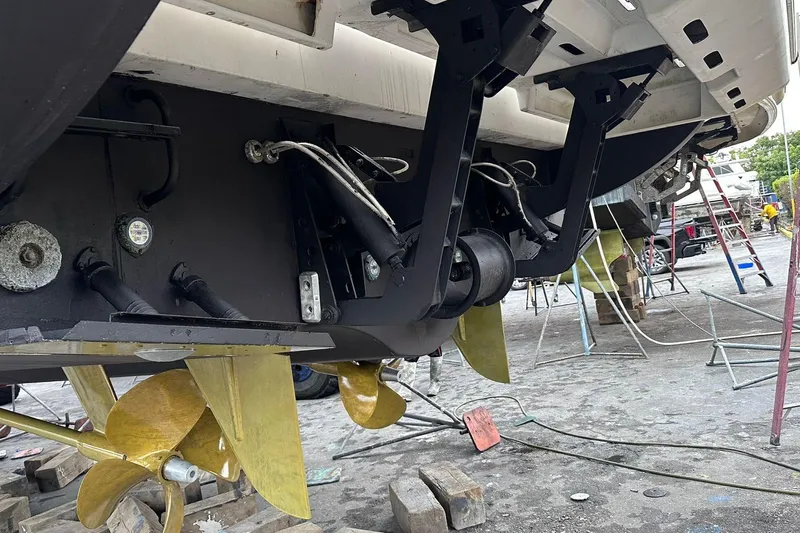

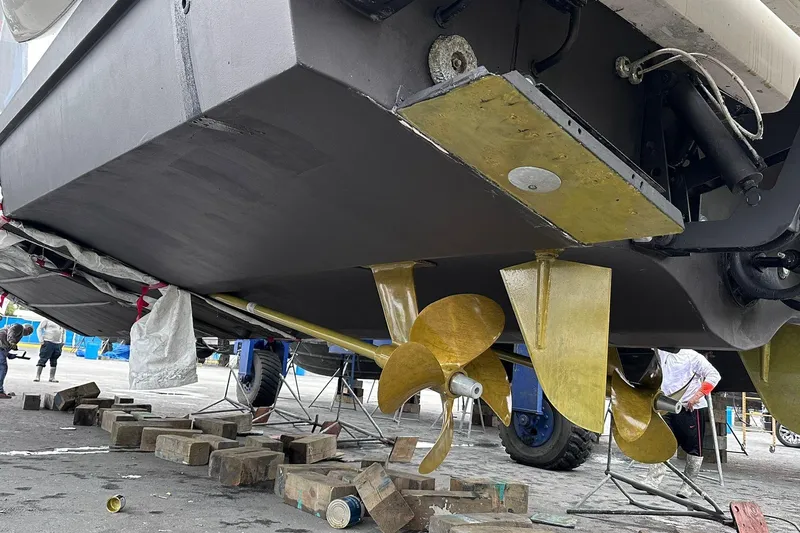

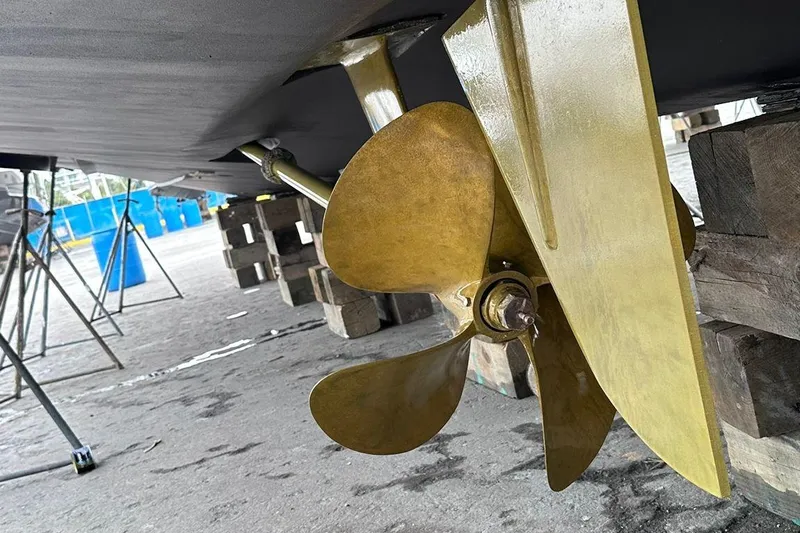

Rudders:

• Round profile rudder (Material: NAB alloy)
• Hydraulic power assisted steering gear - Adjustable steering wheel

Bow Thruster:

• Side power D. 250 24V 6.5 kW bow thruster (wheelhouse control)

Flybridge:

• The large flybridge is accessible from the outside only (cockpit stairs; port side)
• GRP cockpit stairs with 6 steps
• External steps flooring: teak
• Flooring: non-slip
• Access door: watertight in aluminum and plexiglass
• Smoked plexiglass windshield with stainless steel and aluminum frame
• GRP roll bar and mirror crystal insert
• Handrail NMMA compliant stainless steel (tube 30 X 1.5 mm) (stern fly handrail, fly access protection handrail, Fly Railing, mobile fly handrail)
• Bow sundeck

Steering Helm

• Bench with manual system for seat leaf and adjustable height
• Adjustable steering wheel (4-spoked steering wheel white painted)
• L-shaped sofa connected to sundeck
• Teak table with central stainless steel leg
• 1 bow locker (in front of the instrument board)
• Garbage bin in the fly cabinet
• Basin with cold water only
• Hella 24V manual spotlight
• Stainless steel light mast
• 2 Loudspeakers connected to the saloon radio
• The wheelhouse includes:
• Main engine instruments (thermometer, rev counter)
• Alarms indicator lights
• Engine startup controls
• Bow anchor winch commands
• Horn command
• Trim tabs control
• Bow thruster control
• Activation of adjustable spot
• Cigarette lighter type 12v socket (STD)
• Chain meter counter

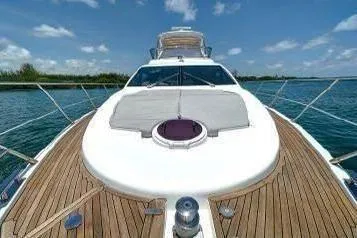

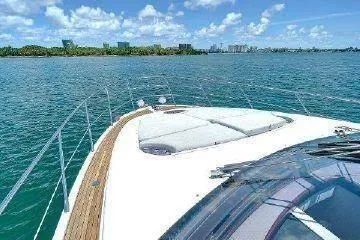

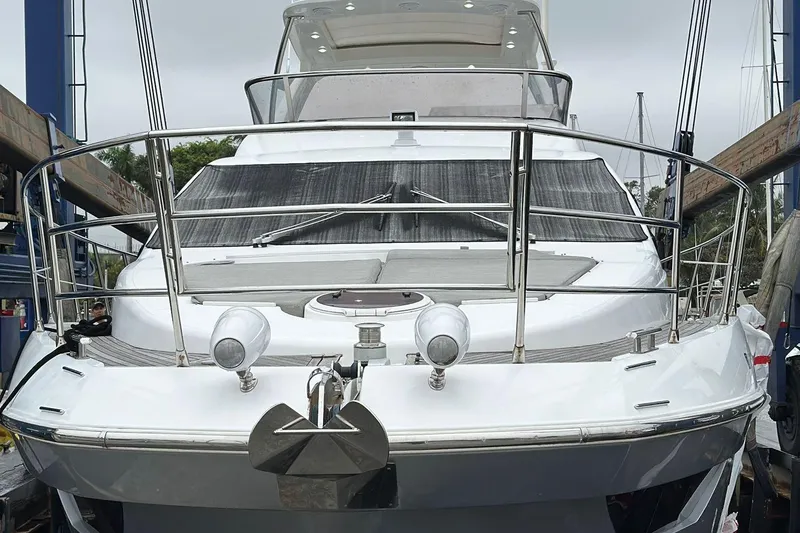

Bow:

• Anchor chain and fender locker with water drain
• DELTA 25 kg galvanised steel anchor
• 75 m long high strength 10 mm gauged chain
• Bow roller
• 1700 W WINCH 24V (Quick mod. Aries)
• 2 stainless steel bitts L. 300 mm oval tube
• Sundeck compartment with non-slip (STD)
• Chain washdown

Walkways:

• Filling with fuel: 2 “Diesel” filler caps D. 88 mm with cover Grid seat width = 250 mm
• Filling with fresh water: 1 “Water” filler cap D.85mm
• Black water outlet: 1 “Waste” water cap D.75 mm without cover
• 2 stainless steel bitts L. 300 mm oval tube (intermediate)
• flooring: non-slip
• Fly side handrail
• Rub rail: in stainless steel and high resistance PVC Knurled section 39.8 X 7.8 mm
• Pulpit

Cockpit:

• Cockpit access via stainless steel and plexiglass gate
• 2 stainless steel horn bitts H. 110 mm W. 350 mm
• Warping station: maximum dimensions 1230X210 mm
• Aft stainless steel left/right chock with mushroom
• Vertical stainless steel double door with tempered glass
• 4-seater C-shaped cockpit bench (in GRP integrated in the deck, width 2.47 m)
• Cockpit bench cushions
• 1 port deckhouse column locker
• Engine room access via hatch in cockpit floor
• Crew cabin access via hatch in the starboard cockpit bench
• flooring: teak (excluding the side walkway access steps) Stern platform curved handrail
• Fly access stairs handrail
• Handles on the cockpit bench arm rests
• Lighting: spotlight in the cockpit ceiling panel
• Hot and cold water outlet

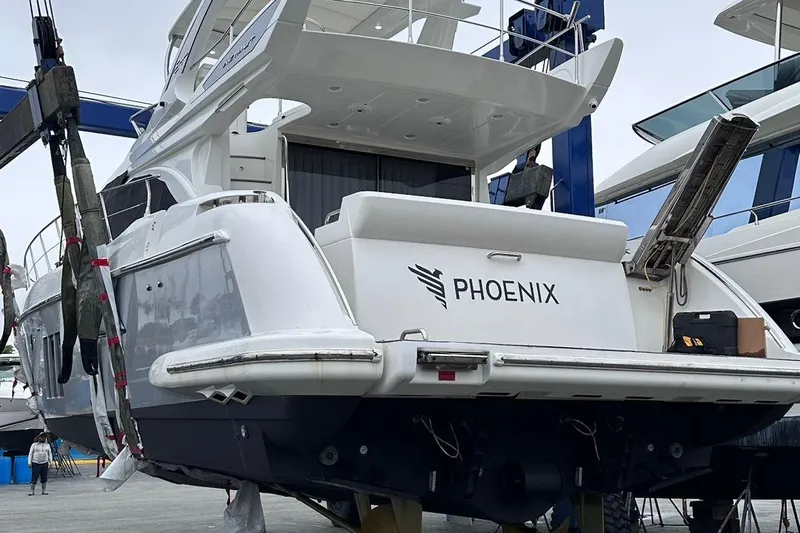

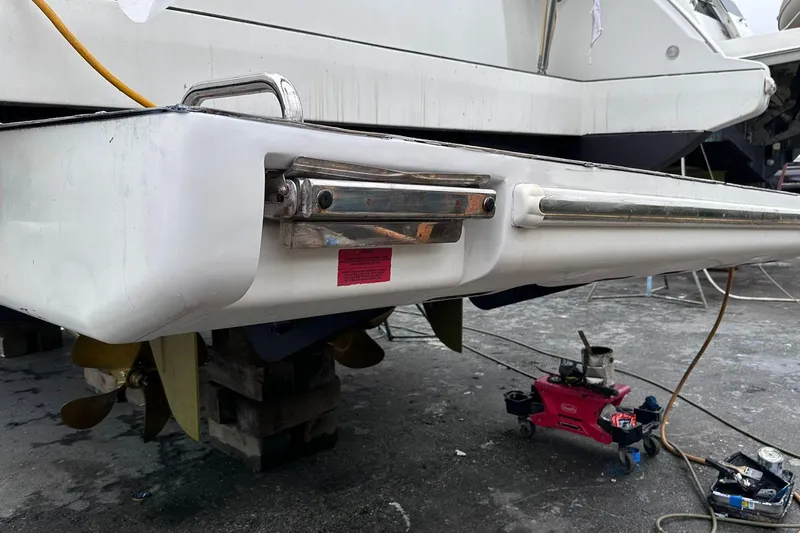

Platform:

• Stern platform lights (OPT: 2 24V underwater lights)
• Possibility of non-slip or teak flooring
• Stainless steel telescopic 4-rung swimming ladder

Platform Dimensions:

• Width 3.5 m
• length 1.15 m (platform only)
• total length 1.37 m
• stern overhang: approx. 1330 mm

Wheelhouse:

• Electric 2-seater helm seat (reversible seat for use with the dinette - adjustable seat and opposable backrest)
• Electric bullseye window
• Adjustable steering wheel
• The wheelhouse includes:
• Controls:
• Bow thruster control
• Electronic remote controls
• Trim tab switches
• Trim tab indicators
• Activation of bow anchor winch
• Horn, navigation lights, wipers switches
• Activation of bilge pumps
• Side window opening
• Emptying of black and grey water tanks
• Engine room ventilation
• Cigarette lighter socket
• Shore power socket indicator light
• Chain washdown switch
• Fuel tank, black water, grey water and fresh water level indicator

Engine Control Instruments:

• Engine startup
• Rev counter
• Hour meter
• Engine pressure gauges and thermometers
• Ammeter
• Alarm indicator lights
• Electronic navigation instruments see related paragraph

Saloon and Dinette:

• Curtains and matt GRP window frames
• Lighting dimmer
• Built in lamp in the separation column with the galley
• Starboard side furniture
• 1 port side 4-seater C-sofa
• Rectangular dinette table (1390 X 780 mm) for 6 person and removable central section of the top
• TV system with antenna, outlets in saloon and owner’s cabin
• Below deck accommodation ladder with carpeted treads
• Ceiling and wall upholstery: 2-tone fabric
• Roman blinds for stern windows and sliding blind for saloon door
• Carpet flooring

Galley:

• Glass ceramic range with 3 abreast plates and pot holder
• Induction glass ceramic range, 3 abreast plates with automatic pot detector (7.4 kW)
• Overhead extraction hood (over the glass ceramic range) with active carbon filters (recirculation)
• 17 l microwave oven + grill
• Kitchen sink (450 x 400 mm)
• Fridge + upright freezer WAECO 220 l
• Electric bullseye window

Below Deck:

• Carpeted below deck access corridor
• Spotlight lighting
• Beige wall upholstery
• Corridor grabrails

Owner’s Cabin:

• Positioned amidship
• Diagonally positioned double bed with headboard on the starboard - manual openable bed with 578 l storage
• Oak headboard, openable for access to furniture
• Vanity table with couches on the left side
• 2 wall units
• Drawer with 1 drawer
• 2 Cupboards with hanger
• 1 Cupboard with shelves
• Shelving around the bed
• Spotlight lighting and ceiling LED stripes
• 2 openable portholes (rectangular porthole inserted in the windows)
• 3 + 3 rectangular hull windows
• Hatchway escape route via the ceiling above the bed
• Direct access to the bathroom from the corridor leading to the owner’s cabin with internal stairs
• 1 mirror on the vanity table
• 1 mirror in the stern cupboard
• Wooden Venusian blinds
• Fabric wall upholstery and oak panelling
• Fabric ceiling panels
• Owner’s cabin TV system

Owner’s Head:

• Located forward of the owner’s cabin on the port side (below the galley) Access from the owner’s cabin (via ladder)
• Oak top and cognac colored Vetro Freddo sink (brown)
• Tecma toilet
• Chromed tap with mixer
• Separate shower enclosure; flat shower door
• Matt ABS shower column and seat
• Bathroom cabinet with 2 sliding doors above washbasin top
• Ivory ceiling panels
• Lighting: light fixture on wall unit and spotlights
• 1 openable porthole with wooden Venetian blind
• Oak flooring solid wood grating
• Bathroom extractor: forced intake (from the shower ceiling panel)
• Air conditioning from owner cabin

Owner’s Head Accessories:

• 1 brush holder
• 2 hangers
• 1 glass support
• 1 cup holder
• 1 toilet roll holder
• 1 towel rail
• 1 plex shower soap holder

VIP Cabin:

• At the bow
• Fixed double bed
• Fixed oak headboard
• 2 wall units over the windows
• 1 cupboard on the starboard stern wall with hanger and shelves
• 1 cupboard on the port stern wall with hanger
• Bed side bulwark shelves
• 2 under bed lockers
• 2 bed-head wall lights
• Ceiling spotlights
• Direct guests bathroom access
• Carpeted floor
• Windows
• Hatchway
• Wooden venetian blind
• Fabric bulwark upholstery
• Ceiling panels: oak door, matt ivory GRP ceiling panel with fabric panels over the bed

VIP/Guest Head:

• Positioned abaft of the VIP cabin on the port side
• Direct access from the VIP cabin or from the corridor
• Tecma toilet
• Oak top and cognac coloured Vetro Freddo sink (brown)
• Chromed mixer tap
• Round shower not separate (3 doors)
• Matt ABS shower column
• Bathroom cabinet with 2 sliding doors above washbasin top
• Lighting: light fixture on wall unit and spotlights in the shower
• 1 openable round porthole with wooden Venetian blind
• Oak flooring solid wood grating
• Natural air extraction
• Air conditioning from VIP cabin

VIP/Guest Head Accessories:

• 1 brush holder
• 2 hangers
• 1 glass support
• 1 cup holder
• 1 toilet roll holder
• 1 plex shower soap holder

Guest Cabin:

• Positioned on the starboard side
• 2 fixed single beds
• Headboard oak panels
• 1 bedside cabinet between the beds (with openable cubicle)
• 1 cupboard with hanger and shelves
• 3 under bed lockers
• Ceiling panels: oak door, ivory GRP ceiling panel with fabric panels
• Fabric bulwark upholstery (with oak and fabric paneling)
• 1 openable round porthole
• Wooden Venetian blind
• Flooring: Carpet
• Lighting: spotlights
• 2 bed-head wall lights

Main Characteristics:

• The onboard voltages are: 220V – 50 Hz AC / 24V (12V for VHF equipment and cigarette lighter socket)
• The main boards are in the wheelhouse (above the fridge in the galley), engine room and in the crew cabin
• The residual current circuit breakers that protect all 24 V utilities are located in the wheelhouse
• Other thermomagnetic circuit breakers are located in the kitchen (above the fridge) for the protection of various 220 V AC utilities as well as the selector switches for the selection of the 220 V AC shore or generator source: included air conditioning thermomagnetic switches breakers 220 V
• Additional circuit breakers are located on the main panels in engine room and crew cabin to protect the various 24V DC

Shore Power Socket:

• One of 50A astern

Batteries:

• Group of 6 of 24V for 270 Ah for services
• Group of 4 of 24V for 180 Ah for engines
• 12V 70 Ah battery, for generator
• 50A electronic battery charger (220 V / 110V)
• 10A generator battery charger (220 V / 110V)
• AC sockets: EU Std type
• DC sockets: Cigarette lighter (wheelhouse and fly)

Lights and Sockets:

• 24 V lighting
• Watertight 24V exterior lights

Wheelhouse:

• Electronic navigation instruments:
  • HELMSMAN 12/24V HF73 Magnetic compass
  • Raymarine platinum package
    • Bridge Helm:
      • Chartplotter/MFD: GS165
      • VHF: Ray 260 handset and speaker
      • Autopilot control: P700R
      • Data display: I70
      • SD card reader: RCR-2
      • MFD Remote control RMK-9
      • HELMSMAN 12/24V HF73 Magnetic compass
    • Salon Helm:
      • Chartplotter/MFD: GS165 (2x)
      • VHF: Ray 260 handset and speaker
      • Autopilot control: P700R
      • Data display: I70
      • SD card reader: RCR-2 (2x)
      • MFD Remote control RMK-9
      • HELMSMAN 12/24V HF73 Magnetic compass
    • Network:
      • Radar: SHD 4kW 48” Color open array
      • Downvision transducer: CPT-120
      • Transducer: DST 800
      • VHF: Ray 260 module
      • Autopilot module: ACU-300

Flybridge:

• Electronic navigation instruments:
  • Raymarine platinum package
    • Bridge Helm:
      • Chartplotter/MFD: GS165
      • VHF: Ray 260 handset and speaker
      • Autopilot control: P700R
      • Data display: I70
      • SD card reader: RCR-2
      • MFD Remote control RMK-9
    • Salon Helm:
      • Chartplotter/MFD: GS165 (2x)
      • VHF: Ray 260 handset and speaker
      • Autopilot control: P700R
      • Data display: I70
      • SD card reader: RCR-2 (2x)
      • MFD Remote control RMK-9
    • Network:
      • Radar: SHD 4kW 48” Color open array
      • Downvision transducer: CPT-120
      • Transducer: DST 800
      • VHF: Ray 260 module
      • Autopilot module: ACU-300
    • HELMSMAN 12/24V HF73 Magnetic compass
    • Trim tabs indicator
    • Electronic remote controls
    • 2 loudspeakers connected to the saloon radio

Controls:

• Engine startup
• Due to continual updates to the electronics, the configuration shown may vary

• N°3 - 24V electric pumps - (bow, engine room, crew cabin). Flow rate: 2 pumps of
• 237 l/min and 1 of 135 l/min
• N°1 - 24V electric pumps supersub smart 650 (Flow rate: 2040 l/h, 1 mt depth)
• N°2 manual emergency pumps. Flow rate: 49 l/min
• N°3 level alarms
• Rapid discharge of the engine room from the engine water pump

• Pull in cockpit and emergency button
• 2 x 12 Kg powder canisters with spray nozzles on engines and marine gears

• Two communicating aluminum tanks of 1170 l each (total cap. 2340 l)
• Electronic indicator in the wheelhouse (left tank)
• Electronic indicator in the wheelhouse (right tank)
• 2 Single filters (settling tanks) (RACOR 900) for engines + 1 filter PFG20 NAUCO for the generator
• 2 fillers on the walkway
• 2 vents on the bulwark
• Remote shut-off of the diesel via 24V solenoid valve
• Fuel tap on the left tank

• A 590 l polyethylene tank located under the stairs down to the cabin, corridor zones (stern tank). With aluminum frame and GRP cradle
• Walkway water filler, starboard side
• Level sensor with electronic indicator in the wheelhouse
• 1 tank vent on the bulwark
• FEIT 890 QDCE pressure pump with 24V silent blocks (45 l/min) in the engine room
• SIGMAR COMPACT 220V- 800W 60 l water heater in engine room above the compressor
• Pre-installation for water supply connection directly from shore
• Hot and cold water: bathrooms, galley, platform bathroom shower; fly washbasin cold water only; cold water only to engine room
• Fresh water toilet flushing
• The system can be sectioned by means of manifolds

• 225 l polyethylene tank in VIP cabin (bow tank)
• 2 level sensor
• 1 bulwark vent with anti-odour filter
• 1 FEIT PVM 0.2 macerator pump
• Suction from the deck walkway
• Tecma toilet (with macerator pump). All toilets drain into tanks.
• Sea outlet from the tank (manual only)

• 225 l polyethylene tank, located under the accommodation corridor (Central tank)
• Gray water sea outlets from bulwark discharge manifolds
• 2 level sensor, wheelhouse alarm indicator
• Water discharge: from tank (automatic / manual)
• FEIT PVM0,16 Diaphragm pump
• Fan-coil condensate outlets in collection tanks

• Engine cooling system: 2 dynamic seawater intakes of 2.5” (from series 12; 3” on series 11) with filter and valve
• Generator cooling system: submerged outlet: 1 dynamic seawater intake (1’’) with filter and valve
• Chain washdown: sea water

• Gas discharge system: immersed by-pass
• Insulated stainless steel drain manifolds
• Exhaust pipes: structural GRP muffler
• Water/fumes separators for generator with side exhaust

• Cockpit floor hatch access
• Battery housing: 1 aft bulkhead box on the frame above the water heater; 1 crew cabin box behind the bed-head wall
• Soundproofing

• Hull air intake (separator filters)
• Natural / forced emission: with 2 24V fans D. 250 mm
• Forced extraction: with 2 24V fans D. 250 mm

• Owner’s bathroom ventilation: 24V forced intake
• VIP / guests bathroom ventilation natural
• Galley ventilation: 220V extractor (hood with active carbon filter)

• Hydraulic power steering BCS (control unit mod. CO500; piston mod. MT130ASS; pump mod. P30TS with tilt sport)
• Flaps Bennett AZT3012SPC24 24V V2005 ; blade: 770 X 310 AISI 316 thickness 3 mm

• Plates, glasses and cutlery set for 8 people
• Super Yacht mod. stainless steel pats and pans
• Net window covers for windscreen and deckhouse side windows
• Fly instruments cover
