55 Azimut 2019 Boat for Sale

55' Azimut 2019

Dimensions

Length Overall (LOA): 16.90 m (55’ 5”)

Hull Length: 15.12 m (49’ 7”)

Waterline Length: 14.45 m (47’ 5”)

Beam: 4.70 m (15’ 5”)

Draught (Keel): 1.01 m (3’ 4”)

Draught (Max): 1.44 m (4’ 9”)

Height (Radar Arch): 6.29 m (20’ 8”)

Height (Light Mast): 0.90 m (2’ 11”)

Height (Flybridge Screen): 4.17 m (13’ 8”)

Weight & Capacity

Light Displacement: 24.38 t (23.995 tn l.)

Loaded Displacement: 30.79 t (30.304 tn l.)

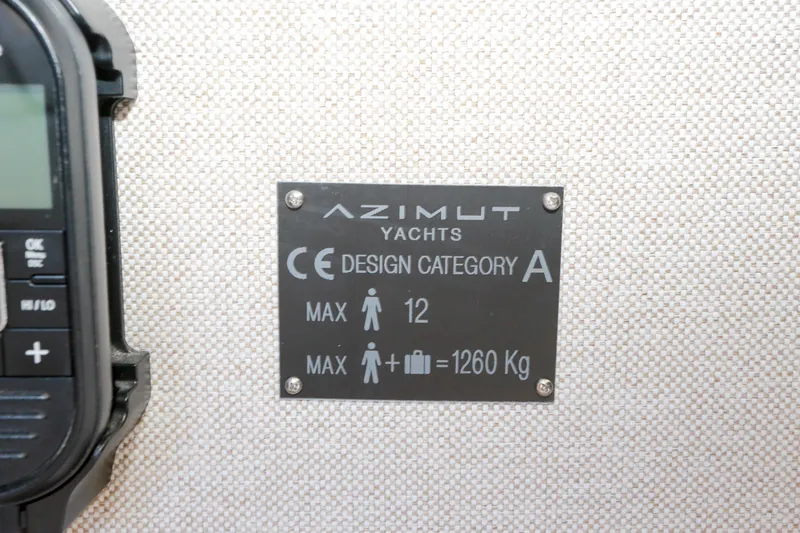

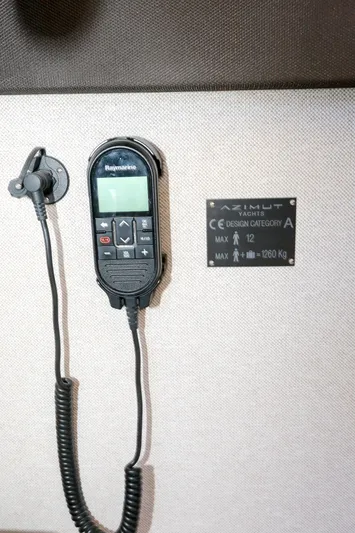

Maximum Load (People + Baggage): 1,260 kg (2,777.8 lb)

Tank Capacities

Fuel (Diesel): 3,200 l (845.4 US gal)

Fresh Water: 700 l (184.9 US gal)

Black Water: 350 l (92.5 US gal)

Grey Water: 175 l (46.2 US gal)

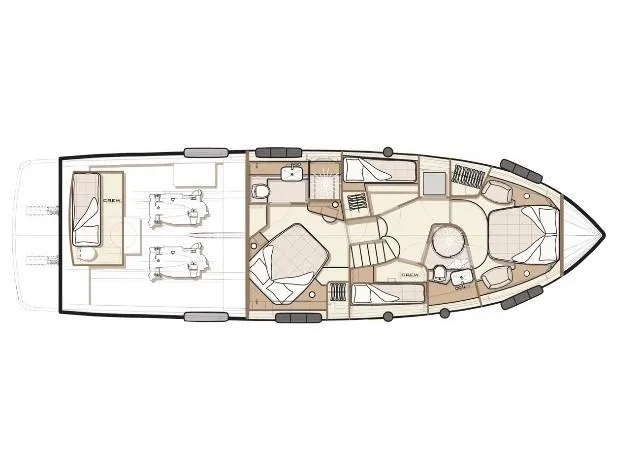

Layout

Cabins: 3 + utility room + optional crew cabin

Berths: 6 / 7 + optional crew berth

Heads: 2 + optional crew head

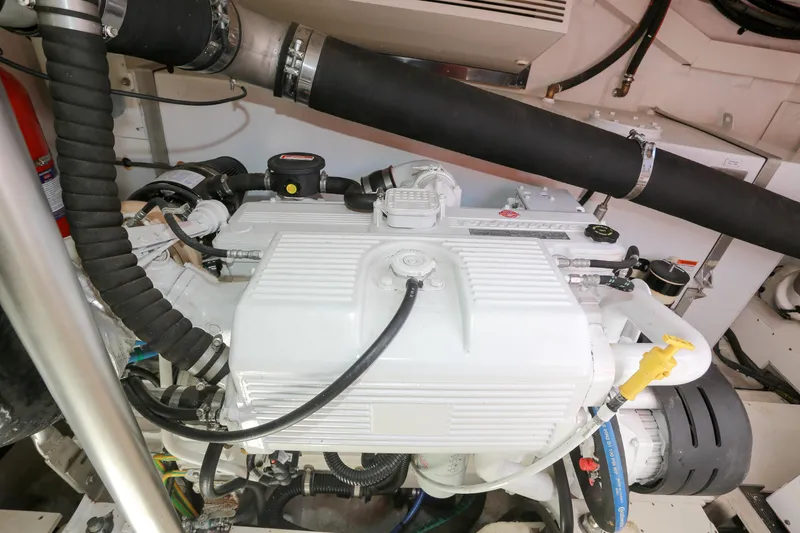

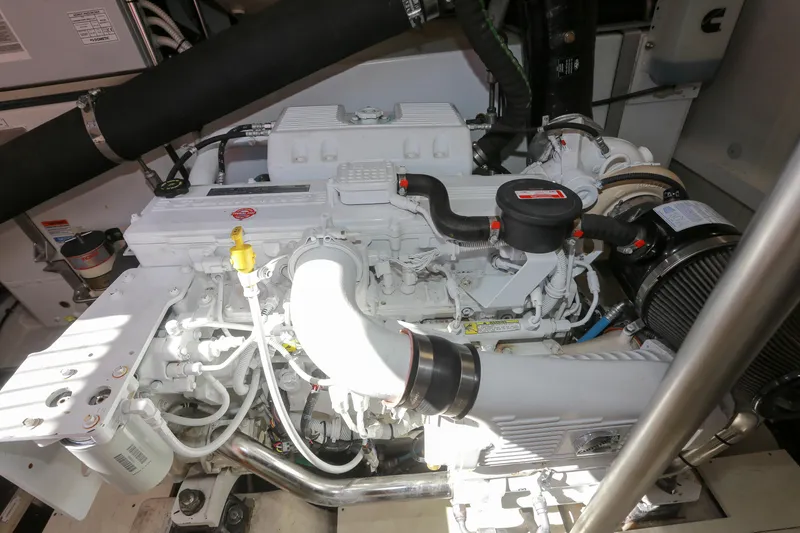

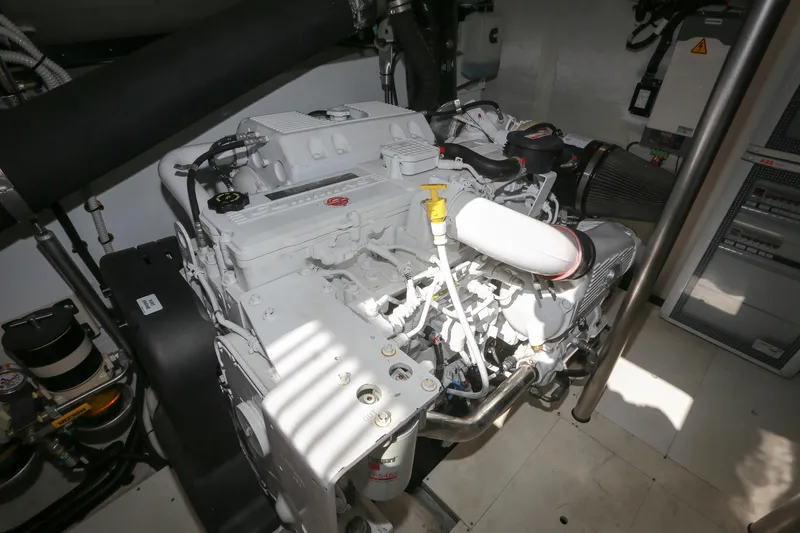

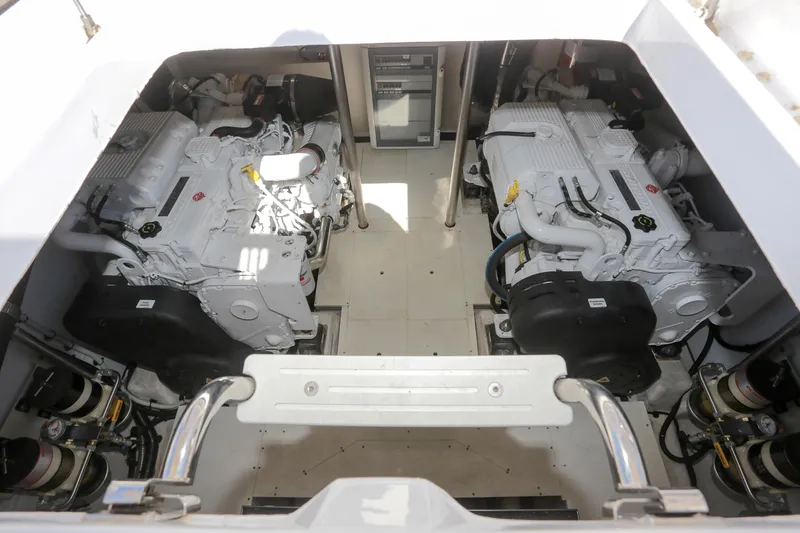

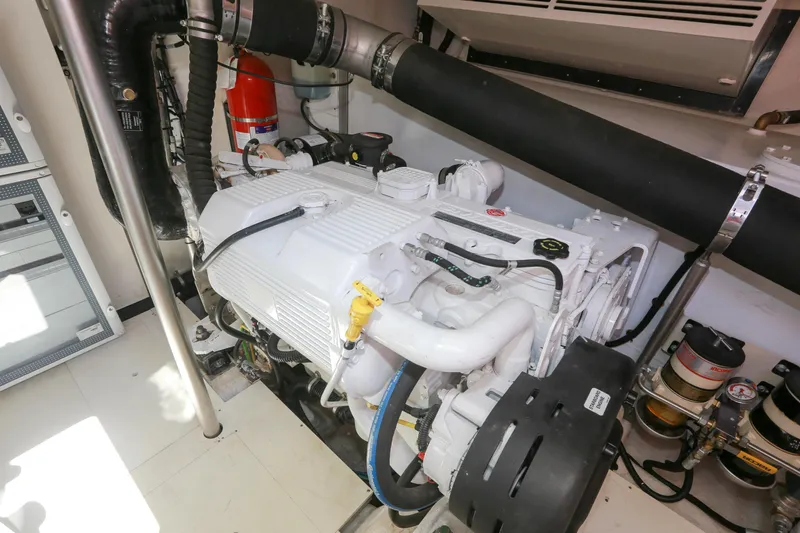

Engines

Manufacturer: Cummins

Model: QSC 8.3

Type: In-line 6-cylinder diesel

Power: 2 x 368 kW (500 hp) @ 2600 RPM

Engine hours: 1255 and 1256

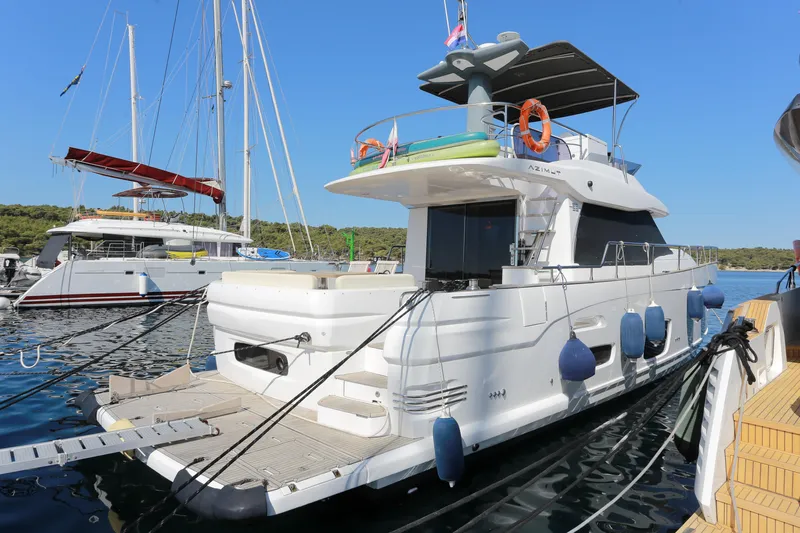

This Azimut Magellano 53 has had the same owner from the beginning. The boat has mosly been used privately by the owner and only couple of weeks in charter.

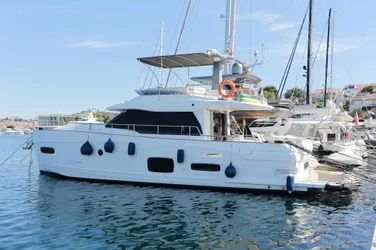

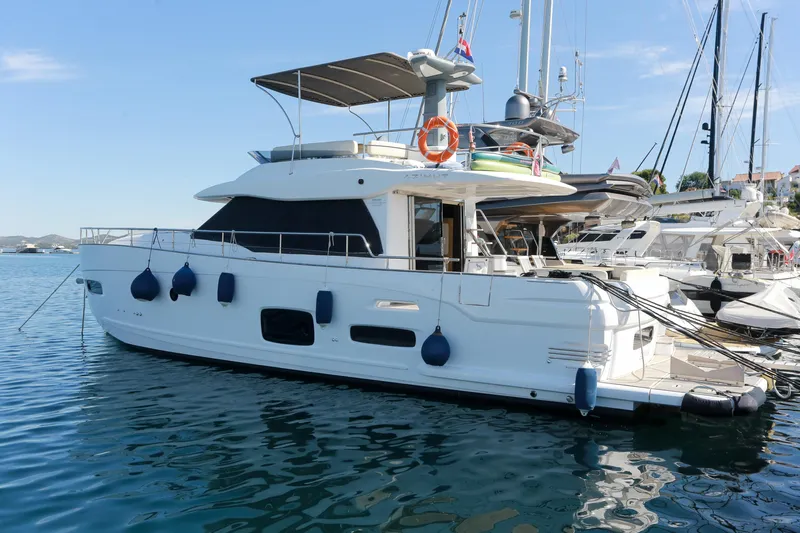

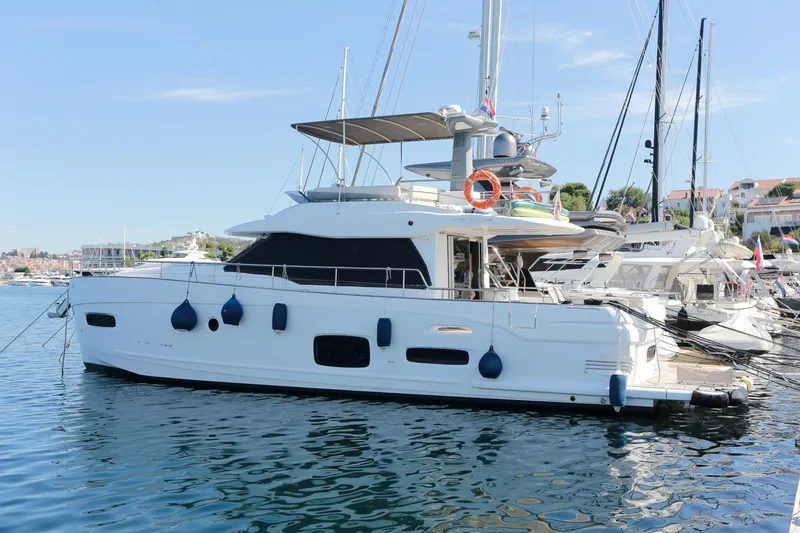

The Azimut Magellano 53 is a 16.90-meter (55' 5") semi-displacement motor yacht designed for long-range cruising with comfort and style. Built by Azimut Yachts, it features a hybrid hull designed by Bill Dixon, allowing efficient navigation in both displacement and planing modes.

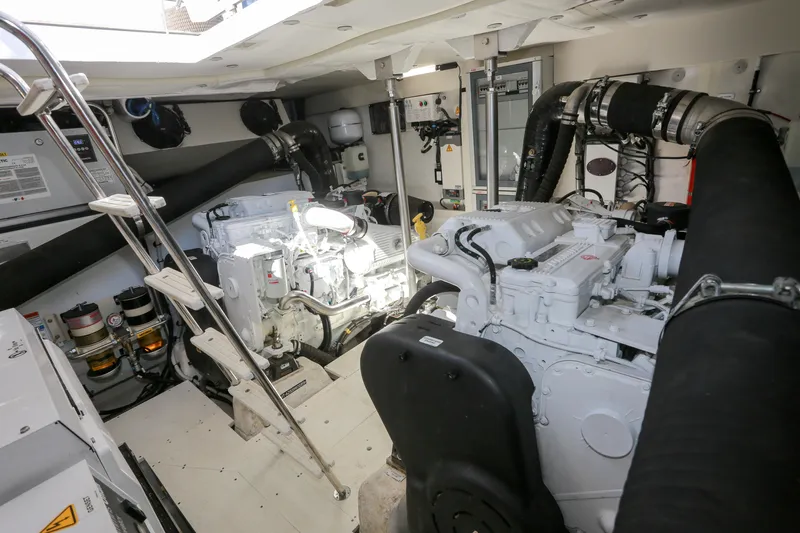

Powered by twin Cummins QSC 8.3 diesel engines (2 x 500 hp), the yacht reaches a top speed of 22 knots and cruises comfortably at 16 knots. It has a fuel capacity of 3,200 liters, offering a range of up to 500 nautical miles at 10 knots.

The layout includes 3 guest cabins, 2 bathrooms, and an optional crew cabin, accommodating up to 7 guests plus crew. The interior, styled by Azimut’s Style Department, emphasizes spaciousness and panoramic views, with circular glazing and a well-appointed flybridge.

Additional features include a hydraulic swim platform capable of lifting a tender up to 400 kg, a large cockpit with bar and sofa, and CE Class A certification for ocean-going capability.

Equipment:

Advance Package:

MAIN SYSTEM:

Air Conditioning BTU 60.000

Automatic Fire Fighting system

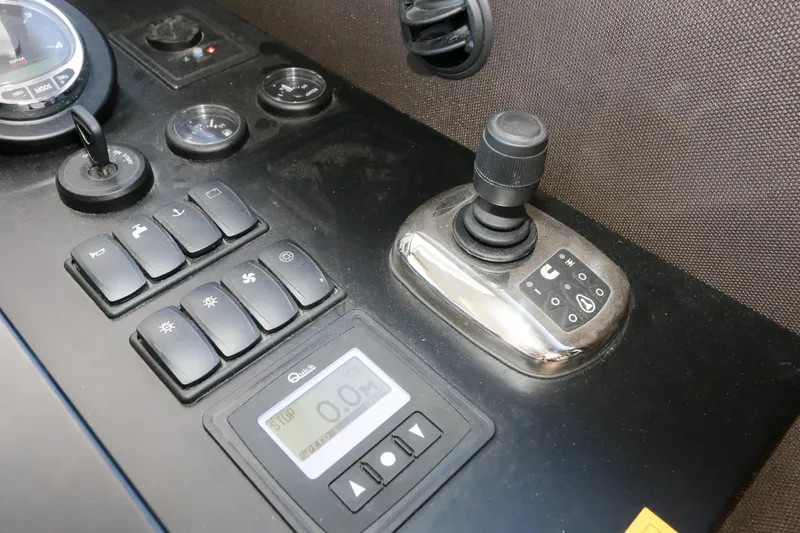

Bow thruster + joystick

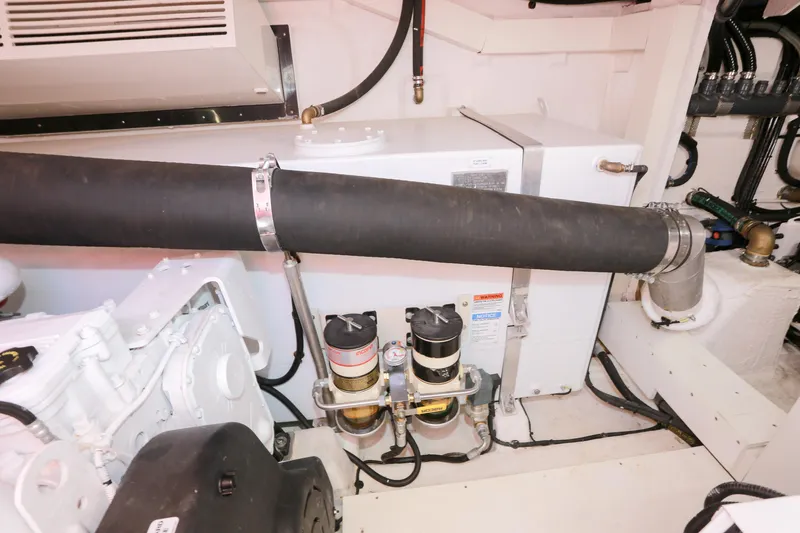

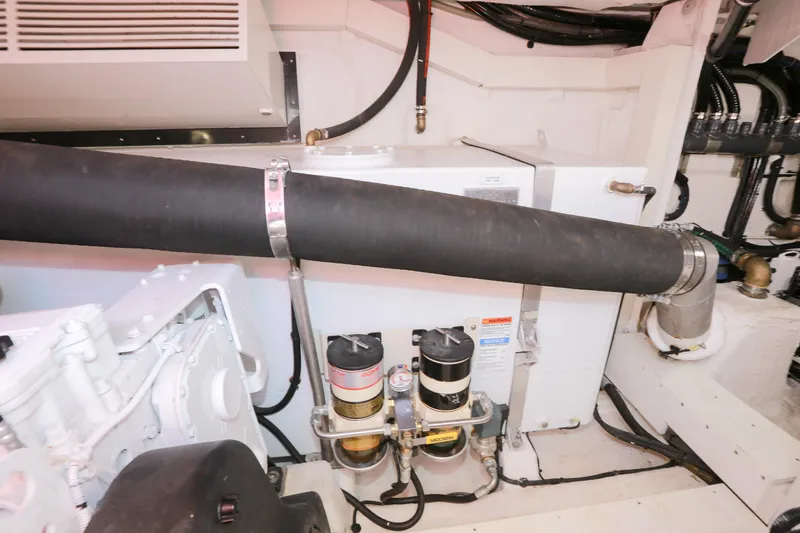

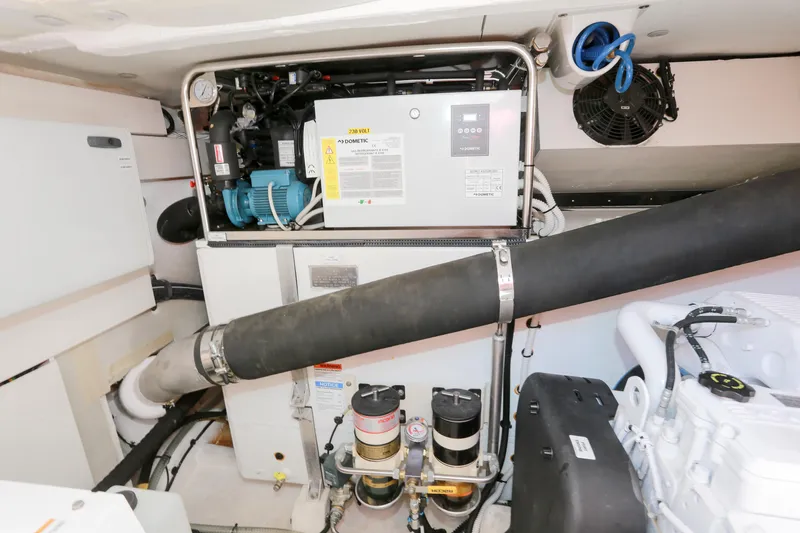

Double Racor filters for main engines

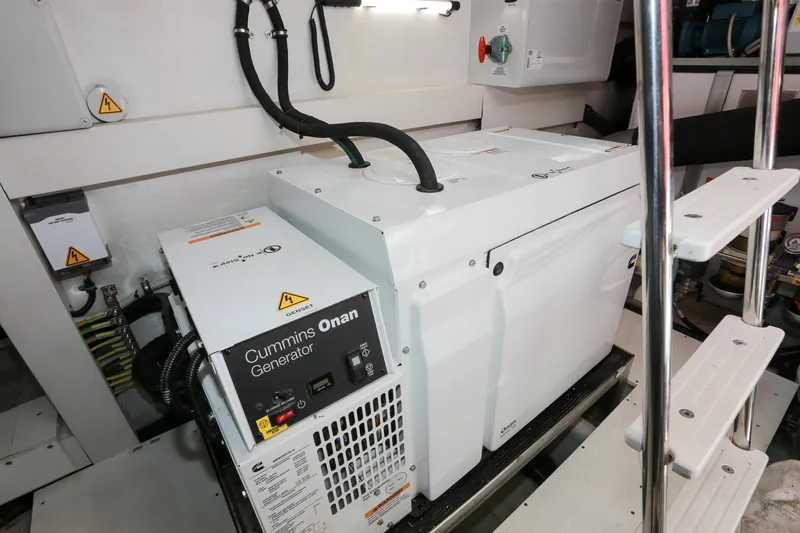

Onan 19 kw Generator

Racorfilter for generator

Spare conduits connecting engine room/wheelhouse/mast on fly

Water maker Predisposition (salt water - fresh water - electrical)

EXTERIOR:

Additional searchlight control at lower helm

Chaincounter control on fly bridge

Cleats in stainless steel

Electric mooring winches in cockpit

Electric searchiight

Shore water plug

INTERIOR:

Decor upgrade

APPLIANCES:

Miele appliances (microwave combo and cooktop)

ELECTRONICS:

Chaincounter control at main helm

Raymarine AIS 700

Raymarine Silver Package

Extra socket supplementare

Interior and exterior LED lighting

Under water lights x 4

Chocks tender

INTERIOR:

Ash oak fumiture

Crew cabin with air conditioning

Dimmered lights in salone and cockpit

Electrical socket Shuko type

Hard Top on fly (not foldable)

Cockpit table

Teak on side decks

Salon table

Dishwasher in galley

Refrigerator in cockpit positioned in stair locker

Refrigerator on flybridge

Safe in master cabin

Teak Deck on swim platform

Standard equipmnet:

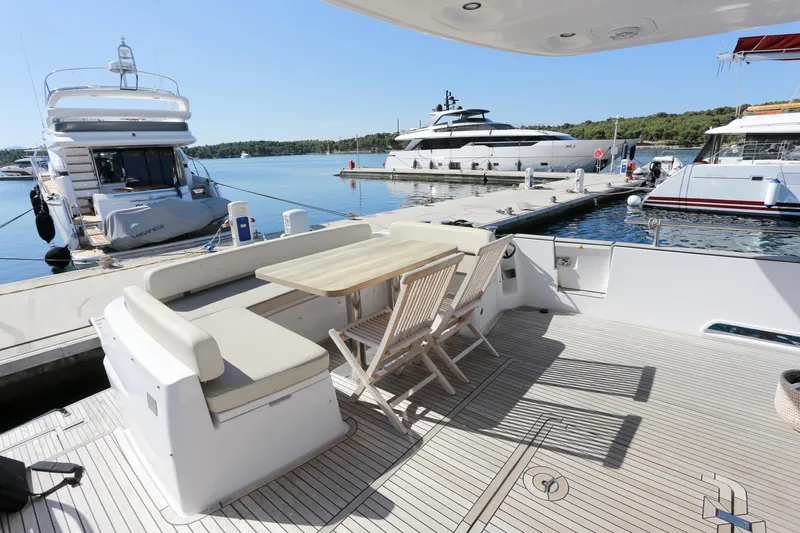

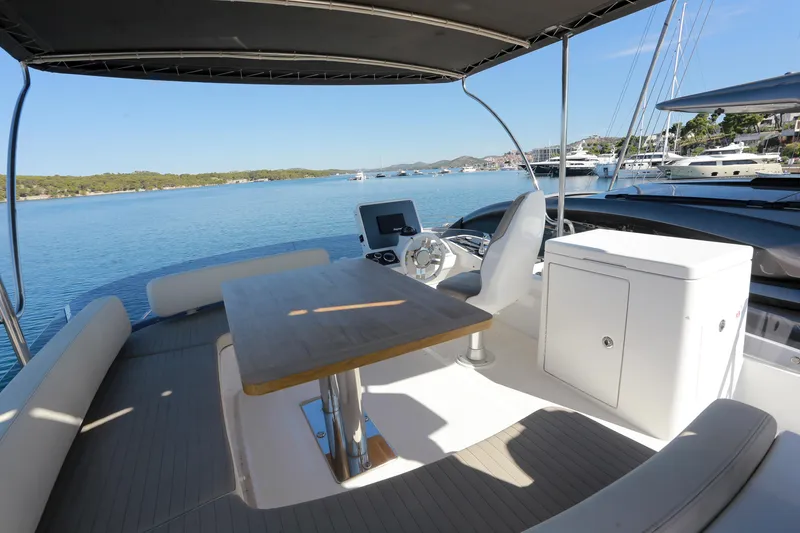

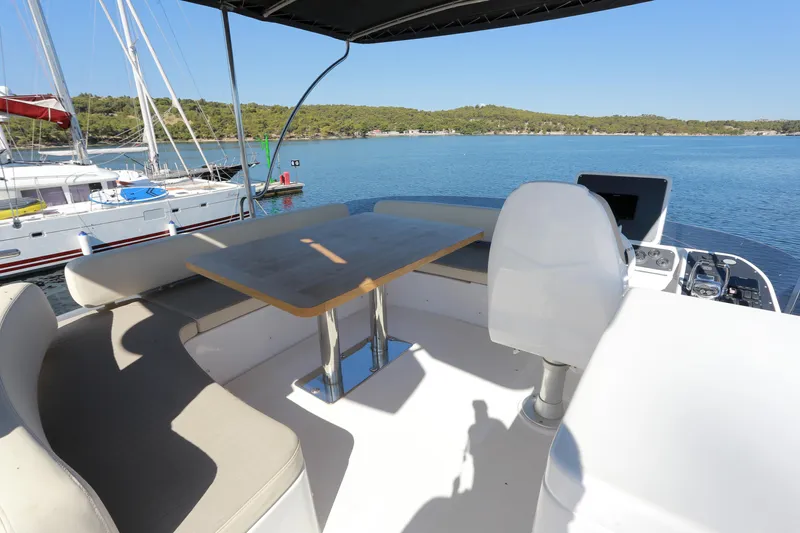

Flybridge

● Flybridge GRP and teak access ladder

from cockpit

● Flybridge stainless steel access handrail

● Stern flybridge handrail, flybridge access

protection handrail, flybridge stainless

steel liferail

● Watertight access door to flybridge in

aluminum and Plexiglas

● Flybridge non skid GRP flooring

● Plexiglas flybridge screen

● Stainless steel steering wheel covered in

fabric

● "C"-shaped sofa with cushions on port

side, with locker below

● Table with teak plane and stainless steel

base

● Central GRP mast carrying lights, antennas and electronic navigation instruments

● Mast base with storage compartment

● Fixed shower built into the GRP mast,

with hot/cold mixer tap

● Cabinet with GRP cover on starboard

side, sink with cold water only, and lockers below

● Zone for positioning the life raft (not

included) on port side, behind the sofa

● Drainage scuppers

● Manual depth searchlight

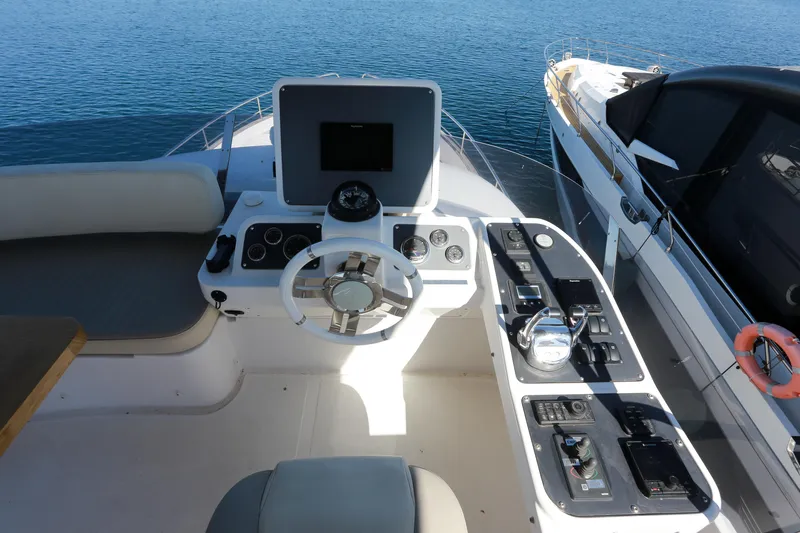

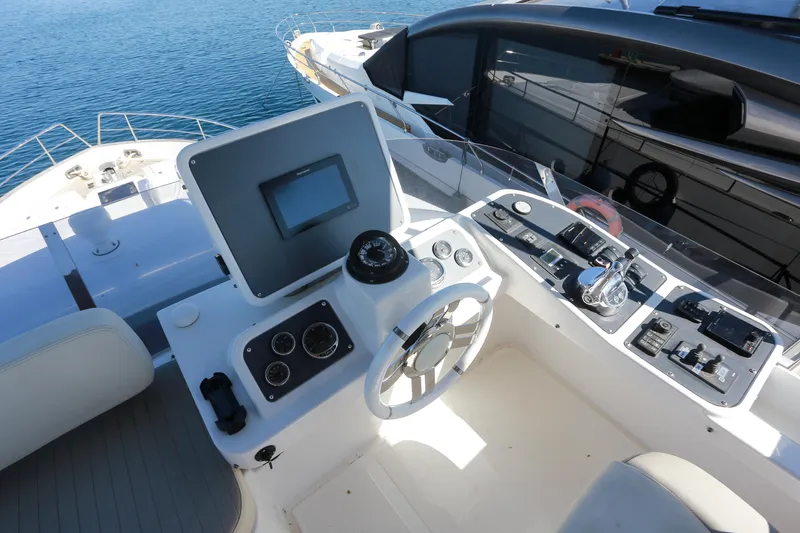

● Flybridge dashboard equipment:

Bow thruster controls

Cummins ETS engine remote controls,

with speed synchronization

Horn switches

navigation lights

Flybridge GRP mast lights

Winch

Chain washing pump switch

12V socket

Cummins multi-function instruments

alarm indicator lights

Bow / walk arounds

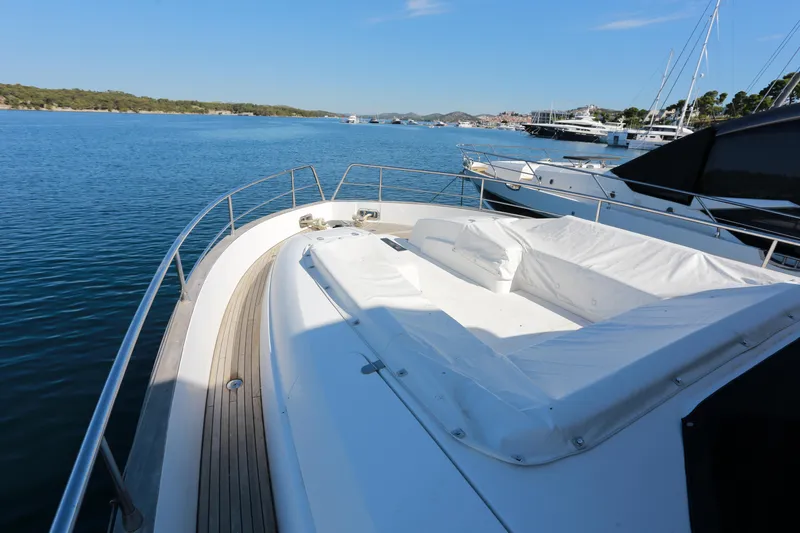

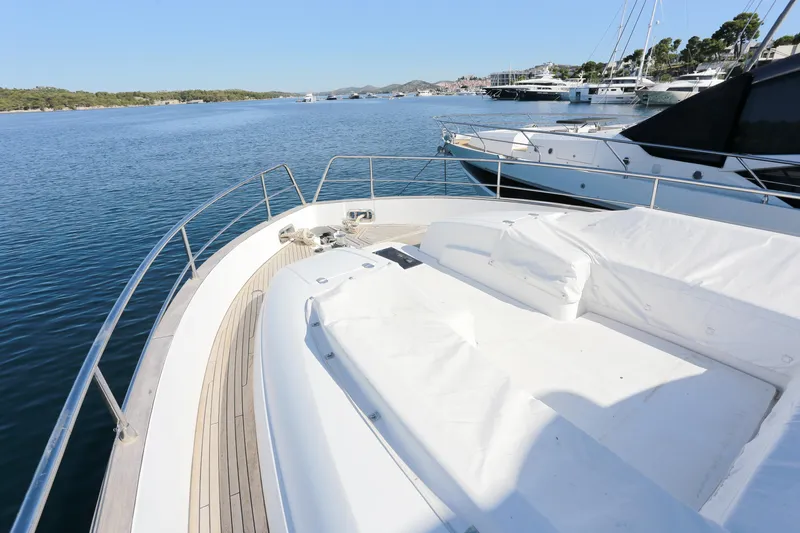

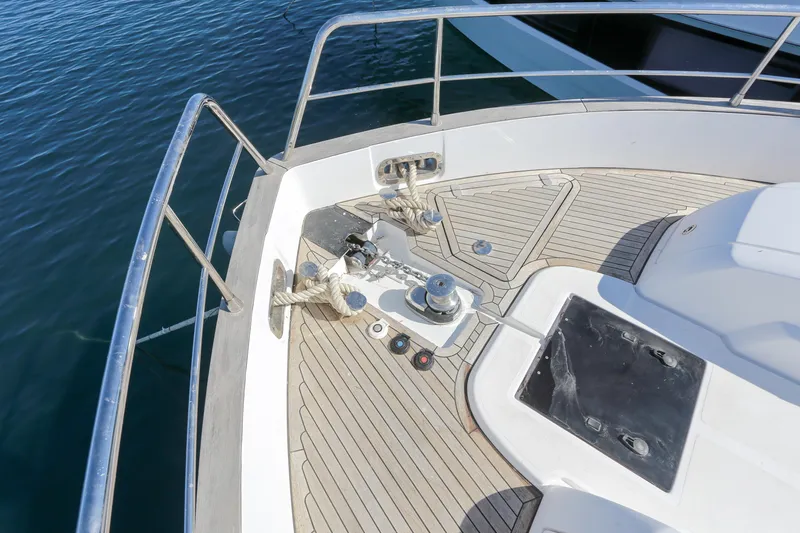

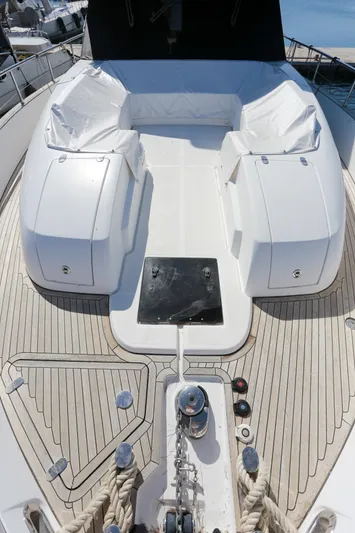

Bow

● Anchor chain and fender locker with water drainage

● Delta 25kg galvanized steel anchor

● 75-meter high-resistance gaged chain,

diameter 10mm

● Bow roller and protection shield

● 1700 W WINCH

● 2 stainless steel T-head cleats

● 2 roller hawseholes

● Chain washing system with pedal controls

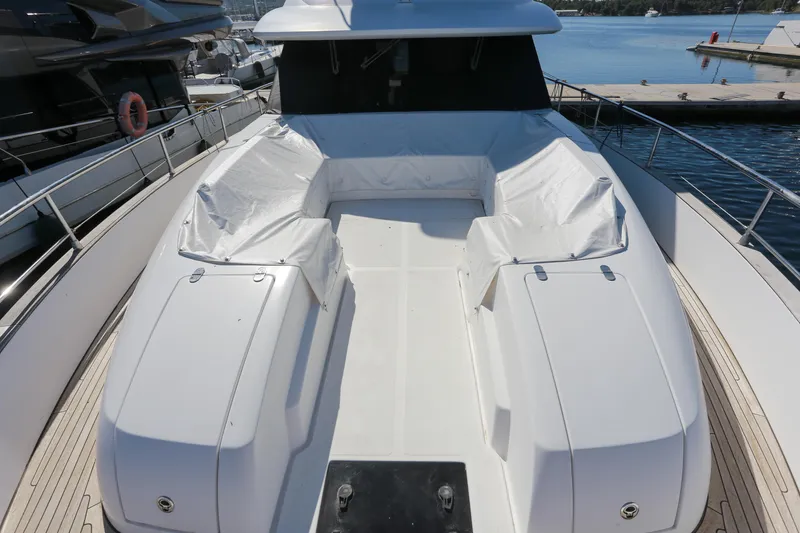

● "C"-shaped sofa in the bow, with cushions and backrest

● 4 external lockers on the sides of the sofa

● Lockers under the bench

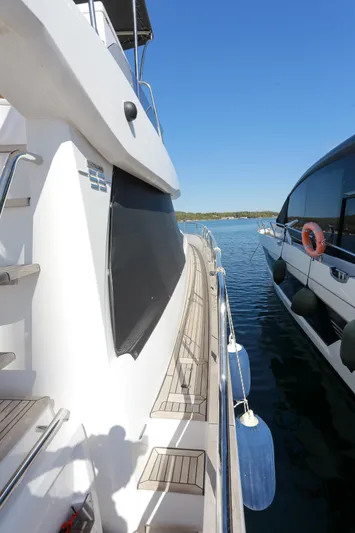

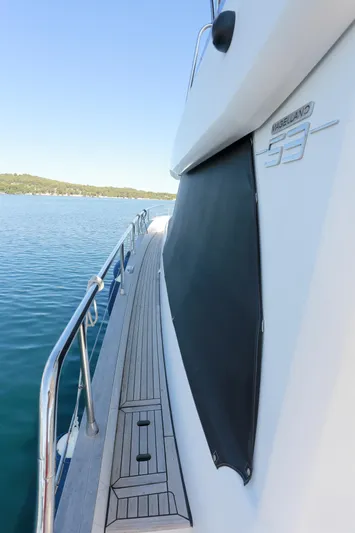

Walk arounds

● Refueling: 2 "Diesel" refueling plugs with

cover and scuppers

● Fresh water filling: 1 "Water" filling plug

● Black water outlet: 1 "Waste" outlet

water plug

● 2 intermediate stainless steel cleats on

the gunwale

● Non skid GRP floor

● Stainless steel pulpit, D. 40mm, Th.

2mm

● Teak gunwale with washboard

Cockpit and platform

Cockpit

● Cockpit access through 3 non skid GRP

steps

● Steel and Plexiglas gate

● Non-slip floor

● 2 mooring stations

● 1 chock and 1 cleat in stainless steel for

each mooring station

● Stainless steel door, watertight level 3

and tempered flat glass door with 2 sliding panels

● 5-seater C-shaped sofa provided with

cushions and backrest with lockers under the bench on aft side port and starboard

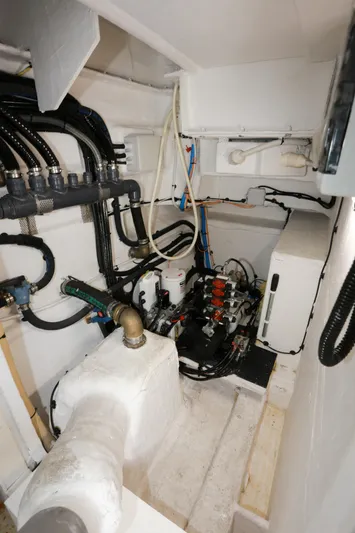

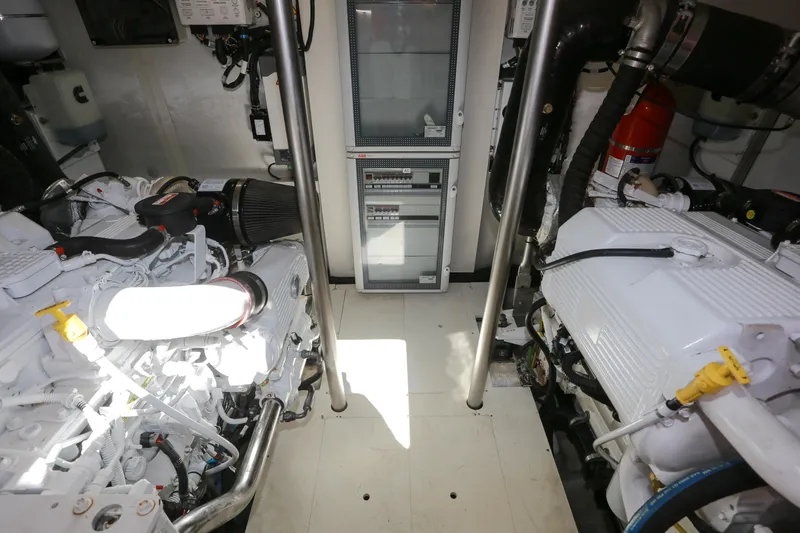

● Engine room access via door in cockpit

floor

● Engine unloading door

● Scuppers

● Lighting with watertight spotlights

● Cabinet built into the flybridge ladder,

with a large locker

● Rudder hold access door from starboard

side bench

● Fire extinguishing controls

● Walkway lights on cockpit access steps

● Shower head with hot and cold water,

starboard side

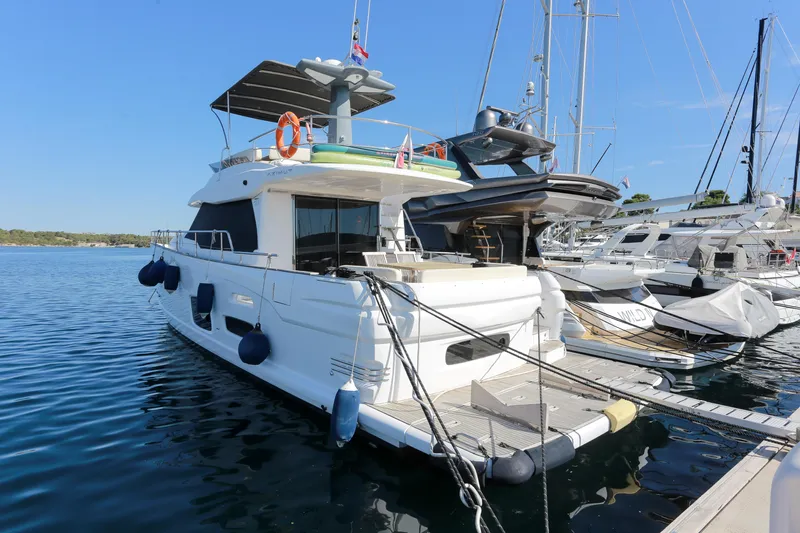

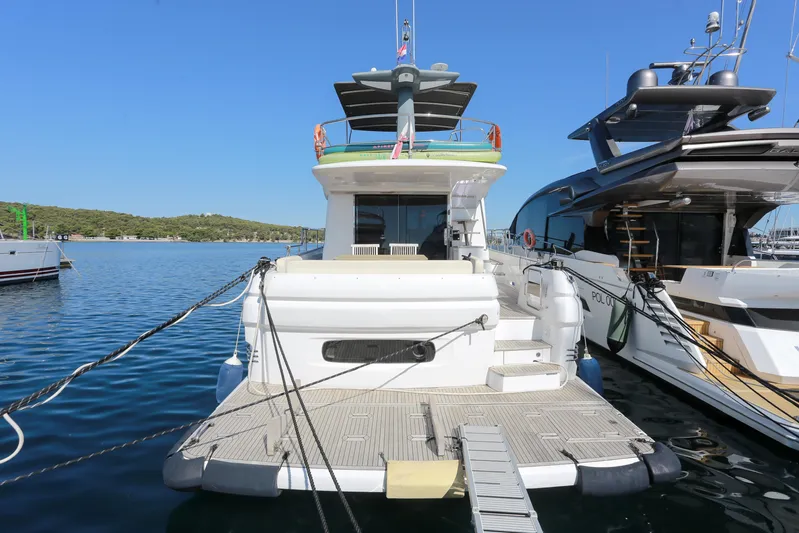

Platform

● Lifting platform in GRP with outer

reinforcement frame in polyurethane.

Width: 4300mm Depth of mobile part:

1205mm. Total depth of stern platform:

1700mm (lifting platform + fixed part)

● Rubber rub-rail with stainless steel insert

all around the edge of the GRP lifting

platform

● Electro-hydraulic tender lift mechanism

in electro-polished steel.

● Locker for shore power sockets

● Non skid GRP floor

● Stainless steel manual swimming ladder

with teak steps and retractable handle

built on starboard side

● Open housing for the tender (not included)

● INSTALLABLE TENDER (OPT):

MAXIMUM DIMENSIONS OF TENDER -

PLATFORM: 3.20 x 1.70m

LIFT PAYLOAD EXCLUDING GRP, TEAK

AND LADDER: 380Kg

RECOMMENDED TENDER -

PLATFORM: WILLIAMS 285

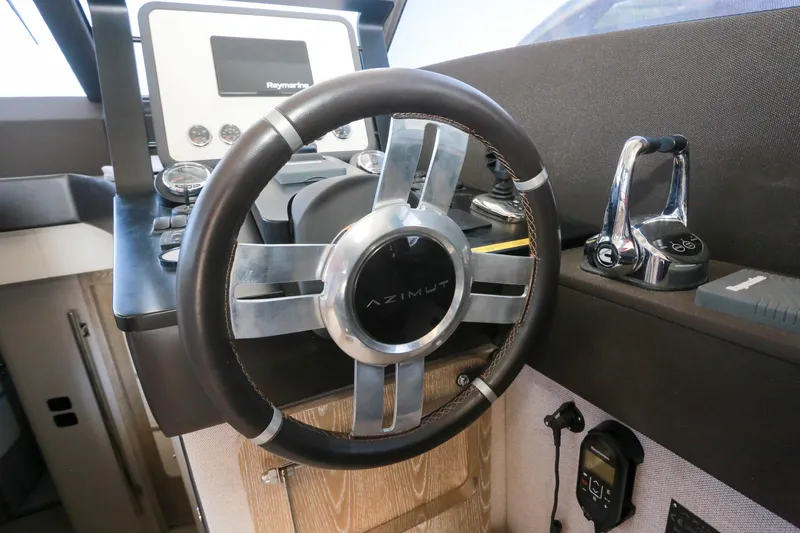

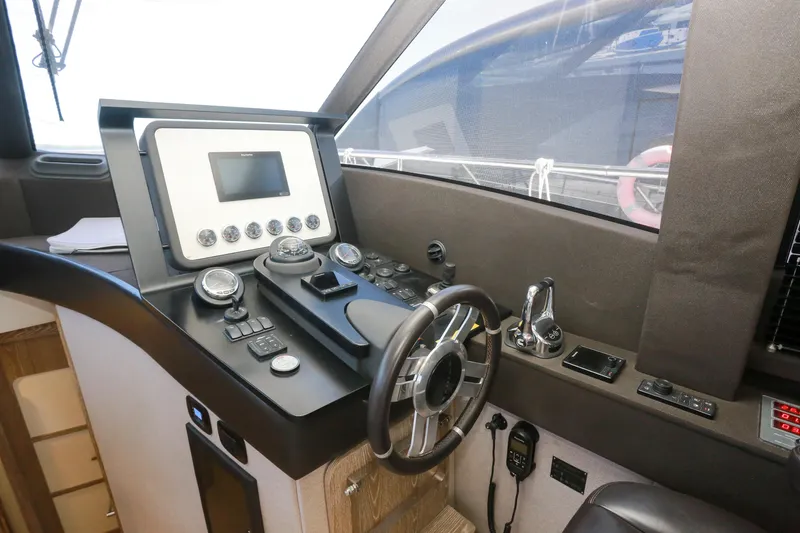

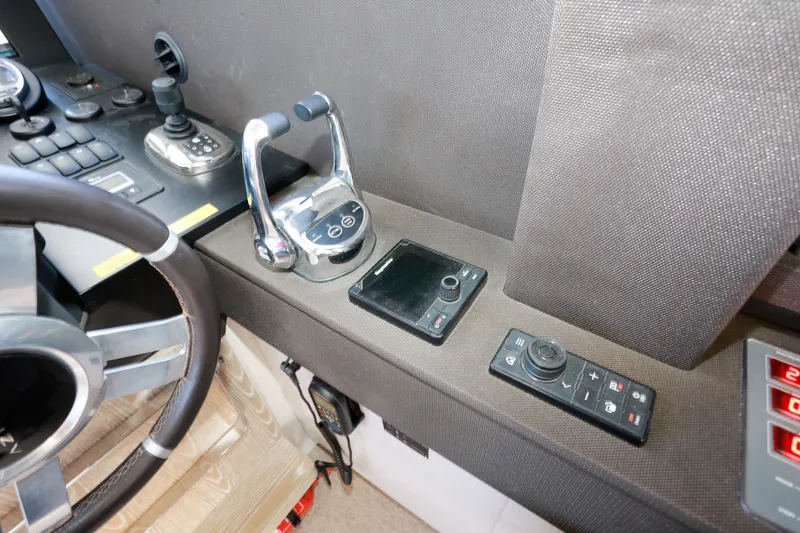

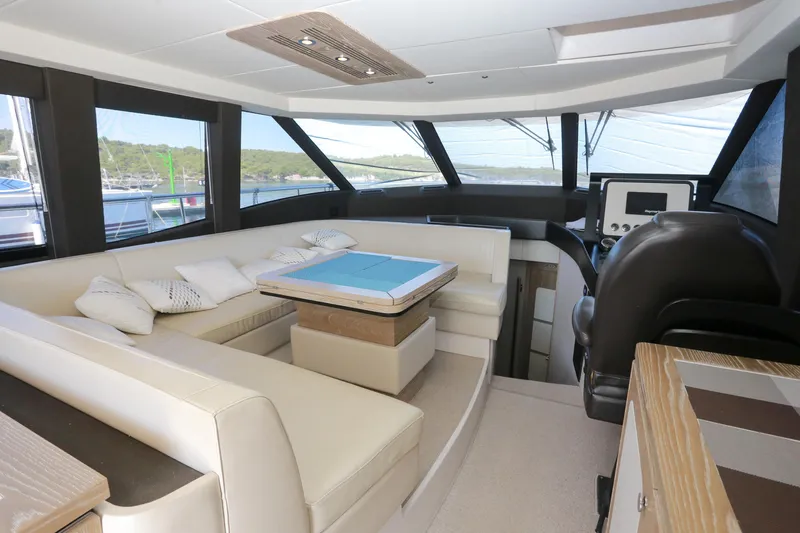

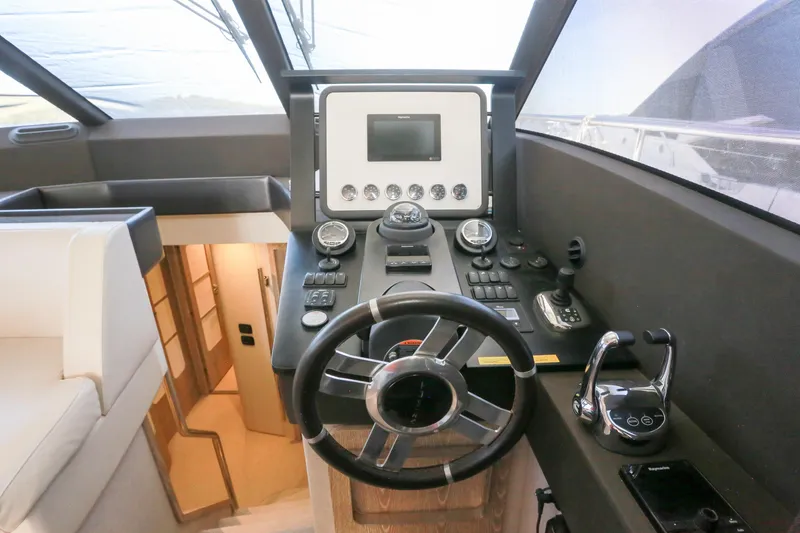

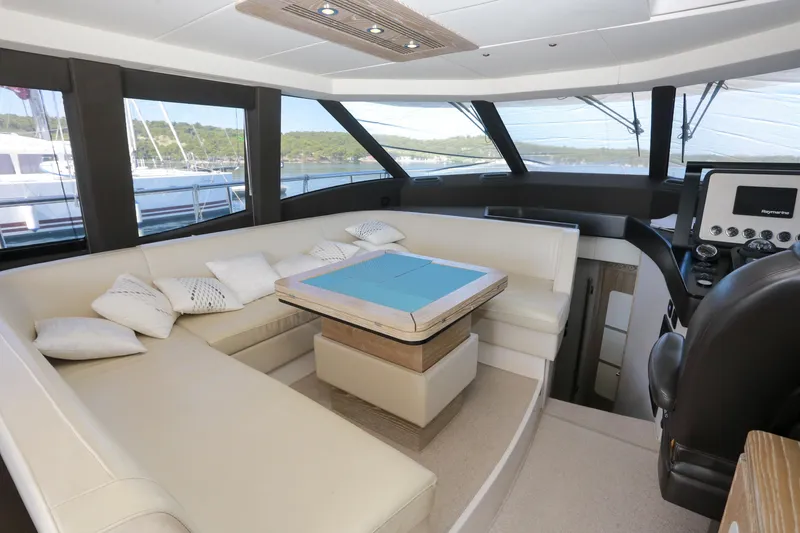

Wheelhouse

● Helm seat with armrests and manual

horizontal slide adjustment. Electric piston for up-down movement

● Foldaway footrest

● Manually-operated window on

starboard side

● Steering wheel

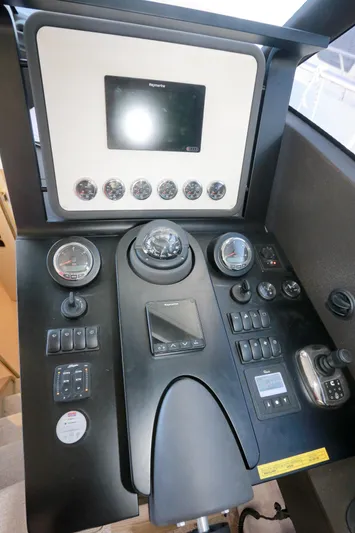

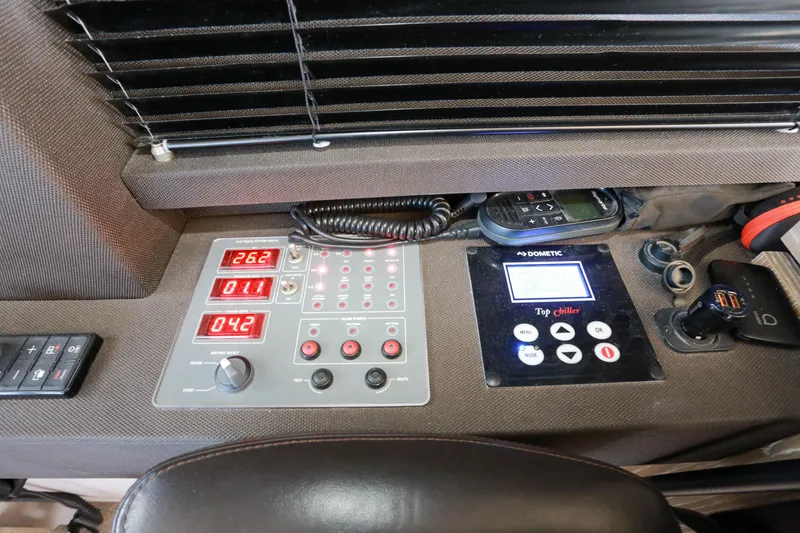

● The wheelhouse includes:

Bow thruster controls

Cummins ETS engine remote controls,

with speed synchronization

Horn, navigation lights, wiper switches

Activation of bilge pumps

Emptying of black and gray water tanks

Engine room ventilation

12V socket

Chain washing pump switch

Analog indicators of diesel tank level

engine start-up

rev counter

hour counter

engine pressure gages and thermometers

ammeters

alarm indicator lights

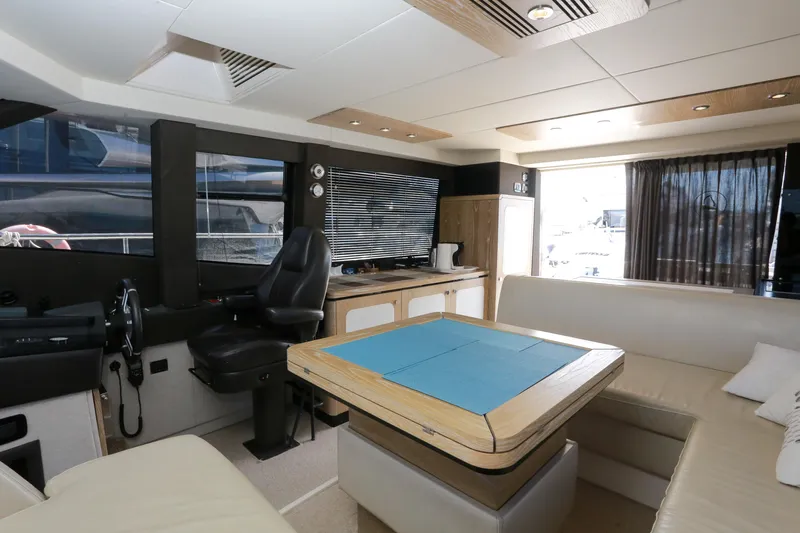

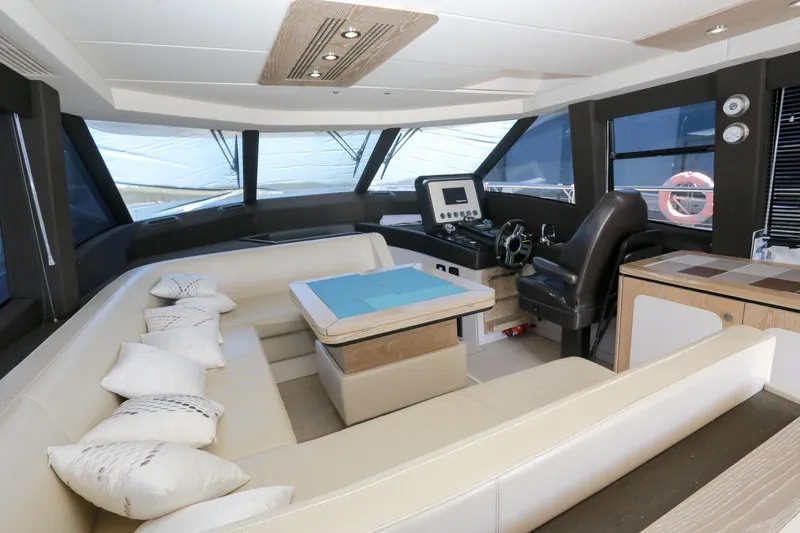

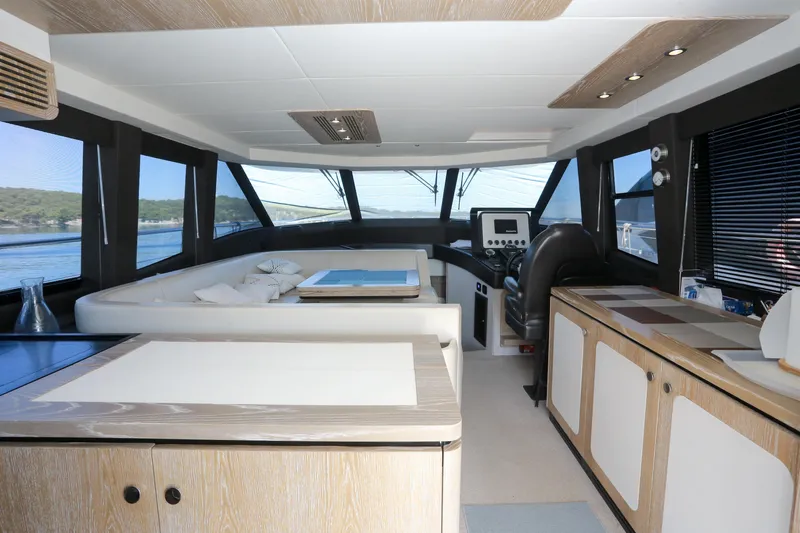

Dinette / Galley

Dinette

● Sofa on port side, with 6-8 seats

● Dining table with foldaway wooden top

for 6 people on port side. When the top

is folded away, the grabrail is visible and

a cup holder and storage compartment

become available.

● 3-panel storage cabinet on starboard

side, with housing for crockery and

drawers inside the central panel.

Cabinet top in solid walnut (covered)

● TV system with aerial socket in saloon

● Ceiling and walls covered in fabric;

wooden inserts in the ceiling

● Manual Venetian blinds for side windows, and sliding curtain for saloon door

● 220V sockets

● Carpeted floor

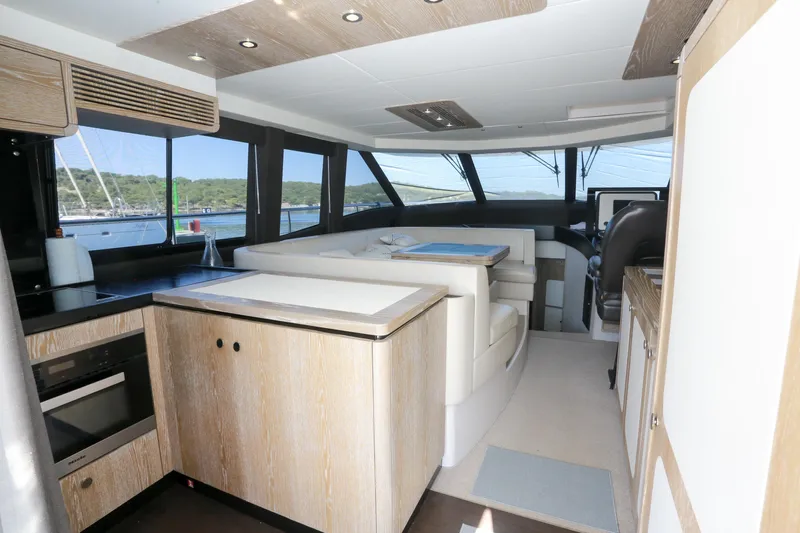

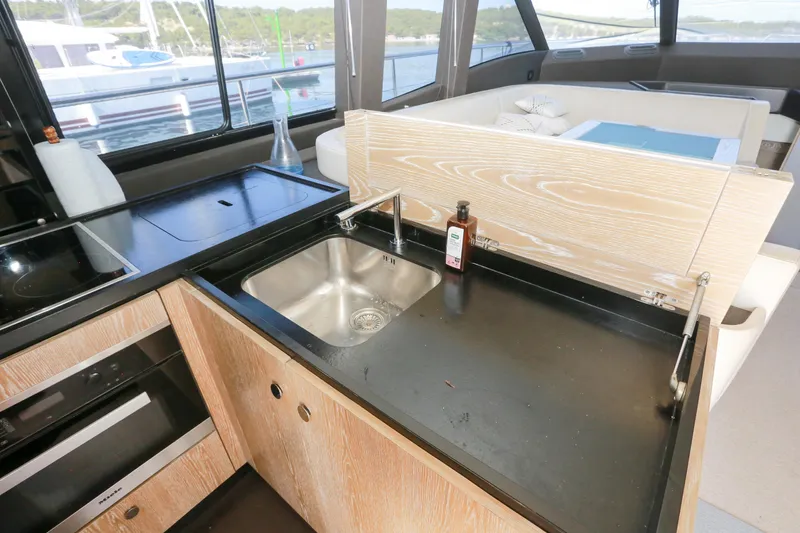

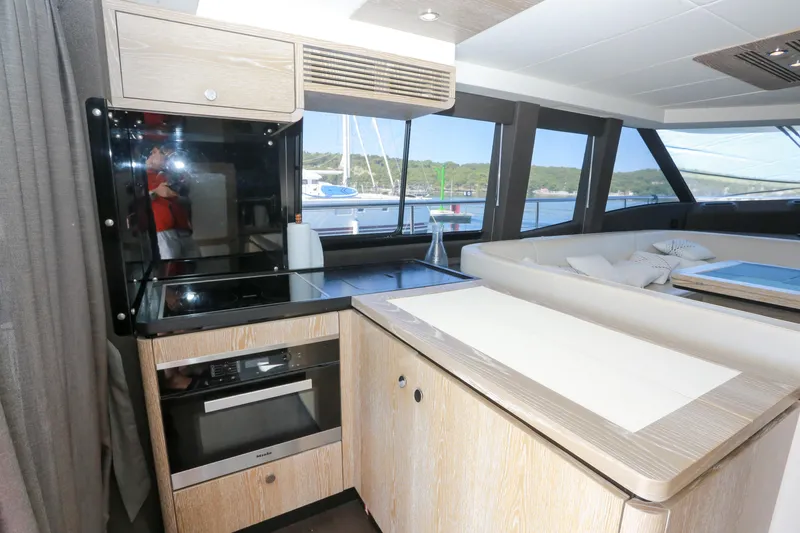

Galley

● "L"-shaped galley located at the entrance

to the boat from the cockpit (port side)

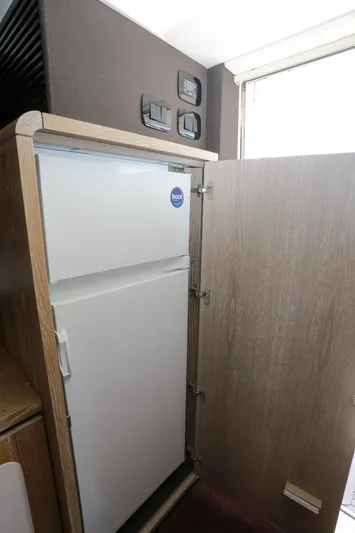

● Refrigerator cabinet on starboard side,

at the entrance to the boat from the

cockpit

● Laminated foldaway cover for black

worktop with sink and hot/cold mixer

tap

● Microwave oven + grill (20-liter capacity)

● Ceramic glass 4-hob range and silicone

pot holder

● 1 cutlery drawer under the worktop

● Drawer under the oven

● 24V extractor for galley

● Manually openable window on port side

● 1 wall unit

● Rubbish bins for sorted waste below the

sink

● 220V socket

● Upright refrigerator/freezer

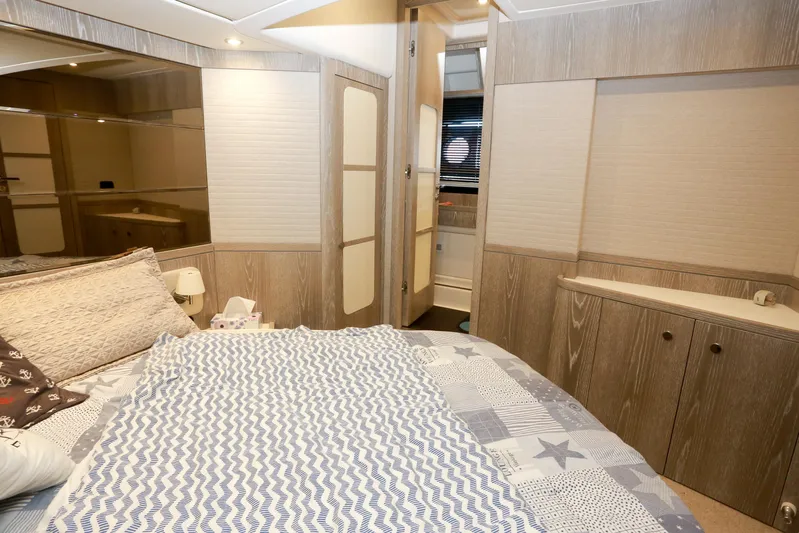

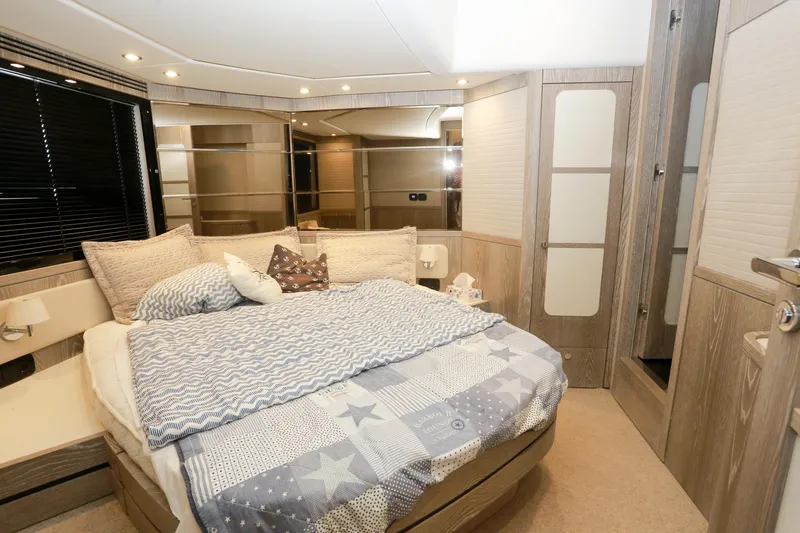

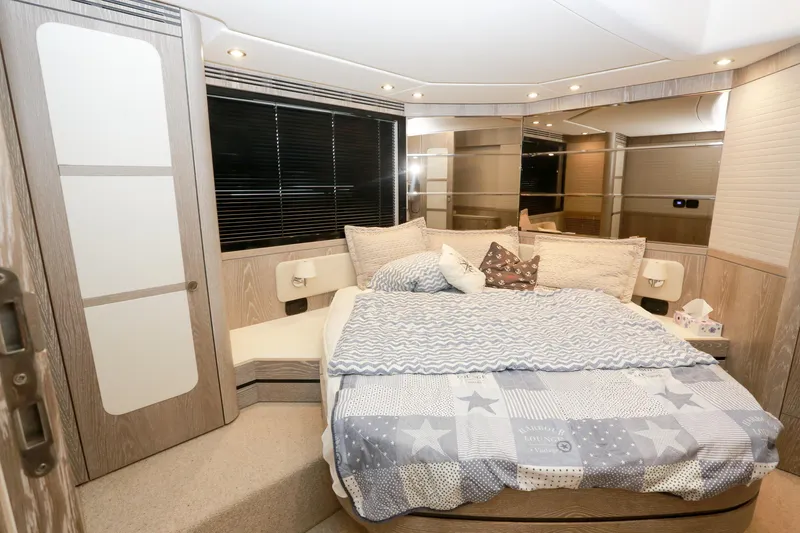

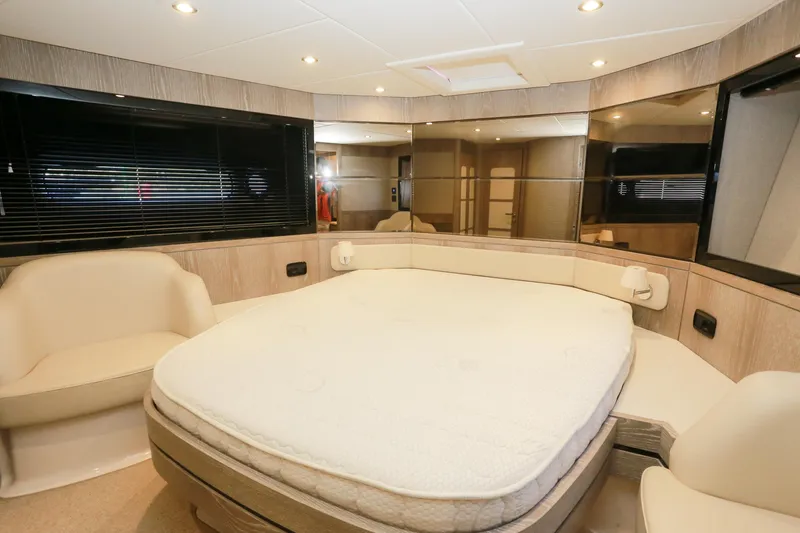

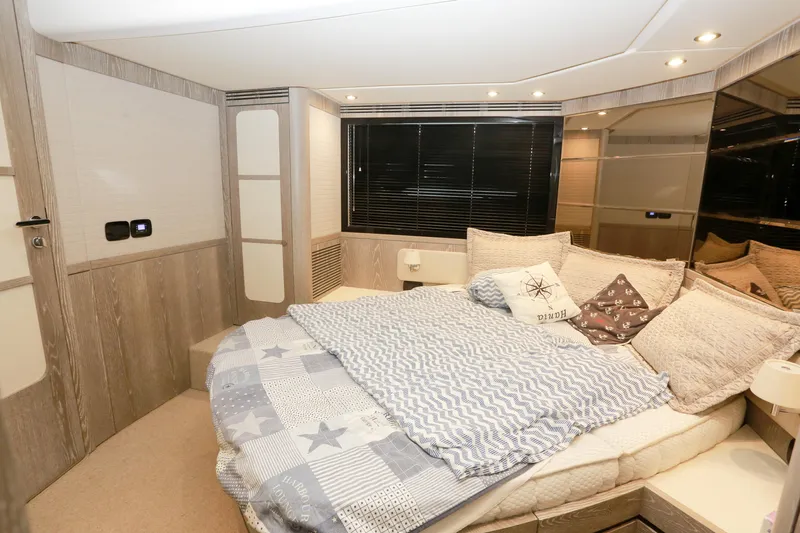

Owner’s cabin

● Located midship

● Diagonal double bed with headboard on

starboard side

● Foldaway bed for accessing the locker

below

● Padded headboard with panel to access

a storage compartment with mirror and

two wall lights

● 2-panel storage cabinet with shelf on

port side

● Wardrobe with hanger bar and drawer

below, on port side

● Wardrobe with shelves on starboard side

● Large windows on starboard side, with

openable portlight

● Spotlights

● Carpeted floor

● Direct access to head on port side

● Venetian blind

● 220V sockets

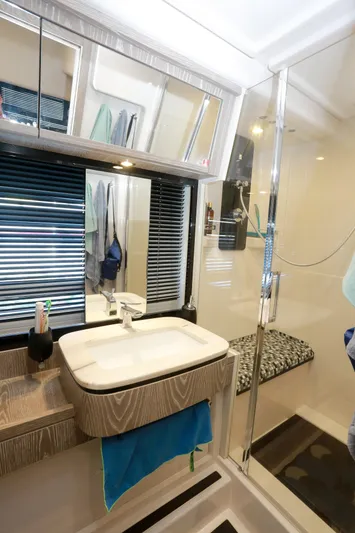

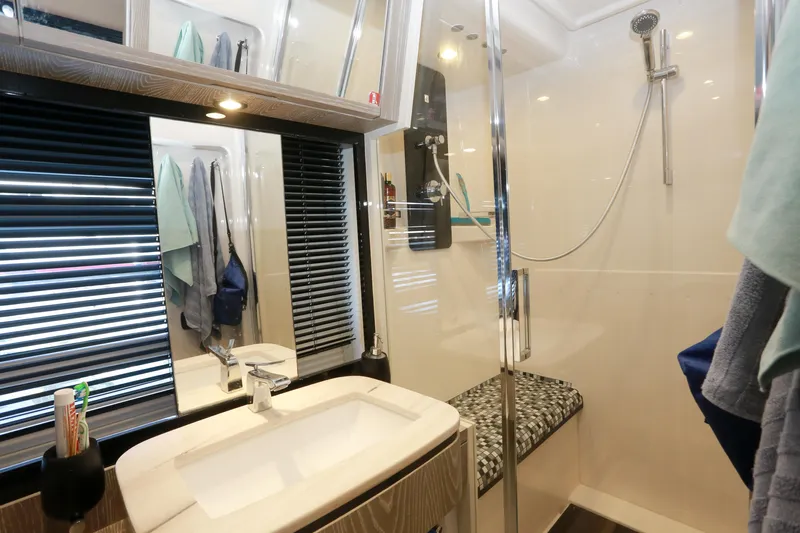

Owner's head

● Located on the port side of the owner's cabin, with access from the owner's

cabin.

● Washbasin top in marble

● TECMA toilet

● Chromed mixer tap

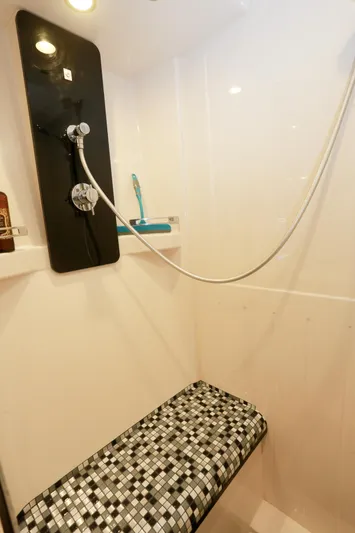

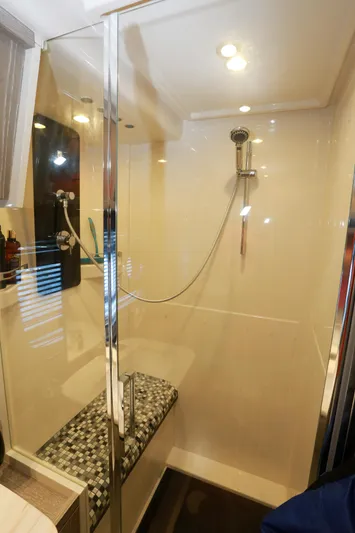

● Separate shower with seat; flat door in

tempered glass

● Shower column

● 2 wall units

● Mirror

● Venetian blind

● 220V socket

● Laminated floor (walnut finish)

● Head air extractor: forced suction from

the shower ceiling panel

● Head accessories:

1 toilet brush

2 clothes hooks

1 toilet roll holder

1 handrail doubling as a towel-holder

VIP cabin

● Located at the bow

● Central double bed

● Foldaway bed for accessing the locker

below

● Two armchairs at the sides of the bed

● Hatchway for accessing the fore sunbed

area

● Wardrobe with hanger bar and shelves

on port side

● Large windows on both sides, with openable portlights

● Carpeted floor

● Spotlights

● Direct access to guest head

● Venetian blind

● 220V sockets

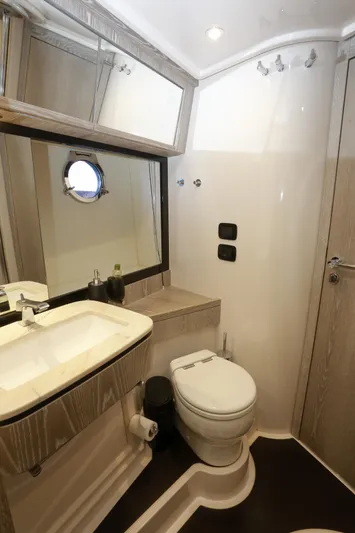

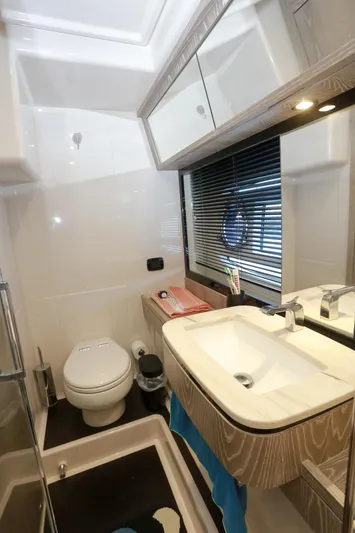

VIP / Guest head

● Located abaft of the VIP cabin, on starboard side

● Direct access from the VIP cabin or from

the lobby

● TECMA toilet

● Washbasin top in marble

● Chromed mixer tap

● Shower: circular enclosure with 1 Plexiglas panel

● Mirror with spotlights

● Wall unit with 2 panels above washbasin

● 1 openable round portlight with Venetian blind

● Laminated floor (walnut finish)

● 220V socket

● Head air extractor: forced extraction

(from the shower ceiling panel)

● Head accessories:

1 toilet brush

2 clothes hooks

1 toilet roll holder

1 handrail doubling as a towel-holder

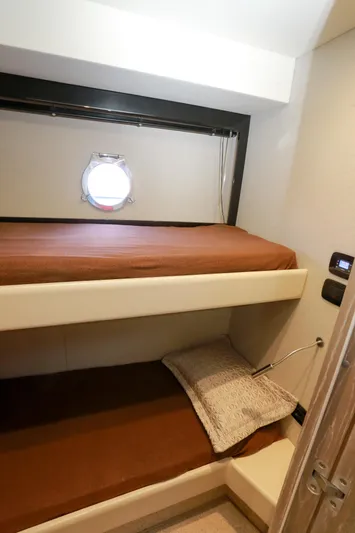

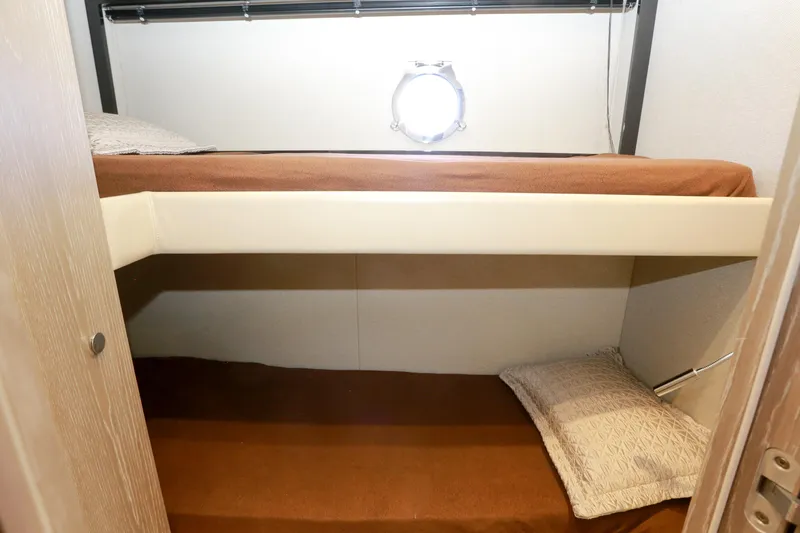

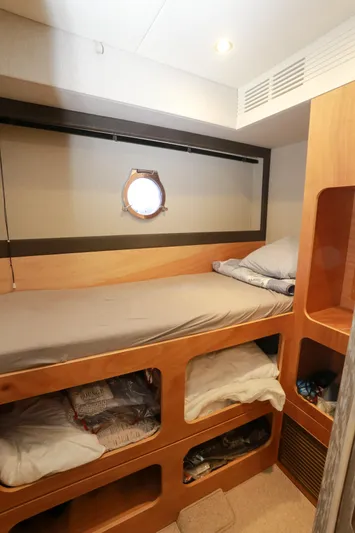

Third cabin

● Located on the port side, with access

from corridor

● Two bunk beds

● Openable portlight with Venetian blind

● Carpeted floor

● Spotlights

● Adjustable reading lights

● Wardrobe on stern side of the cabin

● 220V socket

Utility Room

● Located on starboard side, with access

from corridor

● Openable portlight

● Carpeted floor

● Spotlights

● Wardrobe on stern side of the cabin

● Large, open storage compartments

● Worktop above storage compartments

can be used as base for extra bed (not

included)

● 220V socket

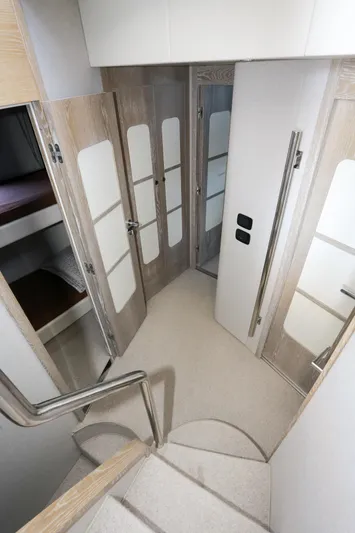

Lobby

● Located midship, with access from ladder descent

● Handrail for stairway

● Large, full-height wardrobe on port

side, with space for washer-dryer (not

included)

● Wardrobe with shelves under the ladder

● Carpeted floor

● Spotlights

Crew cabin (OPT)

● Located at stern

● Access from cockpit bench, starboard

side

● 1 single bed

● Large window astern, with openable

portlight

● Wardrobe

● Spotlights lighting

● 220V sockets

● TECMA toilet

● Washbasin with pull-out mixer tap for

showering

● Shower with anti-spray curtain and grating

Electric system

Main characteristics

● Onboard voltages:

230V-50Hz AC

24V DC

12V DC (for VHF equipment and

cigarette lighter socket)

● The main boards are in the wheelhouse,

engine room and cabin access stairway

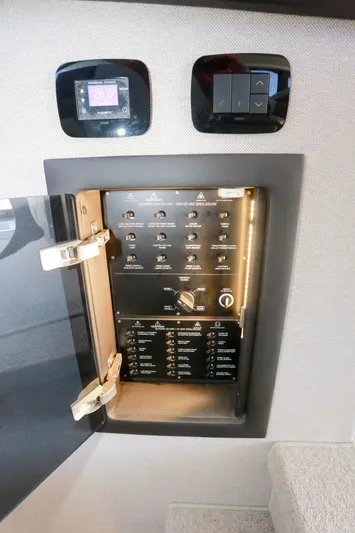

● The power circuit breakers for protecting

the utilities - 220V and 24V - are in the

panel to the right of the ladder leading

from the saloon to the lower deck. This

panel also contains the 220V AC shore or

generator source selectors.

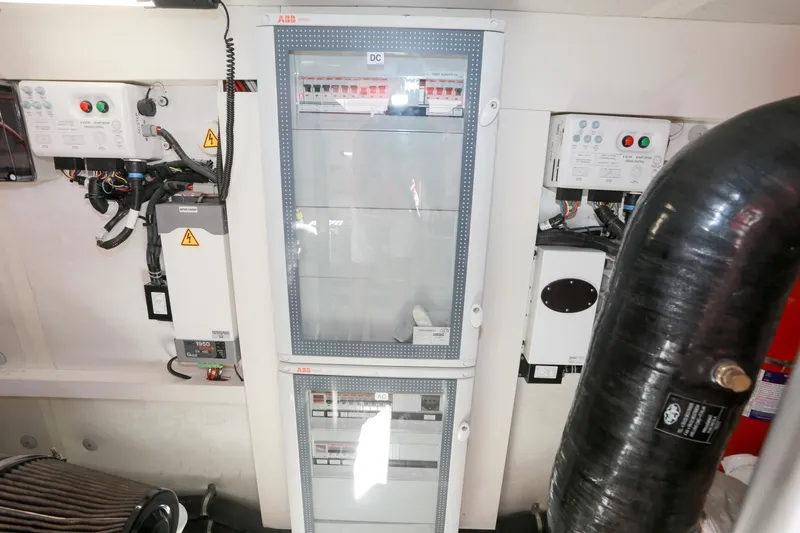

● The main panels in the engine room contain additional power circuit breakers for

protecting the various 24V DC and 220V

AC utilities; two panels are located on

the fore bulkhead and one in a central

position and astern.

● The alarm panel is on the console on the

right side of the wheelhouse

Galvanic current insulation

● zinc anodes

Generator

● A 3.5 kW 50 Hz generator is provided

Shore power sockets

● 1 shore power socket, 50A, astern

Batteries

● Set of six 24V 270Ah batteries, for services

● Set of two 24V 90Ah batteries, for engines

● Battery 12V 70Ah, for generator

● Electronic battery charger 80A (220 /

110V)

● Battery charger for generator 20A (220 /

110V)

Lights and sockets

● AC sockets: EU type

● DC sockets: cigarette lighter type

(wheelhouse, flybridge)

● 24V watertight halogen lighting for outside and LED for inside

● External watertight lights

Electronic navigation instruments

● Wheelhouse:

HELMSMAN magnetic compass 12/24V

Raymarine Bronze Package

● Flybridge:

HELMSMAN magnetic compass 12/24V

Raymarine Bronze Package

● For a detailed list of alternative/additional equipment available,

please refer to the Optionals price list

Bilge system

● 3 automatic bilge pumps (dinette, crew

cabin, engine room), with controls on

the wheelhouse

● 1 electric bilge pump in owner's cabin

● 1 manual bilge pump in owner's cabin

● 1 manual bilge pump in cockpit's locker

● 3 level alarms

● Rapid pumping of engine room via engine water pump

Fire extinguishing system

● 1 cylinder with nozzle on engines and

marine gears

● Activation handle in cockpit, and emergency key

Fuel system

● 2 connected tanks, 1600 l each (total

capacity 3200 l), in aluminum

● Electronic gage in wheelhouse (for starboard tank)

● Optical gage on port tank

● 2 single RACOR 900 filters (decanters)

for engines + 1 PFG20 NAUCO filter for

generator

● 2 refueling plugs on walk arounds

● 2 vents on bulwarks

● Remote diesel shut-off (engine and generator) via 24V solenoid valve

● Fuel drawing tap on starboard tank

Fresh water system

● A 700-liter stainless steel tank below the

bed of the VIP cabin

● Water caps on fore port side

● Level sensor with electronic gage in

wheelhouse

● 1 tank vent on the bulwark

● Pressure pump

● 60l 220V water heater

● Hot/cold water line: heads, galley,

bathing platform shower head,

flybridge shower; Cold water only in

flybridge washbasin; Cold water only in

engine room.

● Fresh water toilet flushing

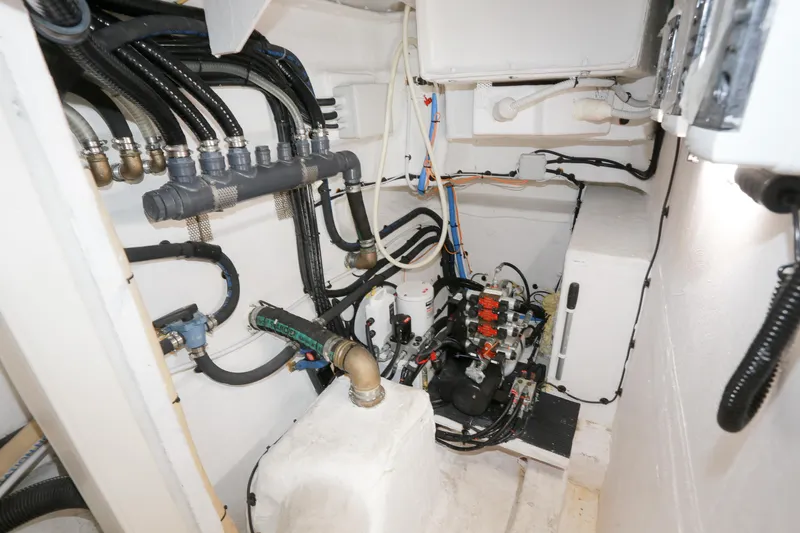

● System that can be isolated by ACORN

Manifolds

Black water system

● 2 connected tanks, 175 l each, in

polyethylene

● Level sensor (2 levels)

● 2 tank vents on bulwark with anti-odor

filters (one for each tank)

● 1 macerator pump

● Suction point from deck walk around

● Tecma toilet (with macerator pump). All

the toilets discharge into the tank.

● Sea outlet from tank (manual only)

Gray water system

● Polyethylene tank, 175 l, below the lobby

● Gray water outlet directly into the sea

from bulwark raisers (for flybridge washbasin)

● Level sensor (3 levels) with indicator on

alarm panel in wheelhouse

● Water discharge: from tank (automatic

/ manual)

● Diaphragm pump

● Fancoil condensation discharge into

auxiliary collection tank and main tank

Seawater system

● Engine cooling system: 2 dynamic seawater intakes - 2.5”

● Generator cooling system: submerged

outlet: 1 dynamic 1" seawater intake

with filter and valve

● Air conditioning cooling system (not included): submerged outlet: 1 dynamic 1"

seawater intake with filter and valve

● Chain washing pump: seawater

Engine exhaust system

● Gas exhaust system: submerged engine

discharge and minimum bypass on bulwark

● Insulated stainless steel raisers

● Exhaust pipes: structural muffler in GRP

● Water/fumes separator for generator,

with side exhaust

Engine room (other)

● Access from engine room via cockpit

door and ladder.

● Engine unloading door in cockpit

● Battery housing: 1 tank for engine batteries and 1 tank for service batteries

● Sound-proofing

Ventilation

● Rooms:

Ventilation of owner's head: forced

extraction 24V

Ventilation of VIP head: forced extraction 24V

Ventilation of galley: extractor fan 24V

● Engine room:

air intakes on hull (grating + separator

filters)

Natural air intake

forced extraction with 2 fans 24V, D.

250mm

Air conditioning system (OPT)

● WORLD SPEC water system version

● 1 compressor unit with 60,000 BTU dual

compressor, located above the port

diesel tank

● 1 seawater pump with relevant seawater intake in engine room

● Distribution:

Dinette: 2 evaporators, 9,200 BTU (on

starboard side next to refrigerator, and

on port side above sofa ceiling panel)

Wheelhouse and windscreen: 1

evaporator, 18,000 BTU (inside lobby

wardrobe)

Owner’s cabin: 1 evaporator, 9,200 BTU

(starboard wardrobe)

VIP cabin: 1 evaporator, 9,320 BTU

(port wardrobe)

Third cabin: 1 evaporator, 6,200 BTU

(in wardrobe)

Utility Room: 1 evaporator, 6,200 BTU

(in wardrobe)

Lobby: 1 evaporator, 4,800 BTU (in

wardrobe)

Crew cabin: 1 evaporator, 4,800 BTU

(in wardrobe)

● A/C controls: 5 power cards and 3 auxiliaries

● Remote control panel in dinette and controls in individual cabins

The yacht is registered under the Polish flag. EU VAT NOT PAID.

Denison Yachting - Annapolis is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Almissani (Head Office).

Denison Yacht Sales offers the details of this yacht in good faith but can’t guarantee the accuracy of this information nor warrant the condition of this boat for sale. This yacht for sale is offered subject to prior sale, price change, or withdrawal from that yacht market without notice. She is offered as a convenience by this yacht broker to its clients and is not intended to convey direct representation of a specific yacht for sale.
