- Beam: 15' 4''
- Hull Material: Fiberglass
- Max Draft: 4' 9''
- Fuel Tank: 1 x 800|gallon
- Fresh Water: 1 x 200|gallon
- Holding: 1 x 100|gallon
- Heads: 2

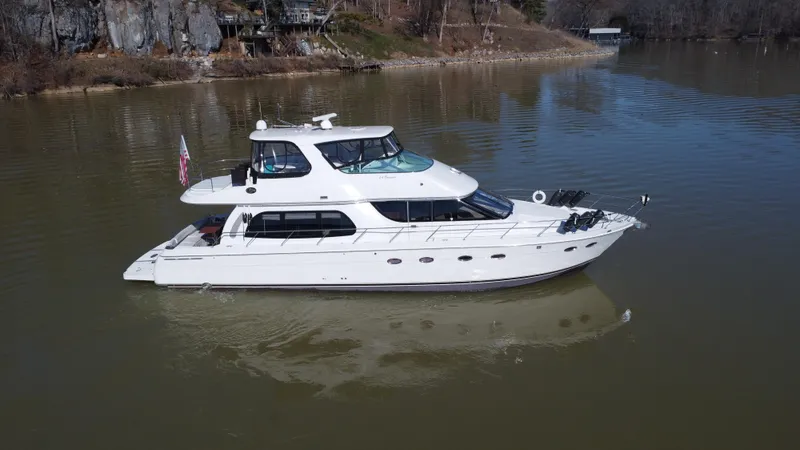

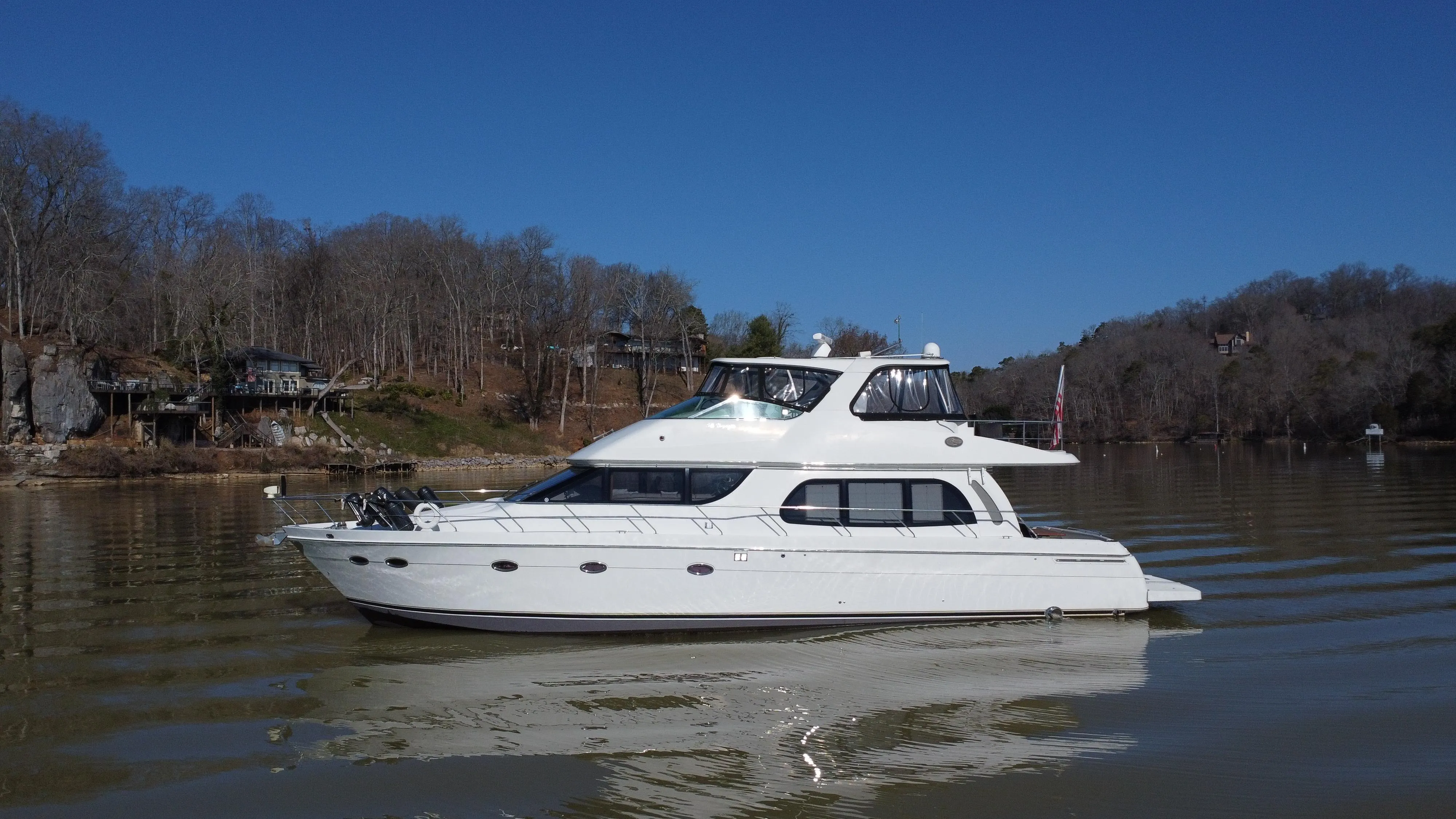

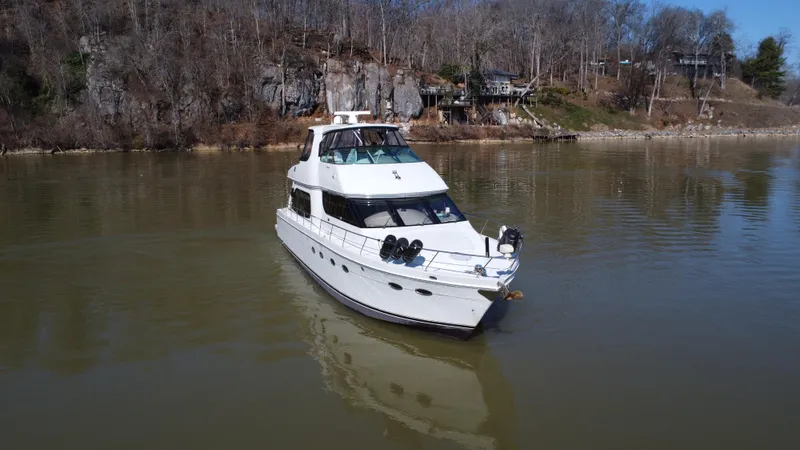

M/V “NAPA VALLEY” is an eighteen decimal two metre (18.2 m, 59 ft 8 in with platform) pilothouse
motor yacht, production built of fiber reinforced plastic (FRP) by Carver Yachts (Genmar Yacht Group
LLC, Pulaski, WI USA) in year 2007, and currently powered by twin in-line six-cylinder diesel engines
through reversing gears to conventional propellers. The hull is comprised of flared bows with transverse
thruster, single chines, modified “V” underbody, spade rudders, and transom stern with transverse stern
thruster and articulating boarding platform. The interior layout consists of forepeak deck access only

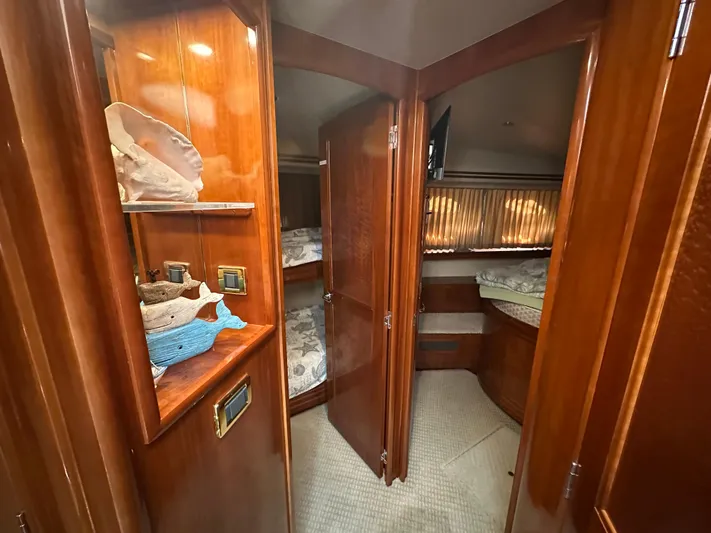

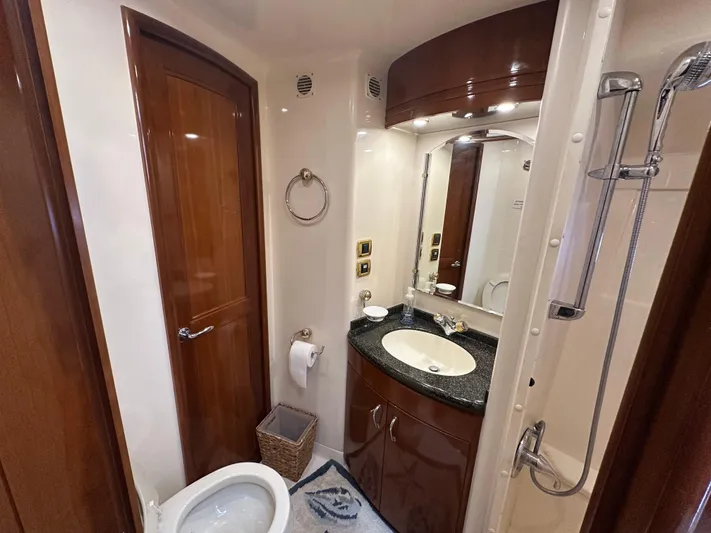

chain locker followed by forward cabin with center-line double berth and starboard side toilet
compartment containing vanity, stall shower, and vacuum toilet, followed by centered passageway aft

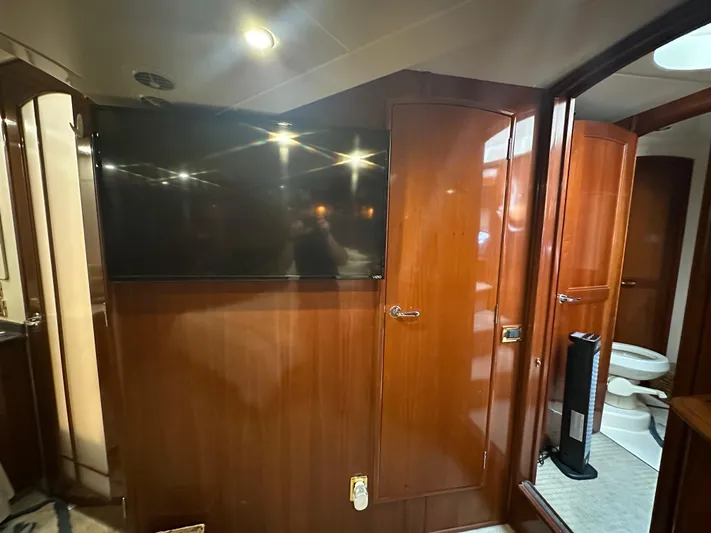

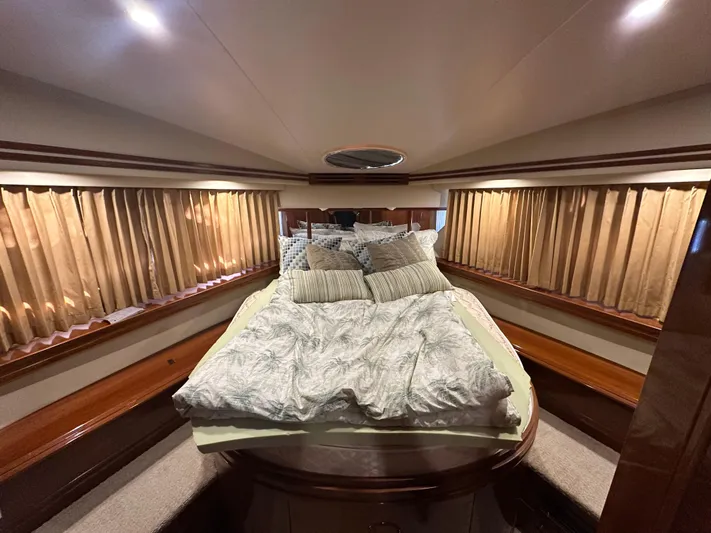

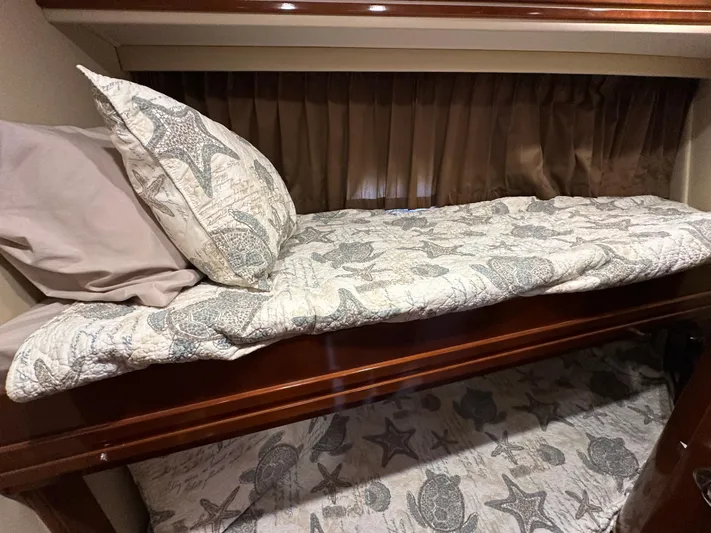

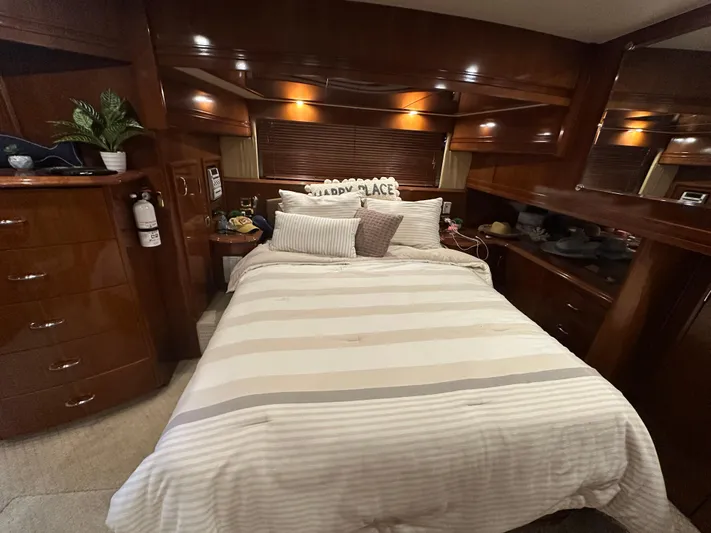

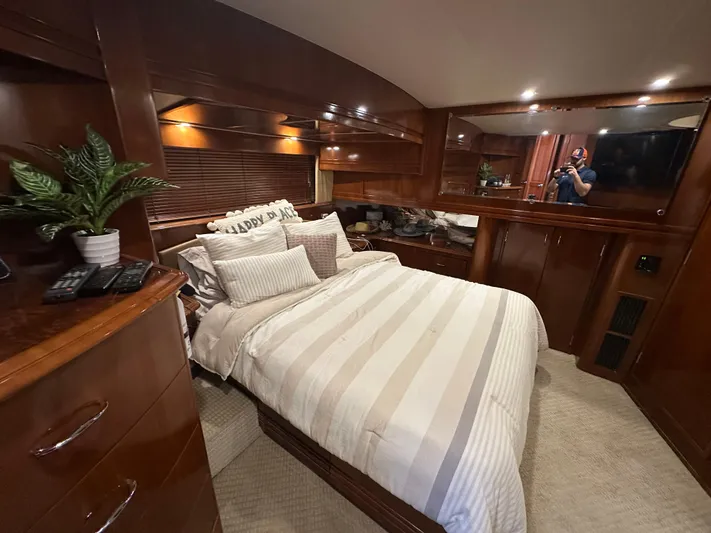

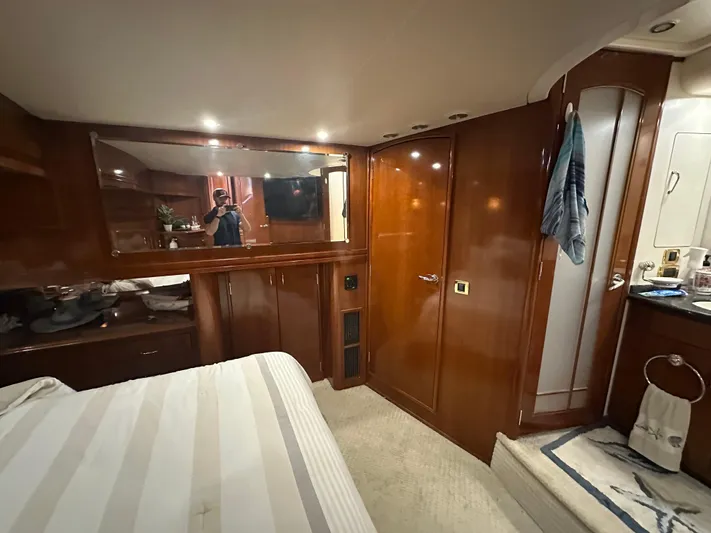

accessing port side cabin containing twin stacked single berths, and master cabin aft with island double
berth, toilet compartment, vanity, tub/shower compartment, and clothes washer and dryer units. Next

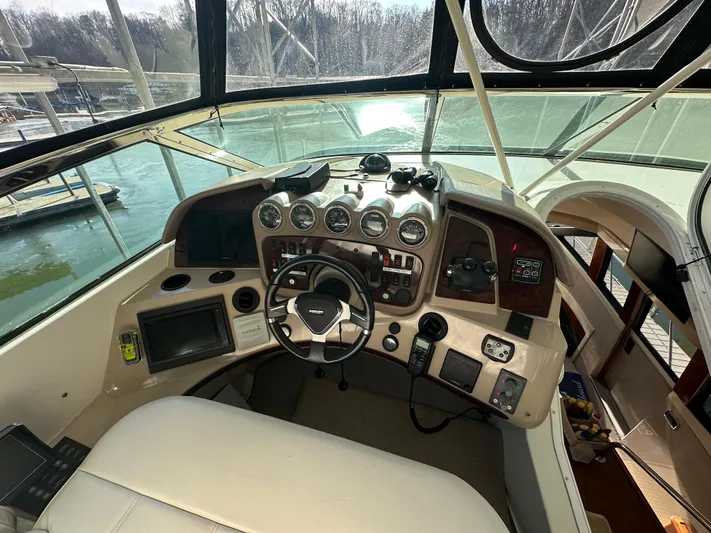

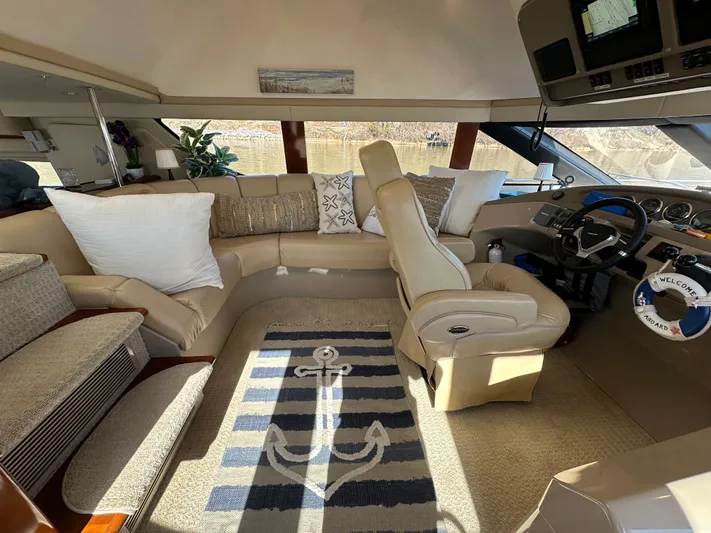

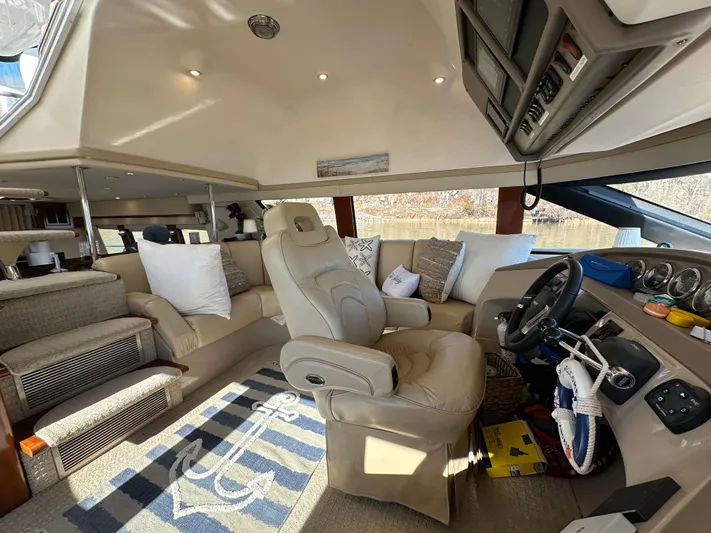

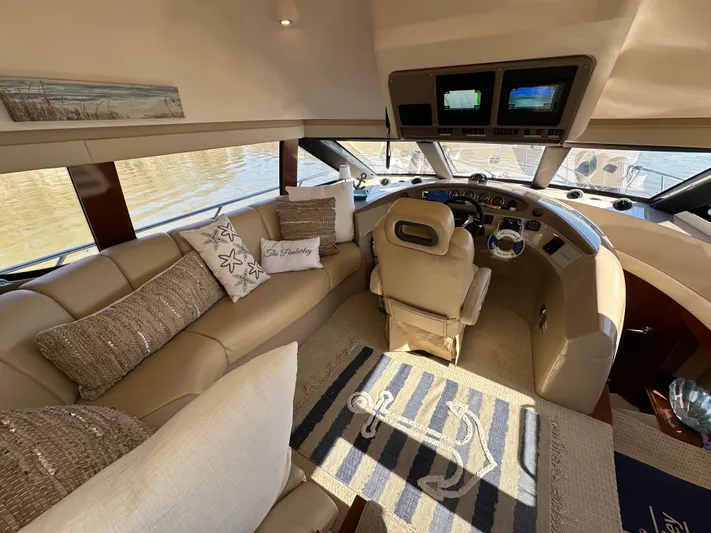

starboard side spiral staircase up to the pilot house that contains centered helm with pedestal seating
for operator guest lounge, starboard side sliding door casement to side deck, steps up to bridge and

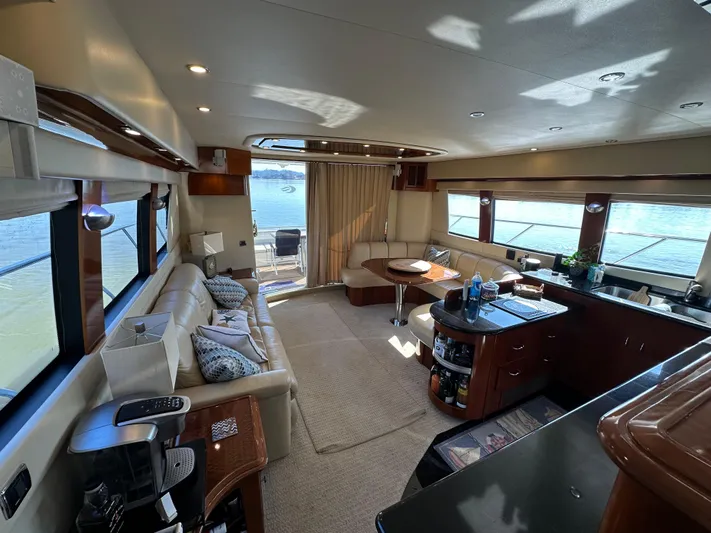

steps down to the salon that contains galley to port, starboard side entertainment centre and sofa with

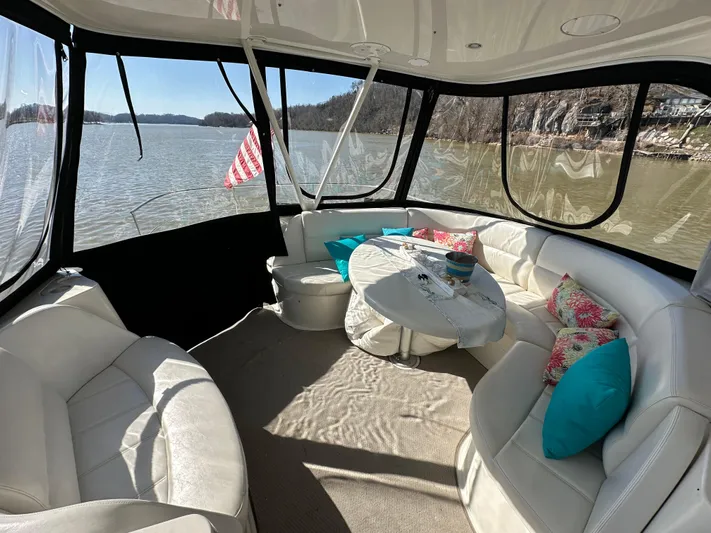

reclining sections, and sliding door casement to open cockpit. The bridge enclosure consists of canvas
and clear acrylic on stainless steel bows and radar arch that contains centre-line helm and seating

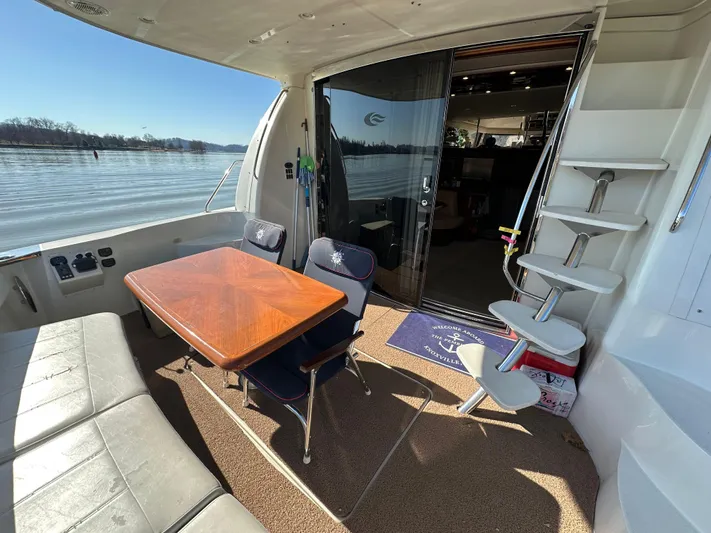

followed by wet bar and and lounge aft. There is also bridge access from cockpit via starboard side

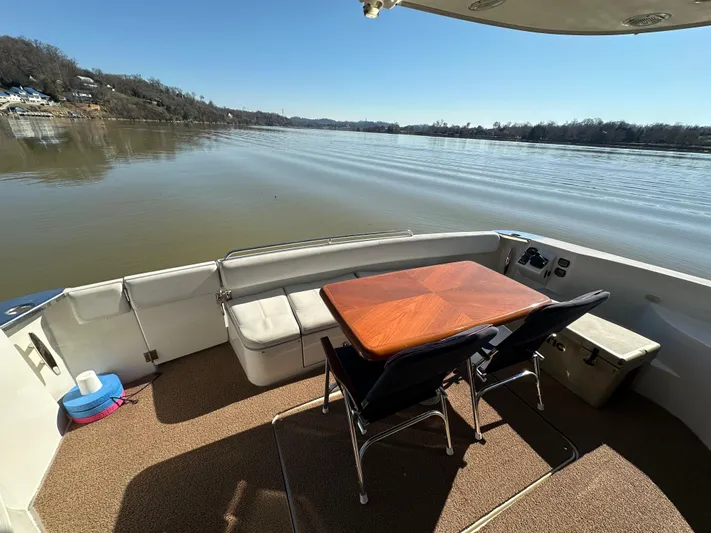

staircase. The cockpit sole contains access hatch to the steering flat/lazarette and bench seating aft.
HOUSEExterior ConstructionAll integral to decks moulded gelcoat FRP trunk and main cabins with bonded glass lenses in FRP andpowder coated aluminum casements, three inclined forward-facing lenses with pantograph type wipers,clear vinyl/canvas bridge and lounge enclosureNotes: Clean & serviceable overallInterior ConstructionMoulded FRP liner in toilet compartments and plywood construction cabinetry and paneling sheathedwith bright hardwood and accents, carpeted soles except FRP in toilet compartments, marblecountertops, vinyl deckheads, carpeted soles, moveable furniture, sofa with reclining sections.Notes: Satisfactory Condition as Observed with little visible wear and tear to note.Domestic AppliancesOne “Euro Kera” Princess three burner A/C countertop, “Tappan” microwave oven, “Sub-Zero” side byside refrigerator/freezer, “NovaKool” bar fridge, “Malbar” clothes washer and dryer units, “Clarion”model CMD4, DCZ625, and DSC9205 stereo/tuner, “Solé 32” flat-screen TV, “Sony” 42-inch TV, “KVH”4HD satellite tracking antenna, “Cruise Air” 72,000-BTU 4-zone reverse cycle air conditioning, “Seaward”76 litres (20 US gal.) A/C only domestic water heater, 2 X “SeaLand” vacuum toilets, “Jenn-Aire” A/C grill,Blue-tooth CCTV aft, pressure domestic hot and cold water to galley, washing machine, vanities, toiletcompartment and boarding platform showers, cold only to bridge bar sink and vacuum heads.Notes: All domestic equipment as sighted appears to be well installed: see Deficiencies for specific
HULL AND DECKAll moulded FRP shoe-box type construction joined at sheer with adhesive sealant and mechanicalfasteners through stainless steel half oval guard, perimeter stainless steel railings, 24-V anchor windlass,stainless anchor chute and nylon chain roller, hull strike plate, adequate mooring cleats and fairleads,“GSH” 24-V/hydraulic controlled swim platform.
Rudder: 2 X Cast Bronze Spades Props: 2 X 4-Blade 29” X 32”Rudder Stocks: Stainless: weeping seals Prop Shafts: 2 X 2 1⁄2-inch “AquaMet”Packing Gland: 2 X Shaft Seals: see Defic. Trim Tabs: 2 X “Bennett”Struts: Single Bronze “I” Type per Swim Platform: Articulating “GHS” liftTransom Door: Sat. as Observed Davit: Swim Platform FunctionStringers: No Deficiencies to Note Bulkheads: 2 Transverse WatertightHatches: All Sat. as Observed Windlass: “Maxwell 3500” 24-VPort Holes: 10 Stainless Ellipsoid in Hull Anchor: ~60 Lb. “Delta” plowAnchor Rode: Adequate Galvanized Chain Spare Anchor: None SightedMast & Boom: Radar Arch Only

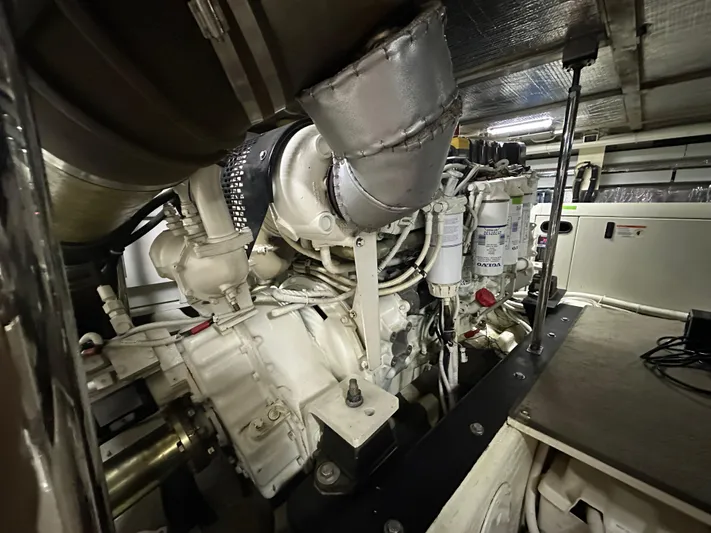

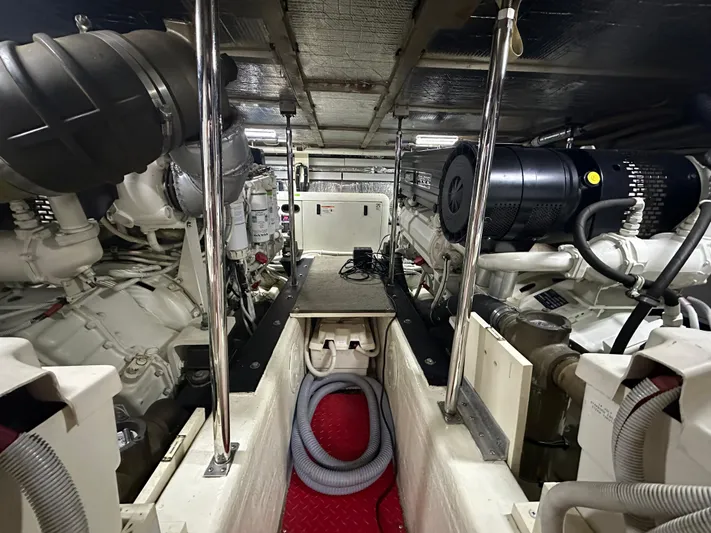

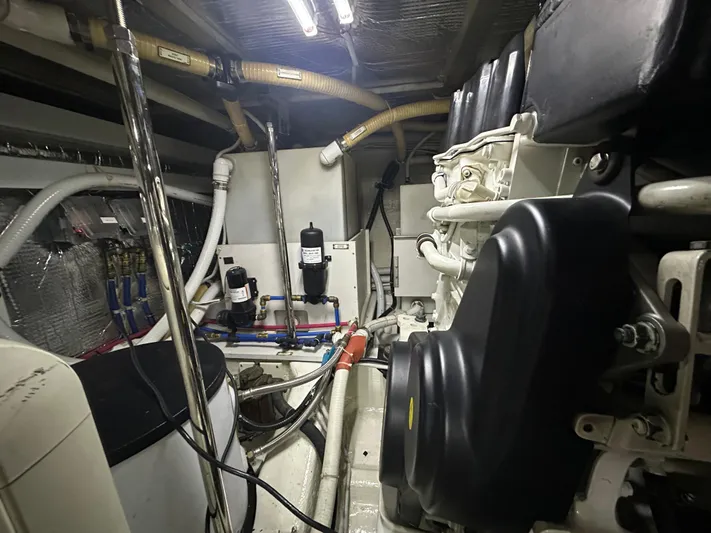

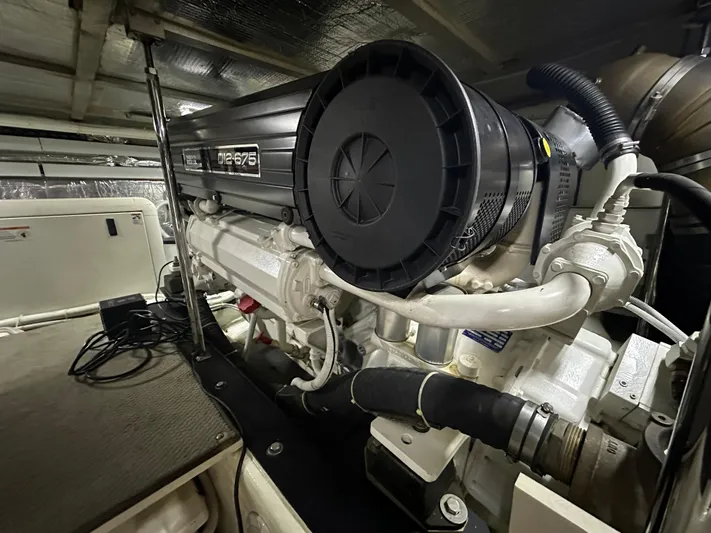

MachineryPropulsion is by twin “Volvo-Penta” model D12-D in-line six-cylinder 12.1-litre turbo-diesel enginesthrough “ZF” model 311A 1.759:1 reduction hydraulic reversing transmissions coupled to 2 1⁄2-inchdiameter “AquaMet” propeller shafts through shaft seals and cast bronze “I” type struts with cutlassbearings and fitted with outboard turning 29-inch diameter X 32-inch pitch cupped 4-blade “Nibral”propellers and line cutters. Also fitted is an “Kohler” 22 KW @ 1,800 RPM diesel A/C generator in soundattenuating cabinet, model 23EOZD, S/N: 2070741, currently inoperable, indicated hours usage notsighted. Also fitted is “Reverso” lube oil pump for mains and A/C generator.
Serial Nos: P/1012482104,S/...4688 Horsepower: 675 per @ 2,300 RPMNew: 2007 Cooling: Through heat exchangersRebuild: No Repair History Sighted Water Filter: Sea Strainers; ServiceableOil Filters: Sat. as Observed Air Filters: Factory original typePacking Glands: Shaft Seals:repair Starboard Controls: “Volvo” single lever servos
