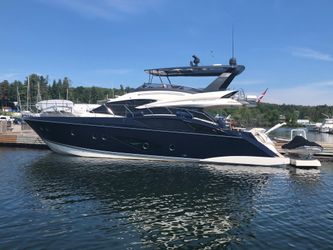

Silent T's72' Marquis 2009

BOARDING PLATFORM

• 107 ft. approx., hydraulically-actuated, pantographic, moves out & down with remote control
• Boarding ladder – telescoping, with grab rail, concealed beneath platform extension
• Bilge air exhaust vent – concealed in transom
• (2) Cockpit stairways – integral to deck
• (2) Mooring cleats – bollard-style, stainless steel, bolted through aluminum backing plate
• (2) Grab rails – stainless steel, on transom
• Teak decking – inlaid, 3/8” plank

COCKPIT

• 114’ approx. fully guttered & self-draining
• Bridge Stairway – integral, 10” risers (meets residential standards) with stainless steel hand rails, inlaid 3/8” plank Teak decking steps, (3) recessed courtesy lights
• Electrical outlet
• Emergency Fire Suppression System controls – in starboard transom corner locker
• Engine room hatch – guttered, watertight, polished stainless steel hardware, supported by gas shocks
• (2) Fairleads – polished stainless steel, port & starboard
• Fire extinguisher – in starboard transom corner locker
• (4) Lights – courtesy, recessed, with exterior-mounted switches
• (9) Lights – overhead, recessed, with exterior-mounted switches
• (2) Lockers – storage in transom corners
• (2) Lockers – fresh & optional raw water washdown in each, hand shower in starboard, self-draining, in port & starboard bulwark
• Settee – Ultraleather upholstery, accommodates 6 adults, across transom with cover
• (2) Mooring cleats – bollard-style, stainless steel, bolted through aluminum backing plate, inboard-mounted
• Overhead sun/weather protection – with mirrored Bussola inset
• (2) Stereo Speakers
• Teak Decking – inlaid 3/8” plank
• (2) Transom gates – stainless steel, Marquis monogrammed, at the top of the cockpit stairways

DECKS

• Deep Sea Marine HID underwater lights, Optional Upgrade
• Anchor plate – polished stainless steel, with stainless steel clad recessed anchor channel & nylon rollers
• Beverage holder recess
• Bow rail – 1.25” O.D. lineal-buffed 316 stainless steel
• Bow rail stanchions – double welded (inside & outside), 316 stainless steel, anchored to aluminum backing plates laminated into bulwark
• Bulwark – fiberglass
• (2) Drain grates – polished stainless steel, with insignia
• Engine room air vents – concealed in superstructure
• (2) Gutters – port & starboard, direct water from canted walk surface to grated trap, then overboard
• (2) Hawse pipes – polished stainless steel, port & starboard
• (6) Lights – 18W Xenon, mini-spotlights, illuminate Cabin & Bridge sides
• Lights – accent, courtesy, recessed
• (6) Lights – overhead, recessed
• Fore Locker – contains optional Forward TV & Shorepower Connectors; fresh & optional raw water washdowns; polished stainless steel hardware; gull-wing door supported by gas shocks; in superstructure forepeak
• Locker – contains windlass & bollard-style anchor cleat, polished stainless steel hardware, in-deck, self-draining
• (2) Lockers – fender & line, polished stainless steel hardware, in-deck, self-draining
• (2) Lockers – fender & line, polished stainless steel hardware, in superstructure, gull-wing doors supported by gas shocks, self-draining
• (2) Mooring cleats – bollard-style, stainless steel, bolted through aluminum backing plate, inboard-mounted
• Pilothouse door – manual
• Rub rail molding – high-impact, heavy duty, 1” 316L stainless steel insert
• Side deck access doors – port & starboard
• (4) Spring cleats – bollard-style, stainless steel, bolted through aluminum backing plate
• Sunpad – Double
• Windshield weather covers – black mesh

SALON

• Entry door with stainless steel frame, fully vertical, convex, sliding, handle latch, keyed deadbolt, secures open, neutral density glass with mirrored exterior & interior sliding screen
• Curtain over entry door slides horizontally in top & bottom tracks
• Artwork from Marty Lowe Designs
• AC & DC distribution panels – hidden with hinged doors
• Tri-Tone Carpet from Marty Lowe Designs
• (5) Cabinets – Sapele Pommele Wood inlay top, high gloss jewel finish, with cherry Wood sea rail
• Designer décor – including premium wall coverings & fabrics
• Custom Sofa from Marty Lowe Designs
• Salon Cocktail Table from Marty Lowe Designs – Brown, oversized & beautifully studded storage chest with hinges
• Club Chairs & Directors Chairs from Marty Lowe Designs
• Electrical outlets
• Entertainment center – 42” Sole LCD TV with electric lift, hidden in cabinet; Sony progressive scan 5-disc DVD/CD changer; Sony 5.1 channel Home Theater receiver, Niles In-Wall Theater speakers, Subwoofer, Sirius Satellite Radio System & Apple iPod dock
• Hardware – stainless steel, polished & brushed
• House of Troy Slimline picture light SL21 centered on bulkhead 10” down from ceiling, Optional Upgrade
• (6) Lights – in soffit, recessed with electronic dimmer control
• (10) Overhead Lights – recessed, with electronic dimmer control
• Overhead architectural feature stylized cherry Wood Bussola inlay
• Rocker light switches
• (2) Soffits – cherry Wood, port & starboard outboard
• Tri-deck stairway – circular, polished stainless steel post & step supports with etched glass steps; bottom two (2) steps are Wood
• Window treatment – Roman shades with recessed head rails

GALLEY

• Designer Décor including premium wall coverings & fabrics
• Syklounge Dining Area – with curved settee finished in Ultraleather; high-gloss Wood table accommodates eight (8) adults
• Serving Bar to starboard with square sink & storage; Upgraded frosted glass doors on serving bar & Upgraded Gascon Limestone tilecountertop
• Wood flooring between Galley & Serving Bar & Dinette/Skylounge area; pattern at 45° angle, Optional Upgrade
• Caesar Stone Countertops, Optional Upgrade
• Aft end of Galley Island widened to optimize storage space, Optional Upgrade
• Polished Stainless Steel Hardware
• Refrigerator/Freezer – JennAir, full-size, French door with bottom freezer, brushed stainless steel finish
• Range – full-size with Oven and 4-burner Cooktop
• Range hood – brushed stainless steel with (2) lights, exhaust fan & outside vent
• Microwave/Convection Oven/Broiler – Sharp, built-in, brushed stainless steel finish
• Coffeemaker (110V only) – Cuisinart, stainless steel, recessed on access tray
• Sink – TEKA brand LE63 model double basin under-mounted, stainless steel
• Trash Disposal installed in sink, Optional Upgrade
• Electrical Outlets
• Rocker Light Switches
• Overhead Lights, recessed
• Lights recessed in bottom of overhead cabinets
• Storage Cabinets & Drawers

HELM STATION

• (2) Helmseats (Captain & Companion) – swivel pedestal, high-quality elegant upholstery, embroidery stitching, stitched Marquis Yachts icon & arm rests; Captain Helmseat has flip-up seat bolster & adjustable height
• Tilt Steering Wheel, Nutmeg, Optional Upgrade
• Dash – wraparound with Ultraleather and Wood accent panels
• Displays (1 for each engine) – digital LCD; engine instrumentation & diagnostics
• Single large Technographics panel installed to match the switch panels in electronics display, Optional Upgrade
• Gauges – analog; rudder angle; fuel level (1 for each tank)
• Emergency controls – shift & throttle
• Red Night Time Navigation Reading Light over helm
• (2) Access Doors – to access panel for systems & wiring below helm
• Accessory space – for installing navigation electronics
• Adapter – 12V Beverage holders; stainless steel, self-draining
• (4) Air vents – directable
• Rocker type panel switches
• Windshield

TRI-DECK FULLY ENCLOSED PILOTHOUSE

• Aft bridge extension – self-draining, with toe rail
• DC Distribution Panel – Bridge 12V Systems
• Electrical Outlets
• Entry Door – stainless steel frame with tinted tempered glass, grab handles & latch handles, keyed deadbolt, provides access to cabin
• Fully Enclosed Tri-Deck Pilothouse with Marquis high gloss Wood furnishings
• Carpet – Fabrica European collection Calias pattern, Optional Upgrade
•  (2) Bar Stools – designer style with foot rest
• Wood flooring between Galley & Serving Bar & Dinette/Skylounge area; pattern at 45° angle, Optional Upgrade
• Windows – opening port & starboard
• (2) Overhead hatches – for ventilation
• Designer décor with Vultex VK0134 Baby Ostrich material on dash, helm and companion seats
• Air Conditioning System – 24,000 BTU
• Aft Door
• Cockpit to Bridge companionway hatch
• Lights – courtesy, recessed
• Lights – courtesy, recessed, with exterior-mounted switch
• Settee accommodates 6 adults, with storage beneath, Valtekz Tumbled Steer Granite material
• Love Seat to starboard, Valtekz Tumbled Steer Granite material
• Dinette Table – Wood inlaid
• Wet/Serving Bar – Upgraded Caesar Stone countertop, Upgraded square sink (similar to serving bar) with cold water faucet, customized storage cabinets (to optimize space) beneath with dedicated glass & bottle storage
• Addition of 8” overhang on inboard edge above bridge bar top, Optional Upgrade
• Additional 15” Gaggenau grill on the bridge grill cabinet, Optional Upgrade

SAFETY & NAVIGATION

• 65-5-5-5 marine grade bronze seacocks for all underwater thru-hulls
• Anodes – zinc, sacrificial
• Battery master disconnect switches
• Battery boxes & covers with restraint straps
• Bilge alarm – high water
• Bilge blowers – 250 cubic foot/minute with acoustic filters (1) 24V 4600 cubic foot/minute
• (9) Bilge pumps – 3700 gallons per hour each, automatic/manual operation (24V)
• CO2 detectors throughout staterooms and in optional crew quarters
• Compass – Ritchie Navigator 4.5”, flush mount, illuminated, dual-read
• Docking lights – transom
• Engine alarms – all vital possibilities
• Fire suppression system – Automatic, FE241
• (2) Flagstaffs – bow & stern
• (2) Fuel alarm lights – indicate water in fuel
• Galvanic isolator/zinc saver
• Horns – dual air trumpet
• Internal bonding system with size 8 gauge wire
• Molded non-skid surfaces on all walk decks – diamond pattern
• Navigation lights (COLREGS)
• Spotlight – ACR 100D, dual light
• Windlass package – Maxwell 4000 with 75 lb. stainless steel plow anchor & 300’ of 3/8” grade 40 chain
• High engine exhaust temperature alarm

ELECTRONICS & NAVIGATION

• (1) Raymarine underwater camera installed Raymarine Electronics Package
• Raymarine Radar RA3072SHD 6-foot 12kW Radar with 15-meter cable
• Raymarine Remote SeaTalk Keyboard for E-Series Display
• Raymarine Sirius Receiver SR100
• Raymarine Sounder Module DSM300G (requires transducers)
• Raymarine Switch & Sirius – 6 port switch with Sirius receiver
• (1)   Raymarine Bronze Transducer DST800 (N2K bronze flush triducer, Airmar) with 235k Hz for ST70 Instruments
• (1) Raymarine Bronze Transducer B744V (Bronze Triducer with fairing block, Airmar)
• (1) Raymarine Bronze Transducer B-120-St800 (Bronze Flush Speed & Temperature Transducer, Airmar)
• (1) Raymarine Bronze Transducer B117 (Bronze Flush Depth Transducer, Airmar)
• VHF Antenna CX-4 (AC Marine w/ N-connector, for VHF & AIS, needs mount)
• VHF Radio
• Raymarine Video/Alarm Cable (Video input to E-Series) SmartController Wireless SeaTalk autopilot and instrument display remote control unit
• Raymarine Wireless Pilot Remote S100
• Alarm audio out and video Input/Output Cable for use with E-Series Widescreen Multifunction Displays
• 48” 12kW Super HD Digital Radar System for Raymarine E-Series & G-Series Raymarine CA500 thru-hull camera (displays what is directly below the boat)
• CAM50 Reverse Image compact color dome camera (NTSC version for North America)
• AIS500 – Class B Transducer with VHF Splitter, NMEA multiplexer, and dedicated GPS sensor
• ST70 SmartPilot X-10 Hydraulic System (all-in-one X-10 autopilot)
• SR100 Sirius Receiver for C-Series Widescreen, E-Series & G-Series
• Sirius SAT Radio Antenna and 50-foot cable
• E140W 14.1” Multifunction Display preloaded with U.S. Coastal Charts – E-Series Windscreen 14.1” multifunction display featuring Hybrid Touch technology
• T450 Thermal Night Vision Camera with Low Light Video (High resolution thermal night vision camera system with pan/tilt/zoom control and low-light video camera; 9Hz refresh rate)
• DSM400 Digital Sounder Module – 3kW Ultra-High Performance Digital Sounder with 4 independent HD Digital transceivers for use with G-Series Navigation System
• Ray 430 Loud Hailer – 30watt Loudhailer/Foghorn and Intercom system with horn
• Additional engine & thruster controls on aft bridge deck
• Shut-off valve for body sprayers in master stateroom shower
• Kohler Shower Volume Control
• Kohler Volume Control Trim & Handle kit

ENGINE ROOM

• AC & DC Distribution Panels
• Bilges coated with white, medium-gloss gelcoat
• Bulkheads laminated to hull side & hull bottom stringers
• Catwalk – polished diamond plate
• Cockpit hatch access ladder – stainless steel, non-skid steps
• Electrical outlet
• (2) Entry hatches – dual access (cockpit & storage lazarette/optional crew quarters)
• Insulation – SoundDown; perforated marine-grade 5052 aluminum surface with polyester epoxy hybrid powder coat face & non-woven acoustic material backing; sublayers of 1” fire-retardant foam with metalized Mylar vapor barrier face, 2-lb./ft. vinyl acoustic barrier, 1” fire retardant foam
• (5) Lights – overhead, fluorescent, controls in cockpit & storage lazarette/optional crew quarters
• Surface panels – aluminum, perforated, white
• Mechanical Compartment
• Access door – in lazarette storage/optional crew quarters
• Bilges coated with white, medium-gloss gelcoat
• Bulkhead laminated to hull sides & stringers
• Catwalk – polished diamond plate
• Light – overhead, fluorescent, controls in cockpit & storage lazarette/optional crew quarters

MECHANICAL EQUIPMENT

• Twin MTU 10V2000-M93 series @ 1,500hp each; 1,390 hours as of 09 Sept 2022

• Marquis Docking System includes 13hp 9/8” diameter SidePower bow & stern thrusters providing 507 lbs. of thrust with wireless docking remote control
• Power steering/Electro Hydraulic
• Ship’s Systems Control Panels in engine room
• Air conditioning – CruisAir split system in cabin, 4-zone, 80,000 BTU; (optional A/C unit on bridge, 24,000 BTU; A/C unit in optional crew quarters, 5,000 BTU); with reverse cycle heat & heater strips; dedicated Back-up Air Conditioning Pump, Optional Upgrade
• Back-up Freshwater Pump, Optional Upgrade
• Marinco shorepower connector
• Cutlass bearings – synthetic rubber composite
• Dripless shaft logs with spare seals on shaft
• Exhaust mufflers – Generator, Hydro Lift Water Separating
• Freshwater cooling – Engines & Generator
• (2) Fuel tanks – 650 gallons each, welded, baffled 5052 aluminum
• Hull portlights – 10” x 21” screened, multiple latches
• Propellers – 5-blade, Certifiable Alloy Nibral, 38” diameter, manufacturer certified
• Propeller shafts – Aquamet, 22 Hi-Strength 3.5” diameter
• Rudders & struts, primary & secondary – 421 manganese bronze
• Seawater strainers
• Tides Marine Sure Seal Shaft Seals – self-aligning Nitrile lip seal, maintenance free, spare lip seal included
• (4) Trim Tabs – stainless steel, (4) Actuators

WATER & HOLDING SYSTEMS

• Central grey water drain system
• Fixtures – imported custom taps/spigots, combination polished chrome/nickel finish
• (1)   Freshwater storage tank – 200 gallons, stainless steel
• Freshwater tank level monitor
• (1)   Grey water sump pump – automatic/manual operation, 3700 gallons per hour
• Handshower – freshwater, hot & cold, in transom
• Grundfos 660gph freshwater system – pressurized (110V) (220V), with dual filters & expansion tank
• Plumbing – flexible lines constructed of molecularly cross-linked polyethylene; rigid lines constructed of PVC
• Shore water connection with pressure-reduction valve
• Washdown – freshwater, (1) at bow and (2) at transom
• (2) Waste holding tanks – (1) 77-gallon & (1) 76-gallon; polyethylene, with filtered vents & dockside pumpouts
• (4) Waste tank level monitors
• (2) Water heaters – 16 gallons each (220V)

ELECTRICAL EQUIPMENT

• AC/DC Distribution panels with PLC controlled circuit breakers & integral generator controls; AC digital volt meters & ammeters; DC digital multi-meter
• (8) Batteries – Douglas, 8D series, Marine (12V) cold cranking rating of 1375 amps, reserve capacity of 430 minutes at 25 amp draw, 200 amp/hour rating; (4) engine starting, (4) ship service
• (1) Battery – dedicated 31 series Deka Marine, deep cycle (2V), cold cranking rating of 950 amps, reserve capacity of 225 minutes at 23 amp draw, 100 amp/hour rating (generator)
• (5) Battery Chargers – electronic, AC-DC converters; (2) 75-amp for engine batteries; (1) 25-amp for generator; (1) 100-amp for ship service; (1) 120-amp inverter/charger
• Cablemasters – dual
• Courtesy lights – incandescent
• Dockside inlet – CATV with 50’ white cord
• Generator – 32kW 60Hz Kohler with Sound Shield, dedicated 31 series battery, premium electrical system Cablemaster & remote power source control; 970 hours as of 12 Oct 2021
• Generator – 23kW 60Hz Kohler with Sound Shield; 1,080 hours as of 12 Oct 2021
• Ground Fault Circuit Interrupt (GFCI) protection – all electrical outlets
• Inverter – 4000-watt 12VDC to 110VAC (24V DC to 220VAC) electrical on select appliances
• Isolation transformers on the internal shorepower lines
• Overhead lights – 18W (10W) Xenon brushed aluminum bezel
• (2) Shorepower connectors – 50-amp – 220V (32-amp – 220V)
• (2) Shorepower cords – Marinco 75’ each, 50-amp (32-amp – 220V), white
• Wiring system – tinned copper strand wire, harnessed, color-coded, labeled, meets or exceeds ABYC standards

FOYER

• Alcove – high gloss jewel finish cherry Wood curved back & top; Sapele Pommele shelf with stainless steel sea rail; halogen, overhead, recessed light
• Valtekz Grasscloth Champagne wallpaper, Optional Upgrade
• Flooring - 6” square tiles installed on a 45° angle to centerline in alternating rows of Gascon Limestone & Lagos Blue Caesar Stone, Optional Upgrade
• Fabrica European collection Calias pattern carpet edging, Optional Upgrade
• Nutmeg Wood on stairway steps, Optional Upgrade
• Artwork from Marty Lowe Designs
• Handrail – stainless steel, on stairway
• (4) Lights – courtesy, recessed
• (2) Lights – overhead, recessed
• Rocker light switches
• Stairwell trim – cherry Wood, bolster with Ultraleather upholstery

MASTER STATEROOM

• Designer décor – including premium wall coverings & fabrics
• Entry Doors – solid cherry Wood, herringbone pattern, secures open & closed, stainless steel hardware and magnetic door catches
• Artwork from Marty Lowe Designs
• Flush mounted speakers for optional master stateroom surround sound system, sub-mounted under 3rd Stateroom’s berth facing Master Stateroom, DVD player mounted by TV, Optional Upgrade
•  “California King” Island Berth, pillowtop inner-spring mattress with Vultekz Moray Granite material upholstered headboard & bolsters around berth
• (2) Little Inagua reading lights above heads of berth, Optional Upgrade
• Custom bedding package from Marty Lowe Designs
• (2) Nightstands – Upgraded Custom Wood tops with cherry Wood sea rails, storage cabinets beneath
• Bulkhead architectural feature – curved upholstered horizontal panels, high gloss jewel finish recessed curved cherry Wood backdrop, accent lighting behind each panel
• (2) Cabinets – curved faces, Italian marble inlay top with cherry Wood sea rails, high gloss jewel finish, cherry Wood herringbone pattern doors, marble sole accents
• Carpet – Fabrica European collection Calias pattern, Optional Upgrade
• Dresser – high gloss jewel finish, Sapele Pommele Wood inlay top with cherry Wood sea rail, (4) drawers, cherry Wood herringbone pattern drawer faces
• Electrical Outlets
• Rocker Light Switches
• Lights – Overhead, recessed, automatic operation
• (3) Lights over entry dais, recessed with electronic dimmer controls
• (10) Lights in overhead architectural feature with electronic dimmer controls
• (6) Lights in soffit – (3) over each berth head, recessed with electronic dimmer controls
• (3) Lights in starboard soffit, recessed with electronic dimmer controls
• (3) Lights over entry dais cabinet, recessed
• (3) Lights over bulkhead architectural feature, recessed
• (4) Lights sconces, brushed nickel cover
• Lights – accent, recessed under berth & cabinets
• Mirror – beveled edges, above entry dais cabinet
• Hull portlight with screen
• Overhead architectural feature – cherry Wood with mirrored Bussola inlay
• Settee – finished in Ultraleather upholstery
• Soffit – cherry Wood grille, around stateroom perimeter
• (2) Windows with screens
• Window treatments – Roman shades with recessed headrails
• (2) Walk-In Closets
• (2) Drawers, recessed
• Shoe storage rack
• Storage cabinet, recessed

His & Her Master Head

• Designer décor – including premium wall coverings & fabrics
• Entry Door – solid cherry Wood, herringbone pattern, mirror on stateroom side, secures open & closed, stainless steel hardware
• Marble Flooring
• Hardware – stainless steel, polished & brushed
• Electrical Outlets
• Rocker Light Switches
• Towel package from Marty Lowe Designs

HIS:

• Gascon Limestone tileFlooring, Optional Upgrade
• Valtekz Grasscloth Champagne wallpaper, Optional Upgrade
• Cabinet with sea rail
• Exhaust fan
• Hull portlight – frosted privacy glass with screen
• (2) Lights – overhead, recessed
• (5) Lights – over & next to vanity mirror, recessed
• Medicine Cabinet – (4) shelves with sea rails
• Mirror – on bulkhead & ceiling over vanity
• Soap dispenser
• Soffit – high gloss jewel finish, cherry Wood grille
• Toilet – Tecma silence, full-size, electric pump flush
• Paper holder, robe hooks & towel bars, Optional Upgrades
• Vanity – Upgraded Caesar Stone countertop & backsplash, Upgraded nutmeg veneers, stainless steel grab rails cross front, under mounted solid surface molded sink, cabinet beneath with sea rail
• Euro contemporary faucet

HERS:

• Gascon Limestone Tile Flooring, Optional Upgrade
• Valtekz Grasscloth Champagne wallpaper, Optional Upgrade
• Cabinet – high gloss jewel finish with sea rail
• Exhaust fan
• Hull portlight – frosted privacy glass with screen
• (2) Lights – overhead, recessed
• (2) Lights – over vanity, recessed
• (5) Lights – over & next to vanity mirror, recessed
• Vanity – Upgraded Caesar Stone countertop, Upgraded nutmeg veneers, grab rail across front, drawer beneath, wooden stool
• Medicine Cabinet – (4) shelves with sea rails
• Mirror – on bulkhead & ceiling over vanity
• Soffit – cherry Wood grille
• Toilet – Tecma silence, full-size, electric pump flush
• Paper holder, robe hooks & towel bars, Optional Upgrades
• Vanity – marble countertop & backsplash, Upgraded nutmeg veneers, stainless steel grab rails cross front, under mounted solid surface molded sink, cabinet beneath with sea rail
• Shower Compartment – Upgraded Goldiden shower container
• Shower with Gascon Limestone Tile floor & walls; clear glass frameless door; clear glass panel aft of door; with seat on aft wall inside stall, Optional Upgrade
• Euro contemporary faucets and shower fixtures
• (2) Entry Doors – dual access (His & Hers) clear glass in gasketed polished aluminum frame, electrically-activated fogging feature for privacy
• Light – overhead, recessed
• (3) Shelves – fiberglass with stainless steel sea rails
• Shower head – detachable for use as a hand shower
• Soap Dish
• Towel Bar

VIP GUEST STATEROOM

• Designer décor – including premium wall coverings & fabrics
• Carpet – Fabrica European collection Calias pattern, Optional Upgrade
• Entry Doors – solid cherry Wood, herringbone pattern, secures open & closed, stainless steel hardware
• Queen Island Berth – pillowtop inner-spring mattress with Ultraleather upholstered bolsters around berth
• Vultekz Moray Granite material upholstered headboard
•  (2) Little Inagua reading lights above heads of berth, Optional Upgrade
• (2) Nutmeg Wood on (2) steps up to the Berth, Optional Upgrade
• Custom bedding package from Marty Lowe Designs
• (2) Nightstands – high gloss jewel finish, Sapele Pommele Wood inlay top with cherry Wood sea rail, (3) cabinets beneath
• SAT TV receiver, Optional Upgrade
• (6) Storage Cabinets
• Storage Drawer – extra large
• Hardware – stainless steel, polished & brushed
• Electrical Outlets
• Rocker Light Switches
• (6) Lights – Overhead, recessed
• (3) Lights over berth head, recessed
• Lights – accent, recessed under berth
• (2) Lights – sconces
• (2) Hull portlights – fixed, non-opening
• Overhead hatch – translucent, lockable, with self-storing fold-down stainless steel egress ladder
• Settee – finished in Ultraleather upholstery
• Soffit – cherry Wood grille with upholstered bolster
• Surround shelves – high gloss jewel finish, Sapele Pommele Wood inlay top with Ultraleather upholstered bolster sea rail
• Wall covering – silk/cotton blend
• (2) Wardrobe lockers – full-height, cedar-lined, carpeted, automatic light, mirrored doors, magnetic door catches
• Window treatments – Roman shades with recessed headrails

VIP HEAD

• Entry Door – solid cherry Wood, herringbone pattern, secures open & closed, stainless steel hardware
• Gascon Limestone tileFlooring, Optional Upgrade
• Valtekz Grasscloth Champagne wallpaper, Optional Upgrade
• Cabinet – recessed, (5) shelves with sea rails
• Electrical Outlet
• Exhaust fan
• Rocker light switches
• Hull portlight – frosted privacy glass with screen
• (2) Lights – overhead, recessed
• (2) Lights – over vanity, recessed
• Vanity – Upgraded Gascon Limestone tilecountertop & backsplash, Upgraded nutmeg veneers, stainless steel grab rail across front, under-mounted solid surface molded sink, cabinet beneath with sea rail
• Euro contemporary faucets and shower fixtures
• Medicine Cabinet – mirrored door, (2) shelves with sea rails
• Mirrored bulkhead – over vanity
• Soffit – high gloss jewel finish, cherry Wood grille, over vanity
• Toilet – Tecma silence, full-size, electric pump flush
• Paper holder, robe hooks & towel bars, Optional Upgrades
• Towel package from Marty Lowe
•  (2) Towel bars
• Towel ring
• Bench seat – integral
• Light – overhead, recessed
• Non-Skid Sole
• Shower door – clear glass in gasketed polished aluminum frame
• Shower head – detachable for use as a hand shower
• Towel Bar
• Soap Dish

GUEST STATEROOM

• Designer décor – including premium wall coverings & fabrics
• Entry Door – solid cherry Wood, herringbone pattern, secures open & closed, stainless steel hardware
• Private Guest Head Access
• (2) Berths – twin berths, inner-spring mattresses with upholstered headboards, side boards & bulkhead bolsters (bolsters finished in Ultraleather Brisa Birch material, Optional Upgrade)
• Berths flip-up on gas shocks to allow access to under bed storage; beds hinge at aft end (headboard area), Optional Upgrade
•  (2) Little Inagua reading lights above berths, Optional Upgrade
• Carpet – Fabrica European collection Calias pattern, Optional Upgrade
• Custom bedding package from Marty Lowe Designs
• Berth Nightstand – high gloss jewel finish, Sapele Pommele Wood inlay top with Ultraleather upholstered bolster sea rail, drawer beneath
• SAT TV receiver, Optional Upgrade
• Storage – beneath berths
• Hanging Locker – full-height, cedar-lined, automatic light
• Hardware – stainless steel, polished & brushed
• Electrical Outlet
• Rocker Light Switches
• (6) Lights – Overhead, recessed
• Lights – accent, recessed under berths
• Lights sconce, brushed aluminum cover
• Hull portlight – with screen
• Overhead storage
• Soffit – cherry Wood grille
• Wall covering – silk/cotton blend
• Window treatments – Roman shades with recessed headrails

GUEST HEAD

• (2) Entry Doors – dual access (guest stateroom & foyer), solid cherry Wood, herringbone pattern, secures open & closed, stainless steel hardware
• Gascon Limestone tileFlooring, Optional Upgrade
• Valtekz Grasscloth Champagne wallpaper, Optional Upgrade
• Cabinet – high gloss jewel finish, (3) shelves with sea rails
• Electrical Outlet
• Exhaust fan
• Rocker light switch
• Hull portlight – frosted privacy glass with screen
• (2) Lights – overhead, recessed
• (2) Lights – over vanity, recessed
• Vanity – Upgraded Gascon Limestone tilecountertop & backsplash, stainless steel grab rail across front, under-mounted solid surface molded sink, cabinet beneath with sea rail
• Medicine Cabinet – mirrored door, (2) shelves with sea rails
• Mirrored bulkhead – over vanity
• Soffit – high gloss jewel finish, cherry Wood grille, over vanity
• Toilet – Tecma silence, full-size, electric pump flush
• Paper holder, robe hooks & towel bars, Optional Upgrades
• Towel package from Marty Lowe
• Euro contemporary faucets and shower fixtures
• Shower Stall
• Bench seat – integral
• Shower door – clear glass in gasketed polished aluminum frame
• Shower head – detachable for use as a hand shower
• Light – overhead, recessed
• Non-Skid Sole
• Soap Dish

STERN CABIN – CREW CABIN/DAY HEAD

• (2) Entry doors – dual access (engine room & boarding platform); watertight, engine room door has porthole, keyed deadbolt, triple latch
• Air conditioning
• Access door – to starboard mechanical compartment
• Berth – twin-sized
• SAT TV receiver, Optional Upgrade
• Electrical outlet
• Lights – reading
• Lights – overhead
• Storage cabinets – Wood with high gloss finish
• Flooring – inlaid teak Wood
• Vanity – Granite countertop
• Mirrored bulkhead over vanity
• Shower stall with toilet enclosed
• Exhaust fan

EXCLUSIONS

Owners’ personal belongings. A complete list will be provided upon request.

DISCLAIMER

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
