STRUCTURE

Hull lamination according to EN ISO 12215-5 structure standard
Built in accordance with HPI Verification services
Composite fiberglass infused hull & deck
Hull, deck & superstructure built of light weight fiberglass composite with closed cell PVC foam/honey comb as core material
Interior structural components all properly bonded to hull & deck

HULL & DECK EXTERIOR GENERAL

White gel coat on all superstructure and hull (Option: colored gelcoat)
International Interlux antifouling paint
Main deck non skid deck (Option: teak decking or Marine Deck 2000)
Electric windlass Lewmar V6 24V with chain counter & footswitches
One 80kg galvanized Delta anchor fitting at bow with chain stopper
70m 13mm din 766 galvanized anchor chain
316 stainless steel safety stainless steel handrails throughout
Anchor bridle with shackle & pad eyes fitted
Eight (8) heavy duty 12” 316L stainless steel cleats
Two (2) pop-up 6” 316L stainless steel cleats on transom platform
One stainless steel Sampson post at bow
Eight (8) fender locks
Double layer tinted safety glass windows
Eight (8) Lewmar large flush deck hatch or equivalent (subject to layout)
Lewmar large hull window with eight (8) in-glass openable portlights or equivalent
Wide opening triple leaf Lewmar sliding salon door with large flip up window or equivalent
Stainless steel rub rail along transom
Freshwater deck wash-down
Seawater anchor chain wash down
Two (2) transom shower with hot/cold water (one in roof, one hand shower)
Stainless steel folding swimming ladder with flip up grab rails
Two zinc anodes on transom for bonding system
Two (2) stainless steel deck water fillers
Two (2) stainless steel deck fuel fillers
Two (2) stainless steel deck waste pump outs
Stainless steel flag post on flybridge
316 stainless steel thru hull fittings above waterline
Bronze through-hull fittings below waterlinE
Boat name in custom designed 316L stainless steel
Soffkin Marine vinyl exterior upholstery
Mooring kit includes six (6) fenders and five (5) 24mm moorings lines
(Option: Upgrade exterior upholstery to Sunbrella)
(Option: Upgrade exterior upholstery to Ultraleather)

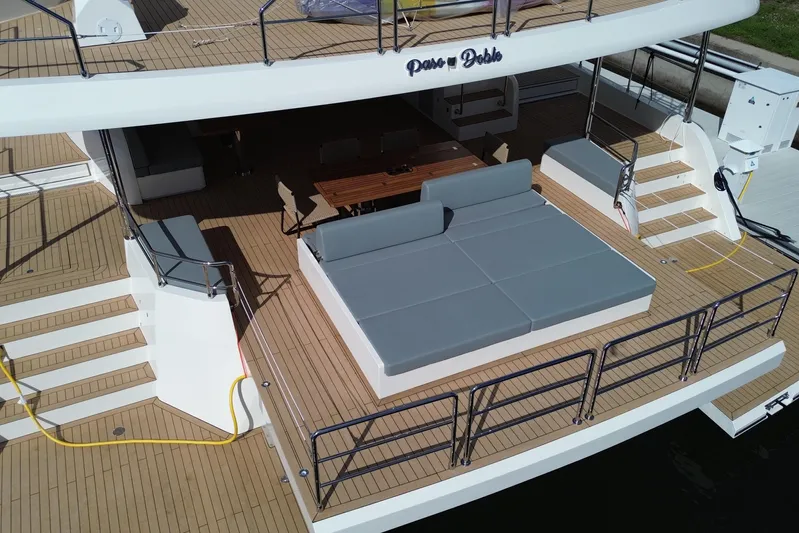

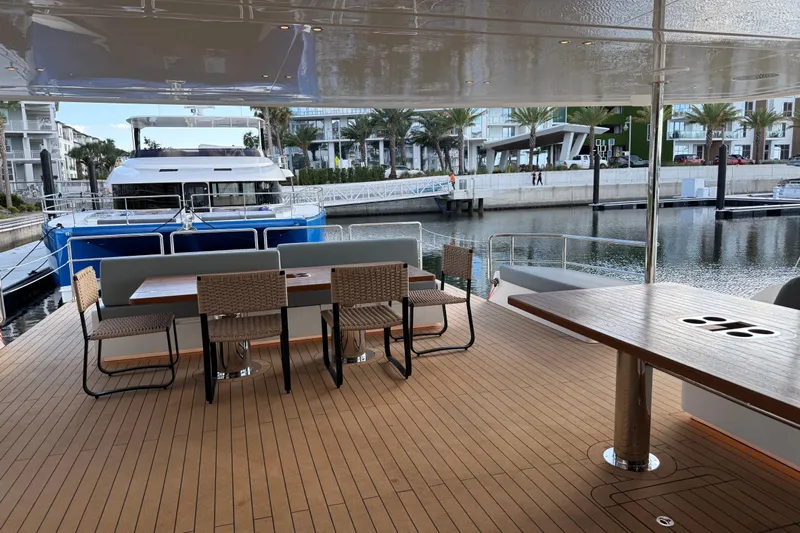

COCKPIT

Covered aft deck with overhead lights
Large C-shaped settee with Soffkin marine vinyl cushions
Two (2) Teak cockpit dining tables
Large L shaped bar with bar stools, storage and sink to port
Storage under seating
Weathertight engine access hatches in hatches design
Storage lockers on deck
Wet locker below molded staircase
LED Courtesy floor lighting throughout
LED Flood lights for transom platform
Vimar water-proof sockets
Two (2) waterproof Fusion 6 inch speakers connected to inside helm stereo
(Option: Vitrifrigo undercounter fridge /icemaker in bar)
(Option: Kenyon Electric BBQ)
(Option: Tenderlift transom hydraulic platform 650kg or 900kg)
(Option: Upgrade wet locker to day head)

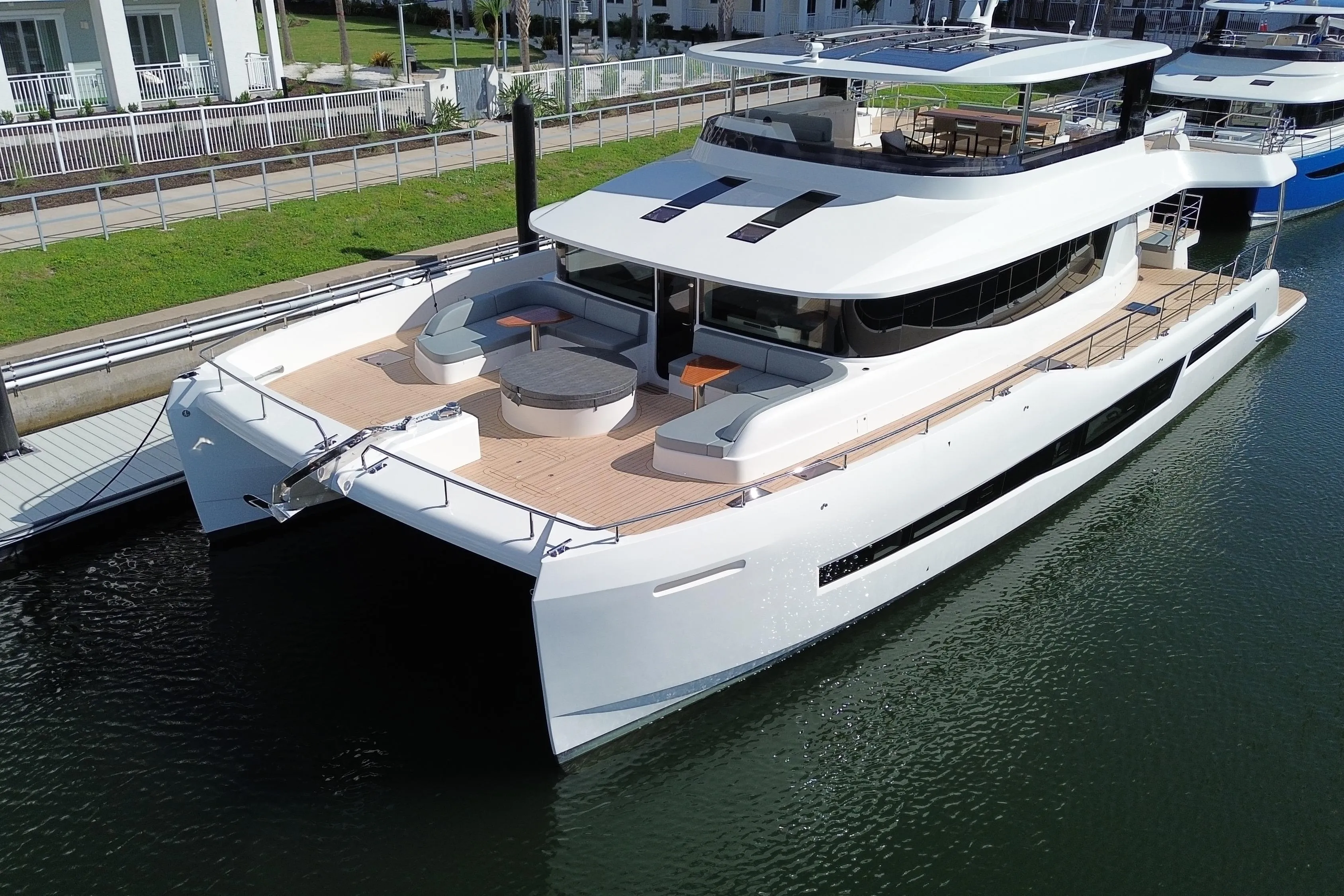

FOREDECK

Weathertight Lewmar door built to CE Area IIA to bow lounge
Two (2) large sunbathing L shape settee with Soffkin marine vinyl cushions
Cup holders integrated into settee
Anchor chain locker
Two large fender lockers under deck forward
Two (2) waterproof Fusion 6 inch speakers connected to inside helm stereo
Vimar water-proof sockets
(Option: Two (2) Quick pop-up lights next to settees)
(Option: Vitrifrigo undercounter fridge under settee)
(Option: Jacuzzi)

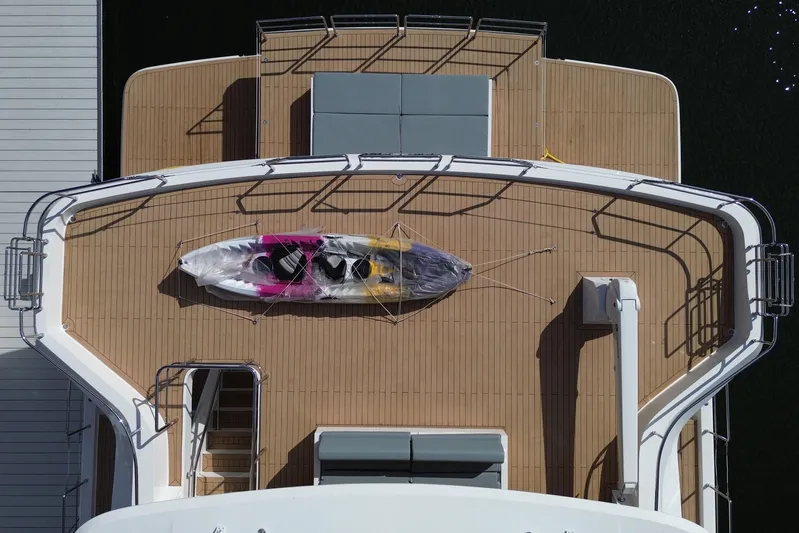

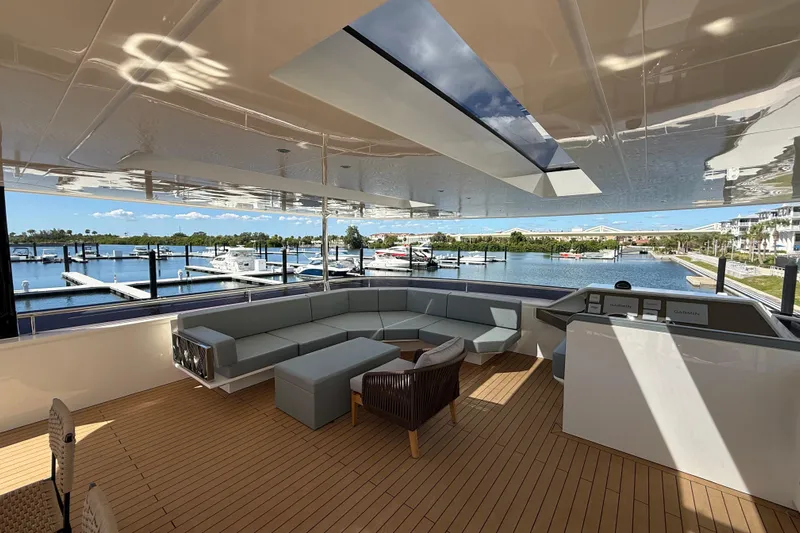

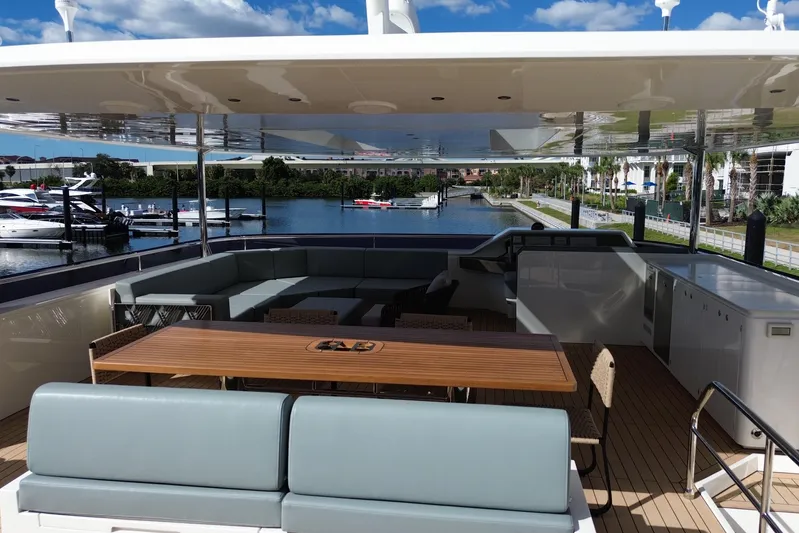

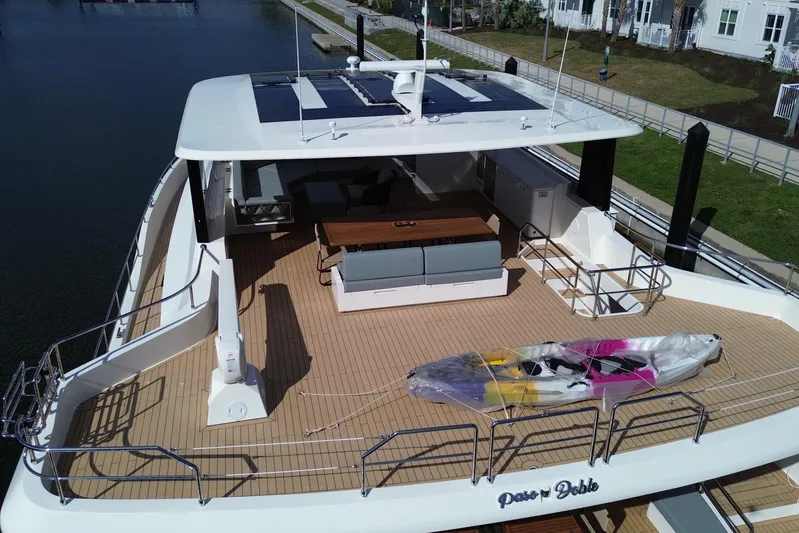

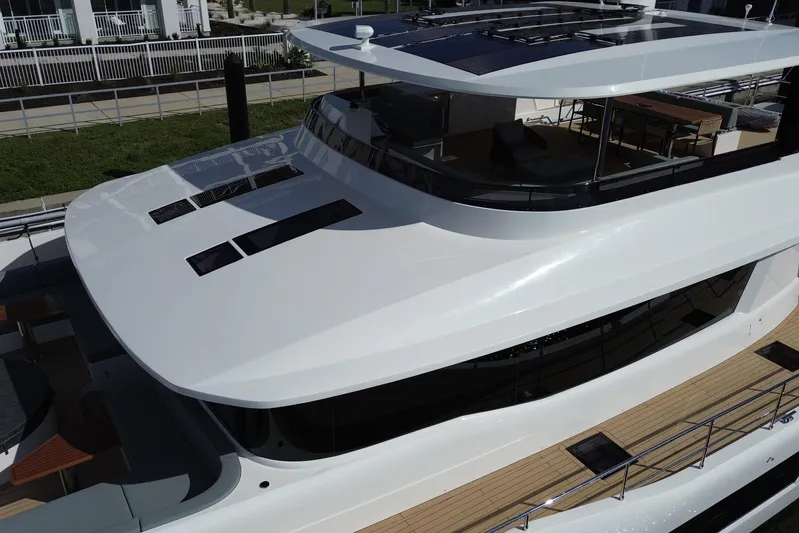

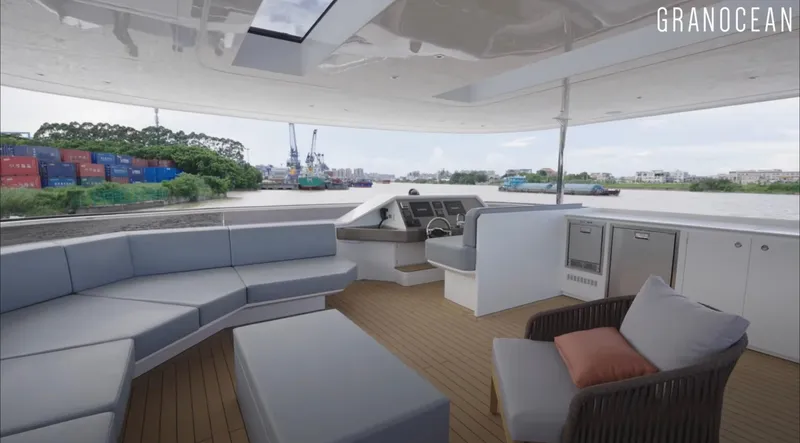

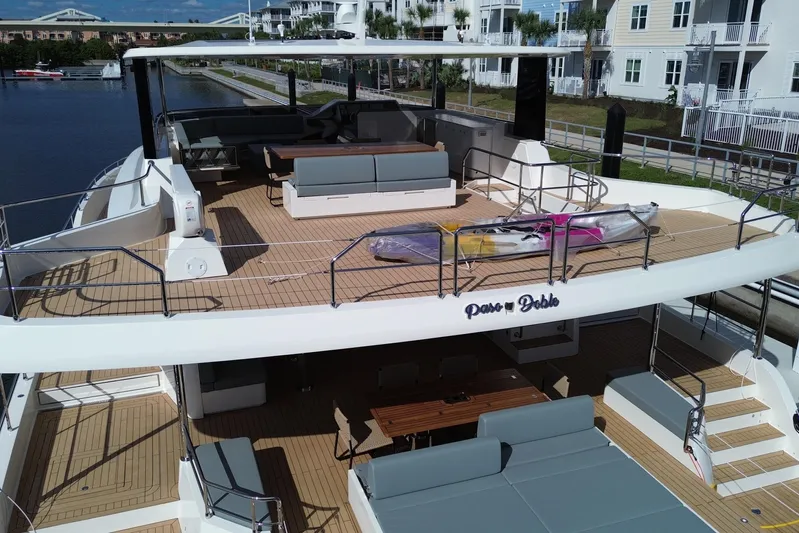

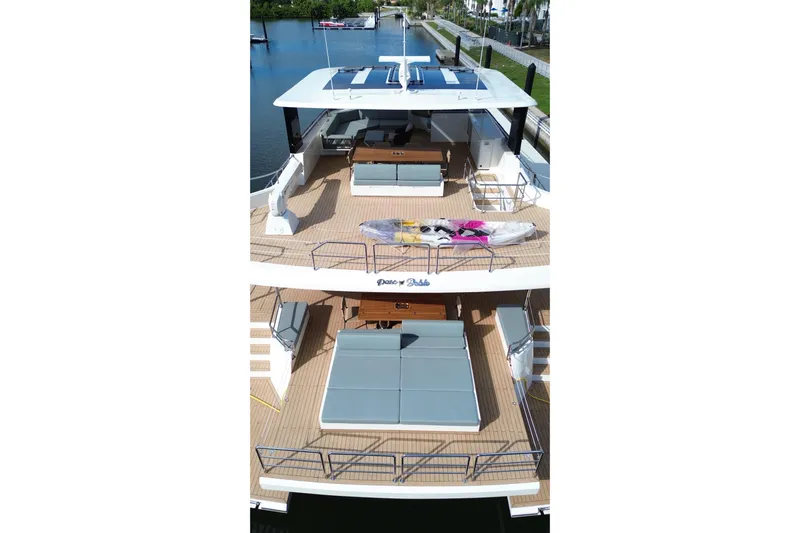

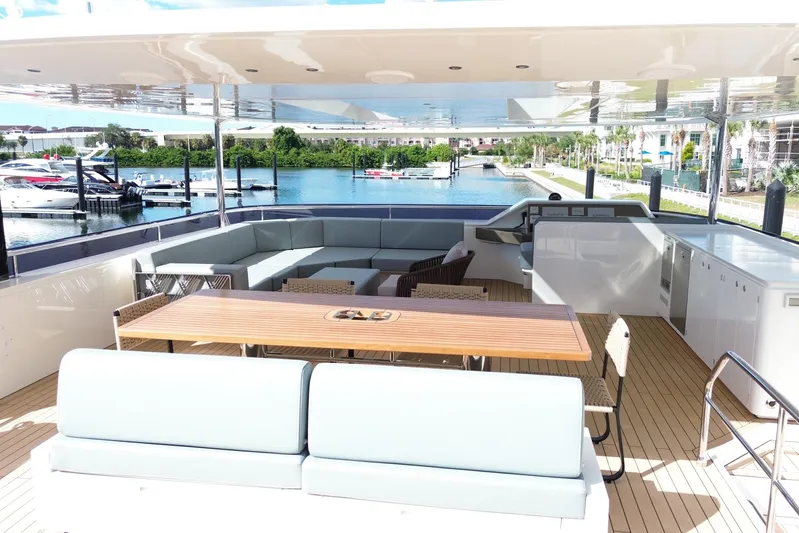

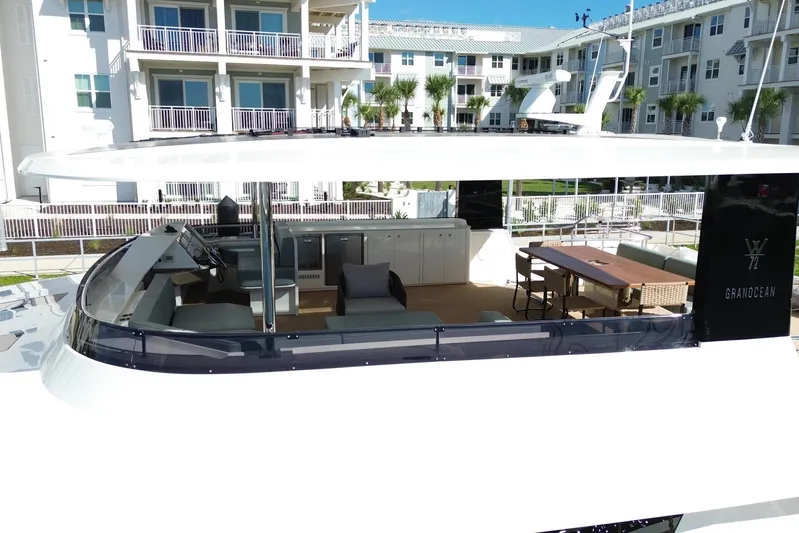

FLYBRIDGE

Molded stairs with to flybridge with SS handrail
Hard top covered flybridge with LED overhead light

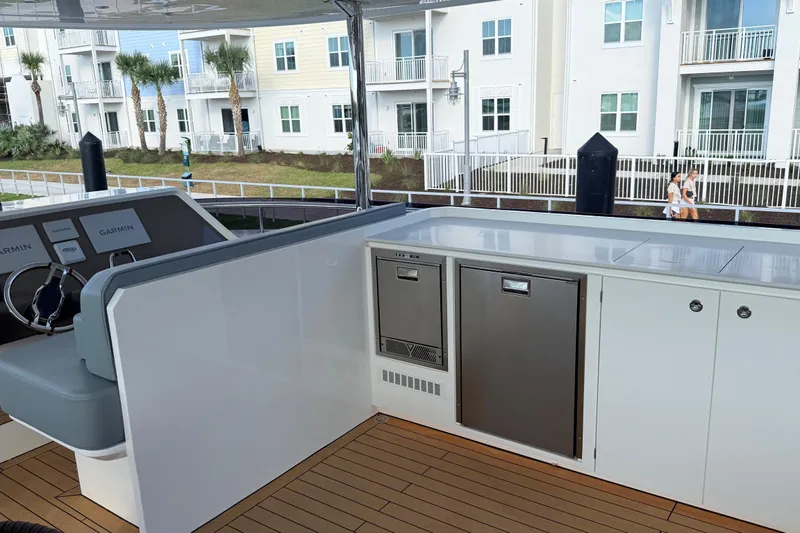

Wet bar including Quartz top, built-in sink, tap
L-shaped settee with Soffkin marine vinyl cushion and storage underneath
Two (2) teak dining tables
Helm with double seats complete with steering, throttle, VHF and chart-plotter
Double forward-facing settee adjacent to helm
Storage locker to port
Acrylic windshield
Vimar water-proof sockets
LED Courtesy floor lighting throughout

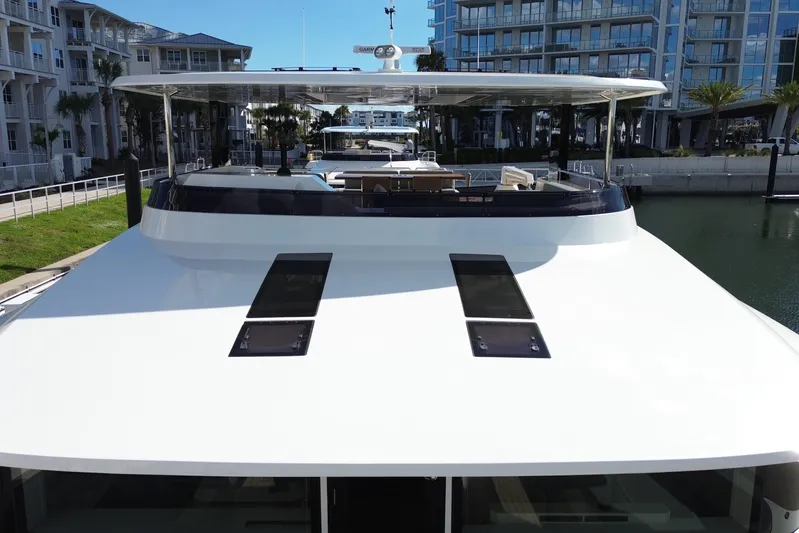

Instrument mast on hard top
Two (2) waterproof Fusion 6 inch speakers connected to inside helm stereo with separate volume controller
Two LED flood lights to illuminate flybridge aft
(Option: Vitrifrigo Undercounter fridge)
(Option: Kenyon Electric BBQ grill)
(Option: Steelhead ES1500 flybridge extendable crane 680kg or similar)

UPPER DECK OPTION: ENCLOSED FLYBRIDGE VERSON

Enclosed Flybridge with two 16k BTU air conditioning units
Windscreen wipers with spray wash, on/off/3 speeds function

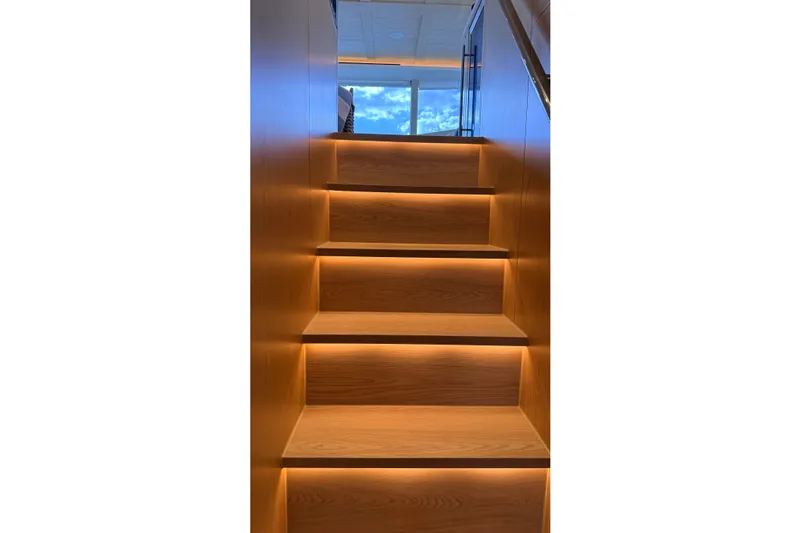

Access staircase from salon
Two (2) helm chairs
Upper interior helm station
Forward facing settee adjacent to helm
L-shaped settee with dining table
Storage locker stbd of helm station
Head with Tecma toilet and vanity sink
Wide opening triple leaf Lewmar sliding salon door with large flip up window or equivalent
Weathertight doors to port and starboard access to Portuguese bridge
(Option: Undercounter fridge)
(Option: Wet bar sink & tap)

NAVIGATION & ELECTRONICS

One (1) 4-1/2" Ritchie compass
One set of Hella navigation lights include head, stern, port, starboard & anchor
12” Garmin navigation chart plotter at main helm (Option: upgrade size to 16” and/or dual plotters)
Garmin 20nm-36nm Radome
Garmin depth/speed/fishfinder combo transducer
Garmin VHF
Garmin Autopilot
Garmin Wind Meter
Two (2) rudder indicators
Roca Wiper system
Engine console with all gauges
Jabsco remote control searchlight
Marco single stainless steel ship horn
(Option: Garmin Fishfinder)
(Option: Garmin AIS)
(Option: Garmin CCTV cameras in engine rooms / cockpit / flybridge)
(Option: Receiver mount and pre-wiring for Skylink)

GENERAL INTERIOR FINISHES

General interior finishing to be in soft vinyl leather and wooden veneer with satin finish
Furniture to be combination of solid wood and veneer with satin finish
Overhead finished in Soffkin vinyl leather panels
Composite nonporous membrane flooring
Cedar wood for all hanging closet’s backing panel
Heads finished with gel coat and Quartz countertops
High quality entrance chrome door lock and stainless steel cabinet door locks subjected to shipyard's standard selections
DC LED ceiling and courtesy lighting throughout. Lighting fixtures subjected to shipyard's standard selections
Black out plaid shades for all cabins and heads
Privacy plaid shades for main deck salon
(Option: Owner’s cabin upgrade queen to king sized bed)
(Option: Removable custom shaped carpet)
(Option: Bedding Sets with sheets, blankets, and pillowcases)

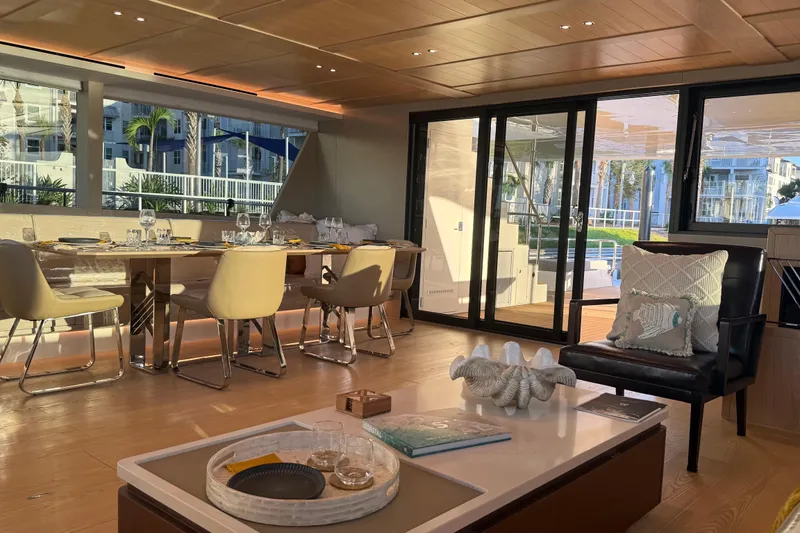

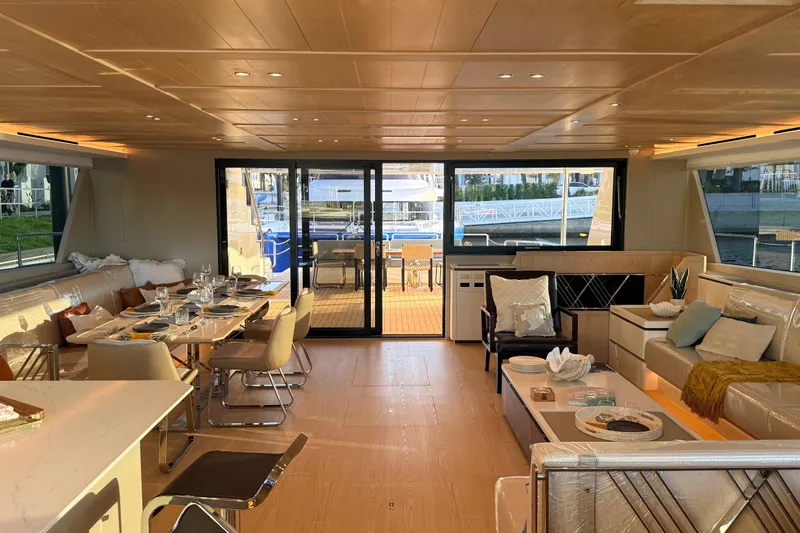

SALON

Panoramic view through large, fixed windows
Wide opening triple leaf Lewmar sliding salon door with large flip up window
Large L-shaped dining settee on stbd side
Dining table on stbd side
Large L-shaped settee to port
Coffee table on port side
Observation settee facing forward
Cabins access companionways with handrails

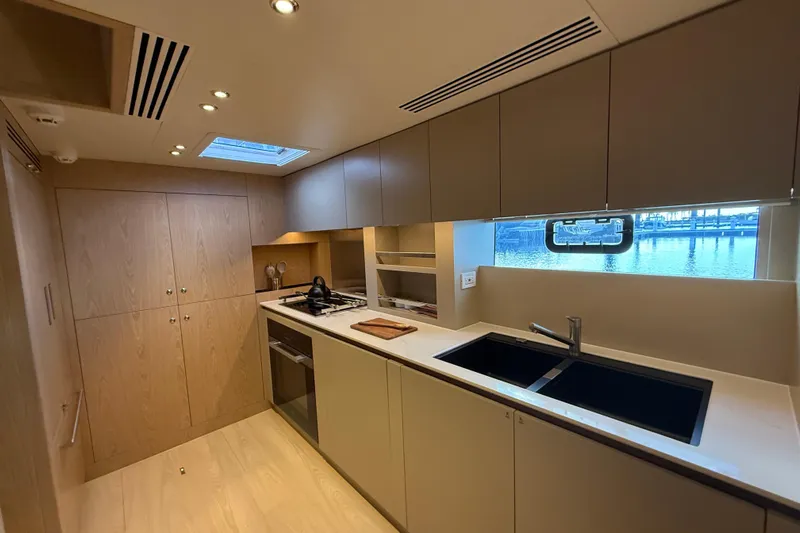

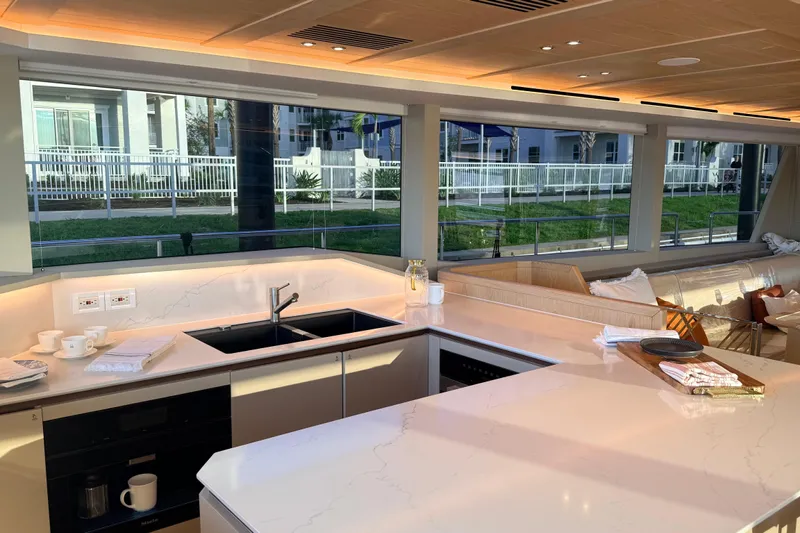

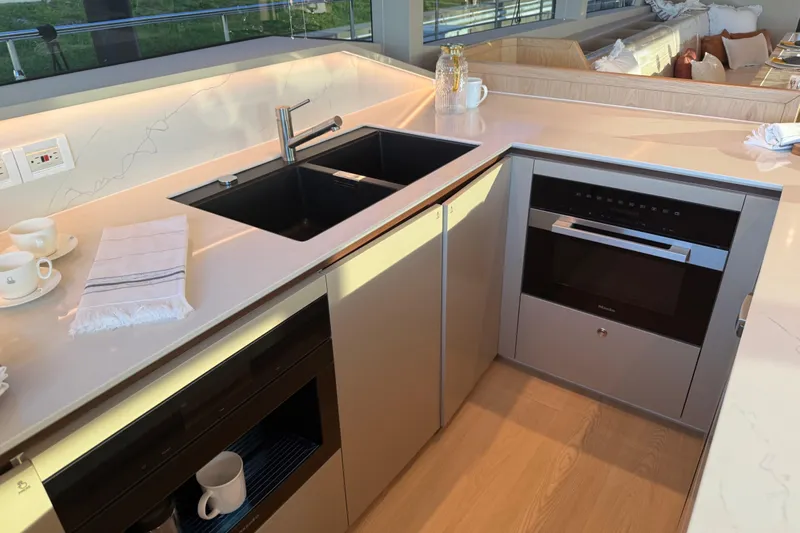

Large galley with central island with bar stools
Quartz countertops with storage
Double Schock sinks or equivalent
Fisher & Paykel 36" Panel Built-In French Door Refrigerator
Bosch Benchmark Series 30" Black Frameless Induction Cooktop
Flush mount extraction hood vented outside
Fusion player entertainment system with two 6 inch Fusion speakers
(Option: Indoor helm with double seat complete with steering, throttle, VHF and chart-plotter)
(Options for appliances: Icemaker, washer/dryer combo, dishwasher etc.)
(Options for entertainment: 50 inch Samsung TV in galley cabinet)

LOWERDECK

Standard Layout: Portside, three guest suites with heads; Starboard Side, Two VIP suites with heads
Optional Layouts: 4 cabins w/ galley down, galley forward, up to 6 cabins available

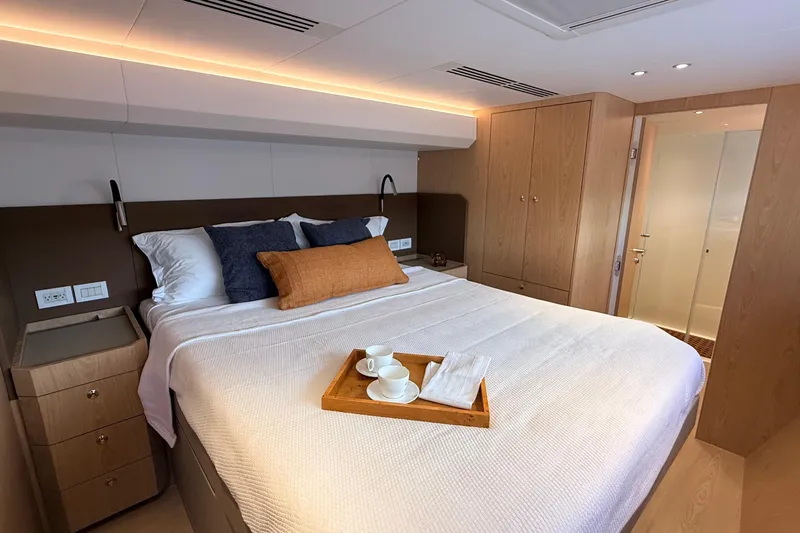

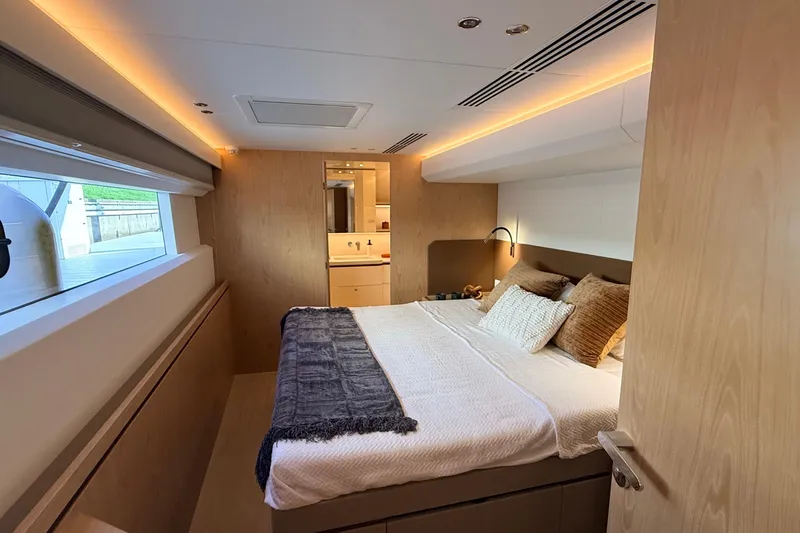

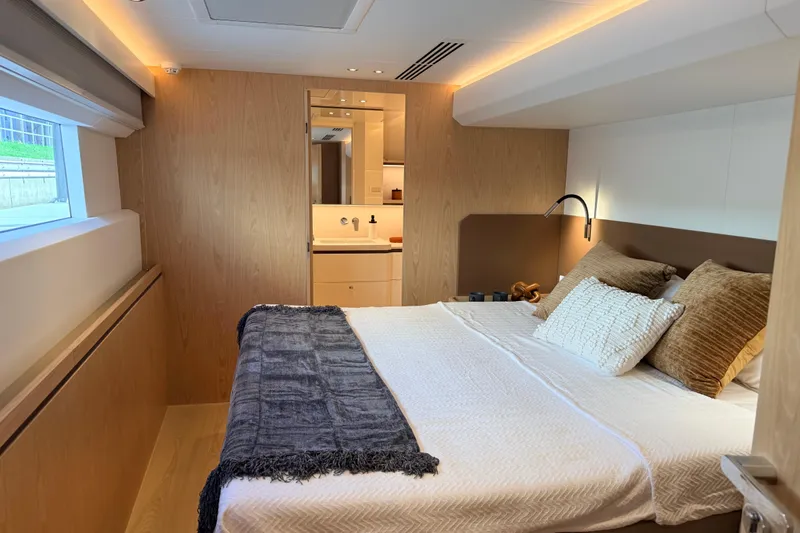

ALL STATEROOMS (Subject to Final Choices of Layout)

Queen size berth (153cm x204cm)
Large closet with drawers and closed shelving
Wall/reading LED lamps on both side of headboards
Plead blackout blinds over portlights
Shade and screen over hatches

ALL HEAD & SHOWERS

Quartz countertops with ceramics sinks
Storage unit below counter
Separate shower compartment
Standard size Tecma toilets with electric freshwater flush
Kohler faucet and shower unit
Kohler towel bars and toilet paper holders
Exhaust fan in all heads
Mirrors above counter top

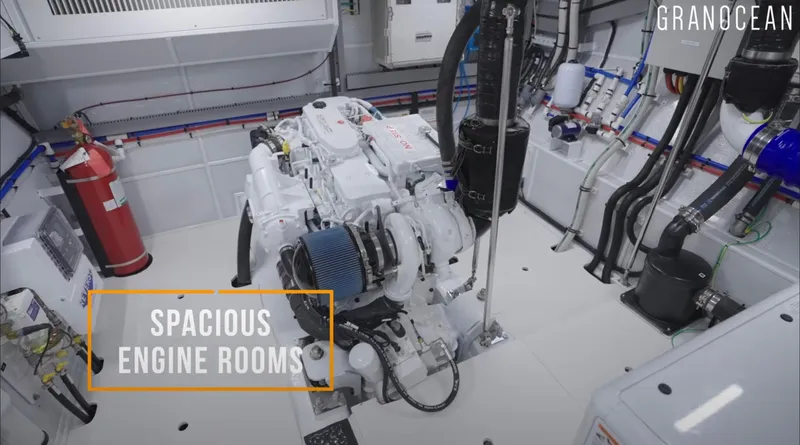

ENGINES AND EQUIPMENT

Two Cummins QSB 6.7 550hp 3300rpm inboard diesel engines with instrument panels & throttle at flybridge helm
(Option: Two Cummins QSB6.7 715mhp 3300rpm) with heavy duty gearbox ZF 286IV 2.539:1
(Option: Two CAT C18 1150 HP)
Two (2) Hungshen five blade bronze propellers
Aqua 17 high tensile direct transmission shafts
Hydraulic Steering system, compatible with autopilot system
Stainless steel emergency tillers
Fiberglass rudders with stainless steel shaft & reinforcement
Engine compartment ventilation natural intake of air with mechanical extraction of air
Engine room with sound insulation materials
Engine alarm system for low oil pressure and high water temperature
Frigomar air-conditioning system total 88,000 BTU (Salon with 48,000 BTU in total, lower deck with 20,000 BTU in total for each hull)
(Option: Spurs Rope cutter)
(Option: Two (2) Lewmar electric bow thruster 15HP)
(Option: Additional 16KBTU for enclosed flybridge version, recommended in tropical weather)
(Option: Yacht wireless docking control system)
Seaboard marine SMX engine instrument panels (if using Cummins)
Glendinning EEC3 engine throttles (if using Cummins)
(Option: Flexible solar panels package in hardtop rated 3420W, with 2 extra GEL batteries (total 225AH at 24V), Victron Solar controller
(Option: Flexible solar panels package in foredeck rated 2340W with Victron Solar controller) *Please note: final solar output is not equal to the rating of panels, but depends on many factors, including solar radiation, temperature, angle of radiation etc. All estimates are given in good faith but without warranty or liability on part from Granocean Limited*

PLUMBING

Two (2) integral FRP fuel tanks total volume 5000L with electrical gauge (Option: Additional 3000L, total 8,000L fuel tanks)
Racor series fuel filter/water separators for each engine
Diesel emergency shut off valve
Fuel transfer pumps between fuel tanks (from one hull to the other)
Two (2) integral FRP water tanks total 1000L with electrical gauge
Two (2) 24V Electric freshwater pump and pressure accumulator
Two (2) 80L Quick water heater
Two 72L PVC holding tanks
All black water discharge overboard directly from holding tank or pump-out from deck
Shower drain to greywater sump pump
Six (6) RULE#2000 electric bilge pumps with separate flow switches
Two manual bilge pump for emergency, one in each hull
(Optional: Two (2) Reverso 150 GPH Fuel polishing system)
(Option: Schenker Water maker 100L/h with commercial filters)

ELECTRICAL

24V/230V or 24V/110V electrical system
Kohler Generator set 20.5KW/50HZ/1PH or 21KW/60Hz/1PH, with sound guard, silencer, fuel filter & separator
(Option: Second Kohler generator 20.5KW/50HZ/1PH or 21KW/60Hz/1PH with Decision Maker 3500 Paralleling system)
(Option: 9 KW Kohler second nighttime generator)
Wiring - Tinned copper marine cables approved by ISO
CZONE NMEA 2000 network backbone system ready for connection to 3rd party navigation engine systems and other NMEA 2000 network equipment
Batteries for House bank: GEL deep cycle batteries, total of 900AH at 24V
Electric windlass and / or electric thrusters: AGM batteries, total of 200AH at 24V
Engine & Genset Start: two sets of AGM batteries, total of 400AH at 24V House:
(Option: Extra GEL batteries if solar is chosen) totaling 450Ah at 24V)
Separate Victron chargers for starting batteries
Victron Quattro 24V/5000W/120A battery inverter/charger Combo
LED Lighting throughout 24V DC
63 amp single phase shore power inlet with galvanic isolator
Power circuits protected by circuit fuse and breakers
Main AC/DC electrical distribution panels
24V monitoring alarm panel
Electrical gauge with indicator at chart table
Electrical Vimar outlets located throughout excluding engine room
(Option: Aqualuma underwater lights)
