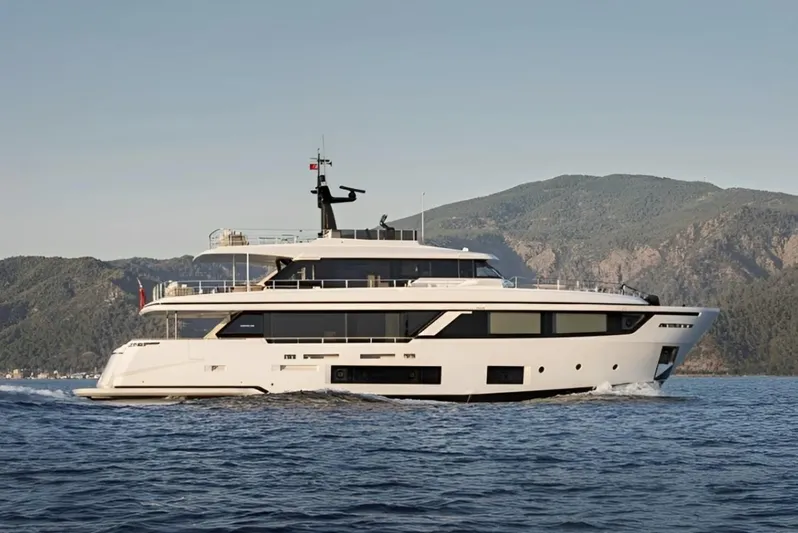

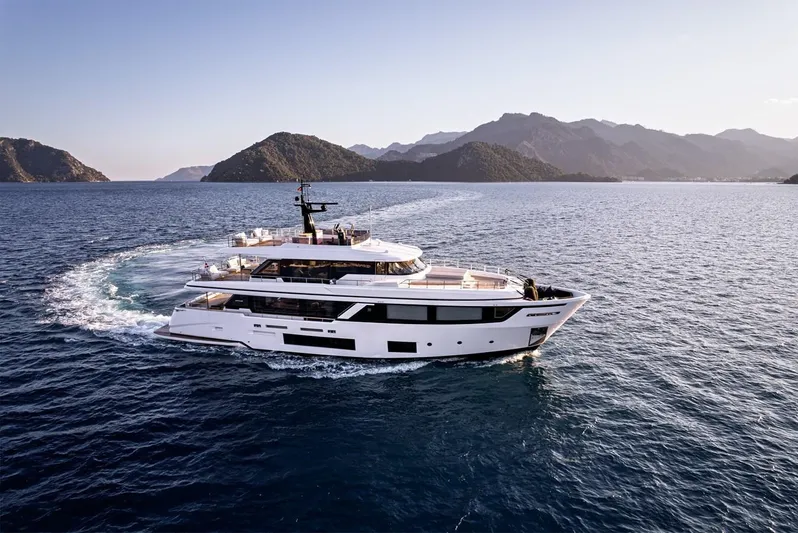

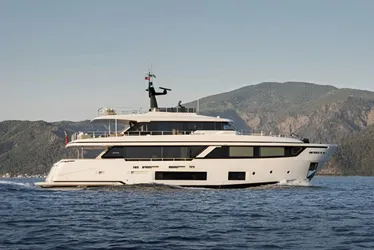

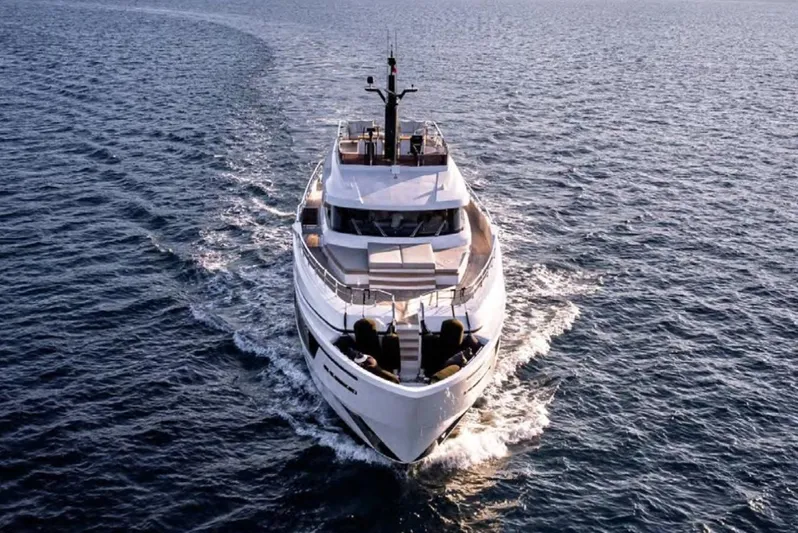

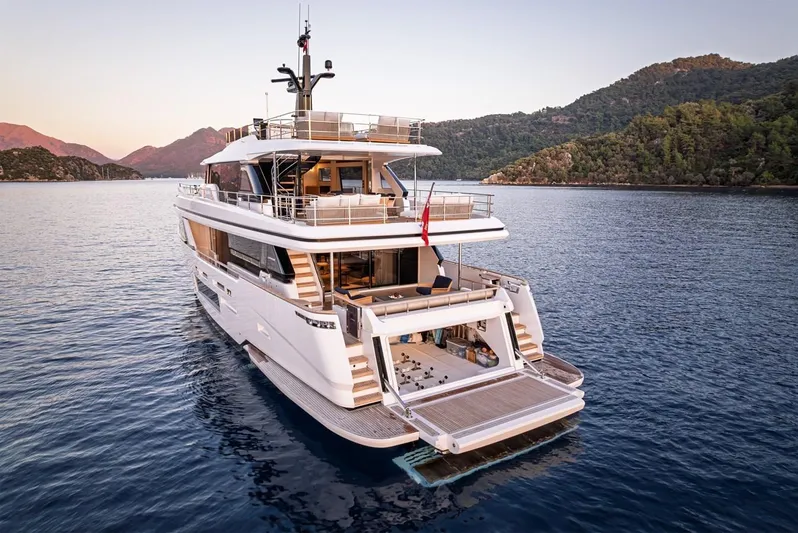

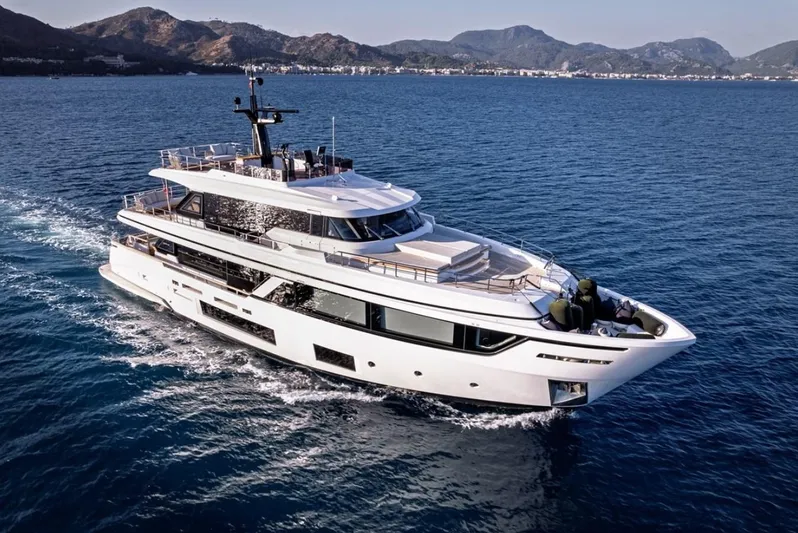

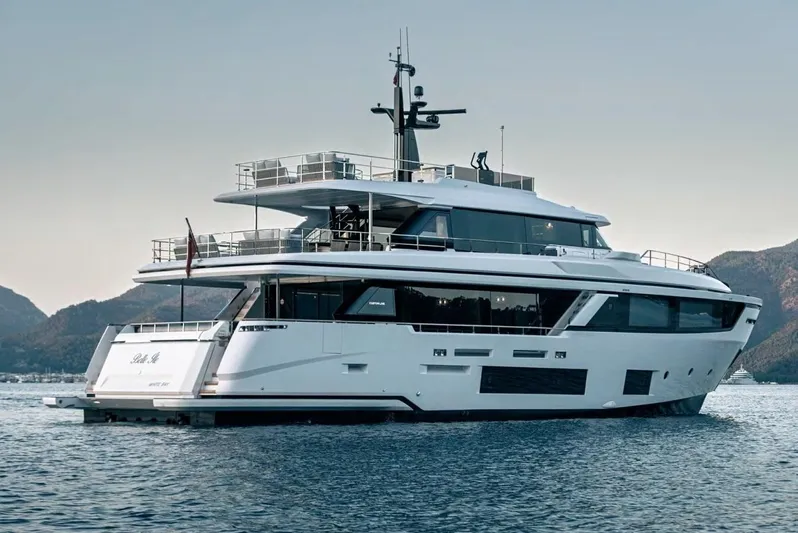

93 Custom Line 2023 Yacht for Sale

MAIN CHARACTERISTICS

Builder: Custom Line S.p.A. (Ferretti Group – Italy)

Model: Custom Line Navetta 30

Naval Architecture: Ferretti Group’s Product Strategy and Engineering Team

Exterior Designer: Filippo Salvetti

Interior Designers: Antonio Citterio & Patricia Viel

Type: Motor Yacht / Tri-deck Yacht

Hull Type: Displacement

Hull Material: GRP

Superstructure Material: GRP

Decks: Teak

Year: 2023

Overall Length: 28.43 m (93' 3")

Hull Length: 23.98 m (78' 8")

Waterline Length: 23.91 m (78' 5")

Beam: 7.31 m (24')

Draught: 2.20 m (7' 3")

Gross Tonnage: 199 GT

Displacement (full load): 135,000 kg (297,624 lb)

Displacement (1/3 load): 120,000 kg (264,555 lb)

Displacement (light load): 115,000 kg (253,532 lb)

Certification Design: Category "A" 2013/53/EU Directive

Class: RINA Certifications modules B + F + Aa (sound emission)

Flag of Registry: British Virgin Islands

Location: Cannes, South of France

PROPULSION

Type / Fuel: Twin Screw Diesel

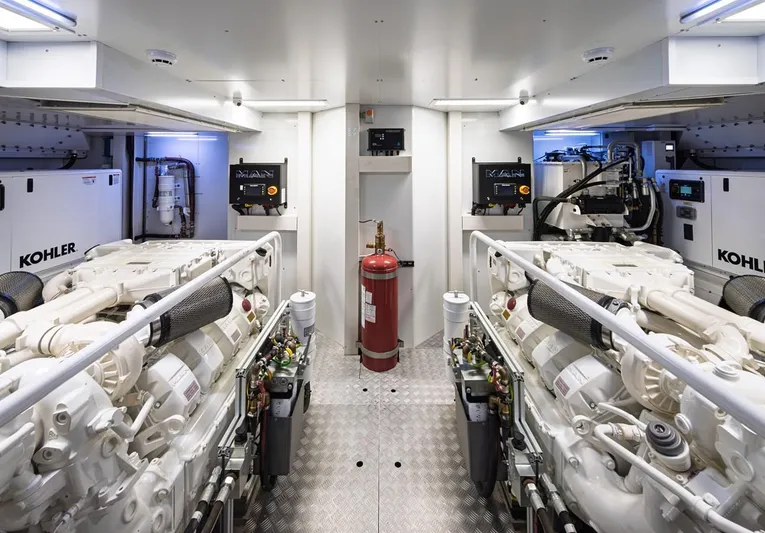

Main Engines: 2 x 1000 Hp (735 kW) MAN V8-1000 @ 2300 RPM

Engine Hours: 1350 h (April 2025)

Maximum Speed: 15 knots

Cruise Speed: 13 knots

Range: Up to 850 NM @ Cruise Speed

Economical Cruising Speed: 10 knots

Range: Up to 2050 NM @ Economical Cruise Speed

Drives: Direct Shaft

Steering: Electro-hydraulic

Gearboxes: 2 x ZF 2000A

TANKAGE

Fuel Capacity: 14,500 l (3,830 US Gals.)

Fresh Water Capacity: 2,500 l (660 US Gals.)

Grey Water Capacity: 900 l (238 US Gals.)

Black Water Capacity: 900 l (238 US Gals.)

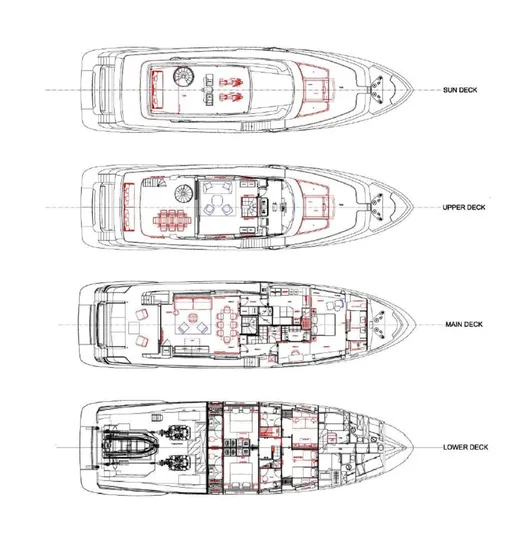

ACCOMMODATION

9 Guests in 5 en-suite Staterooms

Guest Cabin Configuration:

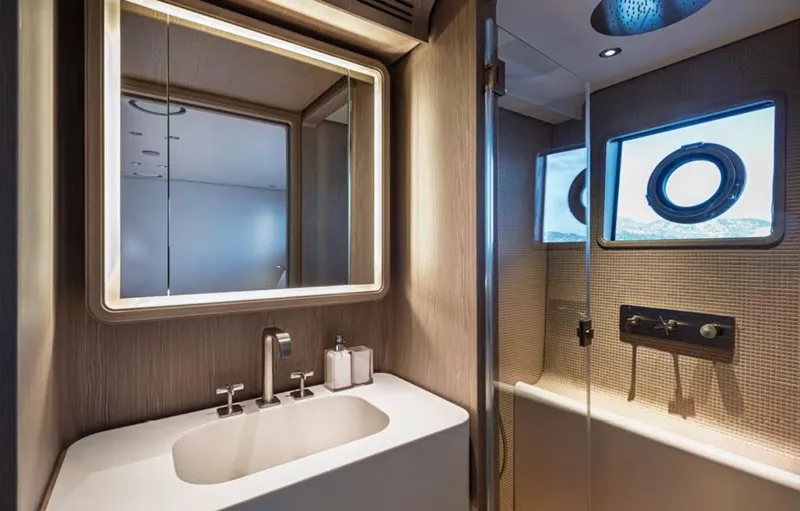

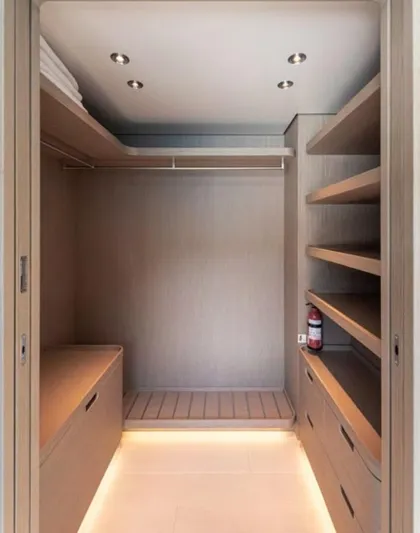

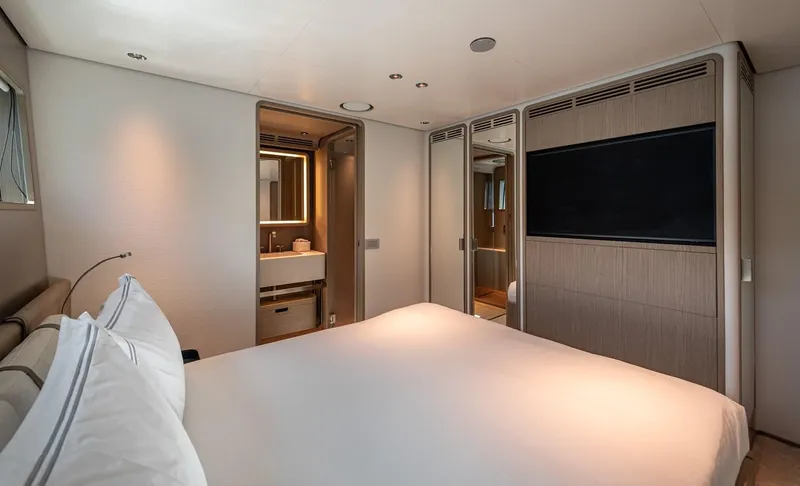

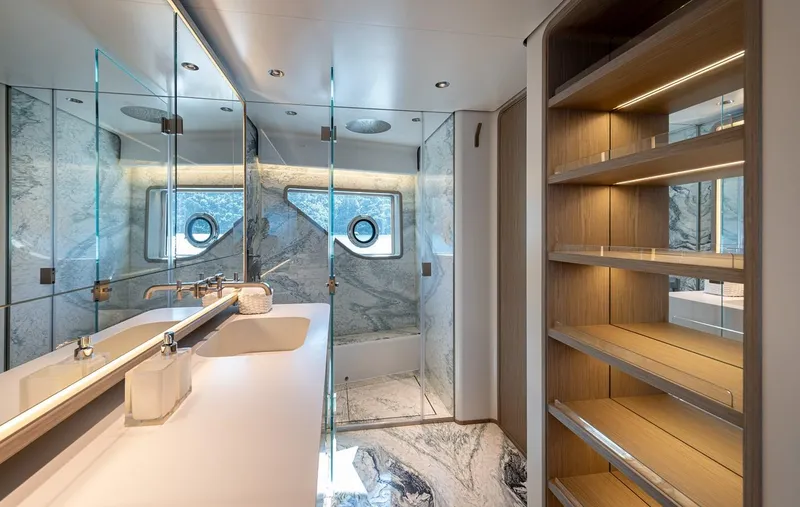

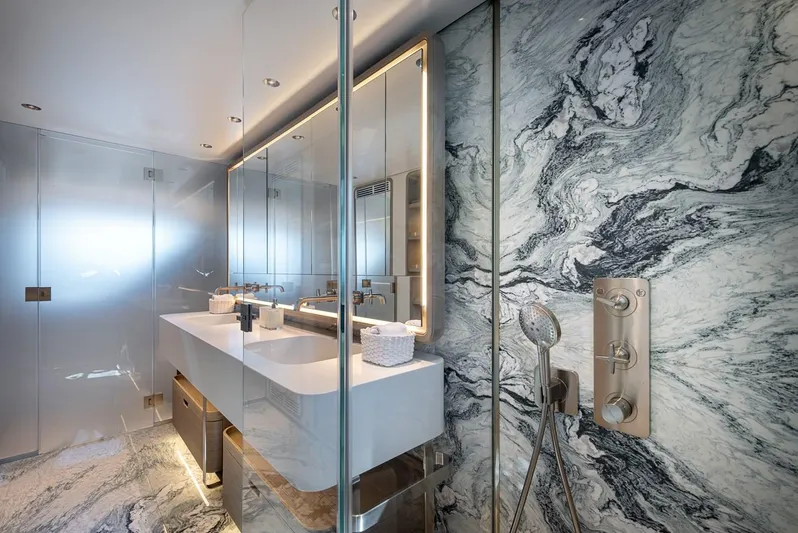

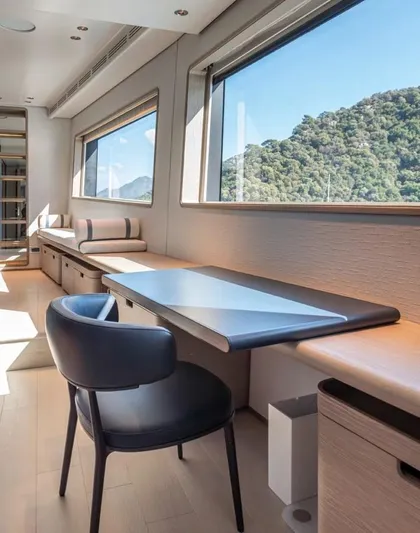

• Master (Double on main deck), with vanity/office, walk-in wardrobe and en-suite bathroom with double sinks

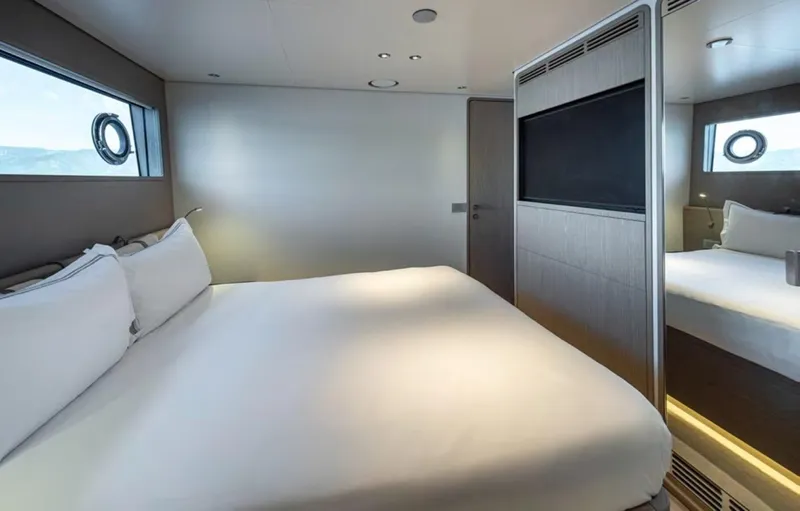

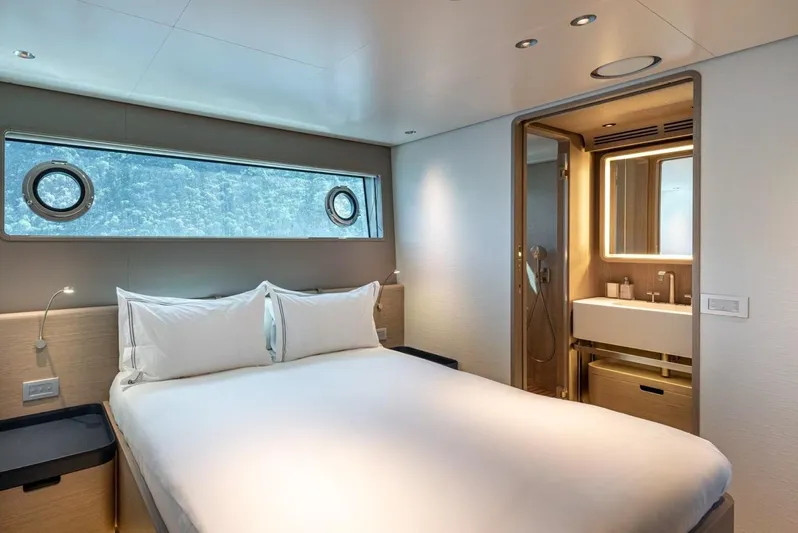

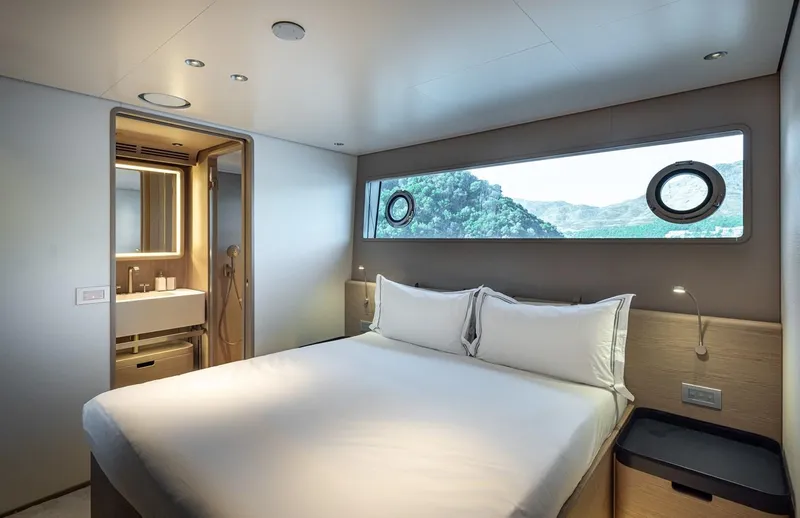

• 2 x VIP Doubles on lower deck, each with closets and en-suite bathrooms

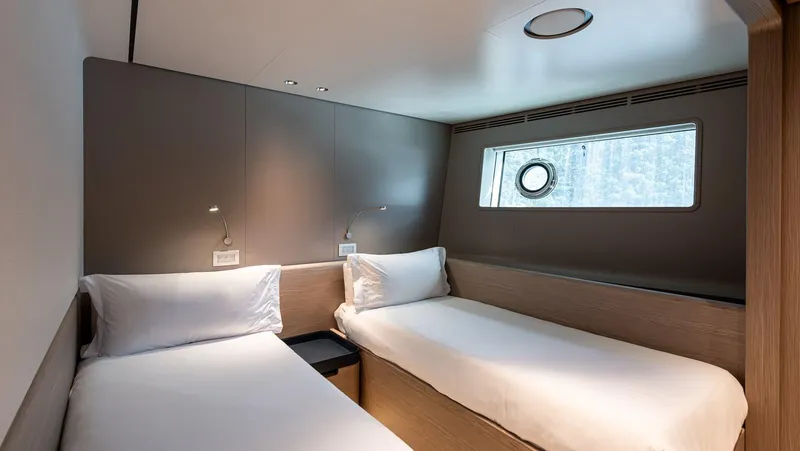

• 1 x Twin guest cabin on starboard port side, with closet and en-suite bathroom

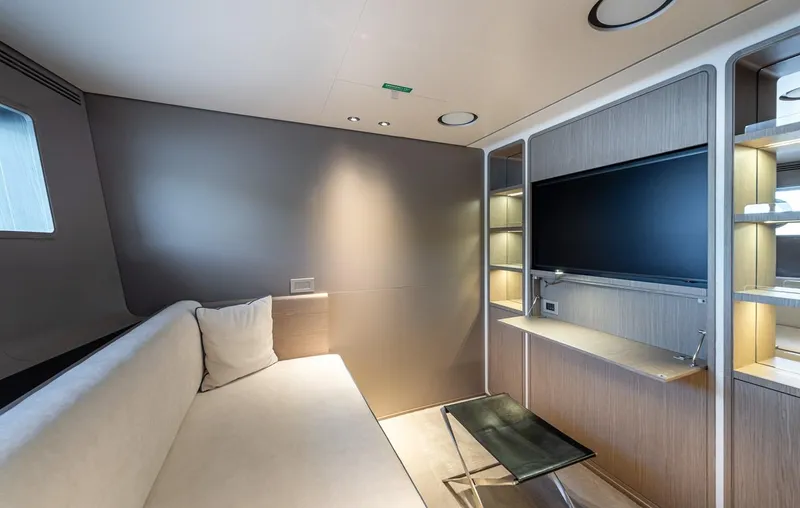

• 1 x Study / media room to port side, with couch, closet and en-suite bathroom (easily convertible back to fifth cabin with either double bed or twin beds)

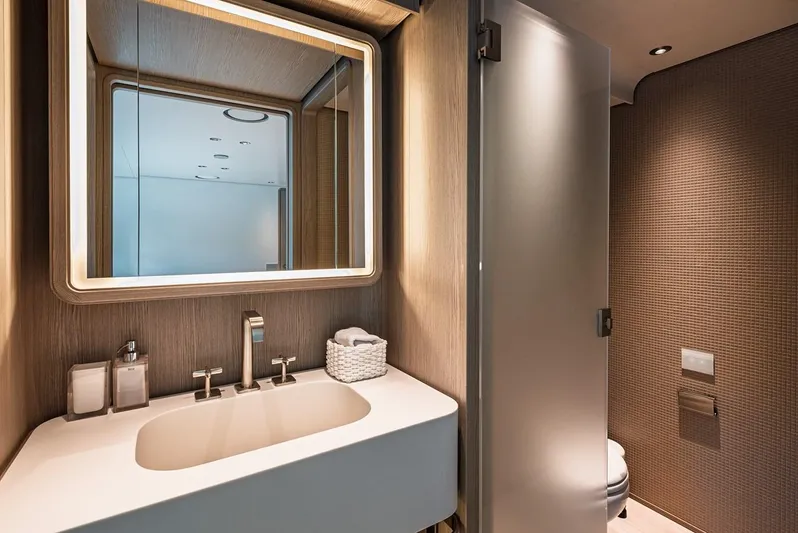

• Guest Bathrooms: 6 (day-head on main deck)

Crew Accommodation:

• 5 Crew in 3 cabins with en-suite facilities
• Single Captain’s cabin on lower deck with closet and en-suite bathroom
• 2 x Bunk-bedded cabins fore on lower deck each with en-suite facilities
• Crew Bathrooms: 3

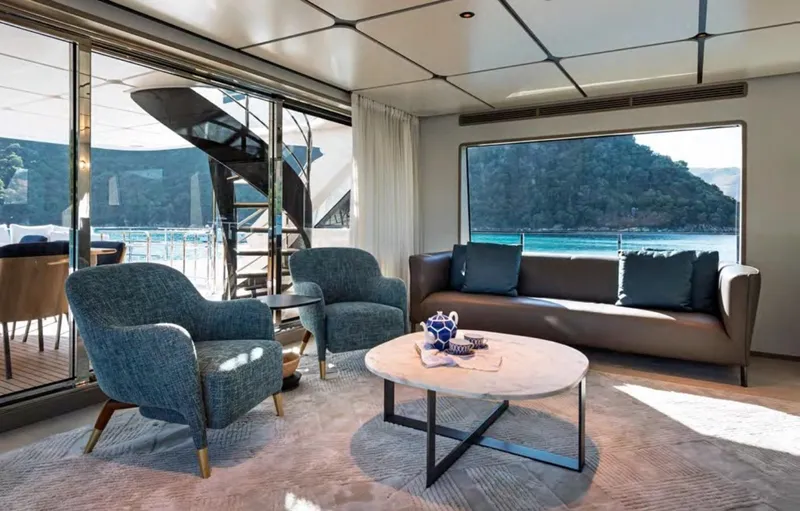

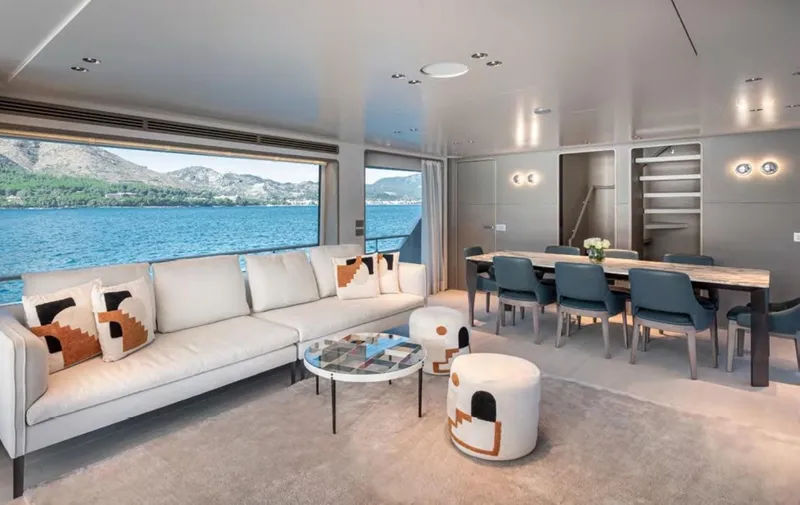

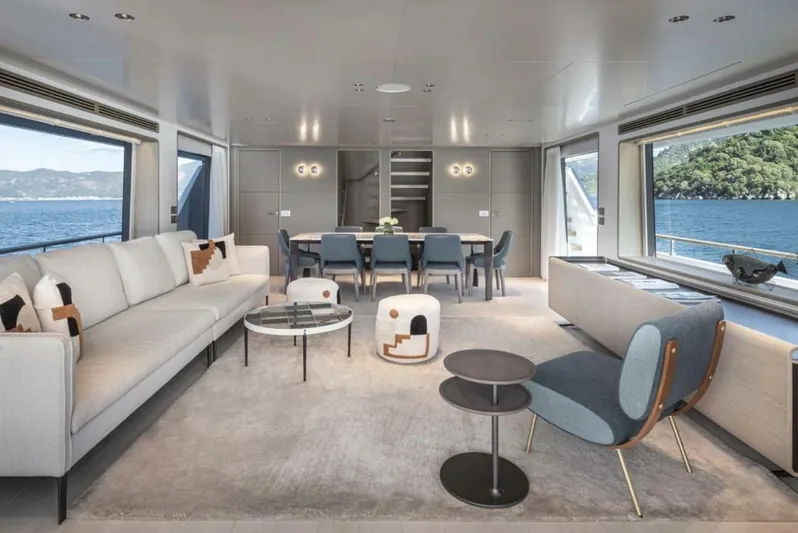

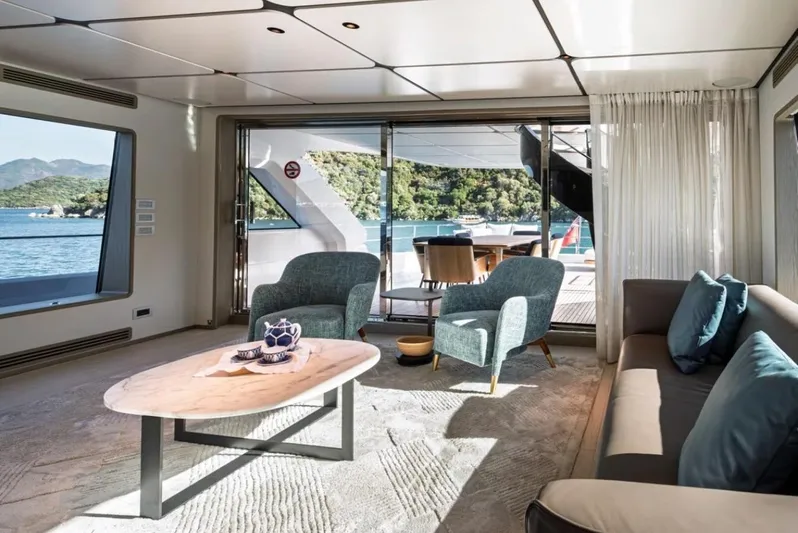

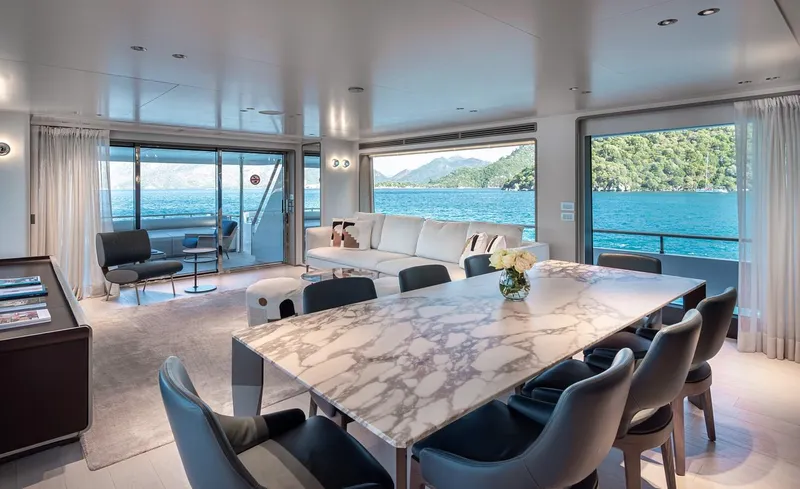

Main deck with saloon, formal dining, day-head and fully equipped galley and pantry

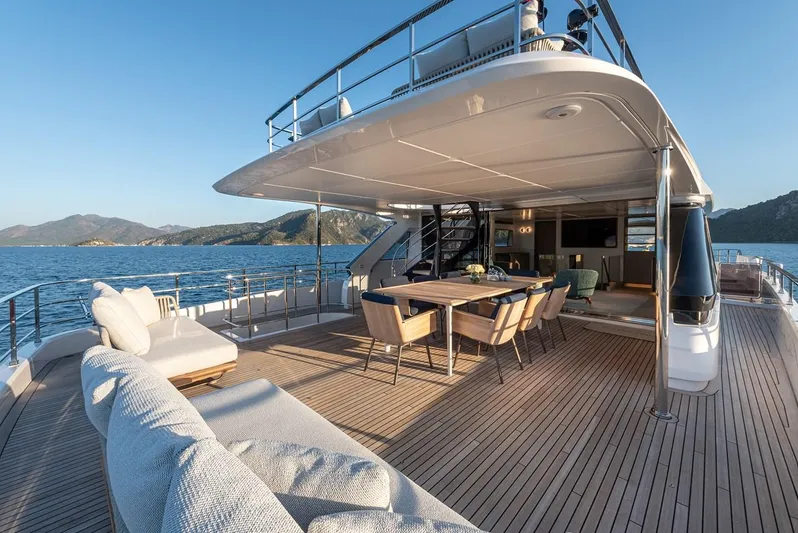

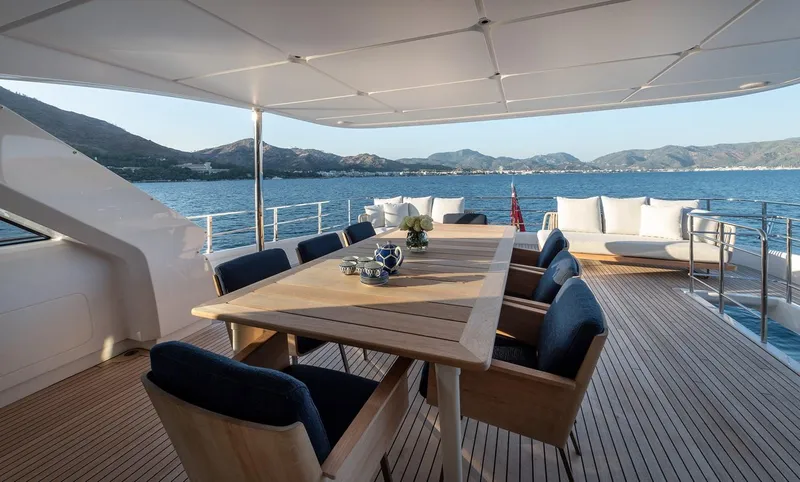

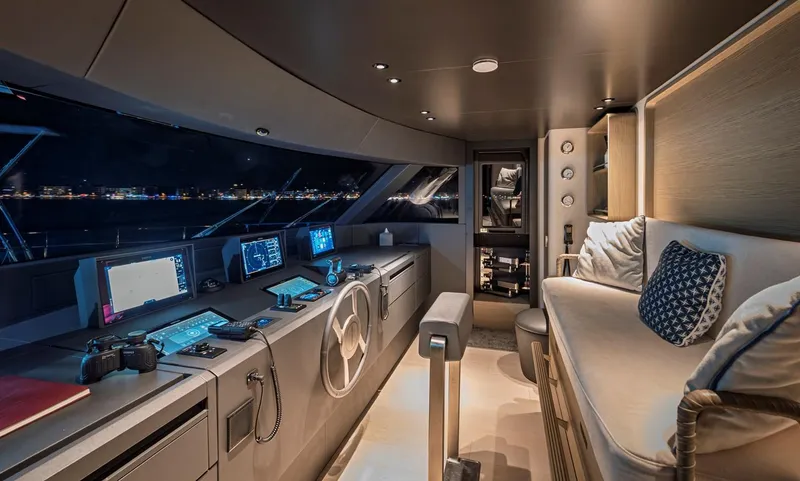

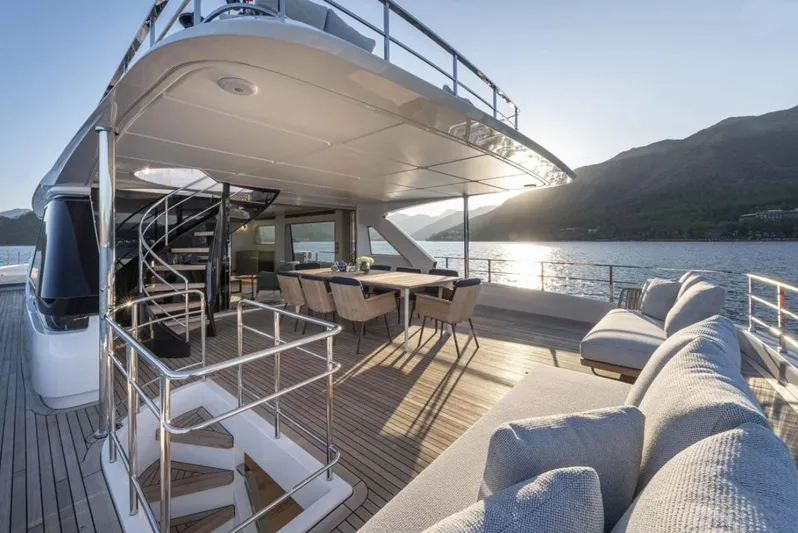

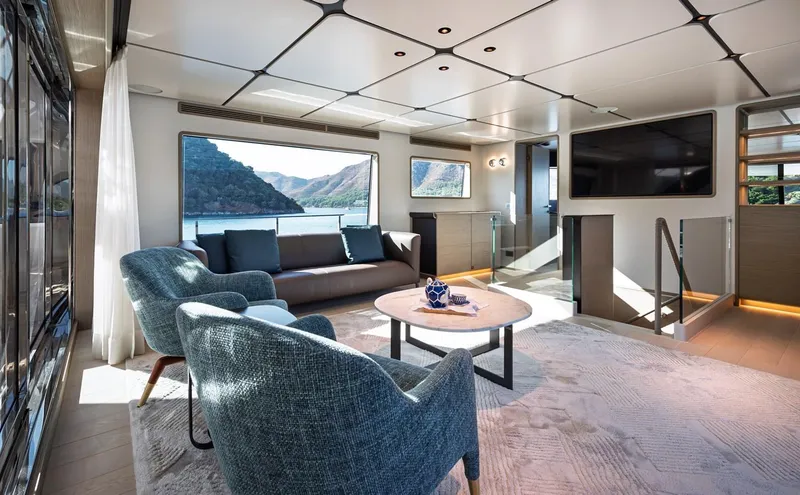

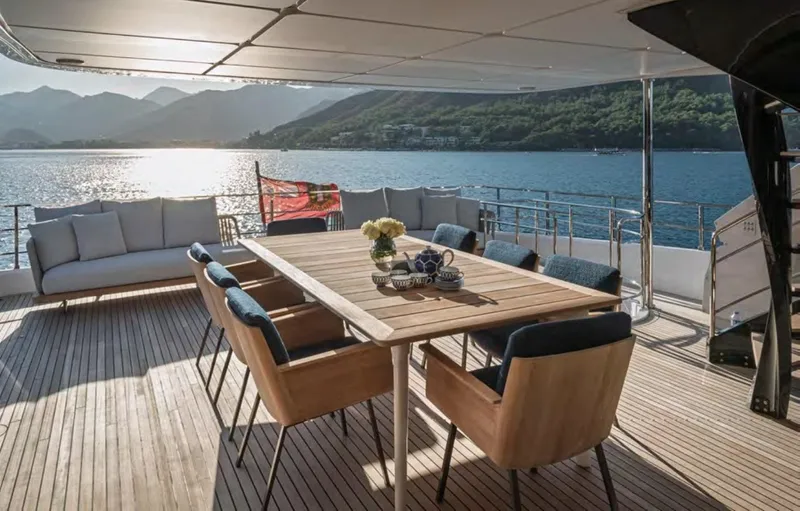

Upper deck with wheelhouse, saloon, exterior dining area

Independent “Mediterranean” system AC controls system in every area

MAIN EQUIPMENT

Hydraulic bow thruster (40 Hp), double propeller

Hydraulic stern thruster (30 Hp), double propeller

Power-assisted hydraulic steering with emergency manoeuvring

Shaft line transmission with elastic thrust bearing between shaft and reduction gearbox

Silenced main engines exhausts

Stuffing box with dripless shaft seal, low maintenance

Dual Stabilizer System:

• Zero speed (at anchor) and underway
• SEAKEEPER gyro
• SLEIPNER stabilizing fins

Treatment system for black water HAMANN

Centralized system for engine/inverters/generators oil change

Fuel oil filling station in garage for diesel tender

Active carbon filter

Water softener

Drinking water UV sterilizer

Watermaker: IDROMAR 500 l/h (duplex 250+250l/h) upgrade

Automatic battery charger on generators

Fuel oil filter ALFA LAVAL

ELECTRICAL EQUIPMENT

Electrical Circuits: 230V / 24V / 12V

Generators: 2 x 35 kW KOHLER 35EFKOZD 1-phase 230V - 50Hz @ 1500 RPM with soundproof casing

Generator Hours: Port 1675 h; Starboard 1680 h (April 2025)

Frequency converter 50Hz

12V automatic battery charger (for genset battery bank)

12V gel battery dedicated to port genset starting

12V gel battery dedicated to stbd genset starting

230V electric sockets (inside the boat)

230V lighting system

230V distribution system AC 50Hz 3-phase + neutral, powered by the gensets or by the shore power 24V emergency lighting system

24V automatic battery charger (battery banks for main engines)

24V automatic battery charger (services batteries banks)

24V automatic battery charger for emergency batteries

24V automatic battery charger for radio batteries

24V DC distribution

24V DC distribution system supplied by service batteries

24V gel battery bank for emergency

24V gel battery bank for services

24V independent gel battery banks (2) for main engines

Automatic parallel system between genset with seamless transfer between genset and shore power

Cathodic protection with zinc anodes

Copper strip ground system

Dock connector plug (20m) 100A 230V 3 poles + ground reel with GLENDINNING (local and remote control)

Genset parallel battery banks breaker

Lighting protection system

Main electrical panel (in control room) and secondary electrical panels (internal areas)

Main engines parallel battery banks breaker

Manual batteries breaker (genset, emergency, radio)

Manual engine batteries breaker, and remote switch for service batteries

Shore power supply 3-phase isolation transformer 40kVA, 400V AC input, 230V AC with neutral output

NAVIGATION, COMMUNICATION & IT EQUIPMENT

2 x Wing stations

MAN electronic engine controls

MAN electronic engine displays

Super Premium integrated bridge upgrade from the yard

Magnetic compass with fluxgate

Autopilot, complete with gyro compass

Echo-sounder

Electromagnetic speed log

AIS receiver integrated in the VHF

Navigator sensors including radar, GPS, Flux gate system and magnetic compass

Chartering plotter system

VHF

Premium Wi-Fi internet by the yard

CCTV

ENTERTAINMENT EQUIPMENT

Apple TV

Airplay

Hi-Fi sound system

A/V Package domotic area A

A/V Package domotic area B

Package premium sound external areas - SONANCE 6,5"

A/V Package premium sound area A

Antenna TV SAT KVH HD8 with receiver in saloon and empty dome

TV 27" in the galley

TV SAMSUNG 55" in master cabin

TV 55” LCD/LED thin with up & down lift in upper deck saloon

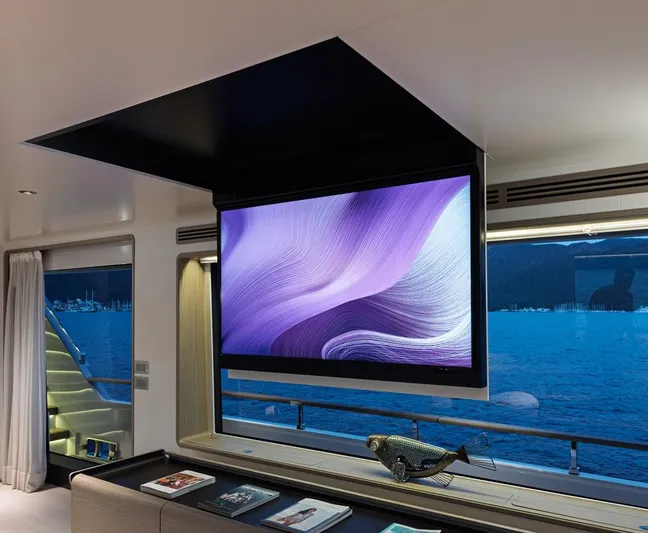

TV 55” LCD/LED thin with electric raising device in ceiling of main deck saloon

GALLEY & LAUNDRY EQUIPMENT

MIELE galley appliances upgrade

Electric glass/ceramic 60cm 5-burners cooking top

Extractor hood

Oven 60cm

Dishwasher

Fridge

Freezer

Trash compactor

Icemaker

Washer & dryer machine

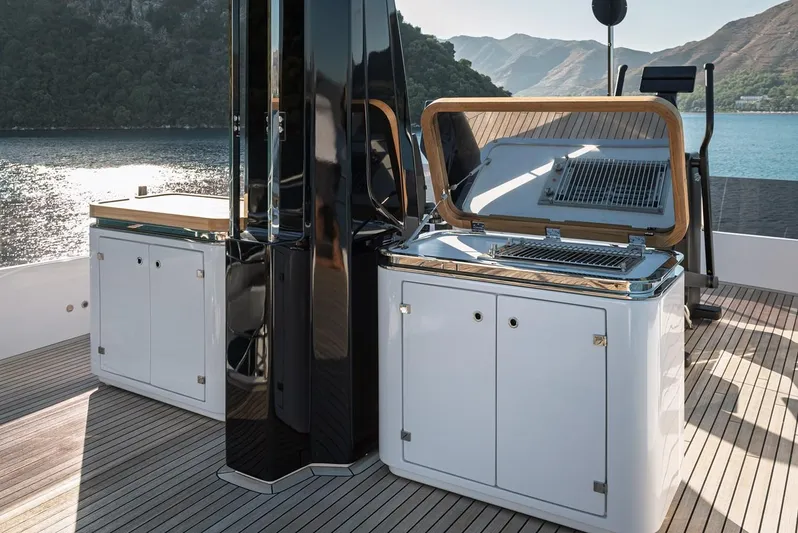

Grill on sundeck

Wine cooler 16 bottles

DECK EQUIPMENT

2 x Anchor chains with 13mm diameter and 120/150m length

2 x Anchor windlasses

2 x Warping capstans

Bimini top with carbon fibre pole on front and aft sundeck

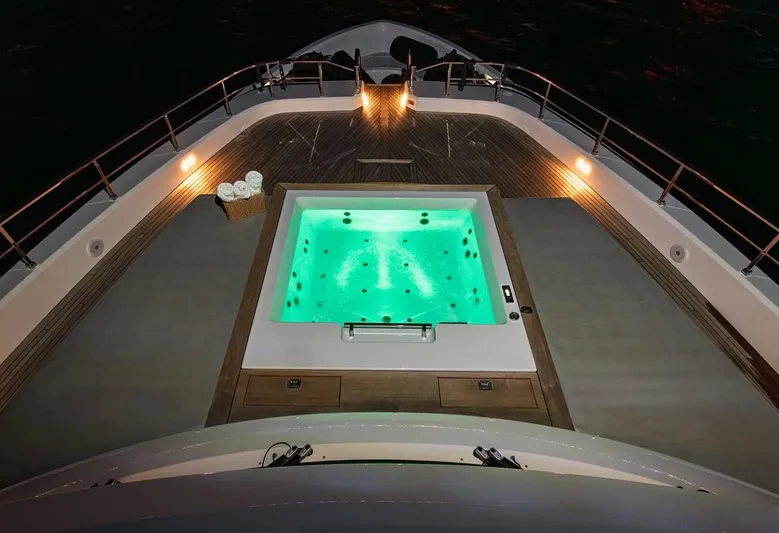

Bow deck Jacuzzi

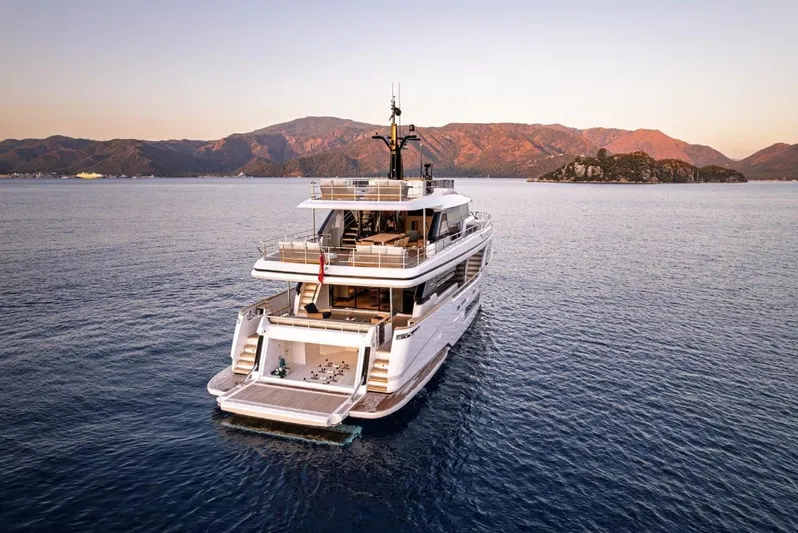

Bathing platform

Foldable swimming ladder

Retractable electro-hydraulic gangway

Mooring whips for the tenders

12 x Cylindrical fenders

2 x Boat hooks

Stainless-steel handrails on main deck, upper deck and sundeck

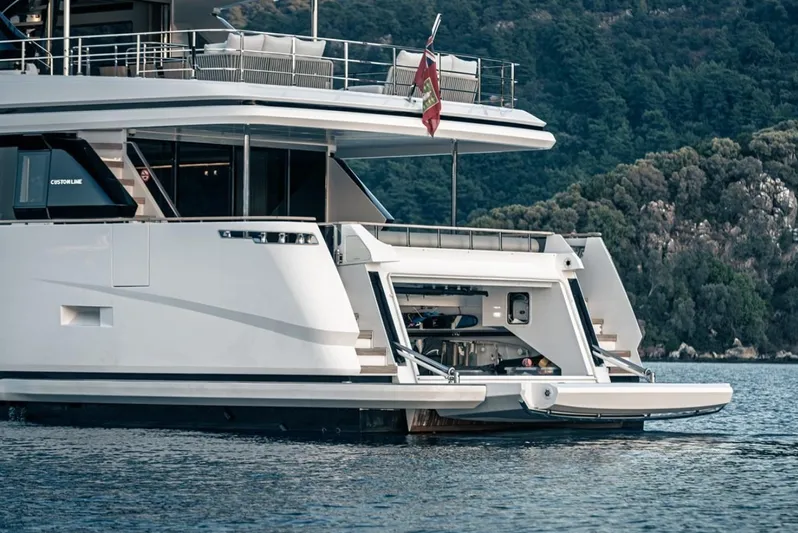

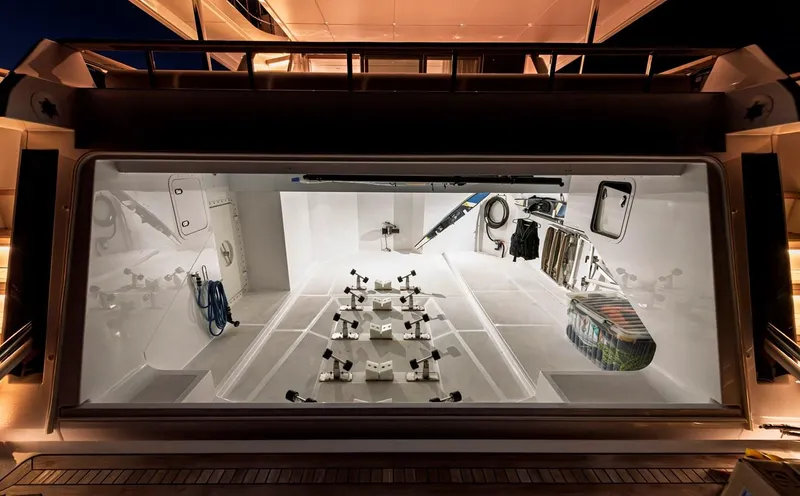

Aft garage ceiling electrohydraulic travel, for hauling and launching the jet ski

10 x Underwater lights

SAFETY & SECURITY EQUIPMENT

Life rings, ropes and buoys

2 x Life rafts for 10 people each (total 20 people)

20 x Life jackets

1 x First aid medical kit

Foam extinguishers

Powder extinguishers

Co2 extinguishers

TENDER

WILLIAMS 445 Jet Tender (150 h in April 2025)

GYM EQUIPMENT

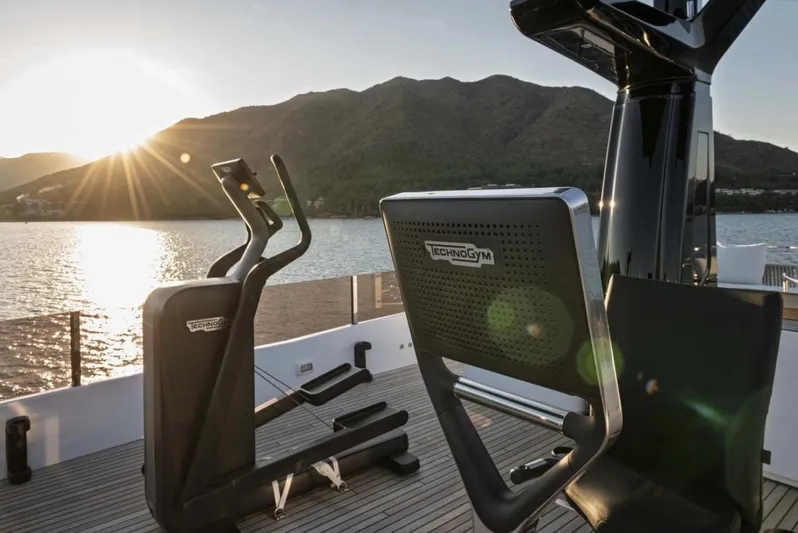

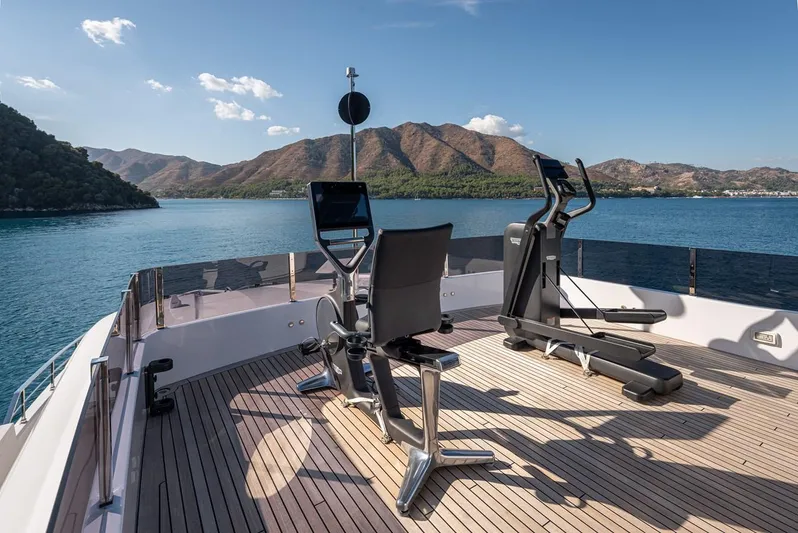

TECHNOGYM elliptical trainer (on sundeck)

TECHNOGYM recline bike machine (on sundeck)

OPTIONS LIST

Hull colour Optical white standard

Custom interior furniture selected by Owner

Gross Tonnage <200 GT

Certification Design Category "A" 2013/53/EU Directive - RINA certifications modules B + F + Aa (sound emission)

Available on request.

Immediate.

Transferable warranties available.

Prior appointment, please.

Berth place management possible on French or Italian Riviera as well as Spain (Mainland and Balearic Islands), Adriatic Sea, Croatia, Greece and Turkey.
