Evan Marshall and his team took their extensive knowledge of Ocean Alexander and masterfully revolutionized our legacy. Introducing the 30R – a yacht unlike anything we’ve ever built.
Powerful engines. Unwavering safety. Luxurious spaces. Breathtaking views. They transformed everything without sacrificing anything. Prepare to blow everyone away at the dock with her sleek new design. The new full-width main deck expands living space without compromising the incredible performance and efficiency we’re known for.
Picture it: making your way from the massive on-deck master to grab a martini from the new wet-bar island in the salon. You take a deep breath, marveling at the near 360° view of the sunset coming through the massive floor-to-ceiling windows. Then, you sit back and gaze at the stars over the endless sea from the newly designed beach house.
Length overall 29.65 m. 97’ 3”
Waterline length 26.33 m. 86’ 4”
Beam overall 6.83 m. 22’ 5”
Gross Tonnage 206 GT
Draft at full load 1.8 m. 5’ 11”
Draft at half load 1.79 m. 5’ 10”
Height above waterline (half load, antennas excluded) 9.65m. 31’ 8”
Load displacement (approximately) 114,240 kg. 251,856 lbs.
Fuel capacity 13,500 L. 3,600 gal.
Fresh water capacity 1,704 L. 450 gal.
Black water capacity 757 L. 200 gal.
Cruising speed (2000 RPM) 18 KN
Maximum speed (Wide Open Throttle) 23 KN
Range at cruising speed (2000 RPM) 490 NM
Range at 10 KN 2,040NM

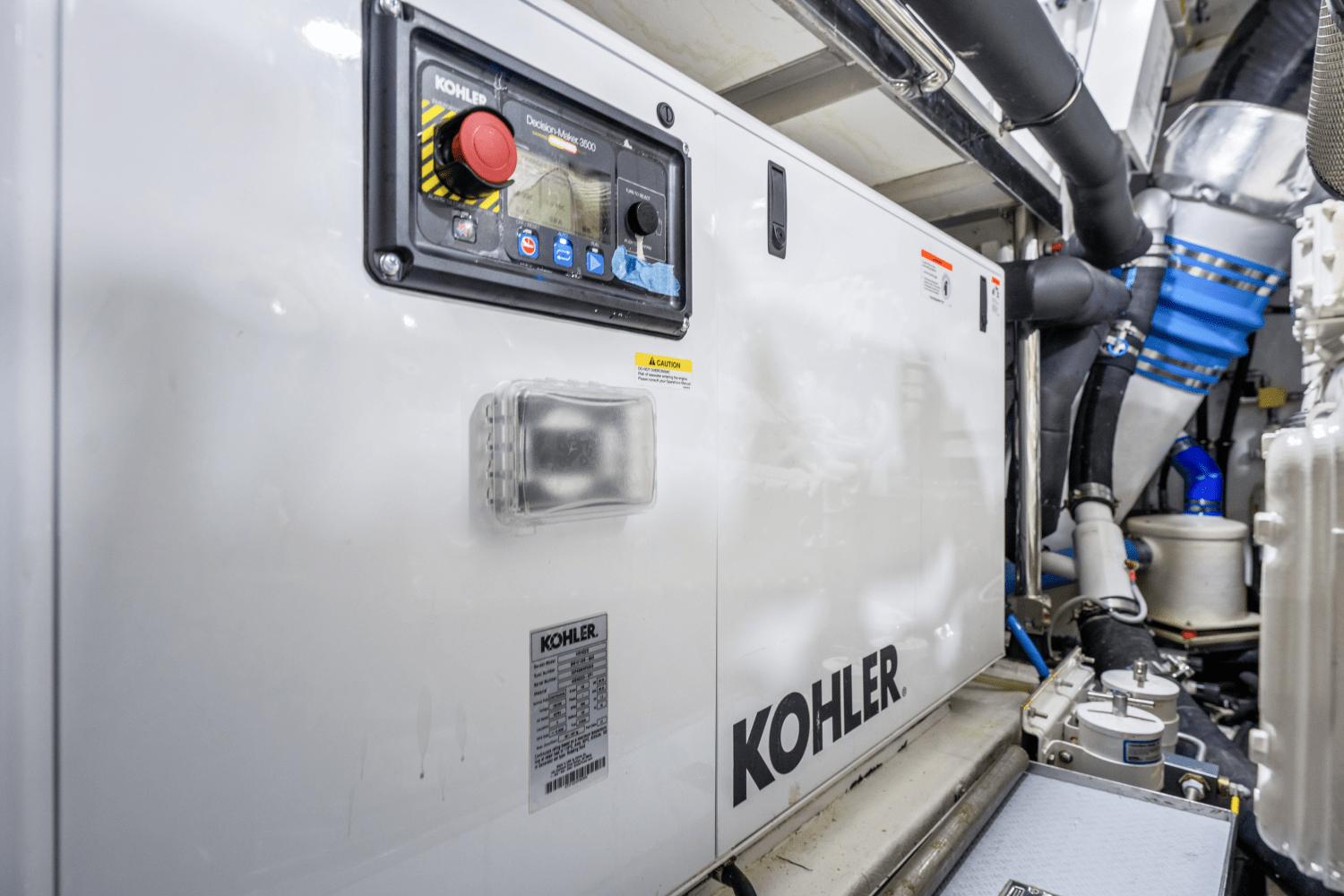

Standard Generator Twin Kohler® 40 KW
Standard Power Twin MAN® V12 1900 HP
Top speed and Cruise range are indicative only. Actual performance
depends on different conditions and options selected by customer, Ocean
Alexander does not guarantee
· The Yacht is constructed in high-density closed-cell structural foam. High density
foam allows for high temperature and advantages in thermal and acoustic
·Longitudinal and lateral fiberglass foam-core stringers.
·Fiberglass with infusion lamination manufacturing technology, increases
strength by 20% and reduces weight by 18% compared to hand-layup.
·Reinforced collision bulkhead.
·Cross-knit carbon fiber in high stress areas to increase structural integrity
and torsional strength.
·Water-tight bulkheads with sound and temperature insulation.
·Ocean Alexander employs various techniques to reduce sound and vibration. Some
of these techniques include multiple insulation barriers including reflective
materials, absorptive materials, dampening materials, air pockets and flexible
isolation mounts for controlling sound and noise transmission.
·Painted exterior surfaces with professional grade epoxy-based primers and
Alexseal polyurethane paint resulting in the highest gloss retention compared
with gelcoat or other paint brands.
· All exterior hardware to be 316 stainless steel or per manufacturer requirements.
· Aluminum components meet
marine grade 5086 or 6061 specification.
·Engine foundation: Main engine stringer will be constructed from stainless-steel
plates custom formed to encapsulate over engine structural stringers. Allows
for industry leading support and isolation.
·Frameless windows. Hull / Bottom:
·Interior structural components all bonded to hull.
·Three coats of “self-polishing” antifouling bottom paint shall be applied on
three anti-blister epoxy barrier coats, “Seahawk” paint or equal.
· Rub rail w/ 316 stainless-steel striking plate.
·Bronze through-hull fittings.

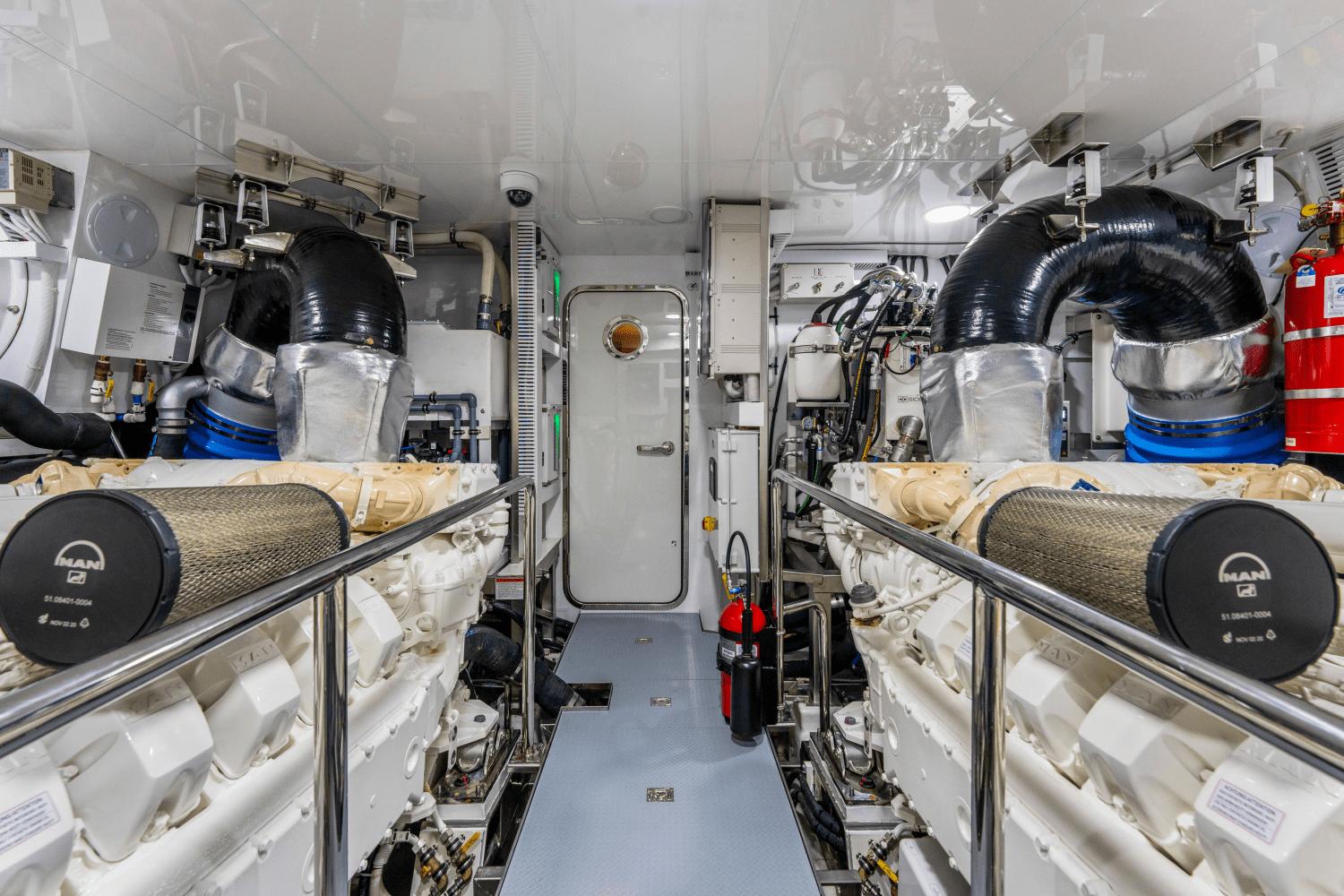

· MAN® V12 1900 HP engine “MAN Gold Standard” includes: 60-month warranty on main
components: crankcase, crankshaft, connection rods and flywheel.
·Stainless-steel engine beds and stainless-steel removable rails on side of
·Delta-T® intake/exhaust fans with variable frequency drives shall be mounted to
facilitate the intake and/or exhaust of air through the machinery spaces and
providing a high air exchange rate. Air intake & exhaust ducts shall have
fire dampers installed with manual and automatic triggering that shall be tied
into the machinery shut down circuits.
·Delta-T® moisture eliminators shall be installed at front of intake and exhaust
·Delta-T® fans for engine exhaust located on superstructure vs hull side.
Maximizes water protection and salt spray intrusion into engine space,
extending life of engine room components.
· Ocean Alexander employs aerospace grade “autoclave” to make “hard coat”
exhaust. Further, AL-6XN alloys is used (also used in Saturn V rocket nozzle)
for spray ring in exhaust system to lower heat transmission) Ocean Alexander is
unique in utilizing Military standards that ensures optimum and sustained
performance in its exhaust system.
· Sidepower Vector Fin (DAME 2013 award winner) 15 ft2 hydraulic stabilizer find with
zero speed stabilization function.
·Sidepower’s patented “curved” fin design not only provides lift underway it is
also unique in the industry with active “predictive” inertia control. Up to 50%
more efficient than flat fins at anchor. Up to 30% more efficient than flat
· 53.5HP bow and 42.6HP stern thrusters.
· Ocean Alexander designs in oversized shafts, rudder and other drive train
systems typically one-class larger than the competition. This results in
superior handling and longevity in the Ocean Alexander drive-train system.
· Highperformance computer designed and machined Nibral propellers.
· TwinDisc® hydraulic steering system.
·Stainless-steel rudders w/integrated zinc plates.
· Add plug-in engine wired remote at aft deck and pilothouse. Windlass / Mooring:
· Dual (2) hydraulic vertical anchor windlass with foot switch.
(2) 240 lbs. anchors with 250’ chain each side, attached to the anchors with
stainless steel high-tensile swivels.
· Hands-free anchor chain wash system. Automatic operation for freshwater
cleaning of chain during anchor operation. ·
Two 1500W, 24VDC motor capstans on Aft Deck, with foot switches.
· Dometic® chilled water system air conditioning system, rated for “Extreme
Tropical Climates” (with reverse cycle heat for operation down to 40°F water
· Refrigerant type is accepted worldwide under the Montreal Protocols. · Dedicated engine room air
· Ocean Alexander Clean Air System incorporates Nano-mesh UV sterilization
technology to remove up to 99.9% of bacteria, fungi, mold, virus, fumes and
odors. System has no moving parts, is completely silent and ozone free. Ensures
fresher, cleaner, and healthier air onboard.
Extended Cruise Custom Package:
Additional washer, dryer and refrigerator in lower foyer.
· Additional full-height wine cooler opposite galley. Mechanical/ Electrical
Convenience Custom package:
· Lube oil change system for engines and generators.
· Gulfcoast™ Fuel polishing system based on US Military Abrahams-M1 Tank design.
· Compressed air in engine room and aft deck.
· Military grade searchlight and spreader lights for swim step and boat deck.
· Dimmer package for interior and exterior main ceiling lights.
·Onboard intranet, driven by commercial-grade 4G SIM card capable Wi-Fi router.
Allows outside 4G Internet card and/or internal intranet net connection via
supplied iPad to Systems monitoring, Garmin and other onboard equipment apps.
Spare Parts package:
·Bilge Pump, LED Light, Engine/Generator Filter, Wiper Blades, Touch-Up Paint,
Fuses, Engine Manufacturer Spare parts kit, Generator Manufacturer Spare Parts
Kit, Float Switch, Vimar Outlet, GFI Outlet, Vimar Switch. Other Notable
·Heavy-duty commercial grade pantograph windshield wiper & washer with
intermittent function ·
Buell™ heavy-duty, 3-trumpet horn
·Fireboy engine room fire extinguisher system with engine-shutdown feature.
·Ocean Alexander proprietary “dry bilge ventilation system” with dedicated bilge
exhaust to outside. This provides constant airflow to keep the bilges dry and
·Headhunter sewage treatment system. (600Gal/day)
Fresh Water System:
· 316 stainless-steel water tank with sight gauge tested to RINA standards. RINA
Pleasure Yachts 2021 _Pt. B Ch.1 Sec.1_5.14.1
·Headhunter™ fresh-water system.
·Freshwater wash down at bow, stern and upper deck.
·Dockside water connection.
· One80-gallon hot water heater with high density insulation and dual high
efficiency heating elements that speed heating by 50%.
·Dometic® 1200G/Day water maker w/auto fresh water flush operation and
·Water Purification package:
o Stage 1: City water is initially filtered for rust/large
particles and sediment.
o Stage 2: Water maker and City water is filtered for
biofilms and with Steriliser, biocidal properties are maintained even in water
o Stage 3: From water tank filtered through active carbon
(smells and odors) and bacteria filter.
o Stage 4: UV water sterilizer is used as a final line of
defense against microbiological bacteria/virus. Fuel System:
· Marine grade aluminum fuel tanks with sight gauges and high & low level alarms,
welded and pressure-tested to RINA standard. RINA Pleasure Yachts 2021 _Pt. B
·Stainless-steel fuel piping system.
· Fuel tank vent breather with breathing capacity fulfils the RINA requirements.
Provided with an easily cleaned stainless steel (AISI 316) gauze, which
functions as a flame arrester. RINA Pleasure Yachts 2021_Pt. B Ch.1 Sec.9
ELECTRICAL: AC/DC System:
·OctoPlex™ NEMA 2000 electrical safety/security control system. Based on
aerospace technology for remote activation, control and status reporting of all
AC and DC breakers. Monitors all power sources (AC and DC) for voltage,
frequency and amperage abnormalities and provide visual and audio alerts. Includes
enhanced circuit breaker functionality with no-load indication. Brown-out
capabilities provides sensors for main doors, tank level, bilge and battery
monitoring of current, voltage and temperature.
· This security/safety automatic monitoring and alert capabilities include using Apple
iPad or Android for remote access to operate, view, and arm OctoPlex™ data and
navigation system with remote notification accessibility
·Shore power connections: Two CM-8 100Amps cable master with 90’ cables with
Iso-boost which manages voltage drops due to shore power by boosting output
voltage thus keeping electric system stable.
·Lightning protection system. Lightning arrestor pole installed on mast with
dedicated ground cable to grounding plate attached to underwater hull surface.
Minimizes potential lightning strike damage to yacht electrical and critical
·Garmin 8700 Series Black Box with (3) 24” touch screens.
·Garmin GRID remote input device installed on helm chair.
·Garmin 25KW Open Array Radar
·Garmin Autopilot GHC20
·Garmin VHF and Card Reader
·Garmin Black box depth sounder
·Garmin AIS with NMEA GPS
·Garmin Marine Camera (2 in engine room and 1 aft deck).
· KVH® TracVision®UHD7 satellite TV antenna
·Ritchie Compass 5"
· IPad with built-in Garmin App for navigational control/viewing via iPad.
·iRule Remote Control Entertainment System
· ystem can be control by iPad with iRule programmed interface for zone Salon,
Pilothouse, MSR, Boat deck and Aft deck.
·Includes the following equipment installed at factory:
Salon: LED 55” TV with A/V System with subwoofer
MSR: LED 50” TV with A/V System
VIP stateroom: LED 43” TV with Satellite Receiver
Guest stateroom: LED 24” TV with Satellite Receiver
Crew: LED 32” TV with Satellite Receiver
Captain’s: LED 32” TV with Satellite Receiver
Beach Club: LED 43” TV with Satellite Receiver
Bridge deck flip down 43” TV with speakers
Aft deck flip down 43” TV with speakers Pre-wire for future
installation of Crestron/Control 4 ACCOMODATIONS / INTERIOR & EXTERIOR
·Yacht quality Italian door hardware.
·Windows with dramatic architectural details allowing for greater visibility and
incoming natural light.
·Hardtop with dedicated custom removable 316 stainless-steel ladder to
·Elliptical 316 stainless-steel handrails & stanchions.
·White non-skid decks.
· 316 stainless-steel cleats.
· One 316 stainless-steel flag pole at stern.
· Side boarding gates in cockpit.
·Flush-mounted deck lights.
· Sun pads at bow.
·Single manual helm seat at steering station.
·Flush mounted deck lights.
· Sideboarding gate in cockpit.
·Electric helm seat (2x) at steering station.
·In-glass portlight for Master Stateroom (2x) and guest staterooms (2x).
·Metallic painted hull.
·Hydraulic 2,000 lbs. capacity Hi-Low swim platform with integrated ladder.
·2,500 lbs crane on boat deck with 4-person lighted Jacuzzi (include 17KW water
·Aft-deck transom structural reinforcement per Froude Friction Evaluation for
towing tender base on towing force for an approximate 45ft Length (13ft beam),
25,000lbs displacement boat, with capstan. (tender not included)
· Teak Decking Package.
·Aft-Deck Custom Ceiling Feature with indirect lighting.
· Exterior Convenience Package:
o Sun awning for boat deck, bow deck and swim deck with
custom-made stainless-steel poles and marinegrade
exterior mesh fabric. Includes custom designed built-in storage for poles.
o Custom-designed exterior loose furniture package with
coffee table at boat deck and bow.
o Boarding ladder installed at recessed starboard gunnel
with teak steps.
o Custom exterior protection canvas for exterior cabinetry
and windshield mesh cover.
o 316 Stainless-steel transom gates for pet/child
o Boat deck hatch.
o Bow concealed “pop-up” lights (4x).
o 32” Electric-Chef™ electric barbecue at Bridge Deck.
o High output LED underwater lights 7x (three at stern, two
on each side of port and starboard side). Pilothouse:
·Custom-designed settee and table.
·Custom-designed window mullion with ceiling treatment.
· Wood and padded leather control console with steering, engine controls and
·Ship’s alarm panel for smoke, bilge, and tank monitoring.
· Red light for nighttime running.
·Electric Shades with remote control.
·Custom-designed furniture and sofa.
·Custom-designed window mullion with ceiling treatment.
·Cabinet including wet bar, refrigerator and ice maker.
·Stone countertop at wet bar and cabinets.
· Full height electric glass sliding door in lieu of manual sliding door (AFT, Port
and Starboard side).
·Electric Shades with remote control.
·Adjustable shelve tracks and dividers be installed for china, glass and silver
·Ten-person dining table secured with chairs.
· Day head with stone countertop, sink and cabinet.
·Painted paneled cabinetry with positive-latch doors.
·Galley storage cabinetry w/hidden hinges.
·Franke™ professional series kitchen sink with pull out faucet.
· 30” Wolf™ electric cook top. ·
30” Wolf™ electric oven.
·Fisher & Pakyel® refrigerator with ice maker
·Scotsman Brilliance® gourmet clear ice maker. Crystal-clean, odorless ice with
unique ice cube shape won’t clump or dilute drinks.
·Whirlpool™ garbage disposal. ·
30" Viking™ over-the-range microwave with exhaust blower.
·Whirlpool™ trash compactor.
·King-sized berth (with independently coiled his & her sections to ensure
minimal transfer of movement).
· Two nightstands with stone countertops.
·Walk-in closet on both sides of stateroom (one featuring hidden safe for
· Free standing Jacuzzi tub.
·Electric Shades with remote control.
·Bureau with chest of drawers in lieu of make-up desk in master.
·Heated stone floors in Master bathroom.
·TOTO® toilet. Tornado Flush technology with auto flush, lid closing, heated
seat adjustable spray and 3- mode washlet air purifying system with remote
·Queen-size berth with innerspring mattress and storage beneath.
·Nightstands with drawers.
·anity/ dressing table.
· Hanginglocker with automatic lighting.
·Twin-size berth with innerspring mattress and storage beneath.
·Nightstands with drawers.
·Hanging locker with lighting.
·Cabinet including wet bar, sink, refrigerator and ice maker.
·Dedicated air conditioning.
·Sliding glass transom door.
·Custom-made seamless fiberglass stall shower w/ one-piece glass door. Reduce
mildew by providing a clean, easily disinfecting wipe-down surface.
· Airextraction in each head by low noise extraction fans.
·Tecma™ Marine toilet system throughout.
·Stone countertops and back splash in heads with bone china sink. Crew Quarters:
·Kitchenette (sink, microwave, cooktop and refrigerator).
·Storage locker in each crew stateroom.
·Settee with table and storage below.
·Three crew staterooms: captain and two high-low bunk staterooms.
Captain quarters includes N2KView linked Apple IPad for systems
·Washer and dryer.
·Workshop with Snap-on® tool cabinet and storage.
·Private head and shower
