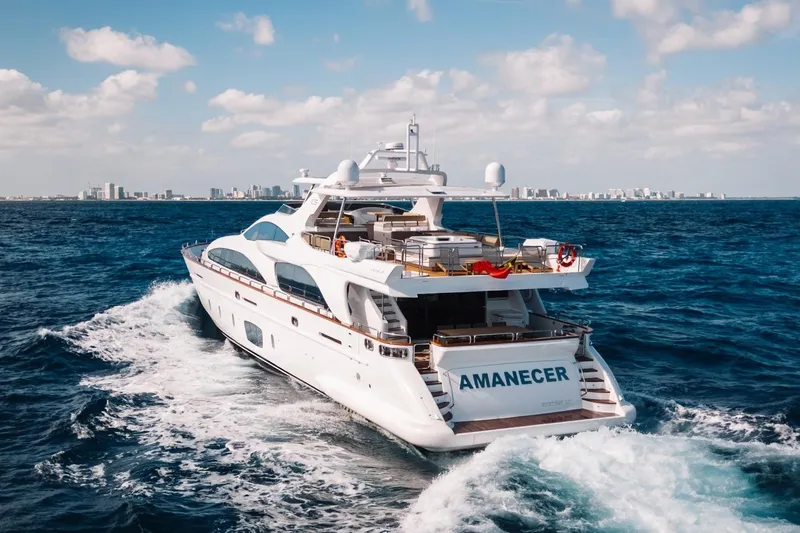

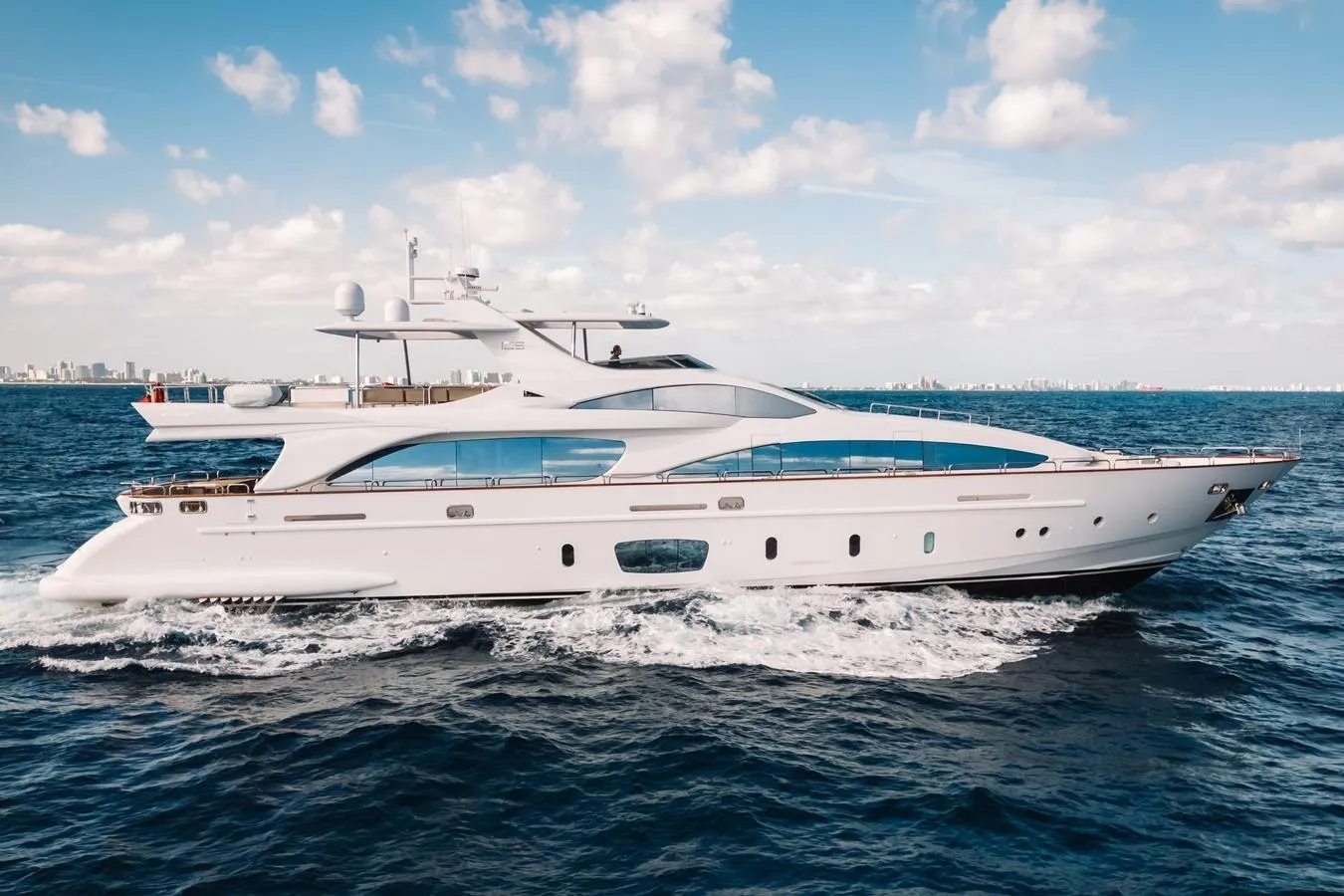

AMANECER Yacht for Sale

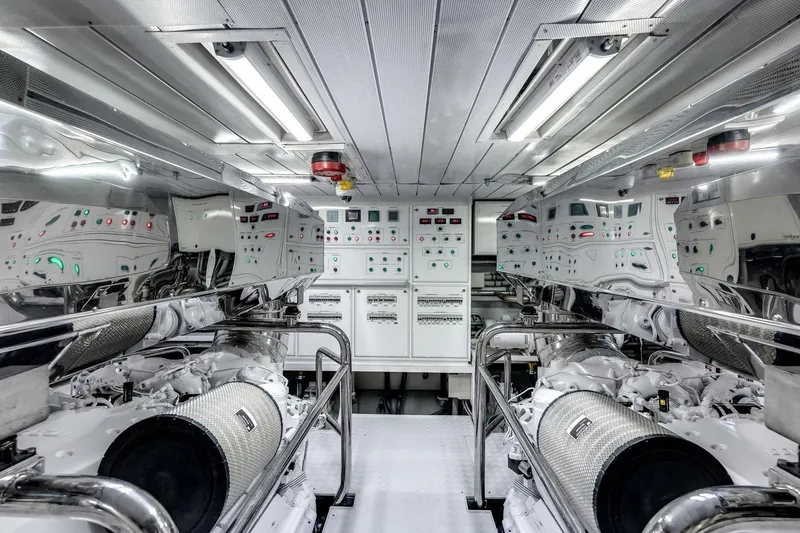

The vessel is powered by two MTU diesel engines coupled with ZF transmissions.

• Main Engines: MTU 16V 2000 M92, 2200 HP each (rebuilt 2023)

  • Engine Hours (09/25): Port - 350 hours | Starboard - 350 hours

  • 1640Kw each

  • Twin diesel

• Shafts & Propellers: Marinox 17 steel, diameter 110mm, supported by brass stands and stern tubes.

  • Tides shaft seals (2015 / 2021)

• Propellers: 5-Blade Veem props and painted with prop speed

• Engine Controls: MTU, Single lever, electronic

  • Yacht controller, wireless remote control

• Gear Boxes: V Drive with universal joint

• Stabilizers: ABT TRAC Stabilization systems with Zero Speed stabilizers

• Bow Thruster: Side-power, Hydraulic system, 23.8Kw 32HP

• Steering System: BCS, Hydraulic with dual pumps & dual rams

• Rudders: AISI 316 steel with 0.4sqm of surface are

  • Rudder Stocks/Housing: Marinox 17

  • Bar/Yoke: Carbon Steel

• Trim Tabs: Hydraulic AISI 316 steel, each 650mm wide (2023)

• Engine Ventilation: 4x Gianneschi blowers/extractors, operating on a 208V, 3-phase power supply (2023)

• Generators: 2 x Kohler 65KW (rebuilt 2023)

  • Generator Hours (09/25): Port - 807 hours | Starboard - 786 hours

  • 110/220 single-phase / 208V, 3-phase

  • 65EOZD

• Electricity: 110/220V electrical system operating at 60Hz for house power

  • Sound shield box, control panel and 12V d.c. starter

  • Remote start

• Shore Power: 2x 100AMP 440/208 220 VAC

  • Power output: 208, 3-phase, 110/220 VAC, 60Hz

• Batteries & UPS:

  • Emergency Power: Group of 24V gel batteries (220Ah) dedicated to critical systems, including emergency and navigational lights, fire extinguisher system, VHF, bilge and fire alarms, and intercom.

  • Service Power: Group of 24V gel batteries (840Ah) for lighting and signaling

• Battery Chargers:

  • 25A automatic Mastervolt charger for emergency batteries

  • 100A automatic Mastervolt charger for service batteries

  • 25A automatic Mastervolt charger for engine starter batteries and, in emergencies, for service batteries

  • 25A automatic Mastervolt charger for MTU electronics batteries

  • 25A automatic Mastervolt charger for generator batteries

• Alternators:

  • Main engine alternators charge the main engine starter batteries

  • Generator alternators charge the generator starter batteries

• Gross Tonnage: 187

• Net Tonnage: 56

• Fuel Capacity: 4,000 gal. / 15,200 L

• Fresh Water Capacity: 660 gal. / 2,498 L

• Grey Water: 370 gal. / 1,400 L

• Black Water: 370 gal. /  1,400 L

• Water Makers: 2x Sea Recovery Aquamatic 1400 GPD

  • Each produces 58 gal. / 221 L an hour or 1400 gal. / 5,300 L per day

AIR CONDITIONING & VENTILATION

• Air Conditioning: 22 air handlers (2015),

  • Chillers:  2 Dometic/Cruisair chillers 15-ton units  (2023)

• A/C Sea Water Pumps: 2 x U.S. motors/SCOT pumps, 230 VOLT, 3-phase 208VAC

• Circulation Pumps: SCOT, 3-Phase 208V

• Air Compressor:  Oasis Manufacturing, 12V with 10 gal. receiver + Makita 120V, 10 gal. unit

FRESH WATER SYSTEMS

• Water Treatment: Spot Zero water treatment system (2015)

• Fresh Water Pumps: 1x Gianneschi, 230V, 1x Gianneschi 24V

• Fresh Water Filters:  Inline

• Fresh Water Heaters:

  • Gianneschi 40 gal., 230V,

  • Gianneschi, 26 gal., 230V

• Fresh Water Maker: 2x Sea Recovery Aquamatic 1400 GPD

FUEL SYSTEMS

• Fuel Filters: Twin Racor 500FG bowls in line

• Fuel Transfer Pumps: Gianneschi 24V & manual hand pump

FIRE & BILGE SYSTEMS

• Fire/Bilge Pump: Gianneschi 23 V manifold pump & manual hand pump

• Fire Suppression Ventilation: 4 Gianneschi 230V blowers/extractors

OIL & GREY WATER SYSTEMS

• Oil Transfer Pump:  Gianneschi 230V with manifold

• Grey Water Transfer Pump: Gianneschi 24V

SANITATION

• Toilet System: 7x Tecma toilets

LIGHTING

• Under Water Lights: Ocean LED

LIFESAVING

• 19x Adult

• 8x Child

• 5x Type III

• 4x Life Rings, 1x Life Sling

• 2x Survitec/Zodiac (16-person)

• 8x Red handheld, visual distress signals

• 1x Orange handheld, visual distress signal

• 2x Comet Line thrower (2028)

• 1x ACR SART

• ACR Global Fix ERIPB

• 1x Marco Airhorn (2023)

FIREFIGHTING SYSTEMS

• Fixed Systems:

  • Mini-max CO2 system, located in starboard garage lockers with engine room discharge

  • Release Mechanisms: Manual release on starboard deck and automatic release

• Mobile Systems:

  • 14x B:C size 1 fire extinguishers

  • 2x 2.5 kg. foam extinguishers

  • 2x 10 lb. CO2 extinguishers

• 1x SCBA with fire suit, including 2x 16 lb. air cylinders

ALARMS & MONITORING SYSTEMS

• Fire & Bilge:  Centralized panel located in wheelhouse

• Smoke Detectors: Installed throughout accommodation spaces

• CO Detectors: Installed in all cabins

SECURITY SYSTEMS

• Vessel Management & Monitoring: Cantalupi system

• CCTV & Surveillance: Professional-grade cameras and IC REALTIME DVR system

• Cameras: 8x CCTV cameras networked wheelhouse monitor

• Safes: 7 x Technosafe units, located in crew areas and each guest cabin

• SAT com: VOIP via V-SAT

• Cellular System: AEGEAN Starlink

• VHF System:

  • Flybridge: Garmin GHS 11

  • Wheelhouse: Garmin GHS 11

• Handheld Radios: Sailor & Icom

• Internet: 2x Starlink HP Flat panel & KVH Mini V-Sat Broadband

  • Router Wifi: Ruckuss with Cisco switch

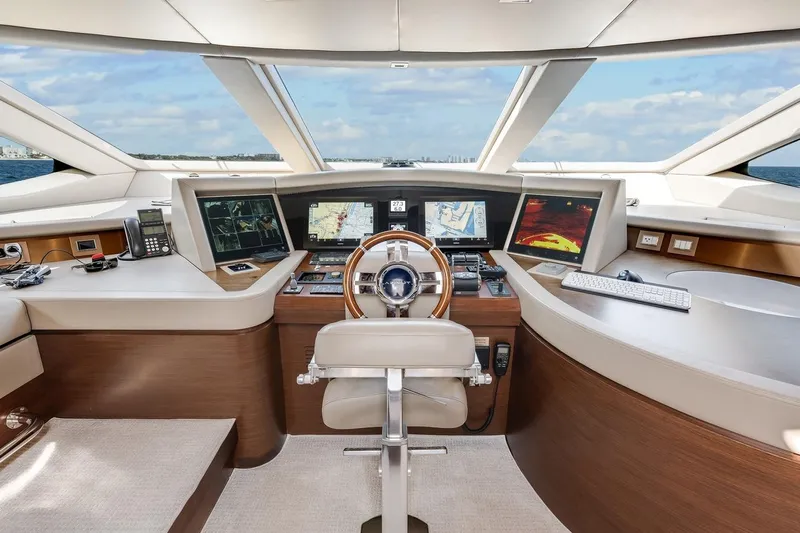

Steering Stations: 2x - Upper & Lower helms, plus emergency back-up in Lazarette

• Radar:

  • Flybridge: Garmin 96 Mile

  • Wheelhouse: Garmin 96 Mile

• Magnetic Compass:

  • Flybridge: 4” Zenith

  • Wheelhouse: 6” White Star

• GYRO Compass: Garmin, ABT Zero Speed Control Head

• Auto Pilot:

  • Flybridge: Simrad QS80 with NFU Joystick

  • Wheelhouse: Simrad AP70 with QS80 NFU Joystick

• Log / GPS / Chart Plotters:

  • Flybridge:

    • Garmin GPSMAP 8616

    • Garmin GPSMAP 943

    • Garmin GMI 20 MFD

  • Wheelhouse:

    • 2x Garmin GPSMAP 8617

    • Garmin GMI 20 MFD

• Echosounder: Garmin

• Cartography System: Navionics & Time Zero Navigtor

• Displays / Monitoring: Wheelhouse: Hatteland, also used for security cameras and FLIR

• AIS: GARMIN AIS800

• Wind Instruments:

  • Flybridge: Garmin GPSMAP 8616, Garmin GPSMAP 943, Garmin GMI 20 MFD

  • Wheelhouse: 2x Garmin GPSMAP 8617, Garmin GMI 20 MFD

• Weather Instruments: Airmar Weather Station

  • PA system with automated fog signals (2023)

• Fish Finder:

  • Flybridge: Garmin GPSMAP 8616, Garmin GPSMAP 943

  • Wheelhouse: 2x Garmin GPSMAP 8617

• Night Vision Camera: FLIR infrared with pan & tilt

ANCHORING & MOORING

• Anchors: 2x Pool-style stainless steel, 300 kg. (2015)

• Anchor Chains: 2x 300’ galvanized steel chain

• Windlasses: 2× MAXWELL vertical electric windlasses with local and remote controls

• Capstans: 2× MAXWELL 3500 electric capstans on aft deck

BOARDING & ACCESS

• Passarelle: Opacmare, stainless steel & teak, Hydraulic

• Gangway: Marquipt, Aluminum

LIGHTING

• Spotlights: 2× ACR with pan/tilt functions

• Auxiliary Lighting: 2× aft-facing spreader lights

AMENITIES

• Tender Garage: Jetski storage

• Jacuzzi: Jacuzzi brand hot tub on flybridge

• Dive Compressor: Brownies’s

FLYBRIDGE

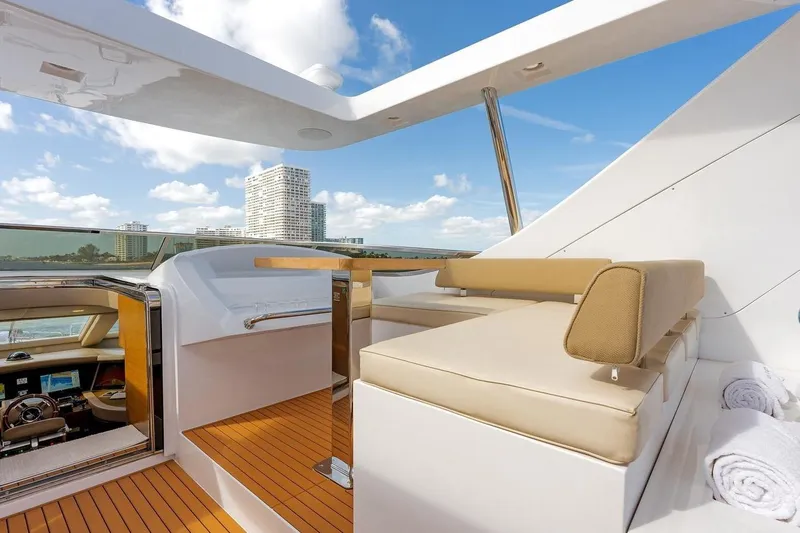

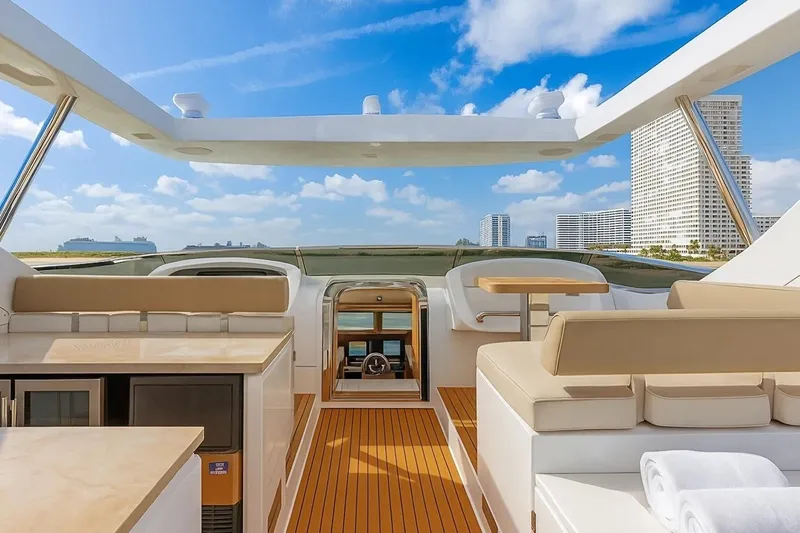

Flybridge Helm Station

• Pilot settee with built-in bench seating for 4, cushions, and stainless steel footrests (portside bow)

• Steering station with full navigation equipment

• Custom console cover

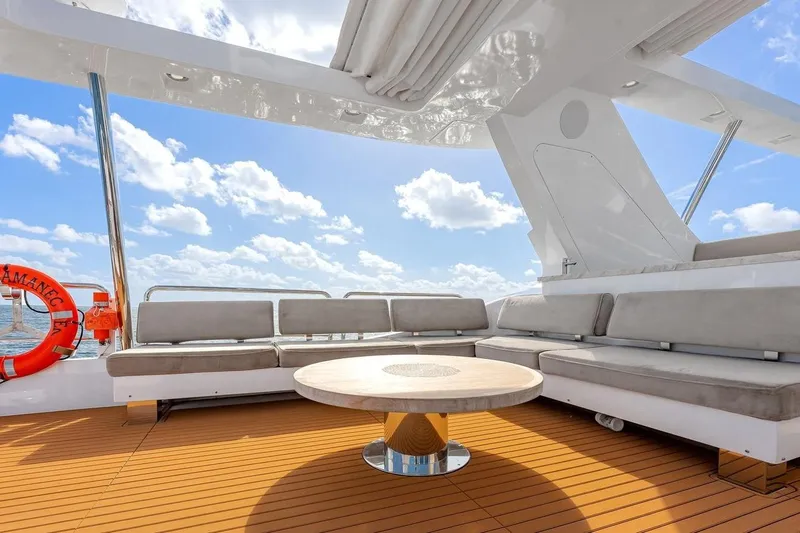

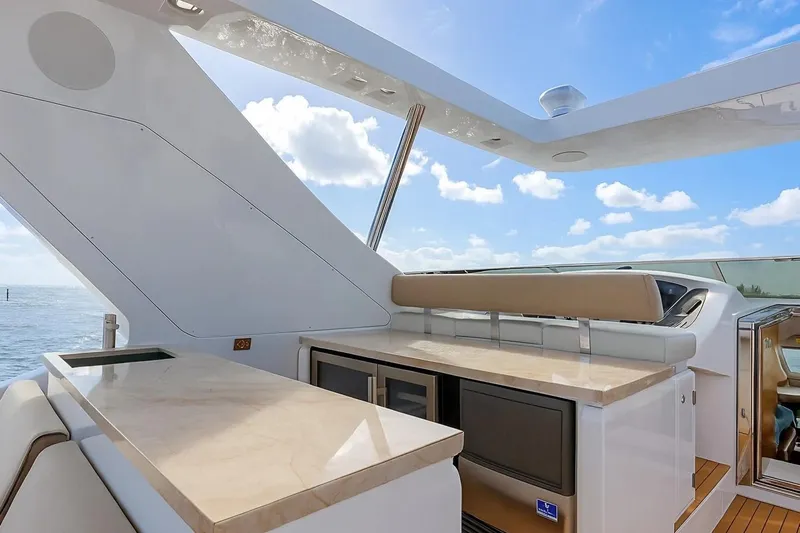

Midship Dining & Bar Area

• Three-seat sofa with stainless steel footrest, cushions, and storage beneath (starboard)

• Built-in wet bar with sink, fridge, and ice maker; granite countertops

• Storage cabinet (starboard)

• “L”-shaped dining sofa with custom cushions and storage beneath (starboard)

• Fixed teak table with stainless steel bases, seating for 10

• Custom covers for teak table and seating

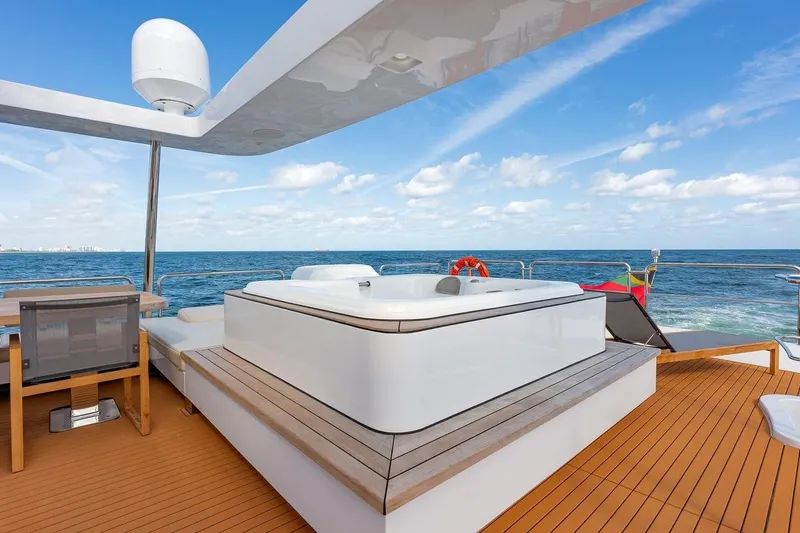

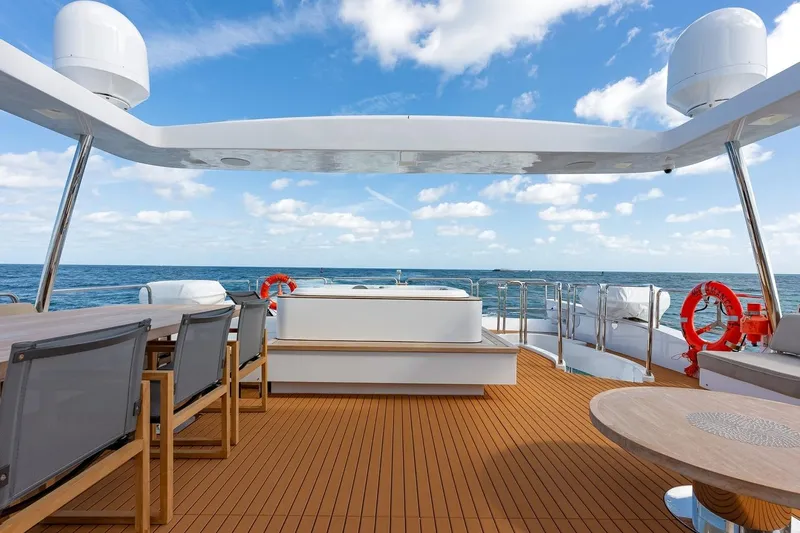

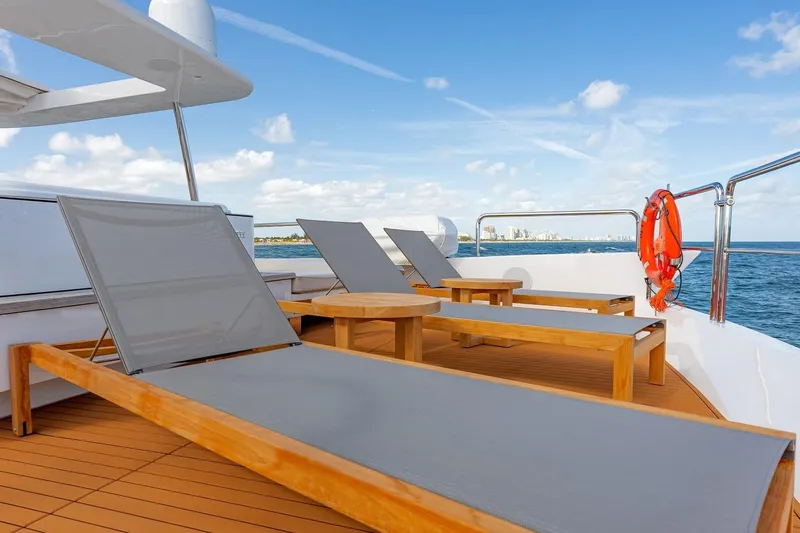

Aft Jacuzzi & Sun Lounging Area

• 3× custom teak chaise lounges

• Jacuzzi tub with teak step-up

• Sunbathing area on starboard side next to Jacuzzi with cushions and storage underneath

• Custom covers for sunbathing cushions

Decking

• Deck-IT, faux teak (2023)

MAIN DECK

Bow

• Teak deck sole throughout forward deck

• Chain storage with integrated drainage

• 4× stainless steel mooring cleats

• Storage for fenders inside superstructure

• Large sunpads and lounging area

• Escape hatch located beneath sunpad cushions

Side Decks

• Side decks of adequate width for easy movement fore and aft

• Two side deck doors on starboard side for cabin access

Main Deck Aft

• Teak sole throughout, replaced board-by-board (2018)

• Molded staircase to flybridge (forward to port) with teak steps, stainless steel handrails, and courtesy lights

• Fixed teak dining table with stainless steel base, seating for 10

• Built-in aft sofa bench seating for alfresco dining

• Custom covers for table and seating

• Built-in wet bar with sink, storage below, and television above (starboard)

• Stainless steel aft boarding gates with steps to swim platform

• Large centerline deck hatch providing engine room access

• Large sliding glass doors for access to main salon

LOWER DECK

SwimPlatform

• Opacmare hydraulic transom with fiberglass and teak, convertible to tender garage door

• Outdoor shower

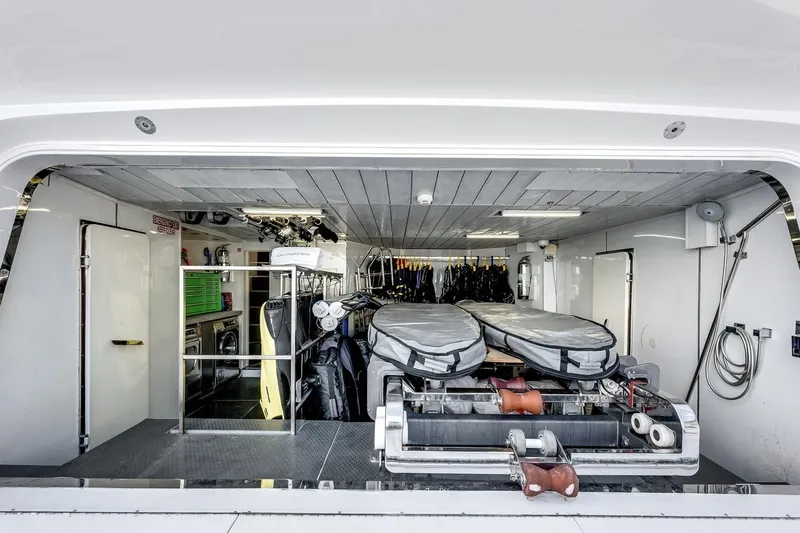

Tender Garage

Access via watertight door on port side deck or from swim platform when powered transom is lowered

• Large hydraulically powered cradle and winch

  • SeaDoo PWC

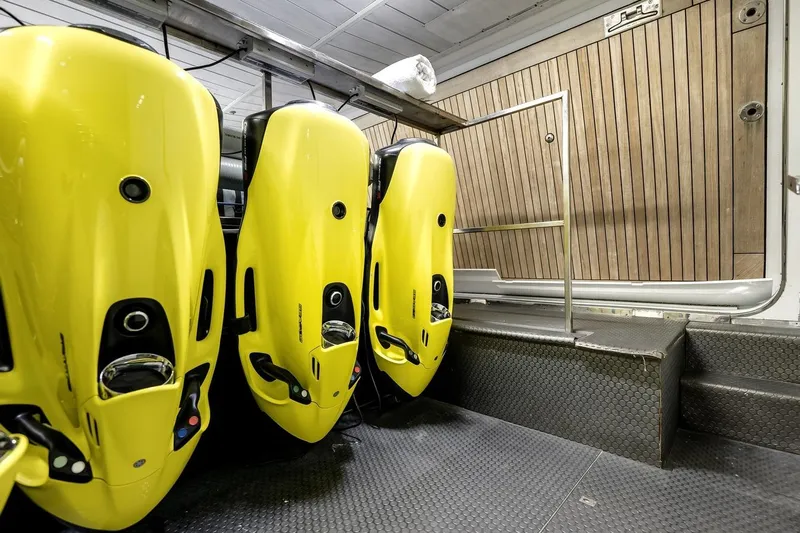

  • 3x Seabobs

• Workbench with tool storage and laundry equipment

• Walk-in lockers (“tech space”) housing shore power transformers, air compressors, fixed fire suppression system, and steering pumps

• Steering gear accessed via deck hatches aft below garage sole

Full yacht rewired with over 1 mile of CAT 6 cabling to support comprehensive AV refit

• AV System: $400,000 Savant & Kaleidescape system with integrated controls

• Kaleidescape movie server with a disc library of 300+ titles

• Surround sound throughout with James Loudspeakers

• iPad remote controls in each zone

• Televisions and custom-fabricated speakers/subwoofers

• Professional WiFi access points in every area for seamless connectivity

• High-speed WiFi with KVH broadband and DirecTV (US & Latin America)

• Satellite TV system: KVH TracVision

• Savant and Sirius satellite radio throughout the vessel

• STARLINK HP with Aegean cellular receiver and Aegean source switch; system easily managed by crew from mobile devices

• CCTV security system with DVR backup to the cloud

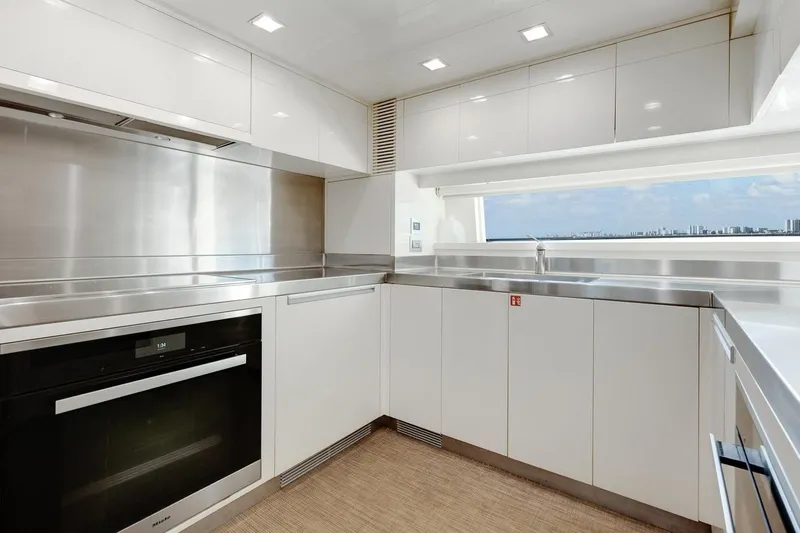

MAIN GALLEY EQUIPMENT

• Cooking Equipment: Fully equipped with Miele appliances, Sub Zero refrigeration

• Oven: Miele

• Stovetop: Miele, 4-burner induction with Miele vent hood

• Microwave: Miele microwave/convection combo

Refrigeration/Freezer:

• Galley Refrigerator: Sub-Zero cabinet

• Flybridge Wet Bar: Avallon wine chiller and Avallon drink chiller

• Tender Garage: General Electric chest freezer

• Primary Suite: Frigomar refrigerator

• Icemaker: Manitowoc (flybridge wet bar)

Dishwashing & Laundry:

• Dishwasher: Miele

• Laundry: Miele Washer & Dryer

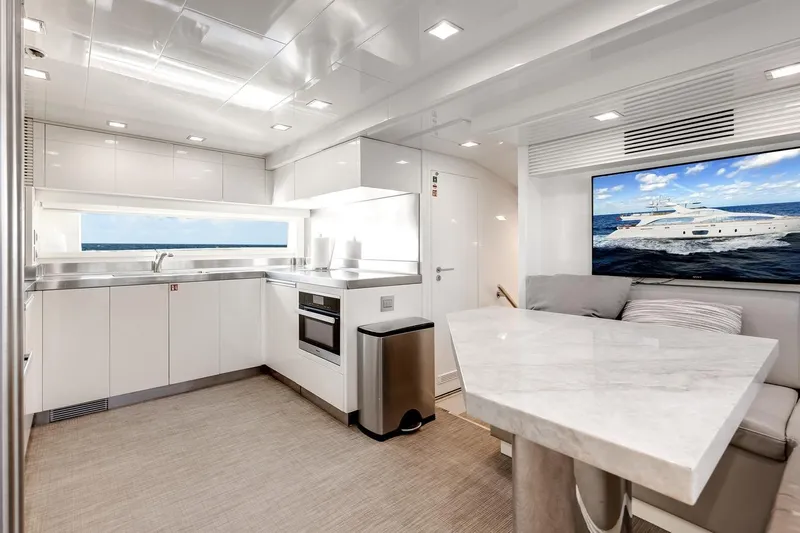

MAIN GALLEY FEATURES

• Open-plan galley with premium appliances

• Accessed from starboard-side main deck companionway

• Ample Corian countertop space with built-in lockers and drawers

• Small dinette to starboard with wraparound seating and storage beneath

• Deck-It faux teak flooring

WATERSPORTS / EQUIPMENT

• SeaDoo GTX260 IS Limited Jet Ski (2022)

• 3 x SeaBobs F5S – serviced and ready for charter

• 3 x Performance stand-up paddleboards

• Professional dive equipment for 8 guests

• Fishing gear, inflatables, and towable toys

GUEST & OWNER
Accommodates 12 guests in 5 Cabins; and up to 4 crew in 2 cabins, as follows;

Flybridge

• Helm Station

• Bar & Dining Area

• Jacuzzi

• Sunloungers

Main Deck

• Main Salon

• Dining Room

• Galley

• Wheelhouse

• Day Head

• Convertible 5th Cabin / Media Room

Lower Deck

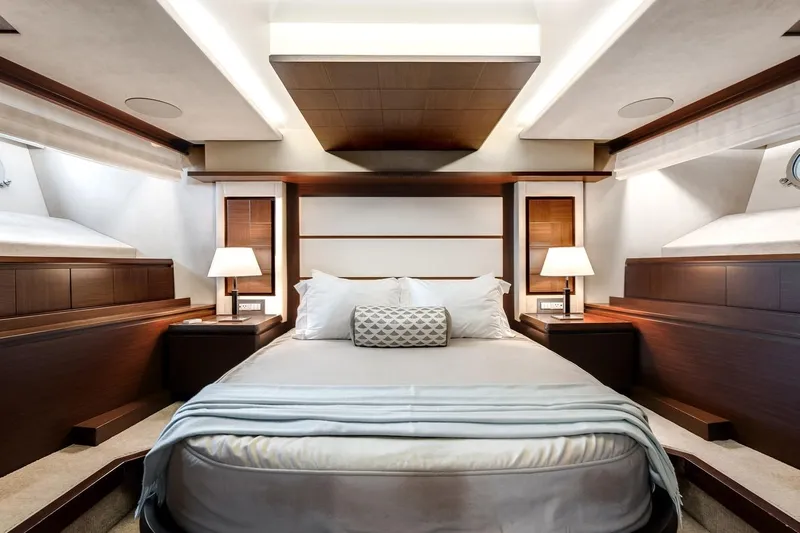

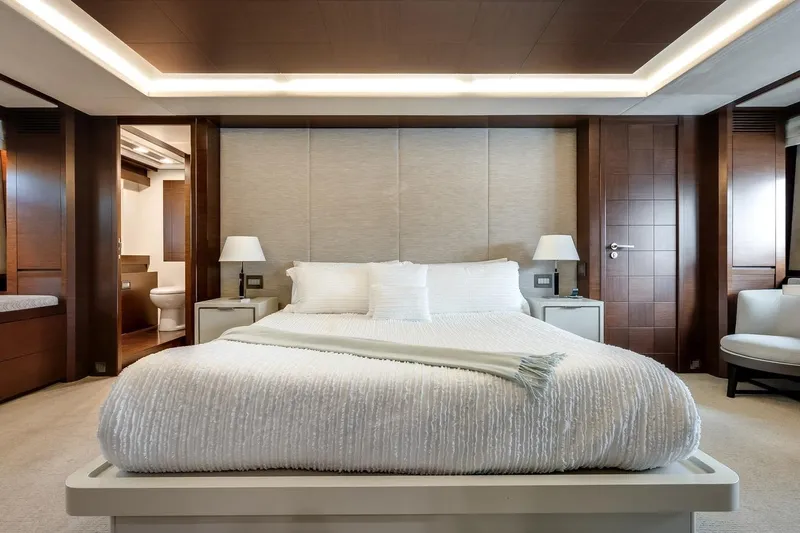

• Primary Suite

• VIP Guest Cabin

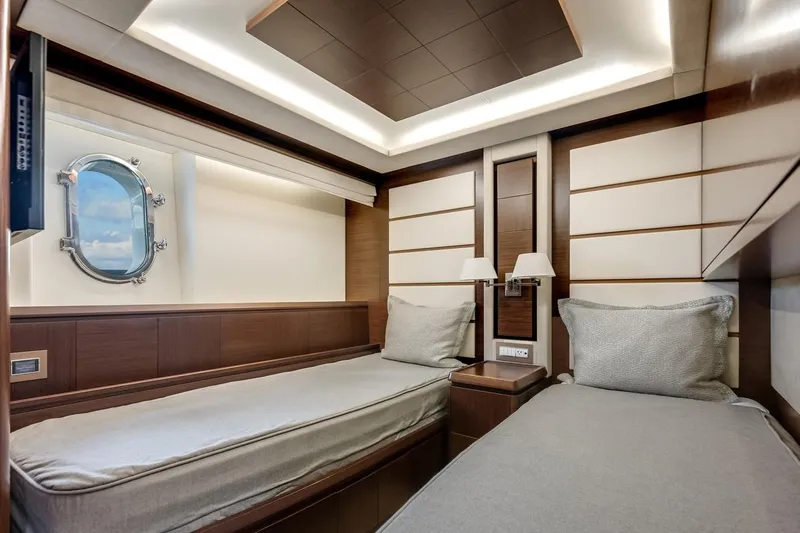

• 2x Twin Cabins

• Crew Quarters

MAIN DECK

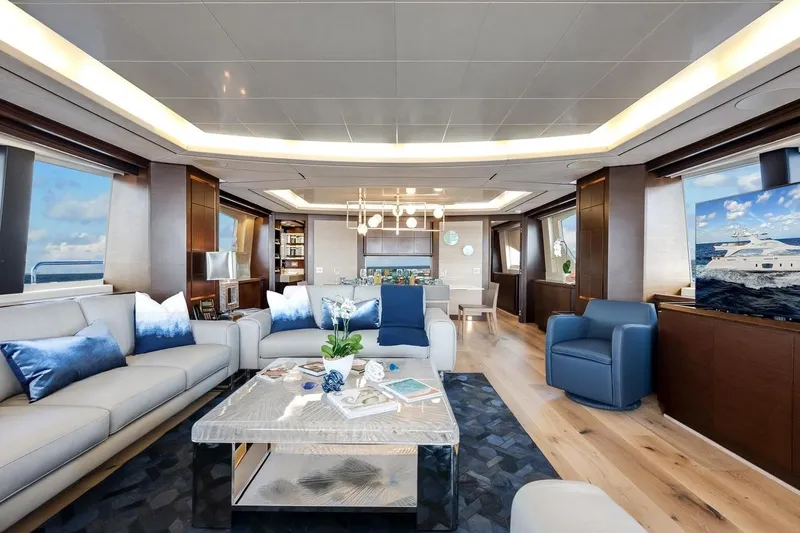

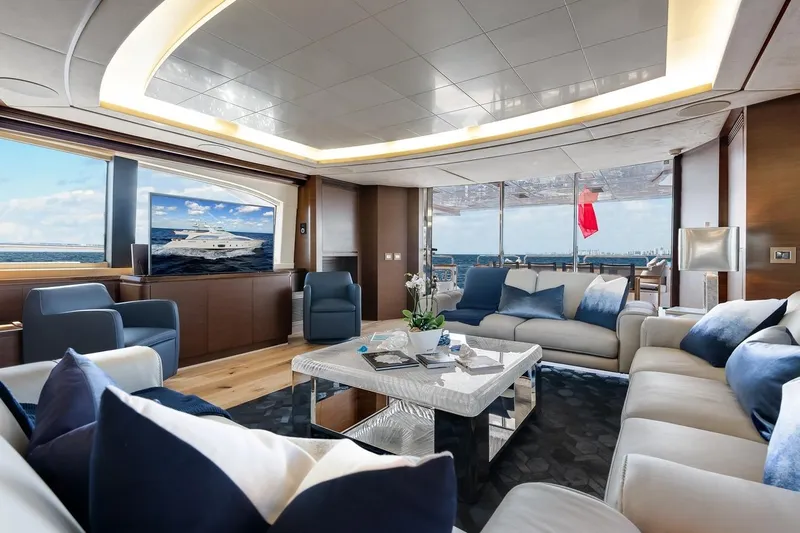

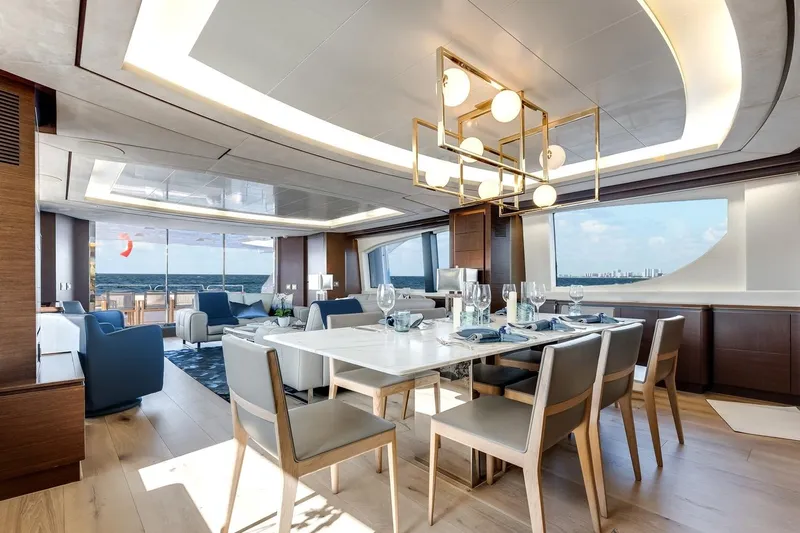

Main Salon/Dining Area

• Open-plan salon with lounge seating comprising:

  • 1× 4-seater sofa

  • 1× 3-seater sofa

  • 2× armchairs

  • Large central coffee table

• Full entertainment unit:

  • 2× James Loudspeaker 10” subwoofers

  • 1× James Loudspeakers sound bar

  • 4× James Loudspeaker 6” flush-mounted ceiling speakers

  • SONY 55” ultra-slim LED TV

  • Savant SmartLink HD receiver control box

  • iPad remote control

• Custom Carrere marble rectangular dining table, seating up to 8 guests

• Bar cabinet on starboard aft side with glassware storage and bottle holders

• Cabinets alongside dining area providing ample storage

  • Custom inserts for crockery, cutlery, and glassware

Companion Way

• Provides access to the Galley & Wheelhouse

• Provides access to 5th cabin / Media Room

5th Cabin / Media Room

• Centerline forward full-size bed

• Centerline aft desk with chair, drawer, and file storage

• Starboard aft storage shelves above desk

• 55-inch planar flat-screen display mounted above desk

• Starboard forward storage cabinet

• Starboard aft cabinet with built-in technosafe

• Port aft access to day head with shower

Wheelhouse

• Pilot’s chair at centerline of helm station

• Four-seat L-shaped leather sofa on aft portside with coffee table and stainless steel footrest

• Dedicated map area for chart planning

• Cabinet for flag rack on portside

• Furniture finished in custom leather

• Flooring with high-quality carpet inserts (replaced in 2023)

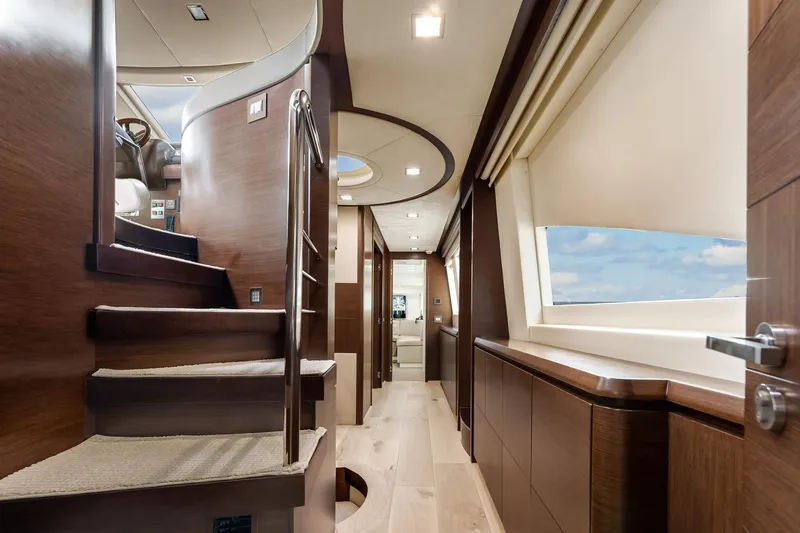

• Staircase providing internal access to flybridge

LOWER DECK

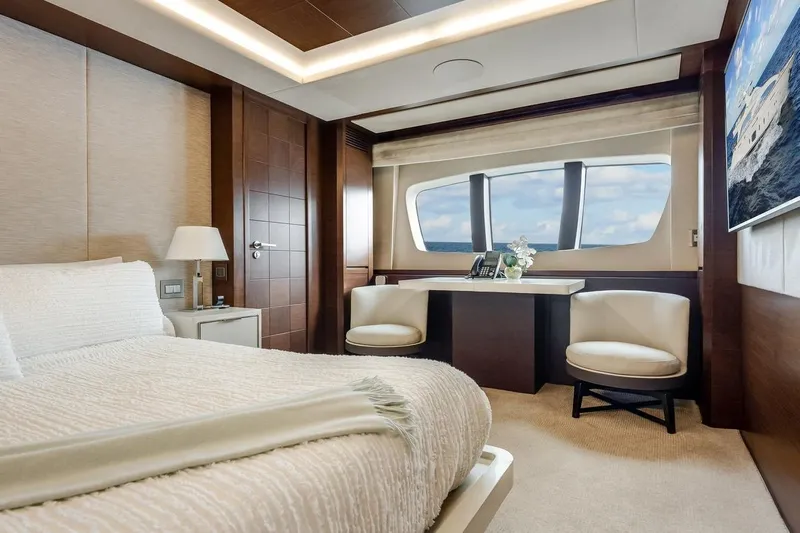

Primary Guest Cabin

• King-sized custom bed with nightstands on either side and storage beneath the bed

• Indirect lighting on ceiling and behind bulkhead panel behind the bed

• Panoramic windows on both sides of the cabin

• Seating area with 2 armchairs and table on port side

• Vanity with drawers on starboard side

• Frigomar refrigerator

• Remote-controlled electric blinds integrated into the media system

• Planar 55” ultra-slim LED TV

• Cabinet with built-in technosafe

• Large walk-in wardrobe on starboard side

• Additional closet on port side, aft of seating area

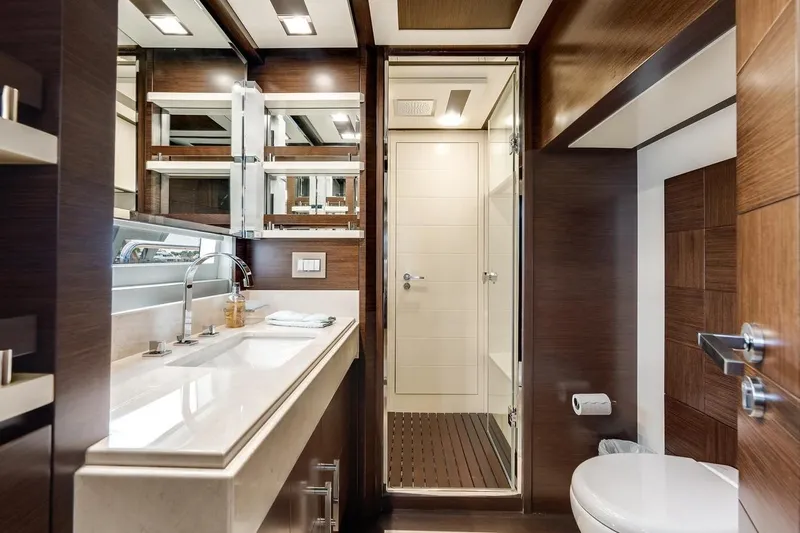

• En suite with walk-in shower and head

VIP Guest Cabin

• Double bed with custom mattress, nightstands on either side, and storage beneath

• Planar 32” ultra-slim LED TV

• Indirect lighting on ceiling and behind bulkhead panel

• 2× round portholes for natural light

• Remote-controlled electric blinds integrated into the media system

• Cabinet with built-in technosafe

• Large wardrobe

• En suite with shower and head

2x Twin Guest Cabins (Port & Starboard)

• Custom twin beds with nightstand between

• Drawers under outboard bed; large storage under inboard bed

• Indirect lighting behind bulkhead panels

• Remote-controlled electric blinds integrated into the media system

• Planar 32” ultra-slim LED TV

• 1× large opening porthole

• Cabinet with built-in technosafe

• Wardrobe

• En suite with shower and head

• Pullman beds

Crew Quarters

Crew cabins are accessed via a centerline stairwell forward of the galley and features cabins to port and starboard

• 2x Crew Cabins with bunk berths

• Ensuite shower and head
