Specifications
-
Cruising Speed:
12 kn
-
Maximum Speed:
15 kn
-
Beam:
33' 9''
-
Hull Material:
Steel
-
Max Draft:
10' 10''
- Fuel Tank: 1 x
103300|liter
-
Fresh Water:
1 x
26000|liter
-
Cabins:
7
-
Heads:
10
Recent Upgrades
2023 Lloyds 20-year survey completed Pulled shafts, bearings, props – serviced by Rubber Design Replaced chilled water loop pumps for AC Replaced all through hull valves for Lloyds Survey Major overhaul of bow thruster – serviced by Sterling Marine Install 2 x Maritime Starlink Antennas for high speed internet New Fire and Bilge pumps installed in Engine Room Replaced 3 x AC compressors in Engine Room Replaced multiple fan coils throughout the interior – by Elite Marine AC Painting of the Hull by Luu Marine – changed from white hull to medium grey color Carpet replacement in some guest areas Wall panel fabric replaced in guest areas and cabins New X-band radar installed in wheelhouse for navigation 2022 Main engines gearboxes A5 full overhaul (by Abba Marine) 8000-hour service to generators (by Certified Diesel) Borescope main engines for Lloyds 20-year survey New AC condensers installed Teak deck maintenance & re-caulking 2021 Aft passerelle upgraded PLC and hydraulics and painted, new LED lights (by Akerboom) Rebuild of refrigeration and freezer system (by Elite Marine) Main aft deck sliding doors and bridge aft deck sliding doors upgraded PLC & components (by Alukwa) Anchor chains removed and re-galvanized, new swivels installed on anchors (by Feadship) 2020 New lightship stability incline completed and updated stability booklets (by Feadship) Upgraded autopilot in the wheelhouse Navipilot 4000 New Miele laundry machines and dryers installed Redesign AV rack for all electronics 2019 Two new 180kw generators with Tier III Xeamos exhaust treatment system with Urea (Feadship) Overhauled fresh air make up system (Feadship) Heinen & Hopman PLC upgrade to air conditioning system with new PLC control system Replace all house and start up batteries & chargers (Ward Marine)
Previous Additional Upgrades
New hot water boiler installed (2018) AV upgrades to main rack, new LED tv’s, Ipad controllers (2018) Upgraded main engines Rexroth throttle control system to wheelhouse and wing stations (2018) Galley countertops and flooring upgraded (2018) Galley appliances upgraded, new Miele induction cook tops installed, new fryer and grill (2018) Wheelhouse electronics upgraded (2018) X-band and S-band replaced with new (2018) Full rebuild/upgrade to electrical main switchboard PMS in the ECR (2017) Replace all through hull valves (2017) Full exterior paint job (2017) VSAT and TVRO antennas upgraded (2016) Sewage treatment system upgraded (2016) Fresh water system upgraded (2016) ADK ships monitoring system upgraded (2015) Naiad At-Rest stabilizers installed (2015) Interior soft goods updated, carpets, wall fabric, ceiling fabric in all guest and crew areas (2014)
Accommodations

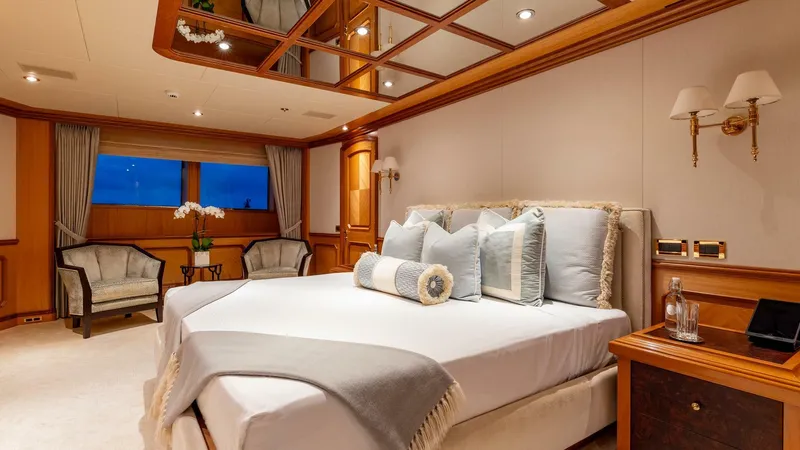

Accommodations for 12/13 guests in 7 cabins: OWNER- Full beam master cabin located on main deck forward Large den/office with full desk Walk-in dressing room with full jacuzzi tub GUESTS- Four lower deck cabins including two twin cabins and two double cabins One staff cabin Double cabins on lower deck can be split into twin beds if desired VIP cabin on bridge deck with size comparable to master cabin CREW- Private Captains Quarters and private head on the bridge deck off of the helm area Six crew cabins on lower deck – each with two bunk beds
Machinery
MAIN ENGINES- 2x Caterpillar 3512B DI-TA1500 HP ENGINE HOURS- Port: 21,114 (February 2024) Starboard: 21,119 (February 2024) GEAR BOXES- ZF 4661 Ratio 4,063:1 SHAFTS- Rubber Design oil bath shafts PROPELLERS- 5-blade out turning SPEEDS- Cruising speed: 12 knots Maximum speed: 15 knots CONSUMPTIONS- 228 litres p/h at 12 knot cruising speed 388 litres p/h at 15 knots maximum speed RANGE 7223nm at 10 knots economical speed 5326nm at 12 knots cruising speed 3647nm at 15 knots maximum speed
Auxiliary Machinery & Electrical System
MAIN GENERATORS- 2x Zenoro – 180kw – 1500rpm GENERATOR HOURS- Port: 10,527 (February 2024) Starboard: 10,495 (February 2024) ELECTRICITY- 400 Volts Phase 3 SHORE POWER- 400V phase 3 50 HZ BATTERIES- Mastervolt Super 8D 270 amp
Tank Capacities (approximate)

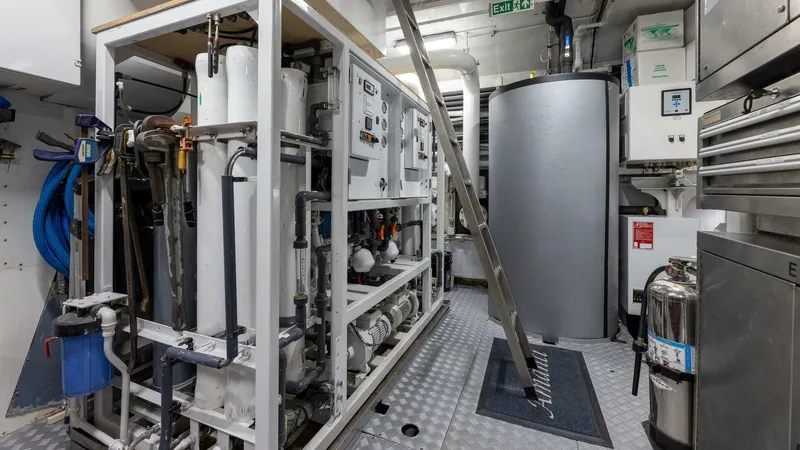

FUEL- 103,300 litres (27,288 gallons) WATER- 26,000 litres (6,868 gallons) WATERMAKERS- 17,034 litres per day (4,500 gallons per day) CLEAN LUB OIL- 2,930 litres (774 gallons) DIRTY LUB OIL- 3,750 litres (990 gallons) GREY WATER- 11,210 litres (2,961 gallons) BLACK WATER- 3,650 litres (990 gallons)
Ancillary Equipment
STEERING SYSTEM- Tenifjord 113569/jr2, 130 BOW THRUSTER- Jastram BU 2982 110kW STABILIZERS- Naiad Model 621 Roll Stabilizer System with AtRest FUEL FILTERS- Separ SWK 2000/40 UMK FUEL OIL SEPERATOR- Westfailia otc 2-02-137 OIL/WATER SEPARATOR- DVZ Services Type: 250 BILGE PUMP- Johnson/Stork Type: FRE565-155 RNUHP FIRE PUMP- Johnson/Stork Type: FRE565-155 RNUHP BOILERS- Sinus Jevi Type: BLH 18kw SEWAGE TREATMENT- DV2DVC250-VC Sewage System – Hamman HL - Cont AIR CONDITIONING- Heinen/Hopman BTU 777,000 Tons 64,75 Interior Fresh Air System BTU 409,730 Number of air handlers 49 VENTILATION- Heinen & Hopman
Safety & Security Equipment
SAFETY- PFDS, SCBAs, Immersion suits, Life rings MEDICAL- MCA approved Category A kits FIRE FIGHTING- Fixed firefighting system (CO2) in engine room Hi Fog throughout interior spaces Fire extinguishers, fire houses, fire pumps Gas detection & smoke detection ALARMS & MONITORING SYSTEMS- Smoke detectors throughout Portable gas detector in engine room SECURITY- 6 CCTV cameras
Communication Equipment
SATCOM- Iridium Satellite Phone and back up Satellite internet service VHF RADIOTELEPHONES- ICOM/Sailor SSB RADIOTELEPHONE- SAILOR HC 4500 NAVTEX RECEIVER- Furuno NX500 TELEPHONE- Panasonic UHF COMMUNICATIONS- 20x ICOM
Navigation Equipment
MAGNETIC COMPASS- C Plath Juipter fluxgate Cassens and Plath GYRO COMPASS- C Plath Navigat X MK 1 AUTOMATIC PILOT- C Plath Navipilot 4000 – Installed 2020 LOG- Furuno Satellite Speed Log GS-100 ECHO SOUNDER- Furuno FCV-295 RADAR- X-BAND: Furuno X Band FAR 2137 X - Installed 2023 S-BAND: Furuno S Band FAR 2137 S - Installed 2018 CHART PLOTTER- Transas & Nobeltec - Installed 2021 GPS- Furuno DGPS GP - 33 NAVTEX- Furuno NX500 WIND INSTRUMENTS- Band G Hydratex AIS- SAAB R4
Deck Equipment
ANCHOR WINDLASS- Steen 29-3-10-4 BOAT CRANE & DAVITS- 2x Van Driel 8.3TFM located on Port & Aft sun deck PASSERELLE- Akerboom (rebuilt 2021) SWIMMING PLATFORM- 1x swimming ladder and 1x Nautical Structures Carbon Fiber Sea-stair
Audio/visual Entertainment Systems
MAIN SALON- SONOS music controlled by Apple Ipad SKYLOUNGE- Samsung 55” Frame tv, Apple TV, Blu-ray player, Directv receiver, SONOS music, Apple Ipad & Kaleidescape player OWNERS CABIN- Samsung 40” tv, Apple TV, Blu-ray player, Directv receiver, SONOS music, Apple Ipad GUEST CABINS- Sony 23” tv’s, Apple TV, Blu-ray player, Directv receiver, SONOS music, Apple Ipads CAPTAIN´S CABIN- Samsung 40” tv, Apple TV, Directv receiver, SONOS music, Apple Ipad & Kaleidescape player CREWMESS- Samsung 32” tv, Apple TV, Directv receiver, SONOS music, Kaleidescape player
Office Equipment And Communications
Starlink Internet VSAT Internet Shore Internet Wifi Internet
Domestic Equipment
MAIN GALLEY Twin Garland ovens Twin Miele cooktops NEW 2022 Miele deep fryer & Miele grill Electrolux – 2x stand up fridges, 1x stand up freezer LAUNDRY Miele washer/dryer – New 2020 PANTRY Heinen & Hopman Walk in freeze and fridge – rebuilt and New 2021 CREW MESS Microwave: Miele New 2024 Refrigeration/Freezer: Electrolux stand up fridge, small Miele drinks fridge Dishwasher: Miele New 2021 SUNDECK Hoshizaki ice maker & refrigerator AFT DECK Hoshizaki ice maker &refrigerator
Other Equipment
JACUZZI DIP POOL- 1X on sun deck SHIP'S SAFES- 2x ELEVATOR- Thyssen Krupp 4 person (goes to all 4 decks) GYM EQUIPMENT- Treadmill New 2021 Stationary bike Rowing machine New 2021
Tenders & Watersports Equipment
TENDERS- 1X Novurania Cat 20 (2019) WATERSPORTS EQUIPMENT- 1x FunAir Sea Pool Snorkel Gear Scuba Gear 2x Paddle boards 4x Kayaks OTHER SPORTS EQUIPMENT- 6x Mountain bikes
Exclusions
A detailed exclusion list will be provided pursuant to an accepted Purchase and Sale Agreement.
