76 Horizon 2009 Boat for Sale

Fiberglass hull and superstructure

General

Length Overall (L.O.A.):

76.00 feet (23.16 meters)

Beam:

18.50 feet ( 5.64 meters)

Draft (loaded):

5.67 feet ( 1.73 meters)

Tonnage:

74 gross

Displacement:

105,822 lbs

Capacities

Fuel Capacity:

1,720 US Gallons (6,511 liters)

Water Capacity:

400 US Gallons (1,514 liters)

Holding Capacity:

148 US Gallons ( 560 liters)

Speed Consumption per hours Range RPM

Maximum:

24.0 knots 82 US Gallons /hr 450 nm 2,300

Cruising:

17.0 knots 59 US Gallons /hr 850 nm 1,700

Economical:

10.0 knots 16 US Gallons /hr 1,200 nm 1,000

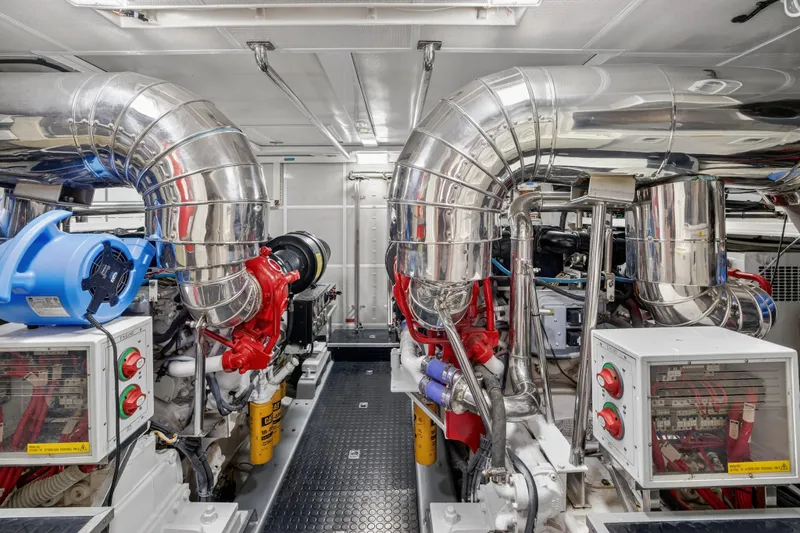

Main Engines

Engine Type:

• (2) Caterpillar C-32 Diesels @ 1,550 Hp each, inboard – 1,000 hour full service Oct.2024, 3,100 hours on engines

Gearboxes for Main Engines:

 • ZF

Drive:

• Direct

Propellers:

• 5-blade

Other:

• Delta T high volume engine ventilation system – New 2024 (USD 40,000)

• Underwater engine exhaust system w/mufflers

• Cat vision system for engines

• Main & intermediate bronze struts w/backing plates

• Stainless steel emergency tiller

• Stainless steel rudder w/zinc plates

Generators & Electricity

Output:

• 220/110V, 60Hz

Generators:

• (2) Northern Lights 30 kW generators

Generator Fuel Consumption:

• 1.5 US Gallons /hr each

Shore Power:

• 100 AMP, Charles Smart Y

Shore Power Cables

• (2) Cablemasters

Inverter System:

• Step down 24V/12V transformer

Batteries:

• (4) main engine

• (3) chargers (house, engine, generator)

Other:

• Charles ISO boost transformers, 100 AMP

• Additional Charles ISO boost transformer, 50 AMP

• 24V DC monitoring & main circuit breaker panel

• 24V DC & 110V AC lighting & electrical pumps

• 24V DC & 110V AC water pumps

Air Conditioning

Type:

• Marine Air System w/new chillers – Nov. 2023

Other Machinery

Trim Tabs/Stabilizers:

• Hynautic heavy duty trim tabs with indicators

Bow & Stern Thruster:

• Hydraulic, 38 Hp - Overhauled Oct. 2024

Steering System:

• Hynautic power steering

Fuel Separator & Filtration:

• Dual Racor fuel filters and water separator

• Racor 500 MA fuel filter for gensets

Sewage System:

• Headhunter tank sensor system

Fresh Water System:

• Headhunter

Bilge Water Filtration:

• High volume AC w/DC backup freshwater pump

• (6) Auto/manual bilge pumps

Other:

• Jabsco engine driven bilge pump

Communication Systems

SATcom:

• KVH

Telephone System:

• Panasonic

VHF:

• (2) Icom – IC-M506

Internet:

• Starlink – Marine version

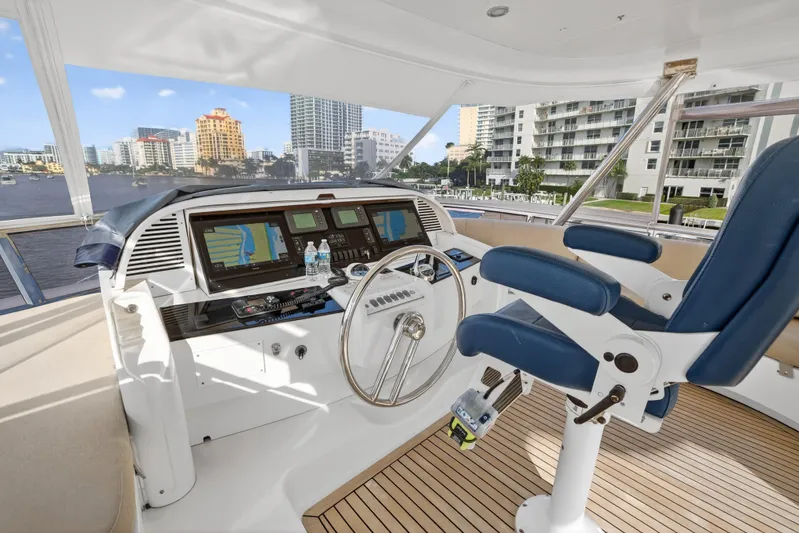

Navigation Systems

Radar:

• (2) Garmin – New 2025, 18”

Gyrocompass:

• Ritchie

Magnetic Compass:

• Garmin

Auto Pilot:

• Raymarine ST 8002 autopilot

Depth Sounder:

• Garmin

GPS:

• Garmin

Weather FAX:

• Furuno

Other:

• Raymarine ST60+ Rudder angle indicator

Entertainment System:

a. Video Equipment

TV’s:

• Flat screen 50" TV on hi/lo mechanism, TracVision satellite TV system – Main salon

• 42" TV, Direct TV - Master

• 26” TV, Direct TV – VIP stateroom

• 19” TV, Direct TV – STB Guest stateroom

• Electric fold down 29" TV, Direct TV receiver – Main deck aft

• 20" flat screen TV – Galley

• (2) 19" TV Direct TV – Crew cabins

b. Audio Equipment

Stereo’s:

• Blue Ray DVD & add'I speakers – Main Salon

• DVD & AM/FM stereo, HP extender & I pod docking station – Master

• AM/FM stereo, HP extender & I pod docking station - VIP stateroom

• AM/FM stereo, HP extender & I pod docking station – STB Guest stateroom

• (2) Stereo speakers - Main deck aft

• (2) Bose speakers & (2) ceiling speakers - Flybridge

• (2) Speakers - Bow

• DVD, AM/FM stereo, l pod docking station & Bose speakers – Crew cabins

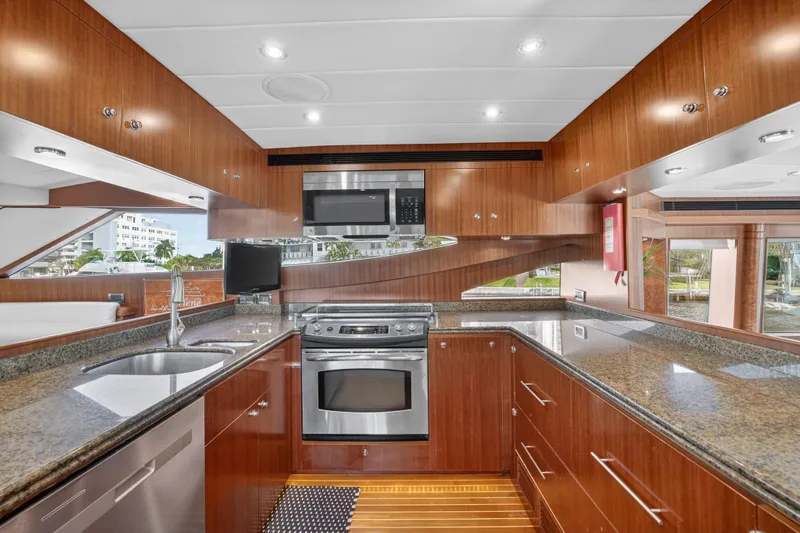

Main Galley Equipment

Cooking Equipment:

• Halogen 5-burner cooktop & oven

Refrigeration/Freezer:

• (2) Sub-Zero 700BR refrigerator drawers

• (2) Sub-Zero 700B refrigerator/freezers

Dishwasher:

• (1) Whirlpool - New 2025

Additional Galley Equipment

Cooking Equipment:

• (1) Microwave - Galley

• Seimnes BBQ grill - Flybridge

Refrigeration/Freezer:

• Sub-Zero wine chiller - Galley

Other:

• Manatowic icemaker - Flybridge

Laundry Equipment

Main Laundry Equipment

• GE washer & dryer

Anchor Windlass System:

• (2) Maxwell 3,500 hydraulic windlass w/capstan

Anchors:

• (2) Delta 130 Ib anchors

Boat Crane and Davits:

• Steelhead 20001b hydraulic retractable davit – rebuilt Oct 2024

Swimming Platform:

• Extended teak swim platform w/custom swim ladder

Other:

• (2) Spreader lights

• Stern flood lights

• (4) Stern docking lights

• 3 sided EZ2CY enclosed - New Oct. 2024

Security Equipment

CCTV System:

• Elbex camera security system – Aft Deck, Engine room

Cameras:

• New system – Salon Ring Camera

Fire Fighting Equipment

Fire Control System:

• Salwico fire alarm system

• Automatic emergency ventilation dampers

Fire Extinguishers:

• Fireboy automatic/manual fire extinguisher

Alarms:

• Salon, Crew, Owners' cabins

Safety Equipment

Life Rafts:

• (2) Revere 6-man

Life Rings:

• (2)

EPIRBS:

• (1)

Flares:

• (1)

Medical Equipment:

• (1)

Spotlight:

• Sanshin spotlight

GENERAL

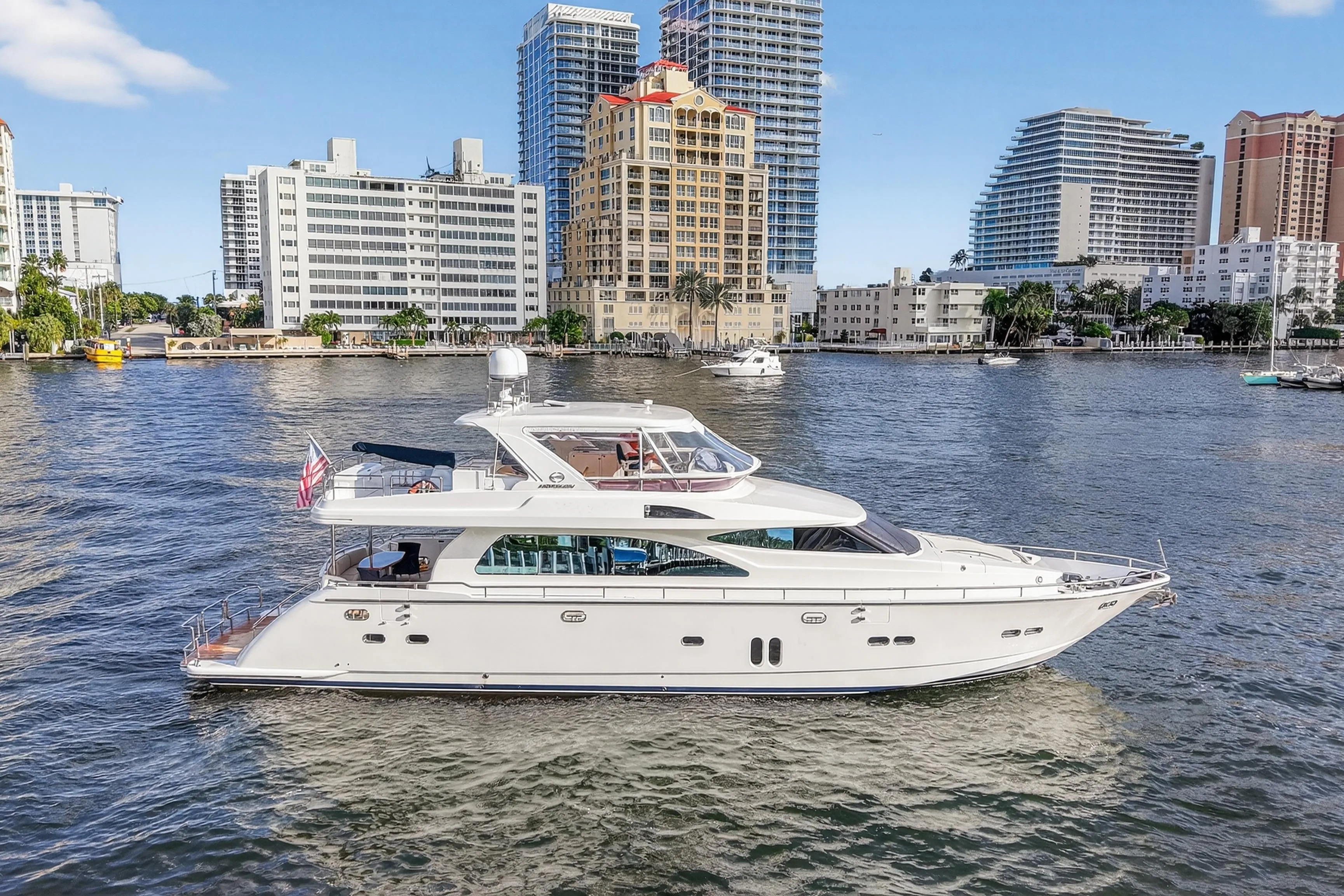

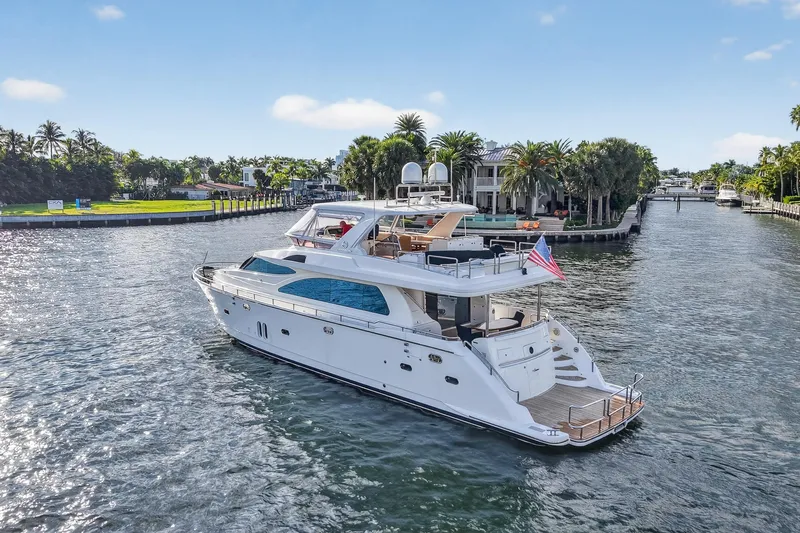

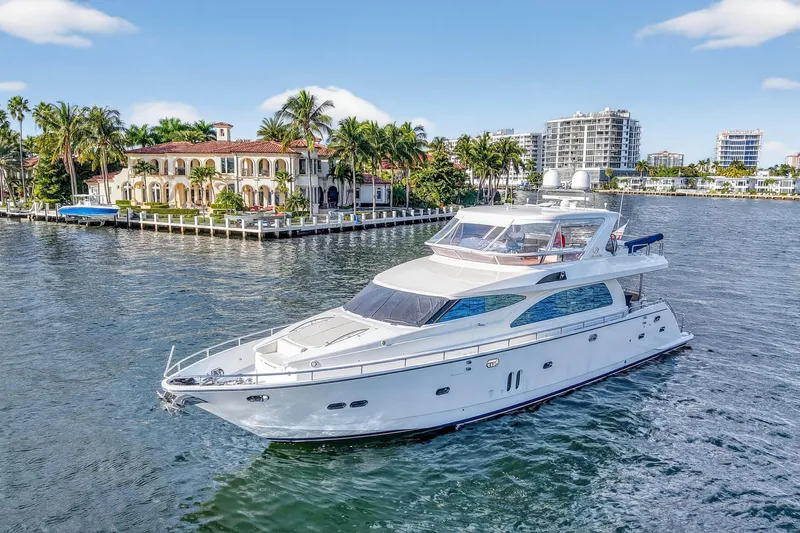

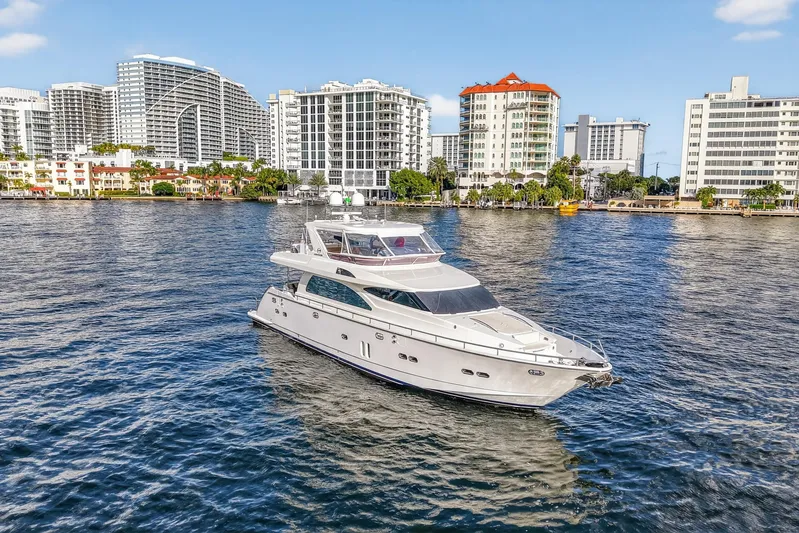

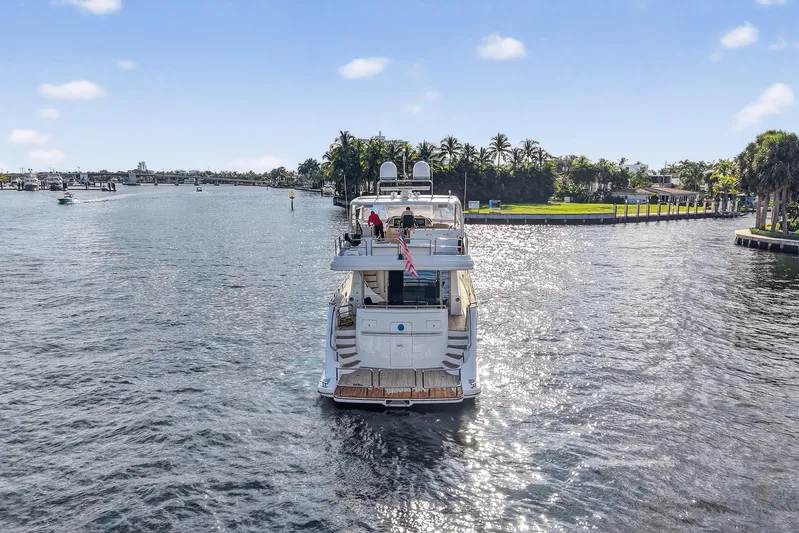

ARLENE is a 76’ (23.16m) Horizon Motoryacht, delivered in 2009, that combines elegant design

with exceptional cruising capability. Her spacious layout features expansive salon and dining

areas, a well-equipped galley, and comfortable accommodations for owners and guests. Built with

Horizon’s renowned craftsmanship, ARLENE is perfectly suited for extended cruising or

entertaining in style.

OWNER

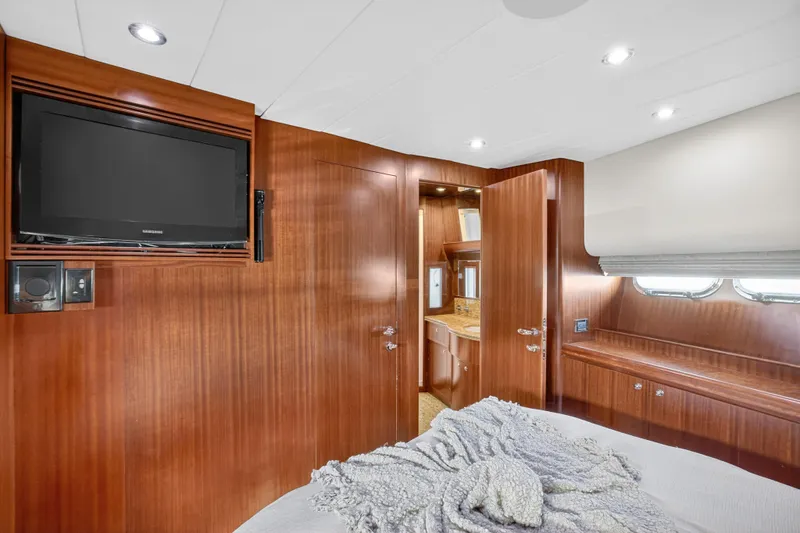

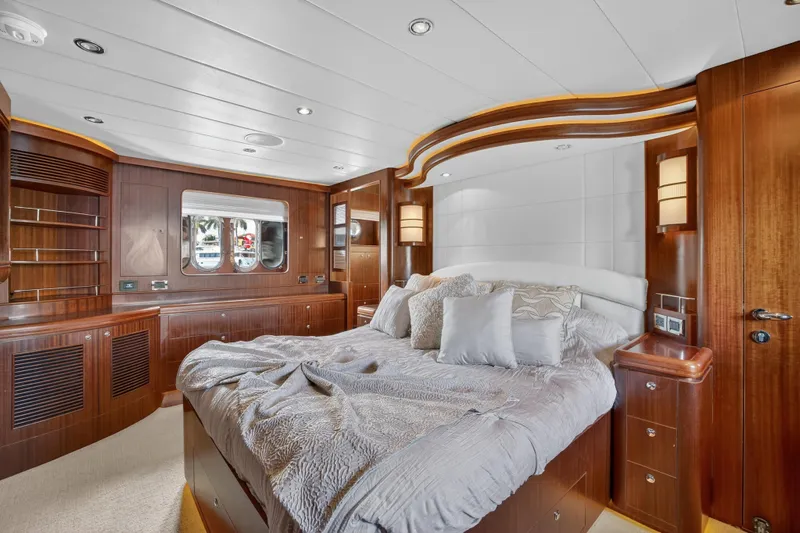

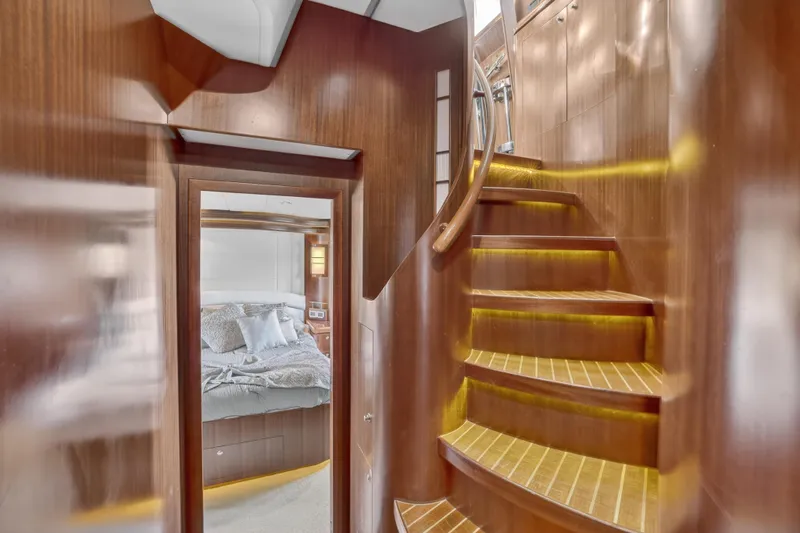

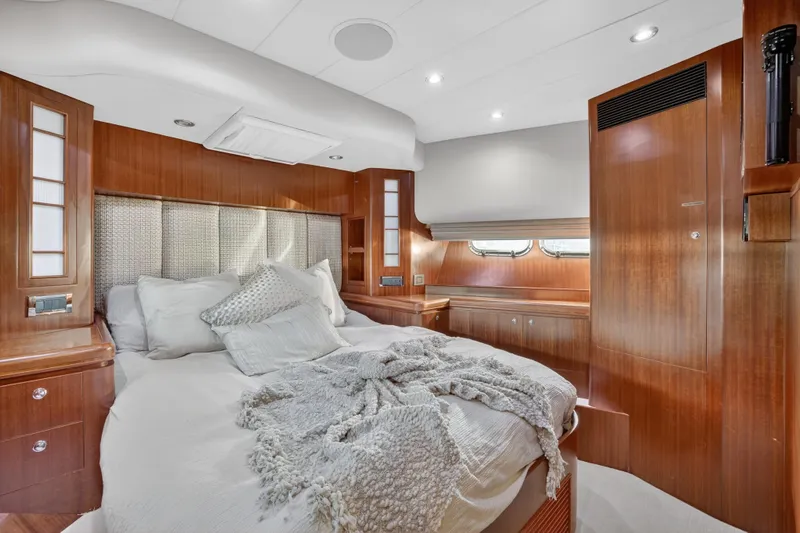

The master stateroom features a centerline queen berth with ample storage, custom finishes, and

elegant lighting throughout. Highlights include built-in nightstands, dressers, a leather settee,

vanity, and a walk-in cedar-lined closet with safe. Entertainment is provided by a 42" TV with

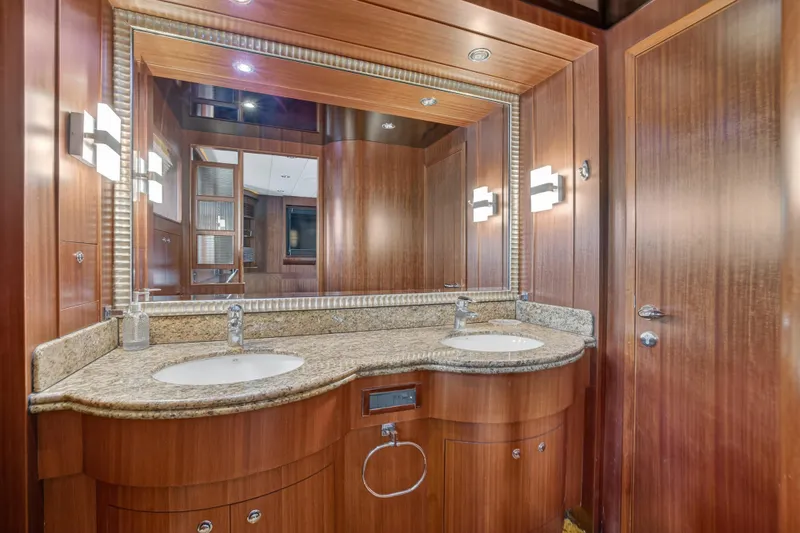

DirectTV, DVD, stereo, and iPod docking station. The luxurious en suite bath offers a granitetopped

dual vanity, spacious glass shower with twin heads, and granite flooring, creating a refined

and comfortable retreat.

GUESTS

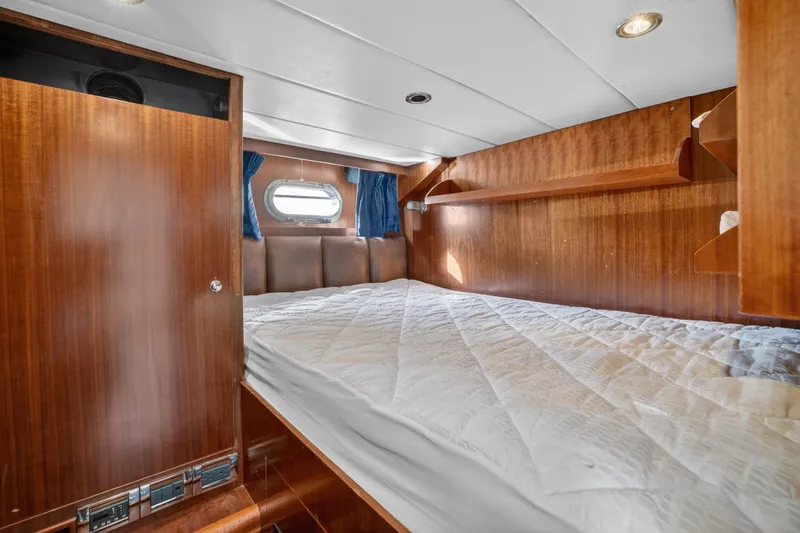

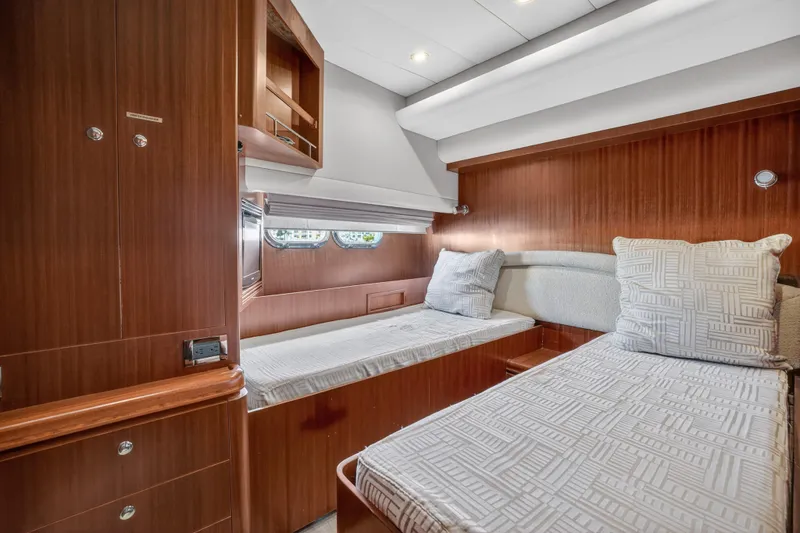

The guest accommodations include a versatile stateroom with a double berth that converts to

twins, built-in storage, entertainment system, and access to the guest bath. The VIP stateroom

offers a queen berth with storage below, custom upholstered finishes, ample cabinetry, a cedarlined

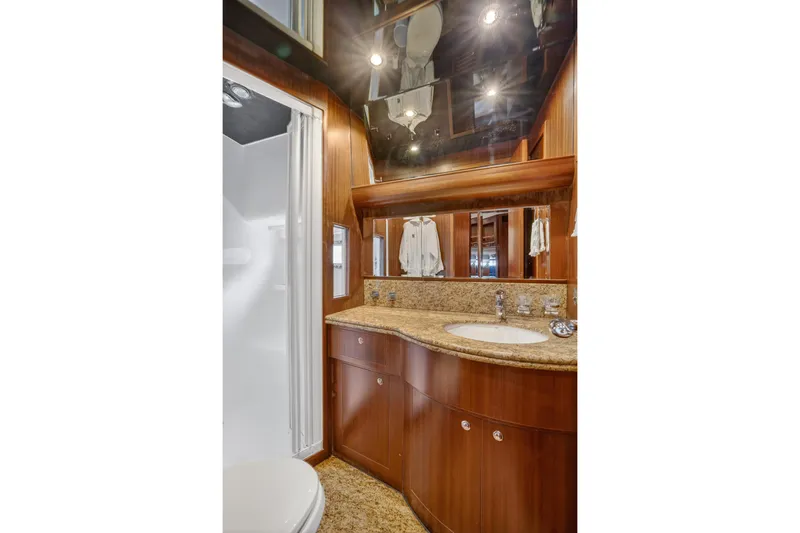

hanging locker, and a full entertainment system. The adjoining guest head is appointed with

a granite vanity, mirrored cabinet, stall shower with glass doors, and granite flooring.

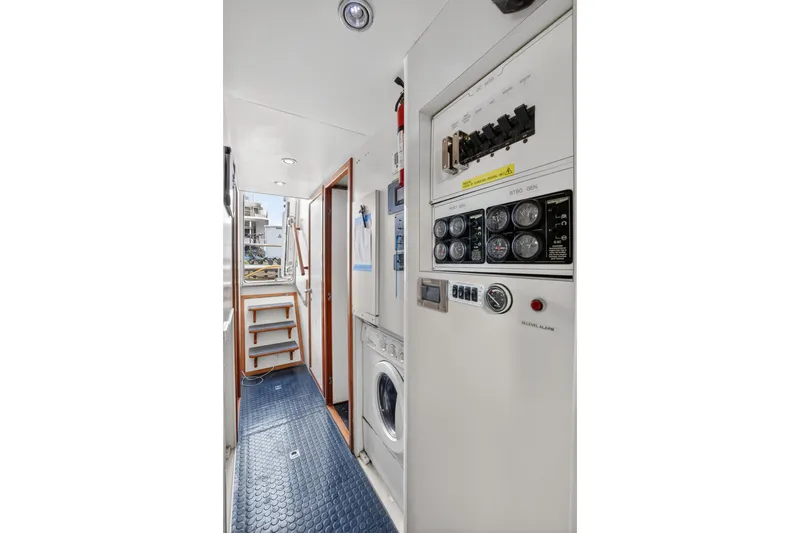

CREW

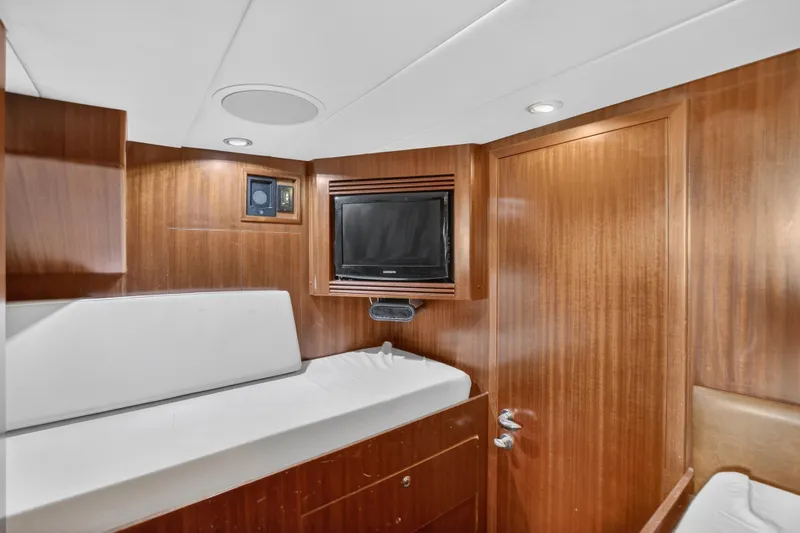

The crew area features a well-appointed captain’s cabin with an oversized double berth, ample

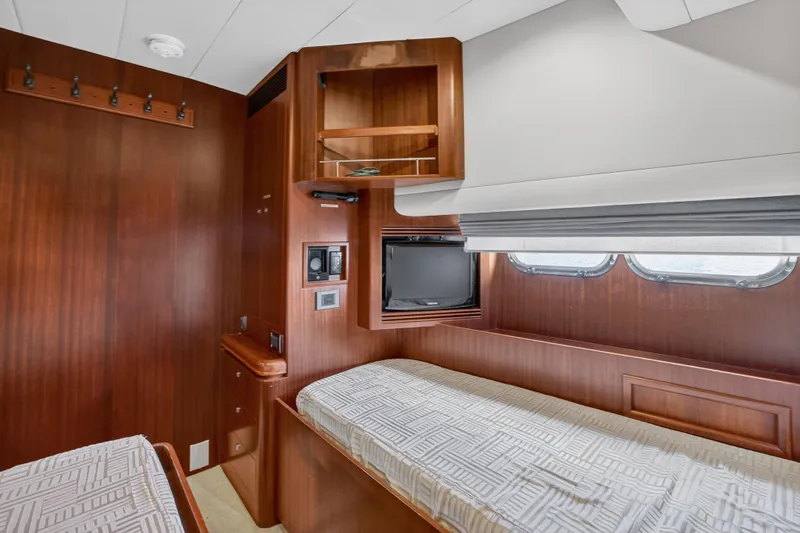

storage, entertainment system, and private en suite with stall shower. A separate crew cabin

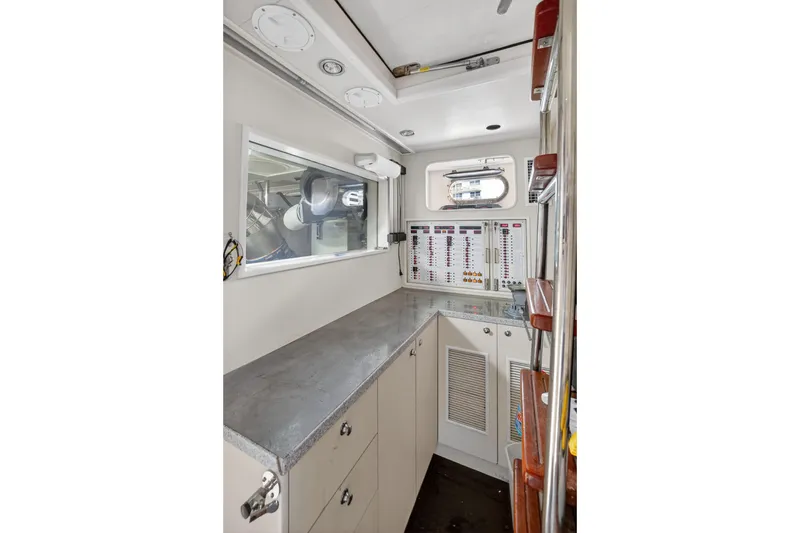

offers twin berths, storage, and TV with docking station. The utility area is equipped with

additional storage as well as a GE washer and dryer, ensuring comfort and functionality for

extended cruising.
