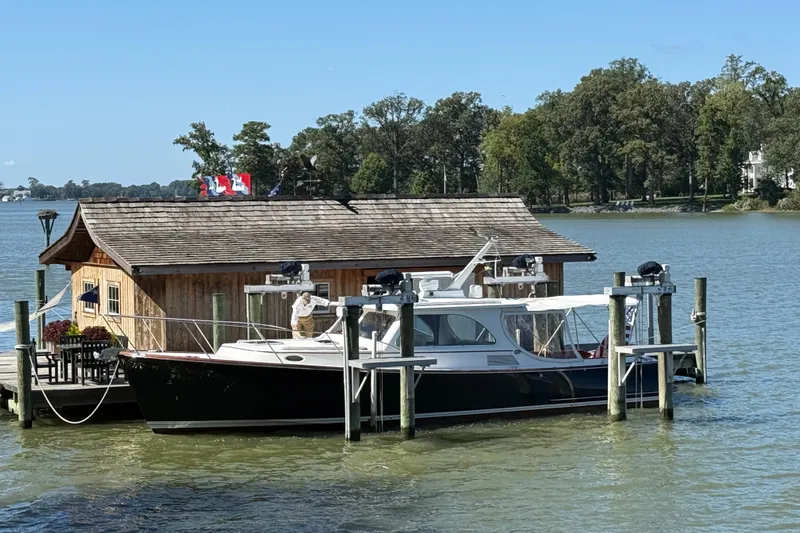

40 Hinckley 2003 Boat for Sale

The Hinckley Talaria 40 combines the Picnic Boat's agility and shallow draft with the twin-engine security and spacious accommodations of the Talaria 44. Twin 440 hp jet drives and a weight of just 26,000 lbs. make the T40 a performance yacht. Top speed is 33 knots, cruising speed 28. Range is 300 nautical miles, bringing once-distant anchorages well within reach. A draft of just 26 inches means areas untouched by ordinary 40-footers are now an owner's private sanctuary. The Bruce King-designed lines of the Talaria 40 Jet are unmistakably Hinckley. Pedigree is everywhere: in the flared bow and arched tumblehome, in the overhanging roof of the pilothouse and in the graceful sweep of the sheer, covered in a deep, glossy coating of Awlgrip. The helm affords a 360-degree view of the teak finish, while the cabin features a roomy galley and full head with separate shower to starboard, and is fitted with a cedar-lined hanging locker. Three large hatches and multiple opening ports bathe the cabin in light. And like all Hinckley powerboats, the T40 is quiet, its engines insulated by double-gasket hatches. At cruising speed, conversation - and contentment - flows freely.

• Construction:

  Hinckley DualGuard composite construction of the hull is Kevlar E-glass hybrid outer layer for impact resistance, a balsa core and an inner layer of carbon fiber for strength and stiffness. The laminates are laid up using  SCRIMP infusion technology with Vinylester resin. Deck and cockpit laminates feature E-glass fabrics with Corecell core, SCRIMP infusion with polyester resin. The deck and cockpit sole have a molded-in nonskid pattern.



  Hull:

  • Green Awlgrip topsides
  • Double white boot stripe with red pin-stripe
  • Black bottom paint
  • Rubrail at sheer with stainless steel chafe strip
  • Quarter guards painted to match deck with stainless steel chafe strip
  • Double tracking fins port and starboard
  • Heavy duty fiberglass swim platform with teak decking inserts and telescoping swim ladder

• Cream gelcoat cabin house and deck with molded nonskid

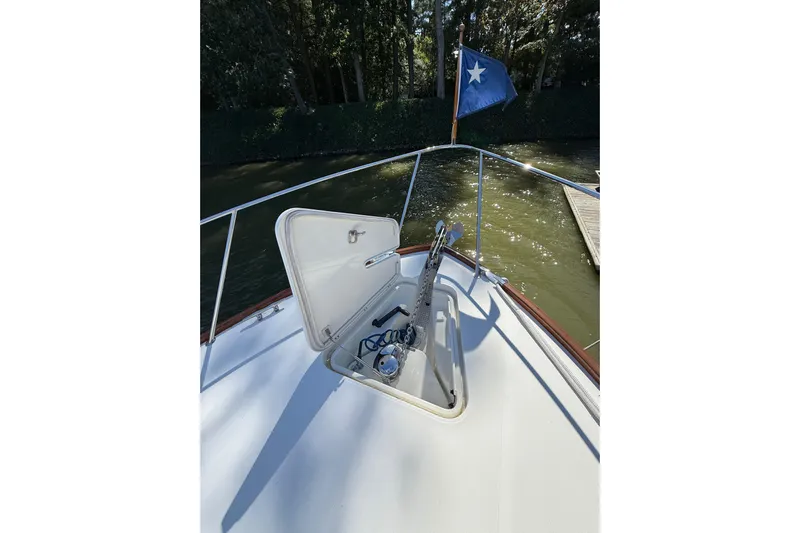

• Foredeck has a flush anchor locker with a pneumatic strut that holds open the anchor locker hatch and Hinckley folding stowaway stainless steel anchor roller and deck wash spigot.
• Starboard mid-deck molded-in locker for additional storage.
• Rounded, tapered, varnished teak toe rail with Hinckley profile and custom stainless steel chafe strip toe rail cap at cleats.
• Varnished teak eyebrow molding around cabin top
• Varnished teak handrails on cabin and pilothouse tops and aft end of pilothouse
• Four (4) opening elliptical ports with screens on house sides

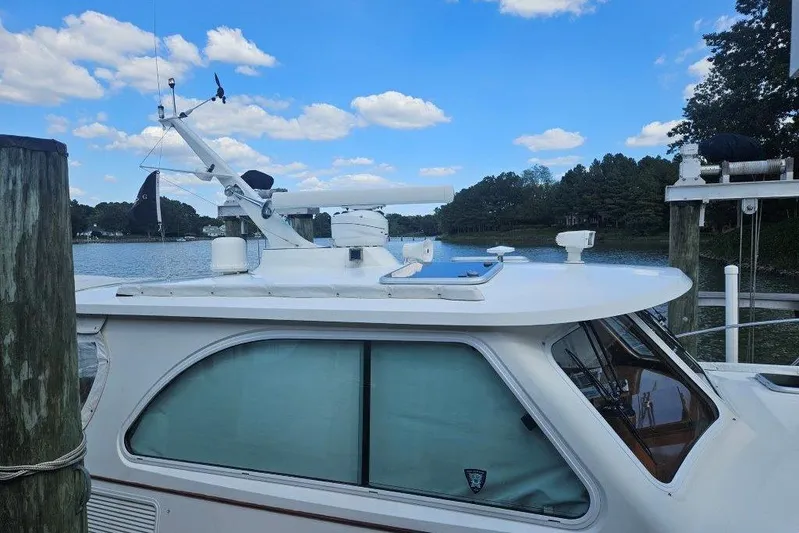

• Hinckley pilothouse mast painted to match deck
• (5) Low-profile Lewmar opening aluminum hatches
• Oceanair integrated retractable screens and shades on overhead hatches
• Custom Hinckley 316L stainless steel bow chocks

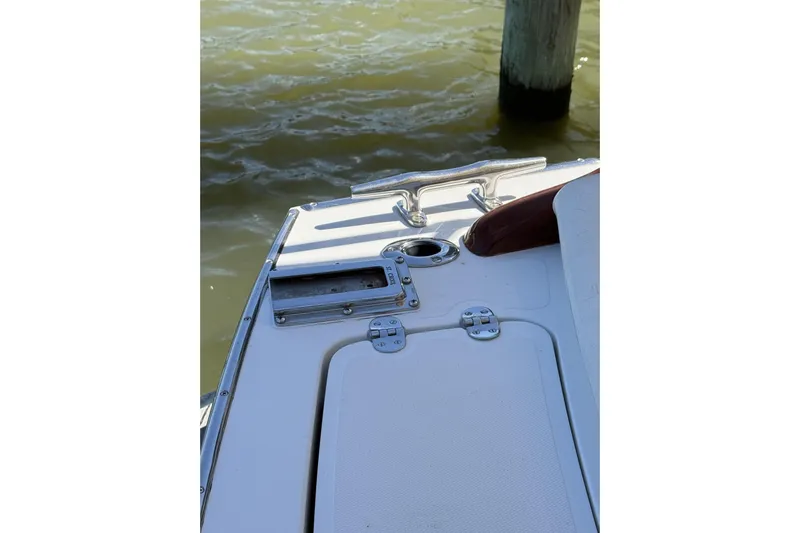

• Bow, stern and springline 316L stainless steel mooring cleats
• Wichard padeyes with chafe strips to hang fenders
• Stainless steel bow rail provides protection going forward from aft end of pilothouse

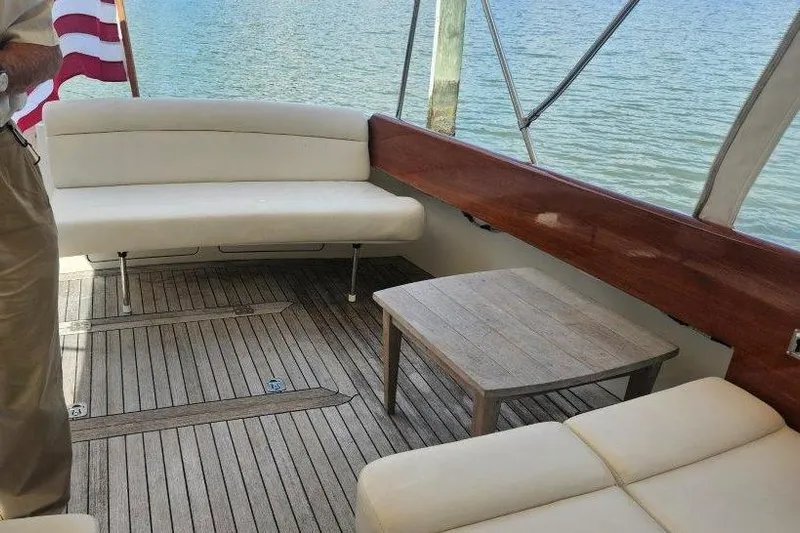

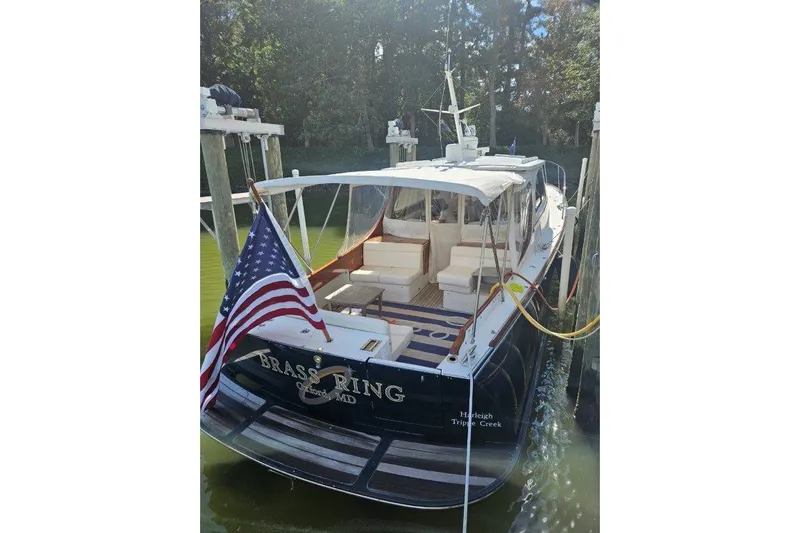

Seating is built into the port and starboard engine boxes that are topped with varnished teak and separate the cockpit from the pilothouse. A removable forward-facing bench seat on the aft end of the cockpit provides a comfortable conversational space.

• Inboard facing teak louvered doors access storage areas in each seat back, port & starboard with custom storage arrangement.
• The engine boxes are hinged and have electric lift systems to give easy access to the engines.
• Varnished teak cockpit coaming
• Teak decking on cockpit sole
• Full Stamoid cockpit cover attaches to pilothouse with snaps around cockpit coaming. Built in custom outboard Eisenglass extensions both port and starboard.
• Marine stereo speakers mounted under side decks
• Courtesy step light in pilothouse entry and courtesy lighting under the side decks.
• Shore power inlet and a cable TV outlet
• Cockpit shower/water outlet with hot and cold mixing valve with stainless steel covers
• Cockpit floodlight is mounted on the pilothouse top mast and is painted to match deck.
• Loud hailer mounted on pilothouse top mast.
• Boat hook is mounted under coaming on the starboard side.

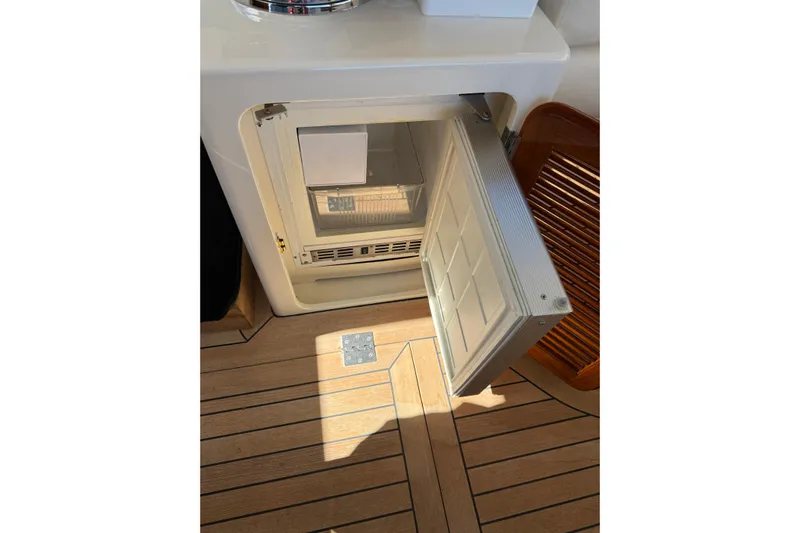

• Custom Refrigeration built-in outboard engine box
• Two transom access lockers provide serviceability to steering controls and relay units
• Hinged transom door in molded frame opens outboard, offering access to the cockpit or to the heavy-duty fiberglass swim platform.

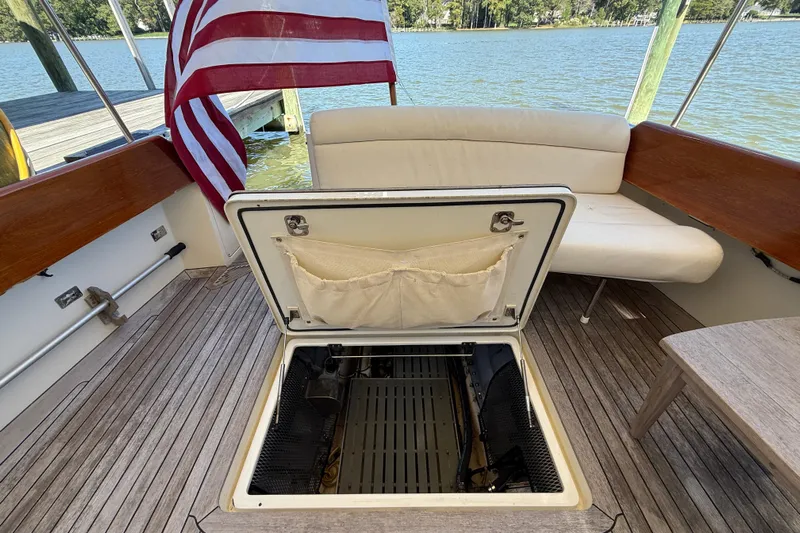

• Center deck hatch for storage and systems service
• Removable three bow bimini
• Fresh water spigot
• St. Croix dinghy davits mounted at transom
• Shore water inlet
• 110v AC plus (2) DC outlets under coaming
• Additional electrical inlet for air conditioning
• 50 amp shore power cord
• Custom teak cockpit table
• City water inlet for air conditioning uses fresh water

The pilothouse provides a protected, comfortable seating area that is open to the cockpit but can be closed off with Stamoid drop curtains with Eisenglass windows to create a fully enclosed space with its own heating and air conditioning. The glass pilothouse windows (2 sliding side windows and 3 fixed forward windows) provide excellent visibility, light and ventilation. There are two Stidd helm seats forward on each side with two curved settees behind them to port and starboard, each with a varnished teak shelf rim outboard. Settees face inboard and forward with removable teak tables. Pilothouse amenities include:

• Teak decking on cabin sole.
• Varnished teak pilothouse sides and forward dash.
• Varnished custom teak table port with padded cover with electric pedestal, converts to cocktail or berth height with filler.
• Fiberglass helm seat box with varnished teak louvered door and icemaker.
• Additional pilothouse stowage is accessed through the centerline hatch.
• Two (2) stereo speakers mounted in aft pilothouse.
• Two (2) Hella fans mounted in pilothouse forward overhead outboard to port and starboard.
• Storage lockers under settee seats.
• Window sun covers for all side windows in mesh and forward window in solid canvas.
• Insulated white overhead has two (2) forward acrylic opening hatches with Oceanair Skyscreens.
• Additional overhead illumination is by low voltage halogen lights with a dimmer switch mounted on the inboard side of the dash. A separate circuit with dimmer switch for the light over helm is mounted on the dash.
• Teak locking companionway door.
• Heavy duty, self-parking, intermittent windshield wipers with freshwater washers
• Cup holders built into the teak shelf rim aft both port and starboard.
• Red reading lights outboard and at port helm.

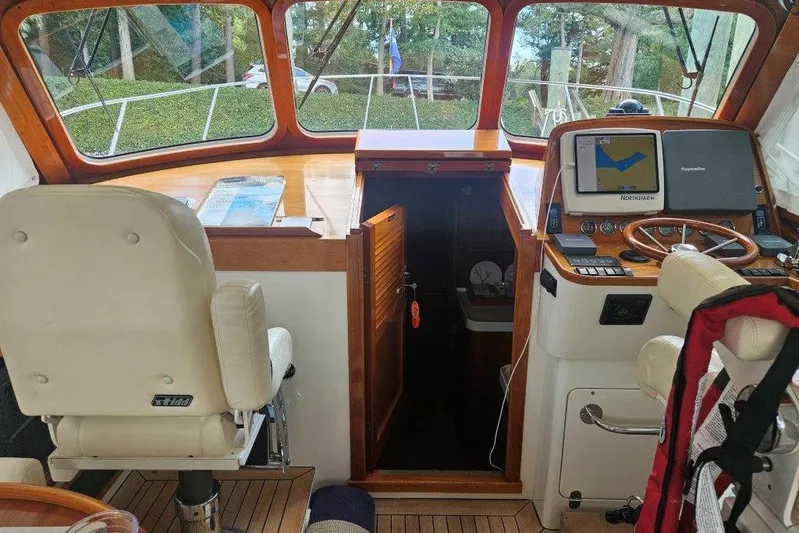

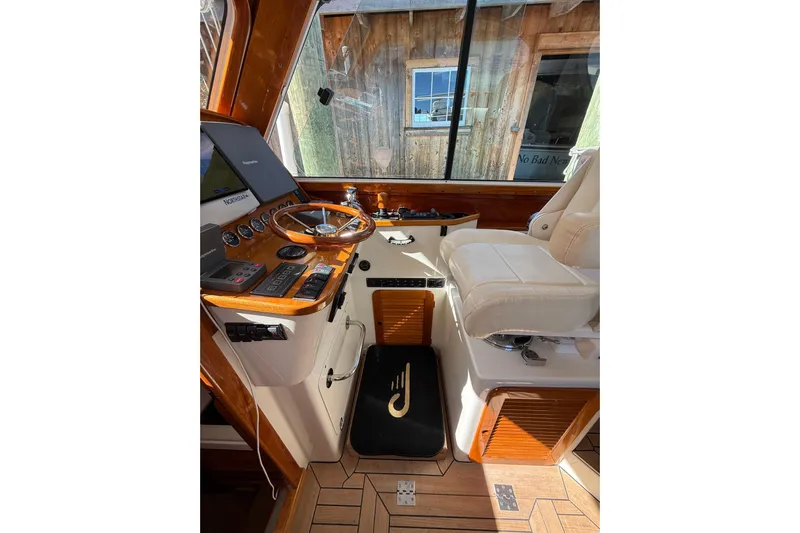

Helm Seats:

Forward are Stidd helm and passenger seats finished in Ultraleather with seat pedestal bases that are powder coated to match the deck color. The port seat has both height, and fore and aft electric adjustment, and a folding footrest. The starboard helm seat has fore and aft electrical adjustment. Both pedestals pivot to face aft settees. Stainless steel footrest at the helm is on the forward bulkhead.

Forward port passenger area has a varnished teak shelf with fiddle rail outboard the seat that has:

• AC/DC electrical panel below the shelf
• AC/Heat vent
• Fiddle on forward port dash

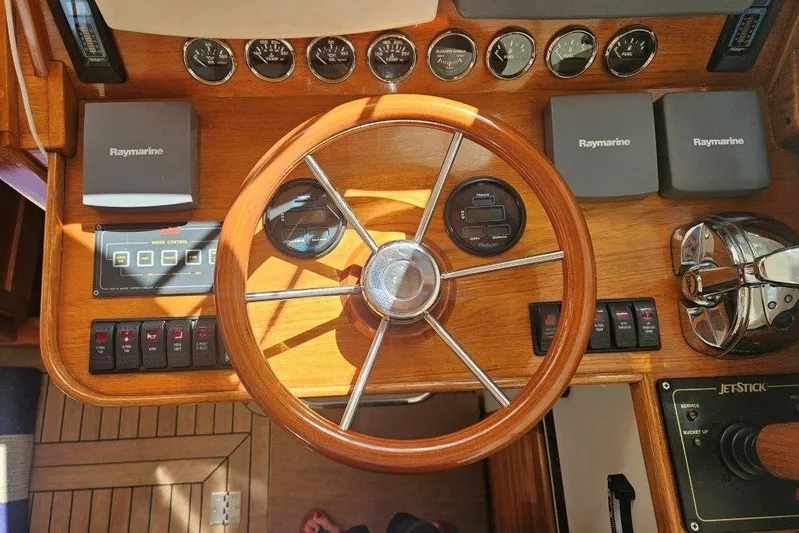

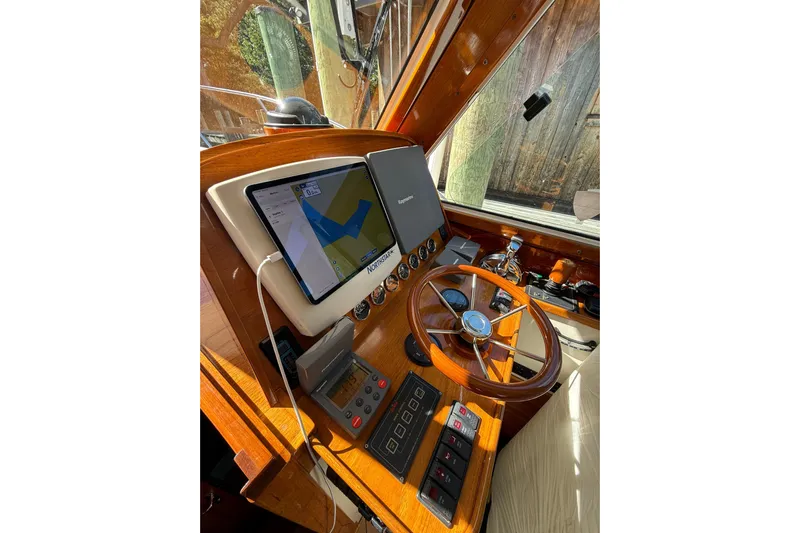

• Helm Station has a varnished teak instrument pod with continuing shelf outboard and aft.
  • Stainless steel 14” steering wheel with varnished wood rim.
  • Hinckley Jet Stick generation 1.5
  • Dual engine controls and gauges
  • ACR Spotlight control remote pad
  • Integral cup holder
  • Exalto windshield wiper control pad on dash
  • Trim tab control with position indicators
  • Separate fuel gauges for each fuel tank with transfer system
  • 110-volt outlet
  • Marineair aircon with digital control pad mounted outboard of helm seat
  • Water tank gauge
  • Ignition key switches and emergency stop switches to starboard of helm seat
  • Manuel override Jet drive bucket controls
  • Forward of the helm seat and below the shelf outboard is a varnished teak louvered door to a storage locker that also has access to some electrical and mechanical systems.

Electronics and Navigation Equipment:

• Raymarine ST6001+ autopilot
• Raymarine ST60+ Tridata data display with wind instrument
• Standard Horizon Spectrum+ VHF radio
• Danforth Constellation high speed magnetic compass
• Floscan digital fuel flow system
• Mathers Microcommander throttle and transmission shifter

Entertainment:

• Fusion marine stereo connected to four marine speakers in pilothouse and cockpit:
• LCD flatscreen behind louvered door on forward bulkhead in main cabin

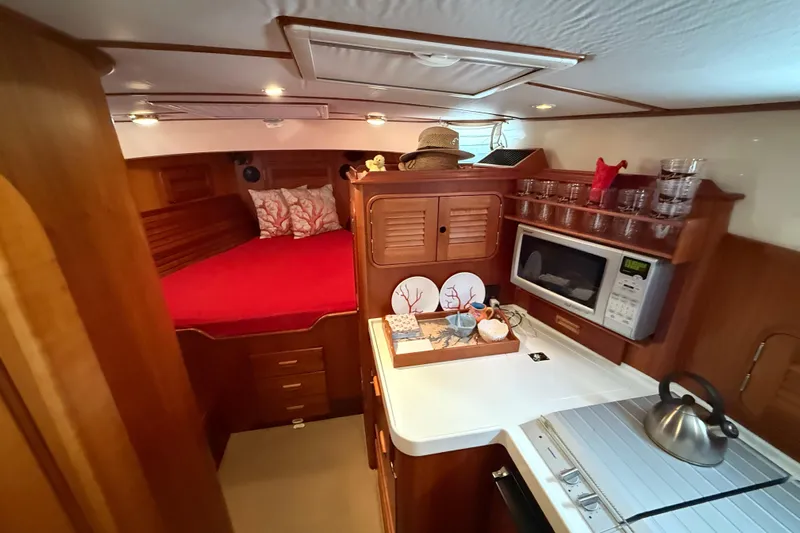

• The interior below is well laid out for a couple for overnights or coastal cruising. Down the companionway steps from the pilothouse the galley is to starboard with a large head with separate shower stall opposite to port. Storage lockers separate the galley from a large v-berth. The interior is finished in a satin-varnished cherry wood with soft, insulated white overhead with cherry trim. The cabin sole is varnished teak and tulipwood and has a custom cabin sole cover. All cabin locker doors are louvered.
  • (3) Opening overhead hatches with OceanAir Skyscreens
  • (4) Opening ports below (including head and galley) with removable screens and drop down blinds.
  • Interior overhead lights and step lights. Frigast stainless steel 12-volt lamps and recessed halogen lights in the overhead provide plenty of interior lighting - all on dimmers except shower.
  •  (3) Hella fans - (2) mounted forward outboard berth- port and starboard, and (1) in head.
  • Marine Air reverse-cycle heat/air conditioning with outlets in the main cabin, head, and pilothouse.

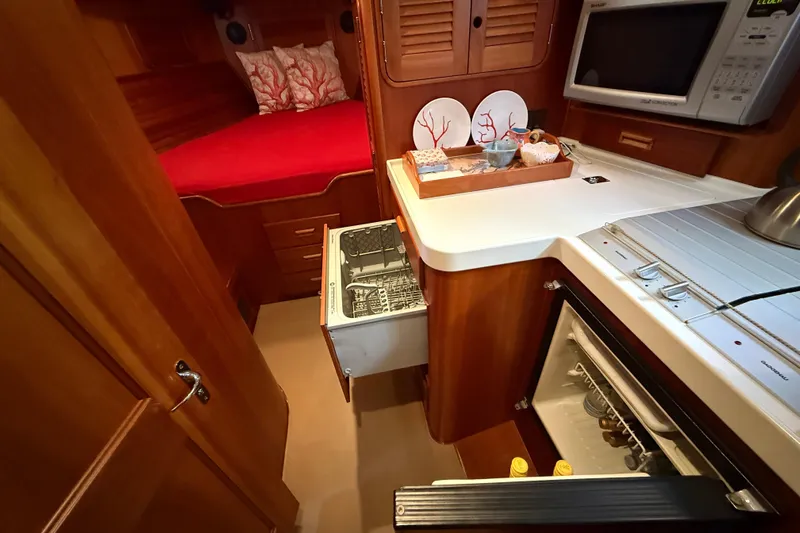

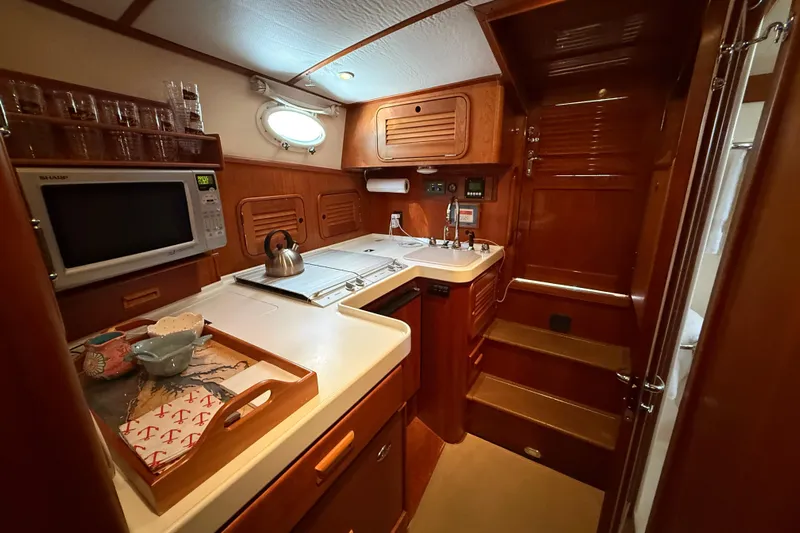

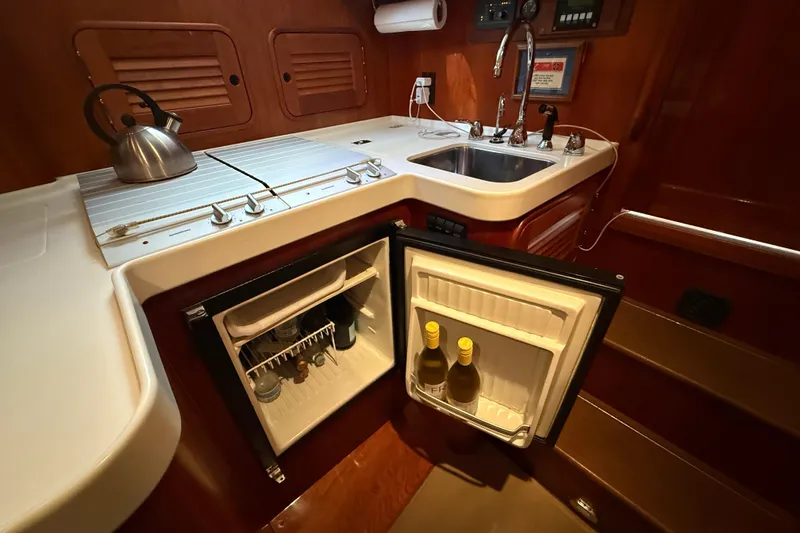

Galley:

• Storage lockers above and below counter
• Deep shelf storage above counter
• Stainless steel single basin below counter mounted sink with dual lever freshwater pressurized hot/cold mixer tap
• (3) burner Gaggenau electric stove
• Kidde carbon monoxide alarm
• Fischer Panda Generator control panel
• Mastervolt digital remote for charger/inverter
• Freshwater level gauge

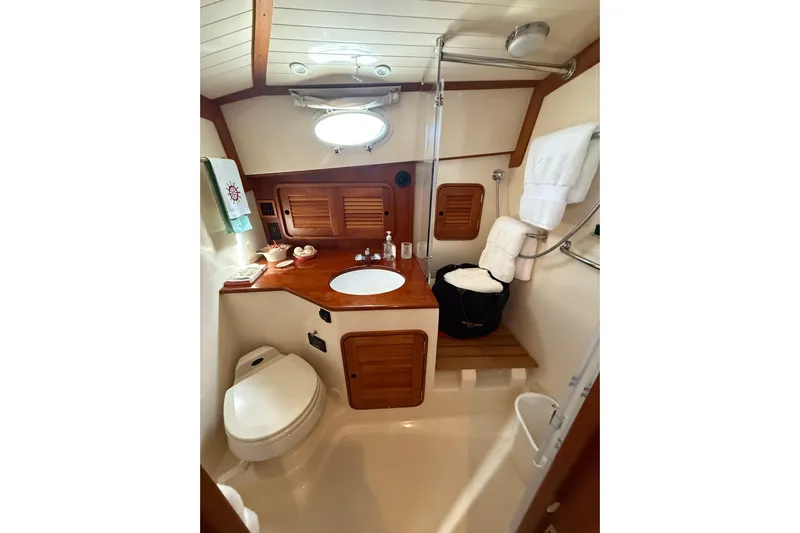

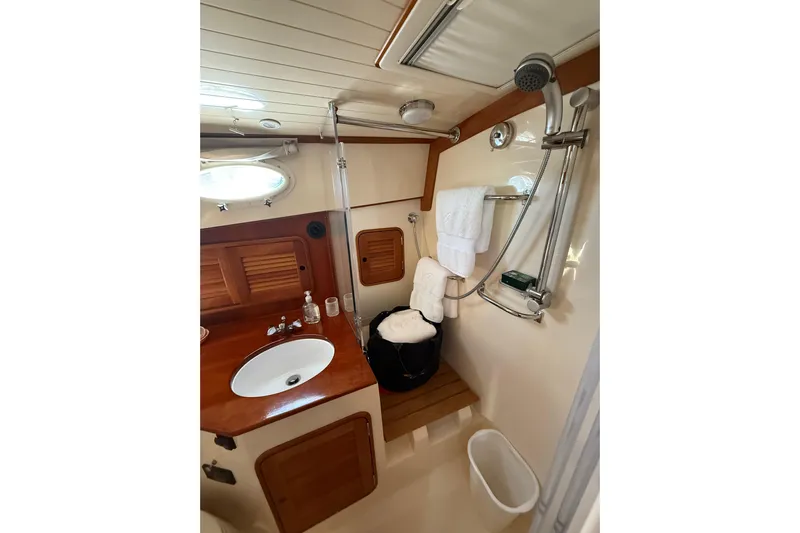

Head:

• Varnished cherry counter
• Stainless steel single basin below counter hung sink with a dual knob freshwater pressurized hot/cold mixer tap
• Sealand Vacuflush head plumbed to holding tank
• Tank watch 4 holding tank monitor
• Locker storage above and below counter
• The stall shower features:
  • Teak slat bench seat
  • Single lever freshwater pressurized hot/cold shower wand on flexible hose   Adjustable mount for shower wand
  • Locker storage outboard
  • Acrylic divider with split door

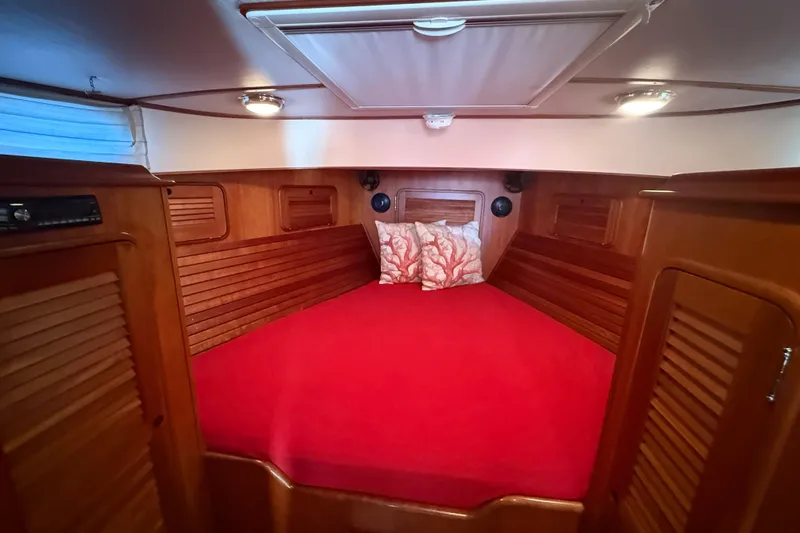

Forward Berth area:

• Large hanging storage locker port and aft of bunk
• (2) Lockers both port and starboard above bunk and outboard
• Locker forward of bunk that contains LCD flat screen TV and provides access to chain locker
• Reading lights port and starboard
• (2) Pioneer stereo speakers on forward bulkhead
• (2) Hella 12-volt fans on forward bulkhead
• Weems and Plath clock and barometer on forward bulkhead
• Red Sunbrella v-berth cushions with white piping and removable filler piece
• Locker storage under berth cushions
• Large overhead opening hatch with screen and shade provides abundant natural light and ventilation

C Volt DC Electrical System:

• Bass 12-volt DC electrical distribution panel   Digital volt and amp meter
• (2) Optima Red Top GPL-31 starting batteries, one for each main engine and port battery starts generator
• (4) 12-volt DF-4D 210 amp/hour service batteries for a total of 840-amps configured in (1) 24 volt bank and (1) 12 volt bank
• 80-Amp alternator on port engine charges house batteries
• 55-Amp alternator on starboard engine charges start batteries   Magnum 3.0 inverter/charger for house batteries
• Heavy-duty battery parallel switch also allows emergency starting

120/240 Volt 50 Amp Electrical System:

• Bass 120 volt AC electrical distribution panel
• Digital volt, amp and hertz meters
• 120-volt outlets Genset
• Fischer Panda 12 Mini (975 Hours)

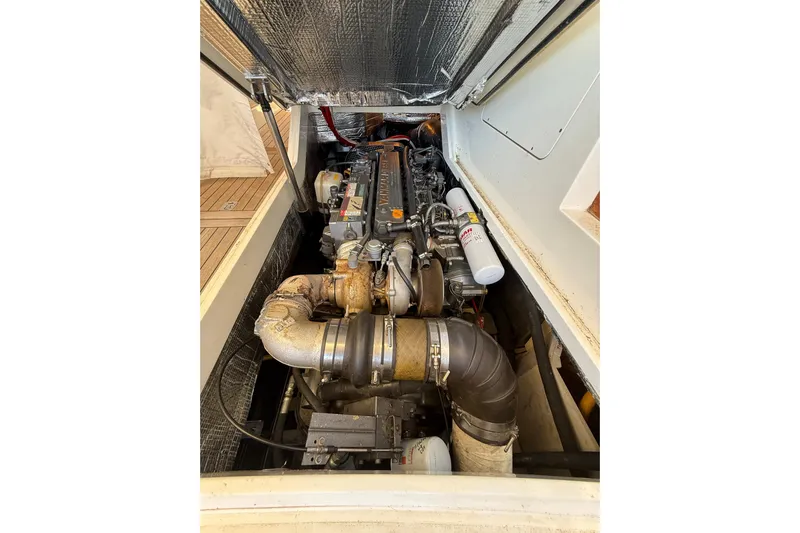

• Twin (2) 2002 Yanmar 6LY2A-STP 440-HP FWC diesel engines with Hamilton 322 Jet Drive, ZF IRM301PL transmission with reverse-reduction gear and Vetus 24-volt 7” reversible bow thruster.
• Teak rimmed stainless steering wheel with Mathers controls.
• Hinckley  Jet Stick® control system is integrated with the bow thruster. (Upgraded to 3rd generation in 2020)
• Dual-cylinder trim tab is below each jet with controls and displays at helm.
• Engine room sound insulation with lead lined foam
• Forced air engine room blower
• Engine boxes have double gaskets and electric riser lifts on both boxes
• 110-volt GFI protected outlet in engine room
• Fuel, oil pressure, and water temperature gauges (Separate fuel gauges for each tank)
• High engine water temperature and low oil pressure alarms
• Water-jet nozzle direction steering indicator
• Custom wet exhaust muffler system
• Oil transfer pump for engine, transmission and generator
• Manual hydraulic steering pump
• High water bilge alarm - Ultimate Senior switches
• (3) Electric 3700 GPH 12-volt bilge pumps with float switches
• Whale manual emergency bilge pump mounted below cabin sole
• Saltwater deck wash with anchor locker spigot – Groco Series 60 pump
• Flojet 12-volt DC freshwater pump with accumulator tank
• In-line 12-volt automatic shower sump pump
•  (2) 2.5# Dry chemical fire extinguishers
• (3) Aluminum fuel tanks with transfer pump – (1) 190-gallon and (2) 80-gallon saddle tanks
• Stainless steel 80-gallon water tank
• Stainless steel 10-gallon hot water heater – engine or electrically heated
• Aluminum 38-gallon holding tank with Y-valve and macerator pump to overboard discharge
• Marineair 16,000 BTU reverse-cycle marine air-conditioning with outlets in pilothouse.
• Marineair 12,000 BTU reverse-cycle marine air-conditioning with outlets in main cabin forward and galley as well as shower and head.
• Spectra Newport 400 water maker with 18 gph typical output (2013, currently decommissioned)
• Muir electric windlass package:  Flush foredeck anchor locker houses a Muir 1200A 24-volt DC electric windlass with stainless steel 22# anchor + 25' x  3/8” stainless steel chain + 200’ x 5/8” anchor rode and polished stainless steel bow roller. The windlass can be operated from the helm station or a handheld remote at anchor locker. Saltwater deck wash with spigot in anchor locker.

• Lifejackets
• Fire extinguishers
• Handheld flare kit
• Bell
• Full Cockpit mooring cover
• Handrail covers
• Boathook
• Fenders with fleece covers
• Dock lines
• Stern mounted varnished teak ensign pole and socket
