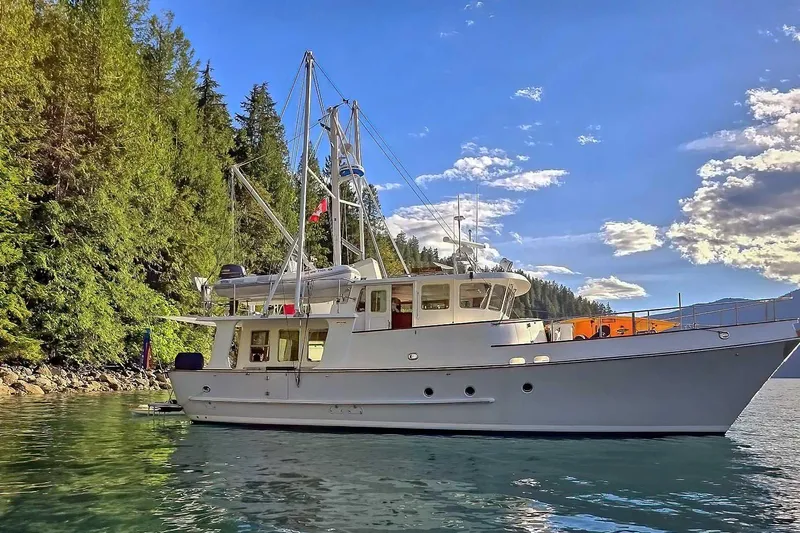

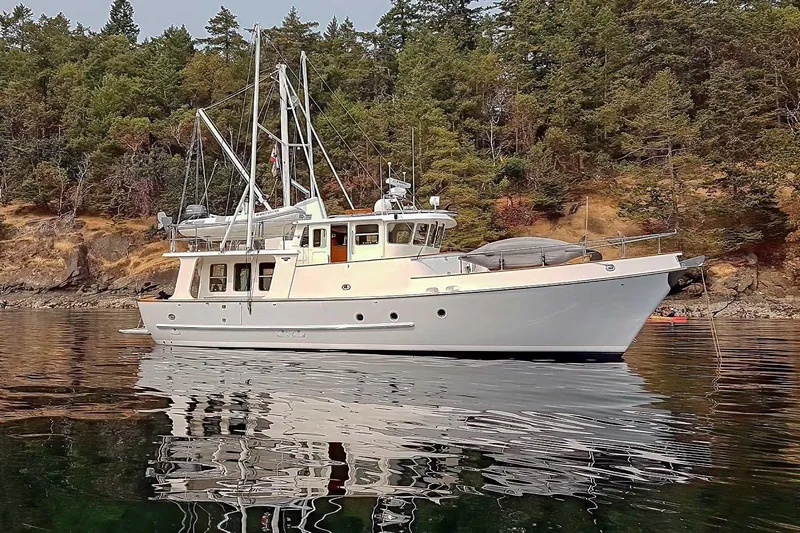

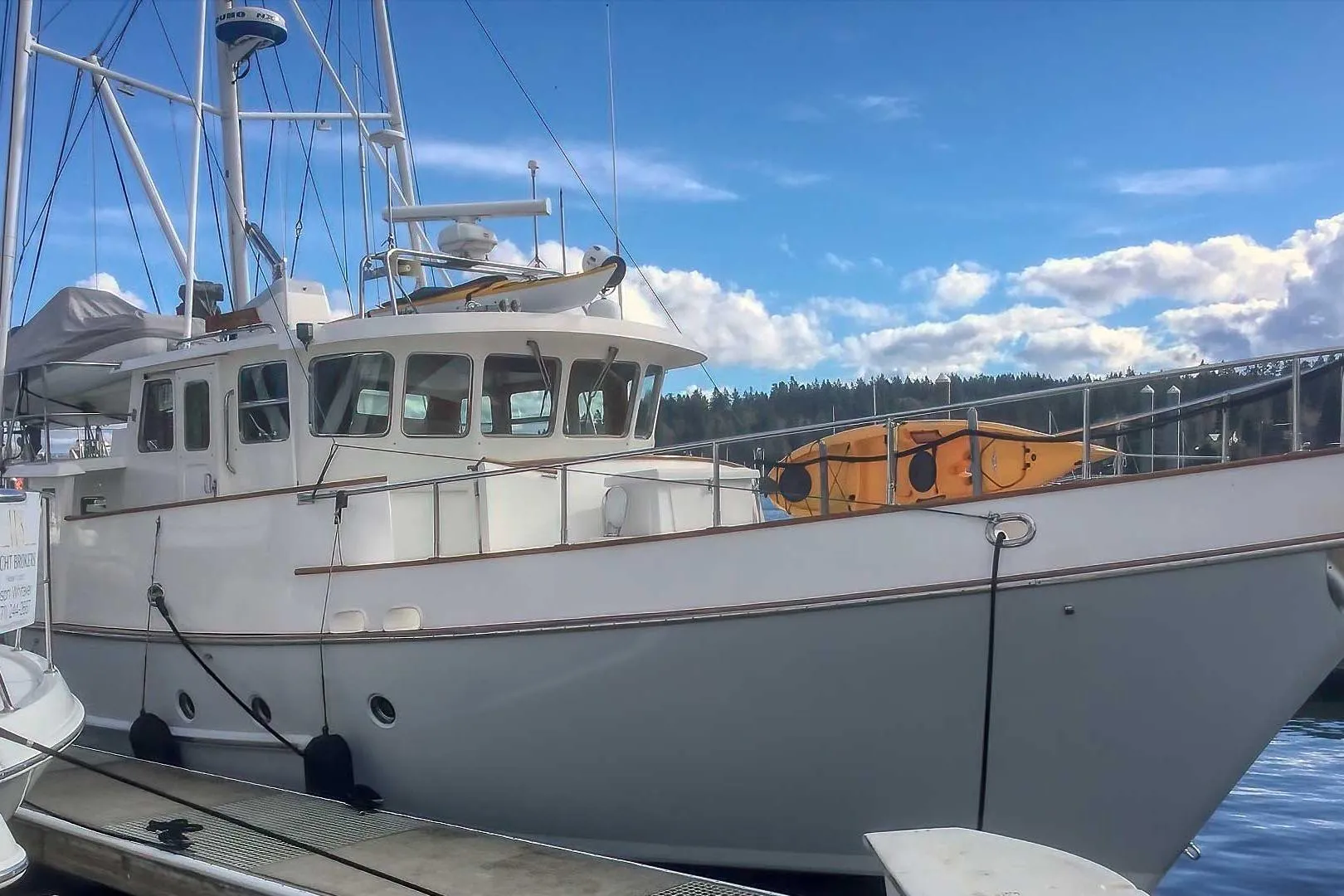

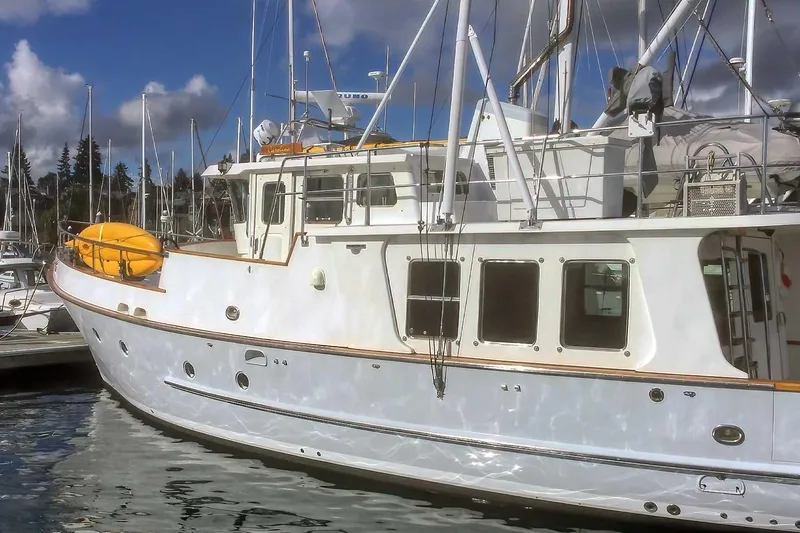

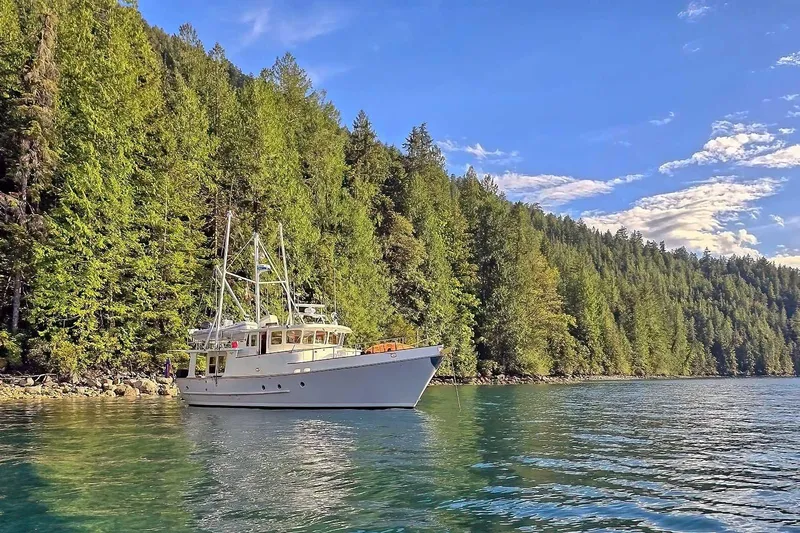

46 Nordhavn 2001 Boat for Sale

Yacht name Carolina

Brand and model Nordhavn 46

Type Full displacement long range trawler with raised pilot house

Location Bainbridge Island WA

Model year 2001

Hull number 72

Hull color Gray

Deck White deck with gray non-skid

Registry USCG documented

Designer Jeff Leishman

Builder PAE – South Coast yard in Taiwan

Hull material Solid fiberglass

Displacement 60,000 lbs. | 27,215 KG

Ballast 6,600 lbs. (lead) |2,994 KG

Speed and range 7.4 knots provides approximately 2,800 nm range

LOA 45 feet, 9 inches | 13.94 M

LWL 38 feet, 4 inches | 11.68 M

Beam 15 feet, 5 inches | 4.7 M

Draft 5 feet| 1.5 N

Air draft approximately 27 feet | 8.23 M

AB ratio 2.3:1

DL ratio 383

CP – Prismatic

coefficient 0.63

Main engine Lugger LP-668D 105 HP (hours 5673.3 February 2026 (Twin Disc MG -- 5050 transmission with 3.0:1 reduction gear |Mathers MicroCommander single lever controller

Propeller/ shaft 2-inch Aquamet 22 stainless steel shaft | PSS dripless shaft seal | Spurs line cutter | 4 - blade bronze 28-inch diameter propeller

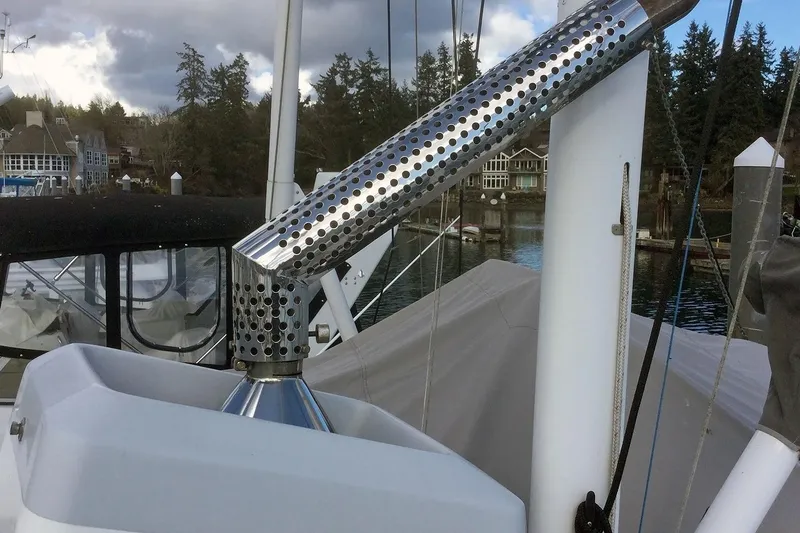

Main exhaust Walter keel cooler | Dry stack exhaust

Wing engine Yanmar 3GM30FV 27 HP (27.8 hours February 2026) | Kanzaki KM 3 V-drive transmission (2024) | Morse cable control | 1-inch Aqualoy 22 shaft (2024) | Tides Marine dripless shaft seal (new 2024) | Martec 2-blade folding propeller

Thrusters Side Power 95T 8 HP 12-volt bow and stern thrusters

Stabilization Paravane outrigger passive stabilization system

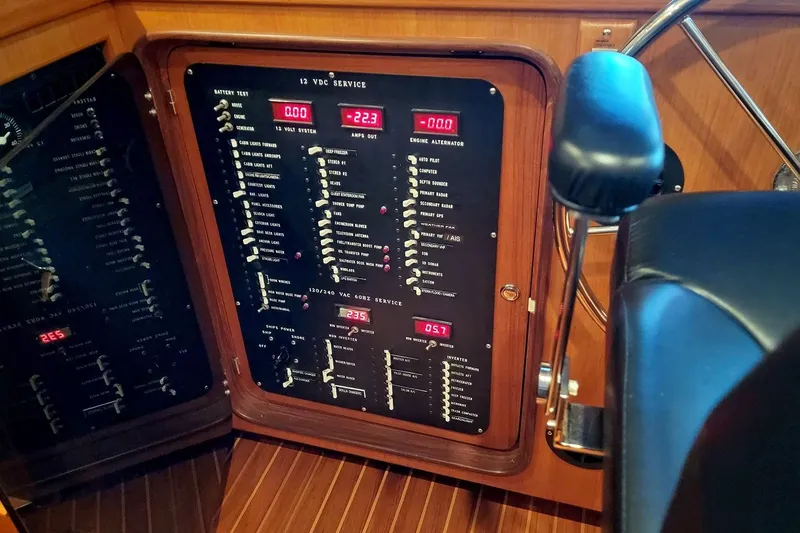

Electrical 110/ 220 Volt 60 Hertz -- US style -- 50 or 30 amp

Shore power 50 amp/ 220 Volt with cord |30 amp/ 110 Volt with cord; Boost transformer to 220 VAC

Generator Northern Lights M843NK 12kW 240VAC generator (2007) (3239.0 hours February 2026)

Inverter/ chargers Magnum 2812 pure sine wave 2800-watt inverter, 125-amp charger | (2) 70AMP Victron Skylla chargers (2024) | Sentry auxiliary charger for starter batteries | Balmar 100-amp alternator driven by main engine

Batteries (8) Lifeline L16 AGM house bank (1600-amp hours) (2025) | (1) Lifeline 8D AGM main engine start | (1) Northstar Group 31 AGM generator/ wing start

Interior Lighting LED and halogen lighting

Climate control Hurricane SCH25 hydronic heat system with engine heat and domestic hot water | Dometic reverse cycle AC/ heat 16,000 BTU in saloon (2018); Cruisair AC/ heat 12,000 BTU in pilothouse | Cruisair AC/ heat 10,000 BTU owners /guest staterooms

Machinery equipment Racor 900 series duplex for main (rebuilt 2024) | Racor 500 series for generator | Walbro fuel transfer pump with Racor 900 filter |Reverso oil change system

Windlass Maxwell VWC- 3500 electric anchor windlass with foot button controls on foredeck and remote control in pilot house

Ground tackle 88 LB/40 KG Rocna anchor with 400 feet of 5/16th HT chain |Fortress Guardian 37 spare anchor

Mast and boom Forespar mast and boom (disassembled, stripped, epoxy primed, and Awlgrip painted 2018) | Paravane outriggers (regalvanized 2018 -- 2 sets) | Boom fitted with Warn DC-1000 winches (2018)

Tender and outboard Caribe DL11 RIB fiberglass hull (2001). Note: Built-in fuel tank inoperable because of corrosion) | Yamaha 25 horsepower outboard (2013)

Nav/ Com brands Furuno, Simrad, Ritchie, Icom, Vesper Marine, Kindel computer running Time Zero

Entertainment Samsung TV in owner’s stateroom | Samsung TV in saloon | Pioneer DEH-80 stereo with Alpine power amp and JB Audio subwoofer in saloon | Kenwood KTS-300 with MB Quart speakers in pilothouse

Staterooms (2) staterooms: owner forward, guest to port

Berths Centerline queen forward (owner) with custom innerspring mattress and custom-fitted linens |(2) bunks in guest stateroom | Pilothouse watch berth

Heads (2) freshwater toilets. MasterFlush owner electric head forward |MasterFlush guest electric head to starboard

Showers (3) -- Owner’s head separate stall stand-up shower with seat and glass door | Guest head separate stall stand-up shower with seat and shower curtain on stainless steel rod |Scanvik hot and cold shower in cockpit (2024)

Hot water Isotemp 11-gal stainless steel (2022)

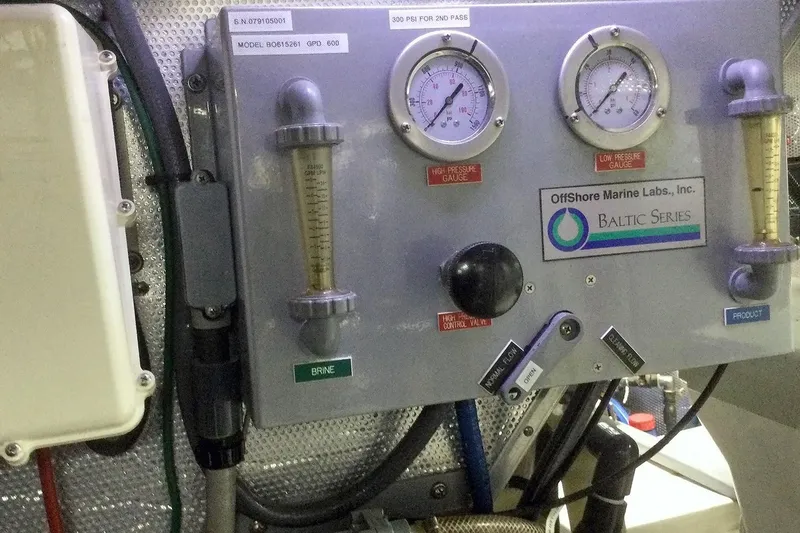

Watermaker Offshore Marine Labs (Village Marine Tech) Baltic series (600 GPD) -- low-pressure pump, high-pressure pump, and 220 VAC motor new or rebuilt (2023)

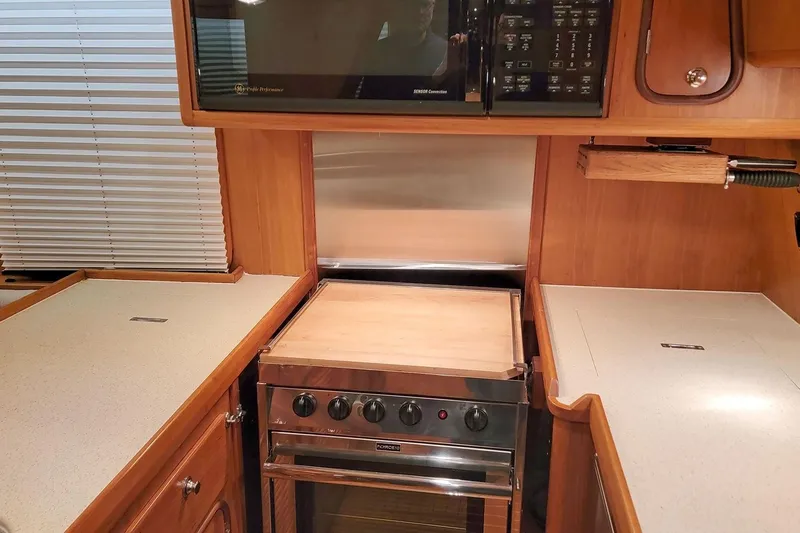

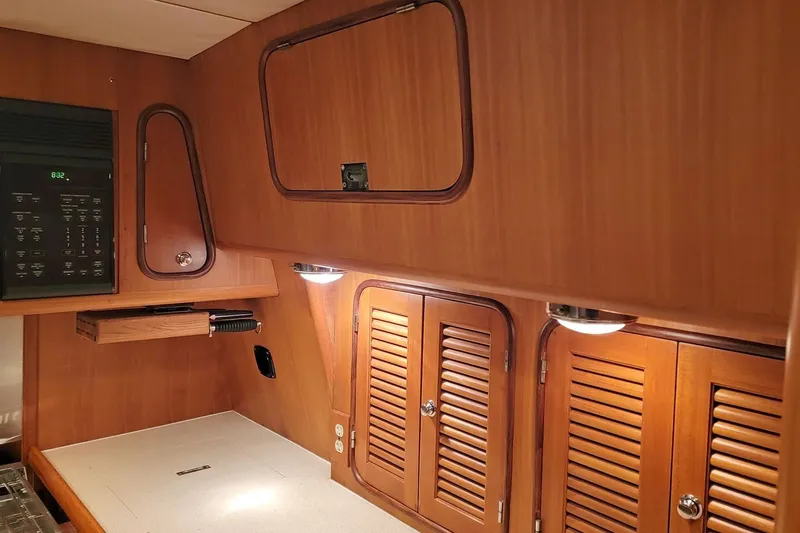

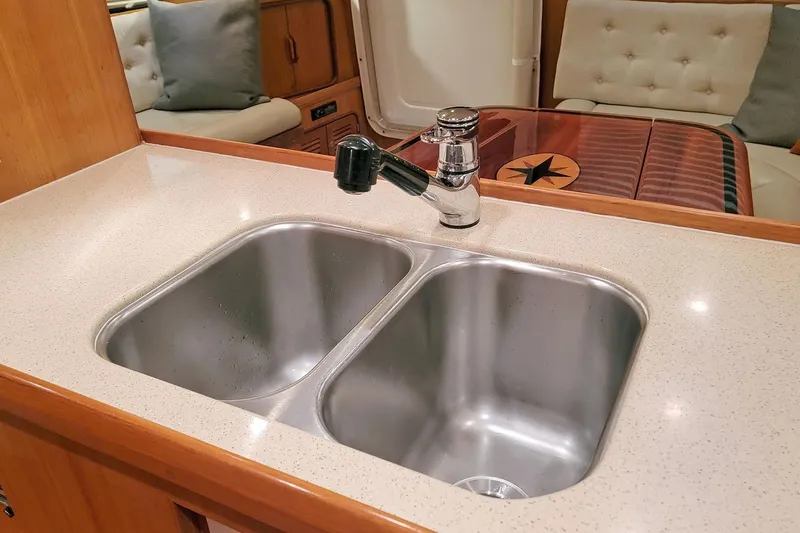

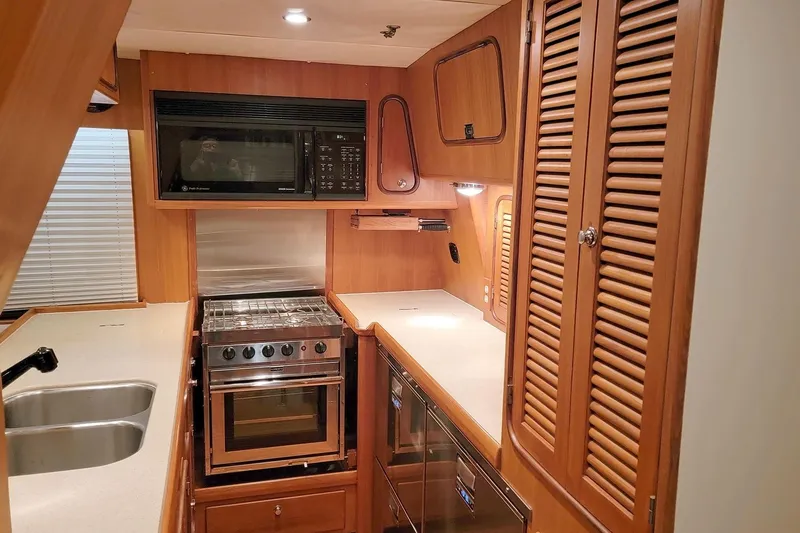

Galley (2) Vitrifrigo two-drawer refrigerator/freezers under counter in galley | Norcold freezer under section of starboard settee in saloon | Force 10 4-burner stainless steel propane stove and oven | GE profile microwave/ convection oven |Broan trash compactor

Interior wood Teak

Interior counters Sand Corian

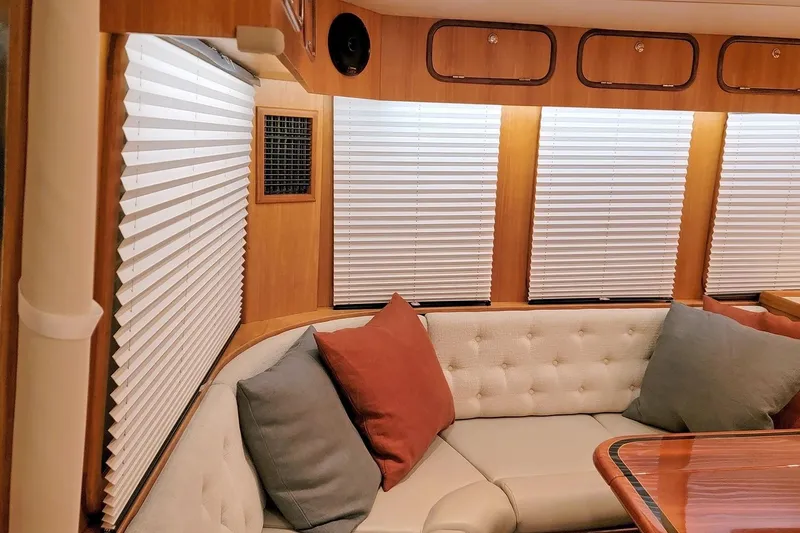

Interior upholstery Tan Ultraleather (2025)

Interior flooring Teak and light wood

Bilge pumps Whale diaphragm pump | Rule 2000 electric bilge pump with high water alarm

Tankage:

Fuel 1,000 gallons | 3,785 Liters (2 fiberglass tanks)

Holding (black) (2) 25 gallons | 95 Liters each (2 fiberglass tanks)

Fresh water 300 gallons | 1,135 liters (2 fiberglass tanks)

Safety USCG safety package |Fire Boy-Xintex fixed automatic fire suppression system in engine room |Automatic engine shutdown system included but not installed |CO and smoke detectors/alarms in sleeping areas and hallway | Engine room high water bilge alarm | Stainless steel life raft holder on pilothouse roof (life raft out of inspection and removed)

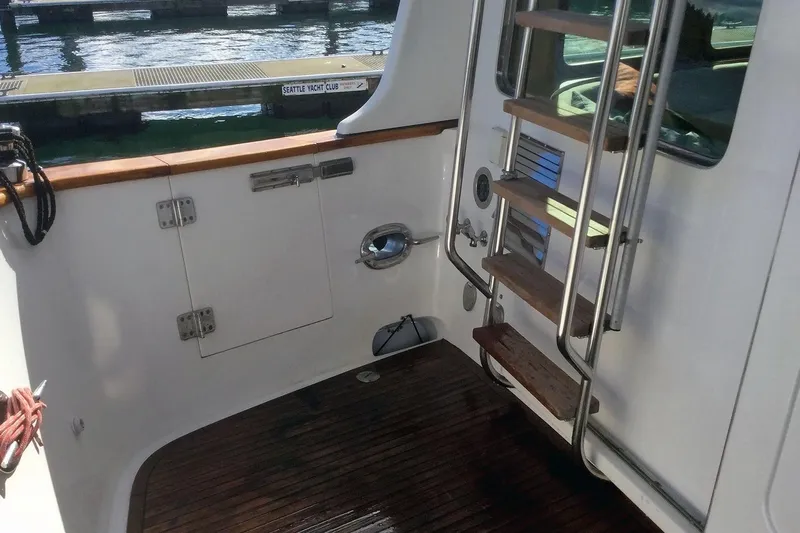

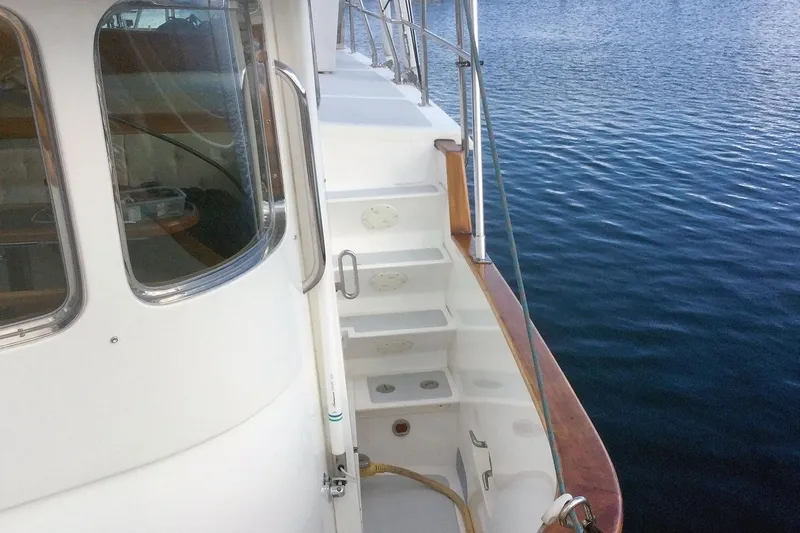

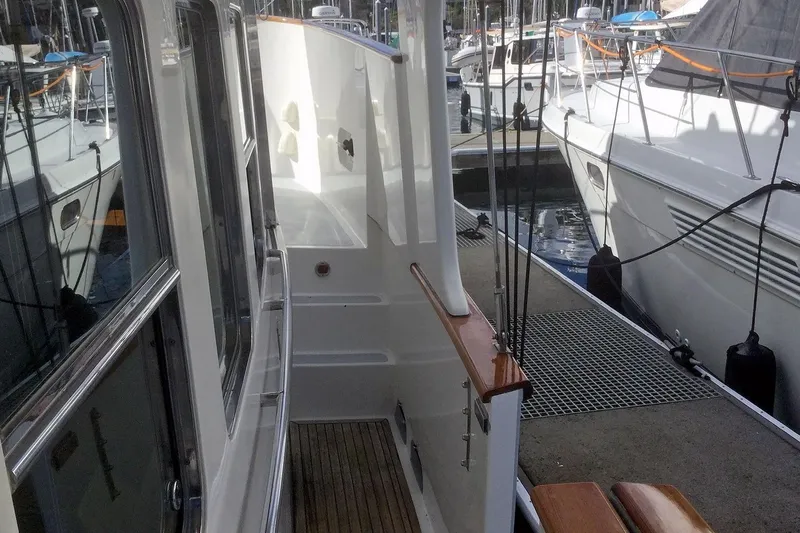

Swim platform, Cockpit and Side deck

· Swim platform

· (2) Swim ladders: Stainless steel folding under platform launchable from water and stainless steel and teak swing down

· Three boarding doors – aft and port in cockpit, starboard midship on side deck

· Hot and cold freshwater shower (2024)

· Fresh and salt water washdown hoses – fore and aft

· City pressure water hook- up fixture

· 110V AC electric outlet

· Red/white LED lighting

· LED flood light for swim platform

· (2) Air vents for engine room

· Removable sunshade awning

· Dickinson Sea-B-Que propane grill

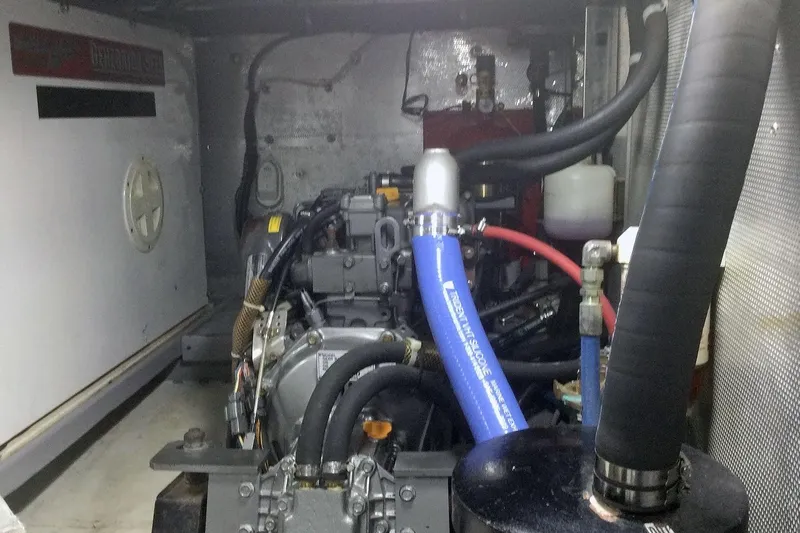

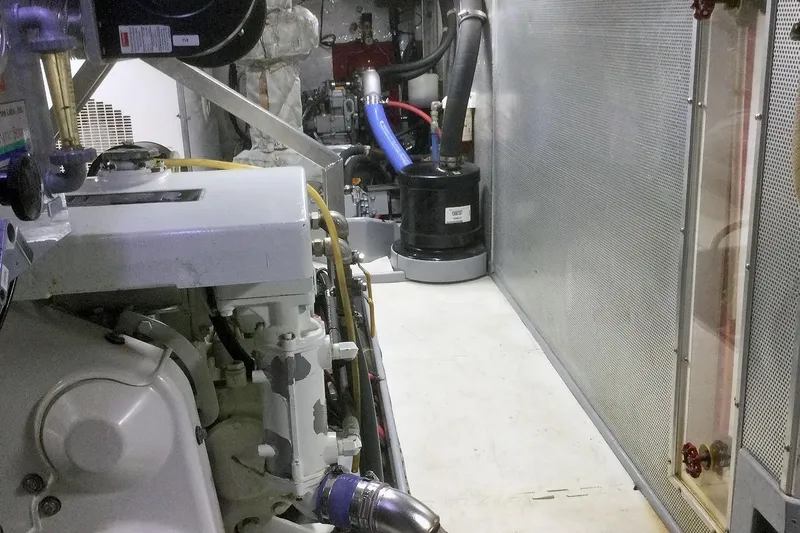

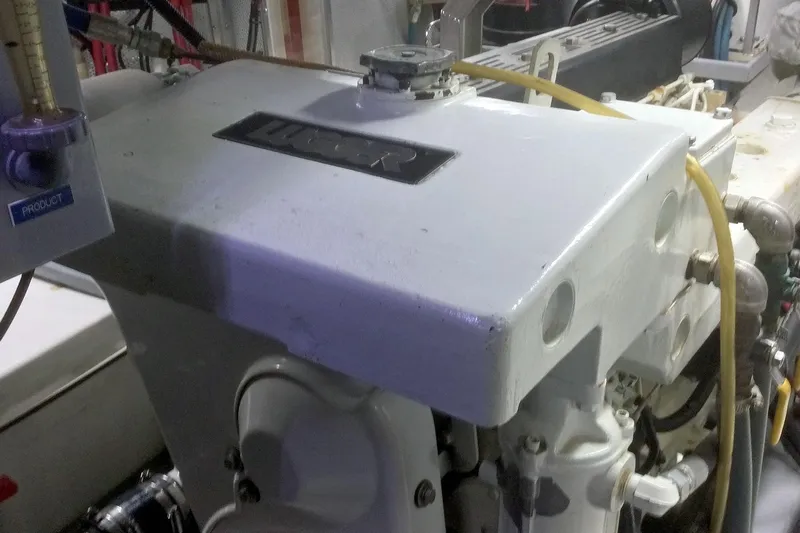

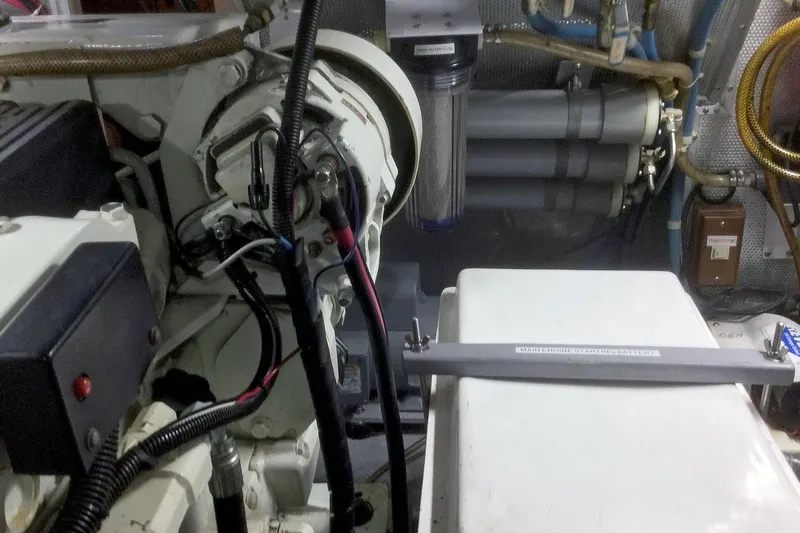

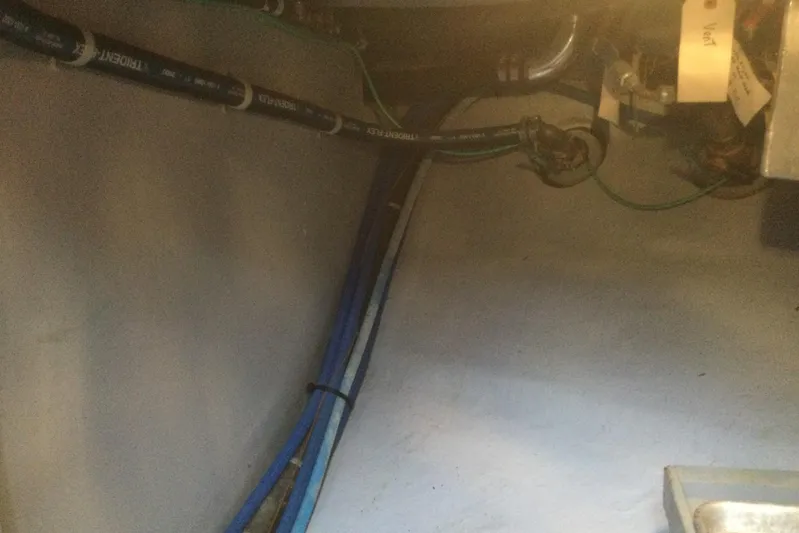

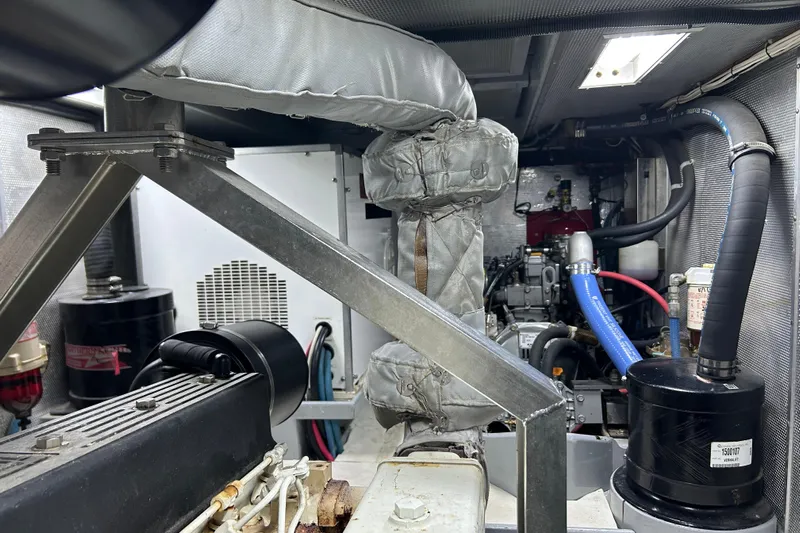

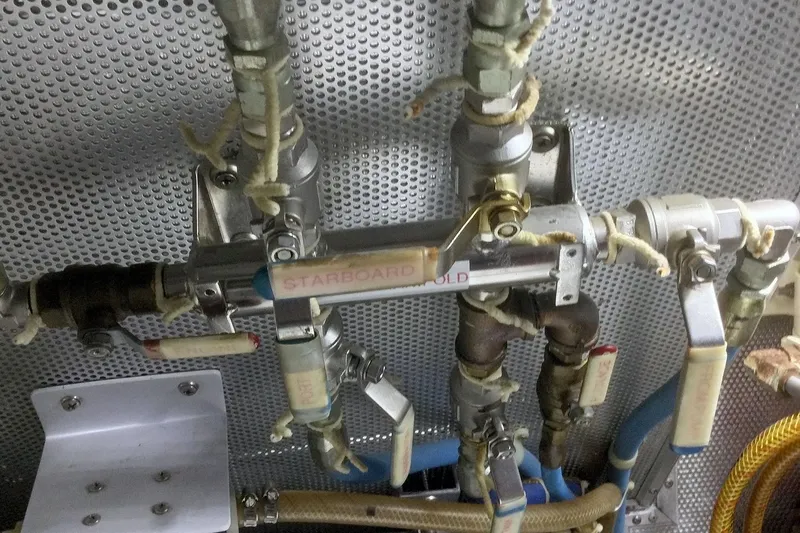

Engine and Mechanical

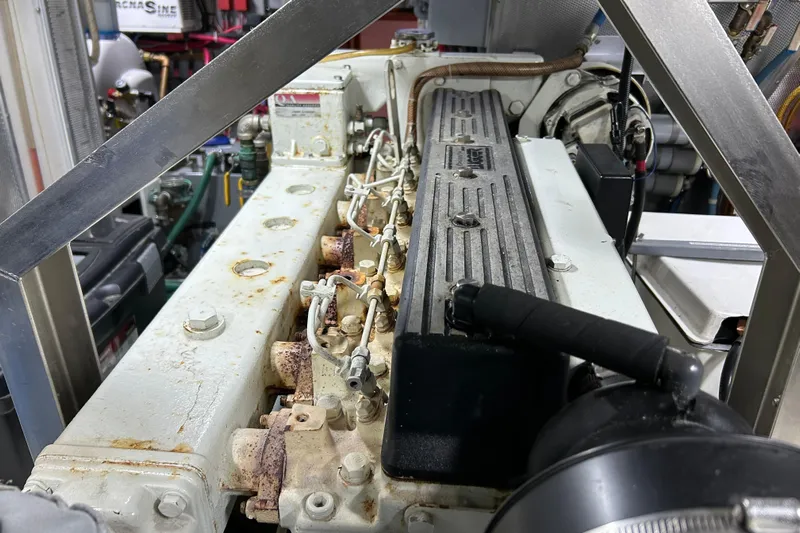

· Lugger LP668-D, 105 HP main engine

· Twin Disc MG-5050 transmission with 3.0:1 reduction gear and two-inch propeller shaft

· Dry stack exhaust system

· Closed cooling system circulates through an external keel cooler, eliminating a raw water-cooling pump and raw water contact with engine component

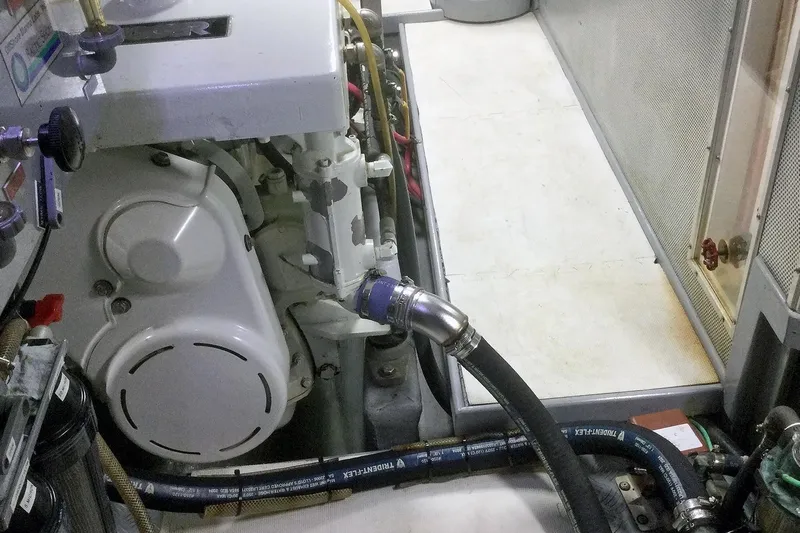

· Northern Lights 12kW 240 VAC generator

· Magnum 2800-watt inverter/ charger with control panel in pilothouse

· (2) Victron Skylla 70-amp (140 amp total) chargers interconnected with control panel in pilothouse

· Sentry auxiliary charger for starter batteries

· Fire Boy fixed fire suppression system

· 100-amp Balmar main engine alternator with programmable Balmar external regulator

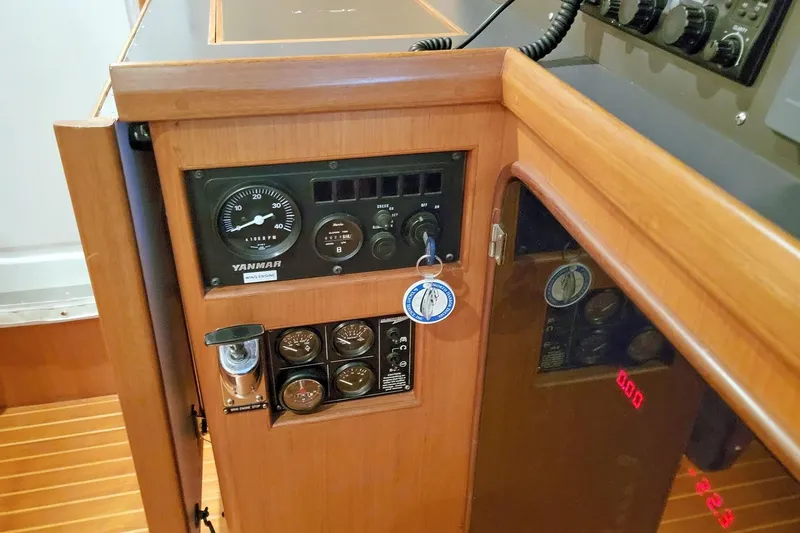

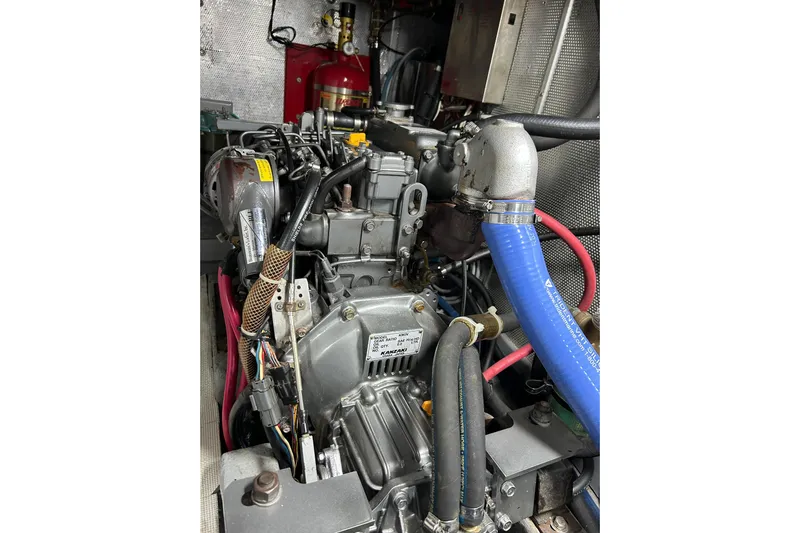

· Yanmar 27 HP wing engine

· Fuel transfer and polish system

· Isolated day tank for wing or main engines

· Racor Duplex 900 series fuel filters with vacuum gauges for main engine

· Reverso oil changing system plumbed to main, generator, and wing engines

· Hurricane diesel fuel hydronic heat system (serviced and new compressor January 2026)

· 50-amp and 30-amp shore power service with cords and boost transformer for 240 VAC

· (8) Lifeline L16 AGM batteries (1600-amp hours at 12 VDC) (new September 2025)

· Watermaker -- serviced February 2026

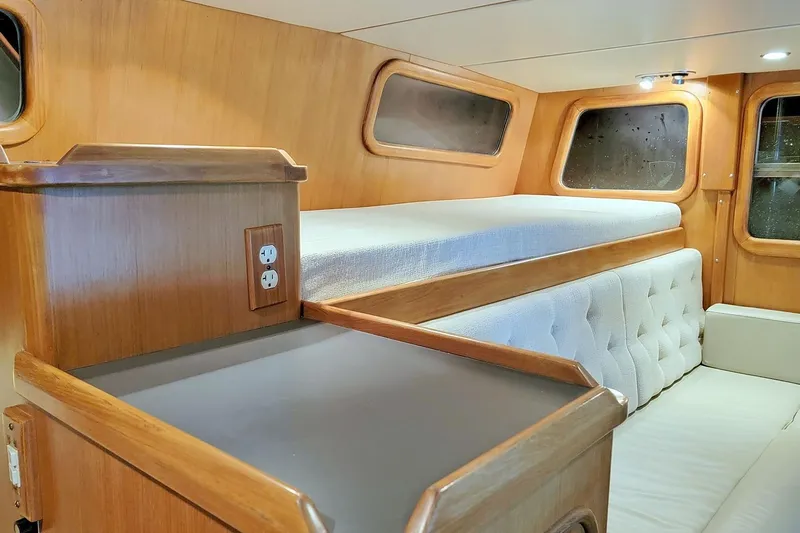

Guest Stateroom

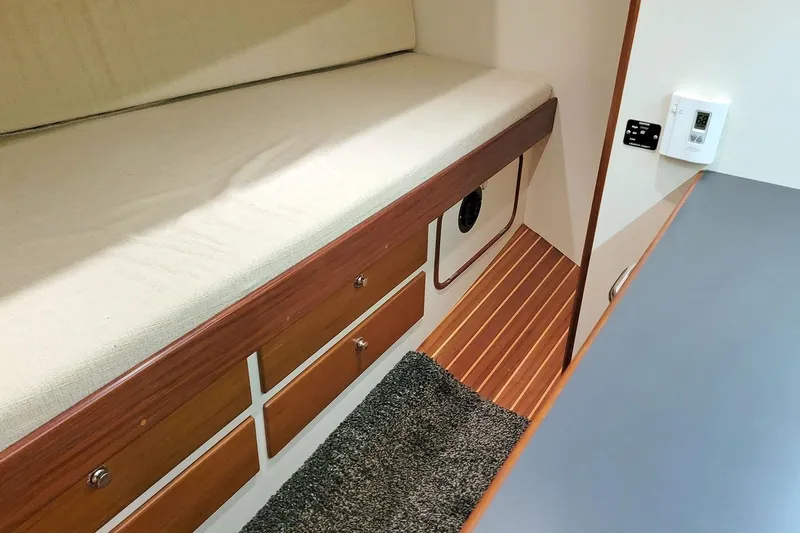

· (2) bunk berths, lower pulls out to make double

· Bookshelf

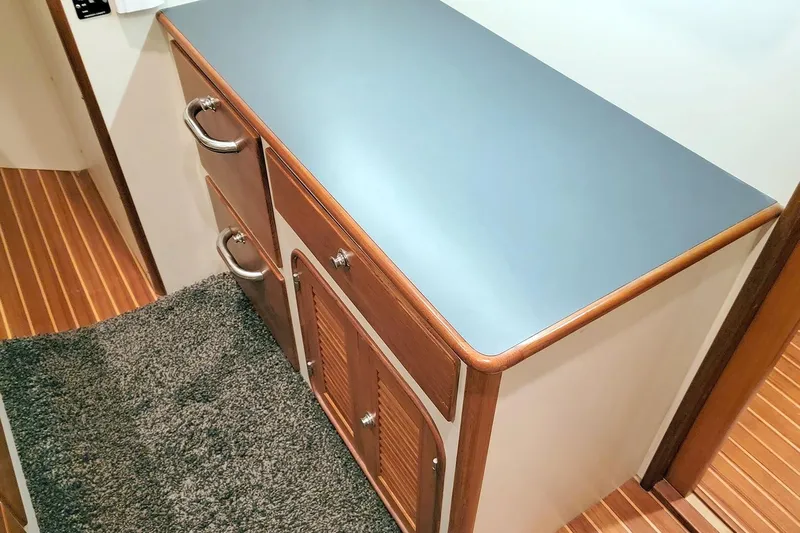

· Desk with file drawers for ships records and manuals

· 2 opening ports with dead lights and screens

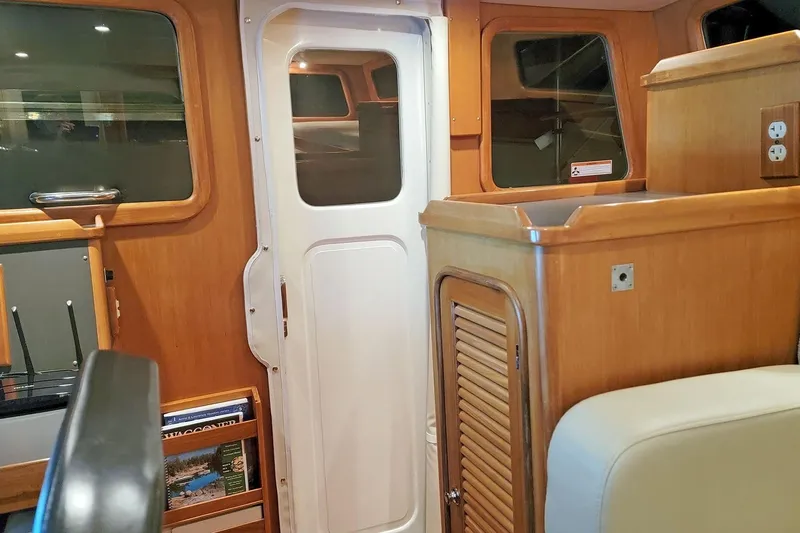

· Engine room access through Nordhavn 50 style gasketed, dogged door, with window

· Hanging locker

· Dorade vent inlet

· Exhaust fan

· Outlet for hydronic heat

· Teak and holly cabin sole

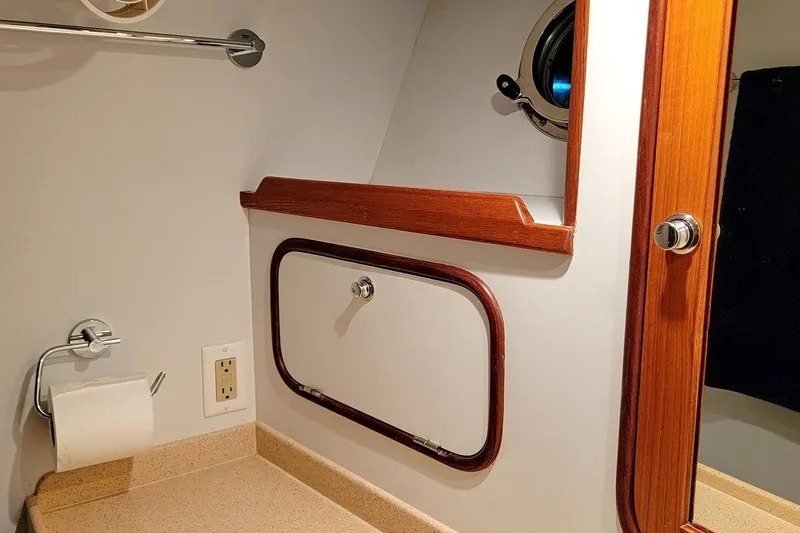

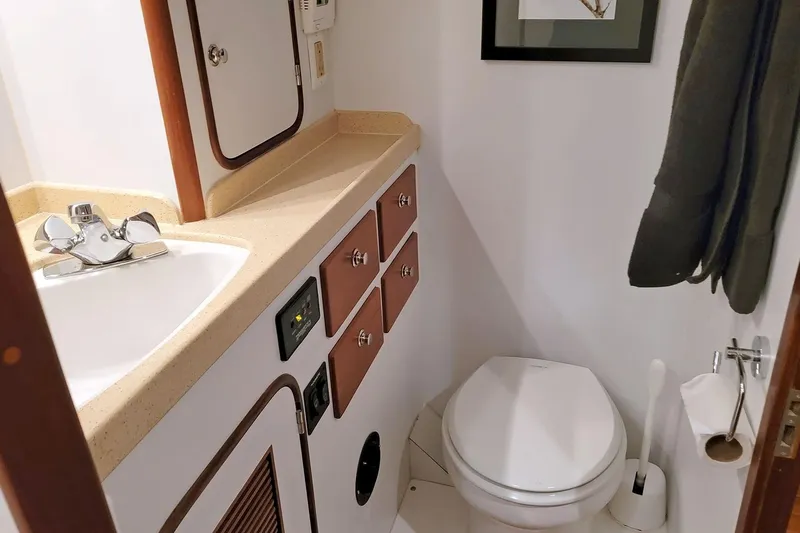

Guest Head

· Dometic MasterFlush electric head, fresh-water flush (2018)

· Sealand holding tank level monitor

· Sand colored Corian countertop with porcelain sink

· Grohe sink and shower fixtures

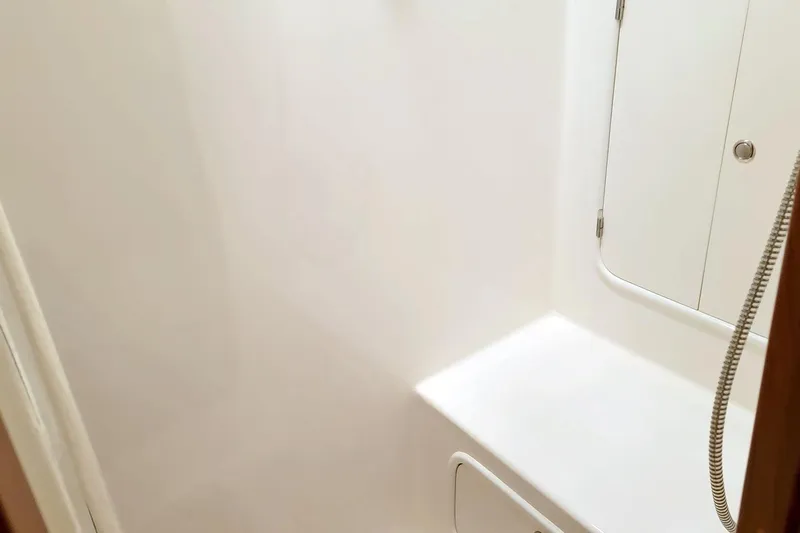

· Standup shower stall with seat and storage locker

· Shower sump and exhaust fan

· Opening port with dead light and screen

· Grohe towel bars and fittings

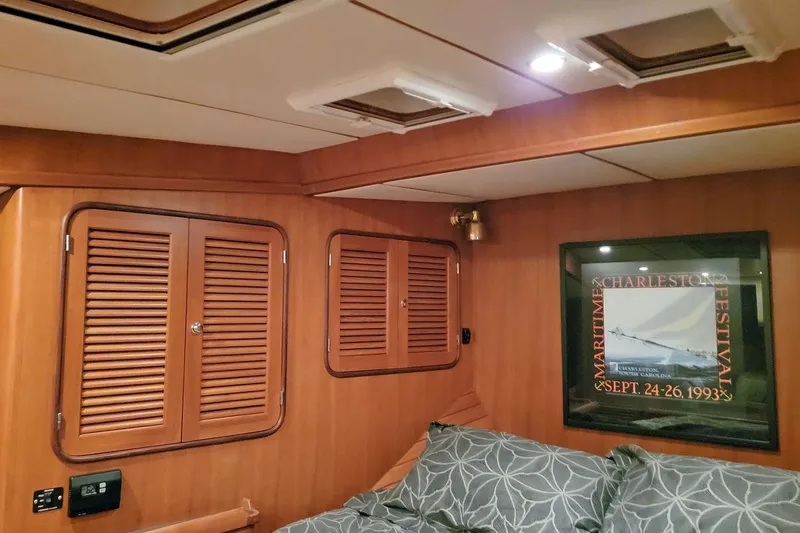

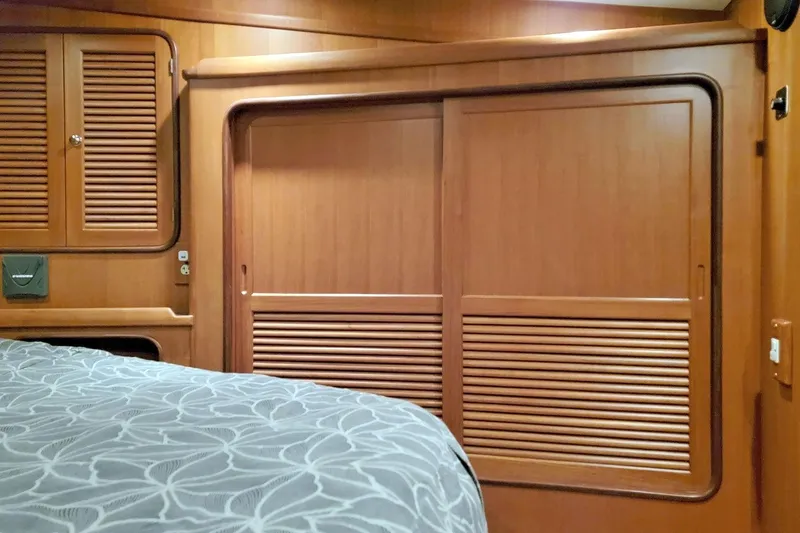

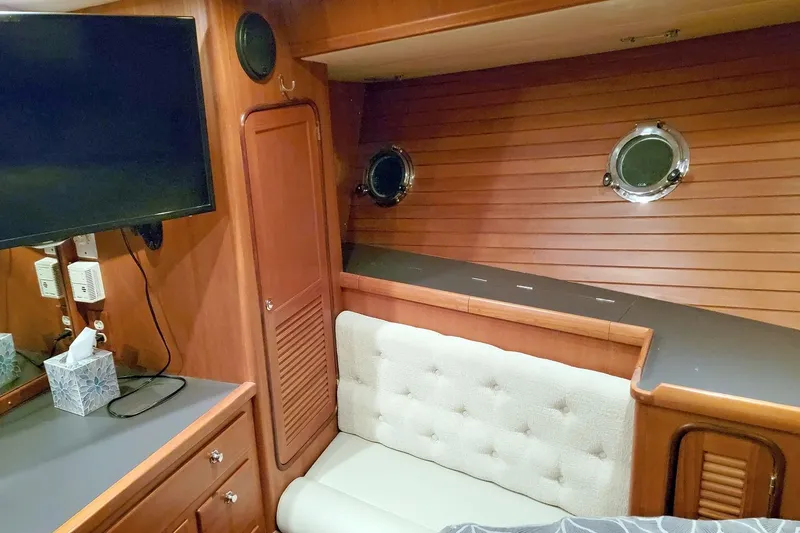

Owner Stateroom

· Center line queen berth with drawers below and access to batteries and thruster

· Ultraleather upholstered changing seat

· Samsung 30-inch smart TV with articulating mount

· Furuno instrument repeater

· Hanging locker starboard and aft

· Teak and holly cabin sole

· Large Lewmar “escape” hatch with screen and blackout cover

· (2) Lewmar vent hatches forward with screen and blackout cover

· (2) Opening ports with dead lights and screen

· Dorade vent inlet with cover

· Custom HMC mattress

· Custom mattress cover and bed linens

· Vanity with large mirror

· Hydronic heat outlet

· Cruisair reverse cycle AC/ heat

· Emergency DC main shut off

Owner Head

· Dometic MasterFlush electric head with freshwater flush (2018)

· Dometic holding tank monitor with automatic shut off (2018)

· Sand colored Corian countertop with porcelain sink

· Grohe sink and shower fixtures

· Glass shower door

· Standup shower stall with seat and storage locker

· Shower sump and exhaust fan

· (2) Opening ports with dead lights and screens

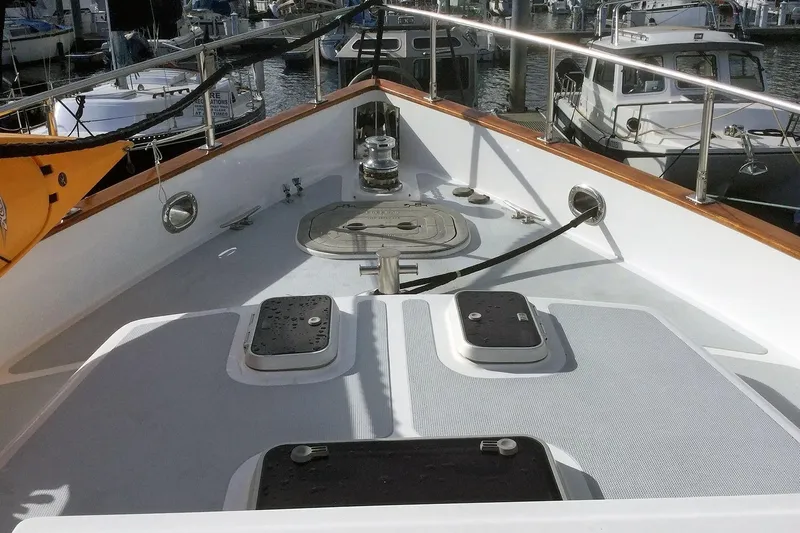

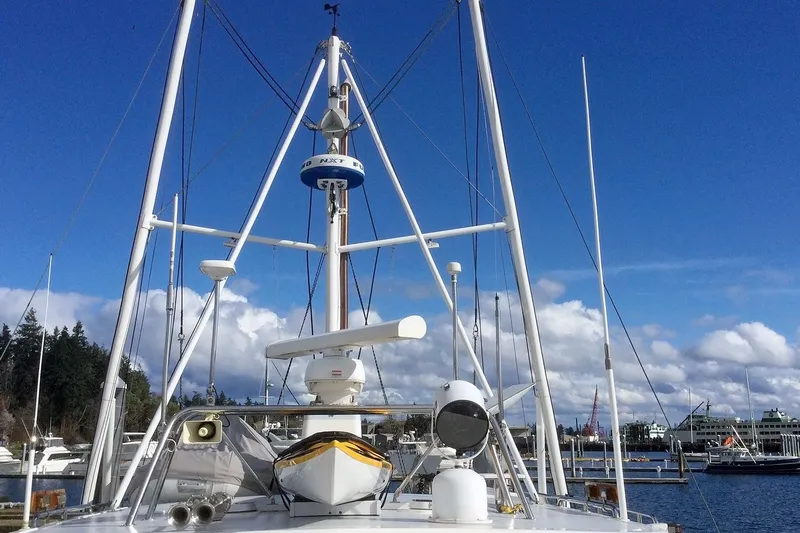

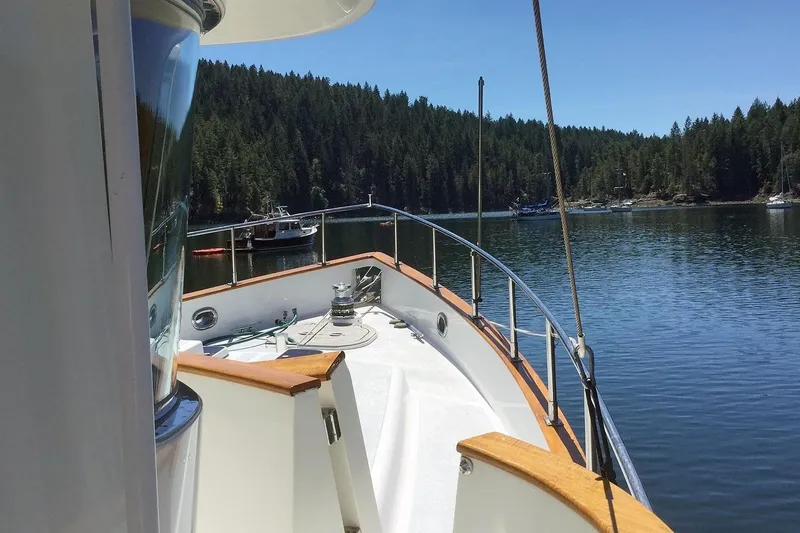

Deck Gear

· Trawler mast and boom with Warn DC-1000 winches (2018)

· Winch cover (new 2025)

· Boom winch control plugs on boat deck and in cockpit

· Winch lines replaced with Dyneema (2018)

· Maxwell 3500 electric anchor windless with remote in pilothouse

· Windlass cover (2025)

· Rocna anchor (40 kilograms) (regalvanized 2023)

· 400+ feet of 5/16 inch chain

· Second anchor -- Fortress Guardian with chain and 5/8” rode

· Fresh and saltwater wash down (fore and aft)

· Stainless steel life raft holder (life raft out of inspection and removed)

· Sunshade awnings for foredeck and cockpit

· Storm covers for port side windows

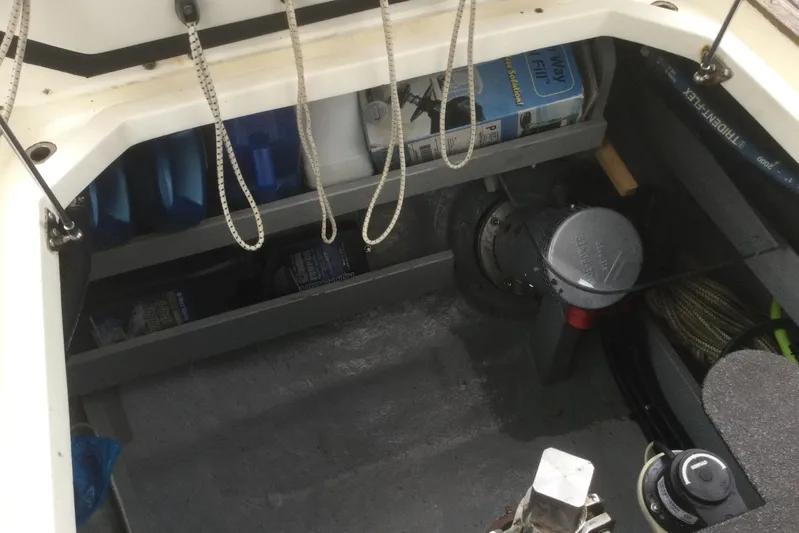

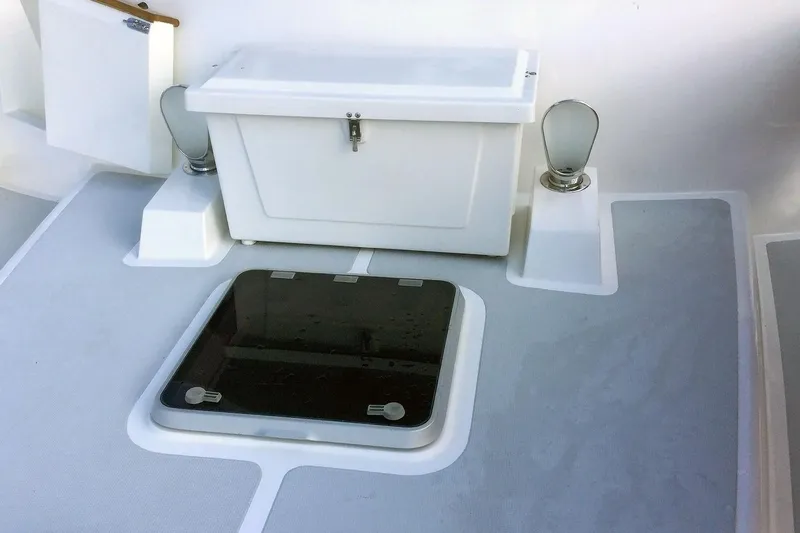

· (2) fiberglass deck storage boxes -- foredeck and boat deck

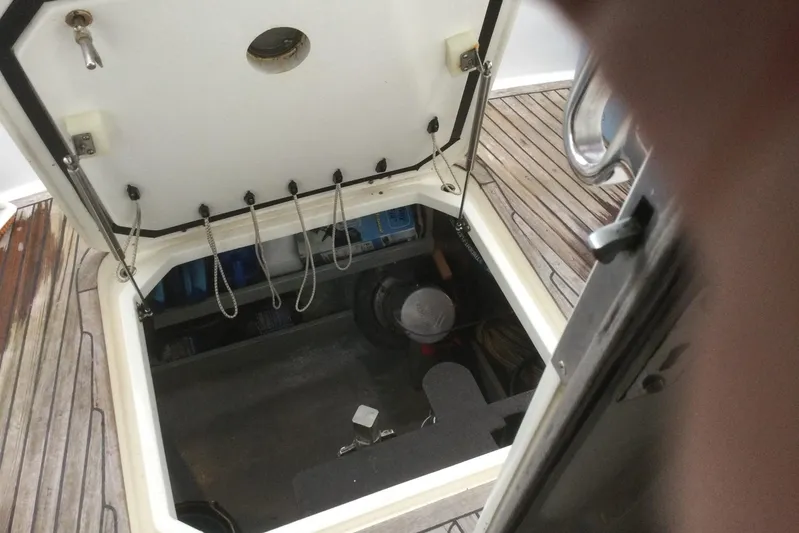

· Freeman hatch access to forepeak

· Magma kayak racks

· Carlisle & Finch Searchlight

· LED spreader lights

· LED anchor, steaming, and aft navigation lights

· Starlink antenna

· Stern tie line and reel

· Propane locker on port side of Portuguese bridge -- (2) 20-gal aluminum tanks

· 50 amp and 30-amp electrical cord inlets

· 2001 Caribe DL11 RIB with 2013 Yamaha 25 HP outboard. Note: Built-in, underdeck fuel Tank has developed pin holes and cannot be used – six-gallon stand-alone tank is provided

2018

· Entire rig dismantled, stripped, epoxy primed, and repainted

· All paravane related rigging replaced

· Regalvanized “fish” (X4); replaced boom winches and cable

· Installed new MasterFlush toilets in both heads; replaced all head hoses -- PVC pipe where possible

· Installed stern thruster

2022

· New transmission, V-drive, shaft (Aqualoy 22), dripless shaft seal, and hoses on wing engine

· New Isotemp hot water heater

2023

· Installed Simrad AP-48 autopilot

2024

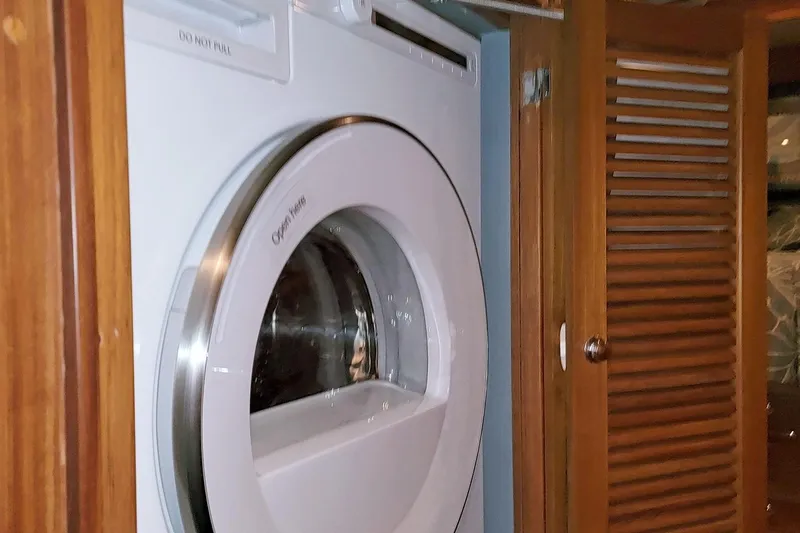

· New Asko clothes washer and dryer

· New Victron Skylla battery chargers with remote controller

2025

· New Vitrifrigo fridges and freezers

· New Lifeline AGM house batteries (8) L16, 1600 AH

· New foam and Ultraleather upholstery on all seating surfaces

2026

· Main and keel cooler coolant flushed and refilled

· Keel cooler cleaned and new anodes

· Bottom painted and new anodes

· PropSpeed on main prop

· Trawler mast and boom with Warn DC-1000 winches (2018)

· Winch cover (new 2025)

· Boom winch control plugs on boat deck and in cockpit

· Winch lines replaced with Dyneema (2018)

· Maxwell 3500 electric anchor windless with remote in pilothouse

· Windlass cover (2025)

· Rocna anchor (40 kilograms) (regalvanized 2023)

· 400+ feet of 5/16 inch chain

· Second anchor -- Fortress Guardian with chain and 5/8” rode

· Fresh and saltwater wash down (fore and aft)

· Stainless steel life raft holder (life raft out of inspection and removed)

· Sunshade awnings for foredeck and cockpit

· Storm covers for port side windows

· (2) fiberglass deck storage boxes -- foredeck and boat deck

· Freeman hatch access to forepeak

· Magma kayak racks

· Carlisle & Finch Searchlight

· LED spreader lights

· LED anchor, steaming, and aft navigation lights

· Starlink antenna

· Stern tie line and reel

· Propane locker on port side of Portuguese bridge -- (2) 20-gal aluminum tanks

· 50 amp and 30-amp electrical cord inlets

· 2001 Caribe DL11 RIB with 2013 Yamaha 25 HP outboard. Note: Built-in, underdeck fuel Tank has developed pin holes and cannot be used – six-gallon stand-alone tank is provided

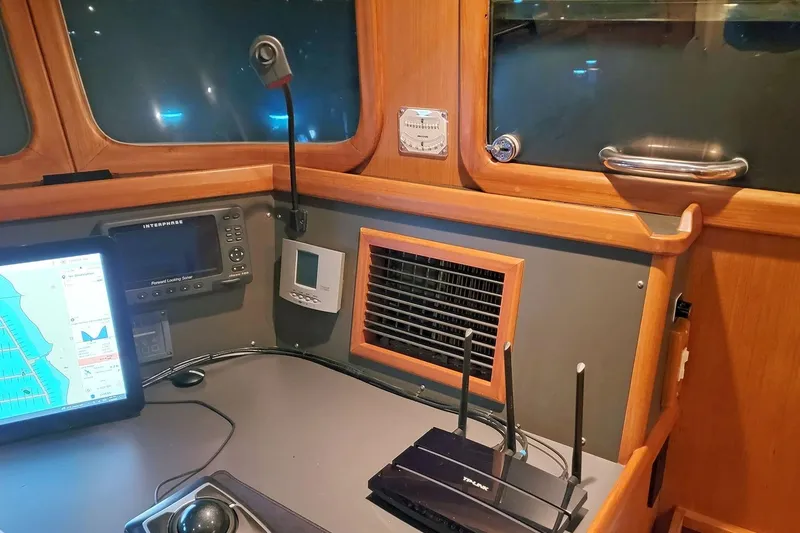

• Furuno Electronics suite
• Furuno FI70 Instruments (3) in Pilothouse (1) in master
• Furuno Satellite Compass
• Furuno TZ Touch 3, Digital Radar, Sounder, AIS, Autopilot Integration
• Nobeltec Time Zero PC with TZ Touch 3 Integration
• Simrad AP 48 Autopilot
• 1833 Furuno Navnet Radar
• ICOM M 127 VHF Radio, Second Standard Horizon VHF radio
• Ritchie Card Compass on Dash
• Vesper AIS Transceiver w/ Display
• Interphase Forward Looking sonar
• Tank Tender Monitor for Water (2), Holding (2) and Fuel Day Tank
