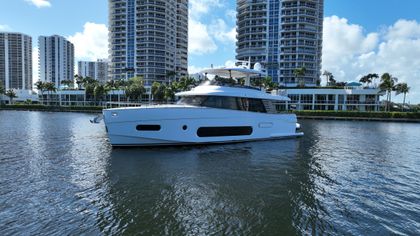

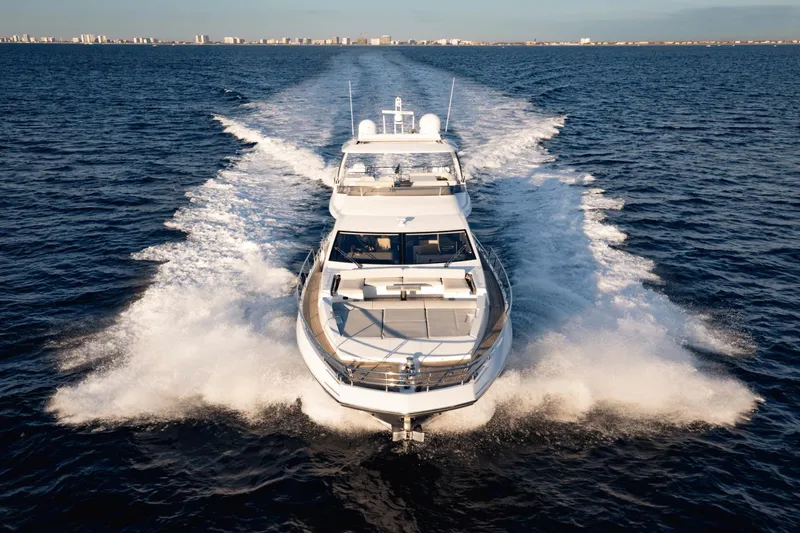

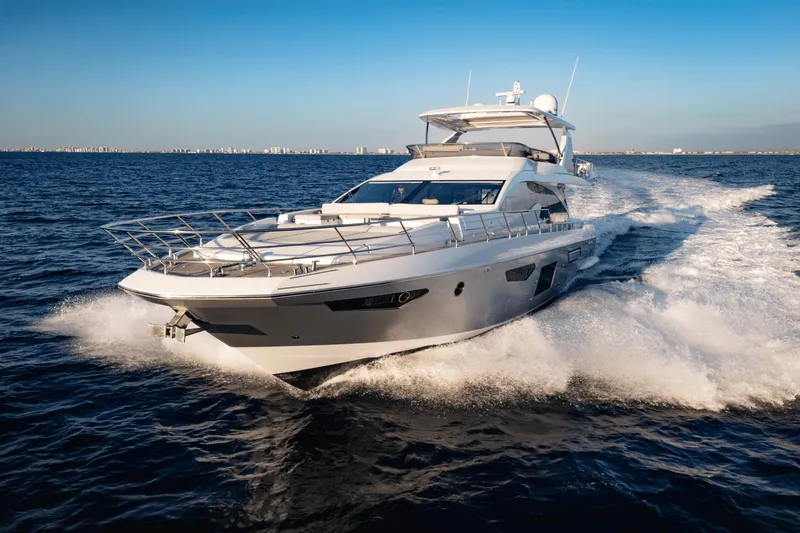

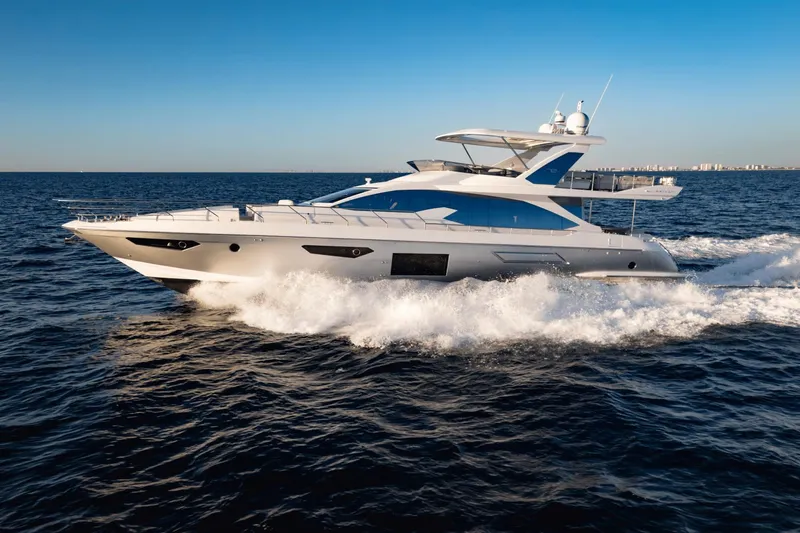

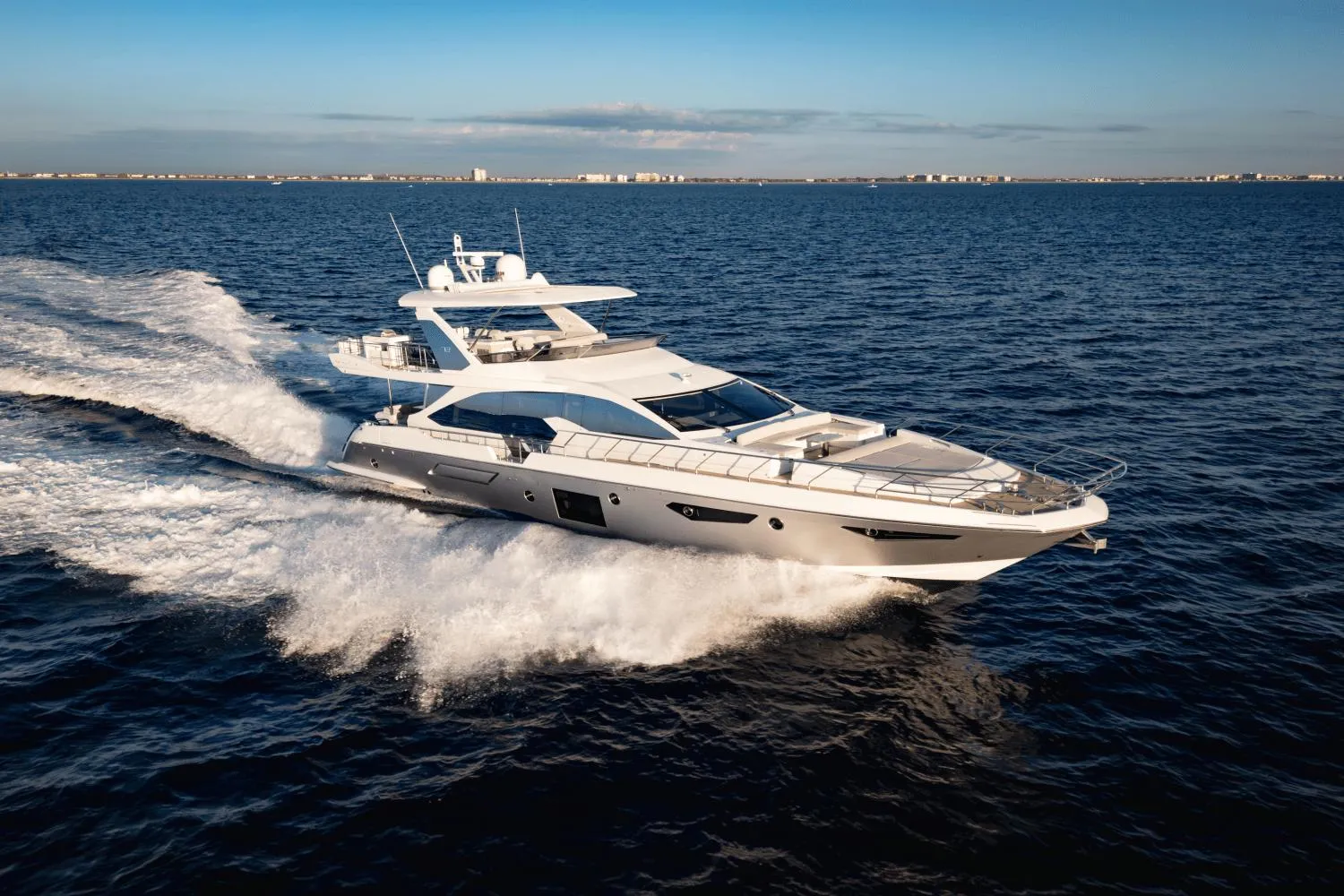

CIAO BELLA Yacht for Sale

Standard Features

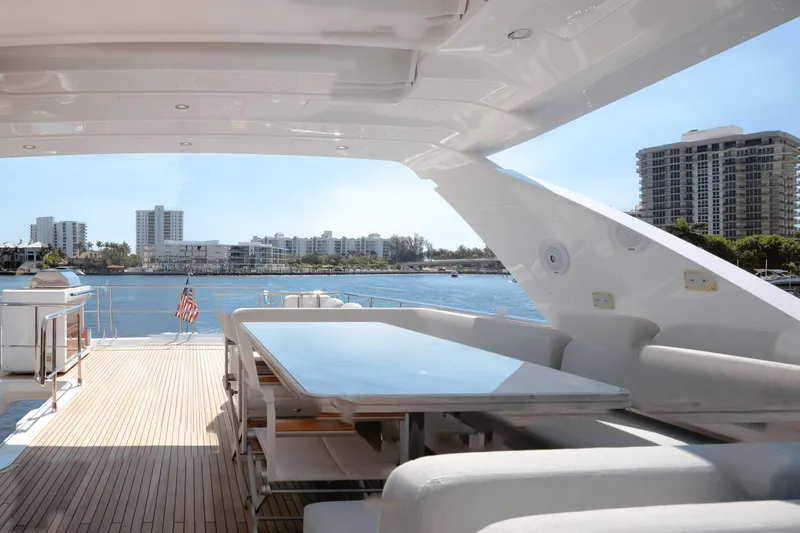

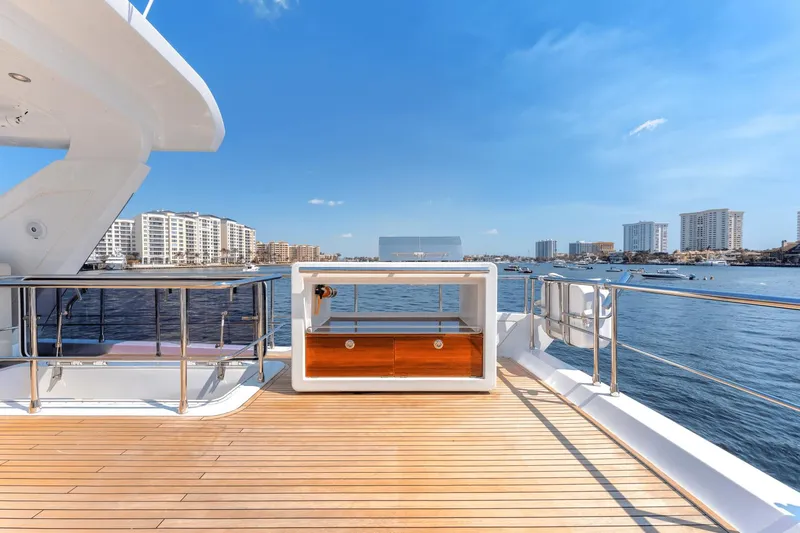

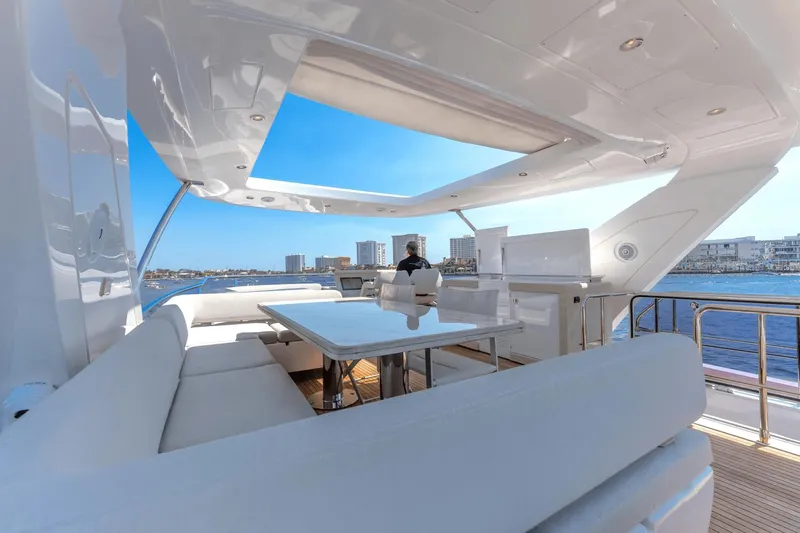

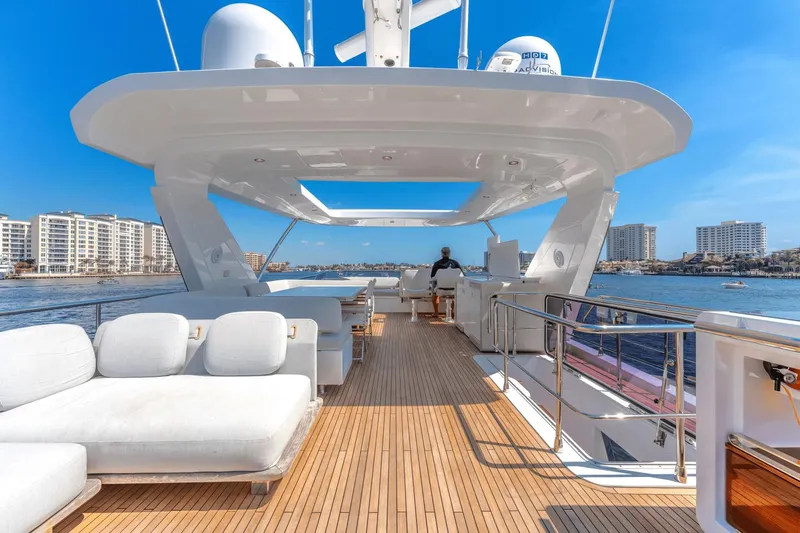

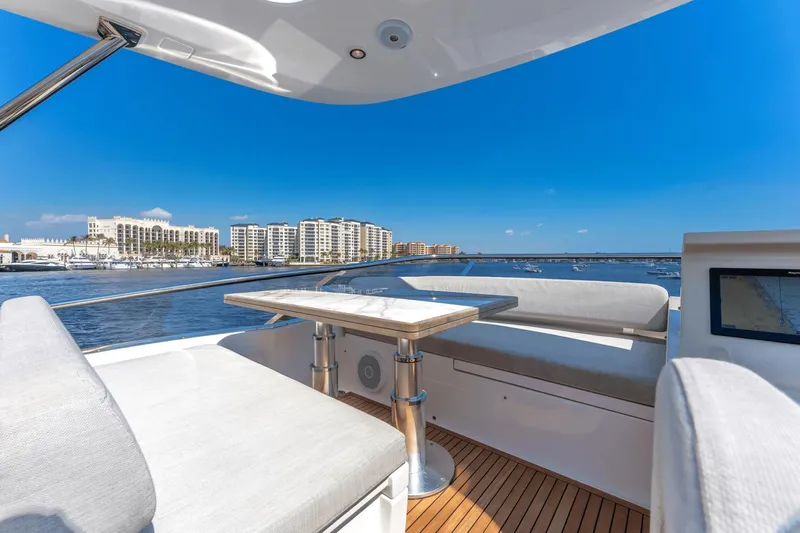

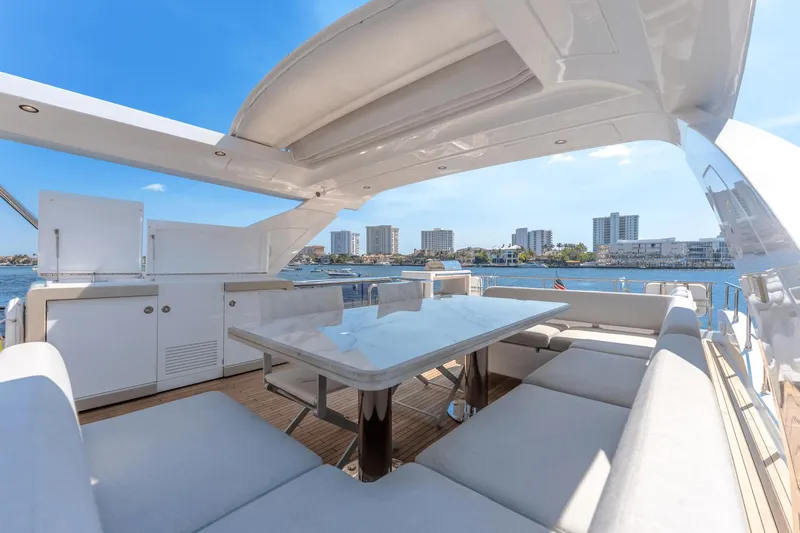

Flybridge

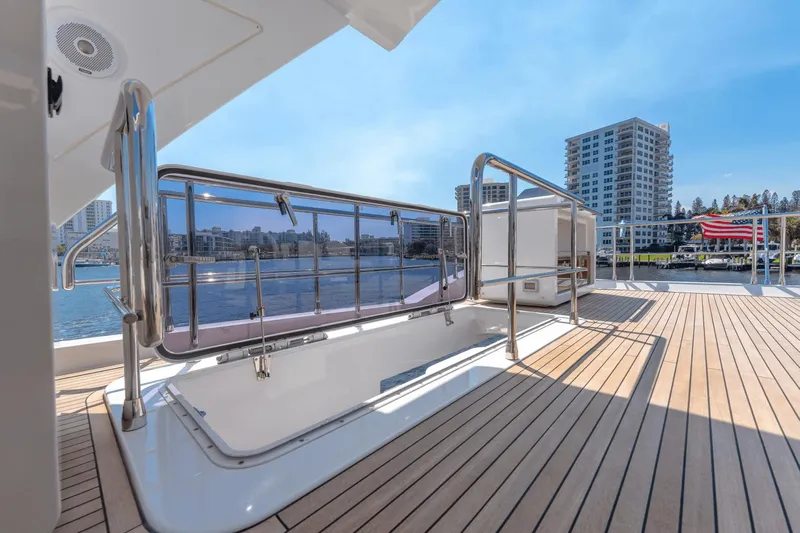

Accessible from the cockpit, via a teakcovered GRP ladder

- Helm seat with adjustable height for one person

- Adjustable steering wheel

- Teak table

- Two watertight loudspeakers

- Fore port sunbed area with cushions

- C-shaped seating area on port side

- Cup holder for passenger and pilot

- Plexiglas flybridge screen with black mat painted aluminum frame

- Roll bar in carbon fiber, steel and Plexiglas handrails

- MAN display

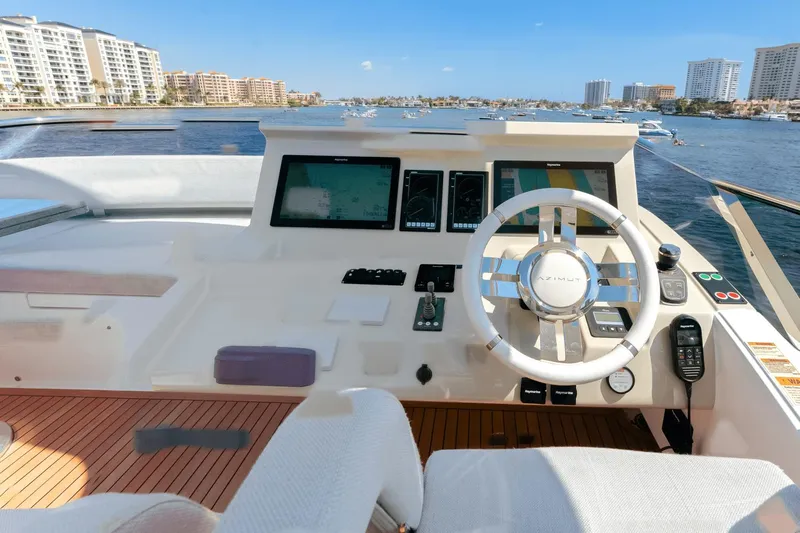

- The pilot console consists of:

- BRONZE series electronic navigation instruments

- Communication systems (VHF)

- Engine start-up

- Steering wheel

- Bow thruster controls

- Bow anchor windlass control

- Audible alarm controls

- Trim tab controls

- 12 V socket

- Chain meter counter controls

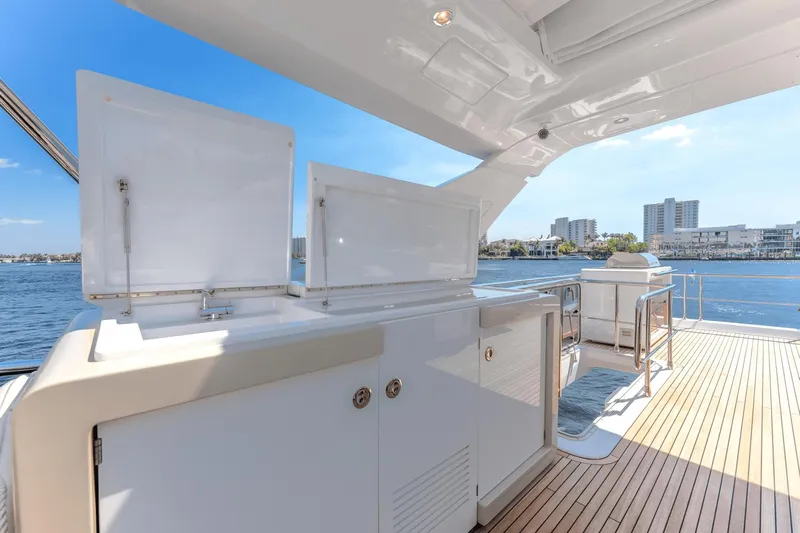

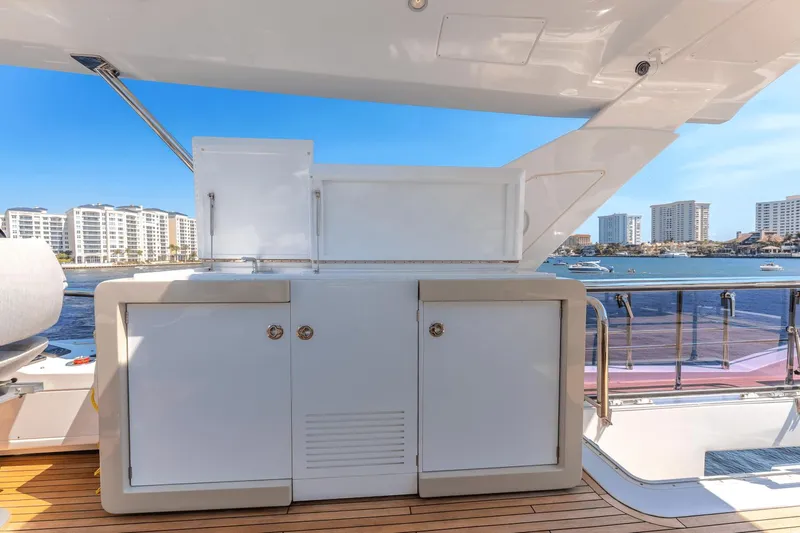

- Bar cabinet, with:

- Sink built into cabinet with retractable water tap

- Fridge

- Waste bin

- LED navigation lights

- Non-slip floor

- Access door

- Table with fix stainless steel legs

- Scuppers

- Lights mast

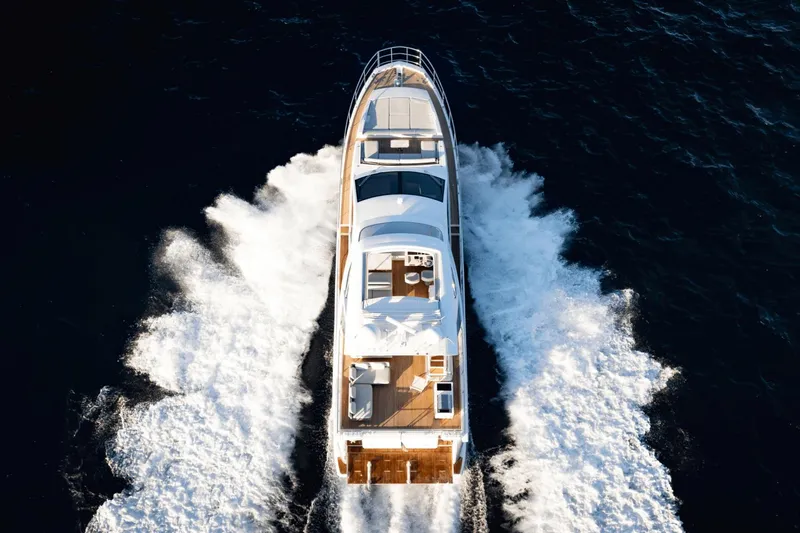

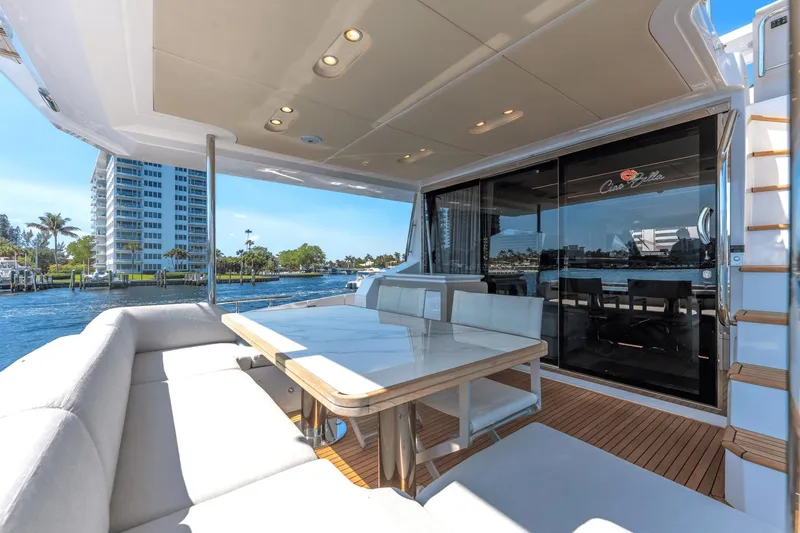

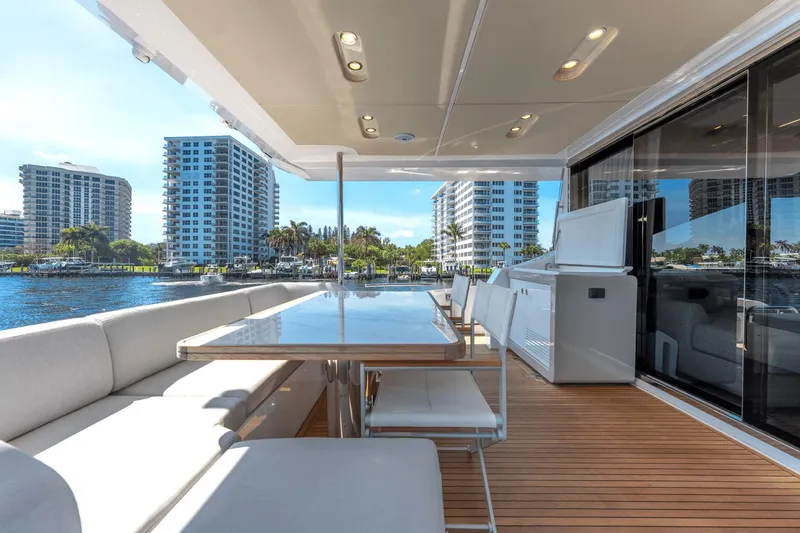

Deck and Cockpit

Access via gates from both sides (in 316 stainless steel) and via gangway (upon request)

- Stainless steel 316 pulpit

- Two mooring stations (one per side)

- Stainless steel 316 chocks

- Thick tempered glass windows glued to the surrounding structure without any metal frame

- Watertight side door on superstructure for access to saloon from starboard side

- Rubber rub-rail with stainless steel insert along the hull side

- Refueling plug and fresh water refill plug on side walk arounds

- Black water tank suction point on walk arounds

- Gray water tank suction point on walk arounds

- Walk arounds: teak covering

- Electric windows on port side (galley)

- Two side boarding gates on washboard, in stern cockpit

- Four openable line-holder lockers on bulwarks

- Two lockers and side compartments (below the mooring stations)

- Fender-holder locker in transom

- Shoe rack in cockpit starboard seating area

- Mooring winches

- Stern mooring bollards in 316 stainless steel

- Saloon access door with three stainless steel/glass panels

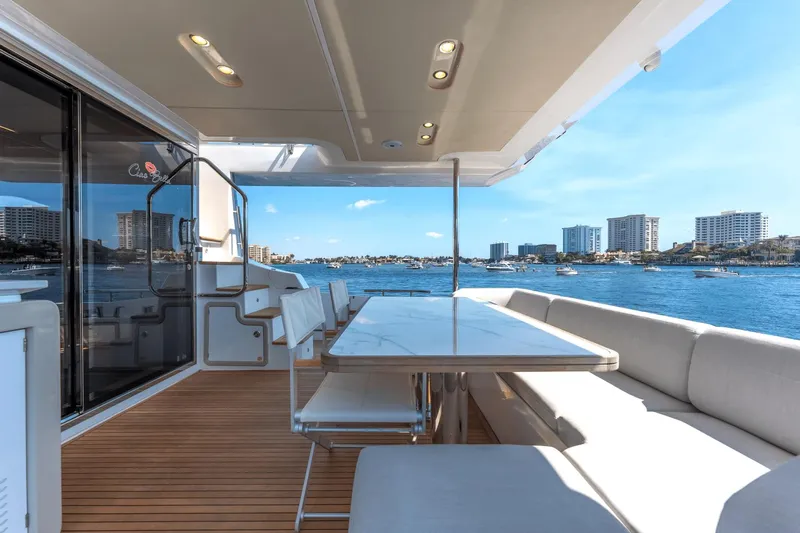

- Cockpit bench

- Access to engine room via pantograph door in transom (port side) and escape hatch in cockpit floor

- Lighting: LED spotlights on ceiling

- Bathing platform lighting

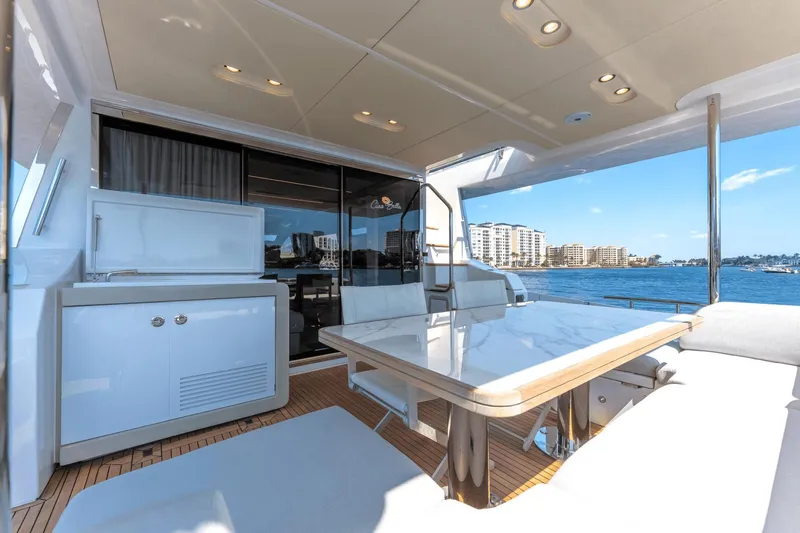

- Teak table in cockpit

- Flybridge access stairs handrail

- Two shore water intakes

- Hydraulic platform

- Shower with hot and cold blender tap

- Manual swimming ladder (starboard side)

- INSTALLABLE TENDER (OPT):

- MAXIMUM DIMENSIONS OF TENDER - PLATFORM: 3.90 x 1.76 m (12'10'' x 5'9'')

- MAXIMUM DIMENSIONS OF TENDER - FLYBRIDGE: 3.30 x 1.70 m (10'10'' x 5'7'')

- MAXIMUM INSTALLABLE LIFT LOAD: 840 kg (1851.88 lb) (the above value considers 640 kg (1410.96 lb) of water toys + 200 kg (440.92 lb) for operators and various accessories)

- RECOMMENDED TENDER - PLATFORM: Pirelli J39

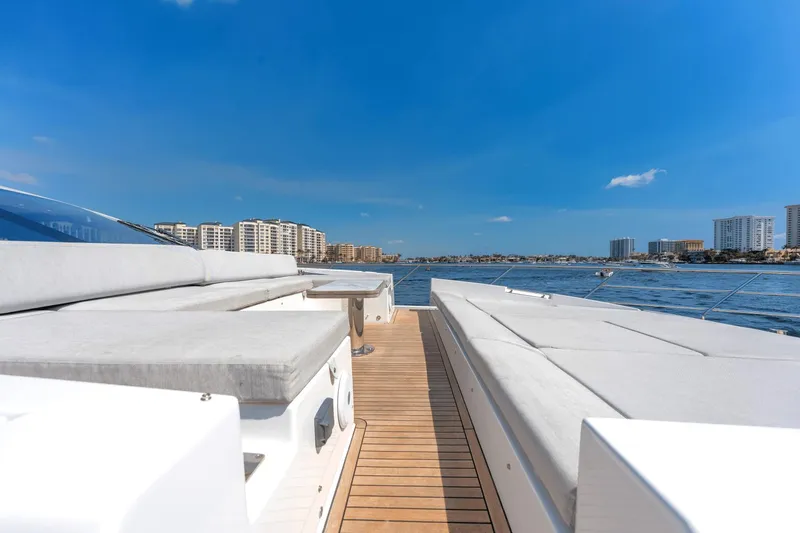

Bow

- 2300 W windlass

- Anchor winch controls

- Chain locker accessible through hatch provided with drainage

- Storage locker under fore sofa

- Awning pole storage locker under fore sofa

- Fender storage in fore service compartment

- Chain washing / fire extinguishing system

- Anchor roller

- Two windscreen wipers

- Two stainless steel bollards (one per side)

- Bow hatch (emergency exit from VIP cabin) Sofa, facing the bow, with removable cushions for outdoors

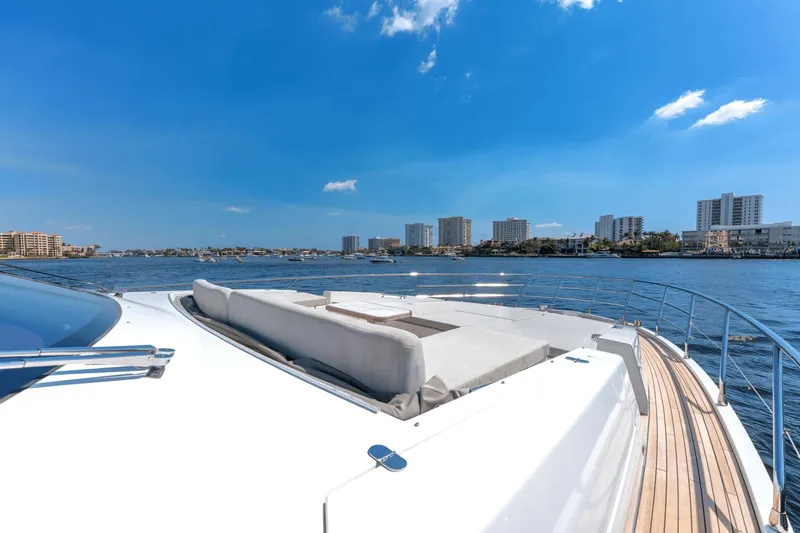

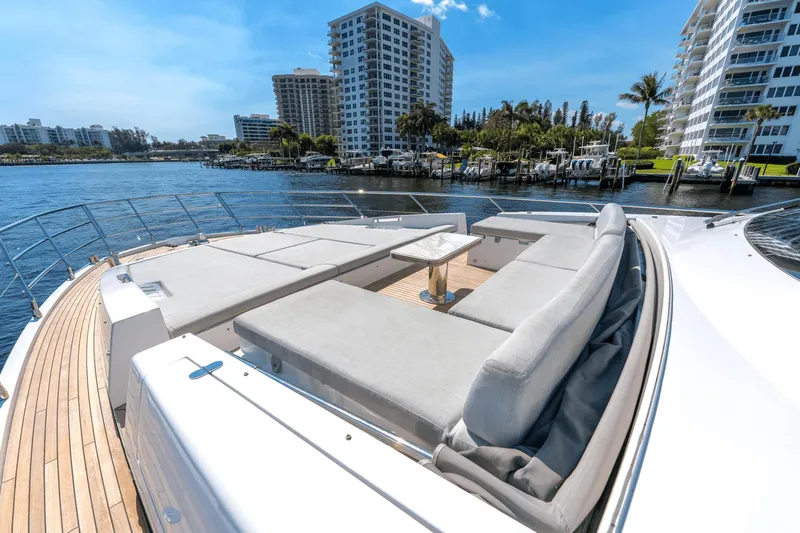

- Fore sunbed area with removable cushions in fabric for outdoors

- Stainless steel anchor line anti-rubbing protection

- Scuppers

- Net covers for side windows and windscreen

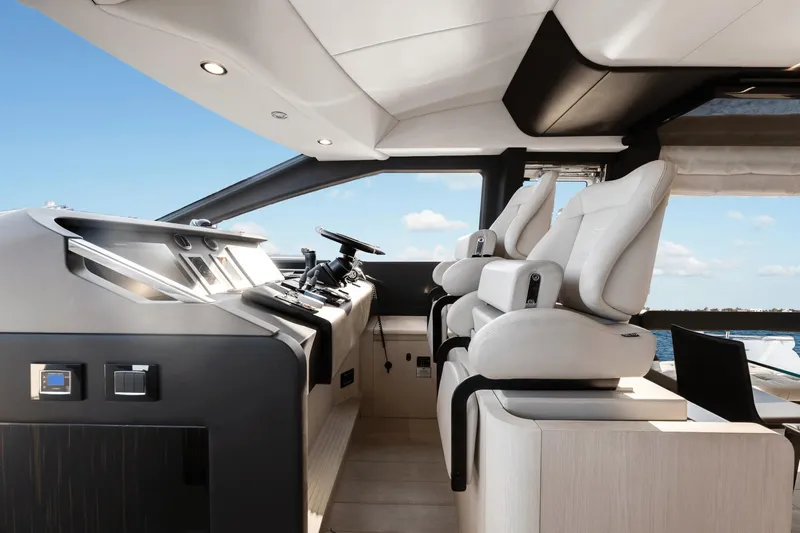

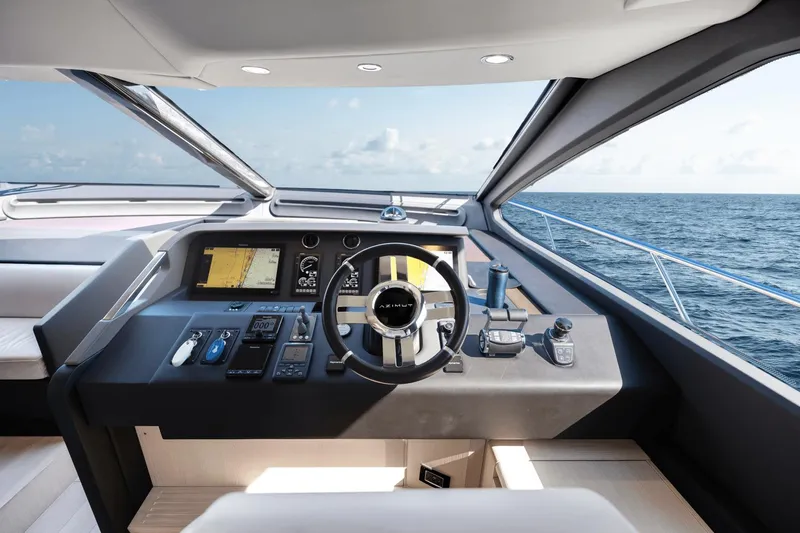

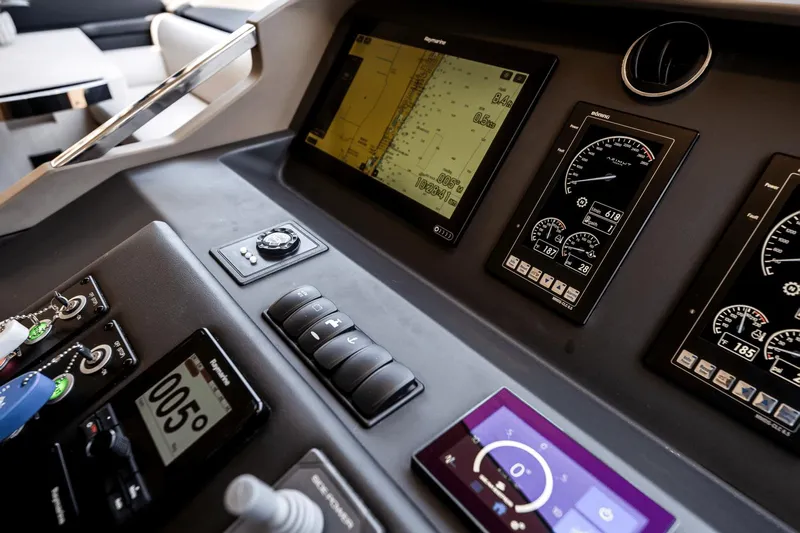

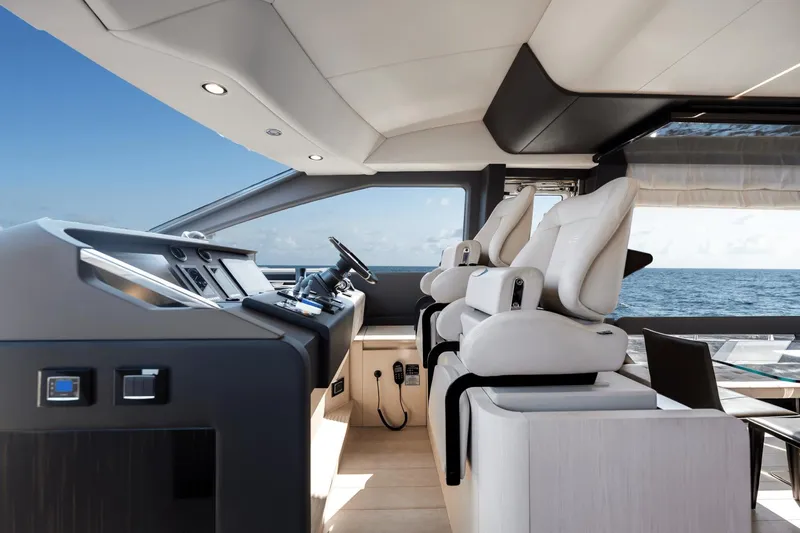

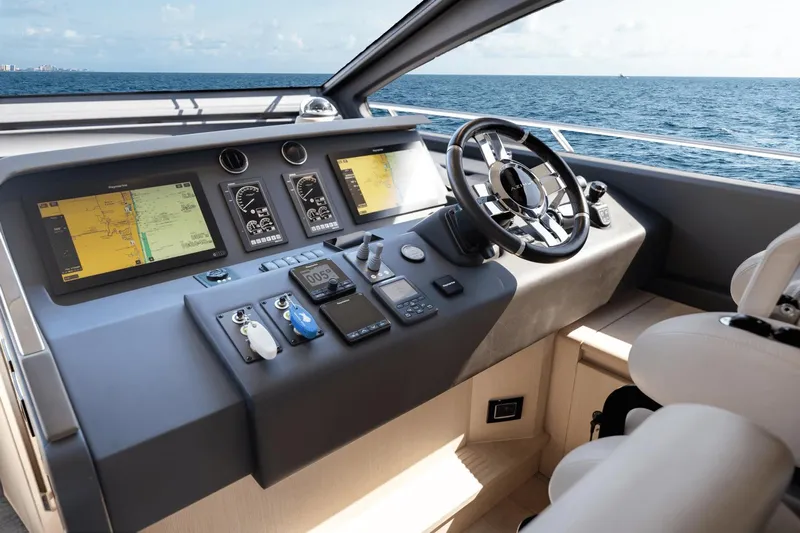

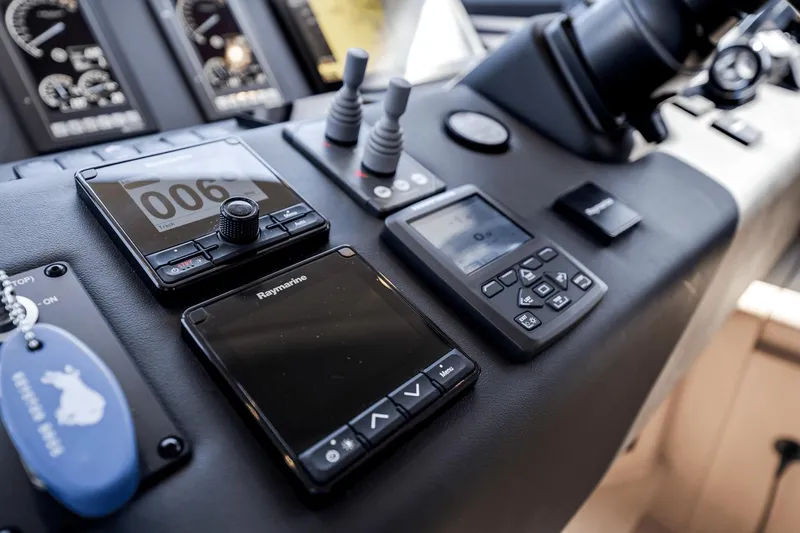

Wheelhouse

- Access via watertight door from starboard walk around

- Rudder angle indicator

- MAN control instruments

- 12 V socket

- Automatic pilot

- One electrically adjustable helm seat

- Adjustable steel rudder

- Chain meter counter

- Magnetic compass

- 24 V + 220 V electric panel

- Cigarette lighter 12 V socket

- Controls for:

- Activation of: bow anchor windlasses, searchlight, bow-thruster, windscreen wiper-washer, intruder, chain washing pump

- Engine start-up

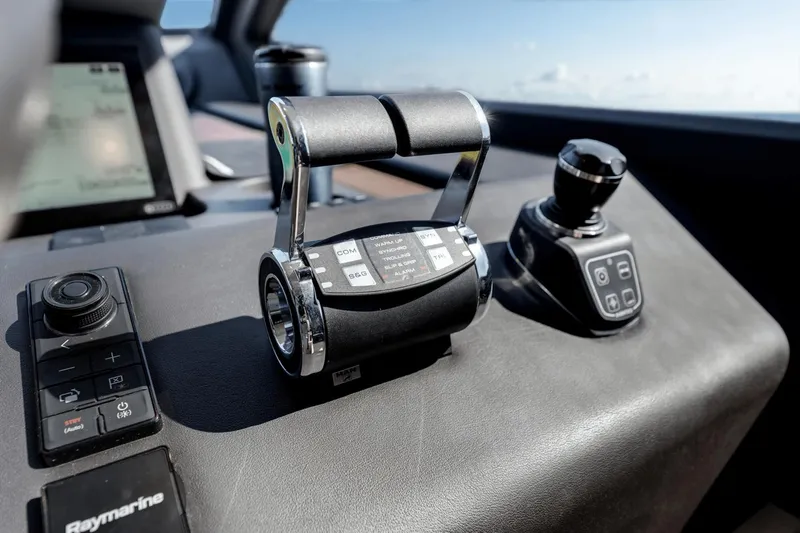

- Electronic engine remote controls (thrust levers)

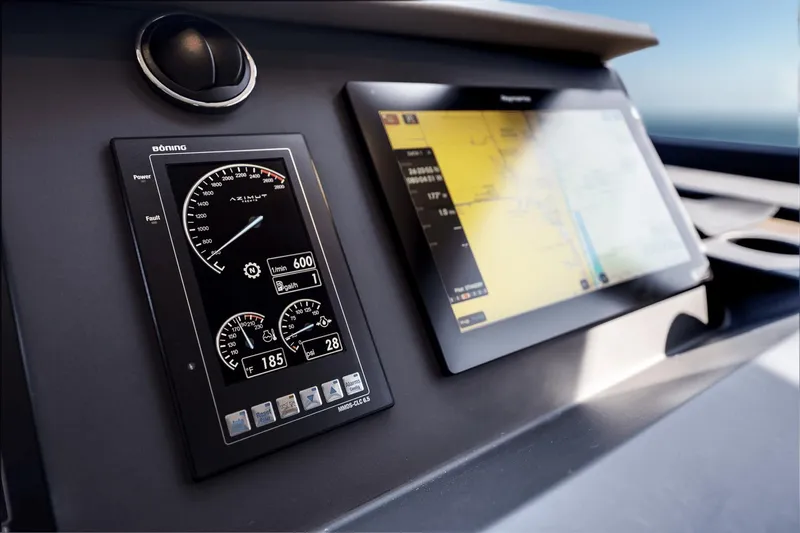

- Multifunction display (built-in)

- Alarm indicator lights for: bow bilge, engine room bilge, rudder hold bilge, high gray water level, high black water level, Racor filters, navigation lights, shore power sockets, low battery voltage, low diesel level

- Fresh water level gage

- Black water level gage

- Gray water level gage

- Diesel level gage

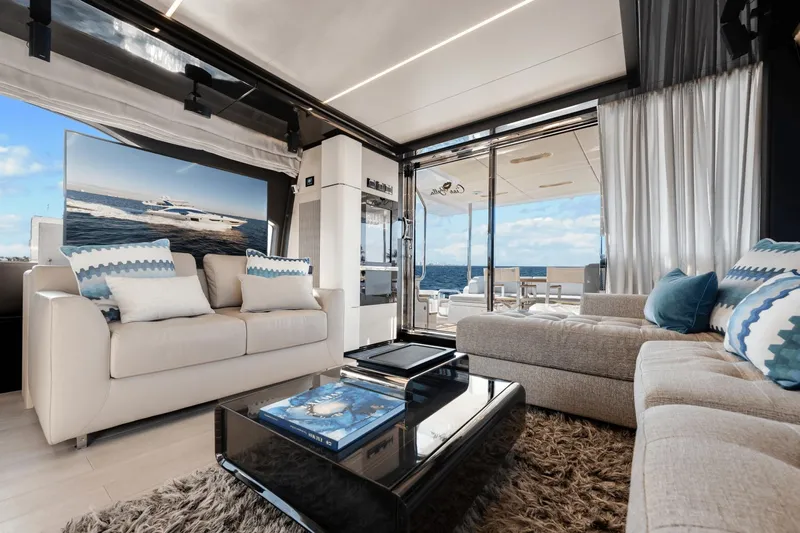

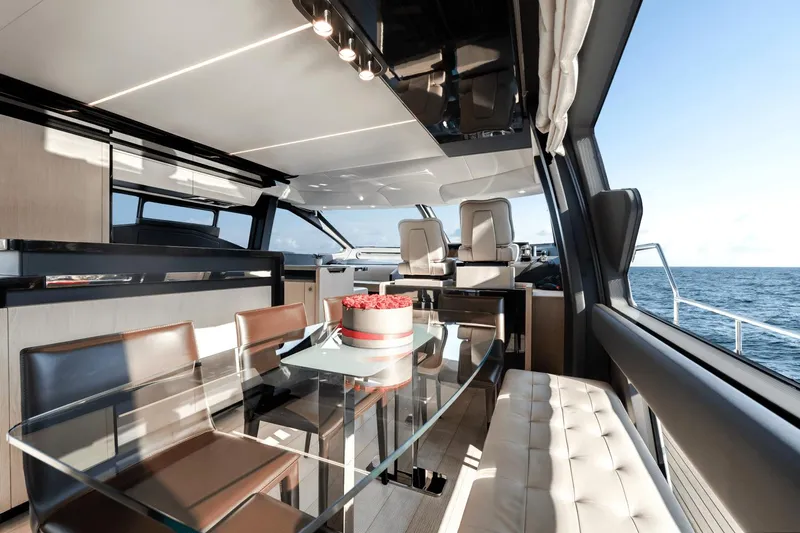

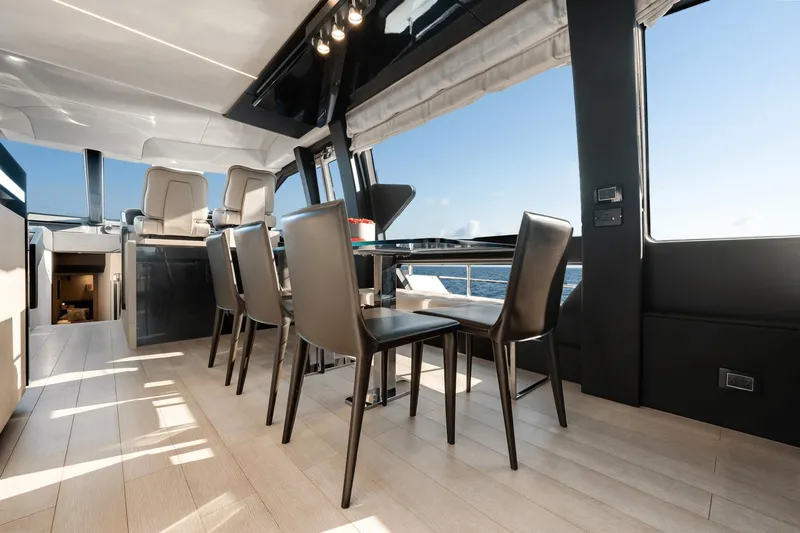

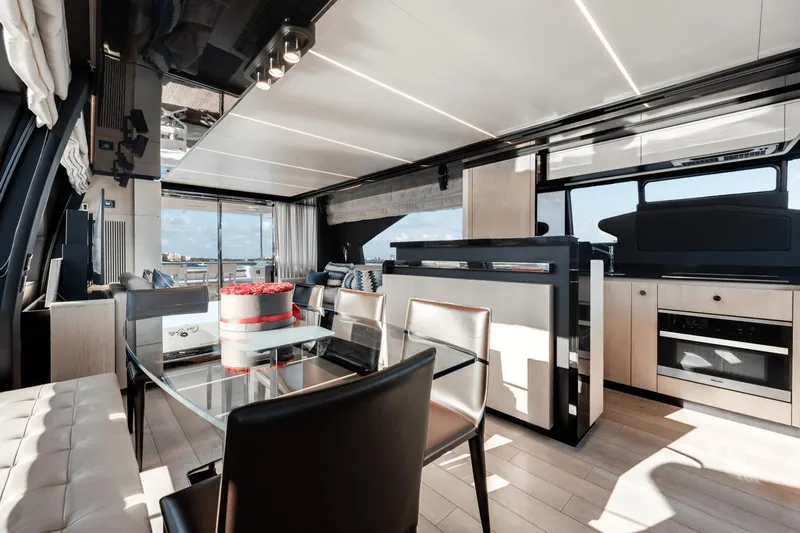

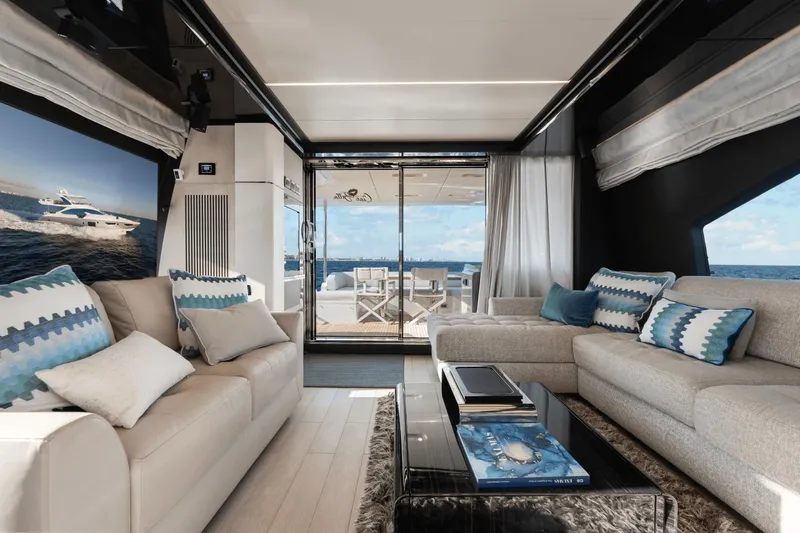

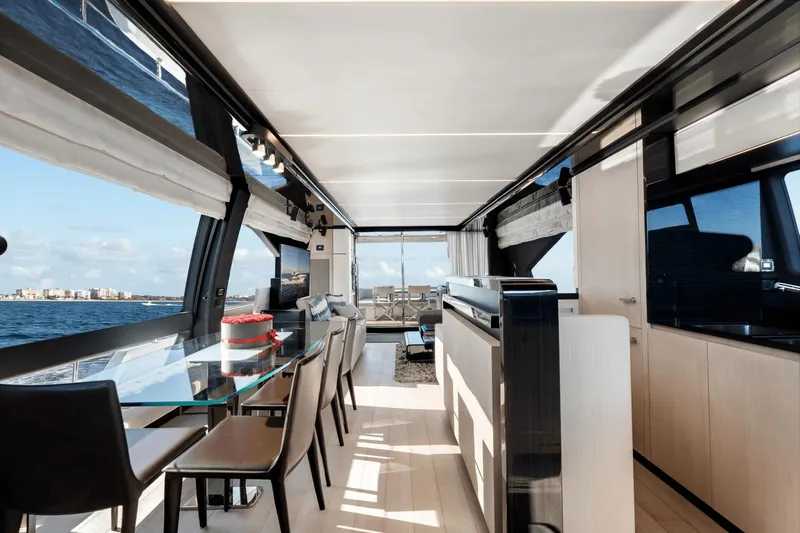

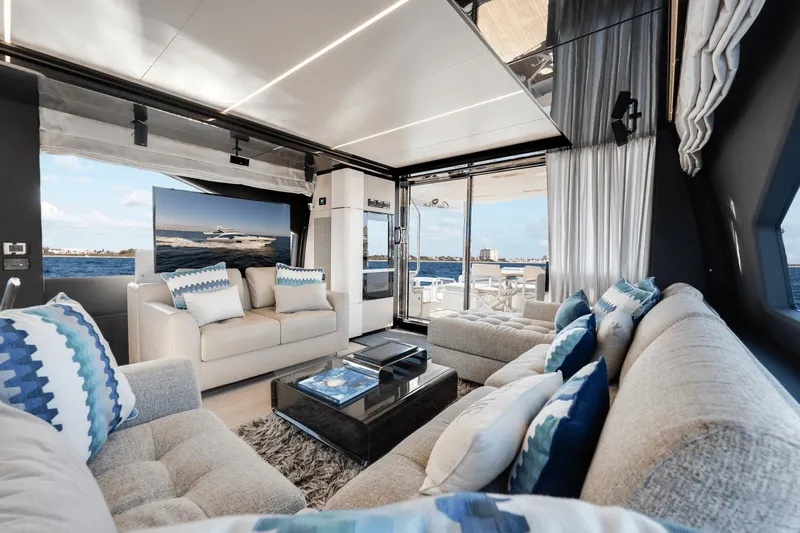

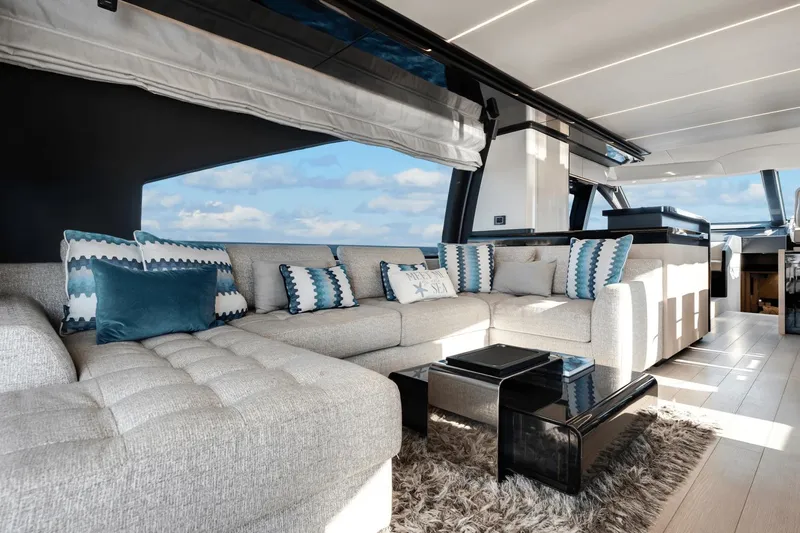

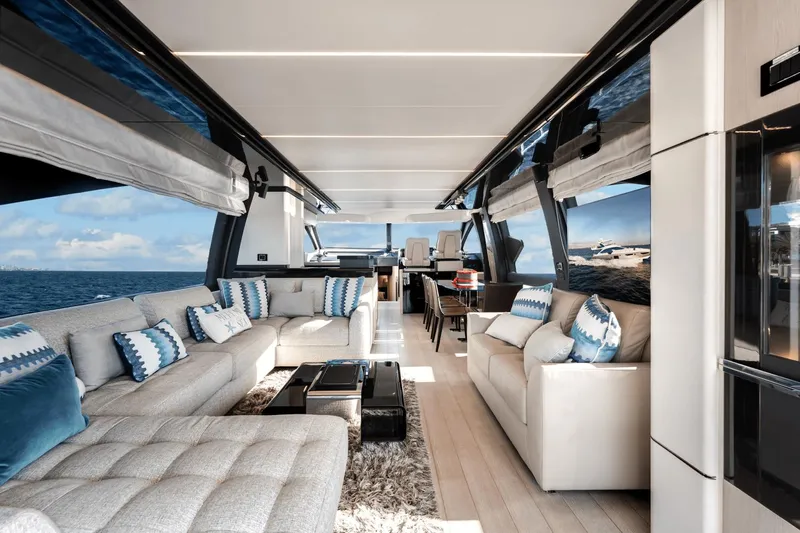

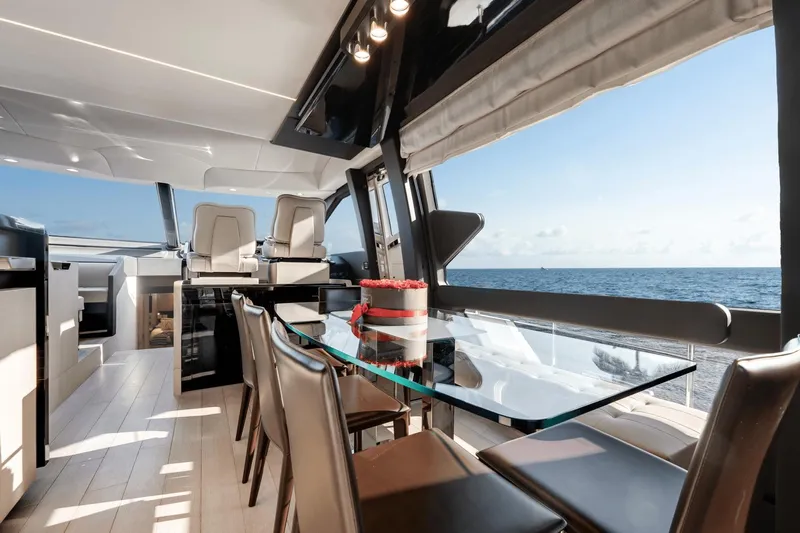

Saloon

- Carpeted floor

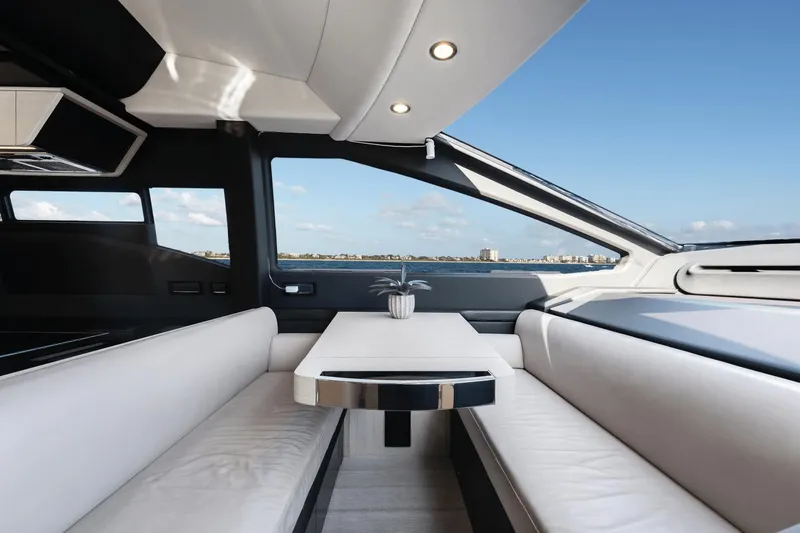

- Fore dinette, facing the bow, on port side with sofa + table (four-seats)

- Aft sofas (eight seats) with storage

- Cabinet at saloon entrance (starboard side), with integrated glass-holder

- TV system with aerial

- Dining table on starboard side of saloon for eight people, with four chairs and four seater "L" shaped bench

- Set of wooden furniture

- Cabinet for tableware beneath the helm seat

- Stairs leading below deck (in bow area)

- Roman blinds

- Saloon door blind

- Lighting with LED strip + spotlights

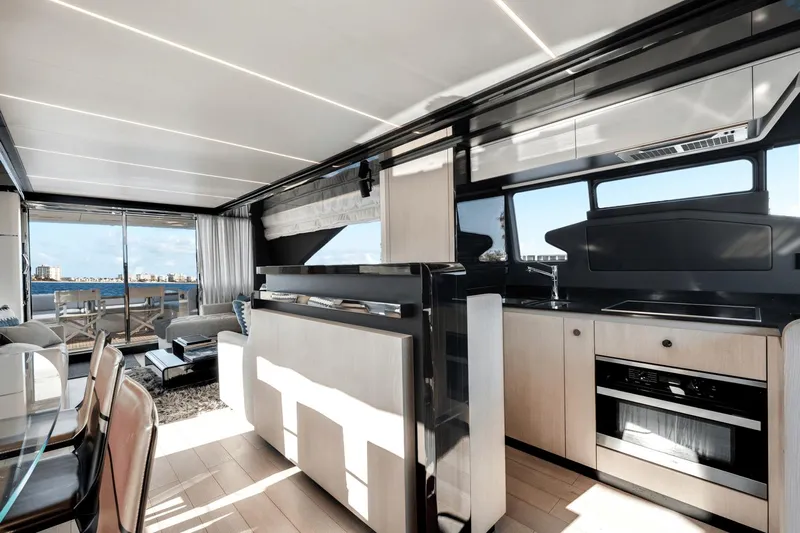

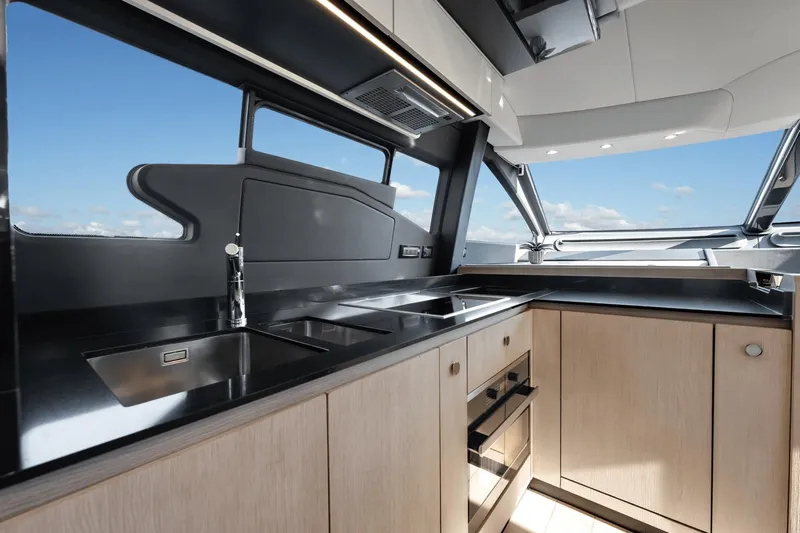

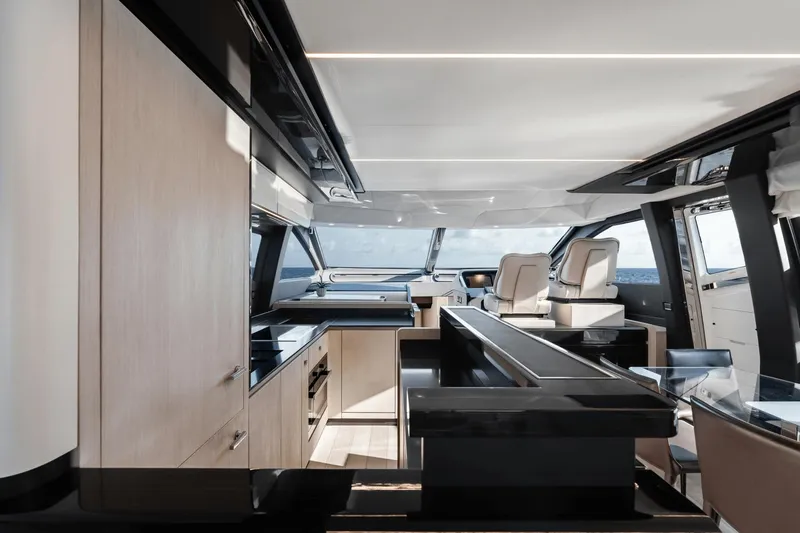

Galley

- Hood integrated in the wall cabinet

- Resin floor

- Window with electric opening

- Corian worktop and riser

- One stainless steel sink

- Drawers and wall cabinets

- Ceramic glass four-hob range with silicone pot holder

- 20 l (0.70 cu.ft) microwave oven with grill

- 240 l (8.47 cu.ft) Fridge / Freezer

- Waste bin

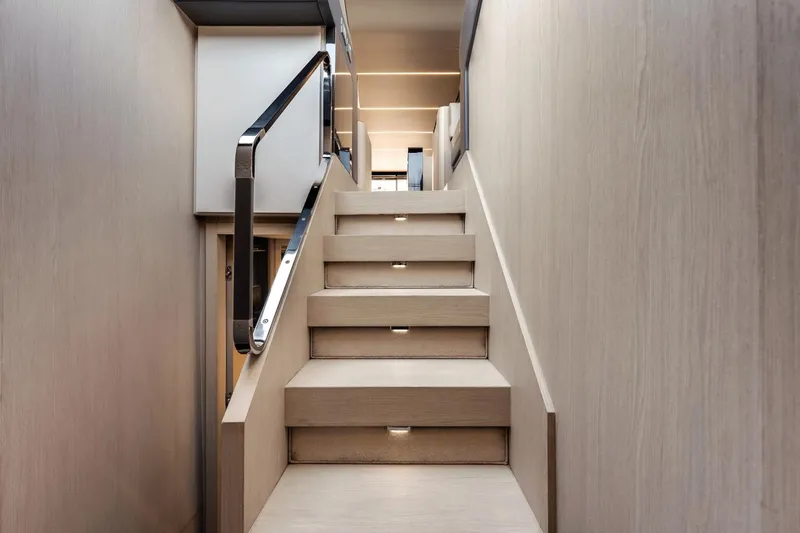

Corridor to access below-deck area

- Carpeted floor

- Spotlights

- Two storage lockers

- Wooden bulwark upholstery

- Handrail on stairs

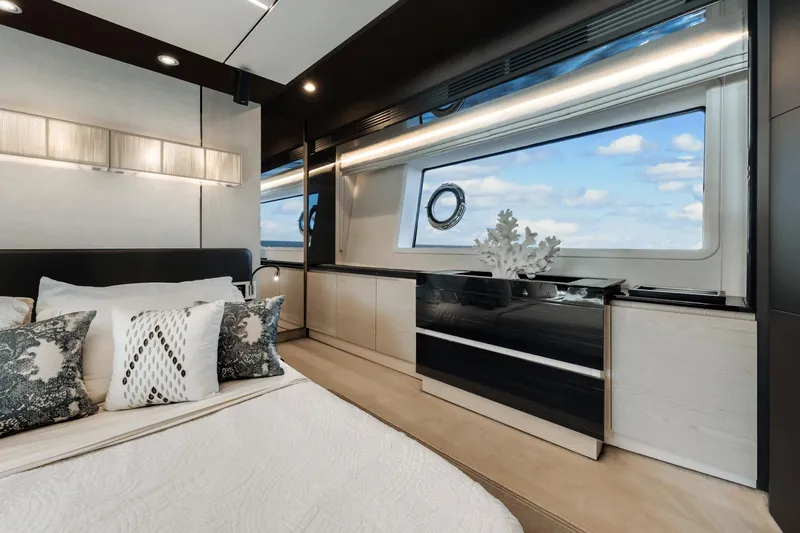

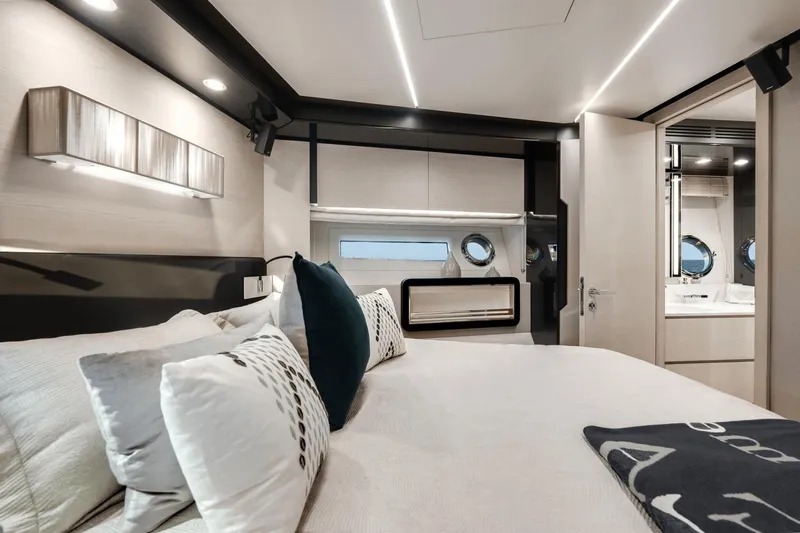

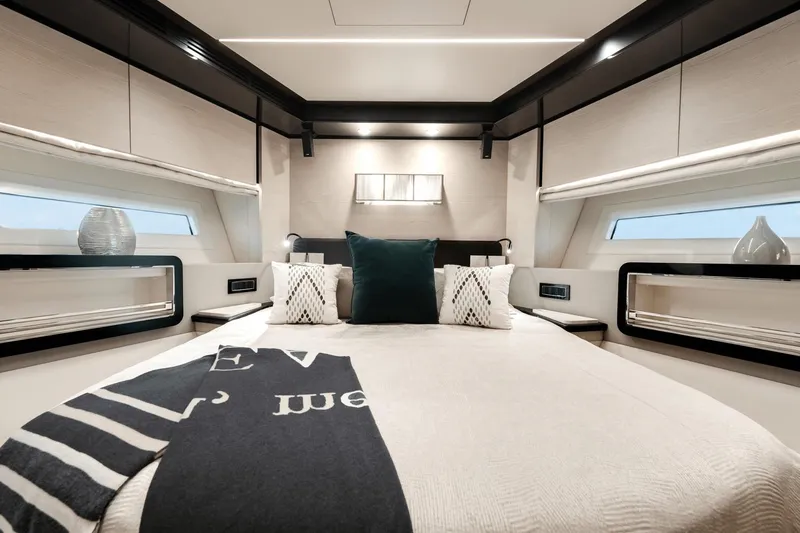

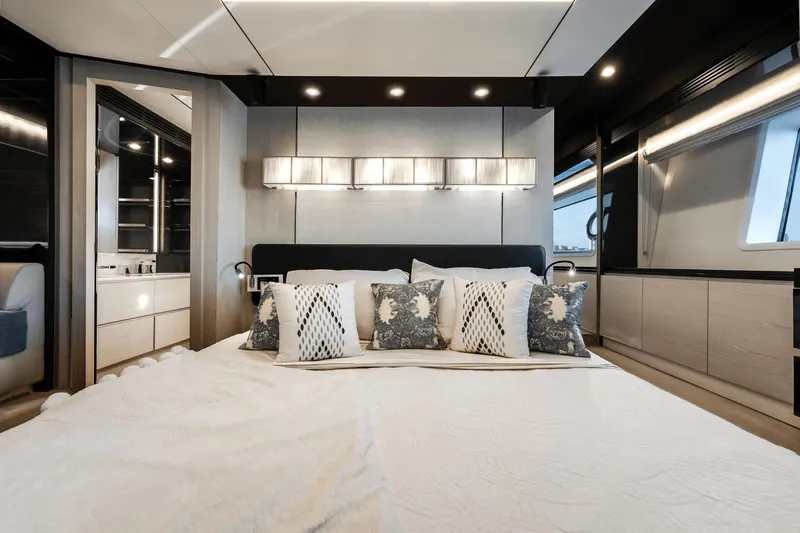

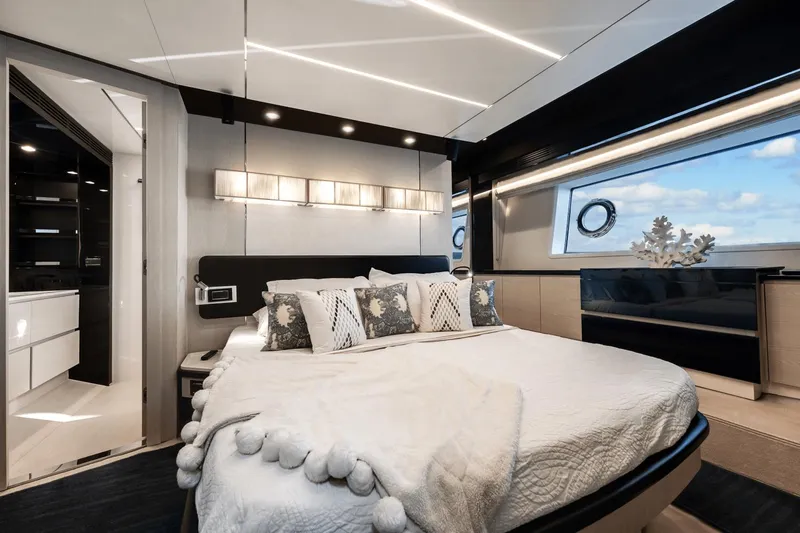

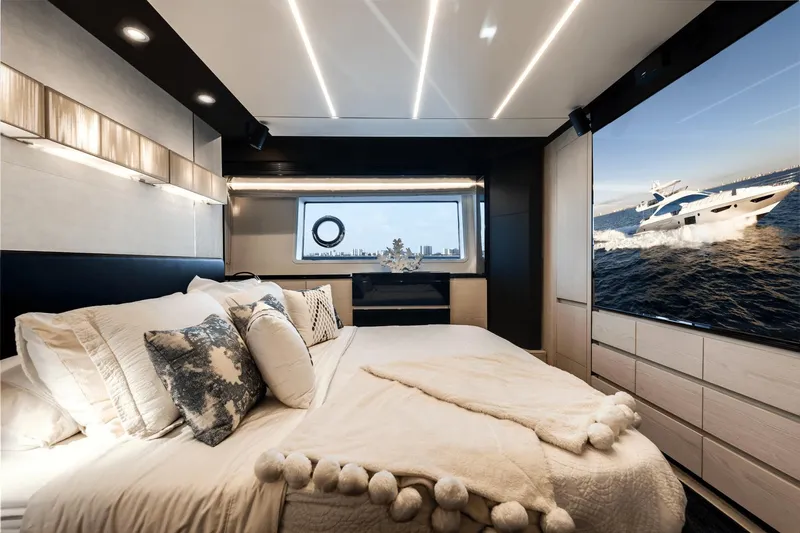

Owner’s cabin

- Accessed from corridor

- Double bed + storage

- Mattress, pillows and bedspread

- Fabric-upholstered headboard and wall

- Chaise longue on starboard side

- Two headboard wall lights

- Set of wooden furniture

- Port aft dressing

- Storage chest of drawers on port side

- Provision for TV system

- LED spotlights

- Two openable portlights (one per side)

- Two windows (one per side)

- Venetian blinds

- Carpeted floor

- Direct access to head

- Ceiling with Lacquered + wood essence strips

- Sockets

- Mirrors on dressing door panels and head door

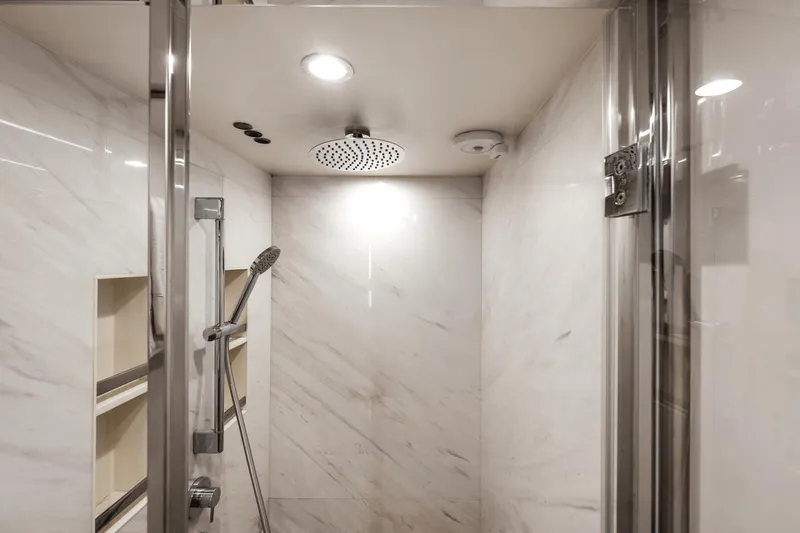

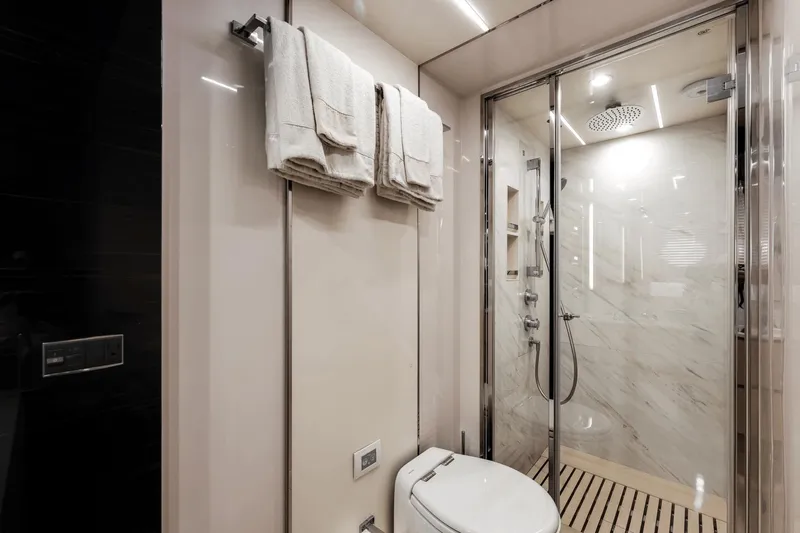

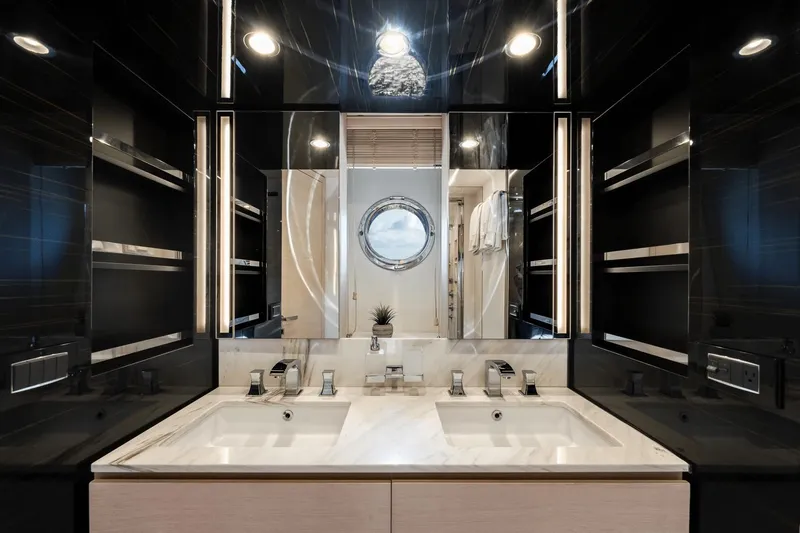

Owner's head

- Access from owner's cabin

- TECMA toilet

- Two washbasins with top in quartzite

- Two blenders

- Flush-mounting mixer tap for shower

- Black shower enclosure with glass and iroko grating

- Lacquered soap-dish in shower

- Two cabinets + two wall cabinets

- Resin floor

- LED spotlights

- One openable portlight with curtain

- One air extractor

- Chrome head accessories

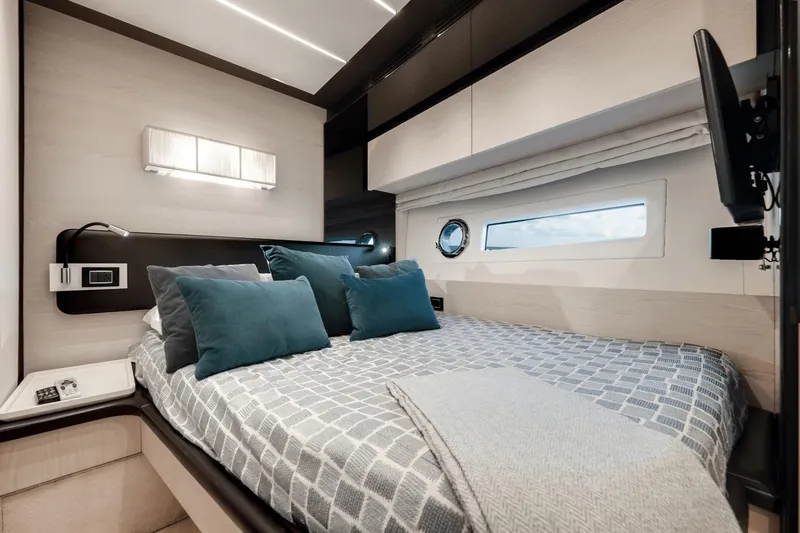

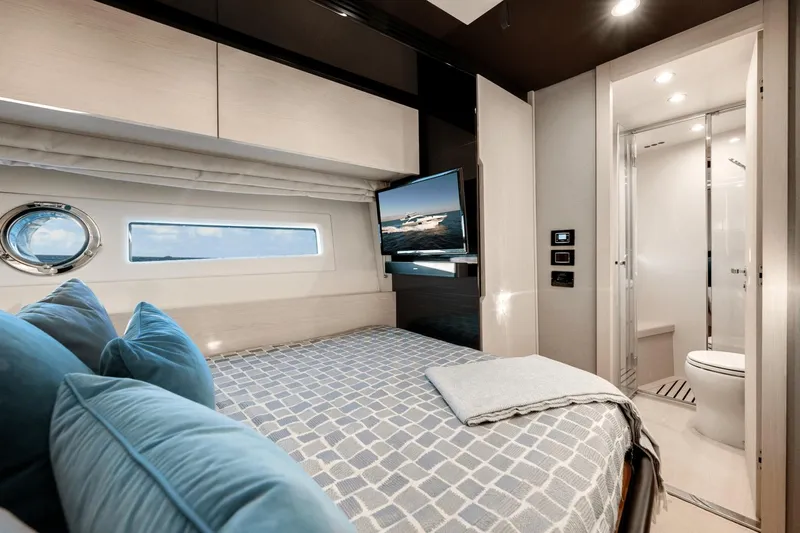

Guest cabin (port side)

- One double bed with storage

- Mattress, pillows and bedspread

- Fabric-upholstered headboard and wall

- Set of wooden furniture

- One wardrobe

- One bedside table

- Fabric bulwark upholstery

- Two wall lights

- Lighting with LED strip and spotlights

- Window with one openable portlight

- Venetian blinds

- Direct access to head

- Provision for TV system

- Carpeted floor

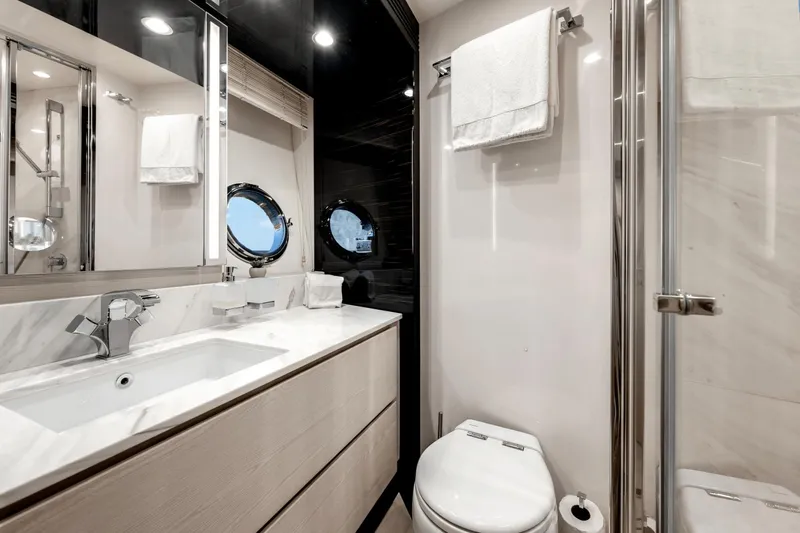

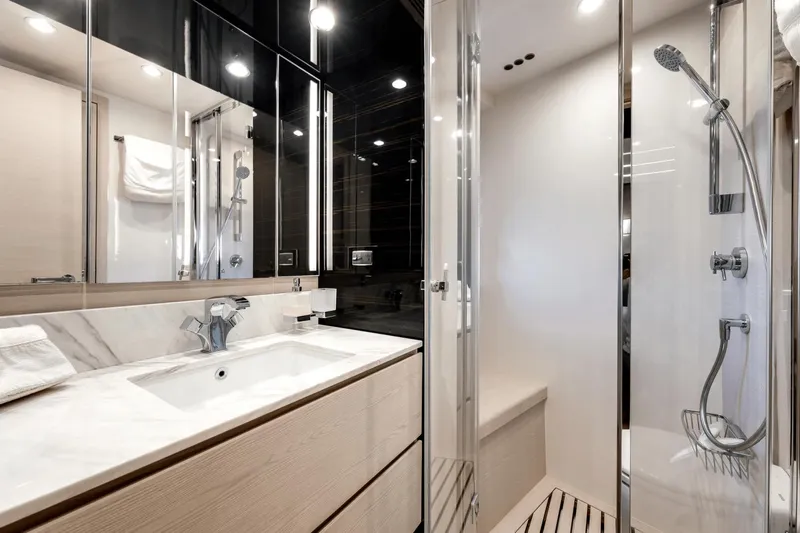

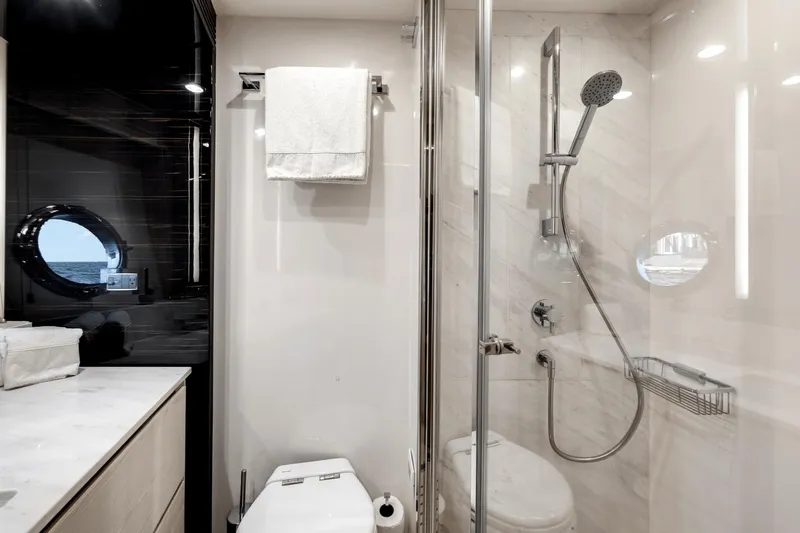

Guest head (port side)

Access from port guest cabin and from corridor

- TECMA toilet

- One washbasin with quartzite top

- One blender

- Black shower enclosure with glass panels

- Stainless steel soap-dish in shower

- One wall cabinet

- Resin floor

- LED spotlights

- One openable round portlight with curtain

- One air extractor

- Chrome head accessories

- Venetian blind

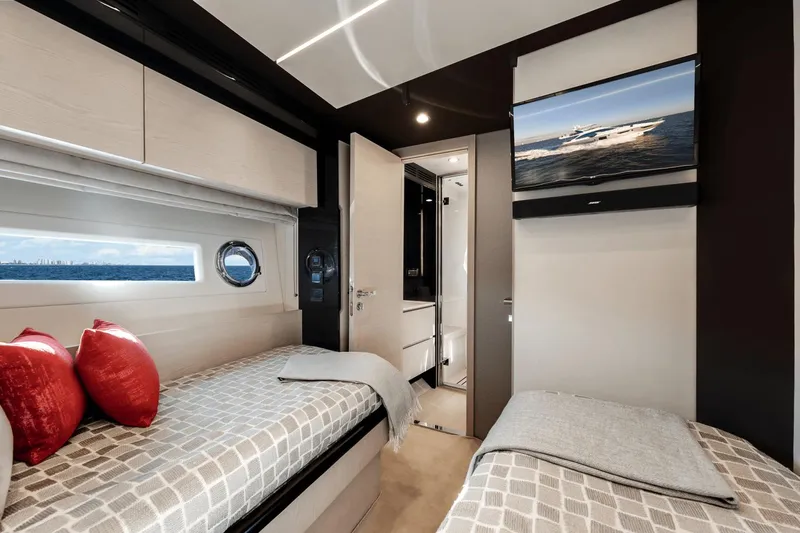

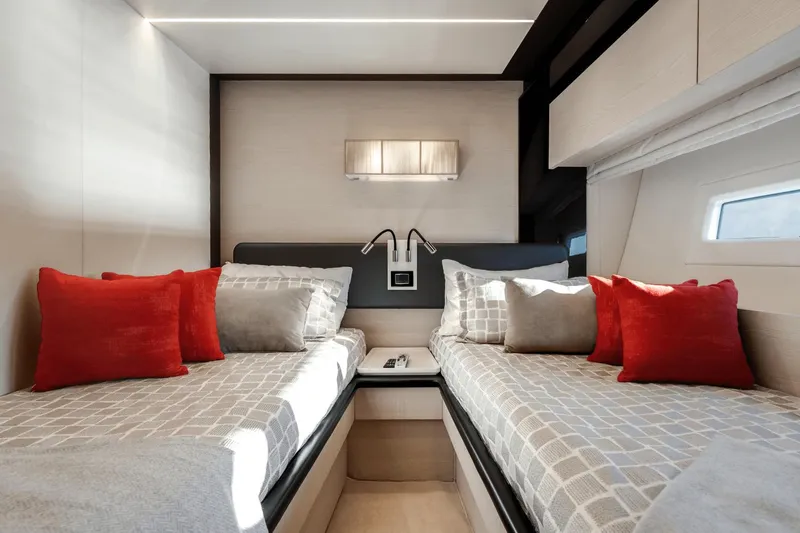

Guest cabin (starboard side)

- Two single beds with storage

- Mattress, pillows and bedspread

- Fabric-upholstered headboard and wall

- Set of wooden furniture

- One wardrobe

- One bedside table

- Window with one openable portlight

- Provision for TV system

- Carpeted floor

- Two wall lights

- Direct access to head

- Lighting with LED strip and spotlights

- Venetian blinds

Guest head (starboard side)

Access from starboard side guest cabin

- TECMA toilet

- One washbasin with quartzite top

- One blender

- Black shower enclosure with glass panels

- Stainless steel soap-dish in shower

- One wall cabinet

- Resin floor

- LED spotlights

- One openable portlight with curtain

- One air extractor

- Head accessories

- Venetian blind

VIP cabin

- Double bed with storage

- Mattress, pillows and bedspread

- Fabric-upholstered headboard and wall

- Set of wooden furniture

- Two wardrobes

- Two storage wall cabinets

-Two headboard wall lights

- Lighting with LED strip and spotlights

- Windows with two openable portlights (one per side)

- Hatch for emergency exit onto fore sunbed area

- Direct access to head

- Provision for TV system

- Carpeted floor

- Venetian blinds

- Fabric-upholstered bulwarks

- Sockets

- Mirror on wardrobe panels

VIP head

Access from VIP cabin

- TECMA toilet

- One washbasin with quartzite top

- One blender

- Black shower enclosure with glass panels

- Stainless steel soap-dish in shower

- Underbasin cabinet with drawer

- Resin floor

- LED spotlights

- One openable round portlight with curtain

- One air extractor

- Head accessories

- Venetian blind

Crew room

Consisting of two rooms: a cabin with portlight for the commander and a shared crew room.

- Both cabins are provided with:

- One bed

- Mattress, pillow, and bedspread

- Laminate flooring

- Set of laminated furniture

- Storage cabinets

- Access to the crew area via the transom

- One escape hatch in the shared room

Crew head

- TECMA toilet

- Cabinet with sink

- Mixer tap

- Shower with curtain and grating

- Chrome soap-dish and glass holder

- One openable portlight with curtain

Electric system

Main characteristics

- The voltage levels on the boat are as follows: 230 V AC - 50 Hz (110 V for 60 Hz version), 24 V DC, 12 V DC

- The main electric panels are installed in:

- Crew room astern

- Wheelhouse

- Utilities - main electric panel located in the crew room:

- 24 V

- 230 V

- Utilities - electric panel located in wheelhouse:

- 12 V

- 24 V

- 230 V

- Junction boxes are installed in all areas.

Galvanic current insulation

- Zinc anodes

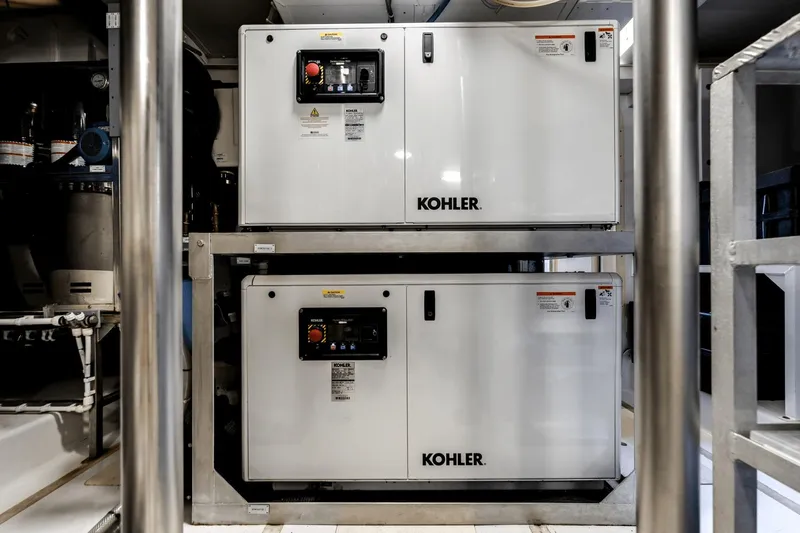

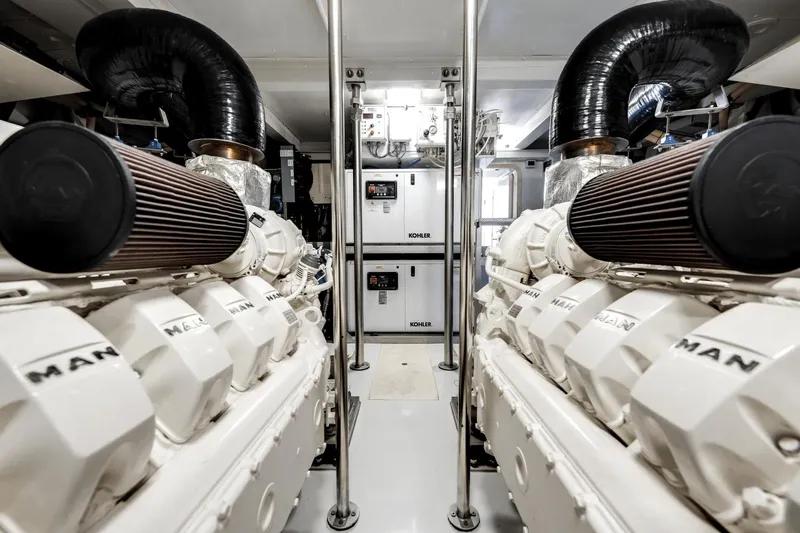

Generator

- Version EUROPA, 50 Hz:

- One 20 kW generator in the engine room

Shore power sockets

- Two 220 V - 50 Hz power sockets (one per side)

- The AC power sources are controlled from the main electric panel in the auxiliary room, with a voltmeter and frequency meter for the 220 V network. The power sources are protected by suitably sized fuses, and introduced into the network by means of remote control switches

Batteries

- AGM batteries 90 Ah - 12 V:

- Six for services

- Four for engine start-up

- Two for the thruster

- One AGM battery 90 Ah - 12 V for generator

- One 12 V and 24 V - 12 A Mastervolt generator battery charger

- One 24 V - 80 A Mastervolt battery charger for the service batteries/service backup/engine starting

Lights and sockets

- AC sockets: 220 V for main utility power supply, EU type

- DC sockets: cigarette lighter type (wheelhouse) + USB socket

- 24 V lighting (LED)

- 24 V watertight external lights (LED)

Electronic navigation instruments

- For STD equipment, see the paragraphs on “Flybridge” and “Wheelhouse”

- For a detailed list of alternative/additional equipment available, please refer to the Optionals price list

- Three automatic electric pumps:

- One electric pump with manual and/or automatic activation below the bed in the owner's cabin

- One electric pump with manual and/or automatic activation, in the engine room, astern, under the generator unit

- One electric pump with manual and/or automatic activation, in the steering areas, with access from the crew room

- Two manual pumps:

- One manual pump under the floor of the owner's cabin, in front of the bed

- One manual pump in the cockpit locker under the cockpit emergency panel, where there is also a selector to choose suction either from the steering area or from the engine room.

- Three-way valve on engine cooling

- Four bilge level alarms

- Emergency suction in engine room connected to one of the two engine seawater intakes

Fire extinguishing system

- One SEAFIRE type cylinder in engine room for local discharge

- SEAFIRE Engine Shutdown System to switch off engines, generators, extractors and fans automatically when the gas is discharged

- One system manual activation control in the cockpit

- System indicator/reset on instrument board

Fuel system

- Two steel tanks (not communicating), 2600 l (686.8 US.liq.gal.) each, total capacity 5200 l (1373.6 US.liq.gal.), in the engine room

- Electronic level gage for starboard diesel tank, with display in the wheelhouse

- Optical diesel level gage on port tank

- Double filters for engines

- Single filter for generator

- Two tank vents on bulwark, one per side

- Refueling plugs on both walk arounds

Fresh water system

- 1100 l (290.6 US.liq.gal.) polyethylene tank

- Water filling from walk around

- Level sensor and status indicator in wheelhouse

- Tank vent

- 100 liter (26.4 US.liq.gal.) water heater

- Two connections for water supply directly from shore

- Hot/cold water line

- Cold water line in engine room

- Fresh water toilet flushing

Gray water system

- One 500 l (132.1 US.liq.gal.) polyethylene tank

- Water drainage directly into the sea from the tank

- Pump switch

- 24 V 70 l/min (18.49 US.liq.gal./min) membrane pump

- Level sensor and status indicator in wheelhouse

Black water system

- One 450 l (118.9 US.liq.gal.) polyethylene tank

- Level sensor

- Pump operating button

- Tank vent

- TECMA toilet

- 24 V 70 l/min (18.49 US.liq.gal./min) macerator pump in each toilet

- Water filling from walk around

- Sea outlet

Seawater system

- Engine cooling

- Generator unit cooling

- Conditioner cooling

- Chain washing pump

- Fire extinguishing system

Ventilation

- Natural engine room ventilation

- Engine room air extraction with four extractors (3300 m3/h (35.3 cu.ft/h))

- Head air extraction system with dedicated extractor for each head (apart from crew head)

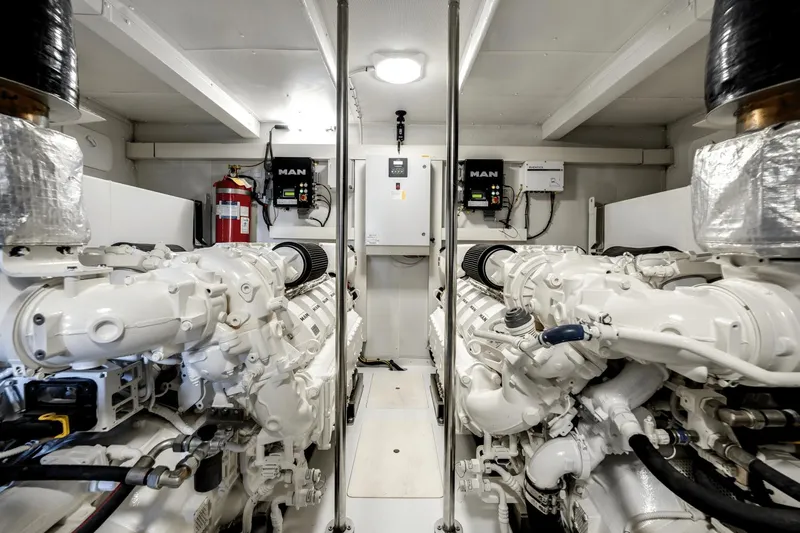

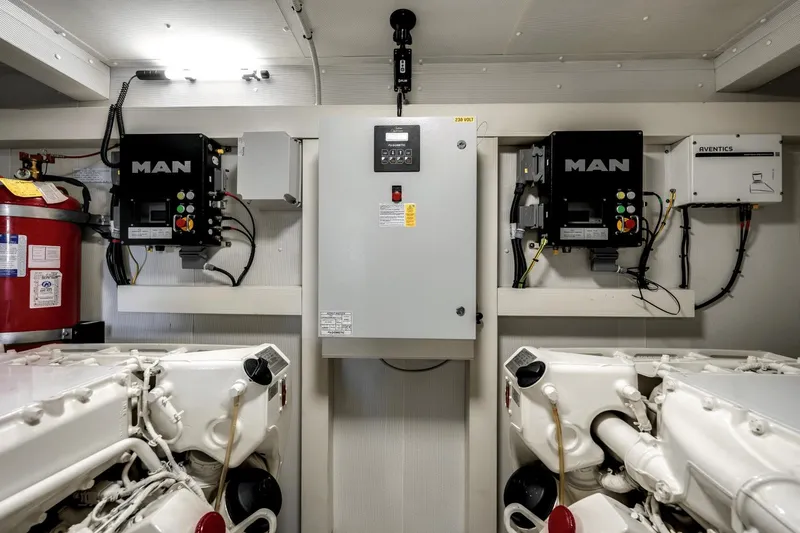

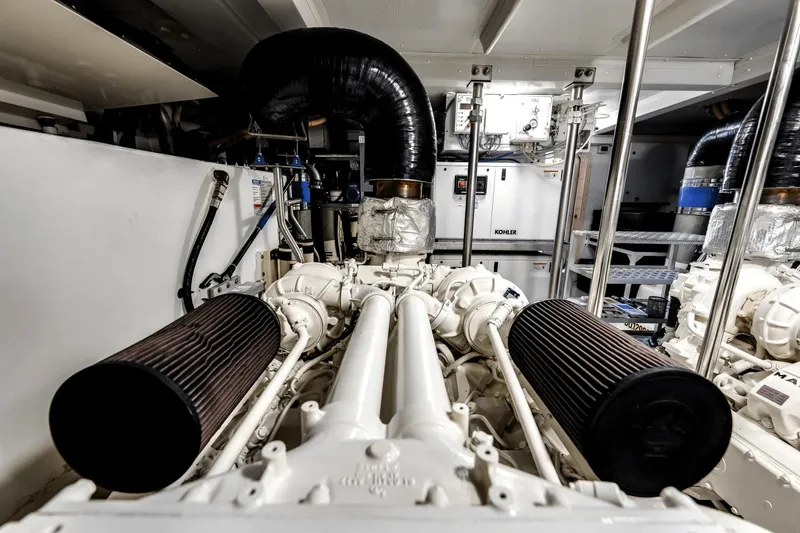

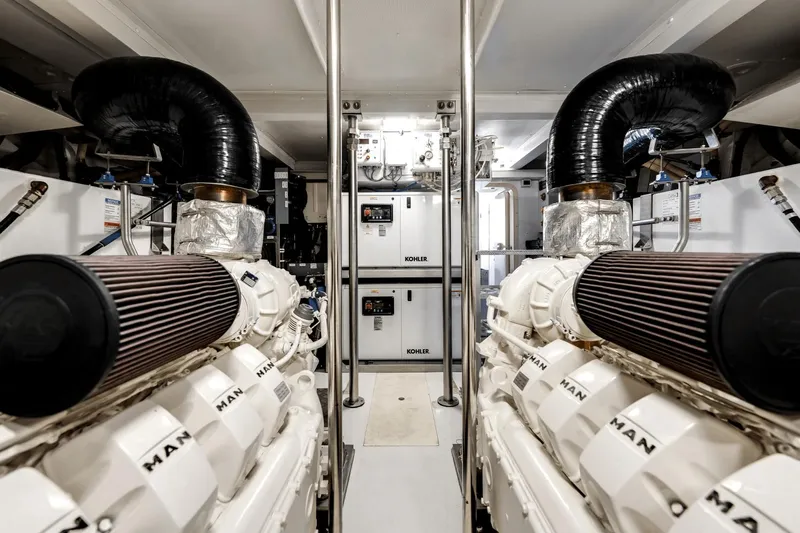

Engine room

- Access from crew room, cockpit

- Bilge drainage pump through engines cooling circuit

Air conditioning system

Air conditioning, one version only - 120,000 BTU

- 48,000 BTU for the saloon

- 36,000 BTU for the windscreen area

- 42,000 BTU for cabins, including:

- Owner's cabin -18,400 BTU

- VIP cabin - 12,500 BTU

- Starboard guest cabin - 9,200 BTU

- Port guest cabin - 9,200 BTU

- 10,680 BTU for crew room

- A/C controls in all the cabins, the saloon and the dinette

- Deliveries in all heads except for crew cabin

FANCOILS:

- Four for saloon + dinette

- Two for windscreen

- Two for owner's cabin

- One for VIP cabin

- One for starboard side guest cabin

- One for port side guest cabin

- One for crew room

Equipment

- One telescopic boat hook

- Six mooring lines

- Fender lines: 24 m (78' 9")

- One anchor chain stopper

- Eight fenders

- Eight black fender covers

- One Owner's manual

- One AZIMUT document folder

- One AZIMUT warranty service booklet

- One set of stainless steel cutlery

- One set of porcelain plates

- One set of glasses

- Four floating key rings

- One large bag with logo for manuals

- One remote control holder with logo

- One shower pipe storage bag

- One stainless steel scheduled maintenance kit

- One pin wrench for locking stainless steel pins

Options

- ACR Artex RCL 100D Remote control station on fly

- Additional Seakeeper cntrl station on fly

- Additional storage shelves in engine room

- Audio/Video Package

- Barbecue cabinet inc. Kenyon BBQ, open shelf

- Bimini top on bow electrically operated

- Cockpit chair (each) mod. Oskar

- Cockpit docking station inc. engines control and thruster control

- Co-pilot seat on fly

- Co-pilot seat in main helm

- Deluxe lighting package

- Dimmers on fly

- Dishwasher

- Extra size Master bed

- Extra socket

- Fabric curtains in salon & cabins

- Flagpole

- Flood lights installed on aft flybridge

- Flybridge hatch

- Hard Top

- Icemaker on Fly

- Lounge furniture on aft fly (L shape on port)

- Painted Hull - MIAMI SILVER

- Raymarine AIS 700

- Raymarine Platinum Package

- Raymarine CAM200IP video camera

- Safe in master cabin

- Salon sofa in tufted finishing settees

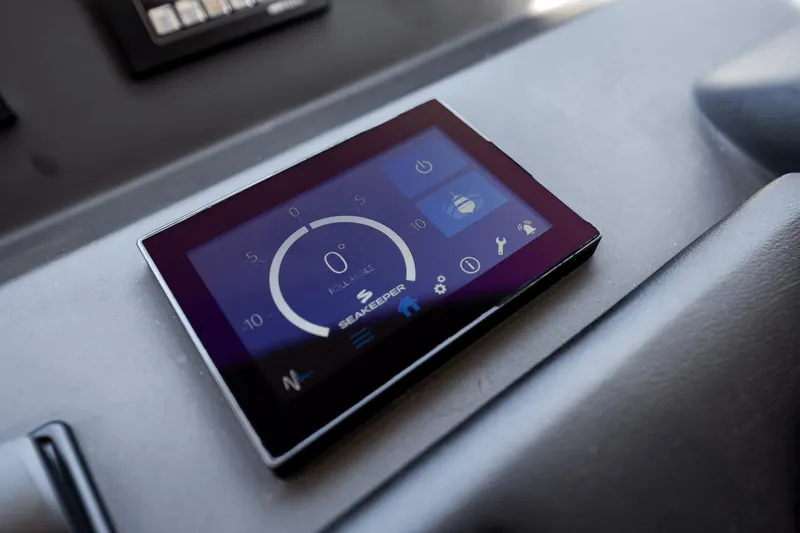

- N.1 Seakeeper Stabilizer NG16

- Set of linen (crew cabin included)

- Set of towels w/Azimut Logo (ea)

- Stern thruster

- Table on bow

- Teak on flybridge

- Telescopic gangway

- Toilet with bidet faucet feature (each)

- Washer/dryer in crew cabin

- Water-proof extra socket

- Wine cooler in salon

- Wooden floor in lower deck hallway

- Wooden floor in salon & dinette

- Palissandro Marble for Master Head Top

- Palissandro Marble for VIP Head Top

- Palissandro Marble for STBD Guest Head Top

- Palissandro Marble for PTSD Guest Head Top

- Palissandro Marble inserts in VIP Shower Head

- Palissandro Marble Walls in Master Head Shower

- Equipped cockpit furniture w refrigerator

- Bow table w/hi-lo system electrically operated

- Deluxe curtain for entrance door

- Safe in Crew Cabin

- Salon Coffee Table

- Exterior Tables w/Synthetic Marble Insert

- Kohler Generator ILO std Onan

- Dark Brown Dinette Chairs

ADVANCED PACK:

Add'l control for electric searchlight

Chain counter control at main helm

Easy Docking maneuvering joystick for engine and thrusters (Marex)

Extra conduits

Miele appliances (microwave combo and cooktop)
