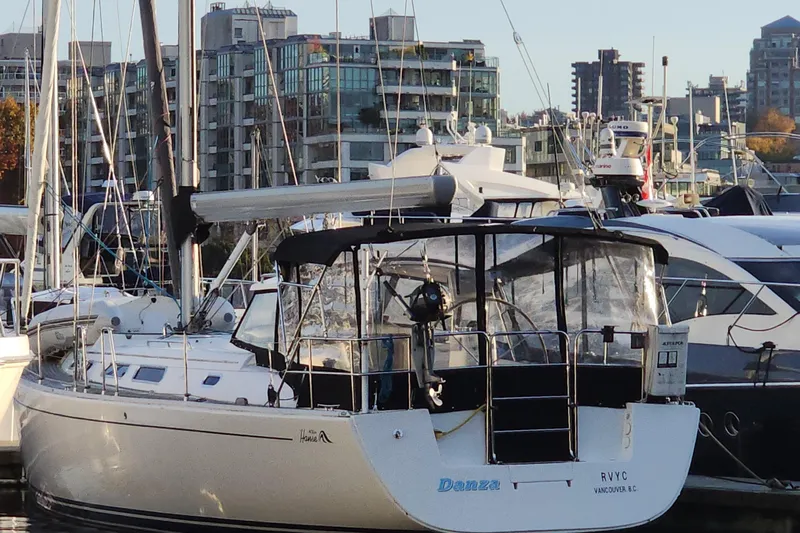

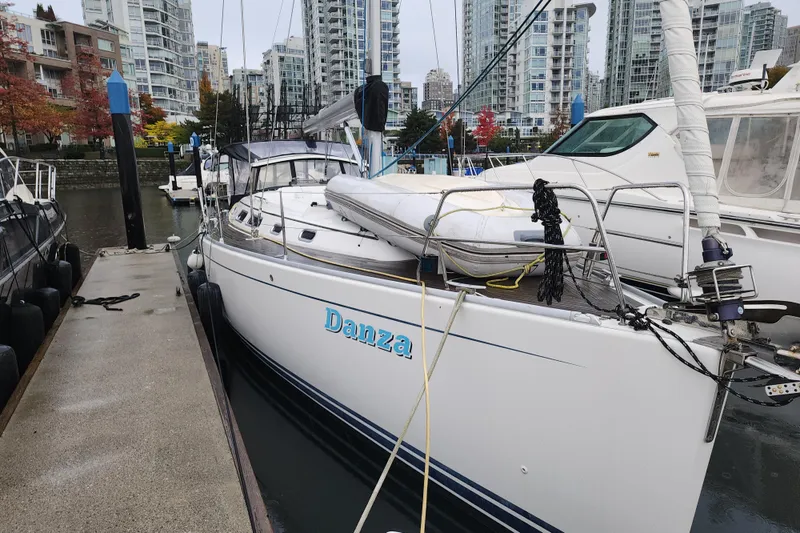

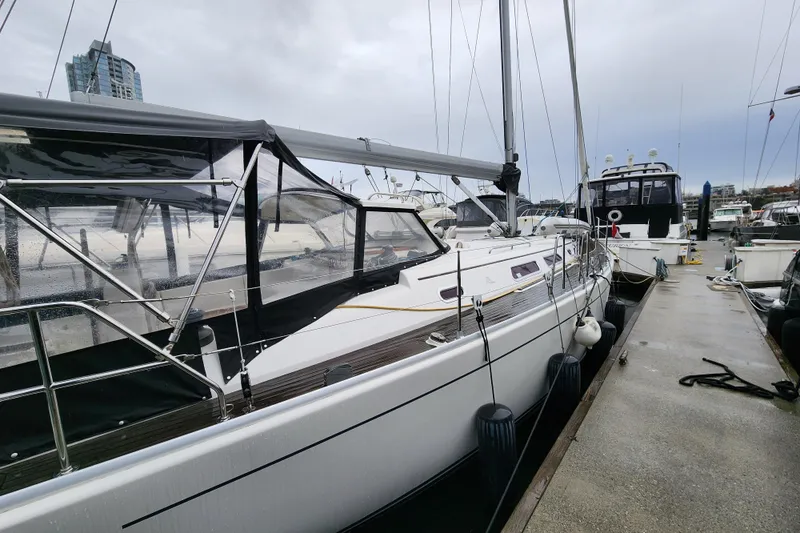

40 Hanse 2007 Boat for Sale

Highlights

•   Prepreg fiberglass epoxy hull vacuum bagged with Corecell foam post cured
•   Epoxy hulls weigh less and don't blister
•   Sandwich construction deck

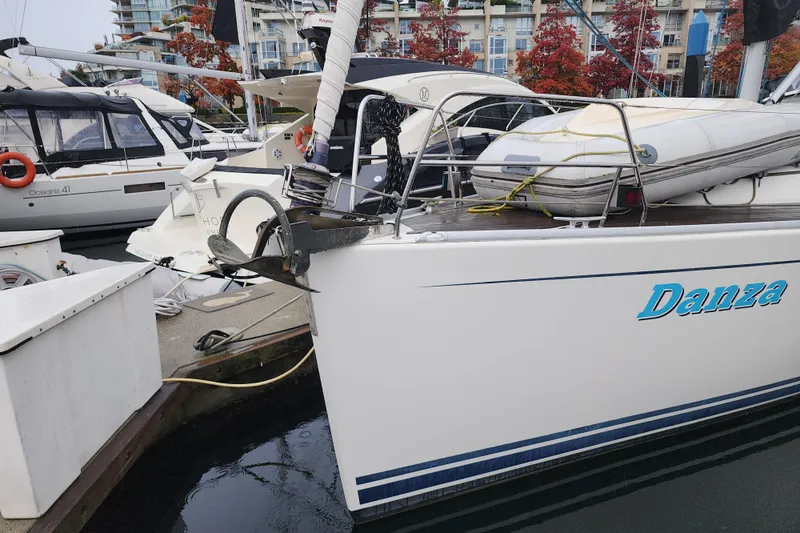

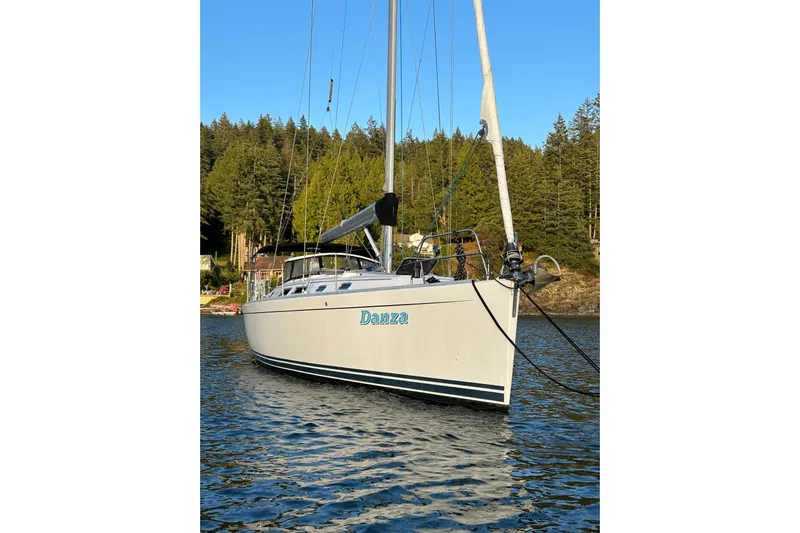

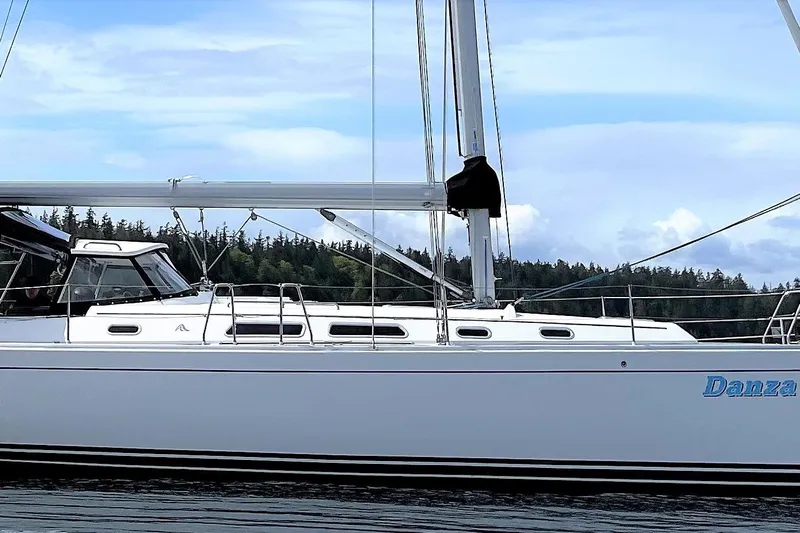

•   White hull with blue stripe
•   Lead bulb with iron keel for added uphill performance and stiffness
•   Glassed in bulkheads
•   Keel was installed with epoxy and then dropped and reattached with 5200 to perfect match, interior      backing plates were epoxied in and then keel mated
•   Keel has 6 massive stainless steel bolts (40mm)
•   Keel shank is iron with lead bulb on bottom to make a stiff plate with weight low down. Also protects      hull as lead absorbs energy of impact better than steel
•   Gelcoat on bottom was protected by correct amount of Inter-protect 2000 or 3000 depending on             temperature of hull at time of application
•   Glassed in grid system
•   Jeffa rod link steering system with large leather wrapped wheel
•   Semi balanced Rudder
•   Jeffa self aligning rudder bearings for smooth steering

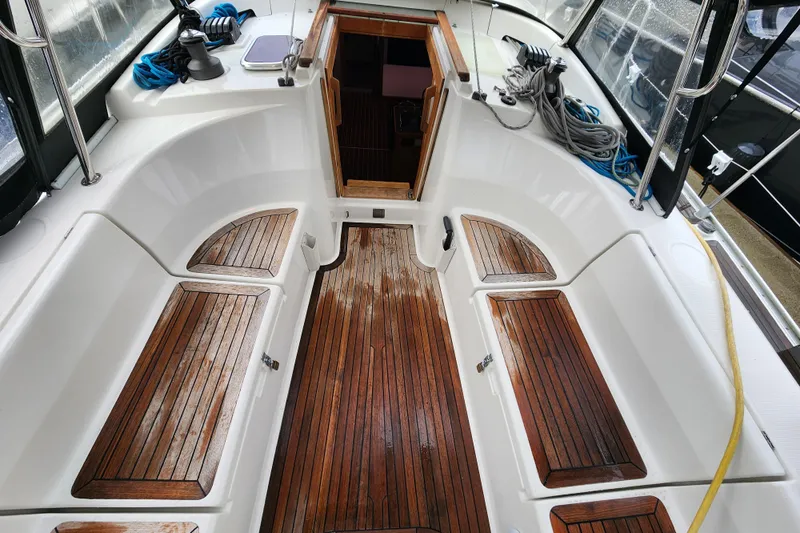

•   Glued teak cockpit seats and floor
•   Glued teak side decks
•   T cockpit with angles sides at helm for driver balance
•   Open transom with custom stainless steel pushpit
•   Stainless steel hand rails

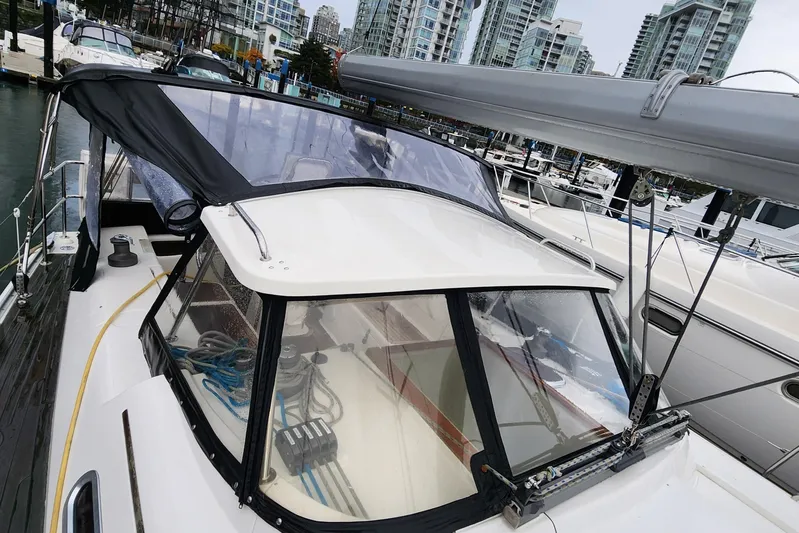

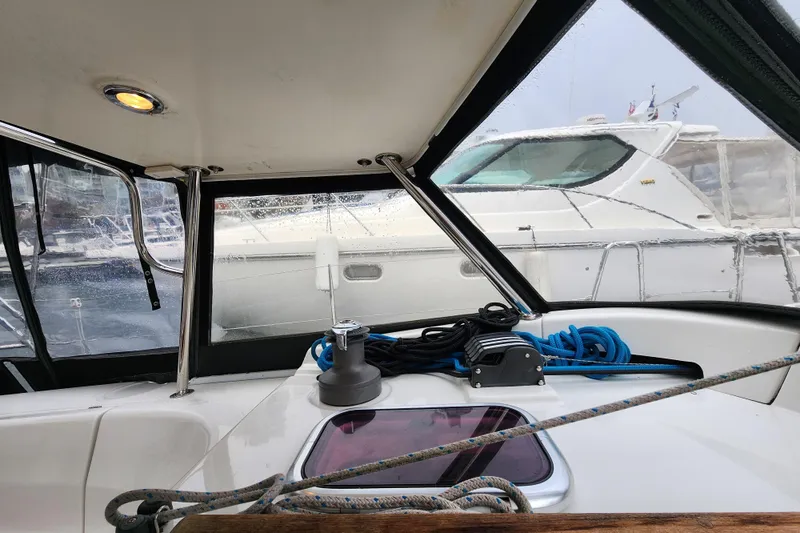

•   Custom foam cored fibreglass hardtop dodger with 3 lights

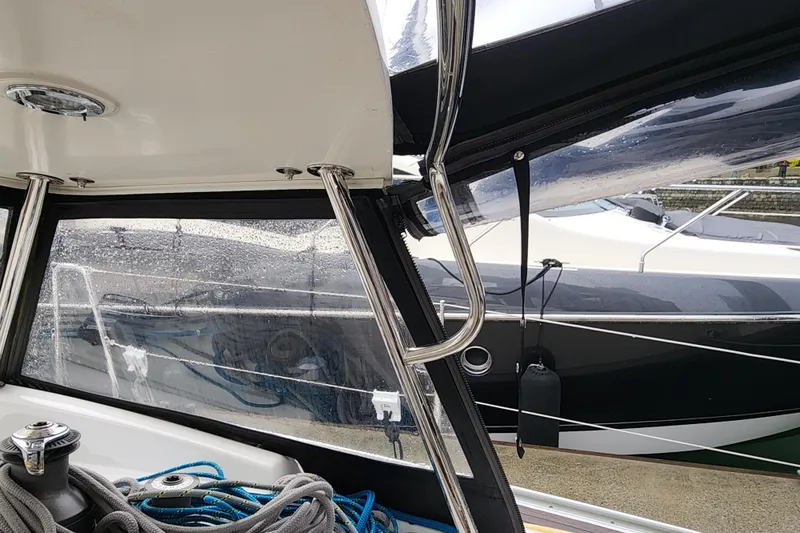

•   Custom stainless steel dodger frame with wrap around aft handrail in cockpit
•   Dodger has stainless steel handrails port and starboard  on top of dodger
•  The custom hard top and stainless supports and rails were designed for this boat with custom mould.
•   Custom pushpit.

 INTERIOR

 6'4 headroom in most of the boat gives a feeling of space in this bright and airy boat. Most lights are LED,    the Camframo fans throughout the boat are 3 speed, there is bedding for all the staterooms.

•  Bright interior with oak furniture and white bulkheads
•  Foam cored cabin doors

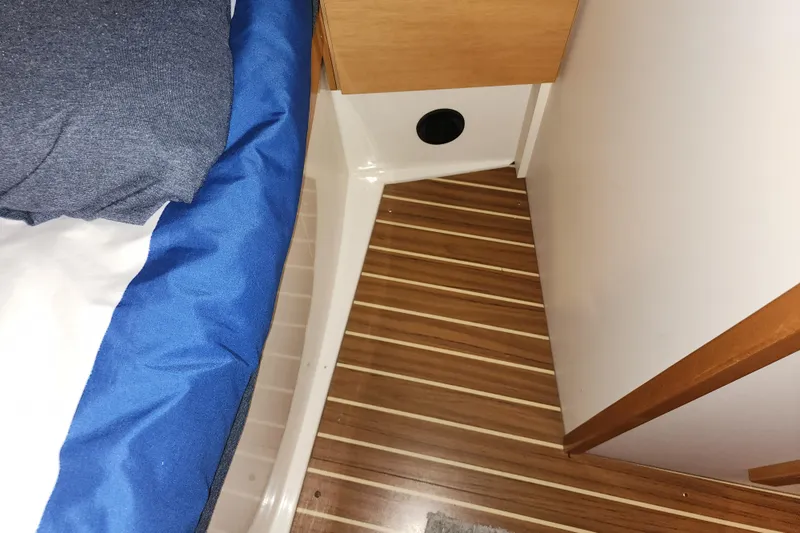

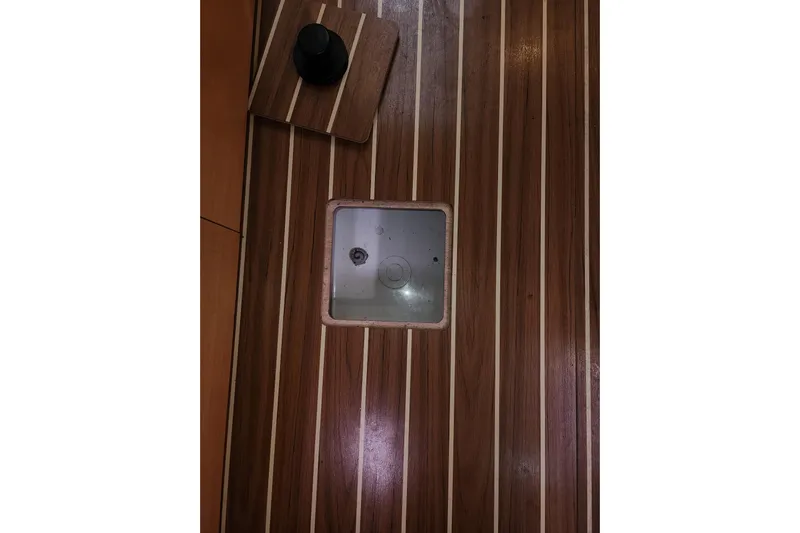

•  Laminate teak and holly floors

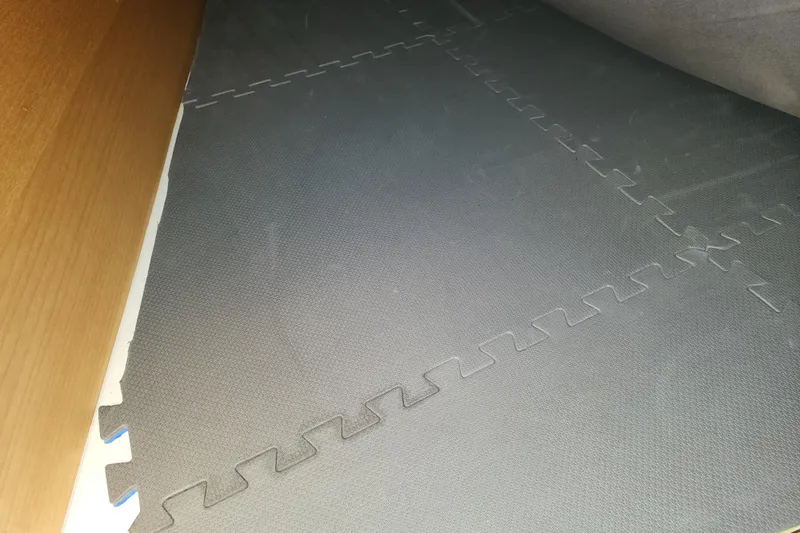

•  All berths have rubber underlay between fibreglass and mattresses

Owner's stateroom

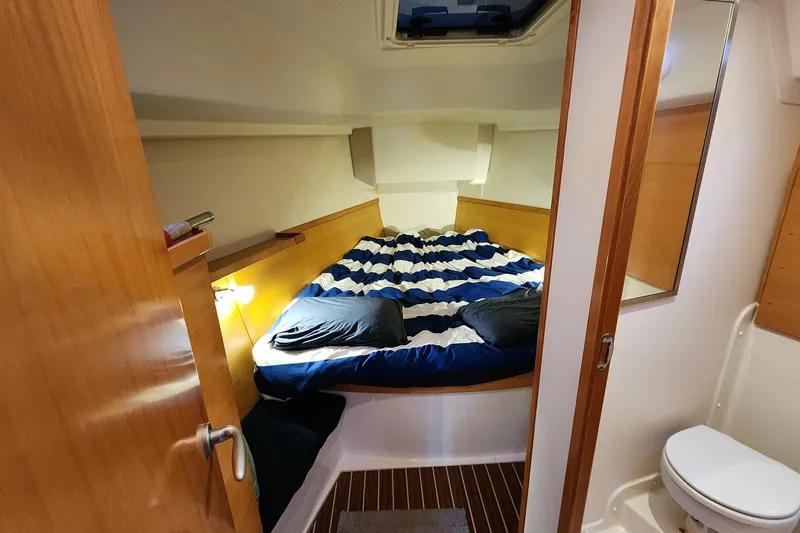

•  Forward cabin has large V-berth (7' long)
•  Shelving both port and starboard above berth.

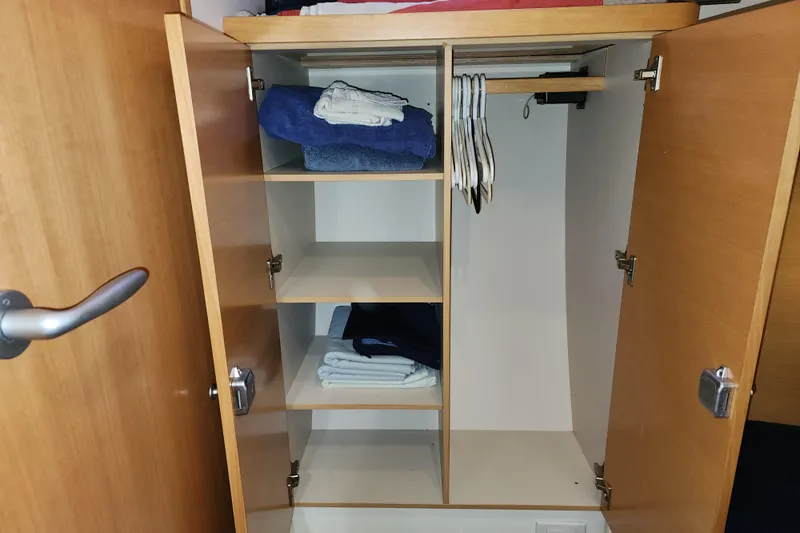

•  Locker to port has both hanging space and shelves with seat
•  Starboard side locker has shelves.

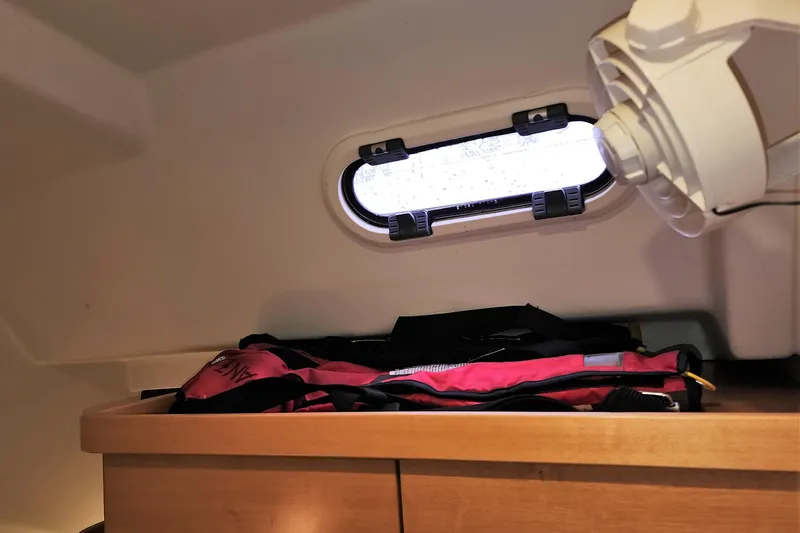

•  Opening Lewmar port over aft hanging locker across from head
•  Overhead hatch is large opening Lewmar hatch
•  Upholstery is still in excellent condition and very firm
•  Heater vent and large Camframo fan

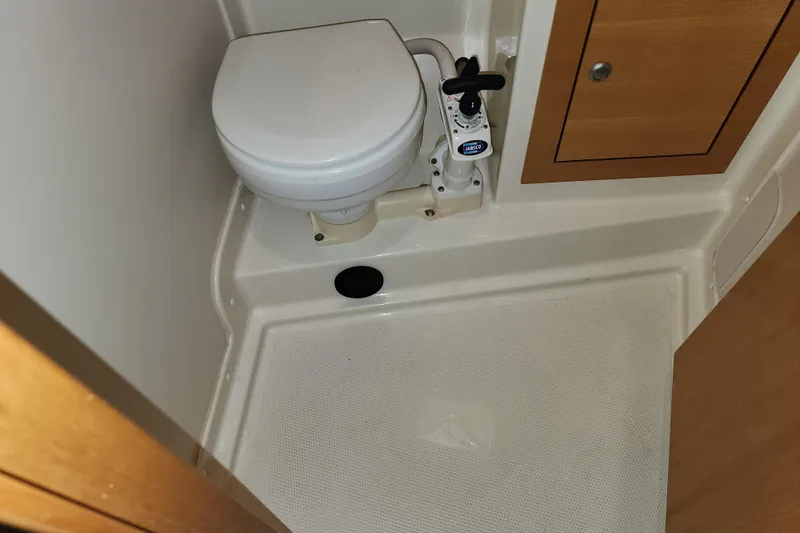

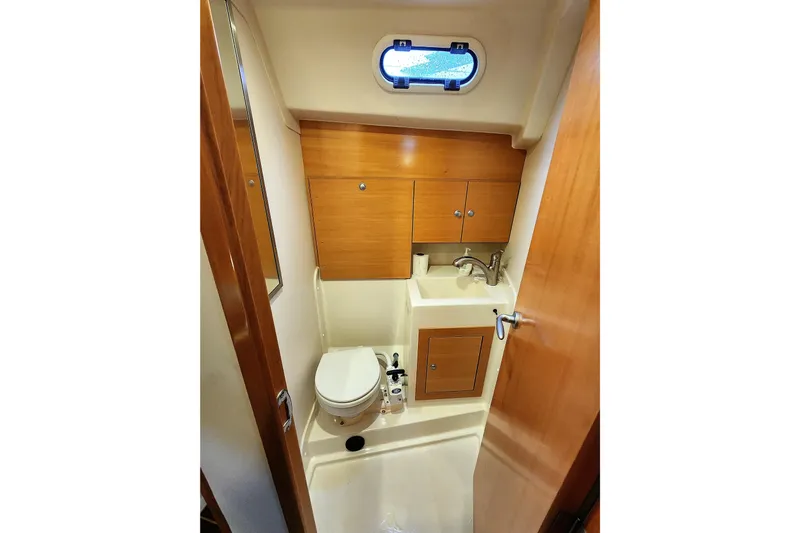

Owner's head

• Enclosed head to starboard with vanity, marine toilet and shower
• Cabinet under vanity and mirrored cabinet outboard of vanity
• Opening Lewmar port in head
• Heater vent
• Access to holding tank

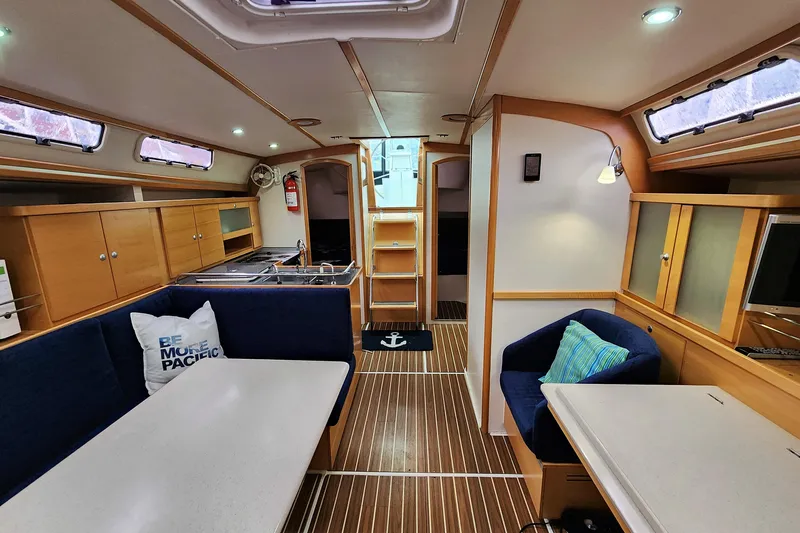

Main Salon

The main salon is very bright and inviting. The satin oak finish combined with the white bulkheads allows you to use less lighting in the day and at night. With the small nav table to port you have 2 swivel chairs across from the dining area allowing people to chat to each other without feeling cramped at the main table. There is lots of natural light and fresh air venting from all the opening ports and hatches so after a few days of rain you can open the boat up. 110v outlets in each cabin and heads

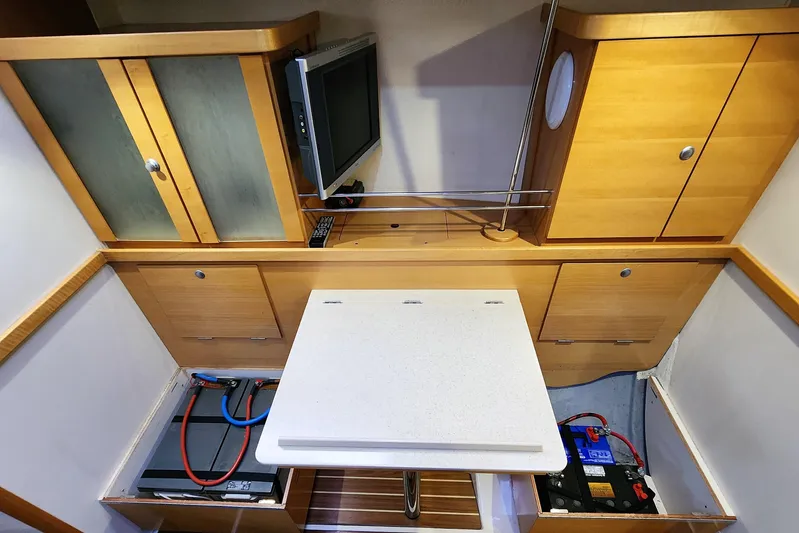

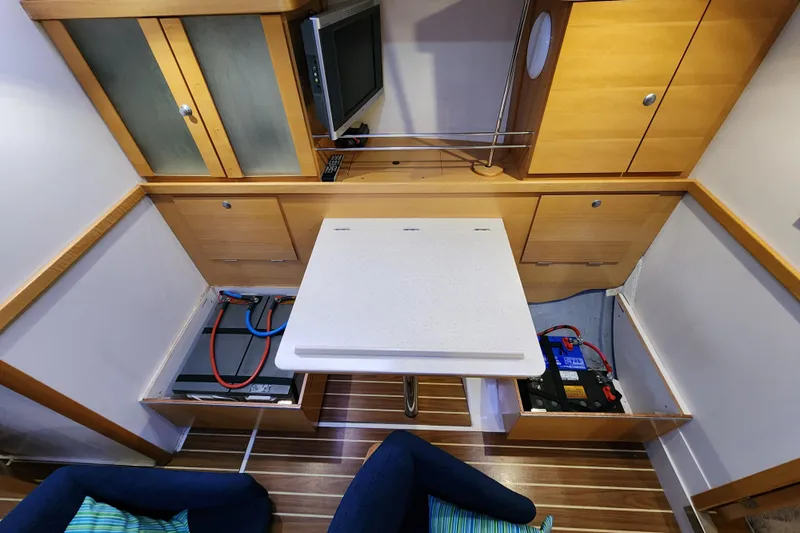

•  Main salon has swivel captain’s chairs to port with table between them
•  Batteries are under both swivel chairs

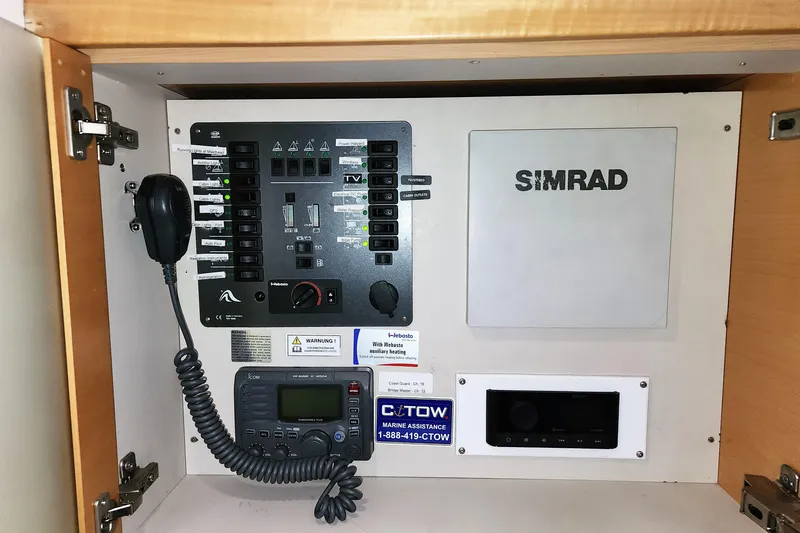

•  Electrical panel is outboard and above aft swivel seat
•  Outboard and above of forward swivel seat is a cabinet

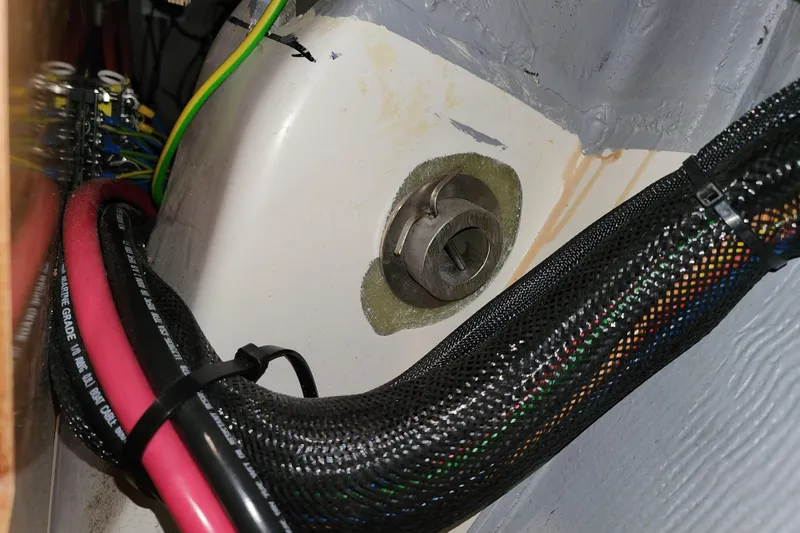

•  Behind each chair is access to wiring through removable oak hatches
•  Over the forward swivel chair is an opening Lewmar port
•  Over the aft swivel chair is a large opening Lewmar port

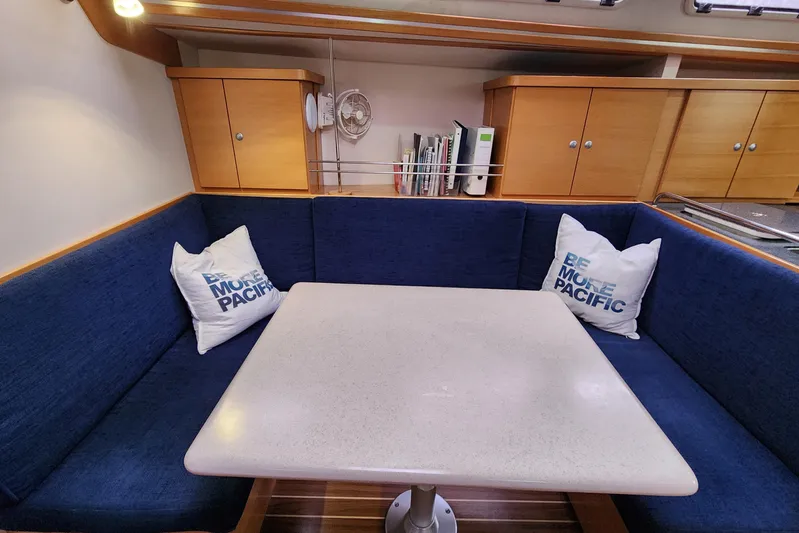

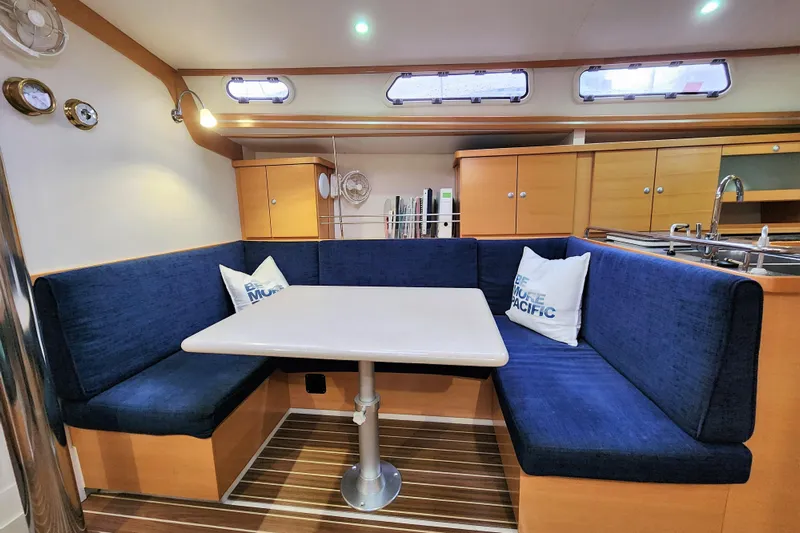

•  Starboard side has U settee with large table mid ships.
•  Storage under cushions of U settee
•  Salon table drops (but not into berth, but easy to make do this)

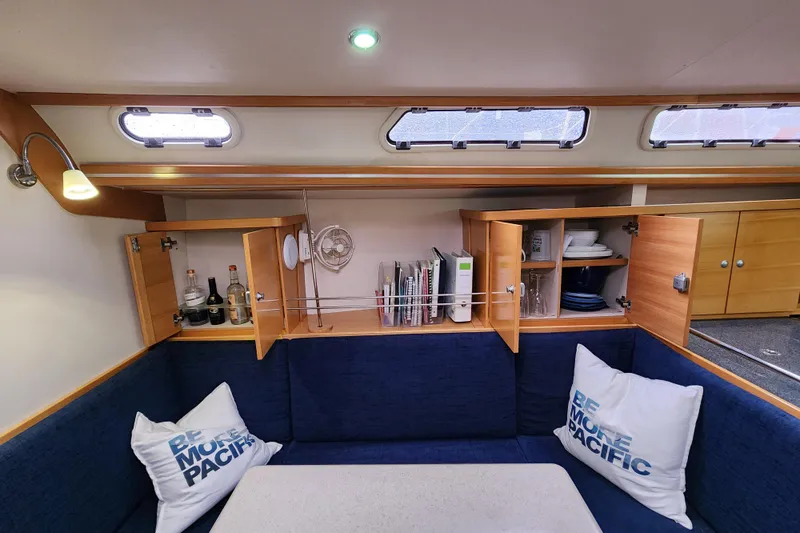

•  Outboard of U settee are fore and aft cabinets.

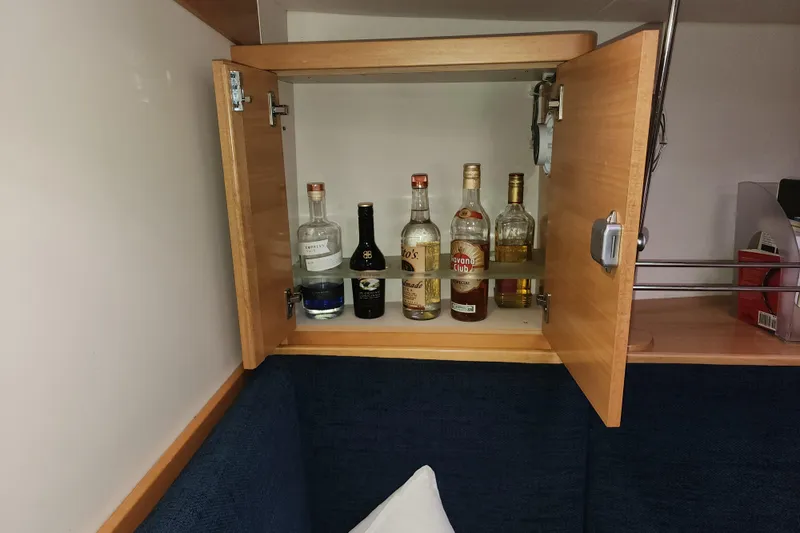

•  Forward one is liquor cabinet and aft one is for glasses and dishes
•  Area between cabinets has Lewmar hull port and dual stainless steel rods to storage
•  Above cabinets is a large opening Lewmar port
•  Custom composite salon table and chart table tops
•  2 large Camframo fans

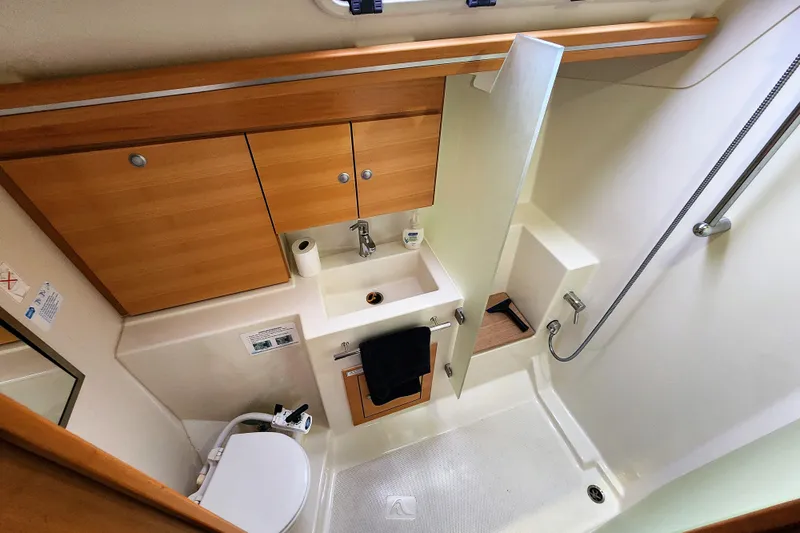

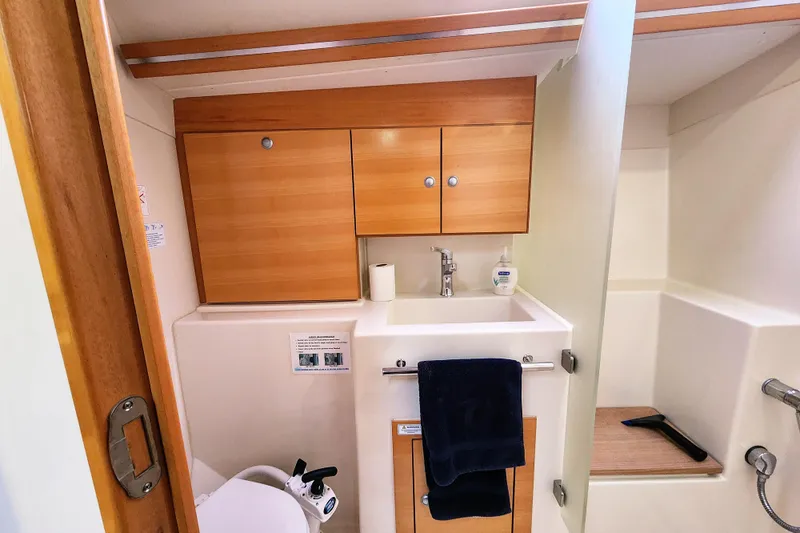

Main cabin head

•  Large head to port with large opening Lewmar port for excellent venting
•  Forward in head is separate shower stall with frosted poly-carbonate door
•  Teak seat in shower that allows access to water and sump pumps
•  Aft part of head has moulded vanity with sink and marine toilet

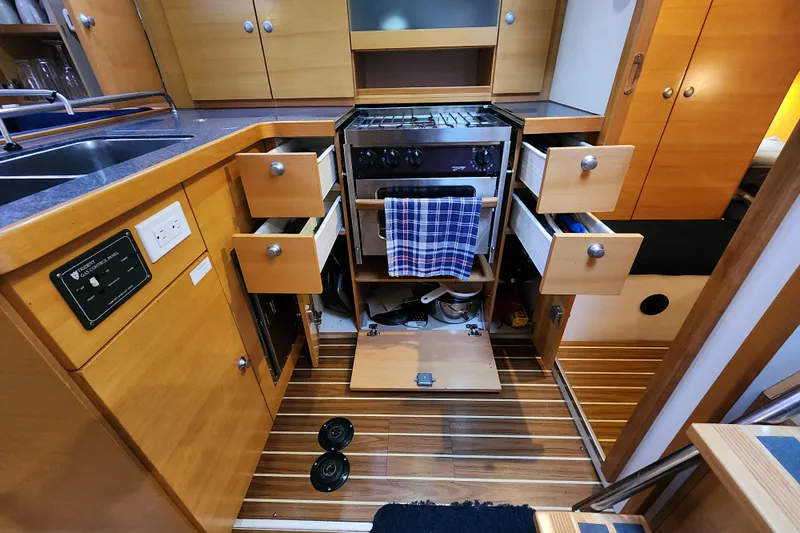

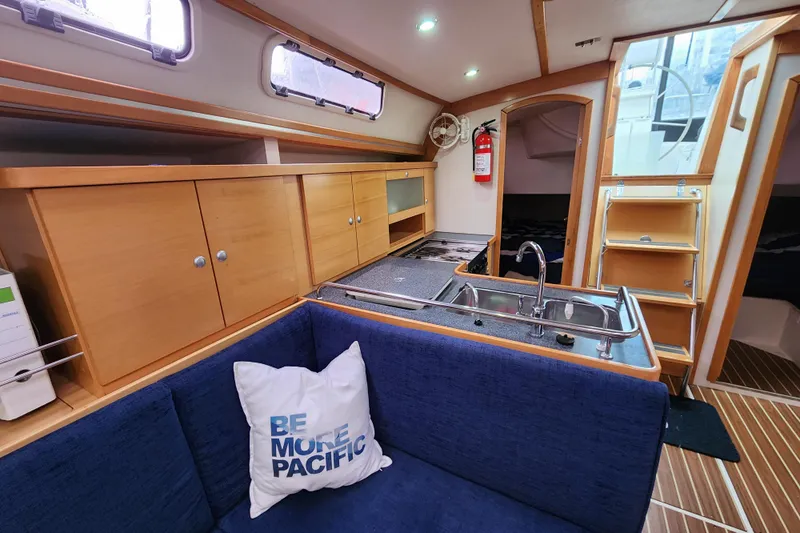

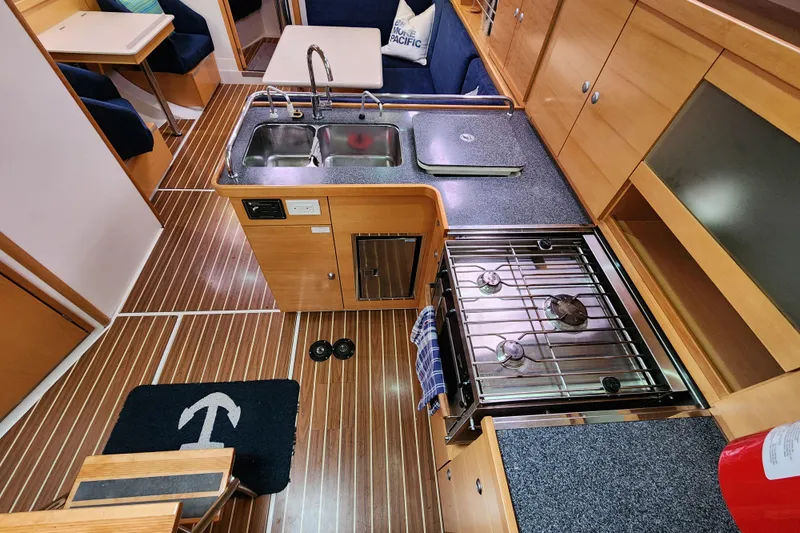

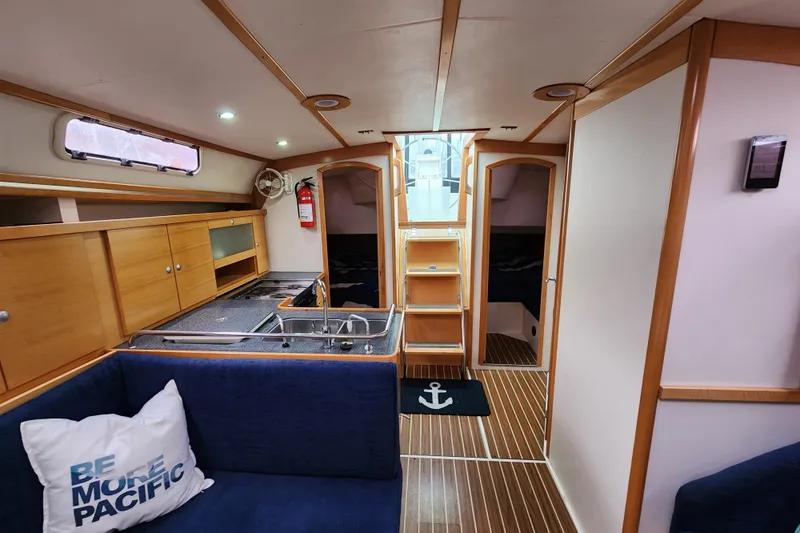

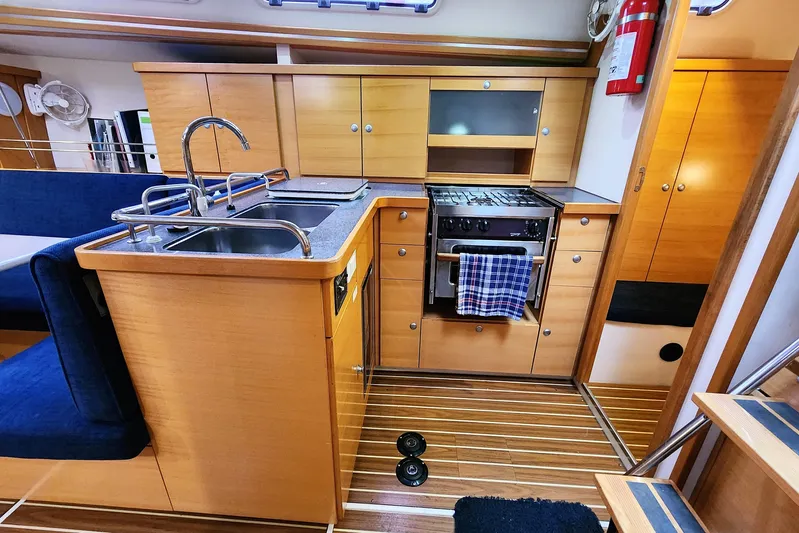

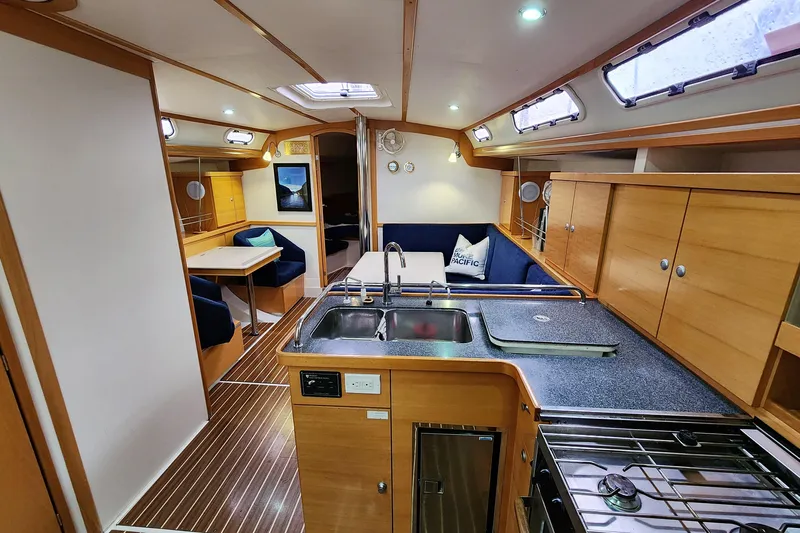

Galley

•  L shaped galley to starboard with black countertop

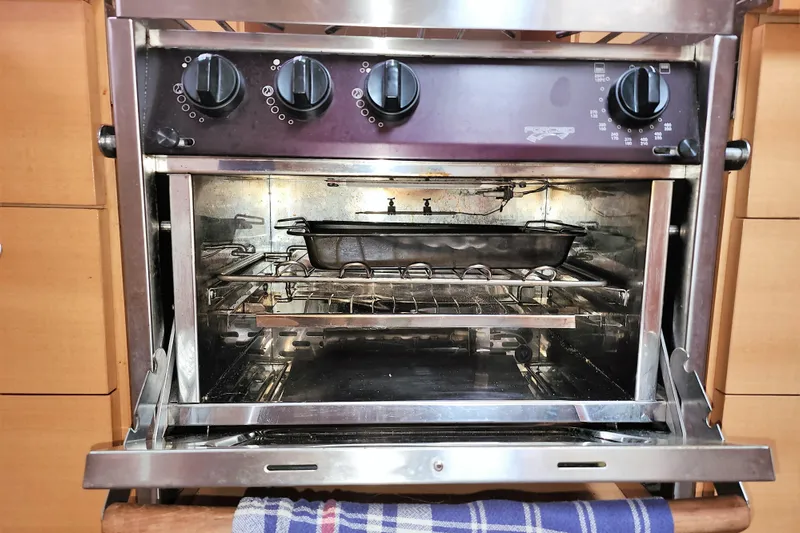

•  Upgraded Gimblled Force 10 3 burner propane stove and oven with broiler
•  Sink has 2 removable counter covers
•  Ample cupboards and drawers under the outboard of galley counter on both sides of the oven
•  Ample cupboards outboard of the counter top
•  Above the cupboards is a large opening Lewmar port

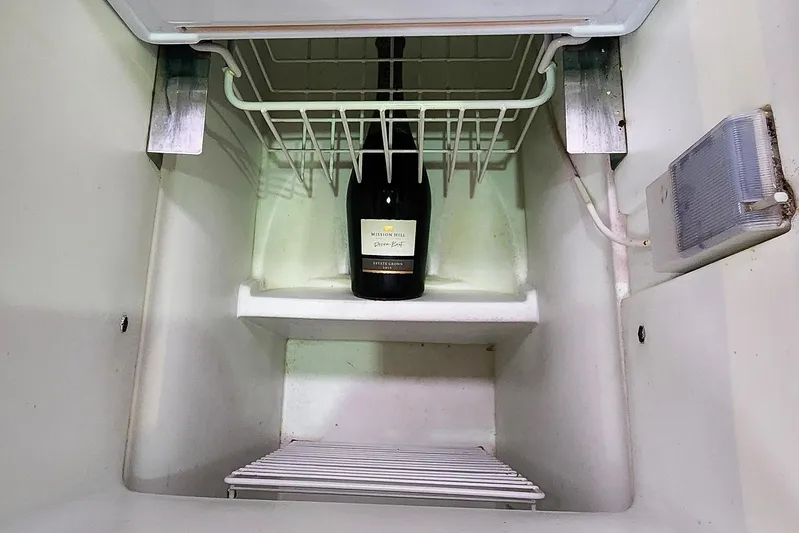

•  Well insulated Isotherm 12v top and front loading ice box with freezer unit in corner of the L counter      top
•  Double stainless steel sinks facing forward in the L of the counter top
•  Stainless steel handrail across the front of the counter to prevent items falling on the settee and as    handhold
•  Fresh water and salt water foot pumps with individual faucets
•  Freshwater system faucet at sinks as well
•  Propane solenoid control
• 110v plug
•  Large Camframo fan
•  Overhead in the headliner are 2 dorades, with closing dams and bug screens

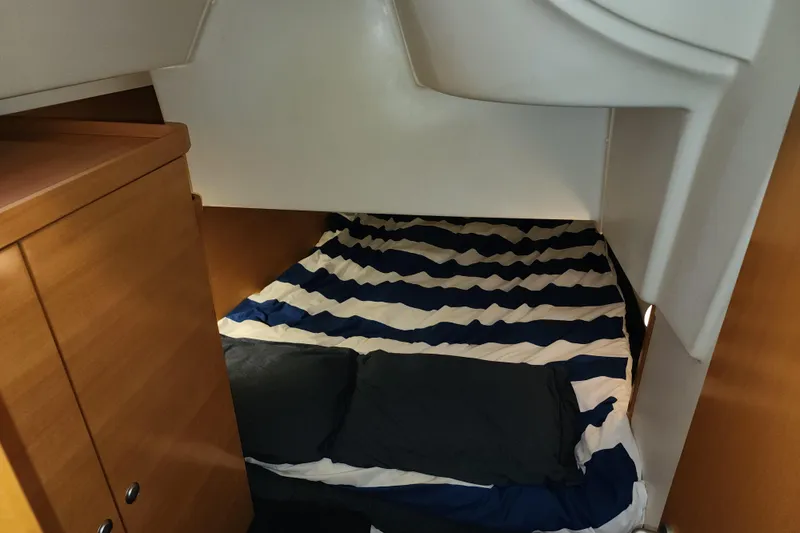

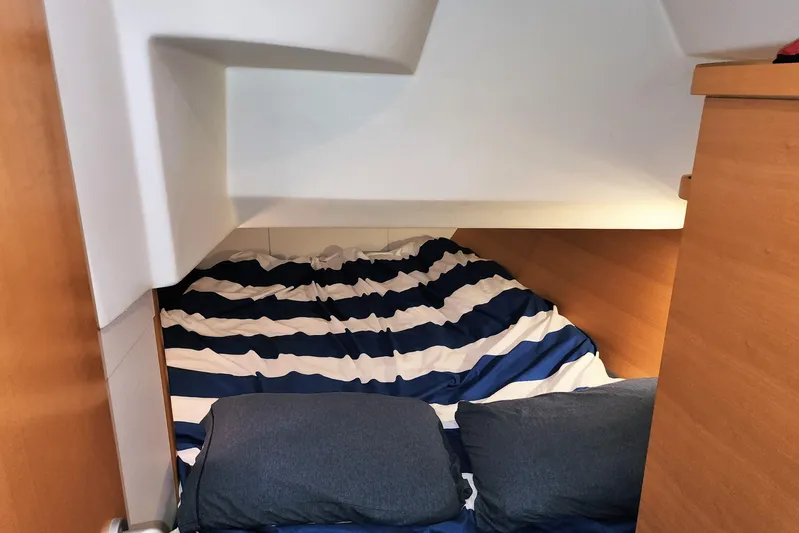

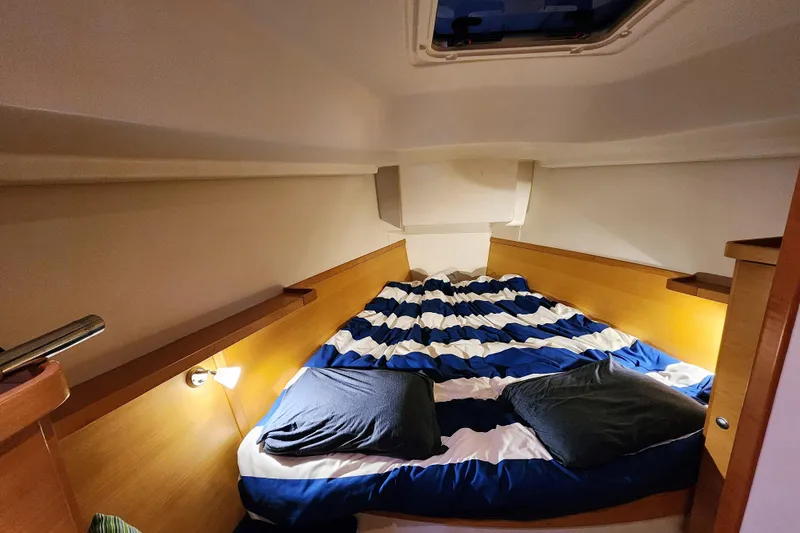

Aft cabins

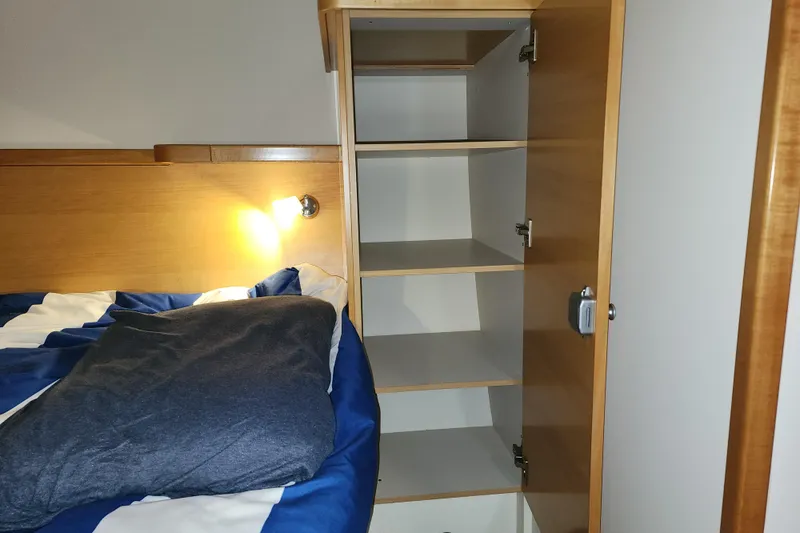

• 2 aft cabins with seat and locker with both hanging space and shelving
• Long shelves above berths outboard
• Port side cabin has a queen berth (6'6L by 6'W) with 2 berth lights
• Starboard side cabin has double berth (6'6L by 5' W) with 2 berth lights
•  Each cabin has an overhead light over area you stand in
•  Each cabin has a Camframo fan and heater outlet
•  Starboard side has less headroom due to the electric winch above
•  Port side cabin has overhead opening Lewmar hatch
•  Fuel tank in under starboard berth
•  Hot water tank is under port berth

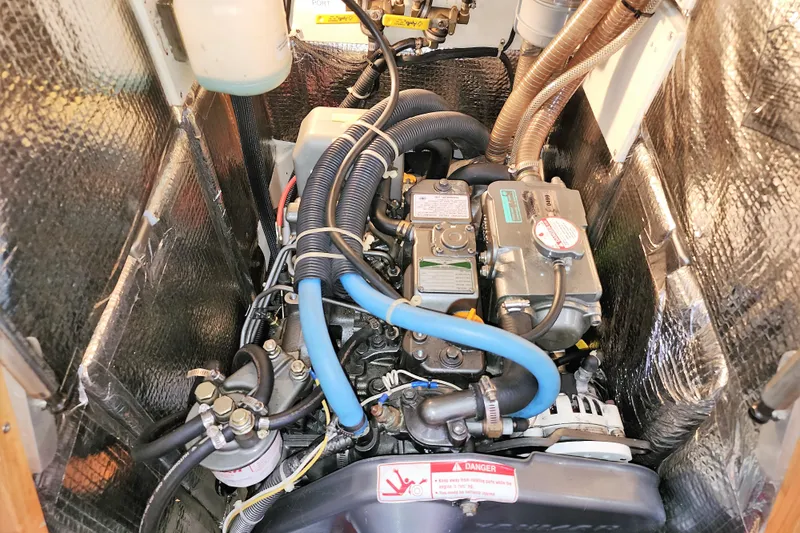

MECHANICAL

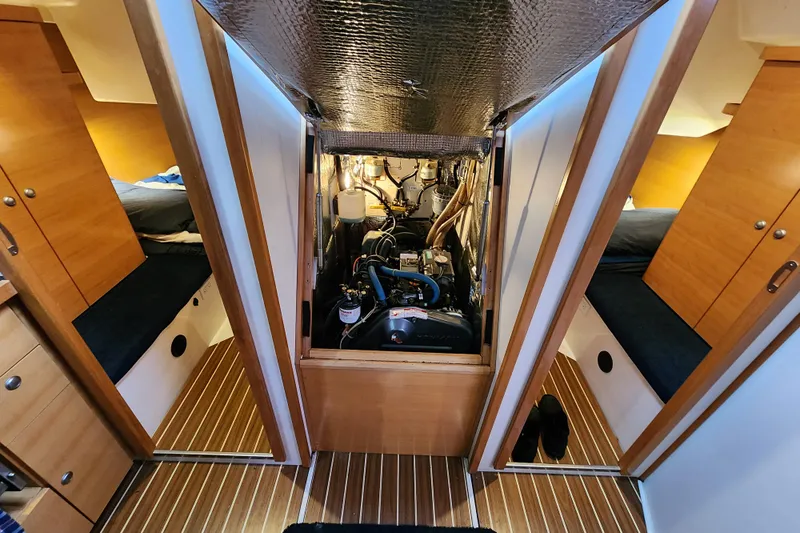

•  Excellent engine access, stairs lift on strong struts, opening side lids on both aft cabins
•  Yanmar 3JH4E FWC 40 HP diesel
•  Yanmar SD50 Sail drive
•  100 amp alternator with smart charger
•   3 blade feathering Flex o Fold bronze folding propeller
•   Sail drive oil replaced 2024
•   Sail drive shaft seal replaced 2020
•   Insulated engine room
•   Sea water strainer

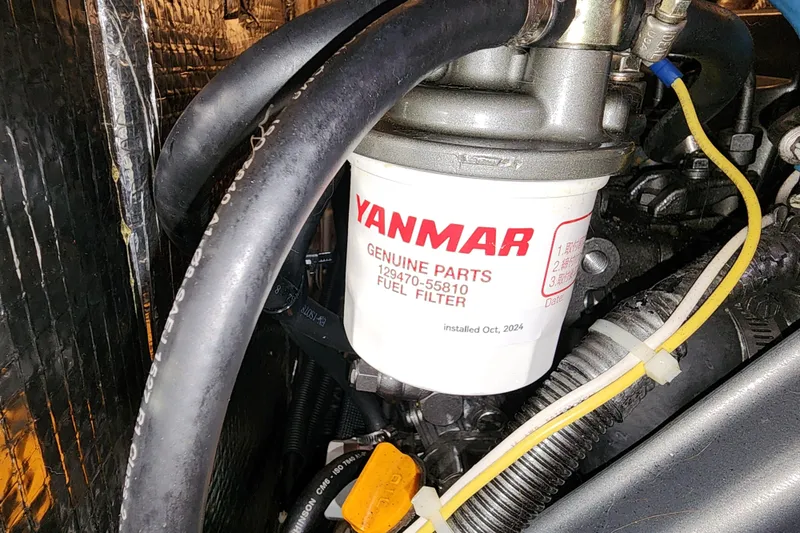

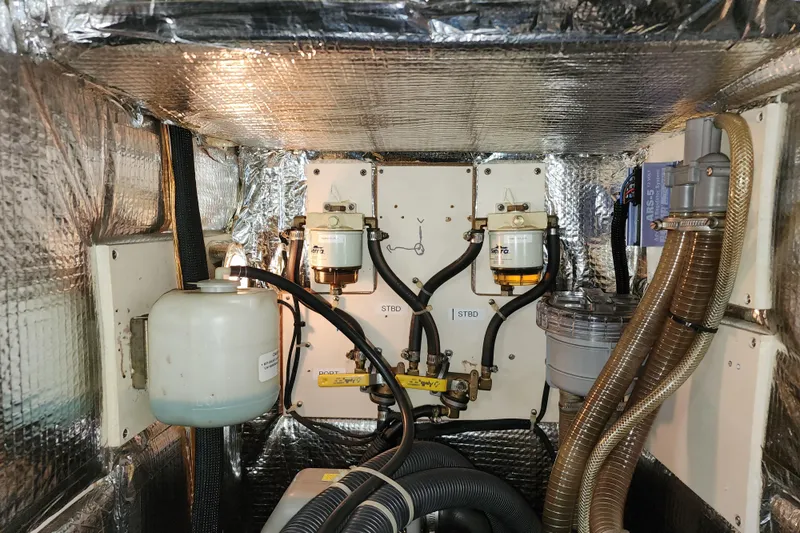

•   Dual Sierra Fuel water separators with manifold

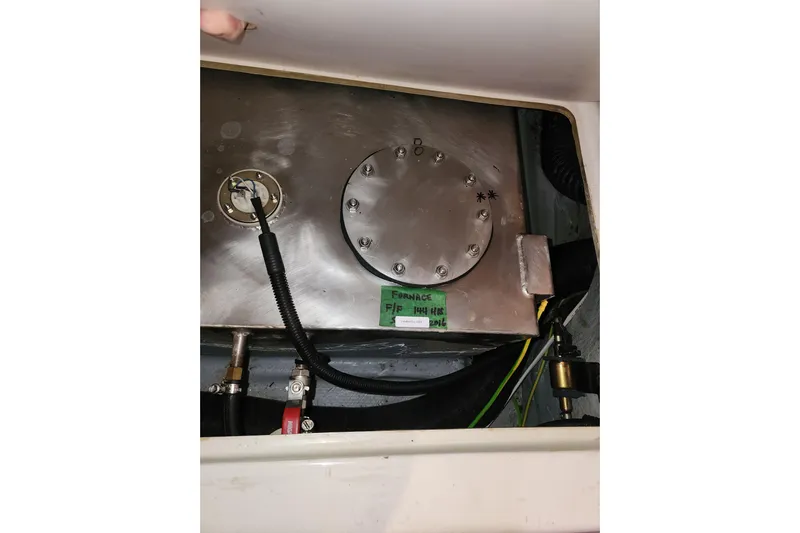

•   Stainless steel fuel tank with inspection hatch cleaned September 2024

 ELECTRICAL

•  12V DC panel with  breakers
•   Separate 110V AC panel with breakers

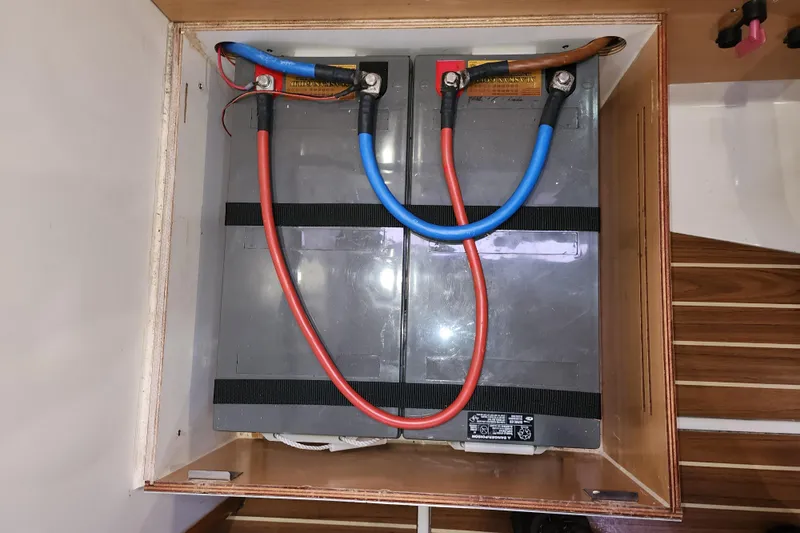

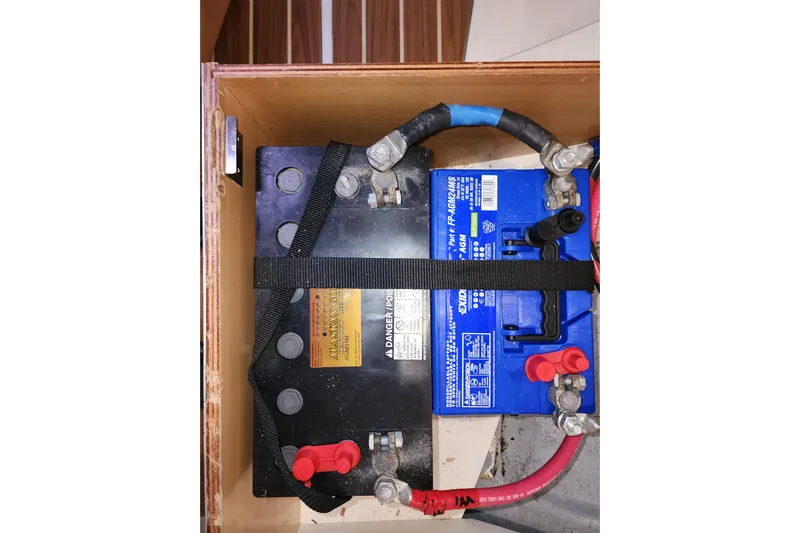

•   House batteries 2 4D Alaskan Gold AGM  approx 200 Ah each
•   Starting battery Group 24 Exide AGM24MS
•   Windlass battery Group 31Alaskan Gold AGM31M
•   110V system with shore power cable plus spare cable
•   Pro Mariner ProCharge 4 Protech 1250 50 amp battery charger
•  100 Amp Balmar alternator with ARS-5 digital regulator
•   Quick reset thermal breakers for electric winch, windlass and main service
•   Shore power plug adapters
•   LED Nav lights
•   Most interior lights now LED
•   Added 12 volt outlet at helm and starboard aft cabin
•   8 110v outlets throughout boat, all GFI

 PLUMBING

•   Forward stainless steel gravity holding tank
•   Aft stainless steel gravity holding tank
•   Jabsco marine toilet in each head
•   Large 75 gallon plastic water tank in bow
•   Isotherm 6 gallon 110V/Engine hot water tank
•   Shower in heads with sump pumps
•   Hot and cold shower at cockpit
•   Manual bilge pump at helm
•   Electric bilge pump with automatic float

 INSTRUMENTS

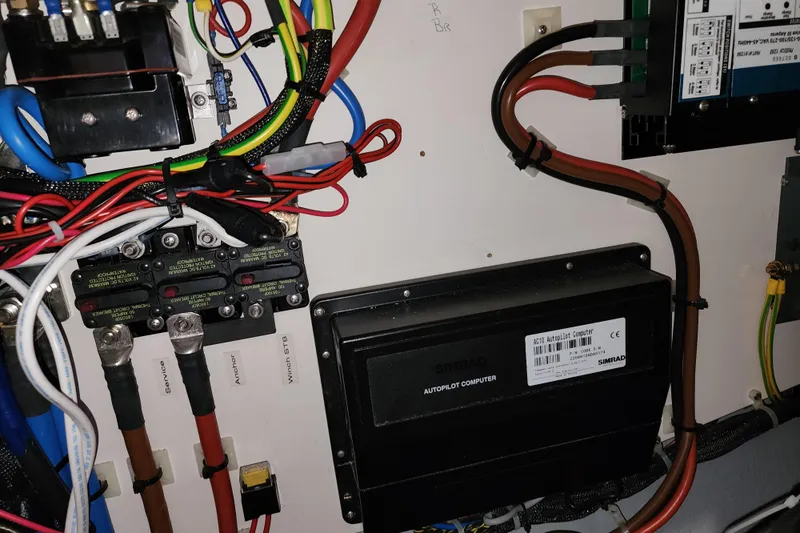

•   Simrad AC10 autopilot computer
•   Simrad AP16  autopilot with direct link (no drag on wheel when not in use)

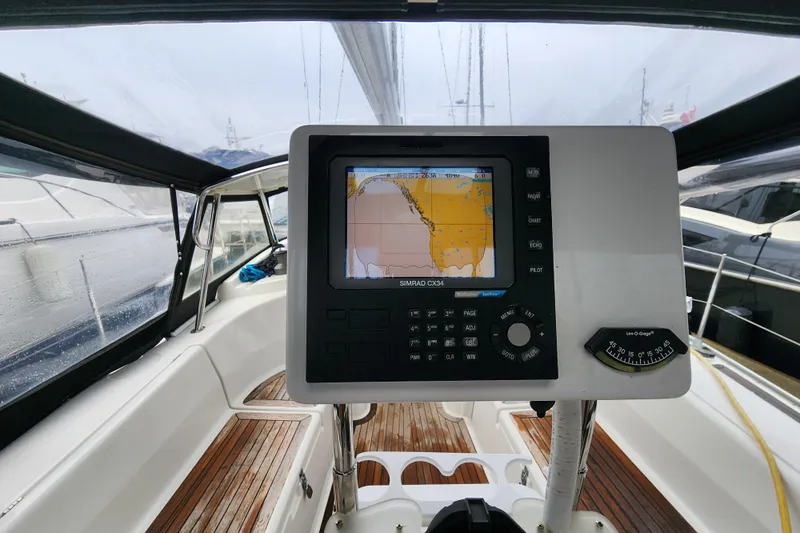

•   Simrad CX34 chart plotter at helm on custom stainless steel hoop
•   Simrad IS12 Combi for depth and knot at helm
•   Simrad IS12 wind speed and direction at helm
•   Simrad CX34 display at nav station
•   Autopilot AP16 display is on port side of helm pedestal
•   Icom IC-M504 with DSC VHF
•   Icom command mike at helm
•   Plastimo compass at helm
•   Fusion stereo with upgraded interior and exterior speakers 2021
•   Portable 40w inverter at nav station
•  12v Toshiba LCD TV/DVD on swing mount in salon
•  Clock and Barometer

 SAILS + RIGGING

Sails

•  Custom Sobstad main with full battens for boom furler serviced each year by North Sails
•  North self-tacker dacron jib with UV cover serviced each year by North Sails
•  UV cover on jib replaced 2023
•  Working sails taken down and stored off boat each winter

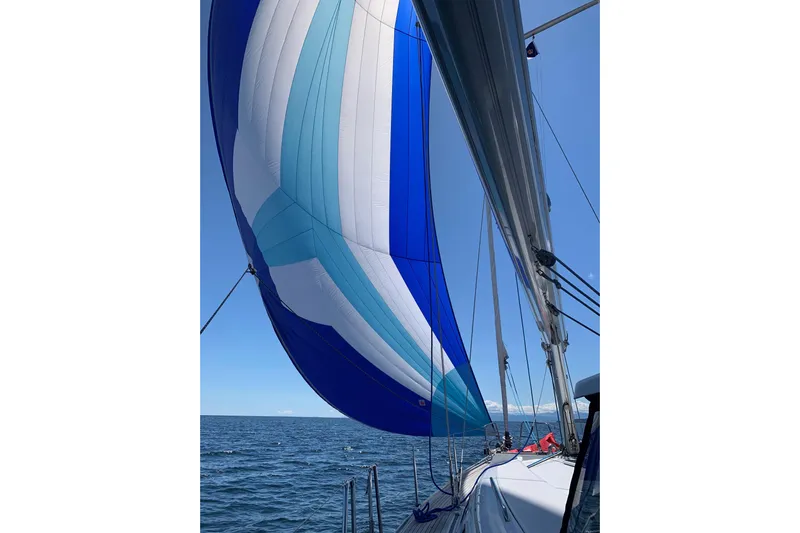

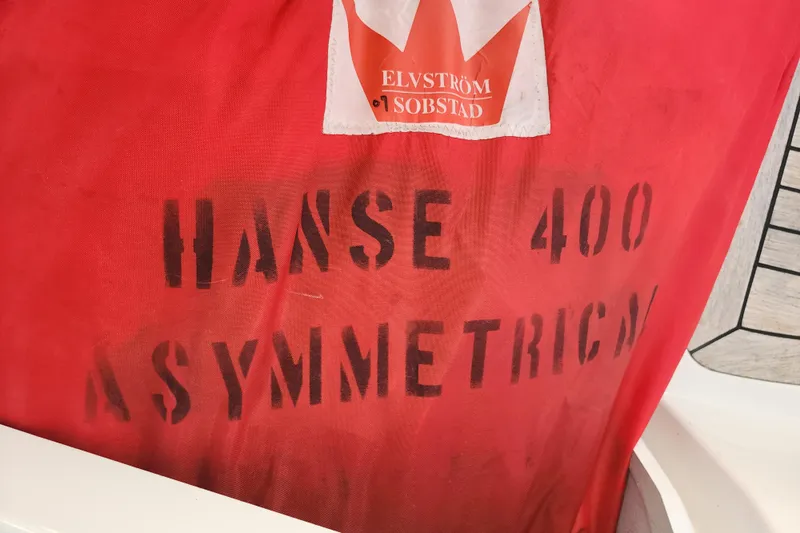

•  Sobstad 1.5 oz cruising spinnaker with ATN sock

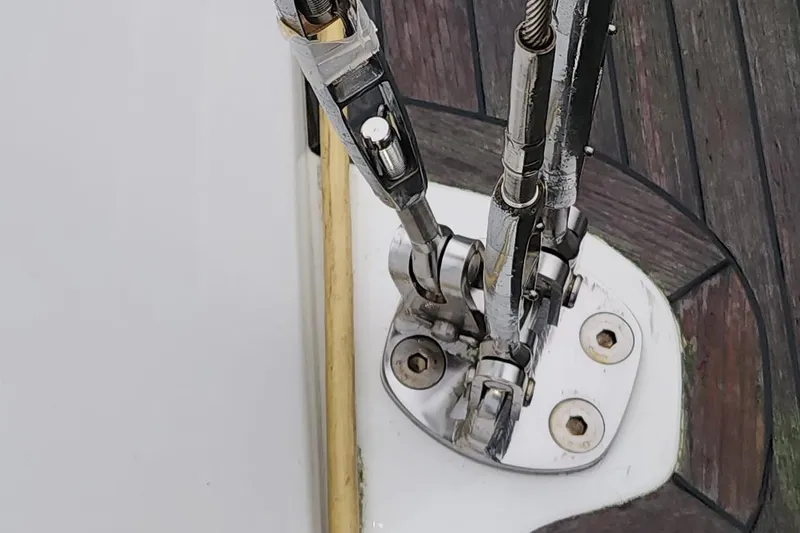

Rigging

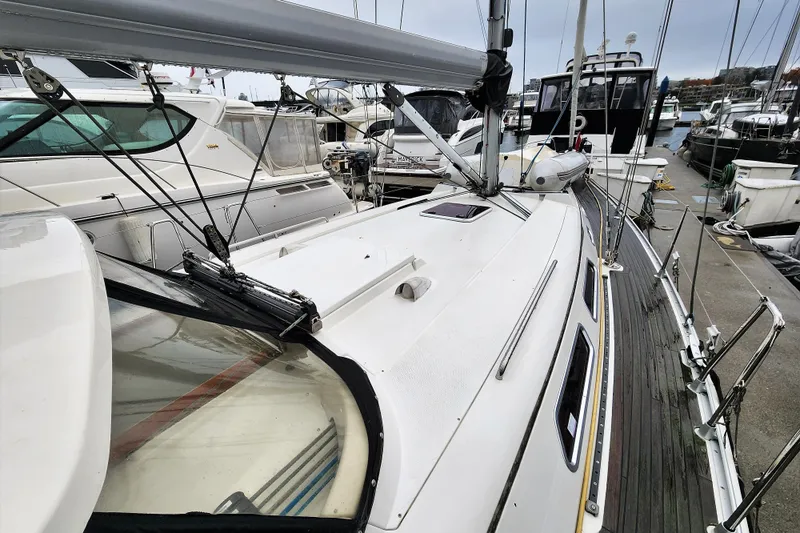

•  9/10th double spreader tapered deck stepped Sparcraft aluminum mast
•  Facnor LS200 jib furler with new furling line
•  Spreader lights for deck lighting
•  Fore deck light
•  Anchor light
•  Forespar Leisure Furl boom furler with new line
•  Sparcraft spring and block and tackle boom vang
•  New main halyard
•  Spinnaker halyard
•  Cruising spinnaker gear
•  Mainsheet traveler on cabin top in front of dodger
•  Self tacking track in front of mast
•  Genoa tracks on side decks
•  Adjustable backstay
•  All lines lead back to cockpit
•  Spinnaker halyard has clutch stop on mast to allow dinghy launch and also for spinnaker drop single      handed
•  Electric Lewmar 40ST 2 speed halyard winch on starboard coach roof ( Electric part is one speed)
•  Lewmar 40ST 2 speed halyard winch on port coach roof
•  Lewmar  46ST 2 speed coaming winches
•  Lewmar #6 snubbing winch on starboard coach roof for Leisure Furl operation
•  Stainless steel sprit for asymmetrical spinnaker off bow

DECK

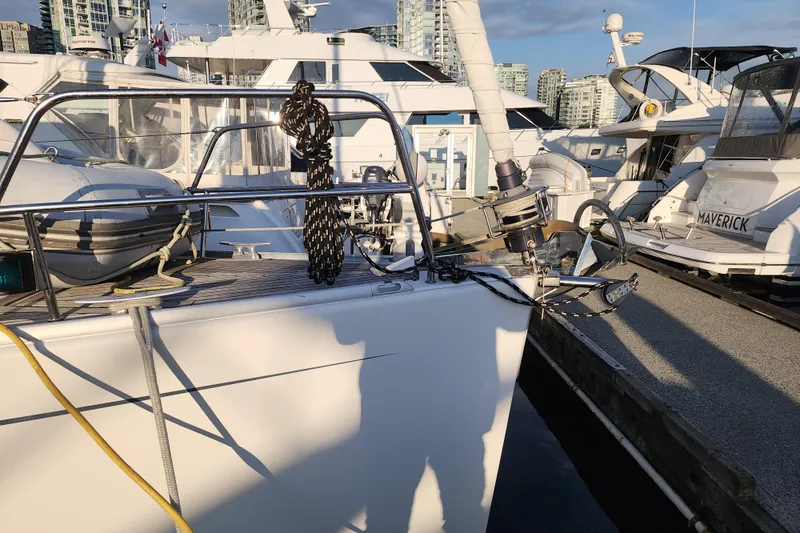

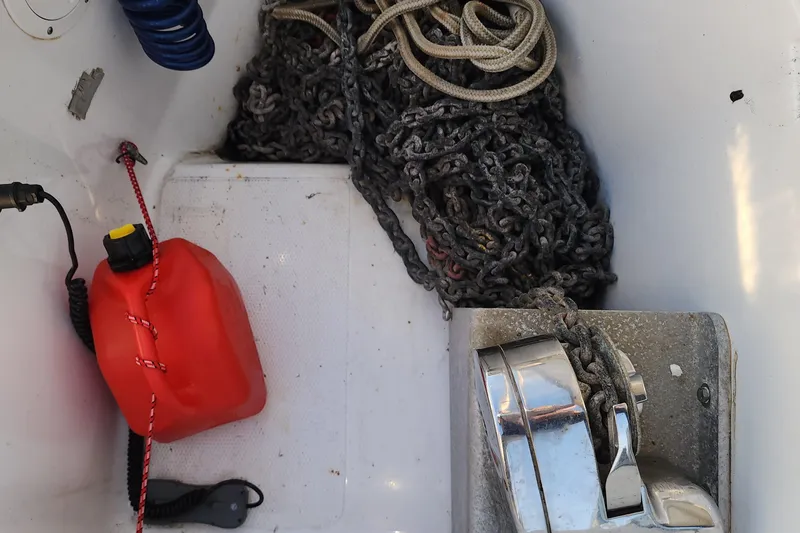

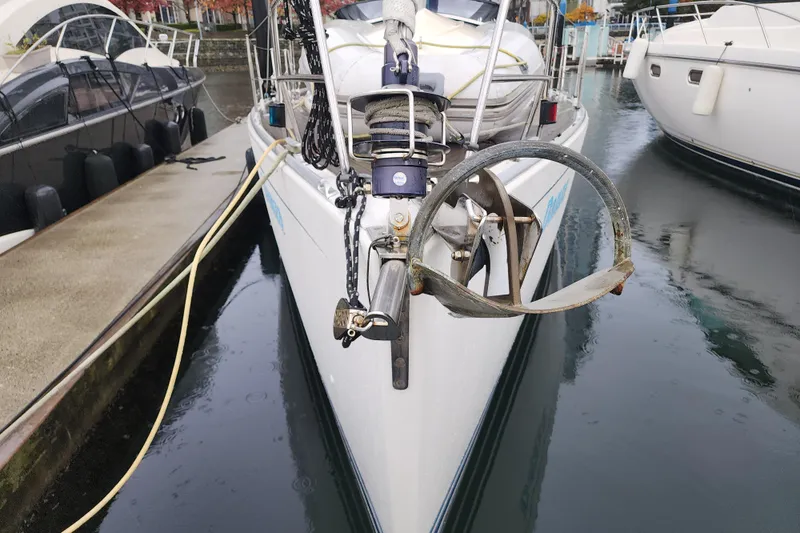

•  Anchor locker forward with Lewmar Pro Series 1000w electric windlass
•  Stainless steel bow roller
•  Manson #35 Plow anchor
•  225' matched link chain
•  Anchor bridle
•  12v wash down with hose
•  Draining anchor locker
•  Lifelines are bare stainless steel
•  Lifeline gates port and starboard
•  Glued teak decking
•  3 cleats each side of boat
•  Custom pushpit with Forespar outboard davit with outboard mount
•  Walk through transom with stainless steel boarding ladder

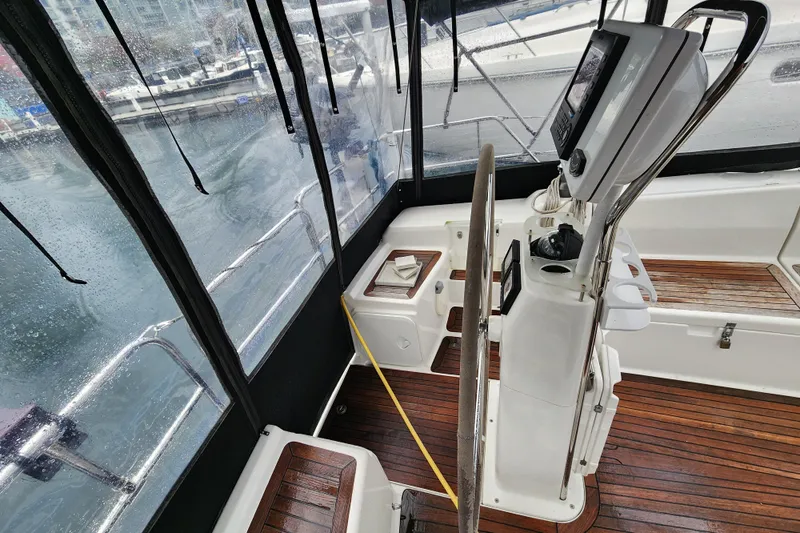

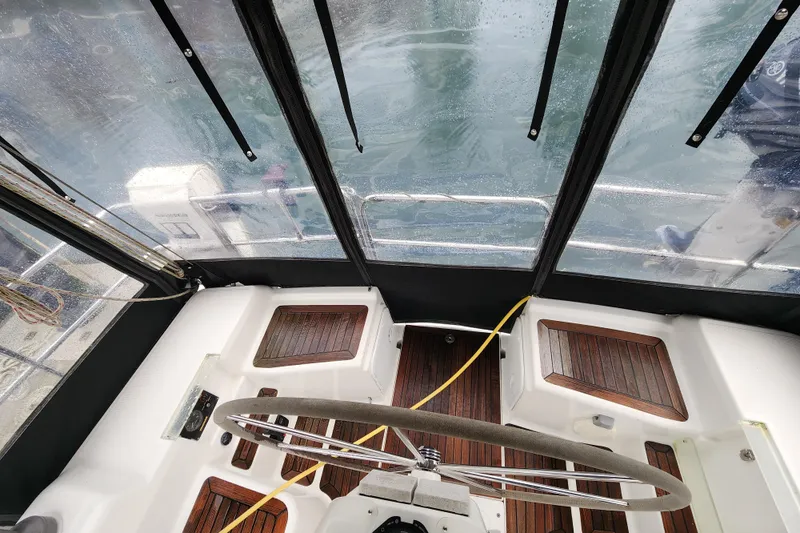

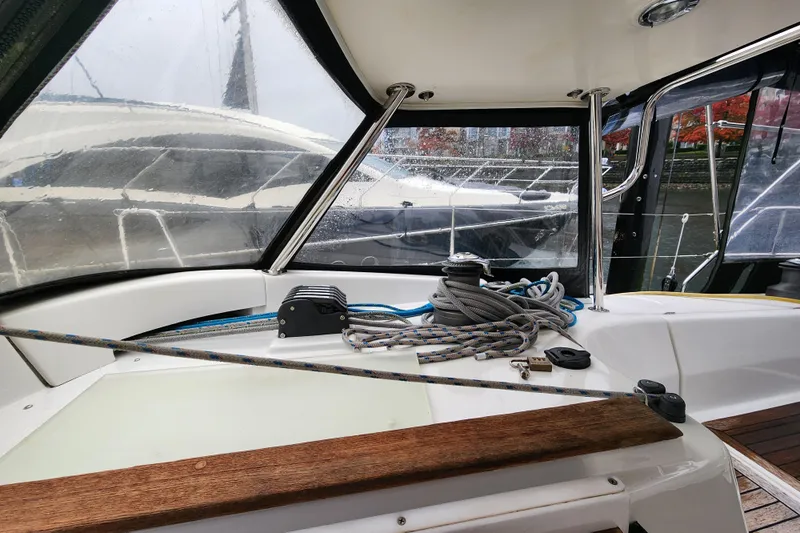

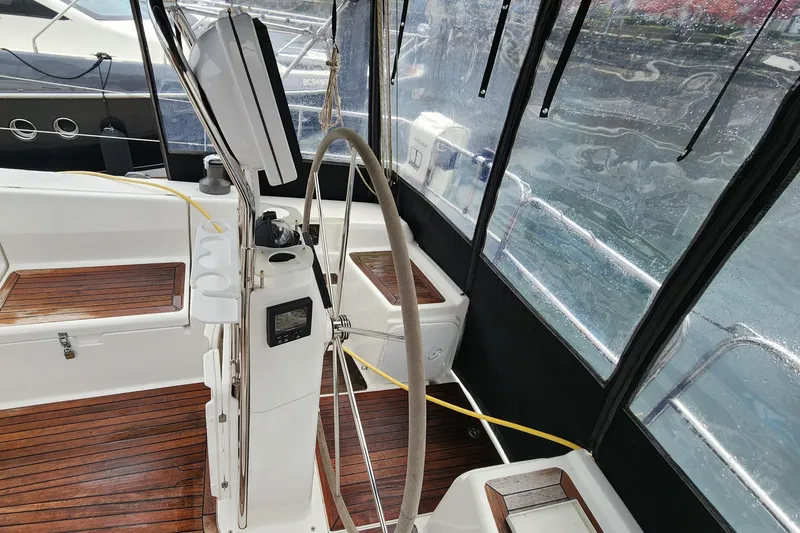

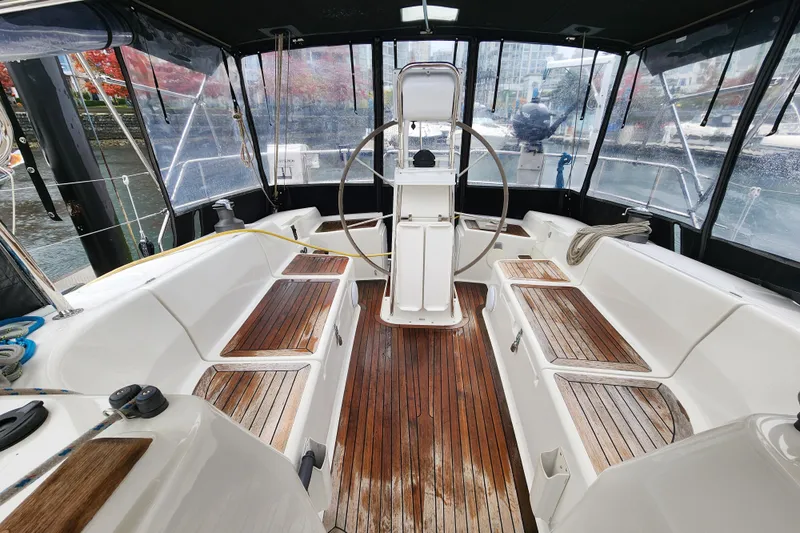

Cockpit

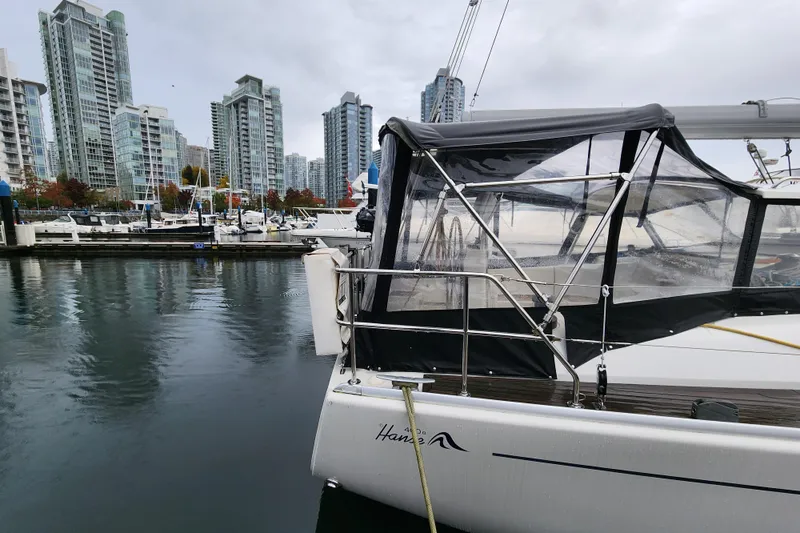

•  Removable connector between bimini and hard dodger
•  Removable dodger panels
•  Custom lights in hard dodger are over companionway and over each coach roof winch

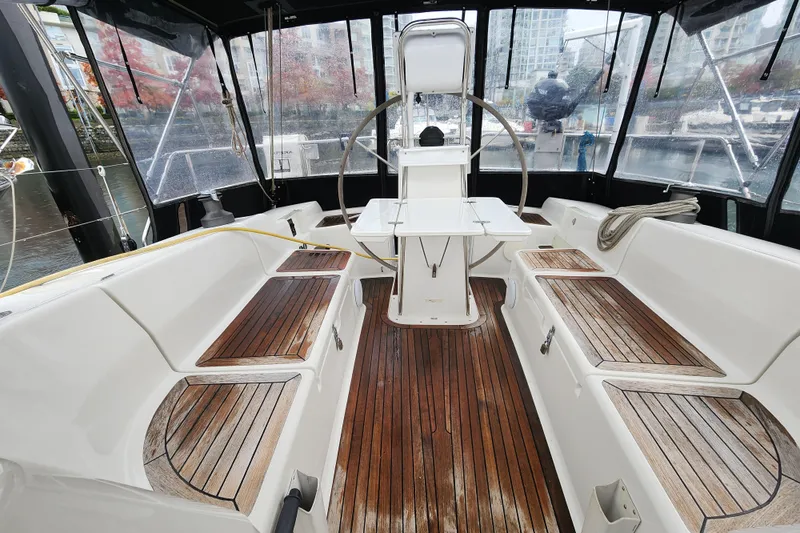

•  Large cockpit designed for ease of movement
•  Large box shaped pedestal to allow bracing when driving
•  Chart plotter, wind, speed and depth displays are on the aft side of pedestal
•  Under wind, speed and depth displays are toggle switches for deck lights

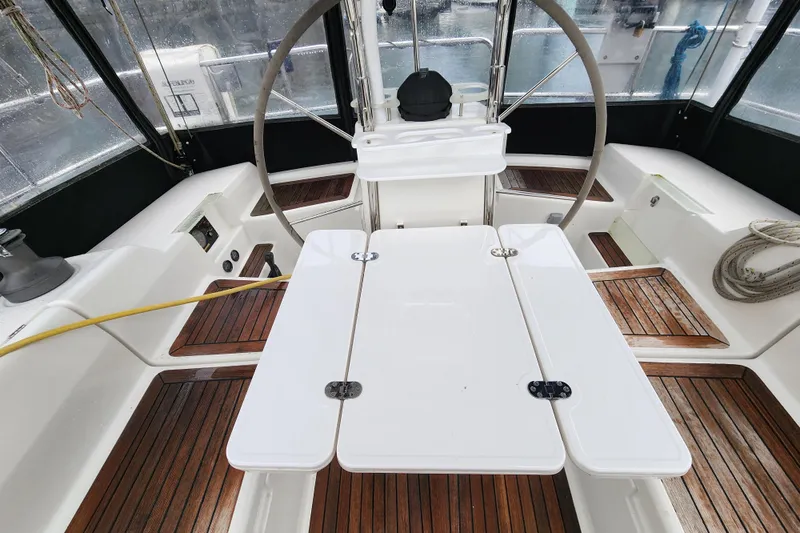

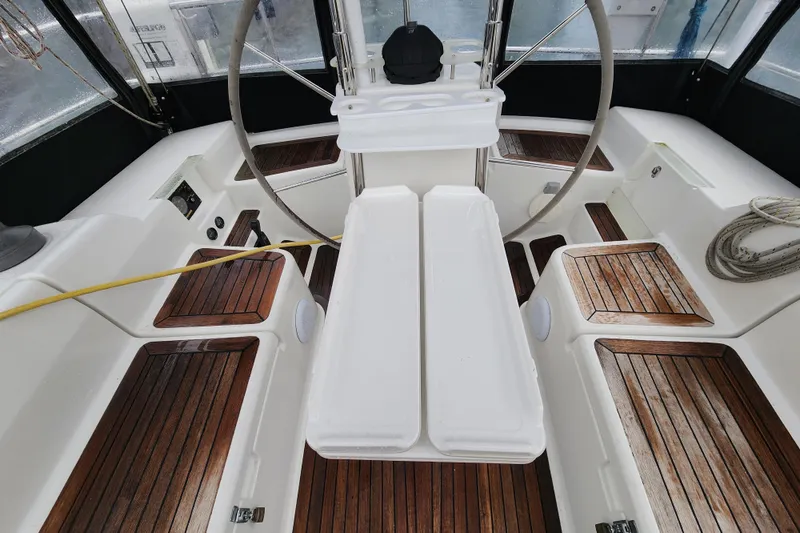

•  Lewmar composite folding table attached to front of pedestal
•  Cup holder above folding table
•  Engine gauges and controls are on starboard side
•  Port side shelf with trim for Command Mike storage and connection

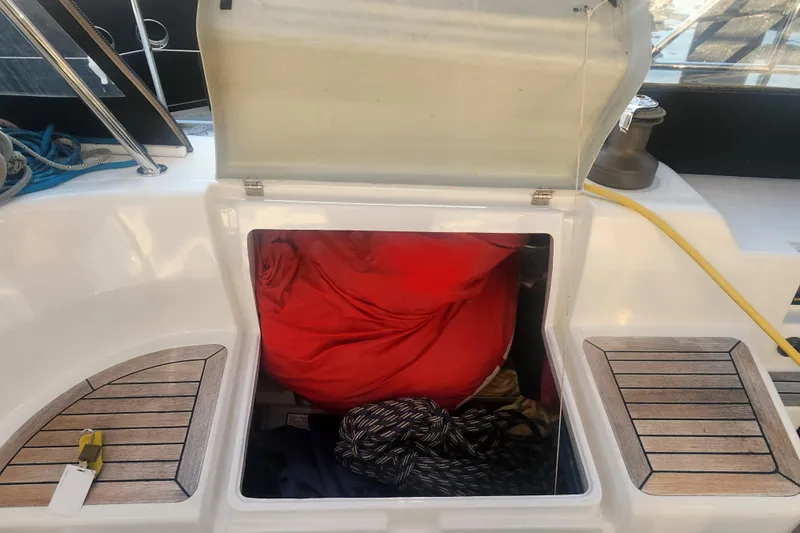

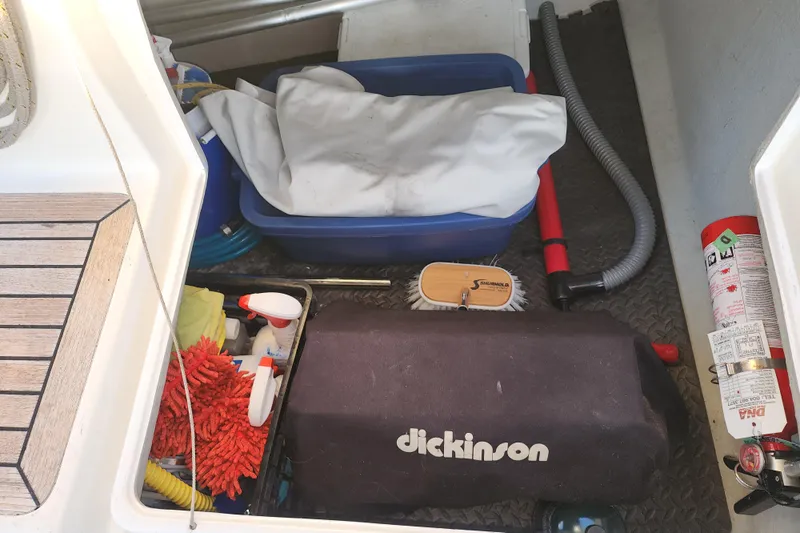

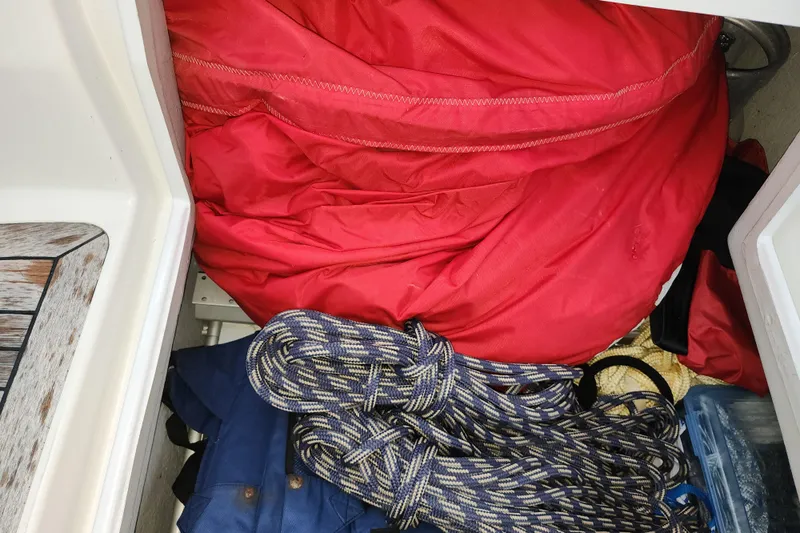

•  Cockpit locker under port and starboard bench seating

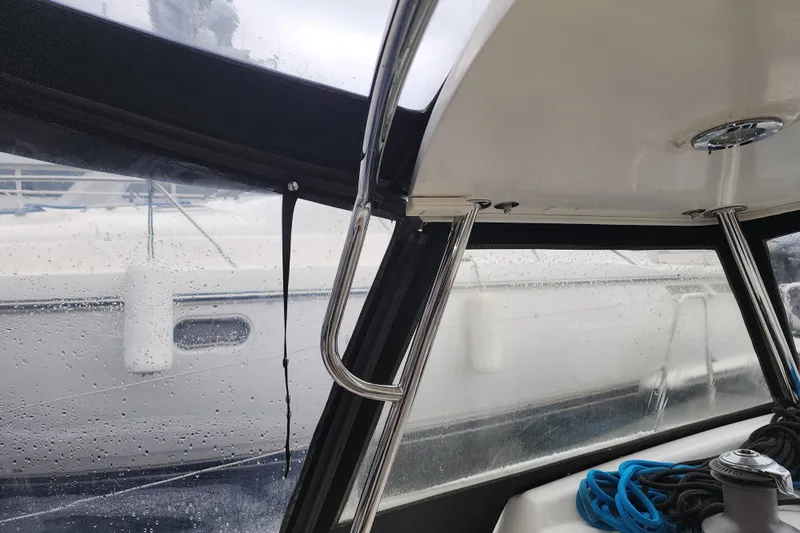

•  Stainless steel framed full enclosure with windows in bimini and connector to see sails
•  Harness attachment points at companionway and helm for safety
•  Lifesling rescue system
•  Manual bilge pump

 ADDITIONAL EQUIPMENT

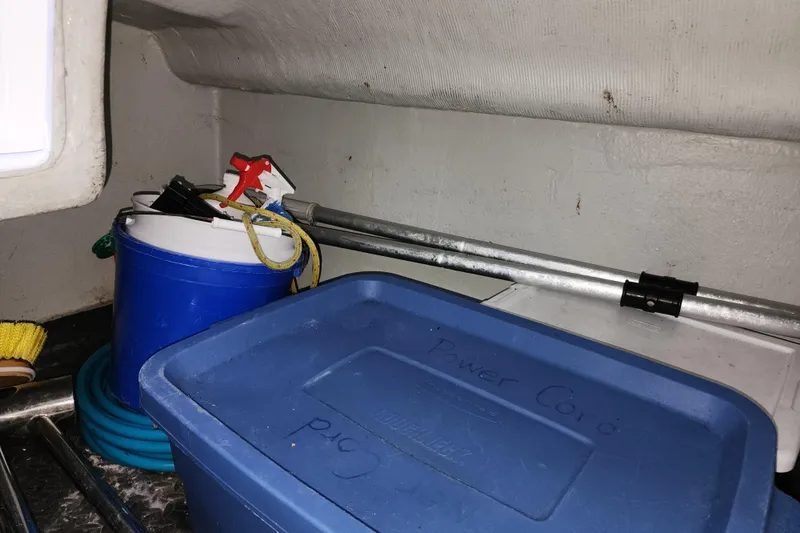

•  Containers for storing spare parts, shore power adapters
•  Fortress FX23 anchor with chain and rode
•  2 propane tanks
•  Fender step and fenders and dock lines
•  10 opening Lewmar ports
•   2 passive vents on cabin top
•   Wheel cover
•   Swim ladder on stern
•   Electric up and down control for windlass
•   Webasto forced air cabin heat
•   New filter inline filter for Webasto Sept 2024
•   Propane BBQ on stern rail
•   Achilles HB310 RIB
•   Yamaha 2.5HP outboard with internal tank
•   Bottom painted with CSC 2024
•   Manuals and log
•   Emergency tiller
•   Spare parts and tools come with boat
