DYLAN ANNE Yacht for Sale

KEY FEATURES

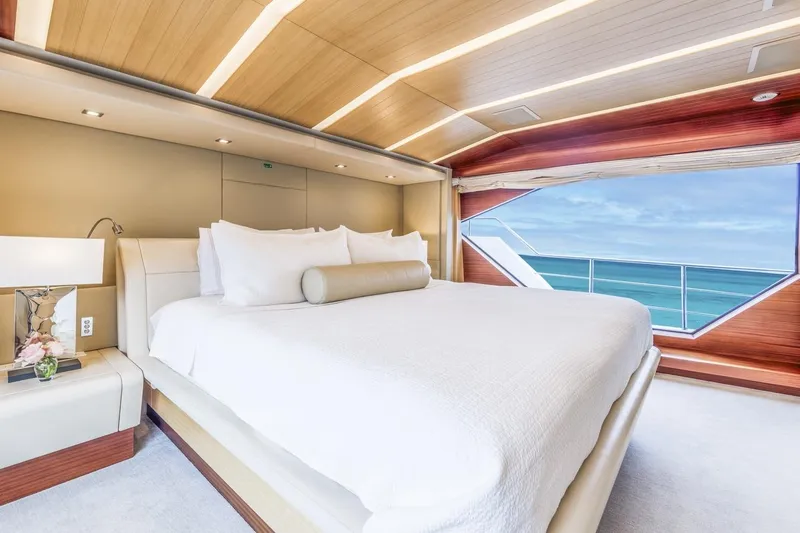

•    Full-beam, On-deck Master Suite with Panoramic Windows

•    Sleeps 9 Guests in 5 Staterooms

•    Flybridge with Jacuzzi & Expansive Sun Lounges for True Resort-Style Outdoor Living

•    Beach Club & Hydraulic Swim Platform with Tender Garage for Seamless Water Access

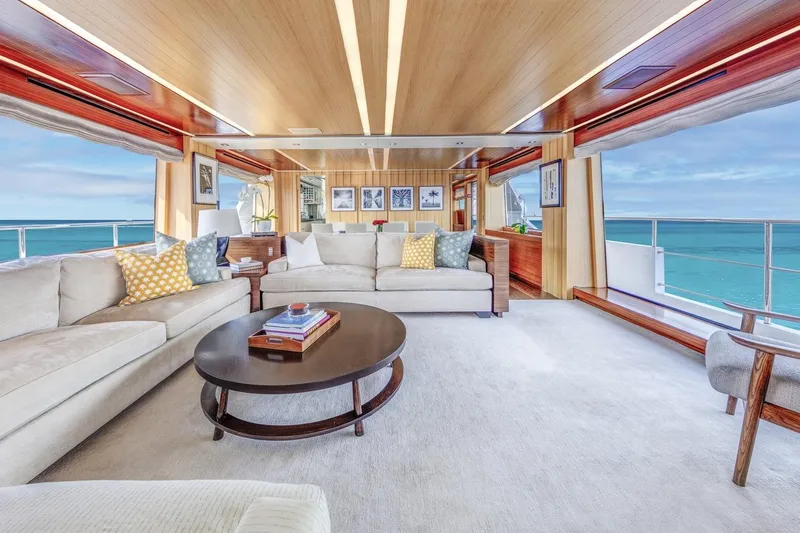

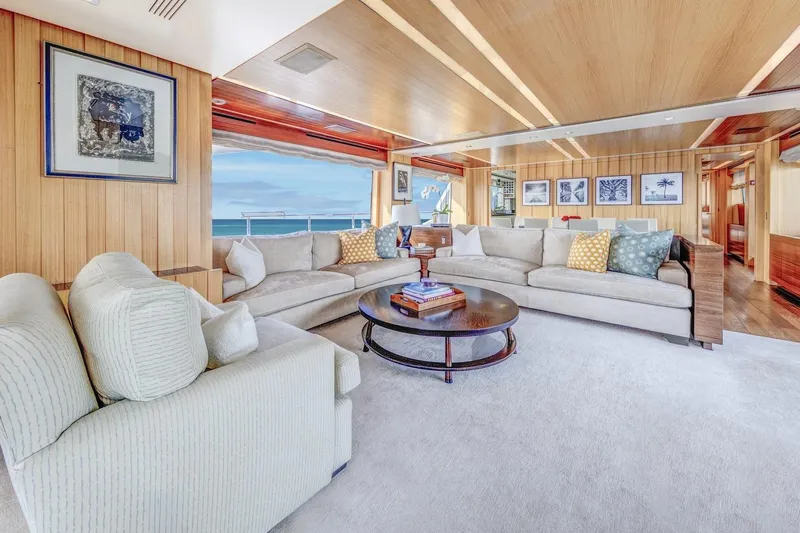

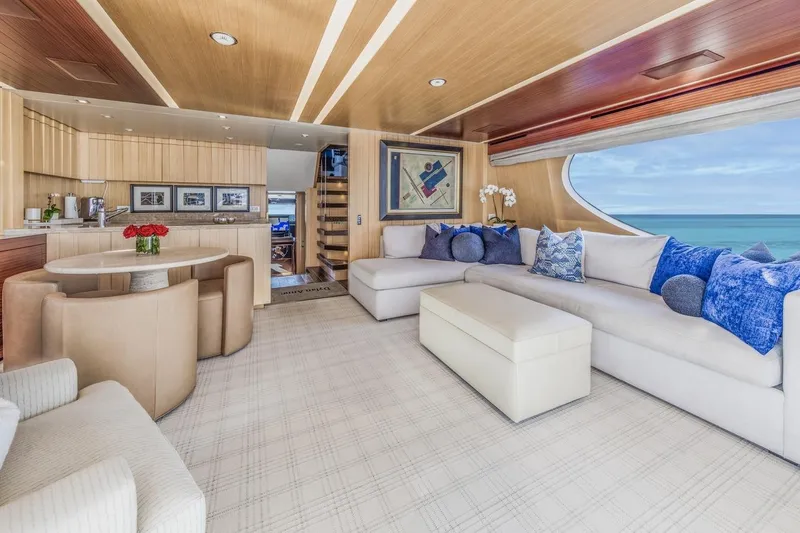

•    Light-Filled Interior with Floor-To-Ceiling Windows, High Ceilings and Chic Oak/Steel/Glass Finishes

•    Twin MAN V8 1,000 HP Engines- 15 Knot Top Speed- 2,300 nm Range with Zero Speed Stabilizers for Comfort

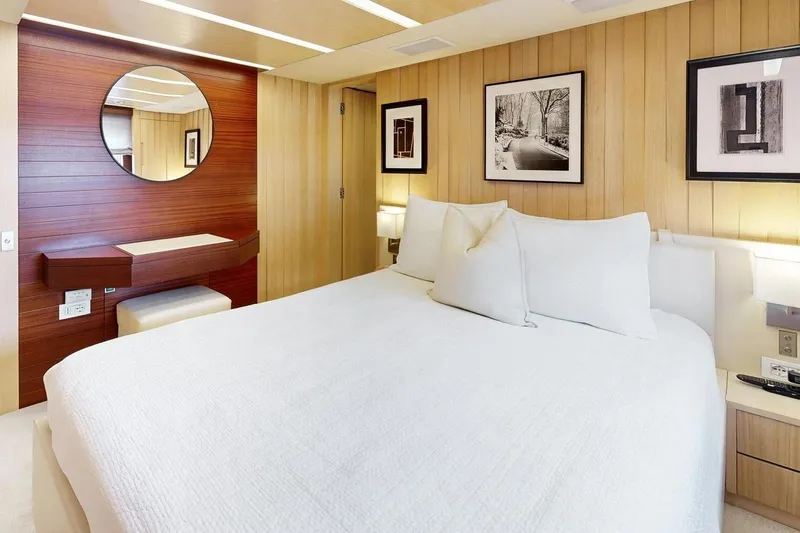

•    Proven Charter Layout- Five En-Suite Staterooms for 9 Guests + Discreet Crew Quarters for 6

ENGINES

•    Twin MAN V8 1000 HP diesel engines

•    Max Speed: approx. 15 knots

•    Cruising Speed: approx. 11 knots

•    Range: approx. 2300 nm @ 10 knots

•    Engine rebuild completed in 2022

GENERATORS

•    2 x Kohler 50 kW

•    1 x Kohler 33 kW Night Generator

•    Generator hours:

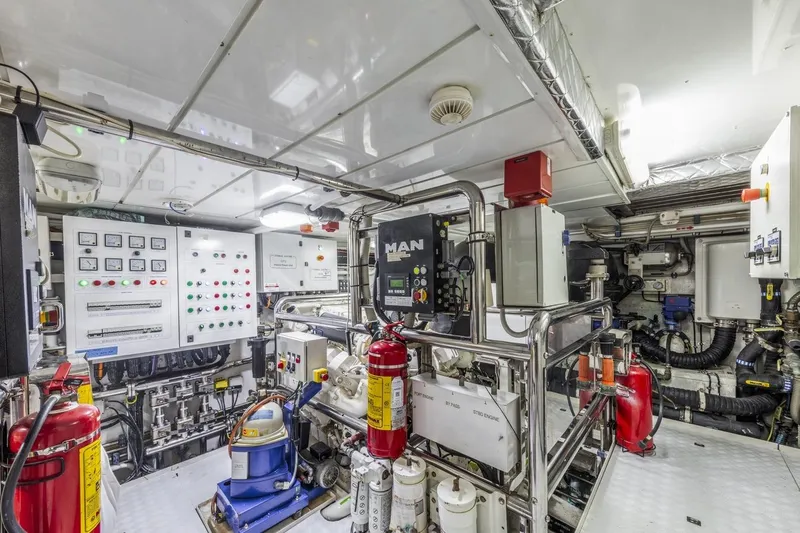

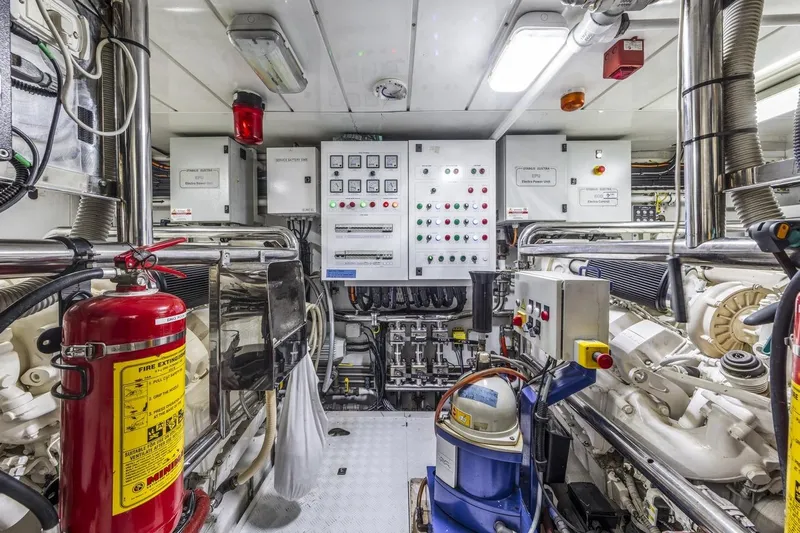

MACHINERY EQUIPMENT

•    Engines (2) x MAN V8 D268LE423; maximum rated RPM 2300; 1000 hp each

o    Approx Hours:

•    Gearboxes: Reintes WAF344

•    Shafts 95mm stainless steel

•    Propellers (2) x 5-blade 1250mm X 1185mm

ANCILLARY EQUIPMENT

•    2 x Frigomar 120,000BTU (240,000BTU) reverse cycle HVAC chillers supplying 24 air-handlers and two make-up fresh air handlers.

•    10 Tecma marine toilets and Tecnicomar sewage treatment plant.

•    Bow thruster. Electric 400-VAC, 37kW. Mitsubishi frequency drive.

•    Stabilizers, CMC Marine SE 80 electric 400-VAC. Twin 1.6m2 wing type zero speed fins.

ELECTRICITY AND ELECTRICAL EQUIPMENT

•    Shore Power: 2 x 100 Amp, 3-phase, 208V/60Hz

•    Atlas shore power converter

•    AC & DC electrical panels

•    Battery chargers: 24V and 12V

TANK CAPACITIES (WATER AND WASTE SYSTEMS)

•    Fuel: approx. 5680 Gallons

•    Fresh Water: approx. 925 Gallons

•    Grey Water: approx. 400 gallons

•    Black Water: approx. 400 gallons

•    Water Heaters: Dual 100-gallon units

COMMUNICATION/NAVIGATION EQUIPMENT

•    SATCOM: KVH Tracphone

o    VHF:

o    (1) x Sailor 6322 with DSC function

o    (1) x ICOM MF/HF Marine IC-M803

o    (1) x Furuno HS-4800 (flybridge)

•    Searchlight: ITT Jabsco- remotely operated

•    SATTV: KVH Tracphone

•    Radar: Furuno w/6' Array

•    GPS: Furuno Nav-Net with NMEA interface; Model: GP320B

•    AIS: Furuno- Class A

•    Automatic Pilot: Navis AP3000

•    Depth Sounder: Furuno RD30/Furuno NavNet digital display

•    Compass: C. Plath Jupiter- magnetic

•    Plotter Program: Time Zero

•    Navigation Software: Transas Navigator Pro

•    Monitors: (2) x 22" Onyx monitor screens

•    Ship's Alarms:

o    (2) x Boning monitors

o    (1) x Furuno BNWAS BR-510

•    PC based, integrated Ship Alarm and Monitoring System (SAMSm by Onyx Marine Automation)

•    Navtex: Furuno NX-700 receiver

AUDIO/ VISUAL ENTERTAINMENT

Video Equipment

•    (1) x 55" Samsung concave widescreen (Sky Lounge)

•    (2) x 44" Samsung widescreen (Main Salon, Crew Mess)

•    (1) x 41" Samsung widescreen (Master Stateroom)

•    (4) x 32" Samsung widescreen (Lower Guest Cabins)

•    (3) x 24" LG widescreen (Crew Cabins)

•    Apple TV: (Main Salon, Sky Lounge, Master Stateroom)

•    Denon DVD Players: (Main Salon, Sky Lounge, Master Suite, Lower Guest Cabins)

Audio Equipment

•    Denon Sound Systems (Main Salon, Sky Lounge, Master Stateroom, Guest Cabins)

•    Fusion MS-AV750 stereo sound system (Sun Deck)

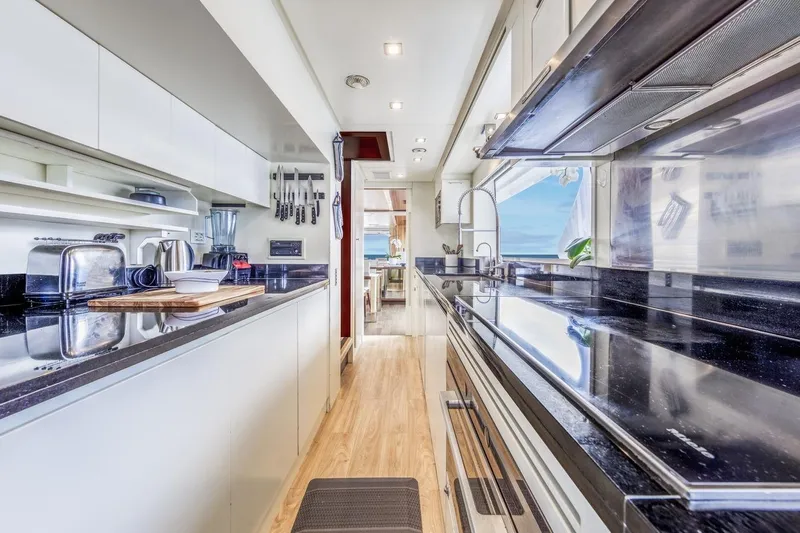

GALLEY & DOMESTIC EQUIPMENT

•    Refrigeration & Freezer:

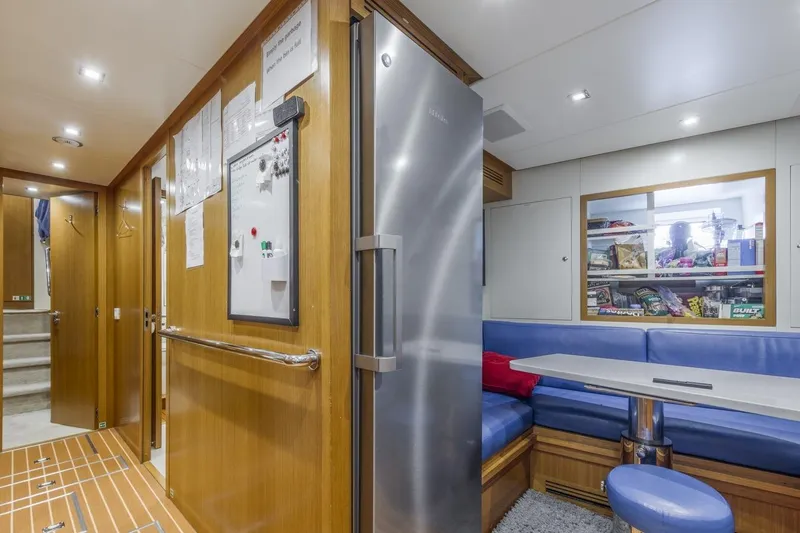

o    (1) x Electrolux uprifght refrigerator

o    (4) x Isotherm under-counter refrigerators (sun deck, crew mess, 2 in sky lounge)

o    (1) x Insignia deep freezer- 3.5 cubic feet (garage)

o    (1) x Arctic King deep freezer- 8.7 cubic feet

•    Icemaker: (2) x Frigomer (sky lounge, bridge deck aft)

•    Wine Cooler: Isotherm (sky lounge)

•    Laundry Equipment

o    Washing Machine: (2) x Miele

o    Dryers: (2) x Miele Little Giants tumble dryers

SAFETY AND SYSTEMS

•    Life Rafts: (2) x 8-person Zodiac; (1) x 10-person Revere

•    Life Rings: (4) x 30" USCG Approved

•    Life Jackets: (20) x Adult Type II

•    EPIRB: (2) x Thrane & Thrane Sat 406

•    Flares: Pains Wessex

•    Horns: (3) x Kahlenberg trumpet horns

•    Medical Kit: Yes

•    Searchlight: ACR, forward

Security (Cameras / Recording / Infrared)

•    (1) x 360 degree (mast)

•    (1) x 360 degree (engine room)

•    (1) x 360 degrees (port aft deck)

•    (1) x 360 degrees (starboard aft deck)

•    Records onto a computer for 30 days

Fire System

•    Type: FM 200

•    Fire Pump System: Raw water stations at foredeck, bridge deck aft, main deck with hoses, nozzles, and valves

•    Fire Extinguishers: Dry Chemical

EXTERIOR FEATURES

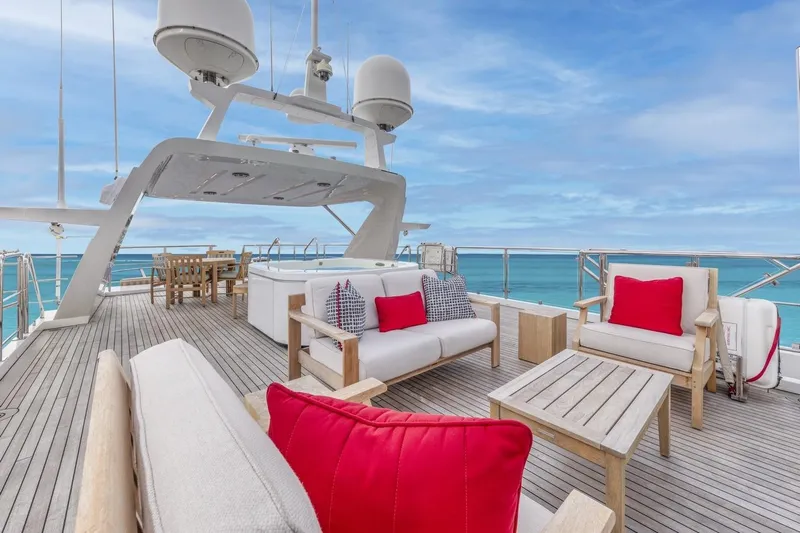

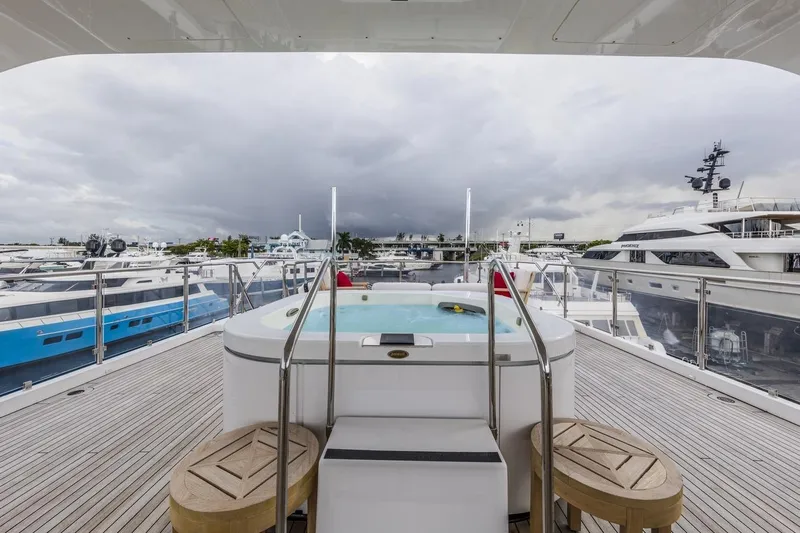

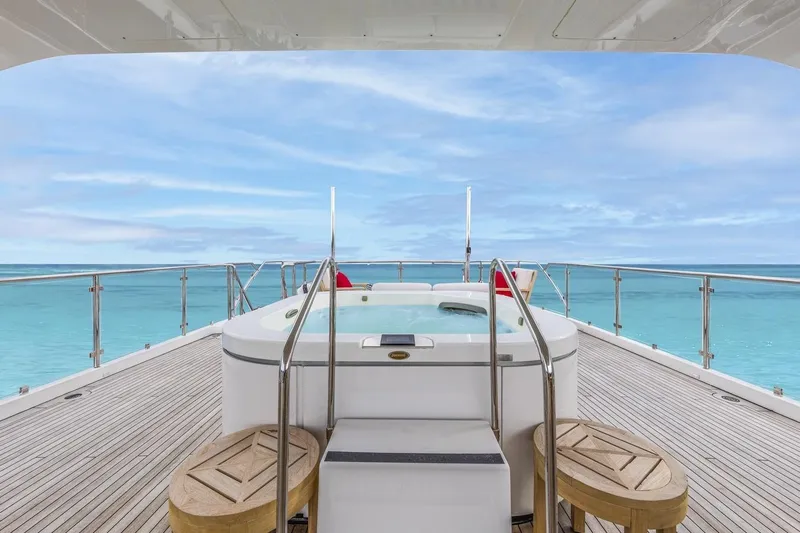

•    Oversized sundeck with Jacuzzi and full bar

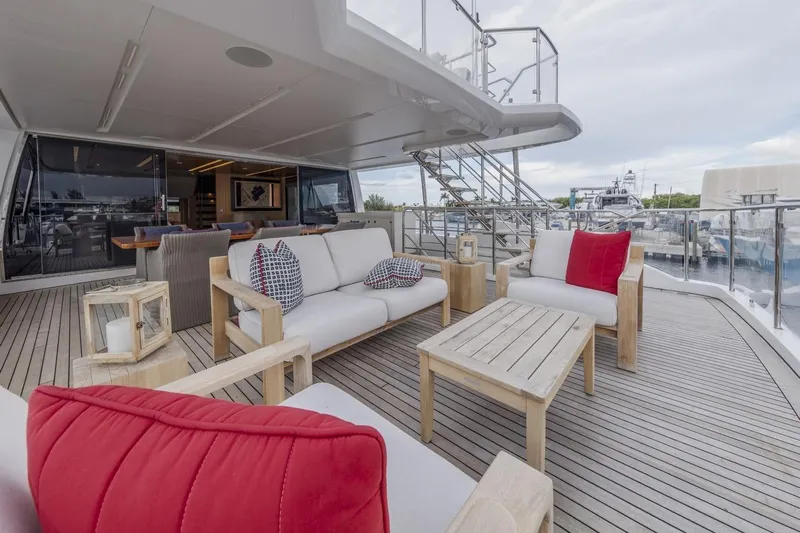

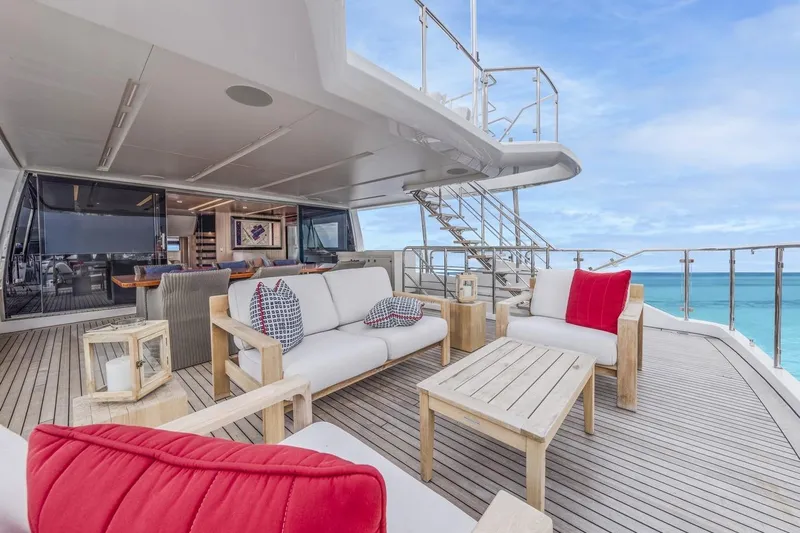

•    Multiple outdoor lounge areas

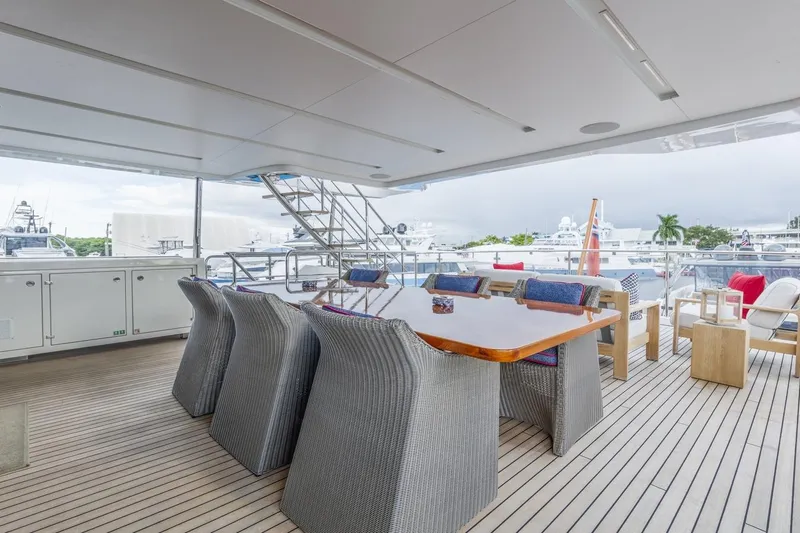

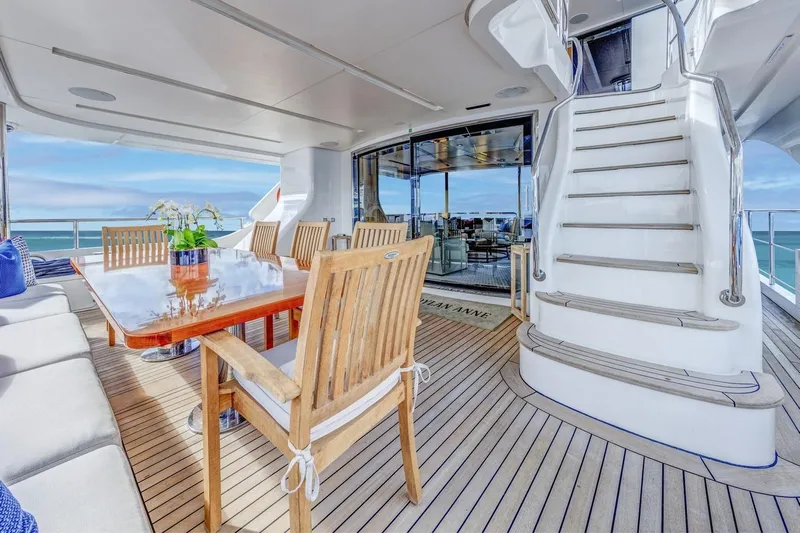

•    Large alfresco dining area on upper deck aft

•    Forward sunbathing area with built-in seating

•    Teak decks throughout

•    Beach club with swim platform and storage

STUFF DONE IN 2025 REFIT

•    RINA certified

•    New soft goods on the interior as well as exterior

•    New cushions and cushion covers throughout exterior

•    New solar shade sails

•    Rebuilt jacuzzi

•    New carpeting throughout

•    Recovered the master walls in leather and added leather panels in the downstairs stairwell

•    Redone crew quarters

•    New washer and dryer

•    New exterior furniture
