Accommodations

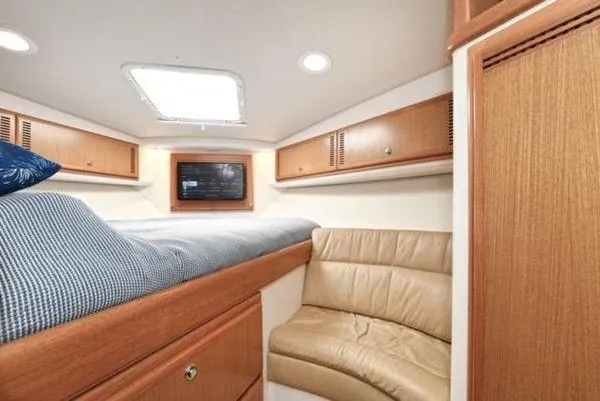

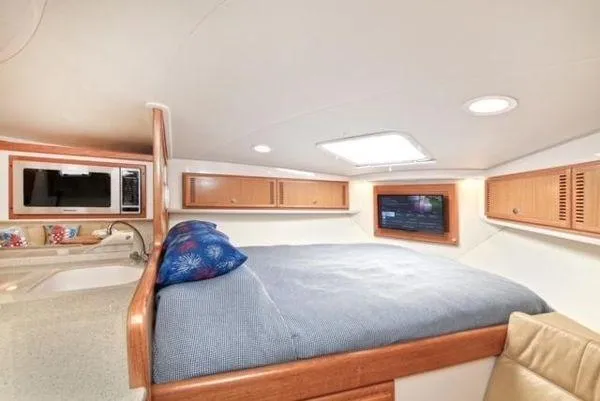

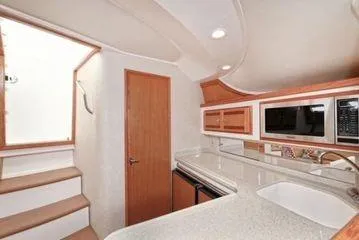

The master is an offset double berth forward with a seating area and cedar lined hanging locker to starboard. There is a ventilation deck hatch with a screen and shade. Rod storage for (8) rods is above port and starboard. Aft to starboard is the L-shaped dinette area that converts to upper and lower berths. Aft to port is the spacious galley area with Corian counter tops, AC/DC refrigerator and freezer, convection/ microwave oven, molded-in sink and dual burner cook top. Aft again to port is the head compartment with a Sealand VacuFlush electric toilet system, sink, vanity and mirror. The separate stall shower also accommodates rod storage. The cabin interior wood is teak with a satin finish with the cabin sole Teak & Holly. The cabin headroom is 6'11'.

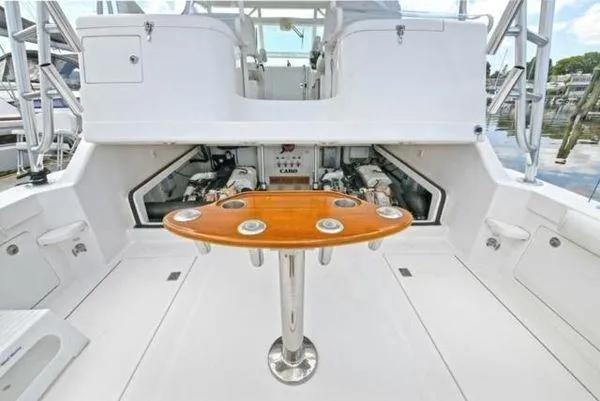

Up a couple of steps to the helm deck, the helm is to starboard and companion forward facing seat to port. Aft is a spacious 100 square foot cockpit area with flush deck fish boxes (2), transom live baitwell, icebox/ freezer, bait prep station, and transom door with gate.

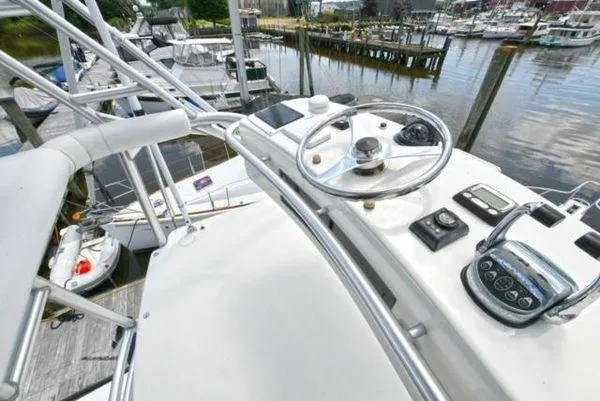

The tuna tower is complete with full controls, bench seat, sunshade and electronics.

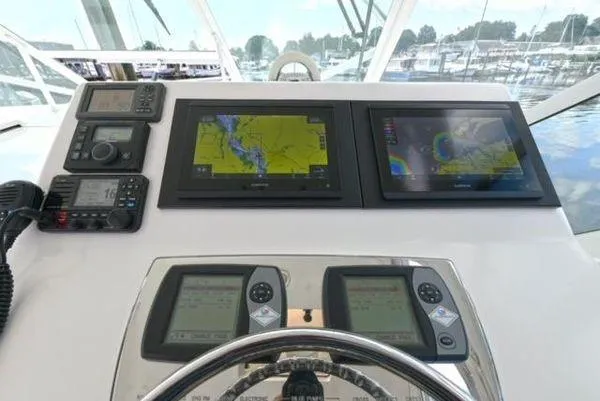

Electronics
- (2) Garmin GPSMAP 8612xsv displays
- Garmin GMR Fantom 124 Open array radar
- Garmin Weather Receiver Module
- Furuno RD-30 MFD with digital depth & sea water temperature
- Simrad AP26 Autopilot
- ACR RCL 100 Remote spotlight
- Icom M510 AIS VHF radio

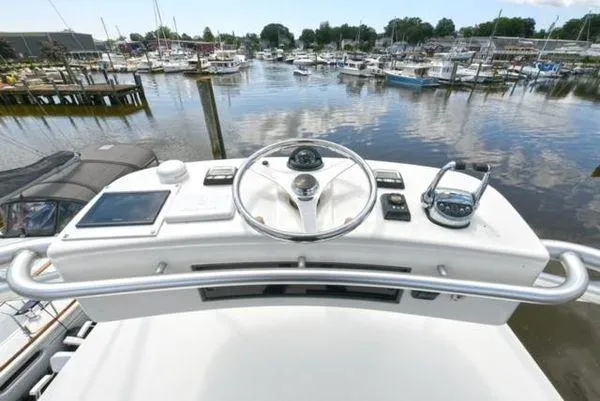

TOWER ELECTRONICS
- Integrated Garmin display
- Icom VHF
- ACR RCL remote spotlight

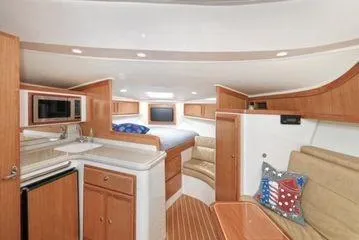

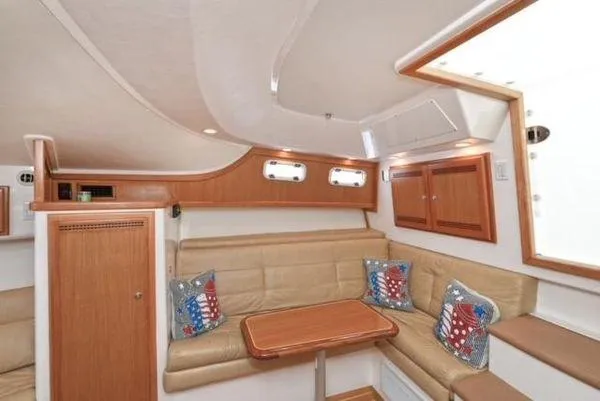

Main Cabin
- Interior teak wood, satin finish, superbly joined & finished
- L-Shaped lounge, converts to upper & lower sleeping berths
- Dinette table
- Forward access to anchor rope locker
- Ventilation hatch, opening with screen & sunshade
- Forward double berth, 5” mattress with storage below
- 20” LCD Color TV
- Access hatch to bilge

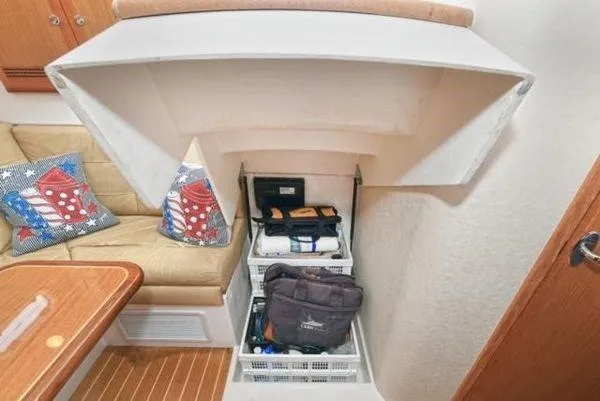

- Storage compartments & large drawers below berth
- Upholstered dressing seat
- Latches, positive, cabinet doors & drawers
- Port Lights (2), opening
- Cedar-lined hanging storage locker
- Air Conditioning with reverse cycle heat
- DVD Video player
- Stereo/ CD Player with (6) stereo speakers - (2) cabin, (2) helm, (2) cockpit
- Forward rod storage cabinets, port & starboard for (8) rods

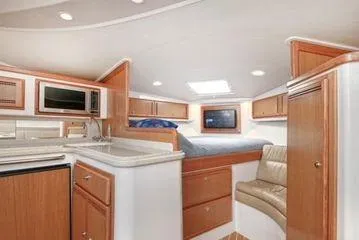

Galley
- Hot & cold pressure water system
- AC Duplex outlet/ GFI protected
- Two-burner recessed ceramic cook top with Corian cover
- Corian countertop with custom Corian sea rails
- Recessed countertop lighting,
- Microwave/convection oven
- Positive latches on cabinet doors & drawers
- Side-by-side refrigerator & freezer, AC/DC
- Molded-in single deep sink
- Storage compartments & drawers throughout

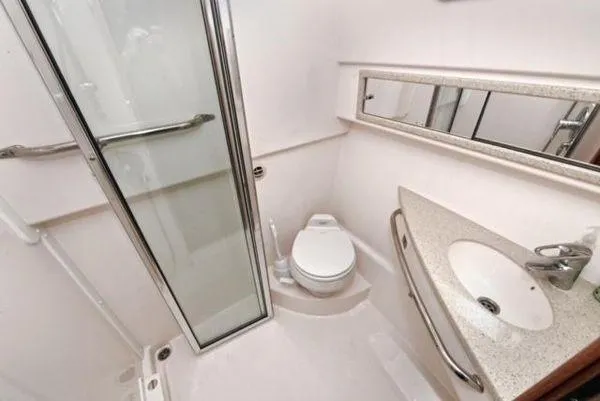

Head
- AC, Duplex Outlet/ GFI Protected
- Air Conditioning/heat vent, adjustable
- Custom Corian counter
- Vanity sink
- Sealand Vacuflush toilet system
- Holding tank monitoring system
- King starboard framed mirror
- Opening port light
- Recessed halogen DC lighting
- Separate stall shower with automatic shower sump pump
- Toiletry storage cabinet, Corian framed with sliding mirror doors
- Vertical rod storage rack in head compartment for (3) rods

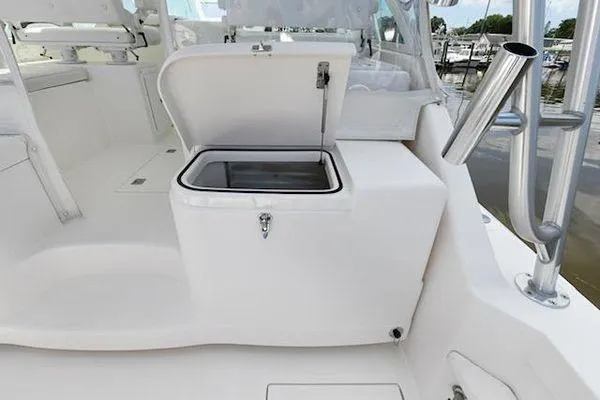

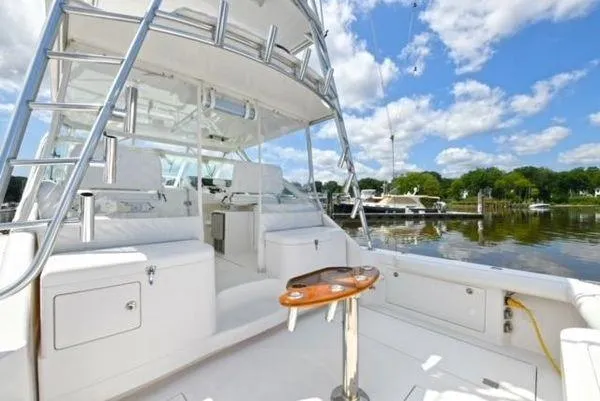

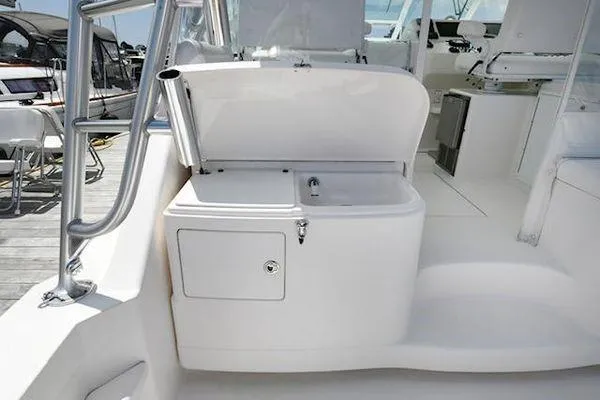

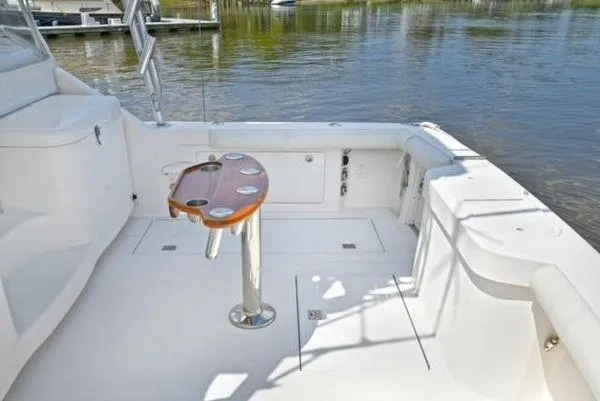

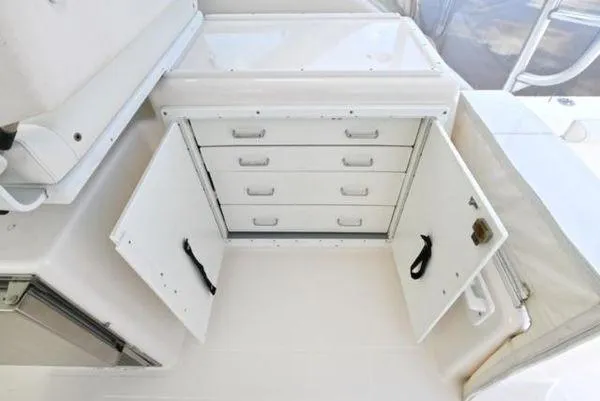

Cockpit
- Release Marine teak rocket launcher with (4) rod holders & storage drawer
- Transom live baitwell, 40 gallons with LED lighting
- Bait prep center to port includes: sink; rigging board & tackle storage, fitted with lid, gas spring actuator; full length stainless steel piano hinge and custom latch
- Courtesy lighting under gunwales & helm deck overhang
- Cockpit coaming padding, high density foam, white vinyl covered
- Large capacity fish boxes, insulated with macerator pump out system
- Fresh & saltwater washdowns
- Ice box/freezer, starboard side fitted with gasketed lid, gas actuator, full length stainless steel piano hinge & custom latch

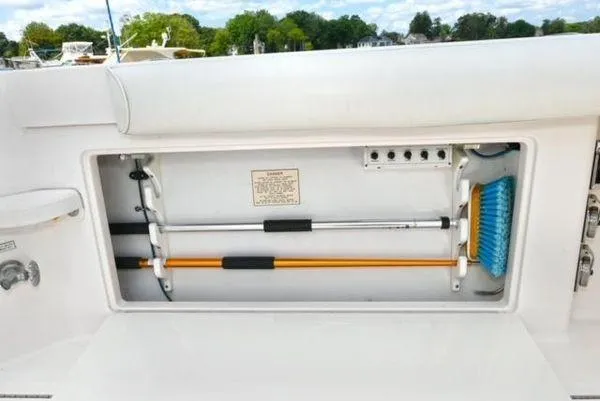

- Rod & gaff racks, port & starboard enclosed cabinets
- (5) Rod holders
- Self bailing cockpit scuppers

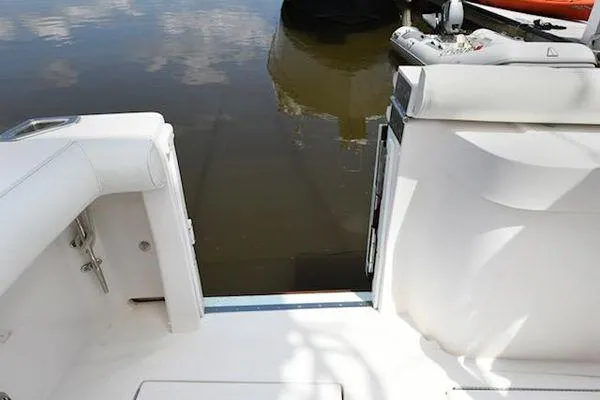

- Transom door with top gate, extreme duty polished stainless steel hardware
- (3) Underwater lights
- Tuna tower rocket launcher & aft tower leg rod holders (10)

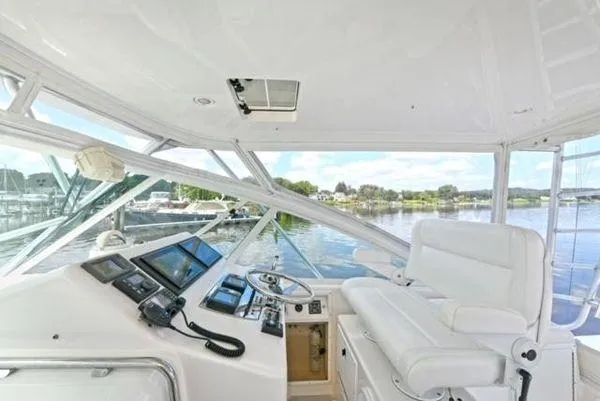

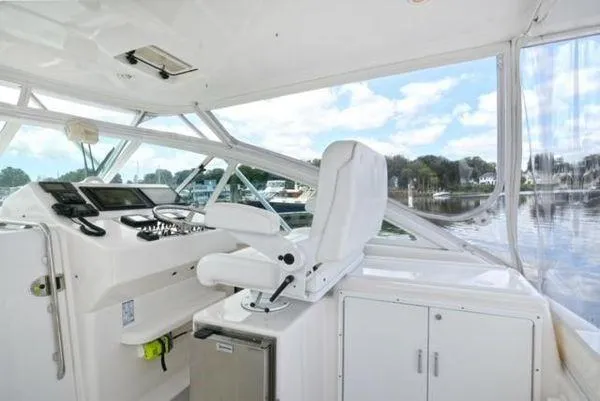

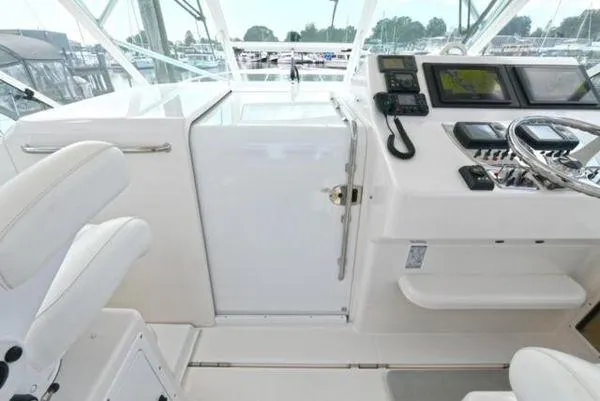

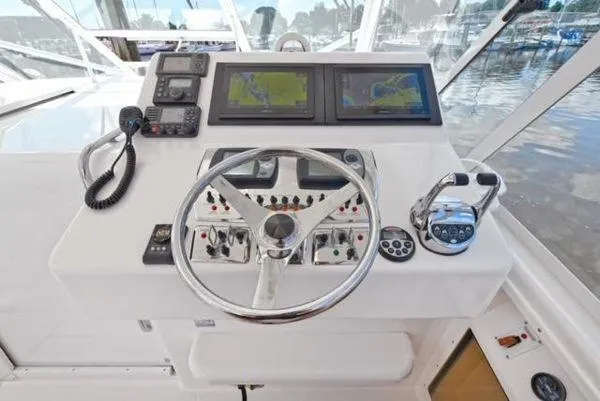

Helm Deck
- Helm console, integrally molded
- Flush mounted compass with light
- Custom engine Instrumentation panel with audible warning system
- Fire & bilge water level alarms, audible
- Stainless steel helm steering wheel
- Custom stainless steel switch panels
- Molded fiberglass helm deck, hydraulically lifted with cockpit control unit
- Safety cabinet with first aid kit & fire extinguisher
- Sliding companionway door, opaque white acrylic panel
- Storage cabinet at helm
- Tackle center with (4) drawers
- Custom outdoor helm deck carpet
- Engine access hatch with gas spring
- STIDD Bench style adjustable helm seat with foot rest
- STIDD Adjustable bench style companion seat with foot rest with storage below

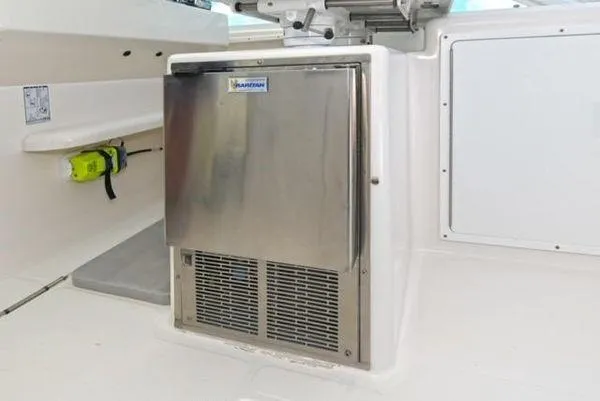

- Ice maker under helm seat
Fishing Equipment
- Custom Pipewelders tuna tower with molded fiberglass hardtop, full enclosure, sunshade, bench seat, controls & electronics
- Pipewelders outriggers
- Pipwelders center rigger
- Release Marine teak cockpit rocket launcher
- Freezer plate in cockpit icebox
- Bait prep center with sink & rigging board
- Tower rod rocket launcher & aft tower leg rod holders (10)
- Rod holders in cockpit gunwales (5)
- Transom livewell bait tank
- Transom door with top gate
- (2) Large capacity macerated fish boxes
- Fresh water & salt water washdown
- Padded cockpit coaming pads
- Rod storage under port side seating
- Rod storage in forward stateroom
- Rod storage in head compartment
Hull
- CAROLINA BLUE Hull Color
- Molded Fiberglass Construction using Premium Vinylester Resins and Bi-Axle Stitched Fabric Reinforcement. Solid Fiberglass Bottom Construction. Core Construction from Upper Chine to Sheer.
- Premium Quality Molded-In White Gelcoat Finish
- Stainless Steel Rub Strip on Face of White High Density PVC Rub Rail
- Trim Tabs, Fully Recessed
Electrical

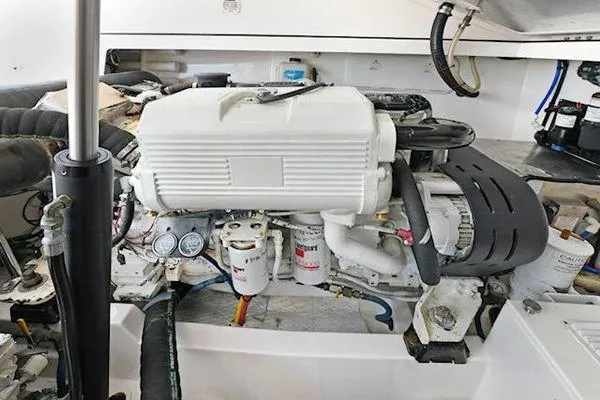

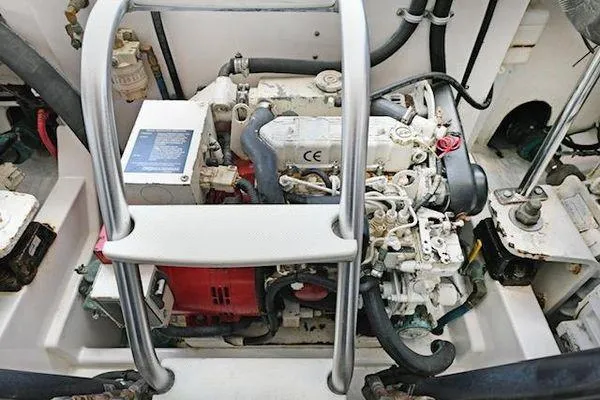

- Upgraded/ Optional 7.6 kW Westerbeke Fresh Water Cooled Diesel Generator (1570 hours) with Seawater Strainer, Remote Start & Digital Panel, Water Muffler, Safety Shutdown System
- 110V/ 12V Electrical System
- (2) 30 Amp Inlets with Dockside Power Cables
- (5) Heavy Duty Marine Grade Batteries
- Battery Charger, 70 Amp, Automatic with Thermal Cut Out
- Battery On/ Off Switches, Vapor Proof
- Battery Paralleling, Automatic, with Backup Switch at Helm
- Bonded Electrical System with Transom Zinc Plate
- Circuit Breaker Protection Throughout

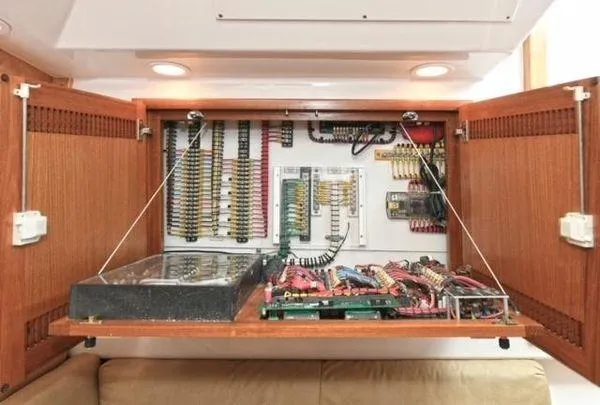

- Distribution Panel, Custom, AC Electrical, with Line Voltage & Load Meter, Reverse Polarity Light
- Distribution Panel, Custom, DC Electrical w/ Battery Voltage & Load Meter
- Horn, Air Trumpet
- Lights, Engine Room, Halogen, DC
- Lights, Navigation, International, on Tower
- Receptacles Throughout Cabin, GFI Protected

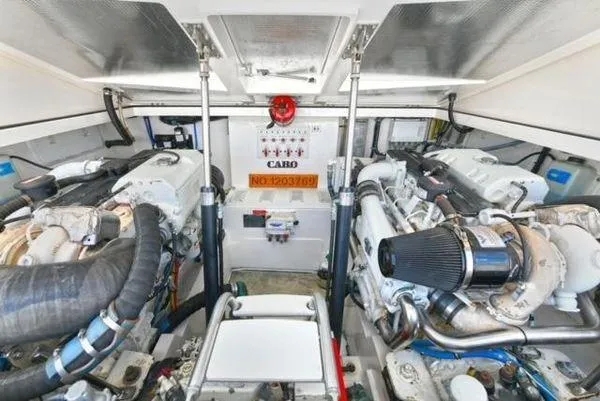

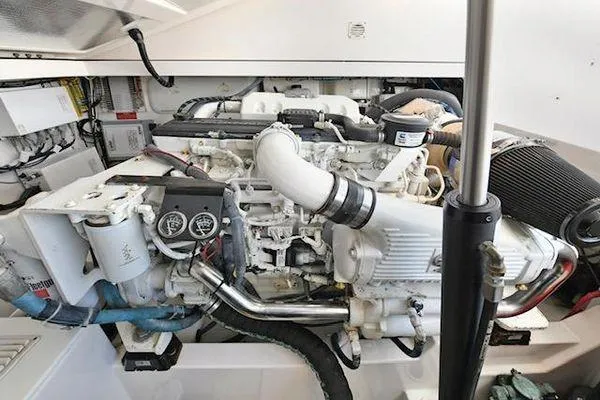

Mechanical
- Air Conditioning/ Heat including Additional Shore Power, 10,000 BTU Capacity
- Bilge Pumps (4), Three Automatic/ Manual, One Automatic
- Bilge, White Gelcoat Finish
- Sealand VacuFlush Electric Toilet w/ Holding Tank, Macerator & Dockside Discharge
- Double Constant Torque Stainless Steel Clamps on Engine Exhaust Hoses
- Anchor Windlass, Heavy Duty, DC, Electric for Rode & Chain Remote from Helm
- Windshield Wipers (3), Self Parking w/ Heavy Duty Pantograph Arms, with Intermittent & Separate Comtrols
- Windshield Washers, (3) Wet Arms
- Windshield w/ Side Vents, Heavy Duty Welded Aluminum Construction finished in White Polyurethane Paint
- Double Hose Clamps on All Hose Fittings, Stainless Steel
- Hose Sleeves, Braided, on All Nylon Hydraulic Steering Lines
- Electronic Controls, Engine Synchronizer and Back Up
- Emergency Bilge Pump Diverter Valve on Port Engine
- Engine Alarm System
- Engine Room Blowers (2)

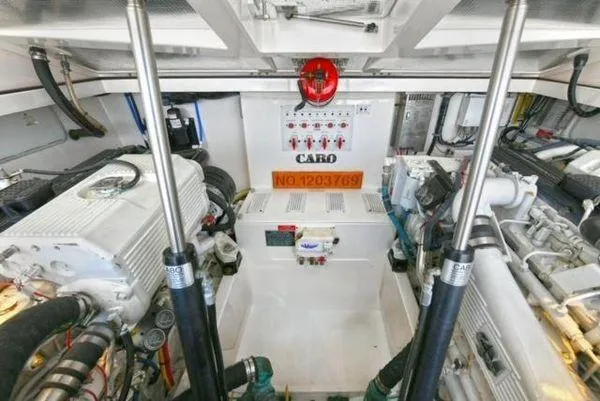

- Engine Room Liner, White Gelcoat Finish
- Engine Room Fire Extinguishing System, Manual/ Automatic
- Fresh Water Cooling, Main Engines
- Fuel Filters, w/ Water Separators on Main Engines & Generator
- Fuel Lines, Metal Braided, Fire Retardant
- Fuel Tank, Fiberglass, Fire Retardant Vinylester Resin
- Helm Deck Lift System, Hydraulic, Marine Grade
- High Water Bilge Alarms (3)
- Mufflers, Fiberglass w/ Backwash Surge Tube
- Propeller Shafts, Double Taper, Couplers, High-Strength Stainless Steel
- Rudders, Bronze, High-Strength w/ High Load Bearings (low friction, precise control)
- 4 Blade Veem Propellers
- SeaCocks, UL Approved for Marine Application, Bronze, Fitted on All Thru-Hulls below Waterline
- Steering System, Hydraulic, Teleflex-Seastar
- Oil Change System for Main Engines & Generator
- Trolling Valves
- Water Heater, 11 Gallons, AC, Stainless Steel
- Water Intake Scoops, Bronze, High Speed, w/ Integral Seawater Strainers
