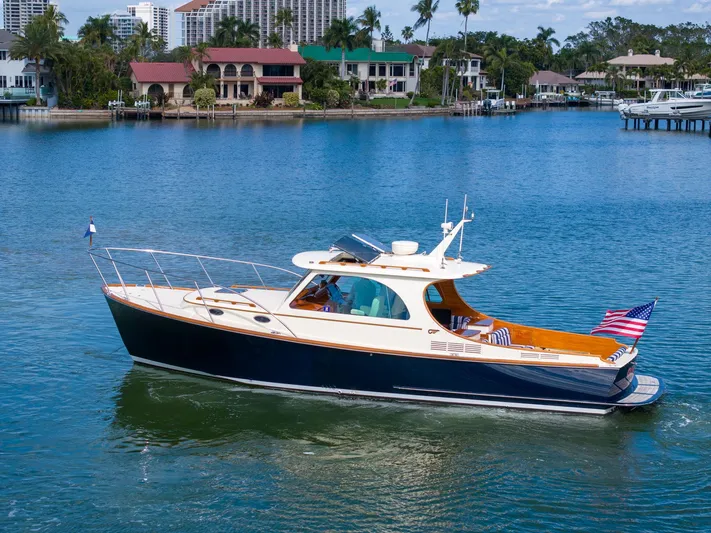

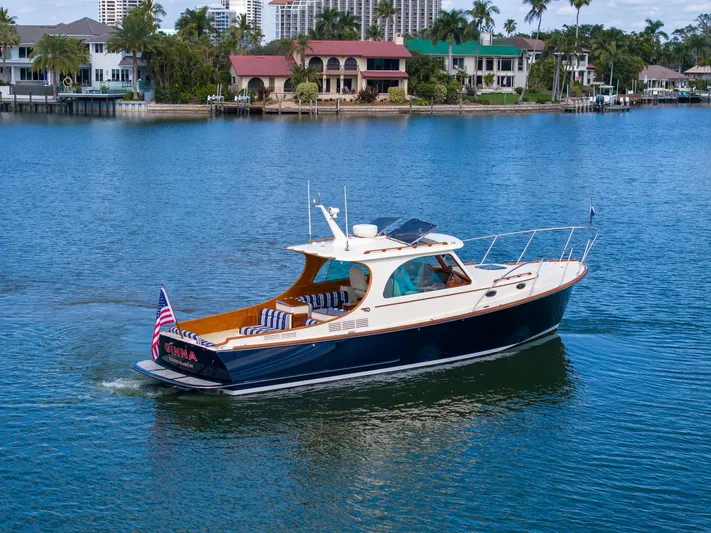

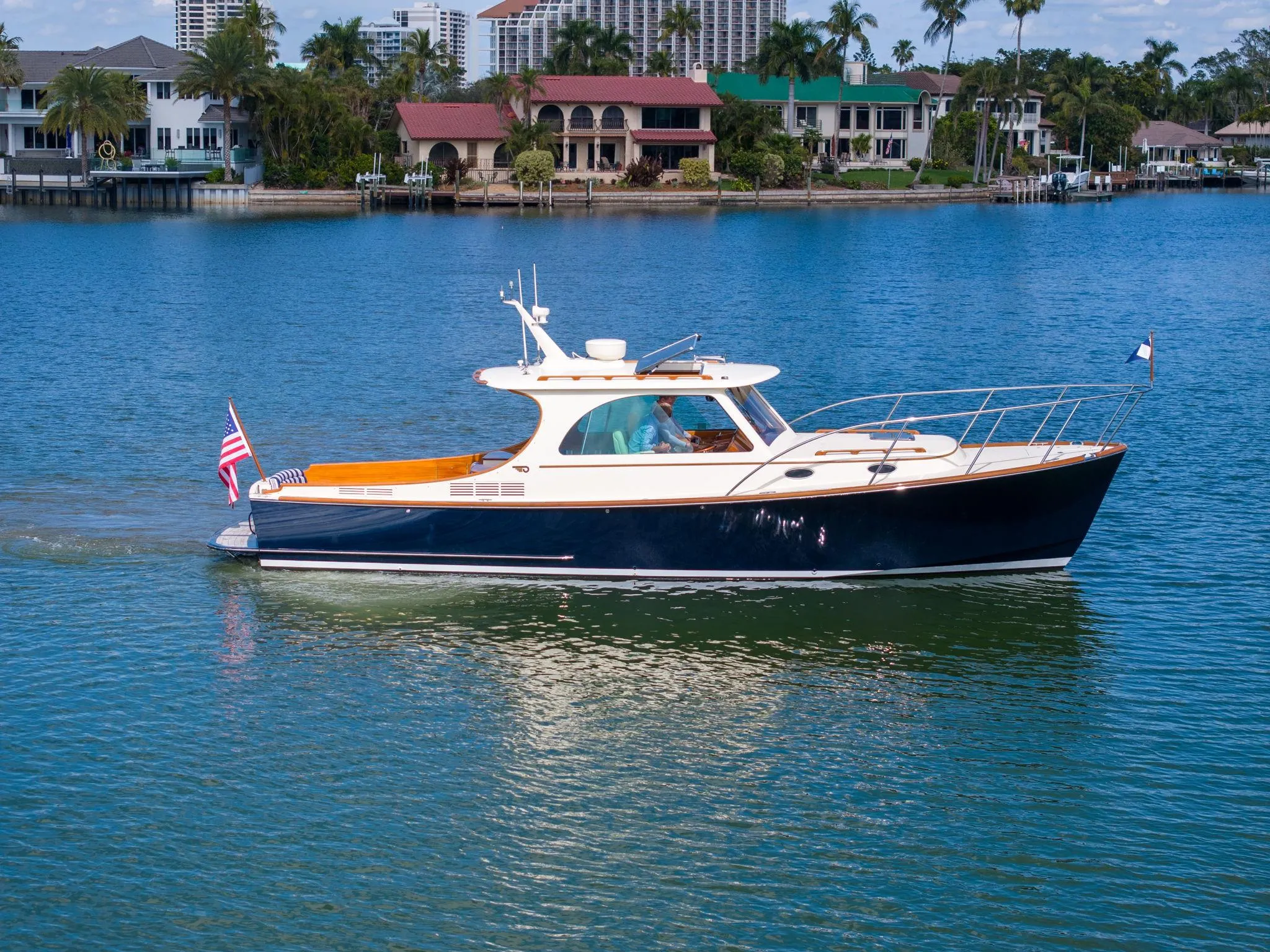

GINNA Boat for Sale

HULL AND DECK

Construction of the hull is Hinckley DualGuard® Composite Construction Kevlar E-glass hybrid outer skin.  Aircraft grade end-grain balsa below the waterline. Carbon-fiber inner skin.  SCRIMP® laminated with vinylester resin.  Deck and cockpit are E-glass with balsa and closed-cell foam core, SCRIMPED with vinylester resin.

• Midnight Blue Awlgrip topsides
• Cream gelcoat cabin house and deck, with contrasting “Moondust” nonskid pattern.
• Single Matterhorn White bootstripe
• Black bottom
• Marelon ball-valve seacocks with thru-hulls below water line and Marelon thru-hulls above the waterline
• Stainless steel half round on fiberglass molded rub rail

Heavy-duty fiberglass swim platform has teak insert treads, stainless steel bracket and half round Stainless steel telescoping 3-step folding swim ladder that stores under platform.

DECK FEATURES

• Flush foredeck anchor locker with hinged hatch and fold-out anchor roller.
• 1 1/4” Polished Stainless Steel Bow rail
• Rounded, tapered, varnished teak toe rail with Hinckley profile
• Varnished teak eyebrow molding around cabin top
• Varnished teak handrails on house top, cabin and aft end of pilothouse
• Four (4) elliptical opening ports on house sides with screens
• Hinckley pilothouse mast with spotlight, Radome painted to match deck. Large side windows in Pilothouse open electrically
• (2) Stainless Steel electric opening hatches in the Pilothouse with powered Ocean Air Sky Screens
• Custom Hinckley 316L stainless steel bow chocks
• Bow, stern and 316L stainless steel mooring cleats - mid-rail easily reached from cockpit – pop-up mid ship cleats
• Fender padeyes with toe rail chafe strips
• ACR spotlight - Masthead mounted with helm mounted electric remote control

COCKPIT

The cockpit features cushioned seating at the transom with filler piece in front of transom door. Aft facing seats are located at the forward end of the cockpit.

More cockpit features:

• Teak interior and teak cockpit coaming.
• Starboard transom door from swim platform
• Teak boarding step for port or starboard side deck
• Courtesy lights under side decks port and starboard
• Cockpit/pilothouse lockers with varnished louvered teak doors
• Cockpit shower with mixing valve at stern seat
• Fishing rod holders port and starboard with rod storage under port side deck
• Stamoid cockpit cover

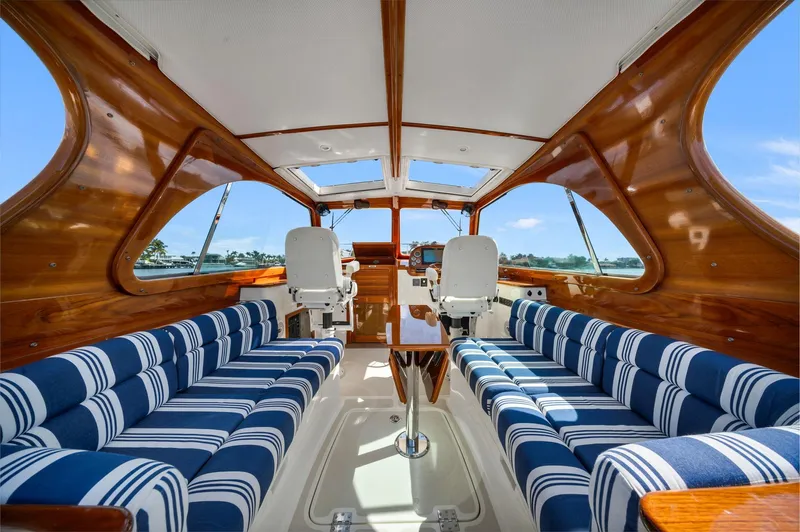

PILOTHOUSE

The pilothouse is fully airconditioned.

• Teak finished pilothouse upper sides and dash.
• (4) Pilothouse windows with Green Tint include:  (2) Electric Sliding side windows and (2) Fixed, forward with heavy duty, self-parking, intermittent windshield wipers and fresh water washers.
• Ivory Ultraleather helmsman and passenger seats.
• Ralph Lauren Patio Stripe Blue cockpit and pilothouse cushions
• Pilothouse dining table with flip down leaves; removable with storage bag
• Insulated white overhead has two (2) Electric opening hatches with Ocean Air Sky screens/shades
• 20,000 BTU air conditioning powered by onboard generator or shore power.
• Additional illumination is by four (4) overhead low-voltage halogen lights.
• Storage lockers under pilothouse settees
• (5) Cup holders
• Varnished teak locking companionway door with companionway lid stay
• (2) Varnished teak handrail on centerline
• Stamoid 5-piece drop curtains with Eisenglass windows
• Refrigerator mounted in starboard amenity
• Portside amenity has built-in self draining drink cooler with stowage underneath
• 110V AC and TV outlets

Helm Station (Starboard)

• Varnished teak instrument pod
• Stainless steel 14” steering wheel with varnished wood rim
• Hinckley JetStick II with H-Lock and Heading Hold
• Engine gauges, tachometer with hour meter, oil pressure, water temp., nozzle indicator
• Top-opening locker with chart storage
• 12-volt “cigarette style” outlet in chart pocket
• Varnished teak binocular holder

Helm Electronics and Navigation Equipment

• (2016) Raymarine Hybrid Touch Chartplotter, GPS, Radar with Sirius satellite weather
• (2016) Raymarine Autopilot
• Icom M604 VHF radio and Commandmic III
• Sirius Satellite Weather receiver
• 24” HD Scanner

 Entertainment Electronics

• (2016) Fusion stereo system with Sirius Satellite radio, Bluetooth, AM/FM, Pandora
• (3) Pairof speakers – In V-berth forward bulkhead, pilothouse.  Forward and pilothouse speakers have remote volume control
• Ipod audio input jack at helm
• 22” Sole’ HD LCD TV with DVD player

INTERIOR BELOW

The interior is finished in satin-varnished cherry. The cabin sole is varnished teak. Louvered cherry locker doors and (5) Frigast stainless steel bulkhead lights add to the cabin ambience. 10,000 BTU air conditioning with outlets in the main cabin and the head compartment. Air Conditioning power by 9KW Onan generator or shore power.

Entry is from the Pilothouse companionway to the Galley to port, private Head to starboard and the V-berth accommodations forward.

GALLEY (Port)

• Aurora Corian countertop
• Stainless steel sink with Grohe fixtures, spray nozzle and hot and cold pressure water
• Adler Barbour refrigeration - 12-volt cold plate refrigerator in a self-draining insulated box
• Single electric burner cooktop with Corian cover
• 600-watt 110-volt microwave oven
• 110-volt outlet
• Built-in bin for dish stowage
• Custom glass storage on shelf above microwave
• (3) Cherry pullout drawers
• Red step-light in galley
• Under counter pullout garbage receptacle
• Opening port with screen
• Additional storage is provided outboard and under the galley sink

A "pantry" locker with louvered door and several shelves separates the galley from the forward V-berth area and houses the stereo system.

HEAD (Next aft starboard)

• Solid cherry door panel door
• Molded fiberglass sole for easy cleaning
• Varnished Cherry countertop and under-mounted porcelain sink
• Grohe faucet/hand held shower provides hot & cold pressure water – bracket for shower bulkhead mounted
• Sealand Vacu-Flush electric marine head is plumbed to a 27-gallon aluminum holding tank and overboard discharge
• Mirror on the forward bulkhead with cherry frame
• Storage is provided by cherry faced lockers above and outboard the vanity, a drawer with a cherry face beside the marine head, and a locker under the vanity
• 110-volt outlet
• Opening port with screen, as well as forced ventilation
• Stainless steel towel bar

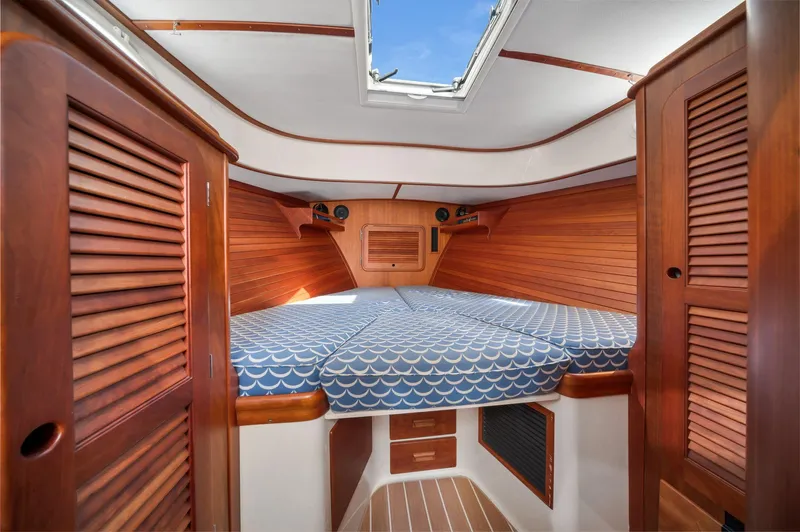

V-BERTH (Forward)

• A very comfortable double berth is formed with an insert
• V-berth upholstered in Link Outdoor Swagger Ocean
• Varnished cherry shelves over berths outboard
• Storage lockers under V-berth has easy access cherry drop front doors
• Cedar-lined hanging locker is just aft of the V-berths to starboard
• (2) stereo speakers are mounted port and starboard on the forward bulkhead
• (2) Hella fans - port and starboard bulkhead facing aft
• Overhead opening hat with Ocean Air Skyscreen/shade

ELECTRICAL SYSTEM

Low resistance, copper wire and sacrificial zinc anode bonding system.  Zinc saver.

 12-volt system:

• (3) 12-volt batteries for a total of 540-amps
• Start – Two 12-volt AGM Group 31 batteries with 950 CCA capability
• House – Two 12-volt AGM Group 4D batteries – 210-amps each
• Heavy-duty battery parallel switch allows emergency starting
• 80-amp battery alternator on engine
• 12-volt distribution panel includes thermo-magnetic breakers, volt and amp meter

110-volt AC electrical system

• 110-volt shore power inlet and relay.
• 50-amp shore power cord with Glendinning retractable power cord.
• Victron Multiplus inverter/charger with 100-amp 12-volt multi-stage battery charging capability.
• Onan 9kW generator and sound shield

MECHANICAL EQUIPMENT

• Twin Volvo Common Rail 370-hp D6 diesel engines (598 hours)
• Hamilton 274 Jet Drives
• Twin ZF 63 transmissions
• 7" hydraulic variable thrust bow thruster
• Hinckley custom JetStick II control system with Hover Lock and Heading Hold
• Dual cylinder trim tabs with indicator controls at helm
• Fuel filter/water separator
• Agea-X Fuel polishing system for main engines and generator
• Groco Metal raw engine strainers in lieu of plastic strainers
• Oil change kit
• Volvo EVC Tachometer with LCD multi-function display
• Fuel, oil pressure, and water temperature gauges
• Alarms for high-low oil pressure and high engine water temperature and hydraulic pressure
• Manual hydraulic steering pump
• (3) Electric 1500-GPH 12-volt bilge pumps with float switches and high water alarm
• High pressure deck wash pump
• Whale emergency bilge pump - mounted in cockpit locker
• In-line 12-volt automatic shower sump pump
• 27-gallon aluminum holding tank with overboard discharge
• 6-gallon stainless steel hot water heater - shore power and engine heated
• 40-gallon polyethylene water tank
• (2) 110-gallon polyethylene fuel tanks - total 220-gallons
• Mylar-faced acoustical foam-lined engine box insulation
• Engine box cover has double gaskets and an electric riser
• Engine box forced-air exhaust fan
• Baffled and insulated air intake
• Automatic engine compartment fire suppression system with automatic engine shut-down

ADDITIONAL EQUIPMENT

Ground Tackle System:

• Muir electric windlass pkg: Flush foredeck anchor locker houses a Muir electric windlass with polished stainless steel Delta 22# anchor + 15’ stainless steel chain & 150’ anchor rode and polished stainless steel folding bow roller. The windlass can be operated from the helm station or a handheld wired remote at anchor locker.

Equipment

• Stern mounted 4 ft. varnished teak ensign pole & flush socket
• Stamoid Ivory mooring cover
• Boat hook - mounted under side deck.
• Dock lines
• Fenders with fleece covers
• Deck shower/water outlet with hot & cold mixing valve.
• Life jackets
• Fire extinguishers
• 12-volt trumpet air horn with switch on dash.
• Masthead and running lights
