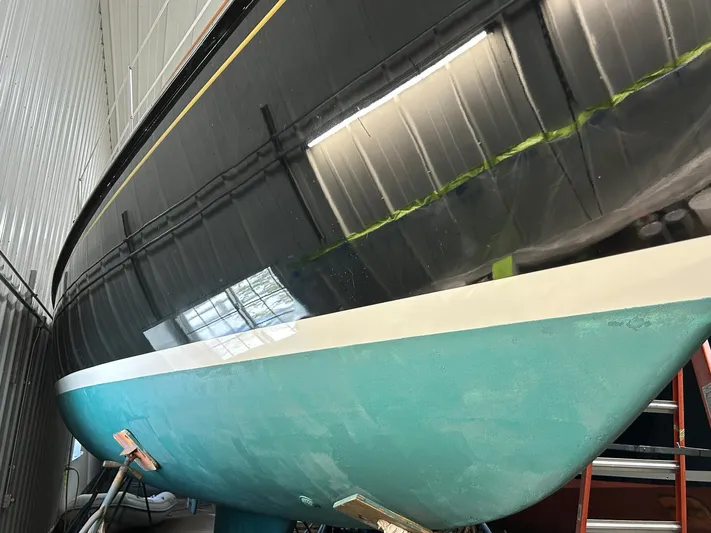

HULL AND DECK:

(2018) Black Awlgrip topsides with gold cove stripe
(2018) Single White bootstripe
(2024) Green bottom
Exterior varnish maintained to perfection

Construction:

The Sou'wester 42 hull is constructed using the SCRIMP® process to infuse vinylester resin in a single step under a vacuum into a cored laminate of Kevlar/E-glass. Dupont Kevlar fabric greatly increases the strength of the hull against damage caused by impacts and the aircraft grade balsa core provides the greatest degree of stiffness and thermal/acoustic insulation. The skin coat is chopped mat in low-shrink vinylester resin to provide a superior surface finish and a greater resistance to water osmosis. Core is removed and hull is reinforced with additional layers of fiberglass in stress areas. A fiberglass hull stringer system is bonded to the hull and integrated with the mast step and engine mounts to form a single unit that is strong and light.

The deck and house are a Scrimp® molded in one piece which incorporates a hybrid knit fabric of Kevlar/E-glass to reduce weight and a core of aircraft grade balsa, which is deleted in major penetration and stress areas and replaced with solid layers of reinforcing glass.

The hull is laid up with a 4" recessed flange to receive the deck which is bonded to this surface with reinforced polyester adhesive and thru-bolted on 8' centers with additional fastenings in the area of toe rail tracks, thus assuring a strong, permanent and watertight hull/deck joint.

Hull:

Keel: 9,000 lb. molded lead keel is secured to the hull with 1" stainless steel bolts.
Centerboard: Molded solid Fiberglass
Rudder: Skeg-hung rudder.
Marelon ball-valve type seacocks are flush with the hull. Wooden plugs
Guardrail: At sheer painted to match hull with solid stainless steel half oval

Deck:

All stainless steel deck hardware
Stainless steel bow and stern rails
Stainless steel stanchions with double lifelines and port and stbd boarding gates
Custom varnished teak Butterfly hatch over main salon
Custom varnished Hinckley opening overhead hatch over forward cabin. Hatch can be hinged to open forward or aft
Forward partitioned anchor locker has direct drainage to the bilge
Varnished teak, double dorade box with two dorade ventilators and small covered storage between and stainless steel guard
Varnished teak single dorade boxes with ventilators and stainless steel dorade guards over galley and aft cabin
Saltwater deck wash
Stainless steel bow roller for anchor
Stainless steel handrails on cabin top
Varnished teak toe rail and eyebrow
Stainless steel Hereshoff style bow, stern and midship cleats with custom stainless chocks integrated into toe rail midships and cast stainless stem fitting forward

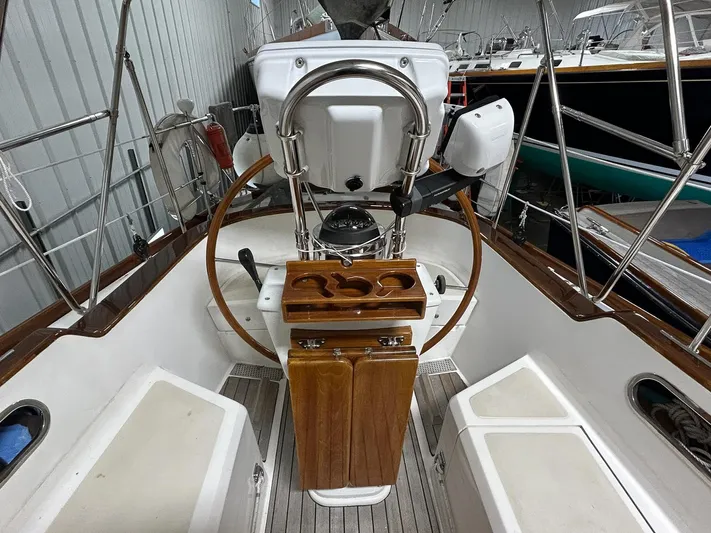

COCKPIT:

The aft T-shaped teak-rimmed cockpit coaming is wider adjacent to the wheel for comfortable outboard seating for the helmsman. The water-sealed opening cockpit seats have molded nonskid. The cockpit has a teak sole.

The sail and equipment locker to port provides excellent storage and has a stainless steel line rack. Cockpit includes a propane locker with vent. There are four stainless steel trimmed winch pockets in the coaming.

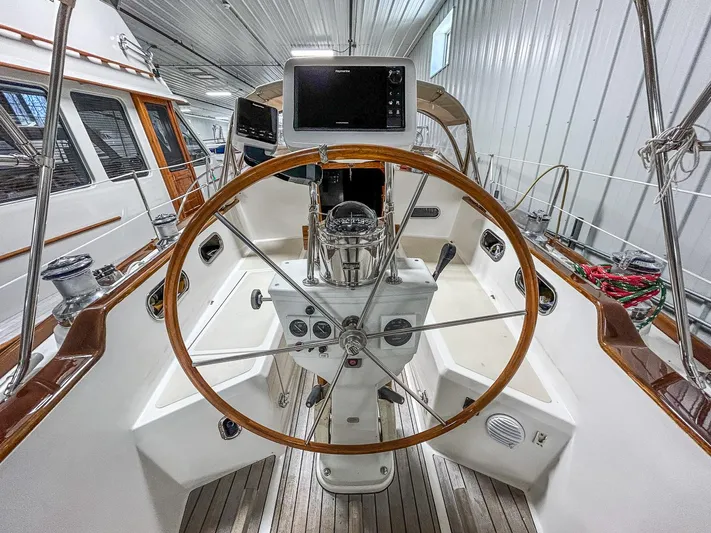

Pedestal helm steering has a 38" varnished wheel, SS pedestal guard with single lever engine controls, watertight 12-volt outlet and a stainless steel housed 6” binnacle compass and binnacle guard. A complete range of engine instruments and switches are recessed in locations handy to the helmsman. Sailing instruments are above the companionway.

(2022) Cockpit Dodger with Elkhide on aft grab rail
(2020) folding Bimini with window with removable filler piece
Cockpit awning/side curtains
Raymarine chartplotter and autopilot controls in Navpod mounted to pedestal guard
Cockpit Cushions
Courtesy red night-vision lighting
Varnished teak cockpit table - pedestal mounted, varnished teak fold-down cockpit table
Varnished teak drink holder - pedestal mounted
Folding teak step for helmsman
Teak foot blocks at helm provide stability when heeling
Manual bilge pump
Folding padeyes with tether for clipping into
Opening portlights into aft cabin
Hot/cold cockpit shower in sail locker
2 sets of Varnished teak companionway slides (one for offshore and one for in-port)
Varnished teak companionway screen slides with storage over forward berth

INTERIOR ACCOMMODATIONS WALKTHROUGH:

GOLDEN EYE’s interior is finished in a traditional Herreshoff style with white bulkheads and varnished Mahogany. She has a 42 MKII standard “Dinette Arrangement” that sleeps up to 6 with a total of three separate sleeping areas.

She is finished with louvered locker fronts, white Formica beadboard overhead with dome lights and a gloss varnished teak and holly sole throughout. All hanging lockers are cedar-lined. All lighting has been updated to LED

Espar diesel heating system throughout interior – with exhaust on deck
Air Conditioning system with reverse cycle heat (note air conditioning has not been used or tested by owner in many years).
Delivery mats for cabin sole
Covers for saloon cushions
Lee clothes
Butterfly hatch overhead in main salon with removable screen
(3) Opening ports provide extra light and ventilation
Fixed ports that provide illumination
Two screened dorade vents with closures and at-sea covers
Fans in forward cabin, main salon, and aft cabin

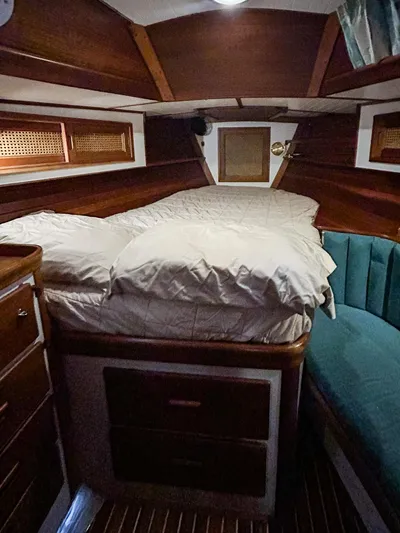

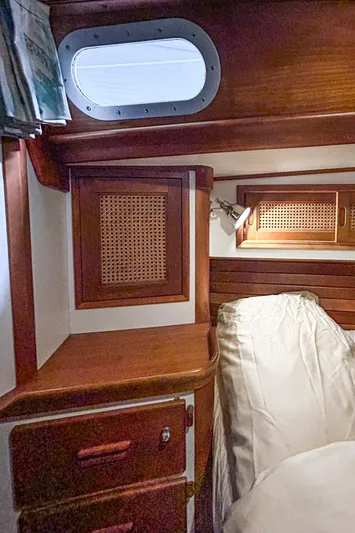

FORWARD STATEROOM:

Forward access to the partitioned rope/chain forepeak storage area is through a louvered cherry door.

Forward is a custom offset double berth to port with settee to starboard
(2021) Custom double mattress
2 large storage drawers are under the berth.
Sliding vented door lockers over berths outboard port and starboard
Sliding door locker storage is fitted outboard above berth port and starboard
There is a 3-drawer bureau to port and additional locker storage over
Full-length cedar lined hanging locker is to starboard.
Two fixed portlights and a large opening overhead hatch provide abundant natural light and ventilation

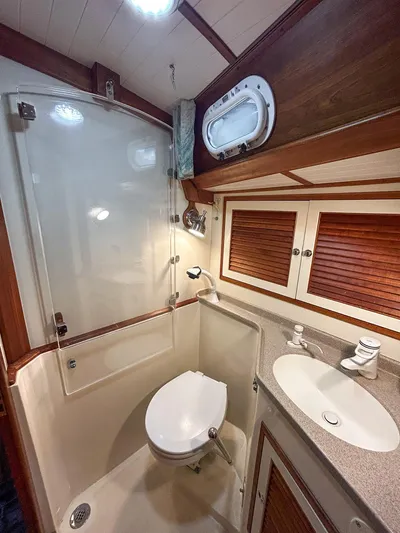

HEAD:

Next aft to port, the head is finished in White Formica with locker doors featuring mahogany. There is a screened opening port and a screened dorade vent opening with shut off.

Corian countertop with undermounted sink

Faucet with separate pull-out shower mixer, hot & cold pressure water
Manual fresh water pump/faucet
Plexiglas folding shower enclosure
Mirrors on both sides of forward door
Large two-shelf locker outboard with sliding doors.
(2020) Manual marine head is plumbed to a holding tank with holding tank level monitor

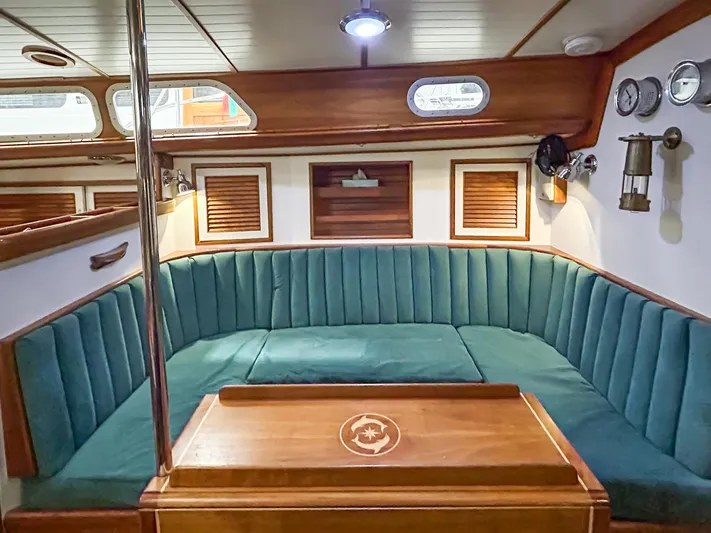

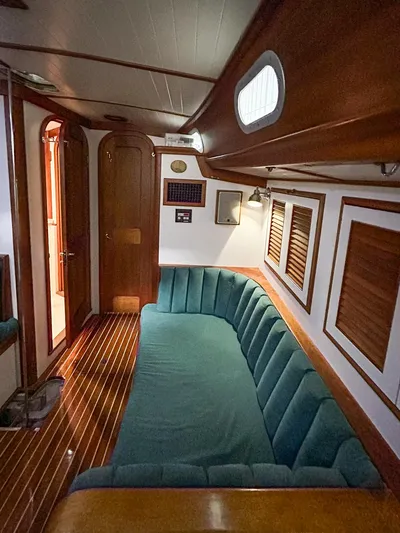

MAIN SALON:

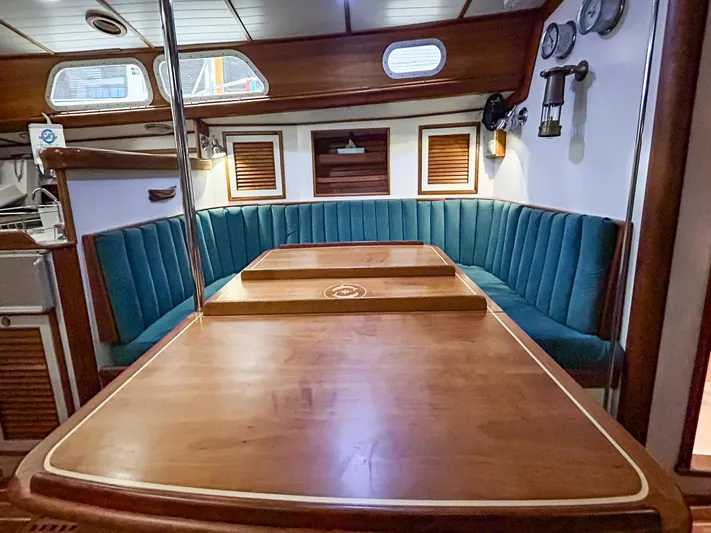

Amidships, this full-width cabin has a U-shaped dinette to port.

Dining Table – Hinckley custom table with two folding leafs
Outboard dinette seat provides a single berths with lee cloth.
Over outboard are two lockers with shelves and a bookcase between.
Custom Hinckley teak butterfly hatch
Weems & Plath ships bell clock and barometer
Hanging brass gimbaled oil lamp
Binocular holder inside companionway
Red night-vision lighting

To Starboard: Settee with nav station and nav seat aft. Nav seat is easily removed to create a great sea berth with lee cloth. There is additional storage behind both settee seat back cushions.

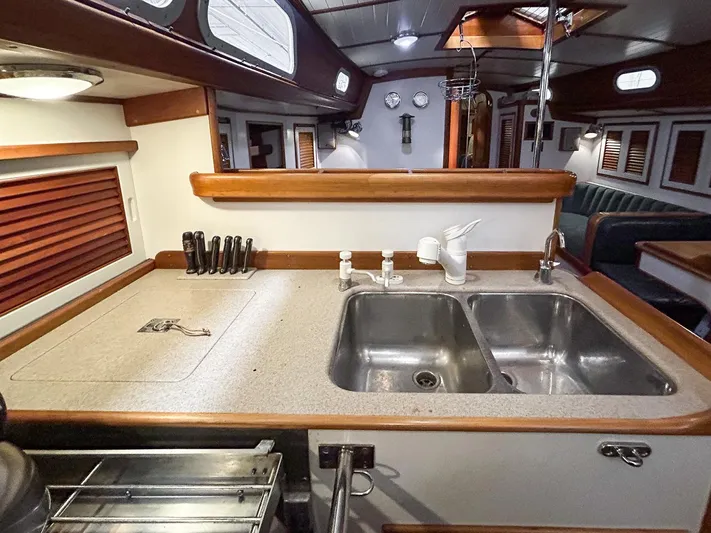

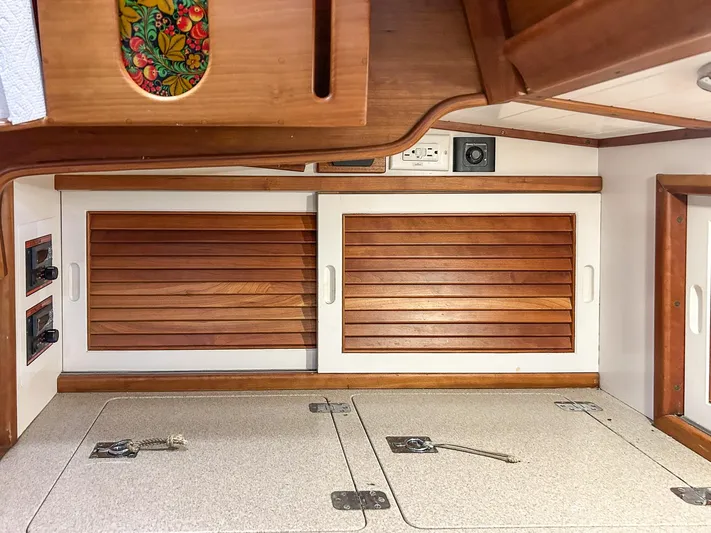

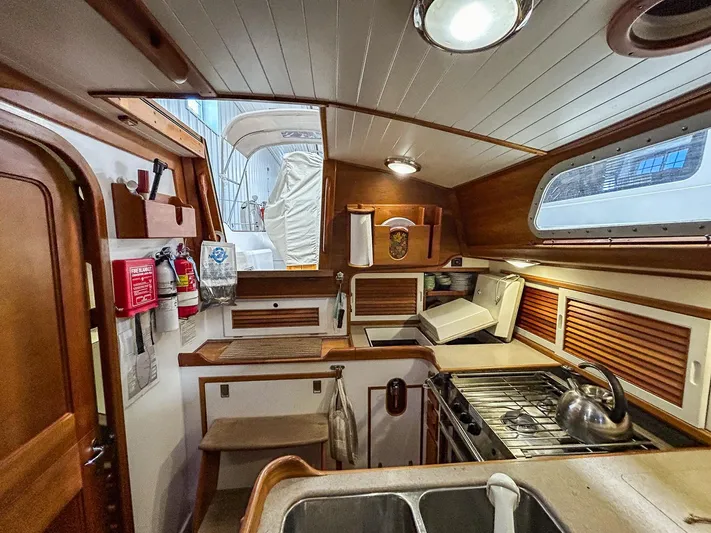

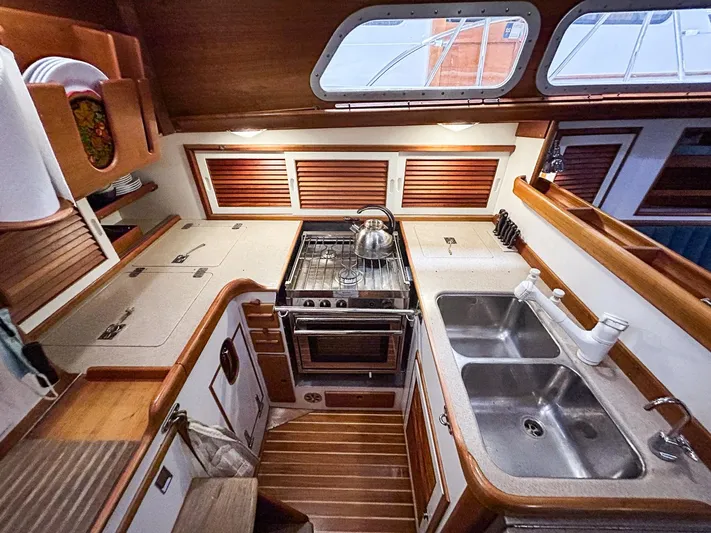

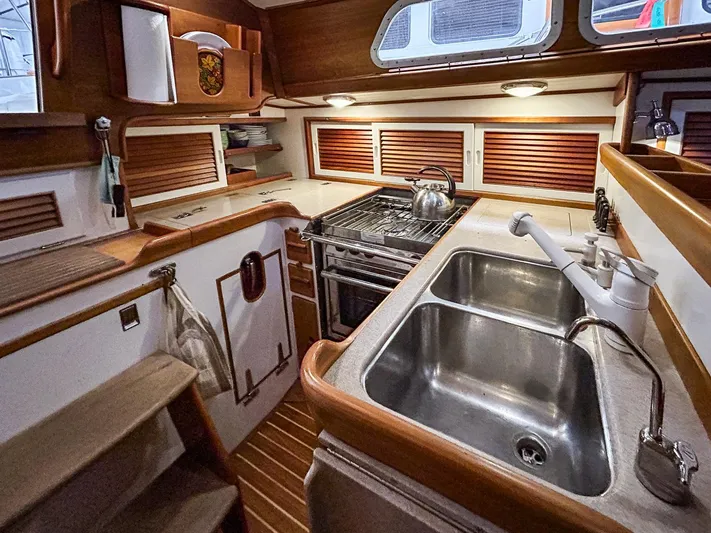

GALLEY:

Next to port, the Galley is separated from the main salon by a 5/8’s bulkhead with a varnished mahogany cut-out grab rail.

The U-shaped galley:

Forward: Corian countertop, stainless steel double sink, faucet with hot & cold pressure water, manual freshwater and salt water hand pumps and Seagull water filter.
Removable fiddles on counter around fridge and sink
(2018) Gimbaled 3-burner stainless steel Force 10 propane stove with oven & broiler in a stainless steel enclosure with solenoid shut-off, propane detector/alarm, fire blanket, and trap storage forward.
(2020) Sea Frost 12v refrigerator and separate additional refrigerator/freezer
Lockers, bin, shelves and drawer storage areas are available for foodstores and galleyware. There is a pull-out trash bin and there is a built-in dustpan in the cabin sole.
Folding shelf inboard of sink provides additional counter space when needed

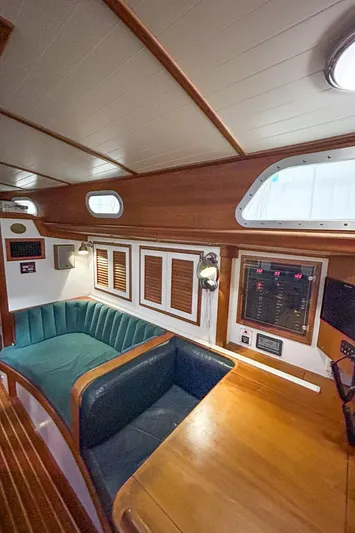

NAVIGATION STATION:

To starboard, opposite the galley and aft of the main salon settee is the aft-facing nav area

Opening nav table for storage of charts, as well as storage drawers and in a cushioned nav seat.
Electrical panel and gauges
Tank tender fuel/water gauge
Red/white dome light
(2019) Stereo & CD player with speakers
DC 12v outlet
110v AC outlet

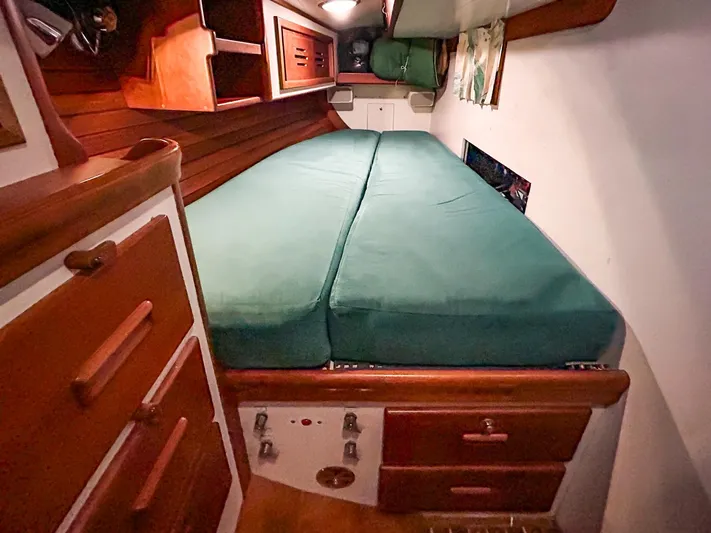

AFT STATEROOM:

The fully enclosed Aft Stateroom is aft of the Nav Station and features a double berth with center lee cloth, foldaway desk/seat and custom Dutch door

Screened dorade vent with interior draft control
Cedar lined hanging locker with louvered door
Additional storage in three drawers and bookshelf with shelf on bulkhead aft
Speakers connected to stereo

ELECTRONICS AND NAVIGATION EQUIPMENT:

GOLDEN EYE has an extensive and up-to-date electronics inventory.

Electronics located at Helm/Companionway

(2020) Raymarine Axiom Pro 9” MFD Chartplotter, Radar, GPS, AIS Class B Transceiver
(2018) Raymarine Quantum digital radar antenna
(2020) Raymarine Autopilot controller
(2020) Five Raymarine i70 multi displays over companionway which simultaneously display SOG, DTW, Name of WP, COG, Heading, BTW, AWA, TWA, GWD, AWS, TWS, VMG, Depth and can be configured to show any other instrument information on the network
Standard Horizon VHF Command Mic w/speaker

Electronics located at Nav Station

(2020) Raymarine Axiom Pro 12” MFD Chartplotter, Radar, GPS, AIS Class B Transceiver
(2020) Raymarine i70 display
Furuno Navtex NX-300 message receiver
Standard Horizon Matrix GX2000VHF with AIS and DSC
ICOM 802 SSB Radio with backstay SSB antenna and tuner
Pioneer AM/FM/CD stereo

ELECTRICAL SYSTEM:

12-volt DC electrical system:

AGM Batteries for house and starting (2021)
Emergency starting parallel switching
12-volt DC outlet in cockpit
12 volt DC outlets at companionway in cockpit

110 volt AC System:

Heart Interface Link-2000 Inverter/Charger with house and start batteries voltmeter, ammeter and amp hour metering
110-volt outlets (galley, nav, head, V-berth, salon)
Shore power system with 110v outlet and shore cord.
European 220v system installed but not connected and could be converted back for use in Europe

All circuits are circuit breaker protected at the nav station panel that is equipped with both voltmeter and ammeter. Master switches are provided for starting and lighting circuits. All circuits, major mechanical components and rigging are grounded with heavy copper strapping to the keel and the mast is lightning protected as well.

MECHANICAL EQUIPMENT & ENGINE DETAILS:

Meticulously maintained and updated Yanmar 4JH2E FWC 48-hp diesel engine with 2:1 reduction gear, Aquamet 22 stainless steel shaft with spurs and 3-blade (2019) feathering Max-prop with cutters
(2014) SS 45 gallon fuel tank
(2010) additional, second fuel tank holding ~ 30 gallons
Racor fuel filter
Engine alarm oil/overheat, tachometer, oil & temperature
12-volt DC automatic electric bilge pump and (2) cockpit manual bilge pumps
High water alarm, cycle counter
High capacity emergency manual pump that mounts in saloon
Emergency tiller steering
Deckwash – Saltwater pressure system with spigot foredeck mounted – Jabsco 6900 pump
Hot and cold pressure water system
Water maker – not in service
12-gallon hot water tank - stainless steel, engine heated, 120V-AC element (2013 – element can be changed to 220v if desired for European use)
Marine manual head with holding tank and discharge pump
Sealand Tank Watch II level monitor system
Fiberglass sump tank with 12VDC pump discharge
Engine room blower and acoustical insulation
Fire port in access panel to engine compartment
2013 – All waste system hoses replaced

RIGGING:

Double spreader aluminum Mark II rig
(2022) Mast Awlgripped
(2020) Boom Awlgripped
(2019) Stainless steel rod rigging
Harken traveler system for main sheet
Custom Hinckley stainless steel genoa track recessed in deck
Custom Hinckley stainless steel staysail track with blocks mounted on cabin top
Dual preventer system from bow to boom ends
Removable inner fore stay for staysail
Harken II headstay with roller-furling
Whisker pole with mast fitting and storage on deck
Navtec integral hydraulic backstay adjuster
Hall manual rigid quick vang
Running backstays
Lazy jacks
Jacklines and tether shackle folding pad eyes in cockpit and at mast
MPS halyard
Masthead: LED 5-function tri-color 360° masthead light
Boomlight over cockpit
Flag halyards to mast head and both lower spreaders

WINCHES:

(2) Lewmar 58 self-tailing 2-speed primary winches
(2) Lewmar 50 self-tailing 2-speed secondary winches
Lewmar 44 self-tailing 2 speed winch on cabin top for main sheet and centerboard pennant
(3) Lewmar self-tailing 2-speed halyard winches on mast
Main and jib halyard winches are mounted on mast

SAILS:

(2024) Brand new North fully-battened Main sail with 3 reef points on Antal low-friction cars
(2022) North cruising genoa
Staysail

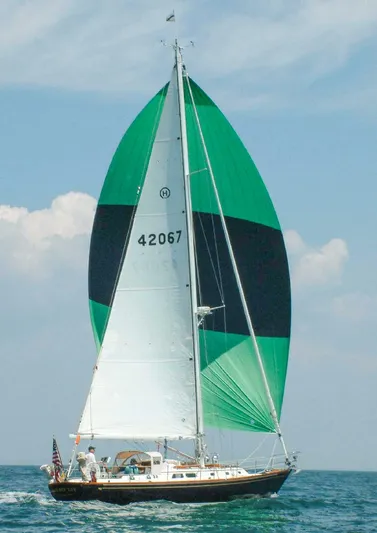

Gennaker with snuffer sock
Storm trysail
Storm staysail
#2 genoa

EQUIPMENT:

(2015) Lewmar windlass with up and down foot switches
#45 Spade anchor with 200’ chain + 150’ rode
Additional 200’ rode and Danforth anchor
Bruce stern anchor with rode
Snubber with chain hook
Covers for hatches, dorades, steering wheel, stainless handrails and butterfly hatch
RescuMe 6UKSL 6-person life raft in cradle on deck with cover (serviced 2023 through Jan 2026)
ISO Pack II supplemental offshore supplies bag
Lifesling, MOM, throwable MOB pole, self rescue ladder
(2) life rings with mounts on stern rail
Self deploying EPIRB w/GPS & AIS
(7) Fire extinguishers
(2) fire/CO detectors
Extensive spares
Outboard motor bracket – mounts on stern pulpit
Radar reflector
(2020) Zodiac 8.1’ Cadet 270 Alu dinghy
(2022) Tohatsu 2.5 hp outboard motor
LED Tri-color masthead light w/anchor/strobe function
Varnished teak boathook with storage chocks on forward cabin top
