HELIOPHILIA Yacht for Sale

ELECTRICITY
Shore power iso-boost transformer
• Buck mode -- 400V IN 230 OUT
• Standard mode : 230V IN 230V OUT
The yacht is equipped with a 24 DC electrical system, powered by
four 12V 6000w lithium battaries.
BATTERIES
• 4x6000w lithium service
• 4x 225Ah 12V engine starter
• 2x 90Ah 12V generator starter
• 4x 225Ah 12V humphree fins

STEERING SYSTEM Controlled via the helm or joystick located on the
wheelhouse and flybridge
BOW THRUSTER Side Power SH 320 It is powered by hydraulic oil
supplied through a PTO pump
STERN THRUSTER Side Power SH 320 It is powered by hydraulic oil
supplied through a PTO pump
STABILIZERS 2x HUMPHREE HCU 501 FİNS
FIRE/BILGE PUMP Automatic Suction System
Bilge water is removed via four submersible 24V electric pumps located
in various compartments of the bilge.
These pumps are controlled by float switches that activate the pumps
automatically when water levels rise excessively. The bilge water is
discharged through external outlets located below the minimum
waterline. Each pump is equipped with a check valve at its outlet to
prevent backflow. The bilge discharge piping includes a gooseneck
(antisiphon loop) upstream of the overboard outlet as a safety measure
to prevent water ingress.
HOT WATER BOILERS 2x Boiler Tank 100 LT
Pump locations in this system:
• One bilge pump located in the aft section of the engine room,
starboard side, with an overboard discharge.
• One bilge pump located in the forward section of the engine
room, port side, with an overboard discharge.
• One bilge pump located in the aft section of the crew cabin compartment,
port side, with an overboard discharge.
• One bilge pump located in the guest cabin compartment, port
side, with an overboard discharge.
Centralized System: This system features a primary 24V DC self-priming
electric bilge pump. The pump draws water from six different bilge
compartments using suction strainers positioned at the lowest points
of the hull in each area. This centralized system allows for effective
drainage of all bilge sections through a single, central pump.
WCs Jets type Vacuum Flush fresh water system
AIRCONDITIONING The yacht is equipped with a tempered water
air conditioning system consisting of 230V chiller units, fan coil units,
freshwater piping, and a seawater circuit. Two compact chiller units
are installed on the starboard side of the engine room. The seawater
pumps and the circulation pump are located beneath the crew cabin
floor panels, directly under the chiller units. The air conditioning system
can be powered either by a generator or shore power. In terms of
unit distribution:
Salon: Three 18,000 BTU air conditioning units
Galley: One 12,000 BTU unit
Wheelhouse: One 18,000 BTU unit
VIP Cabin: Two 18,000 BTU units
Master Cabin: Two 24,000 BTU units
Port and Starboard Guest Cabins: One 12,000 BTU unit each
Laundry Room & Bunk Area: One 6,000 BTU unit
Aft Guest Cabin: Two 9,000 BTU units
Captain’s Cabin: One 6,000 BTU unit
Crew Cabin Area: One 9,000 BTU unit

SAFETY
• 12x Life jackets
• 4x Hand held flares
• 2x Red rocket
• 1x Orange smoke
• 1x EPIRB
• 2x 8 Person Life rafts
FIRE FIGHTING The vessel is equipped with a total of 14 portable fire
extinguishers, distributed throughout all cabins, the galley, the wheelhouse,
the crew quarters, and the upper deck area.
For the engine room, there is an automatic fire suppression system
that can also be manually activated. The system uses Novec 1230 as
the extinguishing agent. Detectors are installed in the ceiling panels,
and the automatic suppression system is triggered at 60°C within 30
seconds.
In the event of a system fault, the fire extinguisher can be activated
from the wheelhouse. Once the suppression system is triggered,
engines, ventilation fans, fuel valves, and generators shut down automatically,
and fire dampers close to stop air circulation in the engine
room.
ALARMS The Sirena 88 features a comprehensive alarm infrastructure
including:
• Fire suppression alerts and engine shutdown controls in the
wheelhouse
• Bilge high-water warnings via float sensors
• CO detector in crew quarters
• Navigation electronics alarms (SIMRAD, autopilot, etc.)
• Electril safety alarms (GFCI & reverse-polarity)
SECURITY Total of 4 IP CCTV Cameras
• Main Deck SB
• Main Deck PS
• Main Deck AFT
• Engine Room

MAGNETIC COMPASS 2x RITCHIE HF- 743

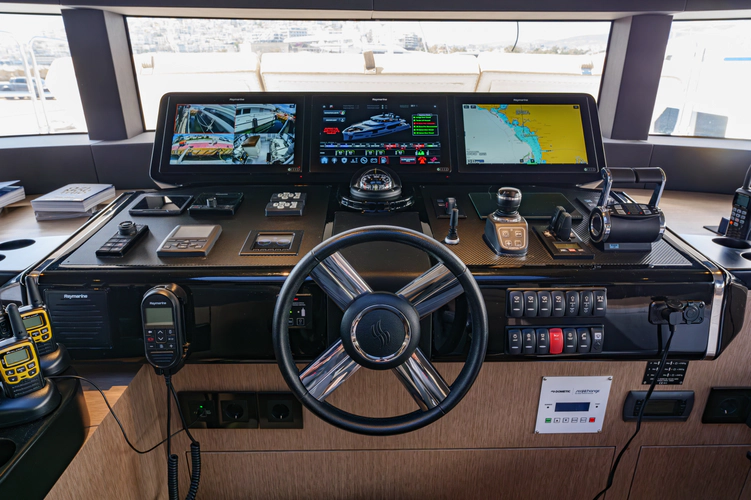

AUTOMATIC PILOT Raymarine Autopılot system controling from
Bridge and Flybridge
LOG Raymarine
RADAR Raymarine Navico BR24 Broadband 4G
SCREEN 3x Bridge, 2x Flybridge, 1x Crewpost
GPS 3x Raymarine AR200
AIS Raymarine V3.50 - 221
THERMAL CAMERA FLIR M232
SHIP WHISTLE Compressed air Grothe horn
WING CONTROL STATION 2x Bridge Wing Control with throttle, bow
thruster, rudder, search light, main engine controls

ANCHOR WINDLASS 2x 3600W vertical windlasses equıppend with
AC motors
WARPING CAPSTANS
GROUND TACKLE Two HHP ( High Holding Power ) 80kg chrome
steel anchors and two 120m chains measuring 14mm in diameter

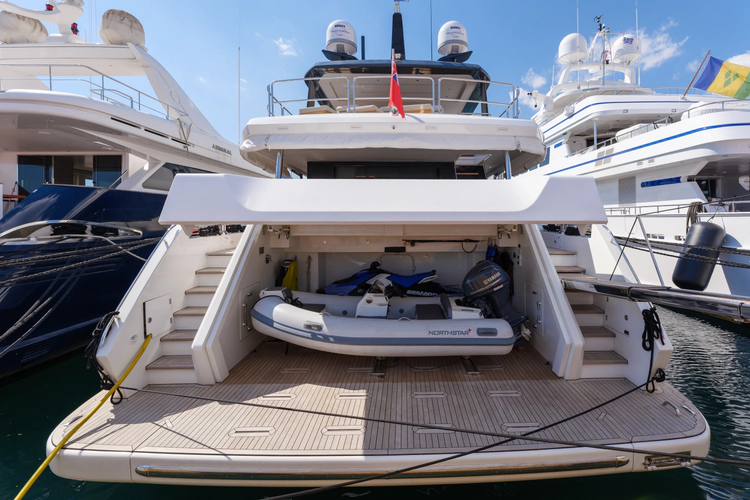

BOAT CRANE Hydraulic swim platform for boat and jetski
STERN GANGWAY Besenzoni PI 395.C.400
SIDE BOARDING LADDERS American style
SEARCHLIGHT 2x Marinco
AWNINGS 2x Umbrellas - sun deck aft and fore deck, also awnıngs
fore maindeck aft

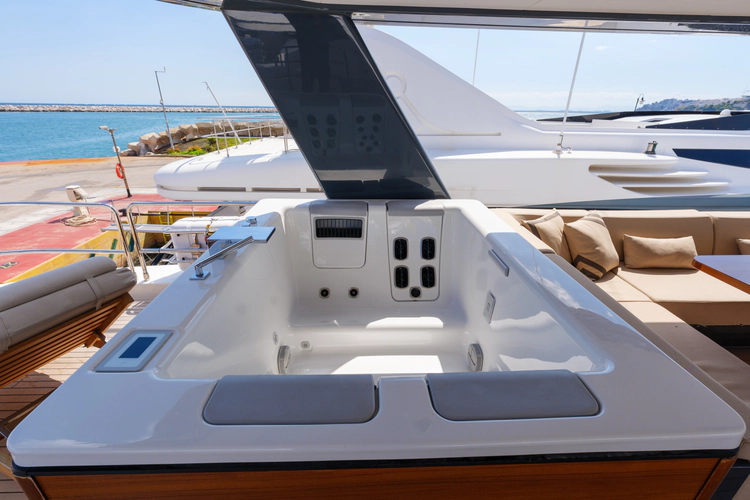

JACUZZI 4person, on the fly bridge

SATELLITE SYSTEM
• Starlink Flat Hıgh Performance Kit
• 1 KVH TracVision TV8 w/IP – enabled TV-Hub B, Linear Unıversal
Quad- output LNB with AutoSkew *GPS
• 1KVH TracVision TV8 Empty Dome/Baseplate, Complete Assembly

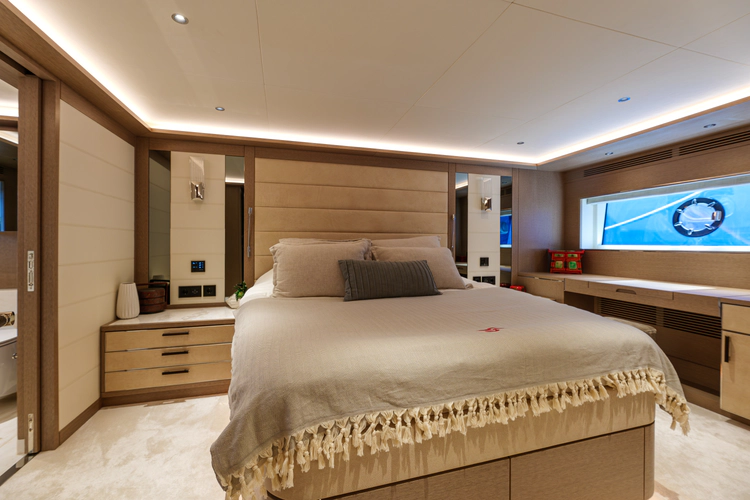

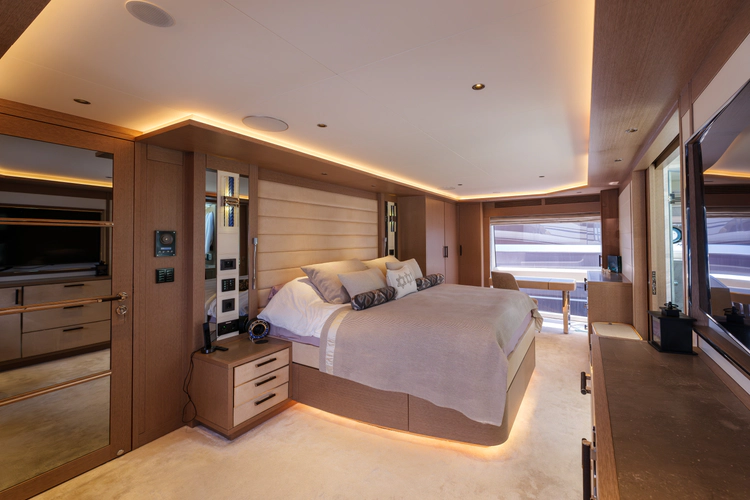

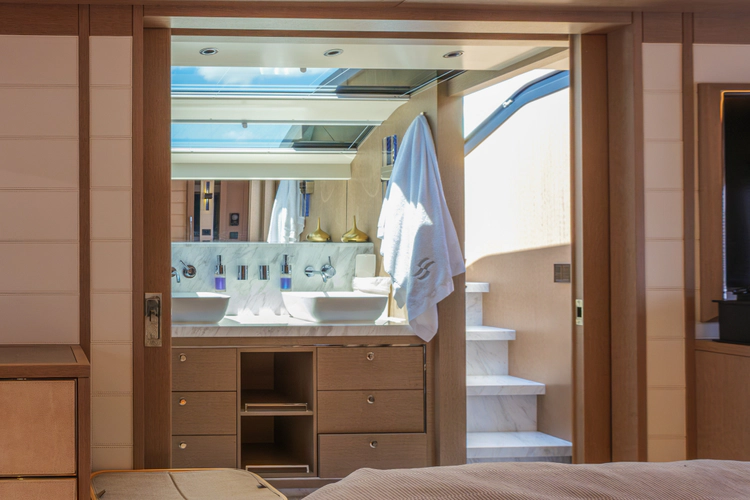

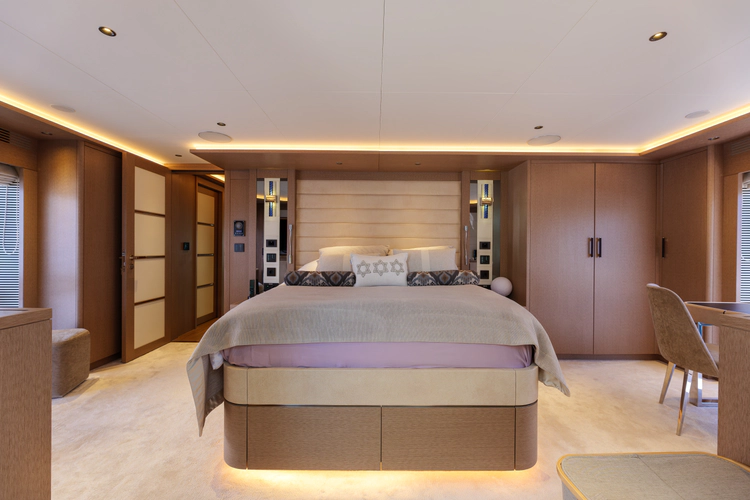

OWNER’S ROOM
• 1x Samsung TV 50
• 1x Floor Heater

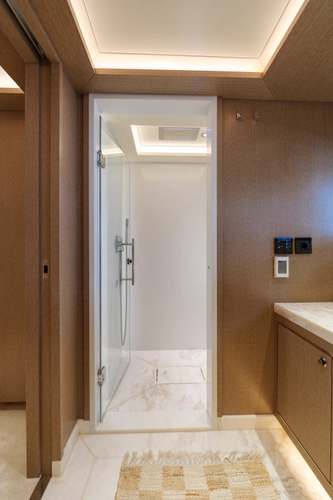

• 1x Steam Room in shower
• Towel Heater
• Bang and Olufsen sound unit

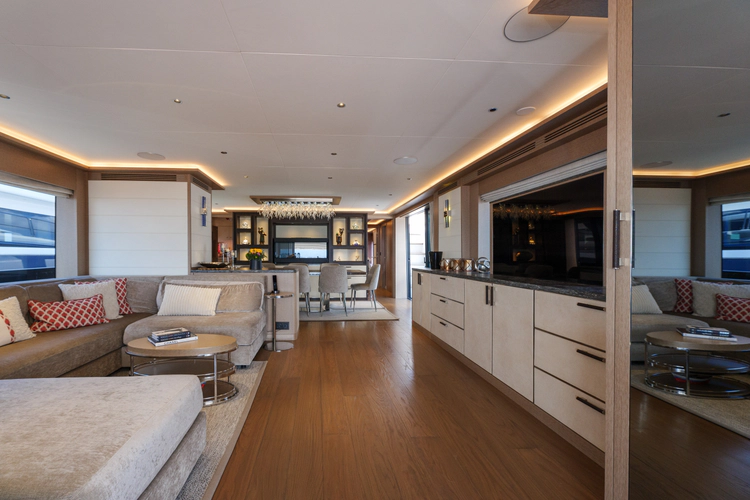

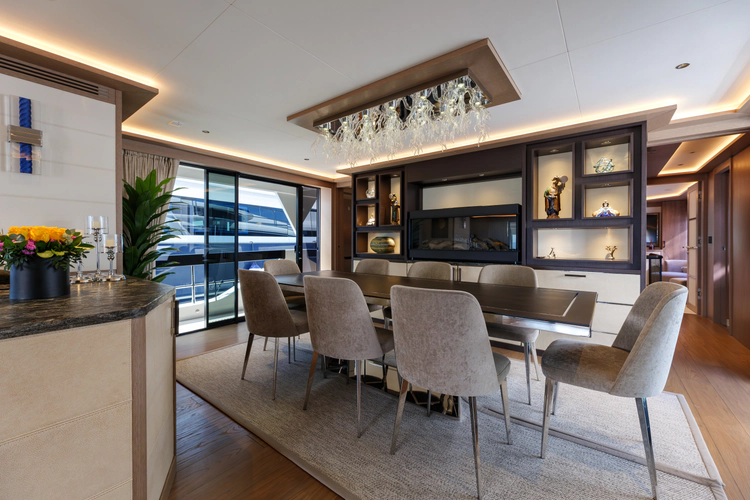

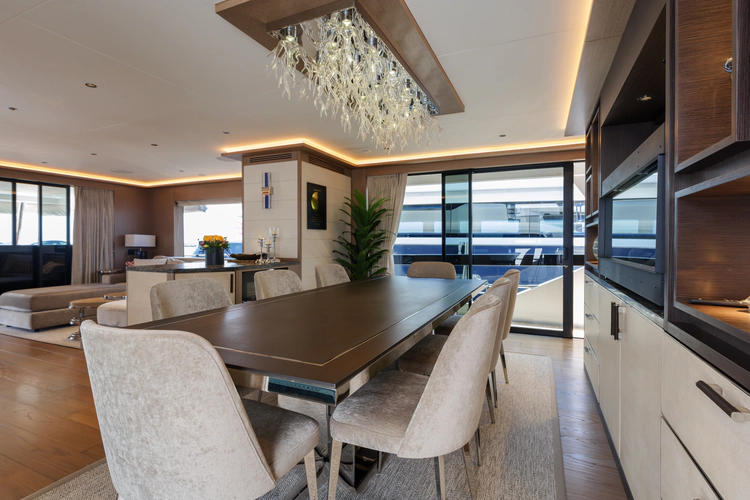

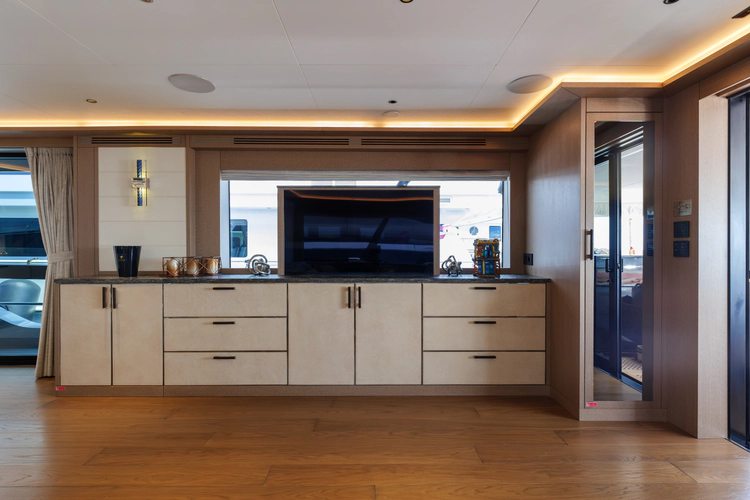

MAIN SALON
• 1x Samsung TV 55
• Bang and olufsen sound unit

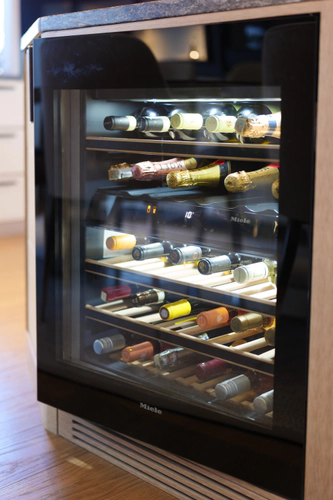

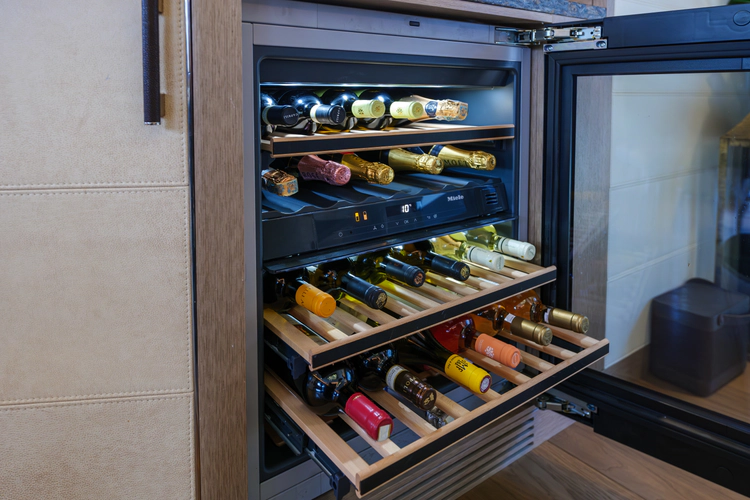

• 1x Mıele KWT6322UG 50HZ Wınecooler
• Savant system unit
• 1x Large bed

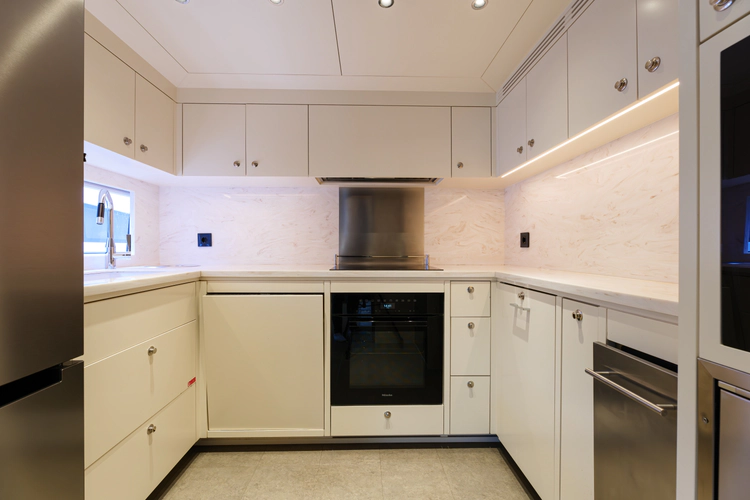

GALLEY
• 1x Refrigerator Bosch KFN 96VPEA
• 1x Garbage Dısposal Insınkerator EVOLUTION 100410825
• 1x Garbage trash compactor IMC MC 300
• 1x Refrigerator and Freezer Vıtrıfrıgo DRW180A ALL IN ONE
• 1x Microwawe MIELE M 2240SC
• Dish washer MIELE G7696CI XXL AUTO DOS K20
• 1x Ventılatıon Extractor FALMEC GRUPPO INCASSO PRO- 950m
• 1x Oven MIELE H 7460B
• Cooktop MIELE KM 7667 FL

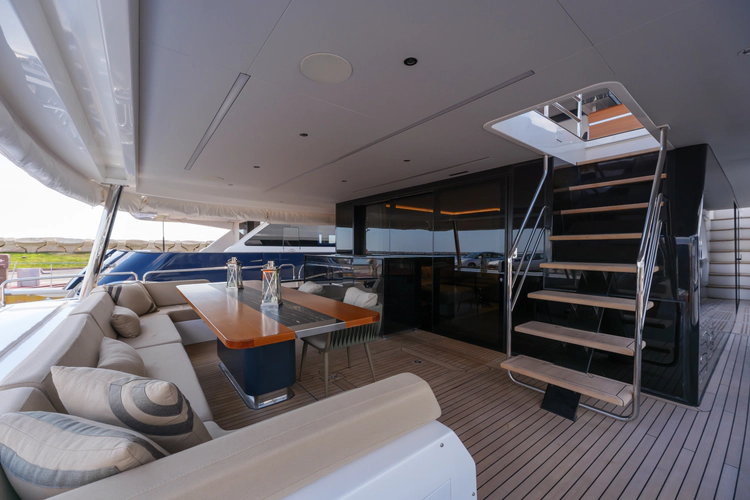

MAIN DECK AFT
• 1x Refrigerator Indel webasto cruıse 130 classıc frıdge

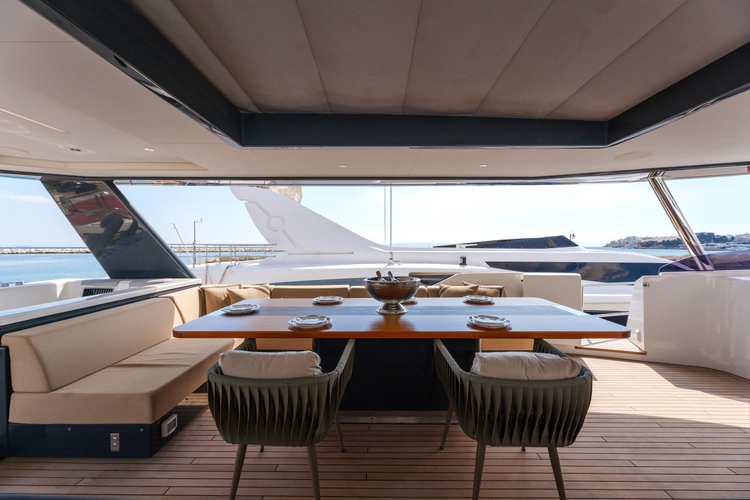

UPPER DECK
• 1x Cooktop Kenyon B80301 Brıdge ınductıon 2 burner portraınt
• 1x BBQ Kenyon B70400WHSCHUKO
• 1x Refrigerator Indel webasto cruıse 130 classıc frıdge
• 1x Ice maker vıtrıfrıgo IM-CL REFILL
• 1x Bang and Olufsen sound unit

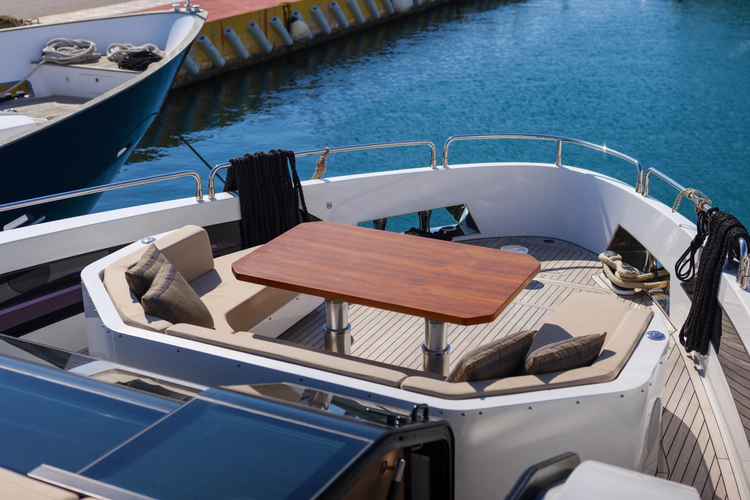

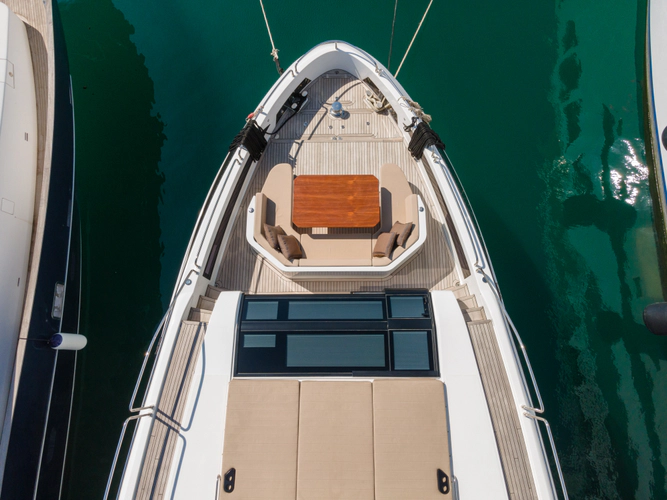

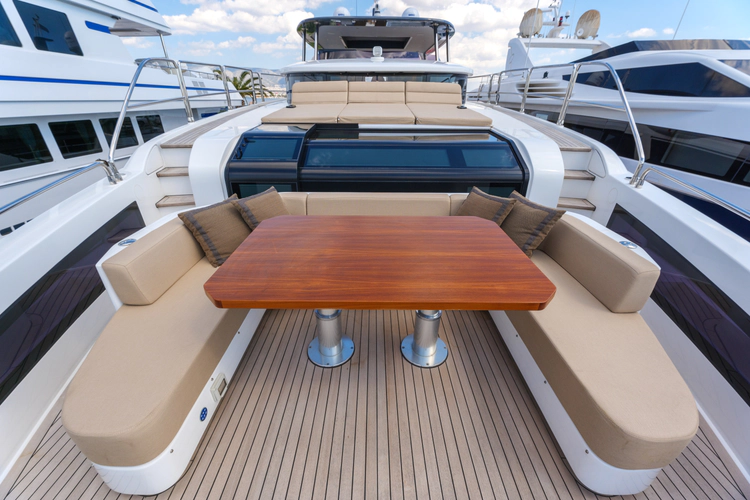

FORE DECK

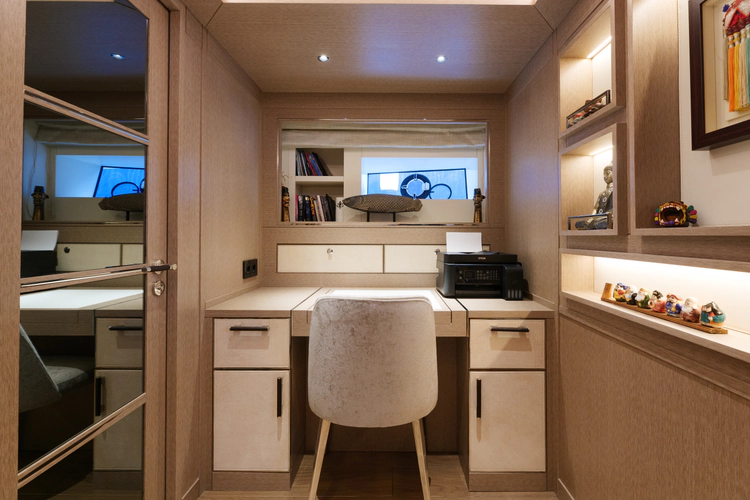

• 1x Electrical adjustable desk

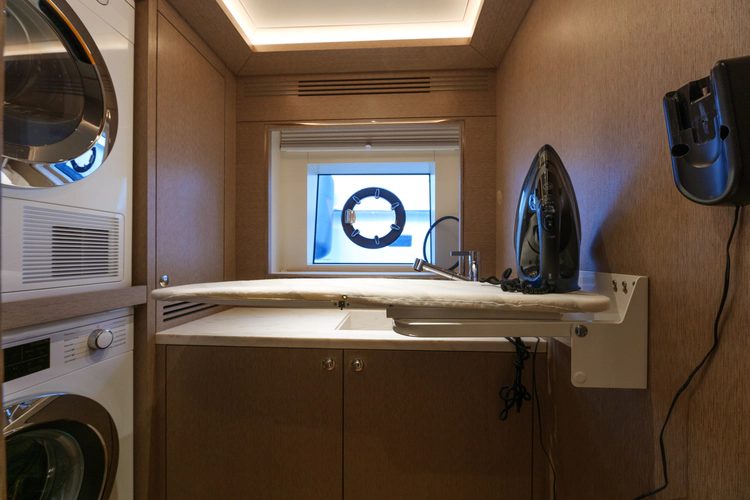

LOWER DECK LAUNDRY
• 1x Washing Machine Miele WEI865 WCS
• 1x Dryer Machine Miele TC860 WP
LOWER DECK CORRIDOR
• 1x Coffee Machine Delonghi Magnifica S Ecam 21.117.B
• 1x Refrigerator Vitrifrigo C42X OCX2

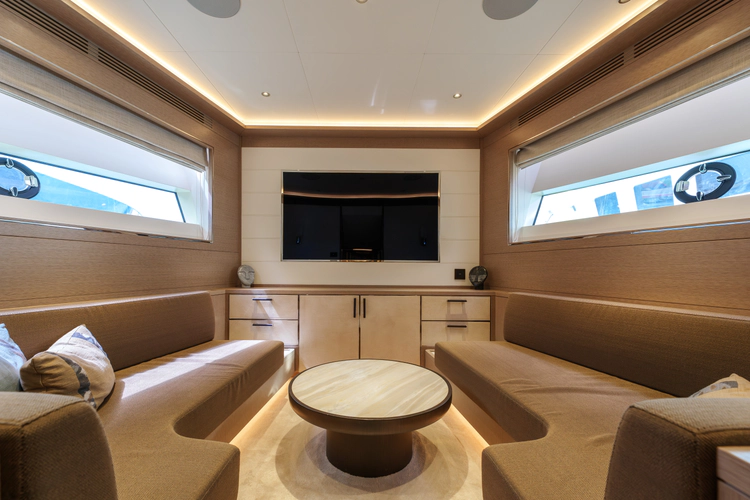

LOWER DECK CINEMA
• 1x Samsung 55TV
• 1x Bang and Olufsen sound unit

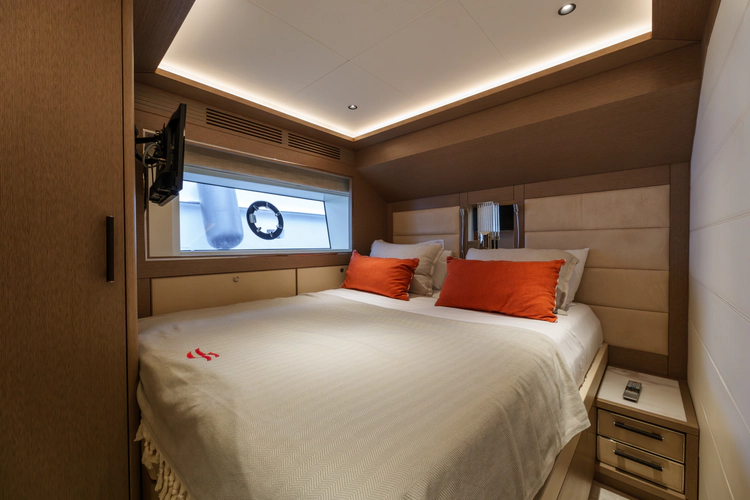

STB GUEST ROOM
• 1x Samsung 32TV
• 1x Towel Heater
• 2x Beds (Beds are sliding and can be a large bed)
PORT GUEST ROOM
• 1x Samsung 32TV
• 1x Towel Heater
• 2x Beds (Beds are sliding and can be a large bed)
• 1x Pullman bed
AFT VIP ROOM
• 1x Samsung 50TV
• 1x Towel Heater
• 1x Floor Heater
• 1x Large bed for 2 people
CREW MESS
• 1x Siting area and table
• 1x Toshiba 24TV
• 1x Raymarine Screen

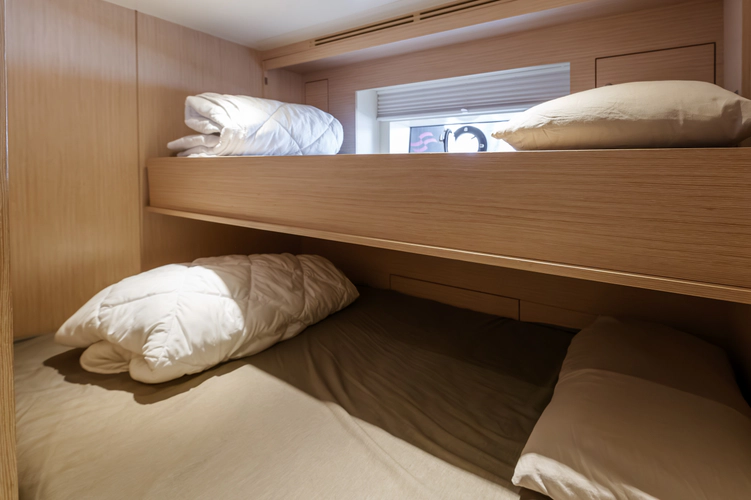

CREW ROOMS
• CAPTAIN - 1x Bunk bed for 2 people (upper pullman bed is smaller,
lower bed is a bit wider)
• CREW - 1x Bunk bed for 2 people

• North Star Axis 3,40m with 40hp Yamaha
• Jet Ski Sea Doo Spark 90hp
