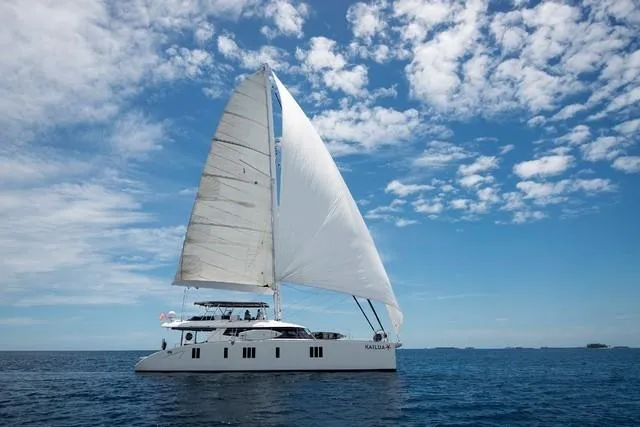

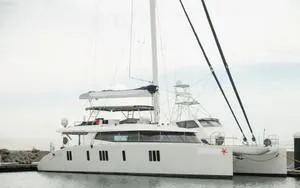

KAILUA Yacht for Sale

The vessel has a beautiful interior and is equipped with the following
features:
Beautifully crafted furniture made with individually selected grade A
wood treated with high end varnish
Beautifully upholstered cushions throughout all the cabins
Front saloon windows finished with black hatch frames and darkened
windows
Teak toe rails along the entire deck
Deck (incl. flybridge) covered with 10mm teak and installed flush to
the hatches (Lewmar)
An electric sliding door for the master cabin, maximizing the space in
the owners cabin.

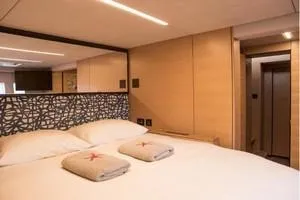

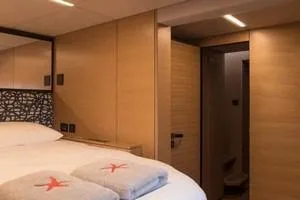

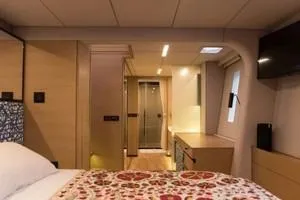

The master cabin sports a desk with multiple lockable drawers

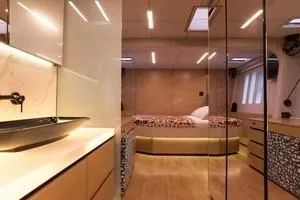

Beautifully designed bathrooms in each cabin
Electric sockets
Adjustable lights
Electric curtains
Aircon in every cabin

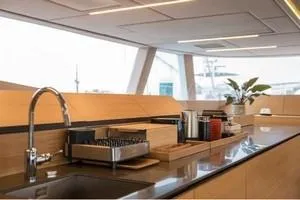

High End galley appliances package:
Refrigerator with integrated freezer
Dishwasher
Gas stove (2022)
Electric oven (2022)
Microwave (2022)
800L of Fridge and Freezer space in the galley
Thermomix Kitchen Machine
Washing machine & dryer (2022)

The S.Y. Kailua has state of the art systems that make sailing and enjoying
time on deck easy:

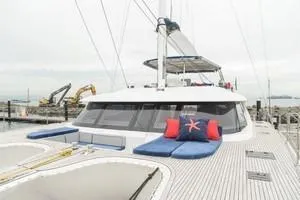

Bow pulpits with integrated teak seats
Lewmar portlights
1 swim ladder on the skirts with large easy to grab handles
Blocks and jammers-Harken, Antal and Spinlock
Electric lifting system for the dinghy with extendable arms and remote
controller for up to 1000 kg including stainless steel dinghy chokes

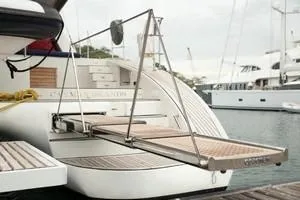

A Hydraulic platform capable of lifting up to 500 kg
A Hatch at the top of the stairway between cockpit and flybridge
2 fresh water outlets at the bottom of the mast and in the cockpit

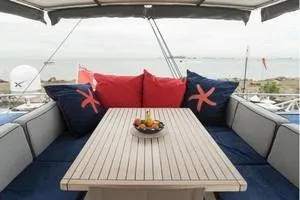

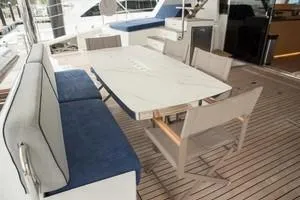

5 deck chairs (Valdenassi Calypso) together with a height adjustable
cockpit table
L-Shaped sofa in the cockpit

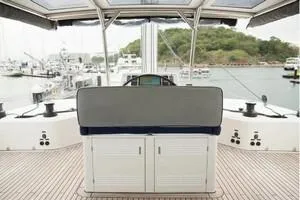

Composite hard top bimini with SS leg and structure on the flybridge
with integrated lights and solar panels.
Bow pulpits with integrated teak seats
Bimini windshield
Carbon steering wheel 1200 mm 3-SPOKES
Hydraulic gangway - Opacmare - model (3000mm length, width
60mm)
4 aft and bow capstans for mooring — 1500 W Quick
Rain Shower on the cockpit ceiling with mixing valve
Cover kit (Steering wheel, Nav station, Flybridge table) - Sunbrella
Curtains to cover flybridge
Curtains to fully close cockpit.
Stainless steel BBQ on the flybridge
Wine cooler for 32 bottles (Liebherr Vinidor)
Double-drawer fridge Vitrifrigo in saloon
Fridge in the cockpit
Fridge on the flybridge
2 x Ice Maker
Mooring kit (10 fenders + 4 mooring ropes)
Anchors:
Main Anchor - Ultramarine 100kg
Secondary Anchor: FOB Rock 60kg
2x Windlass Quick Marine DK6 3500 W with drum + 120 m
galvanised chain (diameter 16mm)
Digital Chain Counter
2x Boat hook
Rudders constructed of a moulded sandwich lamination
(fiberglass/vinyl ester)
Self-aligning lower and top bearings
Hydraulic steering system
2 emergency tillers
Electronic alignment system
The hulls, deck, flybridge and all structural bulkheads are constructed of
e-glass sandwich laminate with reinforcement by infusion giving the
Sunreef 74C an incredibly strong hull with a long life.
Rudders constructed of a moulded glass/vinyl ester and the rudder
stocks are made out of high end aluminium
The extended longitudinal beam is reinforced
A Catwalk is fitted on the forward beam
The raisable aft platform makes swimming and watersports possible
with ease at the press of a button

135mm Compass
Raymarine AIS700 Class B

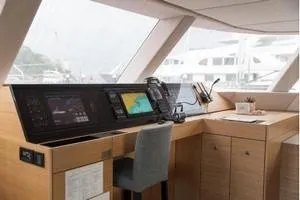

Raymarine gS-series (2021):
1x15,4" Raymarine Multifunction Display
1x12,1" Raymarine Multifunction Display
2 x Raymarine RMK-9 remote keyboard
Radar 4kW 24” Raymarine RD424HD
Raymarine Evolution Autopilot
2 x pilot control Raymarine p70
GPS RayStar 130
4 universal displays Raymarine i70 for speed, depth and wind display
Ray260 VHF with DSC function (dual station)
Mast mounted camera
Widescreen 55” LED TV in the saloon
Including a system that completely hides the TV in the
ceiling when not in use at the touch of a button
Widescreen 32” TVs in each cabin
High end yacht wide audio system:
Heos by Denon Surround 4.1 (Yamaha Subwoofer + Heos
driver with ceiling speakers)
4 waterproof speakers in the cockpit
Multimedia / Wifi System:
Hubba X4 Duo (Wifi / GSM Router)
Asus Router
WD Personal Cloud for Offline Media Viewing
Apple TV 4K & Chromecast
Satellite Internet & Phone:
Maritime Tracphone V7-HTS
Starlink
KVH Maritime Tracphone V7-HTS Satellite Communication
System

The S.Y Kailua was completely upgraded to a state of the art Lithium
Battery system in 2021 - making her far more capable than any other
Sunreef 74C on the market today:
Generators: 2x Cummins Onan Diesel 2x 27kVA Port generator hours: 3326 Starboard generator hours: 3354
AC – 230V 50Hz 1PH: main switchboard with panel extension
(semi-automatic change over shore/generators)
1x Victron Cerbo Energy Monitoring & Control
4x Victron chargers (24V/100A)
1x Victron chargers (24V/80A)
2x Victron Inverters (230V/50Hz/5000W)
1x Victron Inverter ( 230V/50Hz/3000W)
8x Victron 24V LFP batteries 1600AH
2x 24V AGM Batteries
2x shore power inlets (63A)
2x Mastervolt 110A Alternator
12 solar panels 156Wp on hardtop bimini.
Guest & Master Cabin:
3 x Sockets(230V)
3 x USB Chargers
4 x Sockets (230V) in the saloon
4 x Sockets (230V) in the dining area
4 x Sockets (230V) in the galley
The S.Y Kailua’s D/C systems are centrally controlled - making it easily to
manage your D/C systems:
Domotic Controller- the control system for lights, controls, and D/C
system:
Valves / Pumps:
Control of all electric valves
Control all pumps (grey, black, freshwater, etc.)
Measurement / System Information:
Tank level monitoring with alarm: fresh water, black water,
fuel
Measurement of temperature in the engine room
The boat is lit up well naturally through its open floor plan and many
windows - for everything else there are state of the art lighting systems on
board:
Dimmable cabin lights (All lights are equipped with LED Lamps)
Navigation lights (LED)
Lights in the engine rooms (LED)
10 underwater LED lights (Sea Vision)
Mast LED courtesy light
Exterior lighting (Deck light w/ 2 additional lights for the
flybridge with separate switch)
LEDs in skirts’ stairs, cockpit and flybridge
Upgraded black round ceiling lamps for bathrooms and hallway
2x 800 Liters / 211 Gallons fresh water tanks equipped with level
indicators and pump
2x 100 Liters / 26.4 Gallons hot water boilers
1x 700 Liters black water tanks with 3 way valves
1x 700 Litres grey water tanks with electric pumps
Fresh water inlet, shore connection
Bilge pumps:
4 electrical bilge pumps
2 manual bilge pumps
Fresh water hose outlets:
1 x cockpit
1 x bow
Rain Shower on the cockpit ceiling with mixing valve
6 High end Tecma electric toilets with fresh water flush
Hot Water Boilers: 2x 100 Liters / 26.4 Gallons
Fresh Water Tanks: 2x 800 Liters / 211 Gallons
Black Water Tanks: 700 Litres / 184 Gallons
Grey Water Tank: 700 Litres / 184 Gallons
Water Maker 1: Sea Recovery Aquamatic 1400
Water Maker 2: Watermaker Schenker Zen 100
Starboard watermaker 1966

The S.Y. Kailua is equipped with the following propulsion system:
2x John Deere 4045AFM85 (225 HP) | Port: 4157 hours. Stbd 4111 hours (as of October 2023)
Stainless Steel Shafts
2 three-bladed folding propellers (Ewol)
2 engine speed controls and 2 extra engine instruments at the
navigation table + engine controls
Yacht controller for control of engine and bow thruster and windlass
plus upgrade of the engine controls from ZF to Marex
2 electric bow thrusters-Side Power
2 electric oil pumps for servicing engines and generators
Extended long range fuel tanks of 2x 3000 Liters / 793 Gallons
(Instead of the standard 1000 Liter tanks)
2 foldable diesel turtle tanks 1000 Litres each
1 electric pump + 1 manual pump for fuel tanks
Rope cutters on the propeller shafts
Air Conditioning of 104’000 BTU from Frigomar:
1x 62’000 BTU Unit
1x 42’000 BTU Unit
Fireboy fire extinguishing system in the engine rooms
Adaptation to commercial requirements, MCA cat 2 (Red Ensign)
Fire extinguishers in every cabin

The S.Y. Kailua comes equipped with state of the art sailing equipment,
ready to sail anywhere:
Carbon mast Performance
Carbon boom Park Avenue
Lazy jack and lazy bag
A Fully battened mainsail made of first choice dacron, cross cut, 2
reefs made by Incidence Sails
A double pleated Genoa made of first choice dacron, made by
Incidence sails with complete gear and an electrical furler (Profurl)
A double pleated Staysail made of first choice dacron, made by
Incidence sails with complete gear and an electrical furler (Profurl)
Gennaker made by Incidence Sails ,including complete gear and an
electric furling (Profurl)
Storm Jib made by Incidence sails
Mast steps up to boom height
Main Sail: 180 Square Meters / 1937.5 Square Feet
Genoa: 114 Square Meters / 1227 Square Feet
Staysail: 80 Square Meters / 861 Square Feet
Storm Jib: 20 Square Meters / 215 Square Feet (NEVER USED)
Gennaker: 260 Square Meters / 2798 Square Feet

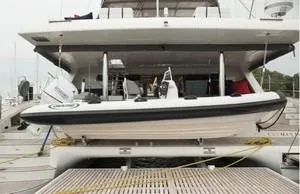

The vessel comes with a beautiful Tender making trips to shore and
back an absolute breeze:
Diverib 550 with hypalon tubing
Suzuki 115 HP fourstroke outboard DF115A
Suzuki Keyless Start System
Lowrance Elite 7Ti chartplotter
Raymarine VHF Ray60
New upholstery 2022
Sound System:
4 speakers & radio
Ultra Marine 5kg anchor
Towing post for wakeboards / waterskiing
Navigation lights
Courtesy lights
A variety of incredibly fun water sport toys that
make any sail trip an even more fun adventure:
Seabob FS5 including Camera
Fliteboard electric foil board (E-Foil)
2x SUP
1x Complete Wing Foil Setup
Kitesurfing Equipment:
2 boards & kites: 7,9,12 Cabrinha
Foldable kayak
Nomad Floating Electric Dive Compressor
2x Wakeboard
1x Wakesurf
Tube for Tubing
Snorkeling Equipment 7x set of fins with mask and snorkel
Yoga Mats, Weights, Gym Equipment, etc.
3x E-Scooter

Vessel was out of the water for service in June/July 2023 and had the following service work completed;
Arimar Liferafts (2) serviced and installed, new HRUs (2) mounted
Fire extinguishers (13) and engine rooms fire suppression system (2) inspected
Engine shafts (2) with couplings (2) were taken out, serviced and mounted back
EWOL propellers (2) were taken out, serviced, cleaned, greased
New Tidesmarine shafts seals (2) installed
Shafts (2) alignment and correction of engines mountings
Rudders and bearings inspected after removal
Bottom, rudders and bow thrusters painted with two coats of Interlux Micron Extra SPC with additional layer on waterline, bows, transoms and rudders
Propellers and shafts painted with Prop speed after installation
New zinc anodes on shafts (2) and bow thrusters (4)
Minor damages in fiberglass on bows and transoms repaired
Paint touchups on Tenderlift platform
Emergency hatches (4) repainted
New Tenderlift belts (2) installed
Caulking replaced where needed on flybridge
New caulking around aft fairleads
All valves and thru hulls checked, 2 valves exchanged
Grey water system flushed and dismantled for cleaning where needed
Main anchor chain locker cleaned, ground tackle inspected
Stern and side railing cables (16) exchanged
Bilges inspected and cleaned
Bilge pumps (6) checked, one repaired
