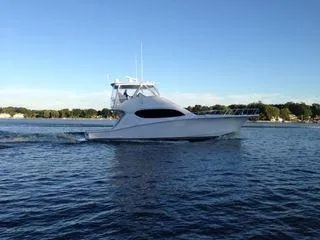

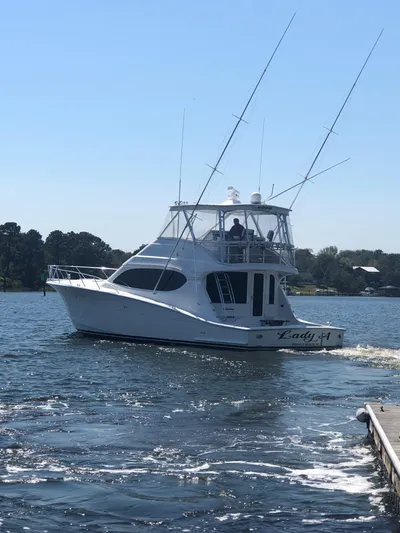

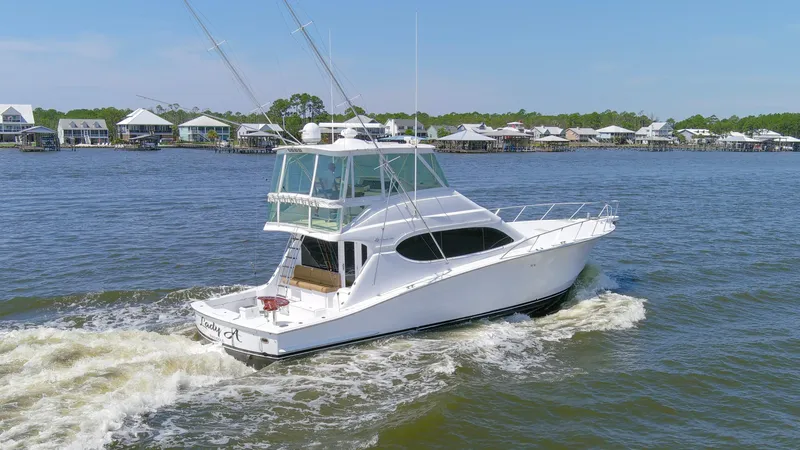

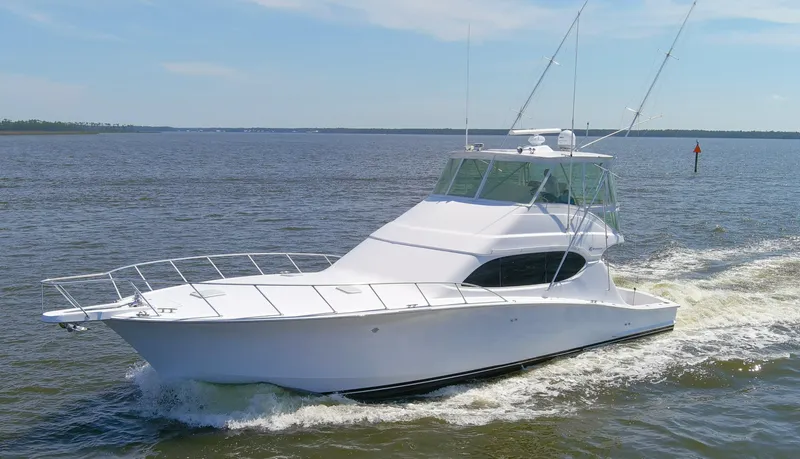

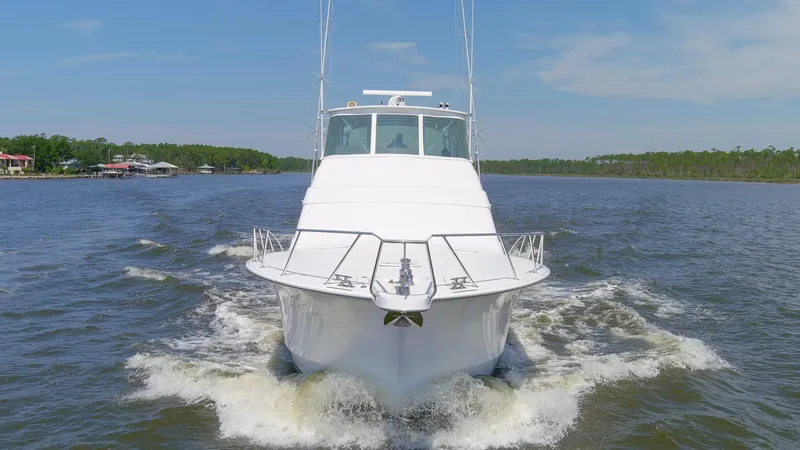

Lady A Yacht for Sale | 54 Hatteras Yachts Orange Beach, AL

Beam: 17' 3''
Hull Material: Fiberglass
Displacement: 74,000 lb
Fuel Tank: 1 x 1250|gallon
Fresh Water: 1 x 192|gallon
Holding: 1 x 91|gallon
Cabins: 3
Heads: 2

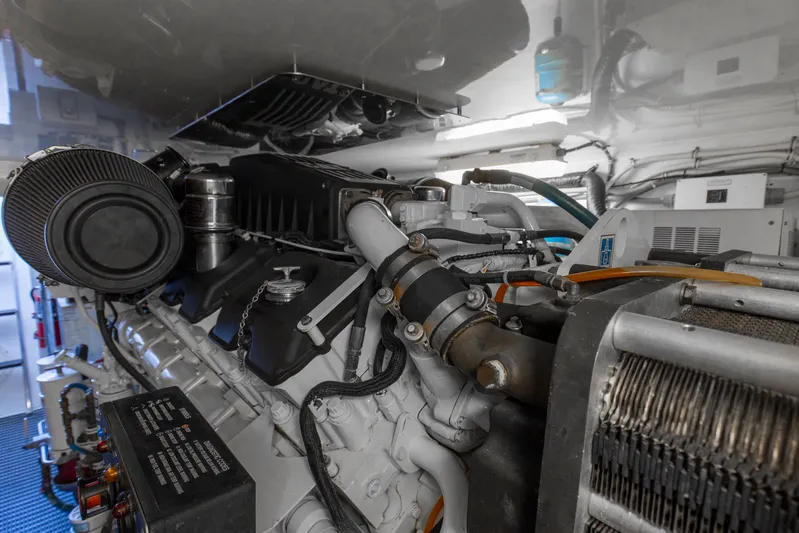

1,000 hour CAT engine service to include NEW after-cooler cores May 2025 done by Thompson Tractor
Volvo Penta Trim Tabs

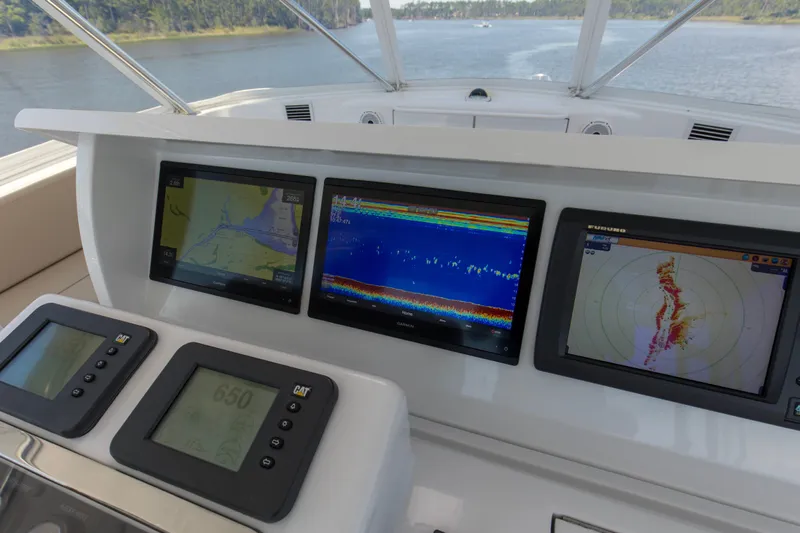

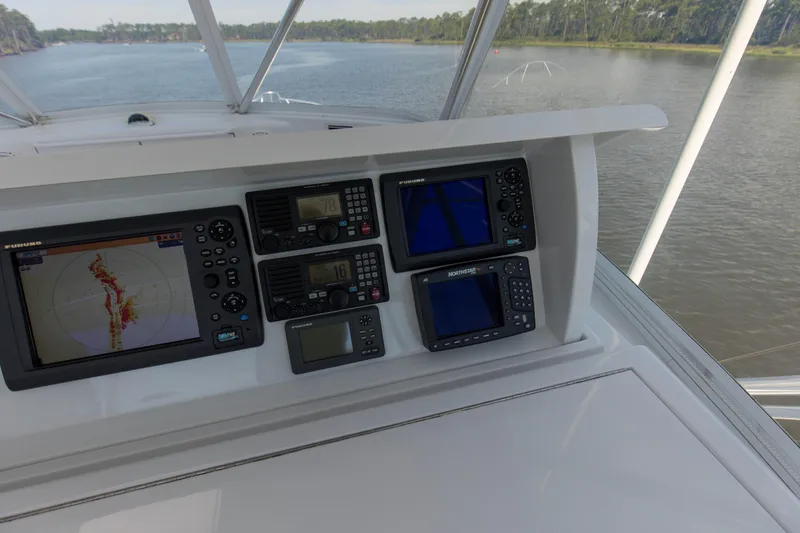

Upgraded (2) GARMIN 8616 XVS Multi-Function Displays
GARMIN CM 599 LHW Low and High Chirp
Furuno NavNet 3D 12.1" Multifunction displays (GPS/Plotter)
Furuno NavNet 3D 8.4" Multifunction display
Furuno BBWGPS WAAS/GPS Receiver Antenna
Northstar 6000i GPS Plotter
Furuno 6' Ultra High-Definition Digital Open array Radar Antenna, 12kw
Furuno Dual frequency digital fishfinder sounder
Nite Track Marine NITE-TRACK-WH Nite Track Marine HD Night Vision Camera System
M260 1,000 watt transducer (50/200 kHz)
SAT weather antenna and receiver
SAT radio antenna and receiver
GARMIN Autopilot
Simrad IS15 Depth
Furuno RD30 Digital Depth Remote Display
Twin ICOM M604 VHF radio with remote mounted mic's and hailer horn
17'6" Shakespeare antennas
Engine room camera
Cockpit camera
Fusion MS-UD650 Pandora, Sirius XM Ready, Bluetooth, NEMA 2000, JL Audio Speakers
ACR RCL 100 Remote spotlight mounted on hardtop
TV 5 Trac Vision KVH SAT TV Antenna
Bow and Stern Thruster helm controls with handheld remote control (2015)
Cherry high gloss interior wood
Lift up coaming gate
Carpet runners in salon, steps and companionway
Spare fuel transfer pump plumbed and wired
Plexi mirrored ceiling in both heads
Freshwater back-up pump AC
Starboard stateroom pocket door
Exterior Paint - Cloud White
Stateroom lamps (3)
Numerous interior decor upgrades

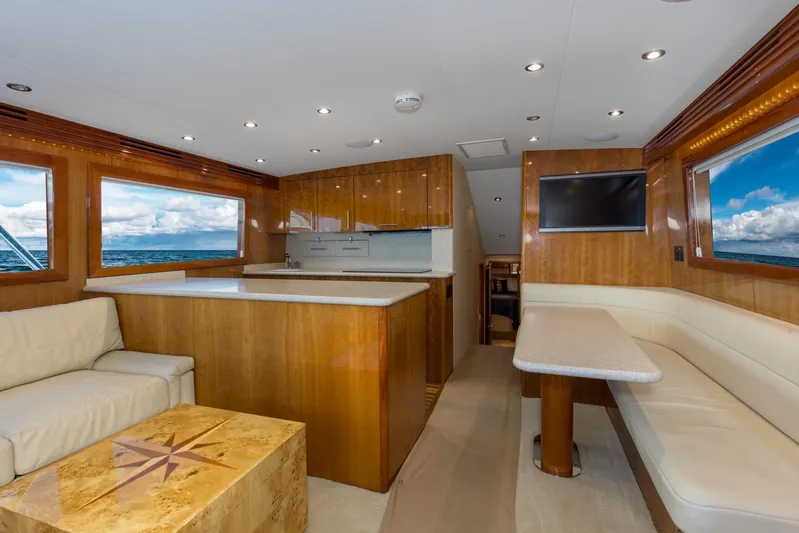

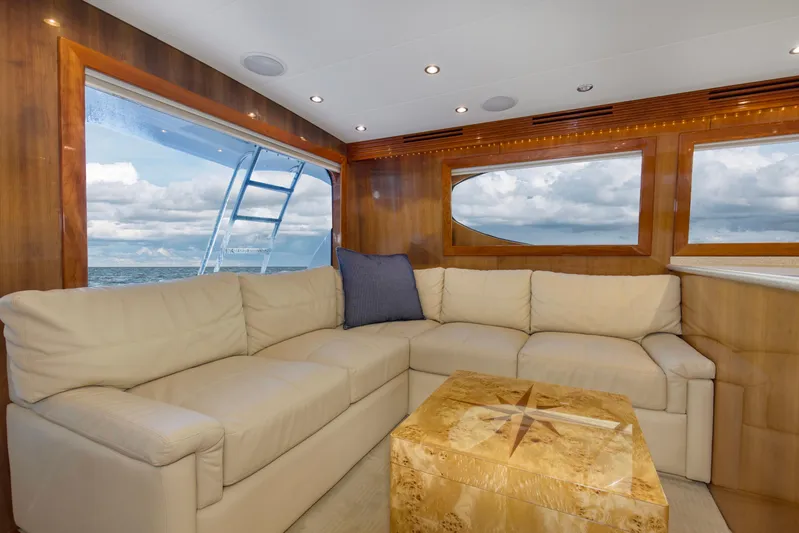

Salon Cocktail table - Mapel Burl with Compass Rose
Bow Stateroom Art
Headhunter waste gauge
Kahlenberg Horns
Transom hawse pipes
Polished stainless steel anchor and swivel
Salon Amtico floor at entrance
Freshwater washdown on bow
Helm seat covers
Spare waste, water and fuel caps
Bow pulpit and windlass

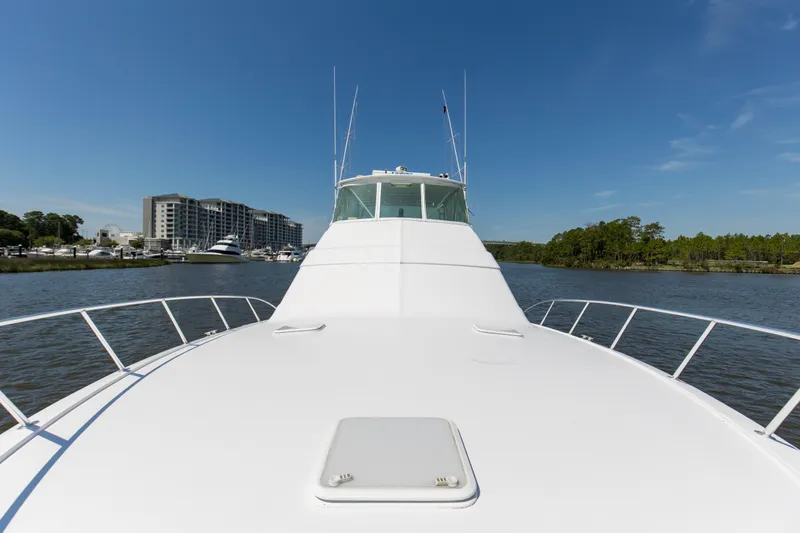

Aluminum Bow rail
Custom Aluminum flybridge ladder

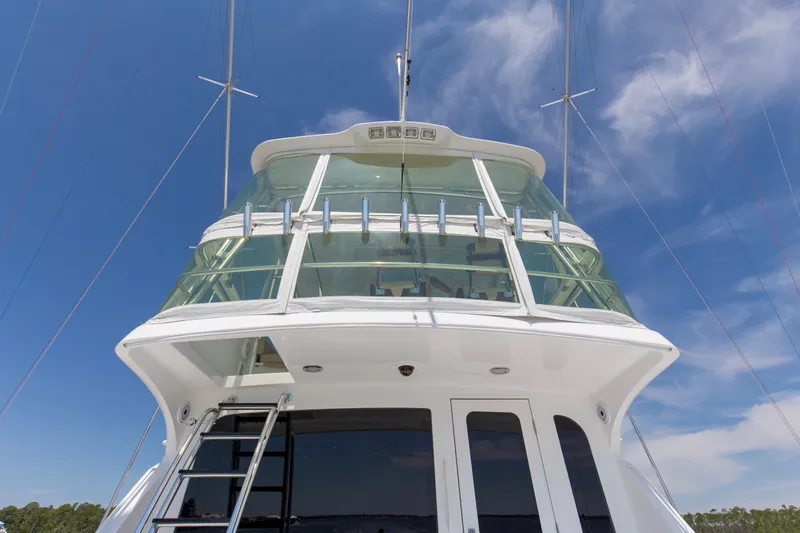

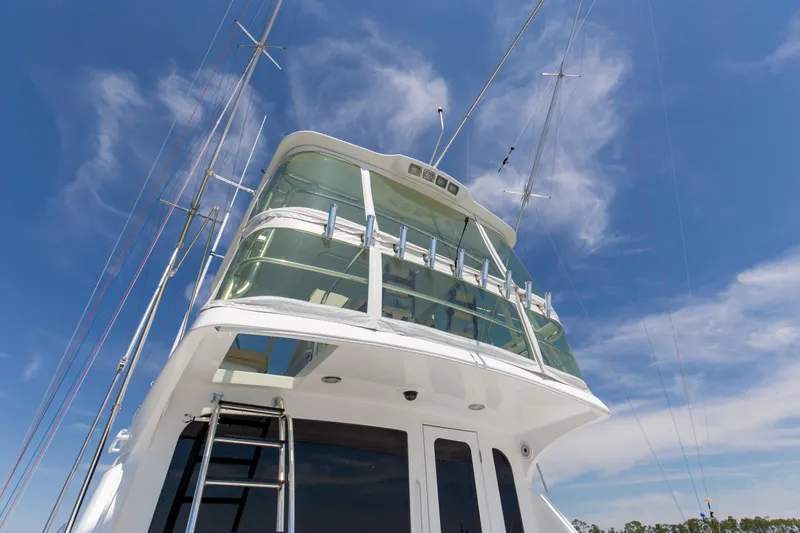

American Bausch Hardtop (polished pipe aluminum, hardtop hatch, molded in spreader lights(4) and Nav lights, under hardtop lights, inside piping design, and under mounted u-shaped grabrail.
Second Glendinning cable re-coiler in cockpit (one is standard)
Wireless remote for re-coilers
Bow stateroom upper hull side cabinets
Salon Ice Maker
Central vacuum system
Watermaker’s Inc Watermaker
Dometic Eskimo Ice Chipper
Upgraded HVAC Dometic units for, Salon, Master Stateroom, VIP Forward, Flybridge
Clearline Electrosea
Custom Starboard Eskimo ICE dump molded in tackle center
Custom transom live-well, blue with window
Release Marine Battle Saddle
Pipewelders Triple Spreader Outriggers
New 4-Sided Enclosure with yellow tin to support HVAC unit
Hull sides painted
Updated Upholstery Flybridge cushions

Isophthalic gelcoat, exterior layer, white
Blister-resistant vinylester resin in hull bottom skin coat
Hull and superstructure linear polyester/polyurethane coating
Polymer/copper-based anti-fouling bottom paint
Boot stripe, linear polyester/polyurethane coating
Decks, non-skid surface, polyurethane paint with polymeric beads
Solid fiberglass hull bottom
Hull sides and superstructure laminated with PVC foam core
Fiberglass stringers
Steel laminated in stringers at key locations to bolt engine mounts
Engine room bulkheads and decks of resin-infused composite construction using PVC foam core with layers of fiberglass laminate on each side

Wood bulkheads, cabinetry and trim with a polyester high gloss finish
All hardware polished chrome with brushed chrome in galley
Anchor line and deck hawse pipe with anchor tensioner
Polished stainless-steel anchor cleat, through-bolted in aluminum backing plate
Two polished stainless-steel stern cleats and hawse pipes, through-bolted in aluminum backing plate
Four Polished stainless steel springline cleats with chafing strips, through-bolted in aluminum backing plate
Polished stainless-steel bow cleats and chocks with chafing strips, through-bolted in aluminum backing plate
Polished anodized welded aluminum rails on bow, side-deck and flybridge, drilled and tapped in aluminum backing plates
Powder-coated grab rails on cabin side and flybridge interior
Polished anodized welded aluminum flybridge ladder with acrylic steps
Zincs on rudders and shafts
Interceptor trim control
Manganese bronze struts
Stainless-steel rudders with zincs
Nibral high performance propellers
Alloy 22 high-strength propeller shafts, 3-inch, with zincs
Manganese bronze dripless rudder seals with thrust bearing on rudder shaft
Bow deck access to rope storage locker
Deck plates for fuel and water fills and waste pump out
Heavy-duty bronze engine couplings
Dripless shaft seals with spare seals

Water manifold with centralized shut-off valve for sinks and showers
AC fluorescent lights
DC lights
DC exhaust blowers

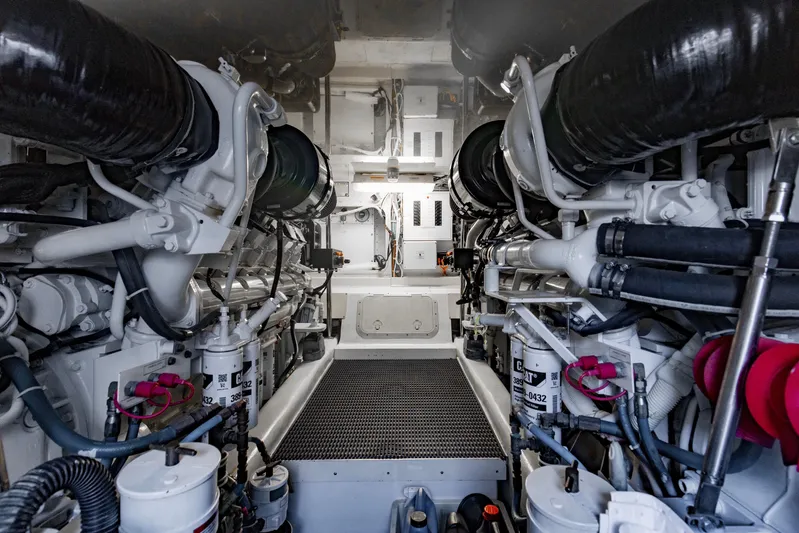

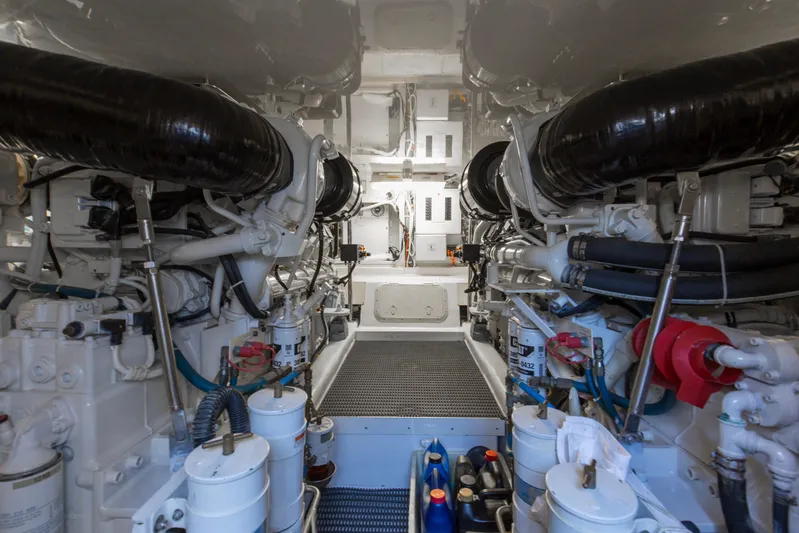

Twin diesel, freshwater-cooled main engines with electrically controlled marine gears, neutral interlocks, exhaust silencers, engine hour meters, alternators, fuel filters and seawater strainers

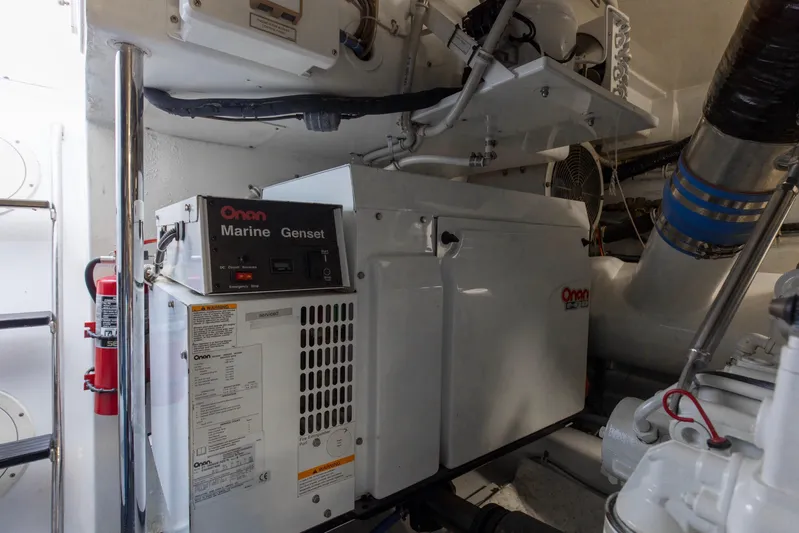

21.5kW freshwater-cooled Electronic Quiet Diesel Onan generator(D) with shock mounts, seawater strainer, remote start, fuel/water separator, hour meter, water lift muffler and sound enclosure
Variable-speed forced air induction system for engine combustion air with two 15” vane axial fans ducted to cockpit and controlled by pressure and temperature (single fan reversible for flow-through ventilation)
Polyethylene water lines

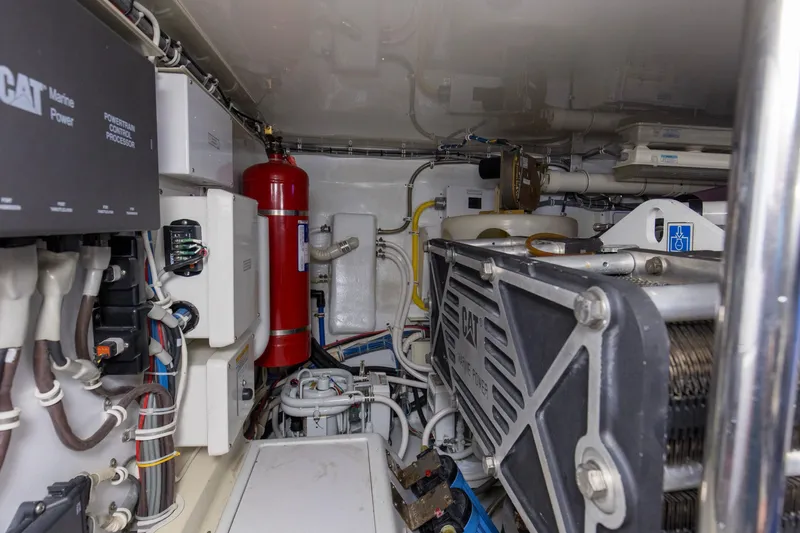

FM200 fixed fire extinguishing system for engine compartment with automatic and remote manual controls, plus audible and visual discharge signals
Pressurized 24-volt DC freshwater pump (new in 2018) with central charcoal freshwater filter and back-flush capabilities
230-volt AC 20-gallon electric water heater
Freshwater fill hose for engines and generator
24-volt DC bilge and sump pumps: three at 3700 gph, two at 2000 gph and four at 1100 gph, with heavy-duty float switches and protective guards
Auxiliary emergency bilge pump, 150 gpm in lazarette
Bronze/chrome plated ball-valves through bolted in solid fiberglass on all underwater through-hull fittings with electrical bonding throughout
U.L. Marine-listed fiberglass fuel tanks constructed with fire-retardant resin and bronze fittings, and coated with fire-retardant paint
Fiberglass holding tank with bronze fittings
Fiberglass water tanks, constructed with bronze fittings
Sewage holding tank with 24-volt DC sewage pump, plumbed for dockside pump-out, with 3/4 full display and alarm as part of systems monitor programmable logic controller
U.L. Marine-listed fuel filter/ water separator, generator
U.L. Marine-listed duplex fuel filters/water separators with bypass manifold, engines
Digital monitoring for main engines in battery panel with start/stop switches
24-volt DC oil changing system for engines, gear and generator with Hatteras patented quick disconnect
Electric fuel transfer system with filtration and dry tank protection for pump
United States Coast Guard type A1 U.L. Marine-listed fuel lines
Seawater pressure system with DC pump
Air conditioning compressors and pumps
Painted polyurethane engine room and bilges
Isolated discharge sea chests
Transducer well, glycol filled
Sealed shower sump
Pultruded fiberglass rudder shelf
1” stainless-steel steering tie bar with pivoting self-aligning ball joint connection at all cylinder and tie bar connections
Insulation in deck
Pick-up sea chests

Two 24-volt banks of heavy-duty, 12-volt marine batteries mounted in fire-retardant fiberglass boxes
Gel/lead acid compatible 240-volt automatic/ programmable battery charger, 50/60 Hz
Automatic battery paralleling system with switch at control console
Air conditioning, 43,000 BTU, with reverse cycle heating, with A/C compressors, individually controlled by SMX controls
One 240-volt, 50-amp, transformer connected fused shore cord with over-current protection
One 240-volt, 50-amp, transformer connected retractable shore cord with over-current protection
AC and DC light fixtures
AC dimmable lights in master and salon/galley
AC duplex outlets with ground fault protection
Battery control panel with fuses and isolation switches
DC distribution panel with magnetic circuit breakers
DC distribution panel with magnetic circuit breakers (engine compartment)
DC electronics panel with magnetic circuit breakers (bridge)
AC distribution panel with magnetic circuit breakers
AC switching panel with voltage source selector switches, voltmeter, ammeter, frequency meter, generator start/stop controls, interlock selector breakers and voltage boost switch
Systems monitor with programmable logic controller readout, visual and audible signals for engine, alternator, high bilge water, fire warning in engine compartment, fire extinguisher discharge, AC power loss, smoke detectors, battery voltage, 3/4 full holding tank monitor and carbon monoxide detectors
Ground fault protection on AC receptacles and lighting circuits
Navigation lights
CATV inlet
Omni-directional TV antenna
U.L. 1426 listed boat cable, tin-coated with insulation

Systems monitor with visual and audible signals for engines and gears, steering cooling pump, high bilge water, fire warning in engine compartment, fire extinguisher discharge, and AC power loss
Molded fiberglass top-loading insulated drink box
Two bench seats with removable vinyl-covered polyfoam cushions and storage underneath
Rod storage space in port bench seat
Additional storage areas beneath athwartship seat and console
Neutral interlock switches allowing engine to start in neutral only
Polished anodized welded aluminum rails and stanchions
Powder-coated grab rails

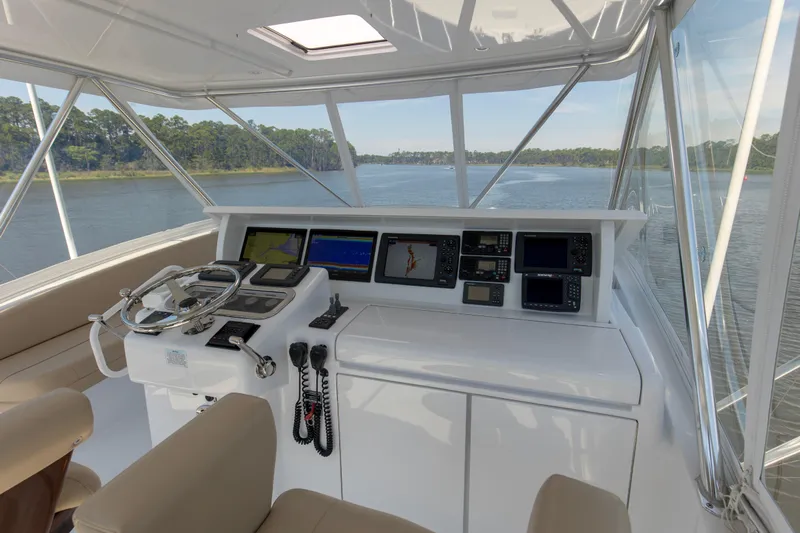

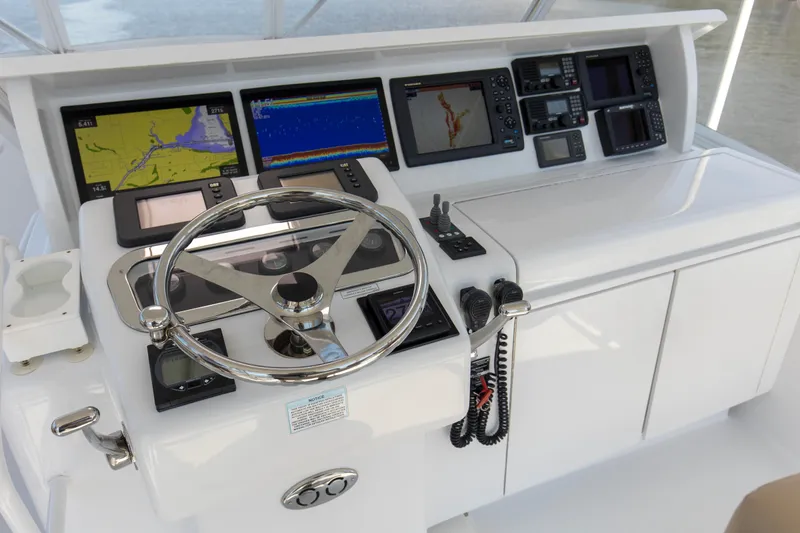

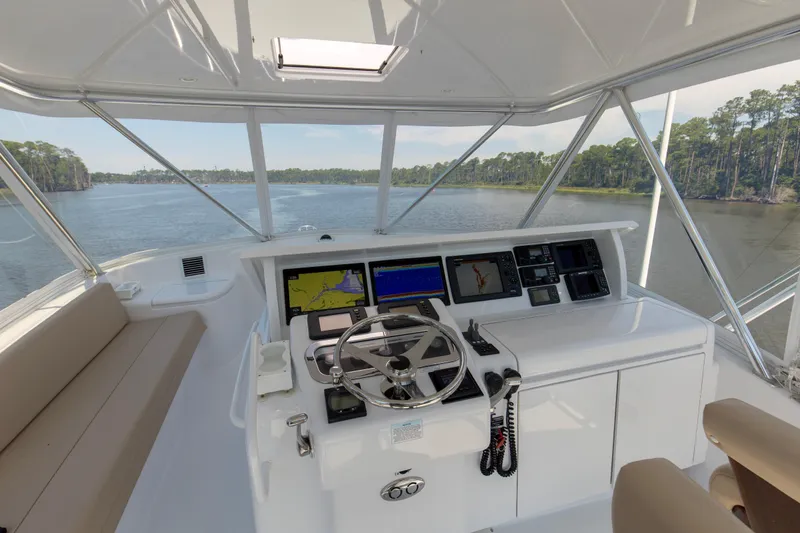

Control station with all necessary switches and dimmable lighted instrument panel
Engine synchronization control
Compass with dimmable light
Pod console with custom wheel and single-lever clutch and throttle controls (electronic) with emergency back-up and electric trolling valve control switches
Hydraulic power-assisted steering

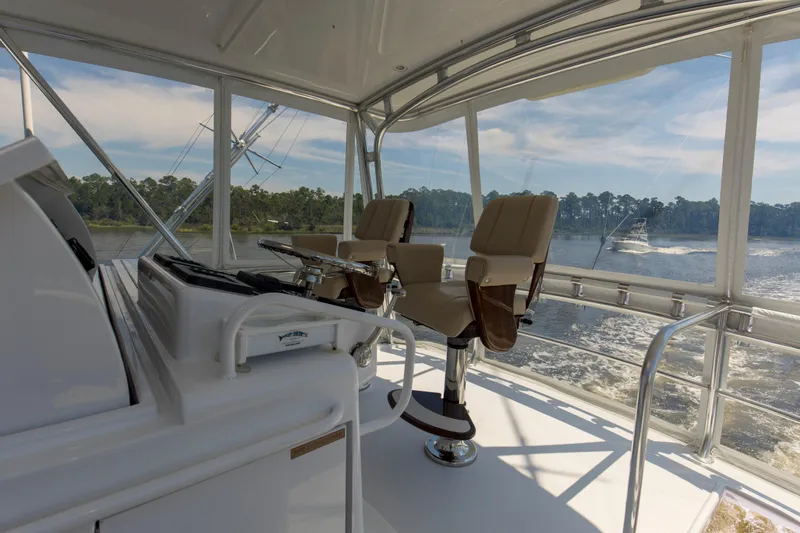

Twin Murray Sea-19 adjustable teak helm chairs with stainless-steel hardware and footrest, and backing plate
Electric fuel level gauges
AC weatherproof receptacle
24-volt DC distribution panel
Power-actuated electronics console

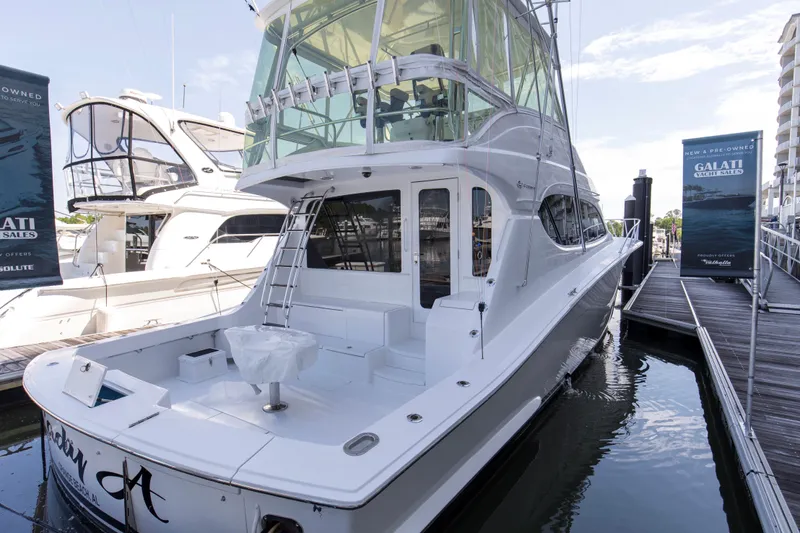

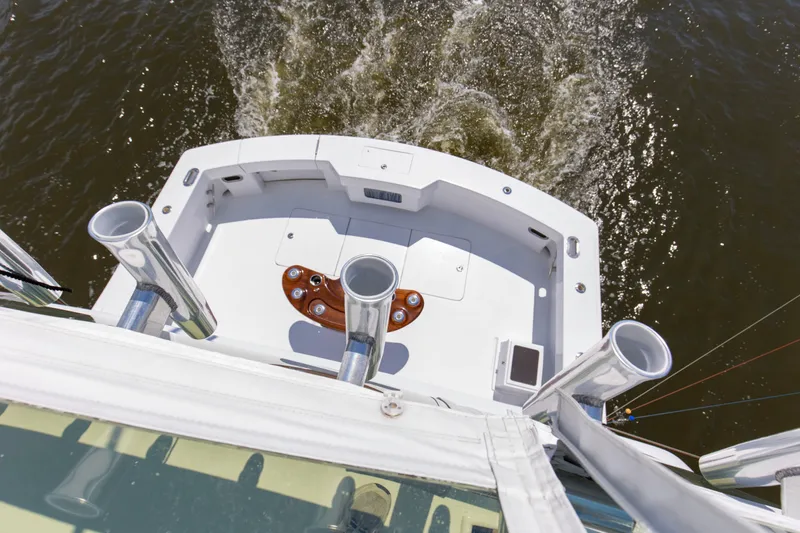

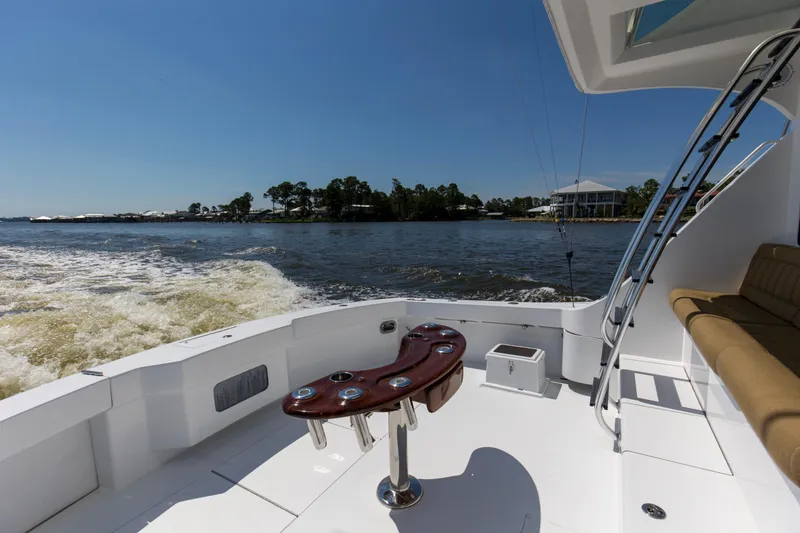

Molded fiberglass, 126 square feet including 13 square feet of seating

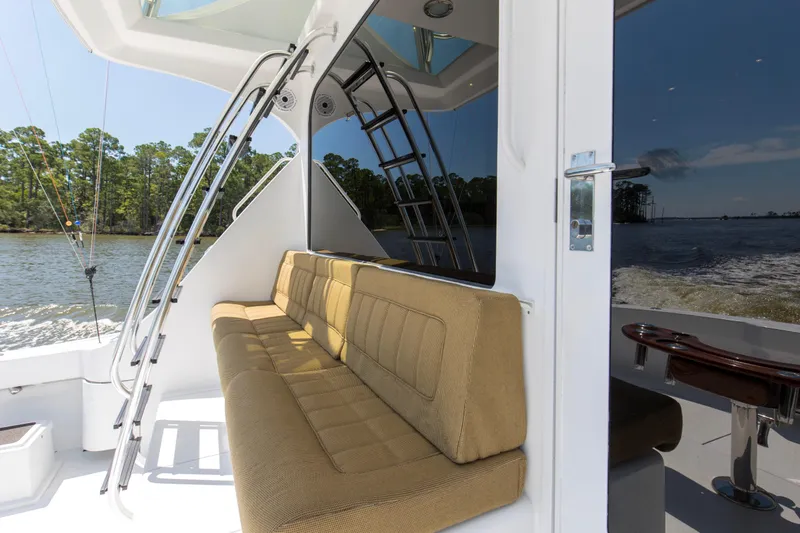

Seating with cushions across upper mezzanine
ISO standard scuppers in cockpit and cockpit hatches
Polished anodized aluminum ladder to flybridge with acrylic steps
Transom door
One 50-amp shoreline electrical inlet and retractable shore cord
One 50-amp shoreline electrical inlet and fixed shore cord
Seawater and freshwater wash down outlets with Hatteras patented quick disconnect
Shore water connection with pressure-reducing valve and Hatteras patented quick disconnect
Bait and tackle drawers, upper starboard mezzanine
5.4-cubic-foot bait freezer, port mezzanine
Bait and tackle drop-in box, lower starboard mezzanine
Two 14-gallon storage tubs, lower port mezzanine
Removable 80-inch fish box with macerator, flush in deck
Hatch with chrome-plated brass lock to engine compartment
Storage in steps to deckhouse with chill box in top step
Hinged glass door to deckhouse
Fiberglass cockpit boarding step box with storage
DC overhead lights under flybridge overhang
Aluminum mounting plate laminated in deck for fighting chair
CATV inlet
Polished stainless-steel rod holders, flush mount, set of 4
Polyplanar stereo speakers with volume control

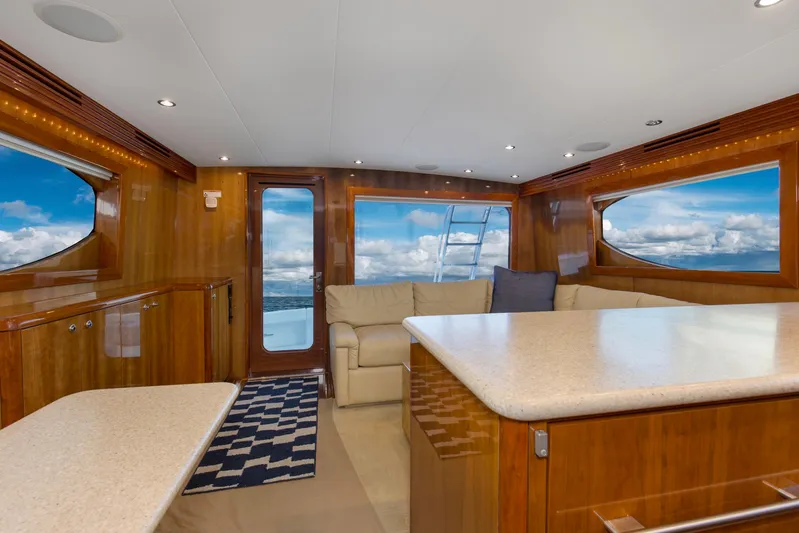

Carpeting
Removable upholstered headliner
Wood bulkheads, cabinetry and trim with a polyester high gloss finish
Fluted wood valances with duette blinds
Fixed frameless windows with tinted safety glass
Telephone outlet
AC and DC light fixtures
AC dimmable lights
AC duplex outlets
Electric panels
Surround-sound speakers
Entertainment center including 32” LCD TV with omni-directional antenna, AM/FM“surround sound” stereo receiver with DVD/CD player behind doors
L-shaped lounge with rod storage, loose cushions, arm rests and double needle stitching
Throw pillows
Polished stainless-steel threshold at salon door
Air conditioning dispersed through fluted valances, port and starboard
Smoke detector
Hinged glass door to cockpit
Carbon monoxide detector

Amtico vinyl-strip flooring
Removable upholstered headliner
Fluted wood valances with duette blinds
Fixed frameless windows with tinted safety glass

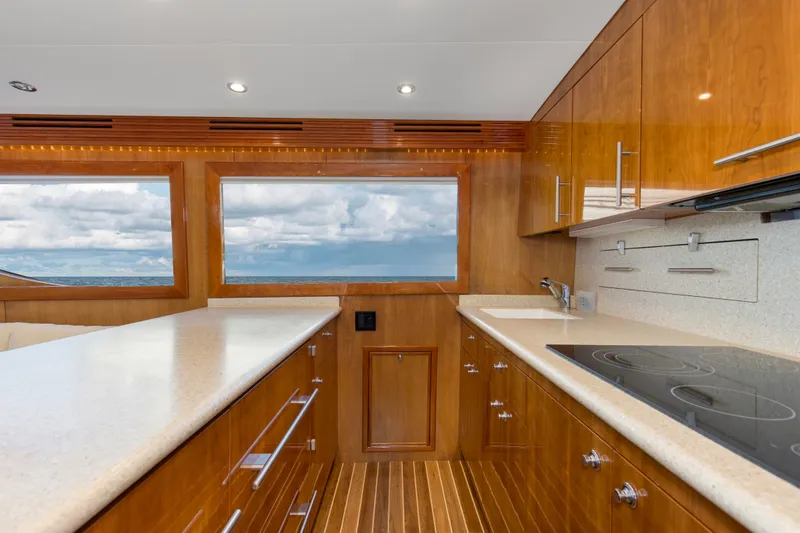

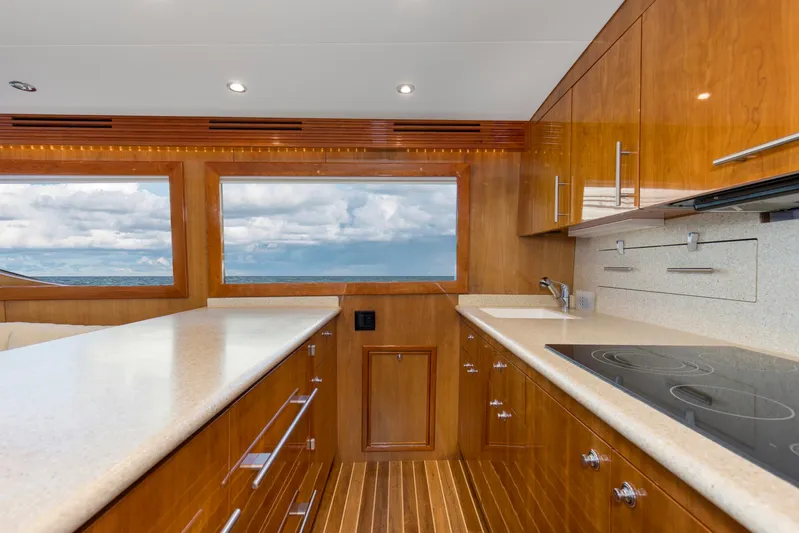

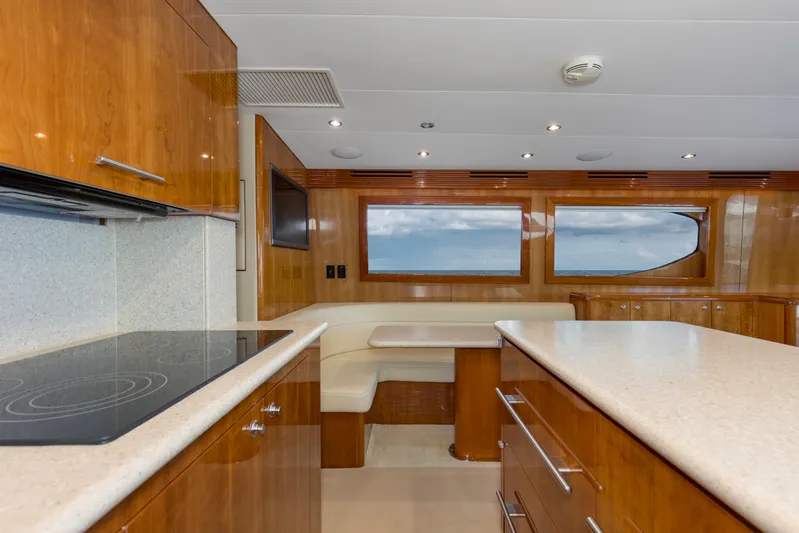

Solid-surface countertops, under-mount sink and storage cabinets made of genuine wood to match interior finish
Twin AC under-counter Sub Zero refrigerator and freezer drawer units with ice maker
AC four-burner ceramic cooktop
Microwave/convection oven covered by cabinet door
One-half hp continuous feed garbage disposal
L-shaped dinette with storage under seat
Electric water level gauge
AC and DC light fixtures
AC dimmable lights
AC duplex outlets
Telephone outlet
Air conditioning dispersed through fluted wood valances, port and starboard
Drawers (2) in galley fascia, (4) in upper cabinets behind doors
Genuine wood inserts to match interior finish on appliance fascia

Carpeting
Removable upholstered headliner
Wallcovering
DC light fixture
Flush-panel genuine wood doors to match interior finish with door stops to master stateroom, guest stateroom and guest head
Steps to salon
Access to port/starboard storage with DC light

Carpeting
Removable upholstered headliner
Wallcovering
Wood cabinetry and trim with high gloss finish
Fluted wood valance
Padded covering on hullside

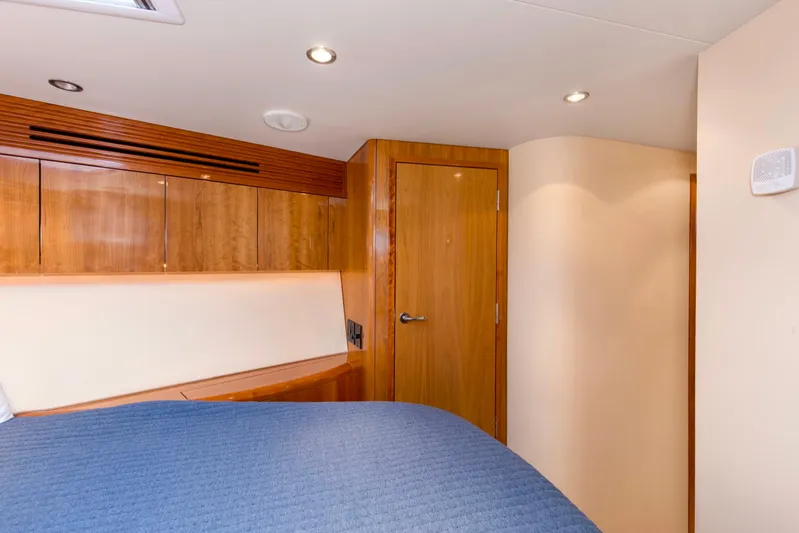

Pocket door to stateroom

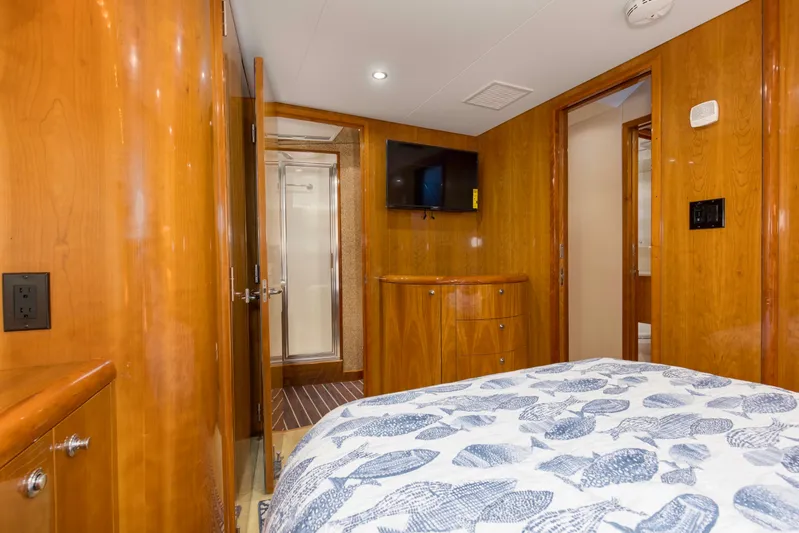

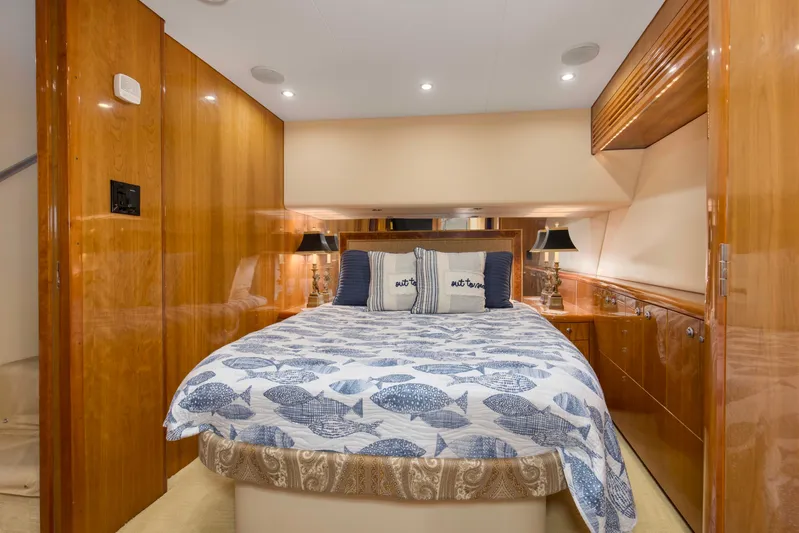

Queen-sized tapered berth with upholstered headboard and cedarlined storage underneath accessed via pneumatic cylinders
Upholstered berth base
Polyfoam mattress, spread, throw pillows, pillows, pillow shams, mattress pad and sheets
Cedar-lined hanging locker with doors, shelf and automatic light
Nightstands with drawers
Dresser with drawers
AC and DC light fixtures
AC dimmable lights
AC duplex outlets
20” LCD TV
AM/FM audio access with local DVD/CD changer and a one-touch master universal remote with RF control
Speakers
Telephone outlet
Full-length mirror
Clear plexi-mirror (aft bulkhead)
Private access to head with door stop
Carbon monoxide detector
Outboard storage cabinets
Air conditioning dispersed through fluted valance
Smoke detector
DC low-voltage lights under berth
SMX HVAC compartment controlled

Carpeting
Removable upholstered headliner
Wallcovering
Wood cabinetry and trim with high gloss finish
Side by side twin berths with storage underneath outboard berth via pneumatic cylinder
Upholstered berth bases
Polyfoam mattresses, spreads, throw pillows, pillows, pillow shams, mattress pads and sheets
Double cedar-lined hanging locker with doors, shelf and automatic light
Air conditioning dispersed through fluted wood valances
Carbon monoxide detector
Nightstand with drawers
Full-length mirror
AC and DC light fixtures
AC duplex outlet
Audio system control, LCD keypad and a pair of speakers
Private access to head with door stop
Smoke detector
Mirrored aft bulkhead
SMX HVAC bow compartment controlled

Carpeting
Removable upholstered headliner
Wallcovering
Wood cabinetry and trim with high gloss finish
Whisperwall padded panels on hullside

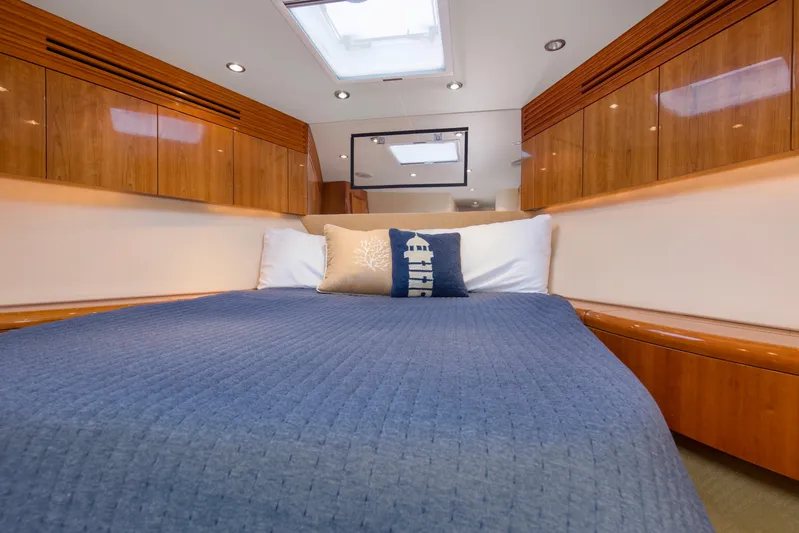

Queen-sized tapered berth with upholstered headboard and cedarlined storage underneath accessed via pneumatic cylinders
Upholstered berth base
Polyfoam mattress, spread, throw pillows, pillows, pillow shams, mattress pad and sheets
Carbon monoxide detector
Cedar-lined hanging/storage lockers with automatic light
Upper port and starboard hull side cabinets, optional
Screened overhead hatch with privacy cover
Nightstands with storage accessed by hinged lids, port and starboard
AC and DC light fixtures
AC lights
AC duplex outlets
Full-length mirror
Audio system control, LCD keypad and a pair of speakers
Clear plexi-mirror (forward bulkhead)
Washer/dryer
Private access to head with door stop
Smoke detector
DC low-voltage lights behind valance
Air conditioning dispersed through fluted wood valances, port and starboard
Linen storage, port
SMX HVAC compartment controlled

Amtico vinyl-strip flooring
Removable upholstered headliner
Wallcovering
Solid-surface countertops with solidsurface backsplash, sidesplash and integral sink over storage cabinet made of genuine wood to match interior finish with bowed fronts
Linen storage cabinets (master)
Hardwood base boards
Stall shower with seat, door and automatic enclosed sump pump
Storage cabinet with mirror
Screened overhead ventilator hatch with privacy cover
Towel bar
Headhunter freshwater toilet
120-volt AC air freshener blower
AC and DC light fixtures
AC duplex outlet
Plexi-mirror around upper cabinet
DC low-voltage lights under toe kicks (master head only)
Air conditioning discharge
Holding tank 3/4 full indicator lights

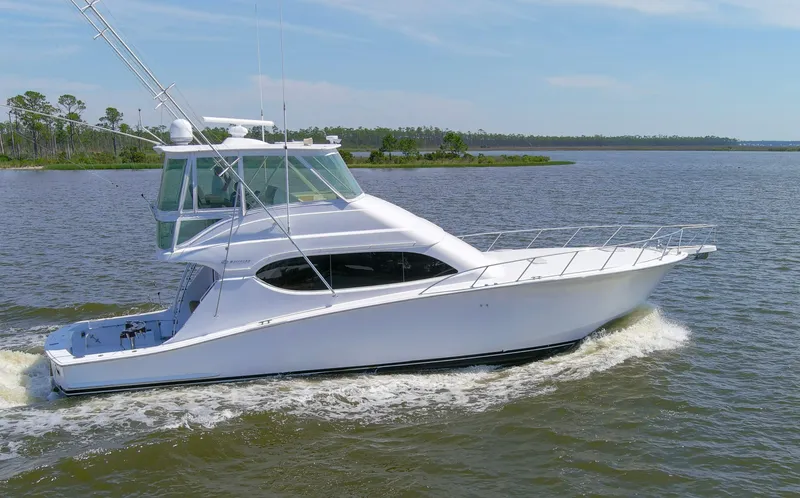

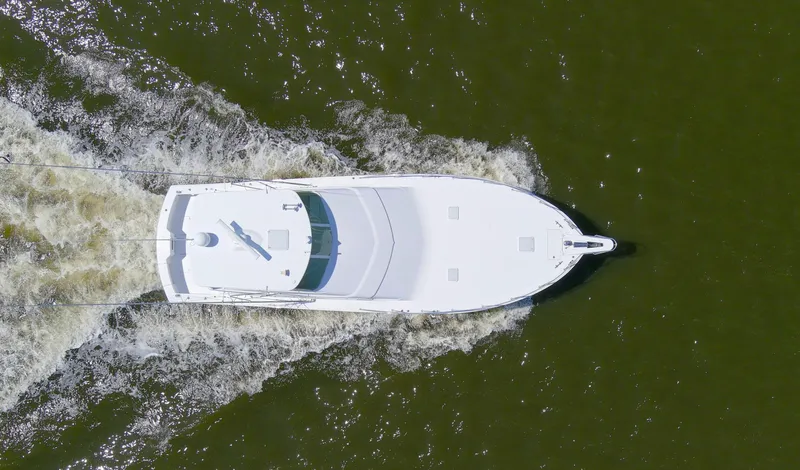

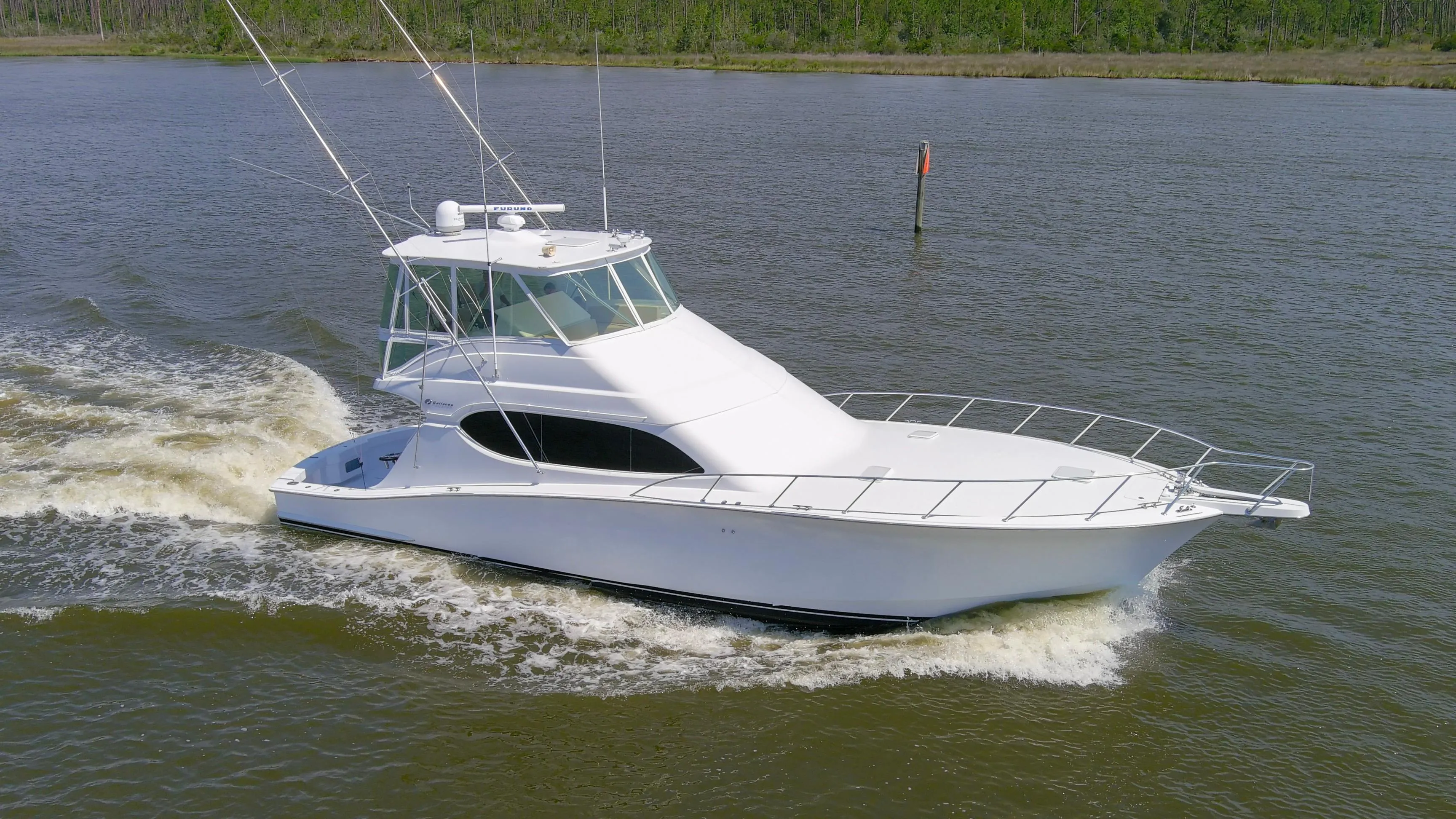

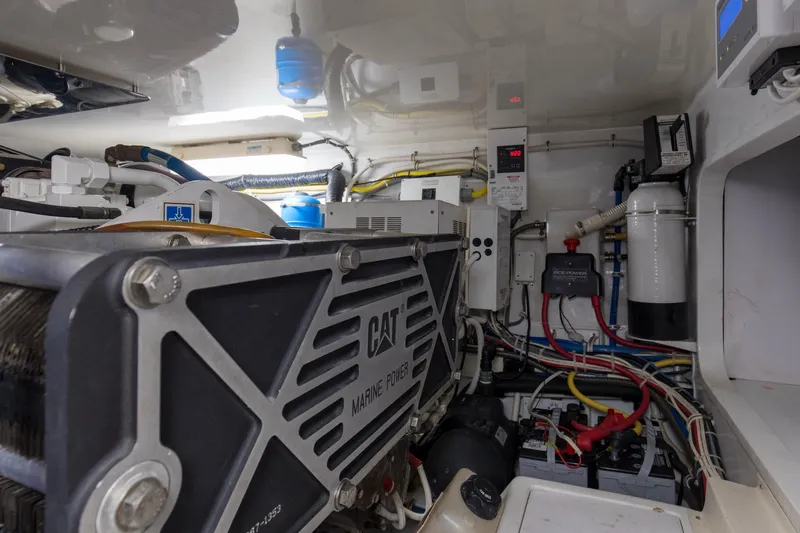

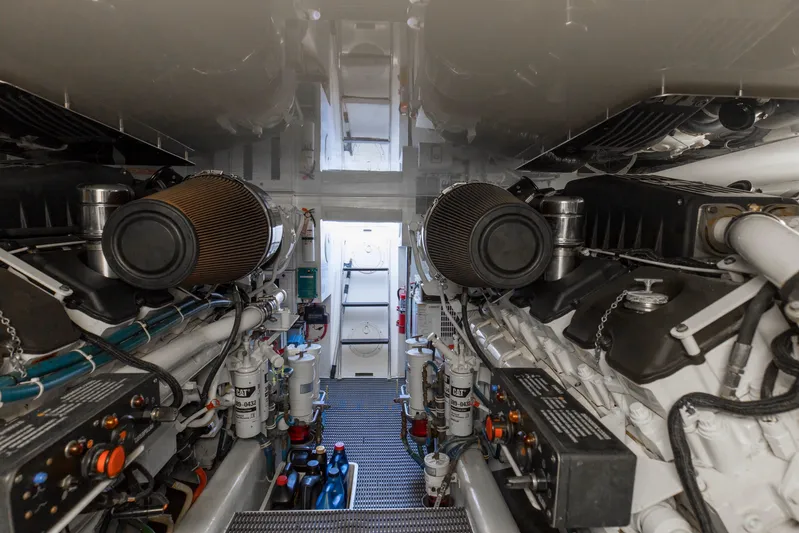

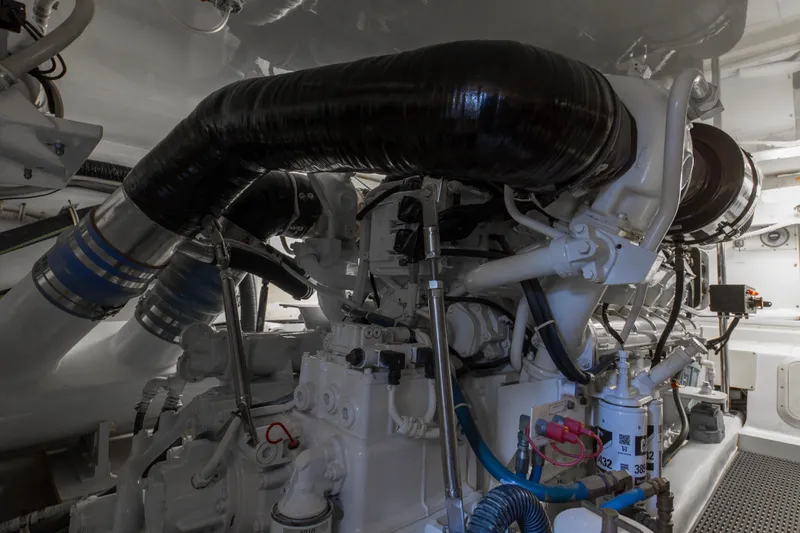

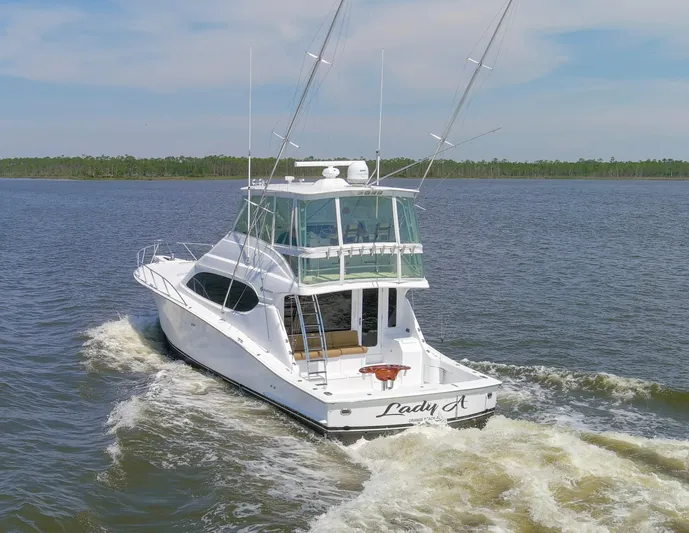

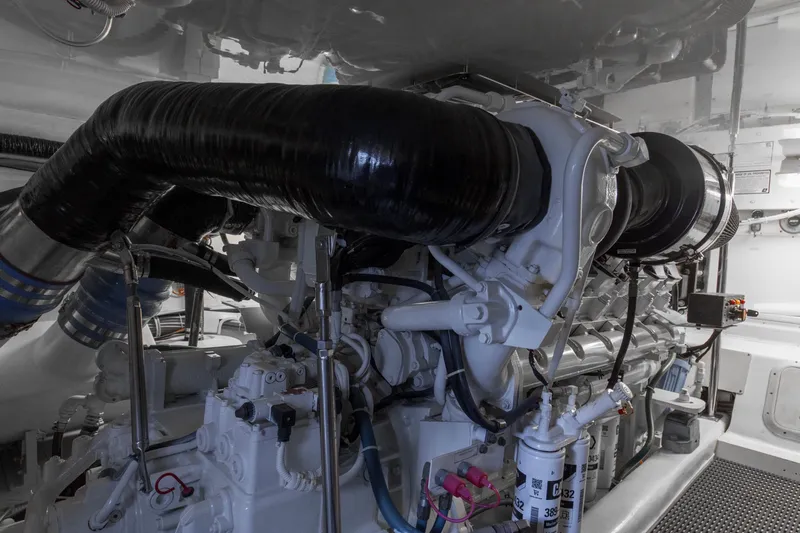

"Lady A" was originally a two owner, freshwater Hatteras that has spent her life on Lake Michigan from May until October each year and then in the Owner's private indoor heated storage building for the rest of the season. In 2018 the current owner purchased her and relocated her to Orange Beach, AL. At the time of relocation that boat underwent many upgrades and additional equipment added to get her fish rigged and ready. This is a classic 54 Hatteras with the ideal CAT C32 1550hp engine package, recent 1,000 hour service with aftercooler cores just completed by Thompson Tractor May 2025. If you’re in the market for a clean Hatteras 54 Convertible don’t wait long because this one shouldn’t last long on the open market. Contact listing broker to discuss all the recent upgrades and details of “Lady A”.
