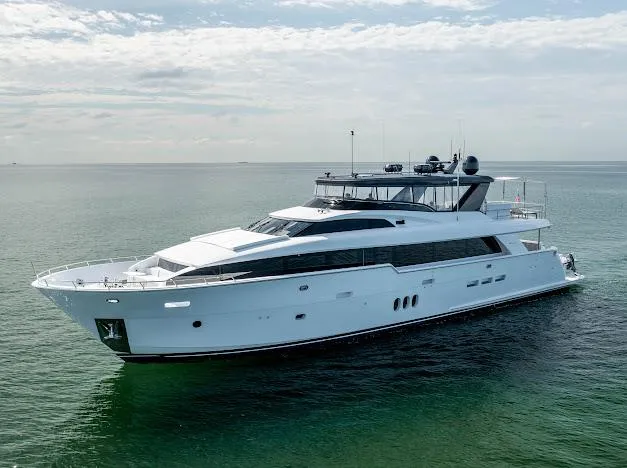

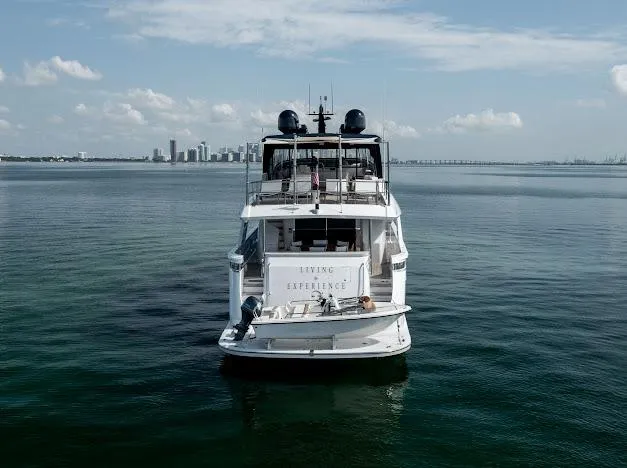

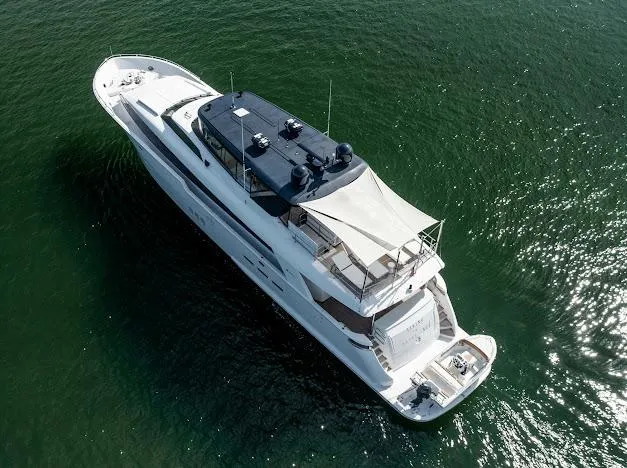

LIVING THE EXPERIENCE Yacht for Sale

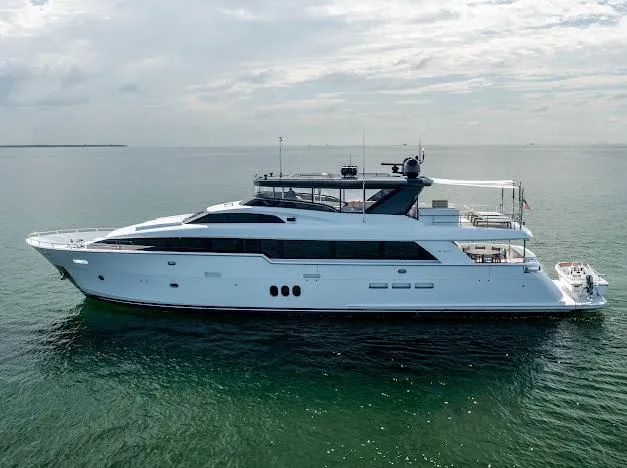

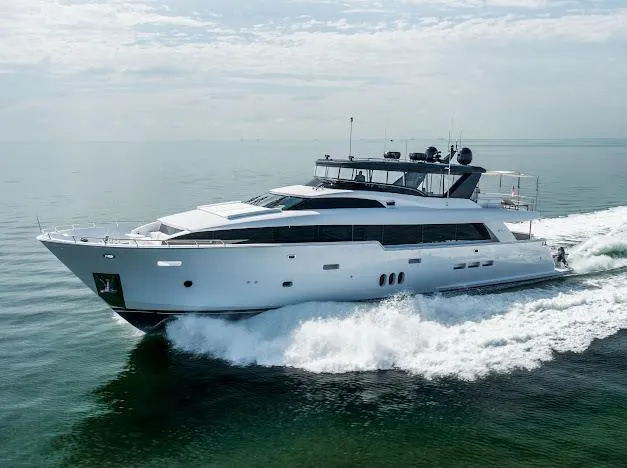

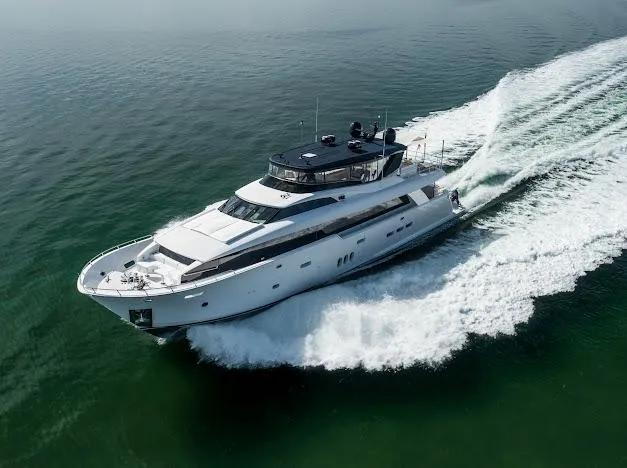

The amenities and accommodations found aboard the 100 Raised Pilothouse are typically reserved for vessels much larger in size. She features the largest aft deck and salon in her class, and offers an optional on-deck master suite fit for royalty. Her exterior entertaining spaces are as abundant as the breath-taking views surrounding them. Enjoy the thrill of the adventure from the bow observation lounge, relax on the aft deck and enjoy the breeze, or sun yourself on the richly appointed flybridge. Inside, her luxury knows no end. Exotic hard woods, exquisite craftsmanship, stone countertops, and fine furnishings will have you convinced that this is our finest yacht ever.

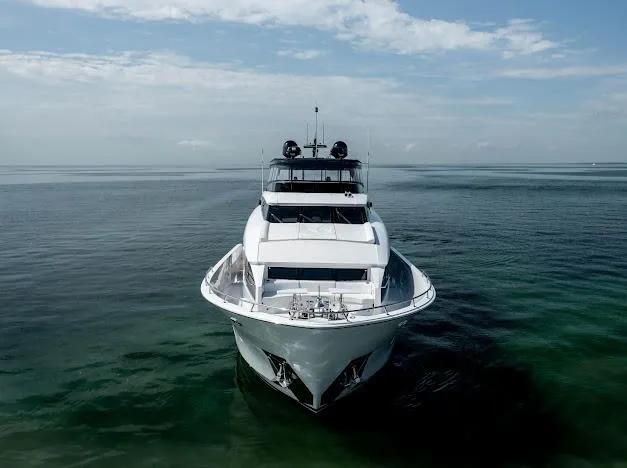

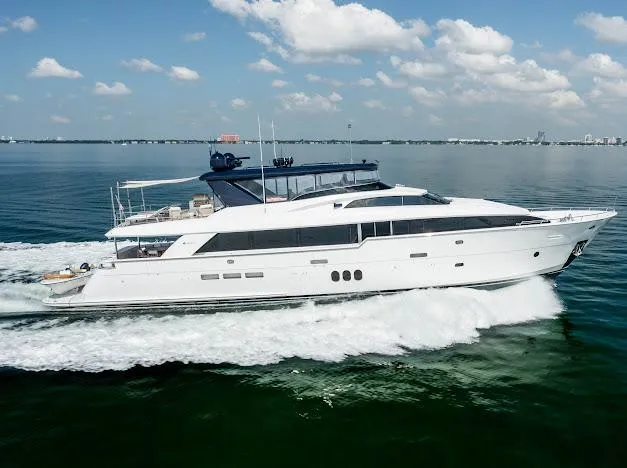

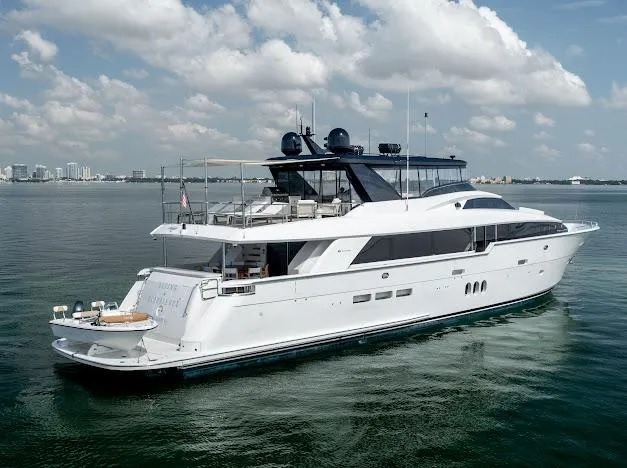

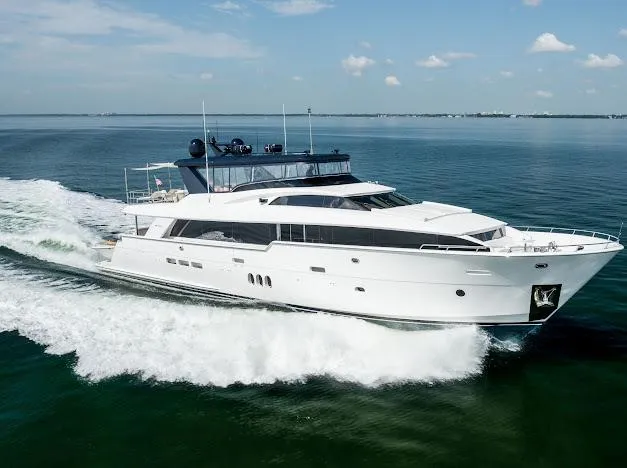

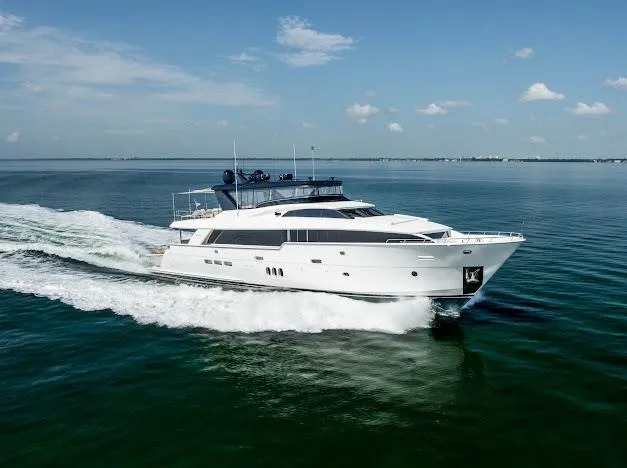

This new flagship of the Hatteras motor yacht fleet will be offered as a heavily contented, turnkey package. Everything from zero-speed stabilizers, bow and stern thrusters, and a premium A/V system; to a stocked wine cooler, bathrobes and linens are included. Also included is an electronics allowance that will easily outfit a true captain’s pilothouse, equipping her for the demands of cruising in exotic seas across the globe.

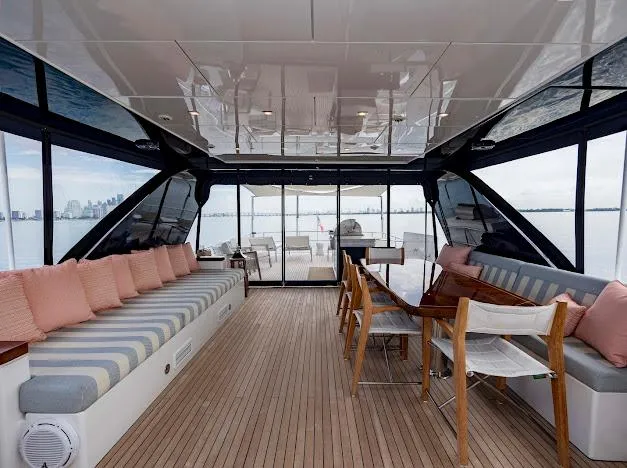

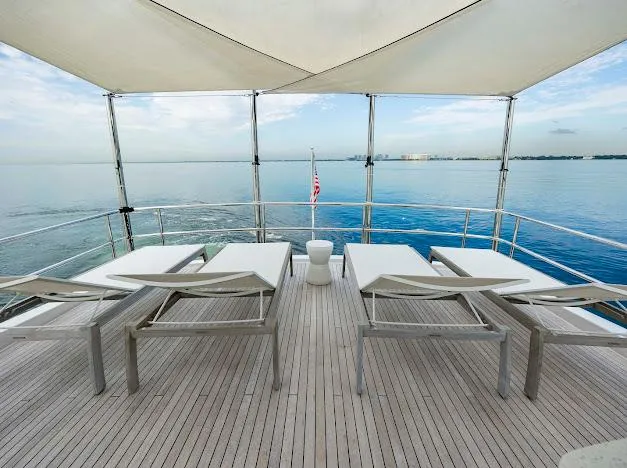

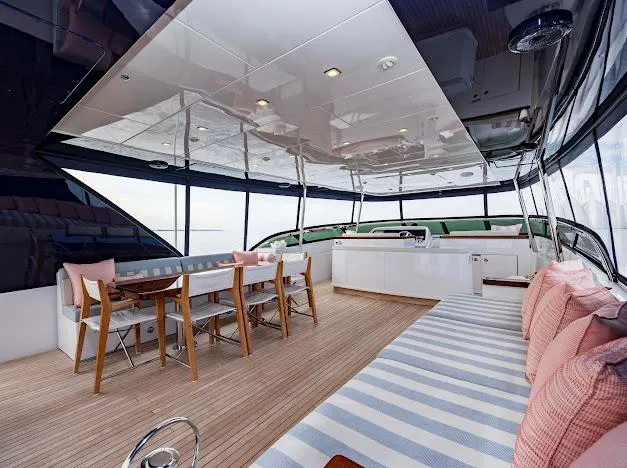

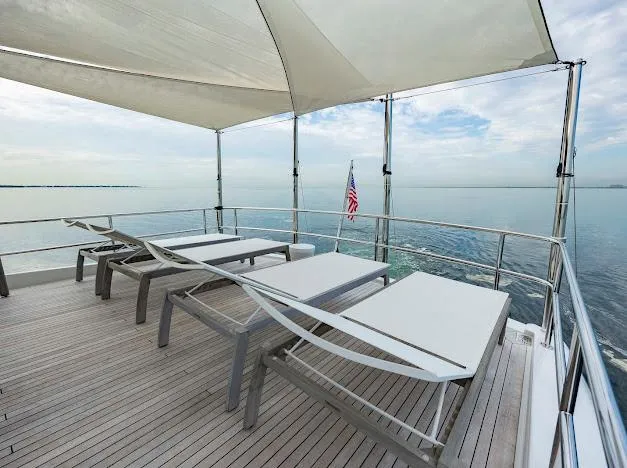

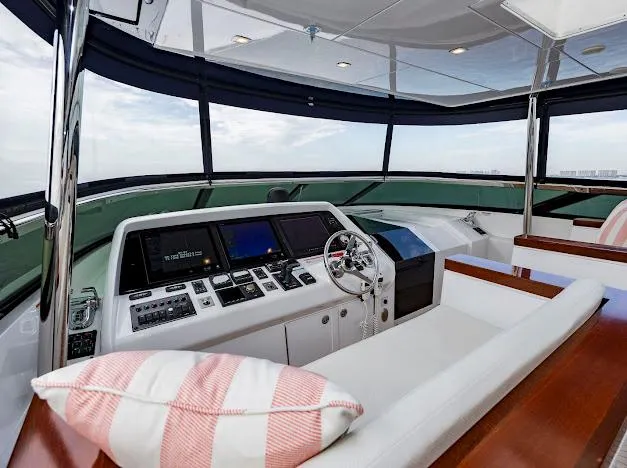

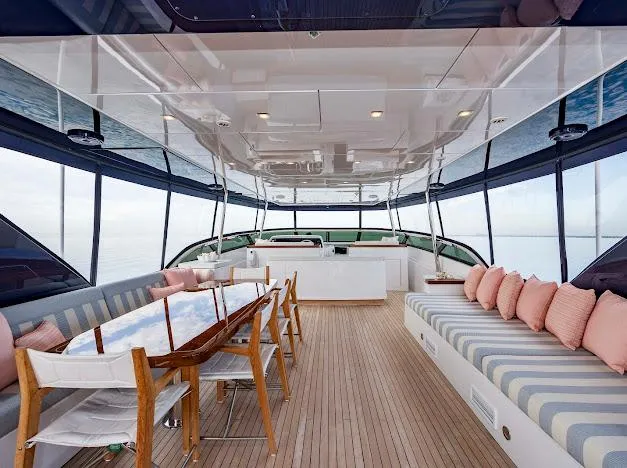

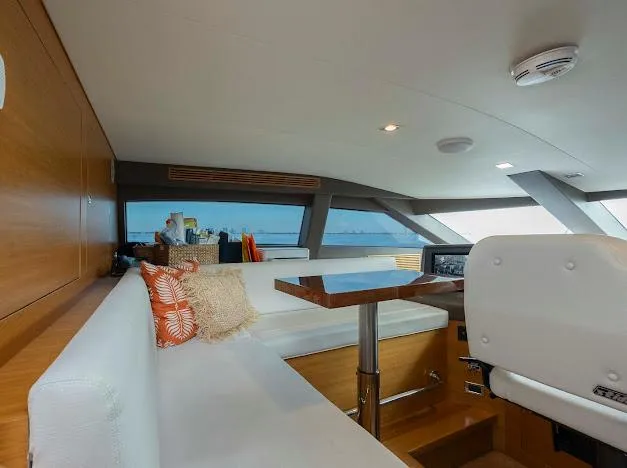

Up above is the immense flybridge. Here, you can enjoy a commanding 360-degree view of your favorite port of call while relaxing in either the sun or shade. The design team created an innovative line of modular furniture that allows the flybridge to be tailored to the specific needs of the owner. A luxurious al fresco dining suit, comfortable lounges, large wet bar and more are all available to create a truly unique outdoor space. The helm station found on the flybridge has two captain’s chairs and can accommodate up to three monitors as well as the other system controls necessary to run the yacht. The aft deck of the flybridge can be equipped with a davit for a tender and water toys, or an extended furniture layout for more entertaining space. If the latter is chosen, the tender and water toys are located on a hydraulic lift attached to the swim platform.

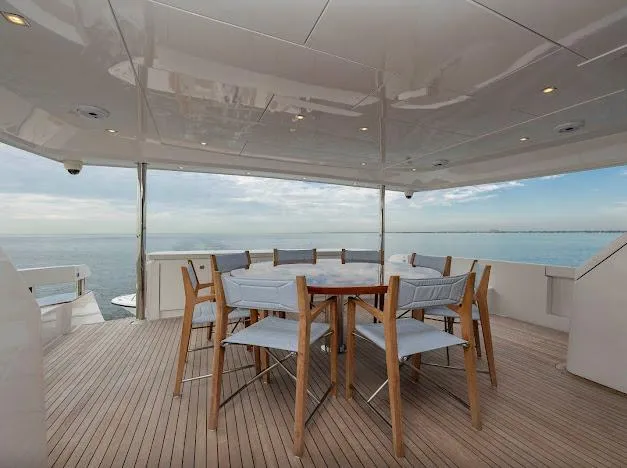

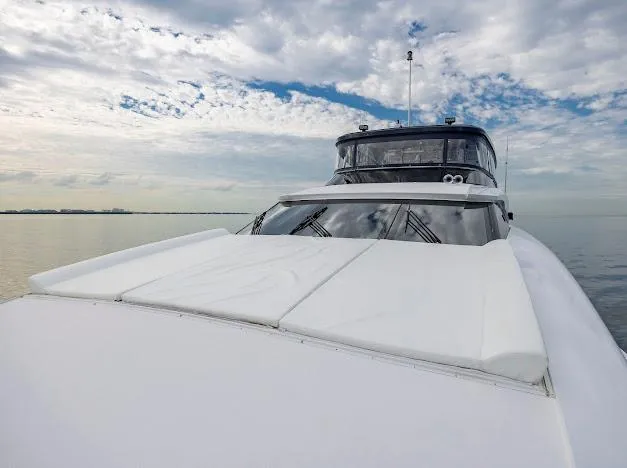

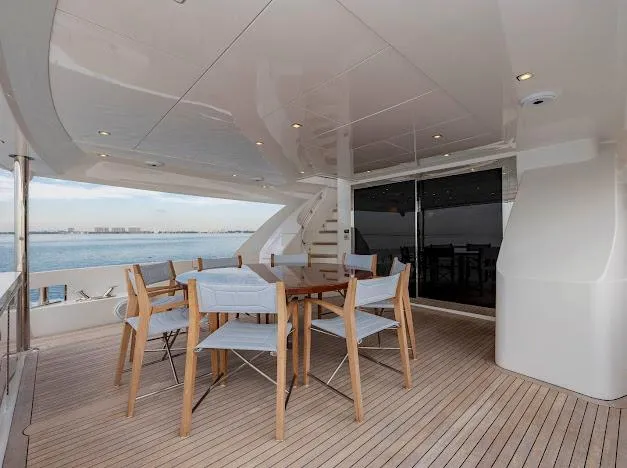

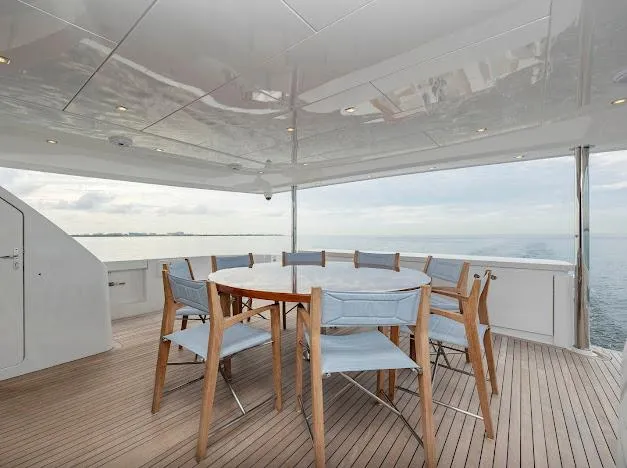

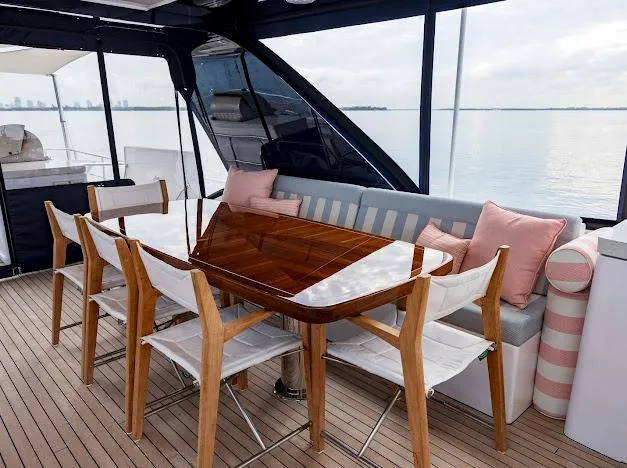

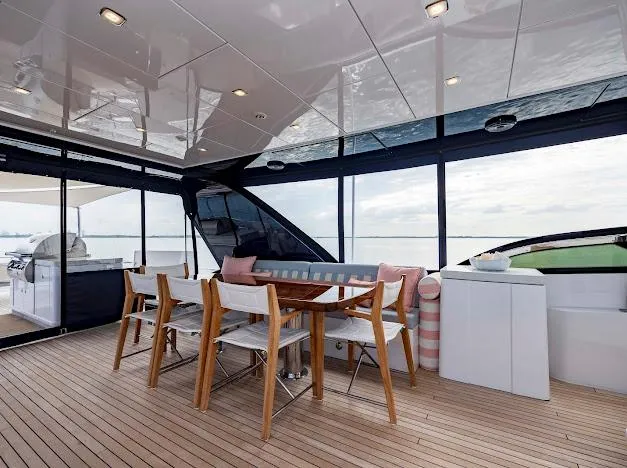

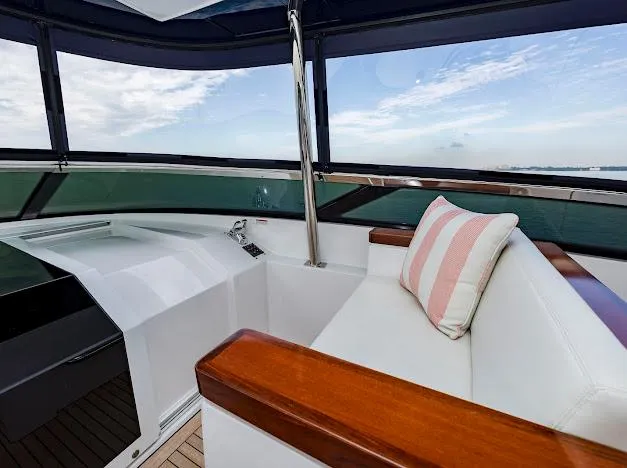

An observation lounge lies at the bow and an additional dining area can be found on the aft deck under the protection of the flybridge overhang. It features a dinette that can seat up to eight guests, a premium AV system with a drop-down flat-screen LED television and integrated steps to the flybridge and swim platform. Designed with the consummate host in mind, this space can be combined with the salon by opening the large glass entry doors – creating one large living/entertainment space. Like all other Hatteras models, the 100 Raised Pilothouse is built on a solid fiberglass hull bottom that is backed by a ten-year warranty. With its deep tunnel pockets, Nibral high-performance propellers, and efficient gear reductions, the 100 RPH delivers a shallow draft and competitive cruising performance.

Interior Details

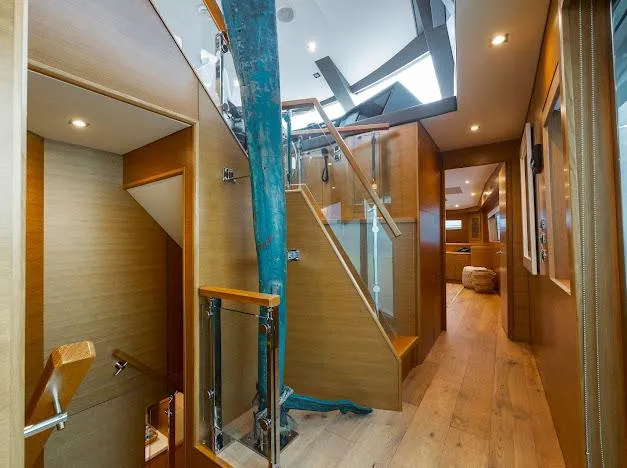

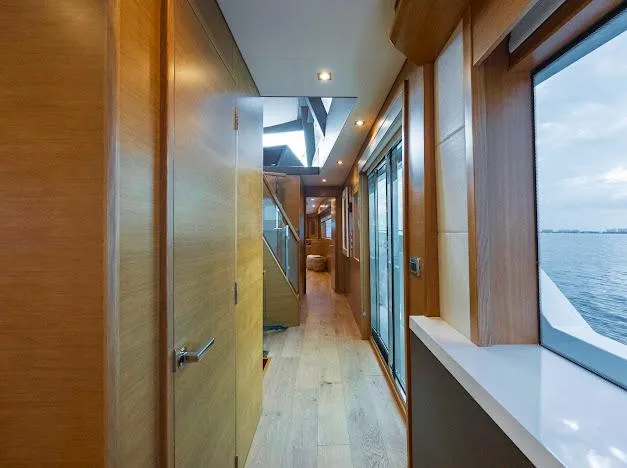

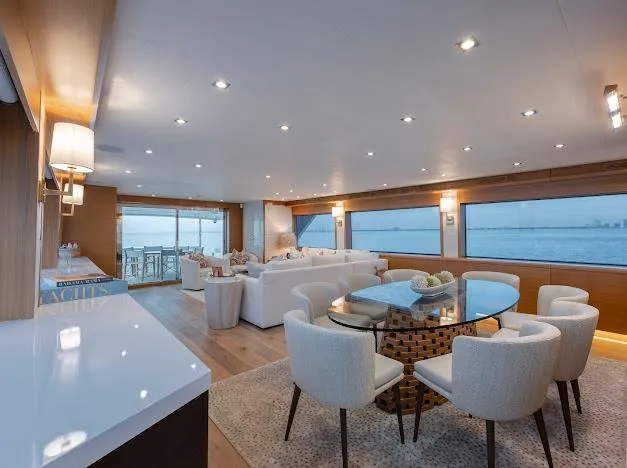

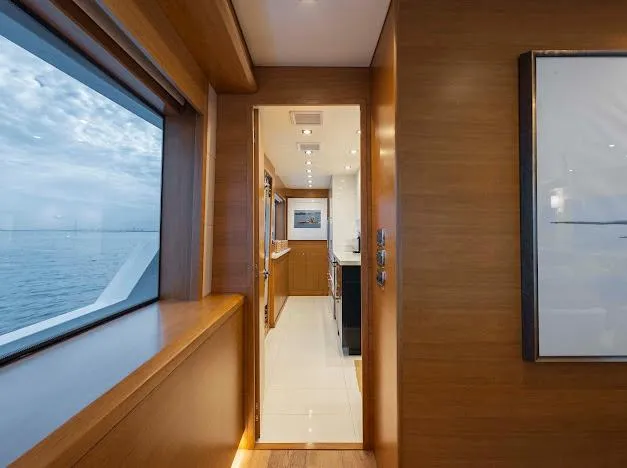

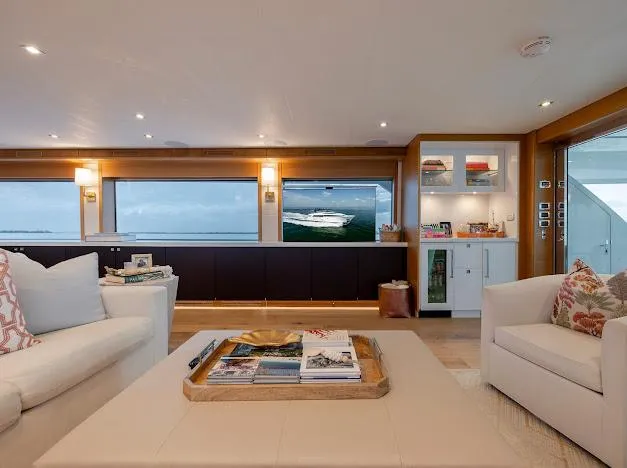

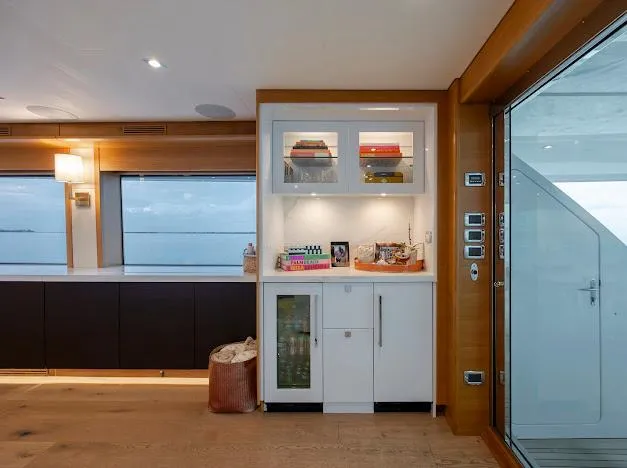

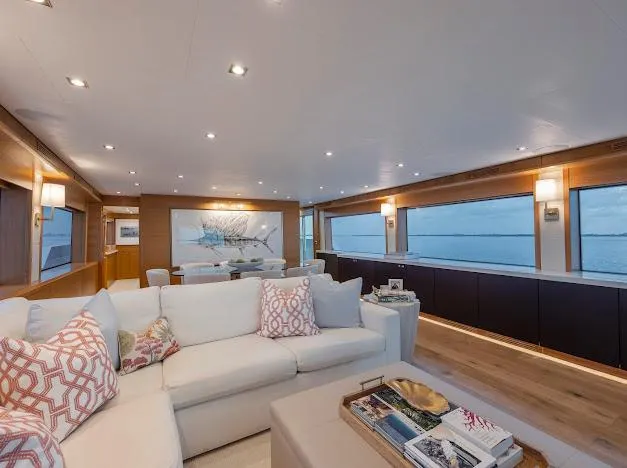

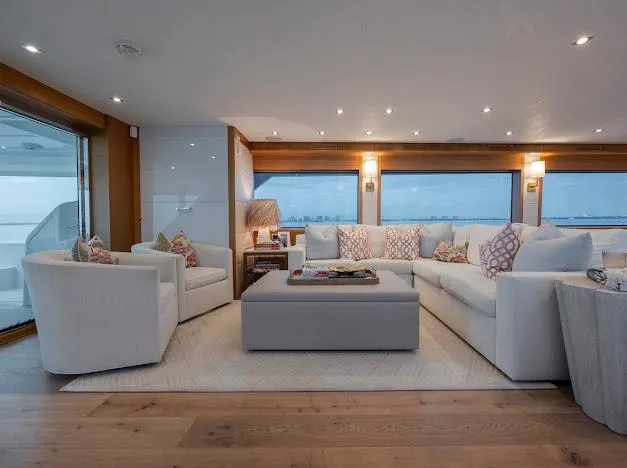

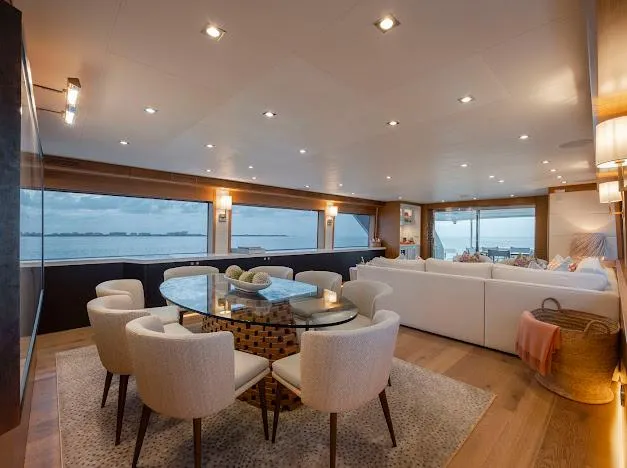

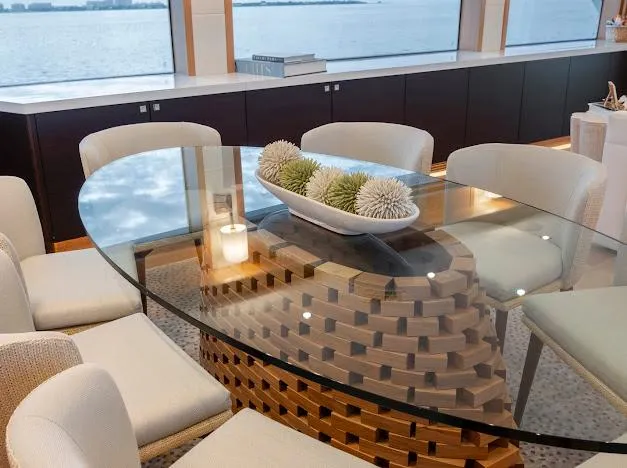

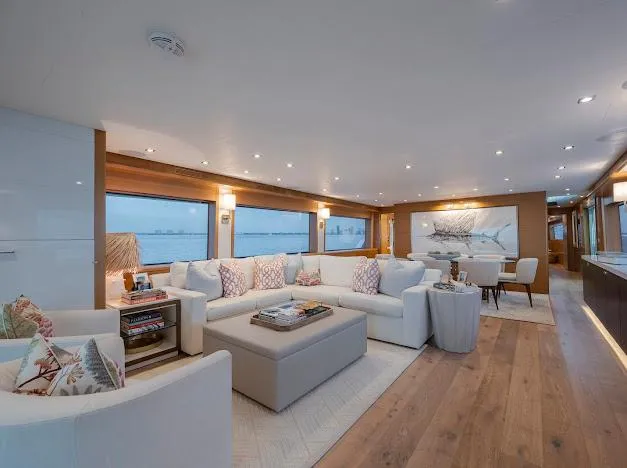

As you enter the 100RPH from the main entryway found amidships on the starboard side, the first thing you notice is the open staircase heading up to the pilothouse and flybridge. Aft is the capacious salon and formal dining area. For those that entertain large groups, an optional oversized bar is available. Large windows reveal sweeping views to both port and starboard, and the aft salon doors open to combine the salon and aft deck social areas into one gigantic living space ready to entertain on a grand scale. Move forward and you are greeted by the large open space of the country-style galley. Equipped with full-size appliances, ample cold storage, a large dinette, and a working island with bar seating; the galley offers the amenities and luxury of home. The galley is also bathed in natural light, made possible by one of the most noticeable features of the 100RPH – the large integrated skylight in the overhead. An optional five-stateroom layout takes advantage of this feature by including it in the on-deck master suite.

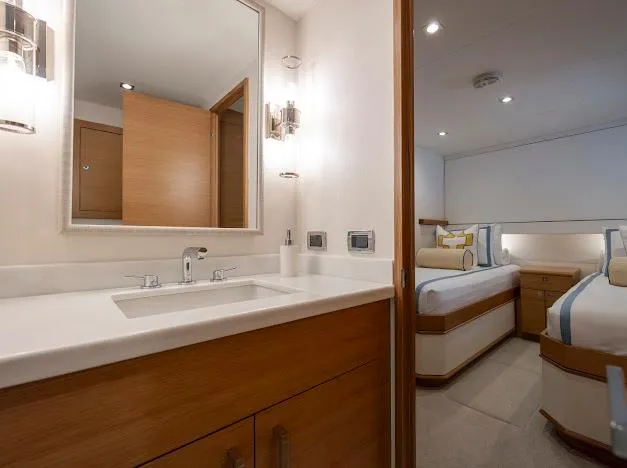

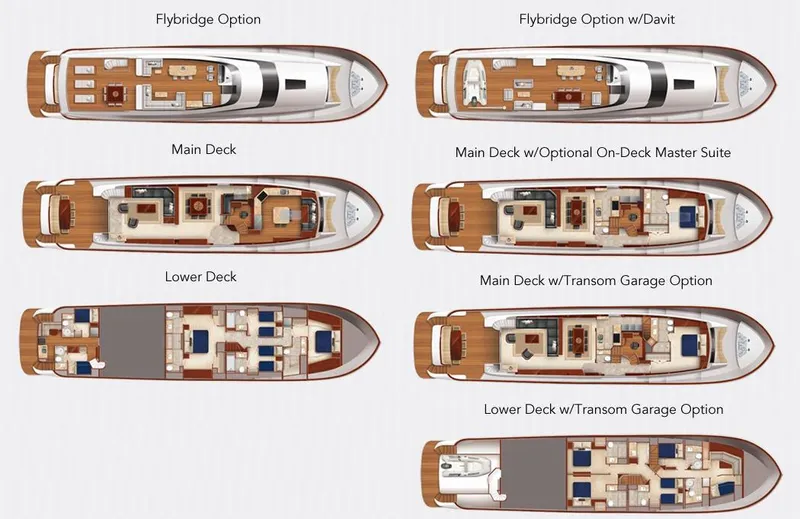

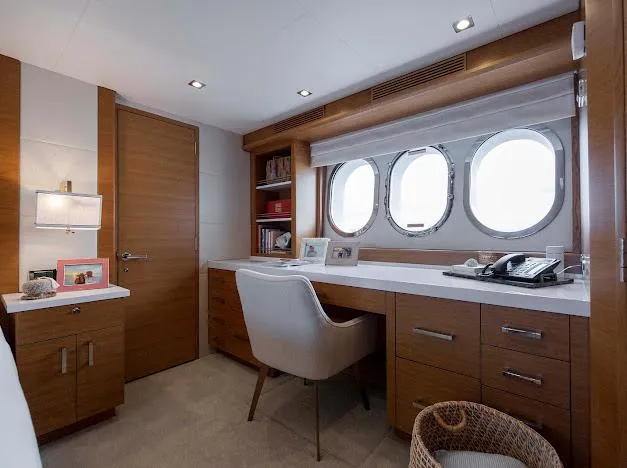

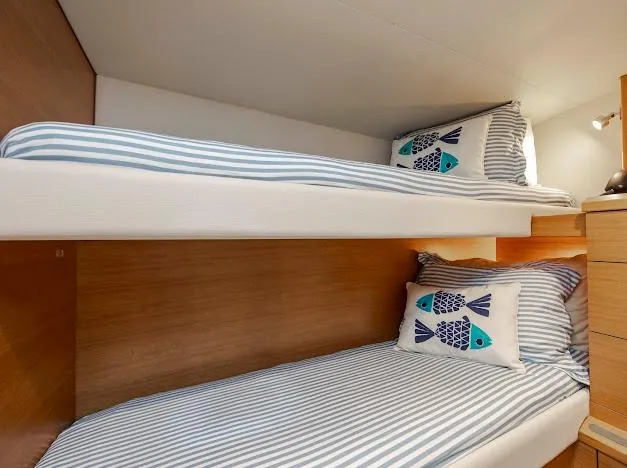

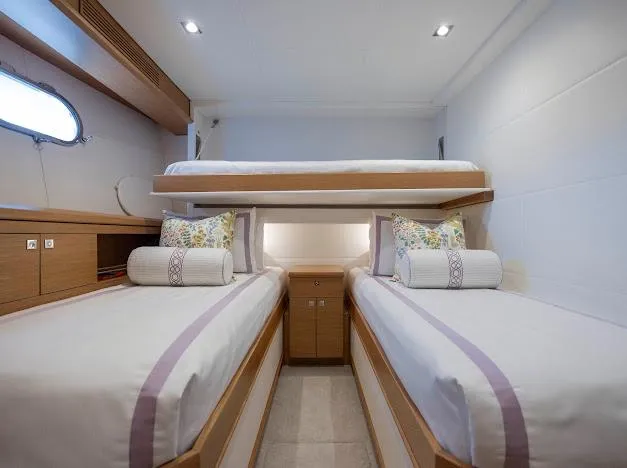

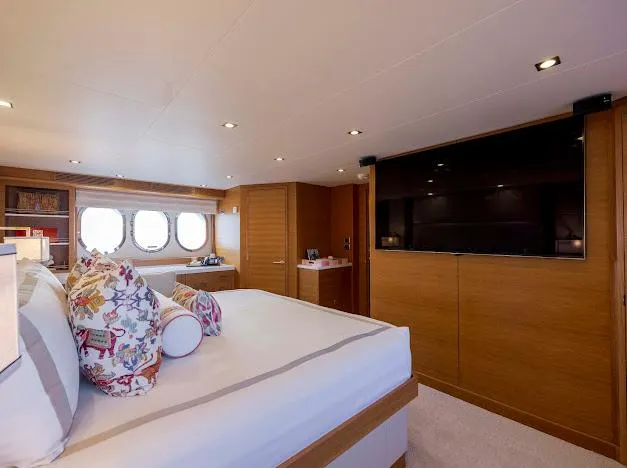

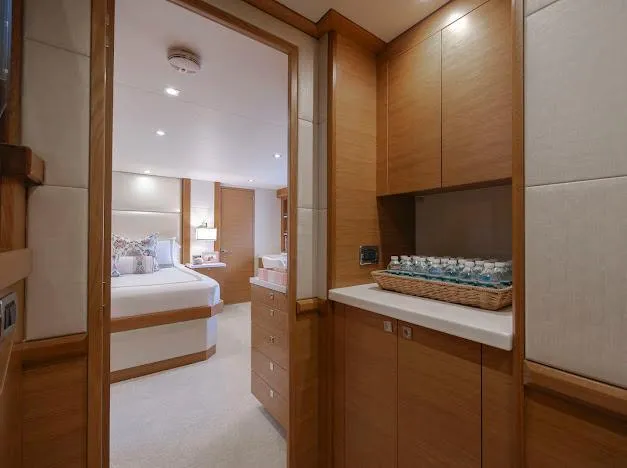

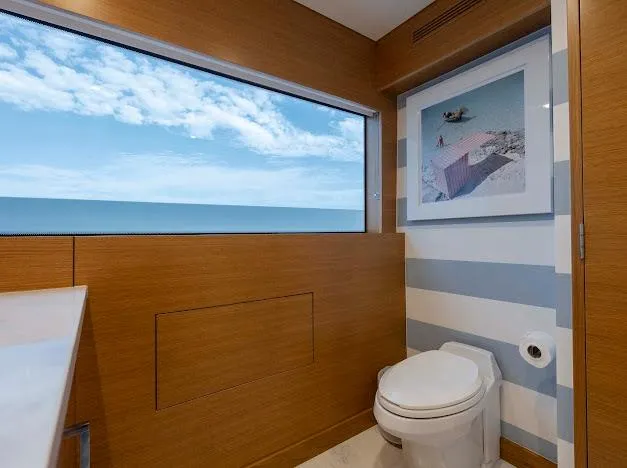

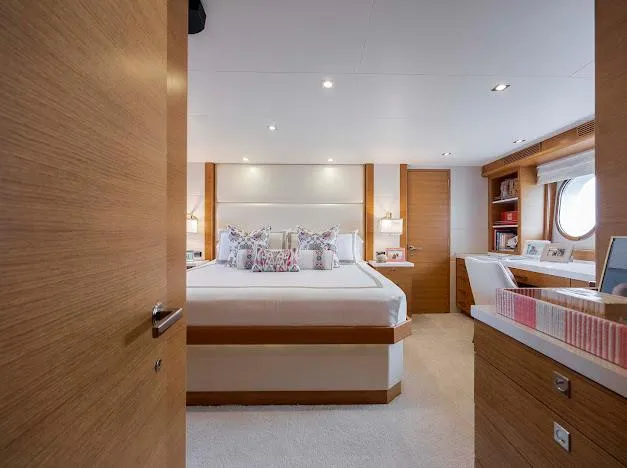

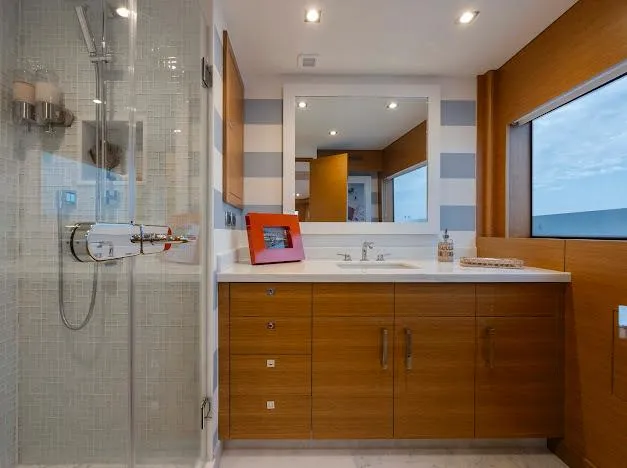

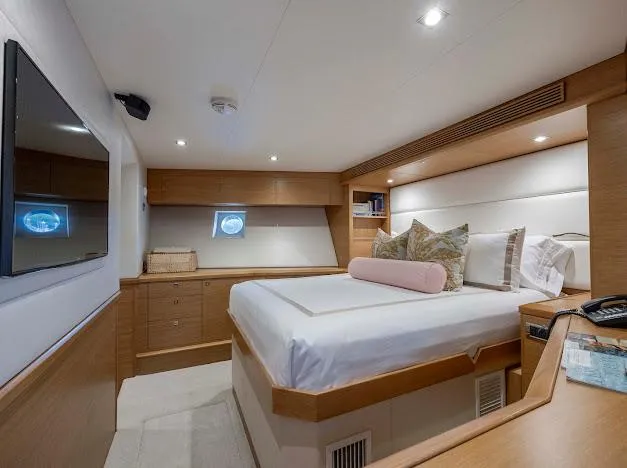

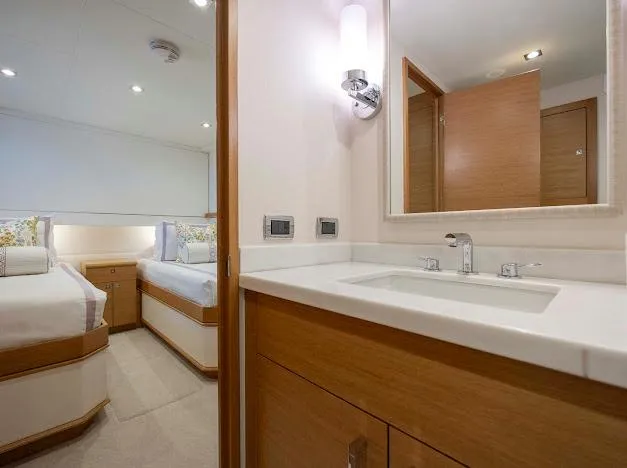

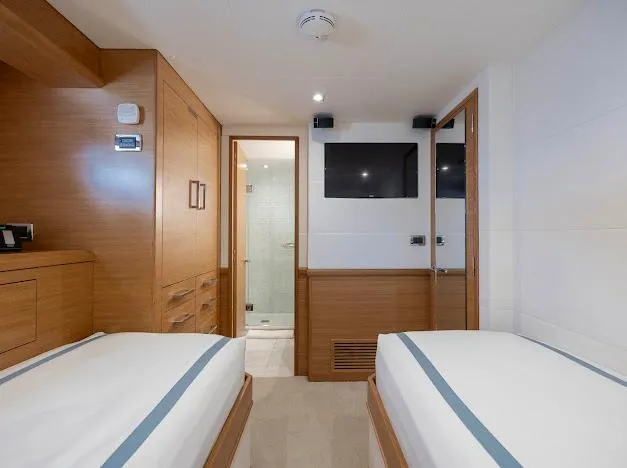

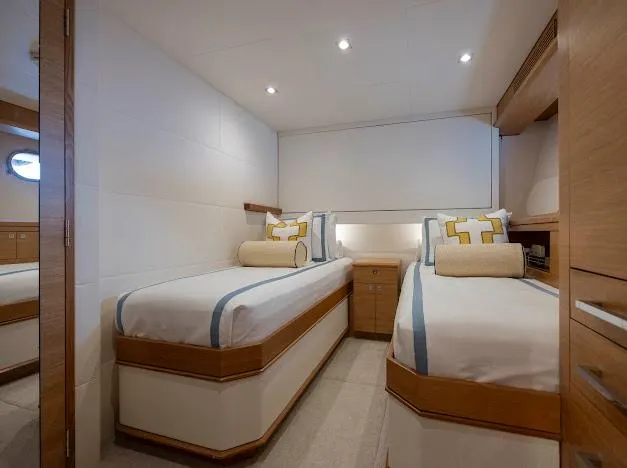

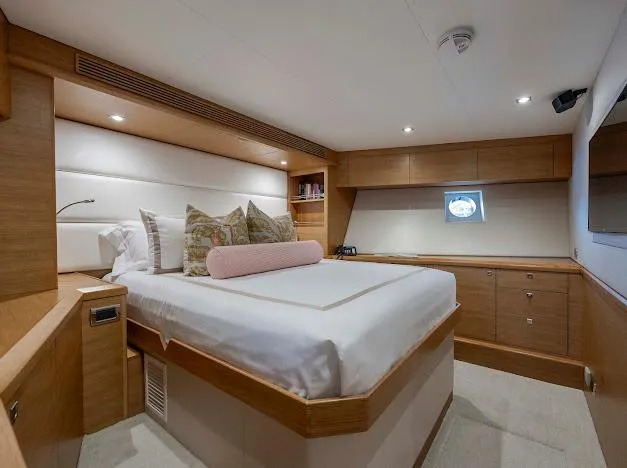

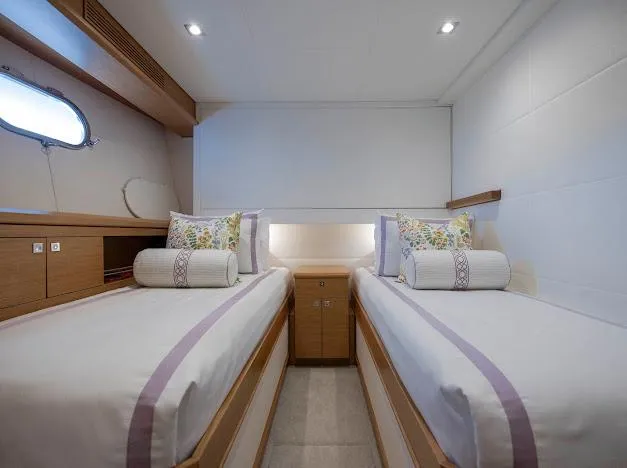

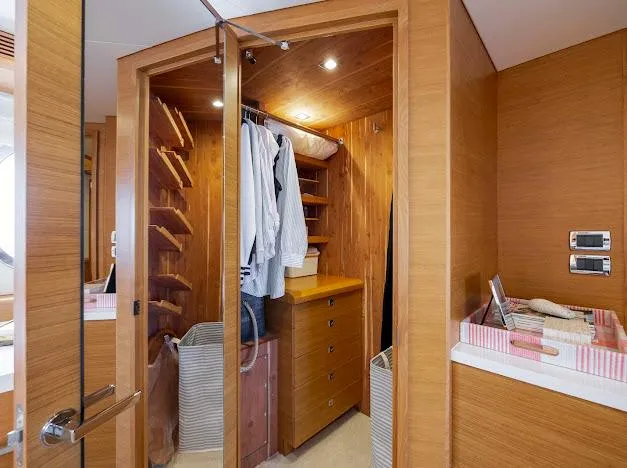

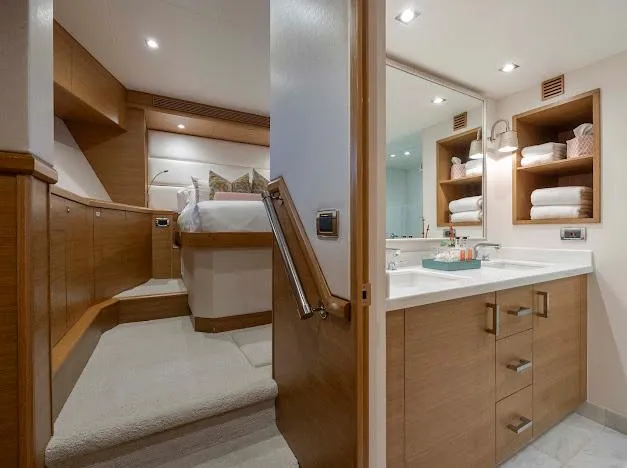

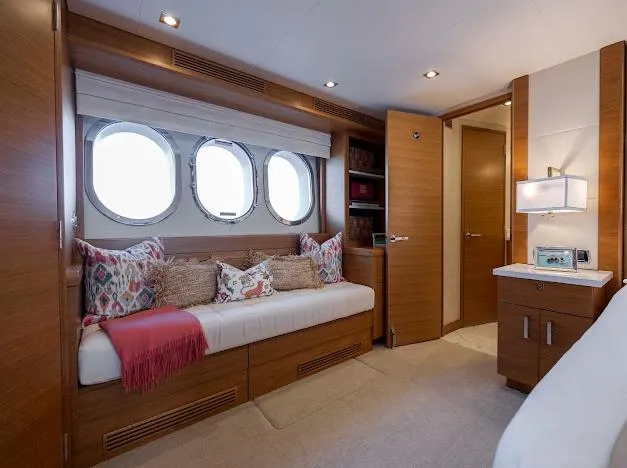

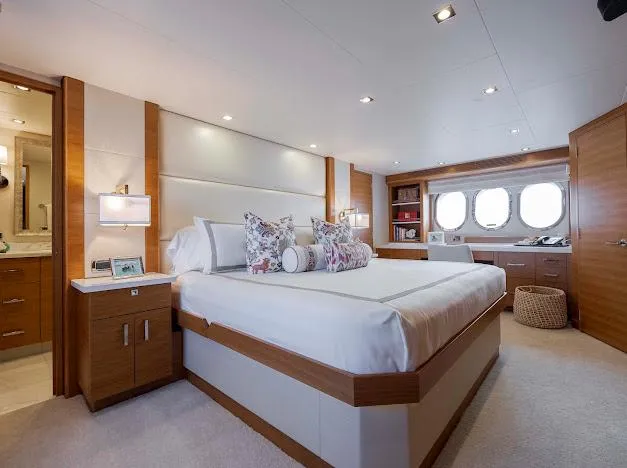

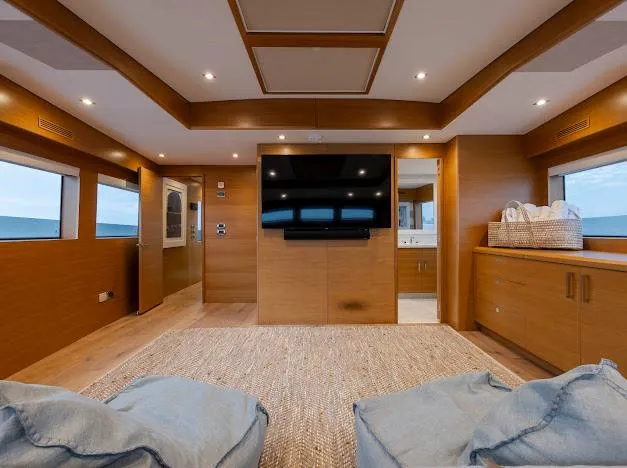

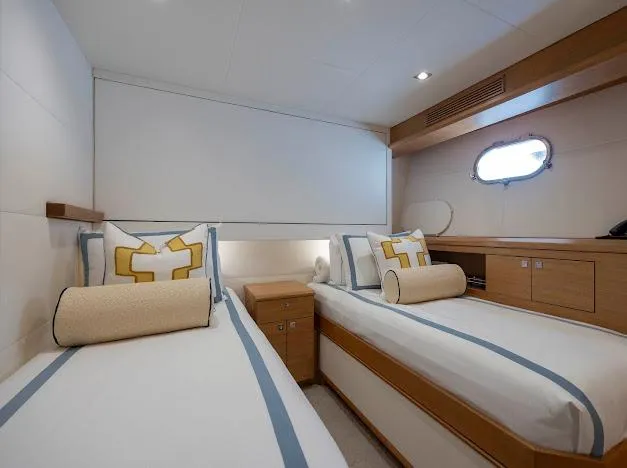

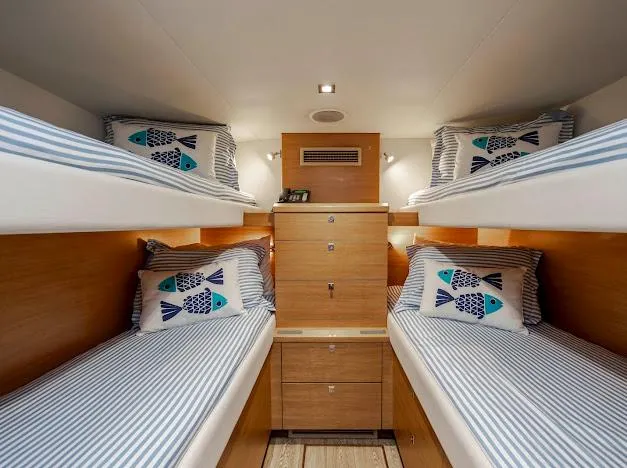

Below deck, the 100 RPH provides accommodations for eight in a four-stateroom, four-head layout. The full-beam master suite is truly opulent and well appointed. It sits amidships and features a his-and-hers head, and ample storage in large closet spaces. Portlights on each side bring in natural light, and the exquisitely crafted cabinetry provides the comfort and luxury you expect in a Hatteras. This private owner’s retreat is fit for royalty. Heading forward, twin staterooms are located on either side of the companionway with each featuring its own head. At the bow lies the VIP suite. Entering from the same hallway as the rest of the berthing spaces, the VIP suite offers a luxurious private bathroom, a large closet and a full-size queen bed with storage beneath. Each stateroom features a premium A/V package.

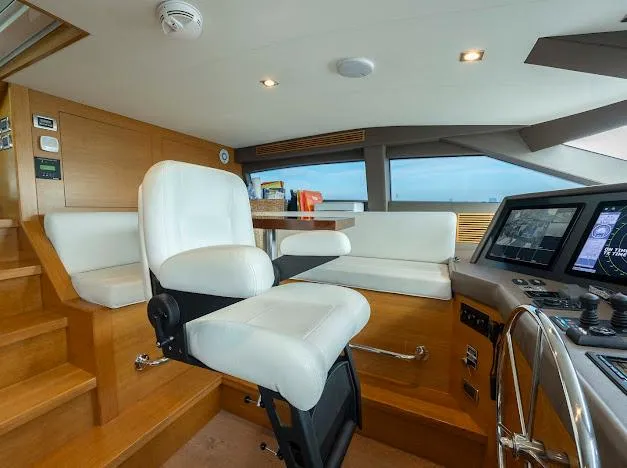

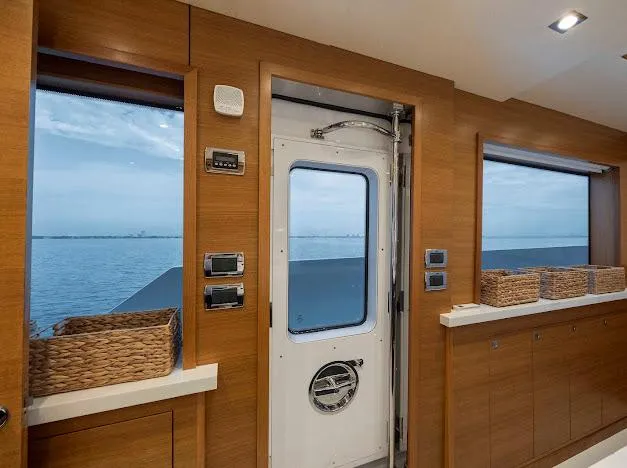

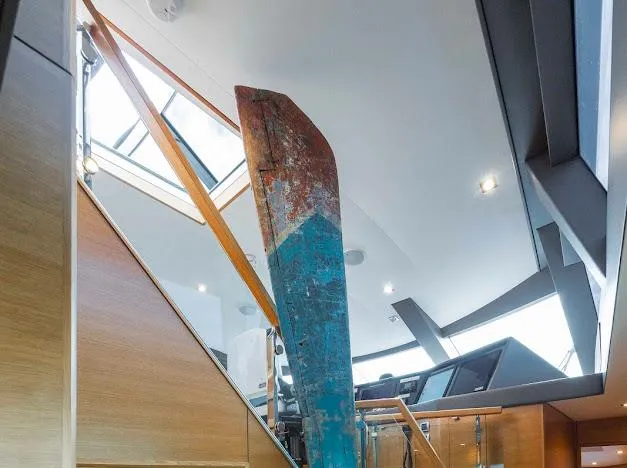

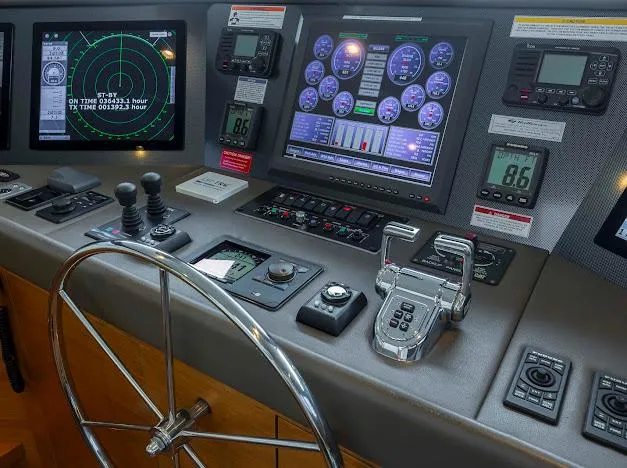

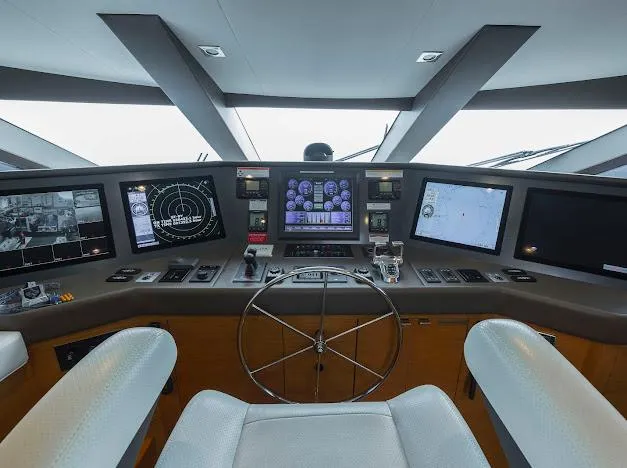

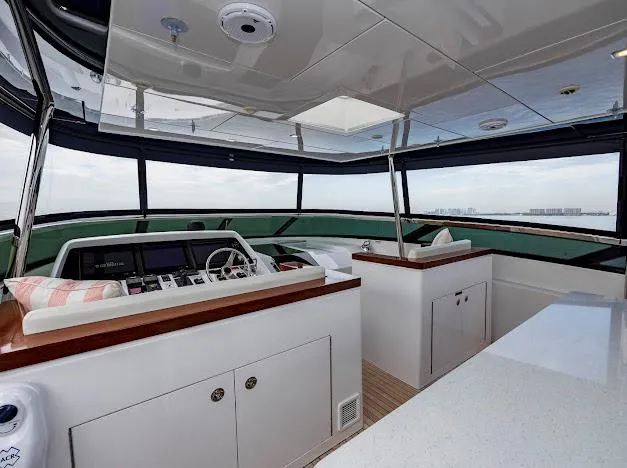

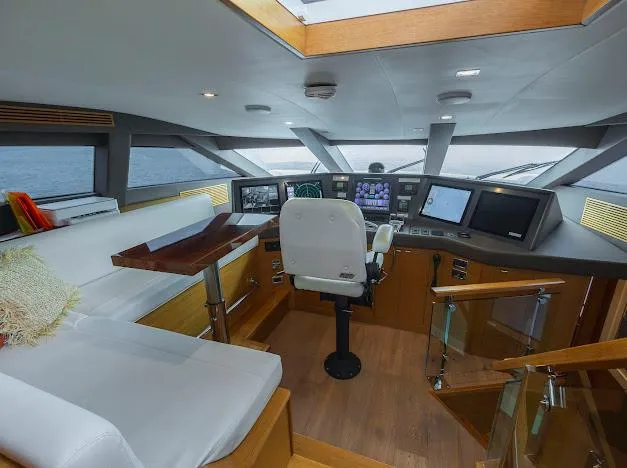

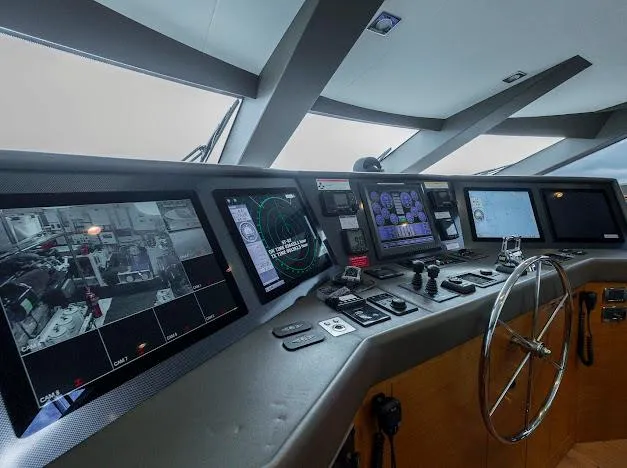

The raised pilothouse, found a few steps above the main entrance just off the grand stairway, is truly something to behold. Designed to accommodate an elaborate electronics package, the helm console features multi-use monitors – placing navigation, communication, and ship systems information at the captain’s fingertips. Central is the Hatteras Monitoring System that uses touch-screen technology to oversee all ship’s systems including RPM, oil pressure, engine diagnostics, fuel and water levels, bilge alarms and more. From the helm chair, the captain has the entire vessel at his fingertips. The pilothouse also includes an L-shaped lounge for guests or crew.

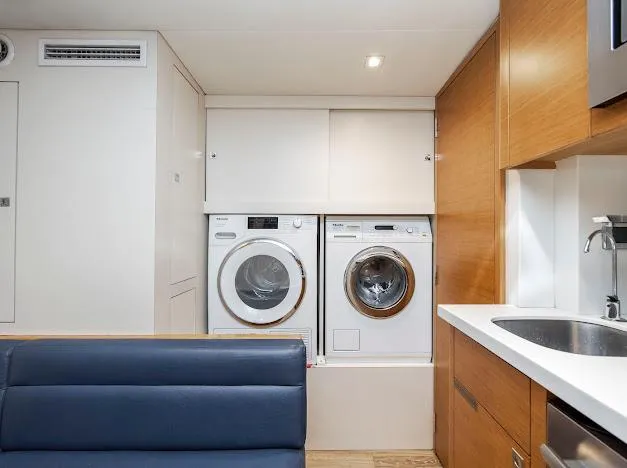

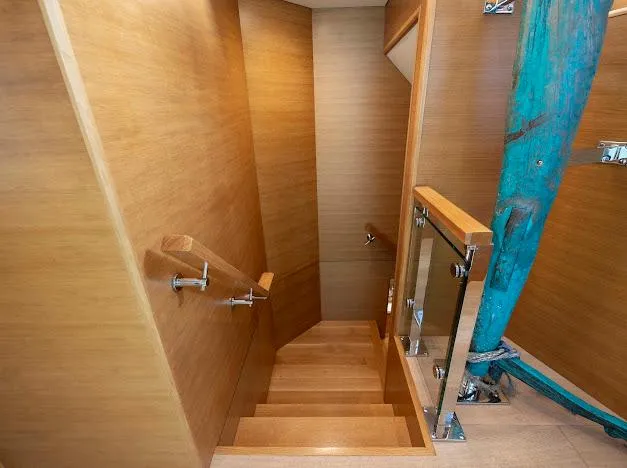

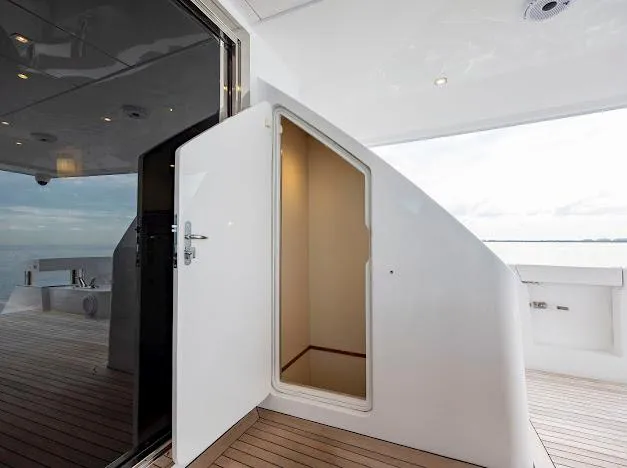

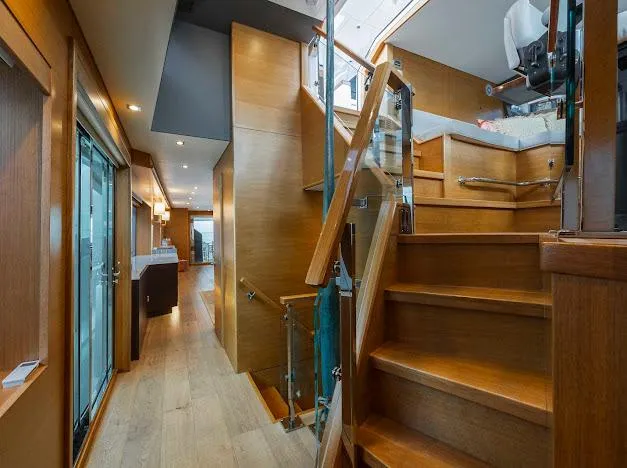

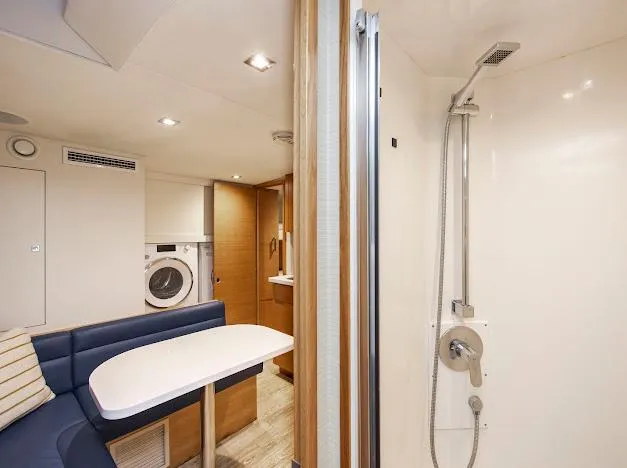

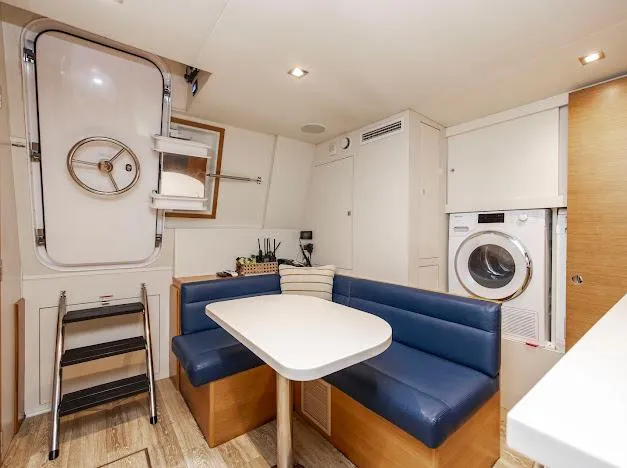

A discrete stairwell just off the aft deck leads below to the crew spaces and engine room. If the pilothouse is the brains of the vessel, this is the heart. The immaculate engine room is home to twin CAT C32 ACERT diesel engines with an output of 1900 bhp each on all standard models. Owners with greater performance in mind can upgrade to twin MTU 16V2000 CR diesel engines rated at 2600 bhp. Systems are centrally located, and all hoses and electrical wiring are secured and labeled for easy access.

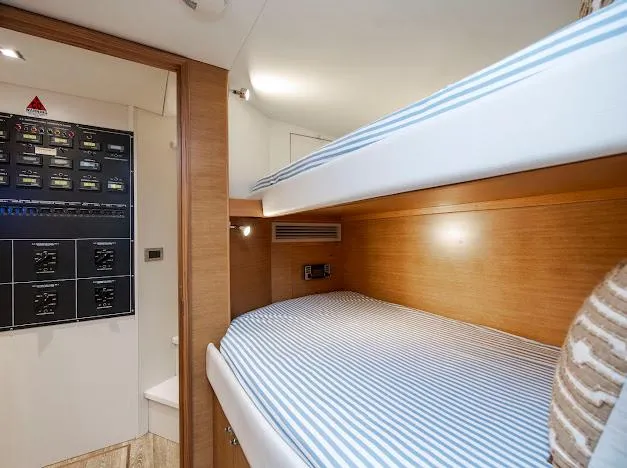

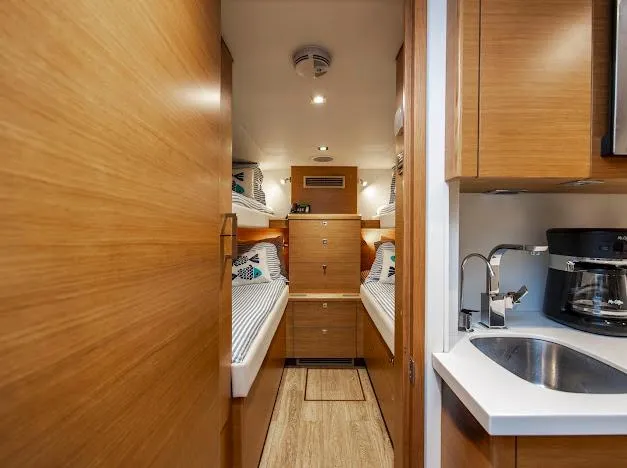

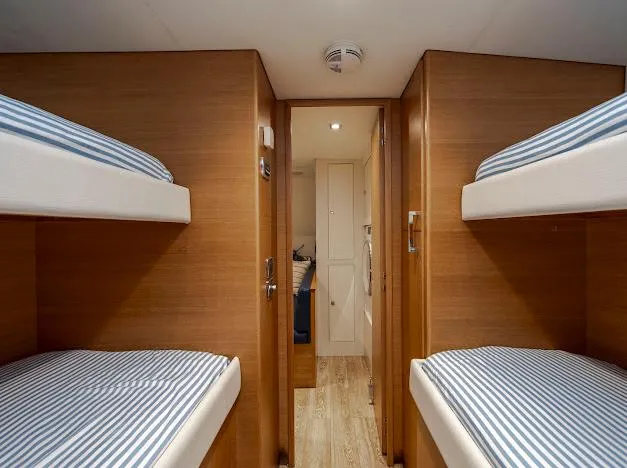

The crew space is located just aft of the engine room and can be entered from the aft deck stairwell or from the bustle door in the transom, making access convenient whether tied at the dock or underway. It includes a private stateroom for the captain, and a bunkroom for crew. Each has its own head. A shared galley is located off the companionway and is equipped with a microwave/convection oven, sink and refrigerator.

PROPULSION

• Twin Caterpillar® C-32A 1,900 BHP Diesel Engines

EXTERIOR FINISH & CONSTRUCTION

• Isophthalic / NPG gel coat, exterior layer

• Hull and superstructure painted with a premium linear polyester/

polyurethane coating for improved cosmetics and increased

durability

• Polymer/copper based anti-fouling bottom paint

• Boot stripe, linear polyester/urethane coating

• Decks, non-skid surface, polyurethane paint with polymeric

beads

• Resin-infused solid fiberglass hull bottom and composite hull

sides with premium vinylester resin and blister resistant gel coat

below the waterline

• Molded fiberglass longitudinal stringers with steel engine beds

• Resin-infused bulkheads and interior decks using crosslinked

foam core

HARDWARE & MISCELLANEOUS

• Hand crafted European Walnut with satin finish interior

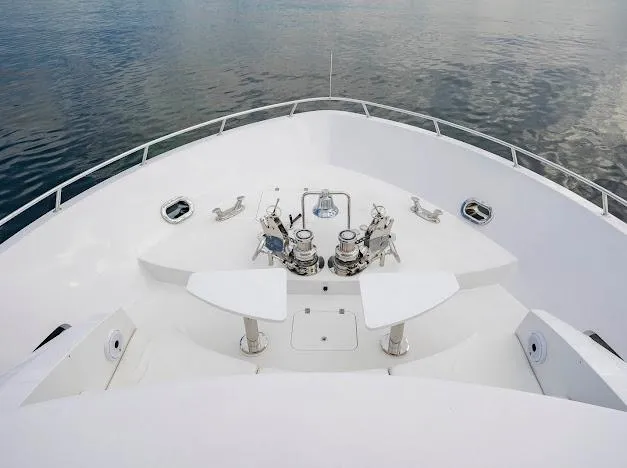

• Port and starboard anchor hawsers with anchor chutes,

mooring bitts, and oversized anchor chafe plates in stainless

steel

• Dual 350 lb stainless-steel anchors

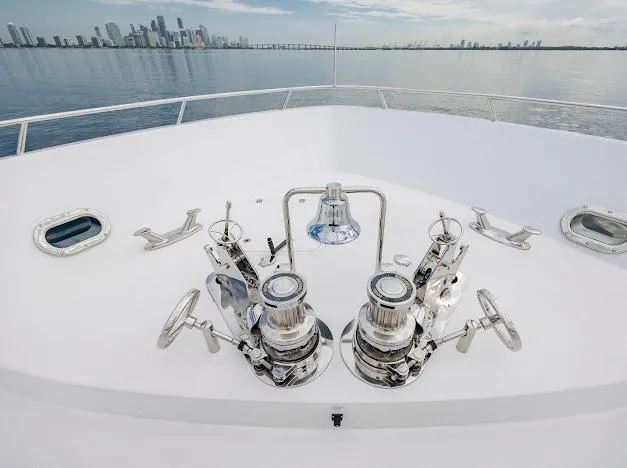

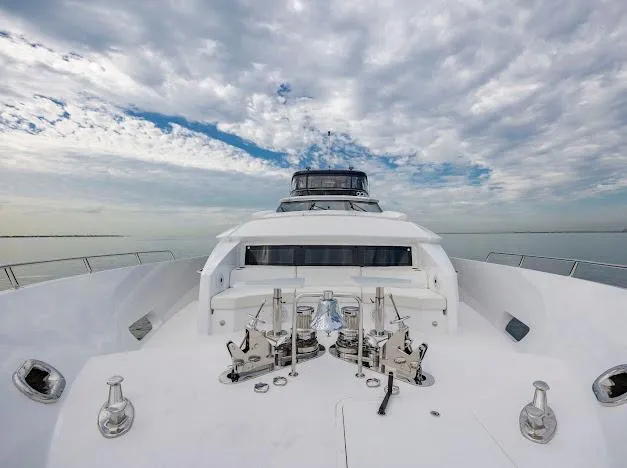

• Dual 6,000 lb hydraulic windlasses with deck mounted foot-

type control switches and 350 feet of hot-dipped galvanized

chain (each side)

• Freshwater anchor wash in chutes

• Hydraulic 55 HP bow thruster and 45 HP stern thruster with

integrated zero speed stabilizer system

• Hydraulic backup pump for integrated thrusters and stabilizers

• Polished stainless steel cleats with through bolted-in, robust

aluminum backing plates (4 Spring w/chafing strips; 2 Bow; 2

Stern)

• Welded and polished stainless steel bow and flybridge rails -

drilled and tapped-in robust aluminum backing plates

• Fog bell

• Dual air horns powered by ship air compressor

• Zincs on rudders and shafts

• Alloy 22 high strength propeller shafts

• Manganese bronze dripless rudder seals

• Dripless shaft seals

• Manganese bronze struts

• Bronze rudders

• Nibral high performance custom propellers

• Sea stairs with dedicated storage

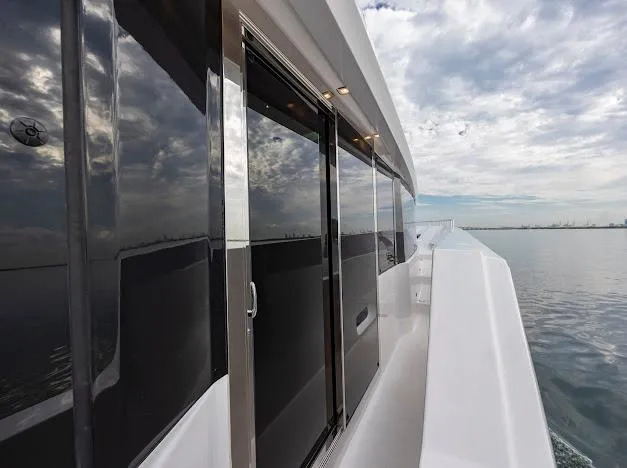

• Walk around side decks

• Bow lounge seat

• Central vacuum system

• Freshwater wash down outlet, bow

• Stainless steel deck plates for fuel fill, water fill, and waste

pump-out

• Generator exhaust, water separator

Chain locker on bow deck

• 1800 GPD watermaker

• LED underwater lights (2)

• Safe

• Chilled water air conditioning, (3) 5-ton, with reverse cycle

heating and soft starting AC compressors

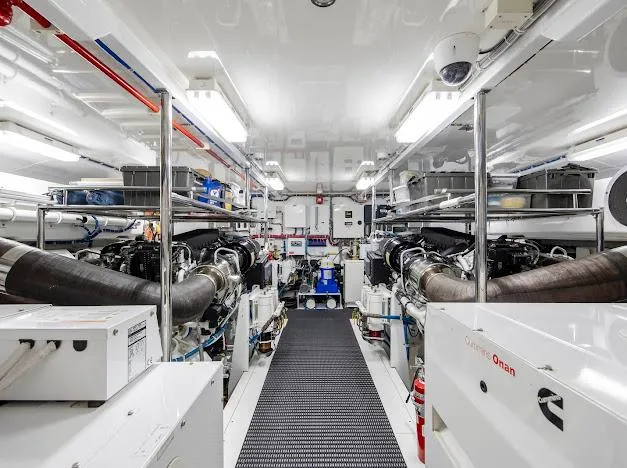

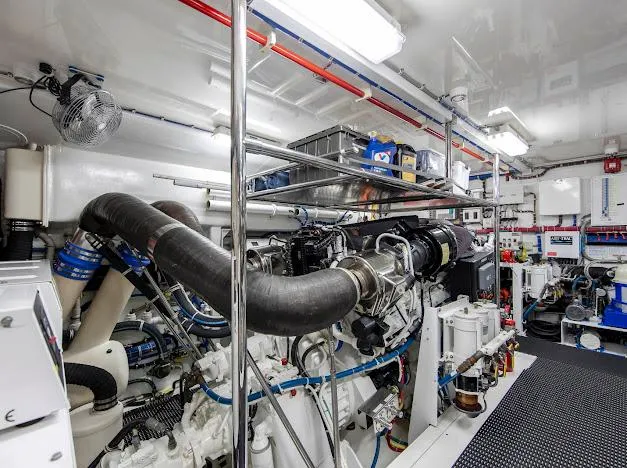

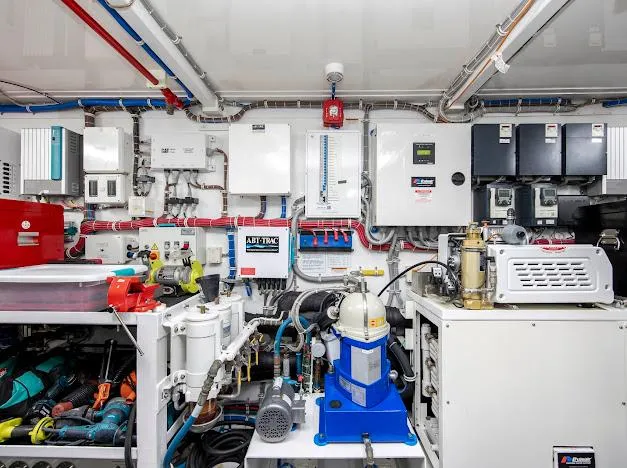

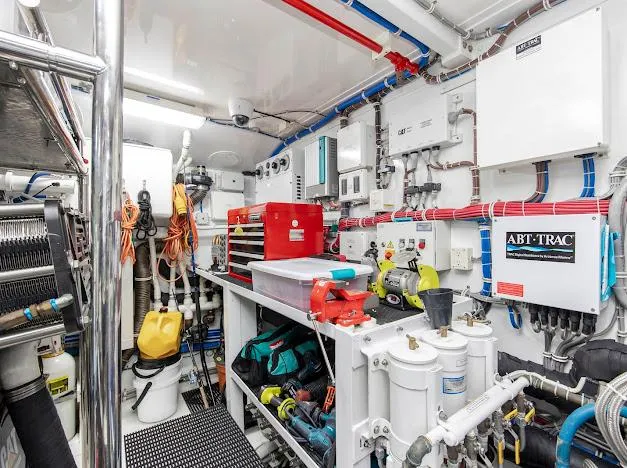

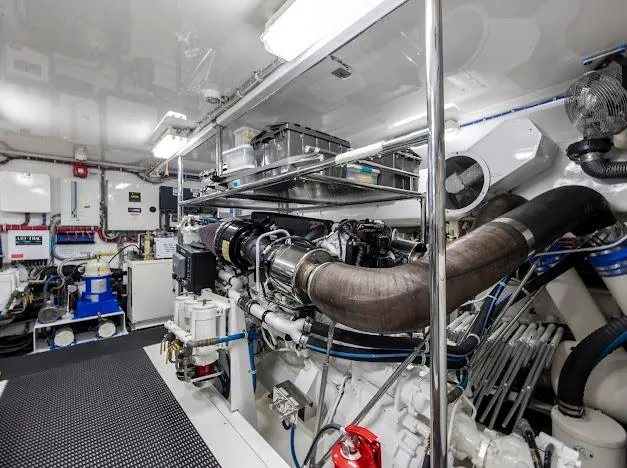

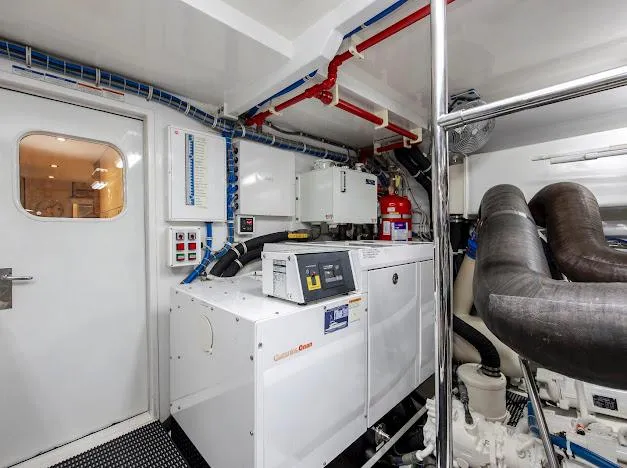

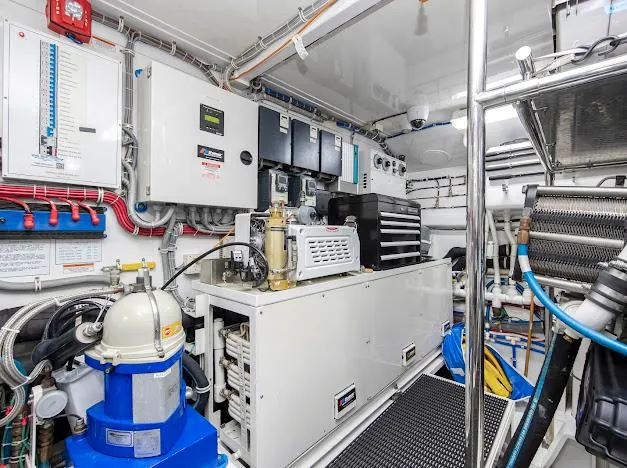

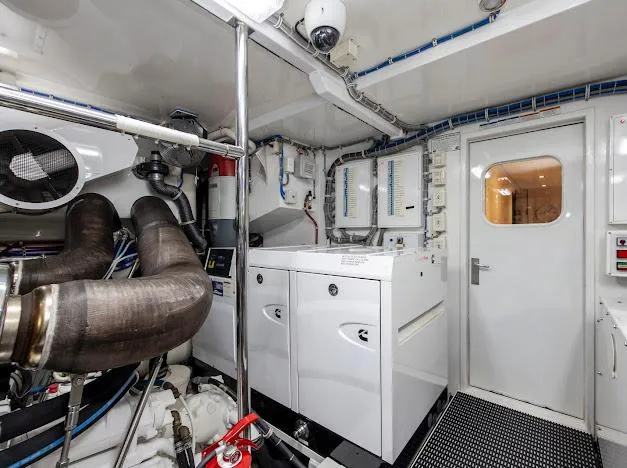

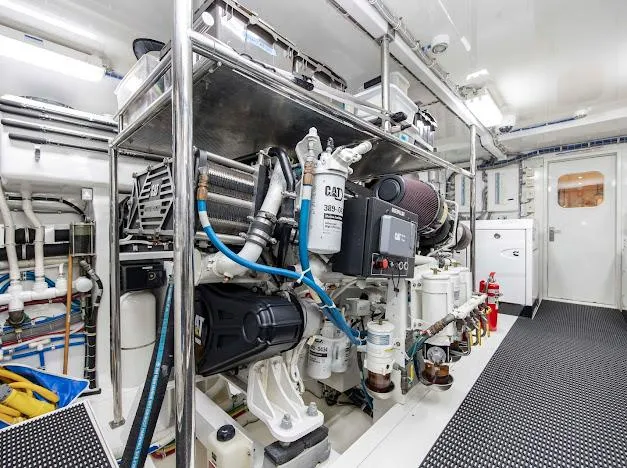

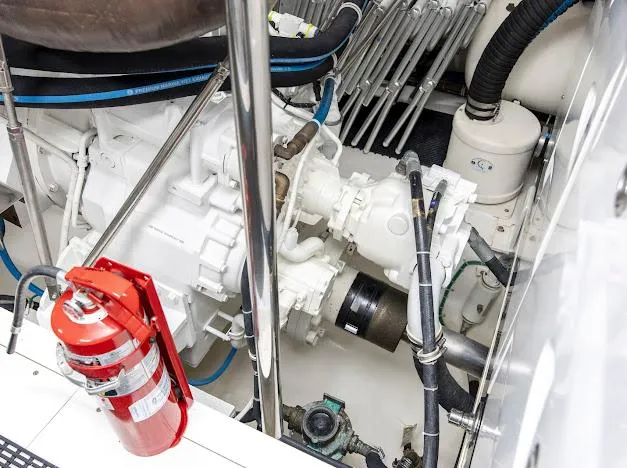

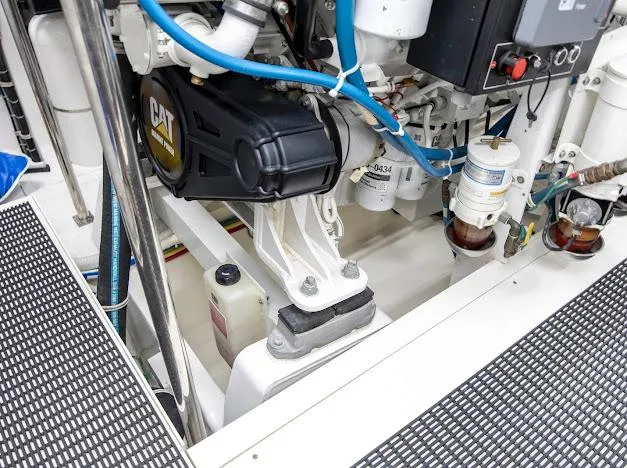

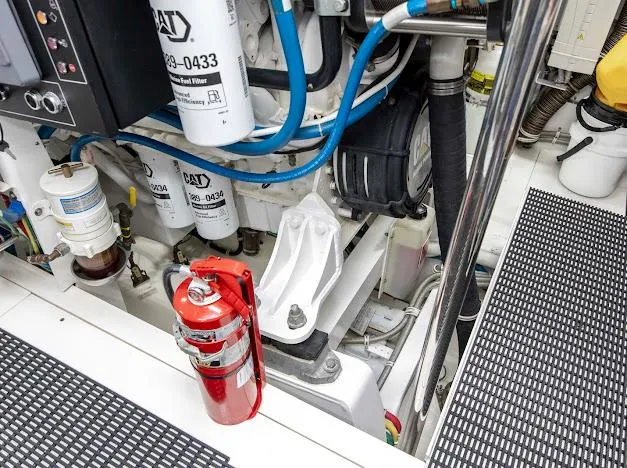

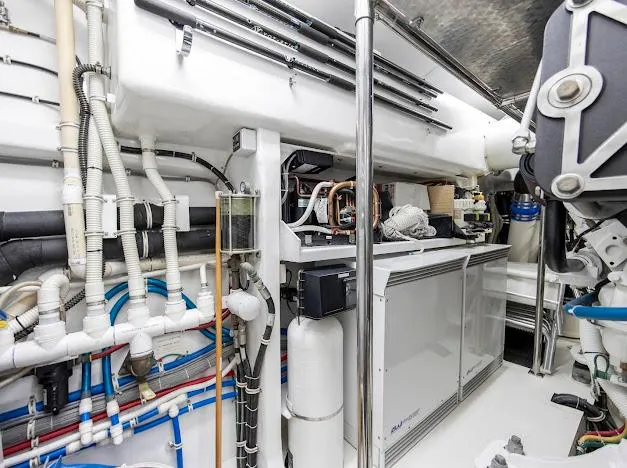

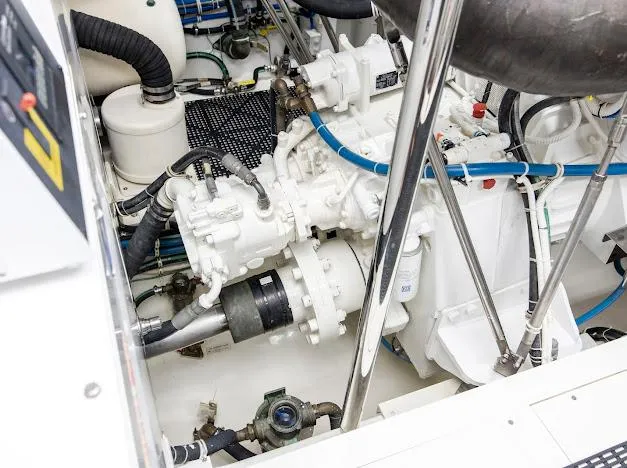

ENGINE COMPARTMENT & BILGE

• Water manifold blocks with centralized shut-off valve for sinks

and showers

• Polyethylene water lines

• Pultruded fiberglass rudder shelf

• AC fluorescent lights

• DC LED lights

• DC exhaust blower

• Twin diesel engines, freshwater-cooled with electrically

controlled marine gears, neutral interlocks, exhaust silencers,

engine hour meters, alternators, fuel filters and seawater

strainers

• FM200 fixed fire extinguishing system for engine/generator

compartment with automatic and remote manual controls

plus audible and visual discharge signals

• Two AC ventilation fans

• Two 40kW freshwater-cooled generators(D) with shock mounts,

sound enclosure, remote start, seawater strainer, fuel/water

separator, hour meter, and water lift muffler

• AC tubeaxial exhaust discharge fan for engine room

• Electric fuel transfer system with filtration and dry tank

protection for pump(s)

• Freshwater fill hose for engines and generators

• AC compressed air system with air line and regulator with

accessory connection

• Dockside water inlet with pressure regulating valve and

automatic dockside tank fill

• Bilge pumps with heavy duty float switches and protective

guards

• 24-volt DC bilge and sump pumps with heavy-duty float

switches and protective guards

• Auxiliary emergency bilge pumps

• Bronze/chrome ball-valves through-bolted in solid fiberglass

on all underwater through hull fittings with electrical bonding

throughout

• Pressurized freshwater pump with backup pump

• (2) 50 gallon & (1) 30 gallon 230-volt AC electric water heaters

• Fiberglass fuel tanks constructed with fire-retardant resin and

bronze fittings

• Fiberglass water tanks, constructed with bronze fittings

• Fiberglass holding tank, constructed with bronze fittings and

24-volt DC sewage pump, plumbed for dockside pump-out,

with 3/4 full display and alarm as part of systems monitor

programmable logic controller

• Fiberglass gray water tanks with sewage pump, plumbed for

dockside pump-out with 3/4 full display and alarm as part of

systems monitor

• Oil changing system for engines, generators and gears with

two 110 gallon auxillary transfer tanks

• Fuel filter/water separator, generators & engines

• Sealed shower sump

ENGINE COMPARTMENT & BILGE

• Water manifold blocks with centralized shut-off valve for sinks

and showers

• Polyethylene water lines

• Pultruded fiberglass rudder shelf

• AC fluorescent lights

• DC LED lights

• DC exhaust blower

• Twin diesel engines, freshwater-cooled with electrically

controlled marine gears, neutral interlocks, exhaust silencers,

engine hour meters, alternators, fuel filters and seawater

strainers

• FM200 fixed fire extinguishing system for engine/generator

compartment with automatic and remote manual controls

plus audible and visual discharge signals

• Two AC ventilation fans

• Two 40kW freshwater-cooled generators(D) with shock mounts,

sound enclosure, remote start, seawater strainer, fuel/water

separator, hour meter, and water lift muffler

• AC tubeaxial exhaust discharge fan for engine room

• Electric fuel transfer system with filtration and dry tank

protection for pump(s)

• Freshwater fill hose for engines and generators

• AC compressed air system with air line and regulator with

accessory connection

• Dockside water inlet with pressure regulating valve and

automatic dockside tank fill

• Bilge pumps with heavy duty float switches and protective

guards

• 24-volt DC bilge and sump pumps with heavy-duty float

switches and protective guards

• Auxiliary emergency bilge pumps

• Bronze/chrome ball-valves through-bolted in solid fiberglass

on all underwater through hull fittings with electrical bonding

throughout

• Pressurized freshwater pump with backup pump

• (2) 50 gallon & (1) 30 gallon 230-volt AC electric water heaters

• Fiberglass fuel tanks constructed with fire-retardant resin and

bronze fittings

• Fiberglass water tanks, constructed with bronze fittings

• Fiberglass holding tank, constructed with bronze fittings and

24-volt DC sewage pump, plumbed for dockside pump-out,

with 3/4 full display and alarm as part of systems monitor

programmable logic controller

• Fiberglass gray water tanks with sewage pump, plumbed for

dockside pump-out with 3/4 full display and alarm as part of

systems monitor

• Oil changing system for engines, generators and gears with

two 110 gallon auxillary transfer tanks

• Fuel filter/water separator, generators & engines

• Sealed shower sump

Electric fuel priming pumps, engines

• Painted engine room and bilges

• USCG approved fuel lines

• Centralized drain system with single thru-hull

• Stainless steel steering tie bar with pivoting self aligning ball

joint connection at all cylinder and tie bar connections

• Insulation in salon deck for sound mitigation

• Individual sea chests for each engine and gensets, high speed

seachest for water makers, air conditioners and raw water

pumps

• Discharge sea chest

• Digital monitoring for main engines

• Engine start / stop switches and hour meter

• Work bench with tool storage

• Rubber deck mat between engines

ELECTRICAL SYSTEMS

• New – USB charging ports conveniently located in selected

areas

• 24 volt banks of heavy-duty, 12 volt marine batteries mounted

in fire retardant fiberglass boxes (2)

• Tin-coated wiring with insulation, labeled and color coded

• 240 volt automatic battery charger, 50/60Hz

• Automatic battery paralleling system with switch on helm

console

• 240 volt, 100 amp, transformer connected retractable shore

cords with over-current protection and wireless remote control

(2)

• Polarization transformers with boost function (2)

• DC LED lights

• Battery control panel with fuses and isolation switches

• DC electronics panel with magnetic circuit breakers

• AC and DC distribution panels with magnetic circuit breakers

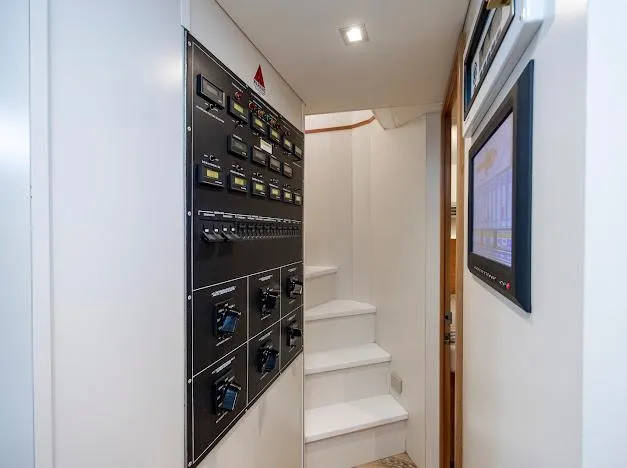

• AC switching panel with source selector switches, volt meter,

ammeter, frequency meter, generator start/stop controls, and

distribution panel selector switches

• Navigation lights

• Ground fault protection on AC receptacles and AC lighting

circuits

• Omni-directional TV antenna

• Smoke detectors and carbon monoxide detectors

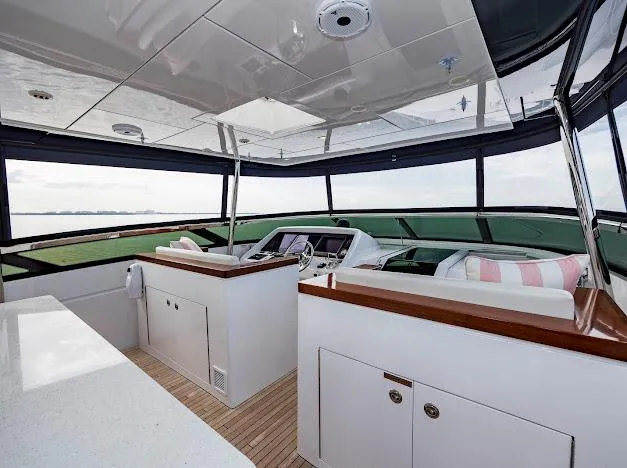

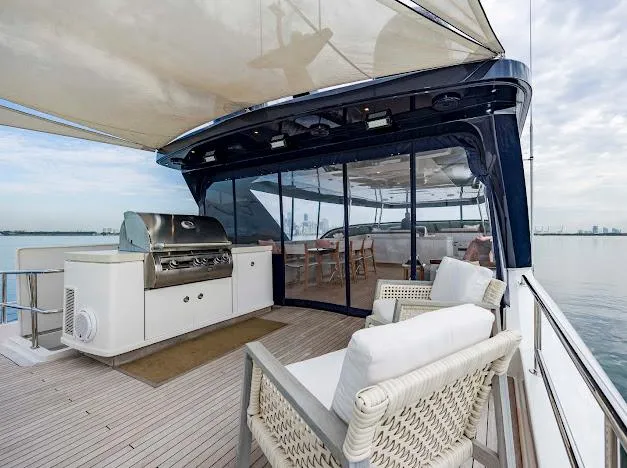

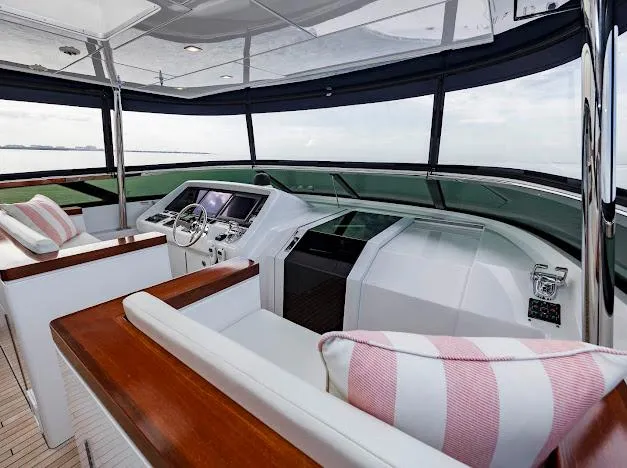

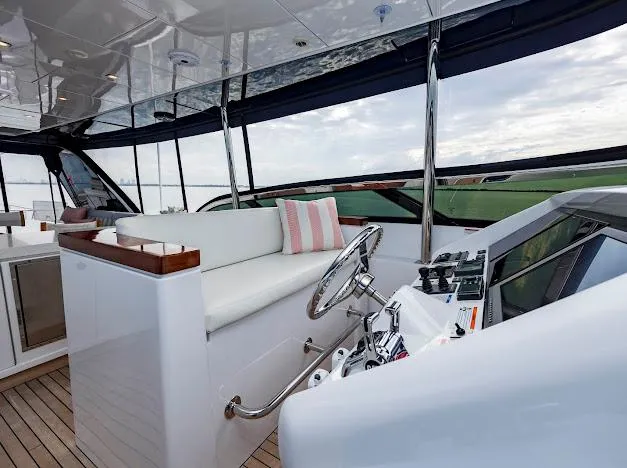

OPEN FLYBRIDGE

• Computer controlled ethernet monitoring system with LCD

touch screen display providing visual and audible signals for

engines, gears, generators, high bilge water, fire warning in

engine compartment, fire extinguisher discharge in engine

compartment, AC power loss, smoke detectors, tank level

indication, low battery voltage, battery charger failure, bilge

pump control and run indication, holding tank pump control

and run indication, and carbon monoxide detectors. A history

log is maintained for critical alarms and trends may be set up

to view various parameters with respect to time. Additional

monitoring point may be added to the system economically

and easily.

• Welded and polished stainless-steel grab rails

• 5 pieces of modular fiberglass furniture including cabinets

and/or lounges in a custom designed layout

• Tinted windshield

• Painted aluminum framed radar arch

• Fiberglass hardtop with overhead LED lighting, radar mast,

and anchor light

• Compass with dimmable light

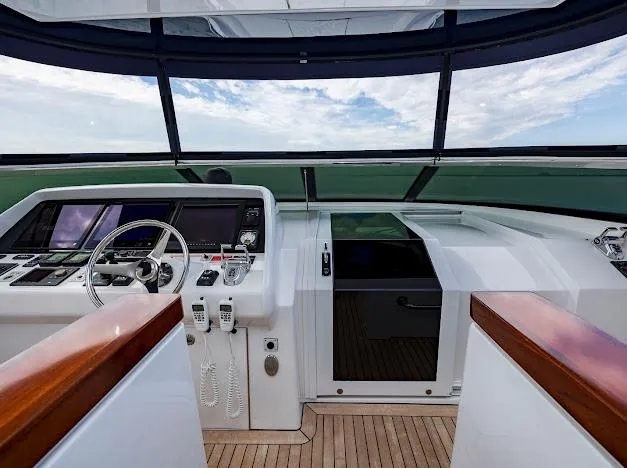

• Control station with all necessary switches, single-lever clutch

and throttle controls (electronic) with emergency back-up

and engine synchronization, synchronizer, back-up controls,

power assisted steering, compass and electronic console

• Electric power-assisted steering

• Two (2) adjustable helmchairs

• Sliding door to pilothouse

• Audio system with Bluetooth capabilities

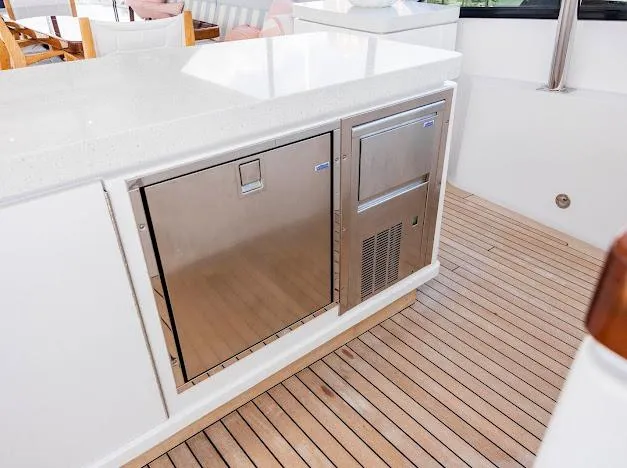

• Wet bar with solid surface countertop, sink, refrigerator,

icemaker and three barstools

• Stairs from pilothouse to bridge

• Molded fiberglass steps with hatch and DC lights to aft deck

• Neutral interlock switches allowing engine to start in neutral

only

• Fuel gauges

• Canvas console cover

• Freshwater wash down outlet

• Double electric grill

• Port & starboard wing stations

• Retractable 40” class TV

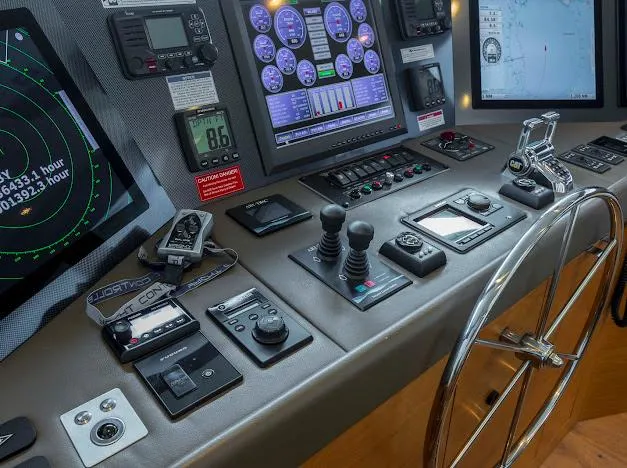

PILOTHOUSE

• Computer controlled ethernet monitoring system with LCD

touch screen display providing visual and audible signals for

engines, gears, generators, high bilge water, fire warning in

engine compartment, fire extinguisher discharge in engine

compartment, AC power loss, smoke detectors, tank level

indication, low battery voltage, battery charger failure, bilge

pump control and run indication, holding tank pump control

and run indication, and carbon monoxide detectors. A history

log is maintained for critical alarms and trends may be set up

to view various parameters with respect to time. Additional

monitoring points may be added to the system economically

and easily.

• Elevated L-shaped lounge

• Stone table with stainless-steel pedestal

• Adjustable helmchair

• Fixed frameless windows and windshield with safety glass

• Intermittent electric windshield wipers/washers with controls

• Padded chart flat

• Hardwood flooring

• Audio system integrated with salon stereo

• Defogger

• HVAC control

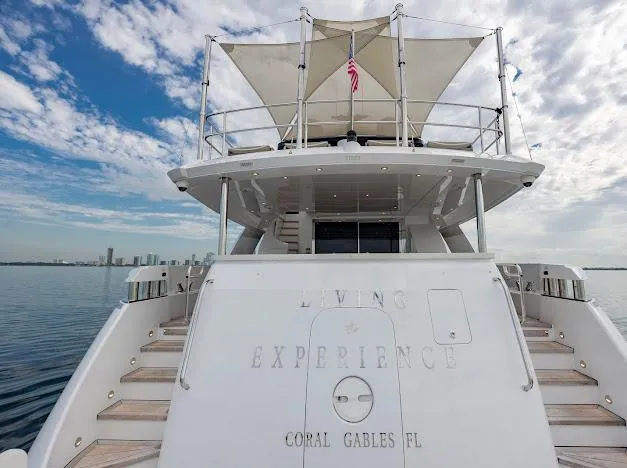

AFT DECK

• Molded bench seating with cushions and cover

• Molded fiberglass steps with lights to flybridge

• Molded fiberglass steps with lights to swim platform, port and

starboard

• Stainless steel gates from aft deck to platform

• Boarding gates, port and starboard side decks

• Audio system integrated with salon stereo

• AC duplex outlet with ground fault protection

• DC LED overhead lighting

• Door with stairwell to crew’s quarters/engine room

• Teak table with cover

• Freshwater wash down outlet

• Teak deck, natural finish

SWIM PLATFORM

• Freshwater wash down outlet

• Hot/cold integrated shower

• Pop-up cleats (2)

• Stainless steel re-boarding ladder

• Watertight door to crew quarters and engine room

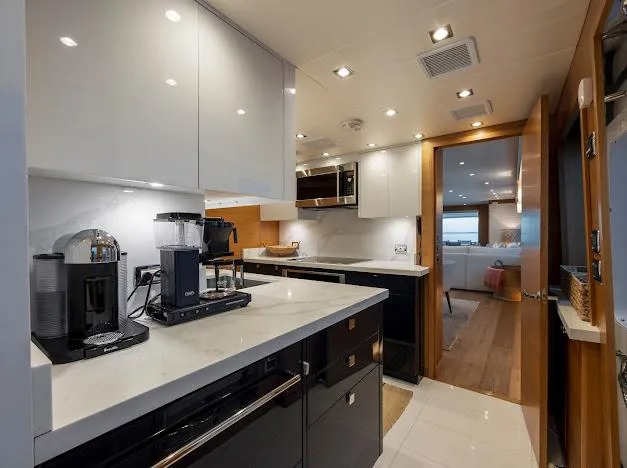

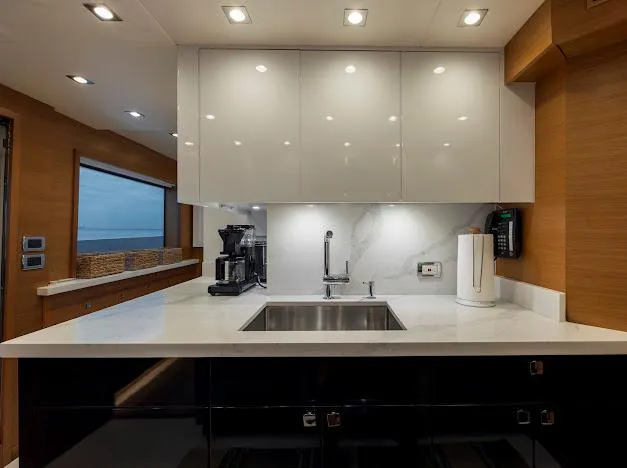

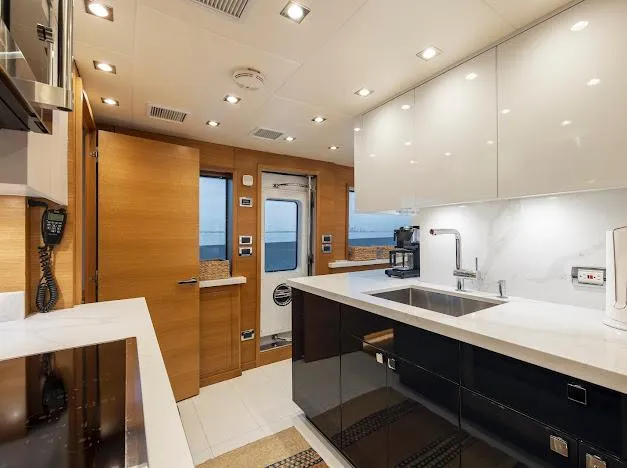

GALLEY

• Tile flooring

• Microwave/convection oven

• Inserts to match interior finish on appliance fascia

• LED TV (standard arrangement only)

• U-shaped lounge with stone table

• Stone countertops and backsplash with stainless sink and

cabinets

• Refrigerator with freezer and icemaker

• Four-burner ceramic cooktop

• Garbage disposal

• HVAC control

• Dishwasher

• Oven

• Wine cooler, 46 bottle

• Center island with storage, stone countertops, and four bar

stools

• Skylight

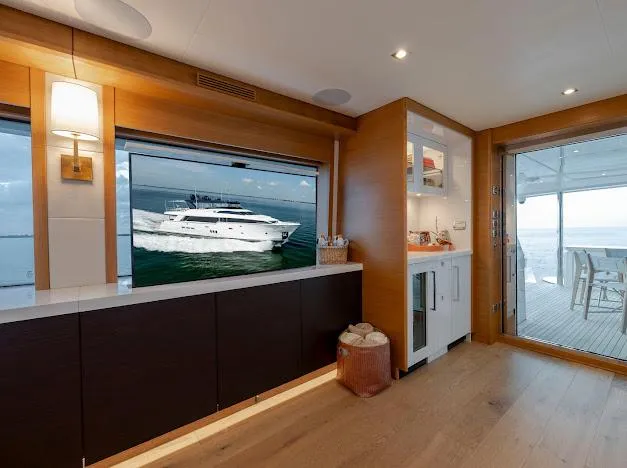

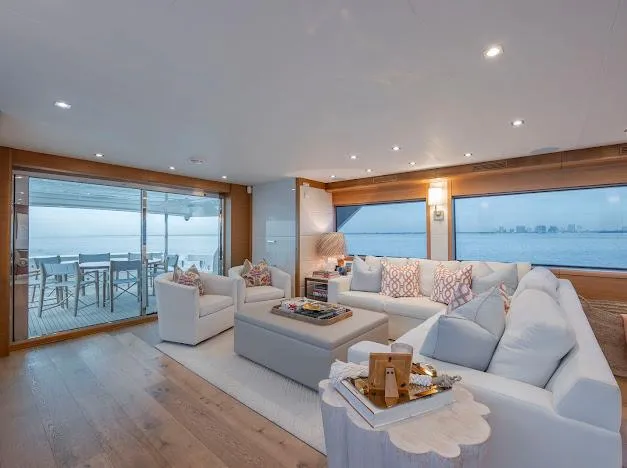

SALON & DINING

• Removable upholstered headliner

• Fixed frameless windows with tinted safety glass

• Upholstered panels and finished wood bulkheads

• Carpeting with hardwood entryways

• Privacy blinds

• Automatic opening, stainless-steel sliding door to aft deck

• Buffet cabinet

• 48” class LED TV with power lift

• Entertainment system with AM/FM, iPod Dock, and surround

sound speakers

• Blu-rayTM player

• Allowance for custom furnishings such as sofa, dinnette table,

cocktail table(s), chair(s), end table(s), and accessories

• HVAC control

• Wet bar with refrigerator, icemaker, and bottle and glass

storage

• Decorative wood accents above dining table

• Stairway to pilothouse

• Pantograph door to side deck, port

• Stainless-steel sliding door to side deck, starboard

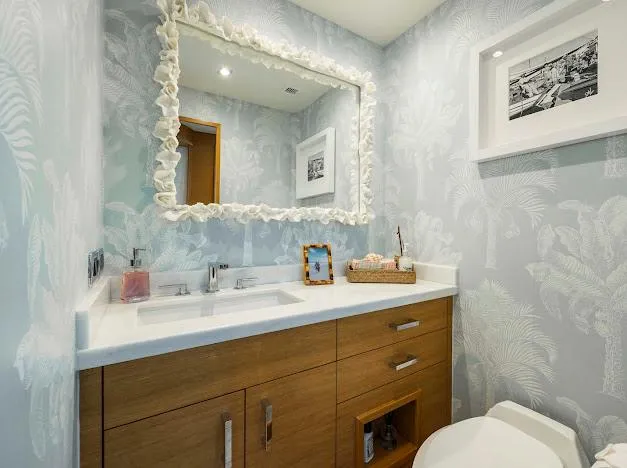

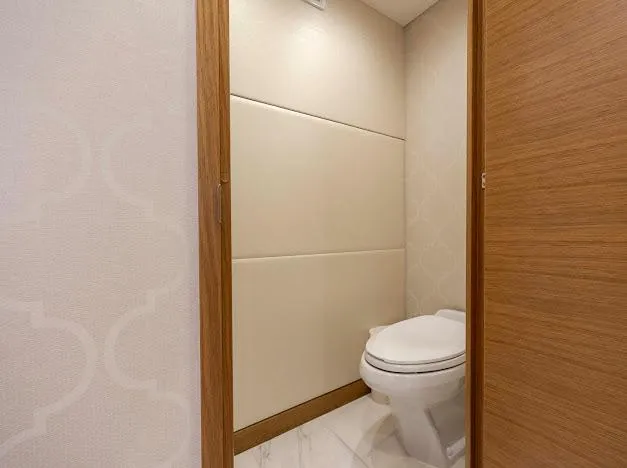

DAY HEAD

• Stone/tile flooring

• Upholstered headliner

• Wallcovering

• Pedestal sink

• Mirror

• Towel ring

• Freshwater toilet

• 120 volt AC recirculating fan

• Holding tank 3/4 full indicator light

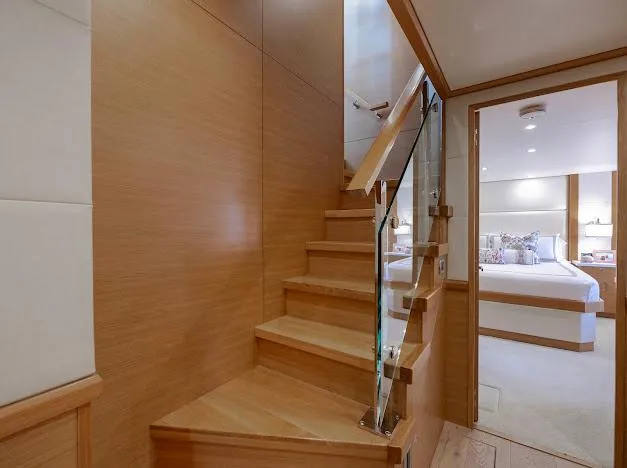

LOWER COMPANIONWAY

• Carpeting

• Fabric headliner installed on track system

• Flush panel doors with door stops to staterooms

• Lighted stairway to main deck

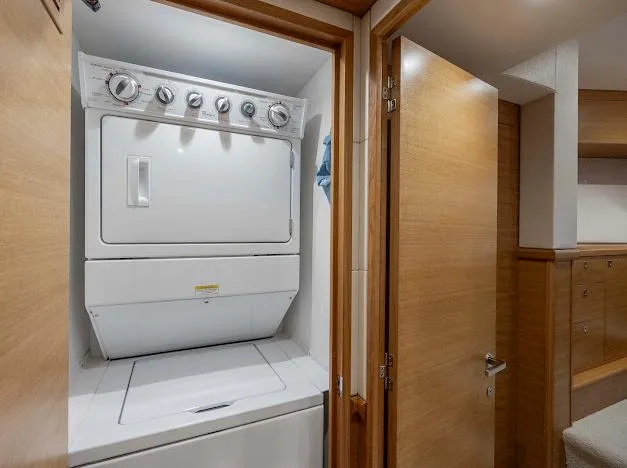

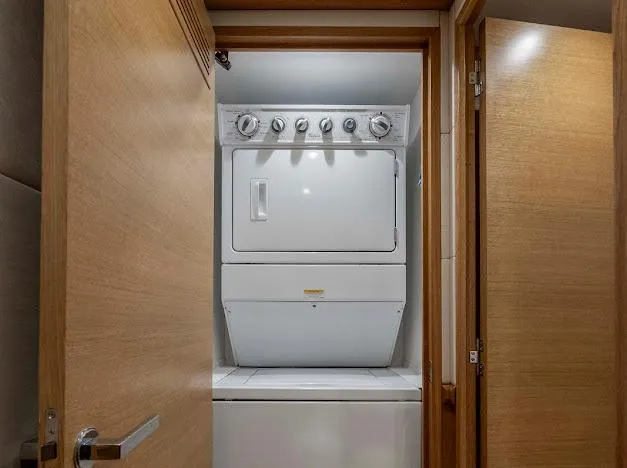

• Washer/dryer

• Bilge access

• Coffee bar with stone top and tile backsplash

MASTER STATEROOM

• Carpeting

• King-sized berth with upholstered headboard and cedar-lined

storage underneath

• Upholstered berth base

• HMC mattress, bunk cover, pillows, shams and linens

• Cedar-lined closet with light, port and starboard

• Nightstands

• Dressers, port and starboard

• 40” class LED TV

• Entertainment system with AM/FM stereo, iPod Dock, and

speakers

• Blu-rayTM disc player

• Full-length mirror

• Private access to head

• Privacy blinds

• HVAC control

• Portlights, port and starboard

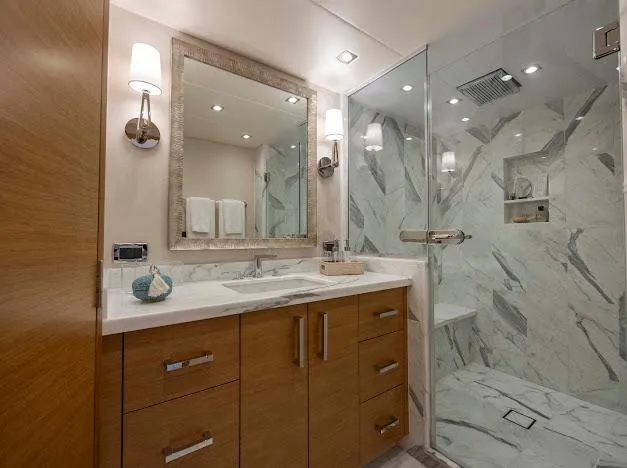

MASTER HEAD

• Stone/tile flooring

• Wallcovering and tiled bulkheads

• Stone countertops, backsplashes, and sidesplashes with

undermount sinks

• Stone/tile shower with frameless door

• Two mirrors

• Two base cabinets with storage

• Two towel bars

• Two freshwater toilets

• Two 120 volt AC recirculating fans

• Two holding tank 3/4 full indicator lights

BOW STATEROOM

• Carpeting

• Queen sized tapered berth with upholstered headboard and

cedar lined storage underneath

• Upholstered berth base

• HMC mattress, bunk cover, pillows, shams and linens

• Cedar lined closet with automatic light

• Nightstands

• Armoire

• 40” class TV

• Entertainment system with AM/FM stereo, iPod Dock, and

speakers

• Blu-rayTM player

• Full-length mirror

• Private access to head

• HVAC control

• Emergency hatch to bow deck

PORT STATEROOM

• Carpeting

• Twin berths with upholstered headboards

• Upholstered berth bases

• HMC mattress, bunk cover, pillows, shams and linens

• Cedar lined closet with drawers and light

• Nightstand

• 26” class LED TV

• Entertainment system with AM/FM, iPod Dock, and speakers

• Blu-ray disc player

• Full-length mirror

• Private access to head

• HVAC control

• Portlight

STARBOARD STATEROOM

• Carpeting

• Twin berths with upholstered headboards that convert to

queen berth

• Upholstered berth base(s)

• HMC mattress, bunk cover, pillows, shams and linens

• Cedar lined closet with drawers and light

• Nightstand

• 26” class LED TV

• Entertainment system with AM/FM stereo, iPod Dock, and

speakers

• Blu-ray disc player

• Full-length mirror

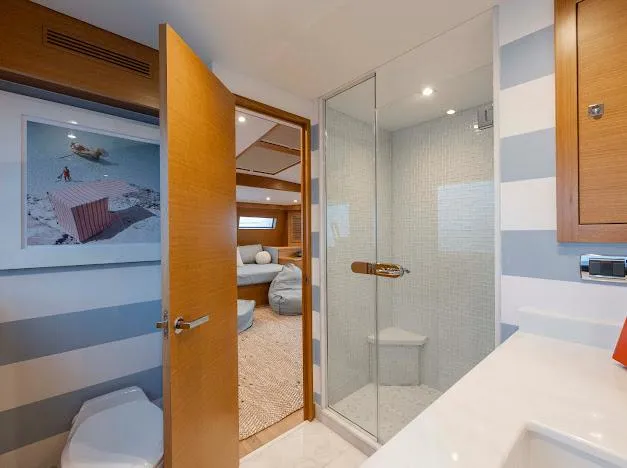

GUEST HEADS

• Stone/tile flooring

• Wallcovering

• Stone countertop, backsplash and sidesplash with porcelain

undermount sink (Two sinks in bow guest head)

• HVAC control

• Portlight

• Stone/tile shower with frameless glass door

• Mirror

• Base cabinet with storage

• Towel bar

• Freshwater toilet

• 120 volt AC recirculating fan

• Holding tank 3/4 full indicator light

CAPTAIN & CREW STATEROOMS

• Carpeting

• Over/under berths (starboard stateroom) and double berth

(port stateroom)

• Upholstered berth base

• HMC mattress, bunk cover, pillows, shams and linens

• Cedar-lined hanging/storage locker with light

• 26” class LED TVs (2)

• DC AM/FM stereo receiver with CD/DVD player and speakers

(2)

• Full-length mirror

• HVAC controls

• Dresser

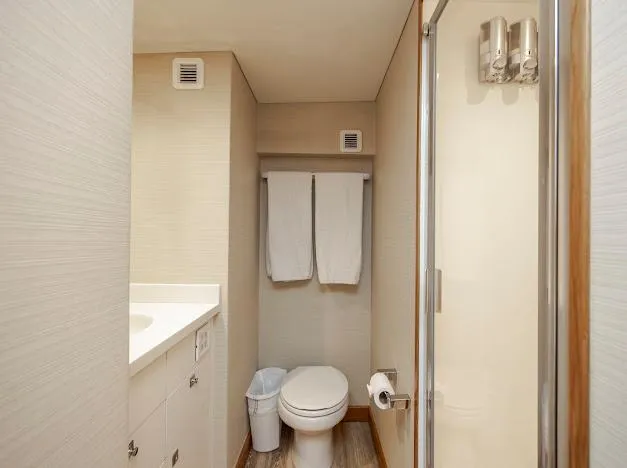

CREW HEAD

• Durable engineered wood flooring

• Wallcovering

• Solid-surface countertop with sink and storage cabinet

• Shower with door and sump pump

• Mirror

• Towel bar

• Freshwater toilet

• Recirculating fan

• Holding tank 3/4 full indicator light

CREW LOUNGE

• Durable engineered wood flooring

• Microwave/convection oven

• Refrigerator

• L-lounge with solid-surface dinette table

• Base cabinet with stainless steel sink and upper storage

cabinet

• Stairs from aft deck

• Door to engine room with window

• Watertight door from swim platform

• Washer/dryer

ELECTRONICS PACKAGE

• Electronics Package Allowance $150,000

PROVISIONING ITEMS

• Stern staff

• Braided nylon mooring lines (6)

• Fenders (4)

• Life jackets (12)

• Life ring (2)

• Flare gun with flares

• First aid kit

• Boat Hook

• Prop removal and installation tool

• Two - 8 person life rafts with hydrostatic release on boat deck

• Portable “drychem” fire extinguishers in compliance with

United States Coast Guard and ABYC standards

• Portable 13 lb Halotron-1 fire extinguishers throughout

• Tool set

• Water delivery kit with spare electrical and mechanical

components

• Recommended cleaning supplies for care of your new yacht

• Allowance for custom furnishings such as dinette table,

cocktail table(s), chair(s), lounge(s), and accessories

• Allowance for linens such as sheets and towel sets

• Allowance for dining items such as china, crystal, and flatware
