MYSTERE Yacht for Sale

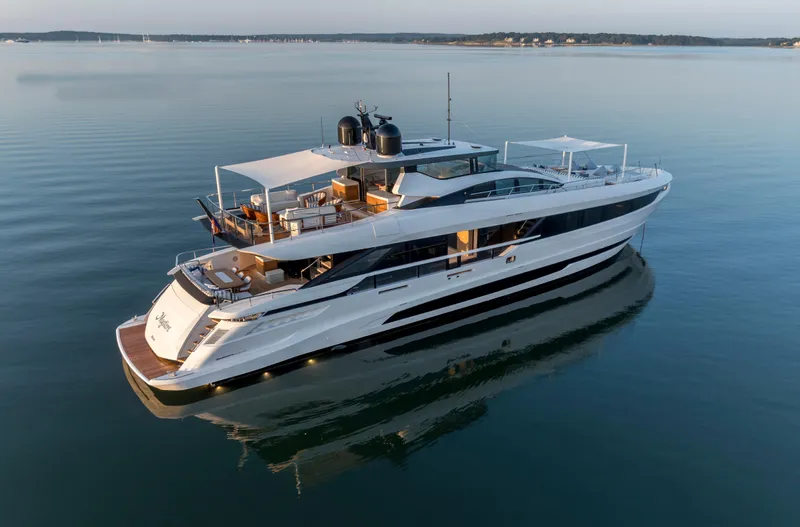

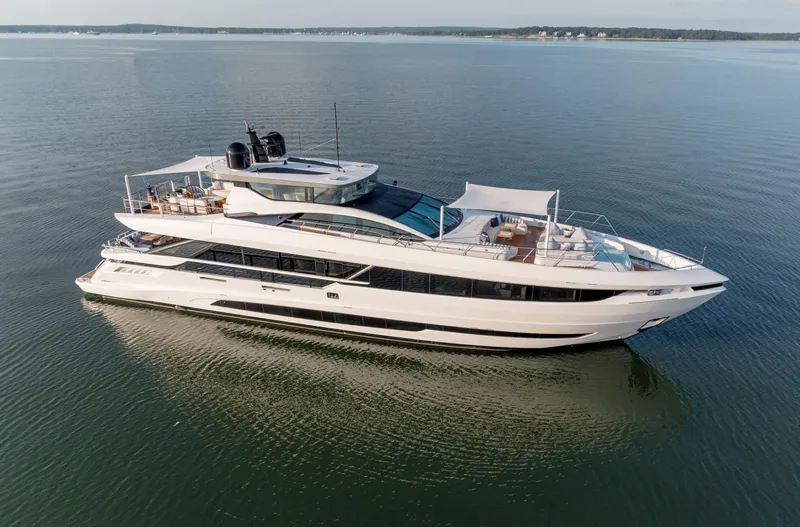

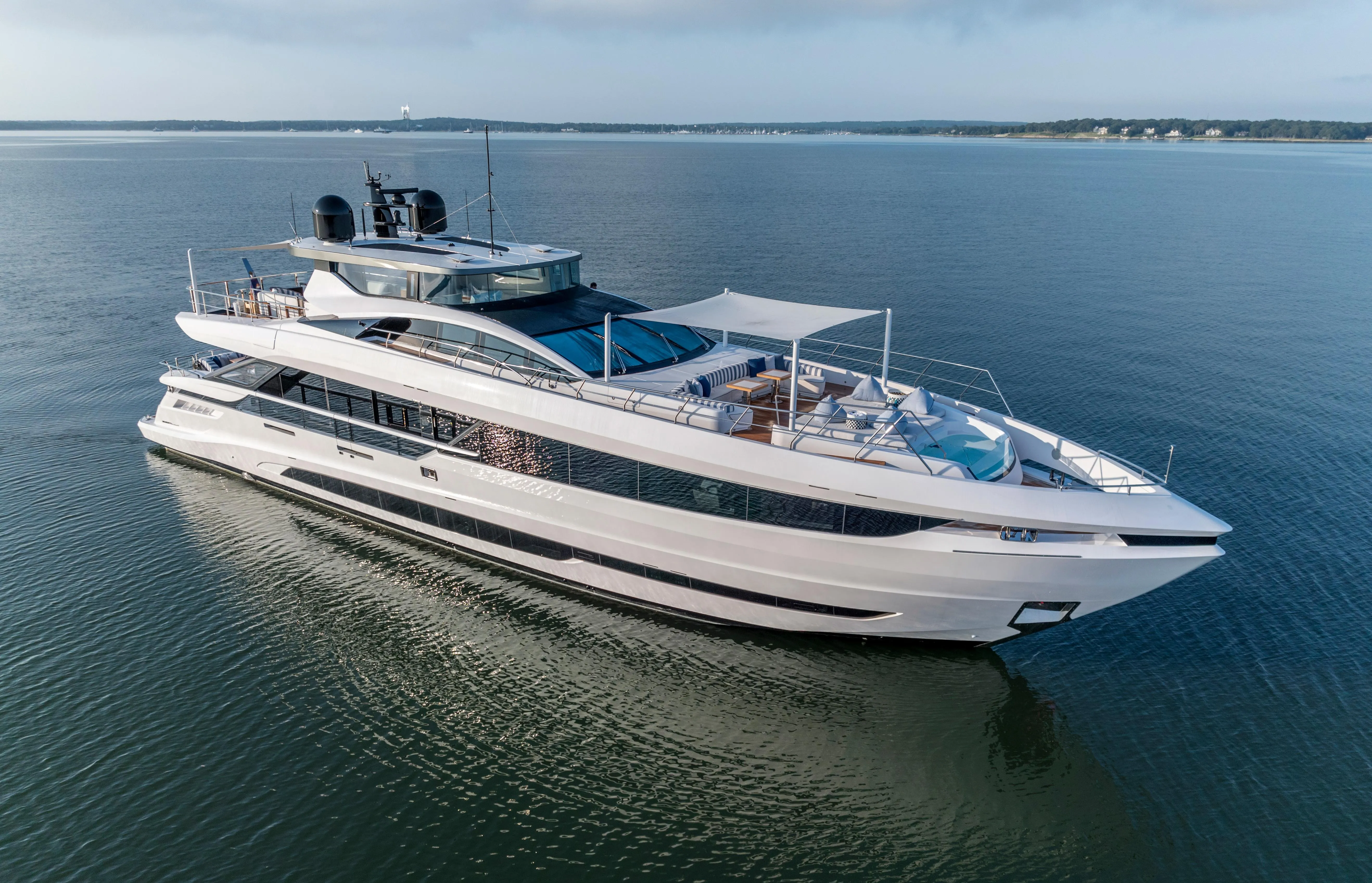

Mystere Yacht | 109' Mangusta 2023

Motivated Seller- Two Boat Owner!!

NOT AVAILABLE FOR SALE TO U.S RESIDENTS WHILE IN U.S. WATERS.

KEY FEATURES:

• 5 stateroom layout with an On-Deck Master and the ability to sleep 12 guests
• Engine Warranty transferable through 8/31/2028
• Over $1,000,000 in upgrades & customization of the interior \
• Expansive Flybridge with serene views and the ability to stay in the sun or lounge under cover with air conditioning
• Jacuzzi pool on the bow with sun beds and optional shade
• Extended swim platform with swim ladder and garage for all water sport activities

DIMENSIONS
Length O.A.: 109' 3" (33.3m)
Length W.L.: 88' 7" (27m)
Beam: 24' 3" (7,4m)
Draft: 6' 3" (1,9m)
Gross: 247
Net: 74
Year Built/Builder: 2023/ Mangusta
Naval Architect: Alberto Mancini/Overmarine
Interior Designer: FM /Overmarine
Construction: Single skin technique using vinylester resin reinforced with E Glass and polyurethane
Class: RINA
Stateroom/Guests: 5/2
Crew    5-Apr
Cruising/Max Speed: 21kts/ 25kts
Type: Motor Yacht
Flag: Marshall Islands

MACHINERY

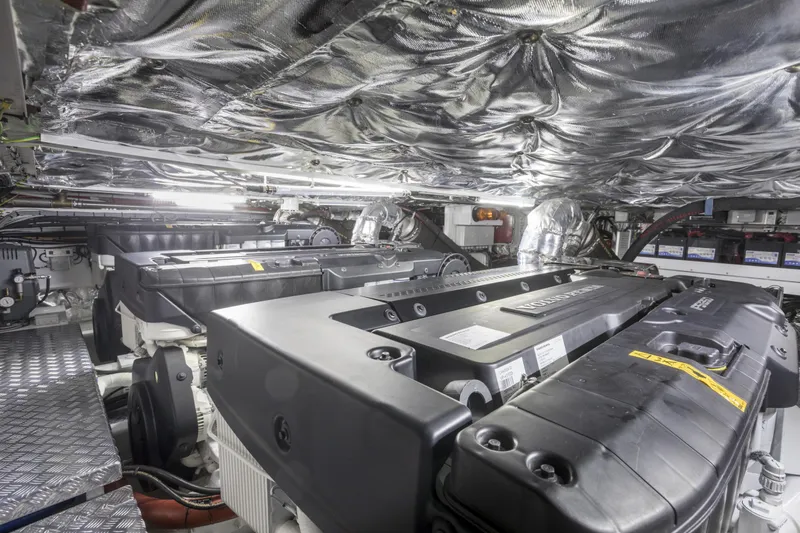

Main Engine: Four Volvo Penta Diesel Engines mod. D13-1000 IB – 735kW (~1000HP) at 2400 rpm. The engine/package has a standard full warranty until 8/31/2025 and major components until 8/31/2028. There is an ability to extend the warranty.
Main Engine Hours: Port 237
           Port Inboard 236
           Starboard inboard 234
           Starboard 236
Gear Boxes: Four gearboxes integrated Volvo Penta IPS drive units mod IPS 1350
Shafts: integrated
Propellers: Two Volvo Penta duoprop type contra-rotating propellers on each engine
Speeds: 21 kts. Cruising/ 25 kts. Max
Range: 330nm @ 21 kts
Generators: Two Kohler generators,, one 35 kW, 400 VAC, 50 Hz, three-phase and one 50kw
Generator Hours: 35KW (380 hours)
         50KW (750hrs)
Electricity: Main power supply 400 Volt AC, 50 Hertz three phase four wire system with neutral ground
         Secondary supply 230 VAC 1ph or 24 Volt DC
Shore Power: 400Vac, 50Hz, 3 phase
Batteries: house bank 3 8d
       isolated generator starting 12v
       isolated mains starting 24v

TANK CAPACITIES
Fuel: 2,774 gallons (10,500 litres)
Water: 528 gallons (2,000 litres)
Water Maker: Idromar 110 gal/hour
Black Water: 660 gallons (2,500 litres)

Mechanical
Steering System: Integrated IPS
Rudder Angle Indicator: Integrated IPS
Thruster: 28 [kW] power and a predicted Thrust of 450 [kg] with dual counter rotating 4 blades Kaplan propellers
Stabilizers: Waveless
Fuel Filters
Bilge Pump: Control Panel with 6x DC with Automatic and Manual Switches and High Water Alarms
        1Gianneschi pump  400VAC/3ph/50Hz
        1 Gianneschi pump – 400VAC/3ph/50-60Hz
        1x Emergency Pump outside Engine Room Gianneschi P&B MBMA 50-160B Diesel
        Electric remote operated valves
        Bilge Level Alarms
        Vacuum and pressure gauges
Air Conditioning


Safety and Security Equipment: AXIS camera system
                   FLIR camera



Fire Pumps: 1Gianneschi pump  400VAC/3ph/50-60Hz
        1 Gianneschi pump – 400VAC/3ph/50Hz
        1x Emergency Pump outside Engine Room Gianneschi pump P&B MBMA 50-160B Diesel
        Vacuum and pressure gauges

Navigation
Windshield Wipers: Speich x3
Loud Hailer: JDTRON
VHF Radiotelephones: Furuno FM 8900s x2
Search Lights: Handheld
Automatic Pilot: GARMIN/Volvo Penta Integrated
Echo Sounder: GARMIN GSD 25/Front VU/ Live VU
Radar: GARMIN Phantom 54
Chart Plotter: GARMIN GPSMAP 8617x2 GPSMAP 8624x2
GPS: GARMIN GPS 24xd
Wind Instruments: GARMIN
AIS: GARMIIN AIS 800
Compass: Garmin
Satellite TV: OmniAccess/Plexus/Seatel/Starlink


Deck
Anchor Windlass: Two Vertical Anchor Windlass 4kW - 400VAC/3ph/50Hz
Ground Tackle: Two Galvanised High Tensile Steel anchors 40Kg, Two length of 123,75 meter galvanised chain D. 14mm studless
Boat Crane and Davits: Sanguineti beam crane through a 400VAC hydraulic power pack,
Boarding: stern passarelle


Audio/Visual Entertainment Systems
Main Salon: built in Sonance
Owner's Cabin: built in Sonance
Guest Cabins: built in Sonance
Bridge Deck: built in sonance
Captain's Cabin: TV
Crew Cabins: none

Domestic Equipment
Main Galley: Miele appliances

Laundry: Miele professional
