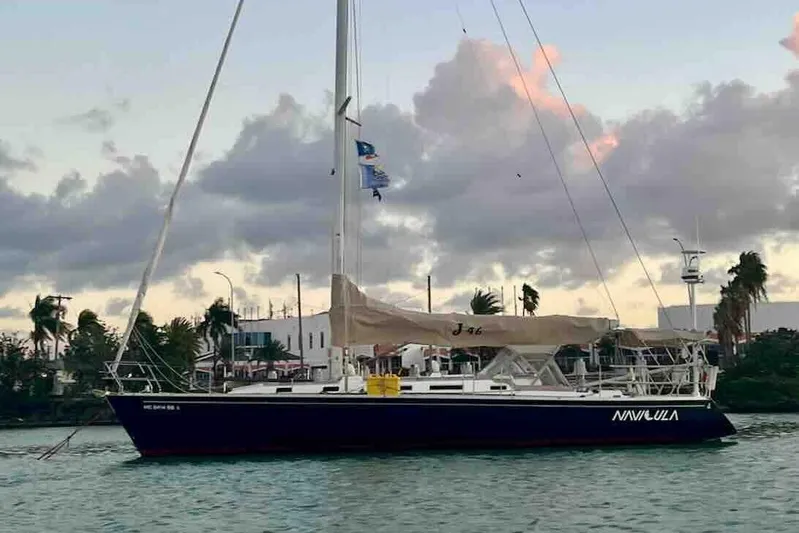

NAVICULA Boat for Sale

IJPE: 1020.00 sq ft
I: 58.50 ft
J: 16.67 ft
P: 53.50 ft
E: 19.92 ft
Working Sail Area: 1021.00 sq ft

Quantum Tri-Radial Polyester / Dyneema compositen- Five full battens -2023

135% genoa

MC6000 105% cruising jib - Approximately 10 seasons

Antal mast cars

Dutchman flaking system

Asymmetrical spinnaker with Banmar top-down furler and Selden carbon fiber bowsprit

Harken mark II roller furling system

LOA: 46 ft 0 in

Beam: 13 ft 10 in

LWL: 40 ft 6 in

Maximum Draft: 6 ft 2 in

Displacement: 24400 lbs

Ballast: 9330 lbs

Headroom: 6 ft 2 in

Zodiac RIB

9' 6"

Hull Fiberglass

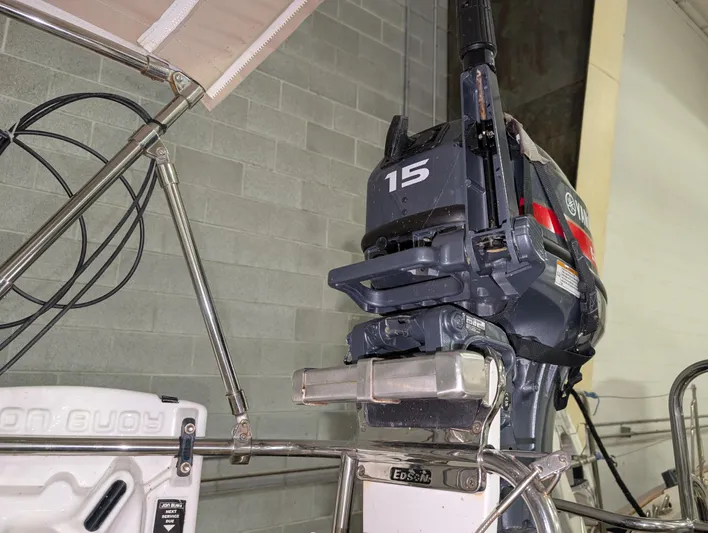

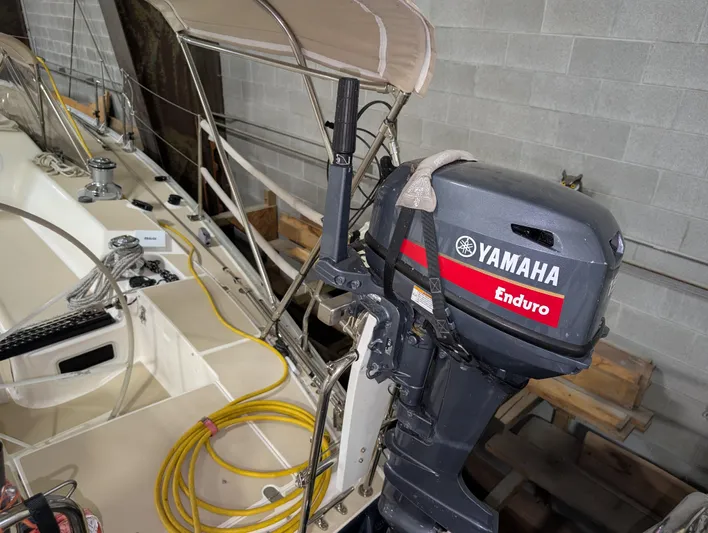

Yamaha 15 hp 2-cycle engine

Total Power: 76 HP

Engine 1:

Engine Brand: Yanmar

Year Built: 2001

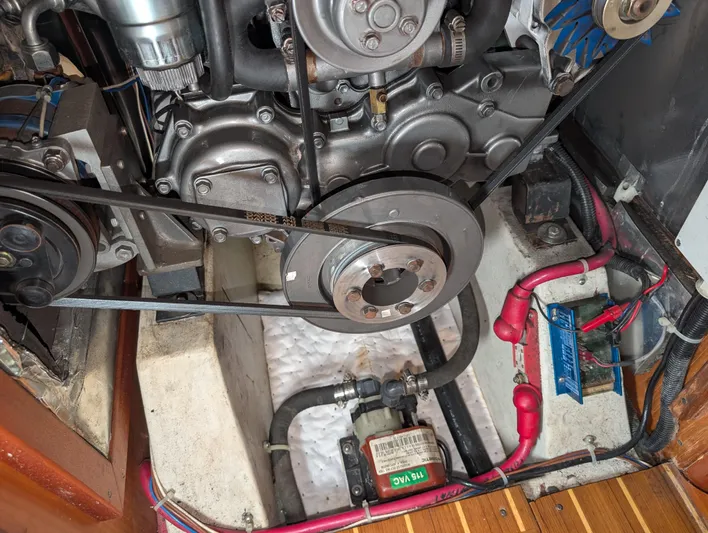

Engine Model: Yanmar 4LH-TE

Engine Type: Inboard

Engine/Fuel Type: Diesel

Engine Hours:2500

Propeller: Folding propeller

Engine Power: 76 HP

Fresh Water Tanks: (120 Gallons)

Fuel Tanks: (90 Gallons)

Number of single berths: 3

Number of double berths: 2

Number of cabins: 2

Number of heads: 2

Electric windlass

New replaced Dodger and bimini covers

Re-wrapped leather wheel

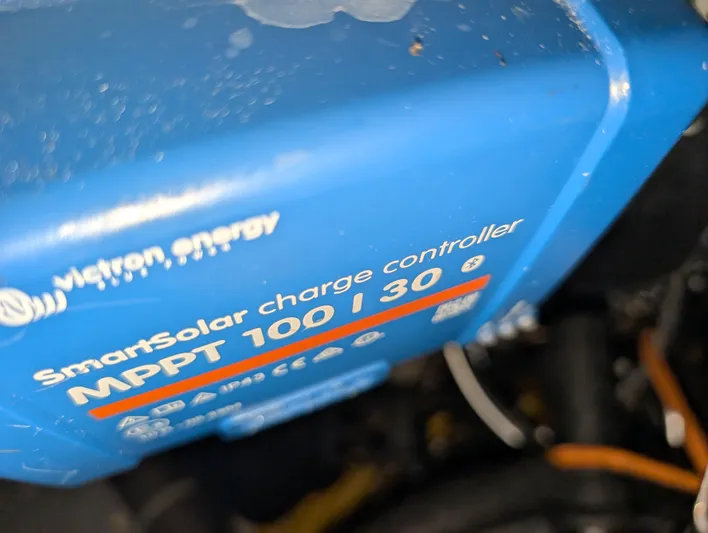

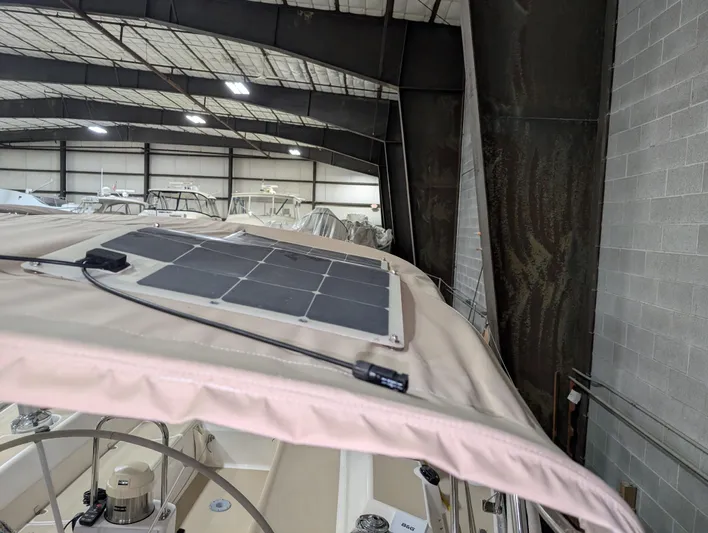

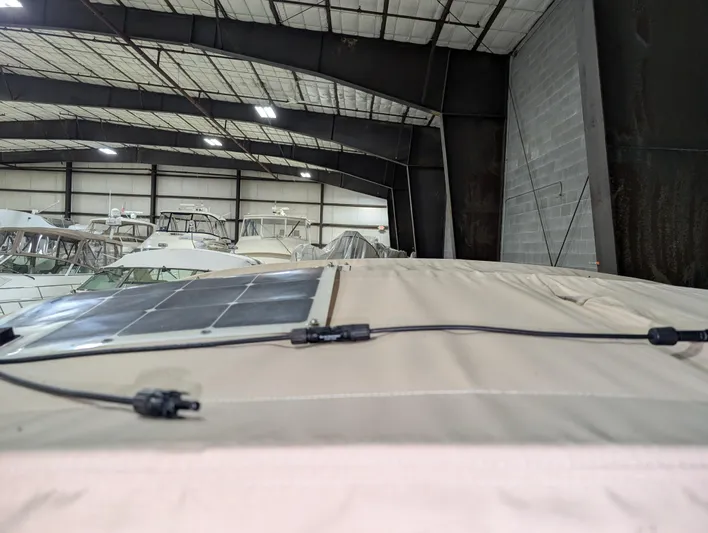

Solar panels on Bimini

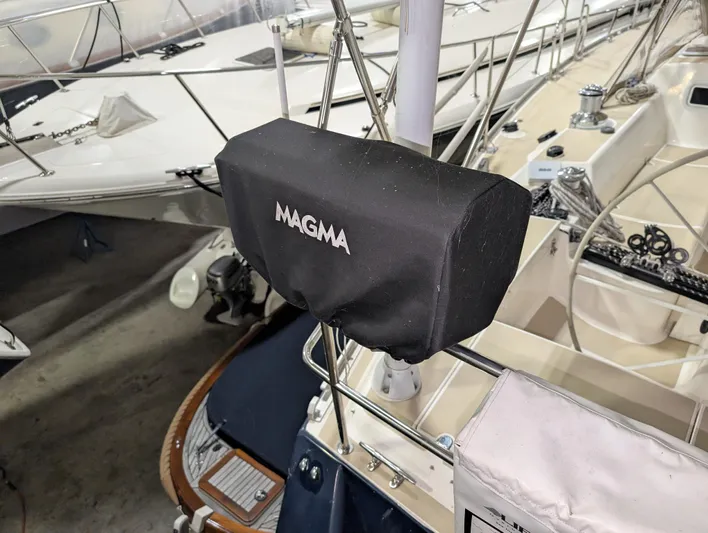

Magma infrared gourmet BBQ grill

New dorades

New replaced aft shower

New foot switches for windlass

Satin varnished cherry bulkheads and furniture panels with cold

molded cherry trim, drawer and cabinet faces

main bulkhead with single opening and recessed cherry paneled door

with Mobella lock-sets

Forward and aft heads trimmed with teak

Cherry trimmed vinyl headliner throughout forward, main, and aft

cabins

Polyurethane teak and holly veneer floor panels with underside and

end-grain sealed epoxy

Interior cushions

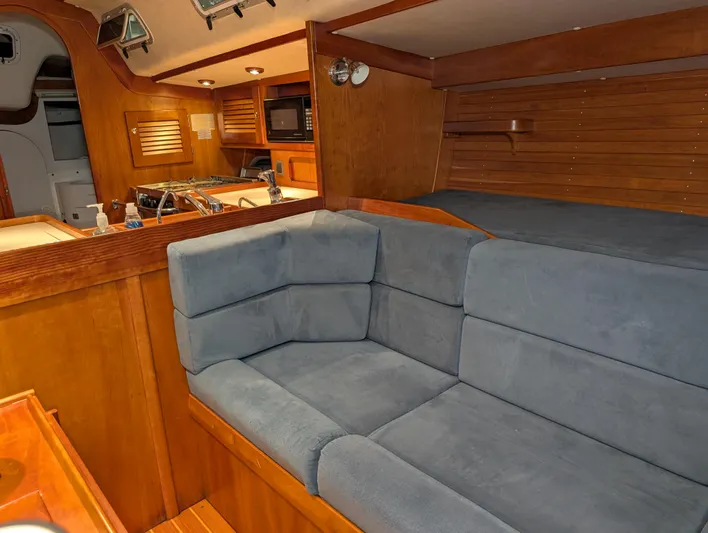

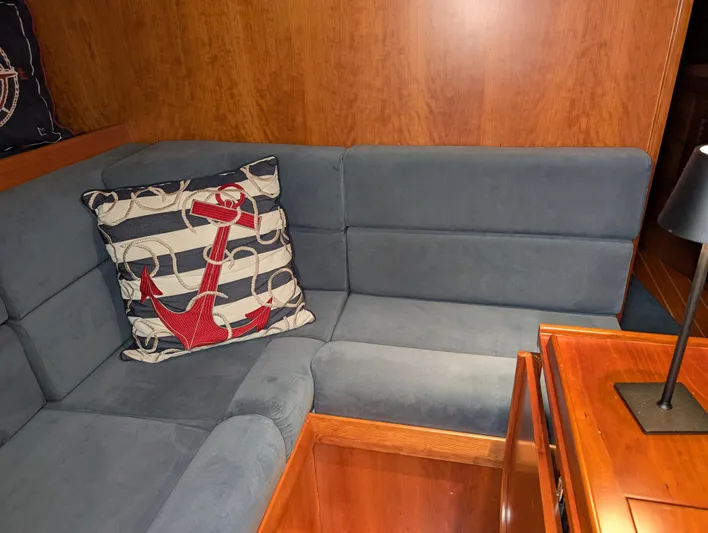

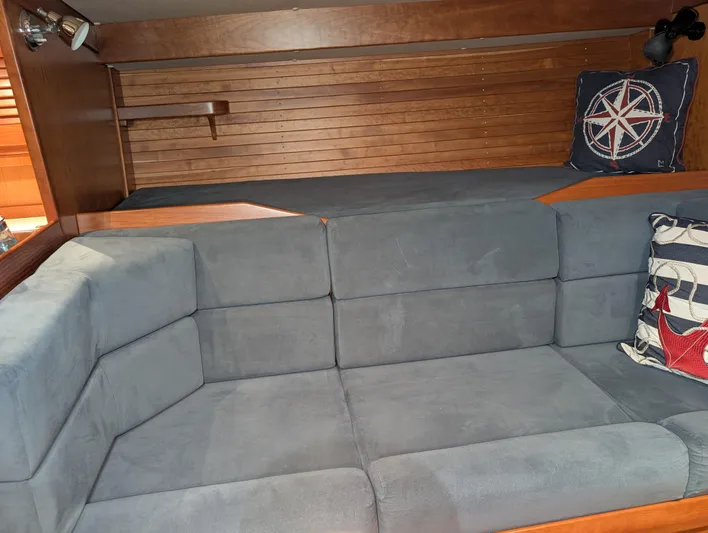

5" Layered and bolstered main settee split wrap-around cushions

with two-tier split backrests

5” memory foam cushion in forward and aft cabins

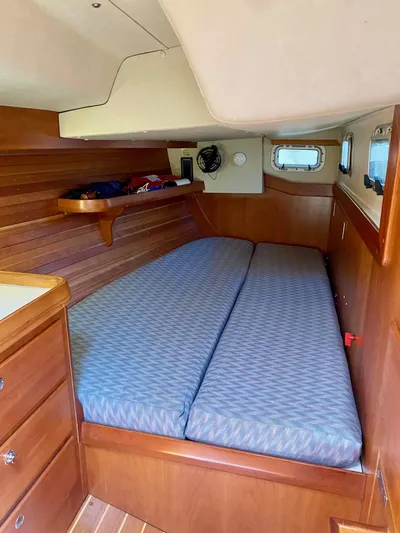

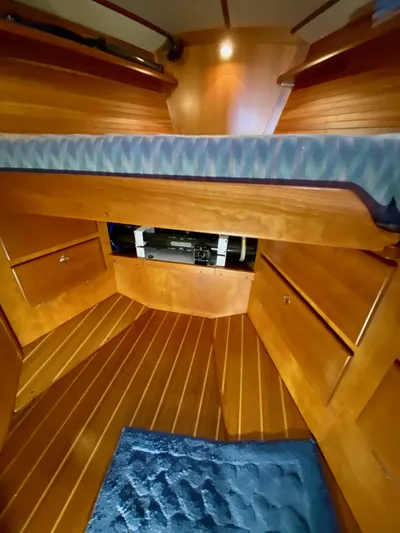

Large twin berth forward cabin featuring 4 drawers, 4 lockers, hinge-

up bunk tops to maximize storage

Hinged v-berth filler, changing seat, hanging locker with louvered

door and bureau/ vanity with 2 drawers, locker and cabin above with

cherry louvered doors and shelves

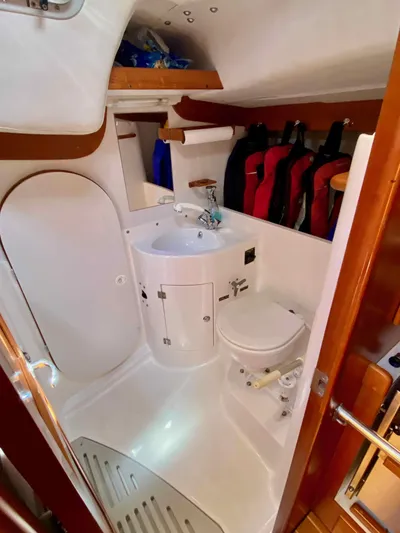

Forward head includes vanity with mirrored acrylic slider storage,

teak towel rack, mirror storage cabinet below molded sink, enclosed

by cherry paneled door and white laminate finish on head side

Stall shower with teak slat bench seat, cabinet locker with mid-

height outboard, shower fixture mounted on bulkhead with

Adjustable shower faucet

 self-priming pump services shower, sump and drains overboard in both heads

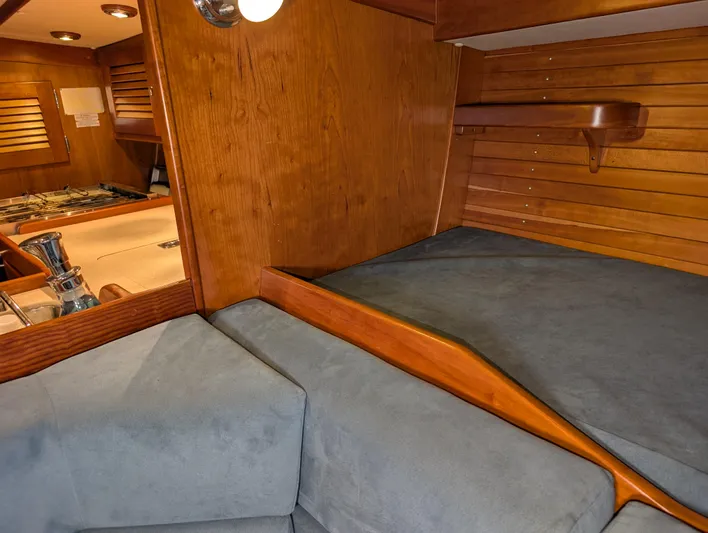

Pilot berth with main cabin to port with small mid-height

convenience shelf at aft end

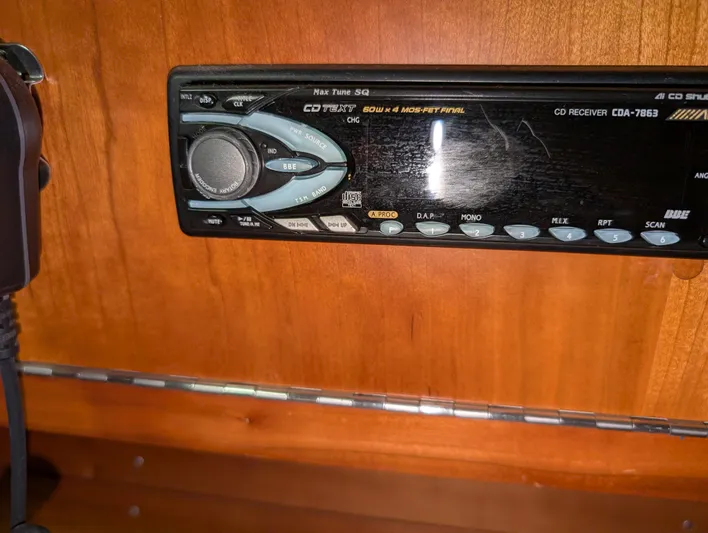

Two storage cabinets with louvered doors to accommodate the main

cabin entertainment center above starboard settee

Two book storage shelves between cabinets with removable cherry

retainer battens

One large drawer and one locker outboard of the starboard settee

backrest cushion

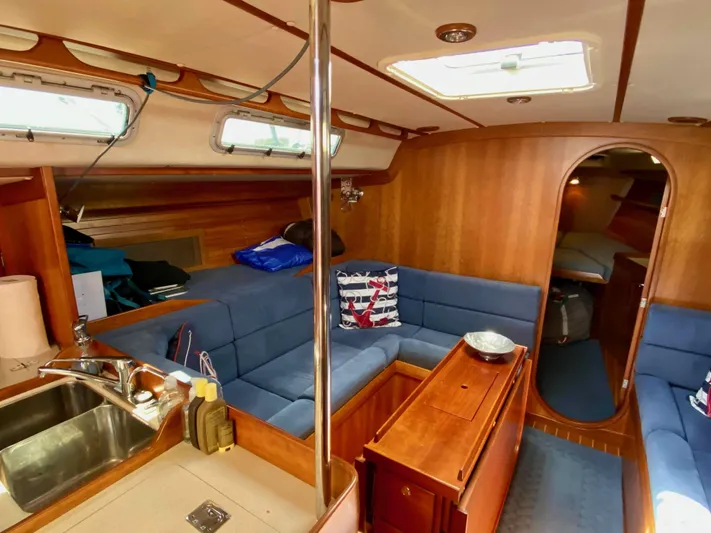

Settee backrests of cherry veneer and cherry trim

Varnished cherry wood hull slats in main aft and V-berth cabins

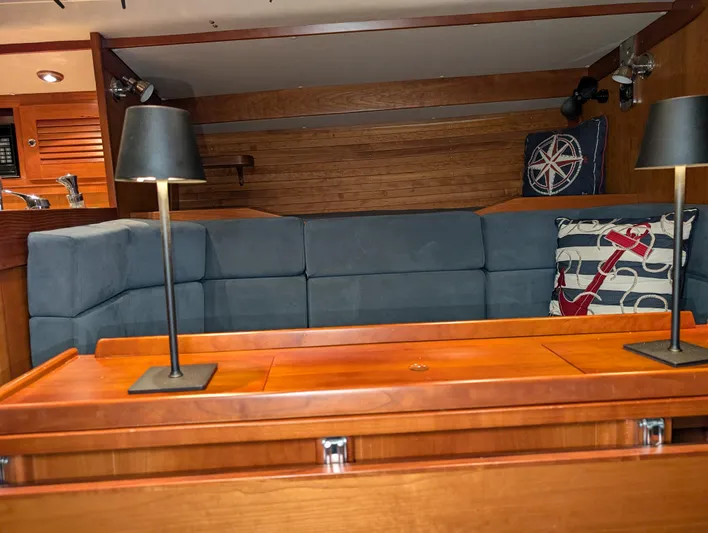

Cherry main cabin drop-leaf table with removable fiddles, two

drawers and internal bottle storage

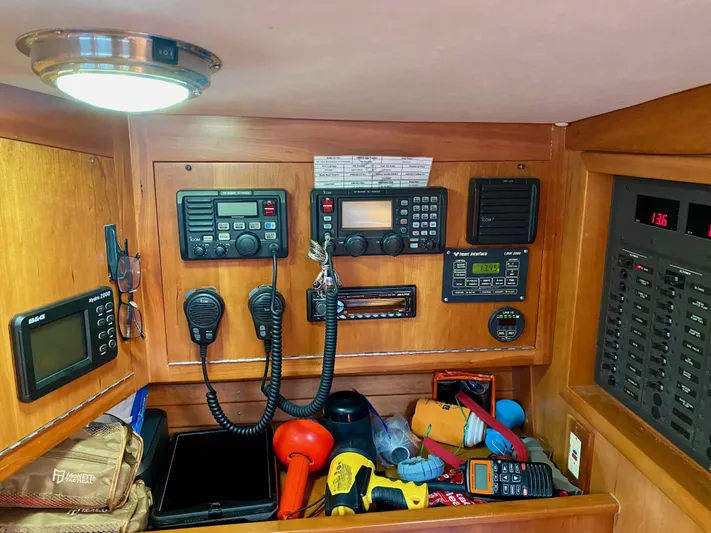

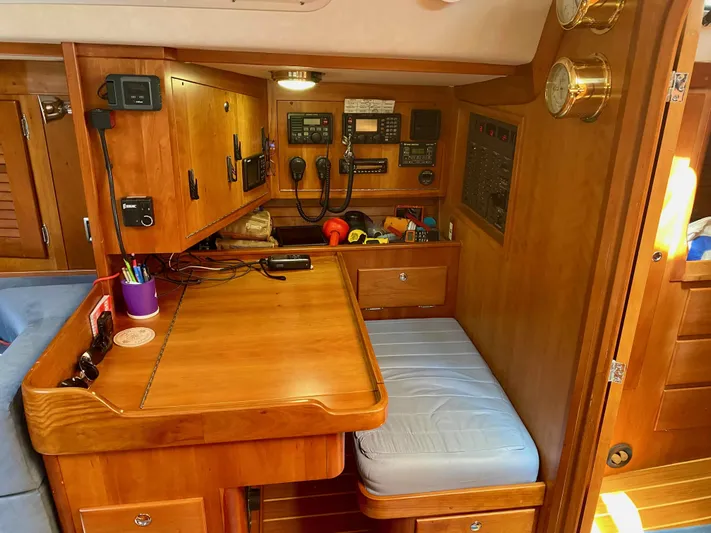

Large 30"x36" sit-down, forward-facing navigation station with

hinged tabletop. Features include an outboard shelf, access to

chart storage and sliding organizer try below table top, cushion seat

of layered bolstered foam

Instrument cabinet with two large wood panel faces hinged at the

bottom for quick access, file storage drawer below the nav seat to fit

hanging files. Storage cabinet outboard of the seat and a series of three

utility drawers on the inboard table support face

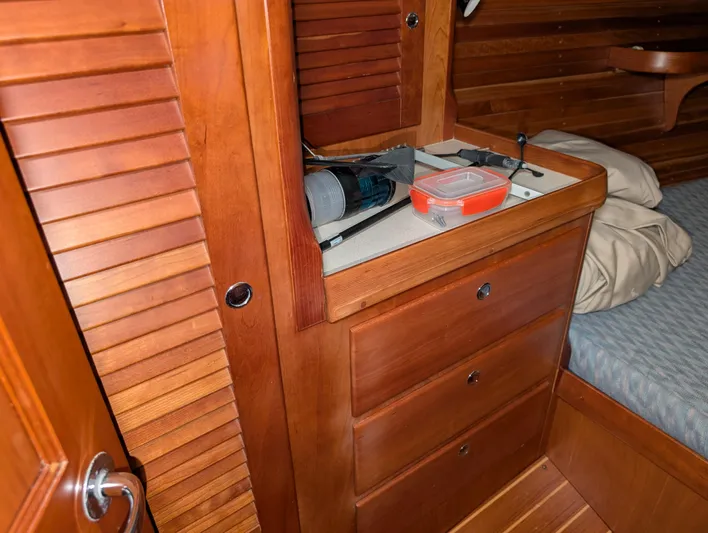

Starboard aft cabin with recessed cherry paneled door, hanging

locker with louvered door and bureau/vanity with two large drawers

Hinged foot locker and cabinet with cherry louvered door and shelf.

Additional drawer above engine

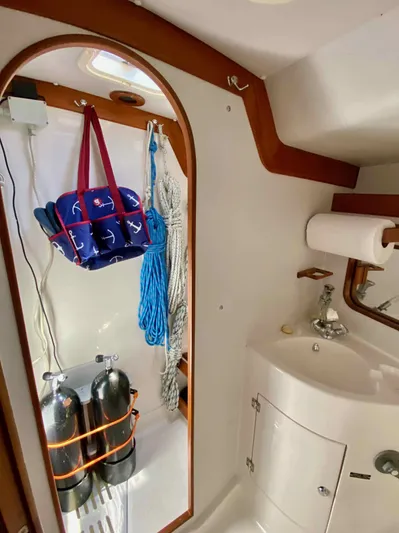

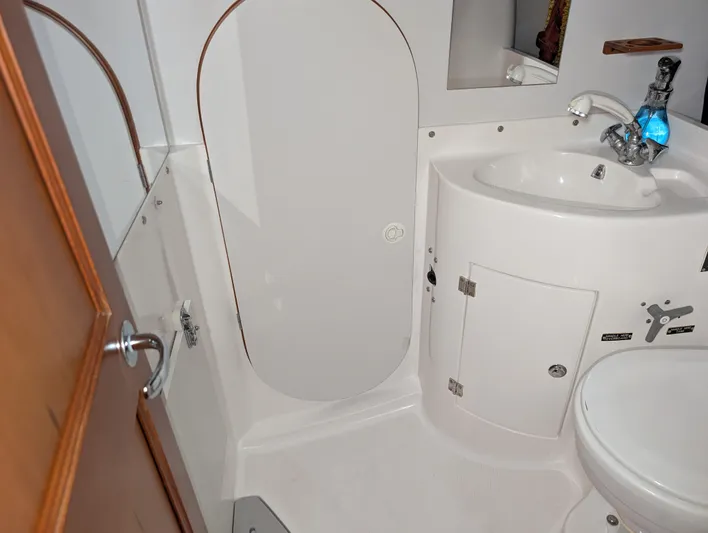

Aft head and shower with combined access via cherry paneled

door. Wet hanging area outboard. The cabinet below, molded sink, mirror,

two teak grab rails, and a direct access door to the lazarette locker are

equipped with a fore and aft divider

Teak companion way steps, cold molded with angled ends and

Treadmaster non-skid for safe entrance and exit

Cherry overhead grab rails in the main cabin

All drawers and cabinets with polished positive-latch push button

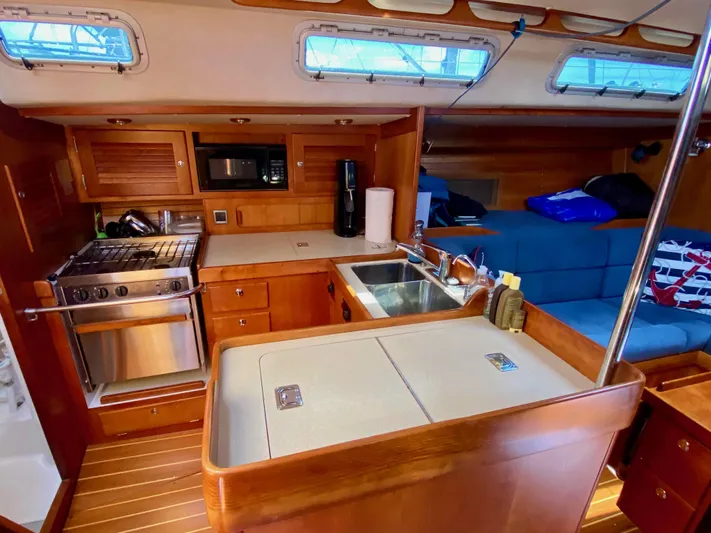

Wheat matrix fountainhead color for counter tops with cold-molded varnished and tapered cherry fiddles

Scandvik polished 8" deep stainless steel sink recessed below fountainhead on forward island with deluxe hot/cold

water pressure

Water goosneck faucet and manual fresh water faucet with whale foot pump

Storage areas in louvered doors below sink for cleaning supplies and a garbage pail with flip lid access

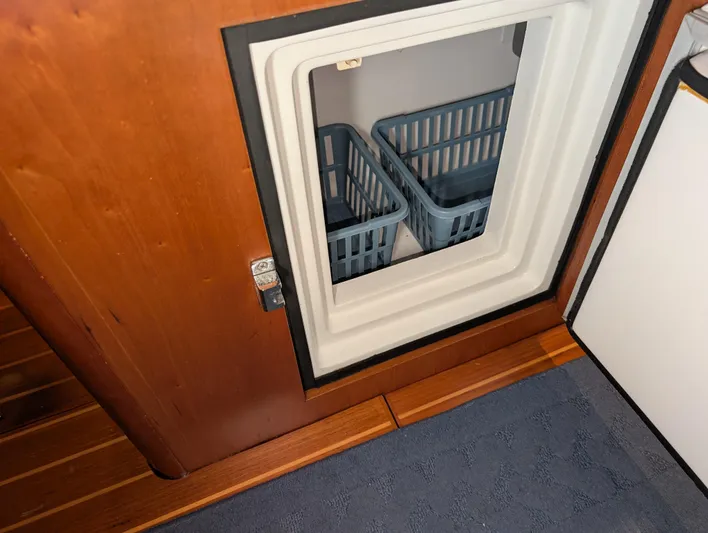

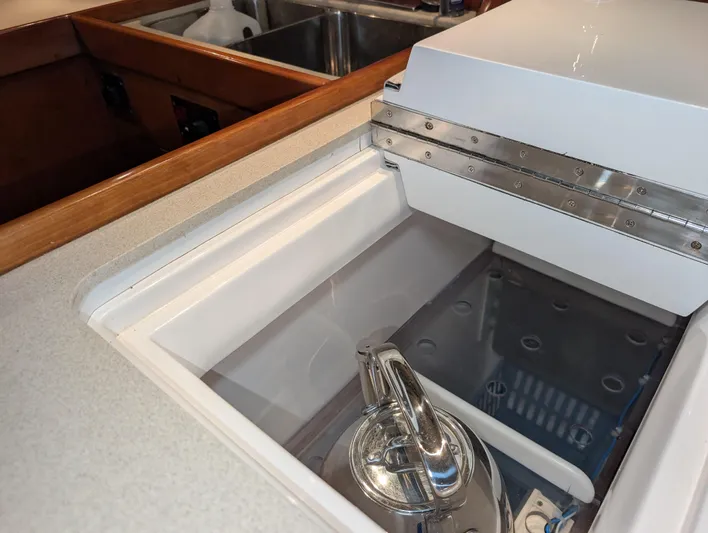

6.5 cu Deluxe icebox located on center island. Features include a molded GRP box insulated with Glacier Bay Ultra R

vacuum insulation panels and foam top. Organizing shelves and interior lighting included

3.5 cu Ice box, convertible to freezer, located outboard of sink. Featuring a molded GRP box with 3-1/2" foam

insulation and mounting space for refrigerator cold plates

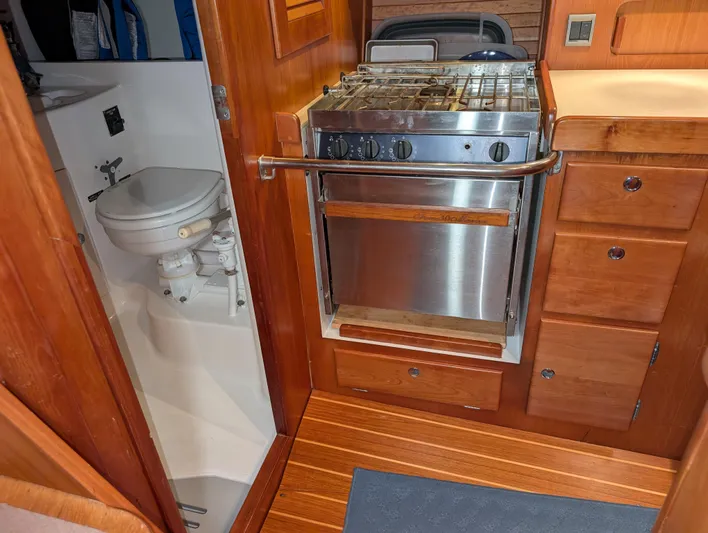

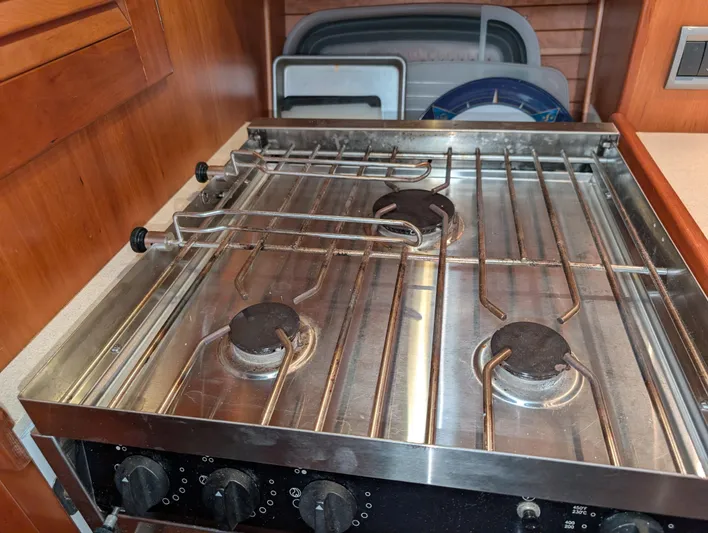

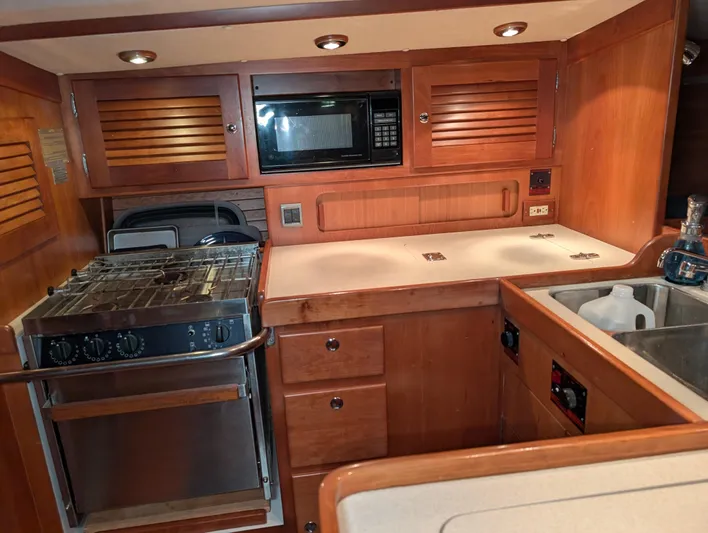

Three-burner force 10 propane stove/broiler/oven with thermostat control, patented slide away oven door recess and stainless steel stove bar.

Additional storage foot locker below oven

Plate, bowl, cup, and glass storage compartment on bulkhead aft of stove

Top access dry good storage compartment below countertop directly outboard of sink

Three large cabinets are mounted outboard and covered by three louvered cherry doors. Aft two cabinets installed with

mid-height shelves

Dual slider cabinet, bin storage, and AC outlet mounted below the cabinets

Flatware, utensil drawer, and utility cabinet with mid-height shelf and louvered door under outboard counter. sink-top

cutting board stainless steel grab post on forward inboard galley corner

Hot and cold pressure water system with 12-gallon hot water tank

Service to two heads

Forward shower, galley, and swim platform shower

Self-priming direct sump pumps for showers draining into seacocks

Automatic bilge pump with float switch and dedicated panel on nav station wired directly to DC system

120 Gallons total water capacity in two custom molded tanks, complete with baffles, inspection ports, and secured in place below main cabin settee berths

Raritan PH-2 heads with holding tanks

Overboard "y"- valve offshore discharge and holding tank pump out systems

Two manually operated bilge pumps, one mounted in the cockpit and another in the aft head with a hose to reach the bilge

(ORC category 2)

One group 40 (210 amp) and two group 31(105 amp) deep cycle batteries to serve the house

One Optima 1000 (1,100 CCA) battery for dedicated service to the engine. All batteries are Concorde's Lifeline AGM

sealed, absorbed glass mat type series

ProMariner ProMatic 30-3 battery charger

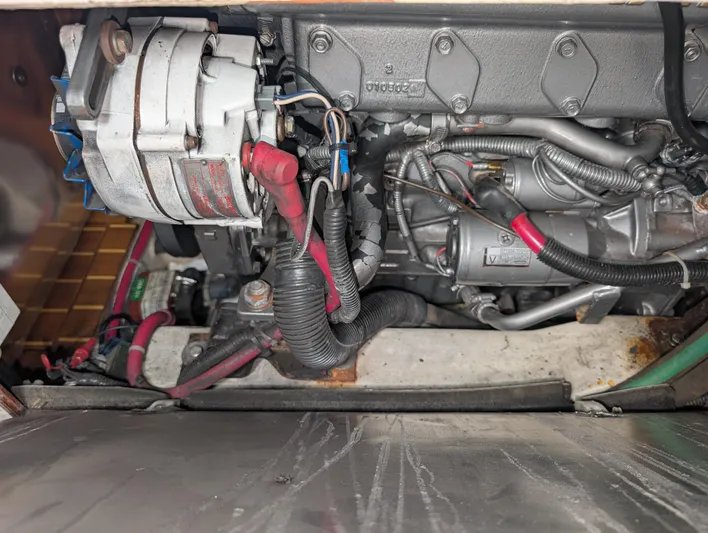

Balmar 91-150 alternator and max charge external regulator with temperature sensor for alternator

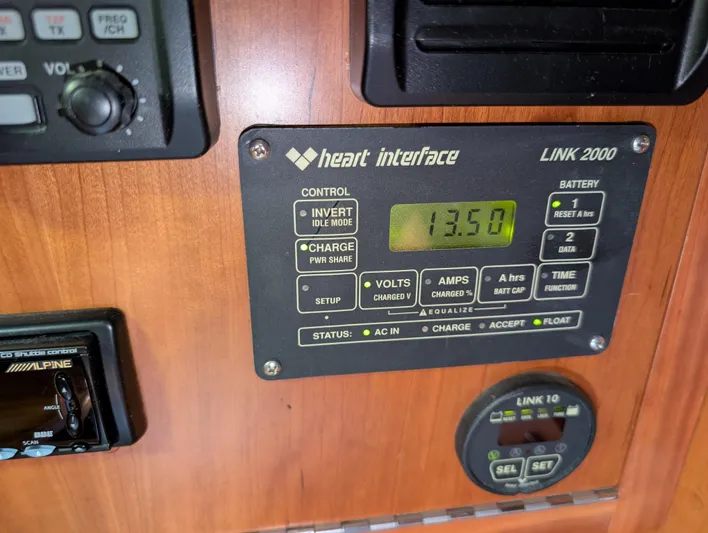

BattJMaxx automatic battery system with remote momentary parallel switch near cockpit engine panel

Master battery switch at nav station with 1,2, both, off for house batteries and single on/off switch for engine start

battery

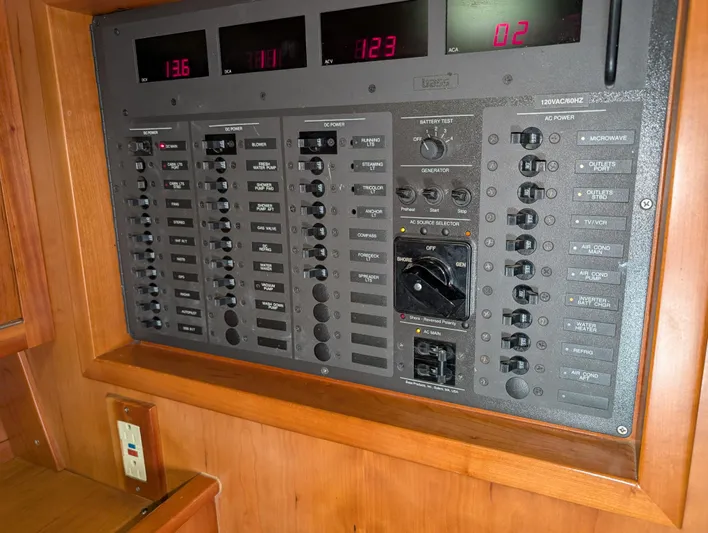

Deluxe bass AC/DC backlit electrical panel with digital condition meters, circuit breakers, accommodations for optional

generator installation and air conditioning system

Panel accommodations 33 DC breakers(24 occupied with two spare standard) and 11 AC breakers (9 standard)

navigation, steaming/foredeck, anchor, and tri-color masthead lights

50 Amp 110VAC shore power system with 6 outlets, 50ft shore power cord, and guest galvanic isolator

Bonding system to meet ABYC project E-1

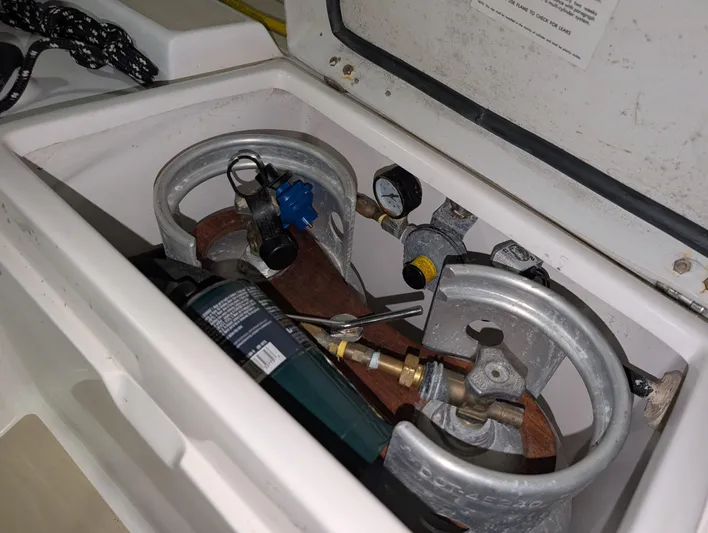

Propane solenoid switch panel on galley

Ten swiveling stainless steel halogen reading lamps, halogen overhead lights inthe  main cabin, flexible arm lamp at

navigation station, two fluorescent lights, one in each head

Four Hella variable speed cabin fans over berths

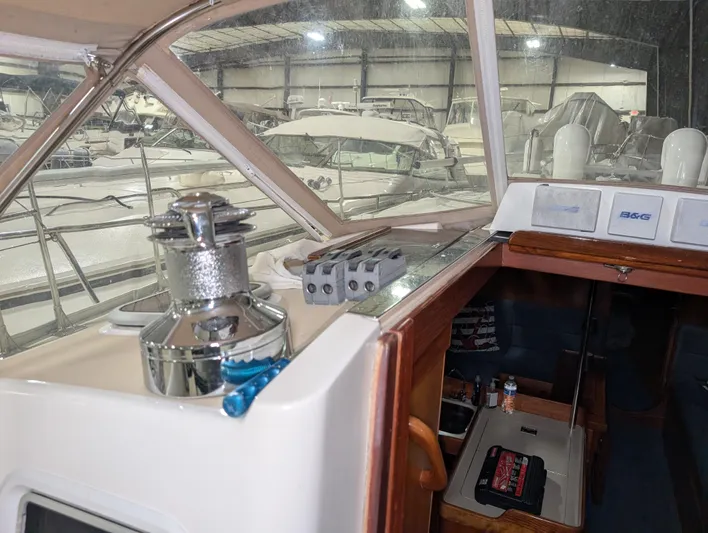

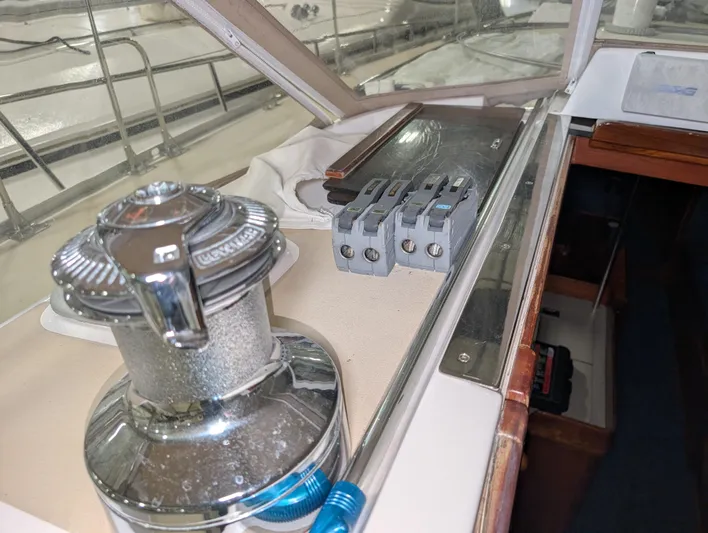

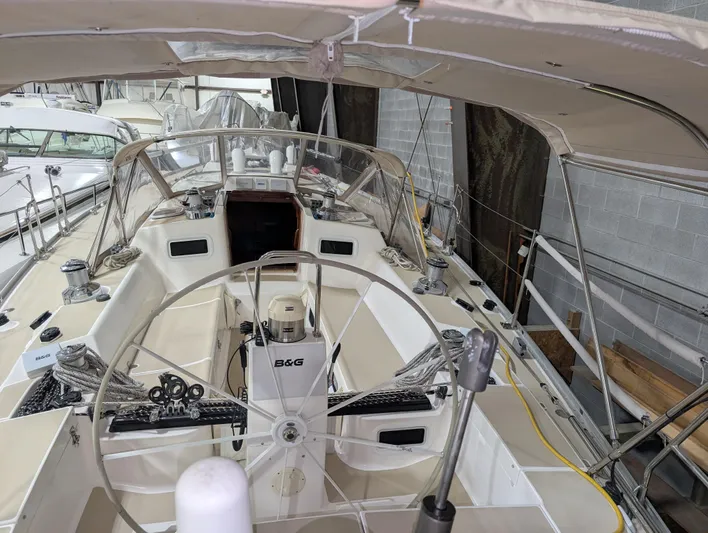

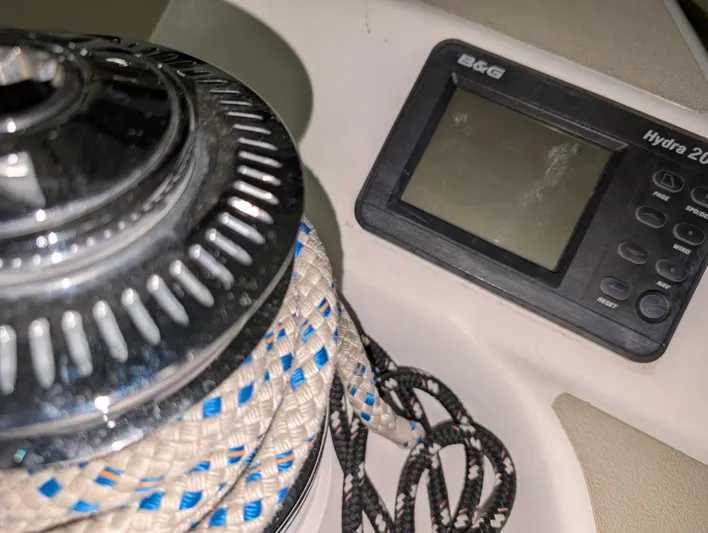

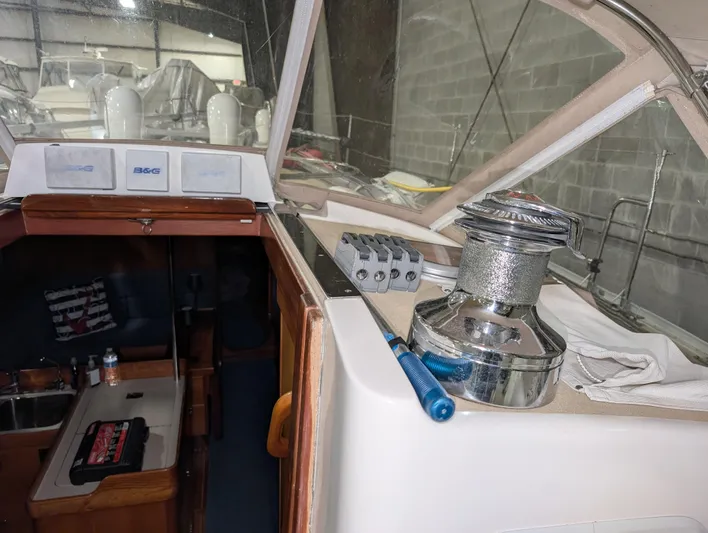

Two Lewmar 64CCST self-tailing 2-speed all chrome primary winches with gear ratio of 3.1:1in 1st gear and power

ratio of 64:1 in 2nd gear located in recessed bases on cockpit coamings

Two Lewmar 54CCST self-tailing 2 speed all chrome halyard/reef/spinnaker secondary winches on cabin trunk

Two Lewmar 48CCST self-tailing all chrome mainsheet winches outboard of traveler in recessed bases

Three lock-in Harken speed grip 10" winch handles

Two 8"speed-grip handles for mainsheet

Four cockpit-mounted PVC winch handle holders

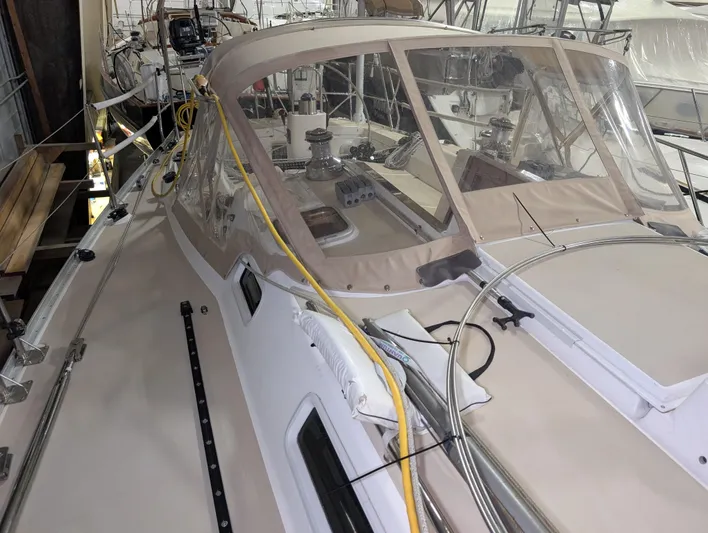

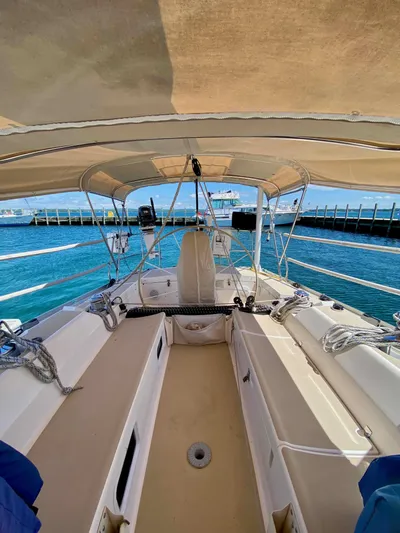

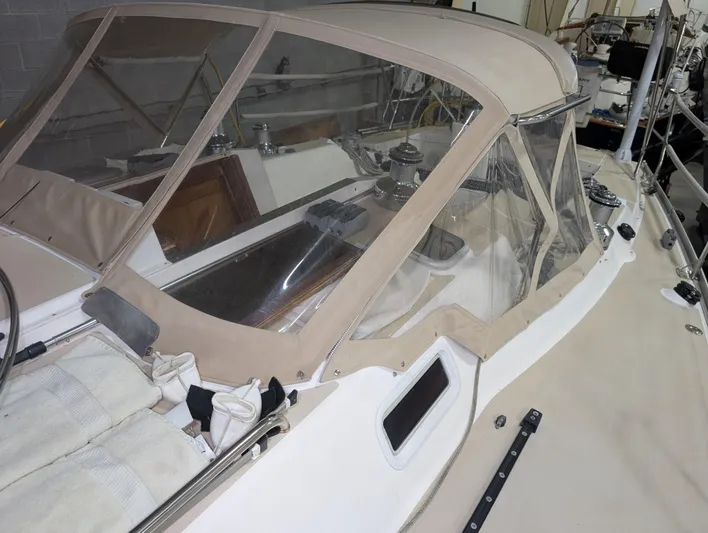

Thurston cockpit dodger with roll-up forward window, removable side curtains, stanchion supports and stainless steel

grab bar on the aft edge

Thurston deluxe helmsman bimini with stanchion supports and viewing window

Five white acrylic cockpit cushions for the helmsman and the cockpit seat

Two Harken black magic 3010 (100mm) foot blocks for genoa sheets when using dodger, mounted on cockpit

coamings aft of primary winches

Two Harken black magic 3006 (75mm) double foot blocks with lock-off outboard of the primaries for spinnaker sheets

and checkstays

Two Harken black magic 3005 (75mm) mainsheet foot blocks with lock-offs mounted on angled pads at winches

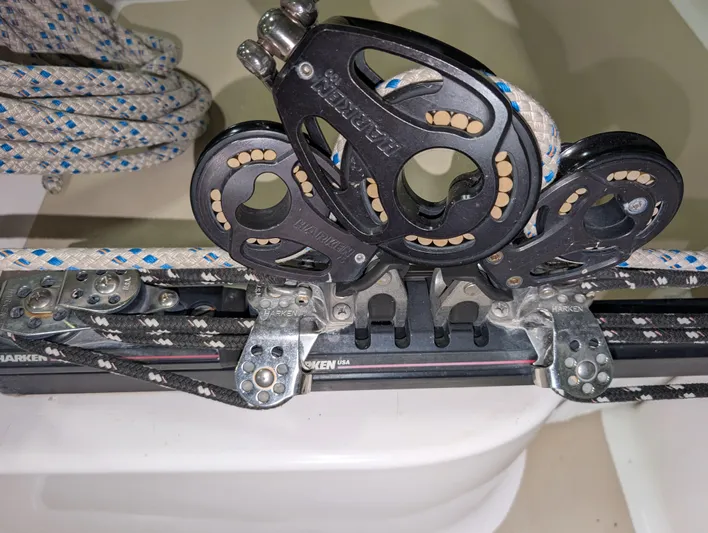

2:1 Mainsheet system consisting of two Hraken 1969 AirBlocks (75mm) mounted in traveler and one 3007 AirBlock

(100mm) attached to boom bale Harken 560-S big boat mainsheet traveler track with Harken 1939/1935 car with control blocks for 6:1 purchase led

to both sides of the cockpit to 1893 track control ends through side-mounted 222 blocks to 150 cam cleats

Two 168 swivel blocks to adjust the traveler from the forward or aft side of the track

Single rope clutch mounted in cockpit for head sail furling

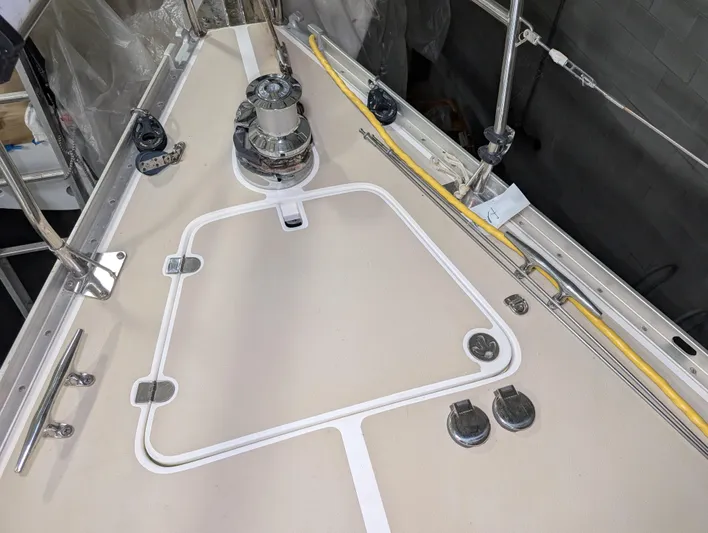

Lewmar Concept 2 anchor windlass system with #203 ropelchain gypsy, manual override, 1S0 amp breaker in nav

station, and held control unit mounted in forward deck anchor locker, gypsy requires 3/8" ACCO G40 or G80 chain

and S/8" braided rope

Custom 316 stainless steel mast collar with 10 bales for halyard and reef lines and forward halyard bar

Nine Schaefer 08-0S stainless steel halyard and reef blocks with investment cast shackles

Four Lewmar Superlock double rope clutches, mounted in pairs forward of each secondary winch

Two Harken 1969 (75mm) AirBlocks shackled to U-bolts at transom corners for mainsail checkstays

Two Harken 1969 (75mm) AirBlocks shackled to U-bolts aft on toerail for spinnaker sheets

Two clear anodized aluminum "T" tracks (12'X1.25") for jib/genoa leads. Additional 3'X1.25" track mounted outboard

of 100% jib position for outboard leads

Two Schaefer 32-33UC screw-pin type jib/genoa lead blocks

Two Schaefer OS-99 snatch blocks for spinnaker twingslor outboard jib/genow leads

Two stainless steel t-track slider cars

Asymmetric spinnaker deck gear, including: two Harken 1969 75mm AirBlocks mounted on U bolts near stern pulpit

and one 1969 75mm AirBlock mounted on anchor roller

White molded flagstaff mounted in 316 SS deck edge close to center line with 4X6 American flag

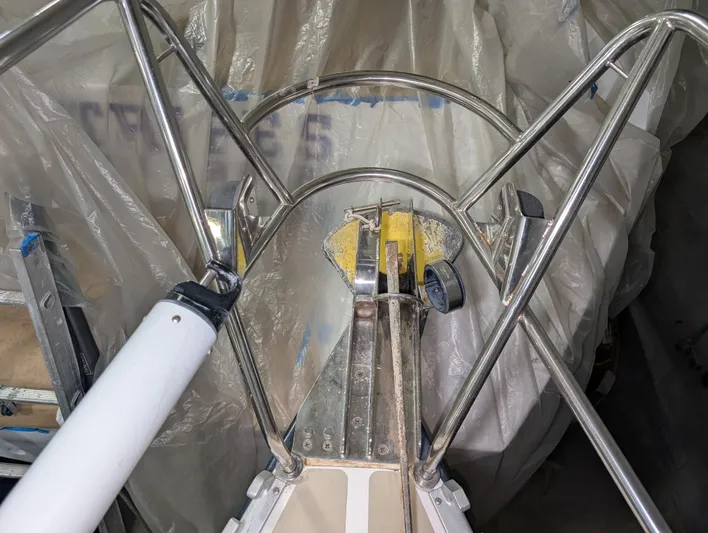

ORC bow pulpit of 316 SS with double rail offshore navigation lilghts and forward gate

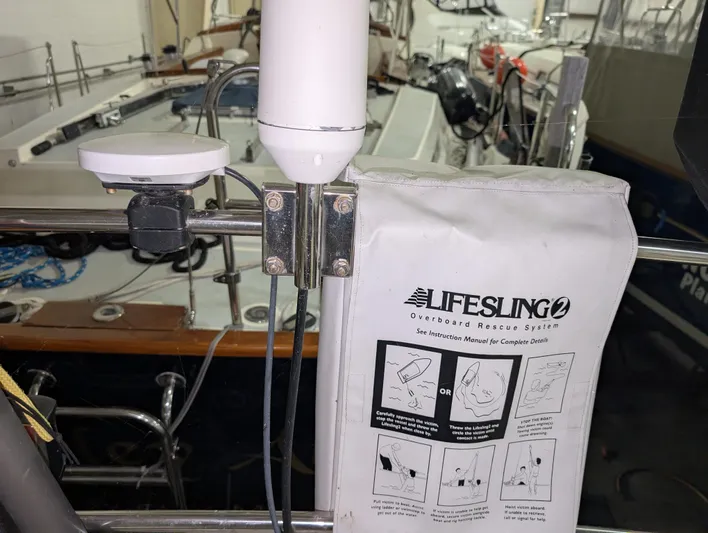

ORC stern rails of 316 SS with two rail split design including a stern boarding gate to starboard and stern light

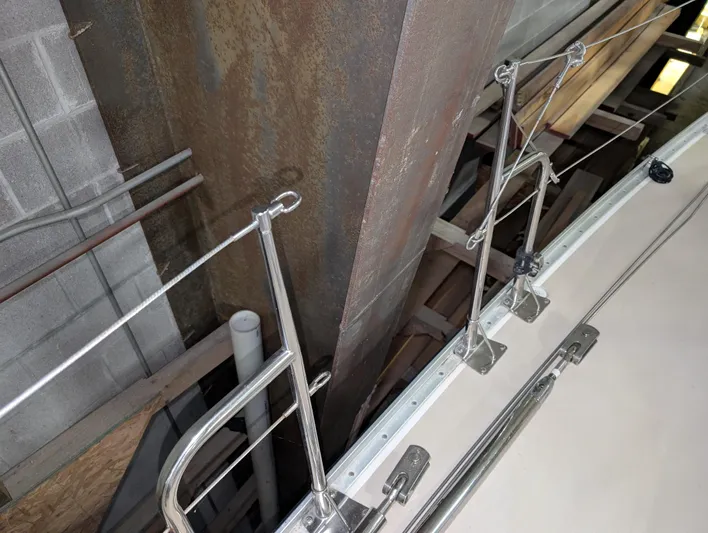

Tapered 316 SS life line stanchions with SS bases mounted to toe rail

Double life line height to meet ORC standards with boarding gates to P and S using Gibb hooks

Padded Sunbrella lifeline covers for each life line outboard of helmsmen's station color matched to bimini and dodger

Two 10" bow cleats, two 8" stern cleats, two 8" amidships cleats

Custom designed 316 SS bow roller

Seven Lewmar ocean series articulated, bronze tinted acrylic hatches: size 70 on foredeck, size 60 in main cabin, four

size 12 over forward cabin, aft cabin,shower, head and one size 10 in aft head

White framed Bomar opening ports with screen in cabin trunk and in cockpit walls for aft quarter cabin and head

Acrylic companionway hatch and two-part acrylic offshore drop boards with inside/outside opening, lockabel hasp

Four 12X20 and two 12X24 poly mesh line bags one foredeck double lined bag

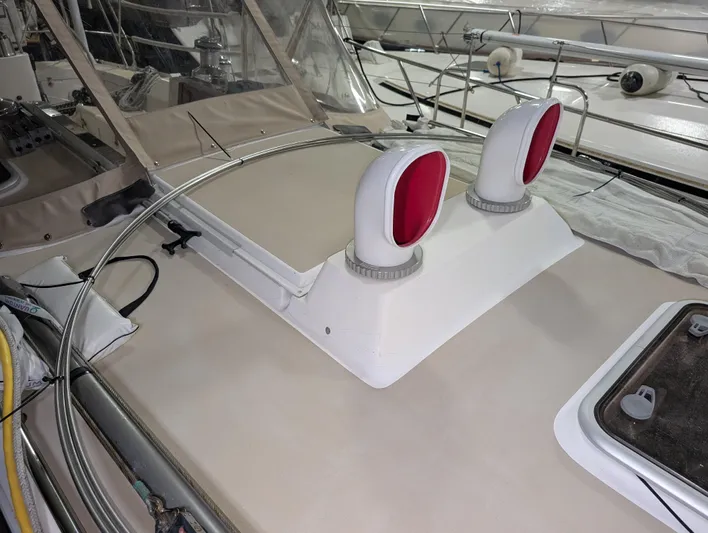

Four vetus 4" dorade cowl ventilators to service forward cabin, head and main cabin

Removable stainless guards for forward dorades

316 SS swim ladder with gray PVC treads mounted on swim platform. SS PVC tread mounted on transom

Hall spars carbon fiber mast of pre-peg carbon fiber autocalved at 80PSI at 250 deg F

Mast includes double airfoil carbon spreaders, carbon goosneck, Awlgrip off-white finish, painted black bands, wire

runs in conduit, hall/antal main sail J rack with loader and end fittings to accommodate sail maker provided Antal

mainsail sliders and or boltrope

Also included with the mast are: Spartite mast wedge material, offshore tricolor/anchor light, bow and deck light with

SS guard and J lag halyard cheek block at masthead and cleat at deck

Hall spars boom of 6061-T6 aluminum with off-white Awlgrip finish, welded goosneck fitting, lug for OuikVang internal

12:1 mainsail out haul with external cleat, bale for mainsheet block, and painted bands. Outboard end to

accommodate single line reef to starboard and second clew reef to port

Hall "J" length carbon fiber whisker pole with 2 bridles and trip line, short track on from of mast and two deck

mounted retaining clips

Navtec continuous rod rigging and N690 style open body turn buckle with headstay- 17 pre-assembled furling

system, back stay-17, uppers-17, intermediates-12, lowers-22

Harken MKII unit size furrling system with airfoil performance extrusion, corrosion-proof spool and drum, tapered

torque tube, AirSwivle for reduced weight aloft, cat aluminum hardcote anodized chafe guard, and all black low stretch

New England adjuster line

Hall rigging package includes: two Technora jib halyards and one Spectra spinnaker halyard, each with Tylaska T-12

SS shackles and Flemish eye terminations XLS-900 Spectra spinnaker sheets, one XLS Dacron spinnaker tack line, single 3/8" crystalyne checkstays that

can be clipped forward when not in use, burgee halyard of white 5/32" Dacron cord

Three reef lines are also included; tack reef and clew reef #1 together are one continuous reef line to starboard

Tack reef #2 doubles as Cunningham to port

Clew reed #2 included with its own dedicated hardware

2:1 whisker pole foreguy with Schaefer 504-09 block with snap shackle

Sailtech-17 long integral hydraulic backstay adjuster

Hall d-30 aluminum Ouk-Vang with Harken 30:1 cascading adjuster tackle and powerful stainless return spring to lift

boom in light air and support boom with sail furled, eliminating the need for a topping lift

Custom designed 316 SS chainplates, stemhead, and backstay tang

Seafrost mechanical refrigerator

Additional plates and controls for freezer supplementary 110VAC shore power assist

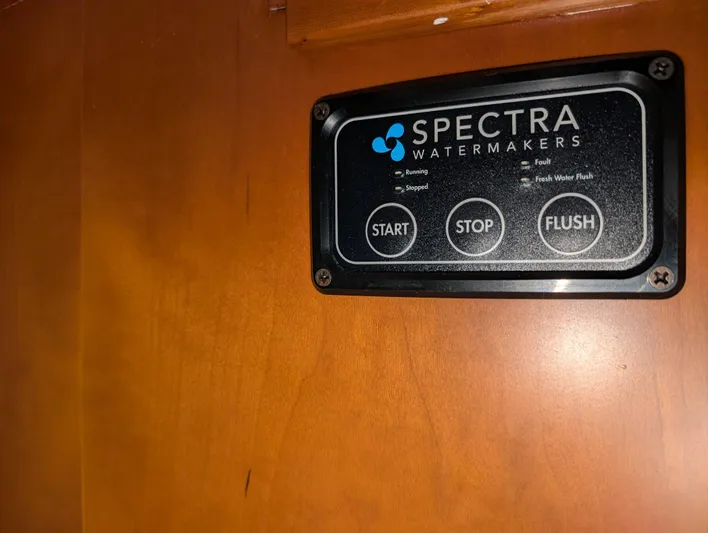

Spectra Catalina 360R Water maker with connections to both water tanks

Supplementary Power Package

An additional 210 amp lifeline AGM battery for a total of 630 amps for house banks (location is instead of bottom of nav

station drawer)

Heart Freedom 25 inverter/ charger (instead of standard ProMariner 30-3 charger)

Heart echo charger (to service engine start battery through the AC system)

Heart Link 2000 Battery Monitor ( for two house battery banks)

Heart link 10 battery monitor (for engine battery)

Supplementary Plumbing Package

Vaccuflush forward head

Dockside water inlet

Seagull water purifier in the galley

Cruising Accessory Package

Cockpit table

Companionway screens

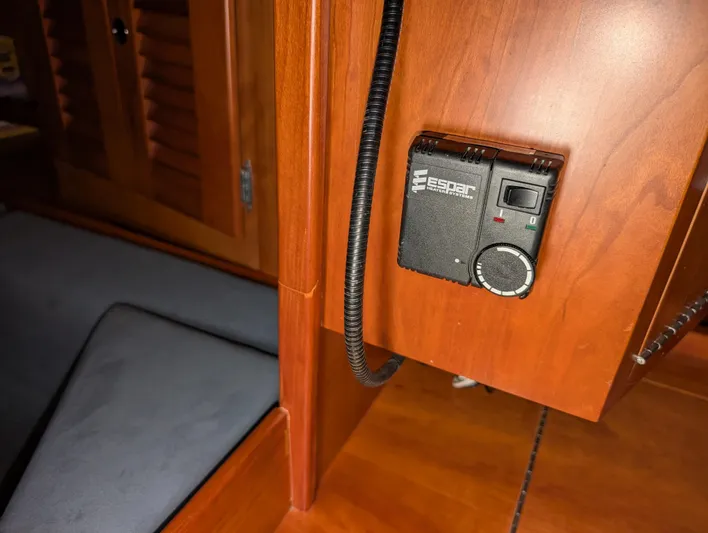

Espar D5LC heating system with ducting into two sleeping cabins and main cabin

Lewmar 64CEST two-speed electric primary winches

Ultrasuede or Ultraleather cover cushions in main cabin (instead of standard)

Edson radar mast through-deck and under-deck mounting platform (for 3.5" diameter mast)

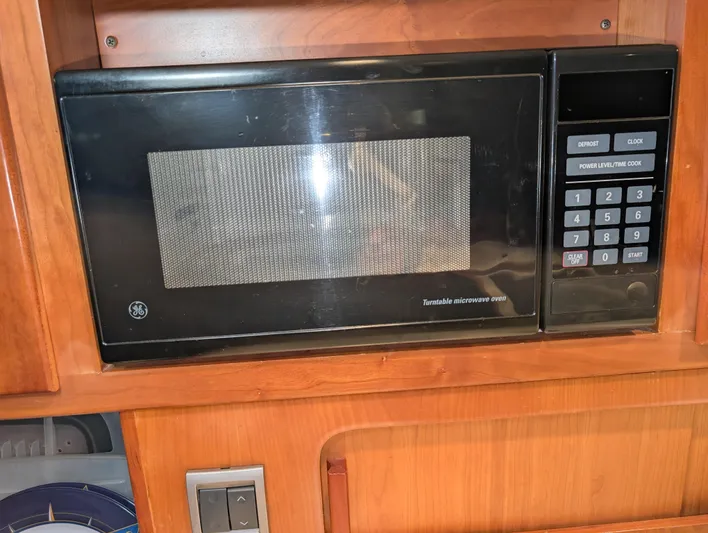

Microwave oven in galley

Sea water wash down in the anchor locker

Harken adjustable genoa leads

ESPAR diesel cabin heater

Lewmar 64 CEST primary winches

Bolstered ultra suede cushions

Memory foam in the master cabin

Radar mast through deck

Microwave in galley

Harken adjustable genoa car leads

Rubrail over cover stripe

28" high pulpits and stanchions instead of standard height

Sea water wash down pump with faucet in anchor locker

Hall spars Windex

Hall spars no strike lighting dissipater

Hall spars GAM antenna and Hall spars painted carbon fiber whisker pole

Hall Spar whisker pole track and car

Hall spars 3rd folding mast step

Hall spars Dutchman mast sheave

Hall spars Dutchman halyard

Bamar Top Down Furler with Selden Carbon fiber bowsprit

Flag halyard and hardware

SS turnbuckle cover (6)

Cockpit full glass and screen enclosure

Dodger to bimini insert

Helm pedestal cover

SS grab rail along aft edge of dodger

SS grab rails port and starboard on dodger sides

SS dodger and bimini supports instead of straps

SS bimini hand rails port and starboard

Power engine oil pump-out system

Max prop 3-blade feathering propeller

Dripless shaft seal

Memory foam mattress in forward cabin instead of standard

Second custom V-berth insert for additional standing room

Second bottom refrigerator door

Alpine stereo AM/FM with Bluetooth, cabin speakers, and Bose marine cockpit speakers

Weems and Plath brass ship clock

Weems and Plath brass barometer

Variable speed cabin fans fore and aft cabins and the main salon

Awlgrip hull flag blue with red boot stripes

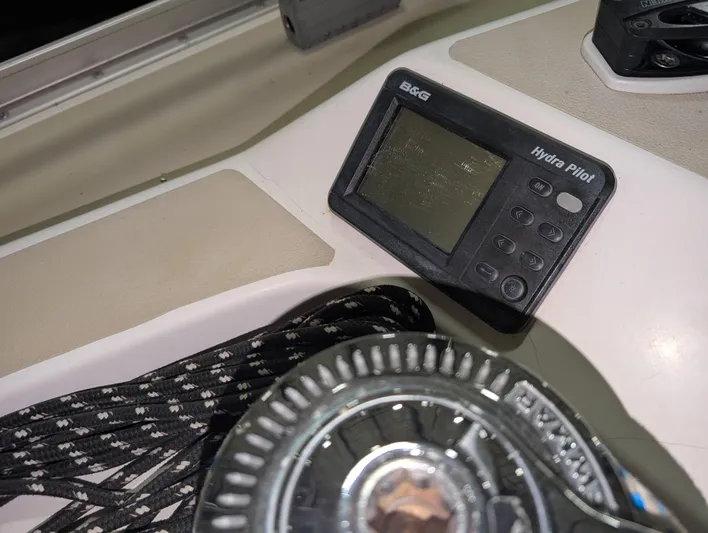

Navigator pack, Hydra 2000 type 2

Standard full function display pack, Hydra 2000

20/20 Display pack, Hydra with green backlight

20/20 Display pack, Hydra with red backlight

depth sensor with bronze flush mount hull housing

Speed sensor with bronze flush mount hull housing

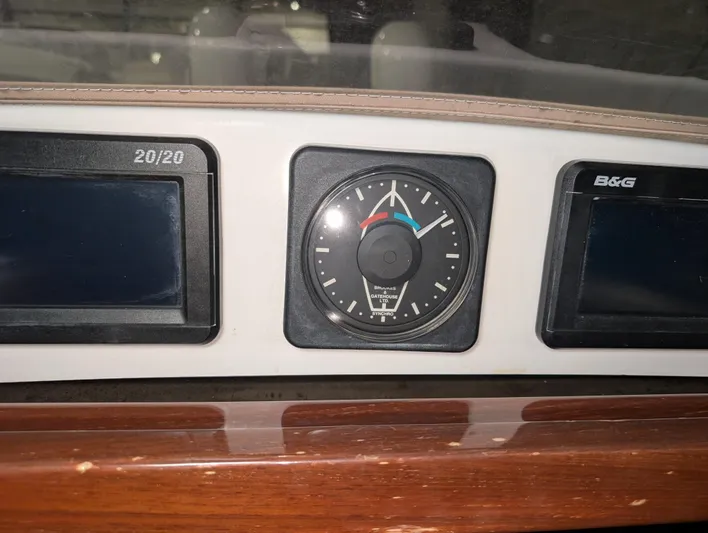

Analog display pack, apparent wind angle, 360 degree with cable

linear rudder position sensor pack with installation kit for type 2 ram

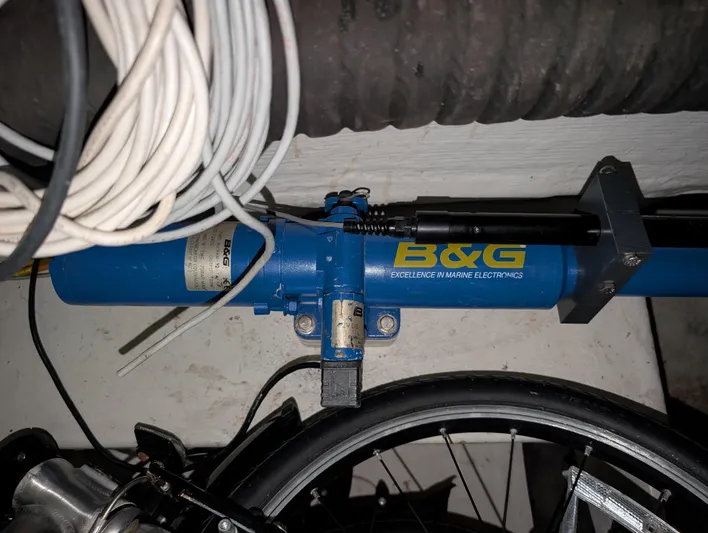

Pilot ram drive pack, type 2 with cables (12Vdc, adjustable rose joint)

Cable, 213 mast with bkt, 80ft

Pin, quick release, pilot

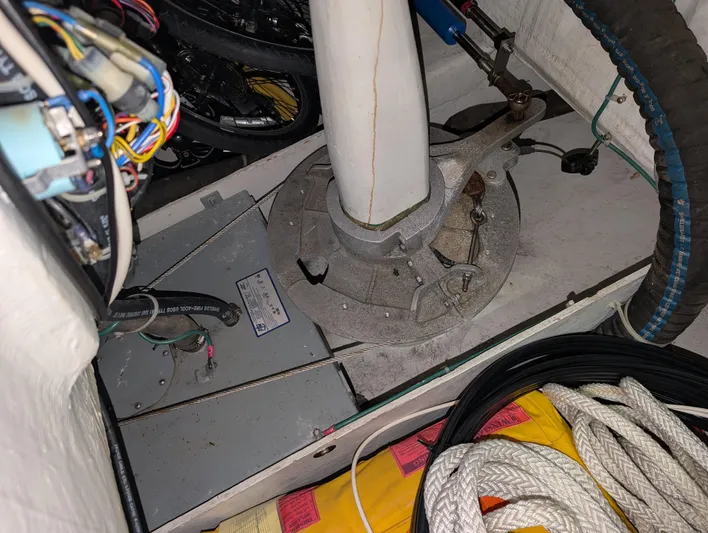

Edson J46 tiller arm

Edson 3-1/2" deluxe mast 144"

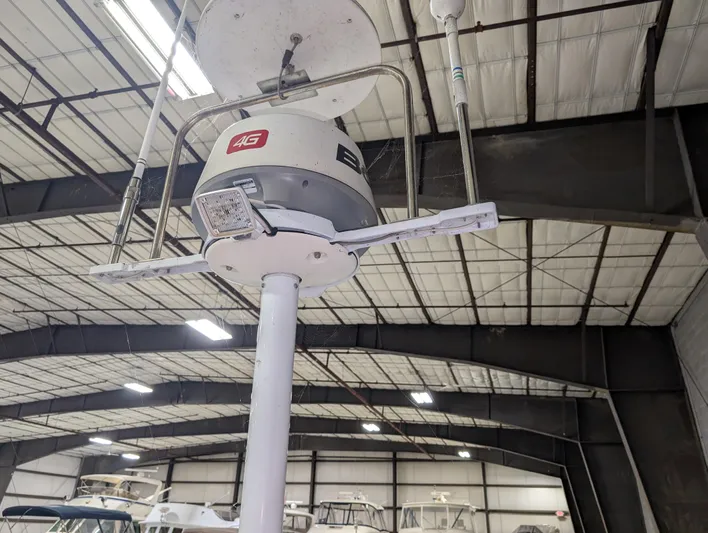

B&G 4G Radar

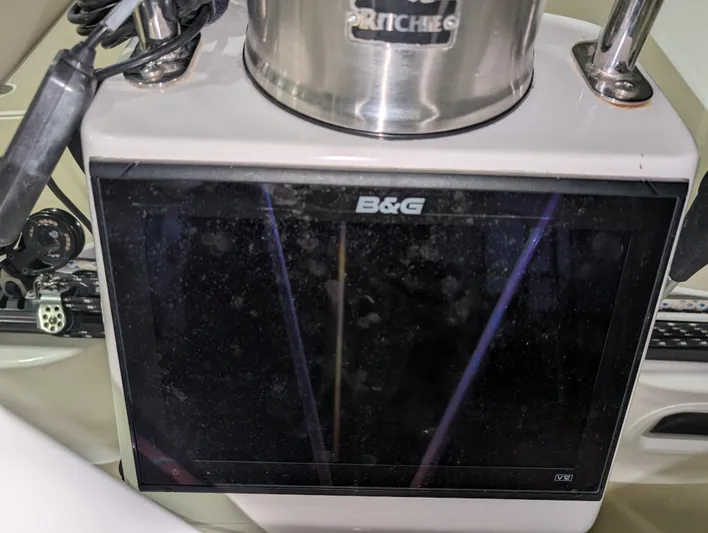

B&G 12” Vulcan Chart plotter

B&G AIS NIAS-500

Edson adapter

Edson radar platform deluxe

Edson antenna bracket-starboard and port

Edson 28" antenna extension (GPS antenna mount)

Shakespeare TV antenna 2030-G

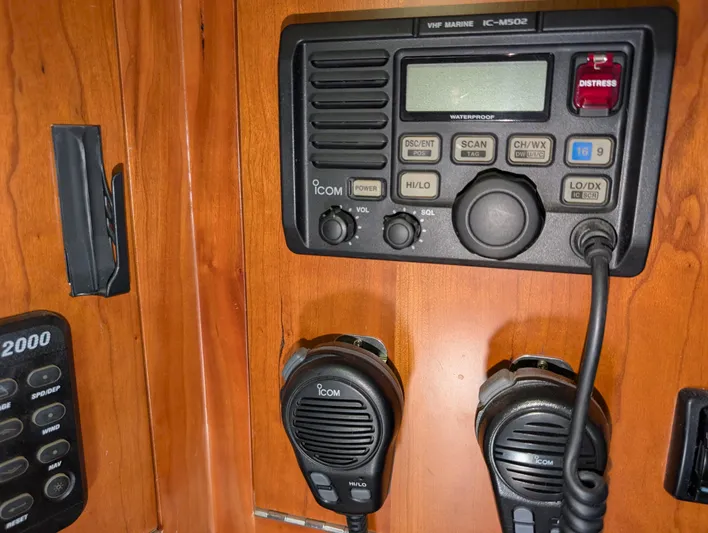

ICOM M502 VHF with optional cockpit HM-127 remote

12Volt pedestal outlet

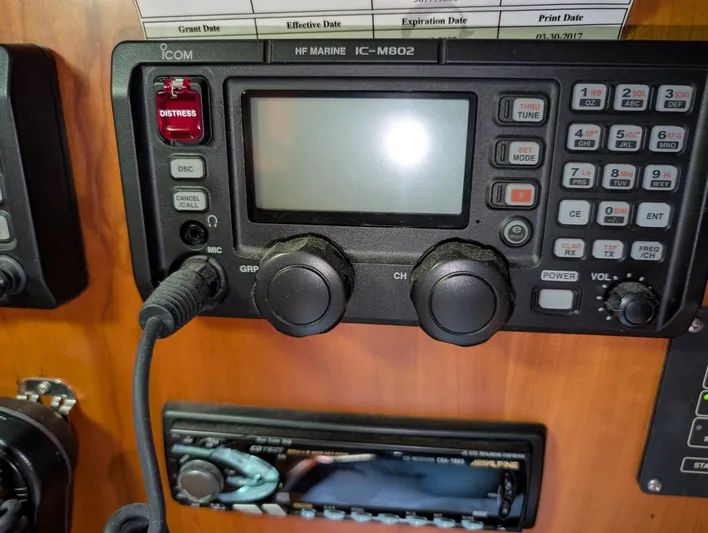

iCom M802 SSB radio

Iridium GO Sat phone

YB tracker

Telephone and TV cable cockpit to nav station

Four regular PFD

Six throwable flotation cushions

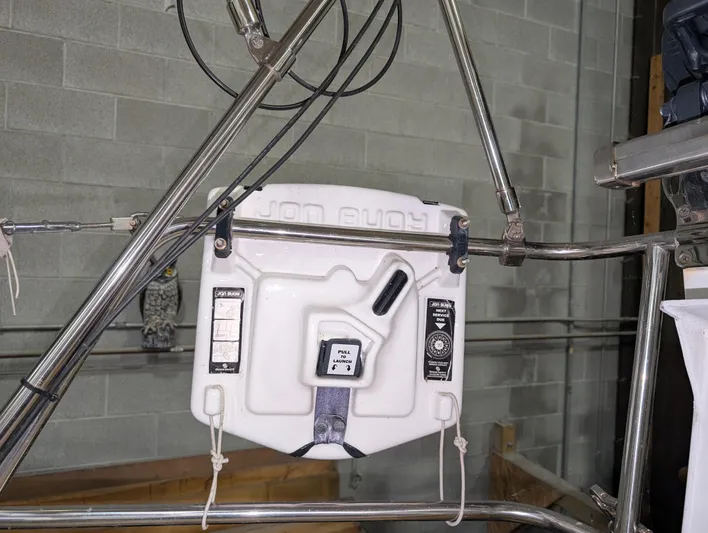

JonBouy MOB Recovery module

ATN Storm sail

Fiorentino storm drogue

Para-Tech Parachute sea anchor

Two jack lines, 45ft port and starboard

two radar reflectors

One Bosun Chair

One throwable life sling

One deployable auto-inflatable JonBuoy MOB Recovery Module

4 Fire extinguishers- various types

One submersible handheld HX460S VHF marine transceiver with barometer sensor

One Throwable Rescue line bag

One RIB Zodiac inflatable dinghy with poly pro towing line, bridal, and electric pump

1 15 HP Yamaha dinghy motor and aft Edison pulpit motor mount

One Winslow six-person super-light offshore lift raft with SEP packed survival supplies, inflatable insulated double floor, heavy-duty tripod arch tubes with canopy

One hand held a compass

Various rescue flares

Lake Michigan, Huron, and North Channel charts

Options for more, including St. Lawrence, East Coast, Bahamas, and Caribbean

One 44lb Spade anchor with swivel shackle, 100ft high test 3/8" chain and 250ft 5/8" rode

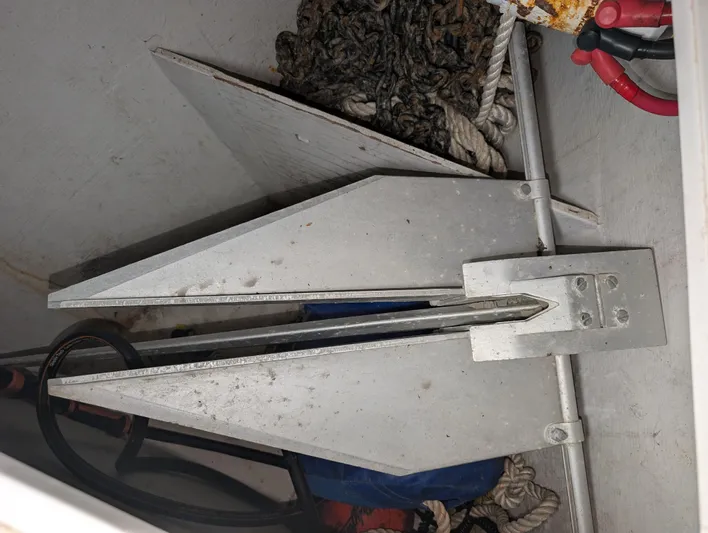

One fortress Fx-37 aluminum anchor with 15ft 5/16" chain and 200ft 5/8" rode in deployable anchor bag

250ft 5/8" line for on-shore anchoring

Dock Lines and fenders

3 Aires inflatable fenders with covers

Two Taylor-made bumpers with blue covers

Multiple dock lines and chafe guards

3 anchor snubbers

One 50ft 50 amp power cable

One 60ft 30 amp power cable

One 40ft 30 amp power cable

One adapter, 50 amp to 30 amp

Maintenance Equipment

One universal adjustable pole with a boat hook

Three fixed boat hooks

Two brush heads and curve ends

Two 50ft water hoses

(engine) batteries.

New Trinidad bottom paint 2025

Top sides buffed and polished 2025

12” B&G Vulcan chart plotter

B&G 4G Radar

Icom M802 SSB Radio

Iridium GO Sat Phone

YB Tracker

B&G AIS

Spectra Catalina 360R water maker

Bamar asymmetrical top-down furler  with Selden carbon fiber bowsprit

new halyards, sheets, and dock lines

All the dodger and Bimini canvas and the cover for the mainsail - Thurston Canvas Shop.

The wheel leather has just been rewrapped

Quantum replaced V-berth cushions with Tempur-Pedic type foam

15 HP Mercury dinghy outboard

RIB Zodiac Inflatable

Quantum Mainsail  2023

Starlink satellite internet

Solar Panels

Magma Infrared Gourmet BBQ grill

JonBouy MOB Recovery Module

New Dorades

ATN storm sail

Fiorentino storm drogue

Para-Tech parachute sea anchor

3 aires inflatable fenders

Water pump

Transom shower

Power cord

Foot windlass switches

Stern rail mount

Transom pad
