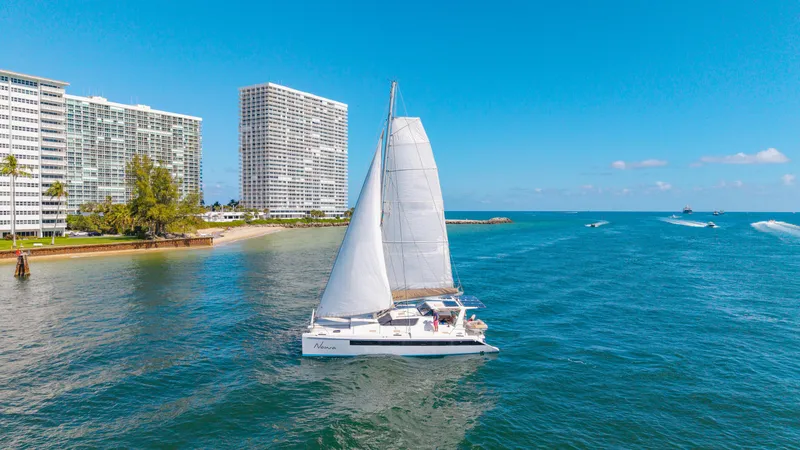

NAWA Boat for Sale

HULL

• New vertical bow profile
• Vinyl ester (Epoxy based resin) infused core cell foam sandwich
• E-glass stitched quadriaxial non-crimp fabric throughout construction
• All strong points are carbon fiber reinforced
• Aluminum fender rubbing strake with PVC inlay on hull/deck joint
• 4 Coats osmosis protection epoxy primer
• 2 Coats Awlgrip epoxy coatings spray system (Matterhorn White)
• 2 Coats Awlgrip epoxy coatings spray system (Navy Blue) waterline stripe
• Four pine fender boards with attached rope to protect rub rails when lifting

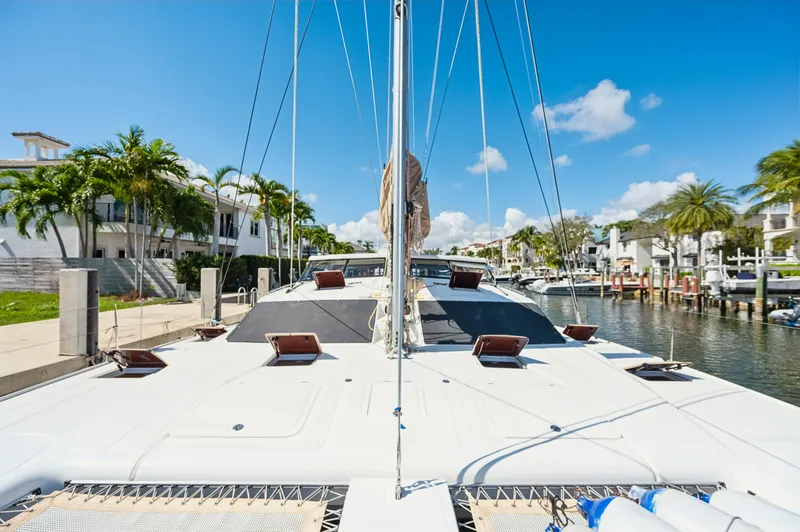

DECK

• Revised deck profile to allow for flush deck hatches
• Vacuum bagged - hand laid-up foam core, quadriaxial non crimp fabric
• ISO NPG gel coat, Vinyl ester resin throughout
• All strong points are carbon fiber reinforced
• GRP deck lockers
• GRP squared cockpit seats

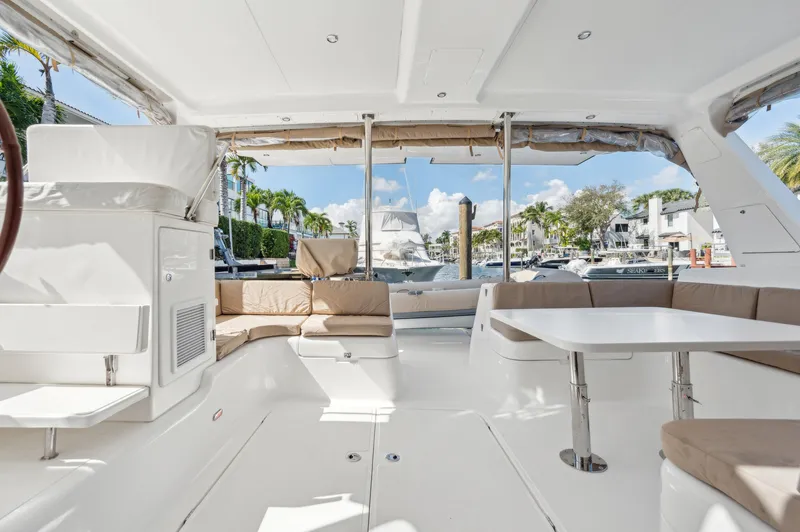

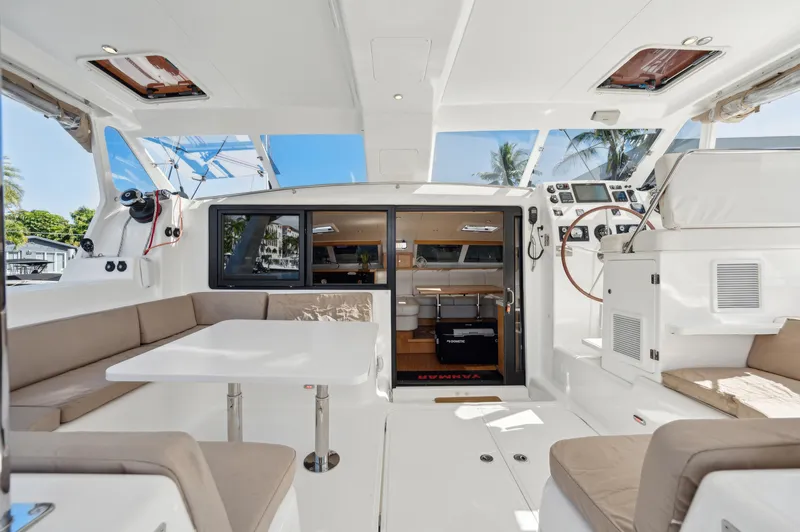

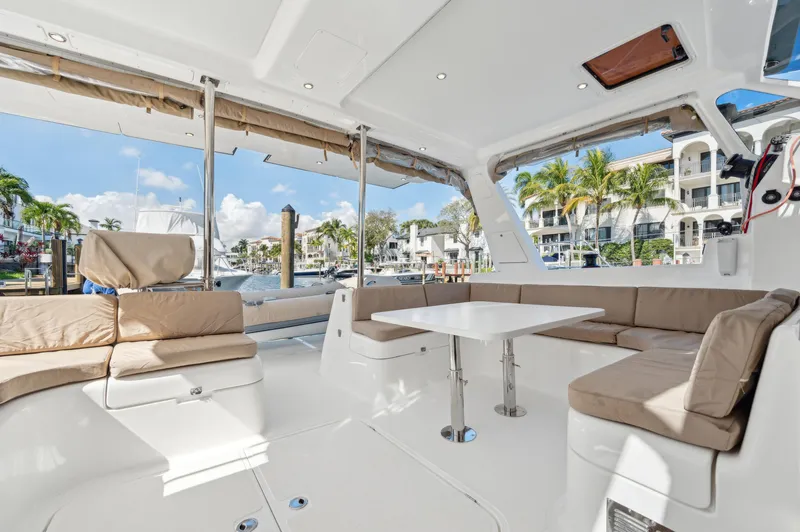

BIMINI HARDTOP, SCREEN & COCKPIT AREA

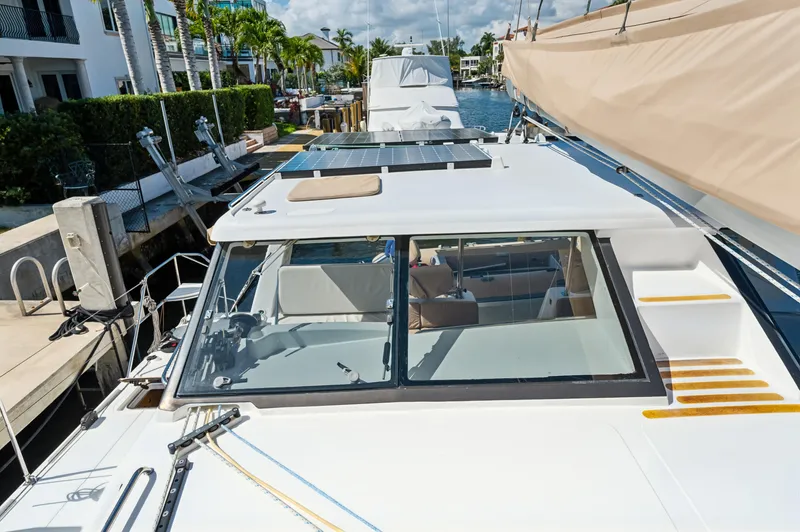

• Longer hardtop Bimini to host additional solar panels
• Solar panel guards for panel protection, plus stainless steel tubes
• Rain catchment system & Y-valves in Targa support arches
• Forward windows 2 x fixed windows & 2 x Opening window (The 2 outer windows of the 4)
• 2 x size 60 hatches Port & Starboard in Bimini roof to view sails & for additional ventilation
• Stainless steel Vetus windscreen wiper system on the starboard side hard top window at the helm

RUDDERS, TILLER ARMS & BAR

• Balanced spade rudders reinforced to take drying out/storage
• Anodized aluminum tiller arms
• Matching Ertalyte rudder bearings (Inner size 72mm) - (Outer size top 95mm - bottom 100mm)
• Stainless steel emergency tiller arm with stainless steel access hatch, removable with winch handle

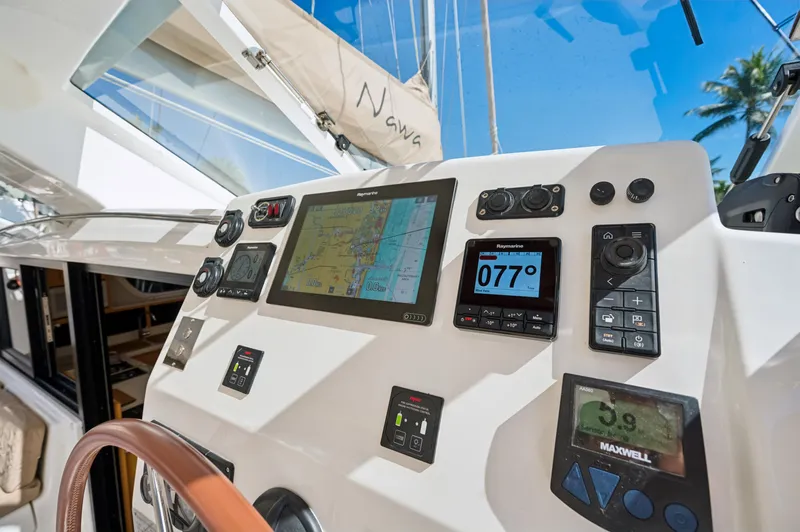

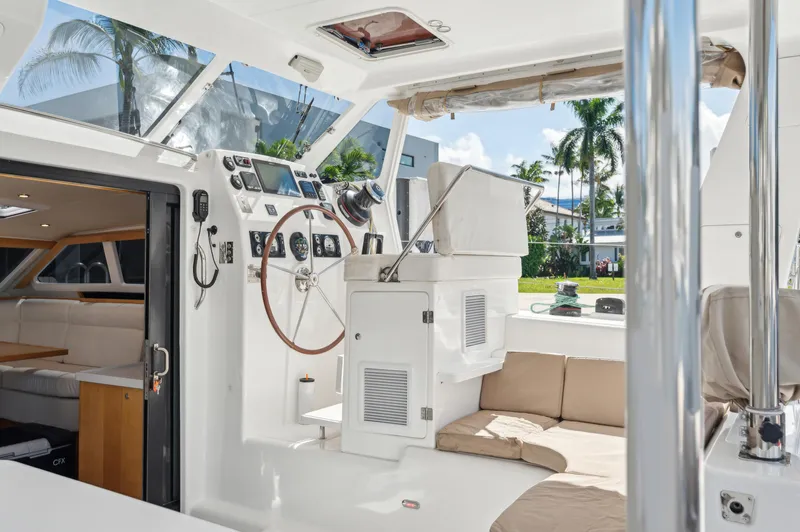

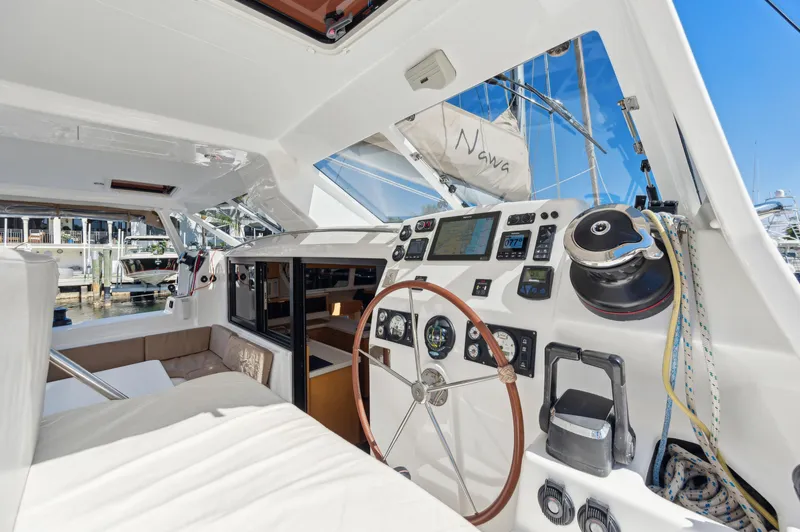

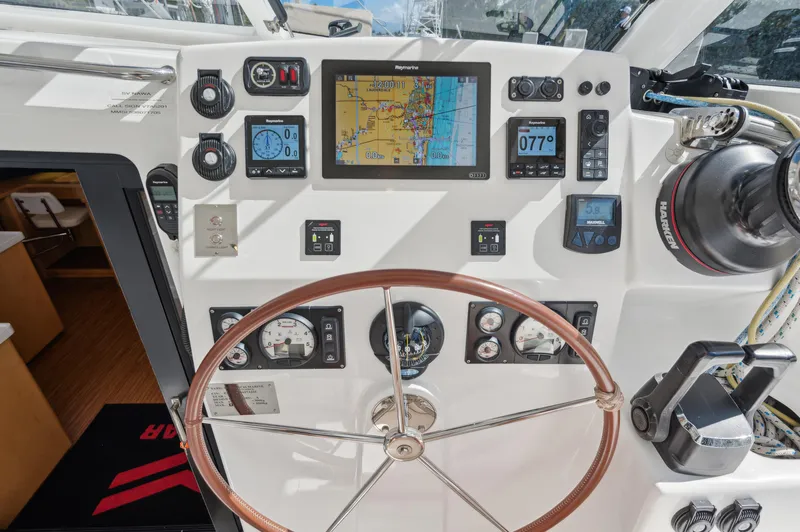

STEERING

• Lecomble & Schmitt hydraulic steering system
• Destroyer type 32" - 5 spoke - Stainless steel leather covered steering wheel
• 1 X Hydraulic bulkhead mount steering Smart pump with 2 x Lecomble & Schmitt rams

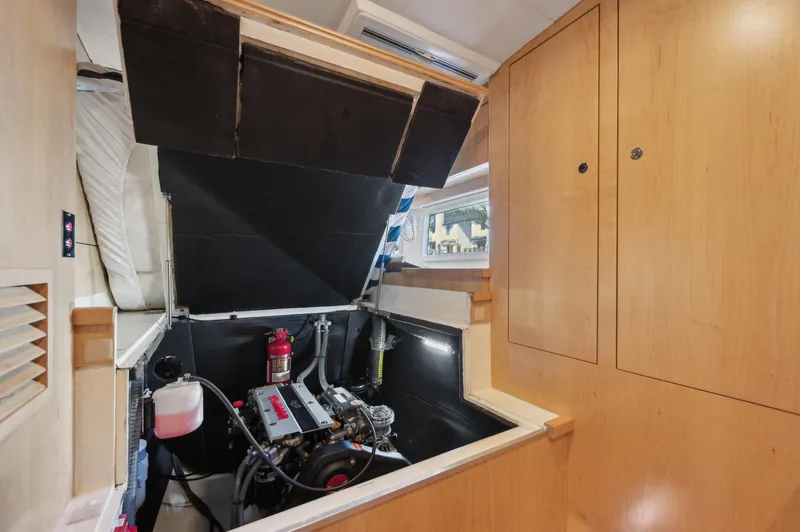

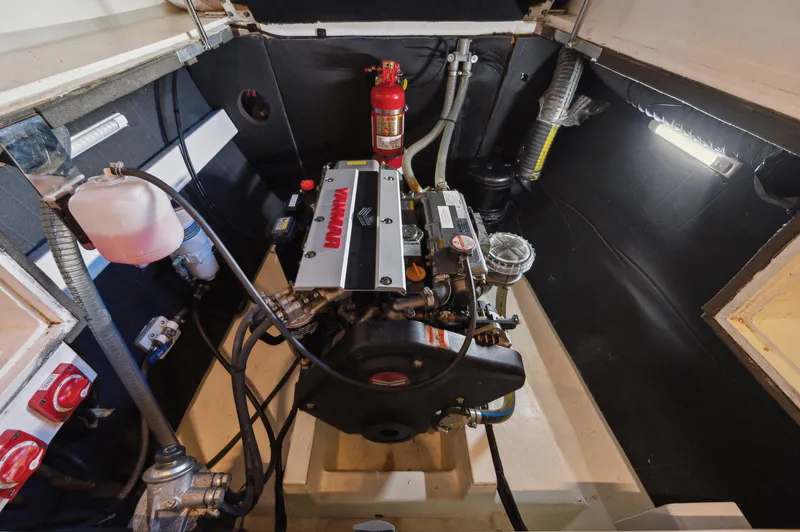

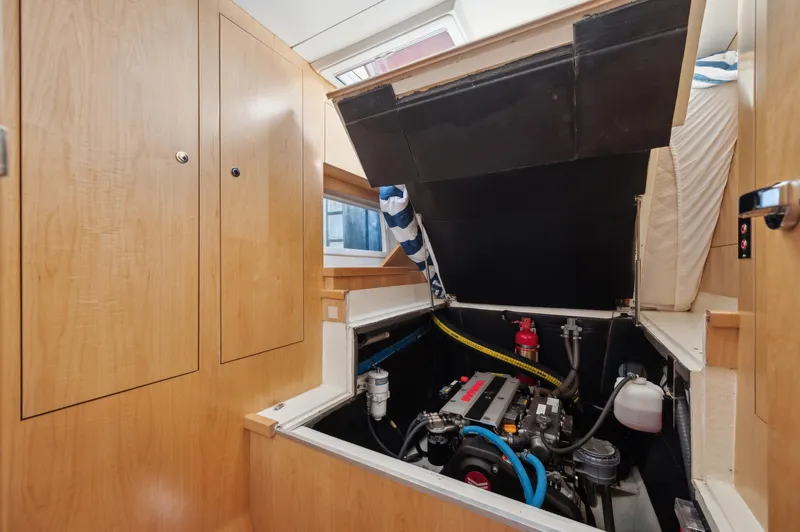

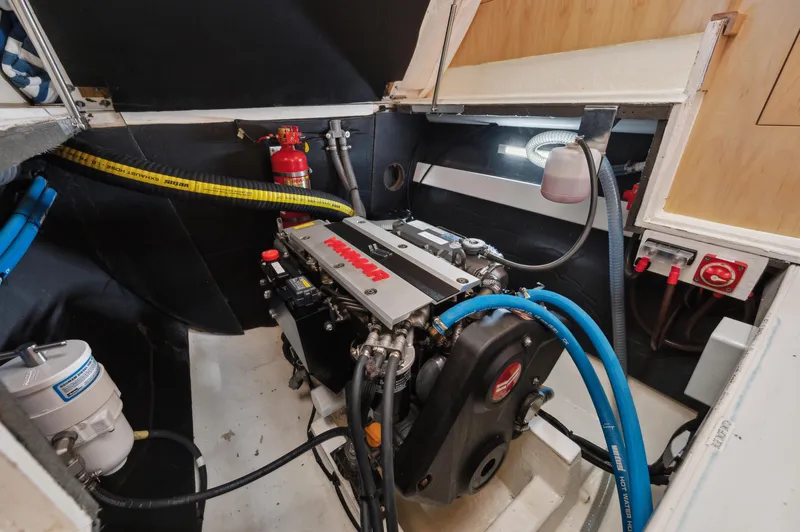

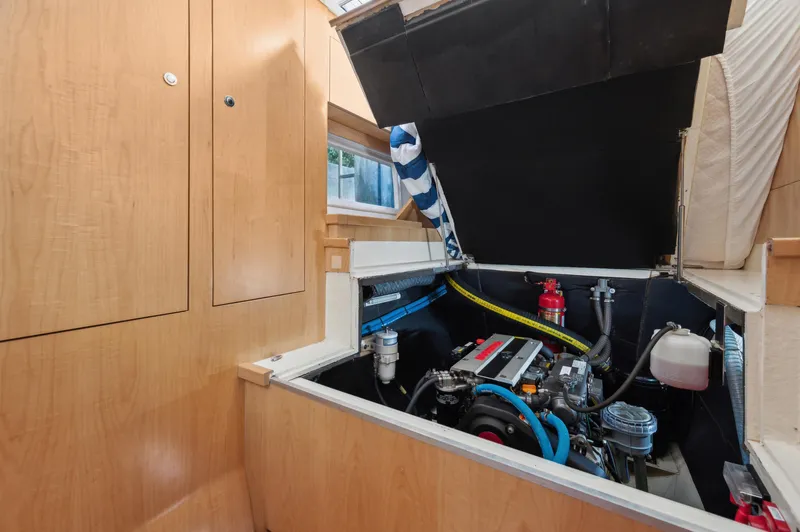

ENGINES (EPA Tier 3)

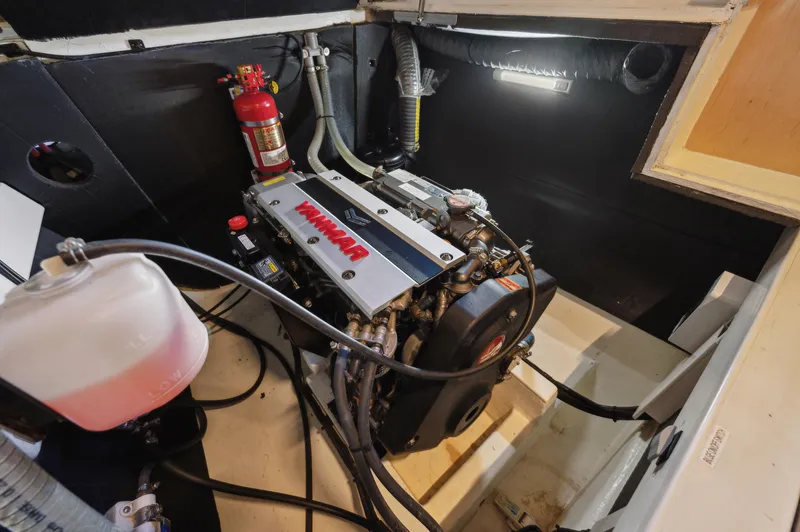

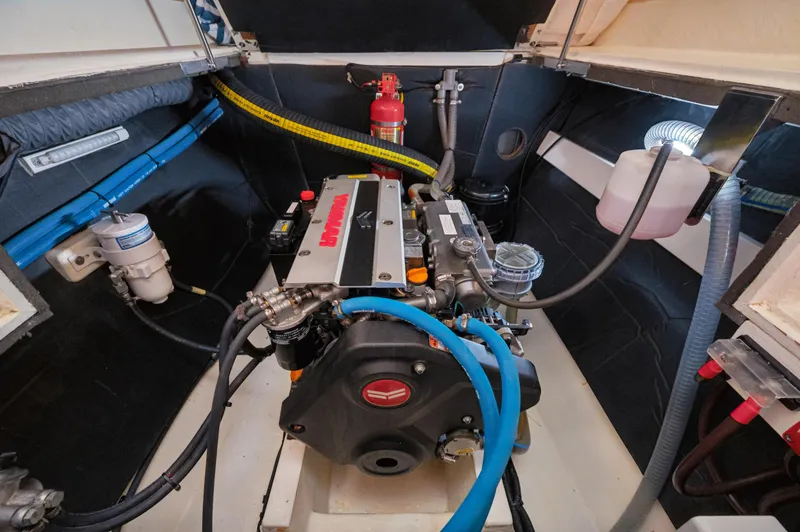

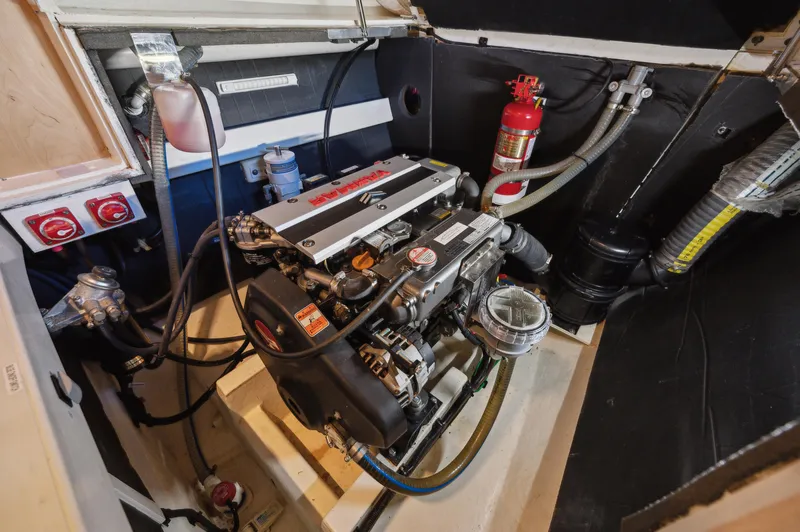

• 2 X Yanmar 3JH57-Cr 57HP with SD60 Sail Drives
  • Hours: 334.6 & 328.2
• 2 X Vetus raw water filters
• 2 X Yanmar B-25 instrument panels
• 2 X Vetus exhaust systems
• 2 X Exhaust anti-syphon valves
• 2 X Rule engine compartment extraction blowers
• 2 X Fireboy - Xtinex #MA0450NVC Manual/Auto gas filled automatic fire extinguishers with heat & smoke detectors as well as audible & visible alarms at helm
• Seastar engine controls - Seastar SL3 dual control + cables
• GRP engine beds
• Battery cables & connection
• Black Sondor sound seal black (fire retardant, non absorbent CE approved)
• 2 X Carbon Monoxide Monitors

PROPELLERS

• 2 X Gori 20" X 16" X 3-bladed left hand rotating feathering propellers
• Rope cutters for Gori 3-blade feathering propellers

FUEL TANKS

• 4 X 220 liters (58 gallons) post-cured vinyl ester fuel tanks giving a total capacity of approximately 880 liters (232 gallons)
• Inspection covers on top of each fuel tank
• 2 X Stainless steel deck fillers
• 2 X Racor 500MAM fuel & water filters
• Fuel tank interlink to equalize tanks
• WEMA tank monitor system for 8 generic user inputs (2 diesel, 2 water, 2 holding tanks + 2 spare)

LIGHTS 12 VOLT LED

• 8 X Port hull, forepeak, cabins, heads, dressing room
• 9 X Starboard hull, forepeak, cabins, heads, dressing room
• 4 X Engine compartments, night lights
• 11 X Salon, navigation station, galley
• 18 X Cockpit, transom steps, swim lights

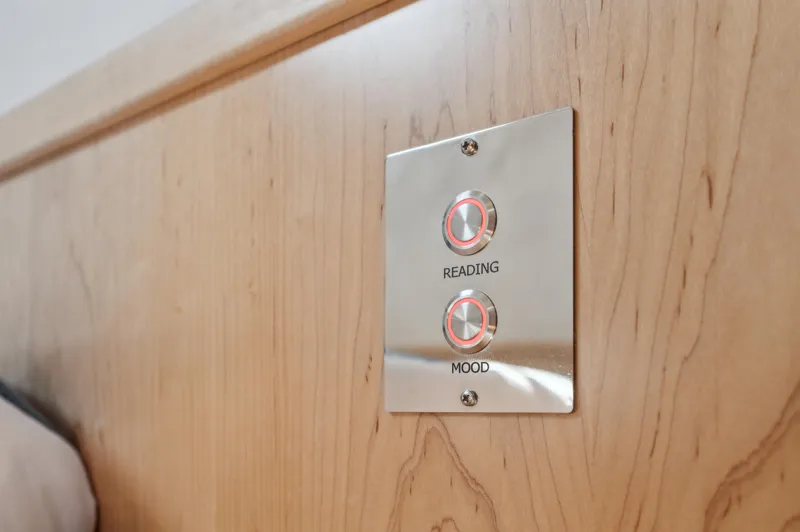

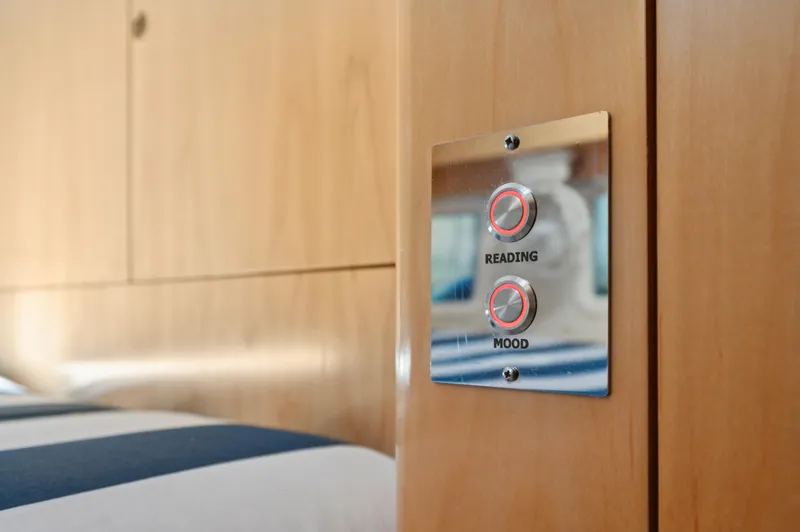

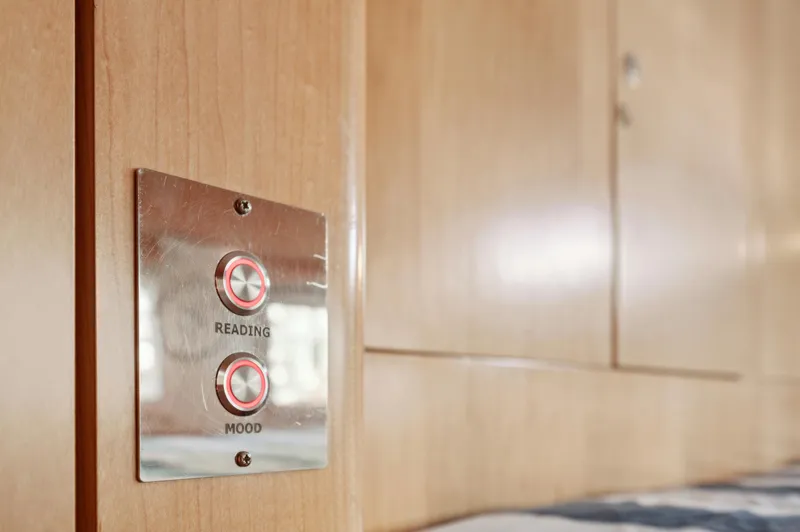

• 8 X Reading lights: 2 in each cabin with USB input
• 6 X Navigation, steaming, sailing
• 12 X White/Red switchable under cupboard night lights

12 VOLT OUTLETS

• 3 X Navigation station, Starboard cubby hole & helm

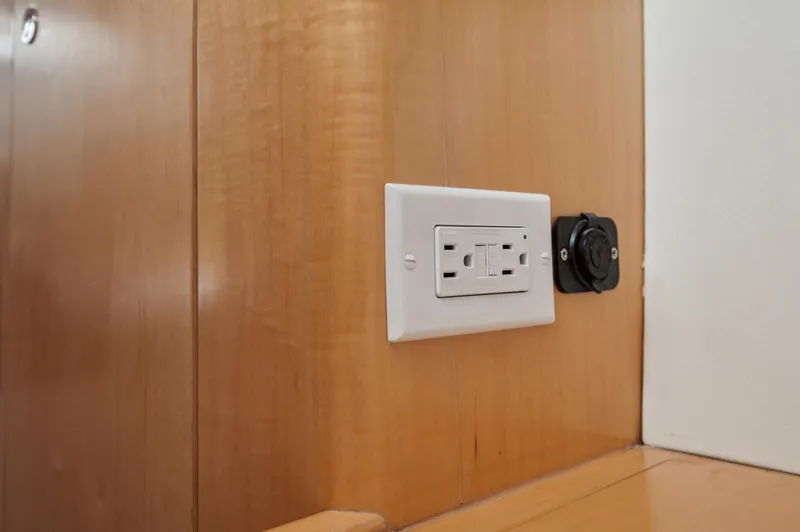

AC OUTLETS

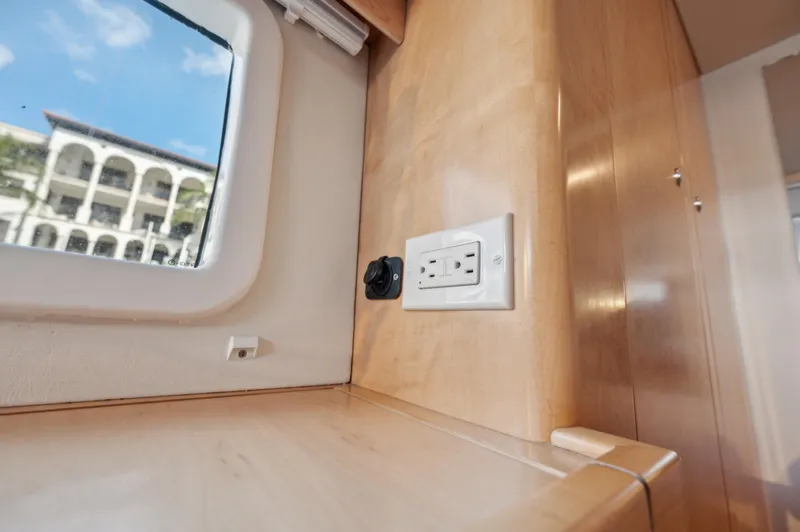

• 11 X Cabins (4), galley (2), dressing room (1), passage (2), nav. station (1), salon (1)

AC APPLIANCE OUTLETS

• 6 X Hot water heater, hob, TV, microwave, computer & printer
• 2 X Main engine battery control switches 1 X starboard aft cabin & 1 X port aft cabin
• 1 X Main house battery control switch at nav. station

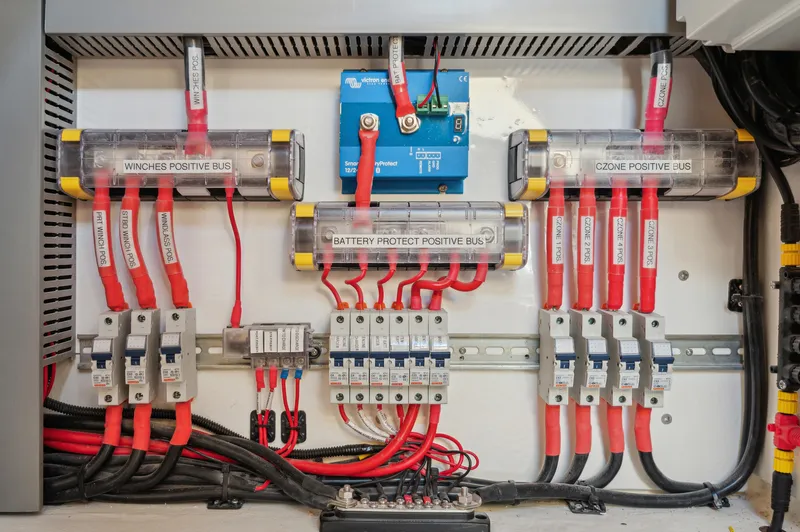

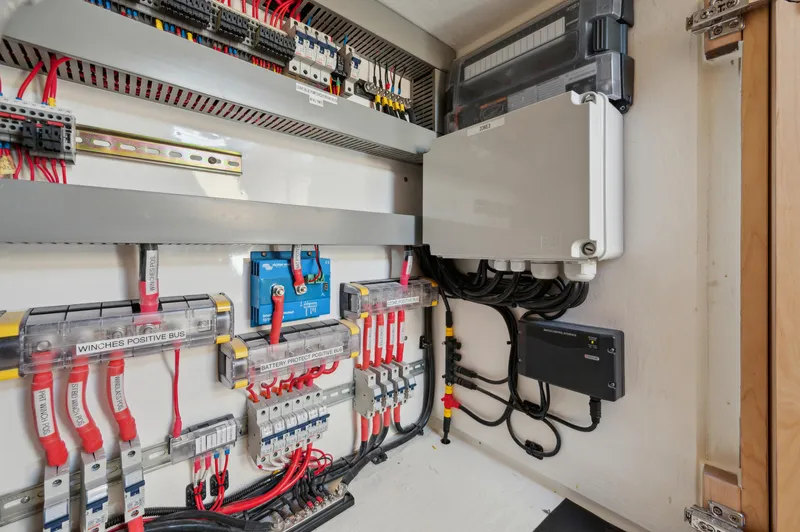

• Circuit breakers for winches, windlass, watermaker, 12/24V DC & 4 x C-Zone zones in locker under NAV

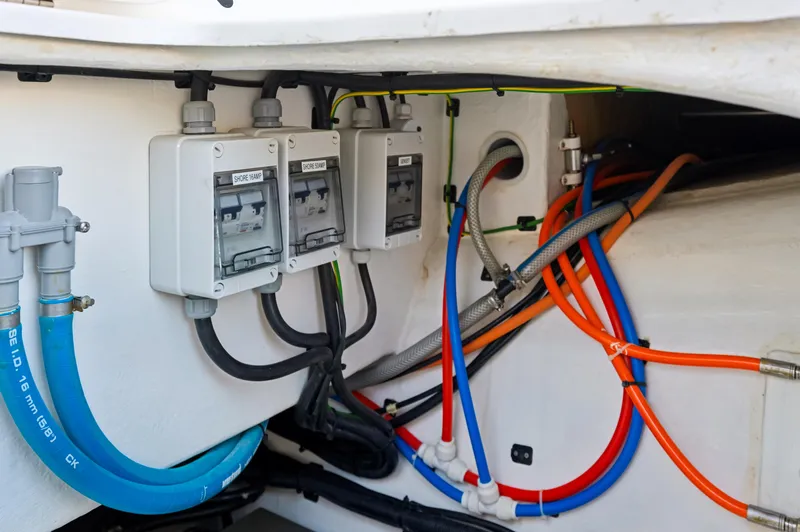

SHORE POWER - Dual 110V

• Shore power cables 110V/10mm

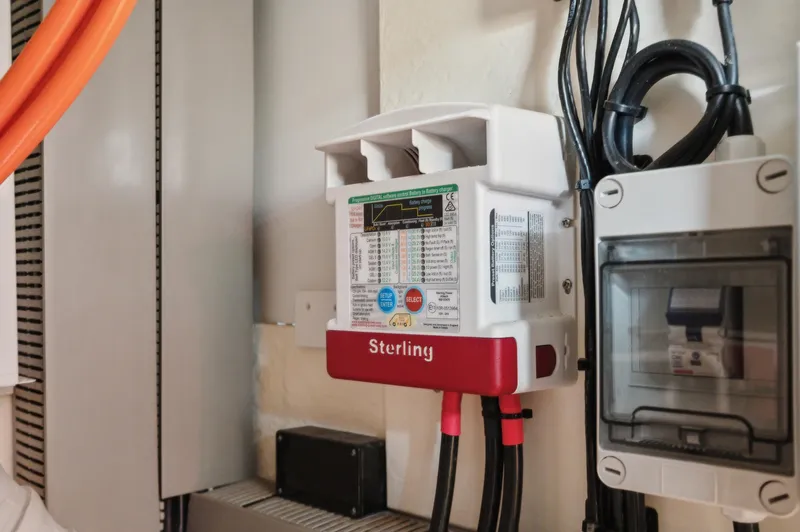

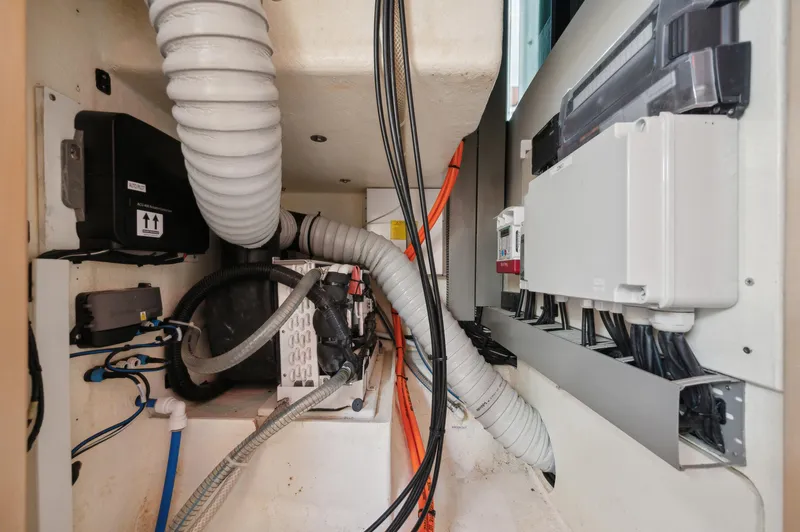

ELECTRICAL & POWER GENERATION

• Kohler 8.5kW Generator - Upgraded and added from the base model
  • 118 Hours

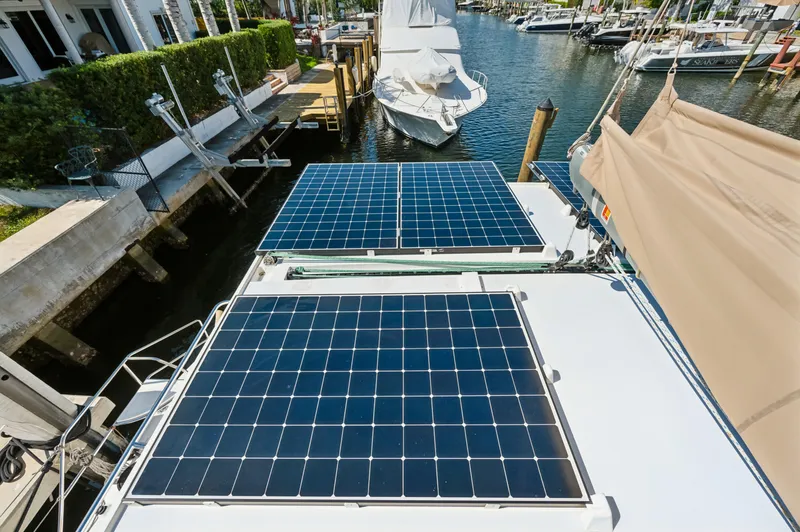

• 6 X Sun power Maxeon solar panels (6 x 400 watt, total 2,400 watts) each with Smart Solar 75/15 MPPT - 4 more solar panels than the base model
• Victron Quattro Inverter/Charger 12/5000/120
• Victron Multiplus 12/5000/120
• Victron Octo Colour Control GX Display
• 2 X Prosafe Galvanic isolators FS 60

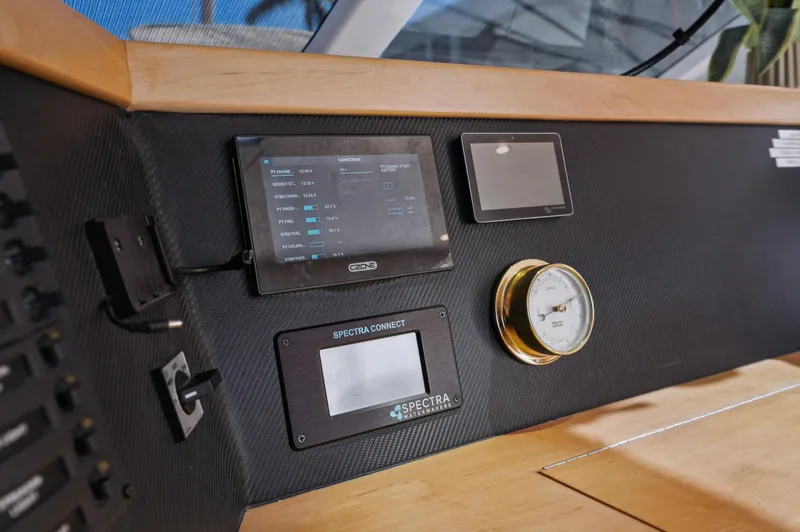

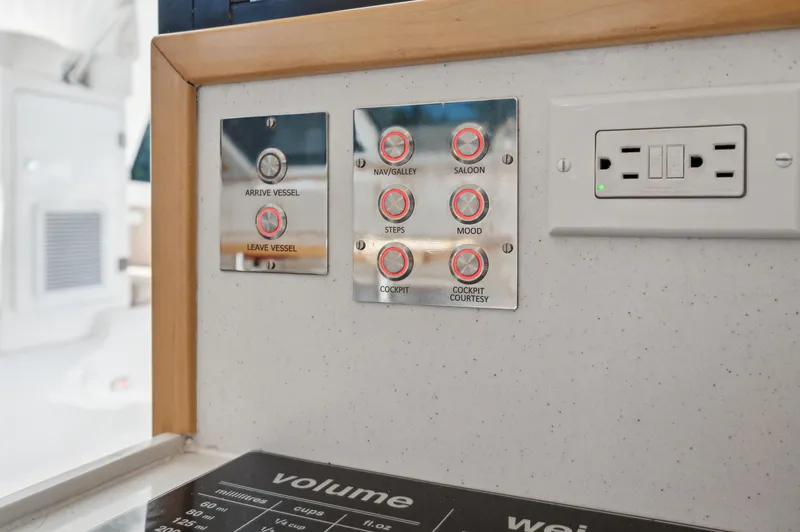

• C-Zone digital switching system with 5" screen

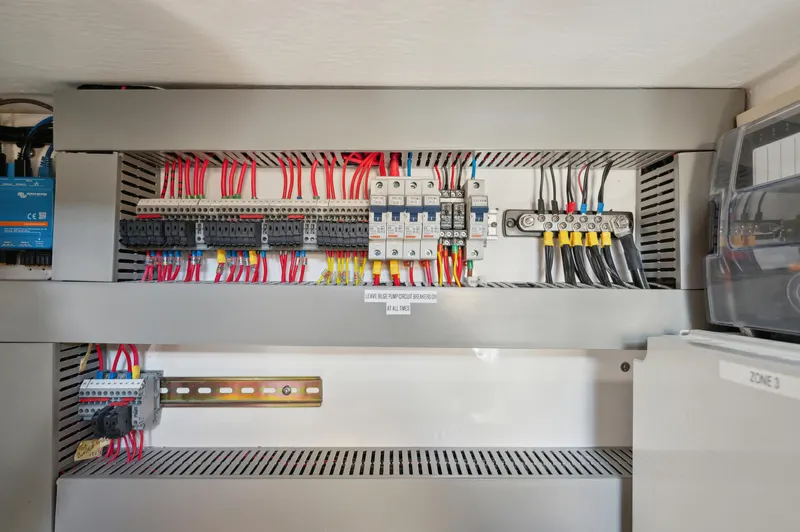

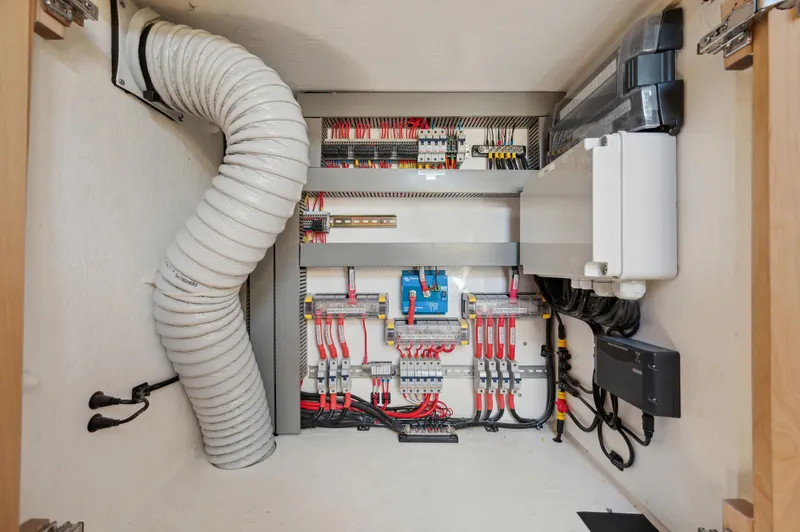

• 1 X DC distribution board with DC System monitor
• 1 X AC distribution board with AC System monitor

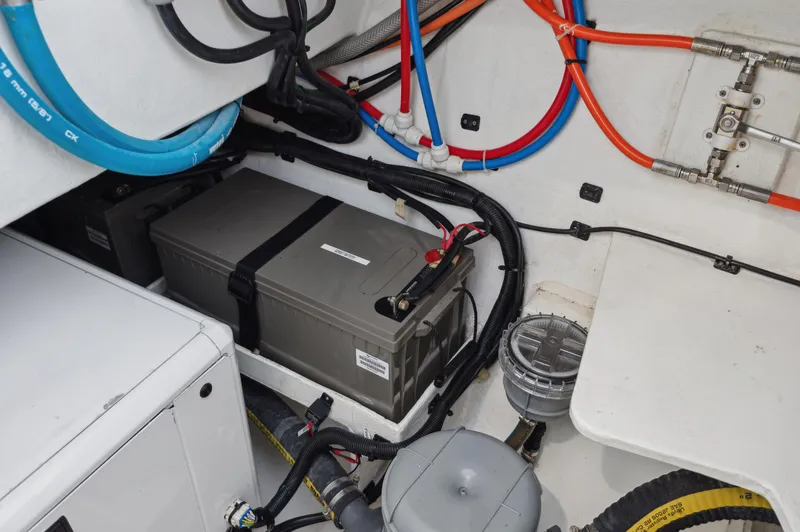

BATTERIES

• Engines - 2 X 12V / 220 Amp/hour Victron AGM deep cycle batteries
• House Bank - Lithium Ion 24V - 4 200Ah batteries - 800Ah total

PLUMBING

• 4 X Grey Water Whale Pumps
• 2 X 275L (73 gal) holding tanks & electric Macerator pumps (WEMA monitored)
• 1 X 40L Isotherm Calorifier (hot water heater) with element and thermostat, Starboard lazarette

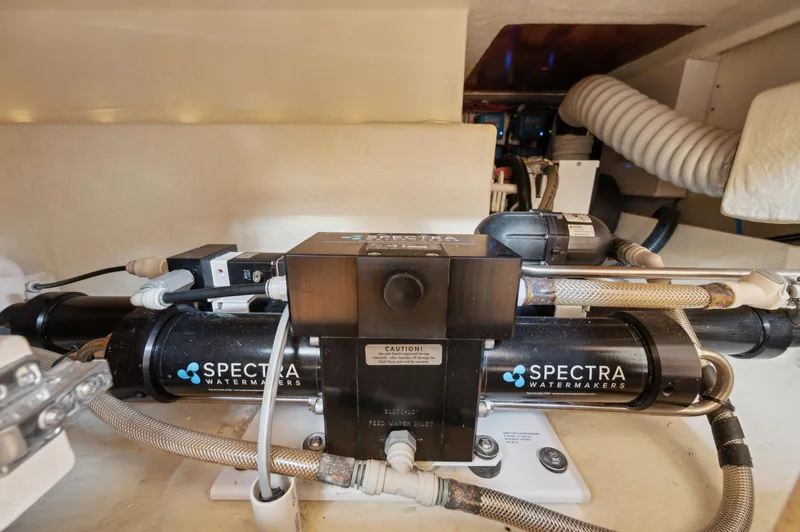

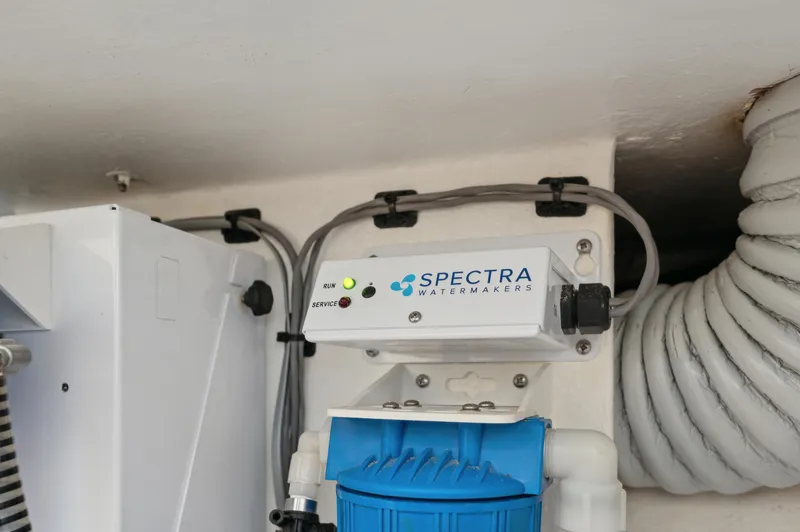

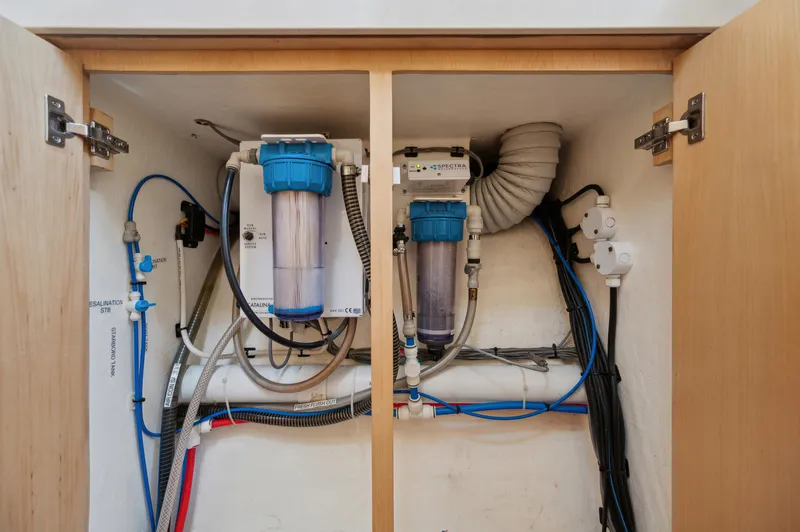

• Watermaker Spectra Catalina 340Z 14 Gal. 53 Liters per hour

WATER TANKS

• 2 X Tanks 675 liters (178 gallons) each total capacity 1,350 liters (356 gallons)
• 2 X Stainless steel deck water fillers
• 2 X Watertight Whale clear inspection hatches
• 2 X WEMA tank monitoring system

LPG GAS

• 1 X Gas monitor & alarm
• 1 X Regulator
• 2 X 9Kg cylinders

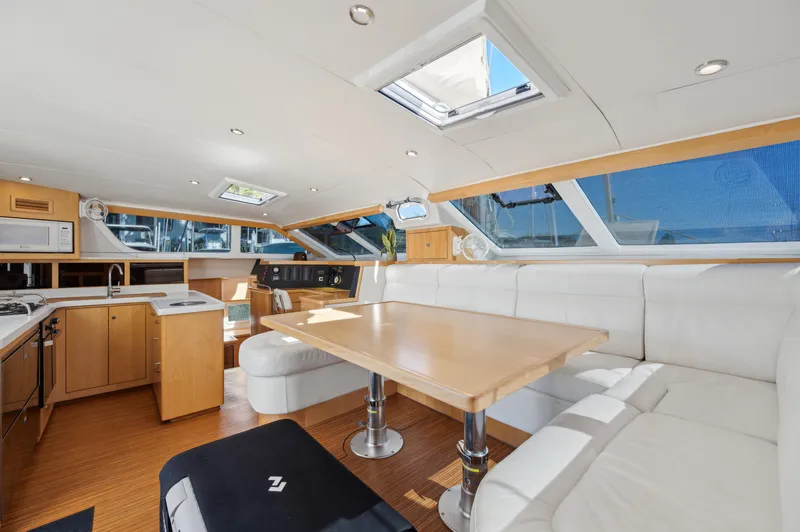

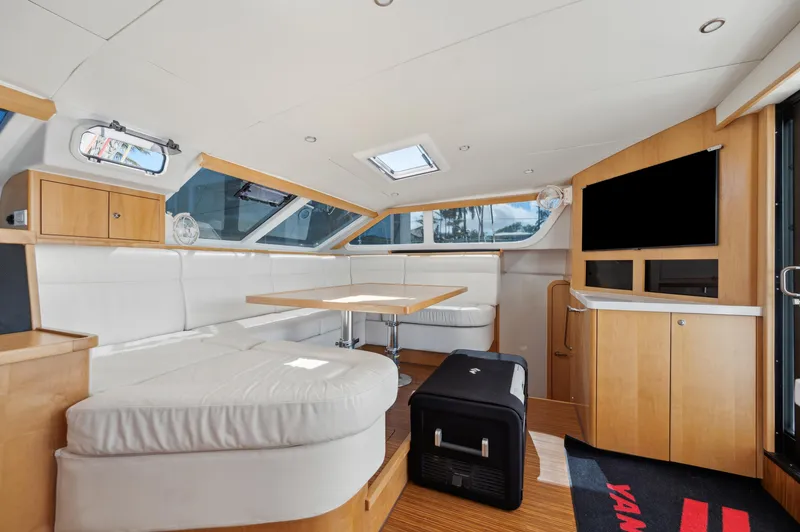

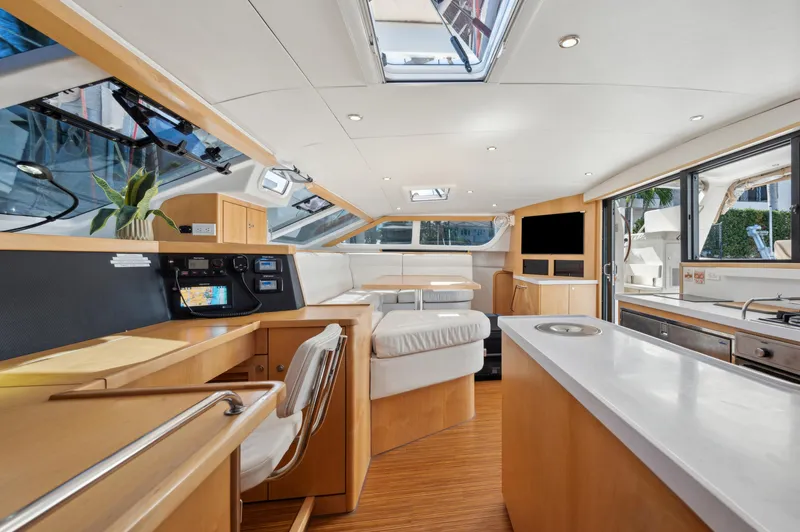

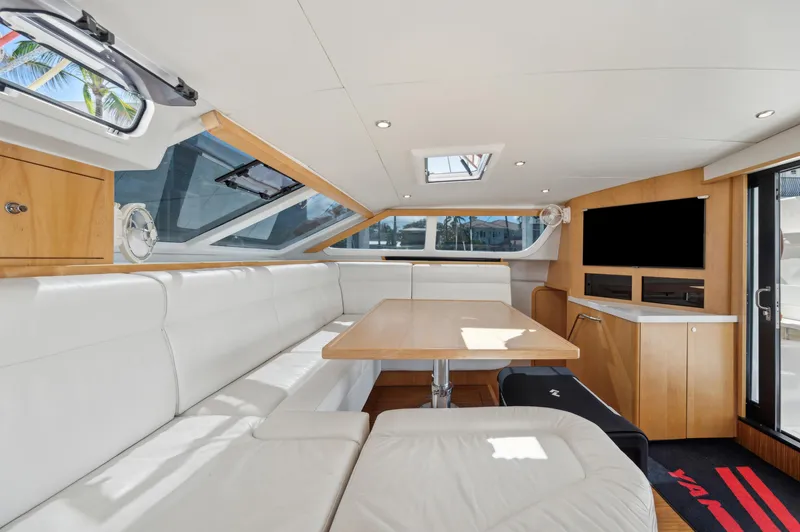

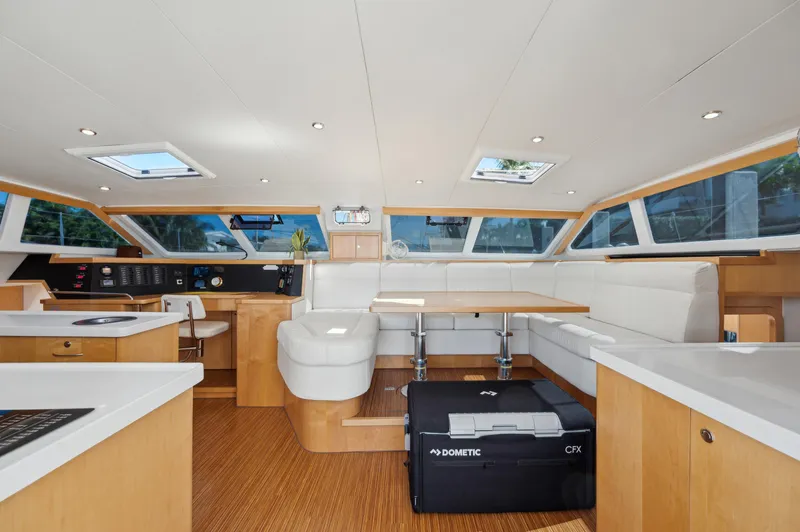

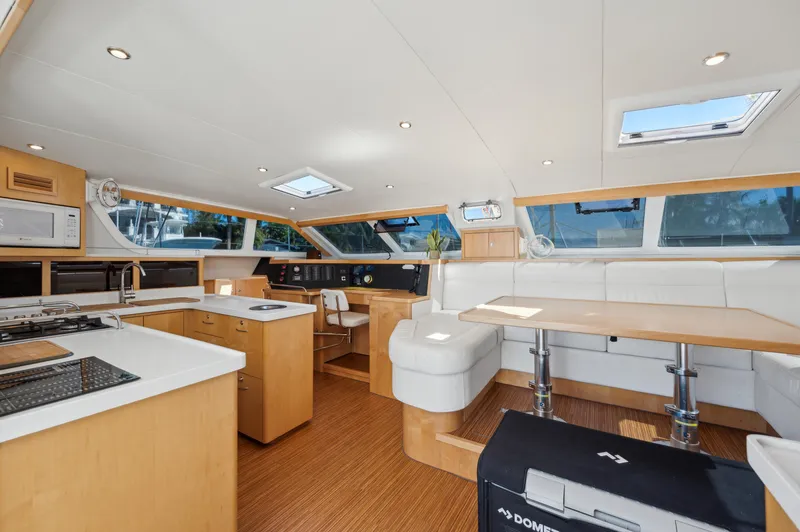

SALON

• Large raised seating/dining area with a fixed center table that can accommodate 8 people
  • Center table can come down to form a bed- equipped with a mattress that fits the table area
• Vinyl seats

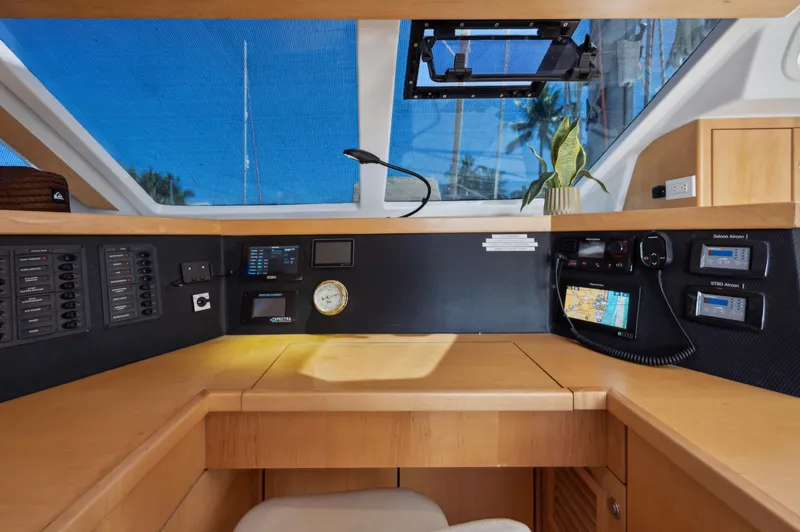

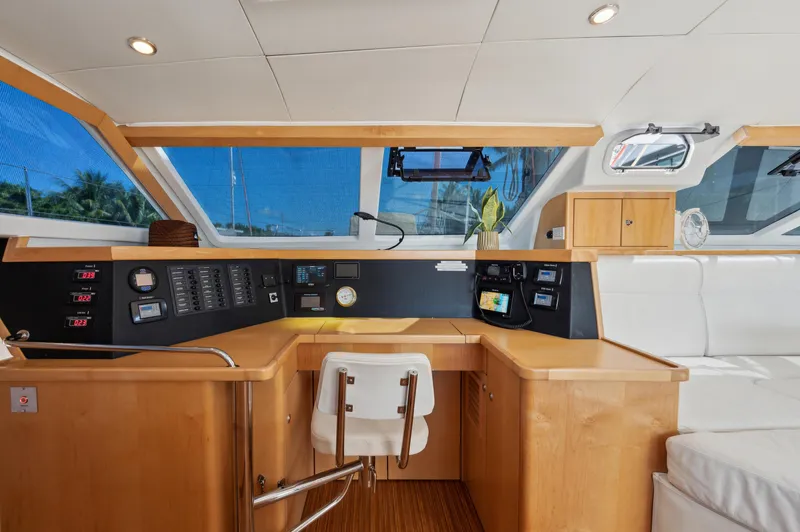

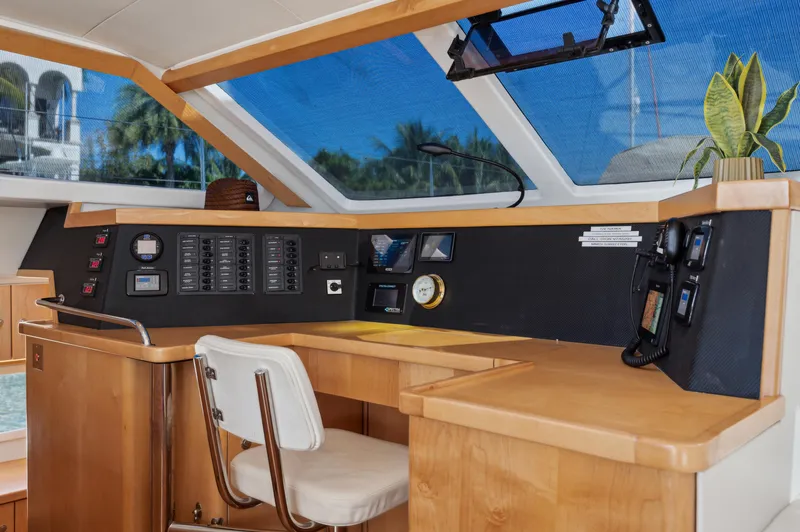

• Chart table with locker & cupboards

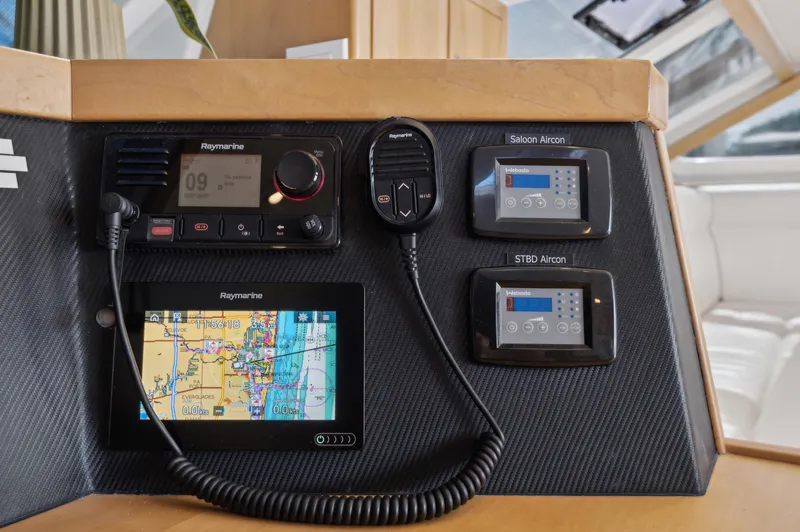

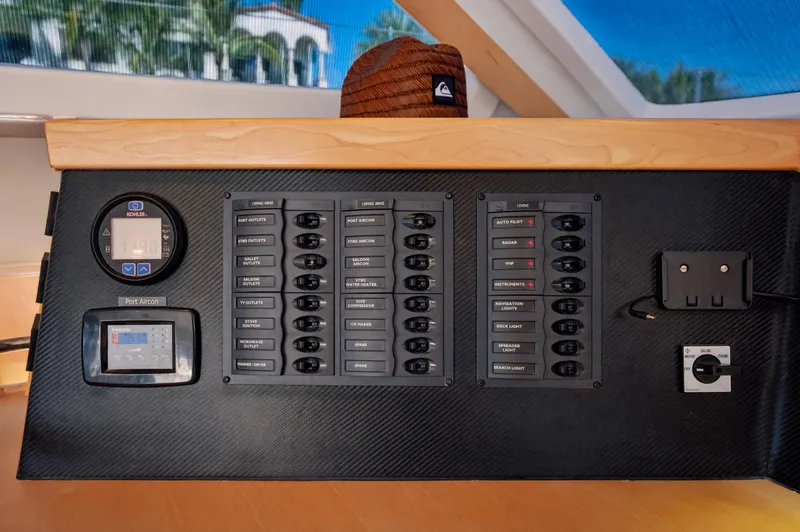

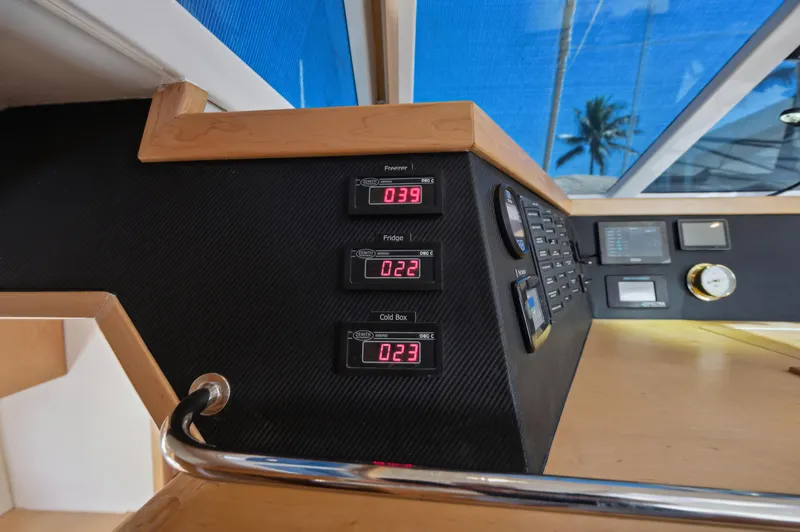

• Instrument panel - covered with PCB - Black - Carbon finer look vinyl
• Cabinet under mast step
• Vinyl Ceiling liners - (Off White)
• Dashboard under windows - Vinyl
• Flooring - Vinyl
• Caframo Sirocco Gimbal Fan
• Large Salon Fan
• 16,000 BTU/h AIRCON for Salon

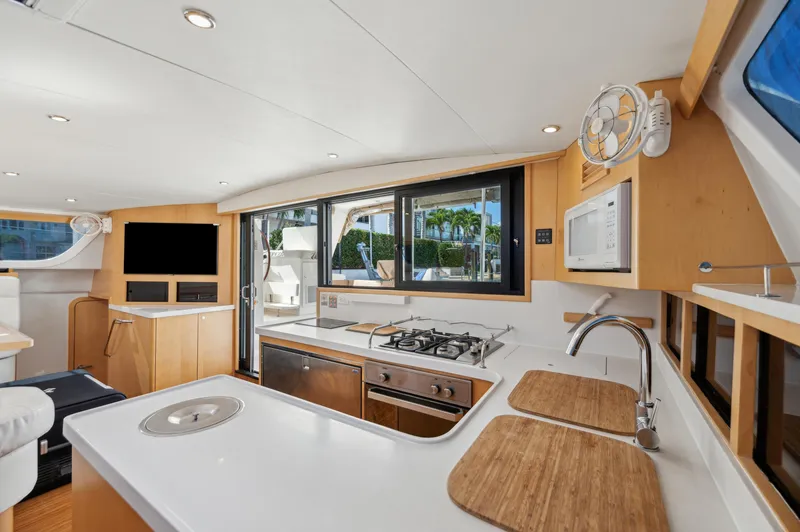

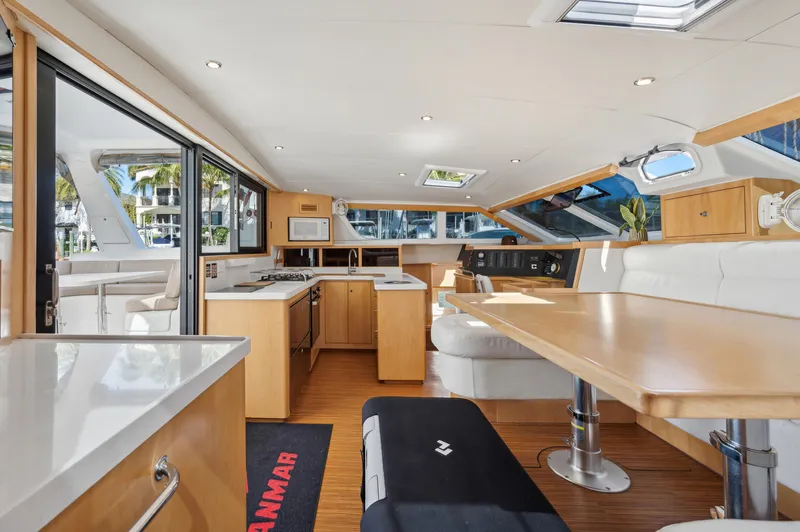

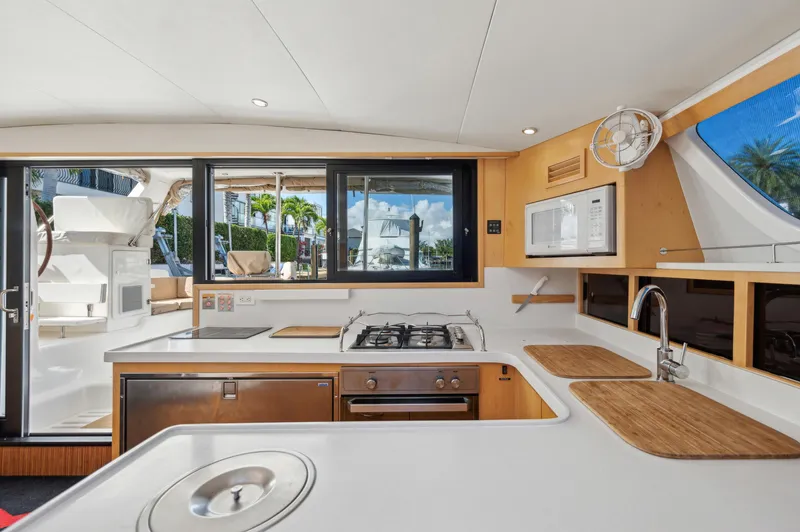

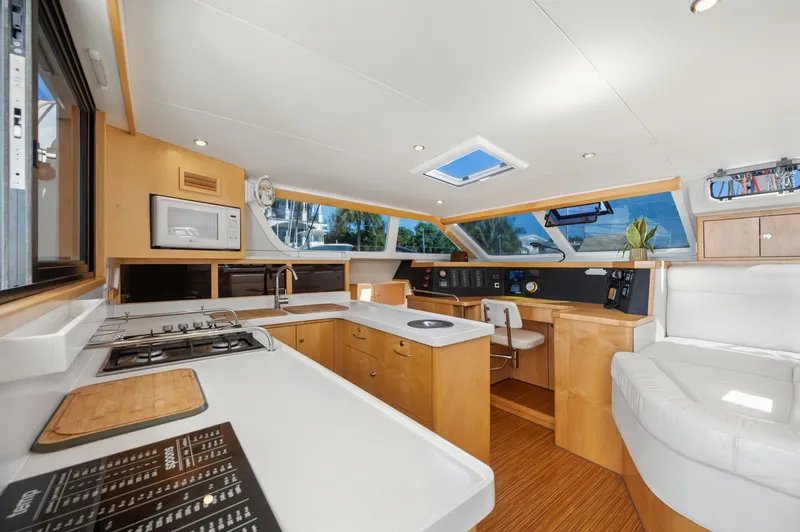

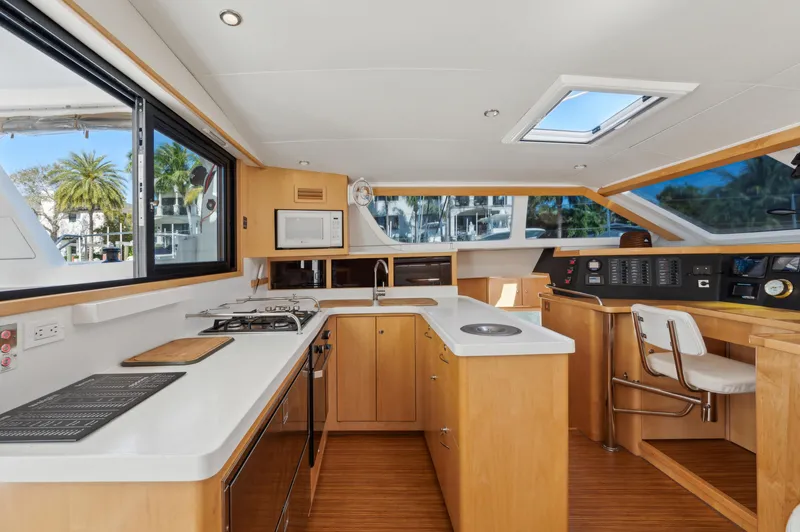

GALLEY

• 4 Burner stainless steel gas hob and oven

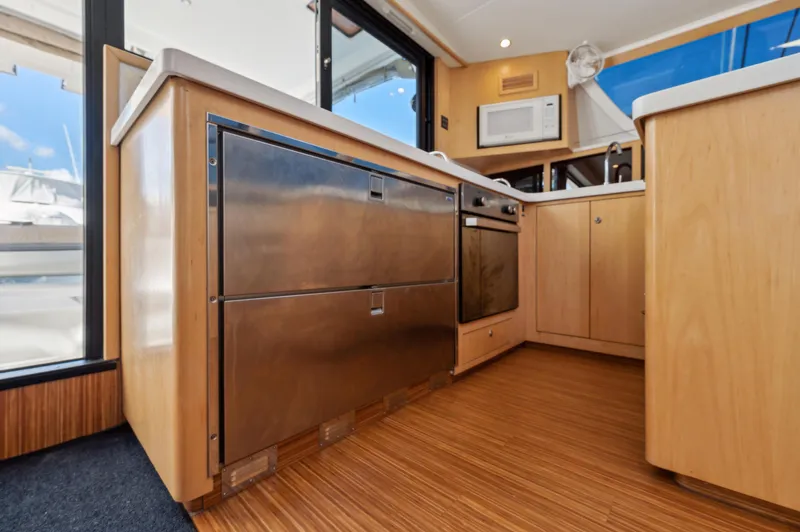

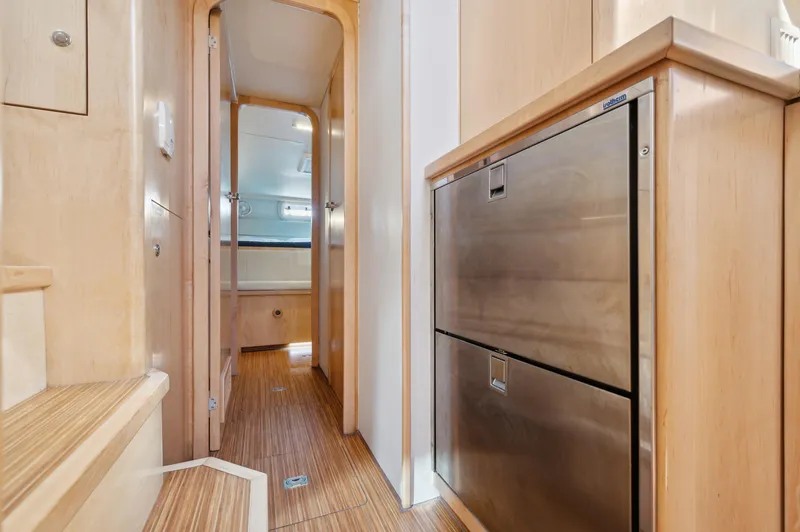

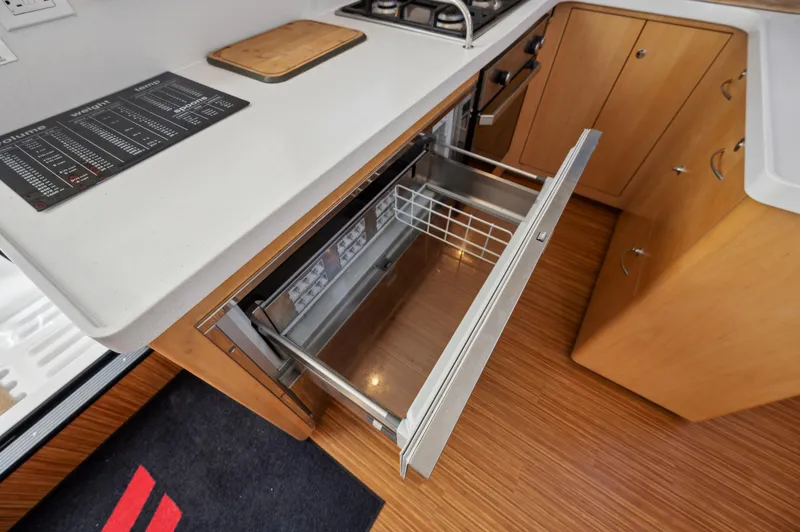

• 1 X 160L Isotherm Stainless steel double drawer freezer
• 1 X 190L Isotherm Stainless steel double drawer fridge
• Dometic 100L Fridge/Freezer portable
• Double sinks with Pull-out mixer tap, along side drying cupboard with electric fan
• Trash hole with cover integrated in galley top for ease of cleaning
• Solid surfacing tops (Corian)
• Flooring - Vinyl
• Spice rack
• Lage Sliding window in galley for access between Galley & Cockpit dining area
• Cupboard above deepfreeze
• Locker under microwave - light smoke grey Plexiglass

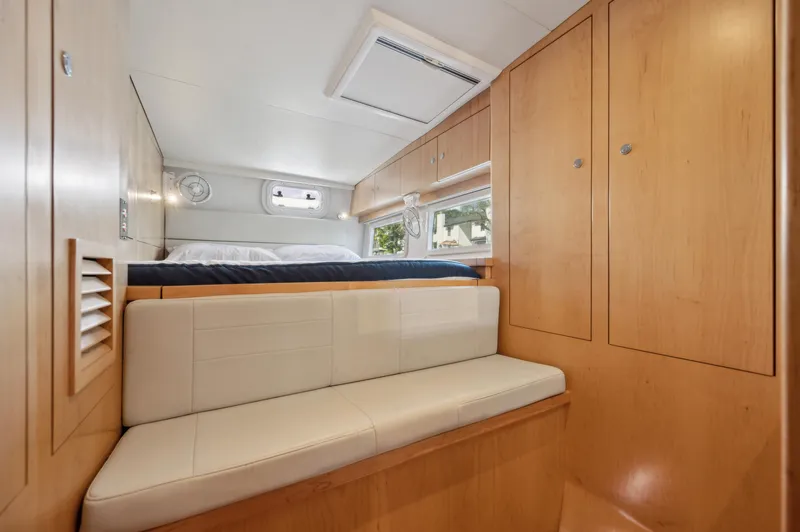

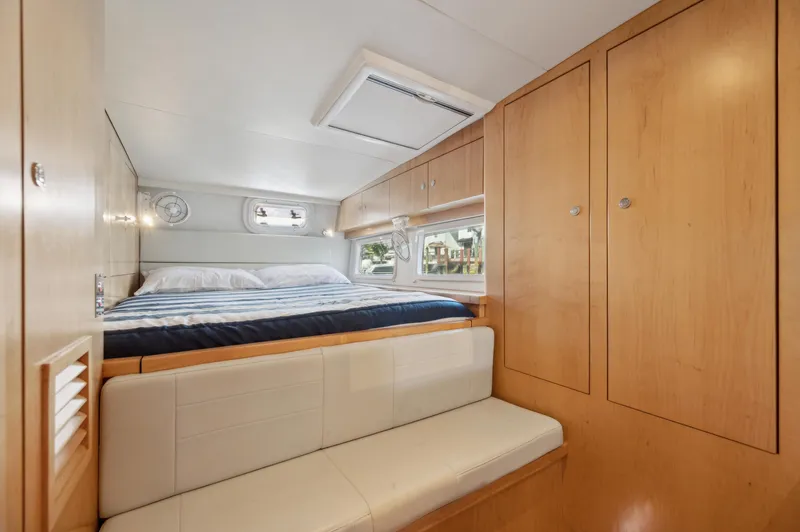

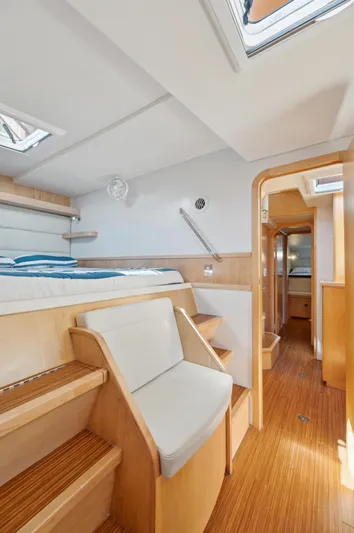

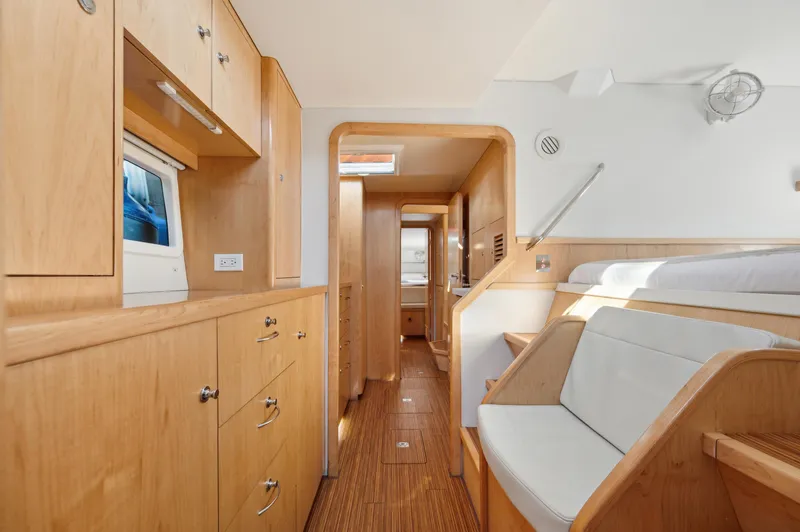

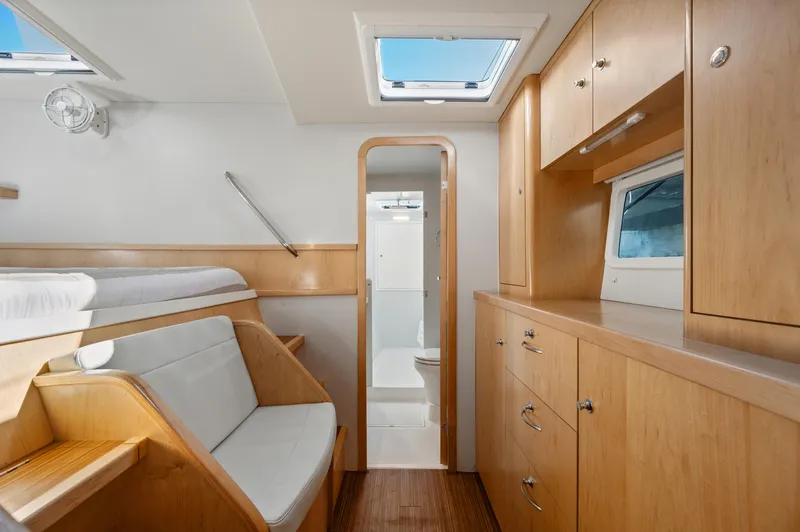

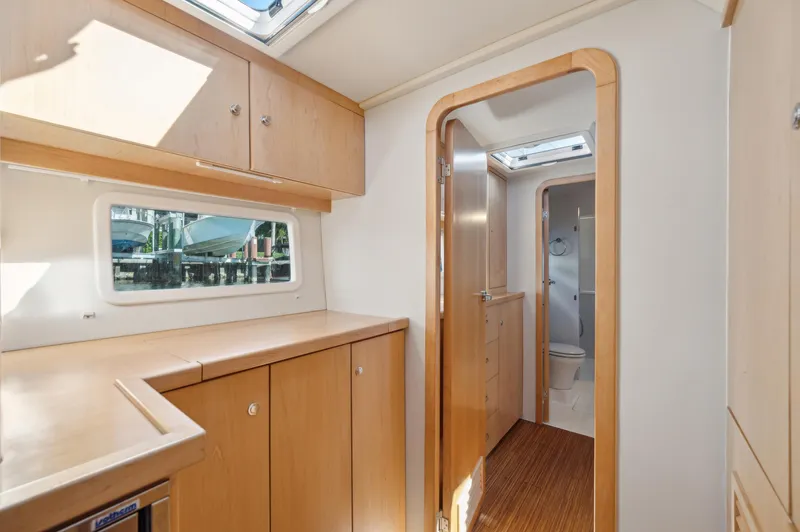

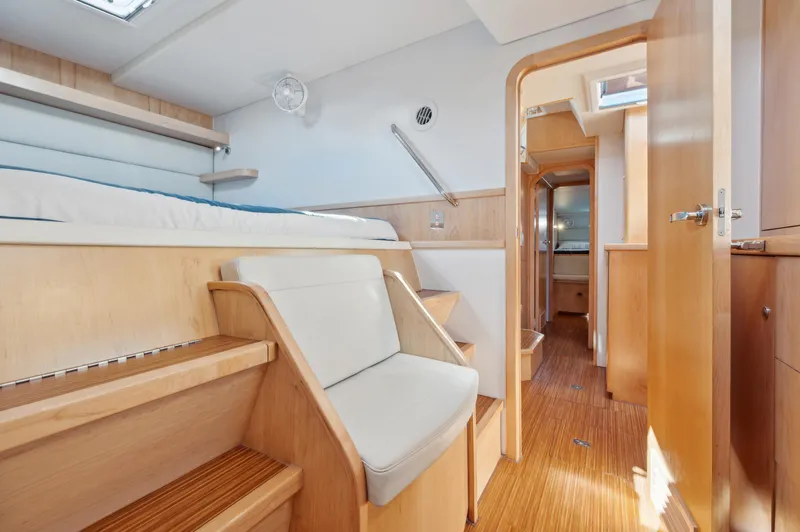

CABINS

• Starboard Forward Cabin
  • Flooring - Vinyl
  • Cabin seating with backrest - Vinyl
  • Window Blinds
  • 2 X Caframo Sirocco Gimbal fans
  • Office desk with swivel chair
  • Settee with backrest - Vinyl

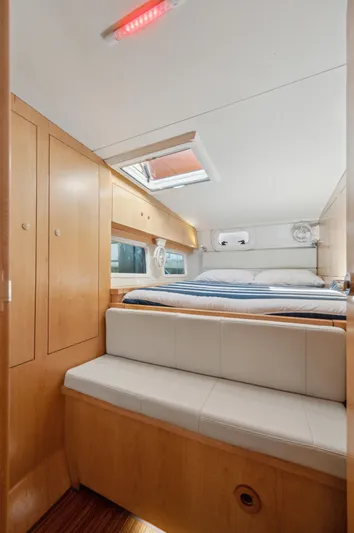

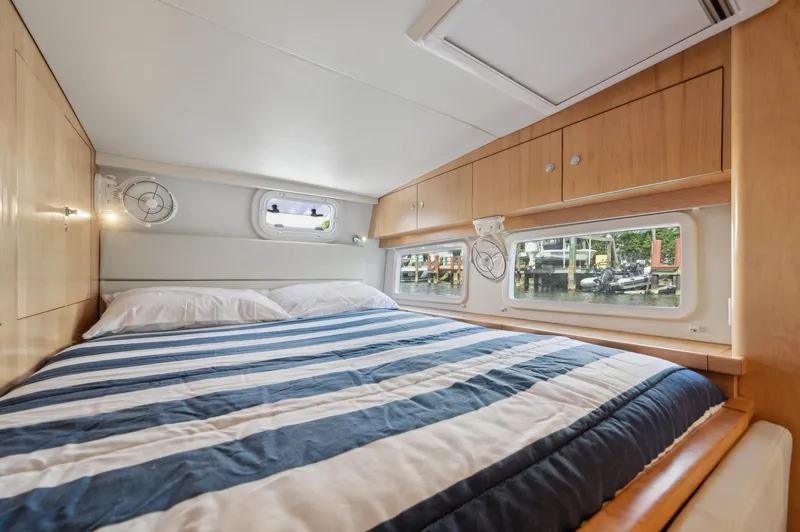

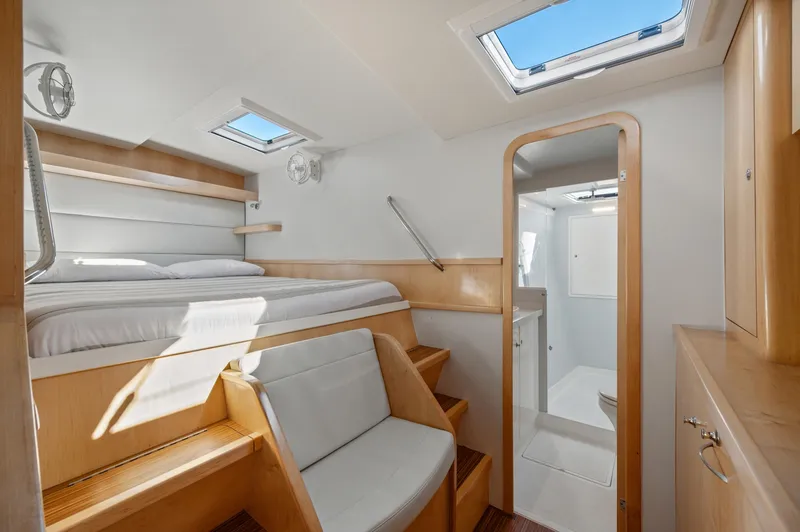

• Starboard Aft Cabin
  • Queen size bed & mattress
  • Large cupboards next to bed
  • Cupboard & under cockpit storage cupboards for cushions, etc.
  • Flooring - vinyl
  • Open shelves above windows
  • Headboard - Vinyl
  • Cabin seating with backrest - Vinyl
  • Oceanair side window blinds & roller blinds to aft cabins transition port lights
  • 2 X Caframo Sirocco Gimbal Fan

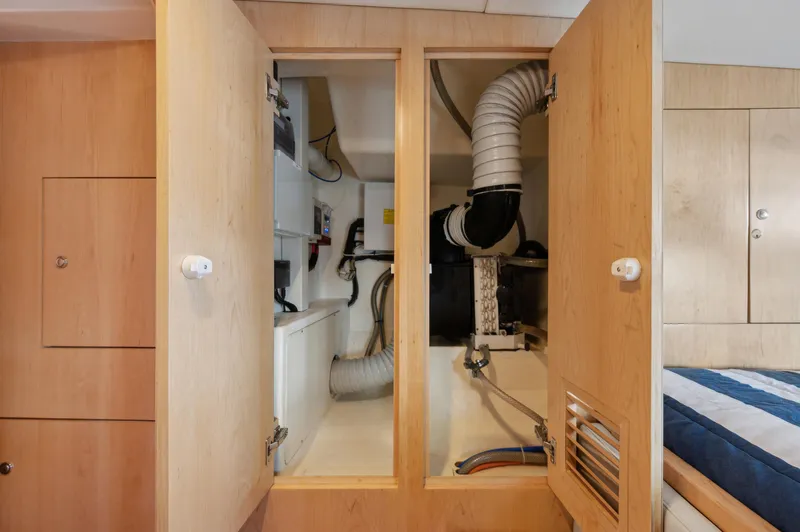

  • Webasto FCF Platinum 10,000 BTU A/C unit with 50/60Hz Reverse cycle - 115V (Feeds entire starboard side)

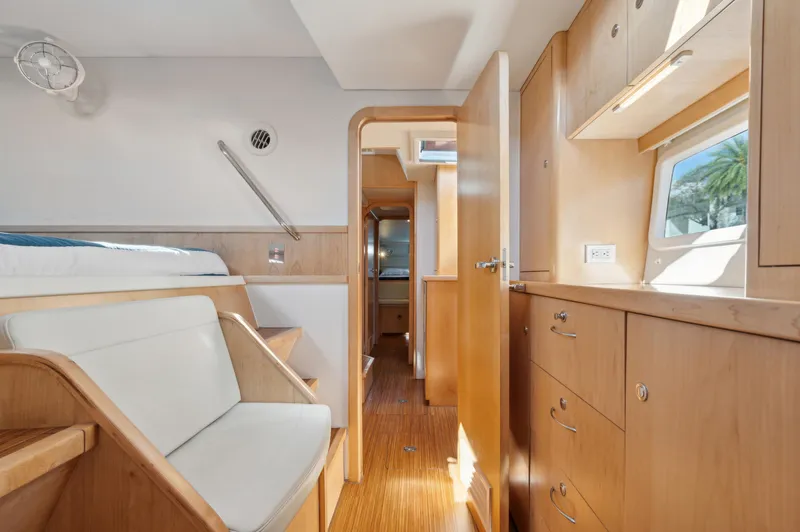

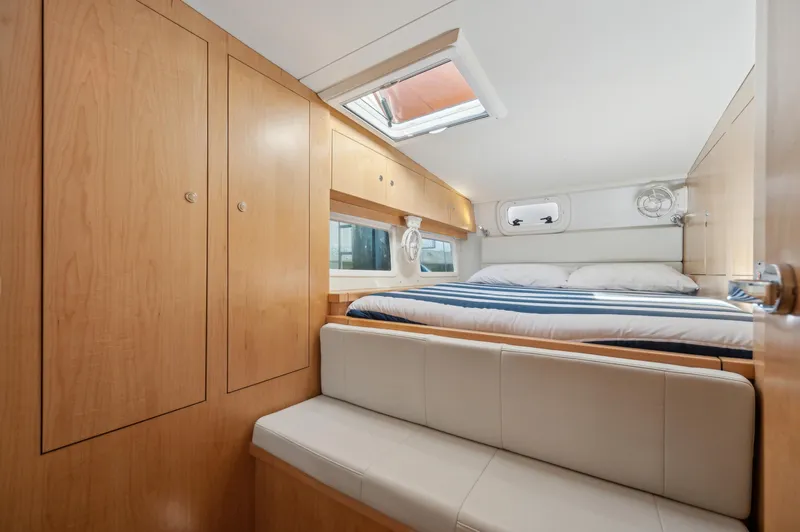

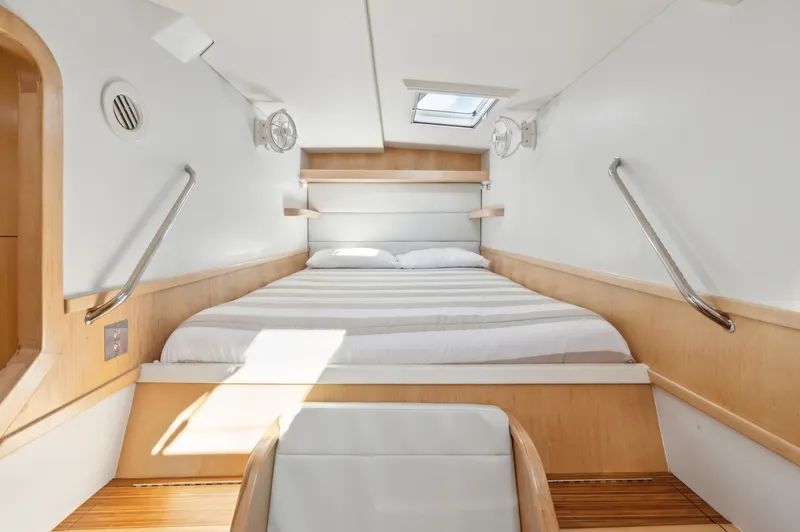

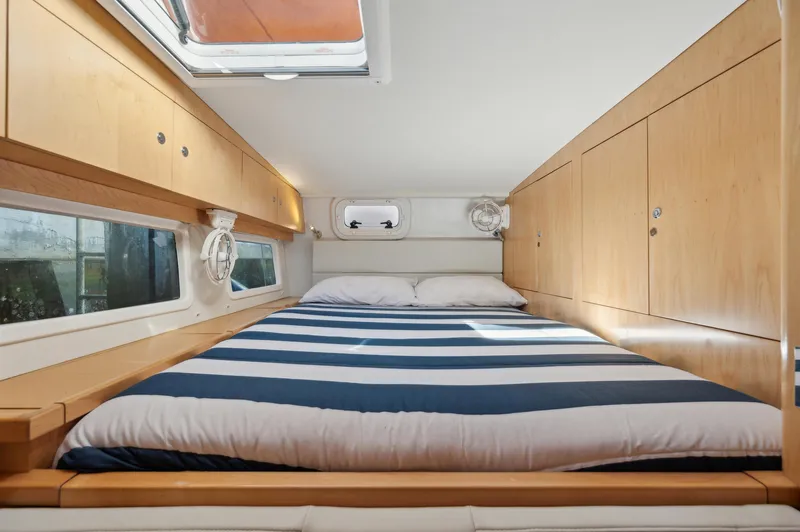

• Port Forward Cabin
  • Queen size bed & mattress
  • Flooring - Vinyl
  • Cupboards & vanity
  • 2 X Stainless steel hand rails alongside beds
  • 2 X Side trays
  • Wooden overhead locker above head board
  • Headboard - Vinyl
  • Cabin seating with backrest - Vinyl
  • Window blinds
  • 2 X Caframo Sirocco Gimbal Fan
  • Step locker carpeted with 110v outlet & built in USB ports
  • Built in Safe under mattress

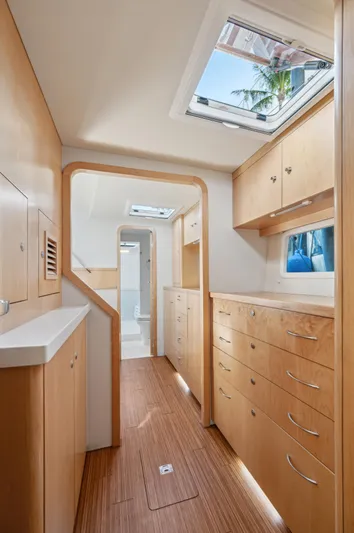

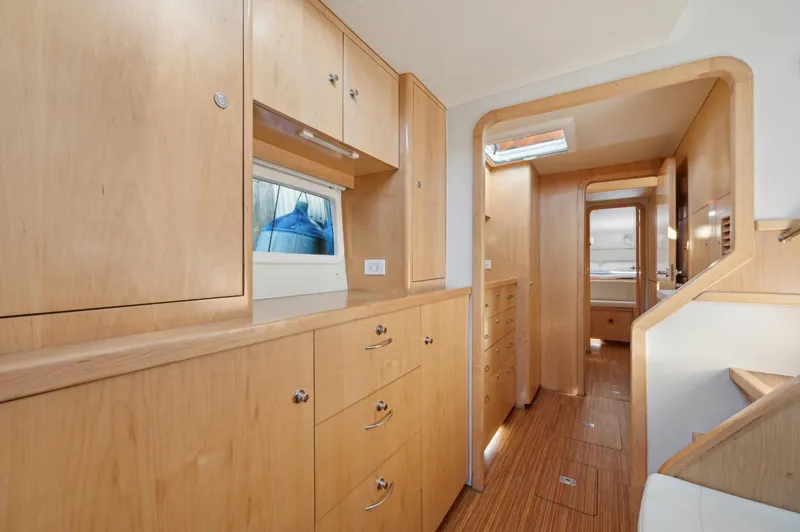

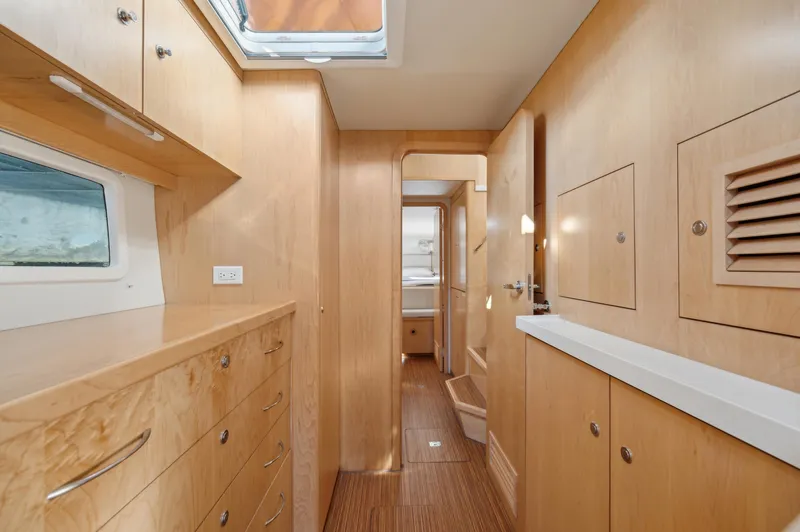

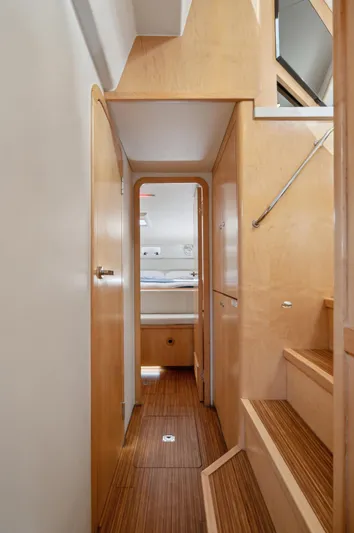

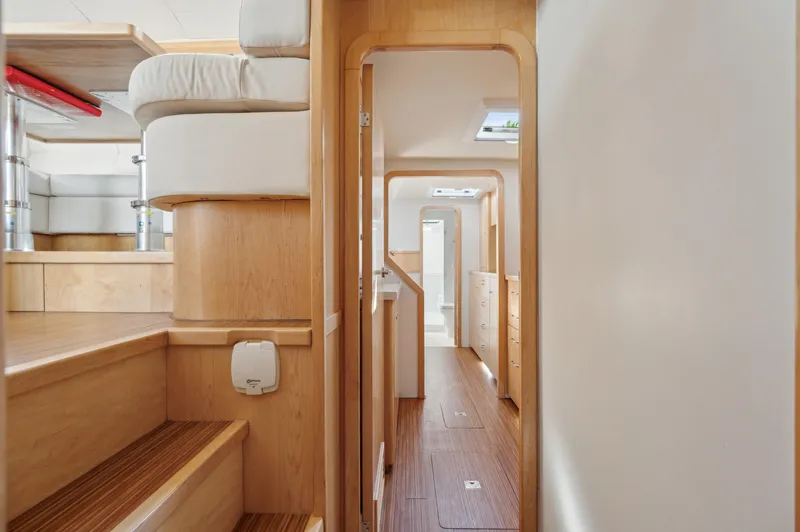

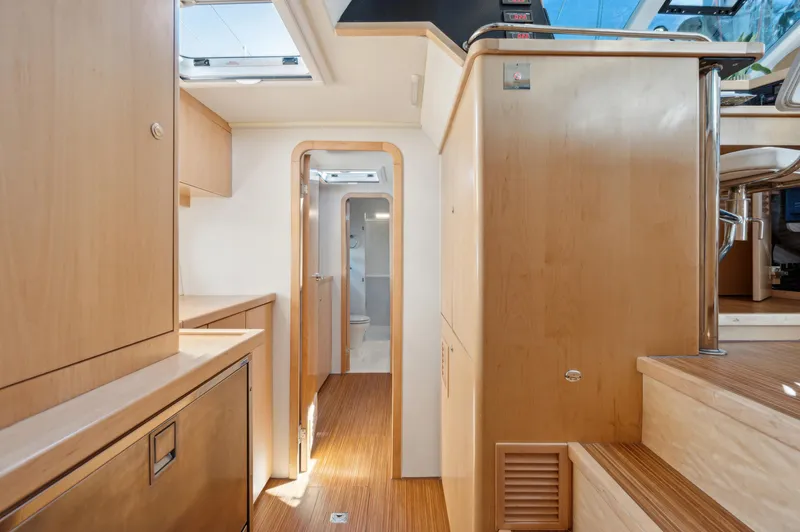

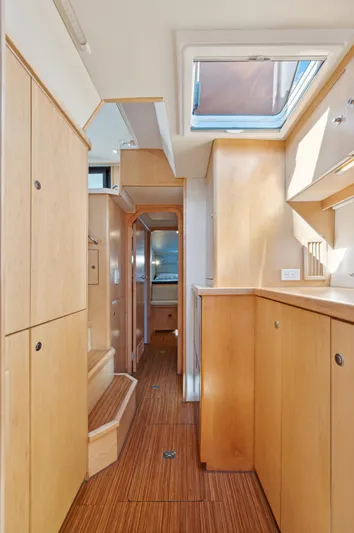

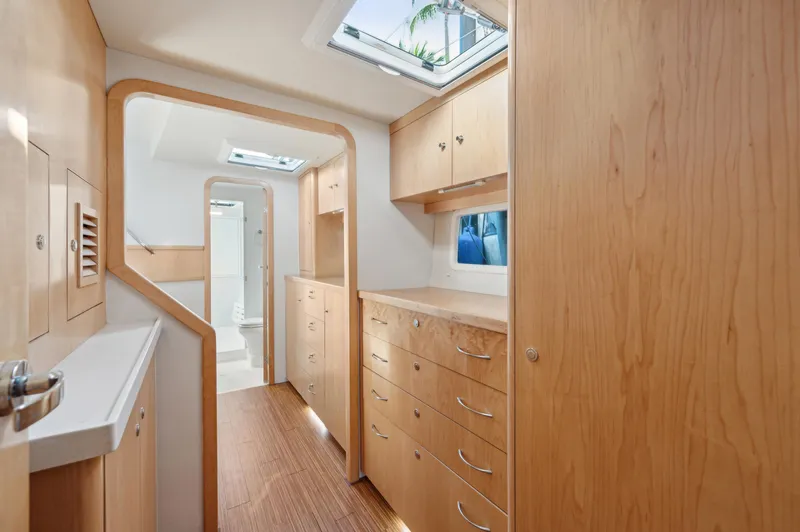

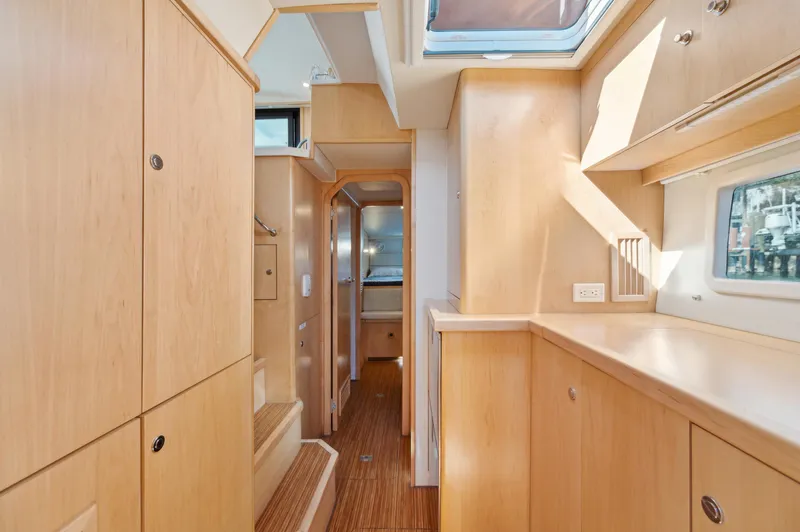

• Port Hull Between Cabins Corridor
  • Hidden workshop station with vise

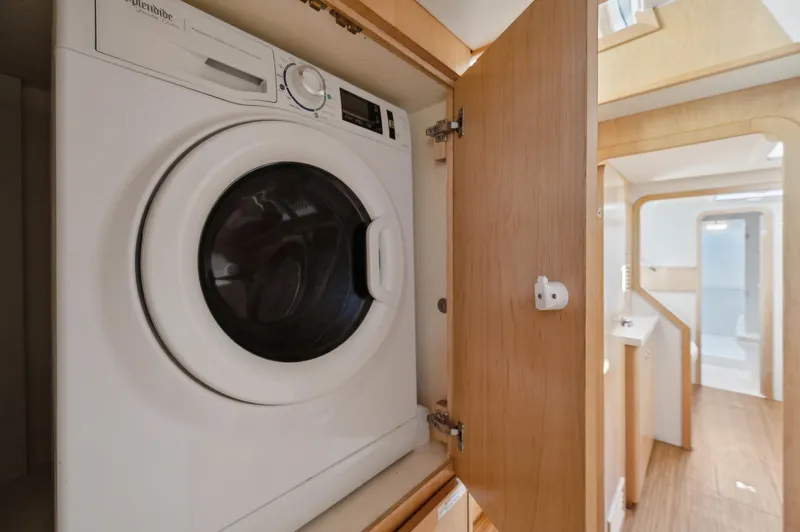

  • Splendide clothes washer and ventless Dryer (2024)

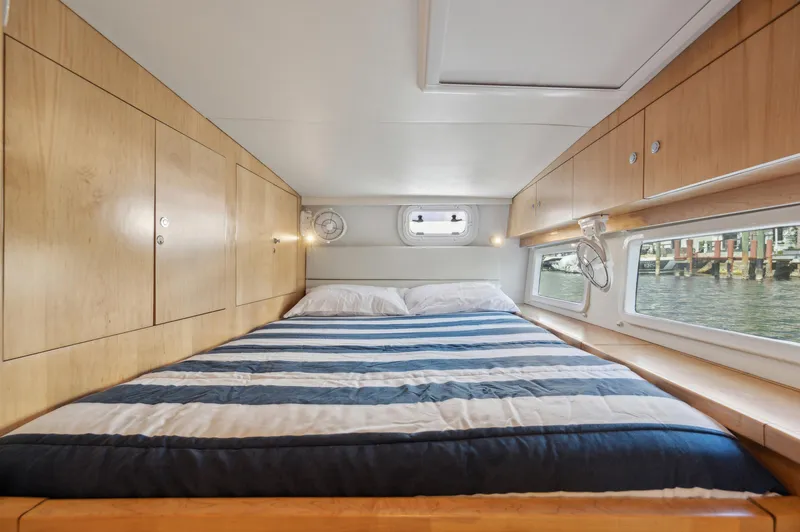

• Port Aft Cabin
  • Queen size bed & mattress
  • Cupboards
  • Flooring - Vinyl
  • Open shelves above windows
  • Large cupboards next to bed
  • Storage space for cockpit cushions
  • Headboard - Vinyl Cabin seating with backrest - Vinyl
  • Oceanair side window blinds & roller blinds to aft cabins transition port lights
  • 2 X Caframo Sirocco Gimbal Fans
  • Webasto FCF Platinum 10,000 BTU A/C unit with 50/60Hz reverse cycle - 115V (Feeds entire port side)

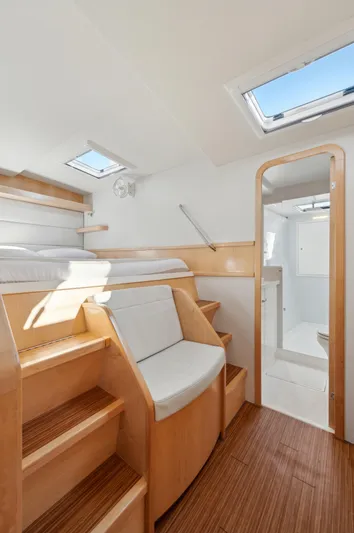

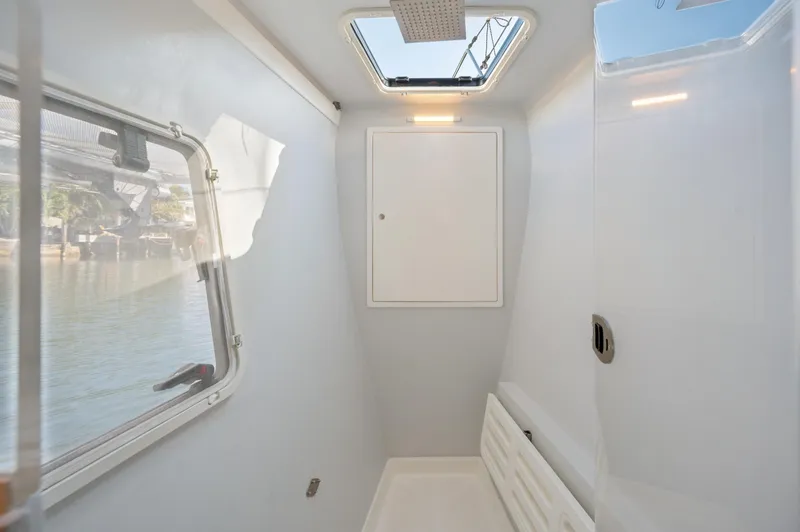

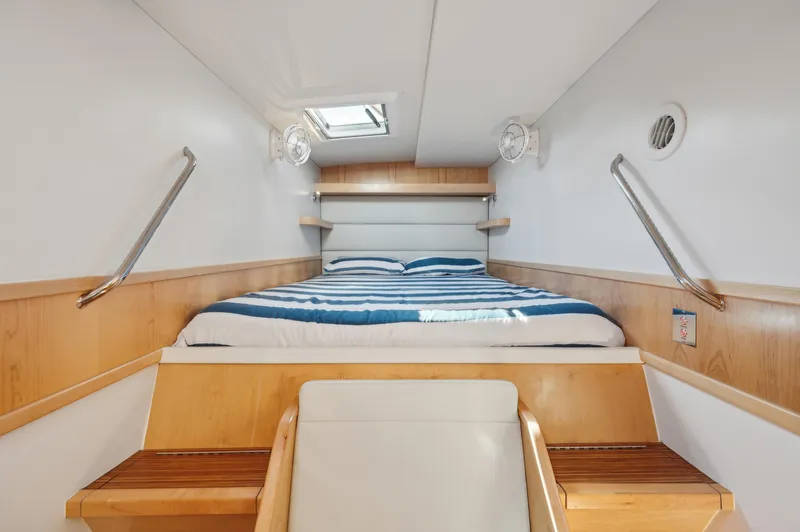

• Port Forepeak
  • External Access through deck hatch
  • Half door access from shower
  • LED Strip light
  • Forward collision bulkhead with removeable access panel to Crossbeam mounting
  • Removeable Bunk top with additional storage below
  • Mattress for additional bed
  • Long hand rails to hang lines
• Starboard Forepeak
  • Half door access from shower
  • LED Strip light
  • Forward collision bulkhead with removeable access panel to Crossbeam mounting
  • Removeable Bunk top with additional storage below

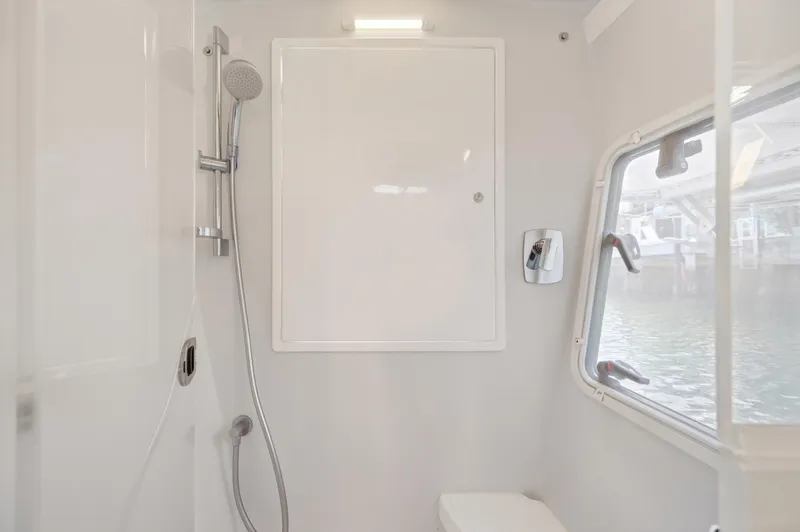

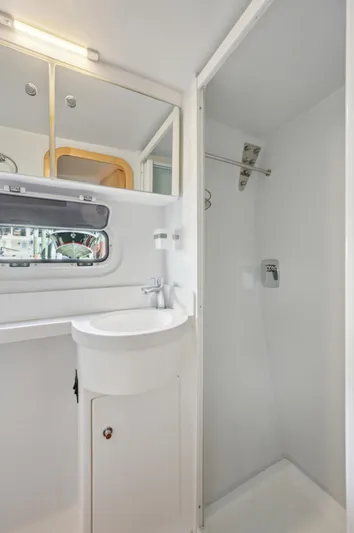

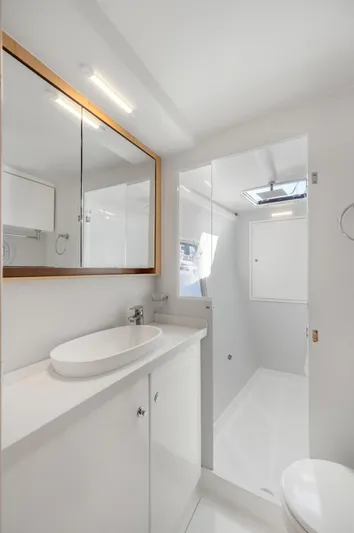

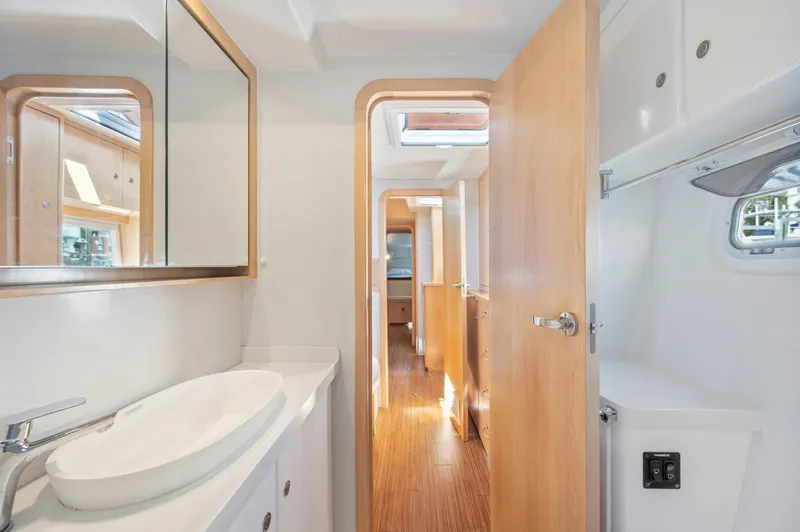

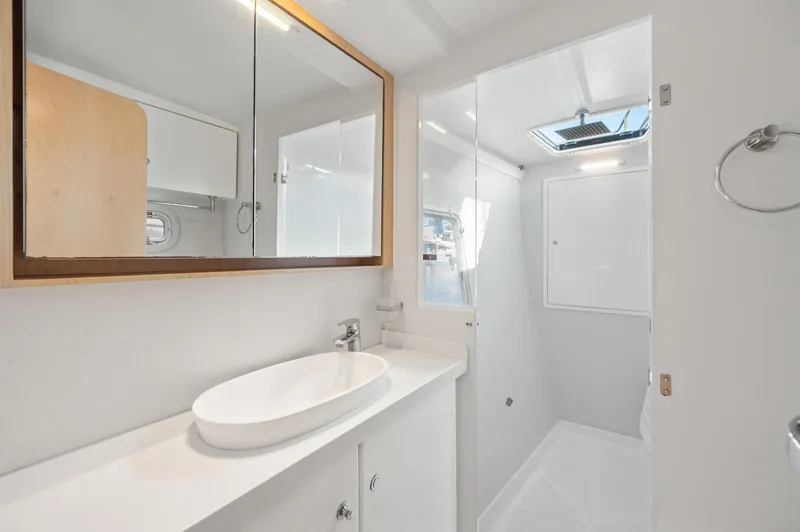

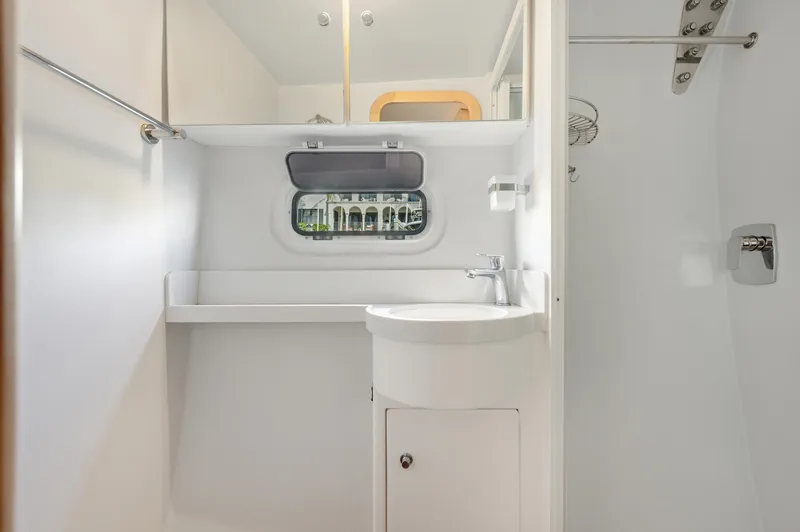

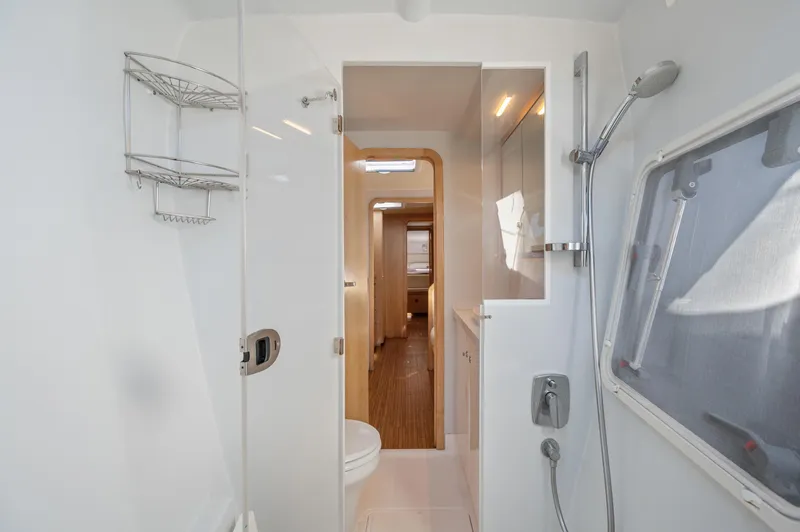

HEADS

• Port Forward Head
  • White GRP vanity cabinets, Corian tops with faucet and basin
  • Extra GRP cabinets with Corian top
  • Single Shower with seat & Bi-fold sliding shower door

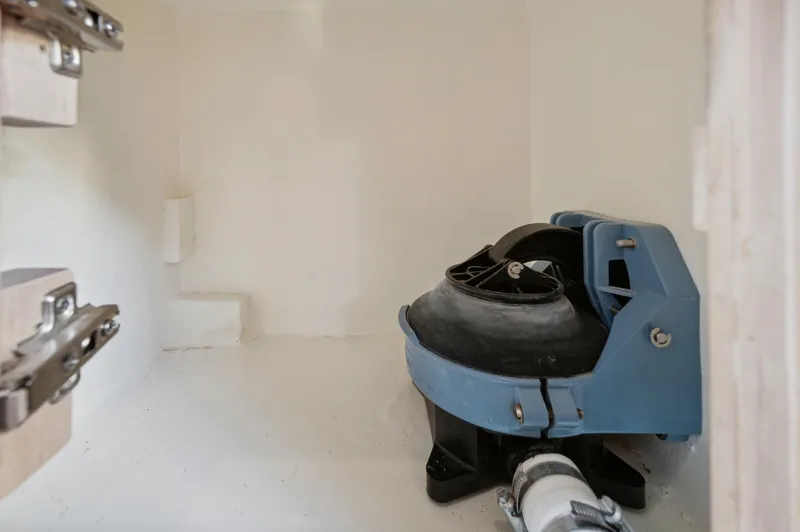

  • Dometic electric toilets fresh/salt water flush

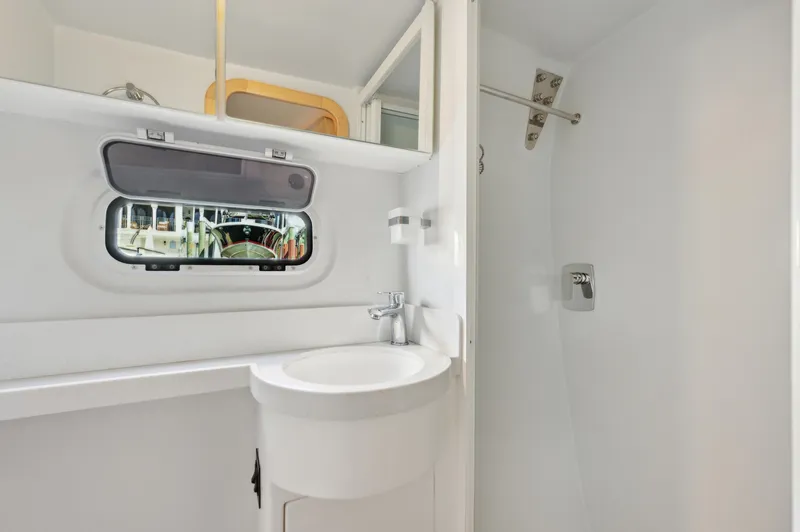

• Port Aft Head
  • Shower- retractable shower door
  • White GRP vanity cabinets, Corian tops with faucet and GRP flush mount white basin
  • Dometic electric toilets fresh/salt water flush
  • Window blinds

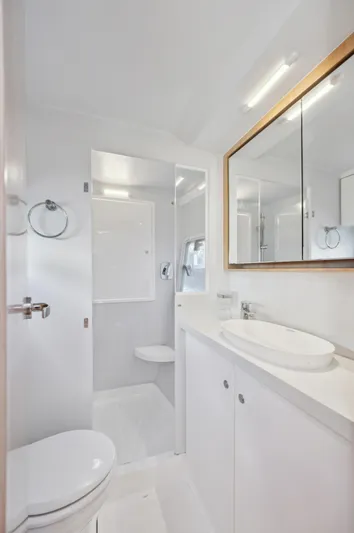

• Starboard Forward Head

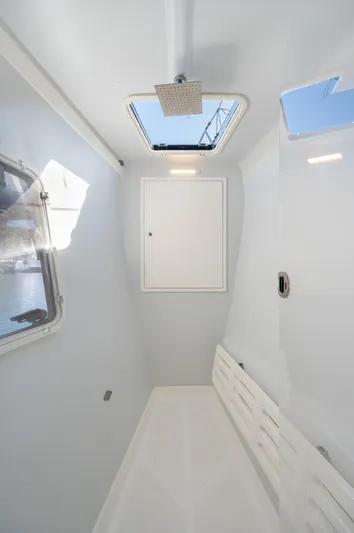

  • Double shower with Bi-fold sliding shower door
  • White GRP vanity cabinets, Corian tops with faucet and basin
  • Extra GRP cabinets with Corian top
  • Dometic electric toilets fresh/salt water flush

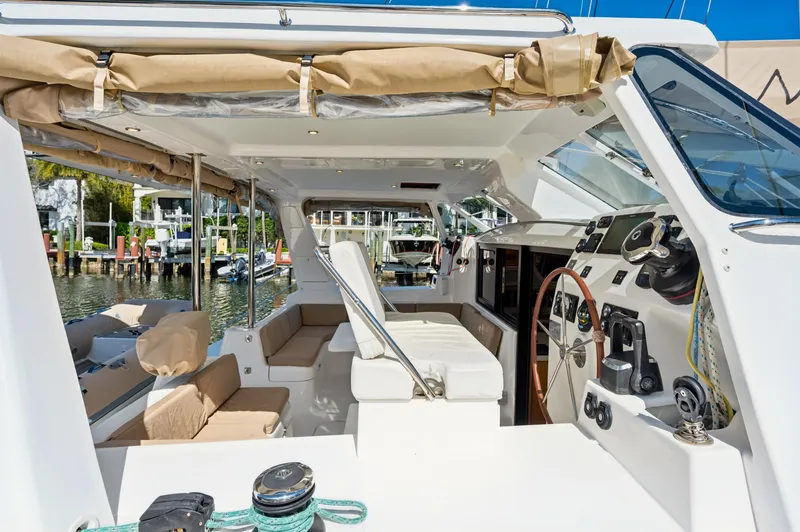

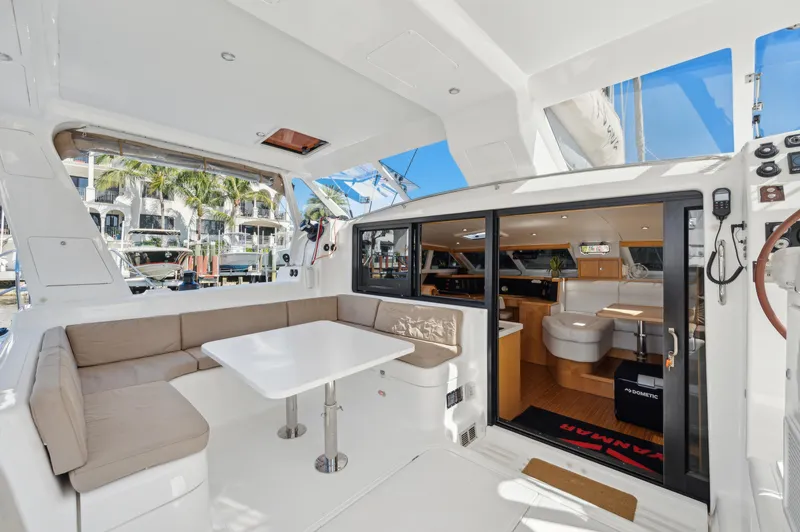

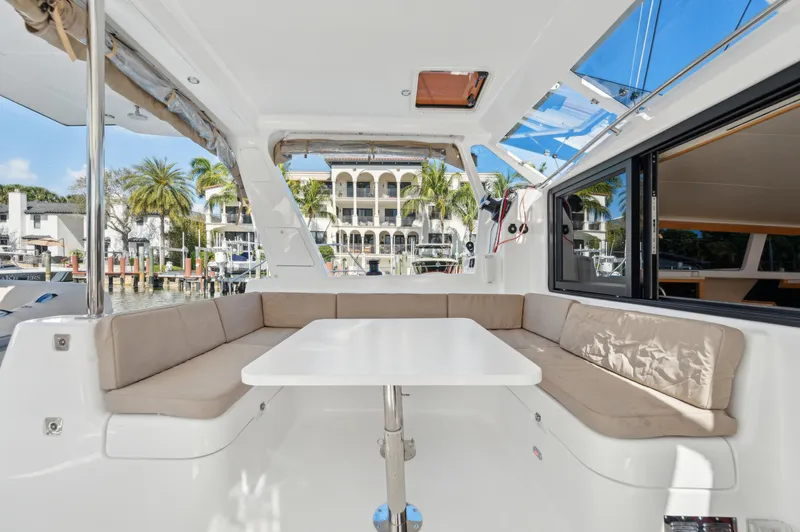

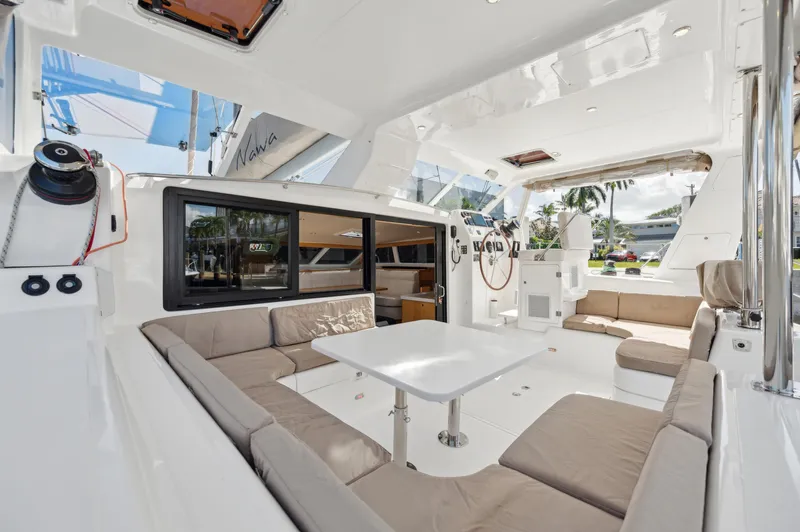

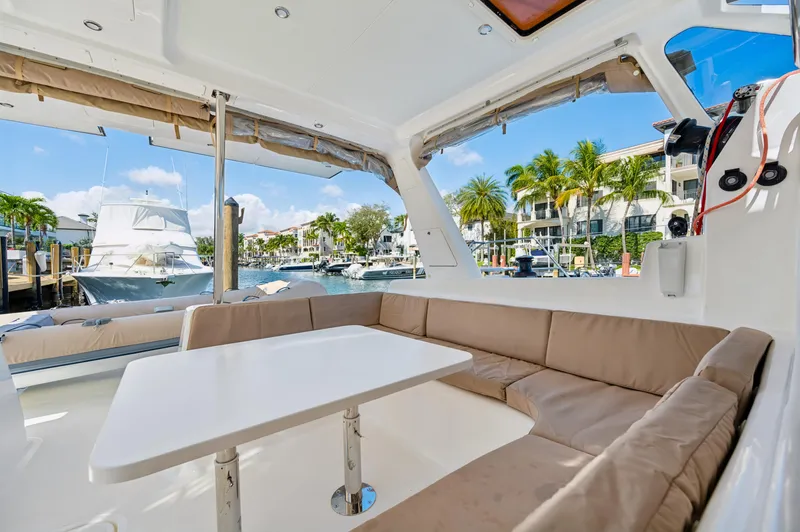

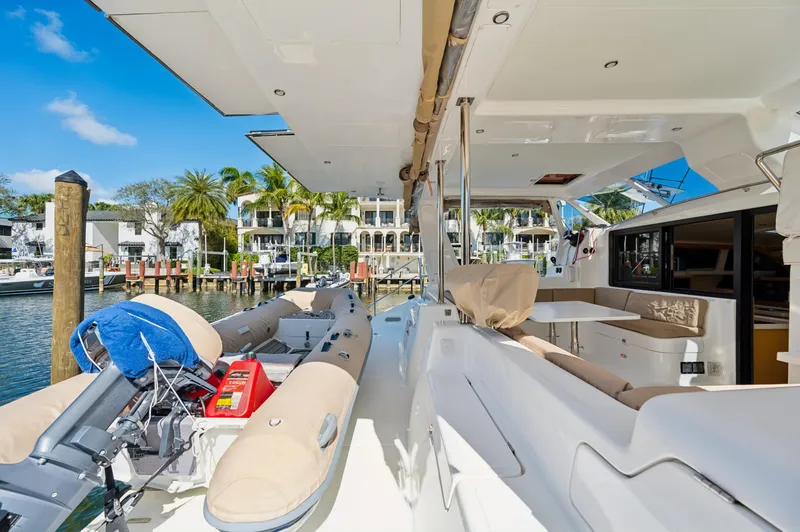

• Cockpit center table that can lower to form a bed- equipped with a mattress that fits table area
• Step at helmsman seat
• Ice maker under helm station seat
• Double helm seat with Vinyl padded seat with adjustable back rest and locker under seat
• Cockpit gates
• Large covered sump & cockpit drain areas to keep cockpit dry
• Life raft locker
• 2 X Rod holders at sides of entrance to cockpit
• Fresh water hot & cold shower at transom
• Cold box in starboard aft cockpit locker with drain which can also be used as a freezer
• Deck wash fresh & salt water Foredeck
• Deck wash fresh & salt water Transom
• Aluminum sliding door and window to salon
• SUMBRELLA COVERS for full cockpit with mosquito nets

NEW ENLARGED UV REFLECTING SALON WINDOWS/SLIDING DOOR

• Non-scratch grey UV anti-sun armor plate glass
• 2 X ST 2 black flush portlight incorporated in the outer two forward salon windows for ventilation
• Fixed 10mm anti-sun toughened glass windows. 2 X FWD cabins, 2 X amidships & 4 X aft cabins in hull sides

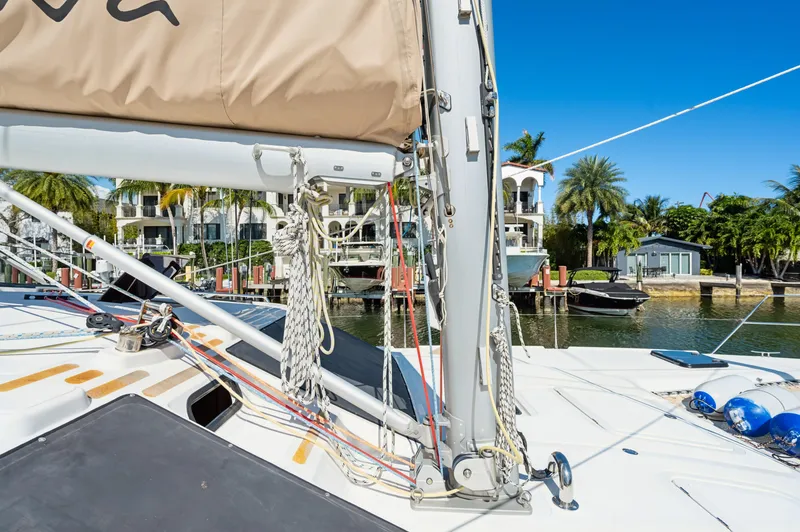

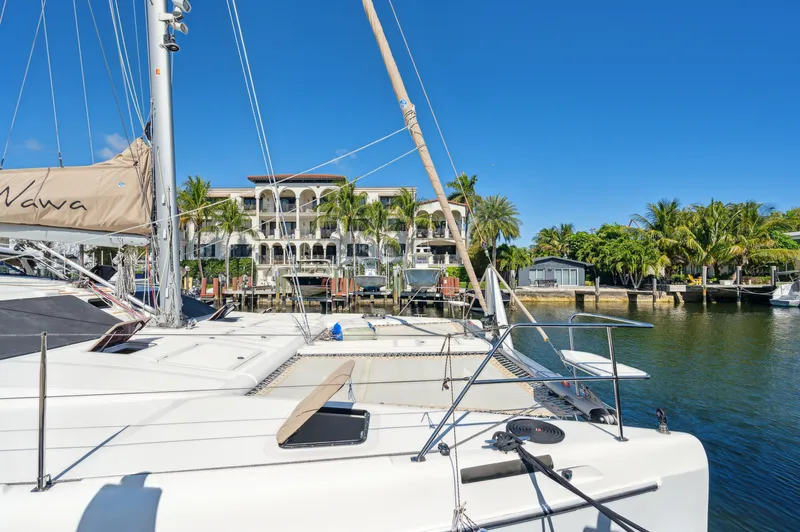

DECK FITTINGS

• 2 X Stainless steel pushpits with seats
• 2 X Stainless steel pulpits with double seats
• 8 X 750mm/ 29.5" high double wire Stainless steel stanchions with grey Dyneema lines
• 9 X Stainless steel hand rails (coach roof, bimini top and cockpit)
• 10 X Large mooring cleats - 4 X Aft - 2 X mid - 2 X FWD & 2 X crossbeam
• 6 X carbon mooring line chaff plates
• Stainless steel boarding ladder - located on port side transom

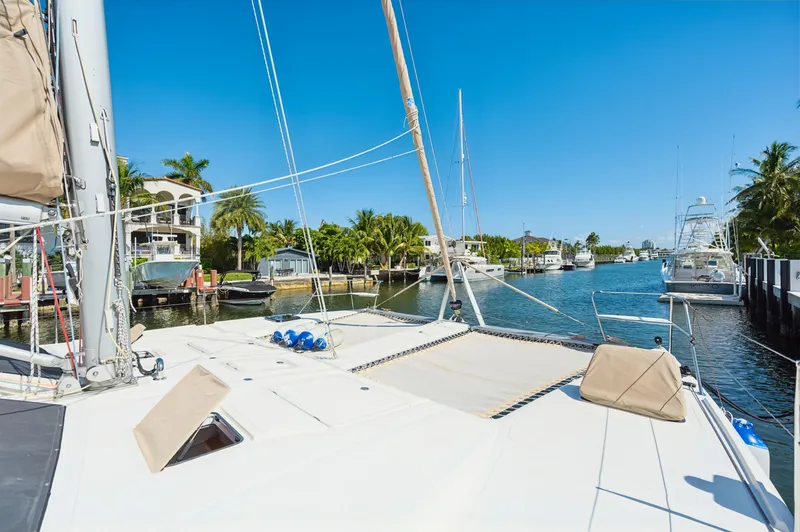

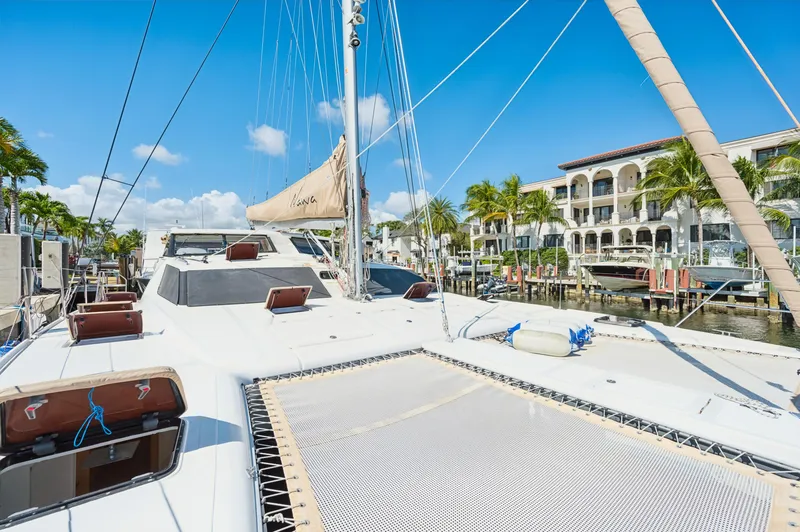

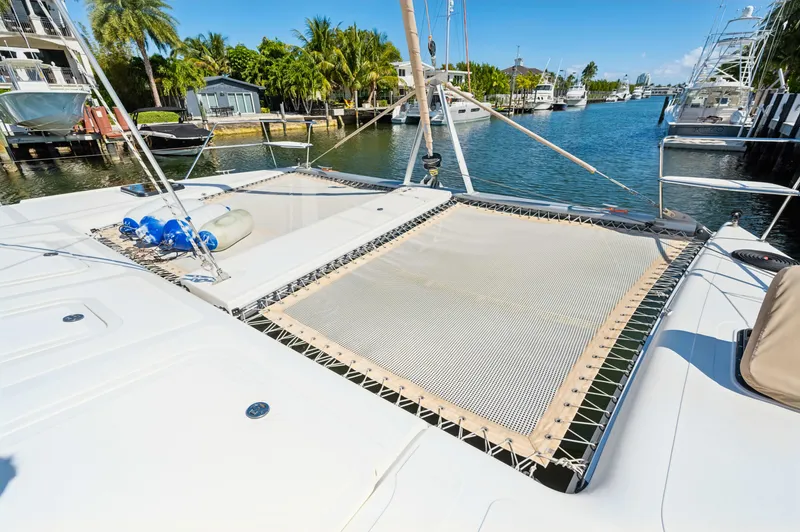

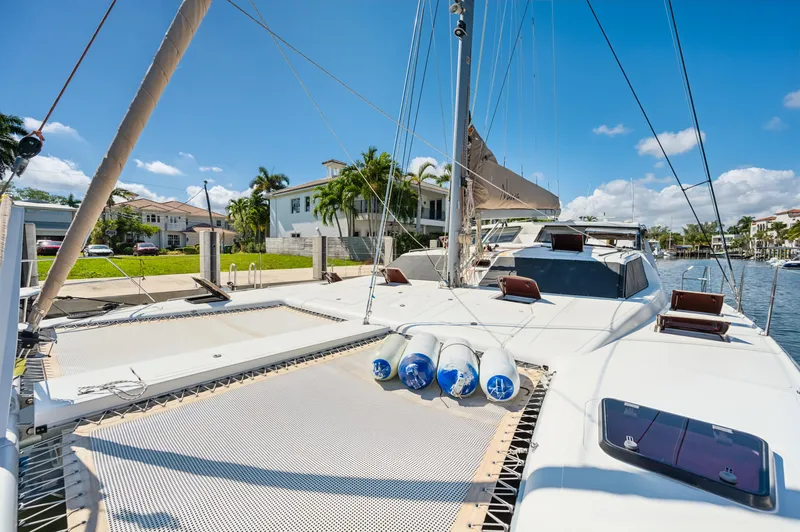

• Trampoline with adjustable tension UV stretch cords
• Stainless steel mast gooseneck conduit 38mm

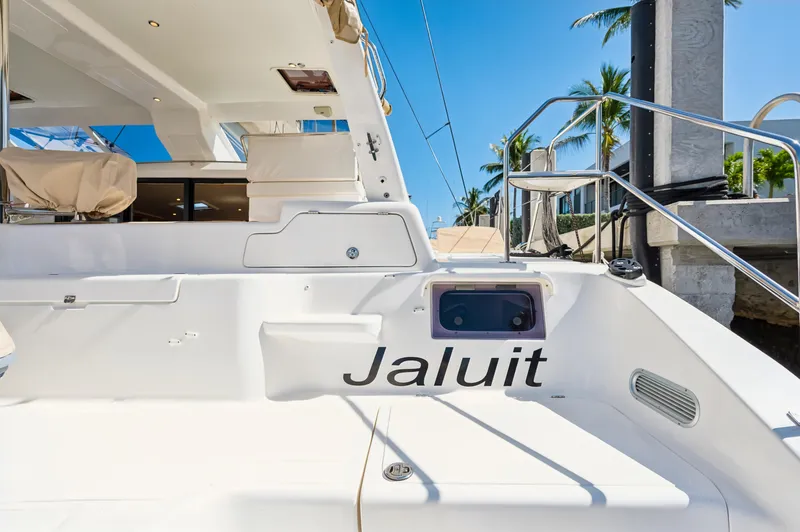

• Transom GRP steps for easier access to deck
• Fixed GRP / Carbon reinforced swim platform

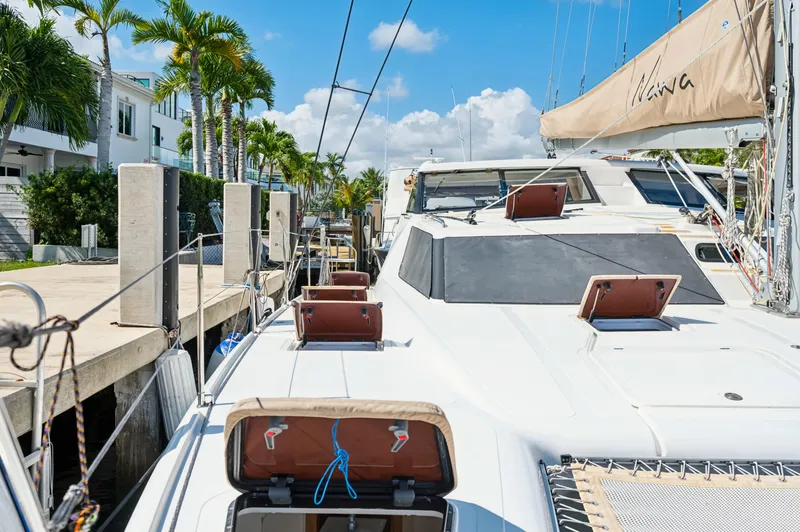

HATCHES AND PORTLIGHTS

• 2 X size 65 Ocean hatches (forepeak sail lockers)

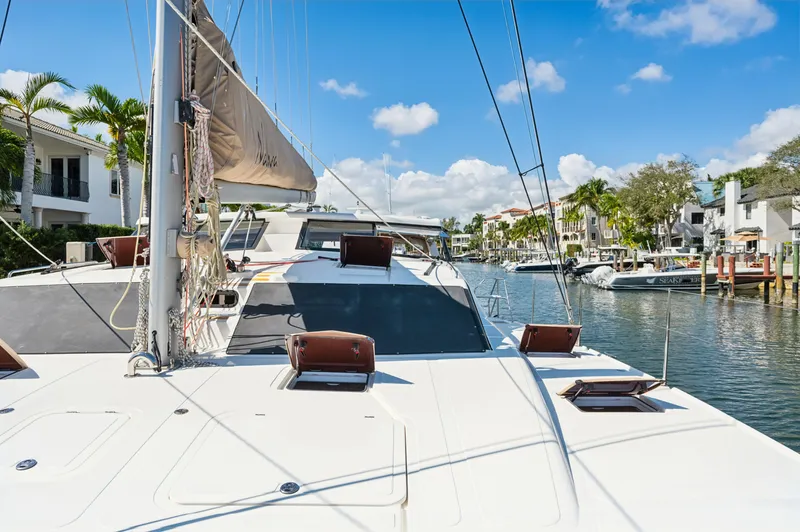

• 8 X size 54 flush hatches 3G (4 X FWD cabins, 2 X aft cabins, 2 X amidships)
• 2 X size 54 flush hatches 3G with stays (Salon)
• 2 X size 41 flush hatches 3G (aft cabins transition)
• Hatch trim and flyscreens for 2 heads, 2 X forepeak, 2 X aft transition & 1 X behind mast portlight
• 2 X size 60 medium profile hatches in hard top to view sails & for cross ventilation
• 2 X size 54 Multi hull escape hatches (Inner hull port & starboard)
• Oceanair Skysol Skyscreen Blinds to size 54 main hatches, salon, cabins, study & galley

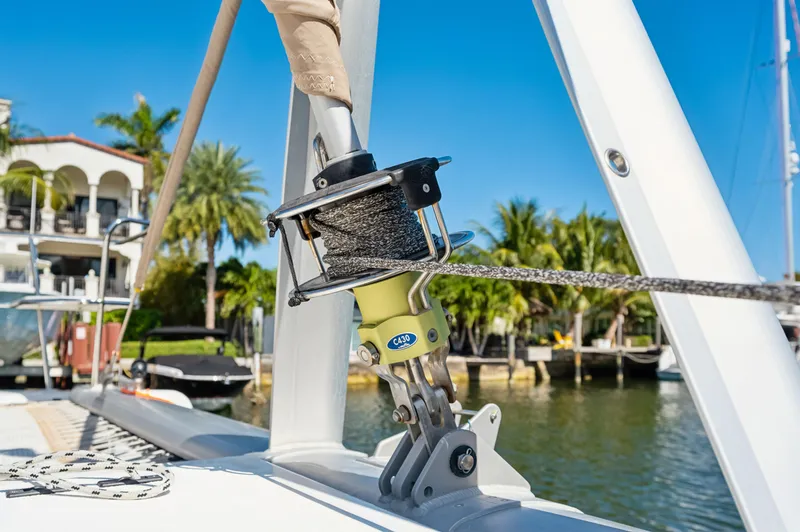

WINCHES

• 2 X 50 ST 2 speed (Manual aluminum self tailing) primary winches
• 1 X 46 ST (Manual aluminum self tailing) main traveller & roller furling winch
• 1 X 46 ST (Manual aluminum self tailing) halyard & boom extension winch at mast
• 1 X 46 ST (Manual aluminum self tailing) port winch for code sails
• 3 X 10" lock in handles
• 3 X Winch handle pockets - 1 X port, 1 X starboard cockpit and 1 X at mast

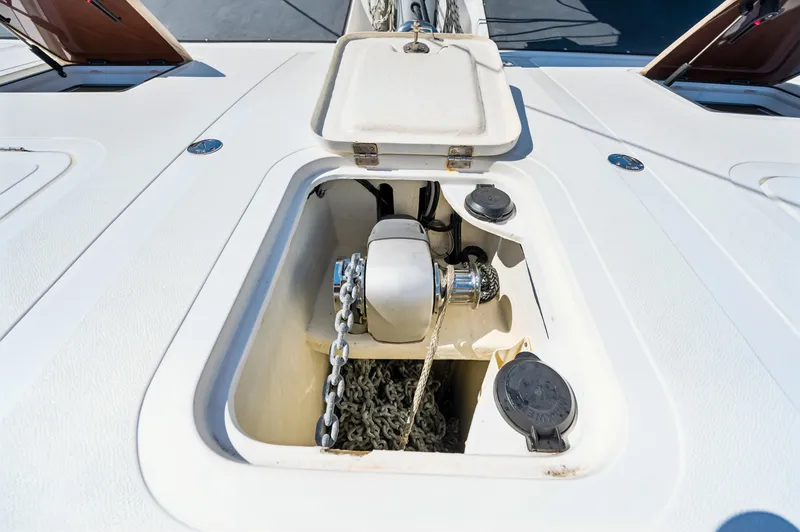

• 1 X Maxwell HRC 10-10 Electric anchor windlass for 10mm chain or 16mm rope

MAIN SHEET SYSTEM

• 1 X Traveller track - 32mm
• Traveller car 4 tons

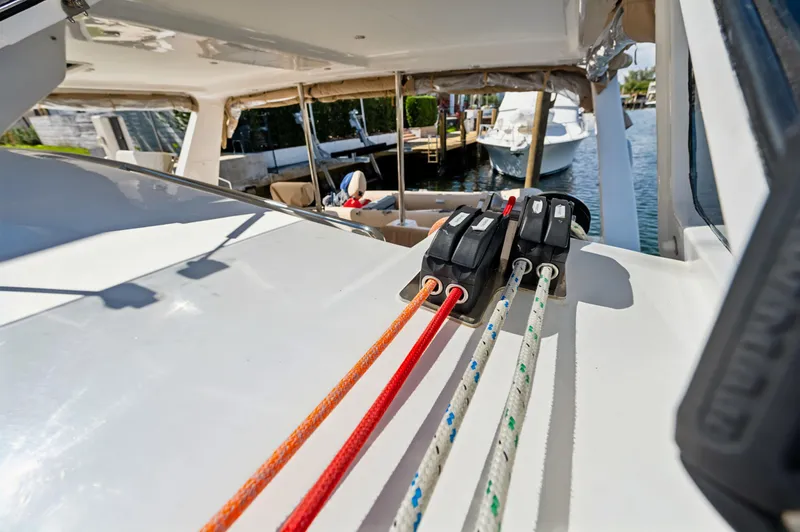

• Traveller controls and tackle

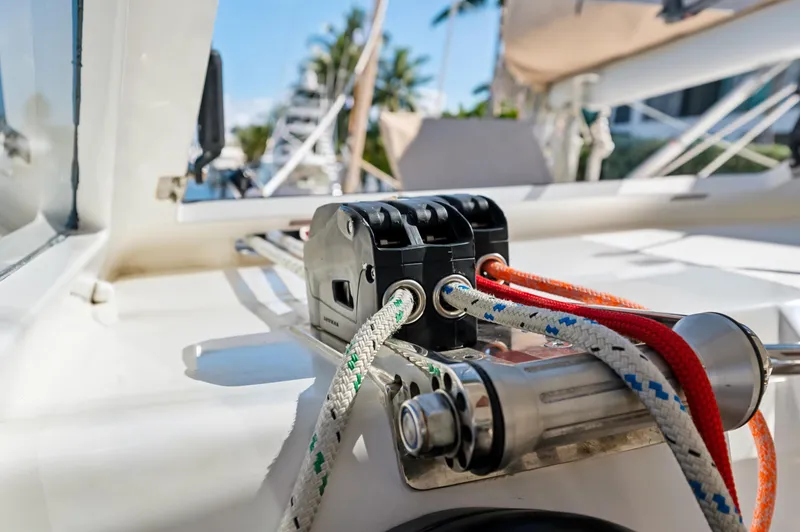

• 1 X Lewmar double traveller jammer 10-12mm
• Mainsheet Harken: 5 X 75mm single ESP blocks
• 4 X 75mm single ESP upstands
• 2 X Lewmar mainsheet jammers 12-14mm double

GENOA SYSTEM

• 2 X 1.8m tracks with stop ends
• 2 X Genoa cars
• 2 X Lewmar Genoa jammers - 12-14mm
• 1 X Lewmar Roller furler jammer - 8-10mm
• 2 X 57mm ESP foot blocks
• 1 X 57mm ESP single block

MAST, SPARS & RIGGING

• Sparcraft single spreader standard aluminum anodized mast 71'3" above DWL, boom, forward crossbeam & compression post with walkway
• Boom extension for dinghy lift (not for furling booms)
• Profurl C430 Genoa furler
• Boom vang support
• Capshroud chainplate
• Harken Battcar System "C"
• LED spreader lights
• All navigation lights are LED
• Shakespeare UFO TV Antenna
• Bow Prod & Housing
• Radar Bracket
• Top Forward mast camera
• Search Light
• Iridium install receptor

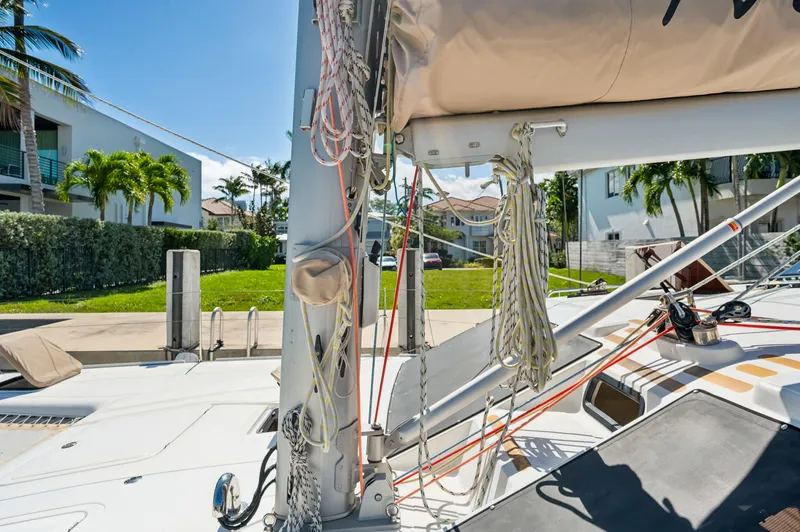

RUNNING RIGGING

• 1 X Main sheet Marlow double braid 12mm X 40M with tackle
• 2 X Genoa sheets Marlow double braid 12mm X 16M
• 5 X halyards: main, Genoa, baby stay, topping lift, Code Zero
• 1 X 8mm Genoa Furling line
• 1 X 8mm Code zero furling continuous line

SAILS

• Mainsail - North Sails Hydranet Fat head in perfect condition - Upgraded from the base model

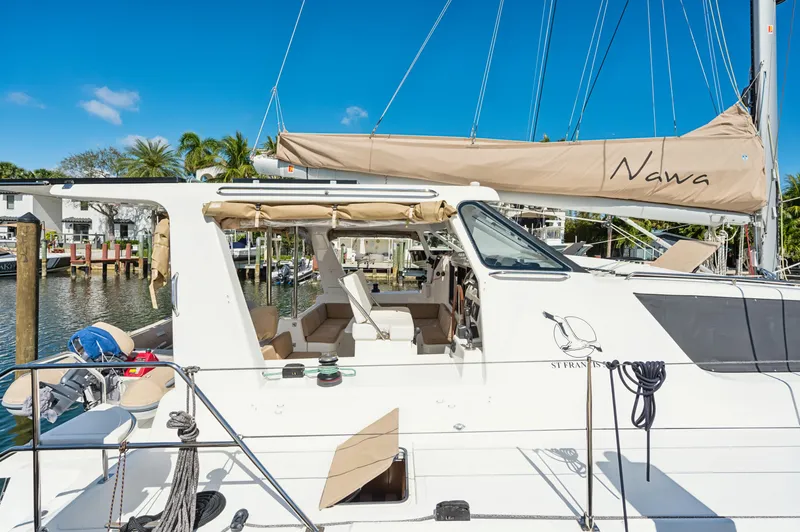

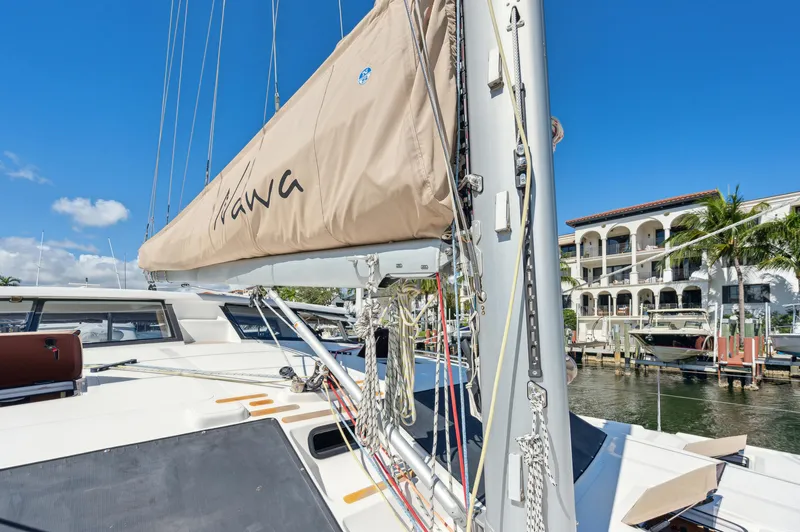

• fully battened with lazy jacks & stackpack (St. Francis logo on stackpack)
• Furling Genoa - North Sails Hydranet in perfect condition
• North Sails CODE 65 120 sqm NLXi Code Taffeta laminate with UV strip at leach - Added from the base model
• North Sails easy furl asymmetric spinnaker 135 sqm (for short handed crew) - Added from the base model
• Storm jib - North Sails Polyester high visibility 10oz Storm Orange Area: 14.24sq.m.
• Facnor FX4500 continuous furler with top down adaptor

GENNAKER SYSTEM

• Huge 2,155sqf Gennaker - 2,155 sqf
• Smaller top down furling gennaker - 1,453 sqf
  • This ensures that you can single handedly lower the sail in any wind conditions
• Mast Halyard Marlow Double Braid 12mm X 46M
• 2 X 100mm ESP foot blocks aft
• 2 X 75mm stand-up blocks in bows
• 12mm sheets X 2 Marlow Double Braid 12mm X 22M

ANCHORAGE & MOORING

• 1 X 40kg Vulcan Rocna galvanized Primary anchor (2024) (upgraded from the standard 33kg)
• 1 X Fortress secondary anchor - Deployable with a separate chain
• 6 X cylindrical fenders and lines
• Para anchoring & anchor bridle mounting points on crossbeam
• Maxwell AA560 Chain Counter at helm
• Windlass helm station control and foredeck remote control
• Anchor Bridle & Chain Swivel connector

NAVIGATION INSTRUMENTS

• Raymarine: VHF DSC Radio fixed mount with integrated AIS transmitter & receiver, wireless handset support
• 2 X Raymarine wireless handset for V60F radio

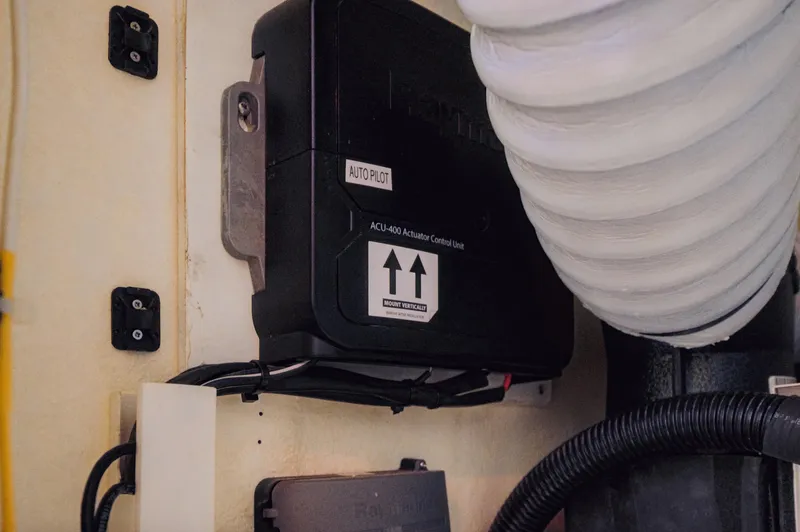

• Raymarine Autopilot core pack, high current NC3 autopilot computer, Precision 9 compass & RF-25 rudder feedback unit
• Raymarine autopilot controller & 4.1" display pack
• Raymarine Radar kit
• Raymarine Wind Sensor
• EC1-1-- Universal engine & control interface
• Iridium GO
• Additional 7" plotter at the navigation station

ENTERTAINMENT

• 43" Flat Screen TV

INTERNAL JOINERY & FINISHES

• Maple with a Satin finish
• All construction in foam sandwich/marine ply and bonded to the hulls
• Corian tops- color: White Onyx
• Salon Settee Vinyl
• All Flooring Belgotex Vinyl
• All ceiling panels Vinyl covered
• Cabin headboards Vinyl
• Cabin Seats Vinyl
• Dashboard panels Vinyl
• Cabin window surrounds Vinyl
• Navigation station carbon look Vinyl

PAINTING

• Interior Paint - Primer - Awlgrip
• Exterior hulls & interior - Awlgrip epoxy paint system (Matterhorn White)

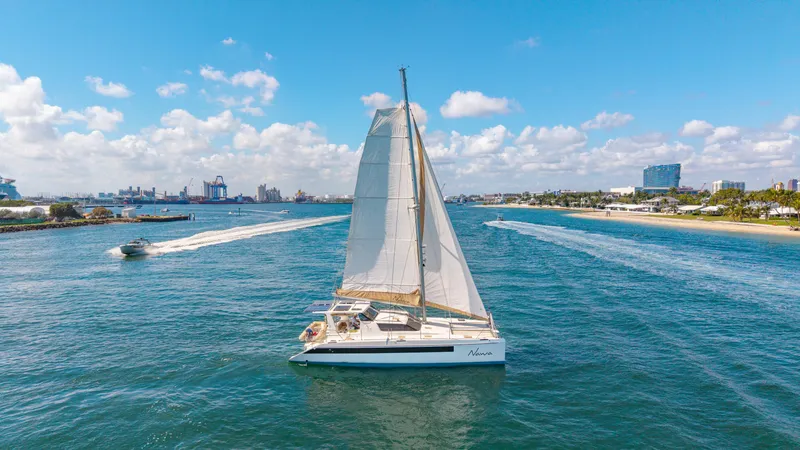

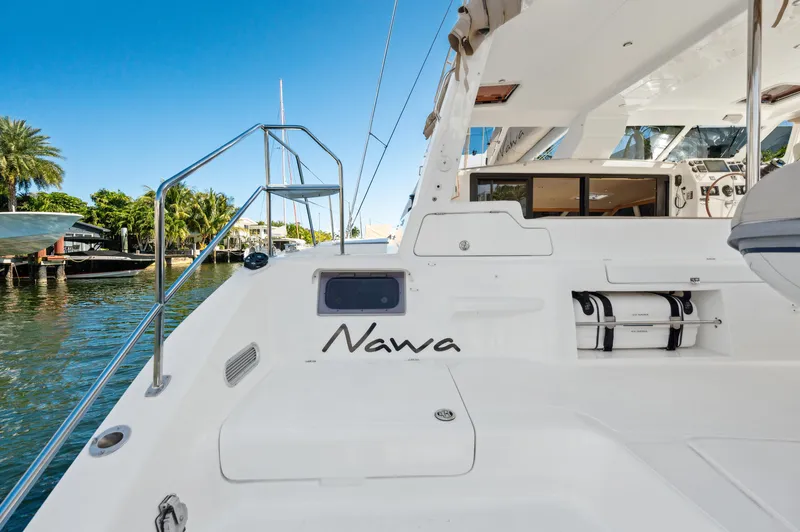

• Boat name "Nawa" on the outboard forward side of each hull
• All woodwork 4 X coats UV resistant extra hard Luxor 2K clear coat (Satin)
• Anti-fouling International - 4 coats Interprotect (2 grey & 2 white) & 3 coats Micron 350 (dark blue)

SAS CATEGORY A SAILING VESSELS SAFETY EQUIPMENT

• 8 X Life Jackets Orange 150N
• 2 X Lifebuoy (Jimbuoy) Complete Yellow
• Danbuoy Jonbuoy
• 4 X Handheld distress flares- Red
• 4 X Rocket flares - Red
• 2 X Floating smoke markers - Orange
• Waterproof torch
• Code Flags: N, Q, V, C
• Life Raft: Viking 8 Person
• 2 X Black Ball shapes - 400mm
• EPIRB ACT 406M
• 3 X Fire extinguishers - handheld 1.4kg
• Capsize bottle - waterproof
• 2 X Space blankets (emergency blankets)
• Bosuns chair
• 4 X Safety harnesses - adult
• Telescopic boathook
• Nautical Almanac
• Spotlight Rechargeable 12V
• Sheet ID
• Fog Horn
• Compass Handheld
• Signal Card
• Galvanized Bucket 2L
• Heaving Line 8mm X 30m
• Light M4
• Floating Light LED Torpedo
• Anchor Drogue
• Radar reflector Tubular 50mm
• Plastic Bucket 5L
• Toolkit
• First Aid Kit SOLAS LFA 2
• Bolt cutter
• Knife
• 1 Set wooden bungs for seacocks
• 4 X Pad eyes and jacklines

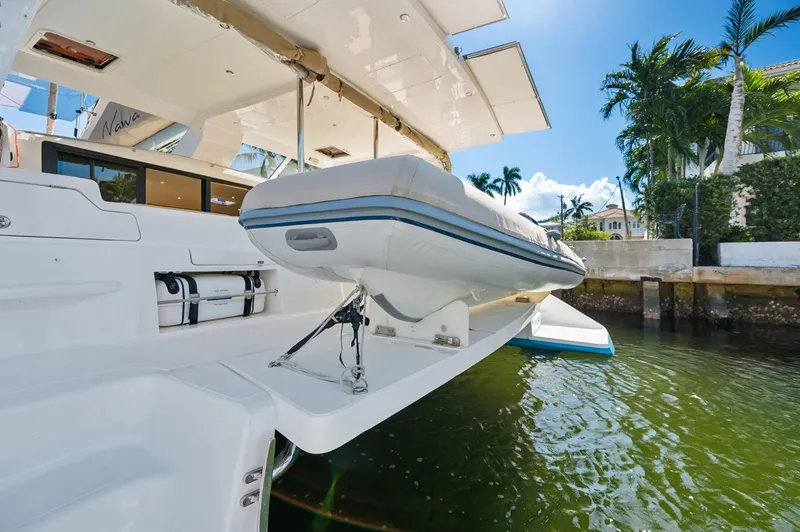

TENDER

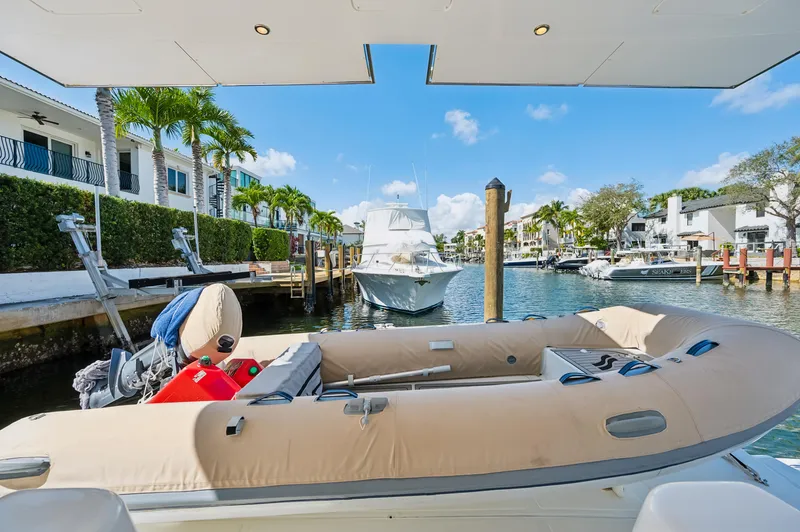

• 380 Highfield (2024)
• Yamaha 25HP outboard (2024)
• Chaps covering the tender
• Tender anchor and chain

SPARE PARTS

• Autopilot hydraulic pump (motor)
• Numerous spare halyards and sheets
• 9 full sets of service (6 for engines, 3 for the GENSET) (oil, impellers, belts, etc.)
• Filters for compressor and watermaker
• Locks for cabinets and electrical

MISCELLANEOUS

• MAGMA Stainless steel Marine Barbeque

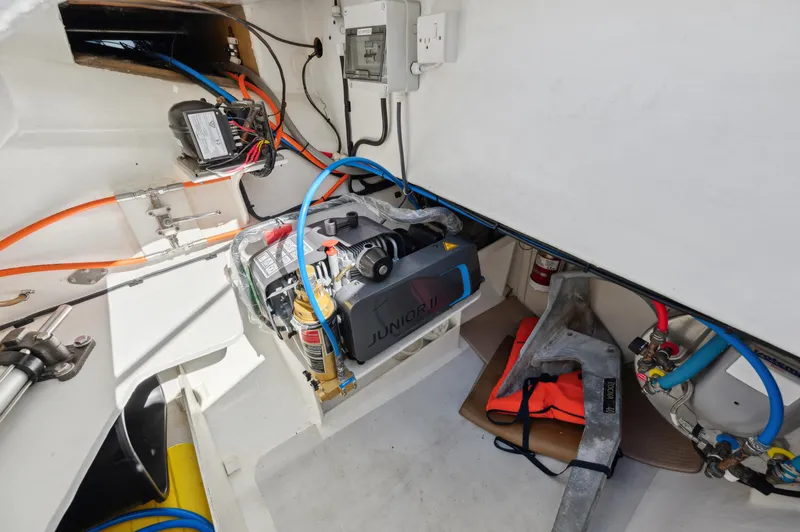

• Bouer Junior electric DIVE COMPRESSOR (2024)

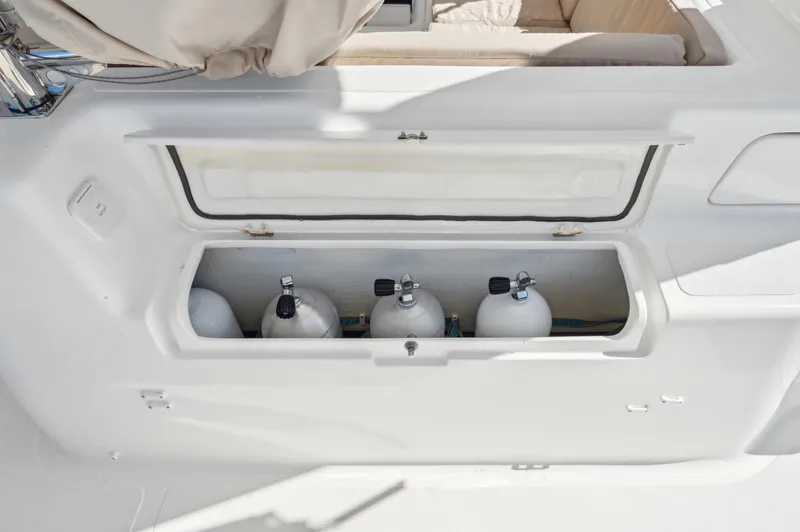

• 4 X diving tanks (2024)
• 2 X large SUMBRELLA AWNINGS (fore and aft of the mast)
• SUMBRELLA covers for all winches, cockpit tiller station, tellers seat, and hull hatches
• Full set of tools
