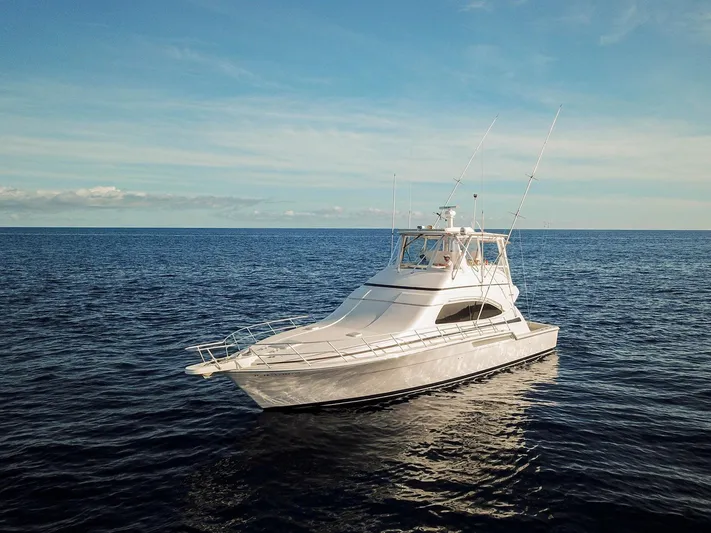

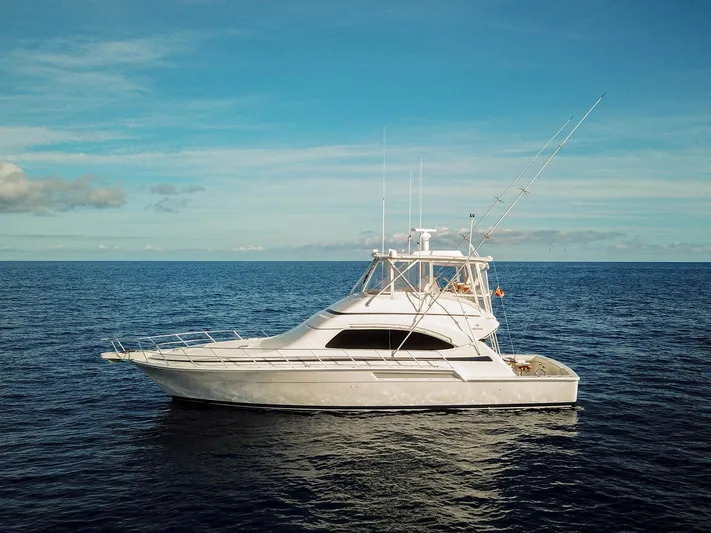

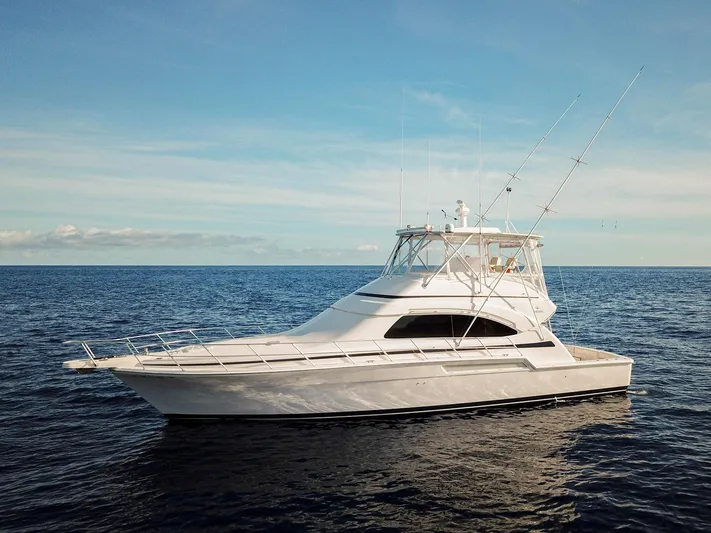

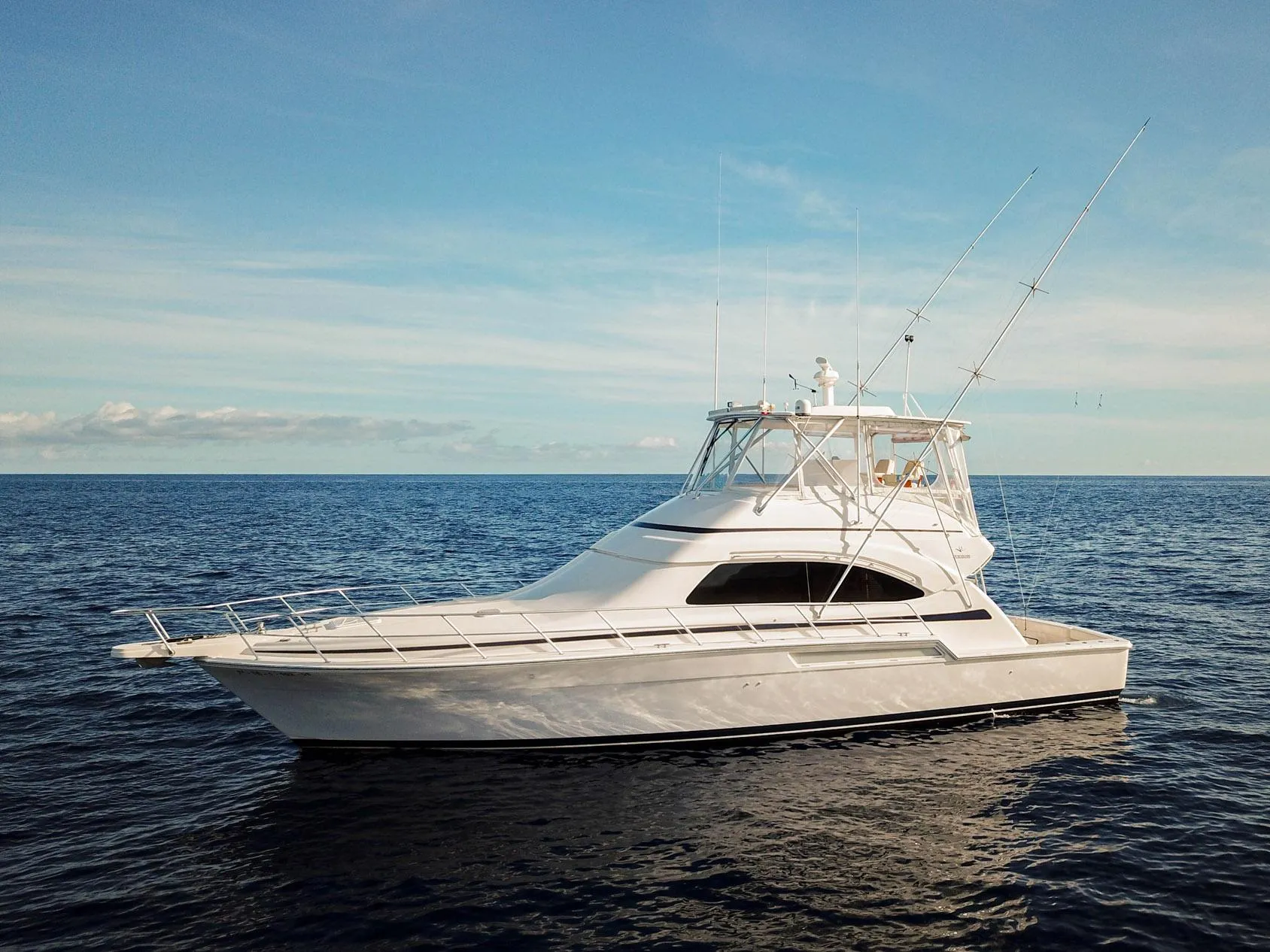

PECADO Boat for Sale

• Cruising Speed: 28 kn
• Maximum Speed: 34 kn
• Beam: 16' 2''
• Hull Material: Fiberglass
• Max Draft: 5' 0''
• Displacement: 65,489 lb
• Fuel Tank: 1 x 1040|gallon
• Fresh Water: 1 x 185|gallon
• Cabins: 3
• Heads: 2

• MAN Mains with 7,000 original hours (after coolers serviced and pressure tested in July 2024)
• Full semi-rigid methacrylate, frontal 10mm laminated glass, and strata-glass Flybridge enclosure with large custom fiberglass dining table
• Water maker with dedicated pump for yacht wash
• Double Kohler 13.5kW generator
• Bow-thruster
• Reverso oil-changing pump system
• Inverter 24v DC to 220VAC, 2500 W
• Fresh epoxy coating and bottom paint, prop speed (July 2024)
• Great 3-stateroom layout
• Pristine condition

Dimensions:

• Overall Length (w/bow pulpit): 54 Feet, 10 inches
• Hull Length: 51 Feet 05 Inches
• Beam: 16 Feet, 02 Inches
• Draft: 5 Feet
• Height Above Waterline: 14 Feet
• Cockpit Square Feet: 168 Sq.ft.
• Displacement: 65,489 lbs (29.7 tons)

Hull Construction:

• Material: FRP - Molded Fiberglass
• Deck: FRP - Molded fiberglass main deck and bridge deck
• Bottom Type: Deep V
• Keel: Molded in Hull
• Flybridge: FRP over molded fiberglass
• Pulpit: 7' Fiberglass
• (5) Bulkheads, Fiberglass over marine plywood (Fore peak, Forward Quarter, Amidships, aft quarter, aft)

Accommodations & Main Salon Area:

• The main salon has built-in cabinets aft on the starboard side with the main electrical panels, TV, and ice maker.
• Forward on the starboard side is a built L-shaped dinette. There is an L-shaped sectional sofa along the port side with a custom cocktail table. The galley is forward on the port side.
• Going forward and down four steps to starboard is the double individual bed guest cabin. The guest head is forward of this cabin. The master stateroom is on the port side. There is a queen bed and an ensuite head.
• Going forward in the companionway to port is the laundry center. The VIP Stateroom is forward. There is a queen center bed. There is a privacy door to the head aft on the starboard side.
• There is one overhead watertight escape/ventilation hatch, and two overhead ventilation hatches.

Master Stateroom:

• Port/Owner's Stateroom provides sleeping for two guests on a full berth (with storage drawers below)
• Dual hanging locker
• USCG Type III MSD head, Tecma, porcelain

VIP Stateroom:

• Forward/VIP's Stateroom provides sleeping for two guests on a full berth
• Dual hanging locker
• Access to the anchor chain locker (forward), and a fully enclosed head compartment (aft to starboard).
• USCG Type III MSD head, Tecma, porcelain

Guest Stateroom:

• Starboard/Guest room provides sleeping for two guests on two single berths (storage drawers below)
• A hanging locker

Galley:

• Norcold Coolmatic Refrigerator
• (2) Sets of Sub-Zero drawer Freezer/Fridge, Model 700BF
• Double Sinks
• (3) Burner Kenyon Cooktop Electric Range with sea clips/holders
• Sharp Carousel Microwave 1200W
• Miscellaneous Appliances: Malnor Washer & Dryer

Additional Details:

• (2) heads located at the Master and VIP Staterooms.
• Showers: Head compartments featured acrylic countertops and sinks, faucets, electric heads, vinyl wall covers, wood panel soles, and enclosed showers
• Furniture: Main Salon features an L-shaped sofa and a wood coffee table.
• Dinette features an L-shaped bench, an acrylic dinette table, and overhead rod storage.
• Washer: Manufacturer: Candy - Smart front load
• Dryer: Manufacturer: Candy - Smart front load

• LCD TV. Make: I-Joy LED
• Bose Music Entertainment System DVD, FM, CD. Model: Lifestyle
• Additionally, five (5) dual Bose interior speakers at the Main Salon.
• (2) VHF: Manufacturer: Simrad Model: RS86
• Autopilot: Manufacturer: Simrad. Model: AP25
• Simrad ES60 fish finder echo-sounder with a 38/200 Hz 1kW transducer built and molded into the keel
• Furuno FS2570 SSB-HF radio, 250 watts
• SAILOR 150 IRMASAT Fleet Broadband communication system
• Rigid E-Series Pro LED Light Bar 35,000 Lumens (frontal)
• Searchlight ACR-URP-102
• MAN Engine Digital Displays, (2 units). Model: MMDS-CLC 6.3
• 3D SIMRAD OLEX GPS/Chart/Navigation System, 19'' Abraxys Sunview screen x2
• Furuno GPS/Chart/Radar/Navigation System, Model: 6100i.
• Ritchie Compass 4"
• Clarion AM/FM Radio & CD Player, Model: CMD-4
• (4) Exterior Speakers
• (3) Antennas mounted on the Flybridge hardtop

Engines:

• 2 X MAN, Model # V-10-1100 / 1,100 hp Each
• Reduction Gear: 2 x ZF Marine/ Model ZF550A 1.97 to 1
• Propellers: Number of blades: Five (5). Material: Nibral/Bronze
• (2) Stainless Steel Propeller Shafts: Diameter: 3 Inches
• (2) 4" Bronze / Fiberglass Tidan with dripless shaft seals

Transmissions:

• Manufacturer: ZF (Zahnradfabrik Friedrichshafen)
• Model Number: Port: ZF 550 A / Starboard: ZF 550 A
• Type: Reversing clutch type with reduction gears
• Drive Type: Straight
• Gear Ratio: Transmission tag states 1.97:1
• Controls: ZF electronic single lever controls
• Propeller Shafts: Size: 3 inches Material: Stainless Steel
• Stuffing Boxes: Dripless Type System

Generators:

• 2 x Kohler, Model: 20EOZD
• Voltage: 120/240
• Kilowatt Rating: 15.5 KW/60 Hz @ 1.800 RPM
• Muffler: (2) Centek Flo-Thru
• (3) In-Line Cylinders
• Remote Racor 500 MA fuel filter/water separator
• FRP exhaust muffler, wet exhaust

Fuel System:

• Fuel Type: Diesel
• (1) Fiberglass Tank - centered
• 1,090 gallons capacity
• Shut-Off Valves: Forward main engines at the fuel manifold valve system
• (4) Fuel Filters remote mounted Racor 75/1000MAX .
• Engine-mounted spin on/off

Steering System:

• Type: Hydraulic
• Manufacturer: Sea Star
• Clutch & Throttle: ZF Electronic
• Delta (28 Kgs) with a brand-new 10-mms calibrated chain (80 mtrs)
• (2) 10" Bow Cleats
• (2) 10" cleats at the forward quarter and (4) aft quarters
• Rudder Stock: Stainless steel rudder stock
• Rudder Shaft Packing: Bronze hex nut type packing gland

Air Conditioning and Heat:

• Split System, Manufacturer: Cruisair
• (3) compressors
• (3) Cruisair air conditioning digital controls in the main salon, forward stateroom, and port stateroom
• Raw water cooling pump: 220-volt electric pump system equipped with seacocks and Perko sea strainers assemblies

Freshwater System:

• (1) main ship storage tank, Aft, 185 gallons ship water capacity
• Jet-type fresh water pump located in the engine room
• Hot Water System, Seaward Water Heater, Model: S1250
• Capacity: Approx. 10.5 gallons
• Sea Water Desalinator System, Sea Recovery, Make: FCI Watermakers (600 GPD)
• Type: Reverse Osmosis / 220 AC High-Pressure System

• Voltage: Lead acid battery powered 12 and 24-volt system
• Batteries: (4) VETUS - AGM and (4) OPTIMA - AGM servicing GEN sets
• Main Battery Switches: (2) Guest battery switches located mid-engine room to port. (1) Blue Seas System battery switch.
• Main Breakers: (2) main breakers for 24V DC at the main electrical panel (aft main salon to starboard). (2) main breakers for 24V DC at the secondary electrical panel. (2) main breakers for 12V DC and (2) main breakers for 24V DC at the secondary electrical panel.
• Panel: Overcurrent Protection: Circuit breakers.
• (22) breakers for 24V at the main electrical panel.
• (14) branch breakers for 24V at the secondary electrical panel.
• (10) 12V breakers and (14) 24V breakers at the secondary electrical panel.
• Charging Systems: Alternators on main diesel engines and diesel generators.
• Mastervolt Battery Chargers, (2 units). Model 1: MASS24150, Model 2: Mastervolt ChargeMaster Plus - 24v / 80 Amp
• (2) Model: Voltmaster. Type: 60 Amps
• Shore Power Inlet, in Cockpit (forward to starboard)
• Standard Hubble Stainless Steel w/Cap. Rating: 125/250 Volts, 50 Amps
• Shore Power Cord Approx. 50' long
• Inverter 24v DC to 220VAC, 2500 W
• Cable Master: Glendinning system
• AC Source Selector Switch: (2) 70A generator selector switches are located at Main Salon
• Main Breakers: (2). Rating: 50 Amps
• (16) Branch Breakers for 120V and (12) breakers for 240V in the main electrical panel.
• (16) breakers for 120V and (4) breakers for 240V at the secondary electrical panel.
• Circuit Load Monitors: (2) AC voltmeters and (2) AC ammeters in the main electrical panel

Cockpit:

• Hot / Cold Cockpit Shower
• Murray teak fighting chair
• Commercial freezer with built-in fan
• 80-gallon Livewell
• 8 rod holders
• (4) waterproof 12v cockpit outlets for electric reels
• 2 additional cleats on each side
• Swimming Ladder

Fishing Equipment:

• (10) rod holders: four (4) gunwale mounted and six (6) uppers at the Flybridge railing
• Triple spreader outriggers (by Rupp)
• An overhead rod storage compartment is located at the Dinette
• Fighting Chair: Teak seat, large
• Bait Freezer: One custom bait freezer located forward cockpit to port
• One raw water wash-down in the cockpit, One freshwater wash-down forward cockpit to starboard
• One live bait well located forward cockpit to starboard
• One tackle center is located forward in the cockpit
• One large FRP fish box is located below the cockpit deck
• One FRP fish box (w/output for Eskimo ice machine) located inboard transom
• (4) spreader/flood lights are mounted on the flybridge hardtop

Fire Fighting Equipment:

• Fire Boy Clean Agent FE 241 in Engine Room
• (4) Portable Extinguishers Dry Chem 1A-10BC ( Galley, Forward Cabin, Master Cabin)
• Fire Boy Alarm and (1) additional Portable Extinguisher at engine room

Miscellaneous Equipment:

• Electric oil change system
• Wind sensor Simrad IS12
• (2) LED Spotlights Rigid E series 35,000 lumens each
• McMurdo EPIRB with GPS
• Engine room infrared camera connected to flybridge screens
• Salon security camera connected to flybridge screens
• Radar, Plotter and GPS plugin to Salon TV connection
• Satellite phone SAILOR 150 IRMASAT
• Side Power thruster
• Glendenning cable master
• Generators battery charger - Dolphin 25w
• 24v fresh water pump with auto-change system with the 220v pump
• 24v 5 atm washdown pump
• Electronic fold-down flybridge helm console
