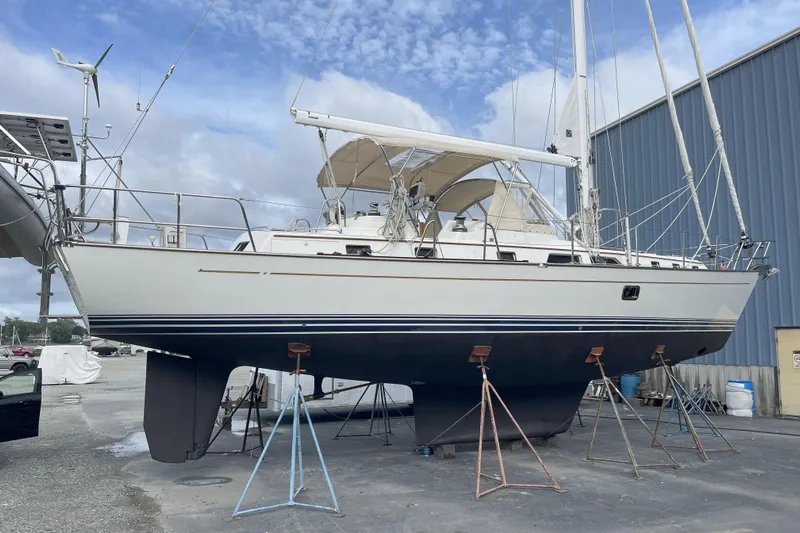

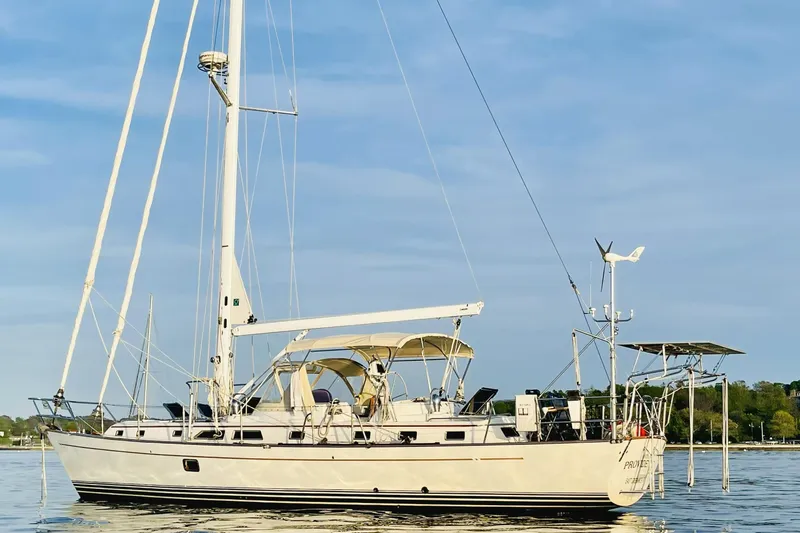

47 Passport 2013 Boat for Sale

Information & Features

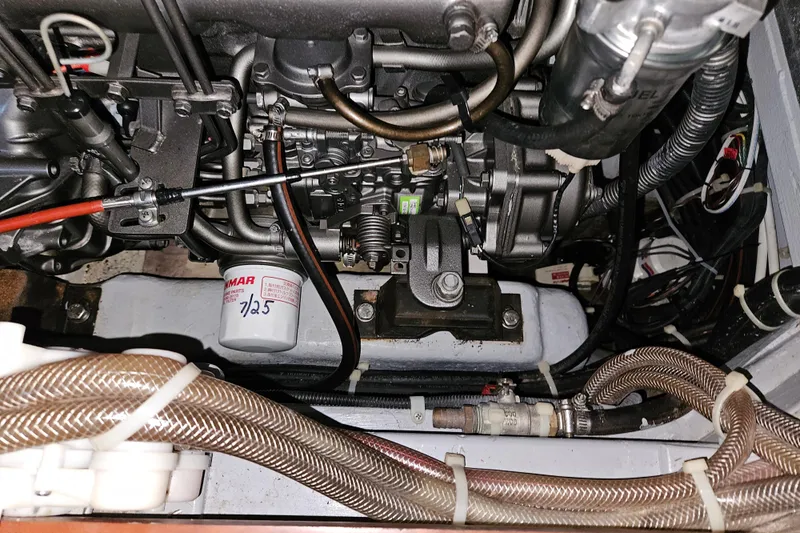

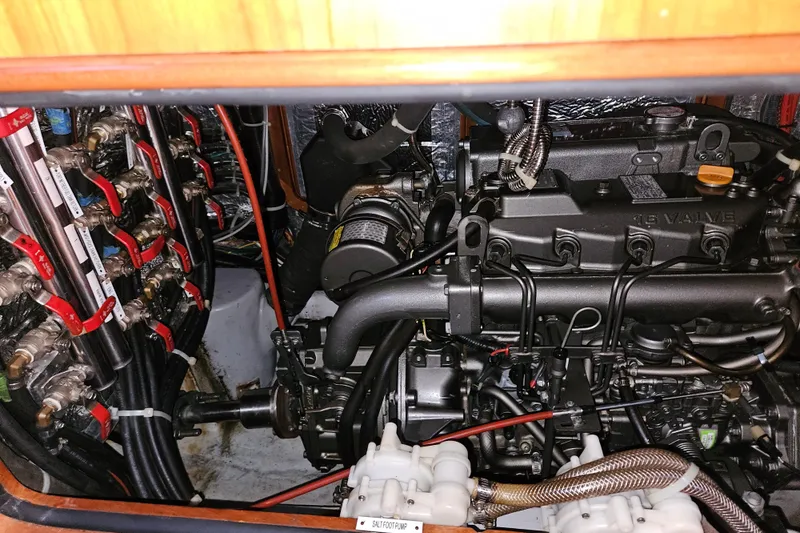

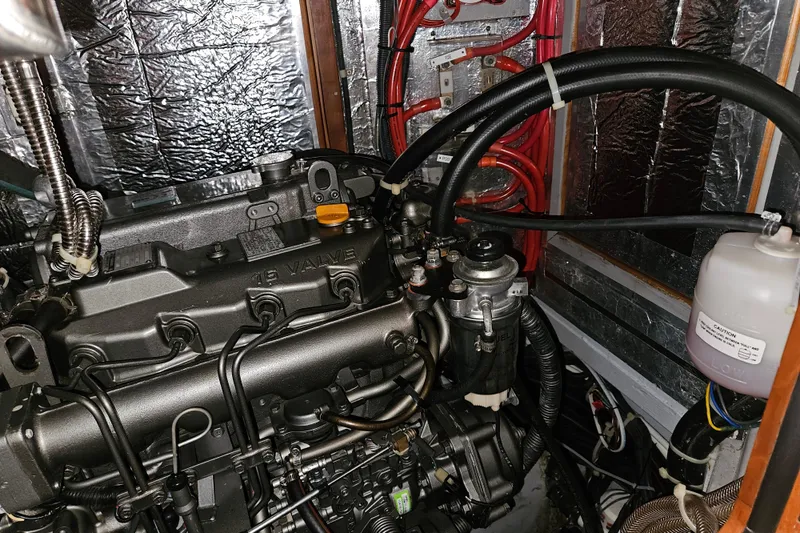

2013 Yanmar 4JH4-TBE (Engine 1)

Engine Type:   Inboard

Fuel Type:   Diesel Engine Hours:  1510

Power:     75 hp Propeller Type:  3 Blade Folding Propeller: true

LOA:      47 ft

Max Bridge Clearance:

63 ft 6 in

LWL:      39 ft

Beam:     14 ft 2 in

Min Draft:    5 ft 7 in

Weights

Dry Weight:   30,611 lb

Ballast:     11,000 lb

Displacement:  30,611 lb

Tanks

Fuel:      3 x Aluminum

Fresh Water:   2 x Stainless Steel

Holding:     2 x Plastic

Accommodations
Guest Cabins:  2
Guest Heads:  2

Tankage

Fuel - 124 gals. total in three aluminum (5052 grade) tanks (app. 60 gals., 37 gals., and 27 gals.)
Water - approximately 126 gals. in two stainless steel tanks
Holding - two fiberglass tanks approx. 25 gal. each
Fuel, water, and holding tank gauges

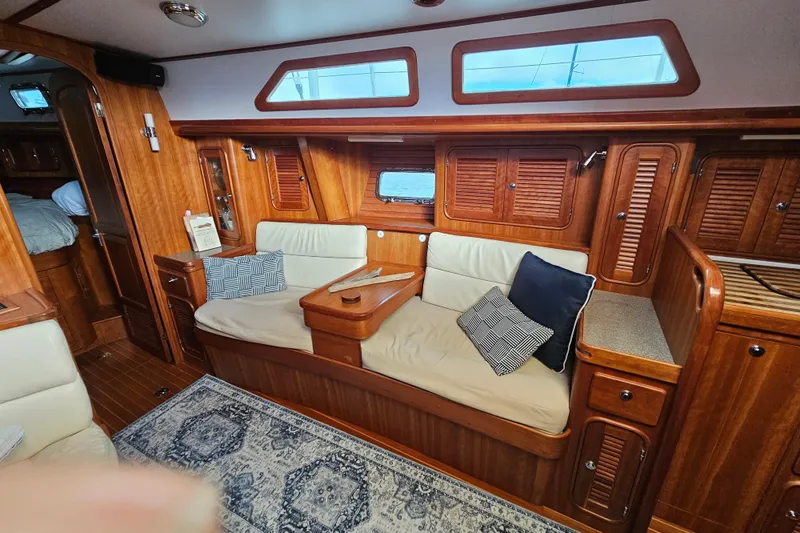

Accommodations

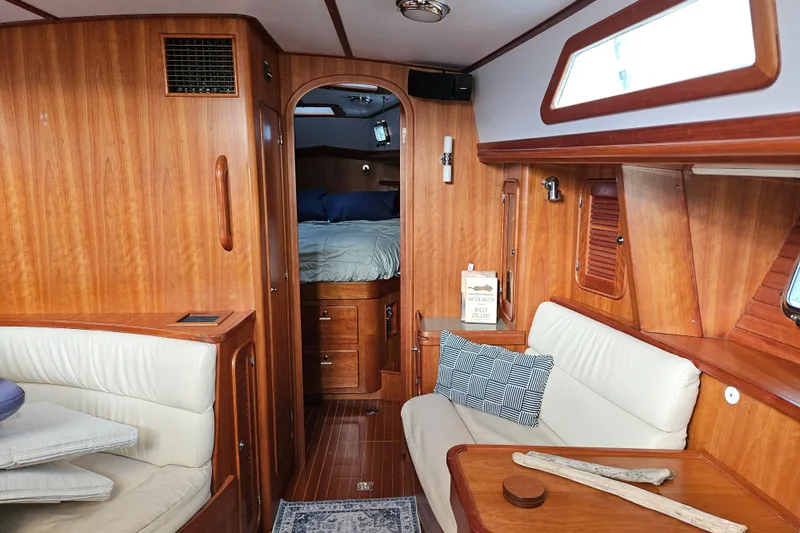

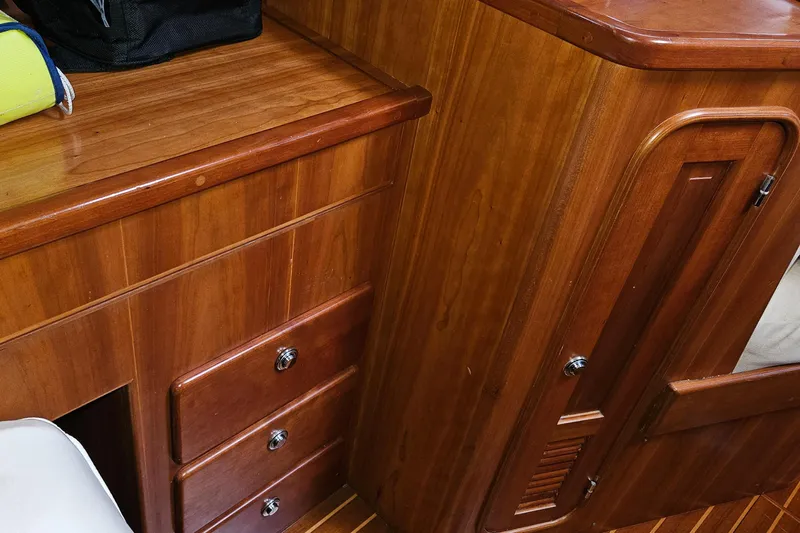

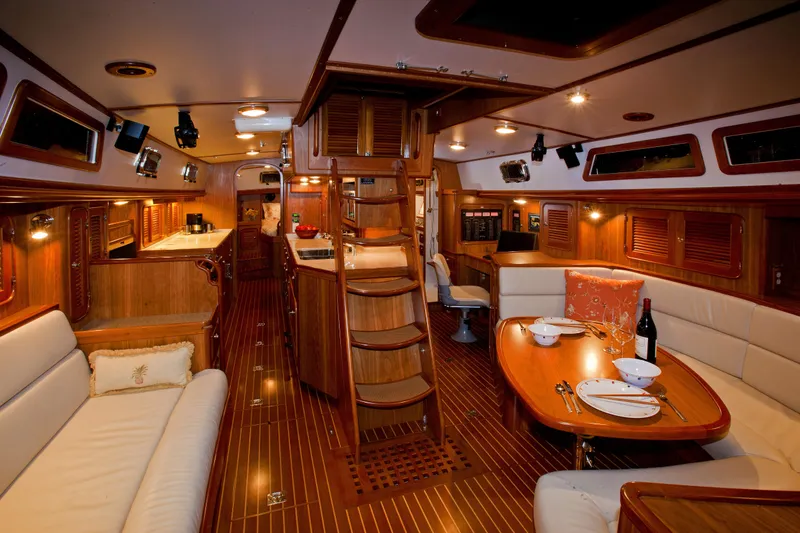

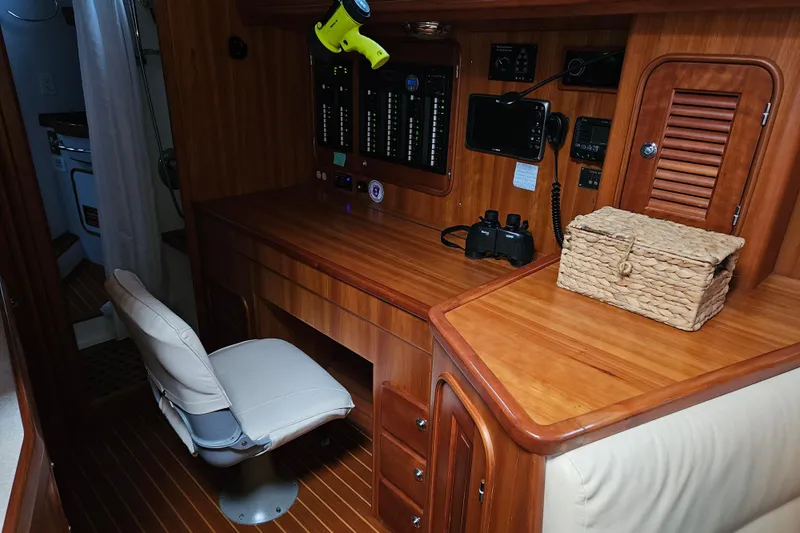

-Custom cherry interior features a walk-thru galley and walk-thru navigation center allowing accessto the owner's stateroom aft without disturbing the gourmet cook

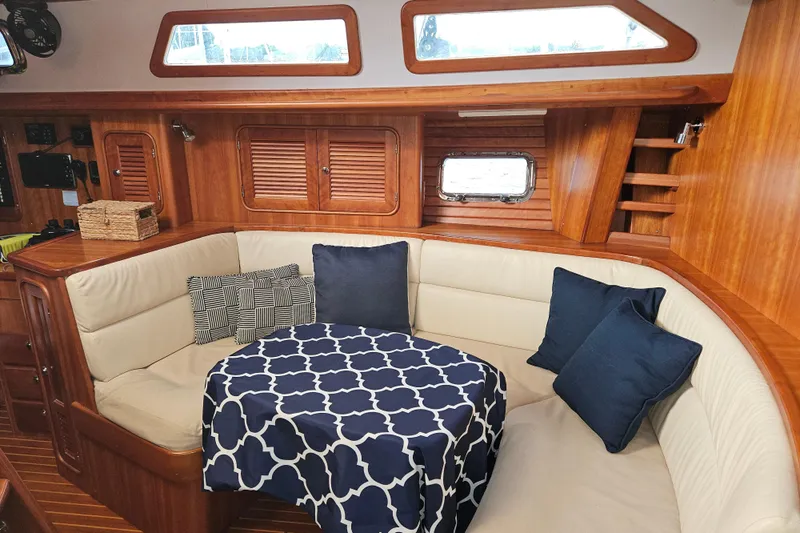

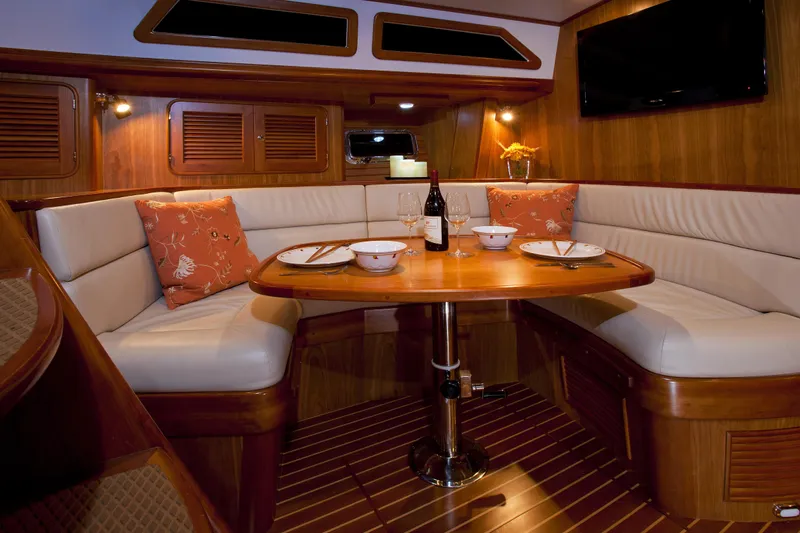

-Dinette has two tabletops, a large dinette table and a smaller, cocktail table with adjustable height
-The dinette also has an additional filler cushion for converting this area to an optional double berth

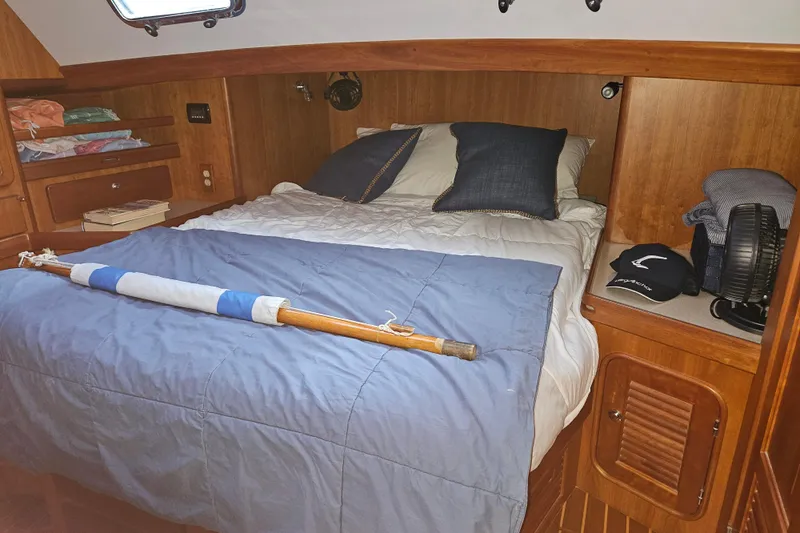

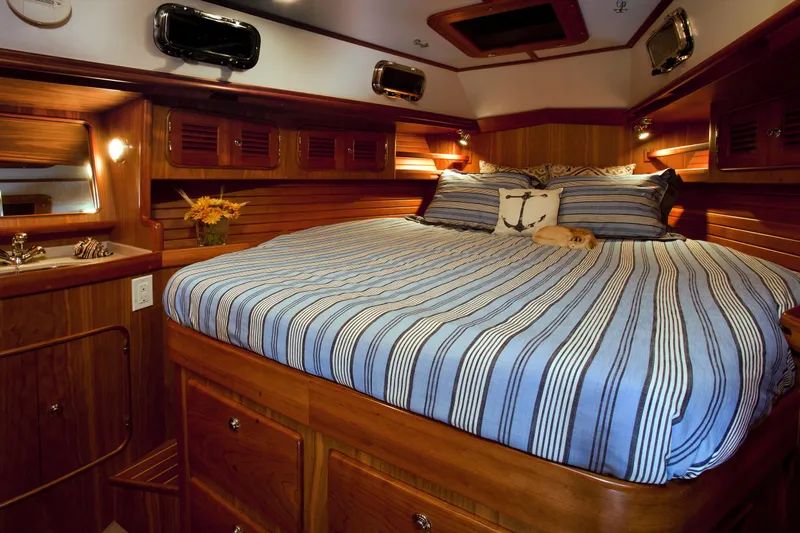

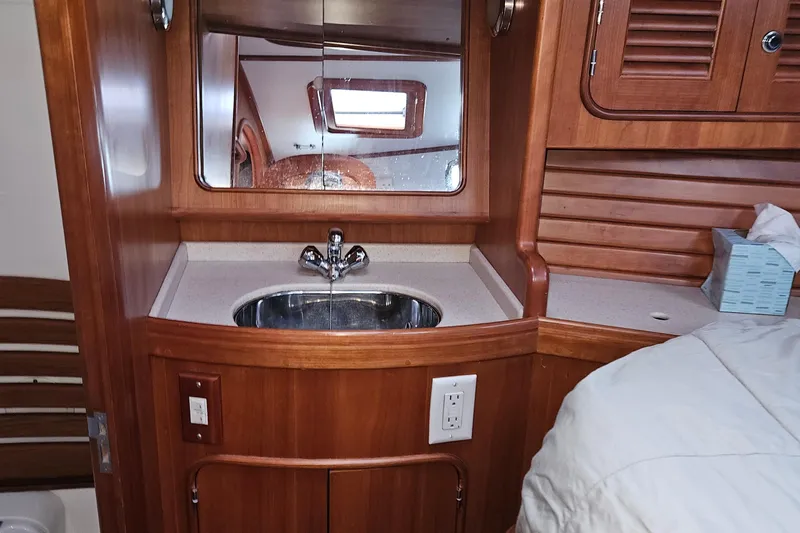

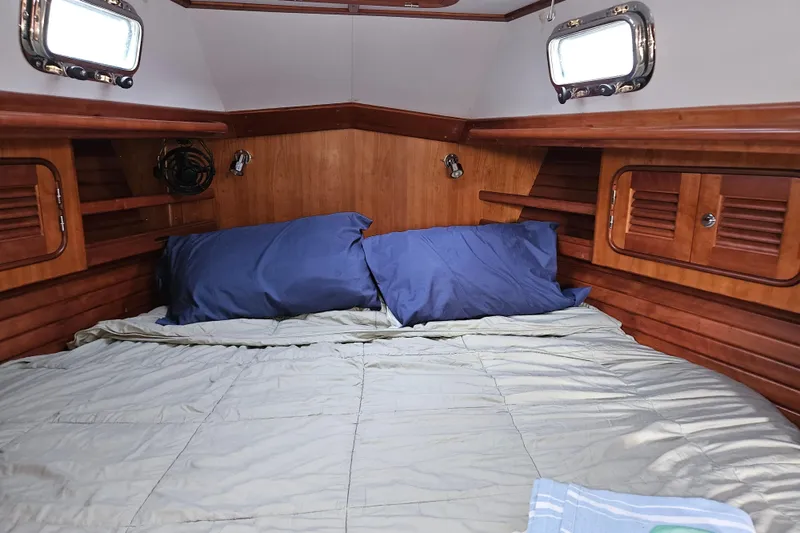

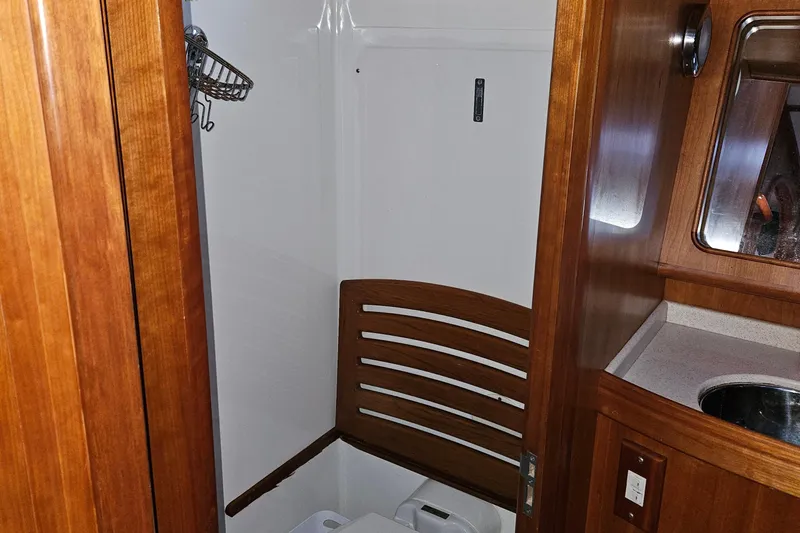

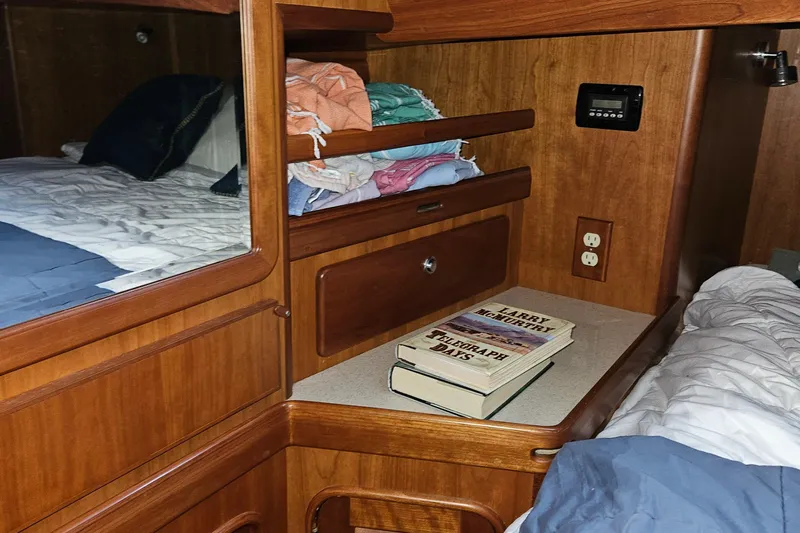

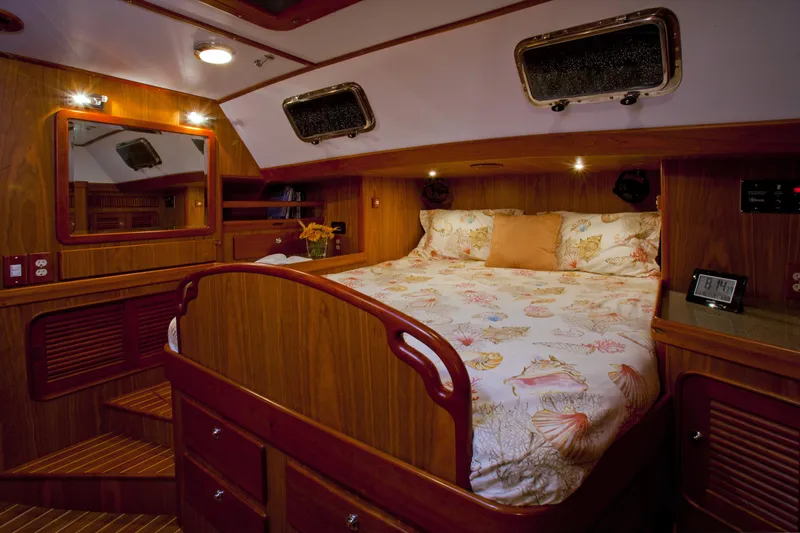

-Two large and very private staterooms each with ensuite head and separate shower stall

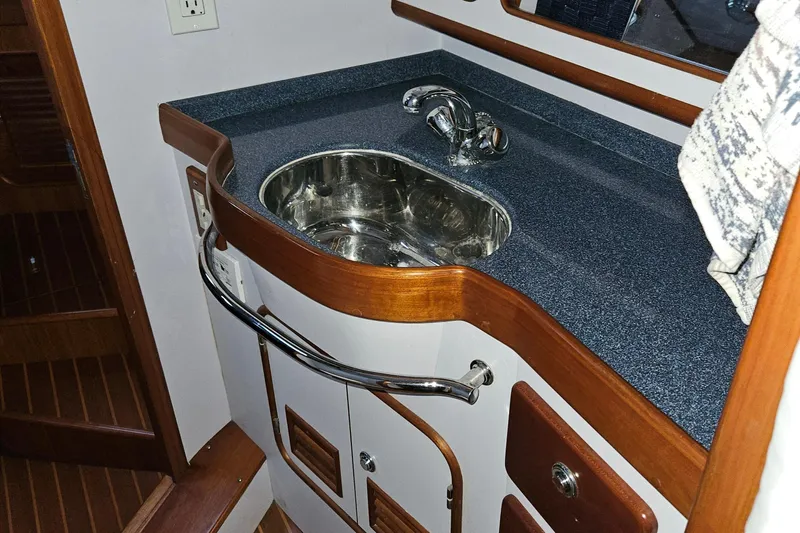

-Beautiful Corian countertops in galley and beautifully accented Corian on the end tables and in the heads. -Custom faucets
-Ultra-leather upholstery. Passport trademark solid cherry doors and louvered lockers

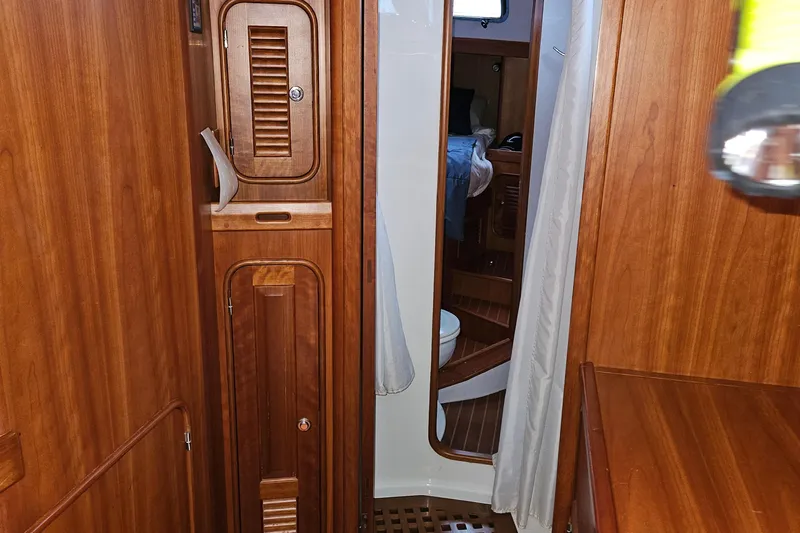

-Two Stateroom, two head layout, each with separate shower stall Double walk thru's to the aft cabin
-Louvered Locker Doors Cherry Dining Table
-Additional Cocktail Table Top for dinette Locking Floor Boards
-Custom wine and liquor locker Crystal locker with glass front door 15 Opening Ports with screens
-5 Deck Hatches with cherry bordered screens 2 Hull ports
-Custom Colored Corian countertop in the galley Custom Corian countertops in heads
-Curved Companionway Steps
-Custom Ultra-leather fabric covered cushions in the main salon Fold-Down headboard on aft berth.

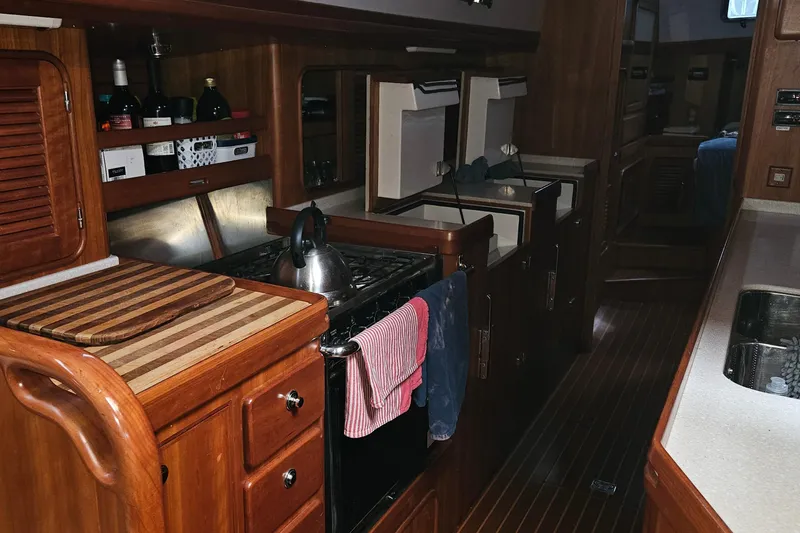

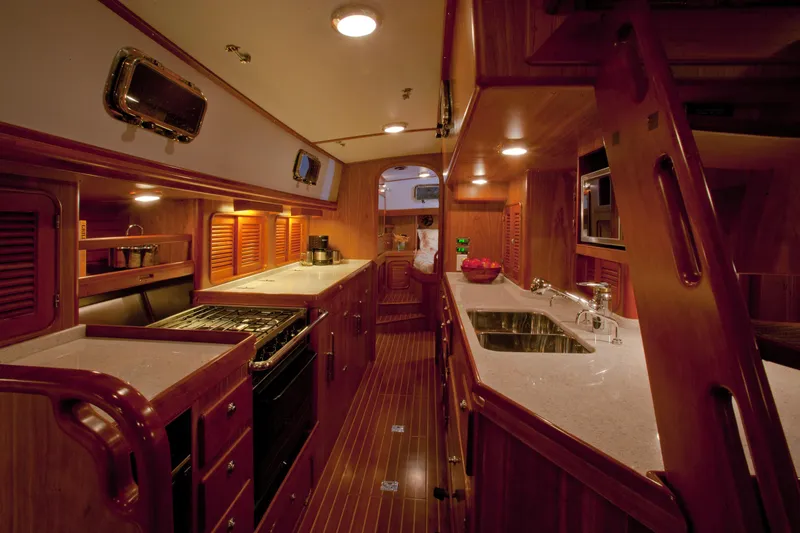

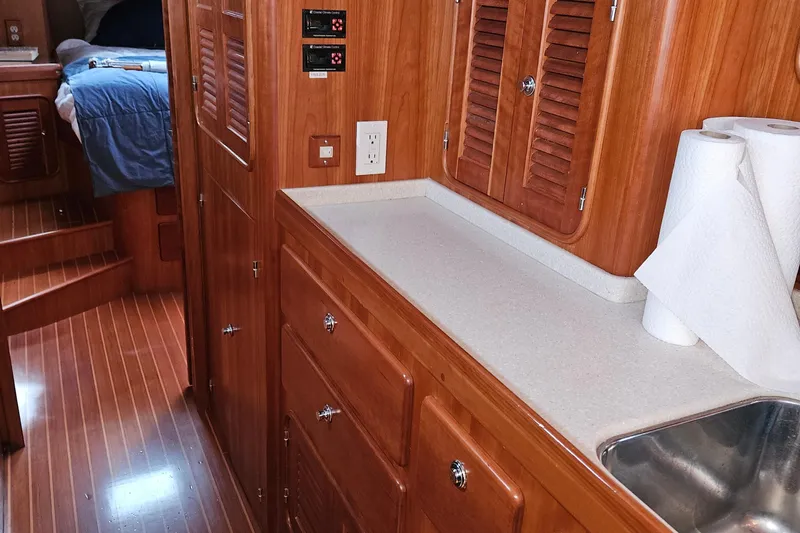

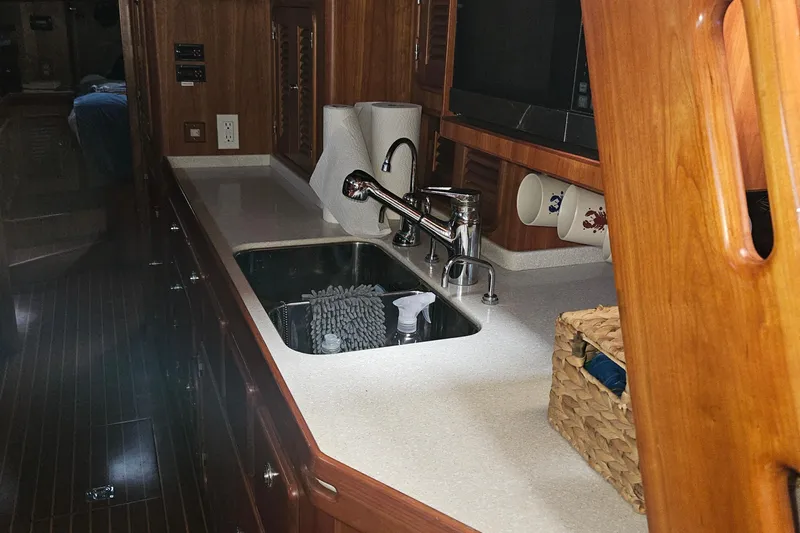

Galley

-Walk-thru galley features
-Double Stainless Steel Sinks
-3-Burner Stove with Oven and Broiler Stainless safety bar
-Stainless stove liner
-Safety LPG panel and solenoid
-Top and front loading refrigeration Top and front loading freezer compartments
-Frigaboat 12 volt DC refrigeration systems with keel coolers for both refrigerator and freezer
compartments Carel Digital controls for refrigerator and freezer
-Built in Microwave Oven Corian Counter Tops
-Fresh Water and Salt Water Foot Pumps
-Fresh Water Systems
-Two stainless steel water tanks with baffles
-Eleven-gallon hot water heater (110 volt and engine driven). Hot and cold pressure water system
-Shurflo self-priming fresh water pump
-Salt and Fresh water flush Raritan electric toilet with macerators in owners' cabin
-Raritan electric flush toilet in guest cabin
-Holding tank and piping for waste disposal in each head
-Transom mounted hot and cold pressure water shower.
-Salt and Fresh water deck wash systems
-Automatic sump pumps in each head
-Three electric bilge pumps with automatic switches One manual bilge pump
-Gauges for fuel, water & waste tanks

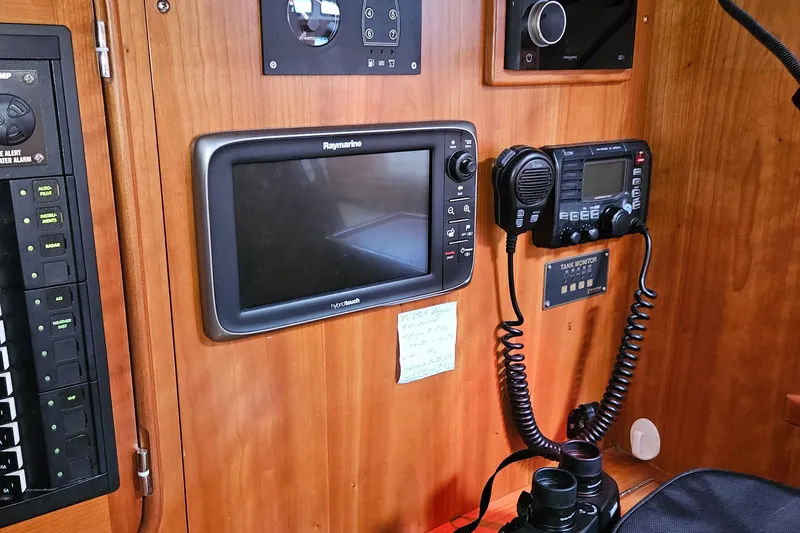

-Navigation and Communication
-Raymarine ST60 Depth, Wind and Speed in cockpit Raymarine ST60 Graphic display at Nav station
-Raymarine E90 Wide Radar/chart plotter at nav station with WAAS antenna and Digital 4Kw Dome mounted on Mast
-Raymarine E90 Wide Radar/chart plotter at helm. Raymarine Sirius weather SR100 with antenna
-Raymarine AIS 650 transceiver with Shakespeare antenna and dedicated GPS sensor Raymarine SR150
-Marine Weather Receiver
-Raymarine ST 6001 Type III Hydraulic Linear Autopilot with 400G Core PackRaymarine
-Hand held remote for Autopilot
-Dual instrument pod on binnacle for autopilot, bow thruster controls and radar. ICOM M45 VHF at Nav
station with Command MIC at Helm
-Glomax High Def TV antenna Stereo system with interior speakers
-Speakers in the cockpit.

Electrical

-Sunforce 600 wind generator mounted on custom stainless steel pole with four antenna arms, deck light and outboard engine lift
-Three solar panels (175 watts each) 525 watts total installed on davits (2000) Mase 7.1 Diesel
-Generator -- 260 hours
-Reverse cycle heat and air conditioning
-50/250 Volt Shore Power System w/50 Amp Cable Galvanic Isolator
-Battery Selector Switch
-3000 Watt Sine Wave Inverter/110amp Charger Custom Lighting Plan
-Night Light Entry System
-100 amp Alternator with 3 Stage Regulator Four 4D AGM Batteries
-Two Group 31 AGM batteries (New July 2020) Victron battery monitor
-Shakespeare TV Antenna Mast mounted hailer Interior Courtesy Lights
-Engine Room and Lazarette Lights
-(4) 12V 6" Fans

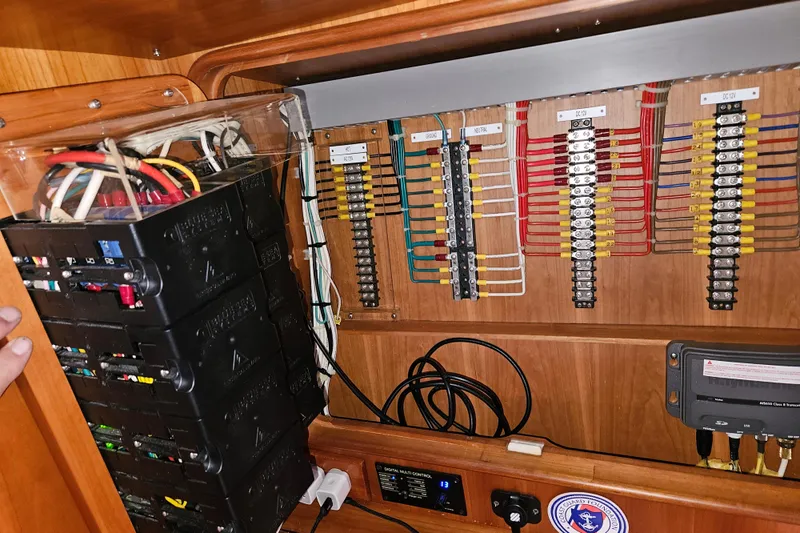

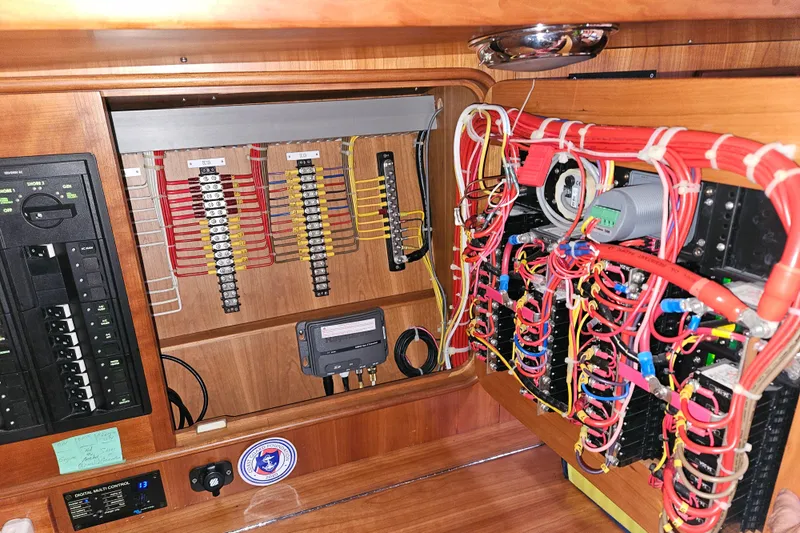

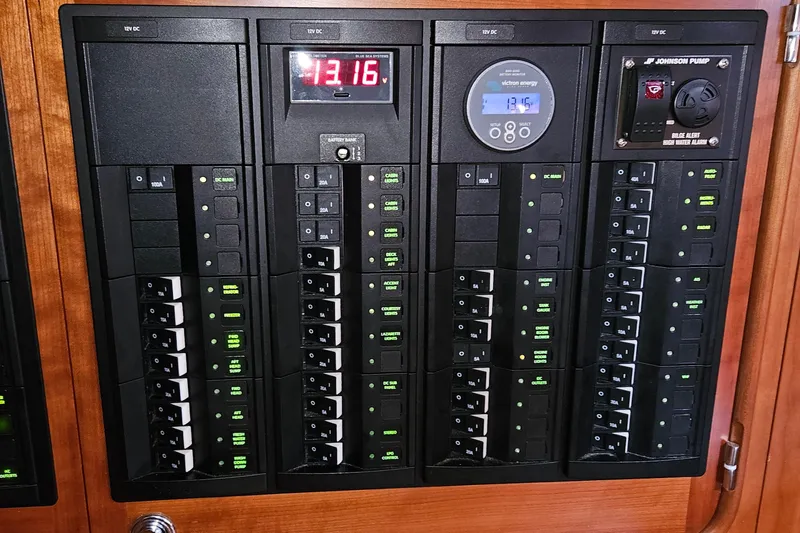

-Customized Blue Sea electrical panels
-Custom Blue Sea sub-panel mounted in the cockpit to control all deck level lights
-AC panel includes two load groups and a source selector switch for two shore power lines and generator
-Full gauges for AC/DC panels
-110V GFI outlets in both heads Internal bonding system
-LED Running Lights to international rules 12 Volt utility outlet in cockpit
-12 Volt courtesy lights in cockpit and bulwarks

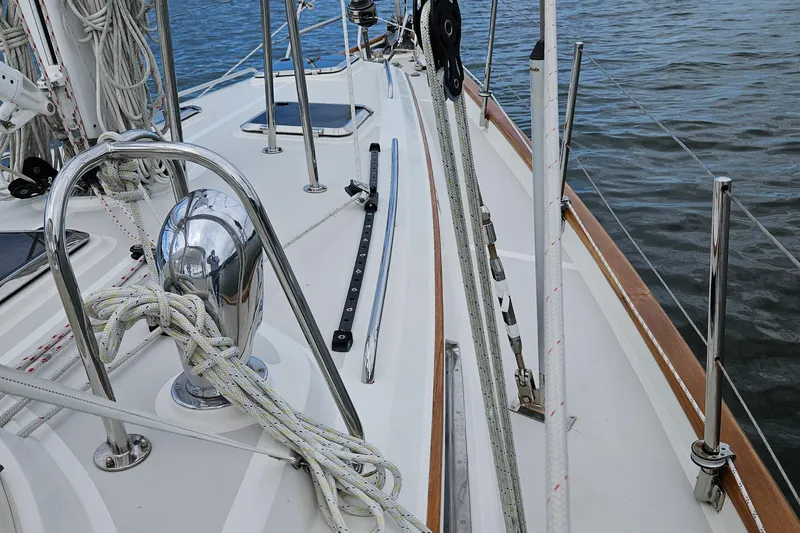

Spar and Deck Hardware

-Powder-coated mast and boom. LED tri-color light on masthead Furlex Roller Furling Headstay Furlex
-Roller Furling Inner Forestay
-Hardware, cars, blocks, power clutch, sheets, and halyard package for roller furling inner forestay
-Running backstays
-Boom Preventer Solid Rod/Vang
-4 Internal halyards Internal topping lift
-Flag halyards at spreaders Combo deck and steaming light Mast head-mounted Windex
-Stainless standing rigging with mechanical fittings
-Tri-lens radar reflector
-Glomax HD TV Antenna Forespar Ion Dissipator

Winches:

-Two Harken 70.2 CST Two-speed primaries One Harken 46.2 CST Two-speed mainsheet
-One Harken 40.2 CST Two-speed utility winch on coach roof port.
-One Harken 44.2 CEST ELECTRIC main furling/utility winch on starboard
-One Harken 44 CST Two speed halyard on mast
-One Harken 40 CST Two speed Halayard on mast Deck Hardware
-SidePower dual prop Bow Thruster Teak Eyebrow
-Light gray colored non-skid Teak Seats on Bow and Stern
-Muir Storm 2200 Electric Windlass with remote control and chain counter at the helm
-Motor replaced 2020
-Ultra 60# anchor and swivel
-All chain Primary rode. Teak cockpit sole
-Teak caprail w/stainless steel striker Aft cap rail tracks
-Teak drop leaf Cockpit Table
-Custom stainless steel pole mounted on the aft deck with a wind generator, antenna arms, deck
light, and outboard engine lift with 4:1 purchase
-AB 9.5 Aluminum Ribbed bottom (2017) Lehr 9.5 hp propane o/b engine
-Edson outboard engine bracket
-Custom Kato stainless steel dingy davits
-Stainless steel stemhead with double bow anchor rollers|
-Stern anchor locker with stern hawse and cleat

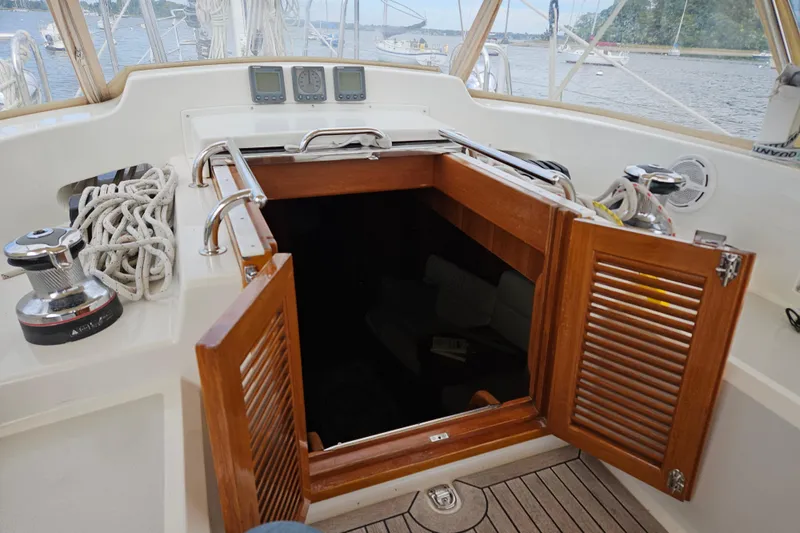

-Teak Companionway Doors and Lexan Drop Boards Cockpit walk-through drop boards
-Custom 316 Stainless Boarding Ladder aft
-Hood stainless opening ports with safety glass and screens in deckhouse
-Two Offshore hull ports
-Four stainless fixed windows with high impact glass Five Stainless Steel overhead hatches w/screens
-Five halyards and Pole topping lift
-Harken genoa tracks, staysail tracks, and outboard tracks with Harken blocks and cars for inboard
track Harken ball bearing traveler system with control lines and hardware
-Two Harken quad deck organizers Two Harken triple sheet organizers
-Fresh Water and Salt Water Deck Washdown System
-Fiberglass molded propane locker with two 20lb aluminum propane tanks
-Hot and Cold Water Stern Shower
-Stern anchor locker
-Watertight bulkhead forward with deck hatch accessing the forward sail locker
-Recessed cockpit and bulwark lights
-Copper strapping in hull for SSB Stainless steel striker on the cap rail
-Sails and Canvas

Sails:

-Quantum Furling Mainsail Quantum
-120% Genoa Quantum Furling Staysail
-New mainsail furling line (2021)

Canvas:

-All Sunbrella fabric
-New Strataglass window in dodger
-Stainless steel handrail on the aft end of the dodger and on sides Bimini top with sail windows
|with new canvas
-Canvas covers on cockpit table Overhead hatch canvas covers. Cockpit Table cover
-Full Cockpit Enclosure

Mechanical:

-SidePower Dual Prop Bow Thruster
-New Balmar 130 alternator with a serpentine belt New Balmar MC-164 voltage regulator
-26,000 BTU Reverse Cycle Heat/AC in two stand-alone systems Dual Racor 500 FG Fuel Filter
-Three fuel tanks
-Engine Alarm
-Lead foam insulated engine room 12v engine room exhaust fan
-Raw water strainer for engine intake
-Edson pedestal steering
-Stainless wheel
-Emergency steering and tiller system
