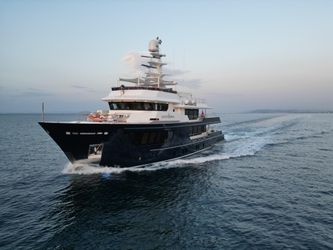

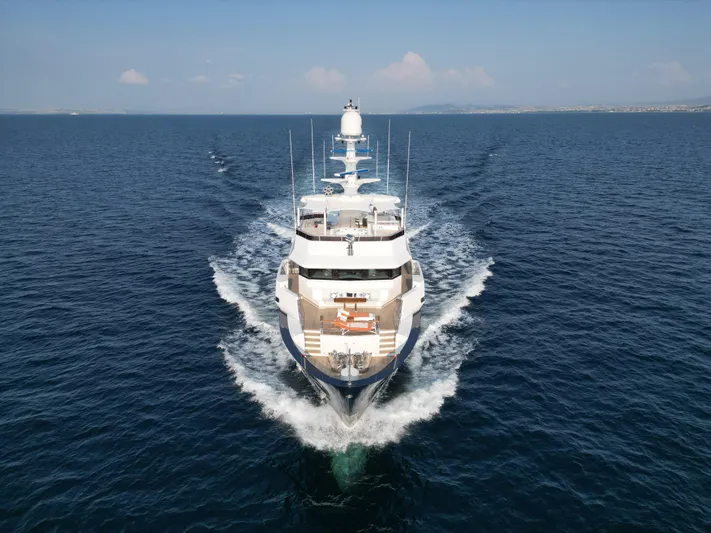

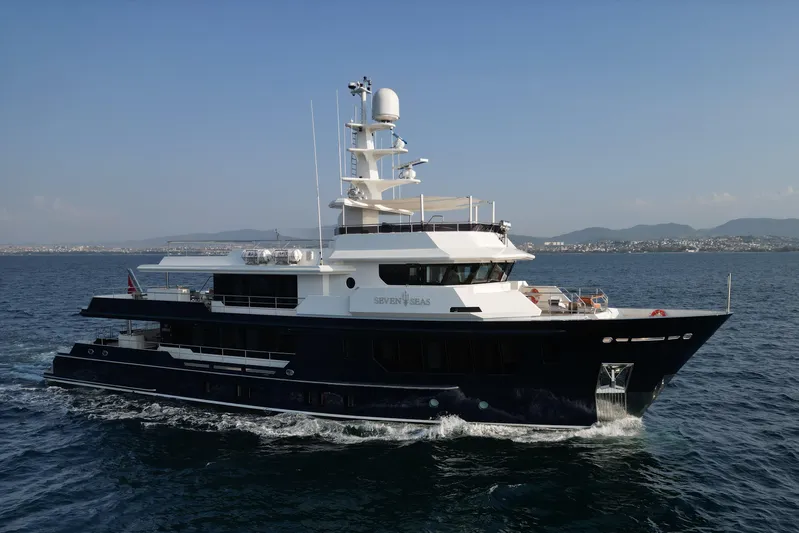

SEVEN SEAS Yacht for Sale

Overview

Type: Explorer Motor Yacht

Designer: Vripack

Naval Architectur: RMK Marine

Interior Design : Epikworks

Builder: RMK Marine

Class: LR ✠ 100A1 SSC Yacht Mono G6, (✠) LMC

Flag: Marshall Islands

Main Particulars

Length overall  : 36, 86 m

Breadth (moulded) : 8, 6 m

Draught (Design) : 2, 8 m

Gross Tonnage: 399 GT

Speed : 14 kts max, 10 kts cruise

Range @ 10kn: 4,000 nm

Propulsion & Steering System

Engines   : CAT C18 2x599 kW @ 2100 RPM

Gearbox : 2 x ZF with throlling valves or eq.

Propulsion System: BT Marine or eq. 5-blade conventional FPP

Steering System: Data Hidrolik or eq.

Rudder Assembly: Two steel rudders with stainless steel 431 shafts

Exhaust System : Halyard or eq.

Propulsion & Steering System

Engines   : CAT C18 2x599 kW @ 2100 RPM

Gearbox : 2 x ZF with throlling valves or eq.

Propulsion System: BT Marine or eq. 5-blade conventional FPP

Steering System: Data Hidrolik or eq.

Rudder Assembly: Two steel rudders with stainless steel 431 shafts

Exhaust System : Halyard or eq.

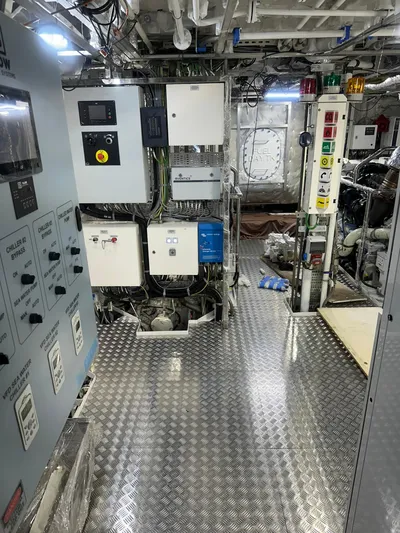

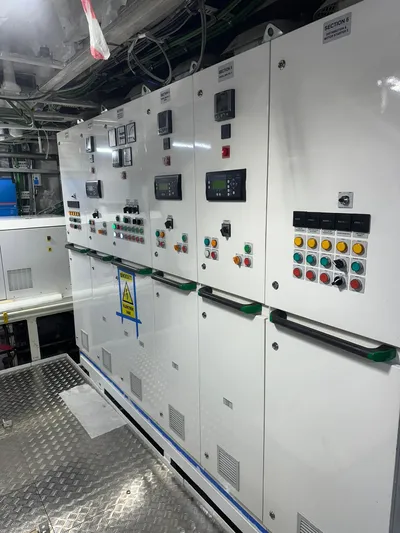

Electrical System

Electricity Network: 24V DC, 230V/400V, 50Hz

Shore Power Converter : 1 x Atlas or eq. approx. 75kVA,

Service Generators: 2 x CAT C4.4 eq. approx. 69 kW,

Night Generator: 1 x Northern Lights or eq. approx. 34 kW,

Battery Charger: Victron or eq.

Batteries : Sonnenchein & Exide Flooded & AGM or eq.

Cables : XLPE based Class certified

ICCP&ICAF : Cathelco or eq.

Lighting

Navigation Light: Glamox Aquasignal, DHR or eq.

Flood Light : Hella, Daeyang, E-LED or eq.

Technical Area Light  : Hella, Daeyang, E-LED or eq.

Interior Lighting : BCM, Cantalupi or eq.

Underwater Lights: Underwater Light Ltd. or eq.

External Communication: GMDSS A3

Radar : SPERRY MARINE or eq.

GPS : SPERRY MARINE or eq.

AIS: SPERRY MARINE or eq.

EPIRB&SART: SAILOR or eq.

Searchlight:

Magnetic Compass: SPERRY MARINE or eq.

Chartplotter : SPERRY MARINE or eq.

Weather&Echo&Depth Sounder: SPERRY MARINE or eq.

Intercom: ZENITEL or eq.

VHF : SAILOR or eq.

MF/HF : SAILOR or eq.

Navtex : SAILOR or eq.

Inmarsat: SAILOR or eq.

Sat Phone: SAILOR or eq.

PABX: Phonetec IP Phone Set or eq.

BNWAS : Navitron or eq.

Horn : Kahlenberg or eq.

Bulwarks & Guard Rails : Polished Stainless Steel Stanchions

Anchor & Mooring: 2 x Anchor Windlass DATA or eq.

2x Capstan Data reversing or eq.

Anchors & Chain : Anchor 2× HHP Pool –N or eq. 315 kg Anchor chain 2× Studlink

or eq. U2 – quality (Subject to EN)

Teak Deck: Burmese 16 mm

Pool : Edecci or eq.

Crane: Hydromar or eq.

Passerelle: Opacmare or eq.

Side Boarding Ladder: Marquipt manual or eq.

Swim Platform : Opacmare or eq.

Weathertight Hinged doors: Bofor or eq.

Watertight Sliding Doors : Winel or eq.

Weathertight Sliding Doors: Bofor or eq.

Window Wipers  : Wynn Hepworth or eq.

Owners Accommodation:

Number of cabins: 1

Number of berths: 1 double

Complement: 2

Guest Accommodation:

Number of cabins: 4

Number of berths: 3 double + 1 twin

Complement: 10 (with Pullman)

Crew Accommodation:

Number of cabins: 4

Number of berths: 1 double + 6 single

Complement: 8

Galley& Pantry Appliances: Beko / Miele

Laundry Appliances: Beko / Miele

Crockery, Cutlery, Glassware: Owner Supply

Loose Furniture: Owner Supply

Curtains & Soft Furnishing: Custom / PC SUM

Carpets : PC SUM

Dumbwaiter : Duru Metal or eq.

Quality and detailing of the interior will be in accordance with the best yacht practice and high-quality materials will be used.

The material selection will be carried out by the selected interior designer and RMK Marine, and will be presented to the Owner for approval prior to the construction of the relevant area of the interior.

Styling of the interior is of a contemporary styling with an overall use of standard veneers, semi-gloss finished with accents in wall panels, combined with natural and fresh colored fabrics. Tabletops are executed in marquetry of standard veneers. Bathrooms executed in a selection of standard veneers and marble floors and countertops.

The minimum clear headroom above wooden construction floors to finished ceilings in principal areas is to be:

 Lower deck 2.05 m

Main deck 2.10 m

Wheelhouse deck 2.10 m

Wheelhouse 2.05 m

Crew  2.05 m

Fresh Water System

Piping : U-PVC and C-PVC Piping

Pumps : Headhunter or eq.

Water Maker : 2 x Sea Recovery Aqua Matic XL Compact 536Lt/ Hour or similar

Boilers : 2× 300 litres, capacity 13kW Solareks or equ.

Grey Water System

Piping: U

Pumps: Desmi or eq.

Black Water System

Piping : U-PVC and C-PVC Piping

Pumps : Desmi eq.

Toilets : Headhunter, Jets, Tecma or eq.

Sewage Treatment  : Headhunter, Jets, Hamann or eq.

Bilge & Fire System

Piping: CuNiFe Piping

Pumps: Desmi or eq.

Seawater System

Piping: CuNiFe Piping

Deck Drain System

Piping : Steel Piping below Main Deck UPVC Piping above Main Deck

Fuel System

Piping  : Stainless Steel Piping

Pumps : Desmi or eq.

Diesel Oil Separator  : 1 x Alfa Laval 503 or eq.

Lube & Dirty Oil System

Piping  : Stainless Steel Piping

Pumps : Desmi or eq.

Tank Vent System

Piping : Steel Piping

Compressed Air System

Piping  : Stainless Steel Piping

Service Air Compressor : Dalgakıran or eq.

Hydraulic Systems

Piping : Steel Piping

Power Packs: Main HPU and PTO’s for Fin Stabilizers and bow thruster, all the rest

with own HPU’s

HVAC

Chilled Water Piping : PVC Piping

Fresh Air & Exhaust Ducting : Flexible Hoses

Chilled Water Plant  : 1 x Mave, Dometic or eq. approx. 480K BTU

Exhaust Fans : 1 x Mave, Gianneschi or eq.

Air Supply Fans : 1 x Mave, Gianneschi or eq.

Fire Fighting Systems

Sprinkler : Survitech low pressure sprinkler system for accommodation, Novec

1230 or equal system in engine room. Two seawater firefighting pumps in engine room.

One seawater firefighting pump in tender garage.

Portable fire extinguishers in each room.

LSA

Life Rafts : 4 x 12 person SURVITEC or eq.

Others  : Lalizas, Viking or eq.

Glazing

Windows, port lights etc. : Heat tempered.

Insulation

Fire Insulation: Rockwool or eq.

Comfort Insulation: Rockwool or eq.

Paint

Antifouling : International AF system or eq.

Yacht Finish Paint : International Paint system (Superyacht Finish) or eq.

Interior Paint System : International or eq
