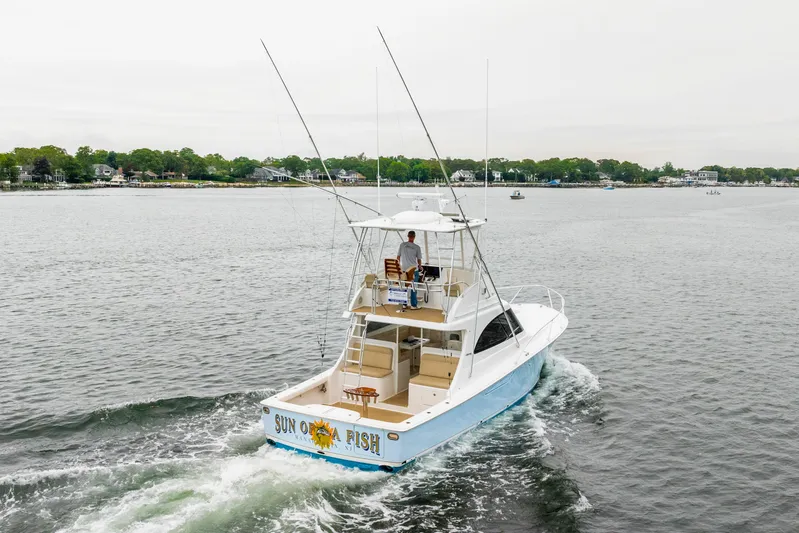

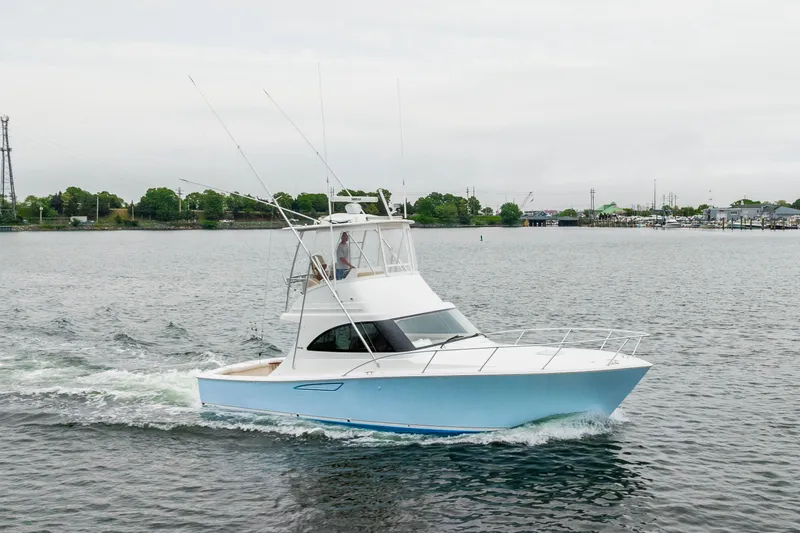

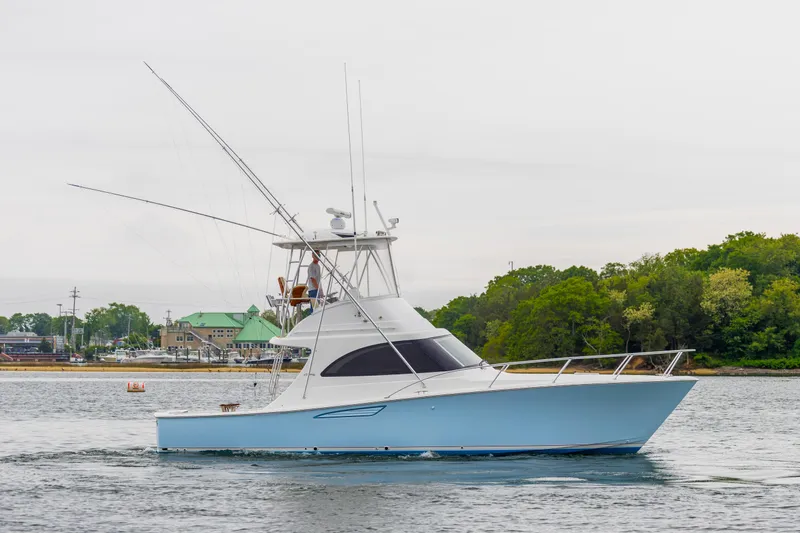

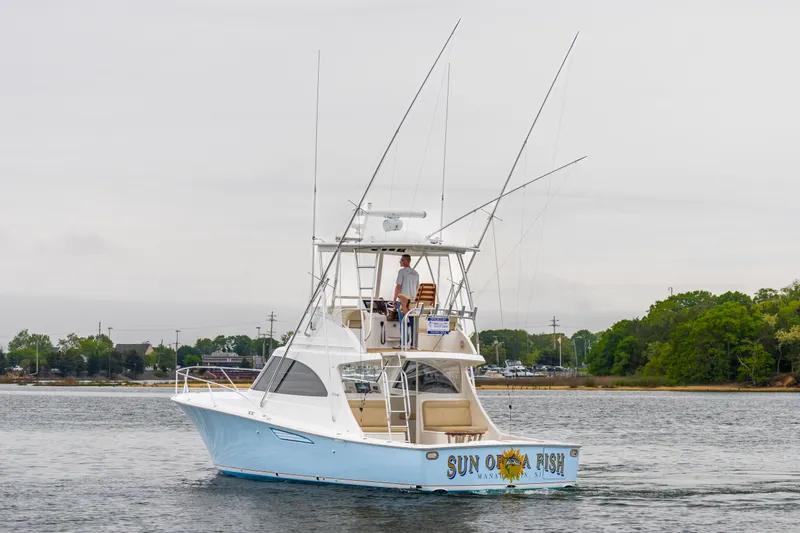

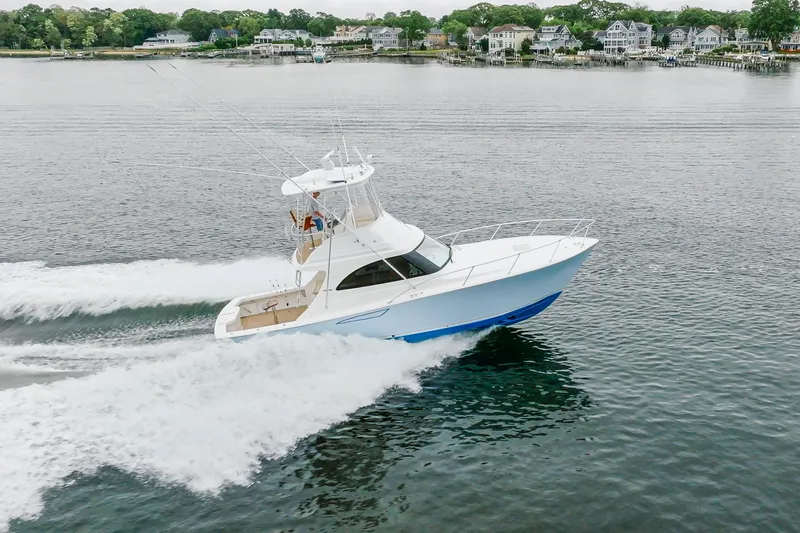

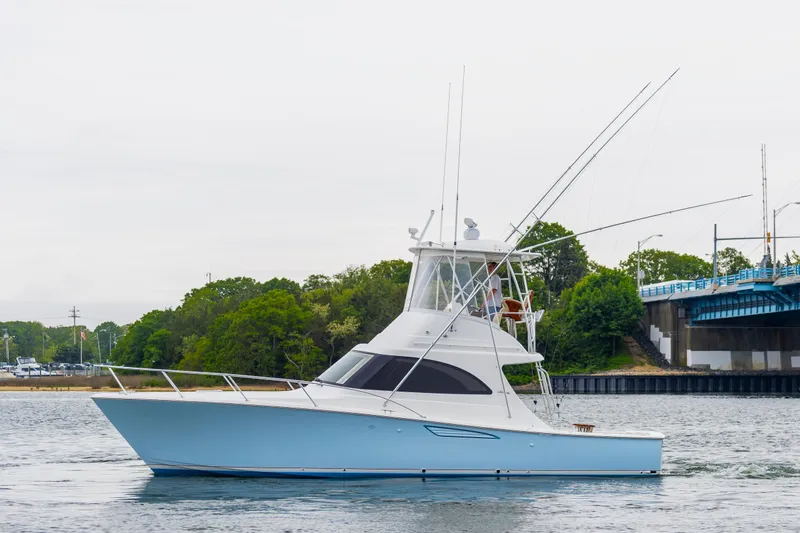

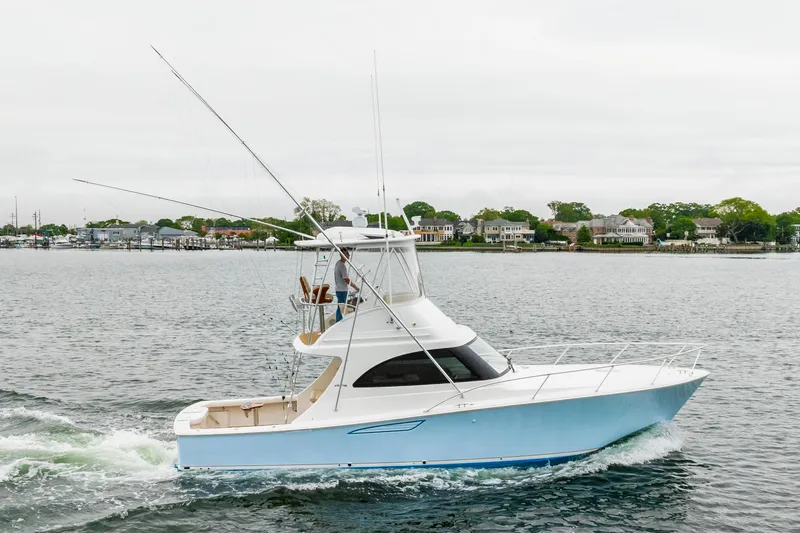

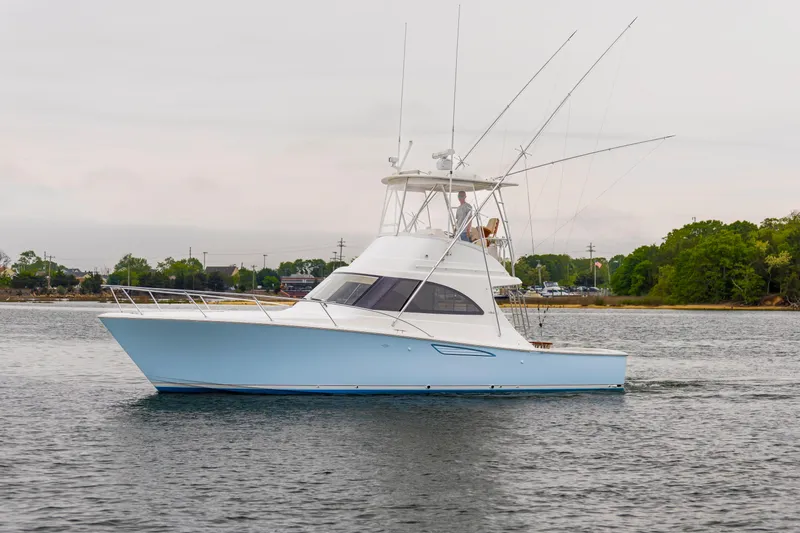

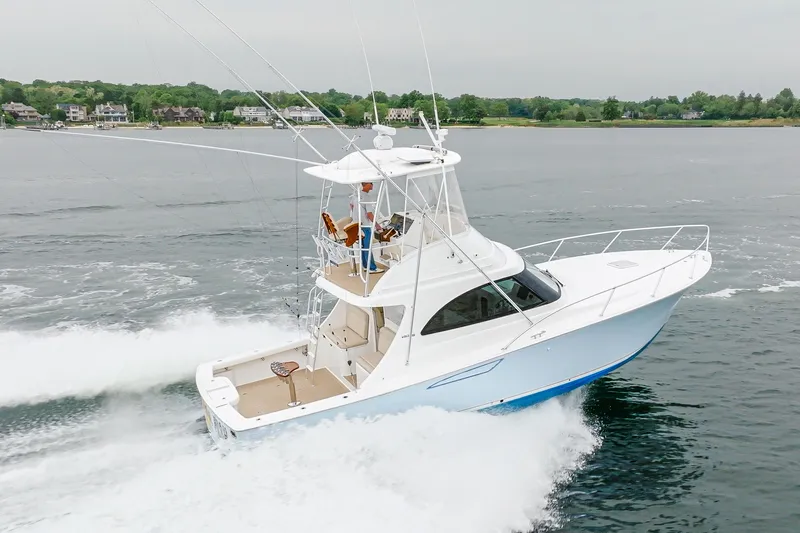

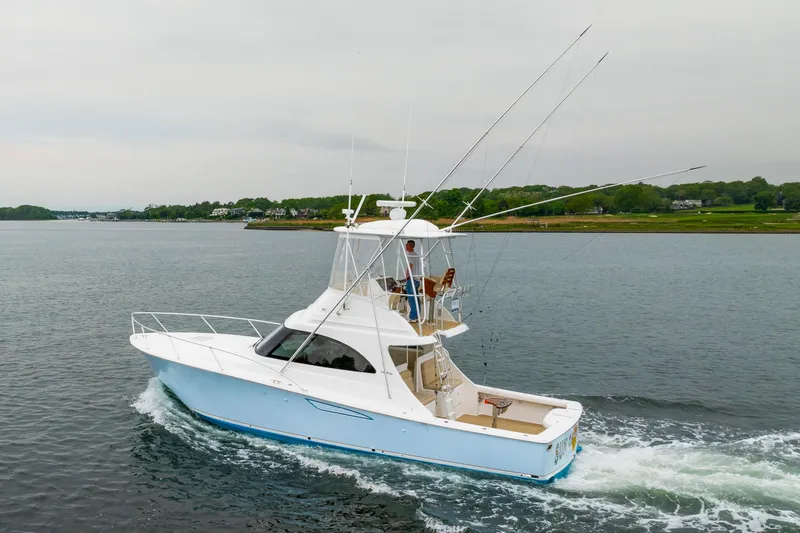

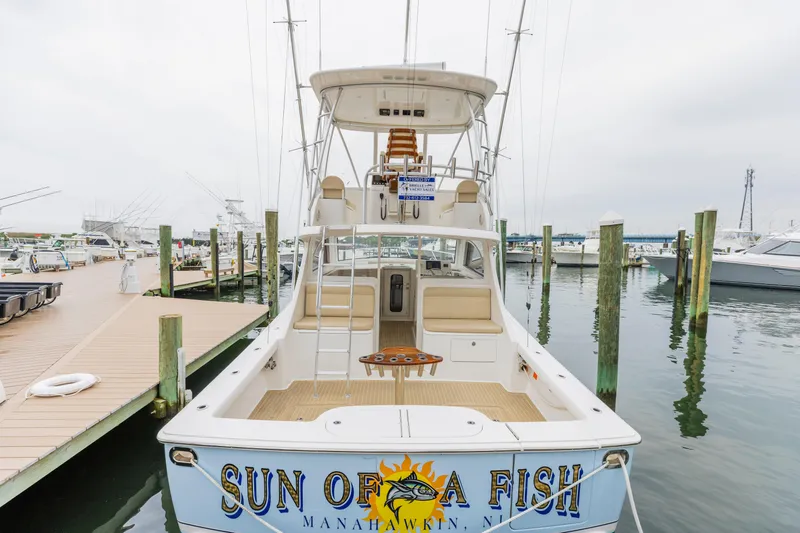

Sun Of A Fish Yacht for Sale | 38 Viking Yachts Brielle, NJ

Cruising Speed: 30 kn
Maximum Speed: 35 kn
Beam: 14' 0''
Hull Material: Fiberglass
Fuel Tank: 1 x 460|gallon
Fresh Water: 1 x 69|gallon
Heads: 1

The 38 Billfish and 38 Open were designed and built with the same DNA as their predecessor, the 37 Billfish. As owner / operator vessels, they offer simplicity and ease of maintenance, serving as ready-to-go fishing machines equipped for inshore and offshore missions as well as versatile cruising boats with reliable inboard diesel power.

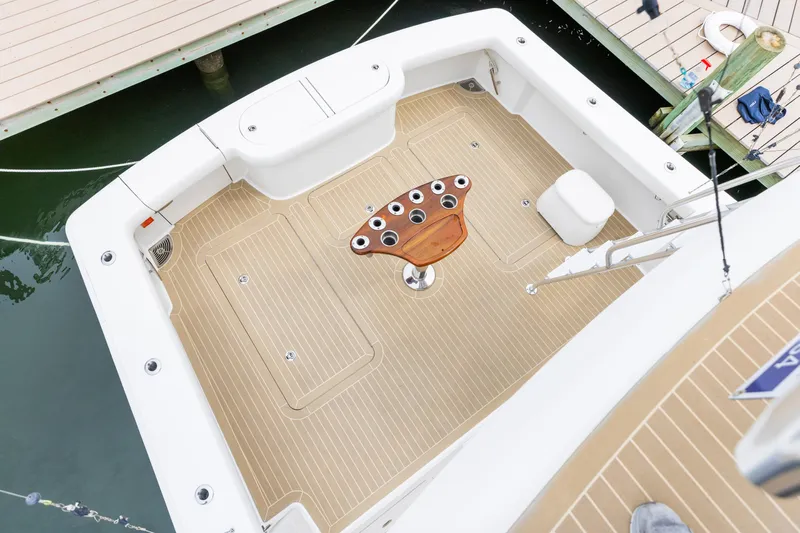

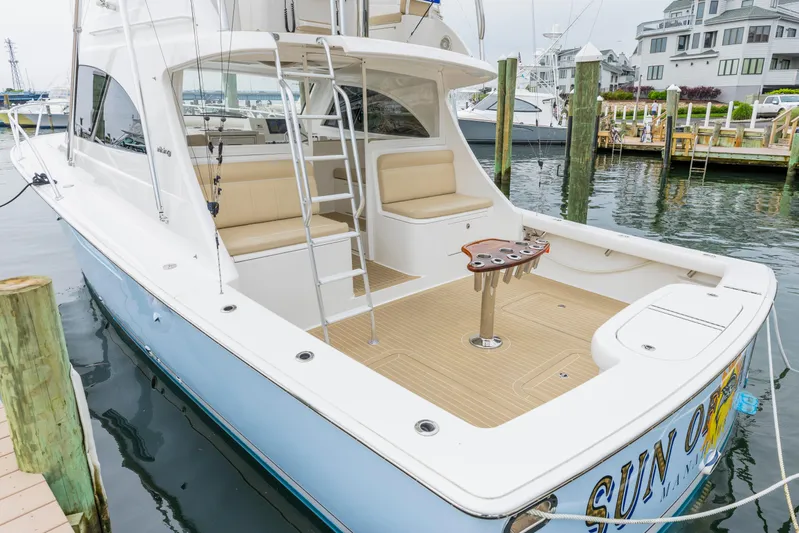

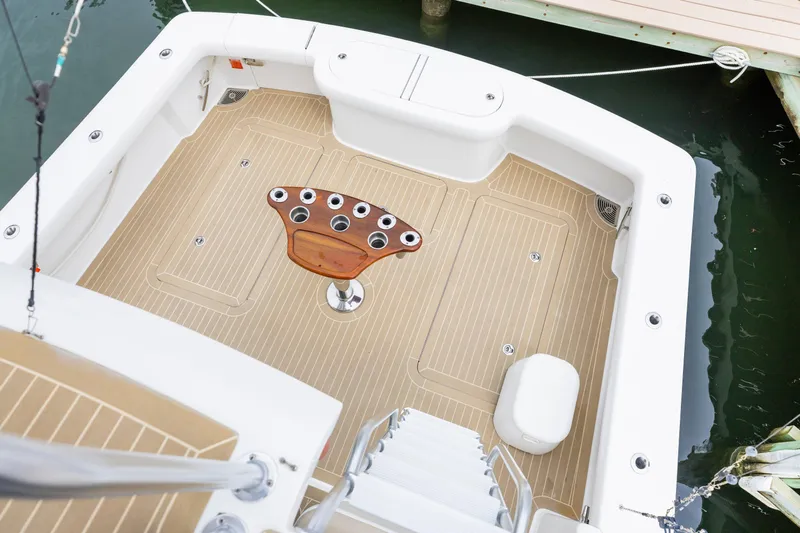

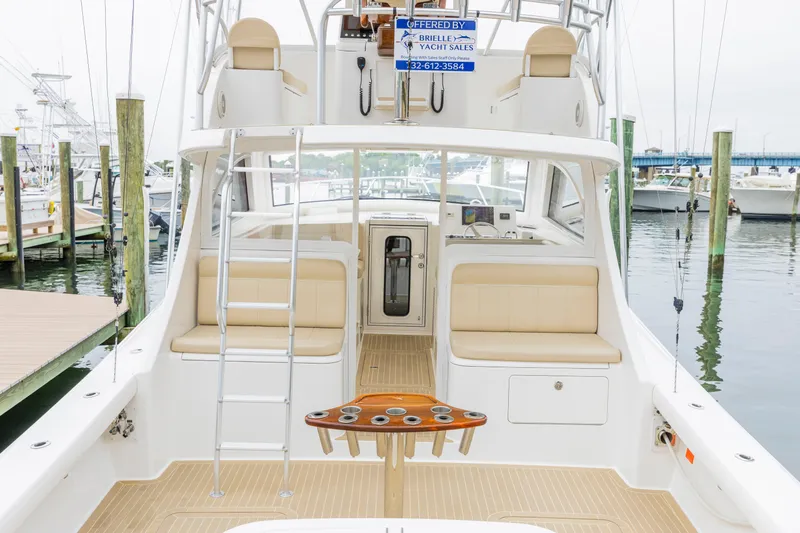

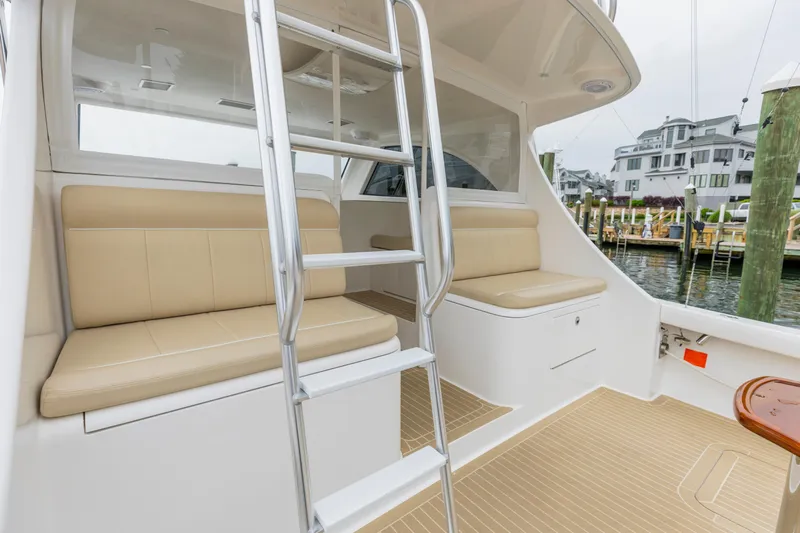

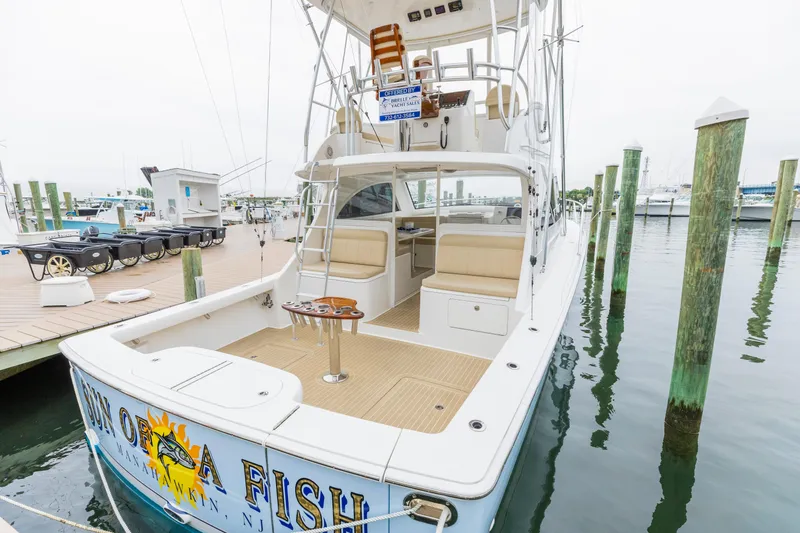

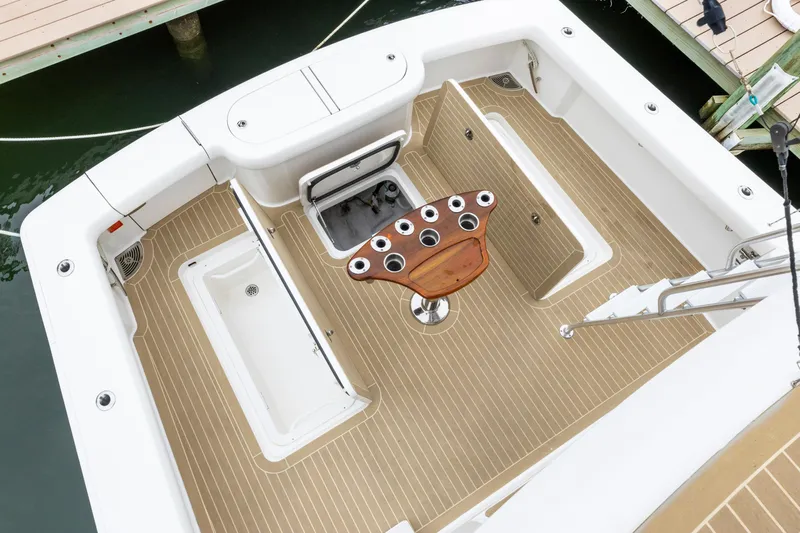

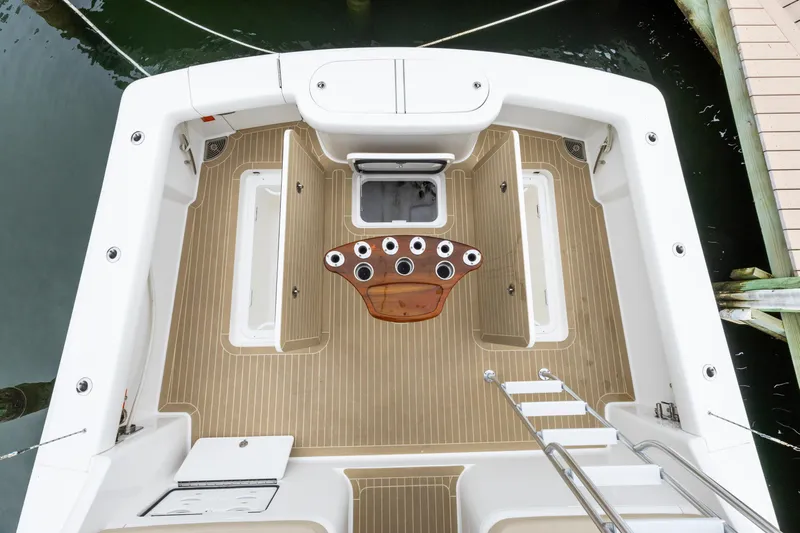

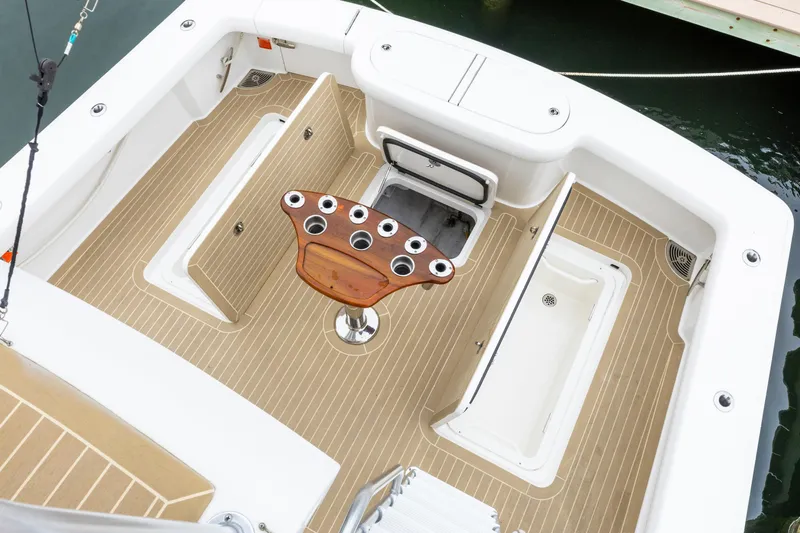

The 38 Billfish and 38 Open share the same hull, Cockpit and have a similar mechanical arrangement but differ in Command Deck and Bridge configurations. Their 109-square-foot Cockpits are equipped with a laminated mounting plate in the Deck for fighting chair, rocket launcher or table installations. Other features include in-deck insulated fish boxes port and starboard, a walk-through transom door and lift gate, a bait freezer with upper tray, a transom fish box and live well, rod holders, tackle storage and fresh water and raw water wash downs. Both boats feature two-person seats flanking the centerline walkthrough. There's refrigerated drink storage, as well as ample general storage throughout.

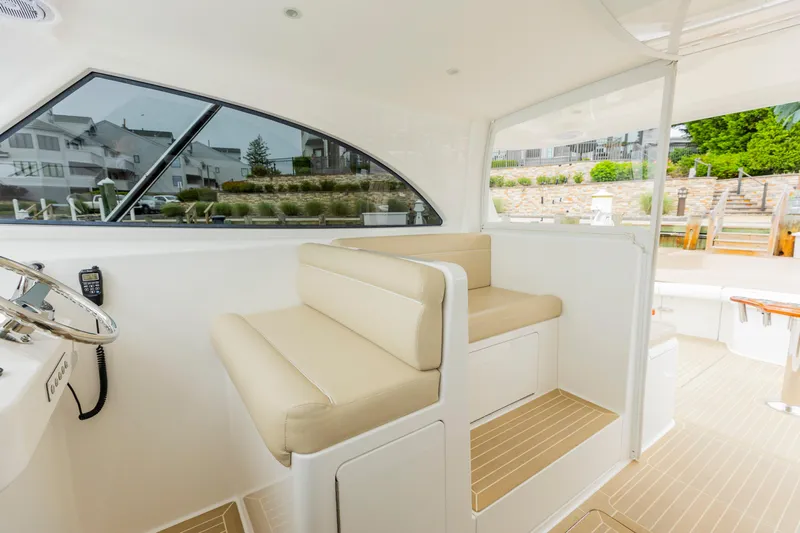

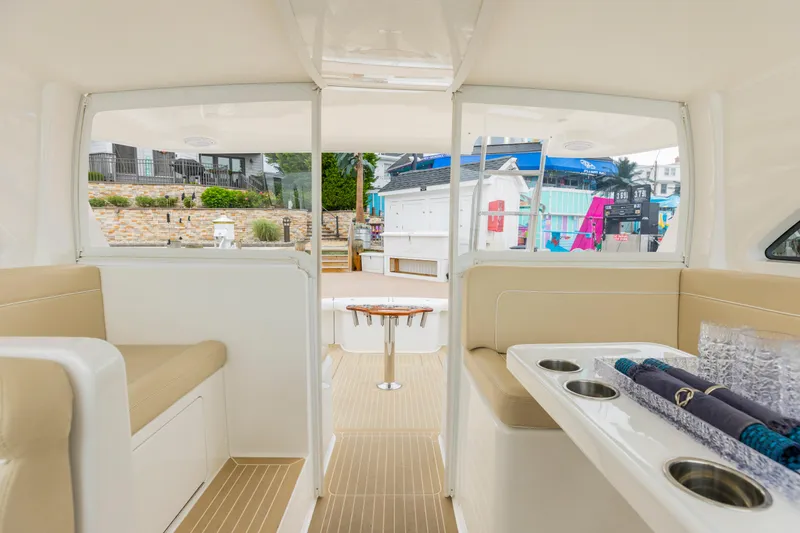

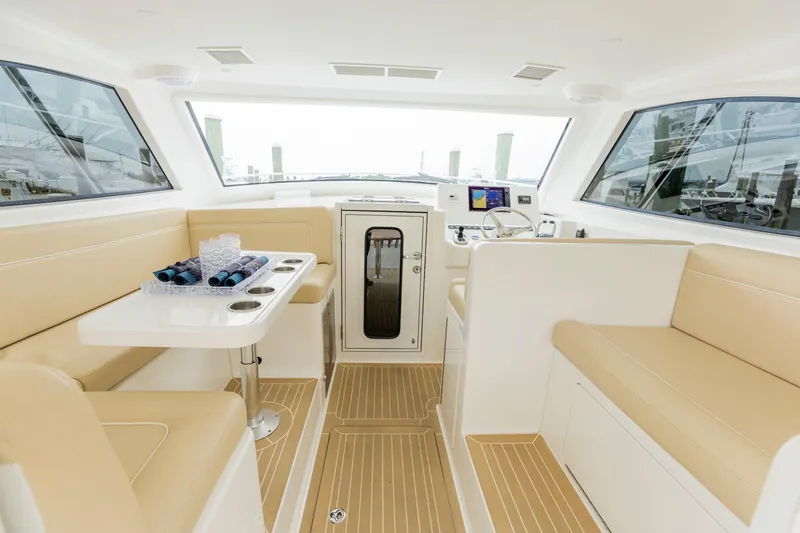

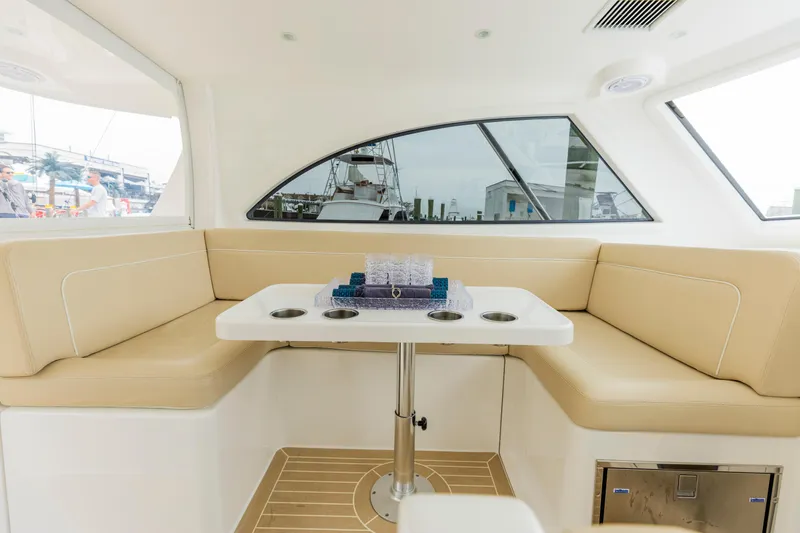

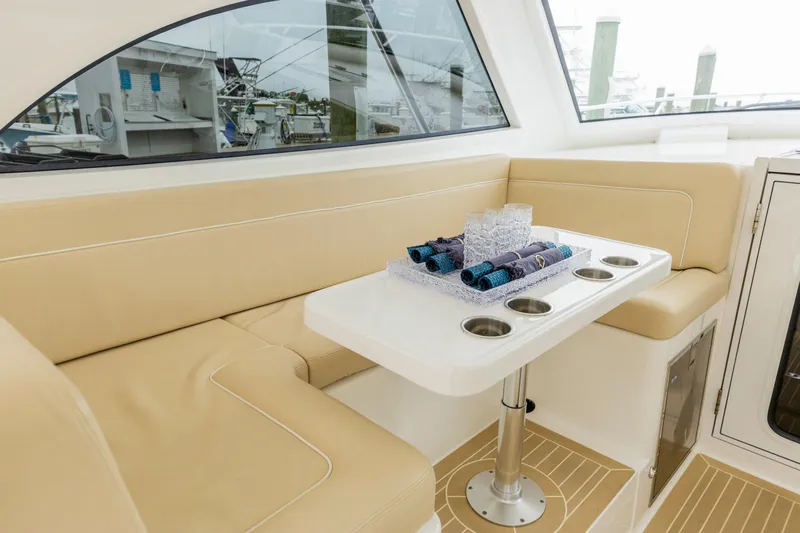

The 38 Billfish's Command Deck holds a Salon-like living area that includes a port-side U-shaped dinette and a fiberglass Hi - Lo table. A comfortable lounge to starboard also serves as rod storage.

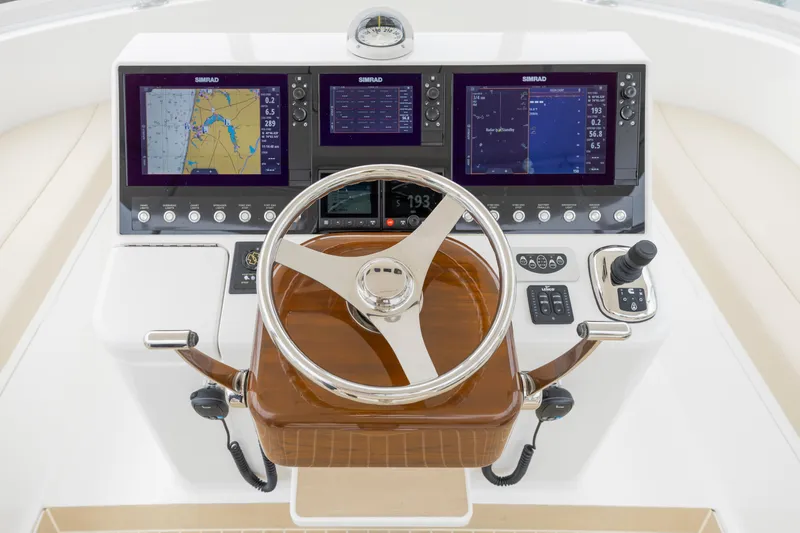

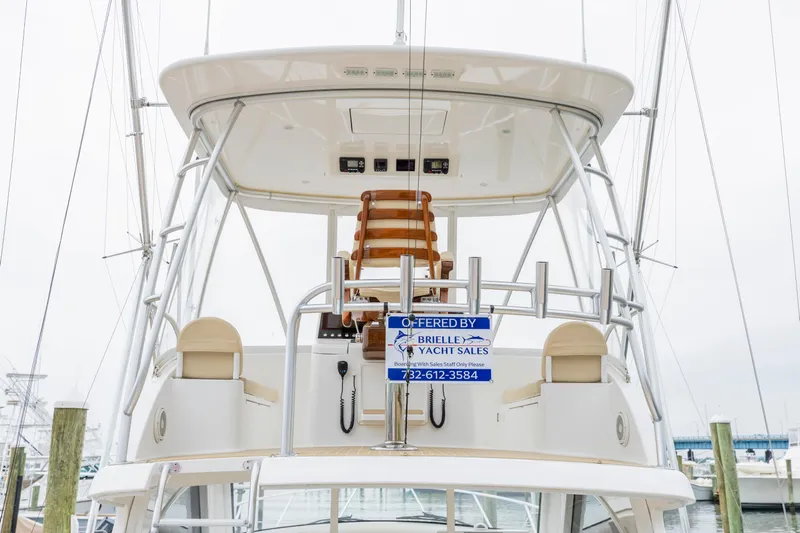

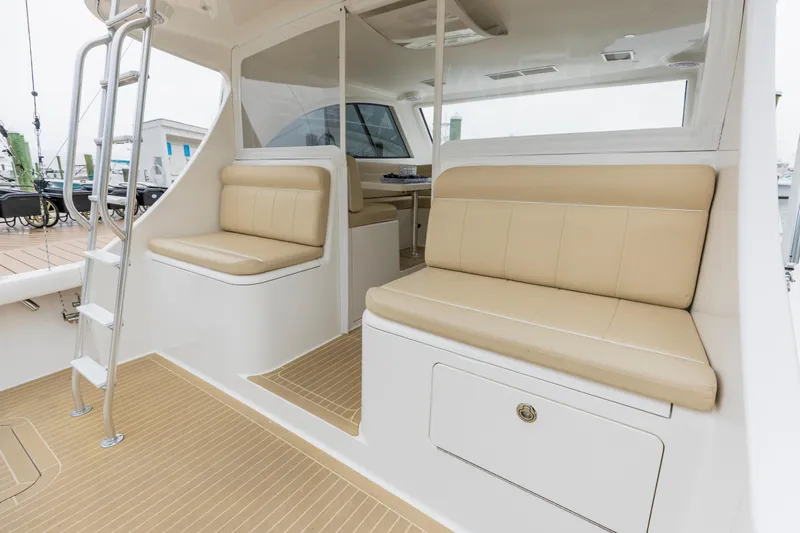

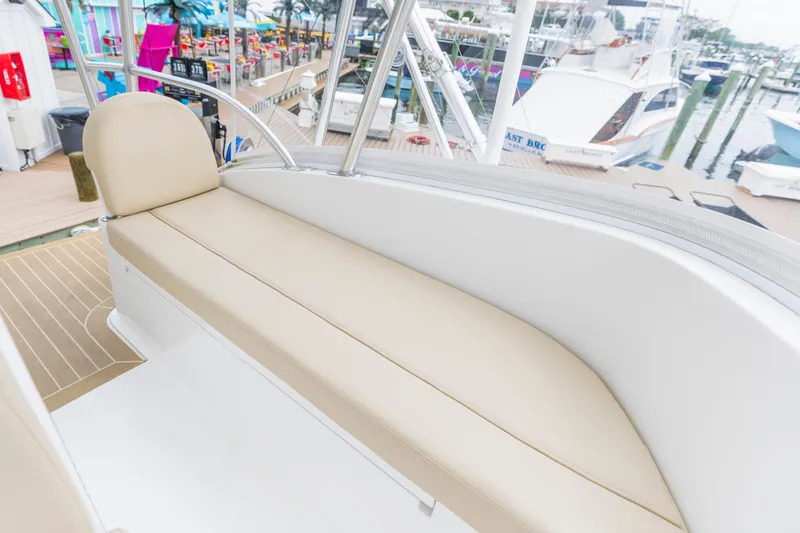

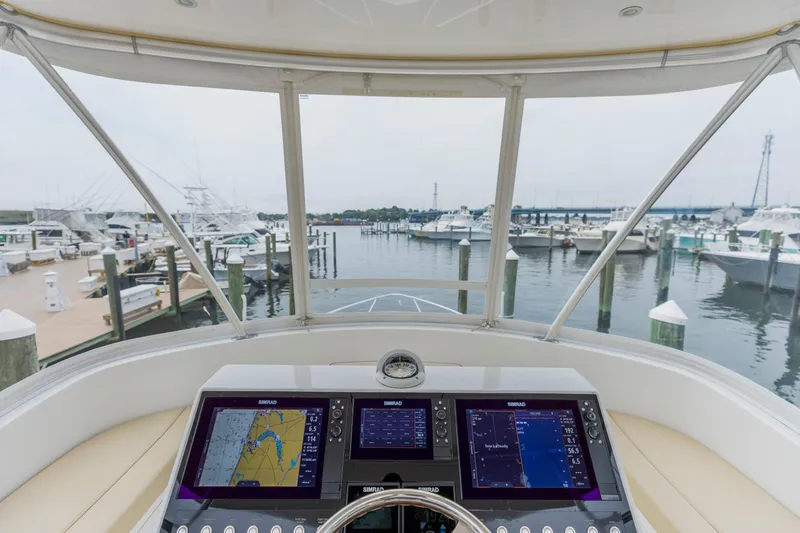

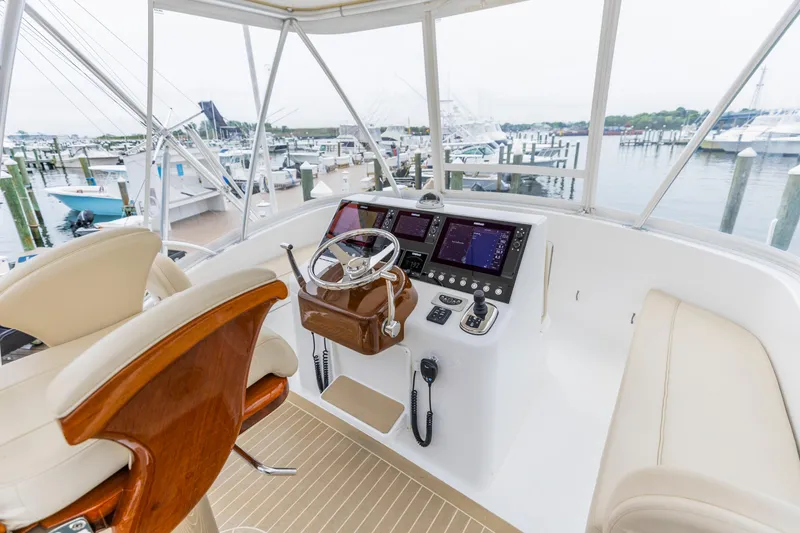

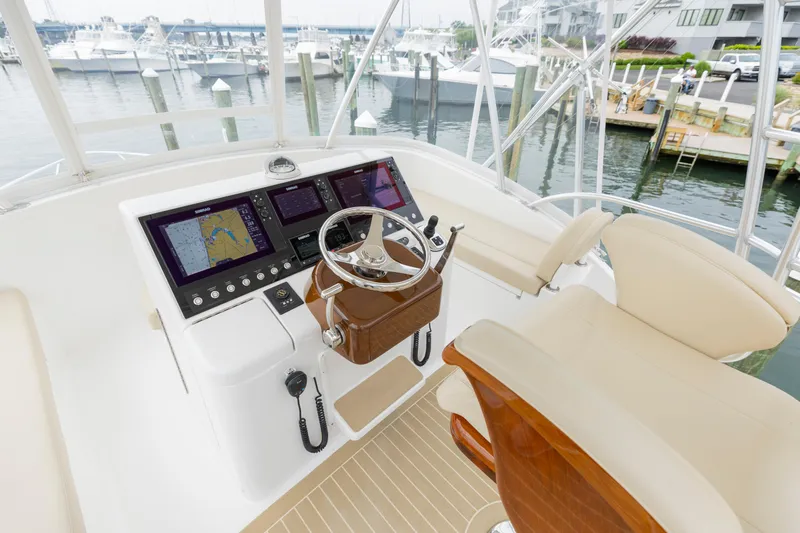

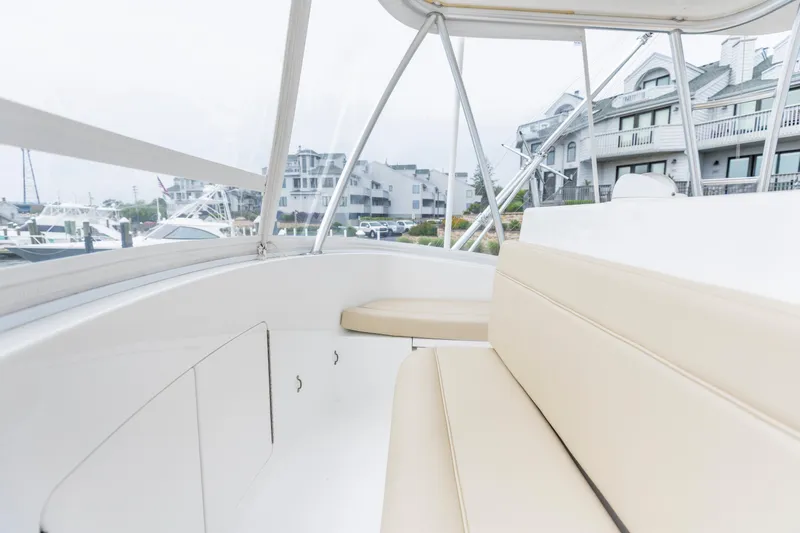

Like her Convertible brethren, the 38 Billfish's Flybridge is designed with a tournament-style Center Console walk-around Helm. Like the 38 Open, the 38 Billfish has Palm Beach style controls and power-assist hydraulic steering. Seating includes a single Release Marine teak chair and lounges to port and starboard and a forward Console seat. A three-sided Costa Clear enclosure provides weather protection.

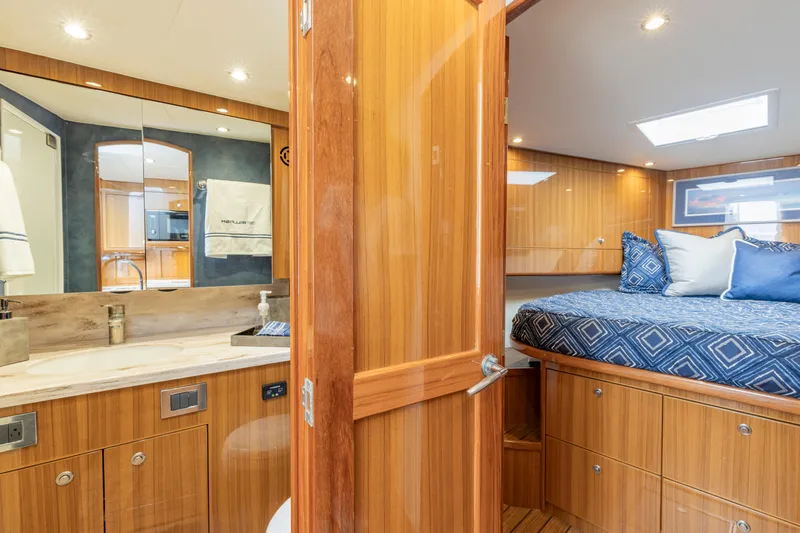

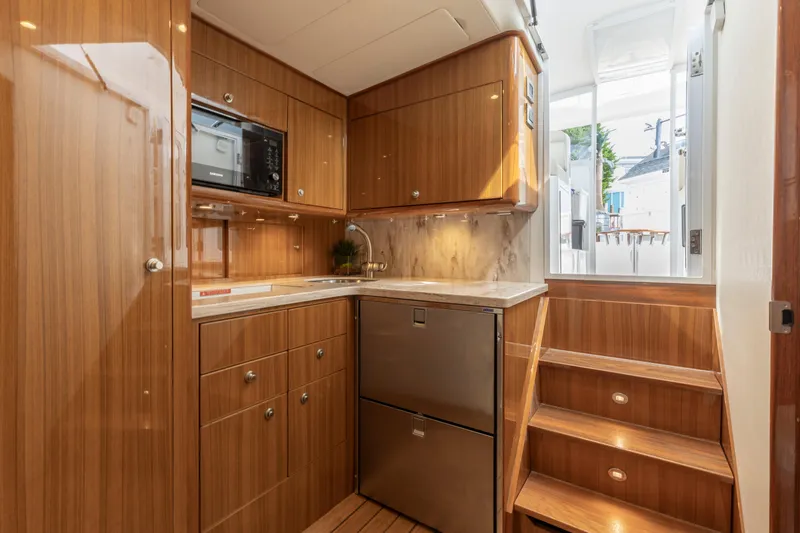

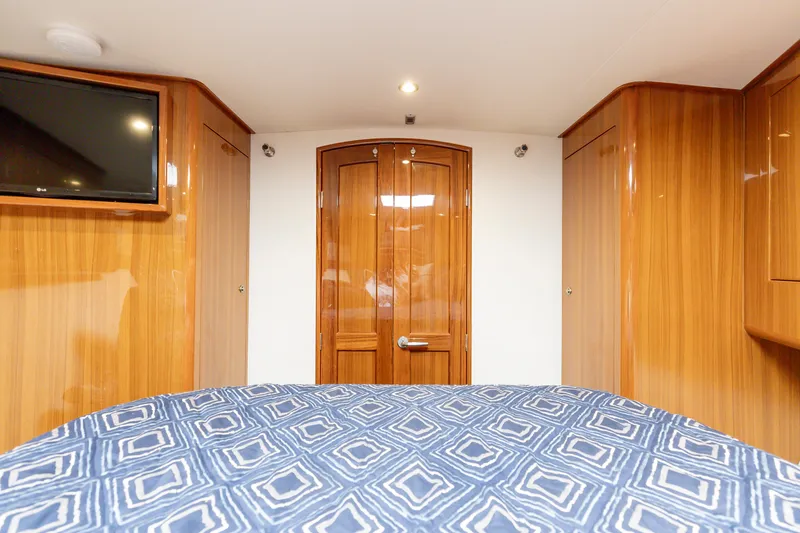

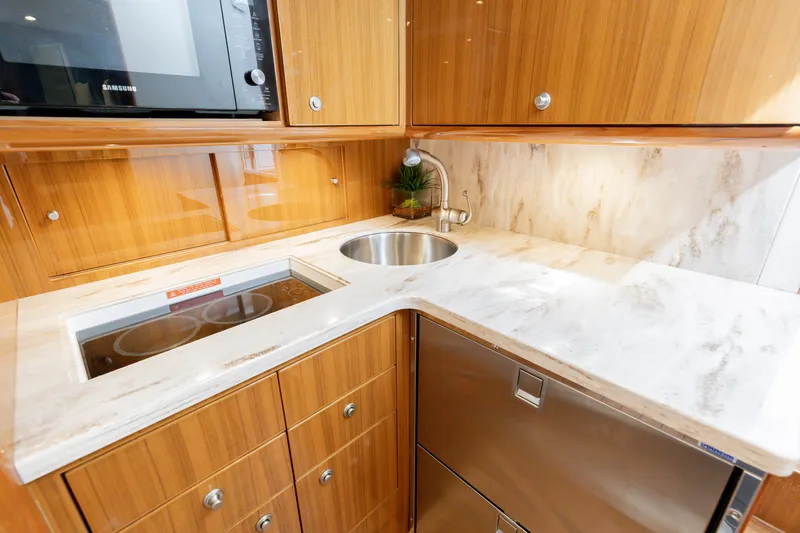

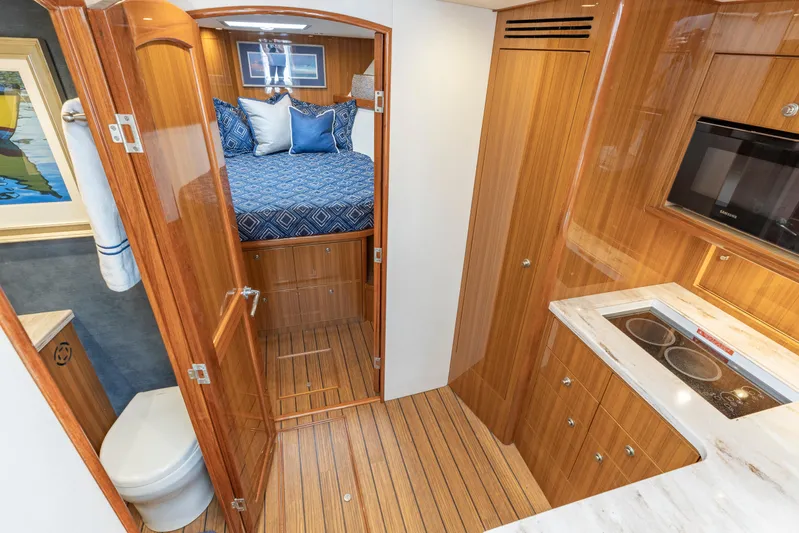

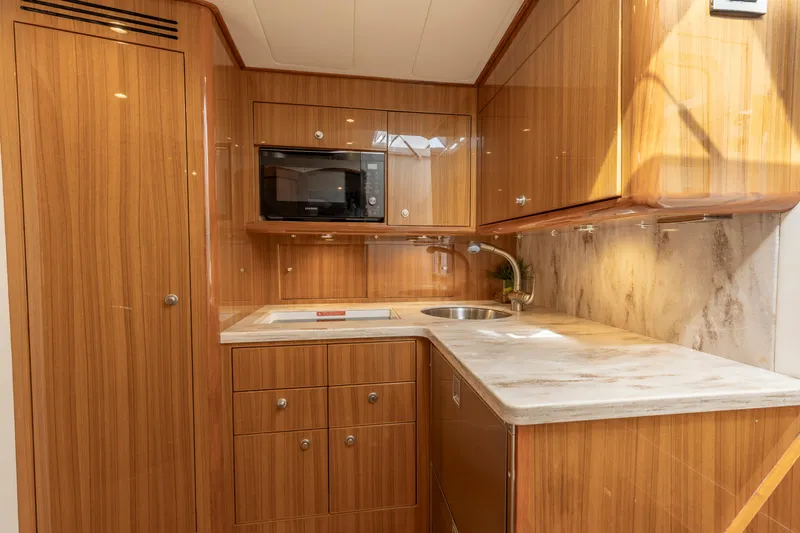

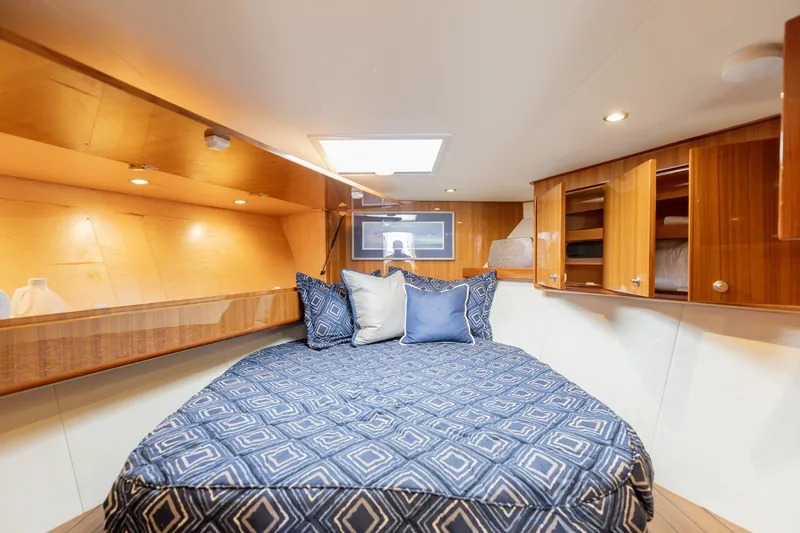

The 38 Billfish dedicates much of its space for overnight livability, with a Forward Stateroom, an L-shaped Galley and a Head with enclosed shower. The 38 Billfish is offered with island queen or crossover berth arrangements and is equipped with two hanging lockers.
A modified vinylester resin is used in the entire hull skin. End-grain balsa and closed-cell foam are used as coring materials in selected areas for optimized strength and stiffness while minimizing weight. The single integral fiberglass fuel tank, sealed to the hull with resin foam, is resin infused with balsa coring on all sides for stiffness. The hull-to-deck joint is mechanically fastened every three inches and fiberglassed inside.

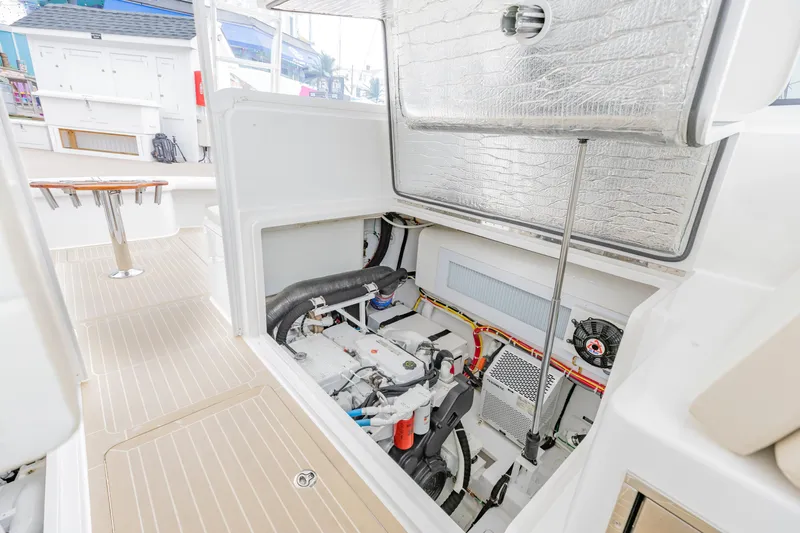

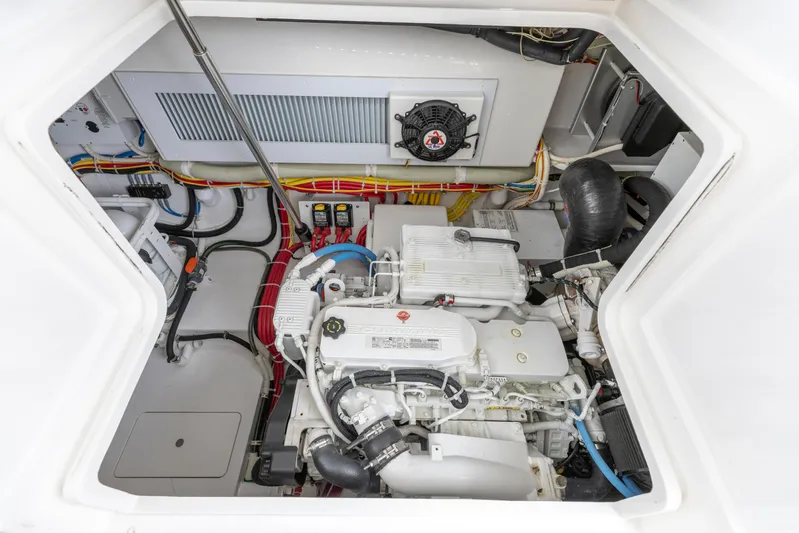

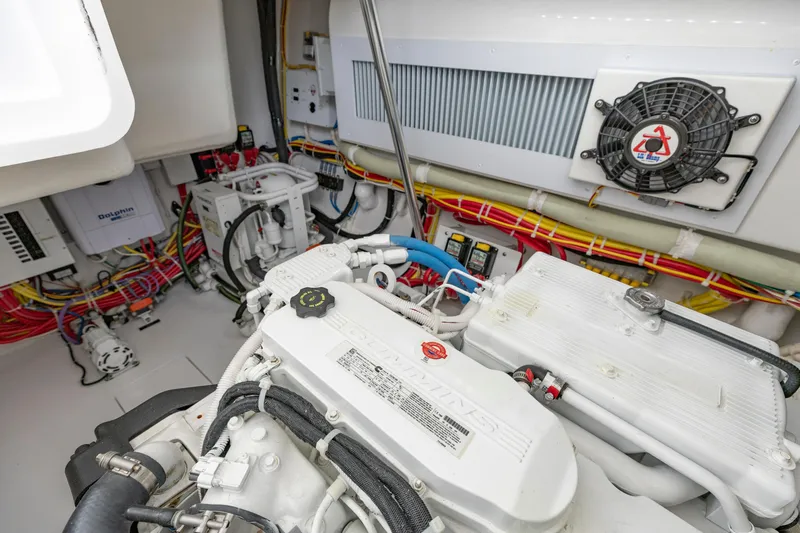

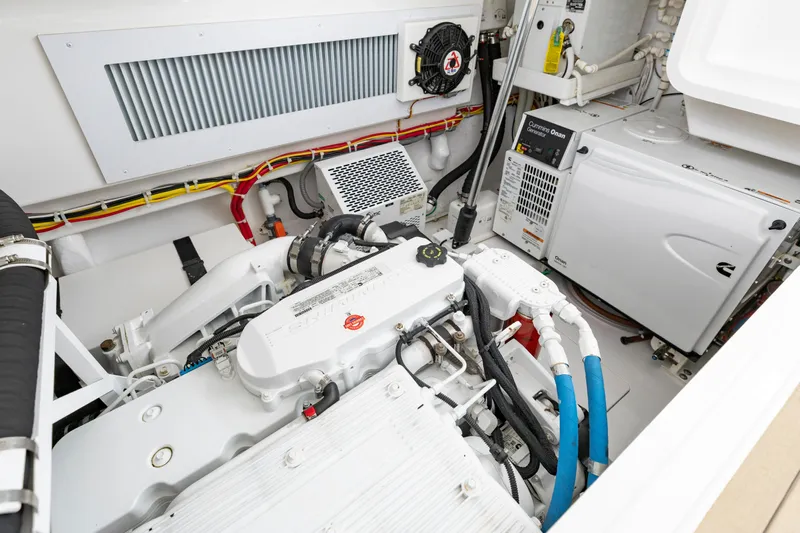

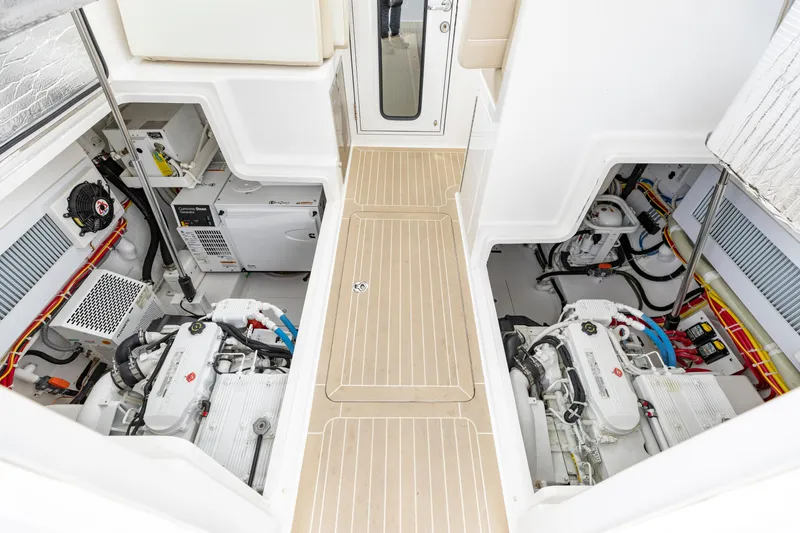

For ease of maintenance, each engine and other critical machinery is located beneath electrically-actuated hatches in the Command Deck area. The Billfish is designed and built with many of the same mechanical systems, components and technologies found on larger Vikings. Examples include the Delta-T Engine Room ventilation system and a fire suppression system that's automatically or manually operated and tied into the main engine and generator ignitions.
Running gear includes Class-S pitch tolerance propellers with dynamic balancing and bronze struts, seacocks and rudders. The Engine Room, Lazarette and forward bilges are painted with Snow White Awlgrip for increased visibility and ease of maintenance. A large centerline hatch exposes the house and starting batteries, the 9kW generator, and the optional Seakeeper SK 6 gyro stabilizer. Both the 38 Billfish and 38 Open are powered with twin Cummins QSB6.7 diesels with 550 mhp.

Juno Teak
Rod locker
Amtico Vinyl Flooring
Gloss finish throughout

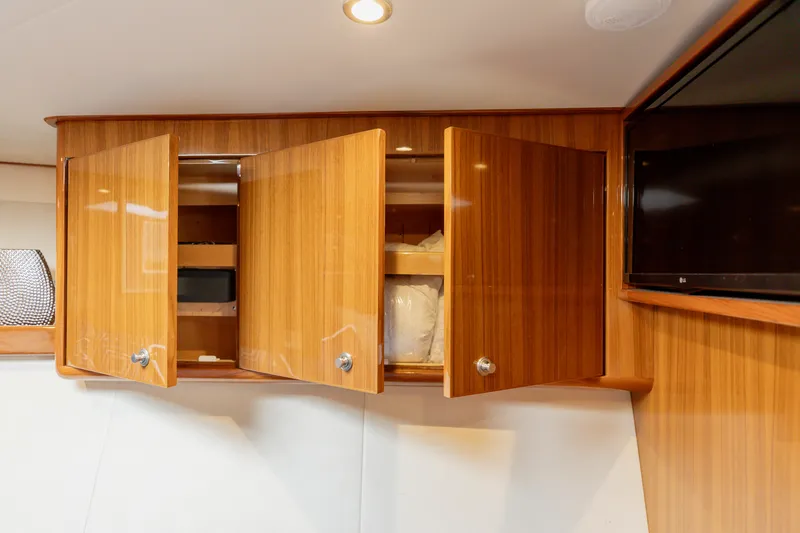

Starboard upper storage cabinetry
24v Overhead Lighting recessed in headliner
Headliner, Majilite, 1/8" foam and tricot backing throughout

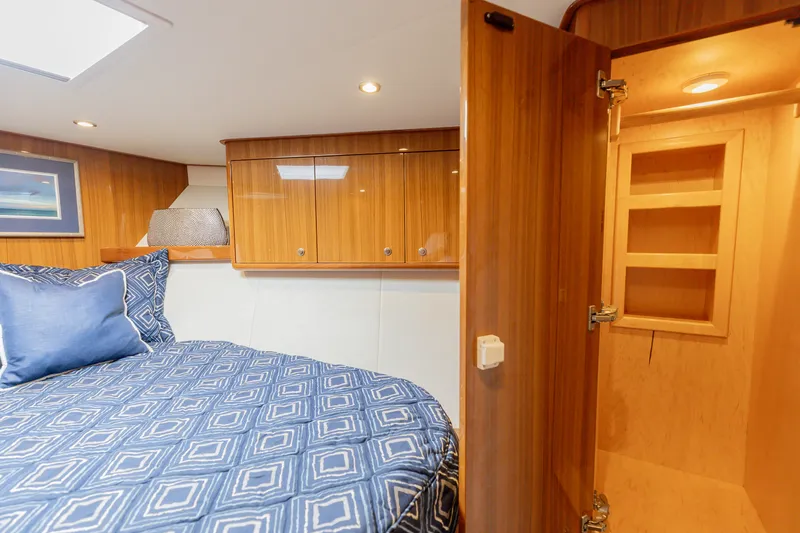

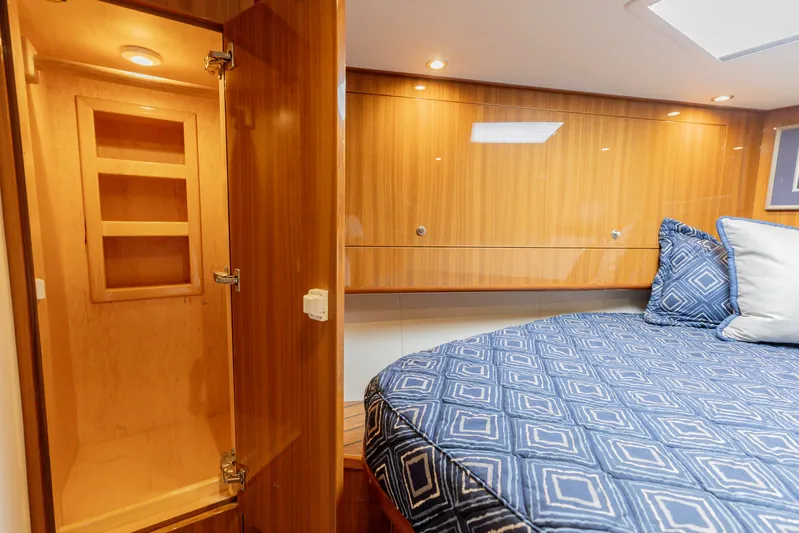

(2) Maple-lined Hanging lockers with drawer storage below

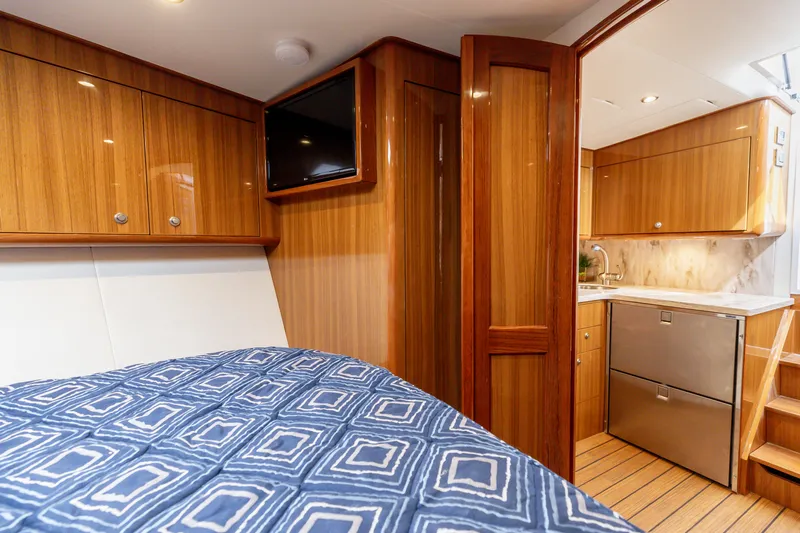

Stereo system with speakers, CD / DVD player and flat-screen TV

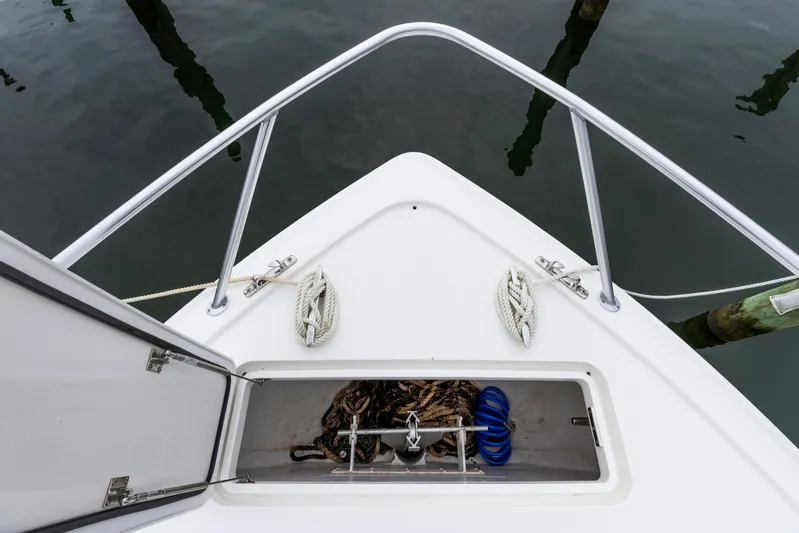

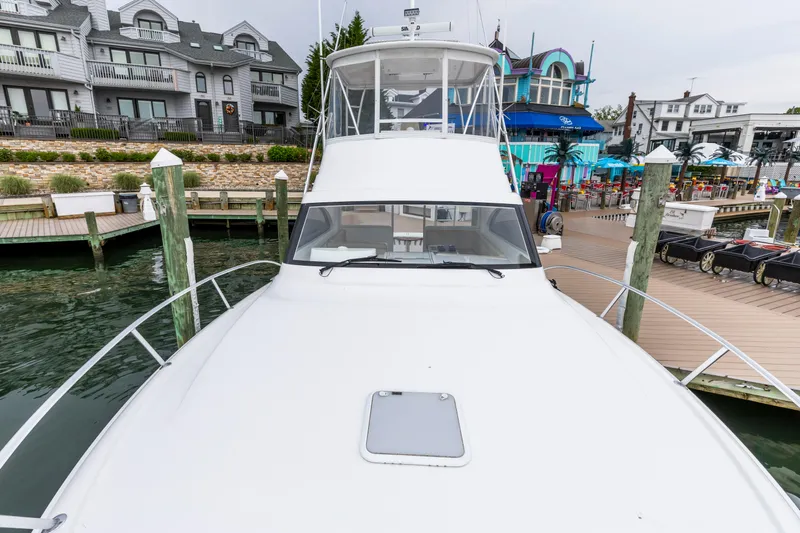

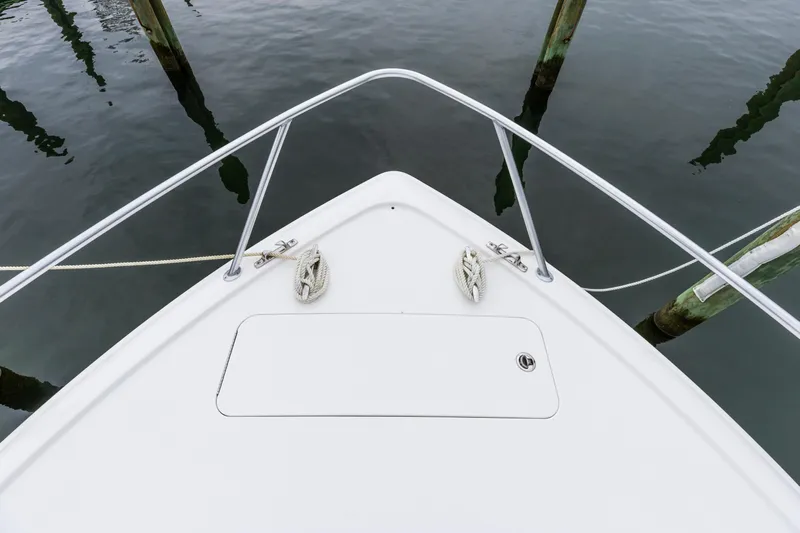

Bomar Hatch, Foredeck hatch with Ocean Air screen and shade system
Quilted designer-style bedspread with (2) pillows and shams, fitted sheet set

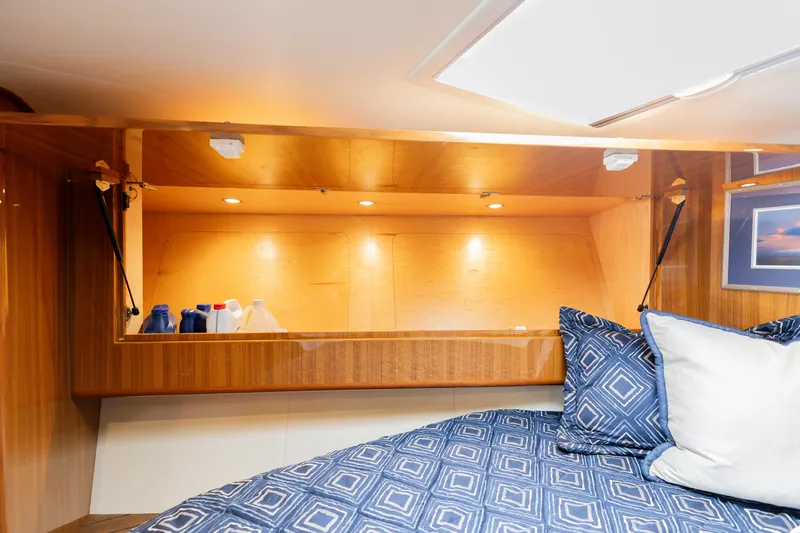

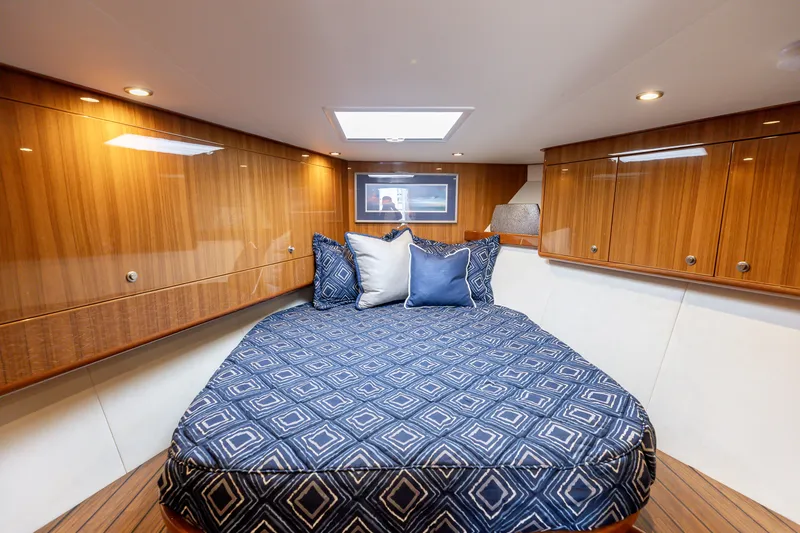

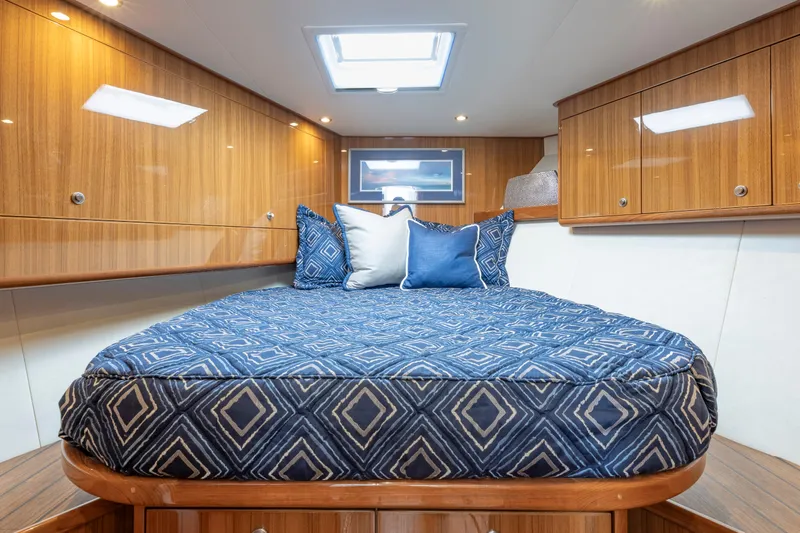

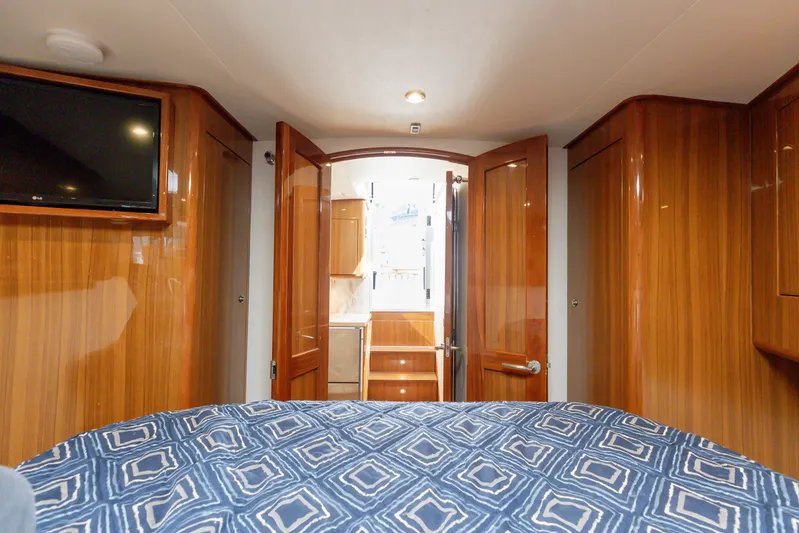

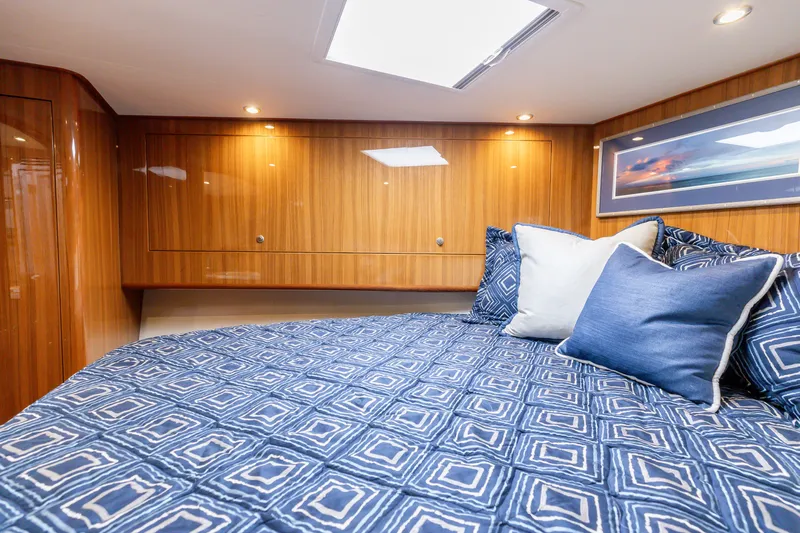

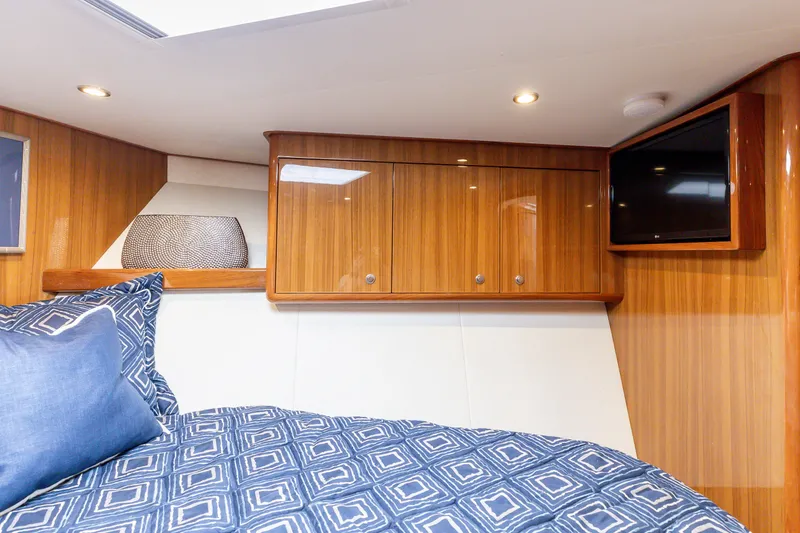

Island double berth with innerspring mattress, drawers in face, storage underneath
Air conditioning with reverse cycle heat and temperature control (services whole interior)

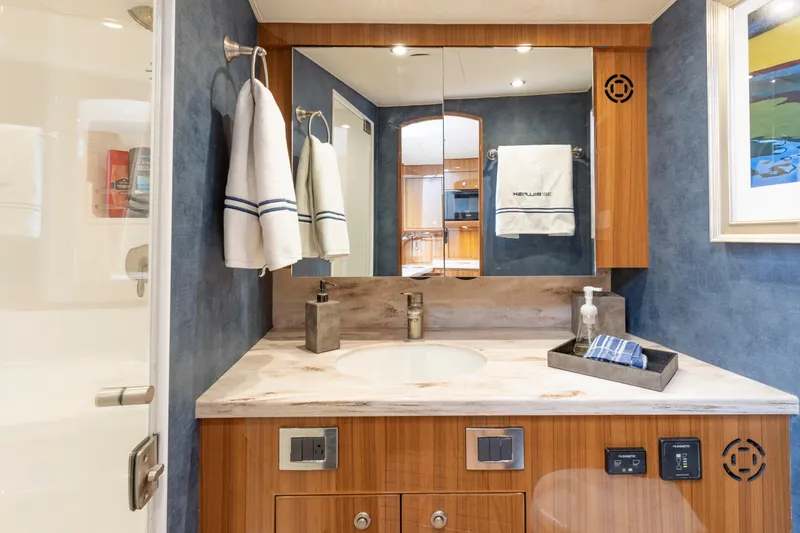

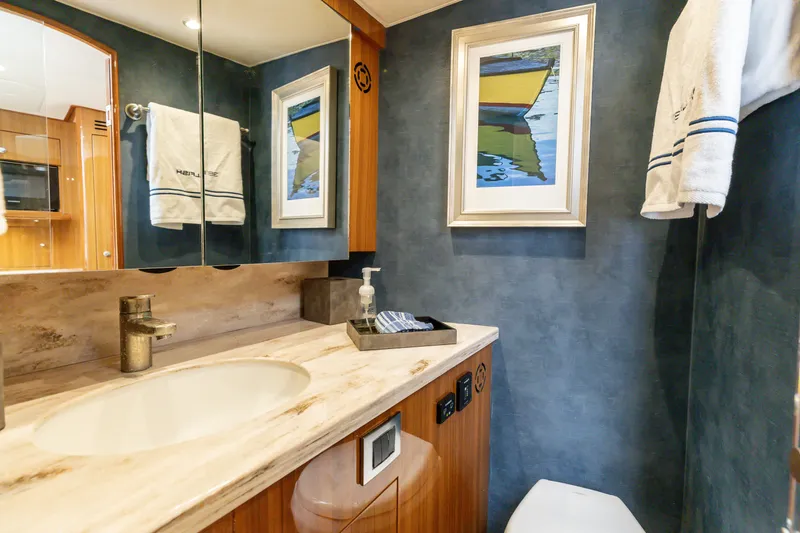

Exhaust fan
Shower light
Amtico vinyl flooring
Towel bars and rings
Lower vanity with storage
Satin nickel shower fixtures
120v GFCI Protected Receptacle
Air conditioning / heat with vent in soffit
24v Lighting, recessed in soffit and headliner

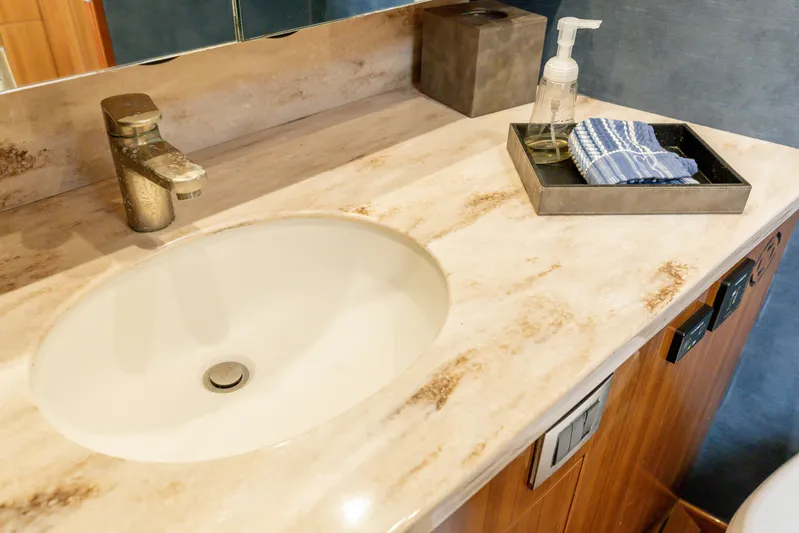

Corian countertop Sandalwood with bone sink (color)
Upper medicine cabinet with mirrored doors and storage
Stall shower, fiberglass, and drain to automatic sump pump in bilge
Freshwater electric head with holding tank and overboard discharge

Headliner
Juno Teak
Exhaust fan
Satin nickel faucet
Amtico vinyl flooring
Overhead LED lights
Water tank level gauge
Electric, two-burner recessed stove
Aluminum Cabin door, access to Command Deck

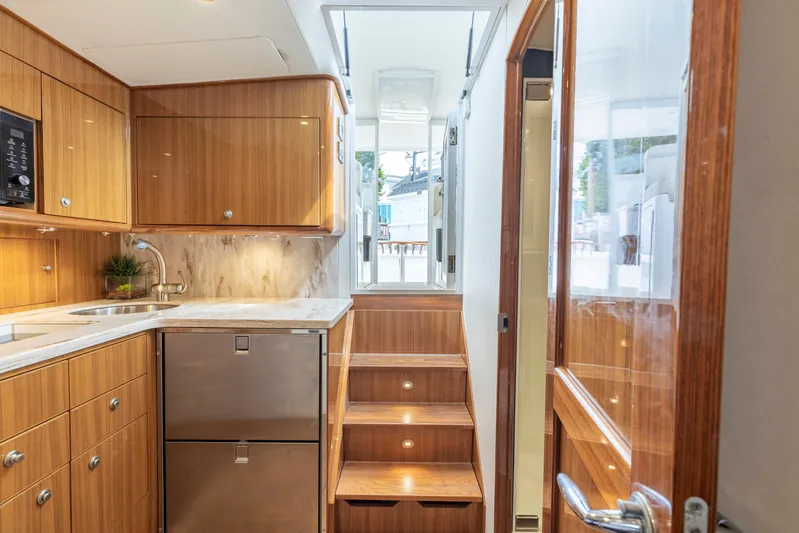

Polished Corian countertop with stainless steel sink
Storage cabinets in upper Galley with varnished doors
Main electrical service panel, AC / DC, back-lit for easy viewing

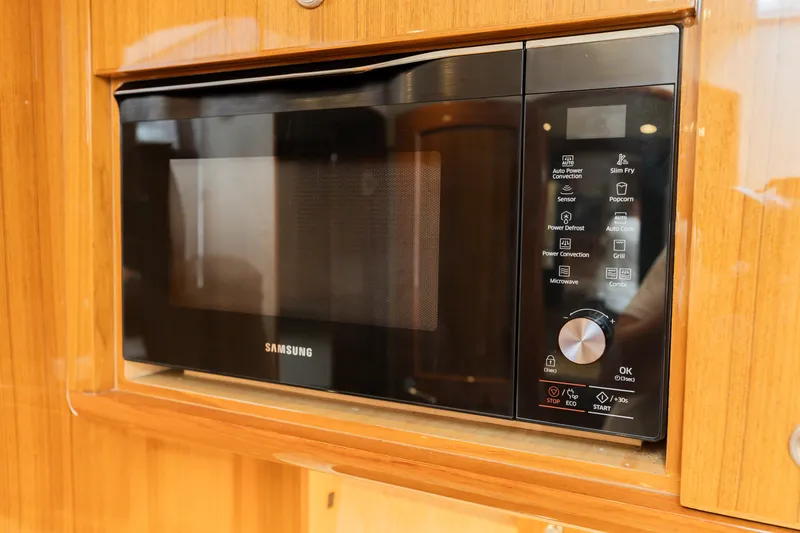

Microwave oven / Convection oven located in upper Galley cabinet
Storage cabinets and drawers in lower Galley, finished maple interior

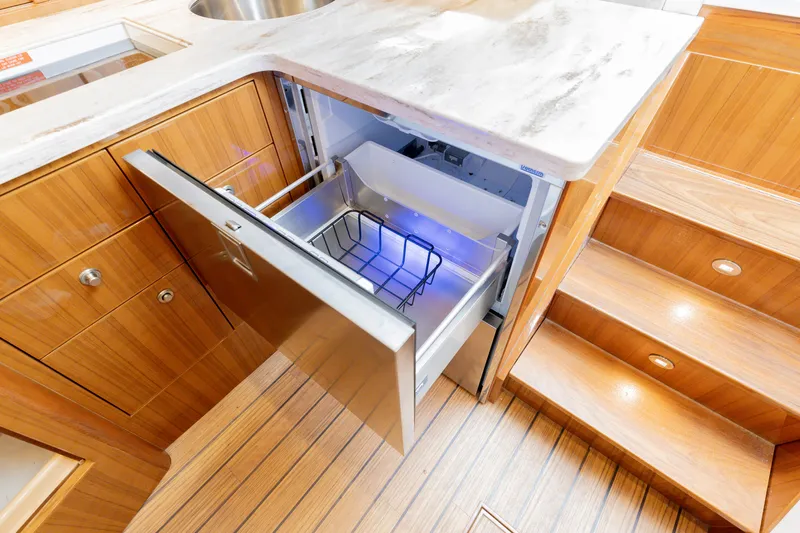

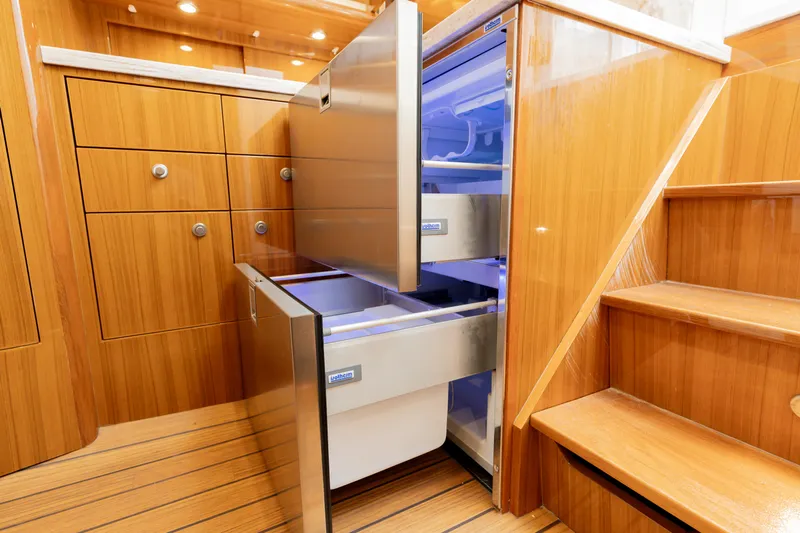

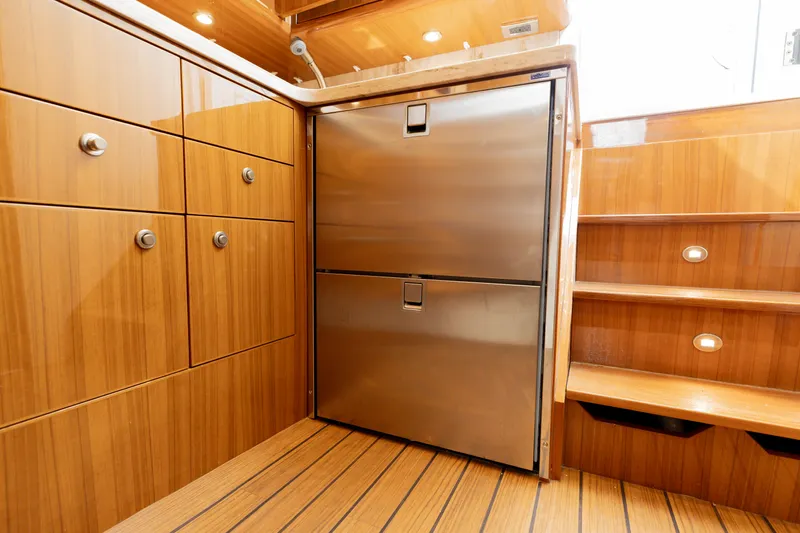

Under counter drawer-style Refrigerator / Freezer with built-in ice maker (New 2023)

Overhead lights
Drink refrigerator
Costa Clear aft Enclosure
Custom Flexiteak Flooring

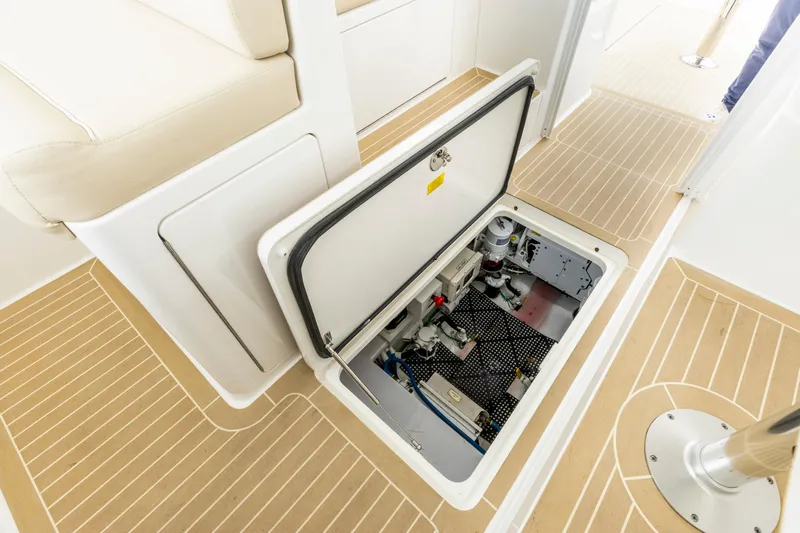

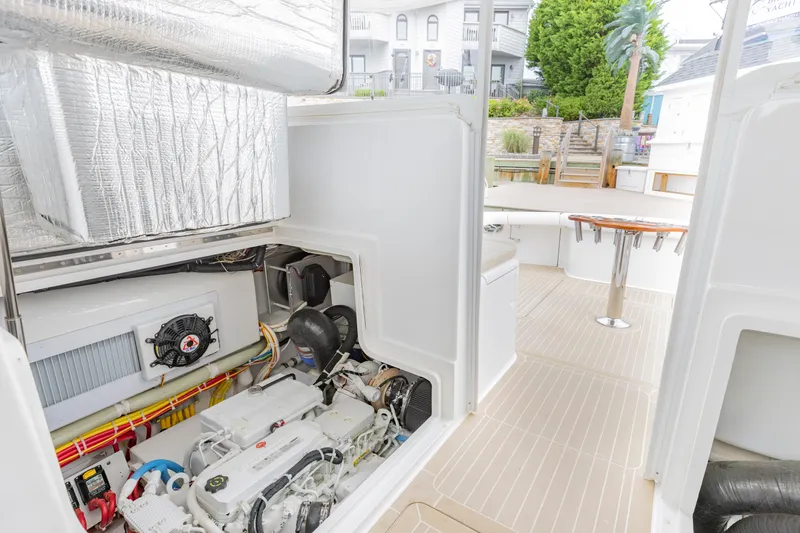

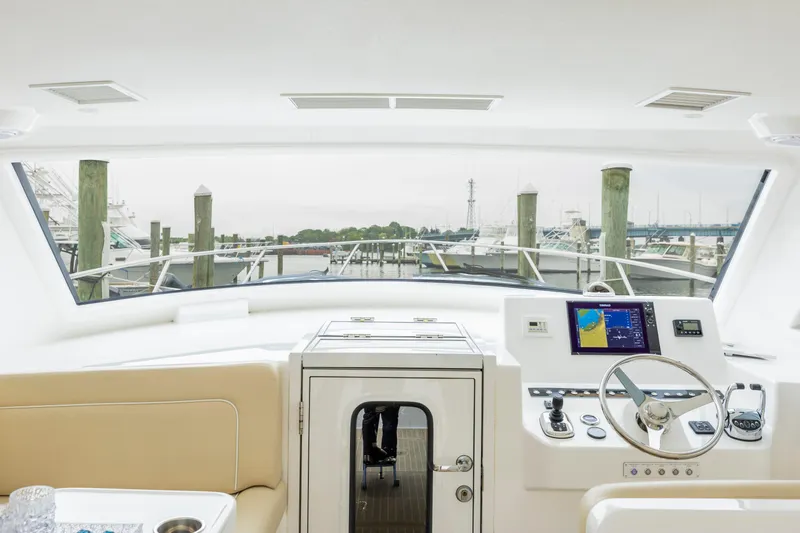

Center Engine Room day hatch
Command Deck air conditioning
Fiberglass Three-sided enclosure
Lighted Compass, flush-mounted on Centerline
Engine display supplied by engine manufacturer

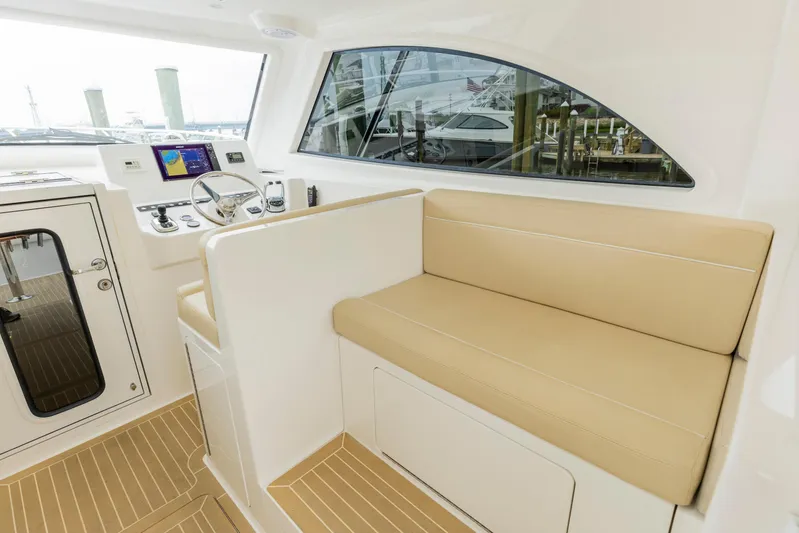

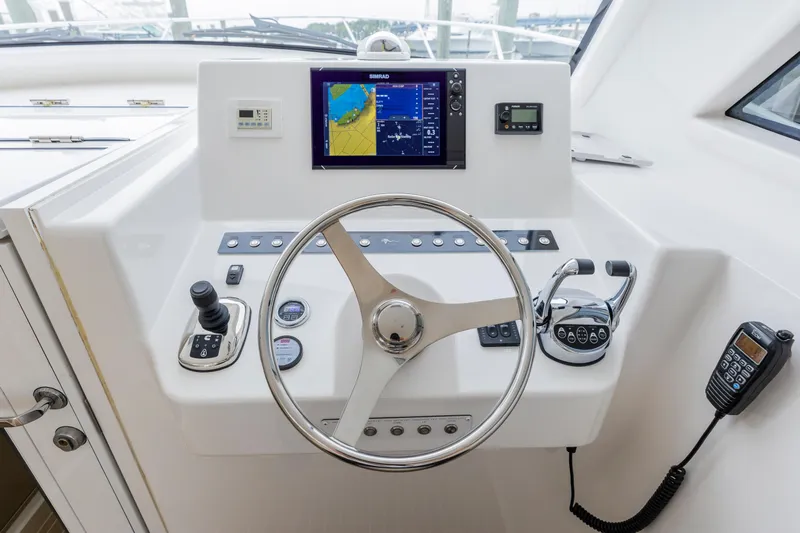

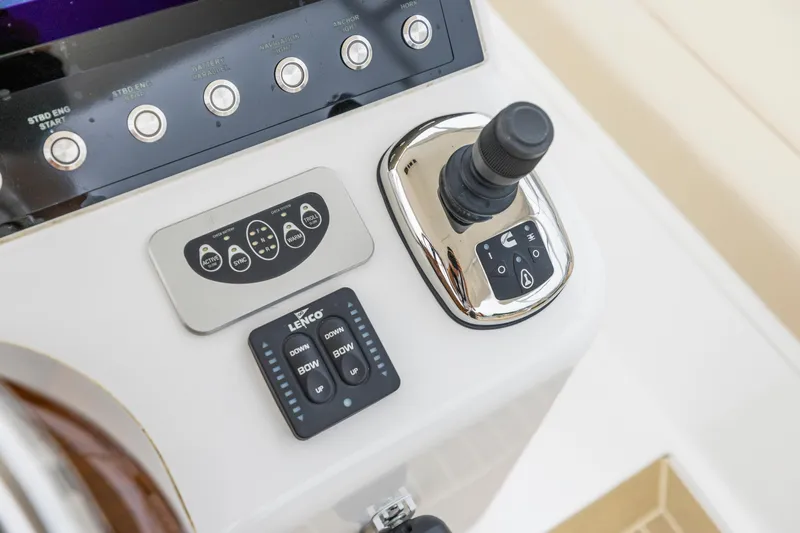

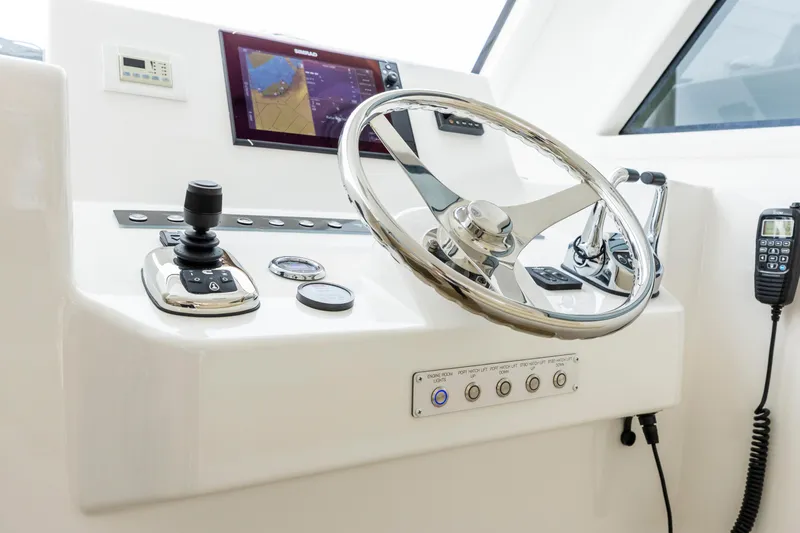

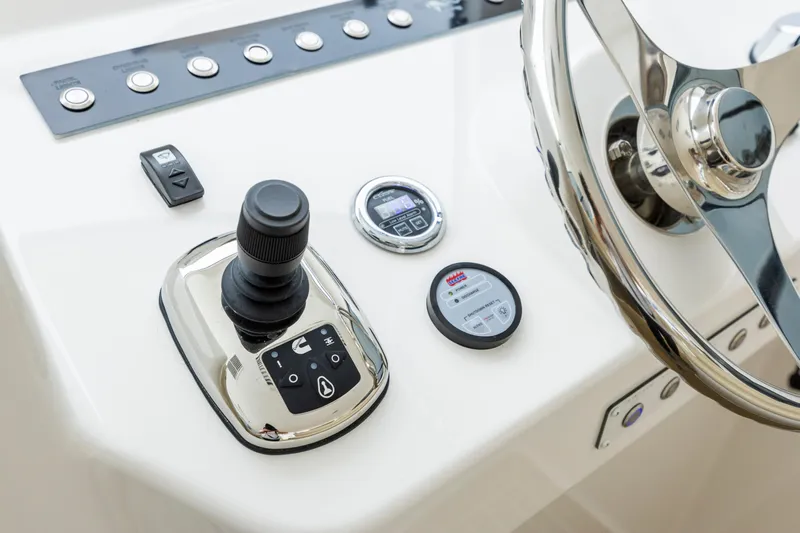

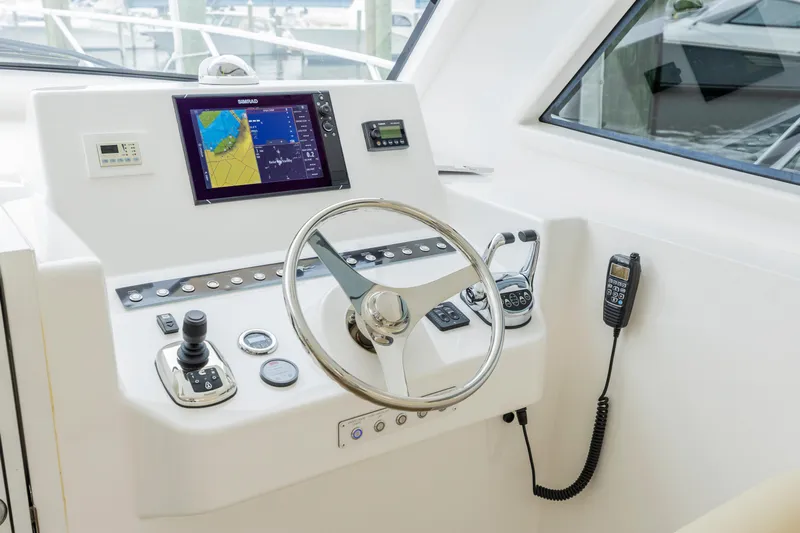

Lower Station with controls and Cummins joystick
Top mounted electronic controls with station select and keypad
Digital depth finder / temperature gauge and Icom Command Mic

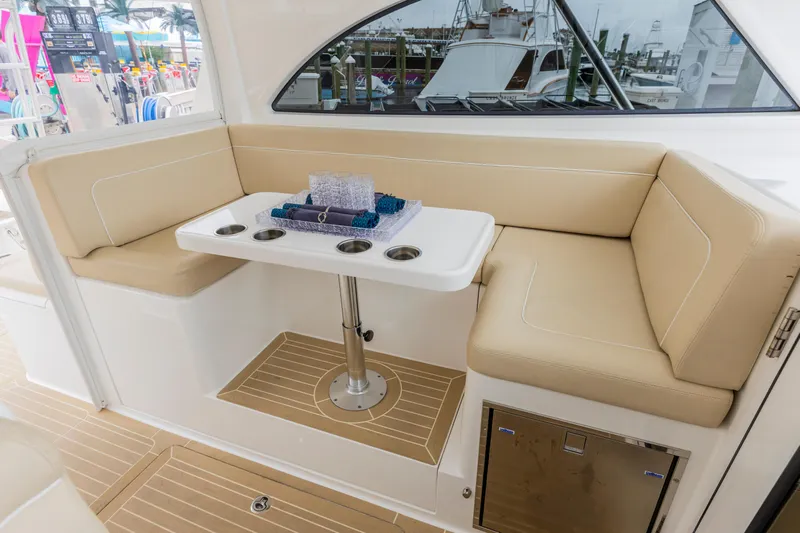

Port side U-shaped lounge seating with bolstered White vinyl cushions and fiberglass Hi - Lo table, electrically actuated for engine access

Trim tabs
Radar pod
Center rigger

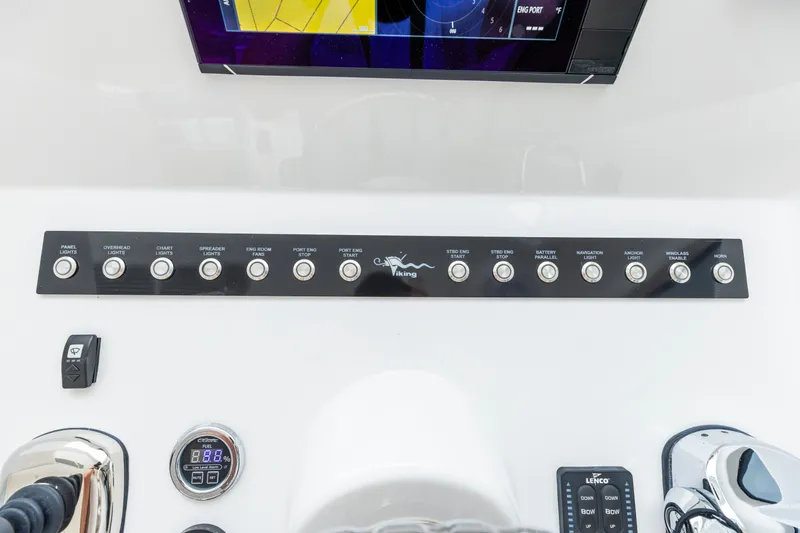

Engine start / stop
Trumpet-style Air horns
Custom Synthetic Flooring
Power assist hydraulic steering
Teak finish fiberglass Helm Pod
(2) Tricolor overhead lights at Helm

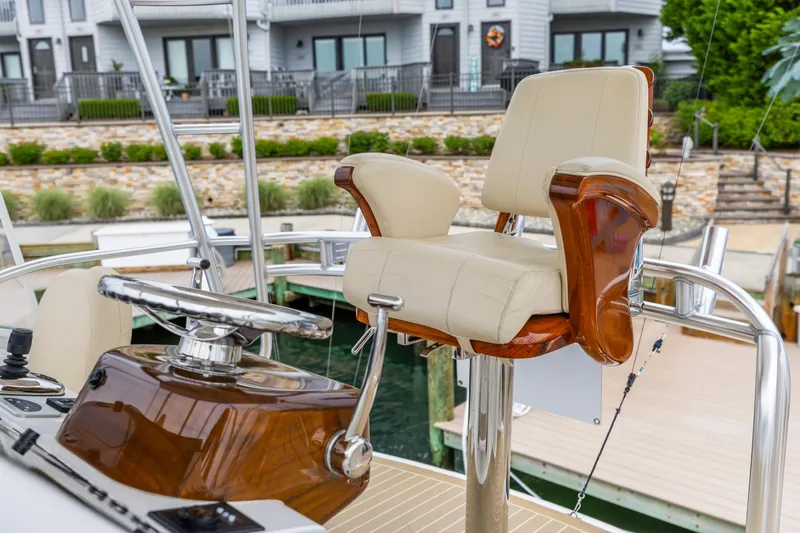

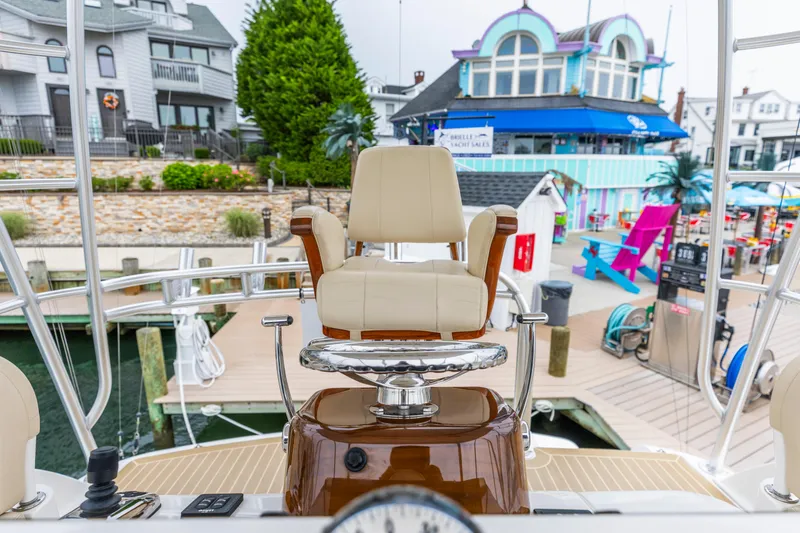

Release Teak ladder-back Helm chair
Flush-mounted, lighted compass at Helm
Instrumentation based on engine package
Fiberglass hardtop with molded-in LED spreader lights
Fire system control with automatic and manual discharge and override system located at Console

Starlink (2024)
SeaKeeper Display
Fusion MS-NRX 300
New AIS Module (2024)
(2) Shakespeare Galaxy 5018
Sirius XM Satellite Fish Mapping

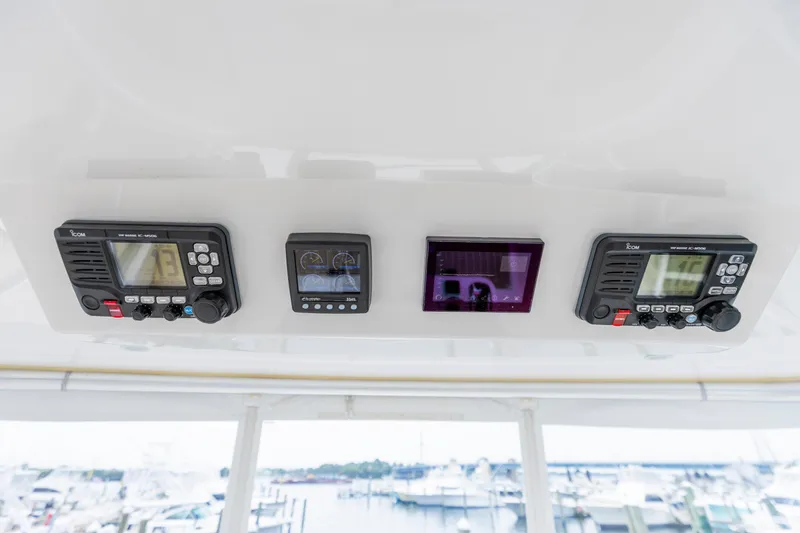

(2) Icom IC-M506 with Remote Mics

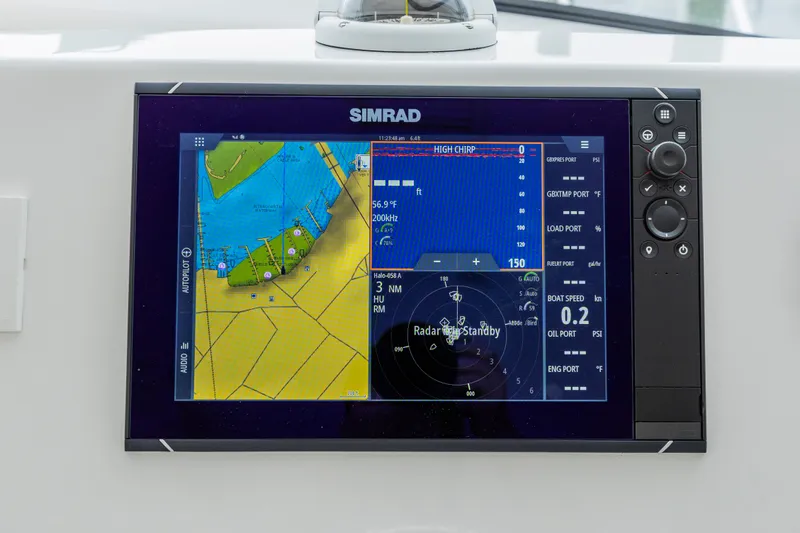

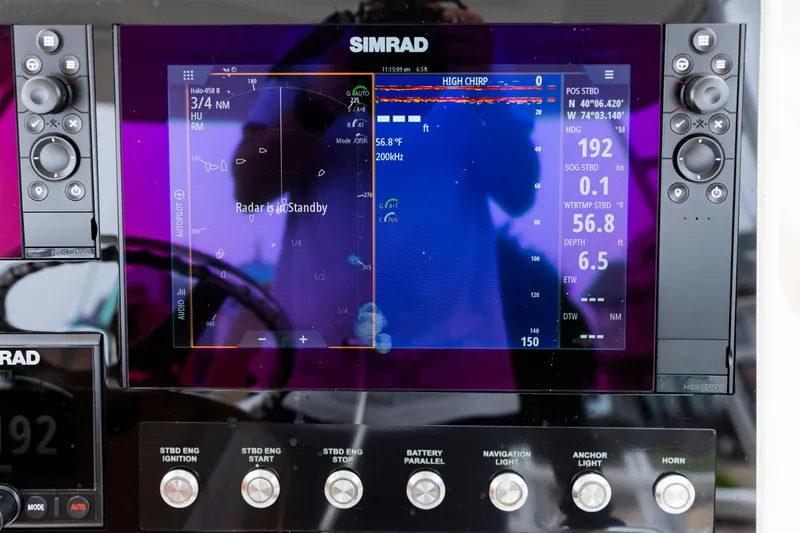

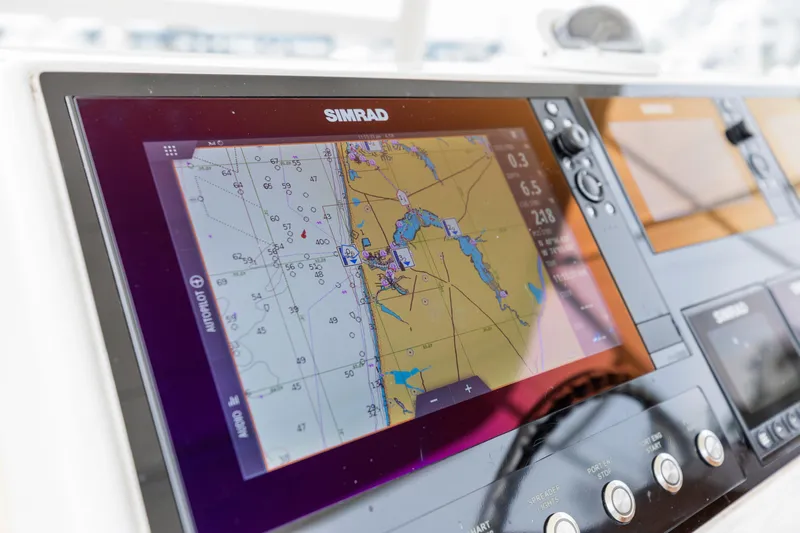

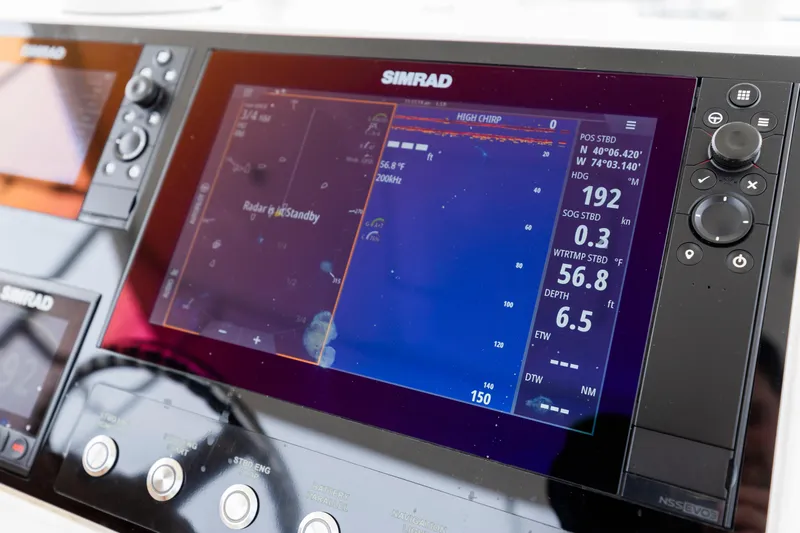

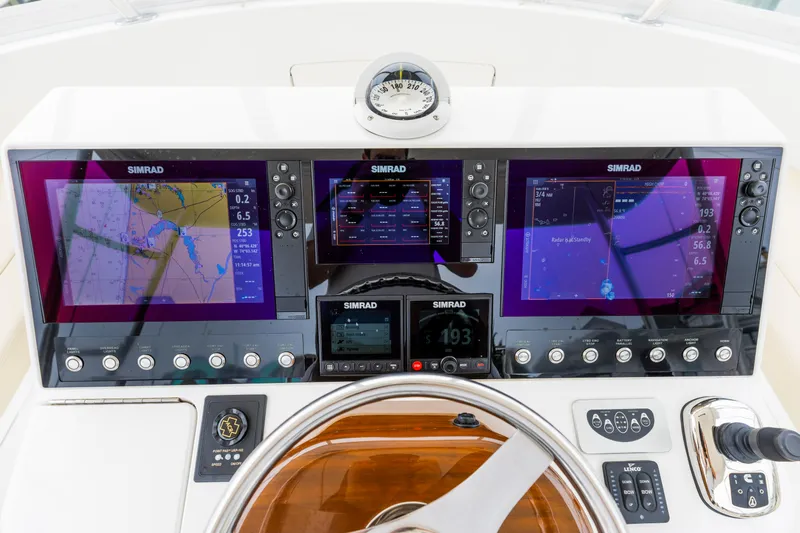

(3) Simrad 12" MFD's with Plotter / Radar / Sounder

CRM-50 Cord reel

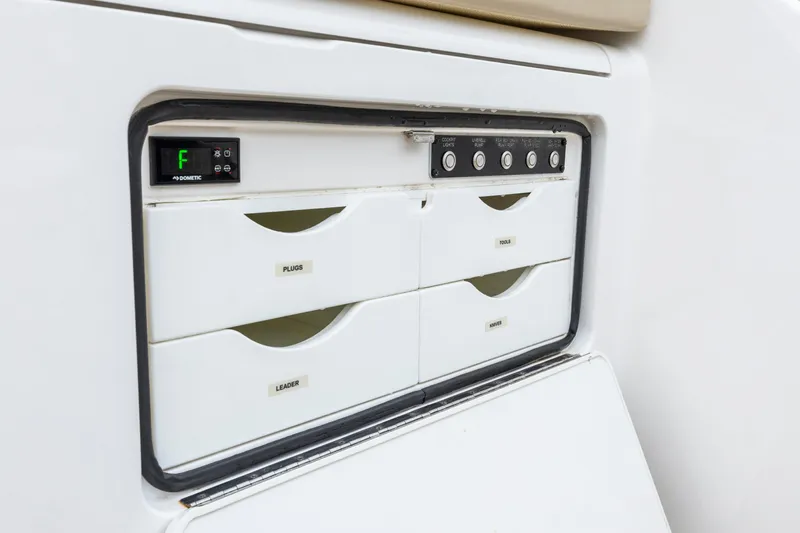

Cockpit bait freezer
Custom synthetic Deck
(2) 24v 30-amp. Outlets
Release Rocket Launcher
(2) 12v DC 30-amp. Outlets
Rupp Outriggers with spreaders
Release Marine Rocket launcher
Winter Cockpit and Bridge Covers
Transom swim step at transom door

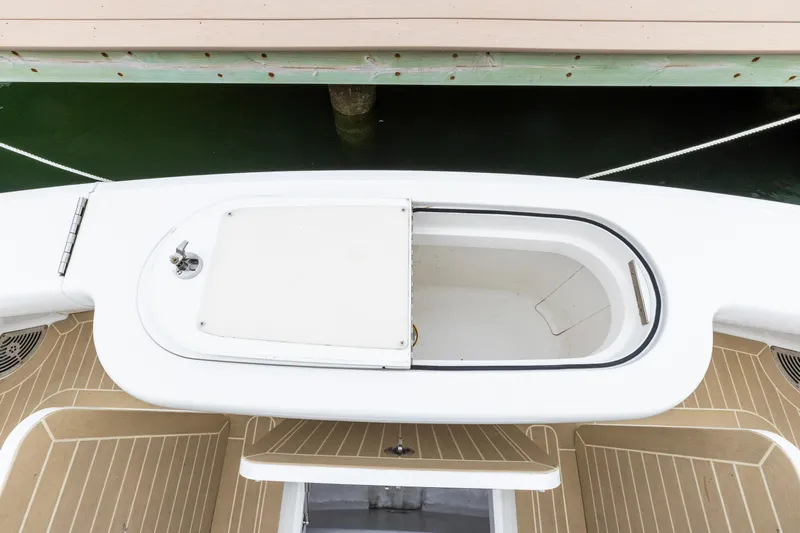

Live well in molded transom fish box
Tri-color LED lighting under coaming
Rounded Cockpit coaming for comfort
Gaskets for all lids, doors and hatches
Stainless steel cleats and hawse pipes
Walk-through transom door with lift gate
Lazarette hatch for inspection of aft bilge
Stainless steel flush-mounted Rod holders
Seat cushions on freezer and tackle locker
Tri-color LED lighting under Flybridge overhang
Self-bailing Cockpit with large Cockpit scuppers
Stainless steel gas springs on Deck hatches and lids
Fresh water wash down with hose bib located under forward gunwale

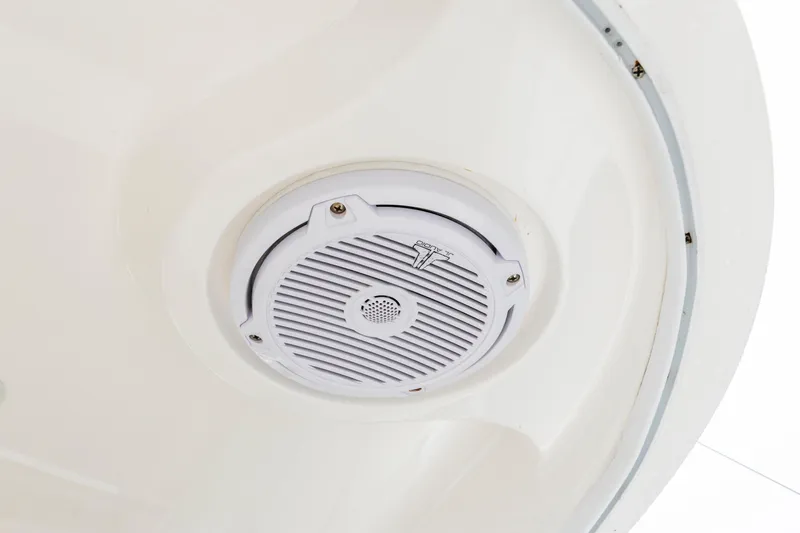

Stereo speakers powered by interior stereo, same zone as Command Deck
Dockside water connection with pressure reducing valve under forward gunwale
Sea water wash down with pump in Engine Room and supply under forward gunwale
Dockside electric connection - 50-amp. / 220v electric, located under forward gunwale

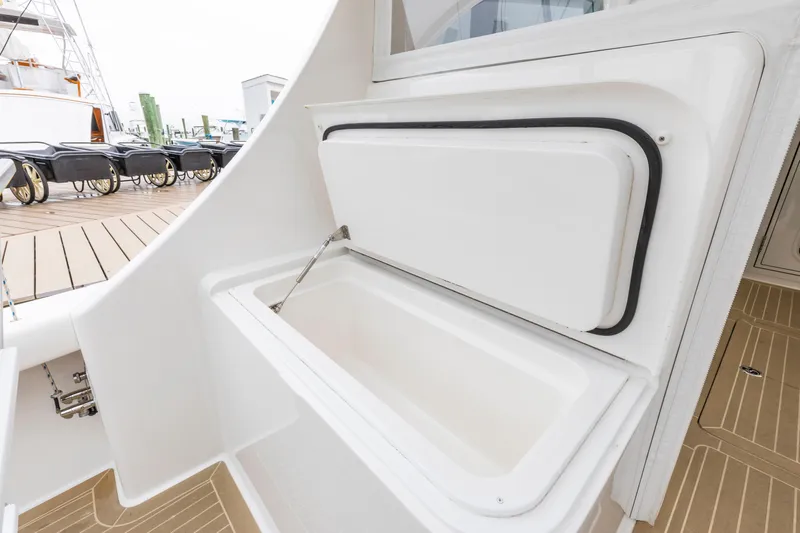

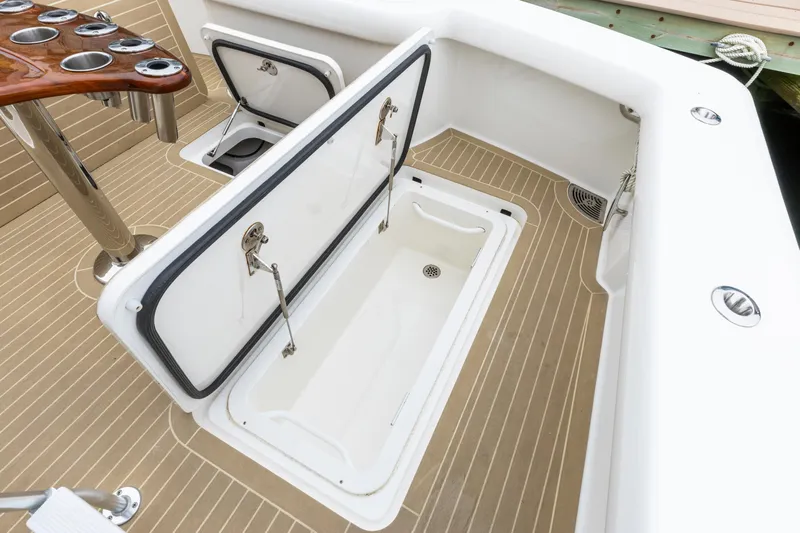

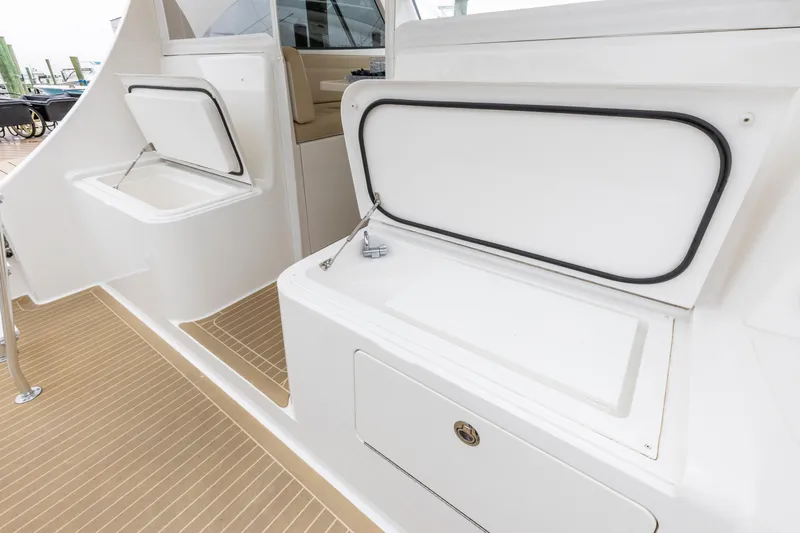

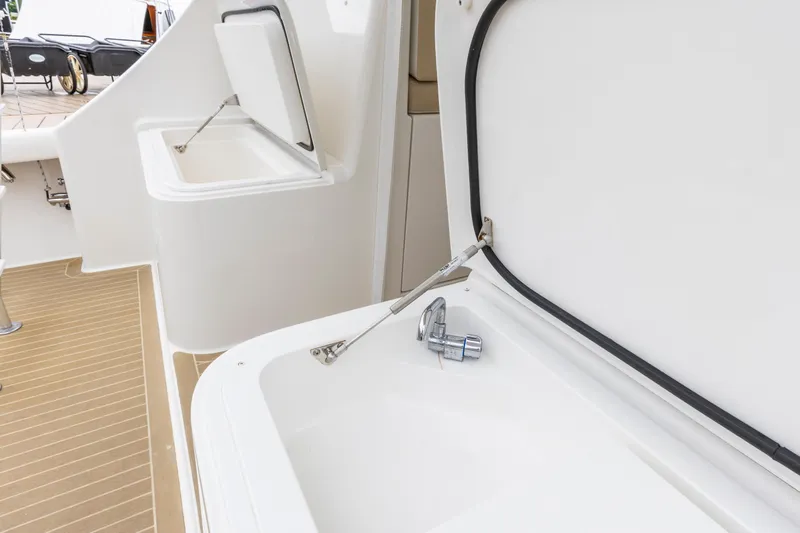

Insulated Fish boxes port and starboard, with hatches and drains plumbed to automatic sump pump out

Seakeeper 6
Bow thruster
Bronze struts
Seastar Optimus Steering system
(2) Y-valve emergency bilge pumps
Quick Recovery Electric water heater
Hour meters on main engines and generator

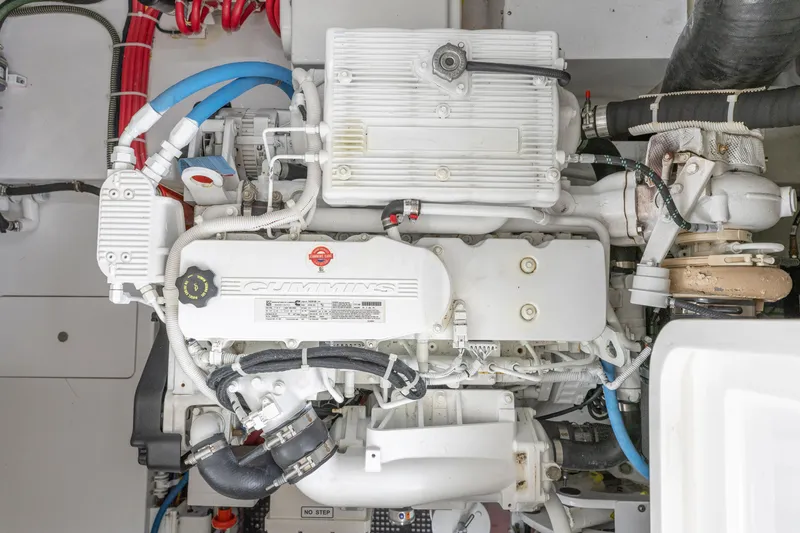

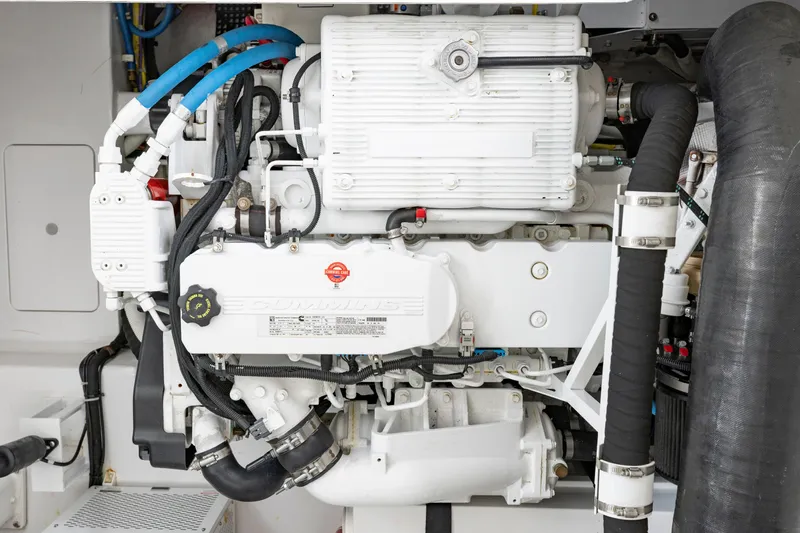

Twin 550 hp. Diesel I/B Cummins QSB 6.7L's
Electric Trim tabs with LED indicators at both Helms
External sea strainers, wedge type, for main engines
Generator muffler, lift muffler with gas / water separator
Fuel and oil lines, flexible, steel reinforced USCG approved
Main engine mufflers, double lift fiberglass with surge protection
Deck pump-out fitting and direct overboard pump-out for holding tank
Rudders, bronze, with composite rudder bearing and dripless thru-Hull
5-Port Oil exchange system, main engines, transmissions and generator
Twin diesel engines with Marine grade reduction gears and trolling valves
Fresh water supply in Engine Room for general maintenance and cleaning
Internal sea strainers, basket type, awlgrip White - Generator and air conditioning
PEX Plumbing, fresh water system plumbing with manifold system shut-off in Engine Room
Air conditioning - Direct expansion single zone with reverse cycle heat for interior climate control
Seacocks, bronze, ball-type sea valves and strainers for all thru-hulls below the water line, awlgrip White
Bilge pumps linked into monitoring system and connected to float switches for automatic and manual operation
D/C pressurized fresh water system with Cockpit fresh water fill and dockside supply inlet with pressure reducing valve
Fire suppression system, automatically or manually operated and tied into main engine and generator ignition systems with override
Racor fuel / water separators for main engines and generator clear bowl type, top loading for easier maintenance - Includes vacuum gauge for fuel filter restriction, awlgrip White
"Delta T" Engine Room ventilation system with supply and discharge fans for proper fresh air supply and water intrusion suppression discharge fans for proper fresh air supply and water intrusion suppression

9kW Diesel Generator
110v Outlet in Engine Room
Anchor light / Navigation lights
24v DC Ship's service throughout
Bonded electrical system with ground plate
Dimmers on interior lighting in select areas
Engine Room lights, DC with switch at Helm
Battery charger, dual output with thermal cutoff
120v Duplex with GFCI Receptacles throughout
24v LED Lighting recessed in ceiling throughout
Instrument panel backlights - All electrical panels
Battery parallel system for main engines and generator start
24v / 12v Power supply with breakers on Flybridge for electronics
Voltage stabilizer isolation transformer for more consistent, cleaner voltage
Battery distribution panel with battery cut-off and charging system breakers
(2) Batteries, Independent 24v banks mounted in (2) fiberglass storage boxes
Color-coded, labeled and numbered wiring system with corresponding drawings

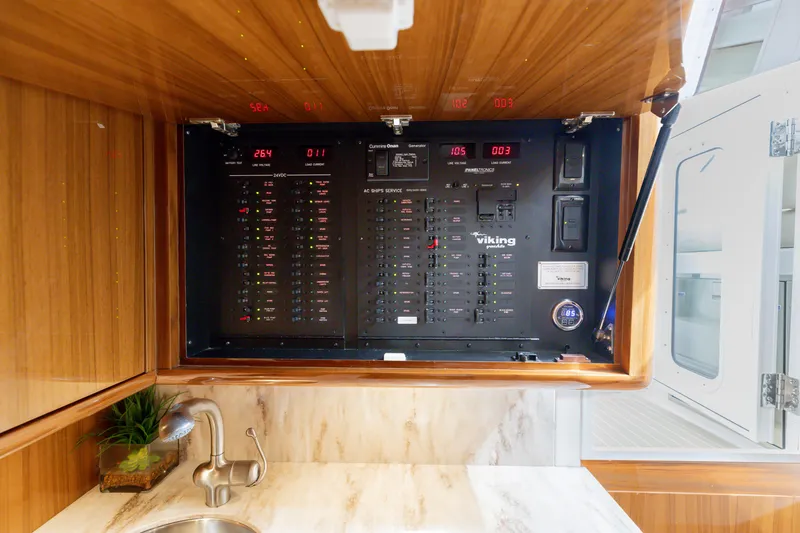

Master electrical control panel located in Salon with 24v and 120v circuit breakers, individual switching for shore, or generator supply and gauges for electrical supply, voltmeter, amp meter, and frequency
