VISION 444 Boat for Sale

Vision 444ES Electrical System

~24V DC House battery bank Lithium ion Victron Batteries 800 Amps consists of 2 x single units to create the pack that fits under the saloon seats.

~Diesel propulsion engines provide house bank charge input while running - 24V 75A each (150A 24VDC combined) via dedicated high duty cycle alternators. This charge input, with engines running, provide AC load capability without running the house bank flat (standard setup primary charge input)

 Each engine uses a 12V starter system which also powers the blowers for heat removal from engine bays.

~Shore power input (120V 60Hz / 240V 50Hz) for worldwide plugin provides house bank charge via Victron isolation transformer using Victron  multiplus inverter/chargers.

~PV panels charge input is an optional extra ranging from 475W (1 panel) to 1900W (4 panels) up to a maximum of 3800W (8 panels).

~24V DC house battery bank powers the boat in its entirety for the AC loads (Calorifiers/plug sockets) and including any optional extra.  (ice maker/washer-dryer/Watermaker/aircons/induction stove top).

~Optional extra 24VDC 10kW Fischer panda silent genset can also provide an additional charge input.

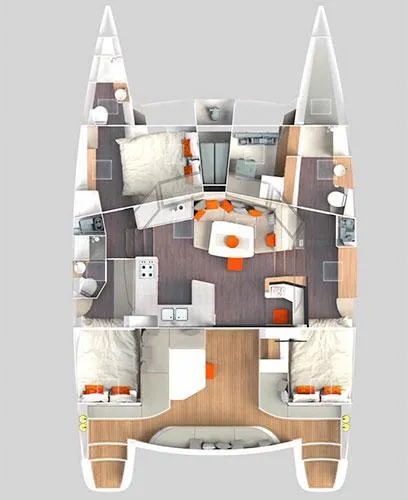

3 Cabin Version

• Hull, Deck, Bulkheads and Furniture

• All Components are Vacuum Resin Infused
• Cystic Vinyl Ester Epoxy Resins Used Throughout
• Foam Core Infused

• Hull and Deck sprayed with high-quality two-part paint
• Vacuumed Foam Sandwich Furniture Components
• Furniture is Structurally Bonded to Hull
• All Lockers Painted Out with Grey Polyester Topcoats

• Steering System

• Composite Rudders
• 60.3mm Stainless Steel Rudder Shafts, Solid Section Through Hull
• Vesconite Rudder Bushes
• Tie Bar Connected Steering
• Vectran Control Lines Linked to Chain and Sprocket Steering
• 1 X Carbon Composite 3 Spoke Steering Wheel

• Emergency Steering
• Ackermann Angle in Steering Geometry Ensures Laminar Flow at all Steering Angles

• Propulsion

• 2 X 38HP Nanni Diesels with 24V 90-amp XT Alternator House Battery and 12V 120amp Alternator Starter Battery
• 2 X Nanni Diesel Primers Built in

• 2 X Nanni Built-in Engine Oil Extractor Pumps
• 2 X ZF Sail Drives with Anodes
• 2 X Gori Feathering 3 blade Propellers
• 2 X Engine Room Extraction Fans
• 20mm Sound Proofing Sheets with Gelcoat Covers

• 2 X Double Diesel Filter / Water Separator System
• 2 X Engine Room Lights
• 2 X Bilge Pumps
• 2 X Remote Fire Extinguisher System
• Easy Access Under Bunks with Support Arm with Work Seat

• Level Floor in Engine Room

• Fuel

• 2 X Composite Fuel Tanks
• 2 X Fuel Line Gravity Feed
• 2 X Inspection Hatches

• 2 X Deck Filler Direct onto Tanks
• 2 X Manual Dip Stick System
• 2 X Top Mounted Tank Drain Systems
• 2 X Tank Senders

• Water

• 2 X Composite Water Tanks
• 2 X Water Maker Feed Ports
• 2 X Deck Fillers
• 2 X Inspection Hatches
• 2 X Water Pumps

• 2 X Wema Tank Senders
• 2 X 40L Water Heater 220V with Engines Heat Exchanger Connection

• Glazing

• Toughened Glass with 2 X Hatches in Centre Windows
• Single Leaf sliding Cockpit window

• Single Leaf Aluminium Sliding Saloon Door with Vision 444 Frosted logo
• 10 X Perspex Hull Windows with 2 Flush Mount Port Lights aft windows

• Winches

• 4 X 50ST Electric Winches
• 2 X Winch Handles

• 3 X Winch Handle Pockets

• Main, Jib, Self-Tacking and Head Sail System

• Main Sheet Bridle System
• 2 -1 Harken Main Sheet Blocks Lashed
• 4 lashed boom blocks
• 4 X T50-5 Spinlock Deck Organizers
• 10 X XTS Spinlock clutches
• 5 X Lashed mast bass lead blocks

• Harken Jib Traveller System

• 3m Harken Traveller Track
• 2 X Harken Car Stops

• Harken Block and Car
• Jib Lashed clew board block

• 2 X Bow Pad Eyes for Blocks
• 2 X Jib preventor pad eyes
• 2 X Midship Tweaker pad Eyes
• 2 X Aft pad eyes for Head sails lead blocks
• 1 X Storm Jib attachment point and Dyneema stay

• Mast, Boom, Fore Beam

• Complete Sailing Rig Package
• Mast
• Mast Steps
• Boom
• Antal Batten Car Slider System

• Standing Rigging
• Running Rigging
• Navigation Lights
• Steaming Light
• Tri-Colour Mast Light

• 2 x Spreader Deck Light
• Courtesy Flag Halyards
• VHF Antenna
• Windex
• Radar Bracket

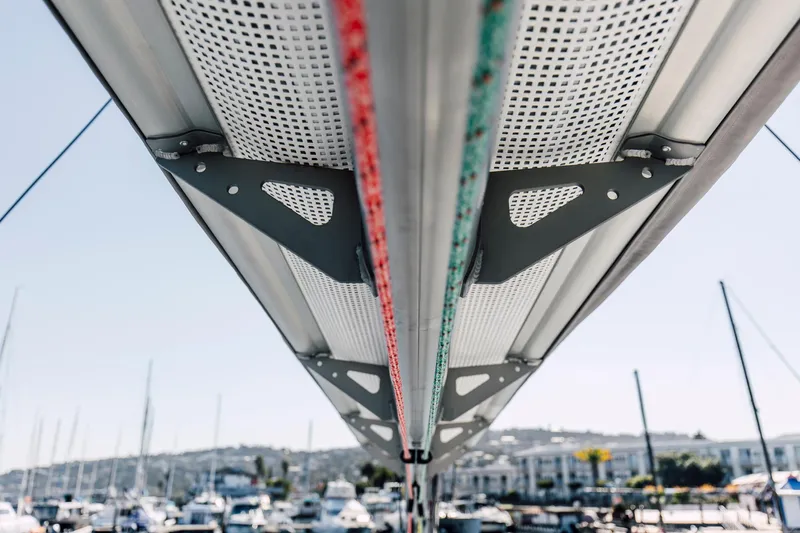

• Cross Beam
• Longeron with forward deployment anchor
• Longeron 2:1 Head sail line lead with Two XTS Clutches
• Bikini tramps

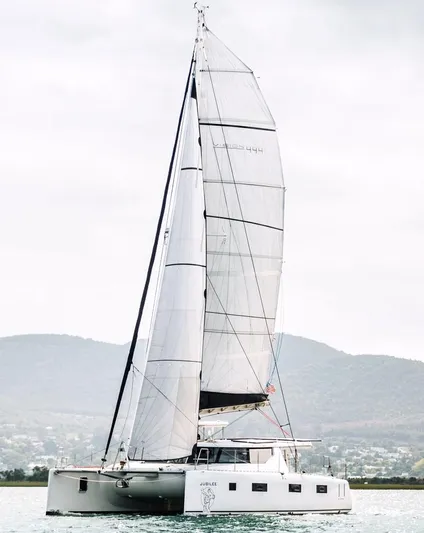

• Sails

• Endurance Cross Cut Dacron
• Fully Battened Main Sail

• Roller Furler Jib with UV Strip
• Main Sail Stack pack with Vision 444 Logo
• Sail Bags
• 2 X Super Tramp Trampolines
• 2 x Super Tramp Bikini trampolines

• Deck Gear

•  8 X Horn Cleats
•  8 X Stanchions with 5mm Dyneema Guard Rails
• 10 x Deck Pad eyes
• 3 x Jackstay attachment webbing points
• Windlass Hause hole for longeron 2:1 foresail system
• 4 X SZ 44 Hatches
• 2 X SZ 70 Hatches

• 3 X SZ 30 Hatches
• 4 X Fore Deck Lazarette Hatches
• Light Grey Embossed EVA Decking on all Flat Deck Areas
• Teak brushed EVA decking in cockpit and sugar scoops
• 7 X Composite Cockpit Storage Hatches

• Electronics – GARMIN

• 8412 GPS Chart plotter/Radar at Helm
• 48NM GMR 18” HD Radar
• GHP Reactor, Mechanical Retrofit Core Pack
• Raymarine T2 drive unit

• G Wind, GND 10, WSI Box, GMI 20, DST800 Bundle
• VHF 315i AIS 800 Black – 4” Screen-DCS-AIS with Remote at Helm

• Electrical

• Victron Lipho4 400Ah 24V battery bank

• 2 X 12V 80Ah AGM Starter Batteries
• LED Exterior Lighting
• AC/DC Circuit Breakers
• DC Switching Panel
• Thermal breakers

• Isolator Switches
• Dual Voltage Shore Power System using Victron Isolation transformer
• 220v Victron 5kw Invertor Charger
• Tin PVC Wire with Proper Termination and Coding
• Courtesy Lights on Transom Steps

• Courtesy Lights Down Interior Stairs
• Saloon Red Night Lights
• Red chart light
• LED Cabin Lights
• LED Saloon Lights
• LED strip Mood Lighting

• 1 X Single AC plug with USB port
• 2 X Double AC plug
• 3 x Single AC plug with Double USB port
• 5 x Single AC plug with switch
• 3 x Triple AC multi plug with Switch
• 1 x 12v Marinco Socket at helm
• 1 x 24v Marinco Socket in Cockpit
• Dimmer Light Controls in Saloon and Cabins
• 4 X Smoke Detectors

• Gas

• BEP Propane Monitoring Systems
• Propane Solenoids
• Propane Detectors
• Propane Pressure Gauge
• 2 X 10kg Composite Propane Cylinders

• Manual Shut off under Stove

• Plumbing

• 3 X Raritan Marine Electric Toilets 24V salt or fresh water cross over
• 3 X 38mm Diaphragm waste removal pumps
• 3 X Built-in Toilet Macerator Pumps
• 2 X Water Pumps
• 1 x Hot and Cold transom shower

• 1 X Saltwater Deck wash system (Starboard aft combing)
• 1 x Freshwater wash system (Port aft Combing)
• 1 x Freshwater anchor wash system (Starboard Forward Locker)
• 3 X Shower Waste Pumps
• 2 X Black Water Tanks
• 6 X Rule 1100Lphr Bilge pumps

• Interior

• Modern Contemporary Design
• Woca Waxed Oil Finishes on all-Natural Oak Solid and Veneer Wood Surfaces
• 2k Sprayed Gloss Units and on White Doors
• Upholstered Headboards with Reading Lights
• White Vinyl Cladding on Ceiling and Vertical Areas
• Slightly Textured French Chartreuse Painted Surfaces on Walls

• Various Options for Sunbrella Upholstery Material and Leather
• Blind/Screens on Hatches
• Como Samara Oak Hard-Wearing Flooring

• Port and Starboard Mid Ship Lockers

• All Pumps and Through Hull and Skin Fittings Located in this Locker
• Aircon Shelf
• Blackwater Tanks
• Manual Bilge Pumps
• Automatic Bilge Pumps

• Water Strainers
• Tank Breathers
• Deck Fillers
• Non-Return Valves
• Strum Boxes

• Plumbing Manifolds
• Salt to Fresh Cross Over Valves
• Watertight DB Switch Box for Pumps and Aircons
• 1 x Port Side Pantry with 5 shelves and 1 x Door

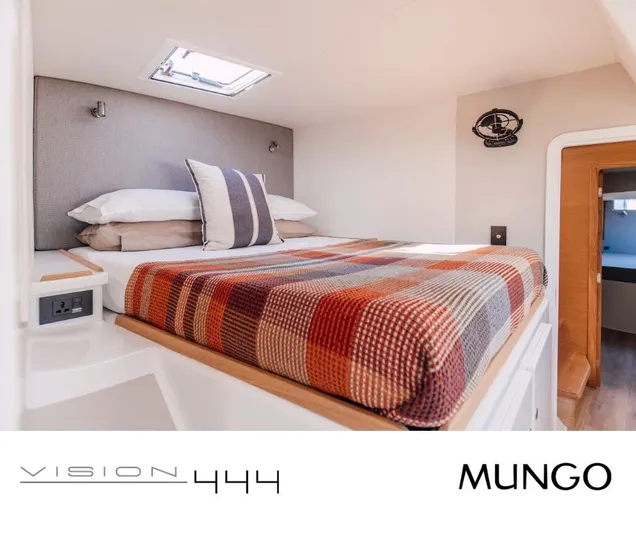

• Cabin Forward Port Side

• 1 X Forward Cabin
• 1 x Queen Size Island Bed
• 1 x Upholstered Headboard
• 2 x Headboard Reading Lights
• 2 x Ceiling LED Down Lights
• White Vinyl Ceiling & Wall Panels
• 1 x Single AC Plug with Single USB Port
• 1 x Air Conditioner Outlet with Louvered Vent
• 1 X Hanging Cupboard with Aircon Through Hull Fitting Access

• 5 x Clothes Shelf Cupboards

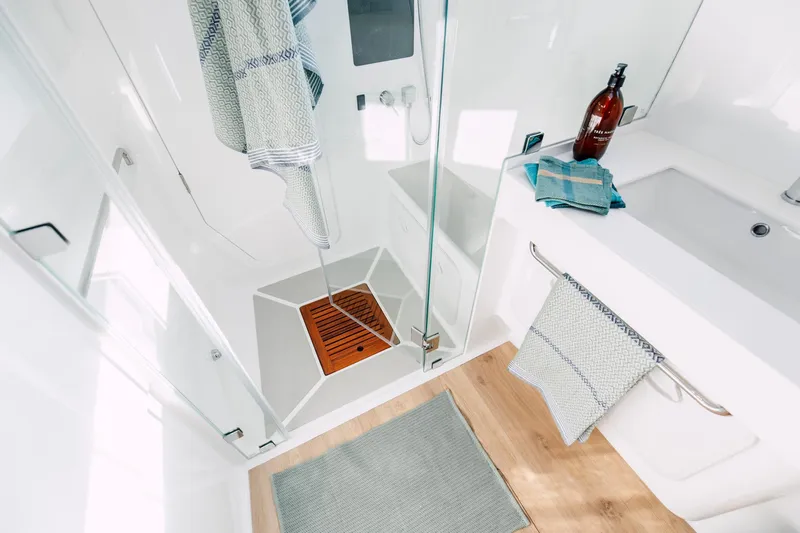

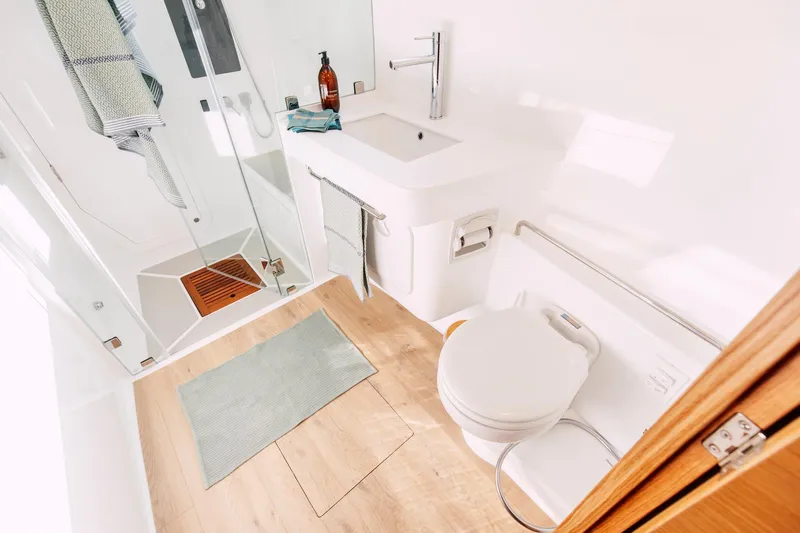

• 1 X En-suite Head Sprayed 2k White spray Finish
• 1 X Raritan Electric Toilet
• 1 X Recessed Basin with Mixer Faucet
• 1 X Adjustable Shower Head with Hot/Cold Lever Control
• 1 x Teak Shower Grating
• 1 x Escape Hatch in Head
• 1 x Glass Shower Door
• 1 x Stainless Steel Hand/Towel rail
• 1 x Vanity Cabinet with Mirror
• 1x 24v Fan

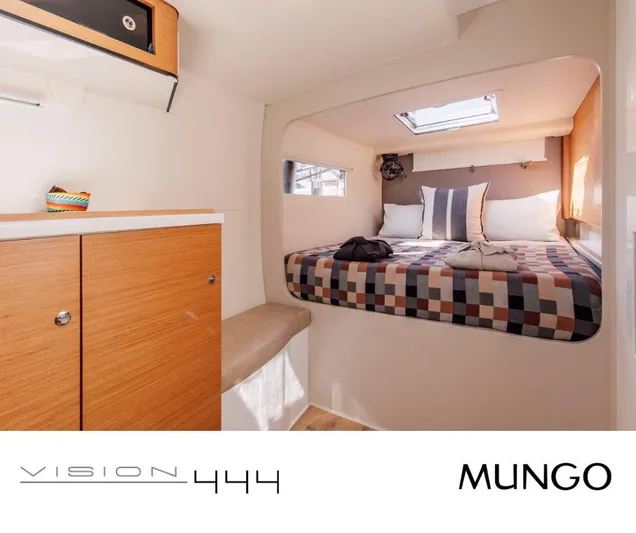

• Cabin Aft Port Side

• 1 x Aft Cabin
• 1 x Queen Size Bed
• 1 X Upholstered Headboard

• 2 X Headboard Reading Lights
• 2 x Ceiling LED Down Lights
• White Vinyl Ceiling panels
• 1 x Single AC Ploug with Double USB Port
• 1 x Air Conditioner Outlet with Louvered Vent
• 1 X Hanging Cupboard
• 2 X Clothes Cupboards

• 1 X En-suite Head 2k White Gloss Finish
• 1 X Raritan Electric Toilet
• 1 X Basin with Faucet Mixer
• 1 X Showerhead with Hot/ Cold Lever Control
• 1 x Teak Shower Grating
• 1 x Vanity cabinet with Mirror
• 1 x Recessed Wash basin with Hot Cold Mixer Faucet

• 1 x Stainless Steel Hand/Towel rail
• 1 x Aft-facing Port Light
• 1x 24v Fan

• Owners Cabin Starboard

• 1 x Queen Size Bed
• 1 x Upholstered Headboard
• 2 X Headboard Reading Lights
• 2 x Ceiling LED Down Lights
• White Vinyl Ceiling Panels
• 2 x Single AC Plug with Double USB Port

• 1 X Air Conditioner Outlet with Louvered Vent
• 2 x Midships Cupboards
• 3 x Clothes lockers

• 1 x Privacy Door Between Cabin and Saloon
• 1 x En-suite Head 2k White Gloss Finish
• 1 X Raritan Electric Toilet
• 1 X Wash basin with Hot Cold Mixer Faucet

• 1 X Showerhead with Hot/Cold Control Lever
• 1 X Shower Seat
• 1 X Glass Shower Door
• 1 x Vanity Cabinet with Mirror
• 1 x Electrical Access Door
• 1 x Aft-Facing Port light
• 1x 24v Fan

• Starboard Forward Workshop

• Workbench with Bench Vice

• Heavy Duty Rubber Worktop
• 8 X Storage Lockers
• Heavy Duty Rubber Flooring
• 1 X 220V AC plug point
• 1 X Escape Hatch

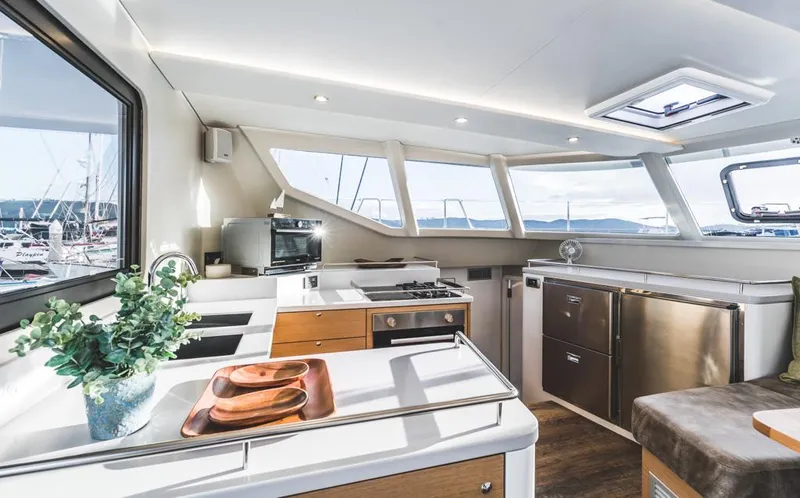

• Galley

• 4 X Burner Propane Stove Top
• 1 X Propane Oven
• 1 X 130L Fridge
• 1 X 90L Freezer
• 2 x Triple 220v Plug points with Switches

• 1 X Double Black Recessed Sink
• 1 X Hot/Cold Freshwater Faucet

• Galley Counters with Stainless Steel Railings
• Sliding Galley Window to Cockpit

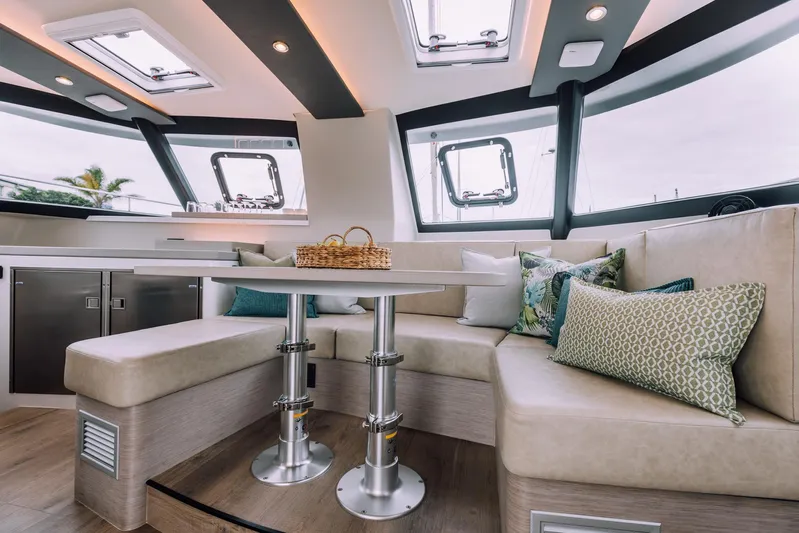

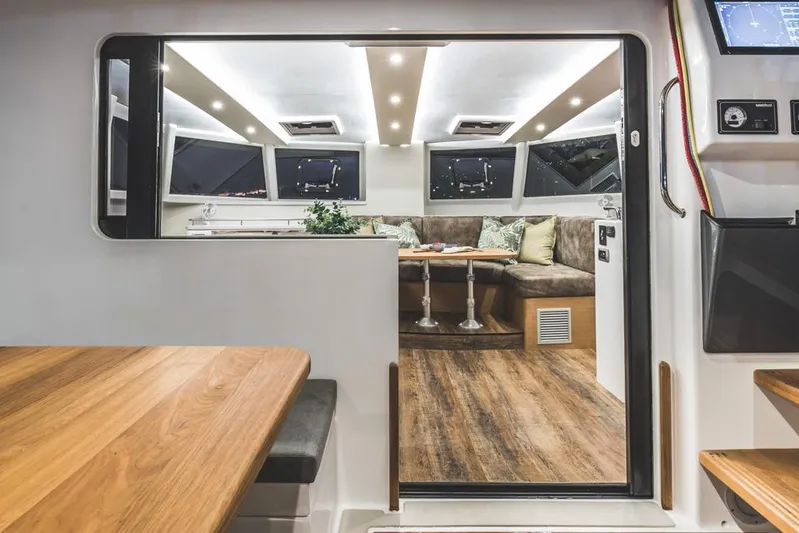

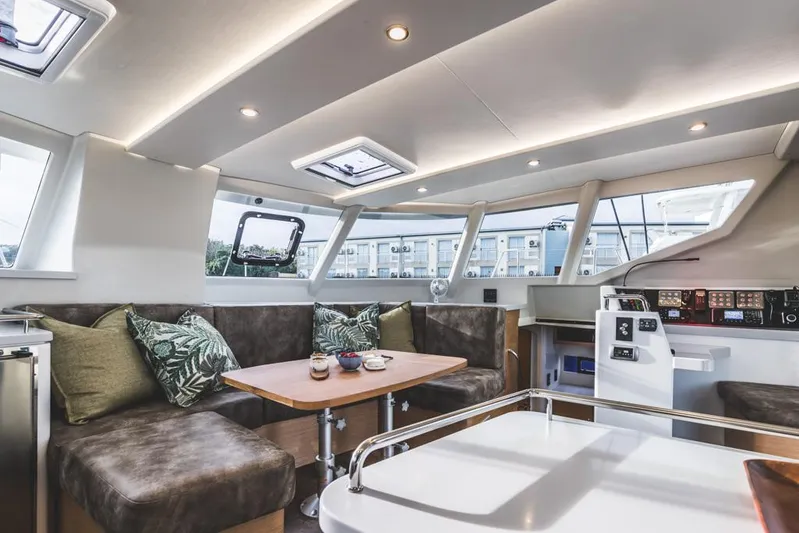

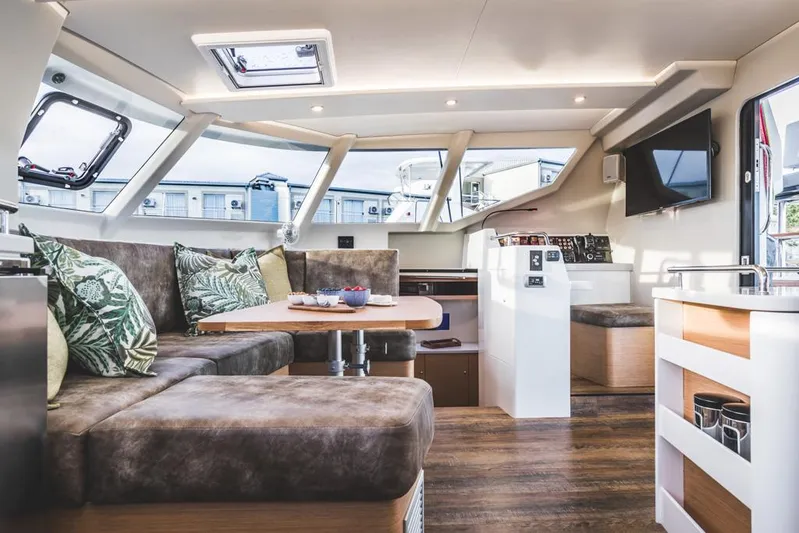

• Saloon

• Saloon seating in Leather
• Batteries and Invertors under Saloon Seating

• Natural Oak Wood grain Finish Saloon Table on Heavy Duty Drop-down Pedestals
• Forward Facing Navigation Systems Station
• 10 X LED Down Lights
• 6 x LED Mood lighting Strips
• 2 X Air Conditioner Outlets with Louvered Vent
• Oversized Electrical access door
• 1 x Single AC plug with Double USB ports
• 2x 24v Fans

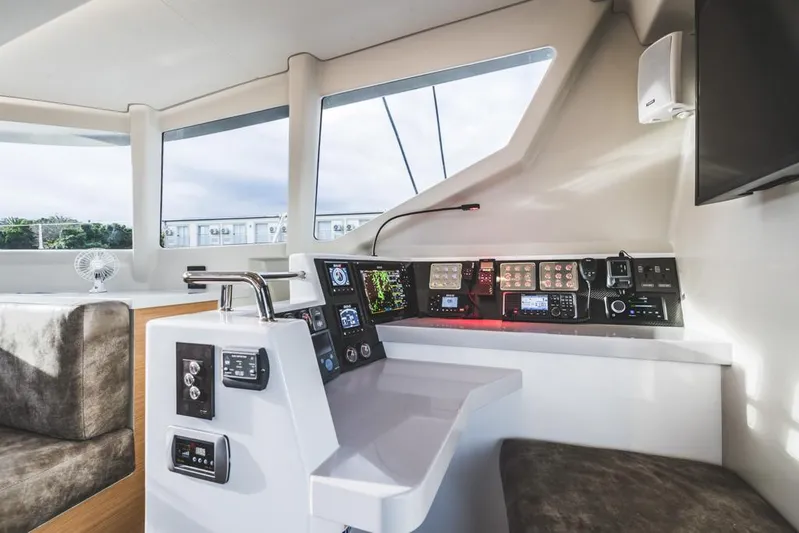

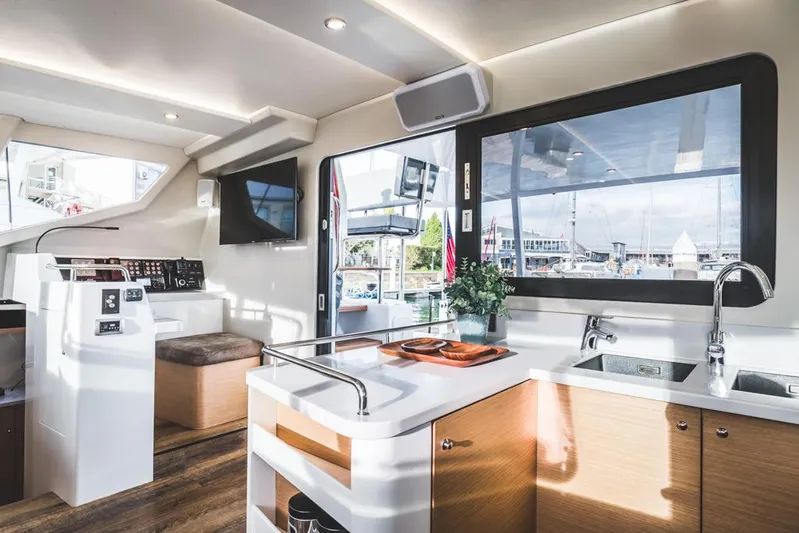

• Helm Station

• Bulkhead Helm
• Over Head Compass
• 2 X Rope Bins
• 2 X Person Helm Chair with Fold Down Footrest
• 1 x Helm Chair harness attachment point
• Helm Chair Cushions

• Composite Helm Shade Top with Stainless Legs
• Overhead Helm Window
• 360 Helm enclosure with Canvas boarders

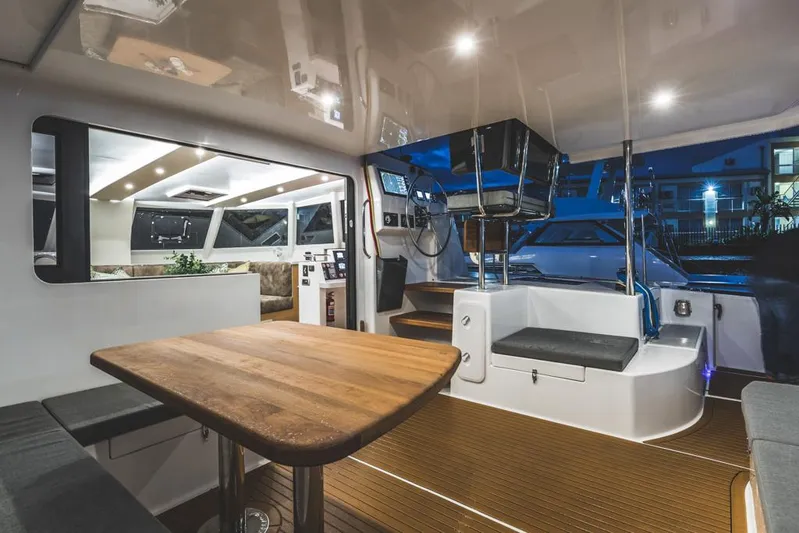

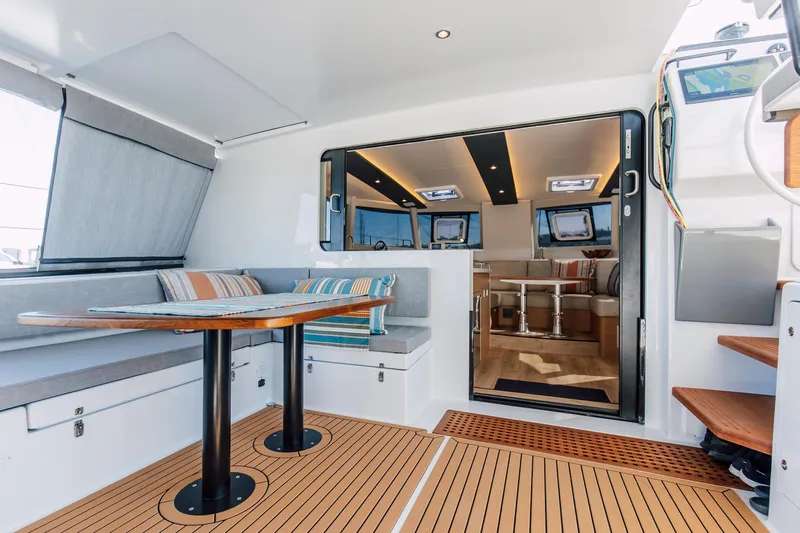

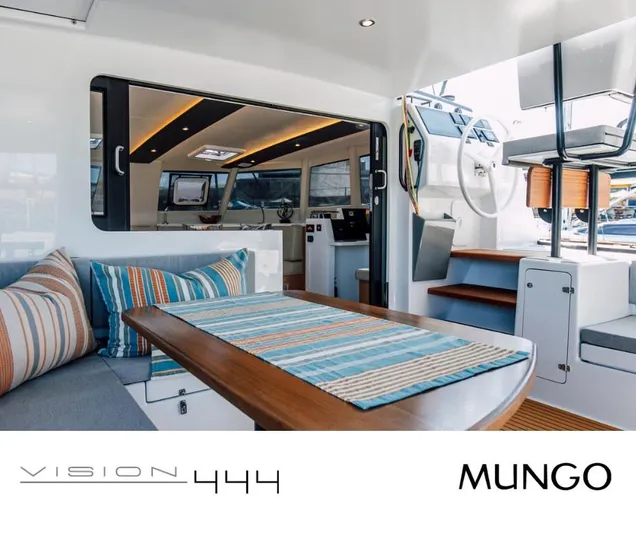

• Cockpit

• 2 X Side Access Doors (Unique to the Vision 444)
• 4 X Sliding Safety Bars in Sugar Scoops with Screw Locking
• 2 x Transom Wash boards

• 1 x fish filleting board plus BBQ stand

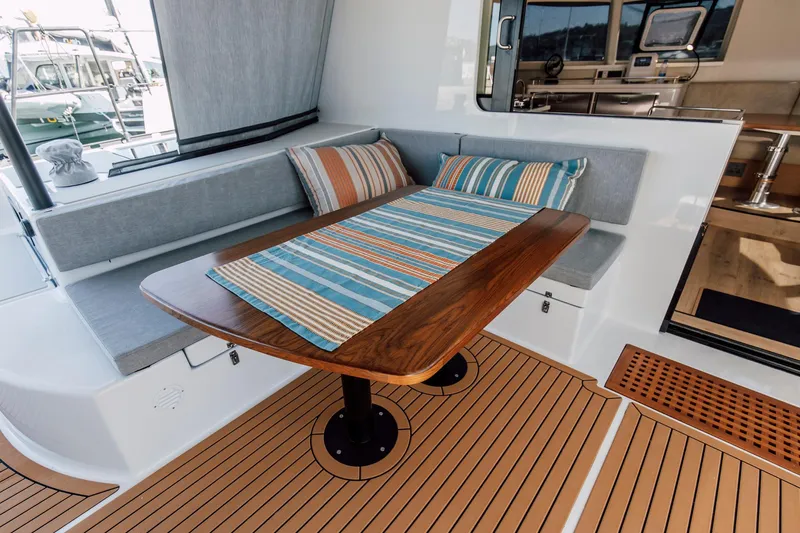

• 1 x Teak table with Canvas Cover
• 1 x Full Cover Hard Top Bimini
• 1 x Sliding Overhead Hatch to Port Side Cut out
• 5 x Cockpit Drains
• 1 x Large Cockpit Dump with Teak Grating
• 1 x Set off Saloon door Washboards
• 1 x Storage Locker Under Helm Seat

• 1 x Weber Aluminium Gas BBQ with composite Gas Cylinder
• 1 x Cockpit Cooler box Built into Seat
• 1 X Heavy Duty Telescopic Transom Ladder
• 1 x Full Cockpit Canvas and Mesh Enclosure
• 1 x Set of Sunbrella Flannel Cockpit Cushions

• Anchoring, Mooring

• Lofrans 1500W Windlass two-foot switches
• Lofrans Remote Helm control and Chain Counter
• Anchor 33kg Rocna Original
• Anchor Bridle with Chain Claw
• Rubber Protection Matt in Anchor Locker

• Anti-Osmosis Epoxy barrier coating 3 coats
• 3 coats of Sigma Coatings Anti foul
• Prop Speed on Sail Drives and Props
• 100m Chain to Suit Windlass
• 8 X Fenders

• 4 X 6m Dock Lines Spliced
• 4 X 10m Dock lines Spliced
• 1 X Dinghy Davit system

• Safety CAT A Equipment

• 5 X Fire Extinguishers and 2 x fireballs

• Vinyl lettering and boat name (Excluding Custom Graphics)
• 1 x 8-man Airmar life raft
• 1 x Epirb
• 2 X Manual Hand Operated Bilge Pumps
• Jon-Buoy Self-Inflating System

• 4 x Standard Life Jackets
• 4 x Auto inflate PFD’s with built in harness
• Flashlight
• Rigging Cutting Tool
• Lifelines

• Cockpit Harness Attachment Points
• 1 X Orange Smoke Flare
• 4 X Red Handheld Flare
• 4 X Red Rocket Flare
• Radar Reflector

• Watertight Capsize Bottle
• Space Blankets
• First Aid Kit
• Spares
• Tools

• Orange ID Sheet
• Signalling Mirror
• Handheld Compass
• Sound Signalling Device
• Code “N” & “C” Flags

• 2 X Black Balls
• Soft Wooden Bungs
• Emergency Nav Lights

• Launching, Commissioning, Hand Over

• Launching at Knysna Yacht Club Slipway

• Stepping of Mast by Sparcraft Masts
• Commissioning of Sails by Sail Manufacturer
• Commissioning and Calibration of Components
• Sea Trials and Training in and around Knysna
• Hand Over to Client in Knysna
