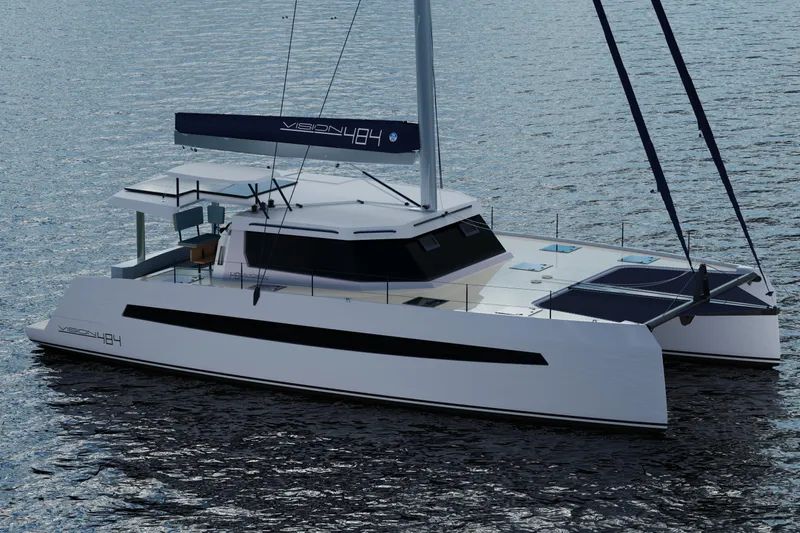

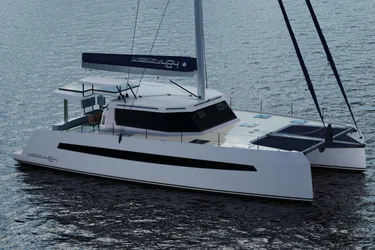

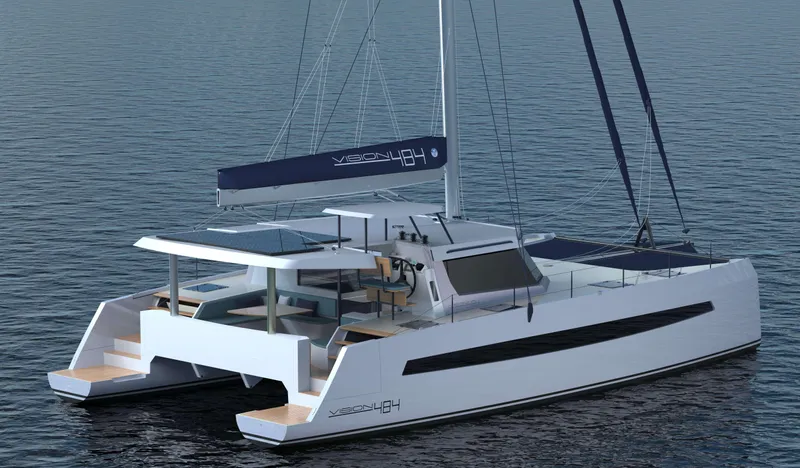

VISION 484 Boat for Sale

Appendix 1 

3 Cabin Version 

• Hull, Deck, Bulkheads and Furniture 

• All Components are Vacuum Resin Infused 

• Crystic Vinyl Ester Epoxy Resins Used Throughout 

• Foam Core Infused 

• Hull and Deck sprayed with high-quality two-part paint

• Vacuumed Foam Sandwich Furniture Components 

• Furniture is Structurally Bonded to Hull 

• All Lockers Painted Out with Grey Polyester Topcoats 

• Steering System 

• Composite Rudders 

• 60.3mm Stainless Steel Rudder Shafts, Solid Section Through Hull  

• Vesconite Rudder Bushes 

• Tie Bar Connected Steering

• Vectran Control Lines Linked to Chain and Sprocket Steering

• 1 X Carbon Composite 3 Spoke Steering Wheel 

• Emergency Steering  

• Ackermann Angle in Steering Geometry Ensures Laminar Flow at all Steering Angles 

• Propulsion   

• 2 X 38HP Nanni Diesels with 24V 90-amp XT Alternator House Battery and 12V 120amp Alternator Starter Battery 

• 2 X Nanni Diesel Primers Built in 

• 2 X Nanni Built-in Engine Oil Extractor Pumps 

• 2 X ZF Sail Drives with Anodes 

• 2 X 18X12 Gori Feathering 3 blade Propellers  

• 2 X Engine Room Extraction Fans  

• 20mm Sound Proofing Sheets with Gelcoat Covers 

• 2 X Diesel Filter / Water Separator System

• 2 X Engine Room Lights 

• 2 X Bilge Pumps 

• 2 X Remote Fire Extinguisher System 

• Easy Access Under Bunks with Support Arm with Work Seat  

• Level Floor in Engine Room 

• Fuel  

• 2 X Composite Fuel Tanks 

• 2 X Fuel Line Gravity Feed 

• 2 X Inspection Hatches 

• 2 X Deck Filler Direct onto Tanks 

• 2 X Manual Dip Stick System 

• 2 X Top Mounted Tank Drain Systems

• 2 X Tank Senders 

• Water 

• 2 X Composite Water Tanks 

• 2 X Water Maker Feed Ports 

• 2 X Deck Fillers 

• 2 X Inspection Hatches 

• 2 X Water Pumps  

• 2 X Wema Tank Senders 

• 2 X 40L Water Heater 220V with Engines Heat Exchanger Connection 

• Glazing 

• Toughened Glass with 2 X Hatches in Centre Windows 

• Single Leaf sliding Cockpit window 

• Single Leaf Aluminium Sliding Saloon Door with Vision 444 Frosted logo

• 10 X Perspex Hull Windows with 2 Flush Mount Port Lights aft windows  

• Winches 

• 4 X 50ST Electric Winches 

• 2 X Winch Handles 

• 3 X Winch Handle Pockets

• Main, Jib, Self-Tacking and Head Sail System 

• Main Sheet Bridle System 

• Halyard lock for Spinnaker/Code sail

• 2 -1 Harken Main Sheet Blocks Lashed

• 4 lashed boom blocks

• 4 X T50-5 Spinlock Deck Organizers 

• 10 X XTS Spinlock clutches

• 5 X Lashed mast bass lead blocks

• Harken Jib Traveller System 

• 3m Harken Traveller Track 

• 2 X Harken Car Stops 

• Harken Block and Car 

• Jib Lashed clew board block

• 2 X Bow Pad Eyes for Blocks 

• 2 X Jib preventor pad eyes

• 2 X Midship Tweaker pad Eyes

• 2 X Aft pad eyes for Head sails lead blocks

• 1 X Storm Jib attachment point and Dyneema stay

• Mast, Boom, Fore Beam  

• Complete Sailing Rig Package  

• Mast  

• Mast Steps

• Hayrack Boom  

• Antal Batten Car Slider System 

• Standing Rigging 

• Running Rigging 

• Navigation Lights 

• Steaming Light 

• Tri-Colour Mast Light 

• 2 x Spreader Deck Light 

• Courtesy Flag Halyards 

• VHF Antenna 

• Windex 

• Radar Bracket 

• Cross Beam  

• Longeron with forward deployment anchor 

• Longeron 2:1 Head sail line lead with Two XTS Clutches

• Bikini tramps

• Sails

• Endurance Cross Cut Dacron 

• Fully Battened Main Sail 

• Roller Furler Jib with UV Strip 

• Main Sail Stack pack with Vision 484 Logo

• Sail Bags 

• 2 X Super Tramp Trampolines

• 2 x Super Tramp Bikini trampolines 

• Dyneema soft shackle package

• Deck Gear 

•  8 X Horn Cleats 

•  8 X Stanchions with 5mm Dyneema Guard Rails

• 10 x Deck Pad eyes

• 3 x Jackstay attachment webbing points

• Windlass Hause hole for longeron 2:1 foresail system

• 4 X SZ 44 Hatches 

• 2 X SZ 70 Hatches 

• 3 X SZ 30 Hatches 

• 4 X Fore Deck Lazarette Hatches 

• Light Grey Embossed EVA Decking on all Flat Deck Areas 

• Teak brushed EVA decking in cockpit and sugar scoops 

• 7 X Composite Cockpit Storage Hatches 

• Electronics – GARMIN 

• 8412 GPS Chart plotter/Radar at Helm 

• 48NM GMR 18” HD Radar 

• GHP Reactor, Mechanical Retrofit Core Pack  

• Raymarine T2 drive unit 

• G Wind, GND 10, WSI Box, GMI 20, DST800 Bundle 

• VHF 315i AIS 800 Black – 4” Screen-DCS-AIS with Remote at Helm

• Electrical 

• Victron Lipho4 800Ah 24V battery bank 

• 2 X 12V 80Ah AGM Starter Batteries 

• LED Exterior Lighting 

• AC/DC Circuit Breakers 

• DC Switching Panel 

• Thermal breakers

• Isolator Switches 

• Dual Voltage Shore Power System using Victron Isolation transformer 

• 2 x 220v Victron 5kw Invertor Charger

• Tin PVC Wire with Proper Termination and Coding 

• Courtesy Lights on Transom Steps 

• Courtesy Lights Down Interior Stairs 

• Saloon Red Night Lights

• Red chart light

• LED Cabin Lights 

• LED Saloon Lights 

•  LED strip Mood Lighting  

•  12 USB point in headboard

• 1 X Single AC plug with USB port

• 2 X Double AC plug

• 3 x Single AC plug with Double USB port

• 5 x Single AC plug with switch

• 3 x Triple AC multi plug with Switch

• 1 x 12v Marinco Socket at helm

• 1 x 24v Marinco Socket in Cockpit

• Dimmer Light Controls in Saloon and Cabins 

• 4 X Smoke Detectors 

• Gas 

• BEP Propane Monitoring Systems 

• Propane Solenoids 

• Propane Detectors 

• Propane Pressure Gauge 

• 2 X 10kg Composite Propane Cylinders

• Manual Shut off under Stove 

• Plumbing 

• 3 X Raritan Marine Electric Toilets 24V salt or fresh water cross over 

• 3 X 38mm Diaphragm waste removal pumps

• 3 X Built-in Toilet Macerator Pumps 

• 2 X Water Pumps 

• 1 x Hot and Cold transom shower

• 1 X Saltwater Deck wash system (Starboard aft combing)

• 1 x Freshwater wash system (Port aft Combing)

• 1 x Freshwater anchor wash system (Starboard Forward Locker)

• 3 X Shower Waste Pumps 

• 2 X Black Water Tanks 

• 6 X Rule 1100Lphr Bilge pumps
